The research discussed here, conducted during 2008–2018, was focused on target areas to provide a range of soils and cropping systems for the evaluation of CA in Rajshahi, Mymensingh, Rajbari and Thakurgoan districts in Bangladesh (Figure 1
). The research reviewed was mostly conducted by a Conservation Agriculture project supported by the Australian Centre for International Agricultural Research (2012–2017). In each of the study areas, cropping systems experiments were established to evaluate the most suitable minimum soil disturbance options and the key limitations to CA and its profitability when applied to rice-based cropping. Experiments were conducted mostly on farms involving farmers’ groups and machinery contractors (called local service providers (LSP)), where monsoon (Kharif-2 season) rainfed rice (aman rice), cool-dry season high yield irrigated rice (boro rice) and other non-rice crops in the dry (Rabi) season, e.g., oilseed, pulse or wheat (Triticum aestivum
), and pre-monsoon season (Kharif 1) crops, such as aus rice, mung bean (Vigna radiata
) or jute (Corchorus capsularis
L.), were established, depending on their local suitability. These experiments were supplemented by research and development focused on improvements in minimum soil disturbance machinery, starting with the VMP design, field experiments designed for the diagnosis of agronomic constraints in CA related to weeds and nutrition and studies on improvements in soil fertility associated with minimum soil disturbance, increased retention of crop residues and more diverse crop rotations including pulses and oilseeds.
To accelerate the development and adoption of CA in Bangladesh, a network of farmers, LSPs, extension officers, Non-government Organizations (NGOs), banks and machinery manufacturers was established. The purpose of this network was to identify constraints to adoption of CA in the machinery and related services value chains, and advocate for research and development on relevant minimum tillage machinery, crop agronomy packages (especially weed control) and soil management technologies for specific cropping systems. This farmer network, known as the Conservation Agriculture Service Providers Association (CASPA), serves as a stakeholder group for dissemination of findings to farmers.
2.4. Designing Minimum Tillage Planters for Improved Operation and Effectiveness
There are few planters available for CA planting of crops in the EGP using the 2WT, and none were considered to have sufficient flexibility or versatility to develop a profitable LSP business operation for crop establishment in the diversified cropping systems of the EGP [9
]. The VMP was designed and developed as a seeder for smallholder farms and operation by a 12–16 horsepower 2WT making it suitable for the EGP [4
]. It can deliver seed and fertilizer into the soil behind the tyres and the rates of application can be adjusted. Seeding depth and row spacing can also be adjusted while planting by strip planting (e.g., SP), zero tillage, single pass shallow tillage, shallow beds and conventional tillage (CT). The shaft and brackets of the VMP were designed (Figure 5
) for flexibility for multi-crop planting with basal fertilizer banding in line, and capacity for rapid adjustment of seed and fertilizer rate, seed depth and row spacing on crop-by-crop and field-by-field bases.
A related planter that only has strip planting capability is the Versatile Strip Seed Drill (VSSD) [9
], also developed in Bangladesh. The VMP [4
] and VSSD [9
] have now been tested extensively in Bangladesh. Both have the capacity for use as a 2WT-based CA planter in cropping systems used by smallholder farmers more widely in Asia, Africa and other regions.
The field capacity of VMP was 0.07 ha h−1
for SP which was 34% higher than for CT due to the reduced number of operations [4
]. Land preparation cost by VMP was decreased by up to 75% for SP compared to CT. The VMP was capable of sowing many crops from small jute seed (2 g−1000
seeds) up to maize (160 g−1000
seed) (Table 1

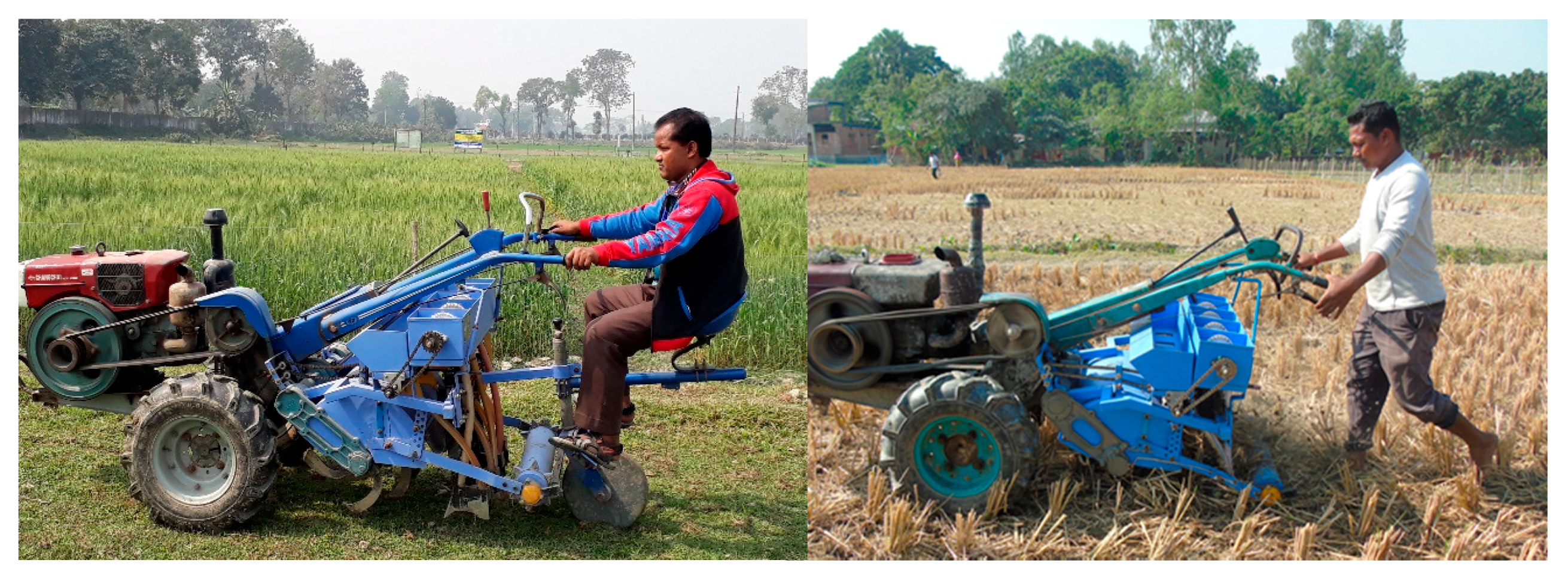

). The latest VMP (Model 13, Figure 5
) weighs 152 kg excluding the driver’s seat and rear wheel for road transportation and ex-factory price is US$
Fuel consumption while strip planting by VMP decreased from 33.1 to 5.83 L ha−1
) (Table 2
). The maximum cost (US$
) of land preparation and seeding was incurred in the case of CT system and the lowest (US$
) for strip planting.
2.5. Weed Management—Including the Role of Residue
Herbicidal weed control is now a common practice for conventional full tillage-based agriculture [10
]. Experiments were conducted to assess the effectiveness of herbicide and/or crop residue use to control weeds under CA in a range of crops. The benefit–cost ratio (BCR) with SP and NPT followed by the application of pre-emergence and post emergence herbicides was much greater than for CT and CP and hand weeding [11
]. Retention of 50% residue increased the grain yield by 4% and BCR by 9%. The weed seed bank study revealed that, after the two-year field experiment, the practice of CP for rice and CT for non-rice crops enriched the seedbank weed numbers by 13% while SP and NPT reduced seedbank numbers by 17%. Residue retention diminished the weed seedbank numbers by 11%. Even though residue retention levels did not exceed 50%, the increased residue helped to suppress weeds and is a useful component of the weed control strategy of CA practice [13
]. After 3–5 years of continuous CA practice, the weed seedbank was reduced by 30–35% compared to the current conventional practice [13
]. Hence, in the medium to long term, there is likely to be less difficulty suppressing weeds in the CA fields.
From a number of experiments with both rice and wheat as well as mustard, the best weed control was obtained from sequentially applied pre-emergence and post-emergence herbicides. Herbicides applied in NPT aman rice had no residual effects on the succeeding crops of wheat, lentil or sunflower (Helianthus annuus
]. Similarly, no toxicity was detected in mung bean grown after various herbicides were used to treat weeds in wheat [14
]. Phytotoxic effects of some herbicides were recorded in rice and wheat, depending on cultivar and rate of herbicide application. While almost all rice and wheat cultivars tested were tolerant to herbicides at the label rate, there were some exceptions. The implications of these findings are that screening of cultivars, especially new cultivar releases, needs to be institutionalized within national breeding programmes, since the use of herbicides for weed control (for conventional and CA practice) is quickly becoming the norm rather than an exception in farmers’ fields in the EGP [10
Field experiment showed that application of herbicides has significantly reduced weed infestation in wheat and rice fields under SP and provided up to 227% and 28% higher grain yield of SP-based wheat and NPT-based rice, respectively, compared to non-weeded plot [11
For aman rice established by NPT, the best weed control was obtained from sequentially applied pyrazosulfuron-ethyl, orthosulfamuron and butachlor + propanil [14
]. It provided similar or better grain and straw yield as weed-free control and gave the highest net benefit among all treatments during successive years. Selection of herbicides with different modes of action is an essential tool to minimize the risk of herbicide resistance developing in weeds. From several papers [11
], it can be concluded that rotational use at the recommended dose of the effective herbicides in a rice–wheat–mung bean pattern could be effective to control weeds in the CA system as the herbicides applied to rice and wheat had no residual effect on the succeeding crops. Moreover, almost all rice and wheat varieties were tolerant to herbicides at the recommended rate on the product label.
2.6. Benefit of CA for Soil Fertility
After 2.5 years in both legume- and cereal-dominated rotations, the soil organic carbon (SOC) concentration and SOC content at 0 to 7.5 cm soil depth were greater in SP + NPT than CT + CP [17
]. By contrast, the SOC concentration and content at 7.5 to 15 cm remained unchanged between CT + CP and SP + NPT. Soil organic C losses through the emission of CO2
were greater in CT + CP than SP + NPT. High residue retention increased SOC concentration, SOC content, and CO2
emission from soil. In the cereal-dominated rotation, SP + NPT sequestered 0.20–0.44 Mg C ha−1
annually, while CT + CP caused 0.41–0.66 Mg C ha−1
loss at 0–15 cm soil depth. In contrast to the legume-dominated rotation, neither CT + CP nor SP + NPT sequestered SOC but SP + NPT reduced the loss by 0.40 Mg C ha−1
annually compared to CT + CP. Based on the C balance, it is estimated that annual organic matter inputs of 4 Mg C ha−1
under SP + NPT and 6 Mg C ha−1
under CT + CP condition in the legume-dominated system, and 1 Mg C ha−1
under SP + NPT and 8 Mg C ha−1
under CT + CP condition in the cereal-dominated system, would be required to maintain SOC at the antecedent level. Application of SP + NPT and retention of higher levels of crop residue (HR) have the potential for increasing C sequestration and N accumulation, while reducing N losses. Such improvements in soil properties and thereby in crop growth and yields, were obtained after 2–3 years of CA practice in rice-based systems of Bangladesh.
After five years practicing CA (using crop establishment by SP for non-rice + NPT for rice), the increase in SOC was 65–68% at the long-term experiments at Durgapur and Godagari of Rajshahi district [18
]. The increase in SOC was equivalent to an additional 3.8–4.2 t of C ha−1
in the soils after five years under CA (SP for non-rice + NPT for rice with increased residue retention) (see Table 3
for the results at the Godagari, Rajshahi site). Soil N storage also increased with the CA practices, which also decreased soil bulk density and increased soil porosity [19
The research at Rajbari on a light textured soil concluded that the minimum soil disturbance practices ((SP + NPT) and zero tillage (ZT + NPT)) increased SOC, total N (TN) and extractable sulphur (S) and zinc (Zn) contents in the uppermost 0–5 cm soil layer [20
]. The 0–5 cm soil depth was enriched with SOC and TN content by 24% and 23%, 23% and 18%, and 11% and 9% under ZT + NPT, SP + NPT and CT + CP practices, respectively, in contrast with the initial values. By contrast, the accumulation of extractable phosphorus (P), S and Zn followed the sequence ZT + NPT > SP + NPT > CT + CP practice. The increased residue retention significantly increased SOC, TN, extractable P, potassium (K), S, Zn and boron (B) contents. Crop establishment and crop residue retention had significant influence on the soil penetration resistance and soil water content (SWC), but not soil bulk density. The SP + NPT and HR conserved more SWC and decreased penetration resistance values compared to CT + CP practices with LR. The SP + NPT practices increased grain yield of rice and lentil and yield of jute fibre, but not the grain yield of wheat [21
]. Higher crop residue retention increased the yield of jute fibre, rice and wheat.
Based on average gross margin and BCR, SP + NTP together with increased (50% vs. 20% cereal crop residue retention) was more profitable for aman rice, jute and wheat production than other crop establishment and residue retention combinations [20
]. The study suggests that SP + NPT coupled with increased crop residue retention is a suitable crop establishment and residue management system for rice–jute-based cropping to maintain soil fertility, farm profitability and productivity of crops.
Up to Crop 7 in a rice–wheat–mung bean rotation, there was no indication that SP + NPT or increased crop residue retention altered the N fertilizer requirements for maximum yield of rice or wheat [22
]. Research results showed that both NH4
-N and NO3
-N levels in standing water were 20–30% higher after CP rice establishment compared to NPT rice systems. This result indicates that more N loss might occur for the case of CP compared to NPT.
Soil carbon sequestration was higher in SP + NPT together with increased crop residue retention than those of other treatment combinations. The carbon sequestration was positive and ranged from 35.2 to 288 kg C t−1
of rice production. The NPT of rice can potentially avoid 29% of the CO2
-eq emissions occurring with CP of soil under the current low level of crop residue retention [23
]. For the aman rice crop, NPT of rice with current crop residue retention decreased life cycle greenhouse gas emission by 22% relative the CP with the low current crop residue retention [18
]. While increased crop residue retention with NPT of rice was not as effective in saving greenhouse gas emissions (it increased CH4
emissions) as the current low crop residue retention, it produced greater rice yield and contributed to greater SOC, decreased bulk density and increased porosity of soil.
2.7. Conservation Agriculture as a Rice-Based System
The feasibility of CA as a rice-based system should be assessed after several years, since CA is a cropping system change that needs time to fully express the changes in soils and weeds that occur. In the Bangladeshi studies, the feasibility and benefits of CA are best illustrated by six long-term experiments, some of which have reached 21 consecutive crops [24
]. All of them include at least one aman rice crop per year. Other crops include wheat, mustard, lentil, chickpea, jute, mung bean and boro rice. The sites are located in different agro-ecosystem zones, with varied climate, soil type, land type (elevation) and hydrology (Figure 1
and Figure 2

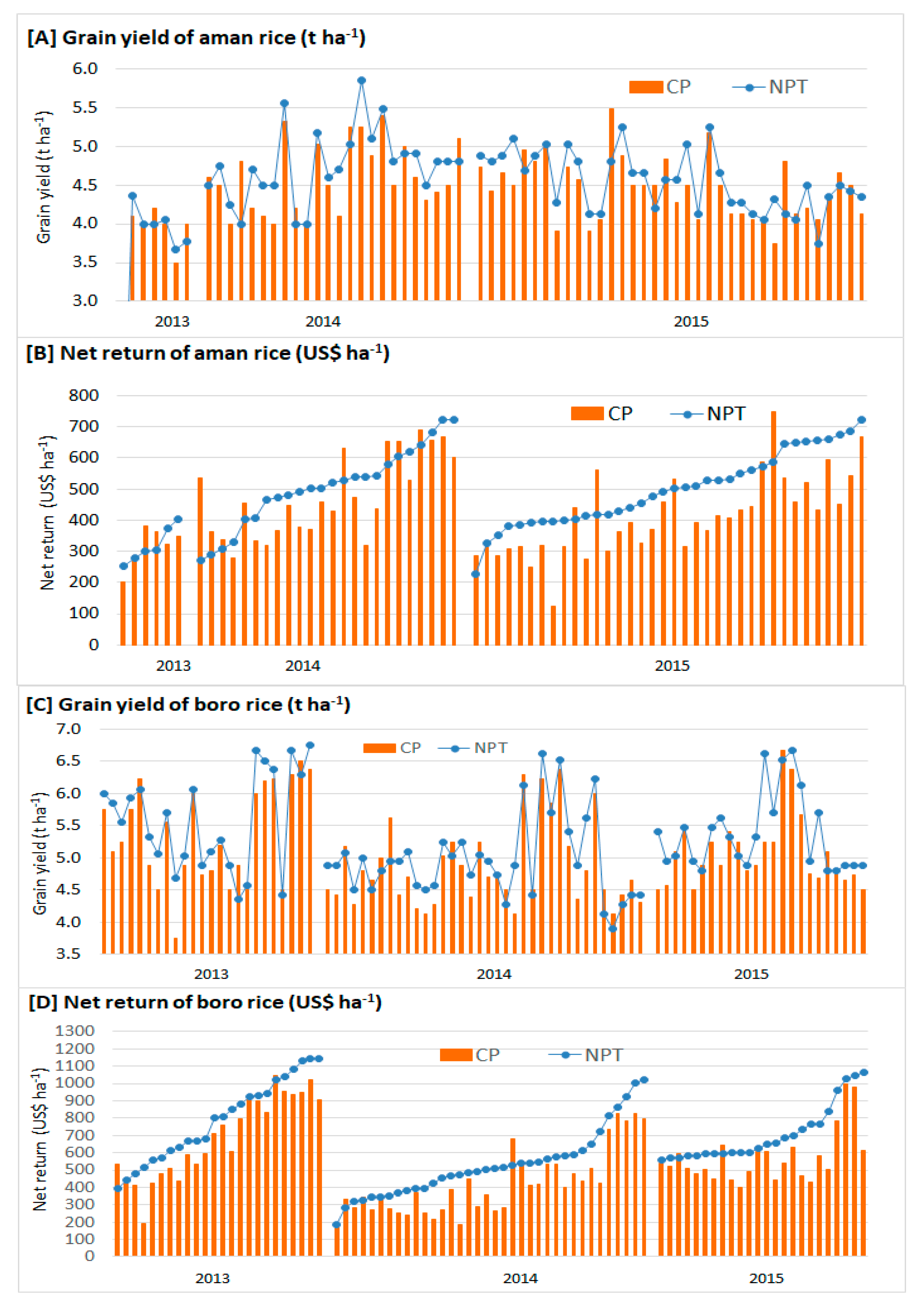

). Overall, there are consistent findings that NPT rice in these experiments yielded the same as in CP soil or more. This means that, by using NPT, CA can be practiced as a system all-year round in the rice-based cropping patterns of Bangladesh and probably more widely in the EGP.
Transplanting rice seedlings into non-puddled soils with minimum soil disturbance is an opportunity to expand the adoption of the CA in rice-based cropping systems [8
]. Manual transplanting of rice seedlings for both puddled and non-puddled conditions is time consuming, labour intensive and costly. To introduce mechanized rice seedling transplanting into non-puddled soils, two approaches were studied, both using transplanters already used for puddled soils. In the first approach, strips were prepared by VMP in dry or moist (i.e., not-saturated) soil. Then, the field was flooded for 18–24 h based on soil condition so that the soil in the strips became soften, followed by transplanting of rice seedlings into the strips by a walk-behind type of rice transplanter [25
]. Secondly, an experimental rice transplanter was developed [25
] for transplanting of rice seedlings into wet non-puddled soils in a single pass operation, incorporating a narrow strip (3–4 cm width) making mechanism. Detailed performance results and the construction design of the rice transplanter, modified for making tilled strips in non-puddled soil, is described in [26
]. From evaluations of the rice transplanter on a research farm and on farmers’ fields, mechanised NPT saved 50–70% time and 46–60% fuel for transplanting of rice seedlings relative to the CP. However, the use of non-puddled rice transplanter reduced fuel consumption for mechanical transplanting by 10–18%. Overall, in NPT, the non-puddled transplanter covered more area per day than when operated in CP. Collectively, rice seedling transplanting in NPT mode gave significantly higher rice grain yield than CP [25
In summary, the CA practice increased crop production, largely due to the increased yield of non-rice crops, and profit, by decreasing cost of crop production (reduced labour, machinery hire and fuel). While most of the long-term experiments were conducted on farmers’ fields, there are still few farmer-managed fields where continuous CA practice has occurred for significant lengths of time. Targeting the early adopters of CA to assess the benefits accrued by farmers in the medium to long term is therefore a priority for future research.
2.8. Water Balance
Water savings are the key benefit for CA, particularly in rainfed cropping in semi-arid and arid environments. Water savings are achieved by minimum soil disturbance that slows the loss of soil water by evaporation. In addition, soil cover by standing or prostrate crop residue slows the rate of soil water evaporation. The cooler temperatures under retained residue also contribute to slower evaporation loss of soil water. To date, only limited research has been done on the water savings under CA in the EGP, and most of this has been under irrigated crops where less irrigation water has been reported to be adequate for wheat and rice.
The long-term experiments with CA for monsoon rice–wheat–mung bean and monsoon rice–lentil–boro rice crop rotations on silty clay loam soils at Rajshahi, Bangladesh were used to estimate irrigated water use [27
]. Over three years, SP + NPT saved 11–33% of water compared to CT + CP. Water productivity of wheat was higher in SP compared to CT in three years. In 2015, water productivity of wheat was 2.06 and 1.25 g grain kg−1
water for SP and CT, respectively. Similarly, water productivity of wheat in 2016 and 2017 was the highest (2.32 and 1.95 g grain kg−1
water, respectively) in SP [27
2.9. Local Service Providers
Local service providers are widely spread in rural Bangladesh providing a diverse range of mechanization services (ploughing, transportation, pumping, threshing, and shelling). The LSP are expected to have a key role in making CA accessible to farmers, in driving the development of the technology including improvements in the VMP and other planters.
During 2012–2017, up to 50 VMPs that were operating commercially by LSP were monitored closely to collect business performance data. On average, each VMP covered 6.5 ha during 2012–2013 and increased to 18.9 ha in 2016–2017. During this period, the number of farmers served by each LSP increased from 31 to 75 [28
]. In 2017, 18 LSP were selected from Rajshahi, Thakurgaon, Mymensingh and Rajbari districts for a study of their business model. The study revealed that LSPs effectively utilized the VMP and 2WT for 4–6 months. They received US$
1745 per year as net income. The average payback period for the VMP purchase was 0.98 years. The annual break-even use of the VMP was 7.8 ha [28
To select new LSP for VMP sales, Hoque Corporation (HC) targeted clients in project working hubs who were existing service providers that already owned a 2WT since the tractor is essential to operate the VMP. These LSPs had the financial means to buy a VMP; they were well known in their community for selling tillage services; they were business-minded, risk takers who were open to try new technologies compared to traditional farmers; they had mechanical skill and required minimal training on VMP operation and maintenance; they already were a trusted source of advice to farmers in their locality; and they had established linkages with other key stakeholders, namely, extension agencies, CASPA and local administration of their community. A feature of the current promotion strategy for the VMP is to engage groups of 25–40 neighbourhood farmers who agree to purchase planting services of the new LSP. The assurance of planting business is a strong incentive for the new LSP to commit to a bank loan for VMP purchase.
2.10. Commercialization Models Tested
Having established that CA in Bangladesh is feasible and a profitable venture for smallholder farmers, and that the LSP business is profitable for planting by VMP, the next step was to develop a commercialisation approach to make VMPs available in the market at an affordable price. The commercialisation approach being pursued involves the creation of both supply and demand for CA services including the VMP for planting. Over emphasis on either demand creation or on supply is unlikely to trigger a breakthrough in commercialisation of the VMP or related planters. Several manufacturers were reluctant to invest without evidence of demand. On the other hand, where manufacturers supplied only to bulk orders from project funds there was little feedback from users on how to improve design and performance of planters and often poor-quality planters were supplied. Low quality planters hampered initial efforts to develop farmer confidence in planters and create demand. To create demand, the Conservation Agriculture Project trained over 300 LSPs, technicians from the National Agricultural Research and Extension System, NGOs, the private sector and local mechanics in the manufacturing factory or repair workshops. Over 6600 farmers hired/used VMP/VSSD to sow lentil, mustard, mung bean, sesame, jute, wheat, maize, rice, chickpea, etc. on more than 1500 ha. This illustrates the level of demand already created in the six study areas (Figure 1
Of the five manufacturers provided with designs for the VMP, only Hoque Corporation has taken the initiative to develop the market for VMPs by setting up distribution and sales networks and developing a supply chain to manufacture or import component parts, maintain quality control of component parts and the VMP, seek orders and deliver on time, continuously upgrade designs for user satisfaction and provide after sales service. An important component of the commercialisation model developed with Hoque Corporation is the training of LSPs. New LSPs are provided with repeated training sessions in the operation of the VMP and related services such as crop production, agronomy and weed during the first 1–2 years after purchasing the VMP. Experienced operators are engaged to provide training and to mentor the new LSPs.
2.11. Improved Adoption of CA Led by A Service Provider Network
Elsewhere in the world where CA has been widely adopted by farmers, it was supported by partnerships between farmer groups and other key stakeholders: manufacturers of machinery, extension officers, researchers, and agricultural input suppliers (e.g. herbicide suppliers) [29
]. In the EGP and Bangladesh in particular, LSPs are an additional stakeholder that need to be involved in the partnership, since LSPs are widespread and already provide ploughing, pumping and threshing services on a custom-hire basis to most smallholder farms. To create partnerships between LSPs and farmers, we identified 224 farmers’ groups working in nine districts (with a membership of 9800 farm families) and established the Conservation Agriculture Service Providers Association (CASPA). In collaboration with the CASPA and Department of Agricultural Extension (DAE), the Conservation Agriculture project: established 3414 farmers’ participatory demonstrations (farmers contributed most of the inputs, and the Conservation Agriculture project provided only the critical inputs) on minimum tillage, residue retention, crop rotation, weed management, NPT rice establishment, etc.; trained 9800 farm families on CA and integrated weed management practices and safe use of herbicides; and organized 116 field days, focus group discussion sessions and promotional meetings that reached 10,894 farmers most of whom practising CA or one of its principles: crop residue retention, crop rotation (e.g., lentil adoption in Rajshahi and mustard between two rice crops at Mymensingh), SP systems for non-rice crops and NPT for rice establishment.
From initial on-farm studies, we estimated that farmers who adopted VMP and CA technologies have gained up to 38%, 8% and 6% more grain yield of lentil, mung bean and wheat, respectively, over conventional practice [30
]. The CA adopters obtained higher net return of US$
93 and US$
for lentil, mung bean, and wheat, respectively, over conventional methods. It was estimated the profit from NPT rice compared to CP systems was US$
Farmers that used CA in a three-crop rotation within a year could achieve 29%, 54%, and 14% greater net profit (additional income of US$
for a 1 ha farm) with monsoon rice, wheat, and mung bean crops, respectively, compared to farmers practicing CT + CP [32
]. Based on the above yield increases and cost savings, we estimated that the annual potential gain from 2.5% adoption of CA and mechanized planting in Bangladesh (this is about the current level of CA adoption across Asia) is US$
20 million (base year 2013–2014) from the additional 23,500 t of aman rice, 43,000 t of boro rice, 2000 t of wheat and 5000 t of maize grain yield plus the value of cost savings to farmers. Additional value would be created by LSPs, manufacturers and others in the value chain (mechanics, dealers, and traders). Based on the potential yield increases and costs savings to farmers, adoption of CA and the VMP planting services by only 2.5% of all farmers in Bangladesh would directly generate an additional US$
21–38 million per year [30
In 2017, a study was undertaken to assess adoption levels and impacts on farm businesses [28
]. In Durgapur Upazilla of Rajshahi district, where a concentration of effort on VMP promotion and extension of CA has occurred in the last fie years, the adoption of CA in 2016–2017 rabi season was 4.5% of the total crop area. In three blocks, the CA planting reached 10–16% of all rabi season crops. Hence, there is evidence of early adoption by farmers where there have been programmes to build farmer awareness, confidence in the technology and the availability of the planters and LSP to offer planting services to farmers on a custom hiring basis [30
]. Average benefits from the farm mechanization and CA adoption have been estimated from a study of 135 farmers as follows: 34% labor saving, 31% less seed required, 6% fertilizers saving, 32% pesticide cost saving leading to up to 10% lower production cost for lentil, mustard, maize and wheat [30
]. There was a yield increase of 28% for lentil, 19% for mustard and 6% for wheat by farmers who adopted CA planting using the VMP, and profit increases by 47% for lentil, 55% for maize, 46% for mustard and 76% for wheat due to adoption of CA planting using VMP [28
To create demand for the VMP, HC arranged widespread demonstrations of VMP operation and on-farm demonstration of crop performances by LSP for establishing wheat, onion, garlic, lentil, chickpea, mung bean, jute, etc. in study areas. For initial demand creation from new LSPs, the Conservation Agriculture project provided 50% and 25% price support for VMP in 2015 and 2016, respectively, but none in 2017. The Conservation Agriculture project activities created confidence by farmers, LSPs, and involved stakeholders (e.g., DAE, Barind Multipurpose Development Authority, National Bank Ltd., etc.) in VMP adoption and commercialization. Working with multi-stakeholders appears to be critically important for commercialization of this new planting machinery. The LSPs and farmers were cautious to invest money for new farm implements based on previous experiences after purchasing implements. Involvement of universities (e.g., Bangladesh Agricultural University and Murdoch University), extension agencies (e.g., DAE) and coordination through Conservation Agriculture project has built the trust among the LSPs and farmers to buy and adopt the VMP.
Based on feedback from farmers’ on their requirements, ongoing modification of the VMP since 2015 has significantly reduced the market price and weight of the planter and improved weight balancing, while maintaining assurance of high-quality production. Seed meters now supplied with the VMP regulate the seed rate without field calibration. In addition, significant improvement was made on the shank of furrow openers to increase the strength, while the seed-boot and fertilizer-orifice of the furrow opener were modified to minimize seed and fertilizer contact. This improvement has strengthened confidence of LSPs and farmers in the use and performance of the VMP.
