Design and Testing of Reverse-Rotating Soil-Taking-Type Hole-Forming Device of Pot Seedling Transplanting Machine for Rapeseed

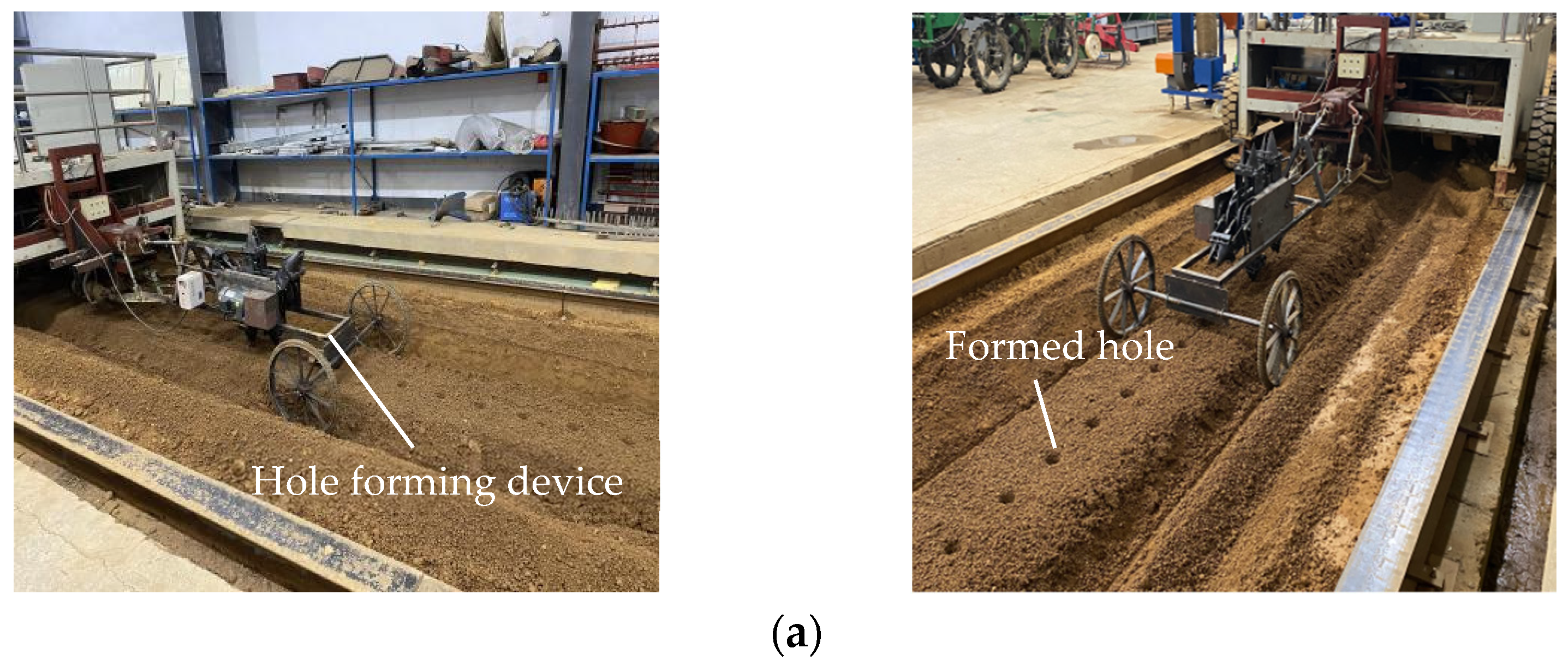

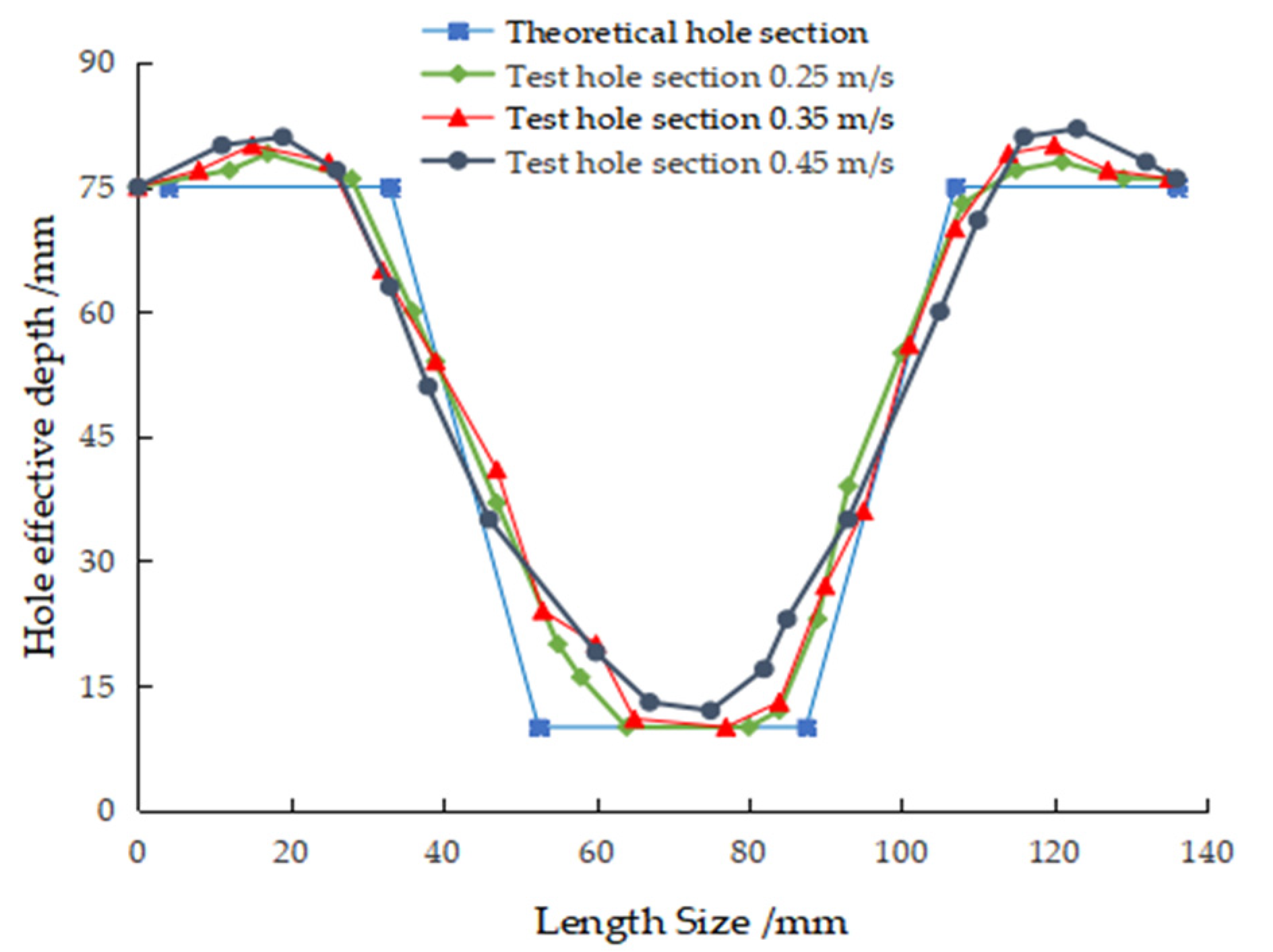

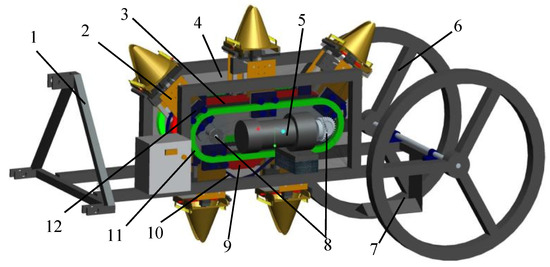

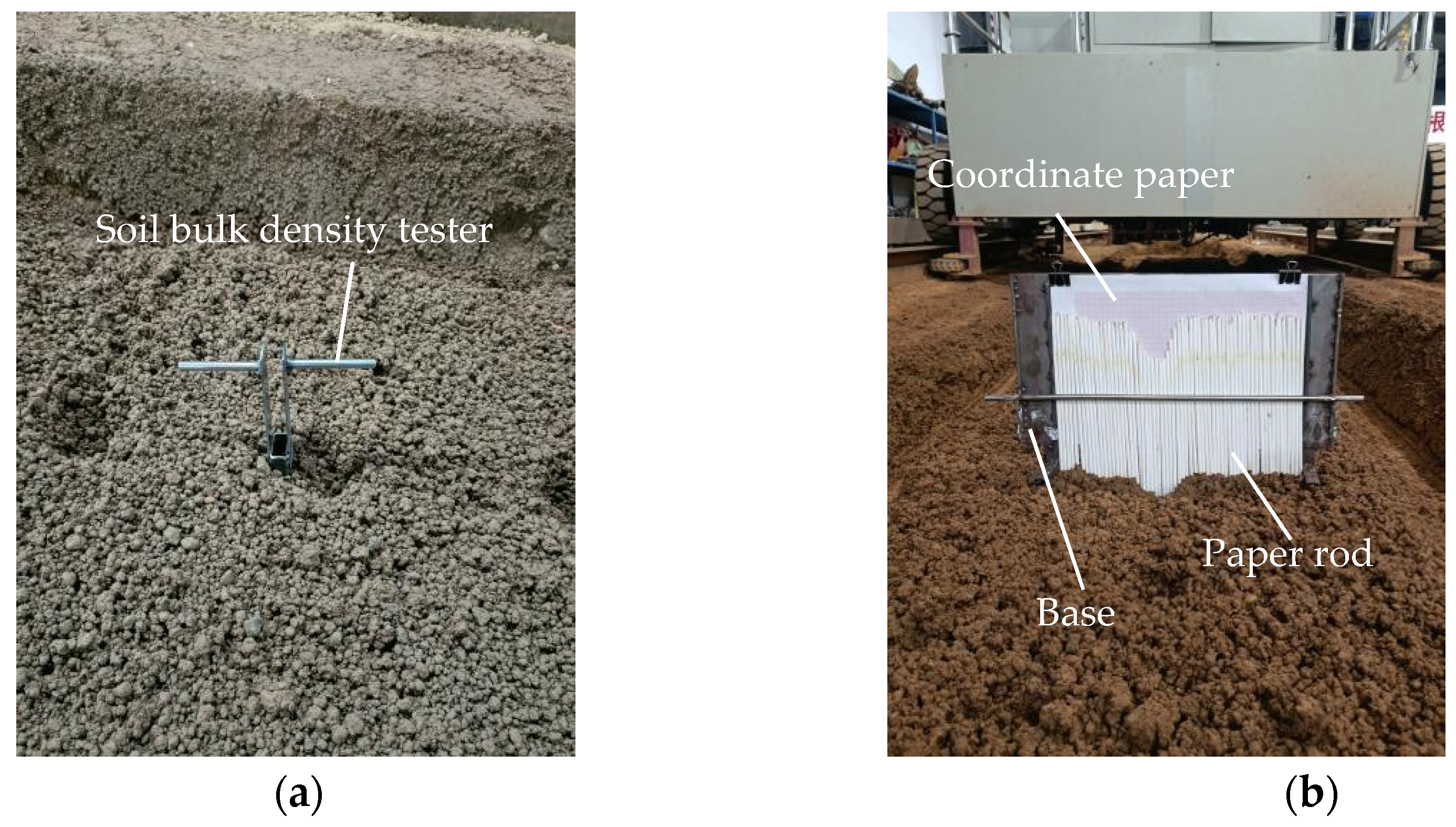

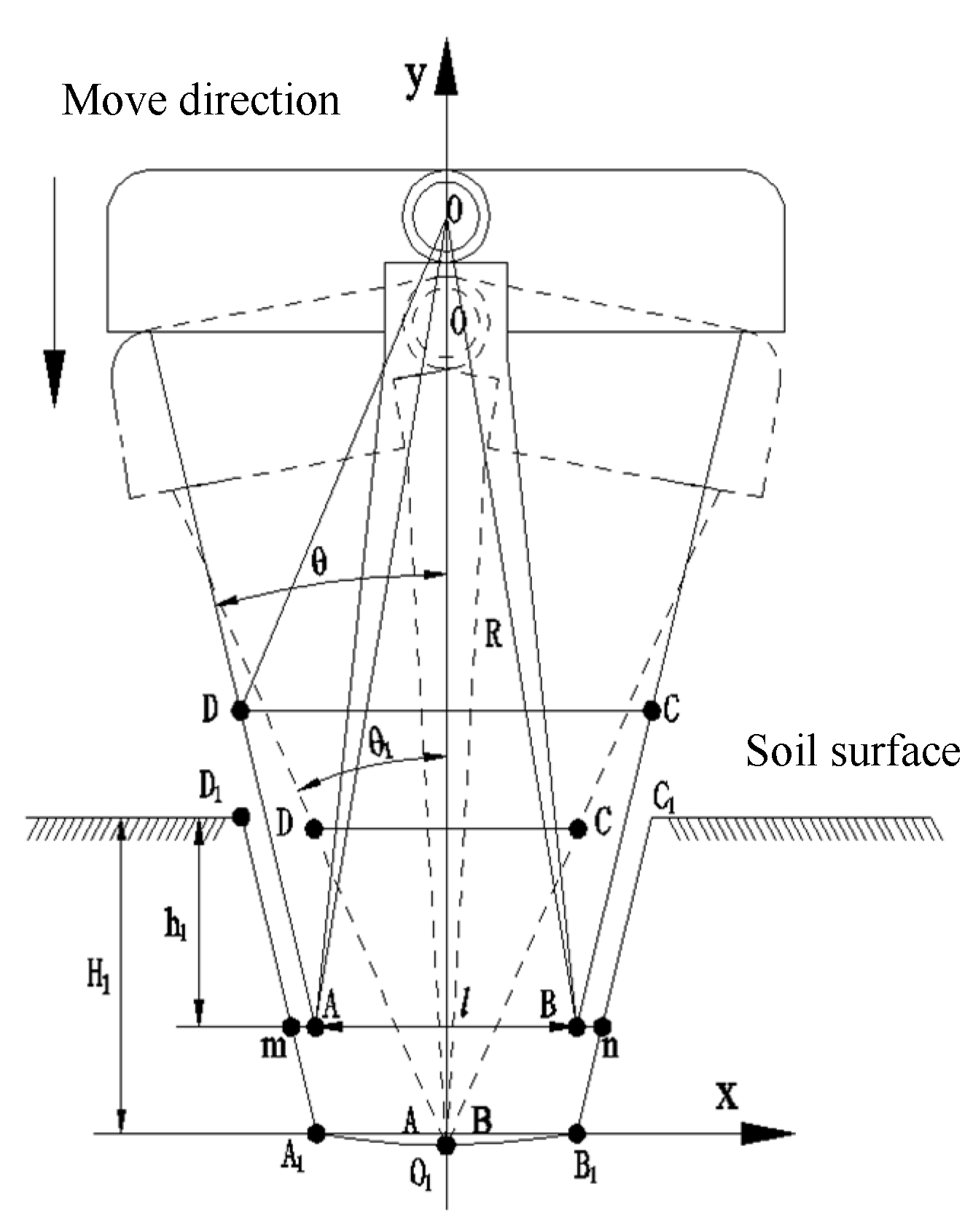

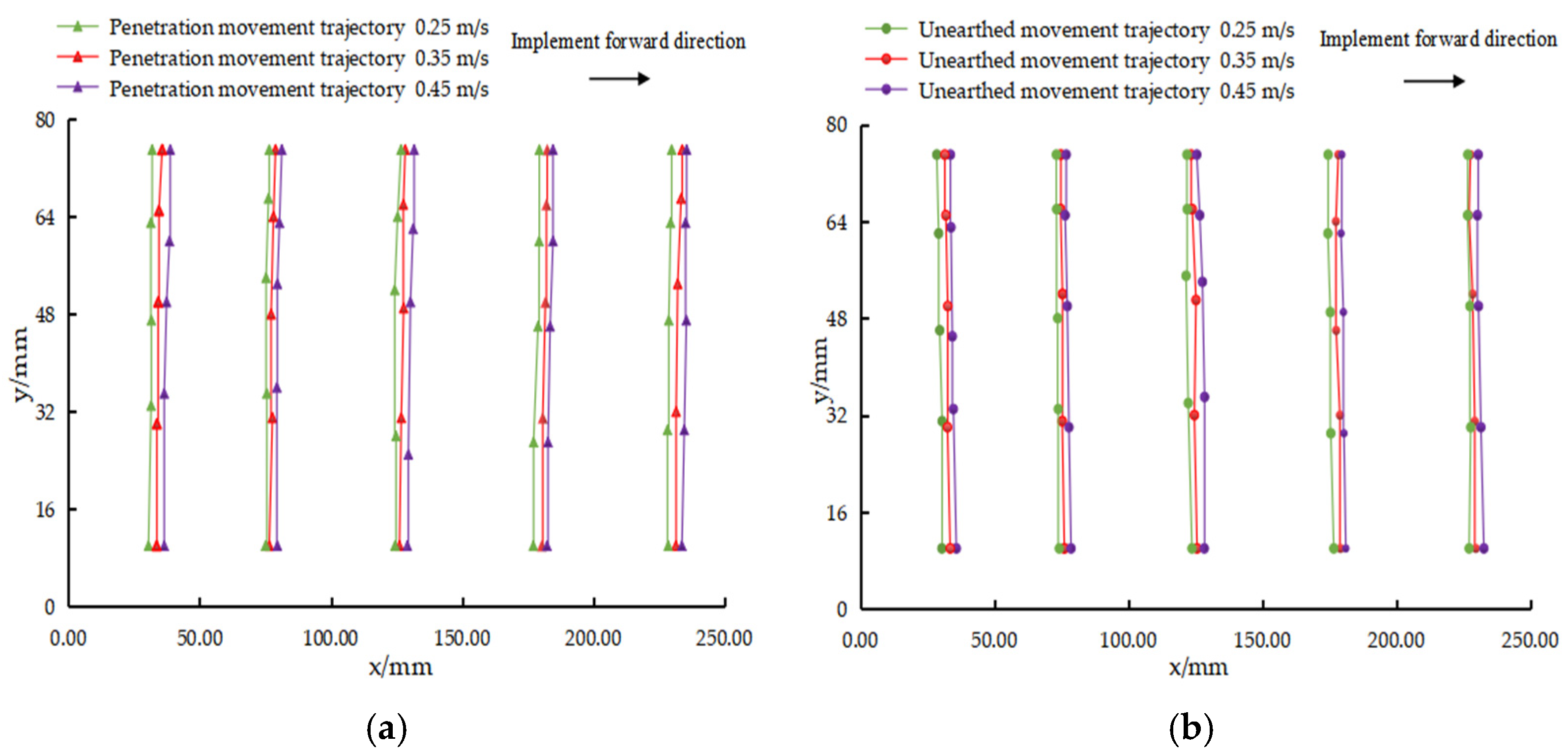

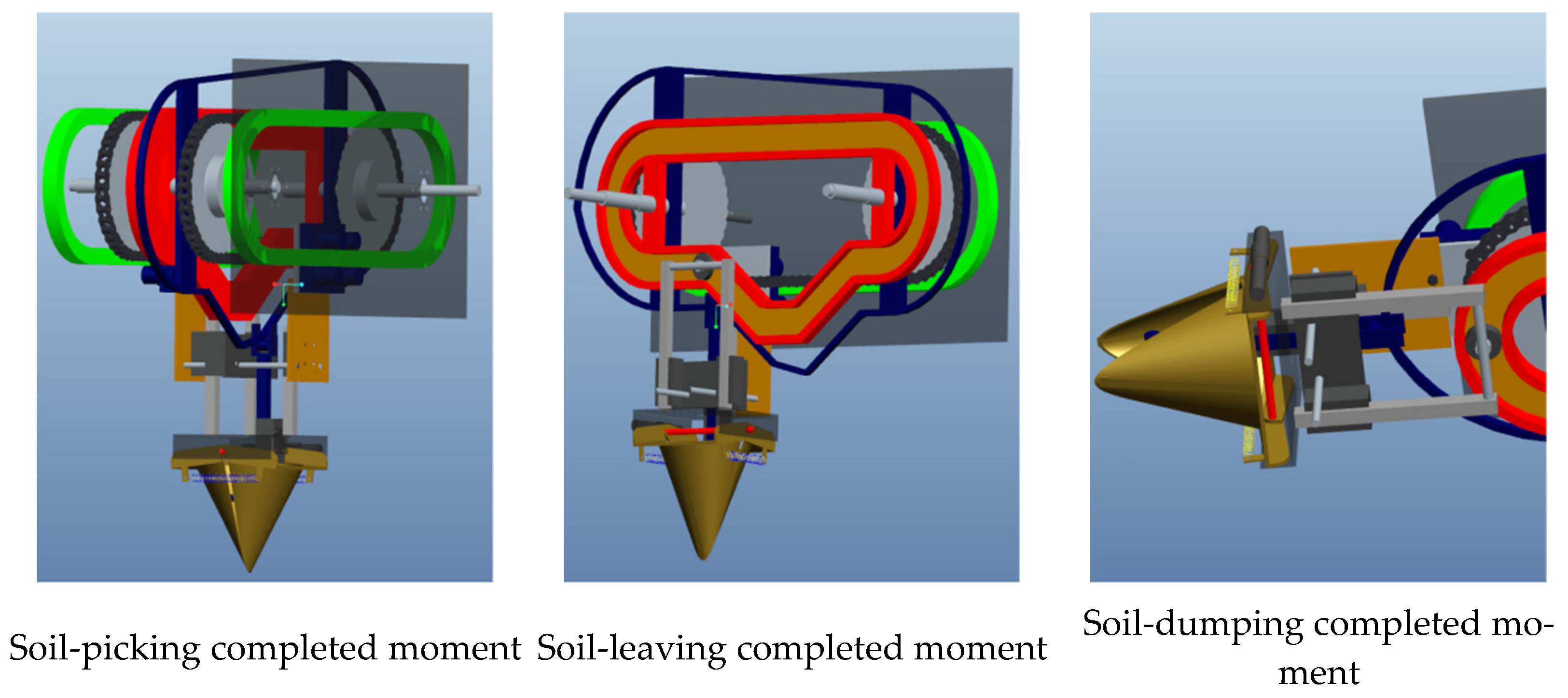

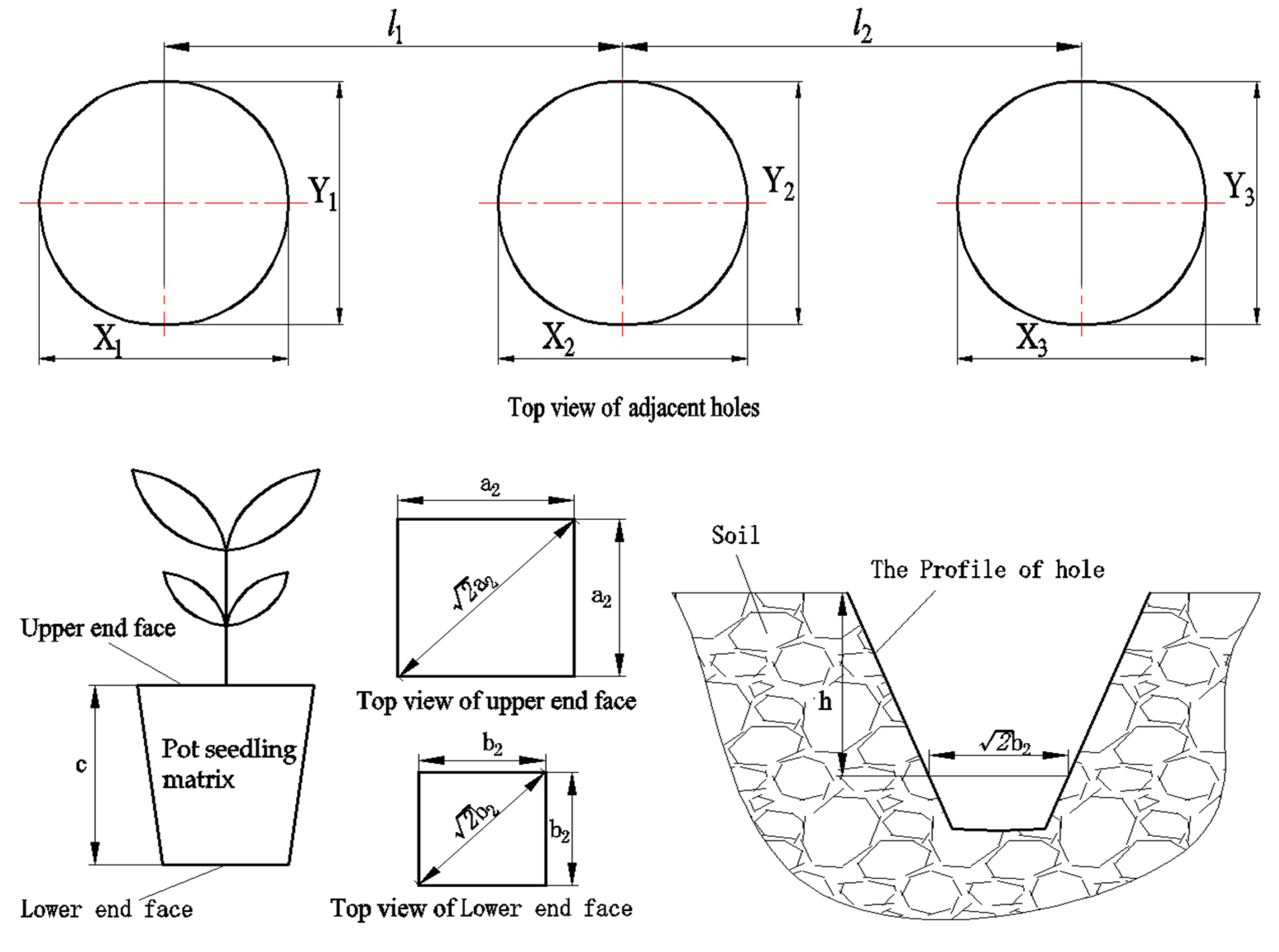

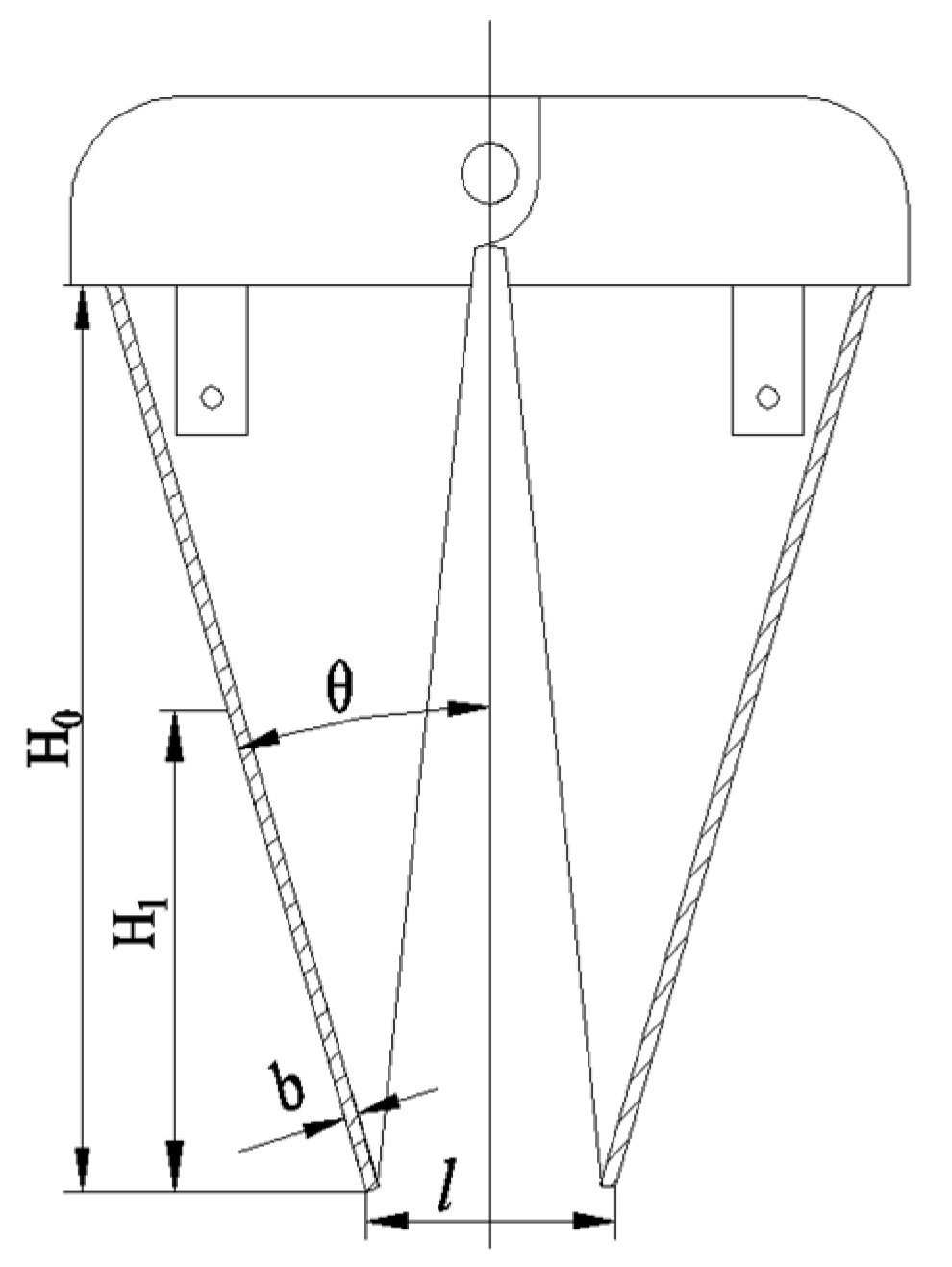

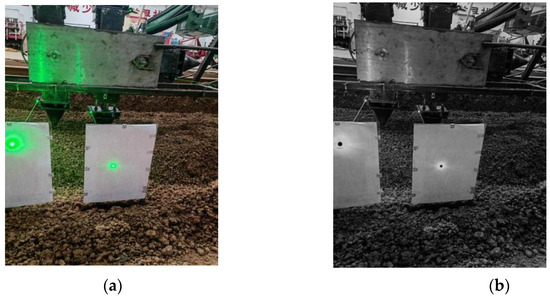

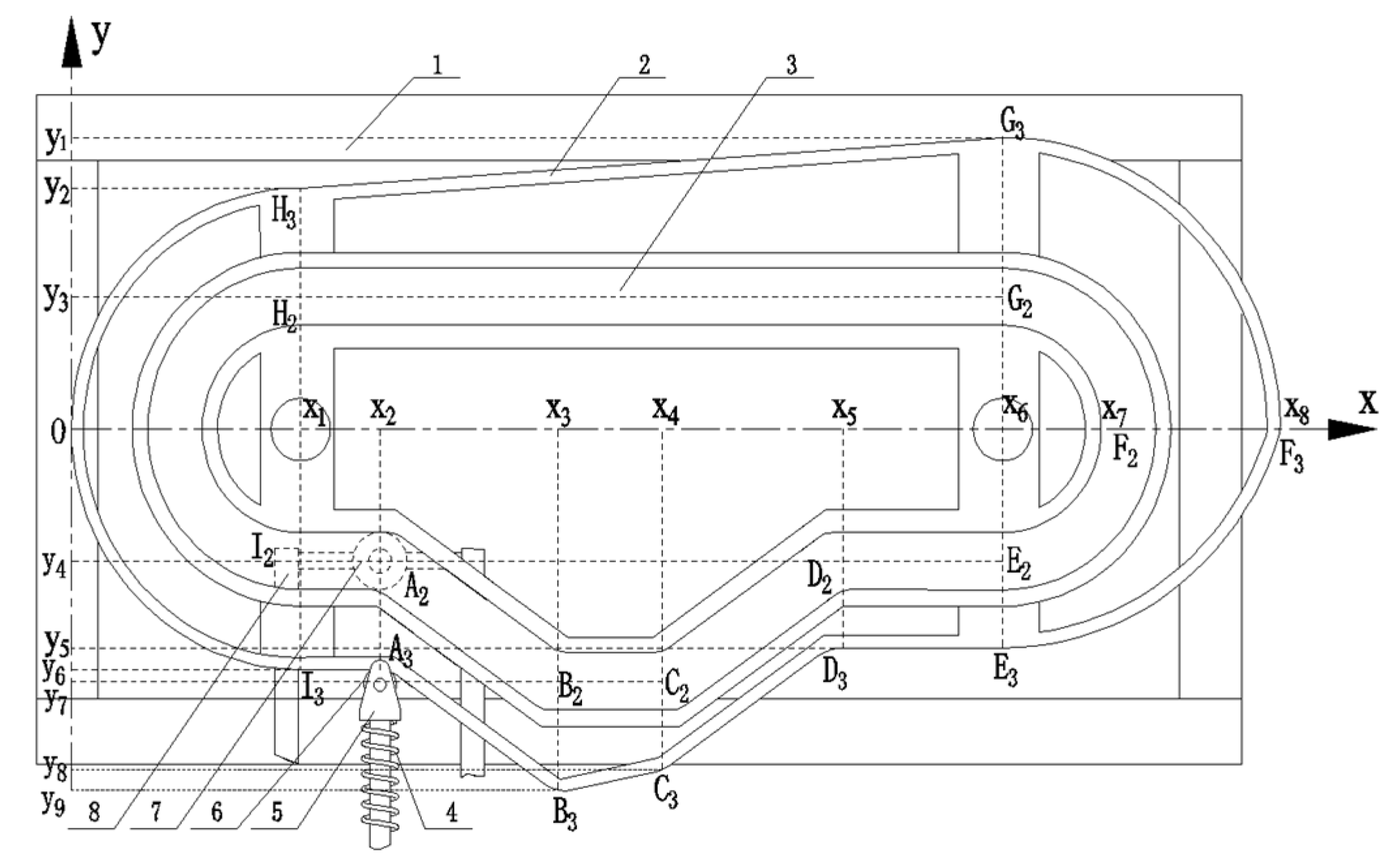

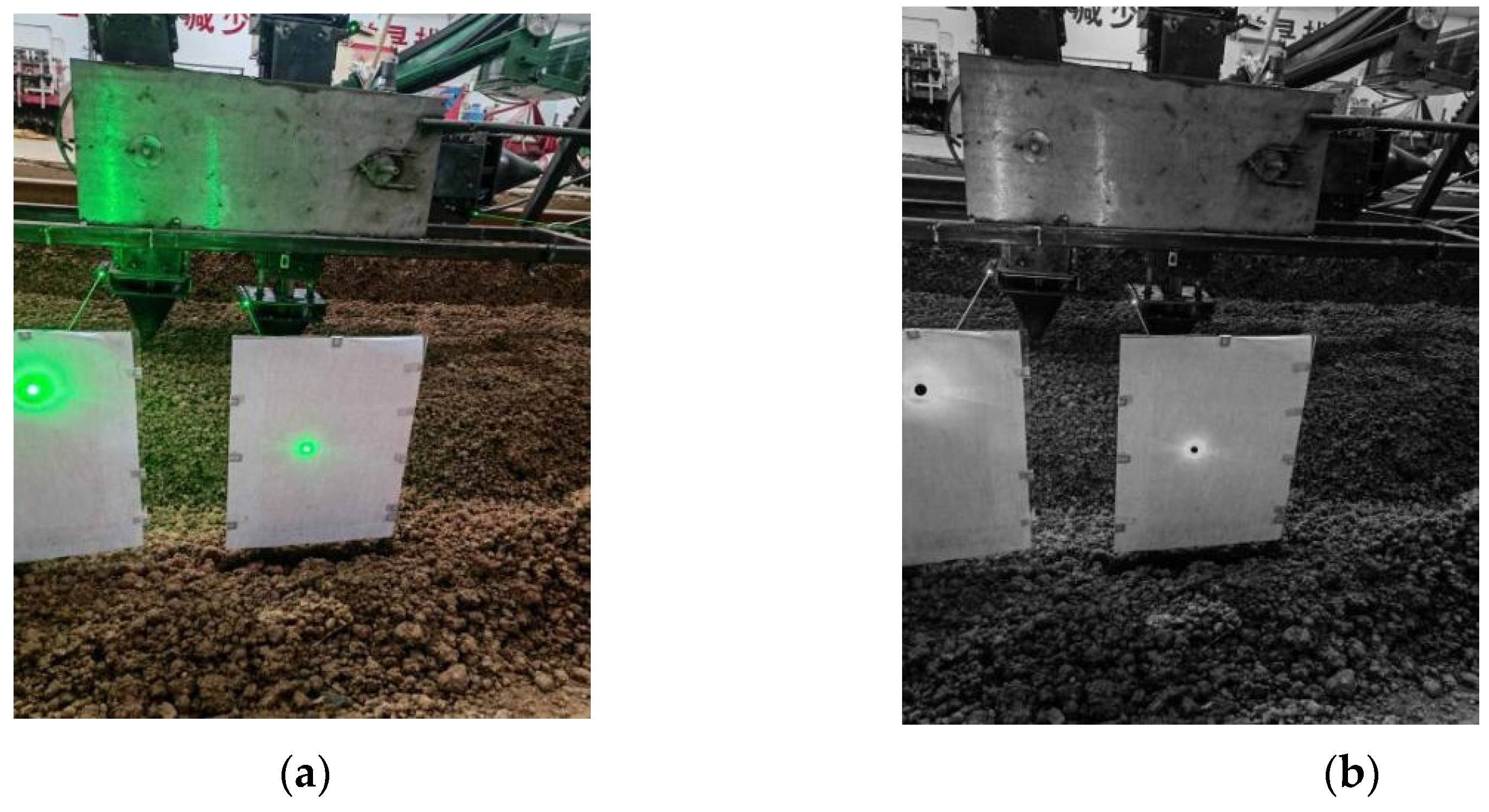

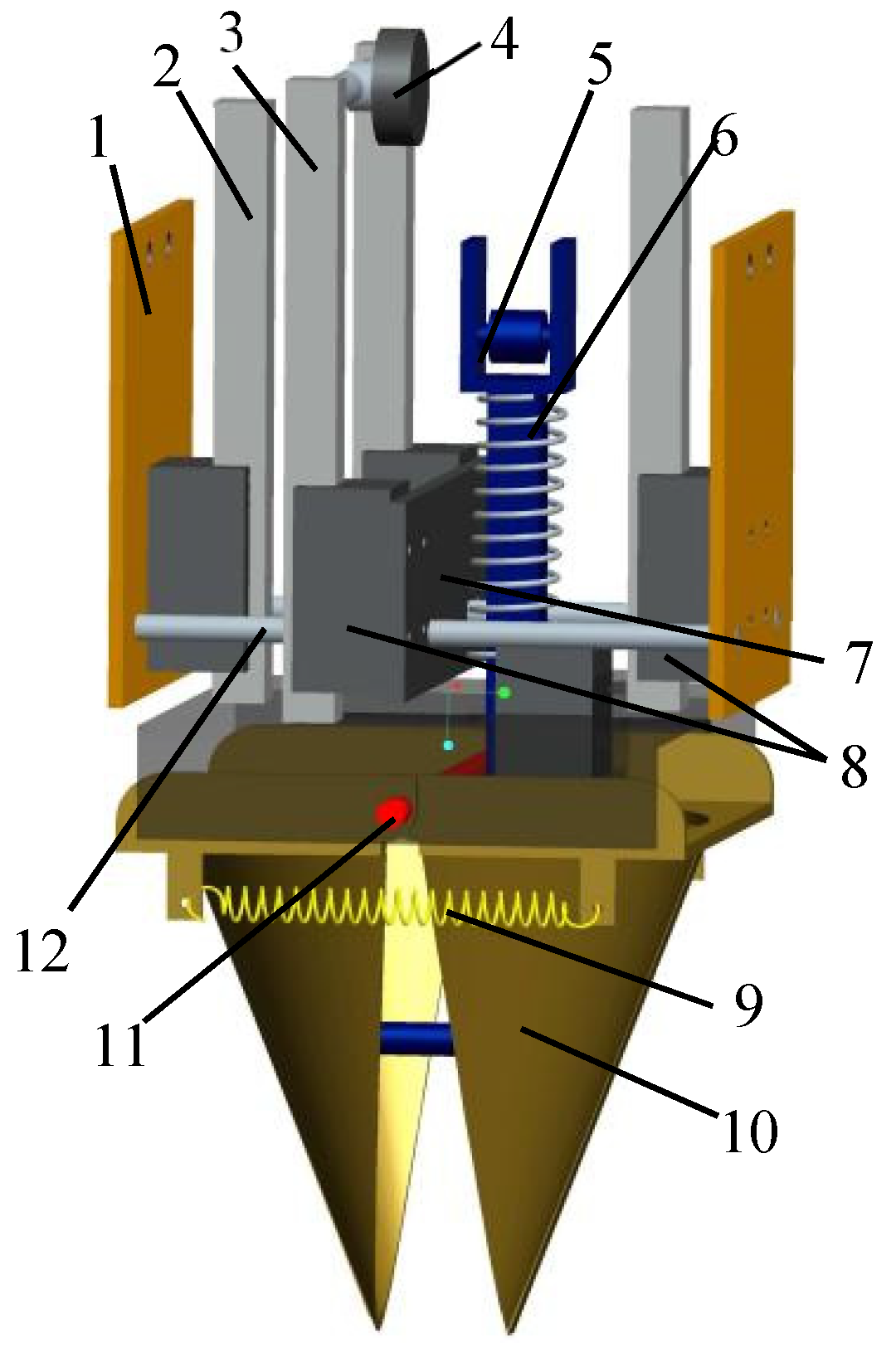

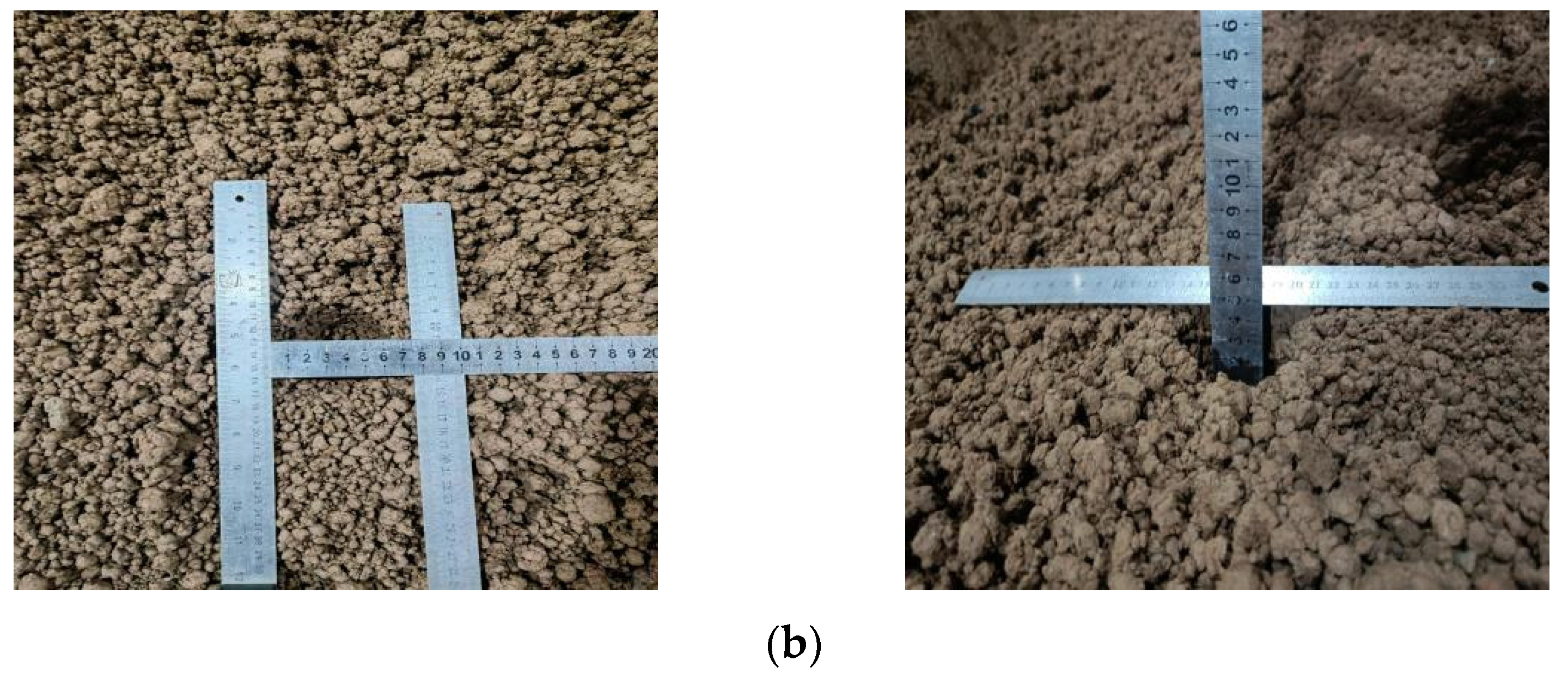

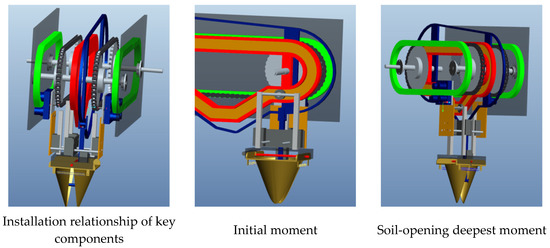

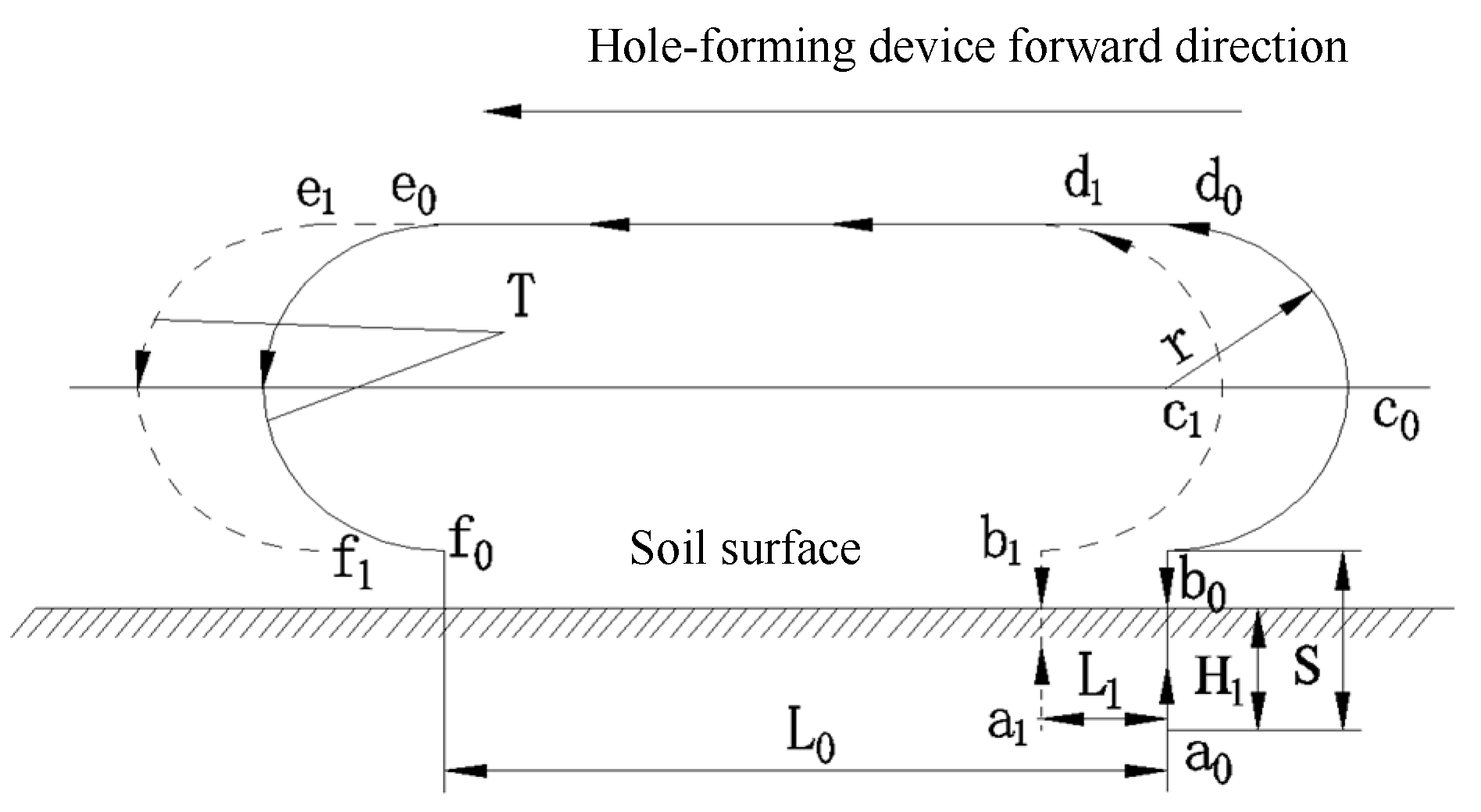

To address the problem whereby the size of the hole formed by the existing hole-forming device of hole-punching transplanters is significantly inconsistent with the theoretical size as it is impacted by the inserting and lifting methods, a scheme for eliminating the forward speed of the whole machine by the horizontal linear velocity of reverse rotation of the hole-forming mechanism is proposed to vertically insert and lift the hole-forming device in accordance with the working characteristics of hole-punching transplanting and the agronomic requirements of rapeseed transplanting. In addition, a novel type of reverse-rotating soil-taking-type hole-forming device for the pot seedling transplanting machine for rapeseed was developed. A test bench for the hole-forming device was set and its effectiveness was verified in the soil bin. It was found, from the test results, that, when the forward speed of the hole-forming device was between 0.25 m/s and 0.45 m/s, the average qualified rates of hole forming of the device were 95.2%, 94.0% and 93.3%, respectively; the average change rates of the hole size were 2.3%, 2.9% and 5.5%, respectively; and the average error between the theoretical value of effective depth and the experimental value was between 2.0% and 5.6%. The average angle between the hole-forming stage trajectory of the hole opener and the horizontal direction at different forward speeds was higher than 88.0°; the coefficient of variation was between 0.16% and 0.64%; the perpendicularity of the hole-forming operation was high; the change rates of soil porosity of the hole wall were between 8.2% and 9.3%; and the average soil heave degrees at the hole mouth after the completion of the hole-forming operation were 3.9%, 4.1% and 4.2%, respectively. The average soil stability rates of the hole wall were 91.9%, 91.2% and 91.0%, respectively. The different performances of the hole-forming device were confirmed to meet the requirements of rapeseed pot seedling transplanting. This study can provide a reference for the structural improvement and optimization of the hole-punching transplanter for rapeseed pot seedlings.
