Biological Control May Fail on Pests Applied with High Doses of Insecticides: Effects of Sub-Lethal Concentrations of a Pyrethroid on the Host-Searching Behavior of the Aphid Parasitoid Aphidius colemani (Hymenoptera, Braconidae) on Aphid Pests

Instituto de Ciencias Biológicas, Universidad de Talca, 1 Poniente 1141, Talca 3460000, Chile
Centre for Molecular and Functional Ecology in Agroecosystems, Universidad de Talca, Talca 3460000, Chile
Facultad de Ciencias Agrarias, Universidad de Talca, Talca 3460000, Chile
Author to whom correspondence should be addressed.
Agriculture 2021, 11(6), 539;
Received: 16 April 2021 / Revised: 1 June 2021 / Accepted: 8 June 2021 / Published: 11 June 2021
(This article belongs to the Special Issue Pest Control and Insect Behavioral Ecology)


The use of synthetic insecticides may cause failures in the biological control of insect pests due to undesired side effects on natural enemies and the rapid evolution of insecticide resistance in agroecosystems. Residues of neurotoxic insecticides can interfere with the recognition of chemical cues used by natural enemies to find pests. We investigated the effects of sub-lethal concentrations of the pyrethroid lambda-cyhalothrin on the interaction between the aphid parasitoid wasp Aphidius colemani and the peach potato aphid Myzus persicae. We studied changes in host-searching and oviposition behavior through laboratory bioassays when susceptible and kdr-resistant aphids are offered to parasitoid females, evaluating the effect of applying insecticides on the interacting species. The patch residence time, exploration, oviposition, and grooming were significantly disturbed when the parasitoids were offered resistant aphids sprayed with sub-lethal doses, but not when the parasitoids were offered susceptible M. persicae exposed to sub-lethal doses. We discuss how the effects of insecticides on parasitism behavior may result in failures of biological control if natural enemy populations are not adequately managed, particularly for the management of insecticide-resistant pest populations. Efforts to introduce biological control in integrated pest management (IPM) programs are also discussed.

1. Introduction

Biological control is a significant component of integrated pest management (IPM) programs, but synthetic insecticides are still commonly used to control many pest populations [1]. This is the case with the peach potato aphid, Myzus persicae (Sulzer), a cosmopolitan and highly polyphagous aphid responsible for significant economic losses in several crops [2]. The use of insecticides in M. persicae has favored a complex and rapid evolution of a broad array of resistance mechanisms to almost all kinds of insecticides through enhanced detoxifying enzymes, insensitivity mutations [3,4], cuticular thickening, and sequestration [5]. The most common mechanism of target-site mutation is known as ‘knockdown resistance’ (kdr), which confers resistance to pyrethroids and DDT caused by a single amino acid substitution (L1014F) in the voltage-gated sodium channel [6]. However, insecticide resistance involves fitness costs in insecticide-free environments. Individuals carrying resistant alleles show significantly lower overwintering survival, reduced responses to aphid alarm pheromones, and increased vulnerability to parasitoids than homozygous susceptible individuals [7,8]. For instance, M. persicae aphids carrying the kdr mutation have a reduced response to the alarm pheromone (E)-β-farnesene, making aphids more prone to being parasitized [7,9].
This situation urgently calls for the adoption of methods that limit the development of resistance in aphid populations and reduce the side effects of insecticides on beneficial arthropods [10], particularly on their natural enemies (e.g., aphid parasitoid wasps), which otherwise will continue at a low frequency/diversity in agroecosystems [11]. Classical conservation and augmentative biological control programs have been implemented to control M. persicae populations, primarily based on Braconid parasitoid wasps, such as Aphidius colemani Viereck [12,13]. The outcome of this aphid–parasitoid interaction and the success of the biological control of the peach potato aphid has been reported as largely dependent on the life history strategies of both interacting insects [14].
It is well known that insecticides modify agronomically important traits in aphid parasitoids and their target aphids. On the one hand, sub-lethal doses of insecticides produce loss of reproductive performance, disorientation, and unusual foraging behaviors in aphid parasitoids [15,16,17,18]. The neurotoxicity of insecticides reduces the recognition of chemical cues emitted by the plant–aphid interaction, altering parasitism behavior [19]. Indeed, some studies have shown that sub-lethal doses of insecticides have detrimental effects on host-finding and oviposition performance in parasitoids [19,20,21,22,23]. However, the effects can disappear after 24 h of exposure [15]. In contrast, other studies have shown that some variables of host finding behavior (e.g., patch time allocation) are not significantly disturbed by sub-lethal doses of insecticides, attributed to some level of insecticide tolerance developed by parasitoid wasps [16,24].
As many insecticides have lethal or sub-lethal effects on aphid parasitoids [21,25], more knowledge on the impact of insecticides on parasitoid behavior is needed for integrating biological control with chemical control [21] so that components of parasitism behavior can be used to predict the success of biological control [26]. The balance between sub-lethal effects of insecticides on aphid parasitoids and the fitness cost associated with insecticide resistance in aphids may define antagonistic or complementary results from both managing strategies [23]. Hence, finding a balance between the use of insecticides to control aphids and their side effects on aphid parasitoids appears to be a key task in IPM programs [27]. The idea of studying sets of parasitoid behaviors and correlating them across situations (e.g., with or without insecticides, parasitizing insecticide-resistant or susceptible aphids) represents a major shift in addressing the outcome of aphid–parasitoid interaction. In essence, if parasitoid and aphid traits show a high correlation, they should be studied as a package rather than as isolated units [28].
In this paper, we addressed the effects of sub-lethal doses of lambda-cyhalothrin (a pyrethroid insecticide) on the patch time allocation and host-finding behaviors in the aphid parasitoid wasp A. colemani when mated females were faced with susceptible and kdr-resistant individuals of the peach potato aphid under laboratory conditions.

2. Materials and Methods

2.1. Aphids

Individuals of the peach potato aphid M. persicae were collected from potato (Solanum tuberosum L.) fields along a north–south transect ranging from Region Metropolitana 33° S to Osorno 40° S. Aphids were repeatedly sampled alive from the same parthenogenetic colonies from September 2014 to January 2015. Aphid clonal lineages were separately obtained by multiplying one single initial parthenogenetic female on potted sweet pepper Capsicum annuum var. grossum (cv. Resistant). The aphid lineages were reared enclosed in a transparent plastic cylinder covered with mesh cloth fabric on top to facilitate air circulation and prevent the aphids from escaping. Each aphid clonal lineage was genotyped at eight microsatellite loci (Myz2, Myz3, Myz9, Myz25, M35, M37, M40, and M63) previously described [29,30]. The identification of insecticide resistance mutations was performed using the TaqMan assay in a STRATAGENE MX 3000 (Agilent Technologies, Santa Clara, CA, USA) thermocycler, screening for those mutations present in M. persicae populations in Chile [30]. The kdr, super-kdr, and MACE mutations were identified according to Anstead et al. [31,32]. Additionally, the constitutive activity of carboxylesterases (EST) was determined in all clonal lineages following the microplate bioassay described by Devonshire [33]. Finally, the presence of different endosymbionts known to occur in aphid populations [34] and previously reported conferring protection against parasitoids in aphids [35] was tested using the amplification by Polymerase Chain Reaction (PCR) of 16S rDNA from whole-body aphid DNA as described in Peccoud et al. [36]. This method allows screening for the endosymbiont bacteria Hamiltonella defensa, Regiella insecticola, Serratia symbiotica, Rickettsia, Rickettsiella, and Spiroplasma [34]. Therefore, two M. persicae genotypes, one susceptible to insecticides and one homozygous for kdr with the same endosymbiont (R. insecticola), were chosen for subsequent bioassays.

2.2. Parasitoids

Aphidius colemani wasps were obtained by sampling mummies and alive M. persicae aphids on conventional peach orchards in Central Chile (Maule Region) during February 2015. In Chile, conventional management includes constant monitoring and, in the presence of the first aphids’ outbreak, applications of pyrethroids and neonicotinoids should be made [37]. Live sampled aphids were determined as M. persicae under a binocular microscope following taxonomic keys [38] and reared in the laboratory on sweet pepper plants until parasitized individuals formed mummies. The emerged parasitoids were determined using taxonomic keys [13], and they were used for founding laboratory colonies of A. colemani. Parasitoids were reared on M. persicae aphids established on sweet pepper plants grown in pots (10 cm diameter Ø) in acrylic ventilated cages (55 × 50 × 55 cm). Seedlings (eight to ten young leaves) of sweet pepper were grown in seed trays on Turba Sunshine peat moss as substrate and irrigation following routine practices; pesticide applications were strictly prohibited. Sweet pepper plants infested with 2nd and 3rd instar aphid nymphs were produced five days after the release of 40–50 M. persicae parthenogenetic aphids inside the acrylic cages; then, infested plants were transferred into parasitoid rearing cages. Parasitoids were fed with a honey solution at 30% and water ad libitum. For the experiments, individual mummies sampled from laboratory colonies were isolated in Petri dishes containing small sections of a leaf (2.0 cm Ø). They were checked for adult parasitoid emergence twice a day. All individuals that emerged were sexed and left to feed. This method was repeated for the duration of the experiment and allowed us to maintain parasitoids for several generations in the laboratory. The plants, parasitoids, and aphids were kept at 22 ± 1 °C and 65 ± 10 RH with a photoperiod of 16:8 h L:D (light:dark). Only insecticide-susceptible M. persicae aphids were used for rearing parasitoids.

2.3. Effect of Insecticides and Aphid Genotype on Patch Time Allocation in Parasitoids

LC20 of lambda-cyhalothrin was determined for kdr-resistant and -susceptible M. persicae aphids (12.15 mg/L and 0.52 mg/L) and A. colemani parasitoids (0.56 mg/L) by Alfaro-Tapia et al. [39]. Hence, the sub-lethal effects of insecticides on parasitism behavior were assessed during the A. colemaniM. persicae interaction by comparing the patch time allocation using aphids and parasitoids exposed and unexposed to insecticide.
To treat parasitoids with dry insecticide residues, A. colemani females were placed for 24 h in a Petri dish (5.5 cm Ø) containing the insecticide. Water was used as control. Petri dishes were sprayed with 2 mL of insecticide or water under a pressure of 0.045 MPa using a Potter Spraying Tower (36 × 36 × 122 cm, Burkard Scientific, Middlesex, UK) and left to dry at room temperature one hour. As we expected that 20% of aphids die after insecticide application, fifteen 2nd–3rd instar nymphs of each aphid genotype were sprayed; this ensured that at least ten nymphs survived for the experiments. Aphid nymphs were sprayed with lambda-cyhalothrin according to the aphid genotype tested at the same volume and pressure as parasitoids.
The set-up for the patch allocation experiment included a leaf disk of sweet pepper (2.0 cm Ø) placed on 2% agar to prevent leaf desiccation in a plastic Petri dish (5.5 cm Ø). Exposed and unexposed parasitoid females were separately offered with resistant/susceptible and exposed/unexposed M. persicae aphids, following a three-way factorial arrangement (2 parasitoid conditions × 2 aphid genotypes × 3 insecticide treatments) in a completely randomized design. Our design, however, was unbalanced as susceptible aphid individuals exposed with LC20 of the resistant aphids (LC20 = 12.15 mg/L) were all dead, which left 10 of the 12 possible combinations.
Mummies of M. persicae obtained from the laboratory parasitoid colonies were isolated in Petri dishes (5.5 cm Ø) containing a drop of honey (one mummy per Petri dish). After 24 h of parasitoid emergence, individuals were sexed and allowed to mate for 24 h. Mated female parasitoids of 48 h of age (n = 25 for each condition) and without oviposition experience were individually exposed to insecticide (LC20) or water (control) and used to study patch time allocation behavior. Petri dishes of 2.5 cm Ø containing ten wingless individual aphids from 2nd–3rd instars feeding on sweet pepper discs were offered to each parasitoid. Resistant or susceptible aphids exposed—or not exposed—to their respective LC20 were used and represented the “patch”. The parasitism behavior was recorded with a video camera HDR-CX240 (Sony, China) in these “no-choice arenas” against a white transilluminator. This set-up provides a homogeneous fluorescent white light at room temperature, for which parasitoids were previously acclimatized for two hours. We recorded 11 behavioral sequences for each treatment clustered in five groups of parameters: (1) mobility: (i) walking outside the patch, (ii) walking within the patch, and (iii) resting. (2) Antennal movements: (iv) antennal contact (contact with the aphid body of at least one antenna) and (v) antennal examination (contact with the aphid body between the two antennae). (3) Grooming: (vi) antennal grooming and (vii) ovipositor grooming. (4) Oviposition behavior: (viii) sting attempt on the host (ovipositor extruded next to an aphid in a sign of attack) and (ix) sting. (5) Unsuccessful test oviposition: (x) sting attempt out of the host and (xi) Oviposition out of the host. All these parameters are related to the parasitoid’s infectivity [40]. The evaluation finished after 10 min of observation and the duration of each behavioral trait was analyzed with the EthoLog 2.2.5 software [41]. To discriminate between sting attempts and oviposition, we used information reported by [42]. To avoid pseudo-replications, we used new insects and new leaves for each replicate.

2.4. Effect of Insecticide on Parasitoid Orientation

To investigate whether insecticide interferes with the detection of chemical cues emitted by aphid-infested plants, changes in the oriented responses of female parasitoids were studied in a four-arm transparent hand-made Pettersson olfactometer [43]. Pressurized and humidified air was used to feed a central chamber through four arms at 200 mL min−1 per arm. The borders between the four odorant branches and the decision zone were drawn on a filter paper square placed on the floor of the olfactometer. The odor field was formed in the chamber by extracting the air through the hole in the center of the floor using a Portable Phlegm Suction Unit (7E-C Yuwell). Two arms of the olfactometer were connected using silicone tubing to a glass bottle (8.25 L) containing a sweet pepper plant with ten leaves previously infested with 30 resistant or susceptible aphids. After seven days, 300–400 aphids were obtained and treated with lambda-cyhalothrin according to the aphid genotype tested or distilled water (control). The other two arms were connected to a glass bottle containing a sweet pepper plant with the same features above described but with no aphids and sprayed with distilled water (blank). To avoid any effect of the position, each arm was numbered from one to four clockwise, and the olfactometer rotated (90°) before replicating.
Mated female parasitoids (n = 25) of 72 h of age without oviposition experience and previously exposed or unexposed to the LC20 of lambda-cyhalothrin for 24 h were placed in the central chamber of the olfactometer and left to walk freely. Before placing the plants in the odor containers, the plant’s pot was carefully removed, and the roots and substrate were placed in a round beaker glass (500 mL) and sealed airtight using Parafilm® tape and metal clamps. The position of the cue emitters was changed for each tested parasitoid, and the olfactometer was carefully washed in ethanol and dried at 150 °C before any new assay. The same experimental design described above was used for this experiment. Due to the size of the experimental system, 10 mL of insecticide (LC20 according to the aphid genotype tested; see above) or water was hand-sprayed on sweet pepper leaves using a 1 L hand-held sprayer (Roots Garden, Easy-Chile). Changes in the position of each focal parasitoid were observed on a transilluminator for 10 min, documenting the overall time spent by each female in each arm using the event-recording software EthoLog 2.25 [38].

2.5. Statistical Analyses

Sub-lethal doses of insecticide on the proportion of time spent by parasitoids displaying each behavioral sequence and the ratio of the residence time of parasitoids in each olfactometer arm were analyzed using generalized mixed linear models (GLMMs) with a binomial error distribution for proportional data [44]. Insecticide exposure of parasitoids (to LC20 or water), aphid genotype (kdr-resistant or susceptible), and insecticide application on aphids (low or high LC20 or water) were used as fixed effects. The number of replicates and the number of assays were included as random effects [45]. Models with and without interactions between fixed effects were compared using the Akaike criterion. In all cases, the model with interactions was chosen. This analysis was conducted to account for complex data structures with various levels and deal with unbalanced datasets [46,47]. Unbalanced data were produced due to all susceptible aphids dying when sprayed with the LC20 for the kdr-resistant genotype. We used a Tukey test corrected for multiple comparisons by the single-step method using the Multcomp package [48] to establish significant differences. All the analyses were conducted using the lme4 package [49] in R version 3.5.1 [50].

3. Results

3.1. Effect of Insecticides and Aphid Genotype on the Time Allocation of Parasitoids

First, the mobility of A. colemani parasitoids was differentially affected by their exposure to insecticide, by the genotype of aphids, and by the application of insecticide on aphids. The proportion of time spent walking out of the patch (χ2 = 1.92; df = 1; p = 0.17), walking in the patch (χ2 = 0.01; df = 1; p = 0.93), and resting (χ2 = 0.08; df = 1; p = 0.78) was not significantly affected by the exposure of parasitoids to LC20 of lambda-cyhalothrin. In contrast, an effect of the genotype was observed in the time spent walking out of the patch (χ2 = 7.49; df = 1; p = 0.01), mainly affected by the insecticide concentration (χ2 = 1435.96; df = 2; p < 0.001) compared with parasitoids faced with susceptible and kdr-resistant aphids exposed and unexposed to low LC20 = 0.52 mg/L of susceptible M. persicae (Figure 1A). Although the time spent walking in the patch was not affected by the aphid genotype (χ2 = 2.73; df = 1; p = 0.10), the time spent by parasitoids walking in the patch decreased in sprayed kdr-resistant aphids with high LC202 = 2063.23; df = 2; p < 0.001) (Figure 1B). Similarly, the resting time was not significantly affected by the aphid genotype (χ2 = 1.88; df = 1; p = 0.17), but it increased in sprayed resistant aphids (χ2 = 16.52; df = 2; p < 0.001) (Figure 1C) without interactions between factors.
Second, the group of behavioral parameters related to antennal movements were affected not by the exposure of parasitoids to insecticide or the aphid genotype, but the insecticide application on aphids. The exposure of parasitoids to LC20 did not change the proportions of time spent in antennal contact (χ2 = 0.55; df = 1; p = 0.46) and antennal examination (χ2 = 2.87; df = 1; p = 0.09), regardless of the aphid genotype to which parasitoids were confronted (χ2 = 1.02; df = 1; p = 0.31 and χ2 = 0.15; df = 1; p = 0.69, respectively). However, the time spent in antennal contact (χ2 = 587; df = 2; p < 0.001) and antennal examination (χ2 = 146.18; df = 2; p < 0.001) decreased when parasitoids were faced to kdr-resistant aphids exposed to high LC20 of resistant M. persicae. Marginal significant interactions between exposed parasitoid and aphid genotype (χ2 = 3.95; df = 1; p = 0.05) and the interaction between exposed parasitoid and sprayed aphid (χ2 = 6.32; df = 2; p = 0.04) were observed (Figure 1D) regarding the proportion of time spent in antennal contacts. However, there was no significant interaction detected between exposed parasitoid, aphid genotype, and sprayed aphid factors for antennal examination (Figure 1E).
Third, the parasitoid wasp A. colemani spent more time in grooming behaviors depending on the aphid genotype and aphid exposure to insecticide. The time used in antennal grooming (Figure 1F) increased (χ2 = 17.74; df = 1; p < 0.001) in parasitoids exposed to LC20, but no changes were observed in the time spent in ovipositor grooming (χ2 = 0.33; df = 1; p = 0.56) (Figure 1G). However, when the parasitoids were faced with kdr-resistant aphids, both the antennal grooming and the ovipositor grooming lasted longer, regardless of whether the aphids were sprayed or not (χ2 = 5.48; df = 1; p = 0.02 and χ2 = 15.13; df = 1; p < 0.001, respectively). In addition, both behaviors were affected by the exposure to high LC20 of kdr-resistant aphids (χ2 = 1454.54; df = 2; p < 0.001 and χ2 = 600.08; df = 2; p < 0.001, respectively), without interactions between factors. Fourth, the time spent on oviposition behaviors significantly decreased in parasitoids faced with resistant aphid genotypes. Although the time used in sting attempts (χ2 = 1.27; df = 1; p = 0.26) and stings into aphids (χ2 = 2.65; df = 1; p = 0.10) were not affected in parasitoids exposed to LC20, the proportion of time spent on sting attempts (χ2 = 5.94; df = 1; p = 0.02) and stings (χ2 = 11.18; df = 1; p < 0.001) significantly decreased when parasitoids were confronted with kdr-resistant aphids (Figure 1H,I). Similarly, this trend was observed when the parasitoids were faced with sprayed resistant aphids exposed to high LC20 of resistant M. persicae (sting attempts: χ2 = 78.31; df = 2; p < 0.001 and stings: χ2 = 66.31; df = 2; p < 0.001) as compared to non-sprayed aphids and sprayed with low LC20 of susceptible M. persicae. No significant interactions between factors were observed.
Finally, the time used in unsuccessful test oviposition increased in the parasitoids exposed to LC20 doses. This was observed by an increase in the proportion of time spent in sting attempts out of the host (χ2 = 5.88; df = 1; p = 0.02) and stings out of the host (χ2 = 4.12; df = 1; p = 0.04). Similarly, the time spent in sting attempts out of the host (χ2 = 56.79; df = 2; p < 0.001) and stings out of the host (χ2 = 47.50; df = 2; p < 0.001) was significantly affected in parasitoids faced with sprayed resistant aphids exposed to high LC20 (Figure 1J,K). Furthermore, a significant interaction between the exposure of parasitoids to insecticides and insecticide application on aphids was observed for the proportion of time spent on stings out of the host (χ2 = 8.68; df = 2; p = 0.01). All GLMM best-mixed models with binomial error and logit link function developed for these variables are shown in Table S1.

3.2. Influence of Insecticide Exposure on the Orientation Behavior of Parasitoids

The effects of insecticides on orientation responses in A. colemani were observed when exposed and unexposed parasitoids were faced with susceptible and kdr-resistant aphids applied and not treated with insecticide. The results show that the proportion of time parasitoids spent on arms that contained sweet pepper leaves with aphids did not change with the exposure to the LC20 of lambda-cyhalothrin (χ2 = 3.03; df = 1; p = 0.08) or the aphid genotype (χ2 = 0.91; df = 1; p = 0.33). This means that the attraction for cues emitted from aphid-infested sweet pepper leaves is not affected by the exposure of parasitoids to insecticide. The attraction cues seem not to change with the aphid genotype. However, parasitoids challenged with aphids treated with insecticide spent a significantly lower proportion of time in arms containing sweet pepper leaves with aphids (χ2 = 894.00; df = 2; p < 0.001). This latter result suggests that parasitoid females are less attracted (or repelled) by M. persicae exposed to the LC20 for the resistant aphid genotype concerning the remaining combination of treatments (Figure 2).

4. Discussion

Many studies have separately addressed the sub-lethal effects of insecticides on parasitoid behavior [15,17,21,51,52] and resistant aphids [9,53,54,55]. In this work, we assessed how their exposure could alter the interaction between the aphid parasitoid A. colemani and its aphid host M. persicae to residual insecticides under laboratory conditions. Interestingly, our results show that the studied parasitism behavior, in terms of the proportion of time parasitoids invest in orientating to and manipulating their hosts, seems not to be affected by previous exposure to residual insecticides. Instead, parasitoids seem reluctant to interact with kdr-resistant aphids sprayed with high concentrations of insecticides, an effect that disappears when aphids are sprayed with low doses.

4.1. Parasitoids Avoid Parasitizing Insecticide-Resistant Aphids at High Doses

The decreased mobility, exploration, oviposition, and grooming behaviors observed in parasitoids exposed and unexposed to their sub-lethal concentrations, and faced with kdr-resistant aphids treated with high doses of insecticides suggest that aphid genotype may play a major role in defining the outcome of parasitism in agroecosystems, where insect pests are mainly managed with insecticides. Indeed, the stronger the intensity of insecticide selection, the higher the frequency of insecticide-resistant individuals and the lower the efficacy of biological control, which can be expected if insecticides are frequently applied at higher doses, lethal for aphid parasitoids. Two hypotheses can explain our results: (1) pyrethroids, such as lambda-cyhalothrin, are neurotoxic insecticides [56]. Therefore, they can potentially perturb behaviors such as host searching, which leads the female parasitoids to avoid high concentrations of insecticides and, hence, not parasitize the kdr-resistant aphids. (2) Some of the coadjuvant ingredients used to prepare lambda-cyhalothrin can rapidly volatilize at room temperature [57]. Thus, pyrethroids seem to have a repellent effect against A. colemani when parasitoid wasps are offered with kdr-resistant aphids sprayed with high concentrations of lambda-cyhalothrin. It is possible that the effective detection of the aphid host by A. colemani was disturbed by high concentrations of lambda-cyhalothrin since oviposition involves sensory signals based on physical and chemical cues (i.e., olfactory and gustatory) acting at a short-range [58,59]. It could be that a masking odor interferes with host localization or decreases the attractiveness of the host. It has been reported that insecticides may negatively affect natural enemies over a short time scale, from the insecticide application to residual exposure during patch residence time, exploration, and oviposition [21,60,61]. Similarly, increased grooming behavior may be a cause or consequence of increased insecticide exposure when parasitoids are faced with kdr-resistant aphids treated with high concentrations of insecticides, probably because high concentrations of insecticide stimulate the chemo- and mechanoreceptors [62]. A significant event to notice is that in our experiment, A. colemani showed in some cases detrimental oviposition behavior, observed in events of sting-attempts and stings on leaf surfaces and outside the host; however, this disturbance is not reflected in the rate of parasitism, productivity, and survival of the offspring [39]. On the other hand, alterations in the cuticle structure may result in slower insecticide absorption in resistant aphids [5]; however, we did not find evidence that the parasitoids’ behavior changes related to that. Therefore, the observed contact avoidance behavior changes in parasitoids seem more likely associated with high LC20 than carrying kdr mutation in resistant M. persicae aphids.
These results are confirmed by the response of A. colemani in our orientation bioassays. When parasitoids were faced with high doses of insecticide, they showed a reduction in the time spent on the source of infested plants with the kdr-resistant aphids treated with their sub-lethal concentrations. An explanation for this effect is that pyrethroid insecticides act like a repellent similar to those observed in mosquitoes [63] and honeybees [64]. However, this repellency has been found in contact bioassays with pyrethroid residues on treated surfaces rather than with pyrethroids in a volatile fraction that the parasitoids could perceive through the airflow in an olfactometer test. The vapor pressure of lambda-cyhalothrin is low compared with other insecticides, and consequently, it is unlikely that it could act as a volatile repellent at laboratory temperatures [57]. Another explanation is that adjuvants or additives in our experiment’s formulated insecticide could be responsible for the repellent effect observed at higher concentrations [65]. Finally, the repellency found on parasitoids could also be explained as reducing the emission of attractive volatiles by the aphid feeding activity on the plant or the plant itself [66]. The sub-lethal insecticide concentration used on resistant aphids did not produce mortality. Still, it could reduce feeding activity that could lower the production of volatile organic compounds by the injured plants. In any case, repellency is associated with sensory perception [64,67], allowing the parasitoid to perceive high insecticide concentrations after contact and avoid treated areas since pyrethroids have been recorded to exhibit higher acute lethal toxicity to A. colemani [25]. Therefore, the vulnerability of kdr-resistant M. persicae could not be capitalized by this parasitoid species under a high concentration of lambda-cyhalothrin, causing a significant reduction in parasitism rates, survival, and longevity [39]. Additionally, pyrethroids target ion channels involved in central nervous system function, where their primary mode of action is to interfere with the normal functioning of voltage-gated sodium channels [68]. Consequently, this odor detection process and the subsequent parasitoid behavior responses depend on neural transmissions [16], which are expected to be affected by neurotoxic insecticides, including lambda-cyhalothrin.

4.2. Non-Detrimental Effects of Low Insecticide Concentrations

Contrary to what we expected, this study demonstrated no effect of sub-lethal concentrations applied to A. colemani faced with susceptible and kdr-resistant M. persicae exposed to sub-lethal concentrations (low concentrations). This result may be because sub-lethal concentrations of both parasitoids and susceptible aphids were similar. After exposure to lambda-cyhalothrin, the parasitoids tested did not exhibit alterations in the proportion of time spent when evaluated different behaviors and female parasitoids continue to parasitize aphids.
These results are similar to what was found in other species of Aphidiinae (Hymenoptera), where it has been shown that pyrethroids did not modify parasitoid behavior [15,16]. In our study, an increase in mobility, exploration, oviposition, and decreased grooming behavior were observed. Similar results have been found for Aphidius ervi, A. matricariae, and Diaeretiella rapae (Hymenoptera, Braconidae) [15,16,24] after 24 h of exposure, suggesting that in this period, parasitoids can compensate for the sub-lethal effects of pyrethroids. The increase in oviposition behavior may be due to a decrease in treated susceptible M. persicae mobility or complete aphid immobility, given that parasitism on treated susceptible aphids should be easier for the parasitoid than susceptible aphids not treated with insecticide, which showed higher mobility. These results are corroborated by Cabral et al. [69], where a decrease in the aphid mobility resulting from insecticide treatment increased the voracity of Coccinella undecimpunctata (Coleoptera, Coccinellidae).
Additionally, the longer amount of time spent in sting attempts and stings on susceptible M. persicae exposed to insecticides and on kdr-resistant M. persicae exposed and unexposed to low concentrations of insecticide, may be due to the low response to the alarm pheromone of these aphid species in comparison to susceptible M. persicae [39]. These results are supported by the evidence that kdr-insecticide resistance mechanisms have inhibitory, pleiotropic effects on aphid responses to alarm pheromone (E)-ß-farnesene [7,54] and that reduced alarm response is directly attributable to the mechanism of insecticide resistance [9] and vulnerability to parasitoids [7]. Moreover, aphid mobility and defensive behaviors can influence prey selection for the parasitoid, given that aphids are known to exhibit a wide range of defensive behaviors such as kicking, attacking with their legs, and walking away [70]. Additionally, this study showed that A. colemani of both conditions were attracted by the odor of this host–plant complex treated and untreated with low concentrations of insecticides, demonstrating that orientation towards aphid-infested plants was due mainly to the release of odors induced by aphids than insecticide application. Similar results were observed in Aphidius ervi (Hymenoptera, Braconidae), where the orientation was not perturbed by the application of lambda-cyhalothrin at sub-lethal doses [15].
However, contrary to our results, some studies reported that pyrethroids disrupt locomotor function and parasitoids’ physical perception [20,71,72]. For instance, pyrethroids insecticides at sub-lethal doses could disturb some behavior parameters, decreasing the attack rates of Trissolcus semistriatus (Hymenoptera, Platygastridae) [73], the walking speed in Trissolcus basalis (Hymenoptera, Platygastridae) [20], and the oviposition behavior of A. ervi parasitizing M. persicae on oilseed rape [52]. An explanation of our results could be that parasitoid wasp rearing began from the mummies of M. persicae collected on peach orchards. Pyrethroids and neonicotinoids are regularly applied to these fields. Hence, more resistant hosts could accelerate parasitoid resistance due to the exposure of the parasitoid larvae to insecticide selection through their hosts [74]. Lower target site sensitivity and enhanced detoxification may be potential causes of lower toxicity of lambda-cyhalothrin to A. colemani [25].

4.3. Implications for Integrated Pest Management (IPM)

It is known that the infectivity of parasitoids depends on host selection behavior, physiological adaptations, and the parasitoids’ skills to determine the availability of their aphid host and the risks involved in obtaining that resource [75]. The low performance of A. colemani faced with kdr-resistant M. persicae treated with high insecticide concentrations and the opposite response against susceptible and kdr-resistant M. persicae treated with low doses offer a window for its implementation in IPM programs. Indeed, the integration of chemical and biological methods needs to consider how insecticides impact natural enemies of target pests. Under field conditions, parasitoids are exposed to high concentrations of different pesticides, decreasing as the insecticide degrades [76], which might not cause lethal effects on parasitoids. For instance, when A. colemani is exposed to cypermethrin, parasitoids are negatively affected almost immediately on the same day of application, the effects being reduced after three days of application [77]. Our results suggest that A. colemani could be introduced a few days after application to obtain a high survival rate. They can withstand lambda-cyhalothrin residues since, under field conditions, it is well known that pyrethroids have a short biodegradation period [78,79].
Nevertheless, it is important to note that the present study was conducted in a laboratory where parasitoids and aphids were subjected to controlled conditions. Toxicity data extrapolation of laboratory bioassays in parasitoids to field conditions could be problematic and probably lead to overestimating actual hazards [80]. However, the success of parasitoids as biological control agents in agroecosystems may fail when factors that decrease the parasitism performance of these natural enemies are present in the environment. Therefore, broad-spectrum insecticides are one of the challenging constraints associated with IPM implementation [21].

5. Conclusions

Usually, insecticide application and the biological control of pests are incompatible, but this is not always the case. Our results demonstrated that short-term pesticide exposure at high concentrations causes adverse effects, indicating that insecticides may block some physiological processes, leading to the disruption of the behavior and orientation of A. colemani. Our findings demonstrate the sub-lethal effects of insecticides on the aphid parasitoids and contribute to a better understanding of how residual insecticides may impact the biological performance of natural enemies, providing an insight into the interaction between pests, natural enemies, and insecticides. However, studies in actual field conditions are needed to confirm our results.

Supplementary Materials

The following are available online at, Table S1: Generalized linear mixed models (GLMM) showing the full model evaluated for each behavior observed in Aphidius colemani (Ac) individuals exposed and unexposed to LC20 of lambda-cyhalothrin (Ac condition: AcC) and faced with susceptible and kdr-resistant M. persicae genotypes (MpG) exposed and unexposed to their respective LC20 of lambda-cyhalothrin (Zero 5 EC) (Mp condition: MpC). For each level, the Chi-square statistical test (χ2), the degrees of freedom (df), and the p-value are represented.

Author Contributions

Conceptualization, A.A.-T., E.F.-C., and C.C.F.; methodology, A.A.-T., and J.K.A.-B.; software, A.A.-T.; validation, A.A.-T., J.K.A.-B., E.F.-C., and C.C.F.; formal analysis, A.A.-T., E.F.-C., and C.C.F.; resources, C.C.F.; data curation, A.A.-T., J.K.A.-B.; writing—original draft preparation, A.A.-T., E.F.-C., and C.C.F.; writing—review and editing, A.A.-T., J.K.A.-B., E.F.-C., and C.C.F.; supervision, E.F.-C., and C.C.F.; project administration, C.C.F.; funding acquisition, C.C.F. All authors have read and agreed to the published version of the manuscript.


This work was funded by Iniciativa Científica Milenio grant NC120027 from the Chilean Ministry of Economy. A.A.-T. and J.K.A.-B. acknowledge fellowships for M.Sc. studies granted by the Millennium Nucleus Centre in Molecular Ecology and Evolutionary Applications in Agroecosystems. A.A.-T. and J.K.A.-B. received support from FONDECYT grant 1130483 to C.C.F. to complete their Master’s theses. Additionally, the authors received funding from FONDECYT regular grant 1170943 to C.C.F. during the preparation and writing of this manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data is available upon request from the corresponding author.


The authors would like to thank Lucia Briones for her help in molecular analysis. We are also grateful to Cristian Baltierra Valenzuela (Fundo El Amanecer) for his valuable support in the sampling of parasitoids.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Dewar, A.M.; Denholm, I.; van Emden, H.F.; Harrington, R. Chemical control. In Aphids as Crop Pests, 2nd ed.; van Emden, H.F., Harrington, R., Eds.; CABI: Oxford, UK, 2017; pp. 398–425. [Google Scholar]
  2. Blackman, R.; Eastop, V.F. Taxonomic Issues. In Aphids as Crop Pests, 2nd ed.; van Emden, H.F., Harrington, R., Eds.; CABI: Oxford, UK, 2017; pp. 1–36. [Google Scholar]
  3. Bass, C.; Puinean, A.M.; Zimmer, C.T.; Denholm, I.; Field, L.M.; Foster, S.P.; Gutbrod, O.; Nauen, R.; Slater, R.; Williamson, M.S. The evolution of insecticide resistance in the peach potato aphid, Myzus persicae. Insect Biochem. Mol. Biol. 2014, 51, 41–51. [Google Scholar] [CrossRef][Green Version]
  4. Foster, S.P.; Devine, G.J.; Devonshire, A.L. Insecticide resistance. In Aphids as Crop Pests, 2nd ed.; van Emden, H.F., Harrington, R., Eds.; CABI: Oxford, UK, 2017; pp. 426–447. [Google Scholar]
  5. Silva, A.X.; Jander, G.; Samaniego, H.; Ramsey, J.S.; Figueroa, C.C. Insecticide resistance mechanisms in the green peach aphid Myzus persicae (Hemiptera: Aphididae) I: A transcriptomic survey. PLoS ONE 2012, 7, e36366. [Google Scholar] [CrossRef][Green Version]
  6. Martinez-Torres, D.; Foster, S.P.; Field, L.M.; Devonshire, A.L.; Williamson, M.S. A sodium channel point mutation is associated with resistance to DDT and pyrethroid insecticides in the peach-potato aphid, Myzus persicae (Sulzer) (Hemiptera: Aphididae). Insect Mol. Biol. 1999, 8, 339–346. [Google Scholar] [CrossRef] [PubMed]
  7. Foster, S.P.; Tomiczek, M.; Thompson, R.; Denholm, I.; Poppy, G.; Kraaijeveld, A.; Powell, W. Behavioural side-effects of insecticide resistance in aphids increase their vulnerability to parasitoid attack. Anim. Behav. 2007, 74, 621–632. [Google Scholar] [CrossRef]
  8. Kliot, A.; Ghanim, M. Fitness costs associated with insecticide resistance. Pest Manag. Sci. 2012, 1431–1437. [Google Scholar] [CrossRef] [PubMed]
  9. Foster, S.P.; Denholm, I.; Poppy, G.M.; Thompson, R.; Powell, W. Fitness trade-off in peach-potato aphids (Myzus persicae) between insecticide resistance and vulnerability to parasitoid attack at several spatial scales. Bull. Entomol. Res. 2011, 101, 659–666. [Google Scholar] [CrossRef]
  10. Barratt, B.I.P.; Moran, V.C.; Bigler, F.; van Lenteren, J.C. The status of biological control and recommendations for improving uptake for the future. BioControl 2018, 63, 155–167. [Google Scholar] [CrossRef][Green Version]
  11. Simon, J.C.; Peccoud, J. Rapid evolution of aphid pests in agricultural environments. Curr. Opin. Insect Sci. 2018, 26, 17–24. [Google Scholar] [CrossRef] [PubMed]
  12. Prado, S.G.; Jandricic, S.E.; Frank, S.D. Ecological interactions affecting the efficacy of Aphidius colemani in greenhouse crops. Insects 2015, 6, 538–575. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Starý, P. The Aphidiidae of Chile (Hymenoptera, Ichneumonoidea, Aphidiidae). Dtsch. Entomol. Fachz. 1995, 42, 113–138. [Google Scholar] [CrossRef]
  14. Khatri, D.; He, X.Z.; Wang, Q. Effective biological control depends on life history strategies of both parasitoid and its host: Evidence from Aphidius colemani–Myzus persicae system. J. Econ. Entomol. 2017, 110, 400–406. [Google Scholar] [CrossRef] [PubMed]
  15. Desneux, N.; Pham-Delègue, M.-H.; Kaiser, L. Effects of sub-lethal and lethal doses of lambda-cyhalothrin on oviposition experience and host-searching behaviour of a parasitic wasp, Aphidius ervi. Pest Manag. Sci. 2004, 60, 381–389. [Google Scholar] [CrossRef]
  16. Desneux, N.; Wajnberg, E.; Fauvergue, X.; Privet, S.; Kaiser, L. Oviposition behaviour and patch-time allocation in two aphid parasitoids exposed to deltamethrin residues. Entomol. Exp. Appl. 2004, 112, 227–235. [Google Scholar] [CrossRef]
  17. Desneux, N.; Denoyelle, R.; Kaiser, L. A multi-step bioassay to assess the effect of the deltamethrin on the parasitic wasp Aphidius ervi. Chemosphere 2006, 65, 1697–1706. [Google Scholar] [CrossRef] [PubMed]
  18. Teder, T.; Knapp, M. Sublethal effects enhance detrimental impact of insecticides on non-target organisms: A quantitative synthesis in parasitoids. Chemosphere 2019, 214, 371–378. [Google Scholar] [CrossRef] [PubMed]
  19. Biondi, A.; Zappalà, L.; Stark, J.D.; Desneux, N. Do biopesticides affect the demographic traits of a parasitoid wasp and its biocontrol services through sublethal effects? PLoS ONE 2013, 8, e76548. [Google Scholar] [CrossRef] [PubMed][Green Version]
  20. Salerno, G.; Colazza, S.; Conti, E. Sub-lethal effects of deltamethrin on walking behaviour and response to host kairomone of the egg parasitoid Trissolcus basalis. Pest Manag. Sci. 2002, 58, 663–668. [Google Scholar] [CrossRef]
  21. Desneux, N.; Decourtye, A.; Delpuech, J. The sublethal effects of pesticides on beneficial arthropods. Annu. Rev. Entomol. 2007, 52, 81–106. [Google Scholar] [CrossRef] [PubMed]
  22. Kawazu, K.; Shimoda, T.; Suzuki, Y. Effects of insecticides on the foraging behaviour and survival of Cotesia vestalis, a larval parasitoid of the diamondback moth, Plutella xylostella. J. Appl. Entomol. 2011, 135, 647–657. [Google Scholar] [CrossRef]
  23. Guedes, R.N.C.; Smagghe, G.; Stark, J.D.; Desneux, N. Pesticide-induced stress in arthropod pests for optimized integrated pest management programs. Annu. Rev. Entomol. 2016, 61, 43–62. [Google Scholar] [CrossRef][Green Version]
  24. Desneux, N.; Ramirez-Romero, R.; Kaiser, L. Multistep bioassay to predict recolonization potential of emerging parasitoids after a pesticide treatment. Environ. Toxicol. Chem. 2006, 25, 2675. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. D’Ávila, V.A.; Barbosa, W.F.; Guedes, R.N.C.; Cutler, G.C. Effects of spinosad, imidacloprid, and lambda-cyhalothrin on survival, parasitism, and reproduction of the aphid aarasitoid Aphidius colemani. J. Econ. Entomol. 2018, 111, 1096–1103. [Google Scholar] [CrossRef]
  26. Mills, N.J.; Heimpel, G.E. Could increased understanding of foraging behavior help to predict the success of biological control? Curr. Opin. Insect Sci. 2018, 27, 26–31. [Google Scholar] [CrossRef] [PubMed]
  27. Hajek, A.E.; Eilenberg, J. Natural Enemies: An Introduction to Biological Control; Cambridge University Press: Cambridge, UK, 2018. [Google Scholar]
  28. Sih, A.; Bell, A.; Johnson, J.C. Behavioral syndromes: An ecological and evolutionary overview. Trends Ecol. Evol. 2004, 19, 372–378. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Fuentes-Contreras, E.; Figueroa, C.C.; Reyes, M.; Briones, L.M.; Niemeyer, H.M. Genetic diversity and insecticide resistance of Myzus persicae (Hemiptera: Aphididae) populations from tobacco in Chile: Evidence for the existence of a single predominant clone. Bull. Entomol. Res. 2004, 94, 11–18. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Rubiano-Rodríguez, J.A.; Fuentes Conterras, E.; Figueroa, C.C.; Margaritopoulos, J.T.; Briones, L.M.; Ramírez, C.C. Genetic diversity and insecticide resistance during the growing season in the green peach aphid (Hemiptera: Aphididae) on primary and secondary hosts: A farm-scale study in Central Chile. Bull. Entomol. Res. 2014, 104, 182–194. [Google Scholar] [CrossRef]
  31. Anstead, J.A.; Williamson, M.S.; Eleftherianos, I.; Denholm, I. High-throughput detection of knockdown resistance in Myzus persicae using allelic discriminating quantitative PCR. Insect Biochem. Mol. Biol. 2004, 34, 871–877. [Google Scholar] [CrossRef]
  32. Anstead, J.A.; Williamson, M.S.; Denholm, I. New methods for the detection of insecticide resistant Myzus persicae in the U.K. suction trap network. Agric. For. Entomol. 2008, 10, 291–295. [Google Scholar] [CrossRef]
  33. Devonshire, A. Comparison of microplate esterase assays and immunoassay for identifying insecticide resistant variants of Myzus persicae (Homoptera: Aphididae). Bull. Entomol. Res. 1992, 82, 459–463. [Google Scholar] [CrossRef]
  34. Sepúlveda, D.A.; Zepeda-Paulo, F.; Ramírez, C.C.; Lavandero, B.; Figueroa, C.C. Diversity, frequency and geographic distribution of facultative bacterial endosymbionts in introduced aphid pests. Insect Sci. 2017, 24, 511–521. [Google Scholar] [CrossRef]
  35. Vorburger, C. Symbiont-conferred resistance to parasitoids in aphids—Challenges for biological control. Biol. Control 2018, 116, 17–26. [Google Scholar] [CrossRef]
  36. Peccoud, J.; Bonhomme, J.; Mahéo, F.; de la Huerta, M.; Cosson, O.; Simon, J.-C. Inheritance patterns of secondary symbionts during sexual reproduction of pea aphid biotypes. Insect Sci. 2013, 21, 291–300. [Google Scholar] [CrossRef] [PubMed]
  37. Abarca, P.; Felmer, S.; Allende, M.; Lemus, G.; Antunez, A.; Quiroz, C.; Hirzel, J.; Riquelme, S.; Carrasco, J.; Sepulveda, P. Manual de manejo del cultivo de Duraznero. In Boletin INIA-Instituto de Investigaciones Agropecuarias; Ministerio de Agricultura: Santiago, Chile, 2017. [Google Scholar]
  38. Blackman, R.L.; Eastop, V.F. Taxonomic Issues. In Aphids as Crop Pests; van Emden, H.F., Harrington, R., Eds.; CABI: Wallingford, UK, 2007. [Google Scholar]
  39. Alfaro-Tapia, A.; Alvarez-Baca, J.K.; Figueroa, C.C.; Fuentes-Contreras, E. Sub-lethal effects of λ-cyhalothrin on behavior and development of the parasitoid Aphidius colemani (Hymenoptera: Braconidae) on susceptible and kdr resistant green peach aphid (Hemiptera: Aphididae). J. Econ. Entomol. 2021. (in revision). [Google Scholar]
  40. Zepeda-Paulo, F.; Lavandero, B.; Mahéo, F.; Dion, E.; Outreman, Y.; Simon, J.-C.; Figueroa, C.C. Does sex-biased dispersal account for the lack of geographic and host-associated differentiation in introduced populations of an aphid parasitoid? Ecol. Evol. 2015, 5, 2149–2161. [Google Scholar] [CrossRef]
  41. Ottoni, E.B. EthoLog 2.2: A tool for the transcription and timing of behavior observation sessions. Behav. Res. Methods Instrum. Comput. 2000, 32, 446–449. [Google Scholar] [CrossRef][Green Version]
  42. Desneux, N.; Barta, R.J.; Hoelmer, K.A.; Hopper, K.R.; Heimpel, G.E. Multifaceted determinants of host specificity in an aphid parasitoid. Oecologia 2009, 160, 387–398. [Google Scholar] [CrossRef]
  43. Vet, L.E.; Lenteren, J.V.; Heymans, M.; Meelis, E. An airflow olfactometer for measuring olfactory responses of hymenopterous parasitoids and other small insects. Physiol. Entomol. 1983, 8, 97–106. [Google Scholar] [CrossRef]
  44. Bolker, B.M.; Brooks, M.E.; Clark, C.J.; Geange, S.W.; Poulsen, J.R.; Stevens, M.H.H.; White, J.-S.S. Generalized linear mixed models: A practical guide for ecology and evolution. Trends Ecol. Evol. 2009, 24, 127–135. [Google Scholar] [CrossRef] [PubMed]
  45. Browne, W.J.; Subramanian, S.V.; Jones, K.; Goldstein, H. Variance partitioning in multilevel logistic models that exhibit overdispersion. J. R. Stat. Soc. Ser. A 2005, 168, 599–613. [Google Scholar] [CrossRef]
  46. van de Pol, M.; Wright, J. A simple method for distinguishing within- versus between-subject effects using mixed models. Anim. Behav. 2009, 77, 753–758. [Google Scholar] [CrossRef]
  47. Fox, J.; Weisberg, S. An R Companion to Applied Regression; Sage Publications: New York, NY, USA, 2011; ISBN 9781412975148. [Google Scholar]
  48. Hothorn, T.; Bretz, F.; Westfall, P.; Heiberger, R.M.; Schuetzenmeister, A.; Scheibe, S.; Hothorn, M.T. Multcomp: Simultaneous Inference in General Parametric Models; Project for Statistical Computing: Vienna, Austria, 2016. [Google Scholar]
  49. Bates, D.; Mächler, M.; Bolker, B.; Walker, S. Fitting linear mixed-effects models using lme4. J. Stat. Softw. 2015, 67, 1–48. [Google Scholar] [CrossRef]
  50. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
  51. Desneux, N.; Rafalimanana, H.; Kaiser, L. Dose-response relationship in lethal and behavioural effects of different insecticides on the parasitic wasp Aphidius ervi. Chemosphere 2004, 54, 619–627. [Google Scholar] [CrossRef]
  52. Desneux, N.; Noel, B.; Kaiser, L. Sublethal effect of a pyrethroid on orientation behaviour of the parasitic wasp Aphidius ervi (Hymenoptera: Aphidiidae) in response to odour from oilseed rape infested by the aphid Myzus persicae. Bull. IOBC/WPRS 2000, 23, 55–64. [Google Scholar]
  53. Foster, S.P.; Young, S.; Williamson, M.S.; Duce, I.; Denholm, I.; Devine, G.J. Analogous pleiotropic effects of insecticide resistance genotypes in peach—Potato aphids and houseflies. Heredity 2003, 91, 98–106. [Google Scholar] [CrossRef] [PubMed]
  54. Foster, S.P.; Denholm, I.; Thompson, R.; Poppy, G.M.; Powell, W. Reduced response of insecticide-resistant aphids and attraction of parasitoids to aphid alarm pheromone; a potential fitness trade-off. Bull. Entomol. Res. 2005, 95, 37–46. [Google Scholar] [CrossRef][Green Version]
  55. Foster, S.P.; Kift, N.B.; Baverstock, J.; Sime, S.; Reynolds, K.; Jones, J.E.; Thompson, R.; Tatchell, G.M. Association of MACE-based insecticide resistance in Myzus persicae with reproductive rate, response to alarm pheromone and vulnerability to attack by Aphidius colemani. Pest Manag. Sci. 2003, 59, 1169–1178. [Google Scholar] [CrossRef] [PubMed]
  56. Ensley, S.M. Pyrethrins and Pyrethroids. In Veterinary Toxicology: Basic and Clinical Principles, 3rd ed.; Elsevier: Amsterdam, The Netherlands, 2018; pp. 515–520. ISBN 9780128114100. [Google Scholar]
  57. He, L.-M.; Troiano, J.; Wang, A.; Goh, K. Environmental chemistry, ecotoxicity, and fate of lambda-cyhalothrin. Rev. Environ. Contam. Toxicol. 2008, 195, 71–91. [Google Scholar]
  58. Fatouros, N.E.; Dicke, M.; Mumm, R.; Meiners, T.; Hilker, M. Foraging behavior of egg parasitoids exploiting chemical information. Behav. Ecol. 2008, 19, 677–689. [Google Scholar] [CrossRef]
  59. Chesnais, Q.; Ameline, A.; Doury, G.; Le Roux, V.; Couty, A. Aphid parasitoid mothers don’t always know best through the whole host selection process. PLoS ONE 2015, 10, e0135661. [Google Scholar] [CrossRef]
  60. Stark, J.D.; Banks, J.E. Population-level effects of pesticides and other toxicants on arthropods. Annu. Rev. Entomol. 2003, 48, 505–519. [Google Scholar] [CrossRef]
  61. Suma, P.; Zappalà, L.; Mazzeo, G.; Siscaro, G. Lethal and sub-lethal effects of insecticides on natural enemies of citrus scale pests. BioControl 2009, 54, 651–661. [Google Scholar] [CrossRef]
  62. Zhukovskaya, M.; Yanagawa, A.; Forschler, B. Grooming behavior as a mechanism of insect disease defense. Insects 2013, 4, 609–630. [Google Scholar] [CrossRef][Green Version]
  63. Kawada, H.; Ohashi, K.; Dida, G.O.; Sonye, G.; Njenga, S.M.; Mwandawiro, C.; Minakawa, N. Insecticidal and repellent activities of pyrethroids to the three major pyrethroid-resistant malaria vectors in western Kenya. Parasit. Vectors 2014, 7, 208. [Google Scholar] [CrossRef][Green Version]
  64. Belzunces, L.P.; Tchamitchian, S.; Brunet, J.-L. Neural effects of insecticides in the honey bee. Apidologie 2012, 43, 348–370. [Google Scholar] [CrossRef][Green Version]
  65. Zeinali, M.; McConnell, L.L.; Hapeman, C.J.; Nguyen, A.; Schmidt, W.F.; Howard, C.J. Volatile organic compounds in pesticide formulations: Methods to estimate ozone formation potential. Atmos. Environ. 2011, 45, 2404–2412. [Google Scholar] [CrossRef]
  66. Degenhardt, D.C.; Greene, J.K. Influence of pyrethroid pesticide formulation on volatile emissions from cotton, Gossypium hirsutum L., leaves. J. Agric. Urban. Entomol. 2012, 28, 8–15. [Google Scholar] [CrossRef]
  67. Charreton, M.; Decourtye, A.; Henry, M.; Rodet, G.; Sandoz, J.-C.; Charnet, P.; Collet, C. A Locomotor deficit induced by sublethal doses of pyrethroid and neonicotinoid insecticides in the honeybee Apis mellifera. PLoS ONE 2015, 10, e0144879. [Google Scholar] [CrossRef]
  68. Dong, K.; Du, Y.; Rinkevich, F.; Nomura, Y.; Xu, P.; Wang, L.; Silver, K.; Zhorov, B.S. Molecular biology of insect sodium channels and pyrethroid resistance. Insect Biochem. Mol. Biol. 2014, 50, 1–17. [Google Scholar] [CrossRef][Green Version]
  69. Cabral, S.; Soares, A.O.; Garcia, P. Voracity of Coccinella undecimpunctata: Effects of insecticides when foraging in a prey/plant system. J. Pest Sci. 2011, 84, 373–379. [Google Scholar] [CrossRef][Green Version]
  70. Moiroux, J.; Abram, P.K.; Louâpre, P.; Barrette, M.; Brodeur, J.; Boivin, G. Influence of temperature on patch residence time in parasitoids: Physiological and behavioural mechanisms. Sci. Nat. 2016, 103, 32. [Google Scholar] [CrossRef][Green Version]
  71. Alix, A.; Cortesero, A.M.; Nénon, J.P.; Anger, J.P. Selectivity assessment of chlorfenvinphos reevaluated by including physiological and behavioral effects on an important beneficial insect. Environ. Toxicol. Chem. 2001, 20, 2530–2536. [Google Scholar] [CrossRef]
  72. Bayram, A.; Salerno, G.; Onofri, A.; Conti, E. Sub-lethal effects of two pyrethroids on biological parameters and behavioral responses to host cues in the egg parasitoid Telenomus busseolae. Biol. Control 2010, 53, 153–160. [Google Scholar] [CrossRef]
  73. Ranjbar, F.; Reitz, S.; Jalali, M.A.; Ziaaddini, M.; Izadi, H. Lethal and sublethal effects of two commercial insecticides on egg parasitoids (Hymenoptera: Scelionidae) of green stink bugs (Hem: Pentatomidae). J. Econ. Entomol. 2021, 114, 33–39. [Google Scholar] [CrossRef]
  74. Liu, S.; Li, Y.; Tang, Z. Host resistance to an insecticide favors selection of resistance in the parasitoid, Cotesia plutellae (Hymenoptera: Braconidae). Biol. Control 2003, 28, 137–143. [Google Scholar] [CrossRef]
  75. Meiners, T.; Peri, E. Chemical ecology of insect parasitoids: Essential elements for developing effective biological control programmes. In Chemical Ecology of Insect Parasitoids; Wajnberg, E., Colazza, S., Eds.; John Wiley & Sons, Ltd.: Chichester, UK, 2013; pp. 191–224. ISBN 9781118409589. [Google Scholar]
  76. Stanley, J.; Preetha, G. Pesticide Toxicity to Parasitoids: Exposure, Toxicity and Risk Assessment Methodologies. In Pesticide Toxicity to Non-Target Organisms; Springer: Dordrecht, The Netherlands, 2016; pp. 99–152. [Google Scholar]
  77. Irshaid, L.A.; Hasan, H.S. Bioresidual effect of two insecticides on melon aphid Aphis gossypii Glover (Homoptera: Aphididae) and its parasitoid Aphidius colemani Verick (Hymenoptera: Brachonidae). Environ. Sci. 2011, 11, 228–236. [Google Scholar]
  78. Bhardwaj, K.; Sharma, R.; Abraham, J.; Sharma, P. Pyrethroids: A Natural Product for Crop Protection. In Natural Bioactive Products in Sustainable Agriculture; Springer: Singapore, 2020; pp. 113–130. [Google Scholar]
  79. Gu, X.Z.; Zhang, G.Y.; Chen, L.; Dai, R.L.; Yu, Y.C. Persistence and dissipation of synthetic pyrethroid pesticides in red soils from the Yangtze River Delta area. Environ. Geochem. Health 2008, 30, 67–77. [Google Scholar] [CrossRef]
  80. Langhof, M.; Gathmann, A.; Poehling, H.-M.; Meyhöfer, R. Impact of insecticide drift on aphids and their parasitoids: Residual toxicity, persistence and recolonisation. Agric. Ecosyst. Environ. 2003, 94, 265–274. [Google Scholar] [CrossRef]

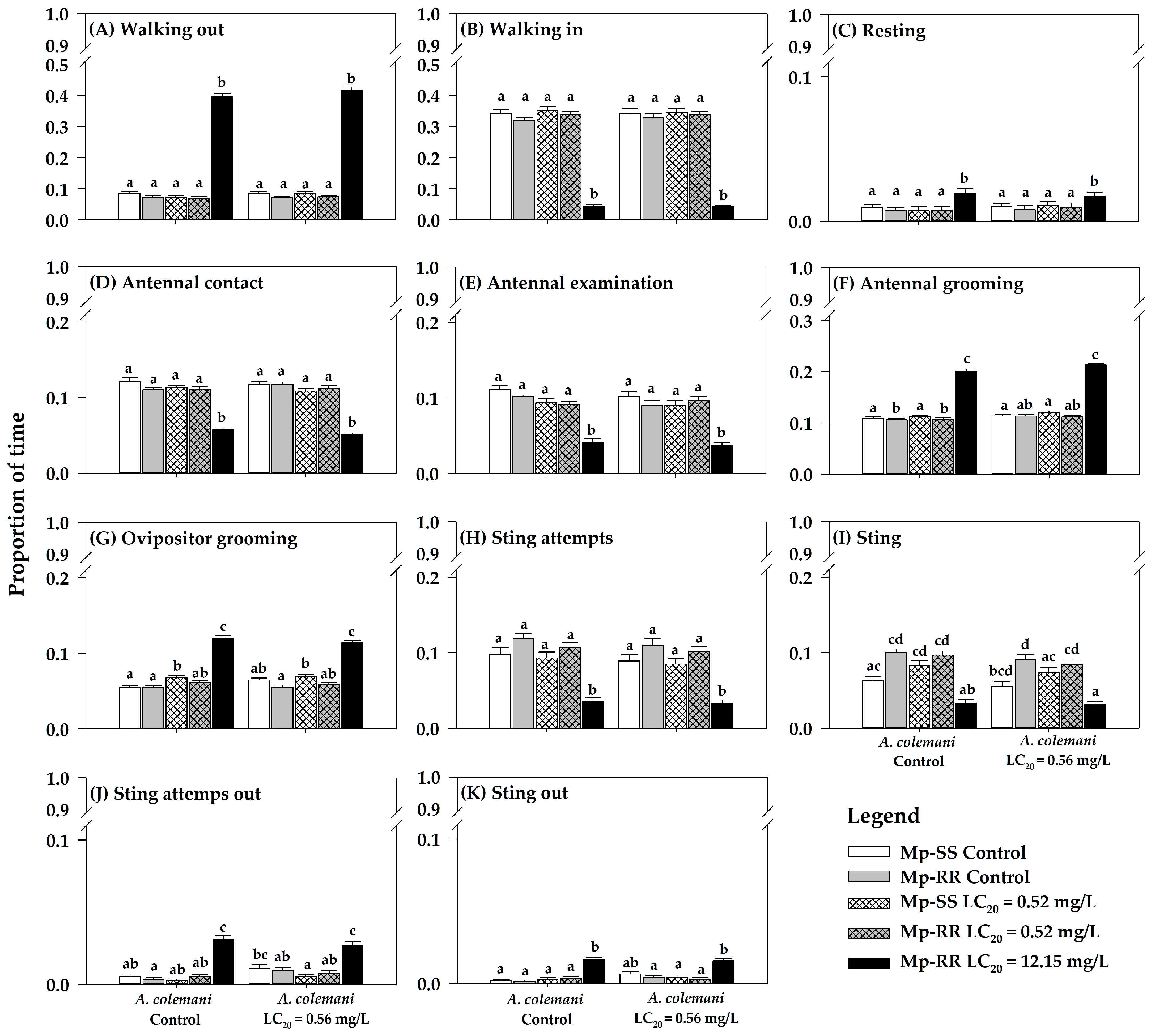

Figure 1. Proportion of time spent showing different behaviors in individuals of the parasitoid wasp Aphidius colemani exposed and unexposed to the insecticide lambda-cyhalothrin (Zero 5 EC). Parasitoid individuals were offered with kdr-susceptible (Mp-SS) and kdr-resistant (Mp-RR:) M. persicae aphids exposed (LC20) and unexposed (water as control) to lambda-cyhalothrin. Mp-SS exposed to LC20 of kdr-resistant aphids are not shown, as all aphids were dead. Different letters indicate significant differences (Tukey multiple comparisons test p < 0.05).
Figure 1. Proportion of time spent showing different behaviors in individuals of the parasitoid wasp Aphidius colemani exposed and unexposed to the insecticide lambda-cyhalothrin (Zero 5 EC). Parasitoid individuals were offered with kdr-susceptible (Mp-SS) and kdr-resistant (Mp-RR:) M. persicae aphids exposed (LC20) and unexposed (water as control) to lambda-cyhalothrin. Mp-SS exposed to LC20 of kdr-resistant aphids are not shown, as all aphids were dead. Different letters indicate significant differences (Tukey multiple comparisons test p < 0.05).
Agriculture 11 00539 g001

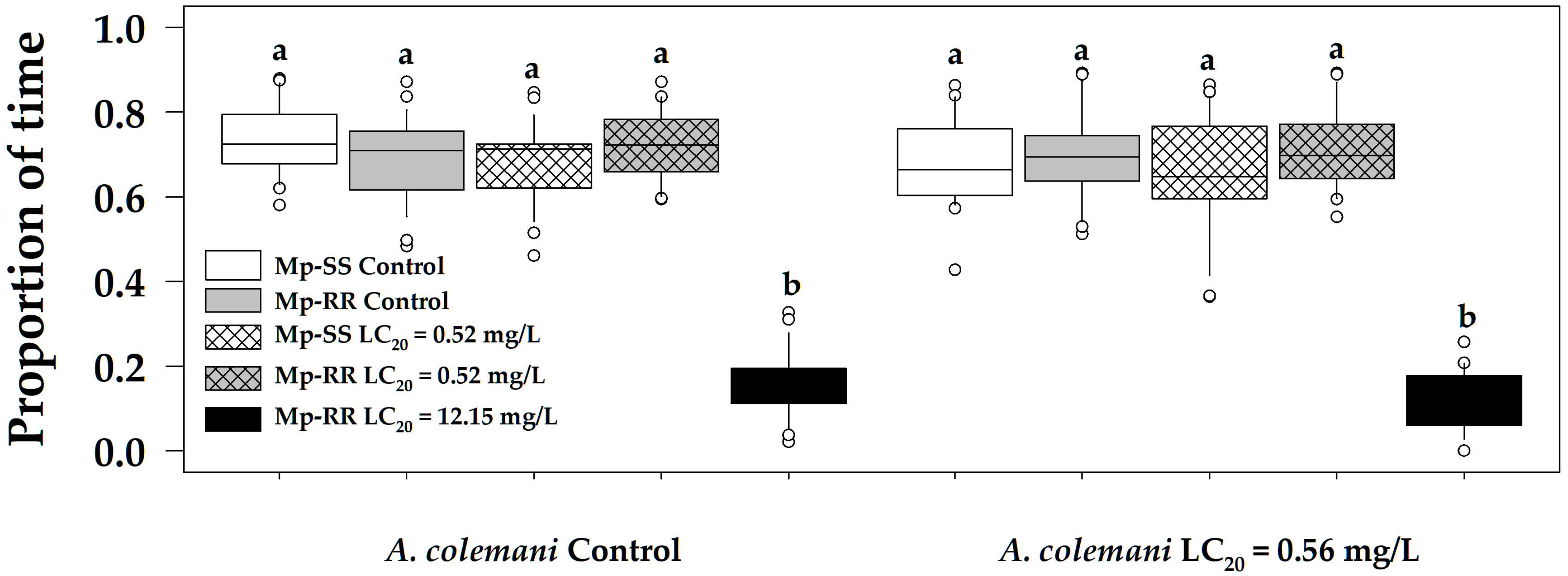

Figure 2. Proportion of time spent on each arm of the olfactometer in individuals of the parasitoid wasp Aphidius colemani exposed and unexposed to LC20 of the insecticide lambda-cyhalothrin (Zero 5 EC). Using a 4-arm olfactometer, parasitoid individuals were offered with kdr-susceptible (Mp-SS) and kdr-resistant (Mp-RR:) M. persicae aphids exposed (LC20) and unexposed (water as control) to lambda-cyhalothrin. Mp-SS exposed to LC20 of kdr-resistant aphids are not shown, as all aphids were dead. Two arms of the olfactometer were connected to glass bottles containing pepper plants with aphids, while the other two arms were connected to glass bottles containing only pepper plants (no aphids). Different letters indicate significant differences (Tukey multiple comparisons test, p < 0.05).
Figure 2. Proportion of time spent on each arm of the olfactometer in individuals of the parasitoid wasp Aphidius colemani exposed and unexposed to LC20 of the insecticide lambda-cyhalothrin (Zero 5 EC). Using a 4-arm olfactometer, parasitoid individuals were offered with kdr-susceptible (Mp-SS) and kdr-resistant (Mp-RR:) M. persicae aphids exposed (LC20) and unexposed (water as control) to lambda-cyhalothrin. Mp-SS exposed to LC20 of kdr-resistant aphids are not shown, as all aphids were dead. Two arms of the olfactometer were connected to glass bottles containing pepper plants with aphids, while the other two arms were connected to glass bottles containing only pepper plants (no aphids). Different letters indicate significant differences (Tukey multiple comparisons test, p < 0.05).
Agriculture 11 00539 g002
