Review

CD56bright Natural Killer Cells: A Possible Biomarker of Different Treatments in Multiple Sclerosis

by
Alice Laroni
1,2,* and
Antonio Uccelli
1,2
1
Department of Neuroscience, Rehabilitation, Ophthalmology, Genetics, Maternal and Child Health and Center of Excellence for Biomedical Research, University of Genova, 16132 Genova, Italy
2
IRCCS Ospedale Policlinico San Martino, 16132 Genova, Italy
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(5), 1450; https://doi.org/10.3390/jcm9051450
Submission received: 27 March 2020 / Revised: 5 May 2020 / Accepted: 8 May 2020 / Published: 13 May 2020
(This article belongs to the Special Issue Development and Function of Natural Killer Cells and their Importance in Immunotherapy)
Browse Figure
Versions Notes

Abstract

:
Multiple sclerosis (MS) is an immune-mediated disease of the central nervous system, which leads, in many cases, to irreversible disability. More than 15 disease-modifying treatments (DMTs) are available for the treatment of MS. Clinical activity or activity at magnetic resonance imaging (MRI) are now used to assess the efficacy of DMTs, but are negative prognostic factors per se. Therefore, a biomarker permitting us to identify patients who respond to treatment before they develop clinical/radiological signs of MS activity would be of high importance. The number of circulating CD56bright natural killer (NK) cells may be such a biomarker. CD56bright NK cells are a regulatory immune population belonging to the innate immune system. The number of CD56bright NK cells increases upon treatment with interferon-beta, alemtuzumab, dimethyl fumarate, after autologous hematopoietic stem cell transplantation, and is higher in those who respond to fingolimod. In some cases, an increased number of CD56bright NK cells is associated with an increase in their regulatory function. In the current review, we will evaluate the known effect on CD56bright NK cells of DMTs for MS, and will discuss their possible role as a biomarker for treatment response in MS.

1. Introduction

Multiple sclerosis (MS) is an immune-mediated disease of the central nervous system (CNS), which may lead to irreversible disability [1]. In most cases, it begins with a relapsing course, characterized by bouts of inflammatory cells going from peripheral blood to the CNS, causing new lesions in the brain and spinal cord, some of them being associated with clinical symptoms (relapses) [1].
The therapeutic arsenal for relapsing MS counts more than 15 disease-modifying treatments (DMTs), all of them affecting the immune function at different levels [2,3]. Clinical trials inform about the efficacy of each drug in the overall population, but it is still impossible to predict whether single subjects will respond to a specific treatment or not. The definition of responders itself is not univocal: the more treatments are approved, the higher the bar of expectation is raised, with the ultimate goal of achieving “no evidence of disease activity” (NEDA) as evaluated by clinical parameters (no relapses, no progression of disability) and magnetic resonance imaging (MRI: no new or active lesions, no atrophy) [4]. However, when a patient starts treatment, there are no biological markers to predict disease reactivation before it becomes visible at MRI or at the clinical level, i.e., when inflammation has already mediated some damage to the CNS tissue [5].
From a pathophysiological point of view, immune cells belonging to the adaptive immune system (T and B lymphocytes) are the main players in the initiation of MS after their activation in peripheral organs and their subsequent passage through the barriers that divide them from the CNS [1,6]. What causes their activation has not been univocally defined; however, a dysfunction in regulatory immune cells in MS has been shown both for the adaptive and the innate components [7].
Among innate cells, a subset of natural killer (NK) cells, the CD56bright NK cell subset, has emerged as having a regulatory function, which is impaired in MS. Moreover, and interestingly, independent studies evaluating the immune effects of different DMTs have shown, in many cases, an increase in the number of CD56bright NK cells upon treatment. In this review, we will summarize what is known about the role of CD56bright NK cells in MS and the effects of DMTs on such regulatory innate cell subsets, focusing on treatment with known effects on NK cells.

2. CD56bright NK Cells: A Regulatory Immune Subset

NK cells are a part of innate lymphoid cells within the innate immune system [8]. NK cells are cytotoxic towards cells infected by viruses and cancer cells and are able to select their targets through receptors which recognize self-molecules (mainly human leukocyte antigen—HLA—class I molecules), inhibiting their activation, and other receptors which bind to ligands expressed by stressed cells, to pathogen-related ligands, or to unknown ligands, mediating their activation [9].
NK cells are not a homogeneous population, but include different subsets with specific functions. In humans, NK cells in the peripheral blood can be divided into two main subsets: CD56dim NK cells, more abundant and highly cytotoxic against cells infected by viruses or cancer cells, and CD56bright NK cells [10]. The latter subset is phenotypically and functionally different from CD56dim NK cells in many ways. From a phenotypic point of view, CD56bright NK cells have a specific array of surface receptors: their main inhibitory receptor is the NK group 2 member A (NKG2A), while they usually lack the killer immunoglobulin receptors (KIR) which are expressed by CD56dim NK cells [11]. Moreover, only a minority of them express the Fc-gamma receptor, CD16, which is expressed by all CD56dim NK cells [11].
Developmentally, CD56bright NK cells are hypothesized to descend from the common lymphoid precursor, representing an earlier differentiation stage of NK cells, and to give rise to the CD56dim NK cells [12]. This “linear” hypothesis of differentiation is corroborated by several observations, including increased length of telomeres of CD56bright NK cells compared to CD56dim NK cells [12], and prevalence of CD56bright NK cells in peripheral blood in the early phases after hematopoietic stem cell transplantation, as summarized by [13].
However, other studies challenge such a model, including an important one in rhesus macaques, transplanted with human hematopoietic cells, which suggests that different subsets of NK cells are clonally unrelated [14]. Different hypotheses on the differentiation of NK cell subsets are reviewed in [15].
From a functional point of view, CD56bright NK cells have been described as “immunoregulatory” since their first characterization, due to their lower capability of killing standard targets (i.e., cancer cell lines lacking HLA class I molecules), and higher production of cytokines, compared to CD56dim NK cells [16]. However, later studies have shown that, upon appropriate stimulus, CD56bright NK cells are indeed capable of cytotoxicity toward certain targets, and particularly towards healthy, autologous T cells.
Indeed, CD56bright NK cells and T cells have bilateral interactions. They co-localize in secondary lymphoid organs, and particularly in T-cell areas of the lymph nodes (LNs), where interleukin (IL)-2 produced by T cells activates CD56bright NK cells after binding to its high-affinity receptor on their surface [17]. CD56bright NK cells produce cytokines, including interferon (IFN)-gamma and IL-10, which can shape T-cell responses [16]. Perhaps more importantly, CD56bright NK cells can suppress T-cell responses through many mechanisms. We have shown that when CD56bright NK cells are exposed to a cytokine produced by antigen-presenting cells (APCs), IL-27, they can suppress the proliferation of autologous T-cells [18]. Morandi et al. described another way through which CD56bright NK cells suppress T-cell proliferation, which involves the release of adenosine [19]. Nielsen et al. described the cytotoxicity of CD56bright NK cells towards autologous T-cells after the engagement of activating receptors [20]. We have shown that upon stimulus with proinflammatory cytokines produced by APCs, Ex Vivo isolated CD56bright NK cells become able to kill activated, autologous CD4+ T-cells through a contact-dependent mechanism that involves the activating receptor natural killer cell P46-related protein (NKp46) on CD56bright NK cells [21]. In this context, cytotoxicity results in suppression of T-cell proliferation. Similarly, Gross et al. have shown that NK cells kill autologous T-cells through the engagement of the activating receptor DNAX accessory molecule 1 (DNAM-1) [22]. Darlington et al. have reported that total NK cells modulate the polarization of T-cells towards T helper 17 (Th17) cells, initially increasing the production of IL-17 by T-cells, but then killing Th17 cells through a mechanism involving the activating receptor Natural Killer Group 2D (NKG2D). [23].
CD56dim NK cells share only some regulatory features with CD56bright NK cells. Compared to CD56bright NK cells, CD56dim NK cells do not suppress T-cell proliferation upon stimulus [21]; considering cytotoxicity, one study showed that CD56bright killed only activated autologous T-cells and did not target resting T-cells, whereas CD56dim killed resting T-cells as well; the same study showed that mechanism of killing is different among the two subsets [24]; another study showed that different stimuli are required by CD56bright and CD56dim NK cells in order to become able to kill T-cells [20].
Altogether, these studies demonstrate consistently that different proinflammatory stimuli activate different pathways, all leading to the cytotoxicity of NK cells, and particularly CD56bright NK cells, towards autologous, activated T-cells, and/or to NK cell-mediated suppression of proliferation of T-cells [25]. Since it is likely that such function occurs physiologically in secondary lymphoid organs, we can hypothesize that it has a role in preventing the excess of response of T-cells to proinflammatory stimuli upon activation by APCs.

3. NK Cells in Untreated MS Patients and in Patients Undergoing Disease-Modifying Treatments

3.1. NK Cells in Untreated MS Patients

In untreated MS, the number of CD56bright NK cells is the same as in healthy subjects [21]. However, their regulatory function is impaired, as shown by different groups, including ours. We have shown that CD56bright NK cells from untreated MS patients are unable to suppress the proliferation of activated autologous CD4+ T cells. Such impairment was associated with an upregulation of T-cells of HLA-E, which is a ligand to the inhibitory receptor NKG2A expressed on CD56bright NK cells. Therefore, we hypothesize that CD4+ T-cells from untreated MS patients, through the upregulation of HLA-E, inhibit the cytotoxicity of CD56bright NK cells [21]. Gross et al. have reported a similar impairment in the cytotoxicity of NK cells towards autologous activated T-cells in MS. More specifically, they observed that untreated MS patients have both a decrease in the expression of the activating receptor DNAM-1 on NK cells and in the expression of its ligand on T-cells, CD155 [22]. Another study reported a decreased cytotoxicity of NK cells from MS patients towards target cell lines, and lower production of some cytokines, including IFN-gamma [26].
The antiviral function of CD56dim NK cells may be important in controlling MS. CD56dim NK cells are involved in the immune response against infection by cytomegalovirus (CMV), and such an infection is associated with a lower risk of developing MS. A recent study showed that NK cells from patients with progressive MS, and particularly, primary progressive MS, have lower effector function towards target cells; the authors speculate that this might contribute to lower capability of killing viruses such as the Epstein-Barr virus, which may be involved in MS pathogenesis [27]. Others hypothesize that CD56dim NK cells could be detrimental: increased numbers of CD56dim NK cells expressing perforin have been found in patients with secondary progressive MS [28].
It still has to be proven whether such impairment contributes to causing MS or is the result of other causal factors. Nevertheless, it is interesting to note that an increase in the number of CD56bright NK cells and/or enhancement of their immunomodulatory function has been observed in patients treated with DMTs.
Finally, some authors have found an association between NK cell phenotype and disease status in MS: more specifically, NK cells from patients in remission express higher levels of FS-7-associated surface antigen (Fas) and suppress autoimmune T-cell responses, and loss of such Fas-high NK cells is associated with relapse activity [29,30].

3.2. NK Cells in Patients Undergoing Disease-Modifying Treatments for MS

3.2.1. Interferon-Beta

Long before the impairment in the regulatory function of NK cells in MS was described, one report was published suggesting that different formulations of IFN-beta (IFN-b), the first approved DMT for MS, increase the number of CD56bright NK cells [31]. IFN-b molecules are type 1 IFN cytokines with a pleiotropic mechanism of action that involves modulation of the expression of several genes. This translates into the modulation of many functions of immune cells, including antigen presentation and regulatory features [32]. Type 1 IFN has a direct effect on NK cells, increasing their cytotoxicity and anti-tumor function [33]; moreover, IFN-alpha, another type 1 IFN molecule, has been shown to specifically expand CD56bright NK cells and to increase their expression of activating receptors, in the context of hepatitis B treatment [34]. All IFN-b formulations are injectables and have a similar impact on MS, reducing relapses and progression by about 30% compared to placebo [35]. In two studies on small groups of patients treated with IFN-b, the authors found that the proportion of whole NK cells among peripheral mononuclear cells decreased, but CD56bright NK cells ratio to CD56dim NK cells increased [31,36]. Increased numbers of CD56bright NK cells in patients treated with IFN-b have been described in another study, both cross-sectionally (compared to untreated) and longitudinally (at 24 months after treatment compared to before treatment start) [37].
The mechanism through which type 1 IFN expand NK cells is debated, with one study suggesting that it is an indirect mechanism, mediated by increased production of cytokines by monocytes [38].

3.2.2. Daclizumab

Subsequently, an increase in CD56bright NK cells upon treatment with the anti-CD25 monoclonal antibody daclizumab was reported and has been regarded as one of the main mechanisms of action of daclizumab in MS. Several studies, led by the seminal one of Bielekova et al., demonstrated that daclizumab enhanced the cytotoxicity of CD56bright NK cells and reverted their impaired regulatory function (see, for instance, [24,39]). The mechanisms through which CD56bright NK cells killed T-cells upon daclizumab treatment included the transfer of granzyme K, the expression of which was induced by treatment [39], and reversal of the decreased expression of CD155 on T-cells [22]. The mechanisms of induction of CD56bright NK cells upon daclizumab treatment likely depend on increased availability of IL-2, due to blockade of the high-affinity IL-2 receptor on T-cells [40,41].
Unfortunately, shortly after daclizumab was authorized as a DMTs for MS, 12 cases of autoimmune encephalitis in treated patients led to its withdrawal from the market [42]. The reason for such adverse events has not yet been elucidated, but might possibly be related to the decrease in the number of T regulatory cells caused by daclizumab [42].
Interestingly, a relative or absolute increase in the number of CD56bright NK cells was then reported with other DMTs for MS.

3.2.3. Dimethyl Fumarate

Dimethyl fumarate (DMF) is a fumaric acid ester approved as an oral compound for the treatment of MS. Treatment with DMF decreased relapse rate in two Phase 3 placebo-controlled clinical trials and decreased disability progression in one of the two trials [43,44]. DMF and its active metabolite monomethyl fumarate through activation of receptors, such as the hydroxycarboxylic acid receptor 2, target intracellular pathways, including the nuclear factor-kappa B pathway, decreasing the activation of immune and glial cells [45].
In subjects treated with DMF, a study by Medina et al. reported an increased number of CD56bright NK cells at six months of treatment in the overall population, and particularly in those achieving NEDA in the first year of follow up [46]. Subsequently, the group of Peter Calabresi confirmed the increase of CD56bright NK cells upon DMF treatment, with an inverse correlation between the number of CD56bright NK cells and the number of CD8+ T cells. The same study showed that In-Vitro treatment of NK cells with the drug, or with monomethyl fumarate, increases the cytotoxicity of NK cells towards autologous T-cells [47]. Increased numbers of CD56bright NK cells or total NK cells upon DMF treatment has been confirmed by other groups [48,49]. It is still unknown how DMF induces an increase in the number of CD56bright NK cells; we can speculate that a decrease in T-cell numbers, (possibly specifically CD8+ T-cells) caused by DMF, increases the availability of cytokines and triggers the expansion of CD56bright NK cells.

3.2.4. Fingolimod

In the scenario of fingolimod treatment, results are more complex. Fingolimod is a functional antagonist of the sphingosine-1 receptors, which are involved in the egress of lymphocytes from secondary lymphoid organs (SLOs). Treatment with fingolimod causes lymphopenia of variable degrees due to the retention of lymphocytes in SLOs [50]. Treatment with fingolimod reduces relapse rate and progression of disability in relapsing–remitting MS compared to placebo and to IFN-b [51,52].
One study reported a relative increase of NK cells over other immune cells in blood and cerebrospinal fluid of a small group of patients treated with fingolimod, likely due to relative sparing of NK cells compared to B- and T-cell subsets [53]. In three cohorts of patients treated with fingolimod, the increased proportion of circulating NK cells was found to be associated with a decreased number of CD56bright NK cells, consistently with their expression of the chemokine receptor C-C chemokine receptor type 7 (CCR-7), which mediated their migration to the LNs [54,55,56]. However, a lower decrease in CD56bright NK cells during treatment with fingolimod was found in responder patients, as discussed further in the paragraph detailing the clinical impact of the expansion of NK cells upon treatment [57].
While one study showed no effect of fingolimod on the transcriptomic signature of circulating NK cells in treated subjects [58], another In-Vitro study reported that the culture of NK cells in the presence of fingolimod induces higher expression of natural cytotoxicity receptors and increases cytotoxicity toward target cell lines [59]. It would be of interest to assess whether this is associated with increased cytotoxicity of NK cells towards autologous T-cells.

3.2.5. Alemtuzumab

Alemtuzumab is an anti-CD52 monoclonal antibody approved for the treatment of relapsing MS. Alemtuzumab binds to the CD52 antigen expressed by adaptive immune cells and, in lower amounts, by innate immune cells [60]. The number of T- and B-lymphocytes of treated patients decreases immediately after treatment, mainly due to antibody-dependent cellular cytotoxicity (ADCC) and later reconstitutes [61]. Alemtuzumab is administered intravenously in a five-day course, followed by a three-day course after one year, inducing a decrease in the relapse rate of about 50% compared to IFN-b treatment. The effect of treatment is long-lasting in about 70% of treated patients [35]. About one-third of MS patients treated with alemtuzumab develop secondary autoimmunity, which demonstrates that alemtuzumab has profound effects on immune mechanisms; however, the mechanisms leading to secondary autoimmunity are currently unknown [62]. Gross et al. found that the first course of treatment with alemtuzumab leads to an increased number of CD56bright NK cells at six months. Cytotoxicity of CD56bright NK cells from these patients, as evaluated towards an HLA-deficient target cell line, was unchanged [60]. It is unknown why alemtuzumab increases CD56bright NK cells, and whether such an increase has a clinical meaning. We may hypothesize that the cytokine storm occurring immediately after the administration of alemtuzumab triggers the expansion of CD56bright NK cells [63]. Another hypothesis is that the profound T-cell decrease caused by alemtuzumab is involved in the expansion of CD56bright NK cells, similarly to what is discussed below in the context of hematopoietic stem cell transplantation. Importantly, NK cells and particularly CD56dim NK cells mediate ADCC upon treatment with alemtuzumab, through the engagement of the CD16 receptor with the fragment crystallizable region (Fc region) of alemtuzumab.

3.2.6. Autologous Hematopoietic Stem Cell Transplantation

Autologous hematopoietic stem cell transplantation (AHSCT) is a treatment for very active and refractory relapsing MS. ASHCT has excellent long-term outcomes, despite some treatment-related mortality, which has significantly lowered in the last years [64]. One study from Peter Darlington et al., within the Canadian MS/Bone Marrow Transplantation Study Group, compared the kinetics of NK cell and CD4+ T-cell reconstitution after AHSCT [23]. The authors reported a marked increase of NK cell/CD4+ T-cell ratio at three months compared to baseline. Both CD56bright NK cells and CD56dim NK cells increased after treatment, albeit to a greater extent for CD56bright NK cells. Moreover, in post-AHSCT samples, the depletion of NK cells increased Th17 cell polarization. The authors concluded that expanded NK cells contribute to suppressing Th17 cell responses after AHSCT and contribute to its extraordinary effectiveness in treating MS [23]. Expansion of CD56bright NK cells after hematopoietic stem cell transplantation in disease settings different from MS is a well-known phenomenon, which has been considered as proof for CD56bright NK cells representing an earlier stage of differentiation, as discussed before [65]. However, expansion of CD56bright cells might also represent a specific compensatory mechanism in the absence of CD4+ T cells, as shown by studies that found an inverse correlation between the number of CD4+ T-cells and the number of CD56bright NK cells after hematopoietic stem cell transplantation. Such studies suggest that decreased competition for cytokines by CD4+ T-cells, or undergoing infectious events, might be the trigger for expansion of CD56bright NK cells [66,67].
Altogether, these data suggest that CD56bright NK cells may be a biomarker of treatment efficacy in MS.
Table 1 summarizes the findings of the studies on the effect of DMTs on NK cells and NK cell subsets.

3.3. Clinical Impact of Expansion of NK Cells Upon Treatment

In order to assess whether the expansion of CD56bright NK cells is an epiphenomenon of treatments, or rather is involved in mediating their effects, some studies compared the effect of DMTs on NK cells in patients who responded to treatment and in those who did not. In two different studies, involving patients treated with IFN-b and with DMF, only responders had a significant increase in CD56bright NK cells [37,46]. This observation may suggest that increased numbers of NK cells with immunoregulatory features are beneficial in controlling MS disease activity; however, another alternative explanation may be that the low number of non-responders, in both studies, may have limited the possibility to reach statistical significance. In patients treated with daclizumab, there was a clear correlation between the increase in CD56bright NK cells and the decrease in the number of active lesions at MRI [24]. In another study in daclizumab-treated patients, numbers of CD56bright NK cells were inversely correlated with the number of new or newly enlarging lesions at MRI. The authors observed a similar trend of inverse correlation between numbers of CD56bright NK cells and relapses. Since lower disease activity compared to placebo was also observed in patients without expansion of CD56bright NK cells, the authors concluded that CD56bright NK cells are responsible to some, but not the whole, effect of daclizumab [68]. An elegant study by Moreno-Torres et al., aimed at finding biomarkers of response to fingolimod in 40 treated patients, found that patients who achieved NEDA status at one year had higher percentages of CD56bright NK cells at baseline (i.e., before starting fingolimod) and that, upon treatment, CD56bright NK cells decreased less in these patients compared to non-responders [59].
Finally, one study in MS patients treated with different drugs (natalizumab, fingolimod, glatiramer acetate, or IFN-b) reported a correlation between increased CD56bright NK cells and no evidence of disease activity at MRI. A relative increase in CD56bright NK cells compared to CD56dim NK cells and, at least in patients treated with fingolimod, compared to T-cells, rather than an increase in absolute numbers, was associated with treatment response [69].
All these data suggest that different treatments for MS enhance the numbers, and in some cases (DMF, daclizumab, AHSCT), the regulatory function of CD56bright NK cells. Such effect is involved in mediating at least some of their clinical efficacy, possibly through modulation of the function of adaptive cells involved in the attack against the myelin (CD4+ and CD8+ T-cells).

4. Discussion and Conclusions

The role of adaptive immune cells in initiating the inflammatory cascade in MS is crucial. However, many clues point to NK cells, a lymphocyte population belonging to the innate compartment, as another important immune population in MS [70]. First of all, a failure in CD56bright NK cell-mediated control of T-cell responses exists in untreated subjects with MS; it is not known whether such impairment is concurring to causing MS, and further research, for instance in at-risk subjects, may help in elucidating this issue. Secondly, different treatments that ameliorate the MS disease course enhance the absolute or relative number of CD56bright NK cells in the peripheral blood. It is important to point to the fact that the number of CD56bright NK cells in untreated MS subjects is not decreased; however, an increase in CD56bright NK cells appears to be a very consistent effect of many therapies. Such observation may suggest that CD56bright NK cells are an important cell subset for controlling adaptive immune responses. We hypothesize that DMTs affect CD56bright NK cells through different mechanisms. Effect of DMTs on CD56bright NK cells may depend on increased availability of cytokines in the context of decreased CD4+ and/or CD8+ T-cell numbers (alemtuzumab, AHSCT, DMF, fingolimod), or on the increased secretion of cytokines by target cells/direct stimulus on NK cells (IFN-b; Figure 1).
As discussed before, and summarized in Table 1, the effect of treatment on CD56dim NK cells is variable and not as consistent as observed with CD56bright NK cells. CD56dim NK cells proliferate less compared to CD56bright NK cells in the presence of cytokines [16]; thus, increased availability of cytokines due to T-cell loss would specifically expand the CD56bright NK cell subset. Given the higher immunoregulatory function of CD56bright NK cells, this would translate into a modulation of adaptive responses. Nevertheless, we cannot exclude that increased numbers of CD56dim NK cells upon specific treatments (AHSCT, and possibly fingolimod and alemtuzumab) play a role in the mechanism of action of such drugs. Moreover, the proportion and function of CD56dim NK cells before treatment start may influence the biological effect, and thus the clinical efficacy of drugs that rely on them for their function, such as alemtuzumab. Indeed, there are inter-individual differences in the depletion and subsequent repopulation of lymphocytes after alemtuzumab treatment [71], and it would be interesting to investigate whether baseline numbers of CD56dim NK cells influence such differences.
In conclusion, we propose that CD56bright NK cells should be studied as a possible biomarker of DMTs efficacy in MS. Having a biomarker of treatment efficacy from a blood sample would be of the highest importance in MS. This would be particularly relevant if it were demonstrated that failure in the increase in CD56bright NK cells is associated with later MRI activity and/or clinical relapse. In this case, patients without an increase of CD56bright NK cells upon DMTs could be evaluated for a possible change of treatment before clinical/radiological activity occurs.
Several open questions still exist: for instance, whether there is one cutoff value for CD56bright NK cell number that could be implemented in the clinical practice, or whether different treatments may enhance CD56bright NK cells differently (as data with fingolimod-treated patients suggest) and therefore a treatment-specific CD56bright NK cell cutoff value could be identified. Thirdly, an important question that is still to be answered is how such an increase in the number of CD56bright NK cells affects adaptive immune responses in MS. Finally, we should clarify if and how changes in CD56bright NK cells in the peripheral blood reflect changes in CD56bright NK cells within the CNS, as data from daclizumab studies suggest [72]. Answering these questions may lead us to have CD56bright NK cells as a novel, easy to measure, and reliable marker of treatment efficacy in MS.

Author Contributions

A.L. drafted the manuscript, the figure, and the table; A.L. and A.U. have substantively revised the manuscript. All authors have approved the submitted manuscript and agree to be personally accountable for the author’s own contributions and for ensuring that questions related to the accuracy or integrity of any part of the work. All authors have read and agreed to the published version of the manuscript.

Funding

A.L. received grants from FISM, Italian Ministry of Health, Italian Ministry of University. A.U. received grants and contracts from FISM, Novartis, Biogen, Merck, Fondazione Cariplo, Italian Ministry of Health.

Acknowledgments

The research of A.L. on the function of CD56bright NK cells is funded by Fondazione Italiana Sclerosi Multipla, grants Prot. N. 271/1/14 and Prot. N. 297/09/F14. Research of A.L. is also funded by Ricerca Finalizzata Giovani Ricercatori, GR-2016-02361163, Ministero dell’Istruzione, Università e Ricerca (MIUR) (2017K55HLC), by the IRCCS Ospedale Policlinico San Martino (“Ricerca corrente 2019”) and by the University of Genova (Fondi di Ricerca dell’Ateneo). The authors wish to thank Nicole Kerlero de Rosbo for a critical reading of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest related to the present review. A.L. received honoraria or consultation fees from Biogen, Roche, Teva, Merck, Genzyme, and Novartis. A.U. received honoraria or consultation fees from Biogen, Roche, Teva, Merck, Genzyme, and Novartis.

References

  1. Baecher-Allan, C.; Kaskow, B.J.; Weiner, H.L. Multiple Sclerosis: Mechanisms and Immunotherapy. Neuron 2018, 97, 742–768. [Google Scholar] [CrossRef]
  2. Burton, J.M.; Freedman, M.S. The Shifting Landscape of Disease-Modifying Therapies for Relapsing Multiple Sclerosis. J. Neuro-Ophthalmol. 2018, 38, 210–216. [Google Scholar] [CrossRef] [PubMed]
  3. Schweitzer, F.; Laurent, S.; Fink, G.R.; Barnett, M.H.; Hartung, H.P.; Warnke, C. Effects of disease-modifying therapy on peripheral leukocytes in patients with multiple sclerosis. J. Neurol. 2020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Giovannoni, G.; Turner, B.; Gnanapavan, S.; Offiah, C.; Schmierer, K.; Marta, M. Is it time to target no evident disease activity (NEDA) in multiple sclerosis? Mult. Scler. Relat. Disord. 2015, 4, 329–333. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ziemssen, T.; Akgun, K.; Bruck, W. Molecular biomarkers in multiple sclerosis. J. Neuroinflamm. 2019, 16, 272. [Google Scholar] [CrossRef] [Green Version]
  6. Sallusto, F.; Impellizzieri, D.; Basso, C.; Laroni, A.; Uccelli, A.; Lanzavecchia, A.; Engelhardt, B. T-cell trafficking in the central nervous system. Immunol. Rev. 2012, 248, 216–227. [Google Scholar] [CrossRef] [Green Version]
  7. Kleinewietfeld, M.; Hafler, D.A. Regulatory T cells in autoimmune neuroinflammation. Immunol. Rev. 2014, 259, 231–244. [Google Scholar] [CrossRef]
  8. Montaldo, E.; Vacca, P.; Vitale, C.; Moretta, F.; Locatelli, F.; Mingari, M.C.; Moretta, L. Human innate lymphoid cells. Immunol. Lett. 2016, 179, 2–8. [Google Scholar] [CrossRef]
  9. Vitale, M.; Cantoni, C.; Della Chiesa, M.; Ferlazzo, G.; Carlomagno, S.; Pende, D.; Falco, M.; Pessino, A.; Muccio, L.; De Maria, A.; et al. An Historical Overview: The Discovery of How NK Cells Can Kill Enemies, Recruit Defense Troops, and More. Front. Immunol. 2019, 10, 1415. [Google Scholar] [CrossRef] [Green Version]
  10. Cooper, M.A.; Fehniger, T.A.; Caligiuri, M.A. The biology of human natural killer-cell subsets. Trends Immunol. 2001, 22, 633–640. [Google Scholar] [CrossRef]
  11. Wendt, K.; Wilk, E.; Buyny, S.; Buer, J.; Schmidt, R.E.; Jacobs, R. Gene and protein characteristics reflect functional diversity of CD56dim and CD56bright NK cells. J. Leukoc. Biol. 2006, 80, 1529–1541. [Google Scholar] [CrossRef] [PubMed]
  12. Romagnani, C.; Juelke, K.; Falco, M.; Morandi, B.; D’Agostino, A.; Costa, R.; Ratto, G.; Forte, G.; Carrega, P.; Lui, G.; et al. CD56brightCD16- killer Ig-like receptor- NK cells display longer telomeres and acquire features of CD56dim NK cells upon activation. J. Immunol. 2007, 178, 4947–4955. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Pesce, S.; Squillario, M.; Greppi, M.; Loiacono, F.; Moretta, L.; Moretta, A.; Sivori, S.; Castagnola, P.; Barla, A.; Candiani, S.; et al. New miRNA Signature Heralds Human NK Cell Subsets at Different Maturation Steps: Involvement of miR-146a-5p in the Regulation of KIR Expression. Front. Immunol. 2018, 9, 2360. [Google Scholar] [CrossRef]
  14. Wu, C.; Espinoza, D.A.; Koelle, S.J.; Yang, D.; Truitt, L.; Schlums, H.; Lafont, B.A.; Davidson-Moncada, J.K.; Lu, R.; Kaur, A.; et al. Clonal expansion and compartmentalized maintenance of rhesus macaque NK cell subsets. Sci. Immunol. 2018, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Cichocki, F.; Grzywacz, B.; Miller, J.S. Human NK Cell Development: One Road or Many? Front. Immunol. 2019, 10, 2078. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Cooper, M.A.; Fehniger, T.A.; Turner, S.C.; Chen, K.S.; Ghaheri, B.A.; Ghayur, T.; Carson, W.E.; Caligiuri, M.A. Human natural killer cells: A unique innate immunoregulatory role for the CD56(bright) subset. Blood 2001, 97, 3146–3151. [Google Scholar] [CrossRef] [Green Version]
  17. Fehniger, T.A.; Cooper, M.A.; Nuovo, G.J.; Cella, M.; Facchetti, F.; Colonna, M.; Caligiuri, M.A. CD56bright natural killer cells are present in human lymph nodes and are activated by T cell-derived IL-2: A potential new link between adaptive and innate immunity. Blood 2003, 101, 3052–3057. [Google Scholar] [CrossRef] [Green Version]
  18. Laroni, A.; Gandhi, R.; Beynon, V.; Weiner, H.L. IL-27 imparts immunoregulatory function to human NK cell subsets. PLoS ONE 2011, 6, e26173. [Google Scholar] [CrossRef] [Green Version]
  19. Morandi, F.; Horenstein, A.L.; Chillemi, A.; Quarona, V.; Chiesa, S.; Imperatori, A.; Zanellato, S.; Mortara, L.; Gattorno, M.; Pistoia, V.; et al. CD56brightCD16- NK Cells Produce Adenosine through a CD38-Mediated Pathway and Act as Regulatory Cells Inhibiting Autologous CD4+ T Cell Proliferation. J. Immunol. 2015, 195, 965–972. [Google Scholar] [CrossRef] [Green Version]
  20. Nielsen, N.; Odum, N.; Urso, B.; Lanier, L.L.; Spee, P. Cytotoxicity of CD56(bright) NK cells towards autologous activated CD4+ T cells is mediated through NKG2D, LFA-1 and TRAIL and dampened via CD94/NKG2A. PLoS ONE 2012, 7, e31959. [Google Scholar] [CrossRef] [Green Version]
  21. Laroni, A.; Armentani, E.; Kerlero de Rosbo, N.; Ivaldi, F.; Marcenaro, E.; Sivori, S.; Gandhi, R.; Weiner, H.L.; Moretta, A.; Mancardi, G.L.; et al. Dysregulation of regulatory CD56(bright) NK cells/T cells interactions in multiple sclerosis. J. Autoimmun. 2016, 72, 8–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Gross, C.C.; Schulte-Mecklenbeck, A.; Runzi, A.; Kuhlmann, T.; Posevitz-Fejfar, A.; Schwab, N.; Schneider-Hohendorf, T.; Herich, S.; Held, K.; Konjevic, M.; et al. Impaired NK-mediated regulation of T-cell activity in multiple sclerosis is reconstituted by IL-2 receptor modulation. Proc. Natl. Acad. Sci. USA 2016, 113, E2973–E2982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Darlington, P.J.; Stopnicki, B.; Touil, T.; Doucet, J.S.; Fawaz, L.; Roberts, M.E.; Boivin, M.N.; Arbour, N.; Freedman, M.S.; Atkins, H.L.; et al. Natural Killer Cells Regulate Th17 Cells After Autologous Hematopoietic Stem Cell Transplantation for Relapsing Remitting Multiple Sclerosis. Front. Immunol. 2018, 9, 834. [Google Scholar] [CrossRef] [PubMed]
  24. Bielekova, B.; Catalfamo, M.; Reichert-Scrivner, S.; Packer, A.; Cerna, M.; Waldmann, T.A.; McFarland, H.; Henkart, P.A.; Martin, R. Regulatory CD56(bright) natural killer cells mediate immunomodulatory effects of IL-2Ralpha-targeted therapy (daclizumab) in multiple sclerosis. Proc. Natl. Acad. Sci. USA 2006, 103, 5941–5946. [Google Scholar] [CrossRef] [Green Version]
  25. Gross, C.C.; Schulte-Mecklenbeck, A.; Wiendl, H.; Marcenaro, E.; Kerlero de Rosbo, N.; Uccelli, A.; Laroni, A. Regulatory Functions of Natural Killer Cells in Multiple Sclerosis. Front. Immunol. 2016, 7, 606. [Google Scholar] [CrossRef] [Green Version]
  26. Tahrali, I.; Kucuksezer, U.C.; Altintas, A.; Uygunoglu, U.; Akdeniz, N.; Aktas-Cetin, E.; Deniz, G. Dysfunction of CD3−CD16+CD56dim and CD3−CD16−CD56bright NK cell subsets in RR-MS patients. Clin. Immunol. 2018, 193, 88–97. [Google Scholar] [CrossRef] [PubMed]
  27. Moreira, A.; Alari-Pahissa, E.; Munteis, E.; Vera, A.; Zabalza, A.; Llop, M.; Villarrubia, N.; Costa-García, M.; Álvarez-Lafuente, R.; Villar, L.M.; et al. Adaptive Features of Natural Killer Cells in Multiple Sclerosis. Front. Immunol. 2019, 10, 2403. [Google Scholar] [CrossRef]
  28. Plantone, D.; Marti, A.; Frisullo, G.; Iorio, R.; Damato, V.; Nociti, V.; Patanella, A.K.; Bianco, A.; Mirabella, M.; Batocchi, A.P. Circulating CD56dim NK cells expressing perforin are increased in progressive multiple sclerosis. J. Neuroimmunol. 2013, 265, 124–127. [Google Scholar] [CrossRef]
  29. Takahashi, K.; Miyake, S.; Kondo, T.; Terao, K.; Hatakenaka, M.; Hashimoto, S.; Yamamura, T. Natural killer type 2 bias in remission of multiple sclerosis. J. Clin. Investig. 2001, 107, R23–R29. [Google Scholar] [CrossRef] [Green Version]
  30. Takahashi, K.; Aranami, T.; Endoh, M.; Miyake, S.; Yamamura, T. The regulatory role of natural killer cells in multiple sclerosis. Brain 2004, 127, 1917–1927. [Google Scholar] [CrossRef]
  31. Saraste, M.; Irjala, H.; Airas, L. Expansion of CD56Bright natural killer cells in the peripheral blood of multiple sclerosis patients treated with interferon-beta. Neurol. Sci. 2007, 28, 121–126. [Google Scholar] [CrossRef] [PubMed]
  32. Markowitz, C.E. Interferon-beta: Mechanism of action and dosing issues. Neurology 2007, 68, S8–S11. [Google Scholar] [CrossRef] [PubMed]
  33. Swann, J.B.; Hayakawa, Y.; Zerafa, N.; Sheehan, K.C.F.; Scott, B.; Schreiber, R.D.; Hertzog, P.; Smyth, M.J. Type I IFN Contributes to NK Cell Homeostasis, Activation, and Antitumor Function. J. Immunol. 2007, 178, 7540–7549. [Google Scholar] [CrossRef] [PubMed]
  34. Gill, U.S.; Peppa, D.; Micco, L.; Singh, H.D.; Carey, I.; Foster, G.R.; Maini, M.K.; Kennedy, P.T.F. Interferon Alpha Induces Sustained Changes in NK Cell Responsiveness to Hepatitis B Viral Load Suppression In Vivo. PLoS Pathog. 2016, 12, e1005788. [Google Scholar] [CrossRef] [PubMed]
  35. Comi, G.; Radaelli, M.; Soelberg Sorensen, P. Evolving concepts in the treatment of relapsing multiple sclerosis. Lancet 2017, 389, 1347–1356. [Google Scholar] [CrossRef]
  36. Vandenbark, A.A.; Huan, J.; Agotsch, M.; La Tocha, D.; Goelz, S.; Offner, H.; Lanker, S.; Bourdette, D. Interferon-beta-1a treatment increases CD56bright natural killer cells and CD4+CD25+ Foxp3 expression in subjects with multiple sclerosis. J. Neuroimmunol. 2009, 215, 125–128. [Google Scholar] [CrossRef]
  37. Martínez-Rodríguez, J.E.; López-Botet, M.; Munteis, E.; Rio, J.; Roquer, J.; Montalban, X.; Comabella, M. Natural killer cell phenotype and clinical response to interferon-beta therapy in multiple sclerosis. Clin. Immunol. 2011, 141, 348–356. [Google Scholar] [CrossRef]
  38. Lee, A.J.; Chen, B.; Chew, M.V.; Barra, N.G.; Shenouda, M.M.; Nham, T.; van Rooijen, N.; Jordana, M.; Mossman, K.L.; Schreiber, R.D.; et al. Inflammatory monocytes require type I interferon receptor signaling to activate NK cells via IL-18 during a mucosal viral infection. J. Exp. Med. 2017, 214, 1153–1167. [Google Scholar] [CrossRef]
  39. Jiang, W.; Chai, N.R.; Maric, D.; Bielekova, B. Unexpected role for granzyme K in CD56bright NK cell-mediated immunoregulation of multiple sclerosis. J. Immunol. 2011, 187, 781–790. [Google Scholar] [CrossRef] [Green Version]
  40. Sheridan, J.P.; Zhang, Y.; Riester, K.; Tang, M.T.; Efros, L.; Shi, J.; Harris, J.; Vexler, V.; Elkins, J.S. Intermediate-affinity interleukin-2 receptor expression predicts CD56(bright) natural killer cell expansion after daclizumab treatment in the CHOICE study of patients with multiple sclerosis. Mult. Scler. 2011, 17, 1441–1448. [Google Scholar] [CrossRef]
  41. Martin, J.F.; Perry, J.S.; Jakhete, N.R.; Wang, X.; Bielekova, B. An IL-2 paradox: Blocking CD25 on T cells induces IL-2-driven activation of CD56(bright) NK cells. J. Immunol. 2010, 185, 1311–1320. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Bianchi, A.; Ciccarelli, O. Daclizumab-induced encephalitis in multiple sclerosis. Mult. Scler. 2019, 25, 1557–1559. [Google Scholar] [CrossRef] [PubMed]
  43. Gold, R.; Kappos, L.; Arnold, D.L.; Bar-Or, A.; Giovannoni, G.; Selmaj, K.; Tornatore, C.; Sweetser, M.T.; Yang, M.; Sheikh, S.I.; et al. Placebo-Controlled Phase 3 Study of Oral BG-12 for Relapsing Multiple Sclerosis. N. Engl. J. Med. 2012, 367, 1098–1107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Fox, R.J.; Miller, D.H.; Phillips, J.T.; Hutchinson, M.; Havrdova, E.; Kita, M.; Yang, M.; Raghupathi, K.; Novas, M.; Sweetser, M.T.; et al. Placebo-Controlled Phase 3 Study of Oral BG-12 or Glatiramer in Multiple Sclerosis. N. Engl. J. Med. 2012, 367, 1087–1097. [Google Scholar] [CrossRef] [Green Version]
  45. Parodi, B.; Rossi, S.; Morando, S.; Cordano, C.; Bragoni, A.; Motta, C.; Usai, C.; Wipke, B.T.; Scannevin, R.H.; Mancardi, G.L.; et al. Fumarates modulate microglia activation through a novel HCAR2 signaling pathway and rescue synaptic dysregulation in inflamed CNS. Acta Neuropathol. 2015, 130, 279–295. [Google Scholar] [CrossRef] [Green Version]
  46. Medina, S.; Villarrubia, N.; Sainz de la Maza, S.; Lifante, J.; Costa-Frossard, L.; Roldan, E.; Picon, C.; Alvarez-Cermeno, J.C.; Villar, L.M. Optimal response to dimethyl fumarate associates in MS with a shift from an inflammatory to a tolerogenic blood cell profile. Mult. Scler. 2018, 24, 1317–1327. [Google Scholar] [CrossRef]
  47. Smith, M.D.; Calabresi, P.A.; Bhargava, P. Dimethyl fumarate treatment alters NK cell function in multiple sclerosis. Eur. J. Immunol. 2018, 48, 380–383. [Google Scholar] [CrossRef] [Green Version]
  48. Montes Diaz, G.; Fraussen, J.; Van Wijmeersch, B.; Hupperts, R.; Somers, V. Dimethyl fumarate induces a persistent change in the composition of the innate and adaptive immune system in multiple sclerosis patients. Sci. Rep. 2018, 8, 8194. [Google Scholar] [CrossRef]
  49. Marastoni, D.; Buriani, A.; Pisani, A.I.; Crescenzo, F.; Zuco, C.; Fortinguerra, S.; Sorrenti, V.; Marenda, B.; Romualdi, C.; Magliozzi, R.; et al. Increased NK Cell Count in Multiple Sclerosis Patients Treated With Dimethyl Fumarate: A 2-Year Longitudinal Study. Front. Immunol. 2019, 10, 1666. [Google Scholar] [CrossRef] [Green Version]
  50. Chaudhry, B.Z.; Cohen, J.A.; Conway, D.S. Sphingosine 1-Phosphate Receptor Modulators for the Treatment of Multiple Sclerosis. Neurotherapeutics 2017, 14, 859–873. [Google Scholar] [CrossRef] [PubMed]
  51. Kappos, L.; Radue, E.W.; O’Connor, P.; Polman, C.; Hohlfeld, R.; Calabresi, P.; Selmaj, K.; Agoropoulou, C.; Leyk, M.; Zhang-Auberson, L.; et al. A placebo-controlled trial of oral fingolimod in relapsing multiple sclerosis. N. Engl. J. Med. 2010, 362, 387–401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Cohen, J.A.; Barkhof, F.; Comi, G.; Hartung, H.P.; Khatri, B.O.; Montalban, X.; Pelletier, J.; Capra, R.; Gallo, P.; Izquierdo, G.; et al. Oral fingolimod or intramuscular interferon for relapsing multiple sclerosis. N. Engl. J. Med. 2010, 362, 402–415. [Google Scholar] [CrossRef] [PubMed]
  53. Kowarik, M.C.; Pellkofer, H.L.; Cepok, S.; Korn, T.; Kumpfel, T.; Buck, D.; Hohlfeld, R.; Berthele, A.; Hemmer, B. Differential effects of fingolimod (FTY720) on immune cells in the CSF and blood of patients with MS. Neurology 2011, 76, 1214–1221. [Google Scholar] [CrossRef] [PubMed]
  54. Johnson, T.A.; Evans, B.L.; Durafourt, B.A.; Blain, M.; Lapierre, Y.; Bar-Or, A.; Antel, J.P. Reduction of the peripheral blood CD56(bright) NK lymphocyte subset in FTY720-treated multiple sclerosis patients. J. Immunol. 2011, 187, 570–579. [Google Scholar] [CrossRef] [Green Version]
  55. Mehling, M.; Burgener, A.V.; Brinkmann, V.; Bantug, G.R.; Dimeloe, S.; Hoenger, G.; Kappos, L.; Hess, C. Tissue Distribution Dynamics of Human NK Cells Inferred from Peripheral Blood Depletion Kinetics after Sphingosine-1-Phosphate Receptor Blockade. Scand. J. Immunol. 2015, 82, 460–466. [Google Scholar] [CrossRef] [Green Version]
  56. Ghadiri, M.; Rezk, A.; Li, R.; Evans, A.; Giacomini, P.S.; Barnett, M.H.; Antel, J.; Bar-Or, A. Pre-treatment T-cell subsets associate with fingolimod treatment responsiveness in multiple sclerosis. Sci. Rep. 2020, 10, 356. [Google Scholar] [CrossRef]
  57. Moreno-Torres, I.; Gonzalez-Garcia, C.; Marconi, M.; Garcia-Grande, A.; Rodriguez-Esparragoza, L.; Elvira, V.; Ramil, E.; Campos-Ruiz, L.; Garcia-Hernandez, R.; Al-Shahrour, F.; et al. Immunophenotype and Transcriptome Profile of Patients With Multiple Sclerosis Treated With Fingolimod: Setting Up a Model for Prediction of Response in a 2-Year Translational Study. Front. Immunol. 2018, 9, 1693. [Google Scholar] [CrossRef] [Green Version]
  58. Angerer, I.C.; Hecker, M.; Koczan, D.; Roch, L.; Friess, J.; Ruge, A.; Fitzner, B.; Boxberger, N.; Schroder, I.; Flechtner, K.; et al. Transcriptome profiling of peripheral blood immune cell populations in multiple sclerosis patients before and during treatment with a sphingosine-1-phosphate receptor modulator. CNS Neurosci. Ther. 2018, 24, 193–201. [Google Scholar] [CrossRef] [Green Version]
  59. Al-Jaderi, Z.; Maghazachi, A.A. Effects of vitamin D3, calcipotriol and FTY720 on the expression of surface molecules and cytolytic activities of human natural killer cells and dendritic cells. Toxins 2013, 5, 1932–1947. [Google Scholar] [CrossRef] [Green Version]
  60. Gross, C.C.; Ahmetspahic, D.; Ruck, T.; Schulte-Mecklenbeck, A.; Schwarte, K.; Jorgens, S.; Scheu, S.; Windhagen, S.; Graefe, B.; Melzer, N.; et al. Alemtuzumab treatment alters circulating innate immune cells in multiple sclerosis. Neurol. (R) Neuroimmunol. Neuroinflamm. 2016, 3, e289. [Google Scholar] [CrossRef] [Green Version]
  61. Ruck, T.; Bittner, S.; Wiendl, H.; Meuth, S.G. Alemtuzumab in Multiple Sclerosis: Mechanism of Action and Beyond. Int. J. Mol. Sci. 2015, 16, 16414–16439. [Google Scholar] [CrossRef] [PubMed]
  62. Wiendl, H.; Carraro, M.; Comi, G.; Izquierdo, G.; Kim, H.J.; Sharrack, B.; Tornatore, C.; Daizadeh, N.; Chung, L.; Jacobs, A.K.; et al. Lymphocyte pharmacodynamics are not associated with autoimmunity or efficacy after alemtuzumab. Neurol. (R) Neuroimmunol. Neuroinflamm. 2019, 7, e635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Wing, M.G.; Moreau, T.; Greenwood, J.; Smith, R.M.; Hale, G.; Isaacs, J.; Waldmann, H.; Lachmann, P.J.; Compston, A. Mechanism of first-dose cytokine-release syndrome by CAMPATH 1-H: Involvement of CD16 (FcgammaRIII) and CD11a/CD18 (LFA-1) on NK cells. J. Clin. Investig. 1996, 98, 2819–2826. [Google Scholar] [CrossRef] [PubMed]
  64. Muraro, P.A.; Martin, R.; Mancardi, G.L.; Nicholas, R.; Sormani, M.P.; Saccardi, R. Autologous haematopoietic stem cell transplantation for treatment of multiple sclerosis. Nat. Rev. Neurol. 2017, 13, 391–405. [Google Scholar] [CrossRef]
  65. Dulphy, N.; Haas, P.; Busson, M.; Belhadj, S.; Peffault de Latour, R.; Robin, M.; Carmagnat, M.; Loiseau, P.; Tamouza, R.; Scieux, C.; et al. An unusual CD56(bright) CD16(low) NK cell subset dominates the early posttransplant period following HLA-matched hematopoietic stem cell transplantation. J. Immunol. 2008, 181, 2227–2237. [Google Scholar] [CrossRef] [Green Version]
  66. Vukicevic, M.; Chalandon, Y.; Helg, C.; Matthes, T.; Dantin, C.; Huard, B.; Chizzolini, C.; Passweg, J.; Roosnek, E. CD56bright NK cells after hematopoietic stem cell transplantation are activated mature NK cells that expand in patients with low numbers of T cells. Eur. J. Immunol. 2010, 40, 3246–3254. [Google Scholar] [CrossRef]
  67. Lugthart, G.; Goedhart, M.; van Leeuwen, M.M.; Melsen, J.E.; Jol-van der Zijde, C.M.; Vervat, C.; van Ostaijen-ten Dam, M.M.; Jansen-Hoogendijk, A.M.; van Tol, M.J.D.; Lankester, A.C.; et al. Expansion of cytotoxic CD56bright natural killer cells during T-cell deficiency after allogeneic hematopoietic stem cell transplantation. J. Allergy Clin. Immunol. 2017, 140, 1466–1469. [Google Scholar] [CrossRef]
  68. Elkins, J.; Sheridan, J.; Amaravadi, L.; Riester, K.; Selmaj, K.; Bielekova, B.; Parr, E.; Giovannoni, G. CD56(bright) natural killer cells and response to daclizumab HYP in relapsing-remitting MS. Neurol. (R) Neuroimmunol. Neuroinflamm. 2015, 2, e65. [Google Scholar] [CrossRef] [Green Version]
  69. Caruana, P.; Lemmert, K.; Ribbons, K.; Lea, R.; Lechner-Scott, J. Natural killer cell subpopulations are associated with MRI activity in a relapsing-remitting multiple sclerosis patient cohort from Australia. Mult. Scler. 2017, 23, 1479–1487. [Google Scholar] [CrossRef]
  70. Laroni, A. Enhancing natural killer cells is beneficial in multiple sclerosis-Yes. Mult. Scler. 2019, 25, 510–512. [Google Scholar] [CrossRef] [Green Version]
  71. Dubuisson, N.; Baker, D.; Kang, A.S.; Pryce, G.; Marta, M.; Visser, L.H.; Hofmann, W.E.; Gnanapavan, S.; Giovannoni, G.; Schmierer, K. Alemtuzumab depletion failure can occur in multiple sclerosis. Immunology 2018, 154, 253–260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Bielekova, B.; Richert, N.; Herman, M.L.; Ohayon, J.; Waldmann, T.A.; McFarland, H.; Martin, R.; Blevins, G. Intrathecal effects of daclizumab treatment of multiple sclerosis. Neurology 2011, 77, 1877–1886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Jcm 09 01450 g001 550

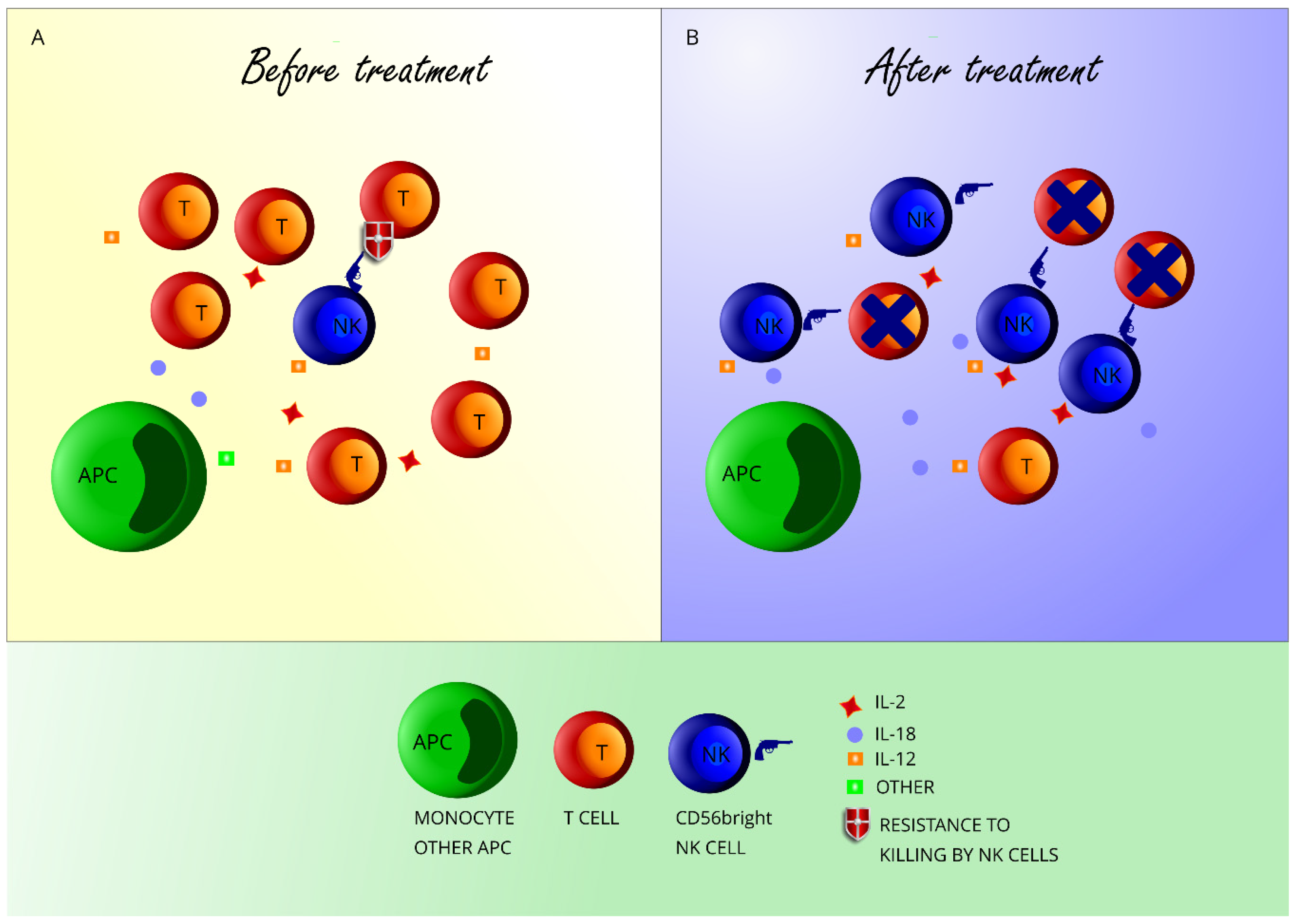

Figure 1. CD56bright NK cell expansion after DMT in multiple sclerosis (MS). Panel A: Before treatment, antigen-presenting cells (APC) secrete cytokines that activate T-cells and CD56bright NK cells. T-cells outnumber CD56bright NK cells and are resistant to killing by CD56bright NK cells through various mechanisms. Panel B: DMTs decrease T-cell numbers, leading to the increased availability of cytokines secreted by APC (such as IL-18 and IL-12) and by T-cells themselves (IL-2) to CD56bright NK cells. Some treatments may restore the killing of T-cells by CD56bright NK cells. Some treatments might also induce higher secretion of cytokines by APC.
Figure 1. CD56bright NK cell expansion after DMT in multiple sclerosis (MS). Panel A: Before treatment, antigen-presenting cells (APC) secrete cytokines that activate T-cells and CD56bright NK cells. T-cells outnumber CD56bright NK cells and are resistant to killing by CD56bright NK cells through various mechanisms. Panel B: DMTs decrease T-cell numbers, leading to the increased availability of cytokines secreted by APC (such as IL-18 and IL-12) and by T-cells themselves (IL-2) to CD56bright NK cells. Some treatments may restore the killing of T-cells by CD56bright NK cells. Some treatments might also induce higher secretion of cytokines by APC.
Jcm 09 01450 g001
Table
Table 1. Effect of disease-modifying treatments (DMTs) on natural killer (NK) cells and NK cells subsets. Each row represents a study. Abbreviations: absolute (Abs); unchanged (=); number (#); Peripheral Blood Mononuclear Cells (PBMCs); Interferon-beta (IFN-b); Dimethyl fumarate (DMF); Autologous hematopoietic stem cell transplantation (AHSCT).
Table 1. Effect of disease-modifying treatments (DMTs) on natural killer (NK) cells and NK cells subsets. Each row represents a study. Abbreviations: absolute (Abs); unchanged (=); number (#); Peripheral Blood Mononuclear Cells (PBMCs); Interferon-beta (IFN-b); Dimethyl fumarate (DMF); Autologous hematopoietic stem cell transplantation (AHSCT).
DMTEffect of DMT on Circulating Total NK CellsEffect of DMT on Circulating CD56bright NK CellsEffect of DMT on Circulating CD56dim NK Cells# of Enrolled SubjectsReference
IFN-b↓ % NK of PBMCs at 12 months↑ % CD56bright of PBMCs at 3 and 12 months
↑ % CD56bright of NK cells at 12 months		↓ % CD56dim of PBMCs at 12 months11[31]
Unchanged↑ % CD56bright of PBMCs at 12 months 11[36]
↑ % CD56bright of NK cells at 24 months
↑ % CD56bright of NK compared to untreated
↑Abs No compared to untreated		↓ % CD56dim of NK compared to untreated
↓ Abs No compared to untreated		25 (longitudinal)
27 (cross-sectional)		[37]
DMF= % NK of PBMCs at 6 months↑ % CD56bright of PBMCs at 6 months 64[46]
= % NK of PBMCs at 6 months↑ % CD56bright of NK cells at 6 months 18[47]
↑ Abs number at 12 months↓ Abs number at 12 months12[48]
↑ Abs number at 12 and 24 months [49]
Fingolimod↑ NK cells in treated vs. untreated 20 untreated, 12 treated[53]
↑ % NK cells of PBMCs in treated vs. untreated↓ % CD56bright of PBMCs in treated vs. untreated NK: 5 untreated, 8 treated
CD56bright: 8 untreated, 10 treated		[54]
↓ Abs number at 6 h= Abs number at 6 h8[55]
= Abs number at 24 months↑ Abs number at 24 months
↓ % CD56bright of PBMCs at 24 months		= Abs number at 24 months
↑ % CD56dim of PBMCs at 24 months		36[56]
↑ % CD56bright of NK at 6 months (responders) 40[57]
Alemtuzumab ↑ % CD56bright of PBMCs at 6 months
↑ Abs number at 6 monthsnkg2d		=% CD56dim of PBMCs at 6 months
= Abs number at 6 months		12[60]
AHSCT↑ Abs Number at 12 and 21 months compared to 3 weeks after treatment
↑ % NK of PBMCs at 3–6–9–12–15–18 months 		↑ % CD56bright of PBMCs at 3-6-9-12 months
↑ % CD56bright of NK cells at 3 and 6 months 		↑ % CD56dim of PBMCs at 3, 6, 9, 12, 15, 18 months 7[23]

Share and Cite

MDPI and ACS Style

Laroni, A.; Uccelli, A. CD56bright Natural Killer Cells: A Possible Biomarker of Different Treatments in Multiple Sclerosis. J. Clin. Med. 2020, 9, 1450. https://doi.org/10.3390/jcm9051450

AMA Style

Laroni A, Uccelli A. CD56bright Natural Killer Cells: A Possible Biomarker of Different Treatments in Multiple Sclerosis. Journal of Clinical Medicine. 2020; 9(5):1450. https://doi.org/10.3390/jcm9051450

Chicago/Turabian Style

Laroni, Alice, and Antonio Uccelli. 2020. "CD56bright Natural Killer Cells: A Possible Biomarker of Different Treatments in Multiple Sclerosis" Journal of Clinical Medicine 9, no. 5: 1450. https://doi.org/10.3390/jcm9051450

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
