Surgery of True Recurring Median Carpal Tunnel Syndrome with Synovial Flap by Wulle Plus Integument Enlargement Leads to a High Patient’s Satisfaction and Improved Functionality
Abstract
:1. Introduction
2. Material and Methods
2.1. Patient Selection
2.2. Pre- and Postoperative Investigations
2.3. Operative Technique
2.4. Statistical Analysis
3. Results
4. Discussion
- *
- The synovial flap is the only flap capable of fully enwrapping the exposed median nerve, thereby effectively protecting the nerve against sprouting fibrotic tissue.
- *
- Donor site morbidity is minimal. This leads to a satisfactory cosmetic outcome, especially when primary wound closure is possible.
- *
- Dissection of the synovial flap is quick and simple, the learning curve short and the complication rate very low (based on personal observation).
Author Contributions
Funding
Conflicts of Interest
References
- Craft, R.O.; Duncan, S.F.; Smith, A.A. Management of recurrent carpal tunnel syndrome with microneurolysis and the hypothenar fat pad flap. Hand 2007, 2, 85–89. [Google Scholar] [CrossRef] [PubMed]
- Gümüştaş, S.A.; Ekmekçi, B.; Tosun, H.B.; Orak, M.M.; Bekler, H.İ. Similar effectiveness of the open versus endoscopic technique for carpal tunnel syndrome: A prospective randomized trial. Eur. J. Orthop. Surg. Traumatol. 2015, 25, 1253–1260. [Google Scholar] [CrossRef]
- Stütz, N.M.; Gohritz, A.; Novotny, A.; Falkenberg, U.; Lanz, U.; van Schoonhoven, J. Clinical and electrophysiological comparison of different methods of soft tissue coverage of the median nerve in recurrent carpal tunnel syndrome. Operat. Neurosurg. 2008, 62, 194–199. [Google Scholar] [CrossRef] [PubMed]
- Botte, M.J.; Abrams, R.A.; Gellman, H. Recurrent carpal tunnel syndrome. Hand Clin. 1996, 12, 731–743. [Google Scholar]
- Bande, S.; De Smet, L.; Fabry, G. The results of carpal tunnel release: Open versus endoscopic technique. J. Hand Surg. Eur. Vol. 1994, 19, 14–17. [Google Scholar] [CrossRef]
- Bloem, J.J.; Pradjarahardja, M.C.; Vuursteen, P.J. The post-carpal tunnel syndrome. Causes and prevention. Neth. J. Surg. 1986, 38, 52–55. [Google Scholar]
- Langloh, N.D.; Linscheid, R.L. Recurrent and unrelieved carpal-tunnel syndrome. Clin. Orthop. Relat. Res. 1972, 83, 41–47. [Google Scholar] [CrossRef]
- MacDonald, R.I.; Lichtman, D.M.; Hanlon, J.J.; Wilson, J.N. Complications of surgical release for carpal tunnel syndrome. J. Hand Surg. 1978, 3, 70–76. [Google Scholar] [CrossRef]
- Concannon, M.J.; Brownfield, M.L.; Puckett, C.L. The incidence of recurrence after endoscopic carpal tunnel release. Plast. Reconstr. Surg. 2000, 105, 1662–1665. [Google Scholar] [CrossRef]
- Huang, J.H.; Zager, E.L. Mini-open carpal tunnel decompression. Neurosurgery 2004, 54, 397–399; discussion 399–400. [Google Scholar] [CrossRef]
- Vögelin, E.; Bignion, D.; Constantinescu, M.; Büchler, U. Revision surgery after carpal tunnel release using a posterior interosseous artery island flap. Handchirurgie, Mikrochirurgie, Plastische Chirurgie 2008, 40, 122–127. [Google Scholar] [CrossRef]
- Tollestrup, T.; Berg, C.; Netscher, D. Management of distal traumatic median nerve painful neuromas and of recurrent carpal tunnel syndrome: Hypothenar fat pad flap. J. Hand. Surg. Am. 2010, 35, 1010–1014. [Google Scholar] [CrossRef] [PubMed]
- Kulick, M.I.; Gordillo, G.; Javidi, T.; Kilgore, E.S., Jr.; Newmeyer, W.L., III. Long-term analysis of patients having surgical treatment for carpal tunnel syndrom. J. Hand Surg. 1986, 11, 59–66. [Google Scholar] [CrossRef]
- Phalen, G.S. The carpal-tunnel syndrome. Seventeen years’ experience in diagnosis and treatment of six hundred fifty-four hands. J. Bone Jt. Surg. 1966, 48, 211–228. [Google Scholar] [CrossRef]
- Plancher, K.D.; Idler, R.S.; Lourie, G.M.; Strickland, J.W. Recalcitrant carpal tunnel. The hypothenar fat pad flap. Hand Clin. 1996, 12, 337–349. [Google Scholar]
- Cseuz, K.A.; Thomas, J.E.; Lambert, E.H.; Love, J.G.; Lipscomb, P.R. Long-term results of operation for carpal tunnel syndrome. Mayo Clin. Proc. 1966, 41, 232–241. [Google Scholar]
- De Smet, L.; Vandeputte, G. Pedicled fat flap coverage of the median nerve after failed carpal tunnel decompression. J. Hand Surg. 2002, 27, 350–353. [Google Scholar] [CrossRef]
- Louis, D.S.; Greene, T.L.; Noellert, R.C. Complications of carpal tunnel surgery. J. Neurosurg. 1985, 62, 352–356. [Google Scholar] [CrossRef]
- Das, S.K.; Brown, H.G. In search of complications in carpal tunnel decompression. Hand 1976, 8, 243–249. [Google Scholar] [CrossRef]
- De Smet, L. Recurrent carpal tunnel syndrome. Clinical testing indicating incomplete section of the flexor retinaculum. J. Hand Surg. 1993, 18, 189. [Google Scholar] [CrossRef]
- Wadstroem, J.; Nigst, H. Reoperation for carpal tunnel syndrome. A retrospective analysis of forty cases. Ann. Chir. Main 1986, 5, 54–58. [Google Scholar] [CrossRef]
- Wulle, C. The synovial flap as treatment of the recurrent carpal tunnel syndrome. Hand Clin. 1996, 12, 379–388. [Google Scholar] [PubMed]
- Dellon, A.L.; Mackinnon, S.E. The pronator quadratus muscle flap. J. Hand Surg. 1984, 9, 423–427. [Google Scholar] [CrossRef]
- Reisman, N.R.; Dellon, A.L. The abductor digiti minimi muscle flap: A salvage technique for palmar wrist pain. Plast. Reconstr. Surg. 1983, 72, 859–865. [Google Scholar] [CrossRef]
- Rose, E.H.; Norris, M.S.; Kowalski, T.A.; Lucas, A.; Flegler, E.J. Palmaris brevis turnover flap as an adjunct to internal neurolysis of the chronically scarred median nerve in recurrent carpal tunnel syndrome. J. Hand Surg. 1991, 16, 191–201. [Google Scholar] [CrossRef]
- Brown, H.; Flynn, J.E. Abdominal pedicle flap for hand neuromas and entrapped nerves. J. Bone Jt. Surg. 1973, 55, 575–579. [Google Scholar] [CrossRef]
- Strickland, J.W.; Idler, R.S.; Lourie, G.M.; Plancher, K.D. The hypothenar fat pad flap for management of recalcitrant carpal tunnel syndrome. J. Hand Surg. 1996, 21, 840–848. [Google Scholar] [CrossRef]
- Wintsch, K.; Helaly, P. Free flap of gliding tissue. J. Reconstr. Microsurg. 1986, 2, 143–151. [Google Scholar] [CrossRef]
- Goitz, R.J.; Steichen, J.B. Microvascular omental transfer for the treatment of severe recurrent median neuritis of the wrist: A long-term follow-up. Plast. Reconstr. Surg. 2005, 115, 163–171. [Google Scholar]
- McClinton, M.A. The use of dermal-fat grafts. Hand Clin. 1996, 12, 357–364. [Google Scholar]
- Espen, D. Nerve cover with synovial flap. In Sindrome del Tunnel Carpale; Luchetti, R., Ed.; Verduci: Rome, Italy, 2002; pp. 338–342. [Google Scholar]
- Levine, D.W.; Simmons, B.P.; Koris, M.J.; Daltroy, L.H.; Hohl, G.G.; Fossel, A.H.; Katz, J.N. A self-administered questionnaire for the assessment of severity of symptoms and functional status in carpal tunnel syndrome. J. Bone Jt. Surg. 1993, 75, 1585–1592. [Google Scholar] [CrossRef] [PubMed]
- Giunta, R.; Frank, U.; Lanz, U. Hypothenar Fat-Pad Flap. In Carpal Tunnel Syndrome; Luchetti, R., Amadio, P., Eds.; Springer: Berlin, Germany, 2007; pp. 319–323. [Google Scholar]
- Millesi, H. Factors affecting the outcome of peripheral nerve surgery. Microsurgery 2006, 26, 295–302. [Google Scholar] [CrossRef] [PubMed]
- Nau, H.E.; Lange, B.; Lange, S. Prediction of outcome of decompression for carpal tunnel syndrome. J. Hand Surg. 1988, 13, 391–394. [Google Scholar] [CrossRef]
Patient (n) | Age (Years) | Gender (F/M) | Side (l/r) Dominant Hand (+/−) | Number of Previous Interventions | Symptom-FreeInterval (Months) | Elapsed Time between Last Intervention and the Synovial Flap Plasty (Months) |
---|---|---|---|---|---|---|
1 | 32 | F | r + | 1 | 8 | 16 |
2 | 77 | F | r + | 1 | 6 | 17 |
3 | 56 | M | l + | 2 | 5 | 14 |
4 | 64 | M | r − | 1 | 10 | 27 |
5 | 46 | F | r + | 3 | 4 | 15 |
6 | 22 | F | l + | 1 | 5 | 13 |
7 | 51 | F | l −/r + | 1 | 9/6 | 18/24 |
8 | 62 | F | l + | 2 | 7 | 18 |
9 | 48 | M | r + | 1 | 12 | 26 |
10 | 43 | F | r − | 1 | 14 | 29 |
11 | 42 | F | r + | 1 | 11 | 20 |
12 | 51 | F | r − | 1 | 13 | 24 |
13 | 41 | F | l + | 1 | 8 | 20 |
14 | 44 | F | r + | 1 | 9 | 23 |
Nerve | Primary Wound Closure (Yes/−) | Integument Enlargement (Yes/−) | Motor Distal Latency (msec) Pre/Post | Normative Values of Distal Latency | CMAP (μvolt) Pre/Post | Sensory NCV (m/sec) Pre/Post | VAS Pain Pre/Post | VAS Limitations of Activities Pre/Post | Levine Pre/Post |
---|---|---|---|---|---|---|---|---|---|
1 | Yes | − | 4.5/3.6 | 2.8 | 11849/12833 | 43/46 | 9/2 | 7/2 | 3.4/1.9 |
2 | − | Yes | 5.7/4.4 | 3.0 | 8927/9596 | 37/41 | 9/2 | 9/2 | 3.8/2.7 |
3 | − | Yes | 4.4/3.5 | 3.0 | 7756/9014 | 33/35 | 10/4 | 10/4 | 4.0/2.8 |
4 | − | Yes | 5.0/3.8 | 3.1 | 10679/13415 | 40/40 | 9/2 | 7/2 | 3.6/2.0 |
5 | − | Yes | 6.7/5.4 | 2.8 | 5483/7797 | 28/30 | 10/3 | 10/5 | 4.4/3.3 |
6 | Yes | − | 4.9/3.0 | 2.8 | 14123/14632 | 48/54 | 8/3 | 6/3 | 3.0/1.1 |
7 | Yes | 4.7/3.6 | 2.8 | 11619/12110 | 38/41 | 8/2 | 6/2 | 3.9/2.3 | |
8 | − | Yes | 4.9/3.6 | 2.8 | 9013/10318 | 39/43 | 8/2 | 8/2 | 3.5/2.1 |
9 | − | Yes | 5.6/4.6 | 2.9 | 7987/9583 | 31/35 | 8/2 | 8/2 | 3.3/2.4 |
10 | − | Yes | 4.6/3.3 | 3.2 | 9365/12846 | 36/39 | 9/3 | 5/1 | 3.8/2.9 |
11 | − | Yes | 5.3/3.6 | 2.8 | 9190/10129 | 45/47 | 8/1 | 8/1 | 4.1/3.2 |
12 | Yes | − | 4.9/3.8 | 2.8 | 10241/12299 | 40/43 | 8/3 | 6/3 | 3.2/2.4 |
13 | − | Yes | 5.0/3.8 | 2.8 | 8421/9958 | 41/42 | 9/1 | 9/2 | 3.9/2.5 |
14 | Yes | − | 5.6/4.7 | 2.8 | 10593/11727 | 39/41 | 7/1 | 7/3 | 3.6/2.9 |
15 | Yes | 4.7/3.4 | 2.8 | 11797/11958 | 34/37 | 8/1 | 6/1 | 4.0/3.0 |
Pre-op [MV] | Post-op [MV] | Significance | |
---|---|---|---|

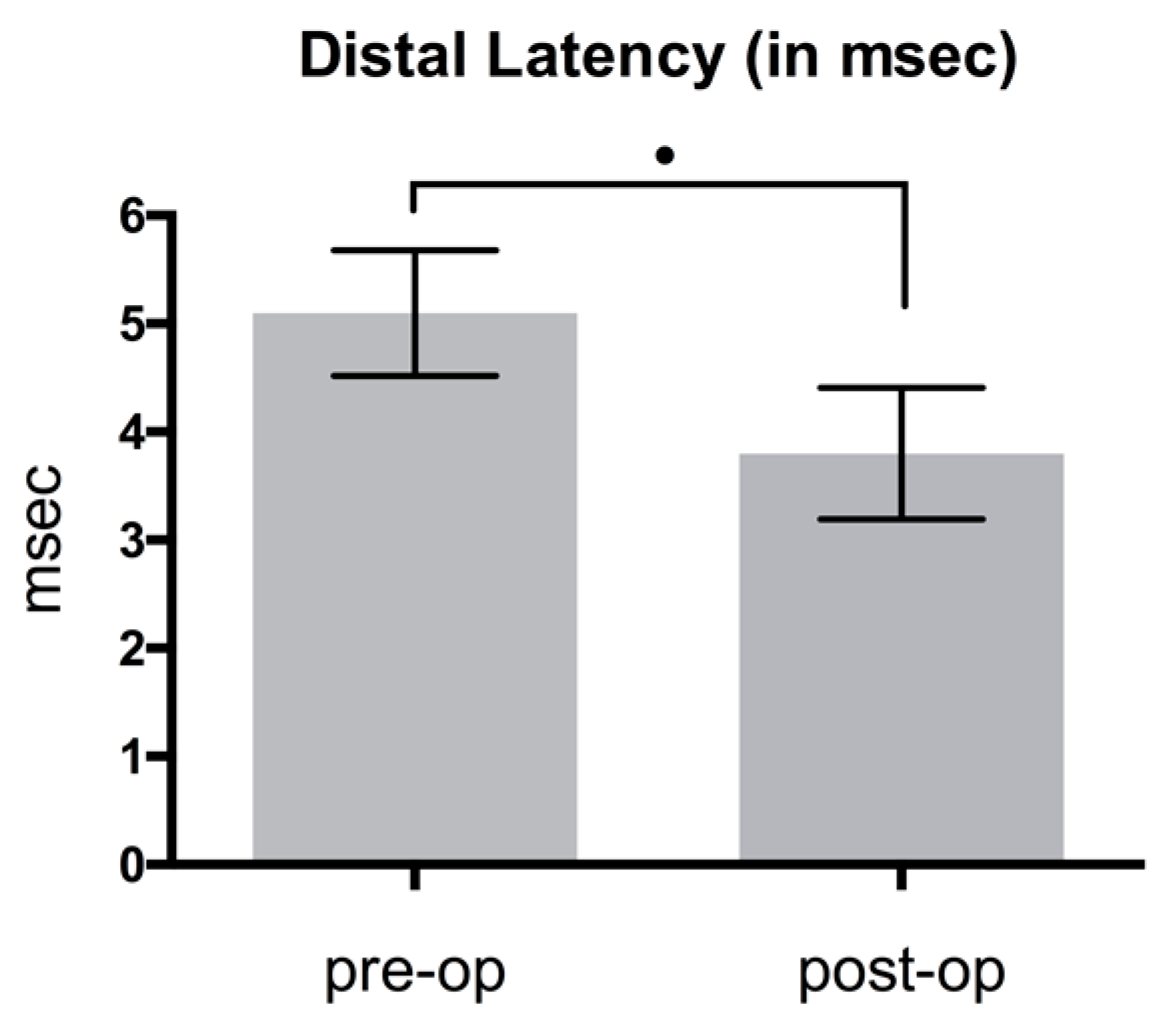

Distal Latency * | 5.1 | 3.8 | p < 0.05 |

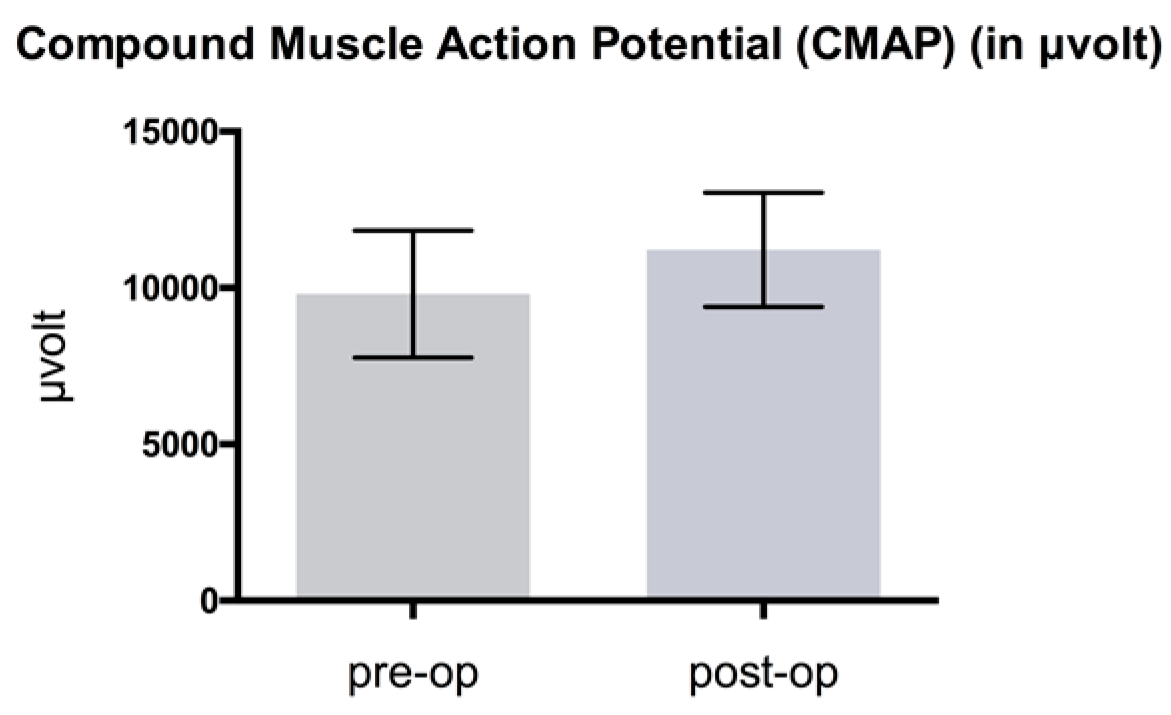

CMAP | 9802.9 | 11214.3 | p > 0.05 |

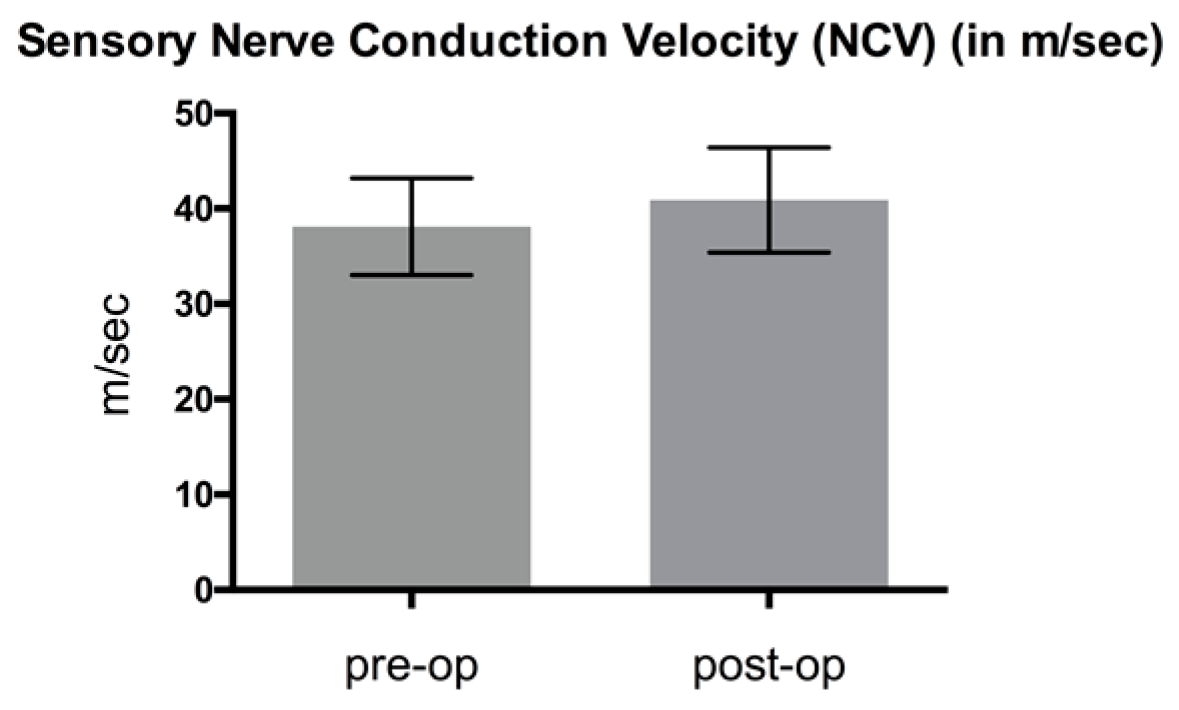

Sensory NCV | 38.1 | 40.9 | p > 0.05 |

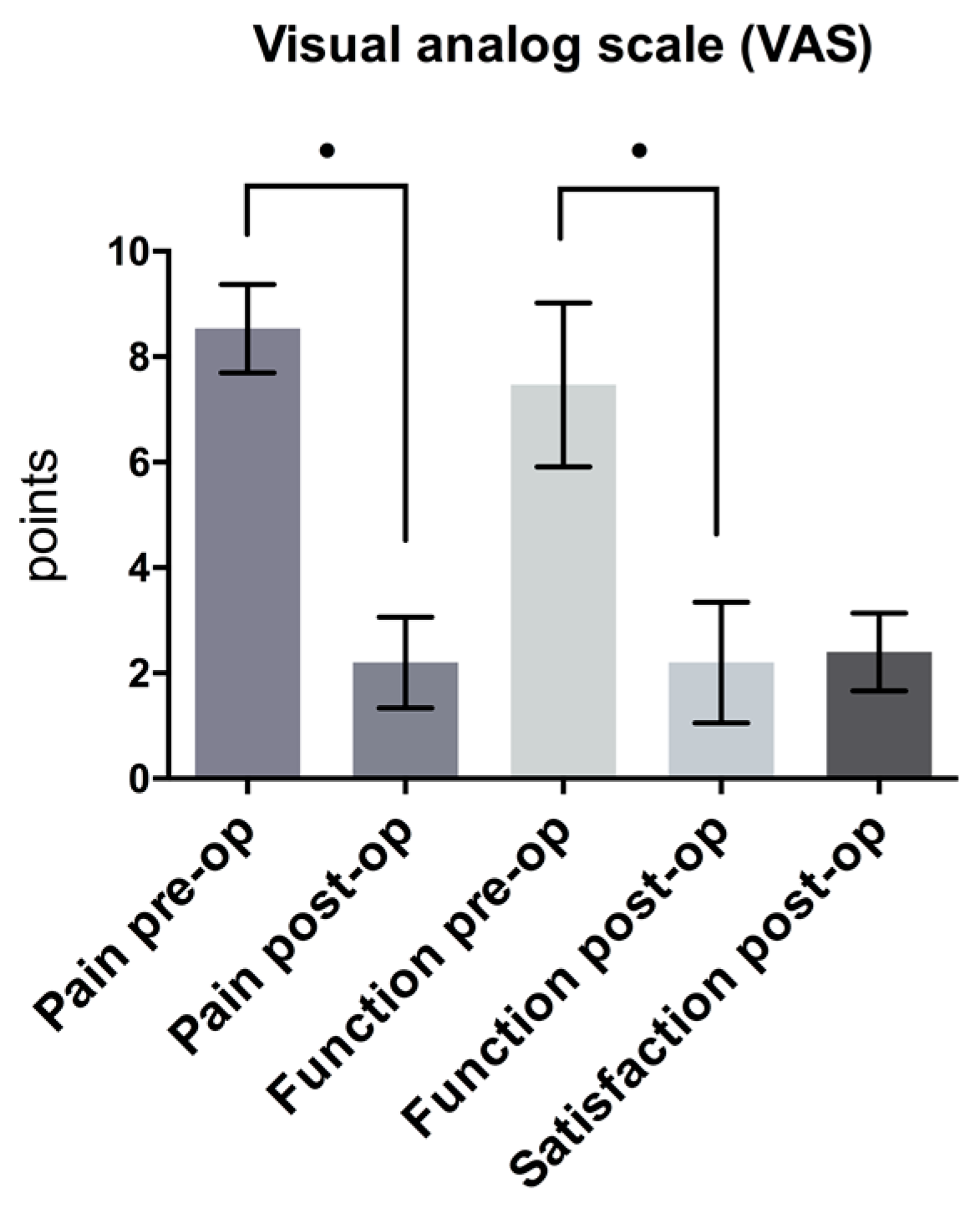

VAS Pain * | 8.5 | 2.2 | p < 0.001 |
VAS Function * | 7.5 | 2.2 | p < 0.001 |
VAS Satisfaction | − | 2.4 | |

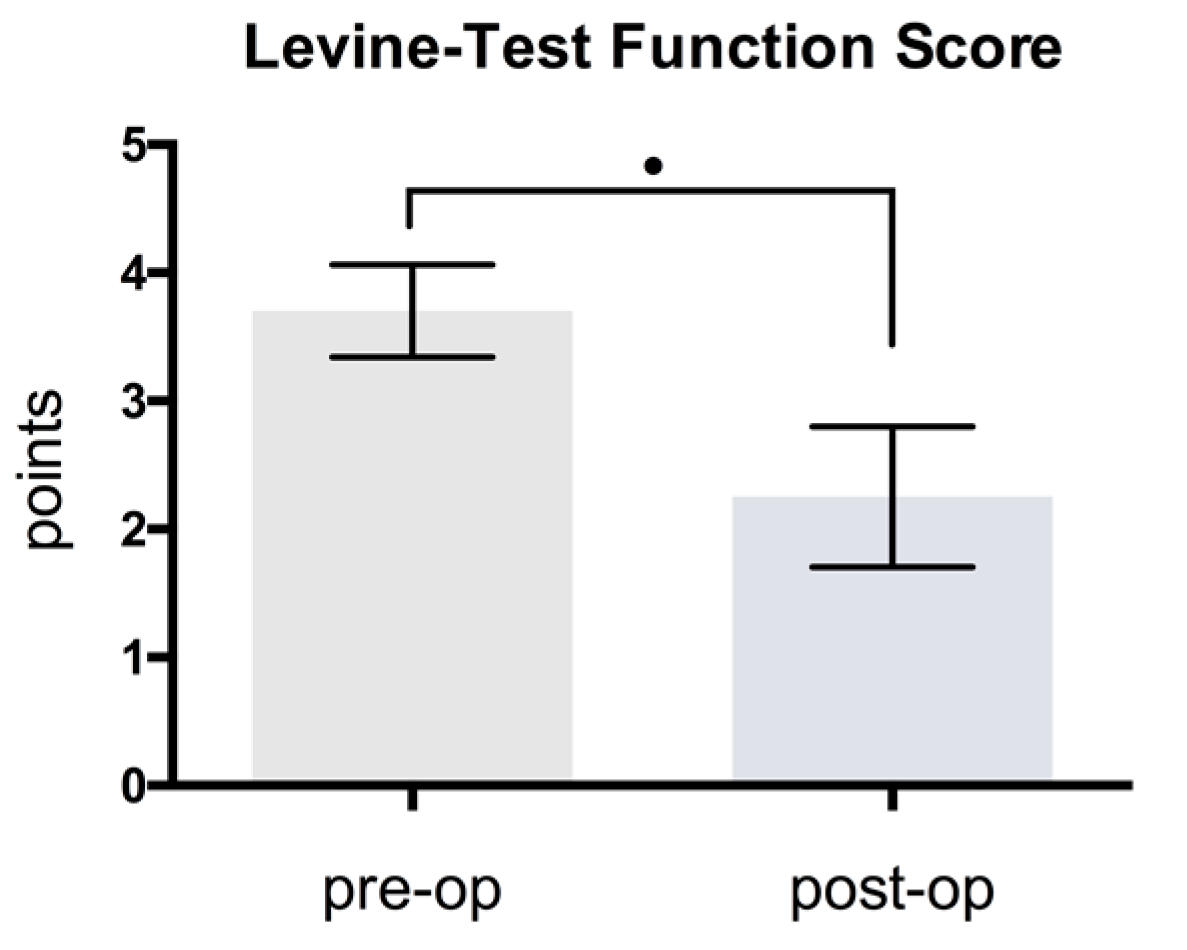

Levine * | 3.7 | 2.25 | p < 0.001 |
