Total Kidney Volume, Hypertension, and Deterioration of Kidney Function in Children with Early-Stage ADPKD
1
Department of Pediatrics and Nephrology, Medical University of Warsaw, 02-091 Warsaw, Poland
2
Department of Pediatric Radiology, Medical University of Warsaw, 02-091 Warsaw, Poland
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2025, 14(13), 4498; https://doi.org/10.3390/jcm14134498 (registering DOI)
Submission received: 21 May 2025
/
Revised: 20 June 2025
/
Accepted: 21 June 2025
/
Published: 25 June 2025
(This article belongs to the Special Issue Pediatric Nephrology: Advances in the Diagnosis and Management of Pediatric Kidney Disorders)
Abstract
Background: Several studies have shown that total kidney volume (TKV) measurements may serve as a non-invasive imaging biomarker for monitoring and predicting the progression of autosomal dominant polycystic kidney disease (ADPKD) in children. Methods: This study aimed to evaluate the relationship between height-adjusted TKV (htTKV), estimated glomerular filtration rate (GFR), and blood pressure, assessed using 24 h ambulatory blood pressure monitoring (ABPM), in children with early-stage ADPKD. The study was conducted with 72 children, mean age 12.46 ± 3.76 (5.42–17.92). Results: Hypertension (HT) was diagnosed in (20) 28% of children. ABPM allowed the identification of previously undiagnosed HT in 12 (16.7%) children. Decreased GFR was demonstrated in 10 (14%) children, and hyperfiltration in 5 (7%) children. Significantly higher htTKV and calculated TKV z-score and more frequent decreases in GFR were observed in hypertensive children (p = 0.018; 0.020 and 0.010, respectively). The study demonstrated a significant inverse correlation between htTKV and GFR (r −0.25; p = 0.032). The TKV z-score showed a very good correlation with all ABPM parameters, except for DBP and DBP z-score during the day. Receiver operating curve (ROC) analysis showed that htTKV and TKV z-score had good diagnostic value for predicting a decline in GFR (AUC 0.808, p < 0.001), but were not useful for predicting the onset of HT (AUC 0.697, p = 0.010). Conclusions: There is a relationship between TKV, GFR, and blood pressure parameters in children with early-stage ADPKD. The TKV z-score can be useful for predicting GFR decline. Children with ADPKD and increasing TKV require careful blood pressure monitoring.
Keywords:
ADPKD; children; total kidney volume (TKV); ABPM; hypertension; hyperfiltration; kidney function1. Introduction
Autosomal dominant polycystic kidney disease (ADPKD) is one of the most common hereditary human monogenic diseases, affecting 1:1000 to 4000 individuals in Europe [1]. It is characterized by a continuous development of multiple cysts in the kidneys that replace normal renal parenchyma, cause bilateral kidney enlargement, and ultimately lead to renal failure [2]. Approximately 5% of ADPKD cases manifest during childhood [3] with 3% of children being diagnosed in utero or within the first 18 months of life, which is considered a very early onset of the disease [4].
Chronic kidney disease (CKD) in ADPKD usually develops in middle age, whereas enlargement of the kidney size, hypertension (HT), glomerular hyperfiltration, hematuria, and proteinuria may occur already in childhood [4]. The presence of hypertension in ADPKD children is associated with a decline in kidney function and the progression of cardiovascular disease. Ambulatory blood pressure monitoring (ABPM) is considered an essential tool for the detection and treatment of hypertension. It also allows for identification of patients with masked hypertension, isolated clinic hypertension, and abnormal blood pressure (BP) profiles [5].
Several studies have shown that measurements of total kidney volume (TKV) may serve as a noninvasive imaging biomarker for monitoring and predicting disease progression, as well as a major prognostic end point in clinical trials in patients with ADPKD [6,7,8,9]. The measurement of TKV by ultrasound (US) is the method of choice for assessing kidney dimensions in children due to the high accessibility and cost-effectiveness of US compared to other modalities such as magnetic resonance imaging (MRI) and computed tomography (CT). Only a few studies are evaluating TKV with US, kidney function, and ABPM in children with ADPKD [8,10,11].
The aim of this study was to evaluate the relationship between adjusted TKV measured by US, kidney function, and blood pressure parameters in children with early-stage ADPKD.
2. Materials and Methods
2.1. Study Group
This cross-sectional single-center study was conducted with 72 children with ADPKD, who were treated from 2021 to 2024 at a the tertiary pediatric nephrology center in Poland. Inclusion criteria were as follows: age < 18 years, height ≥ 120 cm, and ADPKD diagnosis established in patients with at least one kidney cyst and positive family history or proven mutation in PKD1 or PKD2 gene [4,12]. Exclusion criteria were as follows: height < 120 cm due to lack of reference values for interpretation of ABPM, cystic kidney disease other than ADPKD, congenital kidney and urinary track abnormalities, or secondary causes of hypertension. In all participants, the following clinical data were evaluated: age [years], sex, body height [cm], and body weight [kg]. The glomerular filtration rate (GFR mL/min/1.73 m2) was estimated according to the revised 2009 Schwartz formula [13]. According to KDIGO guidelines, GFR values between 90–140 mL/min/1.73 m2 were considered normal [14,15].
2.2. Kidney Ultrasound
Kidney volume (KV) was measured by performing standard ultrasonography. The ellipsoid formula [16] was used to calculate each kidney volume: π/6 × length [cm] × width [cm] × depth [cm]. The TKV z-score (number of standard deviations) of each kidney according to height was calculated by the use of a calculator found at www.pedkidneysize.com. The Lambda, Mu and Sigma (LMS) method was used to calculate the z-score. TKV z-score result of less than 2 corresponding to a TKV less than the 97th percentile and was considered normal [17]. Mean total kidney volume (TKV) was obtained by summing the volume of the left and right kidney, dividing by 2 and adjusting to height (htTKV), expressed in cm3/m. The average z-score was calculated similarly to the mean TKV. To compare TKV’s impact on blood pressure parameters and renal function, children were divided into 3 groups according to their TKV z-score: normal renal volume—TKV z-score < 2, moderately increased kidney volume—TKV z-score 2–4, and highly increased kidney volume—TKV z-score > 4.
2.3. Blood Pressure
ABPM was performed using the SunTech Oskar 2 device (SunTech Medical Inc., Morrisville, NC, USA) according to American Heart Association guidelines [18]. BP was automatically recorded every 15 min from 7 a.m. to 10 p.m. and every 30 min from 10 p.m. to 7 a.m. The recordings were adequate for clinical interpretation if at least 75% of the measurements were valid. Periods of activity and resting were assessed according to patients’ individual diaries. Systolic, diastolic, and mean arterial pressure (SBP, DBP, and MAP, respectively), blood pressure loads, and nighttime blood pressure dipping (DIP) were measured. Patients were classified as non-dippers if their dipping status was less than 10%. SBP, DBP, and MAP were also expressed as z-scores [19]. BP loads were evaluated as the percentage of BP measurements above the 95th percentile for sex and height. The diagnostic criteria for HT based on European and North American guidelines were mean SBP and/or DBP ≥ 95th percentile or use of antihypertensive medications for the indication of HT [5,18]. Isolated nocturnal HT was diagnosed in the presence of hypertension during nighttime and the presence of normal values of BP during the awake period. High-normal BP was defined as mean SBP and/or DBP ≥ 90th and < 95th percentile, and normal BP as SBP and/or DBP < 90th percentile [5].
2.4. Ethical Issues
The study was approved by the local Bioethics Committee for Human Research (No. KB/112/A2021). The clinical investigation was conducted in accordance with the ethical standards of the institutional research committee and the guidelines of the Declaration of Helsinki. Informed consent was obtained from all participant representatives and participants (≥16 years) prior to study inclusion.
2.5. Statistical Analysis
Statistical analysis was performed using Statistica 13.3 PL software (StatSoft, Tulsa, OK, USA). The results were presented as the mean ± standard deviation (SD) and minimum and maximum ranges or the median and interquartile ranges (IQR, 25–75), and categorical variables as absolute frequencies and percentages. The normality of variables was analyzed using the Shapiro–Wilk test. Student’s t-test or the Mann–Whitney U-test (depending on the variables distribution), and the chi-square and Fisher’s exact test, were used to compare two groups of variables. ANOVA and post hoc tests were performed to analyze differences between the three subgroups. The relationship between variables was evaluated using Pearson’s or Spearman’s rank correlation. Receiver operating curve (ROC) analysis was used to calculate the area under the curves (AUC) for kidney volume and to find the best cut-off values (including 95% CI), sensitivity, specificity in the detection of GFR decrease, and presence of HT for each variable. p values less than 0.05 were considered statistically significant for all tests.
3. Results
Seventy-two children with ADPKD were recruited for the study (Table 1). A positive family history of ADPKD was found in 88% of children. In cases of negative family history, genetic tests revealed a mutation in the PKD1 gene. No PKD2 mutation was found. Estimated GFR values were normal in 79% of children, a decrease in GFR values was observed in 14% of children, and hyperfiltration was observed in 7% of children. Twenty (28%) children met the criteria for HT. Diagnosis of HT was established in children between 2 and 16 years. In two girls, HT was detected at the age of 2 and 3 years. These girls are sisters and abnormal renal echogenicity was observed already at fetal age. Eight patients had been diagnosed with HT before being included in the study. They were under the treatment of HT at the time of ABPM recording. Four of these children had unsatisfactory blood pressure control at the moment of performing ABPM and required modification of therapy. Twelve children (16.7%) were for the first time diagnosed with HT at the initial examination by using ABPM. All of them had normal BP values during ambulatory oscillometric measurements. Sixteen children with hypertension received angiotensin-converting enzyme inhibitors (ACEIs) in monotherapy. One child received a beta-blocker due to a high heart rate. Three children were taking two antihypertensive medications: ACEIs and calcium channel inhibitors.
Comparisons of demographic, ultrasonography, kidney function, and ABPM data in children with normal BP and hypertension are presented in Table 2. Hypertensive children were characterized by significantly higher values of kidney volume and lower GFR values. A decrease in GFR was observed in 30% of hypertensive children, significantly more often than in normotensive children. Patients with HT had significantly higher SBP, DBP, and MAP during a 24 h period, day, and night, compared to normotensive children (all p < 0.001). SBP 24 h loads and DBP 24 h loads were significantly higher in hypertensive children than in those with normal BP. SBP non-dippers represented 21 (29%) of 72 children, DBP non-dippers 8 (11%), and extreme SBP or DBP dipping 26 (36.1%) children. The percentage of children with no drop in nocturnal blood pressure >10%, as well as the percentage of children who were extreme dippers, was comparable in both groups.
Comparison of age, GFR, and ABPM data with kidney volume are reported in Table 3. There were no significant differences in GFR values between TKV z-score groups. None of the children with a TKV z-score < 2 had a GFR decrease of less than 90 mL/min/1.73 m2. The percentage of children with reduced GFR increased with higher TKV z-scores: 8% for z-scores between 2 and 4, and 36% for z-scores greater than 4. Hyperfiltration was present in all patient groups. Hypertension was diagnosed more often in patients with TKV z-score >4 (55%), and less often in those with TKV z-score 2–4 (25%) and TKV z-score <2 (20%).
The influence of kidney volume on blood pressure in ADPKD children is presented in Figure 1, Figure 2 and Figure 3. Children with TKV z-score >4 had significantly higher mean SBP z-score and MAP z-score for 24 h, day, and night time periods, as well as significantly higher mean DBP z-score for 24 h and night periods compared to those with TKV z-score <2. The difference between these groups regarding SBP z-score during the day almost reached statistical significance (p = 0.053). Patients with TKV z-score >4 also demonstrated significantly higher mean DBP z-score during the night, mean MAP z-score over 24 h, and MAP z-score during the night compared to those with TKV z-score 2–4. Patients with TKV z-score 2–4 demonstrated significantly higher mean SBP z-score during the night than patients with TKV z-score <2.
The study demonstrated a mutual correlation between kidney volume, GFR, and BP values (Table 4). There were significant positive correlations of htTKV and TKV z-score with age, and a significant inverse correlation between htTKV and GFR. TKV z-score showed very good correlation with all ABPM parameters, except DBP and DBP z-score during the day. htTKV demonstrated slightly worse or no correlation with SBP z-score, DBP z-score, and MAP z-score during 24 h, day, and night time periods, and very good correlation with other parameters. Kidney volume parameters significantly positively correlated with SBP loads and DBP loads.
The study also presents a significant positive correlation of GFR with DBP, DBP z-score, and MAP during the day, as well as with MAP and MAP z-score during 24 h in hypertensive children (Table 5).
The ROC analysis showed that htTKV and TKV z-score have good diagnostic values for detecting deterioration in GFR (Figure 4a). TKV z-score ≥ 4.025 was associated with a higher risk of GFR decline <90 mL/min/1.73 m2. Meanwhile, htTKV and TKV z-score have low diagnostic value for the detection of HT in ADPKD children (Figure 4b, Table 6).
4. Discussion
Our study is one of a very small number of studies evaluating children in the early stages of ADPKD. We confirmed that enlarged kidney volume, impaired kidney function presented as hyperfiltration or decreased GFR, as well as unidentified hypertension, may be present in children in the early stage of ADPKD. We were one of the few who showed an association between renal TKV and GFR and blood pressure parameters in children with ADPKD. For the first time, we investigated which TKV z-score increased the risk of reduced GFR and the presence of hypertension in children with ADPKD.
Hypertension is one of the most important risk factors for the fast progression of CKD. According to a meta-analysis performed by Marlais, in the pediatric ADPKD population, the presence of HT is estimated at 20% [20]. Based on the analysis of ABPM data, the prevalence of HT is even higher and is estimated at 35% [12]. The incidence of HT increases significantly over time in children and young adults with ADPKD [20]. Seeman et al. revealed a 2 percentage points per year increase in the prevalence of HT in children with ADPKD during 6 years of follow-up [21]. Data were analyzed according to blood pressure values collected using a standard method. Unfortunately, they did not perform ABPM in all patients. The randomized clinical trial performed by Cadnapaphornchai et al. showed that half of ADPKD children with BP in the range of 75–90th percentile and almost one-third of patients with a BP range below 75th percentile developed HT within 5 years of the study [10]. What is more, children with borderline hypertension (75–95th percentile) demonstrated a decline in kidney function over time and have increased LVMI compared to children with BP lower than the 75th percentile [22]. According to our ABPM data, 28% of children were hypertensive, 14% of children had BP in the 75–90th percentile range, and 7% had BP in the 90–95th percentile range.
Notably, there is a risk that some hypertensive children with ADPKD are not being identified because of the normal BP measurements during medical appointments. ABPM seems to be a more precise method for detection of HT compared to office blood pressure measurements (34% vs. 16%) [23]. In an observational prospective study, Sans Atxer et al. demonstrated that almost 30% of examined children with ADPKD had not been diagnosed with HT without ABPM due to masked HT [11]. Also, Seeman et al. showed that nearly 60% of patients with daytime HT according to ABPM had normal BP values during regular measurements [24]. We first diagnosed HT in 16.7% of children by using ABPM at the initial examination. All of them had normal BP values during earlier ambulatory oscillometric measurements.
In the large prospective study, which included early-stage ADPKD children, Massella et al. found higher SBP and DBP during the night compared to the day. A total of 18% of ADPKD children had been diagnosed with isolated nocturnal HT, and 52% of children were non-dippers [12]. Chapman et al. demonstrated that more than 25% of children showed a lack of nocturnal decline in blood pressure [25]. Marlais showed a lack of nocturnal dipping in 35% of children [26]. We had 29% SBP non-dippers and 11% DBP non-dippers. To date, studies from the adult population have described a significant association between nocturnal HT, lack of nocturnal reduction in BP, and organ damage, especially a significantly higher risk of adverse cardiovascular events [27].
US, due to its wide availability, may be the preferred method for calculating KV in children with ADPKD. The Bland–Altman chart showed no significant differences between TKV measurements by US and MRI techniques in children with ADPKD [28]. Although the US can be less accurate in assessing kidney volume when kidney size exceeds 17 cm, it is suggested to be an appropriate tool for determining the severity of the disease and the patient’s prognosis in ADPKD [29,30]. An increase in TKV showed exponential-like growth from children to adulthood, individually for each patient with ADPKD [10,31]. Initial TKV may influence the rate of TKV increase and GFR decrease. High baseline TKV may result in a more rapid increase in TKV and a decrease in GFR [32]. Few studies showed that ADPKD children, in particular those with HT, had a significantly greater increase in TKV calculated by the US and MRI methods [7,33,34,35]. The Consortium for Radiologic Imaging Studies of Polycystic Kidney Disease (CRISP) study also reported the relationship between increased TKV and the presence of HT in young ADPKD patients with normal renal function [36]. Consistent with those studies, we also observed that children with HT had greater TKV and significantly lower GFR than normotensive ones. Children with TKV z-score >4 had significantly higher SBP and MAP during 24 h, day, and night time periods, and significantly higher DBP during 24 h and night than children without kidney enlargement. In accordance with the study performed by Gurusinghe et al., who showed a significant association between higher systolic BP values in 24 h, day, and night time periods, systolic BP loads, and TKV [8], we also found a significant correlation between mean htTKV, mean TKV z-score, and blood pressure parameters.
Most children with ADPKD have renal function within the normal range. According to the meta-analysis performed by Marlais, the prevalence of reduced renal function defined as GFR < 90 mL/min/1.73 m2 in ADPKD children is 8% (95% CI 2% to 26%) [20]. A significant decrease in GFR was also observed by Cadnapaphornchai et al. during 5 years of follow-up in pediatric ADPKD patients with mild disease [10]. In a study performed by Seeman et al., the percentage of ADPKD children with stage 2 CKD doubled at the final visit from 5 to 10% [21]. Similarly, we detected a decline in renal function in 14% of our patients. In a meta-analysis performed by Woo Ri Jo et al., the authors reported a significant negative correlation between TKV, TKV growth, and GFR or GFR decline rates in adults [37]. The CRISP study documented an inverse correlation between renal volume and GFR in patients with ADPKD under 25 years of age [36]. We were one of the few who confirmed a negative correlation between htTKV measured in US and GFR in children with the early stage of ADPKD.
Data highlight the correlation between the presence of hyperfiltration and the severity of ADPKD [10,32]. Seeman showed that 19% of ADPKD children had hyperfiltration at the initial visit and 14% at the final visit. In children with initial hyperfiltration, the GFR significantly decreases during the follow-up [21]. Similarly, Helal et al. observed that children with hyperfiltration at baseline experienced a faster decline in GFR in the following 5 years [15]. In our cohort, 7% of children had hyperfiltration. The presence of hyperfiltration was similar regardless of kidney enlargement and values of blood pressure. The presence of hyperfiltration may be the reason why the lack of correlation between TKV z-score and GFR occurred. We can speculate that the presence of a significant positive correlation between GFR and DBP during the day and MAP during 24 h and the day in hypertensive children might result from the occurrence of hyperfiltration.
In adults, the development of stage III CKD can be predicted by an ultrasound measurement of htTKV >650 mL/m2 [29]. Our study revealed a good prognostic value of htTKV and TKV z-score for assessing decline in GFR <90 mL/min/1.73 m2. None of the children with a normal TKV z-score had a decreased GFR. As the TKV z-score increased to 2–4 and then to over 4, the proportion of children with a reduced GFR increased, reaching 8% and 36%, respectively. We were the first to indicate an increased risk of reduced GFR <90 mL/min/1.73 m2 from a TKV z-score >4 in ADPKD children. htTKV and TKV z-score had low usefulness in predicting the occurrence of HT in children with ADPKD.
Our study has some limitations. The cross-sectional nature of the study makes it impossible to draw causal conclusions. Single-center trial design and a relatively small number of patients may introduce a bias. A further limitation is the lack of repeated evaluation of our patients, which could provide more information about the prevalence of hypertension and impairment of kidney function in our study group.
5. Conclusions
There is a relationship between TKV, GFR, and blood pressure parameters in children with the early stage of ADPKD. US measurement of TKV can be helpful in assessing the severity of the disease. In particular, htTKV and TKV z-score can be useful for predicting decline in renal function in children with ADPKD. Children with ADPKD and increasing TKV require careful blood pressure monitoring. Use of ABPM allows early diagnosis of HT in children with ADPKD and therefore early initiation of treatment.
Author Contributions
Conceptualization, A.T. and G.K.; methodology, A.T. and G.K.; software, A.T.; validation, A.T. and G.K.; formal analysis, A.T. and G.K.; investigation, A.T.; data curation, A.T., D.N. and K.S.; resources, D.N. and K.S.; writing—original draft preparation, A.T. and G.K.; writing—review and editing, A.T. and G.K.; visualization, A.T.; supervision, G.K.; project administration, A.T.; All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Local Bioethics Committee of the Medical University of Warsaw (approval No. KB/112/A2021; 13 December 2021).
Informed Consent Statement
Informed consent was obtained from all subjects (>16 years) and their representatives involved in the study.
Data Availability Statement
The data analyzed in this study are available from the corresponding author on reasonable request.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Ong, A.C.; Devuyst, O.; Knebelmann, B.; Walz, G. Autosomal dominant polycystic kidney disease: The changing face of clinical management. Lancet 2015, 385, 1993–2002. [Google Scholar] [CrossRef]
- Lakhia, R.; Ramalingam, H.; Chang, C.M.; Cobo-Stark, P.; Biggers, L.; Flaten, A.; Alvarez, J.; Valencia, T.; Wallace, D.P.; Lee, E.C.; et al. PKD1 and PKD2 mRNA cis-inhibition drives polycystic kidney disease progression. Nat. Commun. 2022, 13, 4765. [Google Scholar] [CrossRef] [PubMed]
- De Rechter, S.; Kringen, J.; Janssens, P.; Liebau, M.C.; Devriendt, K.; Levtchenko, E.; Bergmann, C.; Jouret, F.; Bammens, B.; Borry, P.; et al. Clinicians’ attitude towards family planning and timing of diagnosis in autosomal dominant polycystic kidney disease. PLoS ONE 2017, 12, e0185779. [Google Scholar] [CrossRef]
- Gimpel, C.; Bergmann, C.; Bockenhauer, D.; Breysem, L.; Cadnapaphornchai, M.A.; Cetiner, M.; Dudley, J.; Emma, F.; Konrad, M.; Harris, T.; et al. International consensus statement on the diagnosis and management of autosomal dominant polycystic kidney disease in children and young people. Nat. Rev. Nephrol. 2019, 15, 713–726. [Google Scholar] [CrossRef]
- Lurbe, E.; Agabiti-Rosei, E.; Cruickshank, J.K.; Dominiczak, A.; Erdine, S.; Hirth, A.; Invitti, C.; Litwin, M.; Mancia, G.; Pall, D.; et al. 2016 European Society of Hypertension guidelines for the management of high blood pressure in children and adolescents. J. Hypertens. 2016, 34, 1887–1920. [Google Scholar] [CrossRef] [PubMed]
- Alam, A.; Dahl, N.K.; Lipschutz, J.H.; Rossetti, S.; Smith, P.; Sapir, D.; Weinstein, J.; McFarlane, P.; Bichet, D.G. Total Kidney Volume in Autosomal Dominant Polycystic Kidney Disease: A Biomarker of Disease Progression and Therapeutic Efficacy. Am. J. Kidney Dis. 2015, 66, 564–576. [Google Scholar] [CrossRef] [PubMed]
- Breysem, L.; De Rechter, S.; De Keyzer, F.; Smet, M.H.; Bammens, B.; Van Dyck, M.; Hofmans, M.; Oyen, R.; Levtchenko, E.; Mekahli, D. 3DUS as an alternative to MRI for measuring renal volume in children with autosomal dominant polycystic kidney disease. Pediatr. Nephrol. 2018, 33, 827–835. [Google Scholar] [CrossRef]
- Gurusinghe, S.; Palvanov, A.; Bittman, M.E.; Singer, P.; Frank, R.; Chorny, N.; Infante, L.; Sethna, C.B. Kidney volume and ambulatory blood pressure in children. J. Clin. Hypertens. 2017, 19, 498–503. [Google Scholar] [CrossRef]
- Silver, L.E.; Decamps, P.J.; Korst, L.M.; Platt, L.D.; Castro, L. Intrauterine growth restriction is accompanied by decreased renal volume in the human fetus. Am. J. Obstet. Gynecol. 2003, 188, 1320–1325. [Google Scholar] [CrossRef]
- Cadnapaphornchai, M.A.; McFann, K.; Strain, J.D.; Masoumi, A.; Schrier, R.W. Prospective change in renal volume and function in children with ADPKD. Clin. J. Am. Soc. Nephrol. 2009, 4, 820–829. [Google Scholar] [CrossRef]
- Sans Atxer, L.; Roca-Cusachs, A.; Torra, R.; Calero, F.; Arias, P.; Ballarin, J.; Fernández-Llama, P. [Relationship between renal size and blood pressure profile in patients with autosomal dominant polycystic kidney disease without renal failure]. Nefrologia 2010, 30, 567–572. [Google Scholar] [PubMed]
- Massella, L.; Mekahli, D.; Paripović, D.; Prikhodina, L.; Godefroid, N.; Niemirska, A.; Ağbaş, A.; Kalicka, K.; Jankauskiene, A.; Mizerska-Wasiak, M.; et al. Prevalence of Hypertension in Children with Early-Stage ADPKD. Clin. J. Am. Soc. Nephrol. 2018, 13, 874–883. [Google Scholar] [CrossRef]
- Schwartz, G.J.; Muñoz, A.; Schneider, M.F.; Mak, R.H.; Kaskel, F.; Warady, B.A.; Furth, S.L. New equations to estimate GFR in children with CKD. J. Am. Soc. Nephrol. 2009, 20, 629–637. [Google Scholar] [CrossRef] [PubMed]
- KDIGO 2012 Clinical Practice Guideline for the Evaluation and Management of Chronic Kidney Disease Kidney. Kidney Int. 2013, 3, 1–150.
- Helal, I.; Reed, B.; McFann, K.; Yan, X.D.; Fick-Brosnahan, G.M.; Cadnapaphornchai, M.; Schrier, R.W. Glomerular hyperfiltration and renal progression in children with autosomal dominant polycystic kidney disease. Clin. J. Am. Soc. Nephrol. 2011, 6, 2439–2443. [Google Scholar] [CrossRef] [PubMed]
- Dinkel, E.; Ertel, M.; Dittrich, M.; Peters, H.; Berres, M.; Schulte-Wissermann, H. Kidney size in childhood. Sonographical growth charts for kidney length and volume. Pediatr. Radiol. 1985, 15, 38–43. [Google Scholar] [CrossRef]
- Obrycki, Ł.; Sarnecki, J.; Pac, M.; Lichosik, M.; Sopińska, M.; Placzyńska, M.; Milart, J.; Stańczyk, M.; Mirecka, J.; Wasilewska, A.; et al. Kidney volume normative values in Central European children aged 0–19 years: A multicenter study. Pediatr. Nephrol. 2024, 39, 2147–2159. [Google Scholar] [CrossRef]
- Flynn, J.T.; Kaelber, D.C.; Baker-Smith, C.M.; Blowey, D.; Carroll, A.E.; Daniels, S.R.; de Ferranti, S.D.; Dionne, J.M.; Falkner, B.; Flinn, S.K.; et al. Clinical Practice Guideline for Screening and Management of High Blood Pressure in Children and Adolescents. Pediatrics 2017, 140, e20171904. [Google Scholar] [CrossRef]
- Wühl, E.; Witte, K.; Soergel, M.; Mehls, O.; Schaefer, F. Distribution of 24-h ambulatory blood pressure in children: Normalized reference values and role of body dimensions. J. Hypertens. 2002, 20, 1995–2007. [Google Scholar] [CrossRef]
- Marlais, M.; Cuthell, O.; Langan, D.; Dudley, J.; Sinha, M.D.; Winyard, P.J. Hypertension in autosomal dominant polycystic kidney disease: A meta-analysis. Arch. Dis. Child 2016, 101, 1142–1147. [Google Scholar] [CrossRef]
- Seeman, T.; Jansky, P.; Filip, F.; Bláhová, K.; Jaroš, A. Increasing prevalence of hypertension during long-term follow-up in children with autosomal dominant polycystic kidney disease. Pediatr. Nephrol. 2021, 36, 3717–3723. [Google Scholar] [CrossRef] [PubMed]
- Cadnapaphornchai, M.A.; McFann, K.; Strain, J.D.; Masoumi, A.; Schrier, R.W. Increased left ventricular mass in children with autosomal dominant polycystic kidney disease and borderline hypertension. Kidney Int. 2008, 74, 1192–1196. [Google Scholar] [CrossRef] [PubMed]
- Rizk, D.; Jurkovitz, C.; Veledar, E.; Bagby, S.; Baumgarten, D.A.; Rahbari-Oskoui, F.; Steinman, T.; Chapman, A.B. Quality of life in autosomal dominant polycystic kidney disease patients not yet on dialysis. Clin. J. Am. Soc. Nephrol. 2009, 4, 560–566. [Google Scholar] [CrossRef]
- Seeman, T.; Sikut, M.; Konrad, M.; Vondrichová, H.; Janda, J.; Schärer, K. Blood pressure and renal function in autosomal dominant polycystic kidney disease. Pediatr. Nephrol. 1997, 11, 592–596. [Google Scholar] [CrossRef] [PubMed]
- Chapman, A.B.; Stepniakowski, K.; Rahbari-Oskoui, F. Hypertension in autosomal dominant polycystic kidney disease. Adv. Chronic Kidney Dis. 2010, 17, 153–163. [Google Scholar] [CrossRef]
- Marlais, M.; Rajalingam, S.; Gu, H.; Savis, A.; Sinha, M.D.; Winyard, P.J. Central blood pressure and measures of early vascular disease in children with ADPKD. Pediatr. Nephrol. 2019, 34, 1791–1797. [Google Scholar] [CrossRef]
- Tang, A.; Yang, E.; Ebinger, J.E. Non-Dipping Blood Pressure or Nocturnal Hypertension: Does One Matter More? Curr. Hypertens. Rep. 2024, 26, 21–30. [Google Scholar] [CrossRef]
- Ecder, T.; Chapman, A.B.; Brosnahan, G.M.; Edelstein, C.L.; Johnson, A.M.; Schrier, R.W. Effect of antihypertensive therapy on renal function and urinary albumin excretion in hypertensive patients with autosomal dominant polycystic kidney disease. Am. J. Kidney Dis. 2000, 35, 427–432. [Google Scholar] [CrossRef]
- Reddy, B.V.; Chapman, A.B. The spectrum of autosomal dominant polycystic kidney disease in children and adolescents. Pediatr. Nephrol. 2017, 32, 31–42. [Google Scholar] [CrossRef]
- O’Neill, W.C.; Robbin, M.L.; Bae, K.T.; Grantham, J.J.; Chapman, A.B.; Guay-Woodford, L.M.; Torres, V.E.; King, B.F.; Wetzel, L.H.; Thompson, P.A.; et al. Sonographic assessment of the severity and progression of autosomal dominant polycystic kidney disease: The Consortium of Renal Imaging Studies in Polycystic Kidney Disease (CRISP). Am. J. Kidney Dis. 2005, 46, 1058–1064. [Google Scholar] [CrossRef]
- Grantham, J.J.; Torres, V.E. The importance of total kidney volume in evaluating progression of polycystic kidney disease. Nat. Rev. Nephrol. 2016, 12, 667–677. [Google Scholar] [CrossRef] [PubMed]
- Wong, H.; Vivian, L.; Weiler, G.; Filler, G. Patients with autosomal dominant polycystic kidney disease hyperfiltrate early in their disease. Am. J. Kidney Dis. 2004, 43, 624–628. [Google Scholar] [CrossRef] [PubMed]
- Demoulin, N.; Van Regemorter, E.; Dahan, K.; Hougardy, C.; Morelle, J.; Gillion, V.; Ranguelov, N.; Godefroid, N. Severe parental phenotype associates with hypertension in children with, A.D.P.K.D. Pediatr. Nephrol. 2023, 38, 2733–2740. [Google Scholar] [CrossRef]
- Fick-Brosnahan, G.M.; Tran, Z.V.; Johnson, A.M.; Strain, J.D.; Gabow, P.A. Progression of autosomal-dominant polycystic kidney disease in children. Kidney Int. 2001, 59, 1654–1662. [Google Scholar] [CrossRef] [PubMed]
- Cadnapaphornchai, M.A.; Masoumi, A.; Strain, J.D.; McFann, K.; Schrier, R.W. Magnetic resonance imaging of kidney and cyst volume in children with ADPKD. Clin. J. Am. Soc. Nephrol. 2011, 6, 369–376. [Google Scholar] [CrossRef]
- Chapman, A.B.; Guay-Woodford, L.M.; Grantham, J.J.; Torres, V.E.; Bae, K.T.; Baumgarten, D.A.; Kenney, P.J.; King, B.F., Jr.; Glockner, J.F.; Wetzel, L.H.; et al. Renal structure in early autosomal-dominant polycystic kidney disease (ADPKD): The Consortium for Radiologic Imaging Studies of Polycystic Kidney Disease (CRISP) cohort. Kidney Int. 2003, 64, 1035–1045. [Google Scholar] [CrossRef]
- Jo, W.R.; Kim, S.H.; Kim, K.W.; Suh, C.H.; Kim, J.K.; Kim, H.; Lee, J.G.; Oh, W.Y.; Choi, S.E.; Pyo, J. Correlations between renal function and the total kidney volume measured on imaging for autosomal dominant polycystic kidney disease: A systematic review and meta-analysis. Eur. J. Radiol. 2017, 95, 56–65. [Google Scholar] [CrossRef]

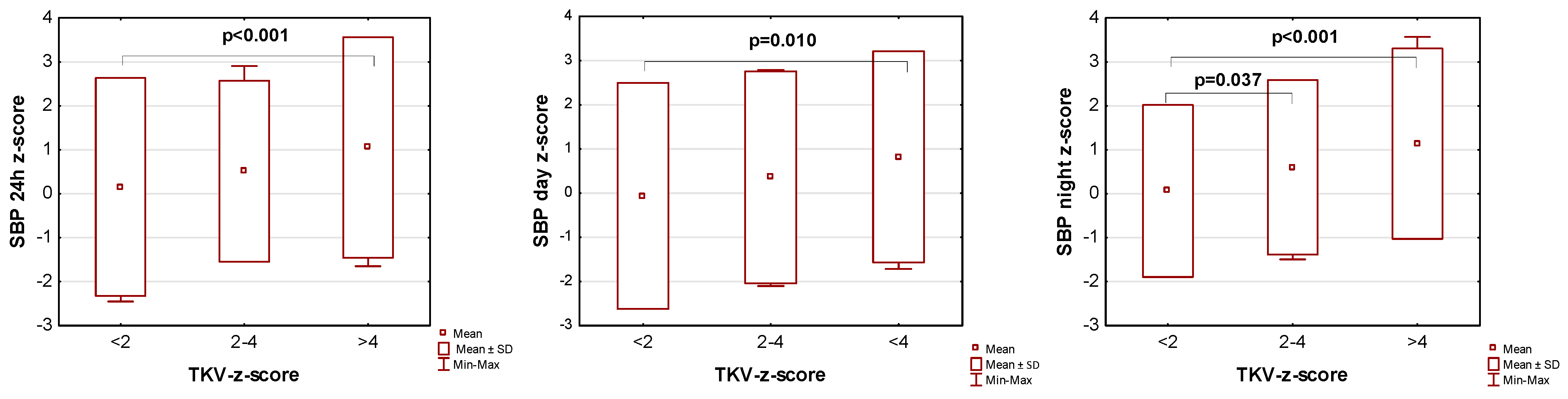

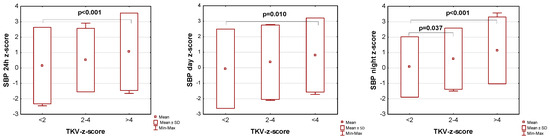

Figure 1.
Influence of kidney volume on mean systolic blood pressure during 24 h, day, and night time periods. SBP: systolic blood pressure, TKV: total kidney volume.
Figure 1.
Influence of kidney volume on mean systolic blood pressure during 24 h, day, and night time periods. SBP: systolic blood pressure, TKV: total kidney volume.

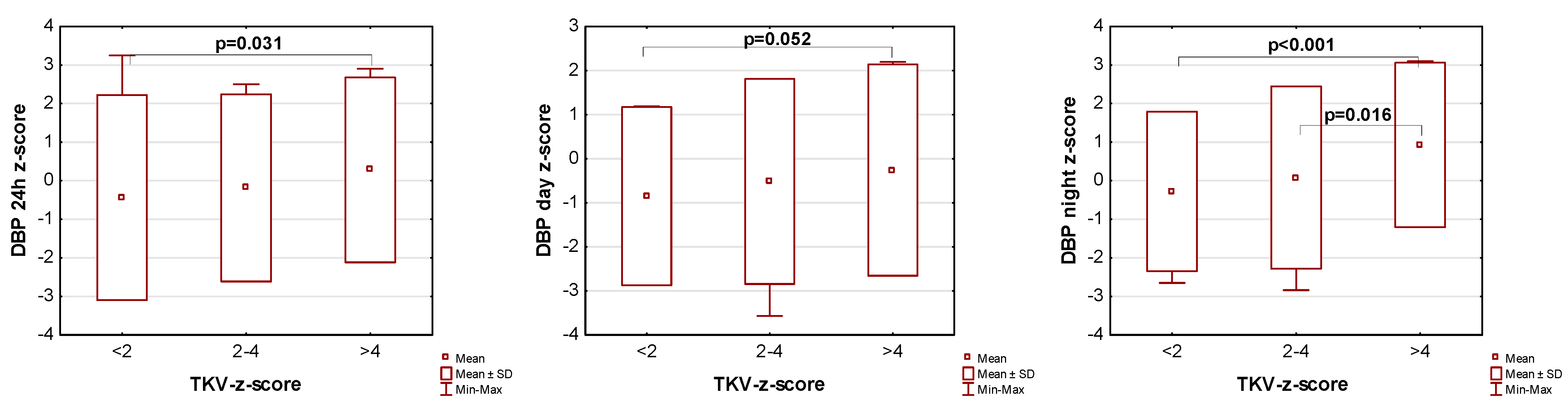

Figure 2.
Influence of kidney volume on mean diastolic blood pressure during 24 h, day, and night time periods. DBP: diastolic blood pressure, TKV: total kidney volume.
Figure 2.
Influence of kidney volume on mean diastolic blood pressure during 24 h, day, and night time periods. DBP: diastolic blood pressure, TKV: total kidney volume.

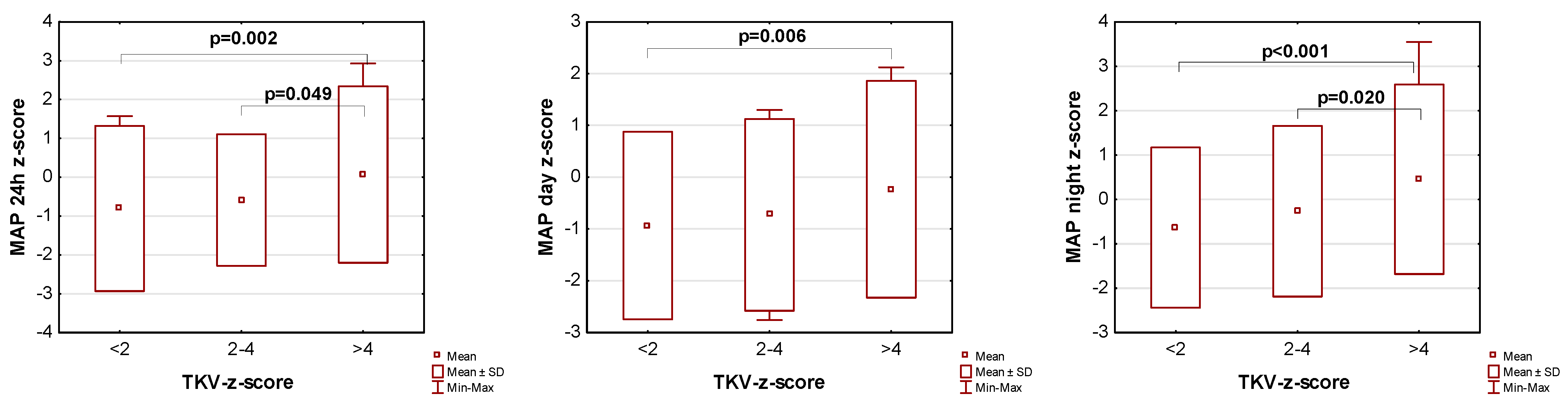

Figure 3.
Influence of kidney volume on mean arterial pressure during 24 h, day, and night time periods. MAP: mean arterial pressure, TKV: total kidney volume.
Figure 3.
Influence of kidney volume on mean arterial pressure during 24 h, day, and night time periods. MAP: mean arterial pressure, TKV: total kidney volume.

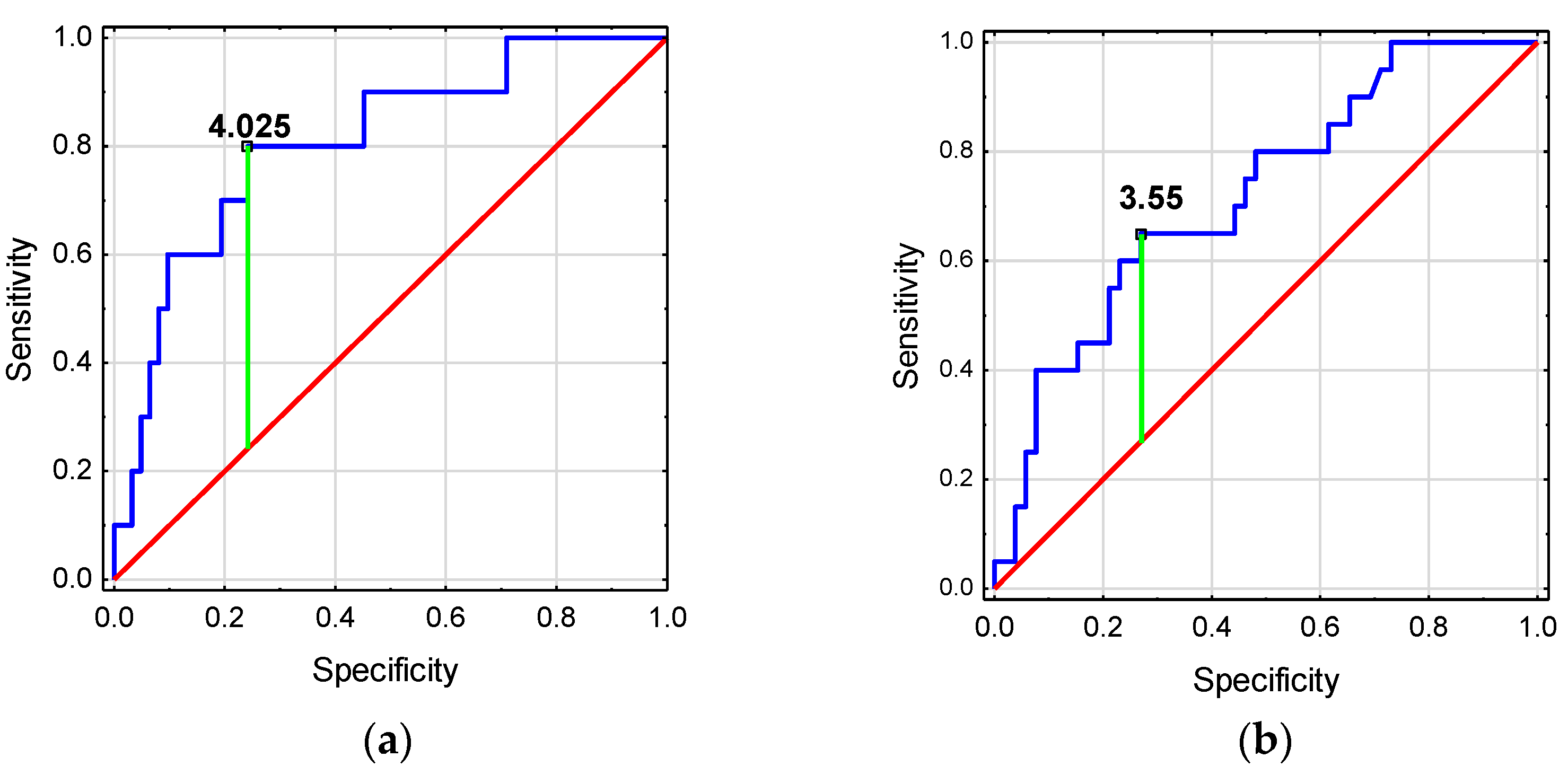

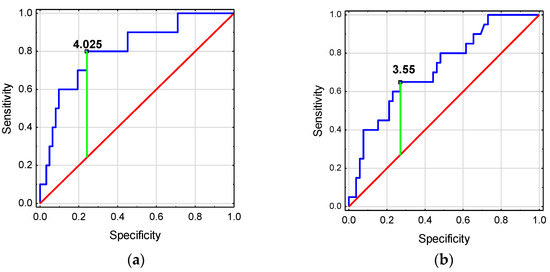

Figure 4.
Diagnostic usefulness of kidney volume for predicting (a) the occurrence of GFR decline in children with ADPKD, (b) the occurrence of the onset of hypertension in children with ADPKD.
Figure 4.
Diagnostic usefulness of kidney volume for predicting (a) the occurrence of GFR decline in children with ADPKD, (b) the occurrence of the onset of hypertension in children with ADPKD.
Table 1.
Demographic, kidney function, and blood pressure data.
| Variables | Study Group n = 72 |
|---|---|
| Male, n [%] | 33 (46) |
| Age at ADPKD diagnosis [years] | 5.04 (0.71; 9.71) |
| Positive family history, n [%] | 63 (88) |
| Genetic diagnosis, n [%] | 9 (12) |
| Age at examination [years] | 12.46 ± 3.75 (5.42–17.92) |
| Kidney function | |
| GFR [mL/min/1.73 m2] | 109.87 ± 18.82 (71.55–155.91) |
| Normal GFR, [%] | 57 (79) |
| GFR < 90 mL/min/1.73 m2, n [%] | 10 (14) |
| GFR > 140 mL/min/1.73 m2, n [%] | 5 (7) |
| Blood pressure | |
| Normal BP, n [%] | 52 (72) |
| BP < 75 pc | 37 (71) |
| BP 75–90 pc | 10 (19) |
| BP 90–95 pc | 5 (10) |
| Age at HT diagnosis | 10.27 ± 3.70 (2.33–16.42) |
| Hypertension, n [%] | 20 (28) |
| Systolic and diastolic | 14 (70) |
| Isolated systolic | 5 (25) |
| Isolated nocturnal | 1 (5) |
ADPKD: autosomal dominant polycystic kidney disease; GFR: estimated glomerular filtration rate; HT: hypertension; BP: blood pressure; pc: percentile.
Table 2.
Comparison of demographic, ultrasonography, kidney function, and ABPM data in children with normal BP and hypertension.
Table 2.
Comparison of demographic, ultrasonography, kidney function, and ABPM data in children with normal BP and hypertension.
| Variables | Normal BP n = 52 | Hypertension n = 20 | p |
|---|---|---|---|
| Male, n [%] | 23 (43) | 10 (50) | 0.803 |
| Age at ADPKD diagnosis [years] | 5.75 (0.67; 12.42) | 4.46 (0.75; 6.75) | 0.151 |
| Age at examination [years] | 11.94 ± 3.73 (5.42–18.00) | 12.79 ± 3.27 (8.00–17.92) | 0.165 |
| Ultrasonography | |||
| TKV [cm3] | 142.60 (93.45; 198.98) | 199.26 (130.15; 267.50) | 0.013 |
| htTKV [cm3/m] | 91.60 (71.53; 115.48) | 127.53 (80.82; 158.38) | 0.018 |
| TKV z-score | 2.52 (1.35; 3.47) | 4.59 (2.49; 5.62) | 0.020 |
| Kidney function | |||
| GFR [mL/min/1.73 m2] | 112.80 ± 17.15 (75.81–155.91) | 101.07 ± 21.28 (71.56–146.62) | 0.021 |
| GFR < 90 mL/min/1.73 m2, n [%] | 4 (8) | 6 (30) | 0.010 |
| GFR > 140 mL/min/1.73 m2, n [%] | 3 (6) | 2 (10) | 0.314 |
| ABPM | |||
| SBP non-dipper, n [%] | 16 (31) | 5 (25) | 0.703 |
| DBP non-dipper, n [%] | 5 (10) | 3 (15) | 0.363 |
| SBP/DBP > 20% dipper, n [%] | 18 (35) | 8 (40) | 0.562 |
| SBP 24 h loads * | 6 (3; 15) | 53 (23; 65) | <0.001 |
| DBP 24 h loads * | 4 (3; 10) | 24 (9.5; 30.5) | <0.001 |
ABPM: 24-h automatic blood pressure measurement; BP: blood pressure; TKV: total kidney volume; htTKV: height-adjusted total kidney volume; GFR: estimated glomerular filtration rate; SBP: systolic blood pressure; DBP: diastolic blood pressure; * SBP and DBP loads were reported as median and IQ ranges.
Table 3.
Comparison of demographic, kidney function, and ABPM data with kidney volume.
| Variables | TKV | p | ||||
|---|---|---|---|---|---|---|
| z-Score < 2 | z-Score 2–4 | z-Score > 4 | 1 vs. 2 | 1 vs. 3 | 2 vs. 3 | |
| Patients, n [%] | 26 (36.1) | 24 (33.3) | 22 (30.6) | - | - | - |
| Age [years] | 11.61 ± 3.72 (6.50–17.83) | 12.64 ± 3.87 (5.62–17.92) | 13.25 ± 3.63 (6.08–17.92) | 0.595 | 0.289 | 0.845 |
| Kidney function | ||||||
| GFR [mL/min/1.73 m2] | 110.08 ± 14.62 (90.63–146.62) | 114.63 ± 18.57 (78.43–155.91) | 104.44 ± 22.56 (71.55–155.45) | 0.393 | 0.300 | 0.069 |
| Normal GFR, n [%] | 25 (96) | 20 (84) | 12 (55) | - | - | - |
| ↓ GFR, n [%] | 0 | 2 (8) | 8 (36) | - | - | - |
| ↑ GFR, n [%] | 1 (4) | 2 (8) | 2 (9) | - | - | - |
| ABPM | ||||||
| Normal BP | 22 (85) | 19 (79) | 11 (50) | - | - | - |
| Hypertension, n [%] | 4 (15) | 5 (21) | 11 (50) | - | - | - |
| SBP 24 h loads * | 5 (2; 19) | 9 (4; 20) | 28.5 (10; 59) | 1.0 | <0.001 | 0.021 |
| DBP 24 h loads * | 5 (3; 10) | 4 (3; 15) | 10.5 (8; 18) | 1.0 | 0.027 | 0.063 |
| SBP non-dipper, n [%] | 5 (19) | 8 (33) | 8 (36) | 0.374 | 0.193 | 0.647 |
| DBP non-dipper, n [%] | 3 (12) | 3 (12.5) | 2 (9) | 0.288 | 0.562 | 0.543 |
| SBP/DBP > 20% dipper, n [%] | 11 (42) | 11 (46) | 4 (18) | 0.898 | 0.056 | 0.046 |
GFR: estimated glomerular filtration rate; TKV: total kidney volume; ABPM: 24 h automatic blood pressure measurement; SBP: systolic blood pressure; DBP: diastolic blood pressure; MAP: mean arterial pressure; * SBP and DBP loads were reported as median and IQ ranges. ↓ GFR: <90 mL/min/1.73 m2, ↑ GFR: >140 mL/min/1.73 m2.
Table 4.
Correlation between kidney volume, kidney function, and blood pressure.
| Variable | htTKV | TKV z-Score | ||
|---|---|---|---|---|
| r | p | r | p | |
| Age | 0.44 | <0.001 | 0.24 | 0.041 |
| GFR | −0.25 | 0.032 | −0.17 | 0.154 |
| SBP 24 h | 0.44 | <0.001 | 0.41 | <0.001 |
| SBP 24 h z-score | 0.21 | 0.076 | 0.28 | 0.017 |
| SBP day | 0.39 | 0.001 | 0.36 | 0.002 |
| SBP day z-score | 0.20 | 0.093 | 0.27 | 0.020 |
| SBP night | 0.47 | <0.001 | 0.44 | <0.001 |
| SBP night z-score | 0.30 | 0.010 | 0.37 | 0.001 |
| DBP 24 h | 0.30 | 0.010 | 0.27 | 0.020 |
| DBP 24 h z-score | 0.25 | 0.037 | 0.24 | 0.039 |
| DBP day | 0.23 | 0.050 | 0.22 | 0.065 |
| DBP day z-score | 0.19 | 0.116 | 0.19 | 0.108 |
| DBP night | 0.39 | 0.001 | 0.41 | <0.001 |
| DBP night z-score | 0.38 | 0.001 | 0.41 | <0.001 |
| MAP 24 h | 0.39 | 0.001 | 0.38 | 0.001 |
| MAP 24 h z-score | 0.26 | 0.027 | 0.32 | 0.006 |
| MAP day | 0.33 | 0.004 | 0.33 | 0.005 |
| MAP day z-score | 0.23 | 0.053 | 0.28 | 0.018 |
| MAP night | 0.47 | <0.001 | 0.46 | <0.001 |
| MAP night z-score | 0.32 | 0.006 | 0.38 | 0.001 |
| SBP loads | 0.38 | 0.001 | 0.30 | 0.012 |
| DBP loads | 0.36 | 0.002 | 0.36 | <0.001 |
htTKV: height-adjusted total kidney volume; GFR: estimated glomerular filtration rate; SBP: systolic blood pressure; DBP: diastolic blood pressure; MAP: mean arterial pressure.
Table 5.
Correlation between GFR and blood pressure parameters in children with hypertension.
| Variable | GFR | |
|---|---|---|
| r | p | |
| SBP 24 h | −0.09 | 0.715 |
| SBP 24 h z-score | 0.15 | 0.535 |
| SBP day | −0.01 | 0.982 |
| SBP day z-score | 0.24 | 0.310 |
| SBP night | −0.20 | 0.396 |
| SBP night z-score | 0.05 | 0.845 |
| DBP 24 h | 0.40 | 0.083 |
| DBP 24 h z-score | 0.43 | 0.061 |
| DBP day | 0.49 | 0.028 |
| DBP day z-score | 0.50 | 0.024 |
| DBP night | 0.07 | 0.767 |
| DBP night z-score | 0.06 | 0.796 |
| MAP 24 h | 0.52 | 0.023 |
| MAP 24 h z-score | 0.52 | 0.023 |
| MAP day | 0.45 | 0.053 |
| MAP day z-score | 0.51 | 0.024 |
| MAP night | 0.11 | 0.651 |
| MAP night z-score | 0.17 | 0.482 |
| SBP loads | −0.19 | 0.445 |
| DBP loads | 0.45 | 0.049 |
htTKV: height-adjusted total kidney volume; GFR: estimated glomerular filtration rate; SBP: systolic blood pressure; DBP: diastolic blood pressure; MAP: mean arterial pressure.
Table 6.
Diagnostic usefulness of kidney volume for predicting (a) the occurrence of GFR decline in children with ADPKD, (b) the occurrence of the onset of hypertension in children with ADPKD.
Table 6.
Diagnostic usefulness of kidney volume for predicting (a) the occurrence of GFR decline in children with ADPKD, (b) the occurrence of the onset of hypertension in children with ADPKD.
| Variable | AUC | p | Cut-Off | Sensitivity (%) | Specificity (%) | Accuracy (%) |
|---|---|---|---|---|---|---|
| (a) | ||||||
| htTKV [cm3/m] | 0.815 (0.692–0.937) | <0.001 | 128.7 | 80 | 82 | 82 |
| TKV z-score | 0.808 (0.663–0.953) | <0.001 | 4.025 | 80 | 76 | 76 |
| (b) | ||||||
| htTKV [cm3/m] | 0.687 (0.539–0.836) | 0.014 | 149.31 | 44 | 93 | 81 |
| TKV z-score | 0.697 (0.547–0.846) | 0.010 | 3.55 | 61 | 76 | 72 |
TKV: total kidney volume; htTKV: height-adjusted total kidney volume; GFR: estimated glomerular filtration rate.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Turczyn, A.; Krzemień, G.; Nguyen, D.; Smyk, K. Total Kidney Volume, Hypertension, and Deterioration of Kidney Function in Children with Early-Stage ADPKD. J. Clin. Med. 2025, 14, 4498. https://doi.org/10.3390/jcm14134498
AMA Style
Turczyn A, Krzemień G, Nguyen D, Smyk K. Total Kidney Volume, Hypertension, and Deterioration of Kidney Function in Children with Early-Stage ADPKD. Journal of Clinical Medicine. 2025; 14(13):4498. https://doi.org/10.3390/jcm14134498
Chicago/Turabian StyleTurczyn, Agnieszka, Grażyna Krzemień, Dominik Nguyen, and Katarzyna Smyk. 2025. "Total Kidney Volume, Hypertension, and Deterioration of Kidney Function in Children with Early-Stage ADPKD" Journal of Clinical Medicine 14, no. 13: 4498. https://doi.org/10.3390/jcm14134498
APA StyleTurczyn, A., Krzemień, G., Nguyen, D., & Smyk, K. (2025). Total Kidney Volume, Hypertension, and Deterioration of Kidney Function in Children with Early-Stage ADPKD. Journal of Clinical Medicine, 14(13), 4498. https://doi.org/10.3390/jcm14134498
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
