Graphene-Doped Polymethyl Methacrylate (PMMA) as a New Restorative Material in Implant-Prosthetics: In Vitro Analysis of Resistance to Mechanical Fatigue

by
Eduardo J. Selva-Otaolaurruchi
1,
Lucía Fernández-Estevan
1,*,
María Fernanda Solá-Ruiz
1,
Fernando García-Sala-Bonmati
1,
Inmaculada Selva-Ribera
2 and
Rubén Agustín-Panadero
1
1
Department of Dental Medicine, Faculty of Medicine and Dentistry, University of Valencia, C/Gascó Oliag 1, 46010 Valencia, Spain
2
Independent Researcher, 46010 Valencia, Spain
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(4), 1269; https://doi.org/10.3390/jcm12041269
Submission received: 21 December 2022 / Revised: 26 January 2023 / Accepted: 1 February 2023 / Published: 6 February 2023
(This article belongs to the Section Plastic, Reconstructive and Aesthetic Surgery/Aesthetic Medicine)
Browse Figures
Versions Notes

Abstract

:
Background and Purpose: Provisional prostheses in restorations over several implants with immediate loading in completely edentulous patients increase the risk of frequent structural fractures. An analysis was performed of the resistance to fracture of prosthetic structures with cantilevers using graphene-doped polymethyl methacrylate (PMMA) resins and CAD-CAM technology. Methods: A master model was produced with four implants measuring 4 mm in diameter and spaced 3 mm apart, over which 44 specimens representing three-unit fixed partial prostheses with a cantilever measuring 11 mm were placed. These structures were cemented over titanium abutments using dual cure resin cement. Twenty-two of the 44 units were manufactured from machined PMMA discs, and 22 were manufactured from PMMA doped with graphene oxide nanoparticles (PMMA-G). All of the samples were tested in a chewing simulator with a load of 80 N until fracture or 240,000 load applications. Results: The mean number of load applications required for temporary restoration until the fracture was 155,455 in the PMMA-G group versus 51,136 in the PMMA group. Conclusions: Resistance to fracture under cyclic loading was three times greater in the PMMA-G group than in the PMMA group.

1. Introduction

Immediate loading in the case of full-arch prostheses in completely edentulous patients has been regarded as a safe and reliable technique, provided that primary implant stability is ensured, with passive fit, splinting and the elimination of micromovements capable of interfering with the implant osseointegration process [1,2]. Immediate loading allows the immediate restoration of chewing function, speech and aesthetics, with clear improvements to patient satisfaction and quality of life [3].
In these cases, the utilization over 3–6 months of a temporary prosthesis is considered to be necessary in order to complete the healing and osseointegration process [4,5]. Such provisional restorations are often made from polymethyl methacrylate (PMMA), due to its good properties. Classically, PMMA has been used as the material of choice, because of its simplicity of use and its low elastic modulus that avoids stress of the occlusal charge. PMMA has been employed using heat-curing techniques, though at present the material is used in the form of discs that can be machined using CAD-CAM technology, resulting in structures with better mechanical and biological properties [6,7,8].
Distal cantilevers are used in many of these provisional restorations in order to expand the occlusal surface. This may cause fractures of the restoration that pose a serious risk for implant stability (improve bone loss because during the occlusal charge; screw loosening), since they may result in an increase in micromovements that avoid/prevent osseointegration [9].
In order to avoid this problem, the addition of reinforcing materials to the main structure has been proposed, including metal beams, the incorporation of fibers and glass meshes, silica, carbon, polyamide, etc., [10,11,12,13]. One such reinforcing material is graphene, added to the composition of the PMMA discs in the form of small amounts of graphene particles. This material affords improved mechanical properties (fracture resistance) and has antibacterial activity with minimal cytotoxicity [14,15].
The main aim of the present study was to compare the performance and durability of samples of PMMA created with CAD-CAM technology and PMMA created with CAD-CAM technology doped with graphene oxide, regarding fatigue load across 240,000 cycles (12 months clinical life). The null hypothesis would be that the machined PMMA and the graphene-doped PMMA samples exhibited the same mechanical response.

2. Materials and Methods

Two titanium implants measuring 4 mm in diameter and 11.5 mm in length (BOST411 Zimmer Biomet, Palm Beach Gardens, FL, USA) were placed in a cylindrical nylon tube affixed with Exakto-Form® epoxy resin (Bredent, Senden, Germany), following the specifications of standard UNE-EN ISO 14801:2017. The implants were spaced 3 mm apart, parallel to each other, and with an inclination of zero degrees.
Two premolar crowns measuring 7 mm in mesiodistal (M-D) width were designed. Likewise, a molar measuring 11 mm in M-D width was included in extension, joined distal to the crown over the implant by means of a 4 × 4 mm connector (Figure 1).
A total of 44 specimens were manufactured: 22 machined PMMA specimens (Huge PMMA Block, Huge Dental Material, Co., Ltd., Shanghai, China) (PMMA group) and 22 machined PMMA specimens doped with graphene (G-CAM, Graphenano Dental, Valencia, Spain) (PMMA-G group). A Datron C5 5-axes drill (Datron, Mühltal, Germany) was used.
Graphene nanofibers have diameters between 10 and 100 nanometers and lengths of 1000 nanometers. In transmission electron microscopy (TEM) analysis, they present a stacked cup structure, where the inside and outside of the fibers are exposed, with different heterogeneity. The chemical composition of graphene nanofibers was analyzed using X-ray photoelectron spectroscopy (XPS), and it was found that they are composed of 91% carbon, 2.5% silicon, and 6.5% oxygen. PMMA was doped with graphene in the range of 0.15–0.175% parts per million (Table 1). Graphene was dispersed into the resin monomer (liquid phase) by means of ultrasonic dispersion processes. The functional groups of graphene were opened to allow bonding by chemical bonds to the monomer (Table 2).
These milled structures with an access hole were bonded to titanium bases (Hexed FlexLink TiBase, Palm Beach Gardens, FL, USA) with dual-cured cement (RelyX Unicem 2 Automix, 3M ESPE, Seefeld, Germany), following a conventional protocol (titanium bases were sandblasted with 30 µm silica particles for 10 s).
After curing the cement (auto- and photo-polymerized), the crowns were screwed onto the implants with a torque of 20 N cm, following the instructions of the manufacturer.
The tubes were stored in the saline solution until fatigue testing with a cyclic loading machine (Chewing Simulator CS-4.2, Mechatronik, Feldkirchen-Westerham, Germany). The simulator performed cycles of 15,000 applications of a load of 80 N to the center of the occlusal surface of the molar, 10 mm from the center of the most distal implant. Loading was applied by a steel ball affixed to the mobile axis of the machine and with a displacement of 2.5 mm. The simulator operated at a frequency of 2 Hz and with a vertical speed of 40 mm/s. No lateral loading was applied. The loading cycles were applied until fracture or the completion of 240,000 load applications, simulating 12 months of wear life, according to our immediate loading protocols.
An analysis was conducted of the variables time to fracture and length, with the calculation of the mean, standard deviation (SD), maximum, minimum, median and 25th and 75th percentiles.
The Kolmogorov–Smirnov test showed that the variable number of cycles did not exhibit a normal distribution; a nonparametric analytical approach was therefore adopted. The Mann–Whitney U-test was used for comparison of the maximum number of cycles between the two groups. The chi-square test was used to compare the fracture rates or the extent to which a certain threshold of load applications (120,000) was reached in the two study groups. The survival curves corresponding to the number of cycles applied until fracture were plotted using the Kaplan–Meier method, with the log-rank test for comparing the curves between the groups. The level of statistical significance was established as 5% (α = 0.05). Based on the Mann–Whitney U-test, with a confidence level of 95% and considering an effect size f = 1.8, the statistical power reached was 99.9% for the detection of statistically significant differences.

3. Results

Each provisional restoration underwent cyclic loading until fracture, recording the number of cycles at which fracture took place, or until the completion of 240,000 loads applications in the event of no fracture.
  • In this regard, the specimens in the PMMA group recorded a median of 52,500 load applications (interquartile range [IQR]: 30,000–60,000) versus 120,000 (IQR: 120,000–240,000) in the PMMA-G group (Table 3).
Table
Table 3. Maximum number of loading cycles according to group.
Table 3. Maximum number of loading cycles according to group.
GROUP
TotalPMMAPMMA + Graphene
N442222
Mean103,295.551,136.4155,454.5
Standard deviation72,928.322,516.268,433.3
Minimum15,000.015,000.060,000.0
Maximum240,000.0120,000.0240,000.0
Percentile 2552,500.030,000.0120,000.0
Median60,000.052,500.0120,000.0
Percentile 75120,000.060,000.0240,000.0
  • In descriptive terms, the difference between the two groups is significant, and the box plots show the number of cycles to be significantly greater in the graphene-doped specimen group (p < 0.001) (Figure 2).
Jcm 12 01269 g002 550

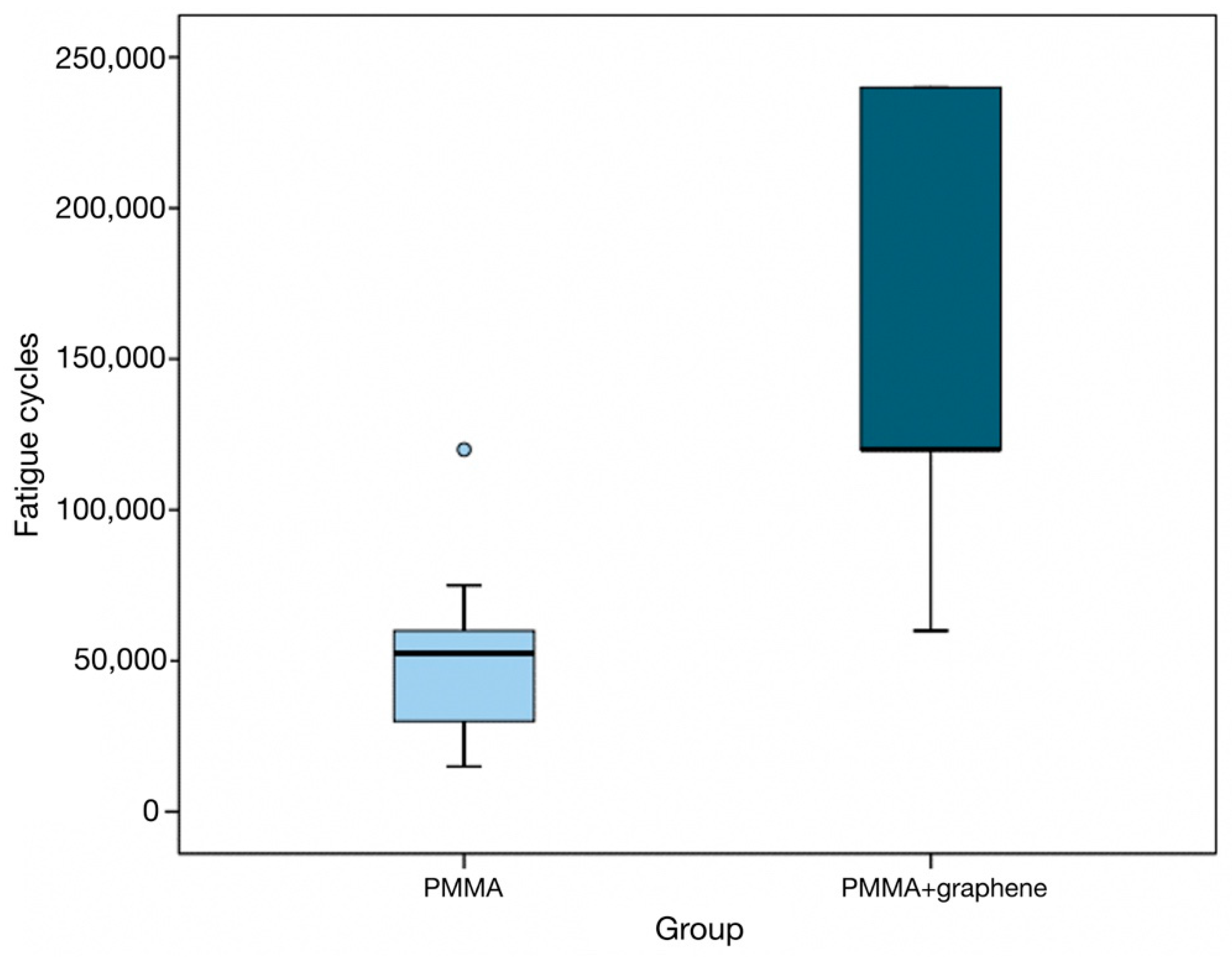

Figure 2. Maximum number of loading cycles according to group.
Figure 2. Maximum number of loading cycles according to group.
Jcm 12 01269 g002
  • Likewise, the number of specimens that exceeded 120,000 load applications without fracture was significantly greater in the PMMA-G group than in the PMMA group (p < 0.001), and the corresponding fracture rate was significantly lower (p = 0.009).
  • Lastly, the cumulative survival curves corresponding to the number of cycles up to fracture showed significant differences between the two groups (p < 0.001, log-rank test). Specifically, in the PMMA group, the median survival was 45,000 cycles (95% confidence interval [95%CI]: 33,508–56,491), versus 120,000 in the PMMA-G group (95%CI: 70,063–169,937) (Figure 3). This survival curve simulates a clinical situation, because the aim of the study was to analyze the resistance of this material in a fatigue load test. The great dispersion in the resistance values highlights the unpredictability of the behavior of the material, as it fractures at very different values. However, PMMA-G has, on average, better fracture resistance values.
Jcm 12 01269 g003 550

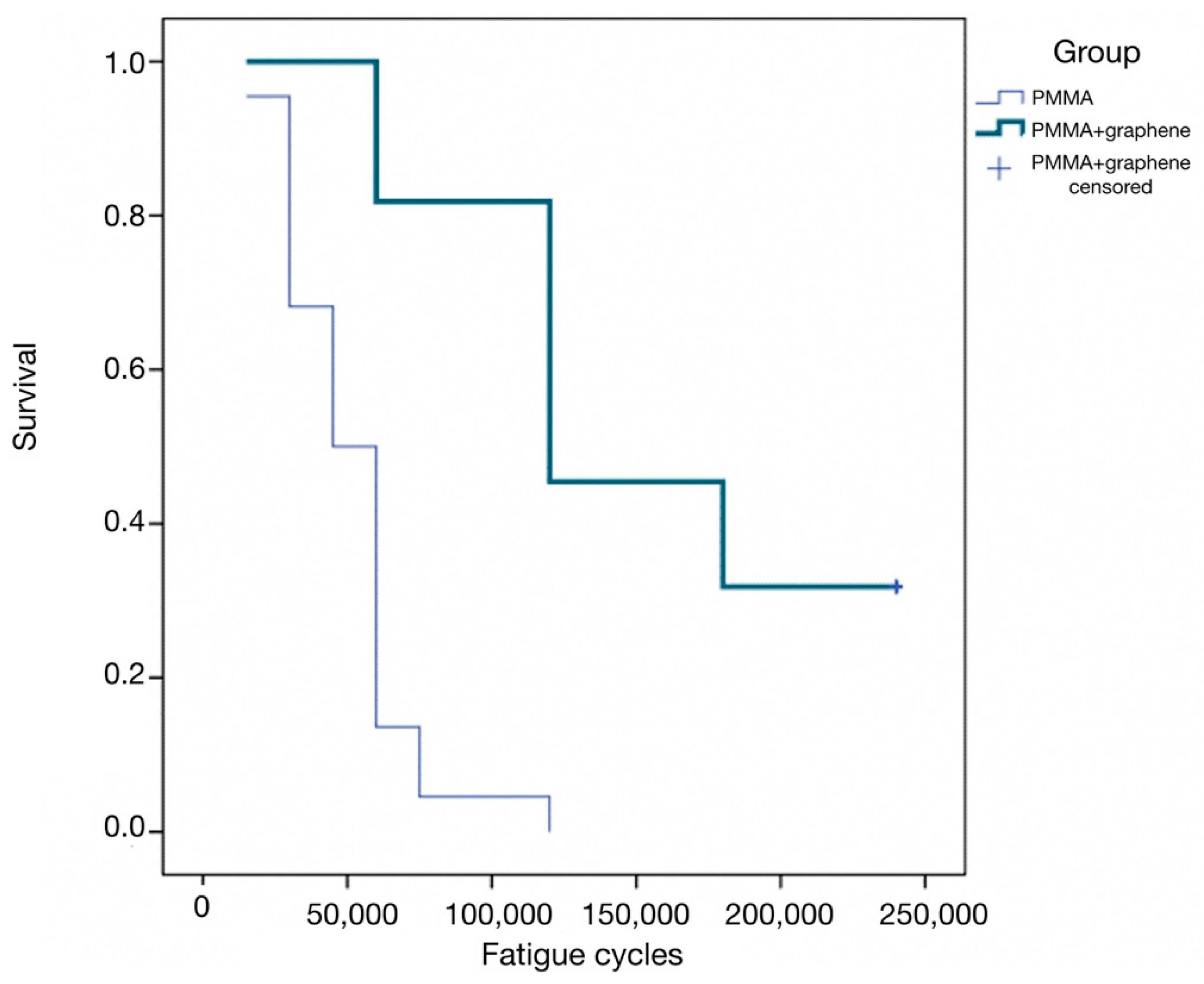

Figure 3. Kaplan–Meier survival curves corresponding to the number of loading cycles until fracture.
Figure 3. Kaplan–Meier survival curves corresponding to the number of loading cycles until fracture.
Jcm 12 01269 g003
  • Most fractures occurred in both groups in the area of the junction with the titanium abutment, where the thickness of the PMMA was less than 2 mm (Figure 4 and Figure 5). The fatigue study was carried out either until the fracture of the material (which occurred in 100% of the PMMA samples) or up to 240,000 cycles, and 68.2% of the PMMA samples doped with graphene were fractured.
Jcm 12 01269 g004 550

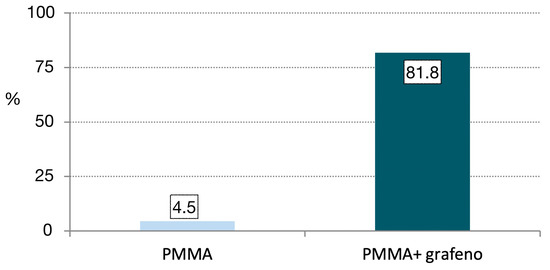

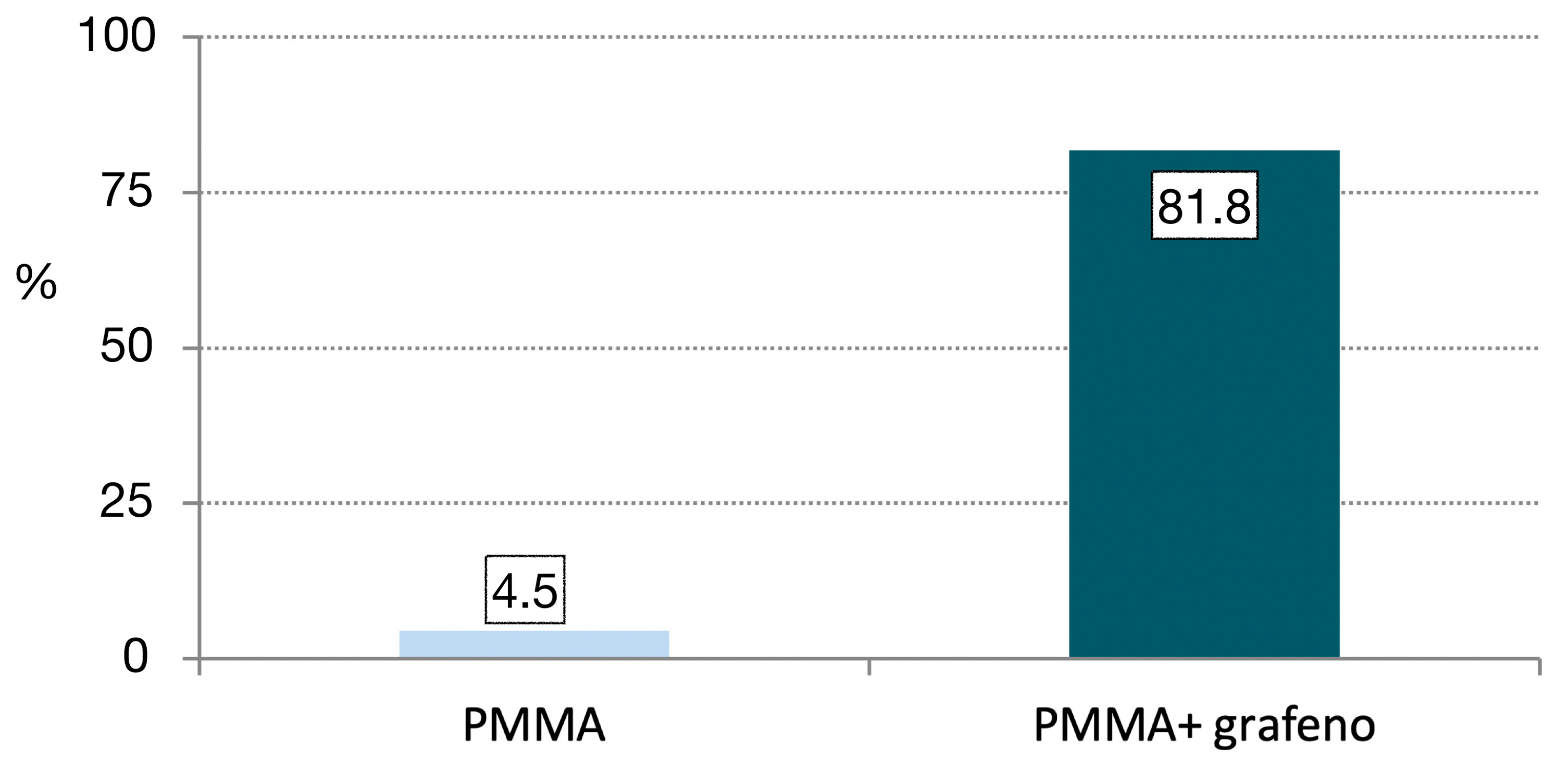

Figure 4. Incidence of restorations that resist 120,000 fatigue cycles.
Figure 4. Incidence of restorations that resist 120,000 fatigue cycles.
Jcm 12 01269 g004
Jcm 12 01269 g005 550

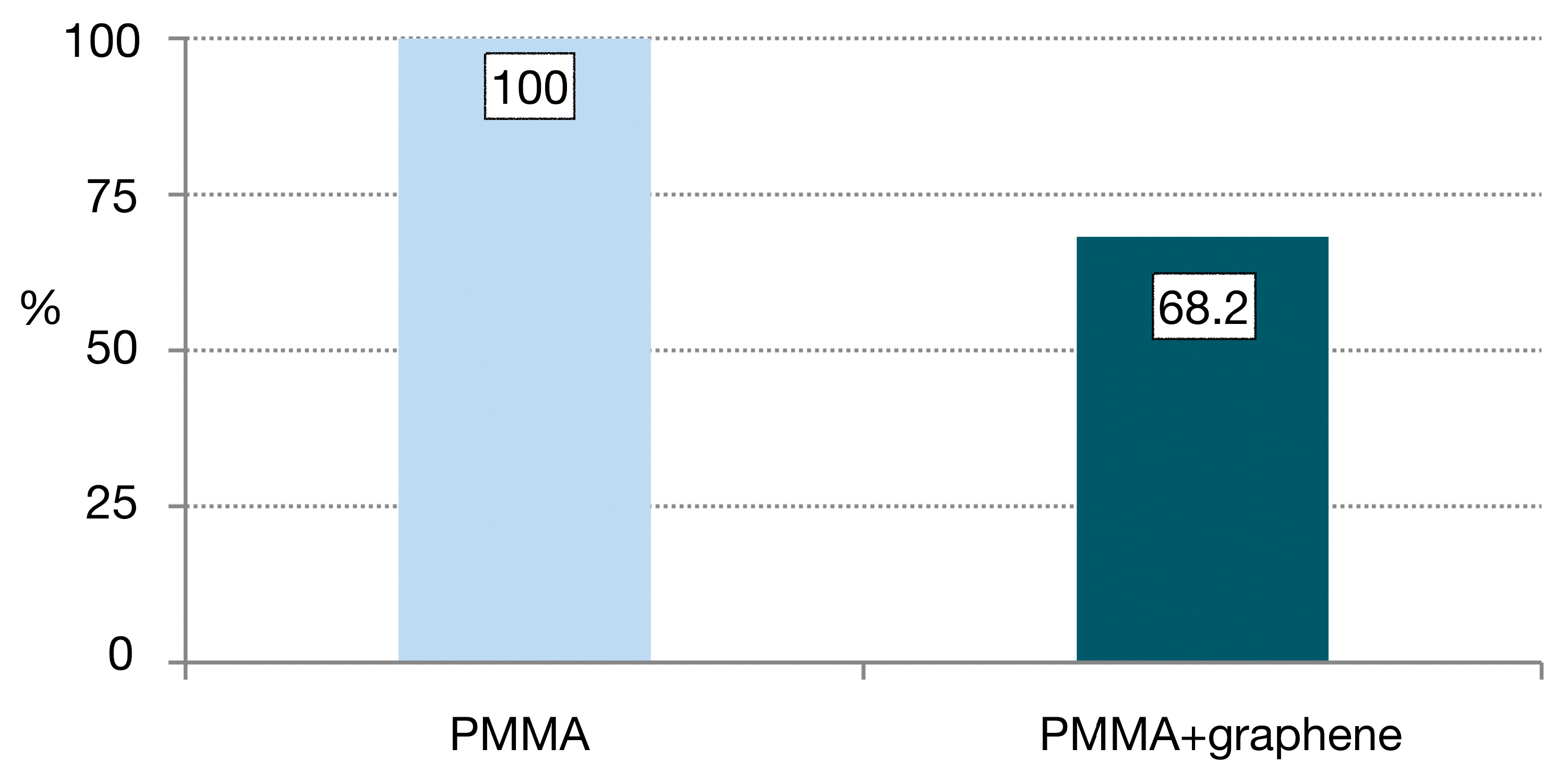

Figure 5. Incidence of fractures according to group.
Figure 5. Incidence of fractures according to group.
Jcm 12 01269 g005
The results obtained show that from multiple perspectives, PMMA reinforced with graphene oxide proves effective in the manufacture of provisional restorations.

4. Discussion

The results obtained in this in vitro study indicate that provisional restorations manufactured with CAD-CAM technology and screwed over implants with cantilevers exhibit greater resistance to fractures when made from graphene-doped PMMA than when made from plain PMMA. This refutes our working hypothesis that the machined PMMA and graphene-doped PMMA samples exhibit the same mechanical response.
One of the materials used is graphene, which is added to the acrylic resin during the manufacturing process. Good homogenization of the graphene oxide within the PMMA matrix is crucial in this process in order to secure the best mechanical and biological properties, such as inhibition of the adherence of microorganisms. As a result of these characteristics, the use of graphene is recommended in dental prostheses and orthodontics [16,17,18].
The specimens used in the present study were intended to reproduce the clinical situation of a cantilever in a provisional restoration with immediate loading over implants. For this purpose, the specimens were designed to resemble a real-life prosthesis with anatomically shaped teeth [19].
Most authors do not perform tests on structures of this kind, but rather on bars of different shapes [20,21]. On the other hand, we applied occlusal loading to the center of the occlusal surface of the cantilever (a molar), 10 mm from the center of the most distal implant [22] (Figure 6).
Although much has been written about the convenience or otherwise of cantilevers and their size [23,24], we decided to use a first molar, which reflects a frequent clinical scenario and affords a sufficient occlusal surface in the provisional prosthesis. The connector between the most distal abutment and the cantilever measured 4 × 4 mm, in order to simulate a minimum thickness similar to that recommended by Jemt [25]—though some authors consider that a greater thickness is needed in order to avoid fractures at this level [19] (Figure 7).
Aluminum implant replicas were used, since the mechanical resistance of this metal is far greater than that of acrylic resins, thus suggesting that they would have no impact upon the results obtained [26].
The implant replicas were placed in the nylon tubes of the chewing simulator using a splint for placement within the epoxy resin, in a stable and fully vertical position as recommended by standard ISO 14801:2017.
The applied load was 80 N, which is similar to the force used by Rosentritt [27] and represents a conventional occlusal force. This is an important but not a fundamental factor, since although some authors such as Suarez-Feito and Shen left the cantilevers free of occlusion, they still recorded an important incidence of fractures [24,28].
In general, there are two ways to produce immediate loading provisional prostheses. One approach is to use the full prosthesis of the patient, perforating where the implants and their provisional abutments have been positioned, and joining both structures with self-polymerizing acrylic resin. Then, appropriate trimming and polishing of the prosthesis can be carried out [29,30,31,32]. The alternative approach involves the obtainment of an impression at the time of surgery, with the manufacture of the PMMA within a few hours, joining it to provisional titanium abutments [33]. In the present study, we used this second approach for manufacturing the provisional restorations, because it allows the laboratory to produce the machined structures and perform bonding to the provisional abutments using cementing materials of greater quality. For such bonding, we used a technique similar to that described by Pitta, joining the provisional abutments to the PMMA and PMMA-G structure with dual cure resin following sandblasting with 30 µm silica particles at a pressure of 2 bar within the tubes of the acrylic structure [34]. This resulted in very stable bonding, which, in contrast to other studies such as that of Angelara et al., implied that no specimen was decemented [21].
These provisional restorations must remain in the mouth for several months, and in accordance with Soriano et al., we considered it important to know how they behave in response to fatigue after the repeated application of stress, thus leading us to perform cyclic fatigue testing. According to Steiner et al., 240,000 loading applications would be equivalent to one year of function in the mouth. As a result, the 6-month period during which the provisional restorations must remain in the maxilla would be represented by 120,000 load applications. In the case of the mandible, 60,000 applications would be representative of the three months of required presence in the mandible [35,36].
In clinical practice, there are several situations that require advanced surgical procedures with a high biological cost. In this in vitro study, we simulated an adverse clinical situation, where the limitations of bone availability require the use of prostheses with a distal cantilever [37].
The limitations of this study are the characteristics of an in vitro Test. This study, with low statistical power, is a preliminary study to analyze the behavior of these materials in an extreme situation such as distal cantilevers. PPMA-G proves to be a suitable material for use in the prosthesis; however, more clinical studies with a long follow-up period are necessary to analyze its biomechanical behavior.

5. Conclusions

The statistical data obtained in this in vitro study clearly reflect the benefits of PMMA doping with graphene oxide in the manufacture of immediate loading provisional restorations using CAD-CAM technology with a cantilever molar. Despite the solidness of the results, since this is an in vitro study, caution is required in extrapolating the findings to a real-life clinical setting. Furthermore, the data obtained should be complemented by thermocycling studies.

Author Contributions

Conceptualization, E.J.S.-O.; methodology, L.F.-E. and F.G.-S.-B.; formal analysis, M.F.S.-R.; investigation, E.J.S.-O. and I.S.-R.; resources, E.J.S.-O.; data curation, I.S.-R.; writing—original draft preparation, L.F.-E. and F.G.-S.-B.; writing—review and editing, L.F.-E. and R.A.-P.; supervision, E.J.S.-O. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

This manuscript has not been published and is not under consideration for publication elsewhere. We have no conflict of interest to disclose, and all authors have approved the manuscript, agreeing to its submission.

References

  1. Romanos:, G.E.; Gaertner, K.; Nentwig, G.H. Long-term evaluation of immediately loaded implants in the edentulous mandible using fixed bridges and platform shifting. Clin. Implant. Dent. Relat. Res. 2014, 16, 601–608. [Google Scholar] [CrossRef] [PubMed]
  2. Yamaguchi, K.; Ishiura, Y.; Tanaka, S.; Baba, K. Influence of the rigidity of a provisional restoration supported on four immediately loaded implants in the edentulous maxilla on biomechanical bone-implant interactions under simulated bruxism conditions: A three-dimensional finite element analysis. Int. J. Prosthodont. 2014, 27, 442–450. [Google Scholar] [CrossRef] [PubMed]
  3. Montero, J.; Guadilla, Y.; Flores, J.; Pardal-Peláez, B.; Quispe-López, N.; Gómez-Polo, C.; Dib, A. Patient-Centered Treatment Outcomes with Full-Arch PEEK Rehabilitation Supported on Four Immediate or Conventionally Loaded Implants. A Randomized Clinical Trial. J. Clin. Med. 2021, 10, 4589. [Google Scholar] [CrossRef] [PubMed]
  4. Morton, D.; Jaffin, R.; Weber, H.-P. Immediate restoration and loading of dental implants: Clinical considerations and protocols. Int. J. Oral Maxillofac. Implants. 2004, 19, 103–108. [Google Scholar]
  5. Ostman, P.-O.; Hellman, M.; Sennerby, L. Direct implant loading in the edentulous maxilla using a bone density-adapted surgical protocol and primary implant stability criteria for inclusion. Clin. Implant Dent. Relat. Res. 2005, 7 (Suppl. 1), S60–S69. [Google Scholar] [CrossRef]
  6. Drago, C.J.; del Castillo, R.A. Treatment of edentulous and partially edentulous patients with CAD/CAM frameworks: A pilot case study. Pract. Proced. Aesthet. Dent. 2006, 18, 665–671. [Google Scholar]
  7. Raszewski, Z. Acrylic resins in the CAD/CAM technology: A systematic literature review. Dent. Med. Probl. 2020, 57, 449–454. [Google Scholar] [CrossRef]
  8. Srinivasan, M.; Gjengedal, H.; Cattani-Lorente, M.; Moussa, M.; Durual, S.; Schimmel, M.; Müller, F. CAD/CAM milled complete removable dental prostheses: An in vitro evaluation of biocompatibility, mechanical properties, and surface roughness. Dent. Mater. J. 2018, 37, 526–533. [Google Scholar] [CrossRef] [PubMed]
  9. Drago, C. Ratios of Cantilever Lengths and Anterior-Posterior Spreads of Definitive Hybrid Full-Arch, Screw-Retained Prostheses: Results of a Clinical Study. J. Prosthodont. 2018, 27, 402–408. [Google Scholar] [CrossRef]
  10. Li, B.B.; Xu, J.B.; Cui, H.Y.; Lin, Y.; Di, P. In vitro evaluation of the flexural properties of All-on-Four provisional fixed denture base resin partially reinforced with fibers. Dent. Mater. J. 2016, 35, 264–269. [Google Scholar] [CrossRef]
  11. Paes-Junior, T.A.; Tribst, J.P.; Dal Piva, A.O.; Amaral, M.; Borges, A.L.; Gonçalves, F.D. Stress distribution of complete-arch implant-supported prostheses reinforced with silica-nylon mesh. J Clin Exp Dent. 2019, 11, e1163–e1169. [Google Scholar] [CrossRef]
  12. Collaert, B.; De Bruyn, H. Immediate functional loading of TiOblast dental implants in full-arch edentulous maxillae: A 3-year prospective study. Clin. Oral Implants Res. 2008, 19, 1254–1260. [Google Scholar] [CrossRef] [PubMed]
  13. Gonçalves, F.C.P.; Amaral, M.; Borges, A.L.S.; Gonçalves, L.F.M.; Paes-Junior, T.J.A. Fracture load of complete-arch implant-supported prostheses reinforced with nylon-silica mesh: An in vitro study. J. Prosthet. Dent. 2018, 119, 606–610. [Google Scholar] [CrossRef]
  14. Radunovic, M.; Pavic, A.; Ivanovic, V.; Milivojevic, M.; Radovic, I.; Di Carlo, R.; Pilato, S.; Fontana, A.; Piattelli, A.; Petrovic, S. Biocompatibility and antibiofilm activity of graphene-oxide functionalized titanium discs and collagen membranes. Dent. Mater. 2022, 38, 1117–1127. [Google Scholar] [CrossRef]
  15. Ionescu, A.C.; Brambilla, E.; Pires, P.M.; López-Castellano, A.; Alambiaga-Caravaca, A.M.; Lenardi, C.; Sauro, S. Physical-chemical and microbiological performances of graphene-doped PMMA for CAD/CAM applications before and after accelerated aging protocols. Dent. Mater. 2022, 38, 1470–1481. [Google Scholar] [CrossRef] [PubMed]
  16. Lee, J.H.; Jo, J.K.; Kim, D.A.; Patel, K.D.; Kim, H.W.; Lee, H.H. Nano-graphene oxide incorporated into PMMA resin to prevent microbial adhesion. Dent. Mater. 2018, 34, e63–e72. [Google Scholar] [CrossRef] [PubMed]
  17. Ciocan, L.T.; Ghitman, J.; Vasilescu, V.G.; Iovu, H. Mechanical Properties of Polymer-Based Blanks for Machined Dental Restorations. Materials 2021, 14, 7293. [Google Scholar] [CrossRef]
  18. Lorusso, F.; Inchingolo, F.; Lucchina, A.G.; Scogna, G.; Scarano, A. Graphene-doped Poly(methyl-methacrylate) as an enhanced biopolymer for medical device and dental implant. J. Biol. Regul. Homeost. Agents 2021, 35, 195–204. [Google Scholar] [CrossRef]
  19. Guzmán, P.C.; Freitas, F.F.A.; Ferreira, P.M.; de Freitas, C.A.; Reis, K.R. Influence of different cantilever extensions and glass or polyaramide reinforcement fibers on fracture strength of implant-supported temporary. J. Appl. Oral Sci. 2008, 16, 111–115. [Google Scholar] [CrossRef] [PubMed]
  20. Yilmaz, B.; Alp, G.; Seidt, J.; Johnston, W.M.; Vitter, R.; McGlumphy, E.A. Fracture analysis of CAD-CAM high-density polymers used for interim implant-supported fixed, cantilevered prostheses. J. Prosthet. Dent. 2018, 120, 79–84. [Google Scholar] [CrossRef]
  21. Angelara, K.; Bratos, M.; Sorensen, J.A. Comparison of strength of milled and conventionally processed PMMA complete-arch implant-supported immediate interim fixed dental prostheses. J. Prosthet. Dent. 2021, 19, S0022-3913. [Google Scholar] [CrossRef]
  22. Jacques, L.B.; Moura, M.S.; Suedam, V.; Souza, E.A.; Rubo, J.H. Effect of cantilever length and framework alloy on the stress distribution of mandibular-cantilevered implant-supported prostheses. Clin. Oral. Implants Res. 2009, 20, 737–741. [Google Scholar] [CrossRef]
  23. Romanos, G.E.; Gupta, B.; Eckert, S.E. Distal cantilevers and implant dentistry. Int. J. Oral Maxillofac. Implants. 2012, 27, 1131–1136. [Google Scholar] [PubMed]
  24. Suarez-Feito, J.-M.; Sicilia, A.; Angulo, J.; Banerji, S.; Cuesta, I.; Millar, B. Clinical performance of provisional screw-retained metal-free acrylic restorations in an immediate loading implant protocol: A 242 consecutive patients’ report. Clin. Oral Implants. Res. 2010, 21, 1360–1369. [Google Scholar] [CrossRef]
  25. Jemt, T. Failures and complications in 391 consecutively inserted fixed prostheses supported by Brånemark implants in edentulous jaws: A study of treatment from the time of prosthesis placement to the first annual checkup. Int. J. Oral Maxillofac. Implants. 1991, 6, 270–276. [Google Scholar]
  26. Albosefi, A.; Finkelman, M.; Zandparsa, R. An in Vitro Comparison of Fracture Load of Zirconia Custom Abutments with Internal Connection and Different Angulations and Thickness: Part I. J. Prosthodont. 2014, 23, 296–301. [Google Scholar] [CrossRef] [PubMed]
  27. Rosentritt, M.; Siavikis, G.; Behr, M.; Kolbeck, C.; Handel, G. Approach for valuating the significance of laboratory simulation. J. Dent. 2008, 36, 1048–1053. [Google Scholar] [CrossRef]
  28. Shen, H.; Di, P.; Luo, J.; Lin, Y. Clinical assessment of implant-supported full-arch immediate prostheses over 6 months of function. Clin. Implant Dent. Relat. Res. 2019, 21, 473–481. [Google Scholar] [CrossRef] [PubMed]
  29. Drago, C.; del Castillo, R.; Peterson, T. Immediate occlusal loading in edentulous jaws, CT-guided surgery and fixed provisional prosthesis: A maxillary arch clinical report. J. Prosthodont. 2011, 20, 209–217. [Google Scholar] [CrossRef] [PubMed]
  30. Lee, H.J.; Sartori, I.A.M.; Alcântara, P.R.; Vieira, R.A.; Suzuki, D.; Gasparini Kiatake Fontão, F.; Rodrigo Tiossi, R. Implant stability measurements of two immediate loading protocols for the edentulous mandible: Rigid and semi-rigid splinting of the implants. Implant Dent. 2012, 21, 486–490. [Google Scholar] [CrossRef]
  31. Del Fabbro, M.; Testori, T.; Francetti, L.; Taschieri, S.; Weinstein, R. Systematic review of survival rates for immediately loaded dental implants. Int. J. Periodontics Restor. Dent. 2006, 26, 249–263. [Google Scholar]
  32. Misch, C.M. Immediate loading of definitive implants in the edentulous mandible using a fixed provisional prosthesis: The denture conversion technique. J. Oral Maxillofac. Surg. 2004, 62, 106–115. [Google Scholar] [CrossRef] [PubMed]
  33. Maló, P.; Rangert, B.; Nobre, M. All-on-4 immediate-function concept with Brånemark System implants for completely edentulous maxillae: A 1-year retrospective clinical study. Clin. Implant Dent. Relat. Res. 2005, 1, S88–S94. [Google Scholar] [CrossRef]
  34. Pitta, J.; Burkhardt, F.; Mekki, M.; Fehmer, V.; Mojon, P.; Sailer, I. Effect of airborne-particle abrasion of a titanium base abutment on the stability of the bonded interface and retention forces of crowns after artificial aging. J. Prosthet. Dent. 2021, 126, 214–221. [Google Scholar] [CrossRef] [PubMed]
  35. Steiner, M.; Mitsias, M.E.; Ludwig, K.; Kern, M. In vitro evaluation of a mechanical testing chewing simulator. Dent. Mater. 2009, 25, 494–499. [Google Scholar] [CrossRef] [PubMed]
  36. Soriano-Valero, S.; Román-Rodriguez, J.L.; Agustín-Panadero, R.; Bellot-Arcís, C.; Fons-Font, A.; Fernández-Estevan, L. Systematic review of chewing simulators: Reality and reproducibility of in vitro studies. J. Clin. Exp. Dent. 2020, 12, e1189–e1195. [Google Scholar] [CrossRef]
  37. Zurdo, J.; Romao, C.; Wennström, J.L. Survival and complication rates of implant-supported fixed partial dentures with cantilevers: A systematic review. Clin. Oral Impl. Res. 2009, 20, 59–66. [Google Scholar] [CrossRef] [PubMed]
Jcm 12 01269 g001 550

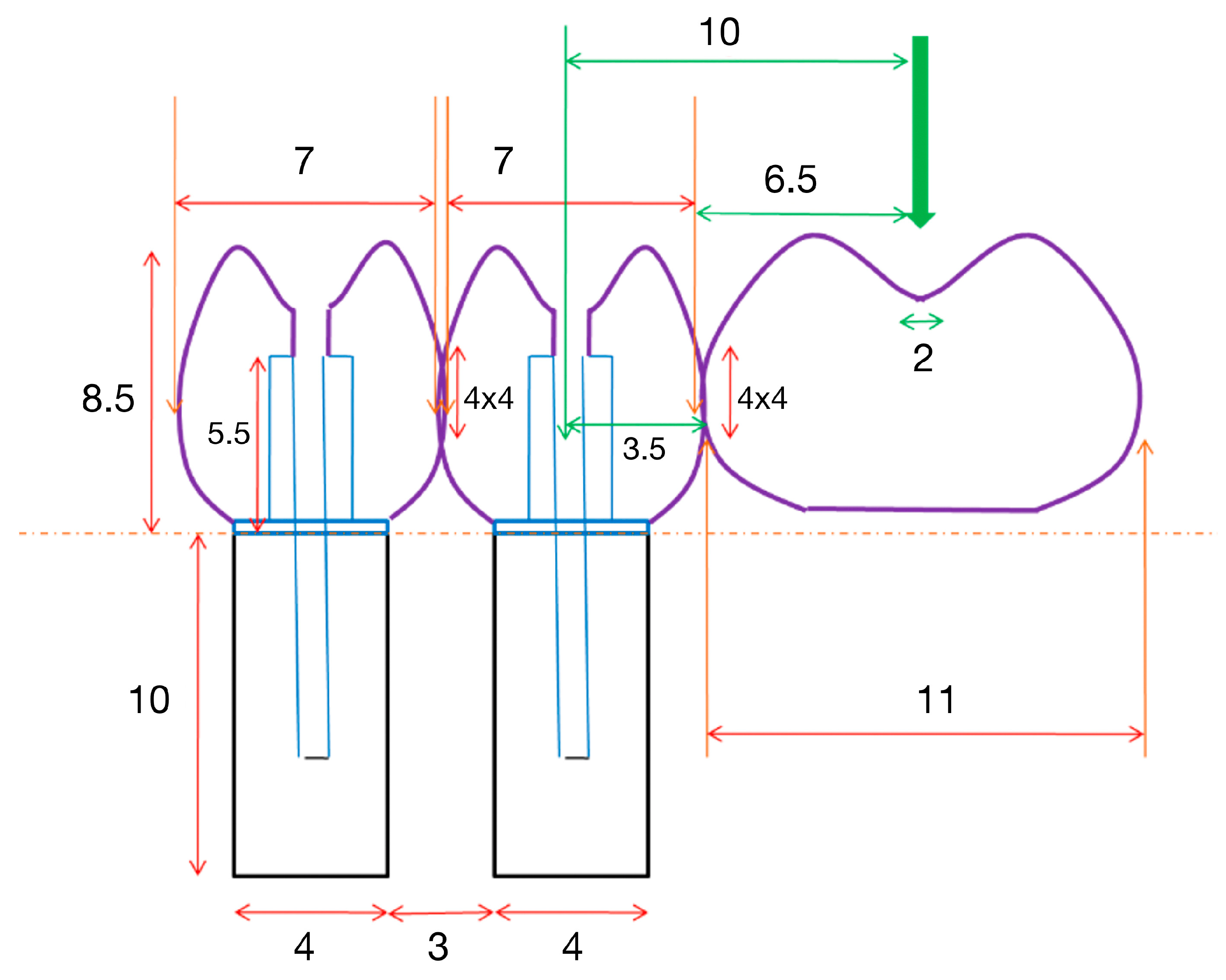

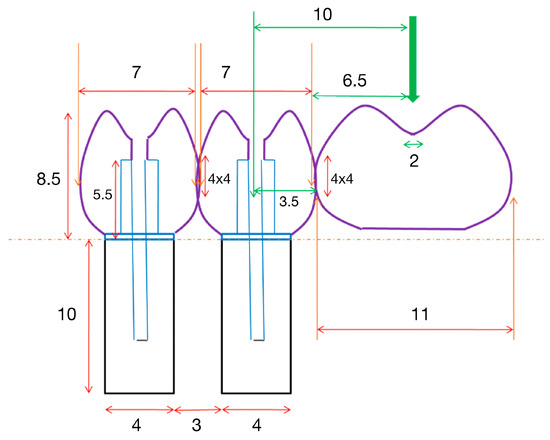

Figure 1. Specimen design. Measurements in millimeters.
Figure 1. Specimen design. Measurements in millimeters.
Jcm 12 01269 g001
Jcm 12 01269 g006 550

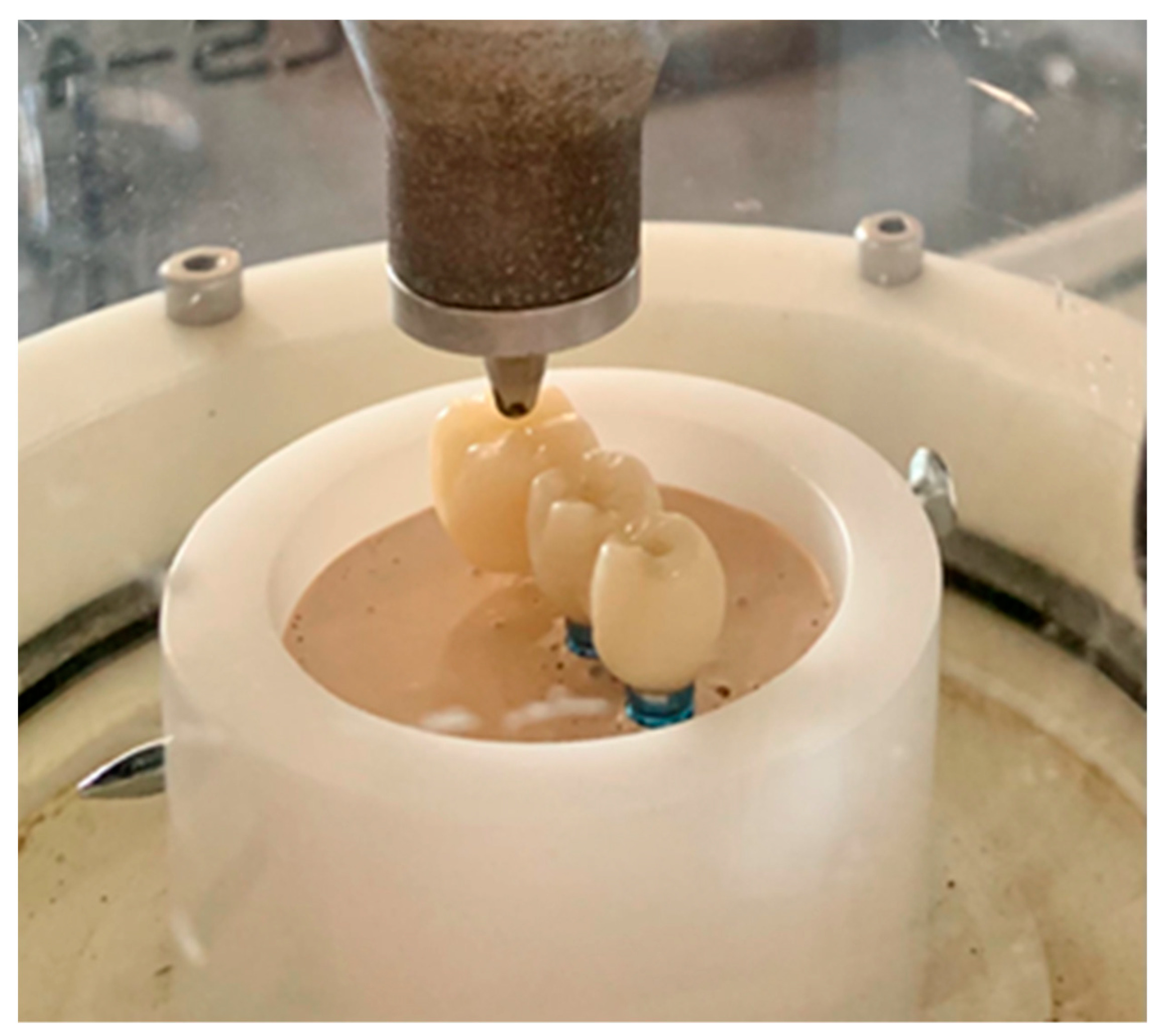

Figure 6. Study specimen mounted in the chewing simulator during fatigue testing.
Figure 6. Study specimen mounted in the chewing simulator during fatigue testing.
Jcm 12 01269 g006
Jcm 12 01269 g007 550

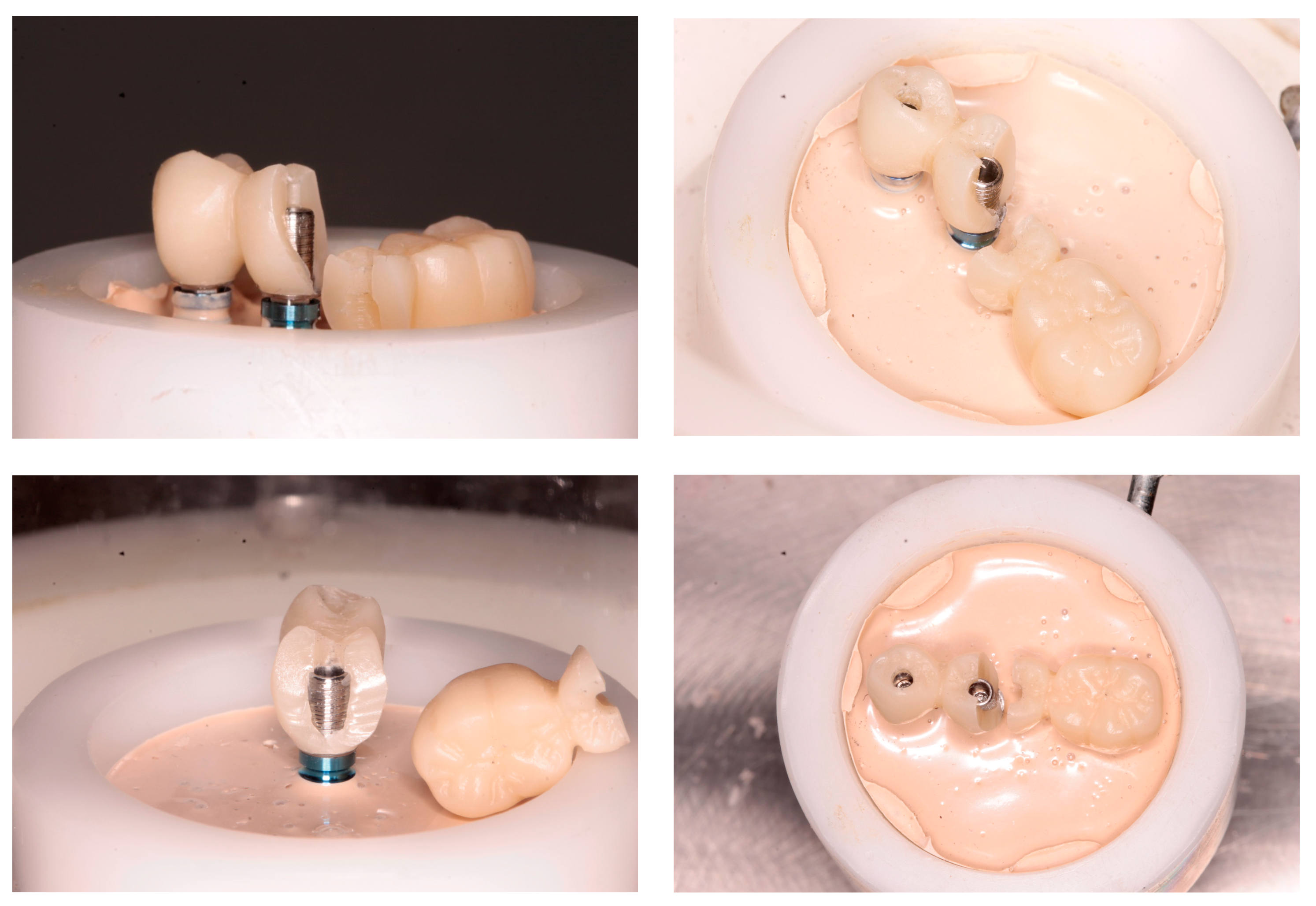

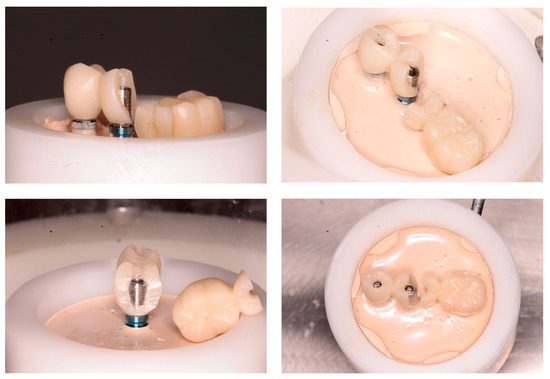

Figure 7. Fracture at the distal abutment level.
Figure 7. Fracture at the distal abutment level.
Jcm 12 01269 g007
Table
Table 1. Percentage surface composition of graphene nanofibers. Deconvolution of high-resolution XPS photopeaks.
Table 1. Percentage surface composition of graphene nanofibers. Deconvolution of high-resolution XPS photopeaks.
PhototopicBinding Energy (eV)Binding TypePercentage (% at)
C1s284.5C-C, C=C84
285.9C-O10
287.2C=O4
290COOR2
O1s532C=O19
533.8C-O52
535.3OH29
Si2p104SiO246
105.5Si-O54
Table
Table 2. Main characteristics of graphene nanofibers.
Table 2. Main characteristics of graphene nanofibers.
CharacteristicsPropertiesGraphene Nanofibers (GNF)
Characteristics TexturalSurface area (m2/g)70–250
Micropore area (m2/g) a2–50 (2–20)
Total pore volume (cm3/g)0.3–1.6
Degree of GraffitiDRX: npg b10–25 (npg of graphite ≈ 95)
Raman: ID/IG c0.95–1.05 (ID/of graphite ≈ 0.6)
Characteristics Physical/ChemicalFiber diameter (nm) d5–160
Fiber length (nm) d>20
Catalyst content (%) (CNF gross, unpurified)12–20
Elemental analysis of the product (free of catalyst residues) (% mole)C (75–93) O (2.5–22) H (4.5–5.5)
Characteristics ThermalOxidation temperature (°C) e350–680 (520–640)
Decomposition products/Thermal oxidationCO, CO2 mainly
a In parentheses: % of micropore area with respect to the total surface area. b Number of graphene planes in the crystal (npg = Lc/d002); D002 is the interlaminar spacing; Lc is the average size of the crystals in the direction perpendicular to the basal graphene planes. c ID/IG: ratio between the intensities of the D and G bands in the Raman spectrum. d Determined by counting at least 200 GNFs in electron microscopy micrographs transmission. e In parentheses: range of temperatures corresponding to the maximum oxidation.
