Global Health Resource Utilization and Cost-Effectiveness of Therapeutics and Diagnostics in Immune Thrombotic Thrombocytopenic Purpura (TTP)

Department of Internal Medicine, Yale School of Medicine, New Haven, CT 06510, USA
Division of Hematology, Department of Medicine, Johns Hopkins University, Baltimore, MD 21218, USA
Yale School of Medicine, New Haven, CT 06510, USA
Section of Hematology, Department of Internal Medicine, Yale School of Medicine, New Haven, CT 06510, USA
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(15), 4887;
Submission received: 26 May 2023 / Revised: 28 June 2023 / Accepted: 21 July 2023 / Published: 25 July 2023


In this review, we examine the current landscape of health resource utilization and cost-effectiveness data in the care of patient populations with immune thrombotic thrombocytopenic purpura. We focus on the therapeutic (therapeutic plasma exchange, glucocorticoids, rituximab, caplacizumab) and diagnostic (ADAMTS13 assay) health technologies employed in the care of patients with this rare disease. Health resource utilization and cost-effectiveness data are limited to the high-income country context. Measurement of TTP-specific utility weights in the high-income country context and collection of health resource utilization data in the low- and middle-income country settings would enable an evaluation of country-specific quality-adjusted life expectancy and cost-effectiveness of these therapeutic and diagnostic health technologies. This quantification of value is one way to mitigate cost concerns where they exist.

1. Introduction

Thrombotic thrombocytopenic purpura (TTP) is a rare and life-threatening thrombotic microangiopathy characterized by a triad of microangiopathic hemolytic anemia, severe thrombocytopenia, and organ ischemia linked to disseminated, microvascular platelet rich-thrombi [1]. Acute episodes of TTP are marked by a severe deficiency of a disintegrin and metalloproteinase with a thrombospondin type 1 motif, member 13 (ADAMTS13), with the standard of care initial diagnosis being defined by enzymatic activity of less than 10% of normal ADAMTS13 in countries where this assay is available [2,3].
Decreased ADAMTS13 activity leads to an accumulation of ultra-large von Willebrand factor multimers, which bind platelets and induce aggregation [1]. Most commonly, a severe deficiency of ADAMTS13 is mediated by the immune-mediated production of autoantibodies to ADAMTS13. In one cross-sectional study of 772 patients with a first episode of thrombotic microangiopathy and ADAMTS13-confirmed diagnosis of TTP, 73% of patients were noted to have positive anti-ADAMTS13 IgG, with an additional 3% being identified beyond the first episode [4]. In this same study, 21% of patients were always anti-ADAMTS13 IgG-negative and 3% had mutation-confirmed (homozygous or compound heterozygous) congenital TTP [1]. The epidemiology of TTP, whether immune-mediated or hereditary, classifies it as a rare disease in every country in the world, being defined, at its most strict, as <650 patients per one million people in Brazil [5]. The estimated annual incidence in different studies is geographic-location-dependent and ranges between 1 and 13 cases per million people, while the prevalence of TTP is 10 per million people [4,6,7].
The first case of what would later be termed “TTP” was reported by Eli Moschcowitz in 1924 [8]. In 1959, the first known documented utilization of whole blood exchange transformed an 11-year old girl’s “deep and persistent” coma to the regaining of consciousness and the disappearance of abnormal neurologic signs [9]. In 1977, two patients were reported to recover completely after “intensive plasmapheresis” [10], paving the way for treatment transformation in 1991 through a clinical trial of therapeutic plasma exchange versus plasma infusion that spanned the 1980s [11]. In 1982, the presence of ultra-large von Willebrand Factor (VWF) multimers in four patients with chronic, relapsing TTP suggested a defect in the processing of these multimers after secretion [12]. In 1985, large amounts of VWF (when compared with fibrinogen) were found within the visceral platelet microthrombi via histopathology in a deceased TTP patient [1]. In 1991, the aforementioned clinical trial of therapeutic plasma exchange versus plasma infusion reported an acute survival probability of 96% versus 84%, with 6-month survival holding at 78% and 63%, respectively. These results were a significant increase from a mortality of up to 90% prior to plasma infusion or exchange [1,11]. A novel metalloprotease (VWF cleaving-protease) that specifically cleaved VWF was purified from human plasma in 1996, and two years later, a severe functional deficiency of the VWF cleaving-protease was shown to cause TTP [13,14]. Finally, this cleaving-protease was identified as ADAMTS13 in 2001, setting the stage for a biomarker-based diagnostic assay [15].
The treatment of immune TTP is anchored around therapeutic plasma exchange, which serves to remove autoantibodies and ultra-large von Willebrand factor multimers, and to replenish ADAMTS13 [11]. Autoantibody formation is targeted by using immunosuppression with a foundation of glucocorticoids and rituximab [16]. In 2019, caplacizumab, an anti–von Willebrand factor humanized single-variable-domain immunoglobulin (Nanobody, Ablynx) that targets the A1 domain of von Willebrand factor, obtained Food and Drug Administration approval for the management of TTP based on a primary endpoint of time to platelet normalization [17]. Standard-of-care treatment in high-income countries revolves around the aforementioned therapeutics, noting that the addition of glucocorticoids to therapeutic plasma exchange is a strong recommendation and that the addition of rituximab and caplacizumab are conditional recommendations in the 2020 International Society on Thrombosis and Haemostasis Treatment Guidelines [18], with a grade IB recommendation against using caplacizumab in unselected patients in the 2022 American Society of Hematology Education Program [19]. Treatment is initiated based on clinical suspicion in patients for evidence of thrombotic microangiopathy on smear and without a more likely etiology, employing either the PLASMIC and/or French scores [20]. In this primer, we examine the current landscape of health resource utilization and cost-effectiveness studies of the therapeutic armamentarium and diagnostic assay for patients with this rare disease. Specifically, we focus on TPE, glucocorticoids, rituximab, caplacizumab, and the ADAMTS13 assay, with a primary focus on health resource utilization and a secondary one on cost-effectiveness.

2. Therapeutic #1: Therapeutic Plasma Exchange (TPE)

TPE is an established anchor of frontline treatment for immune TTP, improving acute and 6-month mortality even when compared to plasma infusion [1,11,21]. TPE should be started as soon as the diagnosis of TTP is suspected [1,3]. Daily TPE removes autoantibodies against ADAMTS13 while replenishing the missing or inhibited ADAMTS13 enzyme [11]. Treatment with TPE is continued daily until the platelet count is greater than 150 × 109/L on two consecutive days, and TPE may be performed more than once daily in severely ill patients [22,23,24].
Health resource utilization: A 2008 retrospective analysis that used the South East England TTP Registry, spanning a time period from April 2002 through to December 2006 across 176 patients with 236 acute episodes, reported a median of 15.5 plasma exchanges (range 3–93), with a significant difference between the number of exchanges required in the first acute episode of TTP (median 15 (4–40)) compared to that in relapsed acute TTP episodes (median 9.5 (5–57)) [25]. The authors noted a statistically significant secular trend—in this case, a systematic decrease over time, presumably due to increased clinician experience—within their 56-month study period, with median exchange sessions decreasing from 19 to 12 between the first 20 and last 36 months. A 2016 analysis of 2009–2014 data from the Australian TTP/TMA registry reported similar findings, with TPE used in 67/72 (93%) episodes of 57 confirmed TTP patients with a median of 12 (range 1–8) TPE sessions per acute episode [26].
A 2012 study using data from the HealthCore Integrated Research Database (HIRD), explored healthcare utilization of immune TTP patients in a commercially insured population from many different regions of the United States [27]. The study included 151 patients with the mean total healthcare payments for the TTP hospitalization being USD 56,347 (standard deviation [SD] USD 80,230) [27]. During an acute episode of TTP, the mean number of PE was found to be 8.5 (SD 12.9, range 1–116). The mean duration of the PE treatment was 28.2 days (SD 54.0) [27]. Mean payments for TPE services in the month following discharge were USD 9127 (SD USD 20,840) [27].
A 2014 study including results from a survey of physicians from 32 centers in the US sought to delineate current clinical practices of TTP treatment in the US [28]. At all centers, TPE was started as soon as TTP was the most likely diagnosis [28]. TPE was initiated with plasma as replacement fluid (91%) at 1.0 plasma volume (72%) and stopped with a platelet count of 150 × 10⁹/L (66%), and TPE was then tapered off (69%) [28].
In 2021, an American retrospective study utilized administrative claims data between 2010 and 2018 for US Medicare and non-Medicare populations following immune TTP episodes to describe immune TTP-related hospital resource utilization, cost, complications, and overall survival [29]. The study included 2279 patients at a weighted mean age of 58 across four payer types: Medicare Fee-for-Service (FFS; n = 1486), Medicare Advantage (MA; n = 123), commercial (n = 312), and Managed Medicaid (MM; n = 358). The study reported a mean length of hospitalization across payer types ranging between 12 and 16 days and 61% of Medicare FFS patients received ICU-level care. Notably, Medicare FFS patients experienced a mean of 3 days from admission to TPE initiation, as compared to all other payers for whom TPE initiation occurred less than 1 day from admission. [29] Mean total direct healthcare expenditures for index hospitalization varied by payer (Medicare FFS: USD 29,024; MA: USD 12,860; commercial: USD 9996; MM: USD 10,470) [29]. The FFS cohort had mortality rates of 15.7% and 21% during initial hospitalization and within the first 30 days, respectively [29].
Cost-effectiveness: At this time, there are no cost-effectiveness studies regarding TPE in immune TTP.

3. Therapeutic #2: Steroids

Steroids have long been considered an important therapeutic option for immune TTP, owing to the autoimmune nature of the disease. Although no longer treated with corticosteroids alone, at one point in the pre-ADAMST13 time period, corticosteroids alone were reported to lead to remission in patients with milder cases [30,31]. While there is a paucity of randomized controlled trials exploring the use of steroids in immune TTP, several studies have reported favorable outcomes leading to its use as part of standard of care for TTP alongside TPE [23].
Health resource utilization: In a 2006 Italian randomized open-label trial of 60 TTP patients running from 2000 through 2006, high-dose methylprednisolone (10 mg/kg/day for 3 days followed by 2.5 mg/kg/day) induced a higher complete remission rate by a pre-specified day 23 compared to standard-dose methylprednisolone (1 mg/kg/day) (76.6% vs. 46.6%, respectively) [32]. Costs of care between these two arms were not reported. Another randomized clinical trial examining the adjunct use of prednisone versus cyclosporine to TPE was halted after interim analysis (22 total evaluable patients) showed an increase in exacerbations with the latter strategy during acute immune TTP treatment, in addition to prednisone significantly improving ADAMTS13 activity at weeks 3 and 4 and lowering anti-ADAMTS13 IgG at weeks 2–4 compared to cyclosporine [33]. The 2008 retrospective analysis from the South East England TTP Registry showed that in 80% of all acute episodes, TTP patients received steroids. Most patients received three days of pulsed therapy between 500 mg and 1 g per day of methylprednisolone for up to 3 days [25]. Data from the Australian TTP/TMA registry similarly showed that steroids were used in 71% (51/72) acute TTP episodes with a median steroid exposure being 19.5 days (range 2–108 days) [26]. A 2014 study including results from a survey of physicians from 32 centers in the US reported the standard use of prednisone for TTP treatment in 26/32 centers (81%) [28].
Cost-effectiveness: At this time, there are no cost-effectiveness studies on corticosteroid use in immune TTP.

4. Therapeutic #3: Rituximab

Rituximab is a chimeric monoclonal antibody directed against the CD20 antigen present on B lymphocytes. It is used in the management of diseases like lymphoma and rheumatoid arthritis, where it clears B lymphocytes responsible for antibody production via complement-dependent cytotoxicity, antibody-dependent cellular cytotoxicity, or directly by inducing apoptosis [34]. The role of rituximab in treating patients with TTP emerged first in the refractory or relapsed setting in the 2000s [35,36,37,38].
Health resource utilization: A 2009 randomized clinical trial to evaluate the addition of upfront rituximab to TPE and steroids was stopped due to low enrolment [39]. A prospective, non-randomized, single-arm, phase 2 trial reported in 2011 by the South East England TTP study group examined the benefit of upfront rituximab with steroids and TPE versus historical control patients treated without rituximab and with steroids and TPE. The investigators reported a reduction in relapse rates from 57% at a median 18 months in the historical controls to 10% at a median 27 months in 40 trial patients with the use of weekly rituximab at lymphoma-based dosing (375 mg/m2 weekly for 4 weeks, up to 8 infusions allowed), administered within three days of admission in the acute TTP setting [40]. Across 34 total patients classified as de novo TTP, the authors noted the following three ethnicity categories and their respective, descriptive median number of TPE treatments and range: Afro-Caribbean (24, range: 6–34), White 11.5 (range 4–30), and Indian/Asian 23 (range, 6–34). They then collapsed ethnicity into a binary variable of white versus nonwhite, reporting the number of TPE sessions to be significantly decreased at 14 versus 21, respectively [40]. A study using the United States Thrombotic Microangiopathies Consortium iTTP Registry explored the correlation of race with mortality and relapse-free survival (RFS) in immune TTP in the United States from 1995 to 2020. Black race was associated with shorter RFS (hazard ratio [HR], 1.60; 95% CI, 1.16–2.21), while the addition of rituximab to corticosteroids improved RFS in White (HR, 0.37; 95% CI, 0.18–0.73) but not Black patients (HR, 0.96; 95% CI, 0.71–1.31) [41].
Subsequent to the 2009 study, a 2012 retrospective study from the United Kingdom TTP Study Registry reported the administration of rituximab within 3 days from admission in 54 patients with acute de novo TTP versus rituximab administration more than 3 days from admission in 32 patients with acute de novo TTP over a 2004–2011 time period [42]. In this context, the former strategy yielded earlier remission (12 versus 20 days), fewer TPE sessions (16 versus 24) and a shorter length of hospital admission (16 versus 23 days) [42]. In 2012, the expert-based guidelines from the United Kingdom recommended the utilization of upfront rituximab alongside TPE and steroids for patients with relapsed TTP and suggested consideration for upfront rituximab in the de novo context [43]. Data from the first 5 years of the Australian TTP/TMA microangiopathy registry reported rituximab use in 28/72 (39%) acute TTP episodes spanning the 2009–2014 time period. The authors noted the first registry-documented use of rituximab in Australia in 2010, with its use occurring in 21/52 (40%) and 7/20 (35%) of de novo and relapsed TTP episodes in this time period [26]. A 2019 systematic review and meta-analysis reported on a total of 570 patients across nine included studies dating from 2011 through to 2018 [44]. The odds ratio for the pooled relapse rates as an effect of rituximab administration in the acute phase was 0.40 (95% confidence interval (CI) 0.19–0.85, I2 = 43%) with an OR of 0.41 ([95% CI 0.18–0.91], I2 = 0%) from the six and eight studies, respectively, where these data were reported [44]. A 2014 study including results from a survey of physicians from 32 centers in the US reported heterogeneity in the use of rituximab: 4 centers (13%) did not use rituximab, while 28 centers (88%) used it routinely [28]. Of the 28 centers that used rituximab, 5 (18%) routinely used the drug during the first presentation of TTP, while the remaining 23 centers (82%) use it in relapsed/refractory cases [28]. Rituximab was used concurrently with TPE in 27/28 centers (96%) [28].
In the United States, one major hurdle to adding rituximab into inpatient treatment paradigms for immune TTP is the expense of the medication [45], particularly in the context of a payer system that delineates fixed payments per pre-specified diagnosis-related group and thus incentivizes cost-containment in the inpatient setting. To examine this question, a retrospective single-center study of 27 patients with de novo immune TTP across all relapses over a median follow-up time of 56 months reported on preventable TPE sessions, inpatient hospital days, and cost savings that would have accrued for patients who responded to the addition of incident rituximab therapy to TPE and steroids after subsequent relapses [46]. First in the initial cohort, rituximab use during initial hospitalization was projected to avert 185 inpatient admission days and 137 TPE sessions at cost savings to hospitals of USD 900,000 [46]. Second in the relapse cohort, rituximab use during any earlier relapse was projected to avert 86 inpatient admission days and 64 TPE sessions at cost savings to hospitals of USD 420,000 [46]. This study delineated that, despite financial inpatient formulary concerns, the inpatient use of rituximab in the management of TTP can lead to cost savings (~USD 30,000 per patient with TTP initiated on rituximab inpatient). This supported the practice change to an automatic formulary approval for inpatient rituximab use for all patients with immune TTP in the same hospital health system [46].
Cost-effectiveness: At this time, there are no cost-effectiveness studies on rituximab use in immune TTP.

5. Therapeutic #4: Caplacizumab

Caplacizumab is a humanized monoclonal antibody that binds to vWF, inhibits its interaction with platelet glycoprotein Ib-IX-V, yields rapid suppression of vWF-ristocetin cofactor activity, and prevents platelet adhesion [47]. In 2018 and 2019, caplacizumab was approved by the European Medicines Agency and the Food and Drug Administration based on the time to platelet normalization for the treatment of immune TTP in conjunction with TPE and immunosuppression [47]. In 2020, the International Society on Thrombosis and Haemostasis (ISTH) guidelines for the management of immune TTP noted a conditional recommendation for the use of caplacizumab in the frontline treatment of immune TTP [18].
Health resource utilization: Healthcare utilization with the addition of caplacizumab use to TPE and immunosuppression versus without caplacizumab was descriptively reported in a phase 3, randomized, two-arm clinical trial of patients. Here, with caplacizumab use, the patients (1) received a median of 5 days (range 1–35) of plasma exchange (without: 7.0; range 3–46), (2) underwent a median of 18 L (range 5–102) plasma exchanged (without: 27; range 4–254), (3) had a median 9-day (range 2–37) length hospital of stay (without: 12; range 4–53), with (4) a median 3-day (range 1–10) stay in the intensive care unit (without: 5; range 1–47). The median number of TPE sessions and hospital length of stay observed with caplacizumab use in real-world data from Germany, France, England, and Spain are 9 (range 2–41) and 18 (range 5–79), 5 (IQR 4–7) and 13 (IQR 9–19), 7 (IQR 5–14) and 12 (IQR 8–24), and 8.5 (IQR 6–12.5) and 12 (IQR 9–15), respectively [16,19,48,49,50]. Of note, healthcare utilization data from trials and real-world data of caplacizumab do not apply to immune TTP patients deemed to be high bleeding risk patients, as these individuals are noted to be excluded in all studies to date. A 2022 systematic review and meta-analysis of caplacizumab use examined data from 632 patients across phase 2 and phase 3 clinical trials, two observational studies with historical controls (total n = 175 treated with caplacizumab with n = 219 historical controls), and one observational study with a concurrent control (total n = 18), with all three observational studies reported as having a high risk of bias [51]. The work had a literature search censor date through July 2021. Noting caveats regarding an inability to adjust for secular trends and confounding as a limitation of historical control arms and the exclusion of high-risk bleeding patients, the authors noted that caplacizumab added to the standard of care versus the following standard of care alone yielded relative risks: (1) RR 1.37 ([CI 1.06, 1.77]) and (RR 7.10 [CI 0.90, 56.14]) for all bleed risk in clinical trial and observational data, respectively; and (2) RR 0.21 [CI 0.05, 1.74]) and 0.62 [CI 0.07, 4.41] for death in clinical trial and observational data, respectively. Focusing on the International Society on Thrombosis and Haemostasis major bleed rate, while again noting the exclusion of patients deemed at high risk of bleeding from receiving caplacizumab, the lowest cumulative per-patient-treated real-world data estimate for ISTH major bleeding with caplacizumab use is 2.4% (Table 1). Included within this, with caplacizumab use through to December 2022, there were 4 intracranial hemorrhages that occurred in 272 immune TTP episodes over a median follow-up of 80 days across English, Spanish, and Austrian experiences [49,50,52]. In contrast, there were 0 intracranial hemorrhages across 219 patients over a median follow-up of 618 days and 0 intracranial hemorrhages over a median follow-up of 2336 days in consecutively treated patients with immune TTP in the Harvard TTP Collaborative and Oklahoma TTP Registry, respectively [53,54].
A Sanofi-funded cost analysis (note: not cost-effectiveness) projected healthcare utilization expected with caplacizumab use in US hospital setting based on the phase 3 trial and peer-reviewed literature, with a payer mix of 20% Medicare Fee-for-Service (FFS), 8% Medicare Advantage, 10% Medicaid, and 62% commercial [56]. Specifically, the authors reported a per-patient cost of the standard of care as USD 23,000 versus USD 70,000 for caplacizumab added to the standard of care, with these values being inclusive of projected savings of USD 8000 and USD 15,000 for length of stay and TPE cost-savings, respectively, and yielding an incremental per-patient cost of USD 47,000 with caplacizumab use. The authors note that when considering patients cared for under the Medicare Fee-for-Service model specifically, the incremental per-patient cost with caplacizumab would decrease to USD 5000 when the 2020 Medicare new technology add-on payment (NTAP) for caplacizumab is applied. This is an important consideration in the short run that also does not address the long-term perspective given the 3-year expiration of indication-specific NTAPs in the Medicare Fee-for-Service context.
Cost concerns are also noted in France, where caplacizumab is approved for use in immune TTP [57]. The authors note that the addition caplacizumab per immune TTP patient, at an assumed per-11mg caplacizumab dose cost of EUR 4400, would increase costs three-fold per immune TTP episode treated from a historic baseline of EUR 75,000. With a per-11 mg caplacizumab dose cost of USD 8800, the authors also postulate a 4-fold increase in the United States for the same [57].
Cost-effectiveness: Cost is one concern with the use of caplacizumab, which has been examined in several cost-effectiveness analyses [58,59,60]. In December 2020, after initial rejection, a series of meetings and re-appraisal of Sanofi’s modeling at their fourth meeting, the National Institute for Health and Care Excellence (NICE) officially recommended caplacizumab use with TPE and immunosuppression for patients with immune TTP [58]. Specifically, NICE noted that Sanofi’s new modeling reported an ICER of just under GBP 30,000 per quality-adjusted life year (QALY) for caplacizumab use, an upper threshold (the typical is GBP 20,000 per QALY) NICE can employ when considering contextual factors such as innovation. This led to their recommendation of caplacizumab as a cost-effective option for treating immune TTP, paving the way for its use in the National Health Service [58]. Concerns about input parameters and assumptions employed by Sanofi in their final model have now been documented [61]. In no specific order, these include the following: (1) the use of an acute mortality relative risk of 0.5; (2) unsupported utility values—values which reflect quality of life—such as a lifelong 34% quality of life reduction in living in remission if a patient achieved remission without caplacizumab use as compared to the same remission with caplacizumab use; (3) an underestimated annual relapse rate that over a lifetime time-horizon would propagate a significant artificial decrease in the ICER for their drug [61].
A 2020 American cost-effectiveness analysis presented the results of two decision tree models, one for each clinical trial, and a third Markov model with a 5-year time-horizon conducted from the US health system perspective and at a willingness-to-pay threshold of 195,000 USD/QALY [60]. The analysis eschewed the consideration of bleeding—increased with caplacizumab use—and employed utilities preset to minimize the incremental cost-effectiveness ratio for caplacizumab added to the standard of care versus standard of care alone. At a 5-year time-horizon the incremental cost for caplacizumab was USD 400,000 with an incremental QALY of 0.27, resulting in an ICER of USD 1.5 million, far exceeding the willingness-to-pay threshold. In the American context, caplacizumab was reported to be cost-ineffective in 100% of 10,000 iterations in a probabilistic sensitivity analysis with deterministic sensitivity analysis identifying drug price as the one parameter that could significantly decrease the ICER, beginning at a price reduction of at least 80% [60,61].
A 2021 Italian health technology assessment conducted a cost-effectiveness analysis of capalcizumab added to the standard of care versus the standard of care at a lifetime time-horizon, an Italian hospital perspective and at a willingness-to-pay threshold of 60,000 EUR/QALY previously suggested in Italy [59]. The authors reported an expected increase in 3.27 life years and 3.06 quality-adjusted life years with caplacizumab use at an incremental cost-effectiveness ratio of 44,600 EUR/QALY. These results are accrued in the context of acute mortality probabilities of 0.0% with caplacizumab use and 13.2% without caplacizumab use per each immune TTP across a lifetime time-horizon. Deterministic sensitivity analysis did not evaluate a non-0% probability of acute mortality with caplacizumab use and the probabilistic sensitivity analysis reported the probability of caplacizumab being cost-effective at 82.4% without discounts for 10-mg caplacizumab per-vial pricing at EUR 3900 in the Italian setting.
In the context of a 2022 open-label single-arm phase 3 trial (MAYARI, NCT 05468320) to examine the use of caplacizumab without frontline TPE in immune TTP with a planned 1-year follow-up, a cost-effectiveness analysis examined the efficacy threshold of a 1-year relapse-free survival this single-arm trial would need to meet for caplacizumab to be a cost-effective replacement of the standard of care [62]. The analysis employed clinical trial data, assuming caplacizumab without TPE is exactly as effective as caplacizumab with TPE and with all inpatient costs eliminated. A relapse-free survival of 100% at 1-year would not meet any accepted US willingness-to-pay threshold. This analysis also entirely ignored bleeding complications, assumed no drop-off in efficacy from opting for no TPE therapy and reported that a minimum 78% price decrease in caplacizumab would be needed. TPE-based care was the cost-effective strategy in 100% of 10,000 iterations in a probabilistic sensitivity analysis [62].
A sample state transition diagram for model-based cost-effectiveness analysis is shown in Figure 1.
A comparative summary of the costs, advantages, disadvantages, and side effects for the four therapeutics can be found in Table 2. Of note, costs vary greatly across and within countries; thus, we largely focus on the largest payer in the United States, the Centers for Medicare and Medicaid Services (Table 2).

6. Diagnostics

Testing for ADAMTS13 activity requires laboratory skill and time, making in-house and same-day assay output challenging. Clinical scoring systems are free of charge and include the French and PLASMIC scores. Neither score has perfect test characteristics and this worsens with older age [70]. Due to these limitations, there is a demand for rapid diagnostic testing and, given the associated costs, a need for cost-effectiveness analyses to convince hospital stakeholders that investment is worthwhile.
Health resource utilization: ADAMTS13 activity assay availability was limited in the early 2000s and the options included immunoradiometric, collagen-binding, and ristocetin-cofactor assays [71,72,73,74]. The availability of testing has since expanded, with some simplification achieved in testing complexity. Most current assays for ADAMTS13 utilize fluorescence resonance energy transfer (FRET) to detect proteolysis of vWF [75], improving the turnaround time of results in the context of reduced testing complexity observed with other assays [76]. Calls for further testing simplification led to the development of fully automated assays. The HemosIL AcuStar ADAMTS13 activity assay is a fully automated, chemiluminescent assay that takes 33 min for analysis output [77]. Studies comparing the HemosIL chemiluminescent immunoassay to chromogenic ELISA and FRET-based assays revealed high concordance in results [77,78,79,80,81]. The HemosIL Acustar ADAMTS13 activity assay may then decrease the burden placed on laboratories to run skill- and time-intensive assays and increase the turnaround time of ADAMTS13 testing. The latter would help decrease unnecessary risk exposure of patients suspected to have immune TTP to TTP-specific therapeutic modalities that each have associated risks. A cost analysis (note: not cost-effectiveness) compared what the theoretical costs in 2019 would have been at a single center if an AcuStar was used instead of the ELISA-based Technozym ADAMTS13 [82]. From ELISA-based testing of 165 patient plasma samples across 93 patients received in that year for ADAMTS13 activity testing, 9 patients underwent unnecessary TPEs. The authors reported this corresponded to 18 TPE sessions and 227 units of fresh frozen plasma with a total cost of EUR 41,700. While the counterfactual clinical outcome cannot be known and the authors did not employ a measure of effectiveness, there is an implied clinical benefit of avoiding unnecessary patient risk exposure to TPE. Compared to the 2019 analysis year, in this 2022 study, the availability of caplacizumab and its attendant bleeding risk puts patients at unnecessary increased risk exposure for bleeding when diagnostic assay turnaround times are prolonged.
Cost-effectiveness: Two cost-effectiveness analyses conducted by the same group have examined the comparative value of in-house versus send-out FRET-based ADAMTS13 activity (Table 3) [64,83]. The first in 2017 reported on four competing testing strategies for a patient suspected of having immune TTP: (1) send-out ADAMTS13 activity versus (2) in-house ADAMTS13 activity versus (3) PLASMIC clinical score application followed by send-out ADAMTS13 testing for intermediate-to-high risk PLASMIC-scoring patients versus (4) PLASMIC clinical score application followed by in-house ADAMTS13 testing for intermediate-to-high risk PLASMIC-scoring patients [83]. The respective 3-day costs and deaths averted (the effectiveness outcome the authors employed) were USD 15,600 and 0.98, USD 4900 and 0.91, USD 9400 and 0.95, and USD 4700 and 0.91, respectively. Judged at a threshold of <USD 50,000 per death averted, the authors noted strategy #2 was the cost-effective strategy at an ICER of 49,600 per death averted. In a 2020 cost-effectiveness analysis, the authors examined the impact of delayed FRET-based ADAMTS13 activity testing over a 6-day time-horizon with a focus on the number of days delayed [64]. They reported an incremental cost to the health system ranging from USD 4200 to USD 5100 for every 1-day delay in obtaining ADAMTS13 activity assay results, with life days, their metric of effectiveness, decreasing from 5.89 with a 1-day delay to 5.85 with a 5-day delay.

7. Conclusions

In 2023, health resource utilization data and cost-effectiveness evaluation of therapeutics and diagnostics in the care of patients with immune TTP are preferentially available in high-income country settings. Despite this, in high-income countries, the measurement of quality-adjusted life expectancy and cost-effectiveness evaluation is limited by the lack of TTP-specific utility weights. In low- and middle-income countries, these limitations are compounded by the lack of health resource utilization data, impaired access to the standard of care therapeutics, and the lack of ADAMTS13 assay availability due to cost concerns [84,85]. Although health technology assessments in country-specific contexts would quantify the value of each therapeutic and diagnostic in the care of patients with immune TTP, the measurement of input parameters and their uncertainty is needed for such quantification. For this reason, we believe the pressing research needs include the direct measurement of TTP-specific utility weights for high-income country settings and the collection of health resource utilization data in low- and middle-income country settings.

Author Contributions

A.B., C.A., A.P., S.I. and G.G. wrote and edited the manuscript. All authors have read and agreed to the published version of the manuscript.


GG is supported by the American Society of Hematology RTAF, Yale Bunker Endowment, and The Frederick A. DeLuca Foundation. The funding sources had no role in the study design; collection, analysis, or interpretation of the data; writing of the manuscript; or the decision to submit the manuscript for publication.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Joly, B.S.; Coppo, P.; Veyradier, A. Thrombotic thrombocytopenic purpura. Blood 2017, 129, 2836–2846. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sadler, J.E. What’s new in the diagnosis and pathophysiology of thrombotic thrombocytopenic purpura. Hematol. Am. Soc. Hematol. Educ. Program 2015, 2015, 631–636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Zheng, X.L.; Vesely, S.K.; Cataland, S.R.; Coppo, P.; Geldziler, B.; Iorio, A.; Matsumoto, M.; Mustafa, R.A.; Pai, M.; Rock, G.; et al. ISTH guidelines for the diagnosis of thrombotic thrombocytopenic purpura. J. Thromb. Haemost. 2020, 18, 2486–2495. [Google Scholar] [CrossRef] [PubMed]
  4. Mariotte, E.; Azoulay, E.; Galicier, L.; Rondeau, E.; Zouiti, F.; Boisseau, P.; Poullin, P.; de Maistre, E.; Provôt, F.; Delmas, Y.; et al. Epidemiology and pathophysiology of adulthood-onset thrombotic microangiopathy with severe ADAMTS13 deficiency (thrombotic thrombocytopenic purpura): A cross-sectional analysis of the French national registry for thrombotic microangiopathy. Lancet Haematol. 2016, 3, e237–e245. [Google Scholar] [CrossRef] [PubMed]
  5. Wainstock, D.; Katz, A. Advancing rare disease policy in Latin America: A call to action. Lancet Reg. Health 2023, 18, 100434. [Google Scholar] [CrossRef]
  6. George, J.N.; Al-Nouri, Z.L. Diagnostic and therapeutic challenges in the thrombotic thrombocytopenic purpura and hemolytic uremic syndromes. Hematol. Am. Soc. Hematol. Educ. Program 2012, 2012, 604–609. [Google Scholar] [CrossRef] [Green Version]
  7. Stanley, M.; Killeen, R.B.; Michalski, J.M. Thrombotic Thrombocytopenic Purpura. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2023. Available online: (accessed on 2 April 2023).
  8. Moschcowitz, E. Hyaline thrombosis of the terminal arterioles and capillaries: A hitherto undescribed disease. Proc. N. Y. Pathol. Soc. 1924, 24, 21–24. [Google Scholar]
  9. Rubinstein, M.; Kagan, B.; Macgillviray, M.; Merliss, R.; Sacks, H. Unusual remission in a case of thrombotic thrombocytopenic purpura syndrome following fresh blood exchange transfusions. Ann. Intern. Med. 1959, 51, 1409–1419. [Google Scholar] [CrossRef]
  10. Bukowski, R.M.; King, J.W.; Hewlett, J.S. Plasmapheresis in the treatment of thrombotic thrombocytopenic purpura. Blood 1977, 50, 413–417. [Google Scholar] [CrossRef] [Green Version]
  11. Rock, G.A.; Shumak, K.H.; Buskard, N.A.; Blanchette, V.S.; Kelton, J.G.; Nair, R.C.; Spasoff, R.A.; Canadian Apheresis Study Group. Comparison of plasma exchange with plasma infusion in the treatment of thrombotic thrombocytopenic purpura. N. Engl. J. Med. 1991, 325, 393–397. [Google Scholar] [CrossRef]
  12. Moake, J.L.; Rudy, C.K.; Troll, J.H.; Weinstein, M.J.; Colannino, N.M.; Azocar, J.; Seder, R.H.; Hong, S.L.; Deykin, D. Unusually large plasma factor VIII:von Willebrand factor multimers in chronic relapsing thrombotic thrombocytopenic purpura. N. Engl. J. Med. 1982, 307, 1432–1435. [Google Scholar] [CrossRef] [PubMed]
  13. Furlan, M.; Robles, R.; Galbusera, M.; Remuzzi, G.; Kyrle, P.A.; Brenner, B.; Krause, M.; Scharrer, I.; Aumann, V.; Mittler, U.; et al. von Willebrand factor-cleaving protease in thrombotic thrombocytopenic purpura and the hemolytic-uremic syndrome. N. Engl. J. Med. 1998, 339, 1578–1584. [Google Scholar] [CrossRef] [PubMed]
  14. Tsai, H.M.; Lian, E.C. Antibodies to von Willebrand factor-cleaving protease in acute thrombotic thrombocytopenic purpura. N. Engl. J. Med. 1998, 339, 1585–1594. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Soejima, K.; Mimura, N.; Hirashima, M.; Maeda, H.; Hamamoto, T.; Nakagaki, T.; Nozaki, C. A novel human metalloprotease synthesized in the liver and secreted into the blood: Possibly, the von Willebrand factor-cleaving protease? J. Biochem. 2001, 130, 475–480. [Google Scholar] [CrossRef]
  16. Coppo, P.; Bubenheim, M.; Azoulay, E.; Galicier, L.; Malot, S.; Bigé, N.; Poullin, P.; Provôt, F.; Martis, N.; Presne, C.; et al. A regimen with caplacizumab, immunosuppression, and plasma exchange prevents unfavorable outcomes in immune-mediated TTP. Blood 2021, 137, 733–742. [Google Scholar] [CrossRef]
  17. Scully, M.; Cataland, S.R.; Peyvandi, F.; Coppo, P.; Knöbl, P.; Kremer Hovinga, J.A.; Metjian, A.; de la Rubia, J.; Pavenski, K.; Callewaert, F.; et al. Caplacizumab Treatment for Acquired Thrombotic Thrombocytopenic Purpura. N. Engl. J. Med. 2019, 380, 335–346. [Google Scholar] [CrossRef]
  18. Zheng, X.L.; Vesely, S.K.; Cataland, S.R.; Coppo, P.; Geldziler, B.; Iorio, A.; Matsumoto, M.; Mustafa, R.A.; Pai, M.; Rock, G.; et al. ISTH guidelines for treatment of thrombotic thrombocytopenic purpura. J. Thromb. Haemost. 2020, 18, 2496–2502. [Google Scholar] [CrossRef]
  19. Goshua, G.; Bendapudi, P.K. Evidence-Based Minireview: Should caplacizumab be used routinely in unselected patients with immune thrombotic thrombocytopenic purpura? Hematol. Am. Soc. Hematol. Educ. Program 2022, 2022, 491–494. [Google Scholar] [CrossRef]
  20. Bendapudi, P.K.; Hurwitz, S.; Fry, A.; Marques, M.B.; Waldo, S.W.; Li, A.; Sun, L.; Upadhyay, V.; Hamdan, A.; Brunner, A.M.; et al. Derivation and external validation of the PLASMIC score for rapid assessment of adults with thrombotic microangiopathies: A cohort study. Lancet Haematol. 2017, 4, e157–e164. [Google Scholar] [CrossRef]
  21. Picod, A.; Provôt, F.; Coppo, P. Therapeutic plasma exchange in thrombotic thrombocytopenic purpura. Presse Med. 2019, 48, 319–327. [Google Scholar] [CrossRef]
  22. Soucemarianadin, M.; Benhamou, Y.; Delmas, Y.; Pichereau, C.; Maury, E.; Pène, F.; Halimi, J.M.; Presne, C.; Thouret, J.M.; Veyradier, A.; et al. Twice-daily therapeutical plasma exchange-based salvage therapy in severe autoimmune thrombotic thrombocytopenic purpura: The French TMA reference center experience. Eur. J. Haematol. 2016, 97, 183–191. [Google Scholar] [CrossRef]
  23. Subhan, M.; Scully, M. Advances in the management of TTP. Blood Rev. 2022, 55, 100945. [Google Scholar] [CrossRef] [PubMed]
  24. Nguyen, L.; Li, X.; Duvall, D.; Terrell, D.R.; Vesely, S.K.; George, J.N. Twice-daily plasma exchange for patients with refractory thrombotic thrombocytopenic purpura: The experience of the Oklahoma Registry, 1989 through 2006. Transfusion 2008, 48, 349–357. [Google Scholar] [CrossRef] [PubMed]
  25. Scully, M.; Yarranton, H.; Liesner, R.; Cavenagh, J.; Hunt, B.; Benjamin, S.; Bevan, D.; Mackie, I.; Machin, S. Regional UK TTP registry: Correlation with laboratory ADAMTS 13 analysis and clinical features. Br. J. Haematol. 2008, 142, 819–826. [Google Scholar] [CrossRef] [PubMed]
  26. Blombery, P.; Kivivali, L.; Pepperell, D.; McQuilten, Z.; Engelbrecht, S.; Polizzotto, M.N.; Phillips, L.E.; Wood, E.; Cohney, S.; TTP registry steering committee. Diagnosis and management of thrombotic thrombocytopenic purpura (TTP) in Australia: Findings from the first 5 years of the Australian TTP/thrombotic microangiopathy registry. Intern. Med. J. 2016, 46, 71–79. [Google Scholar] [CrossRef] [Green Version]
  27. Wahl, P.M.; Bohn, R.L.; Terrell, D.R.; George, J.N.; Ewenstein, B. Health care utilization of patients diagnosed with idiopathic thrombotic thrombocytopenic purpura in a commercially insured population in the United States. Transfusion 2012, 52, 1614–1621. [Google Scholar] [CrossRef]
  28. Mazepa, M.A.; Raval, J.S.; Brecher, M.E.; Park, Y.A. Treatment of acquired Thrombotic Thrombocytopenic Purpura in the U.S. remains heterogeneous: Current and future points of clinical equipoise. J. Clin. Apher. 2018, 33, 291–296. [Google Scholar] [CrossRef]
  29. Pollissard, L.; Shah, A.; Punekar, R.S.; Petrilla, A.; Pham, H.P. Burden of illness among Medicare and non-Medicare US populations with acquired thrombotic thrombocytopenic purpura. J. Med. Econ. 2021, 24, 706–716. [Google Scholar] [CrossRef]
  30. Bell, W.R.; Braine, H.G.; Ness, P.M.; Kickler, T.S. Improved survival in thrombotic thrombocytopenic purpura-hemolytic uremic syndrome. Clinical experience in 108 patients. N. Engl. J. Med. 1991, 325, 398–403. [Google Scholar] [CrossRef]
  31. Petitt, R.M. Thrombotic thrombocytopenic purpura: A thirty year review. Semin. Thromb. Hemost. 1980, 6, 350–355. [Google Scholar] [CrossRef]
  32. Balduini, C.L.; Gugliotta, L.; Luppi, M.; Laurenti, L.; Klersy, C.; Pieresca, C.; Quintini, G.; Iuliano, F.; Re, R.; Spedini, P.; et al. High versus standard dose methylprednisolone in the acute phase of idiopathic thrombotic thrombocytopenic purpura: A randomized study. Ann. Hematol. 2010, 89, 591–596. [Google Scholar] [CrossRef] [Green Version]
  33. Cataland, S.R.; Kourlas, P.J.; Yang, S.; Geyer, S.; Witkoff, L.; Wu, H.; Masias, C.; George, J.N.; Wu, H.M. Cyclosporine or steroids as an adjunct to plasma exchange in the treatment of immune-mediated thrombotic thrombocytopenic purpura. Blood Adv. 2017, 1, 2075–2082. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Garvey, B. Rituximab in the treatment of autoimmune haematological disorders. Br. J. Haematol. Rev. 2008, 141, 149–169. [Google Scholar] [CrossRef]
  35. Arnold, D.M.; Dentali, F.; Crowther, M.A.; Meyer, R.M.; Cook, R.J.; Sigouin, C.; Fraser, G.A.; Lim, W.; Kelton, J.G. Systematic review: Efficacy and safety of rituximab for adults with idiopathic thrombocytopenic purpura. Ann. Intern. Med. 2007, 146, 25–33. [Google Scholar] [CrossRef] [PubMed]
  36. Caramazza, D.; Quintini, G.; Abbene, I.; Coco, L.L.; Malato, A.; Di Trapani, R.; Saccullo, G.; Pizzo, G.; Palazzolo, R.; Barone, R.; et al. Rituximab for managing relapsing or refractory patients with idiopathic thrombotic thrombocytopenic purpura--haemolytic uraemic syndrome. Blood Transfus. 2010, 8, 203–210. [Google Scholar] [CrossRef] [PubMed]
  37. de la Rubia, J.; Moscardó, F.; Gómez, M.J.; Guardia, R.; Rodríguez, P.; Sebrango, A.; Zamora, C.; Debén, G.; Goterris, R.; López, R.; et al. Efficacy and safety of rituximab in adult patients with idiopathic relapsing or refractory thrombotic thrombocytopenic purpura: Results of a Spanish multicenter study. Transfus. Apher. Sci. 2010, 43, 299–303. [Google Scholar] [CrossRef]
  38. Rüfer, A.; Brodmann, D.; Gregor, M.; Kremer Hovinga, J.A.; Lämmle, B.; Wuillemin, W.A. Rituximab for acute plasma-refractory thrombotic thrombocytopenic purpura. A case report and concise review of the literature. Swiss Med. Wkly. 2007, 137, 518–524. [Google Scholar]
  39. Uhl, L.; Kiss, J.E.; Malynn, E.; Terrell, D.R.; Vesely, S.K.; George, J.N. Rituximab for thrombotic thrombocytopenic purpura: Lessons from the STAR trial. Transfusion 2017, 57, 2532–2538. [Google Scholar] [CrossRef]
  40. Scully, M.; McDonald, V.; Cavenagh, J.; Hunt, B.J.; Longair, I.; Cohen, H.; Machin, S.J. A phase 2 study of the safety and efficacy of rituximab with plasma exchange in acute acquired thrombotic thrombocytopenic purpura. Blood 2011, 118, 1746–1753. [Google Scholar] [CrossRef] [Green Version]
  41. Chaturvedi, S.; Antun, A.G.; Farland, A.M.; Woods, R.; Metjian, A.; Park, Y.A.; de Ridder, G.; Gibson, B.; Kasthuri, R.S.; Liles, D.K.; et al. Race, rituximab, and relapse in TTP. Blood 2022, 140, 1335–1344. [Google Scholar] [CrossRef]
  42. Westwood, J.-P.; Webster, H.; McGuckin, S.; McDonald, V.; Machin, S.J.; Scully, M. Rituximab for thrombotic thrombocytopenic purpura: Benefit of early administration during acute episodes and use of prophylaxis to prevent relapse. J. Thromb. Haemost. 2013, 11, 481–490. [Google Scholar] [CrossRef] [PubMed]
  43. Scully, M.; Hunt, B.J.; Benjamin, S.; Liesner, R.; Rose, P.; Peyvandi, F.; Cheung, B.; Machin, S.J. British Committee for Standards in Haematology. Guidelines on the diagnosis and management of thrombotic thrombocytopenic purpura and other thrombotic microangiopathies. Br. J. Haematol. 2012, 158, 323–335. [Google Scholar] [CrossRef]
  44. Owattanapanich, W.; Wongprasert, C.; Rotchanapanya, W.; Owattanapanich, N.; Ruchutrakool, T. Comparison of the long-term remission of rituximab and conventional treatment for acquired thrombotic thrombocytopenic Purpura: A systematic review and meta-analysis. Clin. Appl. Thromb. Hemost. 2019, 25, 1076029618825309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Westwood, J.P.; Thomas, M.; Alwan, F.; McDonald, V.; Benjamin, S.; Lester, W.A.; Lowe, G.C.; Dutt, T.; Hill, Q.A.; Scully, M. Rituximab prophylaxis to prevent thrombotic thrombocytopenic purpura relapse: Outcome and evaluation of dosing regimens. Blood Adv. 2017, 1, 1159–1166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Goshua, G.; Gokhale, A.; Hendrickson, J.E.; Tormey, C.; Lee, A.I. Cost savings to hospital of rituximab use in severe autoimmune acquired thrombotic thrombocytopenic purpura. Blood Adv. 2020, 4, 539–545. [Google Scholar] [CrossRef] [PubMed]
  47. Duggan, S. Caplacizumab: First Global Approval. Drugs 2018, 78, 1639–1642, Erratum in Drugs 2018, 78, 1955. [Google Scholar] [CrossRef] [Green Version]
  48. Völker, L.A.; Kaufeld, J.; Miesbach, W.; Brähler, S.; Reinhardt, M.; Kühne, L.; Mühlfeld, A.; Schreiber, A.; Gaedeke, J.; Tölle, M.; et al. Real-world data confirm the effectiveness of caplacizumab in acquired thrombotic thrombocytopenic purpura. Blood Adv. 2020, 4, 3085–3092. [Google Scholar] [CrossRef]
  49. Dutt, T.; Shaw, R.J.; Stubbs, M.; Yong, J.; Bailiff, B.; Cranfield, T.; Crowley, M.P.; Desborough, M.; Eyre, T.A.; Gooding, R.; et al. Real-world experience with caplacizumab in the management of acute TTP. Blood 2021, 137, 1731–1740. [Google Scholar] [CrossRef]
  50. Izquierdo, C.P.; Mingot-Castellano, M.E.; Fuentes, A.E.K.; García-Arroba Peinado, J.; Cid, J.; Jimenez, M.M.; Valcarcel, D.; Gómez-Seguí, I.; de la Rubia, J.; Martin, P.; et al. Real-world effectiveness of caplacizumab vs the standard of care in immune thrombotic thrombocytopenic purpura. Blood Adv. 2022, 6, 6219–6227. [Google Scholar] [CrossRef]
  51. Djulbegovic, M.; Tong, J.; Xu, A.; Yang, J.; Chen, Y.; Cuker, A.; Pishko, A. Adding caplacizumab to standard of care in thrombotic thrombocytopenic purpura: A systematic review and meta-analysis. Blood Adv. 2023, 7, 2132–2142. [Google Scholar] [CrossRef]
  52. Knöbl, P.E.K.; Buxhofer-Ausch, V.; Thaler, J.; Gleixner, K.; Sperr, W. Management of thrombotic thrombocytopenic purpura (TTP) without plasma exchange: An update on the Austrian experience. In Proceedings of the ISTH Congress 2022, London, UK, 9–13 July 2022. [Google Scholar]
  53. Colling, M.; Sun, L.; Upadhyay, V.; Ryu, J.; Li, A.; Uhl, L.; Kaufman, R.M.; Stowell, C.P.; Dzik, W.H.; Makar, R.S.; et al. Deaths and complications associated with the management of acute immune thrombotic thrombocytopenic purpura. Transfusion 2020, 60, 841–846. [Google Scholar] [CrossRef] [PubMed]
  54. Page, E.E.; Kremer Hovinga, J.A.; Terrell, D.R.; Vesely, S.K.; George, J.N. Thrombotic thrombocytopenic purpura: Diagnostic criteria, clinical features, and long-term outcomes from 1995 through 2015. Blood Adv. 2017, 1, 590–600. [Google Scholar] [CrossRef] [PubMed]
  55. Goshua, G. Debate: Most/All Patients with Acquired (Immune) Thrombotic Thrombocytopenia Purpura Receive Caplacizumab. Education Spotlight. In Proceedings of the 64th Annual American Society of Hematology Meeting, New Orleans, LA, USA, 10–13 December 2022. [Google Scholar]
  56. Pollissard, L.; Leinwand, B.I.; Fournier, M.; Pham, H.P. Cost analysis of the impact of caplacizumab in the treatment of acquired thrombotic thrombocytopenic purpura from a US hospital perspective. J. Med. Econ. 2021, 24, 1178–1184. [Google Scholar] [CrossRef] [PubMed]
  57. Picod, A.; Veyradier, A.; Coppo, P. Should all patients with immune-mediated thrombotic thrombocytopenic purpura receive caplacizumab? J. Thromb. Haemost. 2021, 19, 58–67. [Google Scholar] [CrossRef] [PubMed]
  58. National Institute for Health and Care Excellence. Final Appraisal Document: Caplacizumab with Plasma Exchange and Immunosuppression for Treating Acute Acquired Thrombotic Thrombocytopenic Purpura. Available online: (accessed on 18 October 2022).
  59. Di Minno, G.; Ravasio, R. Cost-effectiveness analysis of caplacizumab in the new standard of care for immune Thrombotic Thrombocytopenic Purpura in Italy. Grhta 2021, 8, 43–52. Available online: (accessed on 2 April 2023). [CrossRef]
  60. Goshua, G.; Sinha, P.; Hendrickson, J.E.; Tormey, C.; Bendapudi, P.K.; Lee, A.I. Cost effectiveness of caplacizumab in acquired thrombotic thrombocytopenic purpura. Blood 2021, 137, 969–976. [Google Scholar] [CrossRef]
  61. Goshua, G.; Prasad, V.; Lee, A.I.; Bendapudi, P.K. Accurate accounting of caplacizumab cost effectiveness. Lett. Lancet Haematol. 2021, 8, e315. [Google Scholar] [CrossRef]
  62. Butt, A.; Lee, A.I.; Goshua, G. Cost-Effectiveness of Caplacizumab without First-Line Therapeutic Plasma Exchange vs. Standard-of-Care for Patients with Immune Thrombotic Thrombocytopenic Purpura: Setting Future Clinical Trial Thresholds. Blood 2022, 140 (Suppl. S1), 1621–1622. [Google Scholar] [CrossRef]
  63. Heatwole, C.; Johnson, N.; Holloway, R.; Noyes, K. Plasma exchange versus intravenous immunoglobulin for myasthenia gravis crisis: An acute hospital cost comparison study. J. Clin. Neuromuscul. Dis. 2011, 13, 85–94. [Google Scholar] [CrossRef]
  64. Kim, C.H.; Simmons, S.C.; Wattar, S.F.; Azad, A.; Pham, H.P. Potential impact of a delayed ADAMTS13 result in the treatment of thrombotic microangiopathy: An economic analysis. Vox Sang 2020, 115, 433–442. [Google Scholar] [CrossRef]
  65. Centers for Medicare & Medicaid Services. 2022 ASP Drug Pricing Files. Available online: (accessed on 2 April 2023).
  66. Anderson, D.; Ali, K.; Blanchette, V.; Brouwers, M.; Couban, S.; Radmoor, P.; Huebsch, L.; Hume, H.; McLeod, A.; Meyer, R.; et al. Guidelines on the Use of Intravenous Immune Globulin for Hematologic Conditions. Article. Transfus. Med. Rev. 2007, 21 (Suppl. S1), S9–S56. [Google Scholar] [CrossRef] [PubMed]
  67. Prasannan, N.; Thomas, M.; Stubbs, M.; Westwood, J.P.; de Groot, R.; Singh, D.; Scully, M. Delayed normalization of ADAMTS13 activity in acute thrombotic thrombocytopenic purpura in the caplacizumab era. Blood 2023, 141, 2206–2213. [Google Scholar] [CrossRef] [PubMed]
  68. Shemin, D.; Briggs, D.; Greenan, M. Complications of therapeutic plasma exchange: A prospective study of 1727 procedures. J. Clin. Apher. 2007, 22, 270–276. [Google Scholar] [CrossRef] [PubMed]
  69. Yasir, M.; Goyal, A.; Sonthalia, S. Corticosteroid Adverse Effects. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2023. Available online: (accessed on 2 April 2023).
  70. Liu, A.; Dhaliwal, N.; Upreti, H.; Kasmani, J.; Dane, K.; Moliterno, A.; Braunstein, E.; Brodsky, R.; Chaturvedi, S. Reduced sensitivity of PLASMIC and French scores for the diagnosis of thrombotic thrombocytopenic purpura in older individuals. Transfusion 2021, 61, 266–273. [Google Scholar] [CrossRef] [PubMed]
  71. Studt, J.D.; Böhm, M.; Budde, U.; Girma, J.P.; Varadi, K.; Lämmle, B. Measurement of von Willebrand factor-cleaving protease (ADAMTS-13) activity in plasma: A multicenter comparison of different assay methods. J. Thromb. Haemost. 2003, 1, 1882–1887. [Google Scholar] [CrossRef] [PubMed]
  72. Böhm, M.; Vigh, T.; Scharrer, I. Evaluation and clinical application of a new method for measuring activity of von Willebrand factor-cleaving metalloprotease (ADAMTS13). Ann. Hematol. 2002, 81, 430–435. [Google Scholar] [CrossRef]
  73. Gerritsen, H.E.; Turecek, P.L.; Schwarz, H.P.; Lämmle, B.; Furlan, M. Assay of von Willebrand factor (vWF)-cleaving protease based on decreased collagen binding affinity of degraded vWF: A tool for the diagnosis of thrombotic thrombocytopenic purpura (TTP). Thromb. Haemost. 1999, 82, 1386–1389. [Google Scholar] [CrossRef]
  74. Obert, B.; Tout, H.; Veyradier, A.; Fressinaud, E.; Meyer, D.; Girma, J.P. Estimation of the von Willebrand factor-cleaving protease in plasma using monoclonal antibodies to VWF. Thromb. Haemost. 1999, 82, 1382–1385. [Google Scholar] [CrossRef]
  75. Kokame, K.; Nobe, Y.; Kokubo, Y.; Okayama, A.; Miyata, T. FRETS-VWF73, a first fluorogenic substrate for ADAMTS13 assay. Br. J. Haematol. 2005, 129, 93–100. [Google Scholar] [CrossRef]
  76. Kremer Hovinga, J.A.; Mottini, M.; Lämmle, B. Measurement of ADAMTS-13 activity in plasma by the FRETS-VWF73 assay: Comparison with other assay methods. J. Thromb. Haemost. 2006, 4, 1146–1148. [Google Scholar] [CrossRef]
  77. Valsecchi, C.; Mirabet, M.; Mancini, I.; Biganzoli, M.; Schiavone, L.; Faraudo, S.; Mane-Padros, D.; Giles, D.; Serra-Domenech, J.; Blanch, S.; et al. Evaluation of a New, Rapid, Fully Automated Assay for the Measurement of ADAMTS13 Activity. Thromb. Haemost. 2019, 119, 1767–1772. [Google Scholar] [CrossRef] [Green Version]
  78. Stratmann, J.; Ward, J.N.; Miesbach, W. Evaluation of a rapid turn-over, fully-automated ADAMTS13 activity assay: A method comparison study. J. Thromb. Thrombolysis 2020, 50, 628–631. [Google Scholar] [CrossRef] [Green Version]
  79. Beranger, N.; Benghezal, S.; Joly, B.S.; Capdenat, S.; Delton, A.; Stepanian, A.; Coppo, P.; Veyradier, A. Diagnosis and follow-up of thrombotic thrombocytopenic purpura with an automated chemiluminescent ADAMTS13 activity immunoassay. Res. Pract. Thromb. Haemost. 2021, 5, 81–93. [Google Scholar] [CrossRef] [PubMed]
  80. Favaloro, E.J.; Mohammed, S.; Chapman, K.; Swanepoel, P.; Zebeljan, D.; Sefhore, O.; Malan, E.; Clifford, J.; Yuen, A.; Donikian, D.; et al. A multicenter laboratory assessment of a new automated chemiluminescent assay for ADAMTS13 activity. J. Thromb. Haemost. 2021, 19, 417–428. [Google Scholar] [CrossRef]
  81. Pascual, C.; Nieto, J.M.; Fidalgo, T.; Seguí, I.G.; Díaz-Ricart, M.; Docampo, M.F.; Del Rio, J.; Salinas, R. Multicentric evaluation of the new HemosIL Acustar® chemiluminescence ADAMTS13 activity assay. Int. J. Lab. Hematol. 2021, 43, 485–493. [Google Scholar] [CrossRef]
  82. Jousselme, E.; Sobas, F.; Guerre, P.; Simon, M.; Nougier, C. Cost-effectiveness of thrombotic thrombocytopenic purpura diagnosis: A retrospective analysis in the University Hospital Center of Lyon (France). Blood Coagul. Fibrinolysis 2022, 33, 119–123. [Google Scholar] [CrossRef]
  83. Kim, C.H.; Simmons, S.C.; Williams, L.A., III; Staley, E.M.; Zheng, X.L.; Pham, H.P. ADAMTS13 test and/or PLASMIC clinical score in management of acquired thrombotic thrombocytopenic purpura: A cost-effective analysis. Transfusion 2017, 57, 2609–2618. [Google Scholar] [CrossRef] [PubMed]
  84. Kirui, N.; Sokwala, A. A case of refractory thrombotic thrombocytopenic purpura treated with plasmapheresis and rituximab. S. Afr. Med. J. 2016, 106, 689–691. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Chaurasiya, P.S.; Khatri, A.; Gurung, S.; Karki, S.; Shahi, S.; Aryal, L. Rituximab for acute plasma-refractory thrombotic thrombocytopenic purpura: A case report. Ann. Med. Surg. 2022, 82, 104789. [Google Scholar] [CrossRef] [PubMed]

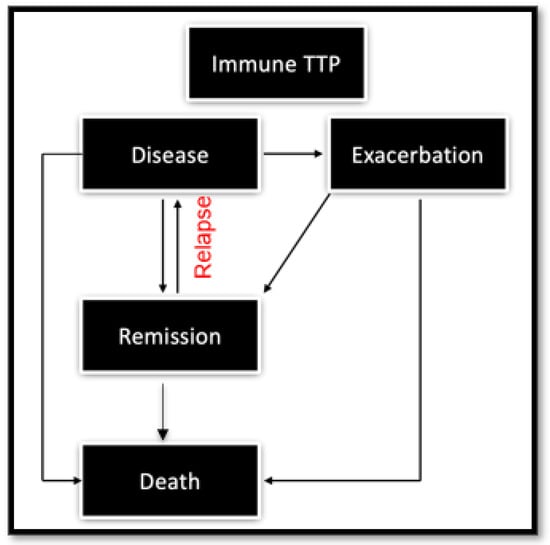

Figure 1. Sample state transition diagram for modeling treatment decisions in immune TTP [62]. Shown are the various health states possible for patients with TTP, which include the disease state (i.e., active TTP necessitating treatment), the remission state (no active TTP), exacerbation state and death. In this sample, relapse is a transitory event. All patients start in the disease state, with possibility of exacerbation, remission, and relapse back to disease. At all disease states, patients accrue background mortality risk, in addition to mortality specific to a given disease state.
Figure 1. Sample state transition diagram for modeling treatment decisions in immune TTP [62]. Shown are the various health states possible for patients with TTP, which include the disease state (i.e., active TTP necessitating treatment), the remission state (no active TTP), exacerbation state and death. In this sample, relapse is a transitory event. All patients start in the disease state, with possibility of exacerbation, remission, and relapse back to disease. At all disease states, patients accrue background mortality risk, in addition to mortality specific to a given disease state.
Jcm 12 04887 g001
Table 1. ISTH major bleeding reported in real-world data (RWD), with and without caplacizumab, for patients with immune TTP [55].
Table 1. ISTH major bleeding reported in real-world data (RWD), with and without caplacizumab, for patients with immune TTP [55].
(Knöbl et al. [52])
(Pascual Izquierdo et al. [50])
(Coppo et al. [16])
(Dutt et al. [49])
(Volker et al. [48])
Sample size2077908560
ISTH Major
Bleed # (%)
1 (5%)Not reported2 (2.2%)5 (5.9%)Not reported
ParameterWithout Caplacizumab
RWD (Harvard Collaborative [53])
Without Caplacizumab
RWD (Dutt et al. [49])
Without Caplacizumab
RWD (Page et al. [54])
Sample size2193968
ISTH Major
Bleed # (%)
001 (1.5%)
(CVC line placement)
Table 2. Comparative summary of selected costs, advantages, disadvantages, and side effects of the therapeutic plasma exchange, steroids, rituximab, and caplacizumab. Legend: CMS = Centers for Medicare and Medicaid Services; mg = milligram.
Table 2. Comparative summary of selected costs, advantages, disadvantages, and side effects of the therapeutic plasma exchange, steroids, rituximab, and caplacizumab. Legend: CMS = Centers for Medicare and Medicaid Services; mg = milligram.
TherapiesTherapeutic Plasma Exchange (TPE)SteroidsRituximabCaplacizumab
per CMS unit
Average cost per 1 TPE session: USD 4900
Cost range:
USD 3000–USD 6600 [56,60,63,64]
USD 0.02/mg of prednisone [65]
USD 5.95/125 mg of methylprednisone [65]
USD 81.75 per 10 mg [65]USD 718.64 per mg [65]
AdvantagesTotal of 30 years of data,
Lifesaving [11]
Globally available,
low cost
Total of 20 years of data;
associated with increased time to relapse [66] in the short-run; can be cost-saving to hospitals in the long-run [46]
Easy administration, associated with decreased exacerbations [3]
DisadvantagesRequires logistical coordination; not available at all hospitalsNeed to minimize unnecessary patient steroid exposure
(i.e., overly prolonged tapers)
Recent observational study reporting differential effect of the social construct of race on relapse-free survival [41]Associated with longer time to ADAMTS13 recovery [67], increased relapses [3], increased major bleeding [19], high cost [19]
Side EffectsFever, urticaria, and hypocalcemic symptoms [68]Immunosuppression leading to increased risk of infections; osteoporosis, myopathy, increase in blood glucose levels, weight gain, hypertension, arrhythmias, skin atrophy, acne, mild hirsutism, stria, impaired wound healing [69]Immunosuppression leading to increased risk of infections;
serum sickness and exacerbation of cardiac symptoms [42]
Bleeding (Table 1) [19]
Table 3. ADAMTS13 cost-effectiveness analyses with noted effectiveness metrics, time-horizon, and thresholds [64,83].
Table 3. ADAMTS13 cost-effectiveness analyses with noted effectiveness metrics, time-horizon, and thresholds [64,83].
Effectiveness Metric
Strategies and/or ComparatorsEffectiveness|CostCost-Effective Strategy|
at Threshold
Deaths averted
3-day time-horizon [64]
Send-out vs.
In-house vs.
PLASMIC → send-out vs.
PLAMSIC → in-house
0.98|USD 15,600
0.91|USD 4900
0.95|USD 9400
0.91|USD 4700
In-house (USD 49,600 per death averted),
at threshold: <USD 50,000 per death averted
Life days
6-day time-horizon [83]
Delay to ADAMTS13 results:
day x vs. day x + 1,
where x = 1 − 4
1 Day Delay:
5.89|USD 27,500
5 Day Delay:
5.85|USD 46,500
Not applicable
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Butt, A.; Allen, C.; Purcell, A.; Ito, S.; Goshua, G. Global Health Resource Utilization and Cost-Effectiveness of Therapeutics and Diagnostics in Immune Thrombotic Thrombocytopenic Purpura (TTP). J. Clin. Med. 2023, 12, 4887.

AMA Style

Butt A, Allen C, Purcell A, Ito S, Goshua G. Global Health Resource Utilization and Cost-Effectiveness of Therapeutics and Diagnostics in Immune Thrombotic Thrombocytopenic Purpura (TTP). Journal of Clinical Medicine. 2023; 12(15):4887.

Chicago/Turabian Style

Butt, Ayesha, Cecily Allen, Adriana Purcell, Satoko Ito, and George Goshua. 2023. "Global Health Resource Utilization and Cost-Effectiveness of Therapeutics and Diagnostics in Immune Thrombotic Thrombocytopenic Purpura (TTP)" Journal of Clinical Medicine 12, no. 15: 4887.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
