Efficacy of Fu’s Subcutaneous Needling in Treating Soft Tissue Pain of Knee Osteoarthritis: A Randomized Clinical Trial

by
Po-En Chiu
1,2,†,
Zhonghua Fu
3,4,†,
Jian Sun
4,5,6,
Guan-Wei Jian
7,8,
Te-Mao Li
9 and
Li-Wei Chou
10,11,12,*
1
Department of Chinese Medicine, Chang Bing Show Chwan Memorial Hospital, Changhua 505029, Taiwan
2
Graduate Institute of Integrated Medicine, College of Chinese Medicine, China Medical University, Taichung 404333, Taiwan
3
Institute of Fu’s Subcutaneous Needling, Beijing University of Chinese Medicine, Beijing 100029, China
4
Clinical Medical College of Acupuncture & Moxibustion and Rehabilitation, Guangzhou University of Chinese Medicine, Guangzhou 510405, China
5
Second Clinical Medical College, Guangzhou University of Chinese Medicine, Guangzhou 510006, China
6
Guangdong Provincial Hospital of Chinese Medicine, The Second Affiliated Hospital of Guangzhou University of Chinese Medicine, Guangzhou 510260, China
7
Graduate Institute of Acupuncture Science, China Medical University, Taichung 404333, Taiwan
8
Department of Chinese Medicine, Sinying Hospital, Ministry of Health and Welfare, Tainan 730020, Taiwan
9
School of Chinese Medicine, College of Chinese Medicine, China Medical University, Taichung 404333, Taiwan
10
Department of Physical Medicine and Rehabilitation, China Medical University Hospital, Taichung 404332, Taiwan
11
Department of Physical Therapy and Graduate Institute of Rehabilitation Science, China Medical University, Taichung 406040, Taiwan
12
Department of Physical Medicine and Rehabilitation, Asia University Hospital, Asia University, Taichung 413505, Taiwan

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
†
These author contributed equally to this work.
J. Clin. Med. 2022, 11(23), 7184; https://doi.org/10.3390/jcm11237184
Submission received: 23 October 2022 / Revised: 23 November 2022 / Accepted: 29 November 2022 / Published: 2 December 2022
(This article belongs to the Special Issue Physiotherapy in Muscle Pain: Current Updates from Theory to Clinical Practice)
Browse Figures
Versions Notes

Abstract

:
Purpose: Fu’s subcutaneous needling (FSN) is a new acupuncture technique that produces a long-lasting effect in soft-tissue injuries. In patients with degenerative knee osteoarthritis (OA), myofascial trigger points (MTrPs) are common in the lower-limb muscles. In this randomized clinical trial, we evaluated the immediate, 1-week and 2-week effectiveness of FSN therapy in the treatment of degenerative knee OA. Patients and methods: We randomly divided 32 patients with knee OA into the FSN group (mean age: 65.73 ± 6.79 years) or the transcutaneous electrical nerve stimulation (TENS) group (mean age: 62.81 ± 5.72 years). The pressure pain threshold (PPT) and tissue hardness (TH) of the muscle and tendon attachment sites, knee range of motion, and physical ability (average walking speed) were measured. The subjective pain intensity index, Western Ontario and McMaster Universities OA Index (WOMAC), and Lequesne index were used to determine the efficacy of FSN on MTrP-induced soft-tissue pain compared with that of TENS. Results: A significantly greater improvement in pain qualities in the VAS (p < 0.05) was found in the FSN group. Moreover, in muscle and tendon qualities (including PPT and TH), a significant difference in the PPT of the quadriceps muscle (p < 0.05) was also observed among the immediate treatments in the FSN group. As for the functional index questionnaire assessment, the FSN group exhibited significant improvements among the immediate, 1-week and 2-week efficacies in terms of WOMAC (p < 0.05) and Lequesne index scores (p < 0.05). Conclusion: FSN was effective in treating soft-tissue pain in degenerative knee OA in terms of alleviating pain, strengthening walking ability, and improving overall functional performance. Pain relief was the primary benefit of FSN and a significant correlation between pain relief and knee joint mobility improvement was found. Trial registration: ClinicalTrials.gov Protocol Registration and Results System (registration number: NCT04356651).

1. Introduction

Osteoarthritis (OA) is the progressive destruction of joint cartilage and a common age-related degenerative joint disease in adults worldwide [1]. One common clinical feature is a loss of cartilage, resulting in pain and partial impairment of joint function, which mainly affects weight-bearing joints such as the wrists, ankles, knees, hips, and vertebrae [2,3]. The incidence of OA has increased considerably in Western industrialized countries, especially in the knee joint [4]. In the United States, the prevalence of degenerative knee OA has increased by approximately twofold since the mid-20th century [5], with more than 13.7 million people estimated to have symptoms of degenerative knee OA, accounting for 6.9% of the total US population over 25 years of age [6]. In Taiwan, according to the Ministry of Health and Welfare, the prevalence of degenerative knee arthritis is approximately 15%, which means that approximately 3.5 million people have the disease and that an average of one in five adults over 58 years of age have degenerative joint problems; more than 70% of adults over 70 years of age have degenerative knee arthritis [7].
No clear pathophysiological explanation for the pathogenesis of degenerative knee OA has been proposed and the symptoms usually progress slowly and often go unnoticed [8]. However, numerous studies have reported considerable discrepancies between patients’ pain levels and their diagnostic imaging findings [9,10]. Reviewed observational studies have suggested a relationship between the pain in muscles related to knee OA and myofascial trigger points (MTrPs) found in the muscles associated with this joint. These may play a key role in the pain of OA [11]. For cases of myofascial pain syndrome in which the source of pain is muscular [12], treating the MTrPs may be an effective method of relieving the pain and dysfunction of degenerative knee arthritis. Needling therapies, such as dry needling in Western medicine and acupuncture in traditional Chinese medicine, are common clinical treatments for MTrP-related disorders [13,14]. Although the efficacy and mechanisms of dry needling for the relief of myofascial pain disorders are not exactly known, numerous studies have demonstrated substantial efficacy. A systematic review and meta-analysis revealed that dry needling reduced pain levels and the incidence of disability in patients with neck pain caused by MTrPs in the short term [15]. Traditional Chinese acupuncture is used to treat myofascial pain by producing a sense of de qi, which is a local muscle twitching response to acupuncture [16]. According to clinical studies, acupuncture treatment improves motor function in the knee, relieves pain, improves physical and psychological function in patients with degenerative knee OA, and reduces the risk of requiring artificial knee replacement [17].
Fu’s subcutaneous needling (FSN) is a new technique based on dry needling and traditional acupuncture that provides stimulation primarily in the subcutaneous area and quickly produces a long-lasting effect in soft-tissue injury and other medical conditions [18,19,20]. The treatment involves the use of a disposable FSN needle in the subcutaneous tissues around or adjacent to the affected muscle (so-called pathological “tightened muscle”, with one or more MTrPs in the muscle) [20]. This is usually combined with the swaying movement technique and reperfusion approach for improving symptoms such as abnormal muscle tension, stiffness, pain, limited range of motion, and fatigue.
Clinically, MTrPs in the lower-limb muscles are common in patients with knee OA, but few studies have investigated the effectiveness of the treatment for lower-limb MTrPs in knee OA patients [21]. This study conducted a trial to observe the immediate, 1-week and 2-week effects of FSN therapy in the treatment of degenerative knee OA by using a scientific evaluation process. This study used a pressure algometer to measure the pressure pain threshold (PPT) and tissue hardness (TH) of the muscle and tendon attachment sites, a joint goniometer to measure the angle of knee movement, and an inertial measurement tool with an inertial sensor system to record the average walking speed of the patient’s trajectory after projection. The subjective pain intensity index, the Western Ontario and McMaster Universities OA Index (WOMAC), and a knee arthritis patient pain index (Lequesne index) were used to compare the subjective and objective assessment tools and determine the efficacy of FSN treatment on soft-tissue pain surrounding degenerative knee OA caused by MTrPs.

2. Materials and Methods

2.1. Study Design

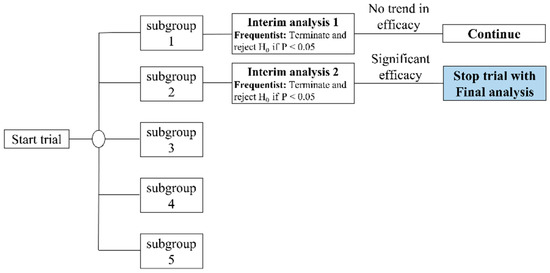

This trial was a randomized, single-blind clinical study, and the trial protocol was approved by the Human Trials Committee and registered with the ClinicalTrials.gov Protocol Registration and Results System (NCT04356651). The protocol for this study was published in detail beforehand [22].

2.2. Participants

This study began on 7 July 2020 and ended on 31 December 2020. Patients with degenerative knee OA were recruited from the outpatient clinics of the Department of Rehabilitation and Department of Acupuncture and Moxibustion at the China Medical University Hospital and were screened for eligibility.
The inclusion criteria were as follows: (1) over 50 years of age; (2) unilateral or bilateral knee OA diagnosed based on X-ray films (Kellgren and Lawrence Scale score of above stage 2); (3) with the clinical symptoms of knee pain, only the side with more knee pain was recruited, and MTrPs could be palpated in the quadriceps and gastrocnemius muscles on the side with the most knee pain; and (4) a visual analog scale (VAS) score of >5 for the most painful knee. The exclusion criteria were as follows: (1) general contraindications such as severe internal medical problems, severe recent injury or trauma, or pregnancy; (2) history of drug abuse (including excessive alcohol consumption) that would influence the pain evaluation or current use of anticoagulants (e.g., phenprocoumon and heparin) and coagulopathy in the 12 months prior; (3) infection, ulcers, or injury on the surface of the skin; (4) history of knee operation or replacement; (5) central nervous system diseases or peripheral neuropathy; (6) cognitive dysfunction and inability to participate in the entire trial; and (7) history of other treatments for knee OA, including disease-modifying osteoarthritis drugs, in the 3 months prior.
This was a randomized, single-blind clinical trial, and participants were randomly allocated to either the study group or control group. The study group participants received FSN treatment, whereas the control group participants received transcutaneous electrical nerve stimulation (TENS) treatment. The whole course lasted for 2 weeks. A total of 3 treatment sessions in this experiment were performed in the first week with assessment before each treatment session and immediately after treatment as well as in the following 1st and 2nd weeks of follow-up. All the treatments were conducted by the same acupuncturist who worked in the medical center for more than five years. The participants provided informed consent before the trial. Each participant’s basic information, such as gender, age, occupation, address, telephone number, and medical history, was noted prior to the trial to ensure their privacy. Sociodemographic data, such as age, gender, side of pain, height, and weight, were collected for each participant prior to treatment.

2.3. Outcome Measurements

A single-blind experiment was conducted. Because the participants and the individual administering the treatment could not be blinded, the treatment was not administered by the assessor so the assessor would be unaware of the grouping of the participants. The assessor was also instructed to not communicate with the participants about their treatment.
The outcome measurements were collected by the assessor, including the pain qualities, the muscle and tendon qualities, and the functional index questionnaire assessment. For the pain qualities, the VAS, PPT of the quadriceps muscle, walking speed, and ROM of the knee were assessed. The participants described the intensity of pain around their knees before and after each treatment, which was expressed using the VAS as the subjective pain intensity. A semi-objective assessment tool, the Tissue Hardness Meter/Algometer Combo (OE-220, ITO Co., Ltd., Tokyo, Japan), was used to measure the PPT at the quadriceps. During the experiment, the method recommended by Fischer [23,24,25] was used to measure the PPT before and after each treatment session, and 1 and 2 weeks thereafter. The inertial measurement tool used for measuring the walking speed was a Microgate product (GYKO accelerometer, Microgate, Bolzano, Italy) with a high-speed three-dimensional accelerometer and gyroscope [26,27]. Before and after each treatment, the participants wore the device on the upper body below the scapulae by using a special bib to acquire information regarding the participants’ trunk movement on the ground. The average walking speed was measured before and after each treatment session, and 1 and 2 weeks thereafter. Active range of motion (AROM) and passive range of motion (PROM) [28,29,30] were measured using a joint goniometer before and after each treatment, and 1 and 2 weeks thereafter.
The PPT and TH were assessed as the muscle and tendon qualities. A semi-objective assessment tool was used to measure the PPT at three locations, namely, the quadriceps muscle, pes anserinus tendon, and gastrocnemius muscle. During the experiment, the PPT was measured before and after each treatment session, and 1 and 2 weeks thereafter. TH [31,32,33] was measured at the same locations and timescales as the PPT using a semi-objective assessment tool with the same machine that was used for the Tissue Hardness Meter/Algometer Combo (OE-220, ITO Co., Ltd.).
The WOMAC and Lequesne indices were assessed as the functional index questionnaires. Knee structure and function were assessed using the WOMAC in terms of pain, stiffness, and joint function in the lower limbs [34]. The participants completed the test before the first treatment, and 1 and 2 weeks after the treatment; the scores for each subscale were summed up with a possible score range of 0–20 for Pain, 0–8 for Stiffness, and 0–68 for Physical Function. Usually, a sum of the scores for all three subscales gives a total WOMAC score; higher scores on the WOMAC indicate worse pain, stiffness, and functional limitations. The Lequesne index consists of three parts: pain and discomfort; walking distance; and daily joint mobility [35]. The scoring is from 0 (no pain or disability) to 24 (maximal pain and disability). The participants completed these two questionnaires before the first treatment and 1 and 2 weeks after the treatment.

2.4. Procedure and Intervention

2.4.1. Selection of Needle Site for Experimental Group (FSN Group)

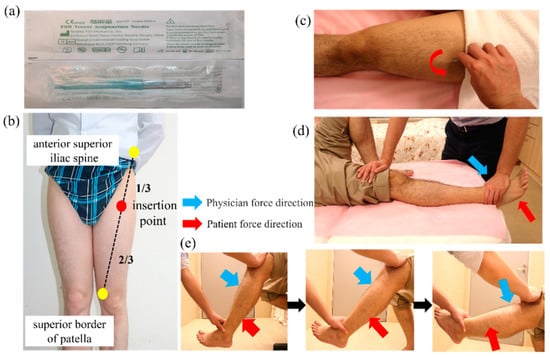

Disposable FSN needles (Figure 1a) produced by Nanjing Paifu Medical Science and Technology Co. (Nanjing, China) were used. The participants lay on their backs with the examined knee straight and the pelvis in a neutral position. The needle was inserted at the 1/3 spot from the connecting line between the anterior superior iliac spine to the proximal of the superior border of the patella (Figure 1b). The needle was completely inserted toward the patella until it was fully submerged into the subcutaneous tissue. To ensure that the needle did not enter the dermis or muscle layer during needling, the participants were asked to indicate if they felt pain. Then, the needle core was retracted into the hose and swung from side to side, the so-called “swaying movement” (Figure 1c). The needle was advanced approximately 60° to the left and right (so-called swaying movement), and a total of 45 round trips were carried out in 30 s. Participants were also asked to indicate pain during this process. The patients were asked to perform a 1-min cycle of dorsiflexion of the feet, with 10 s of rest after 10 s of movement. Then, the participants were asked to sit and perform a similar 1-min cycle of flexing and extending their knees and resting for 10 s after 10 s of continuous movement. The above actions are called the “reperfusion approach” (Figure 1d,e). Finally, the needle was removed and a dry cotton ball with adhesive tape was applied to the hole made by the needle to prevent bleeding.

2.4.2. Selection of Electrical Stimulation Points for Control Group (TENS Group)

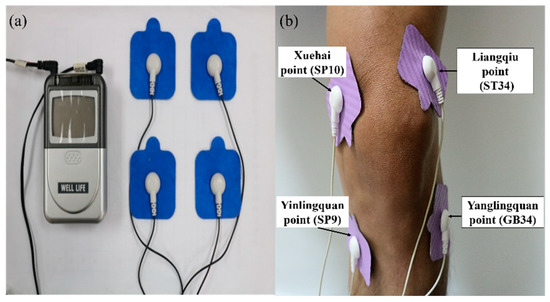

The device for TENS [36] is manufactured by Well-Life Healthcare (Model Number 2205A, New Taipei City, Taiwan) (Figure 2a). A patch on the skin is applied for electrical nerve stimulation of various frequencies and intensities of the affected area to relieve pain. Electrode placements are applied to the Liangqiu (ST34) and Yanglingquan (GB34) points on the lateral side of the knee cap and the Xuehai (SP10) and Yinlingquan (SP9) points on the medial side. The current is then passed through each patch and across the knee joint (Figure 2b). On the basis of other studies [37,38,39], we selected a treatment consisting of a continuous wave (ADJ waveform) with a pulse frequency of 110 Hz. The treatment lasts 20 min, after which the machine is turned off and the electrode patches are removed.

2.5. Statistical Analysis

Statistical analysis was performed using SPSS (version 22.0, IBM SPSS Statistics, IBM Corp. Released 2013. IBM SPSS Statistics for Windows, Version 22.0. Armonk, NY, USA: IBM Corp). The continuous variables were the VAS, PPT, average walking speed, range of motion, TH, WOMAC, and Lequesne index scores. All the data are presented as the means ± standard deviations and were analyzed through a t-test. Statistical significance was set at p < 0.05.
The immediate effects were the changes in the variables immediately after each treatment. The 1-week effect was identified by comparing the variables before the first treatment with those 1 week after treatment. The 2-week effect was identified by comparing the variables before the first treatment with those 2 weeks after treatment. A paired t-test was used for intragroup comparison, and an independent t-test was used for intergroup comparison.

3. Results

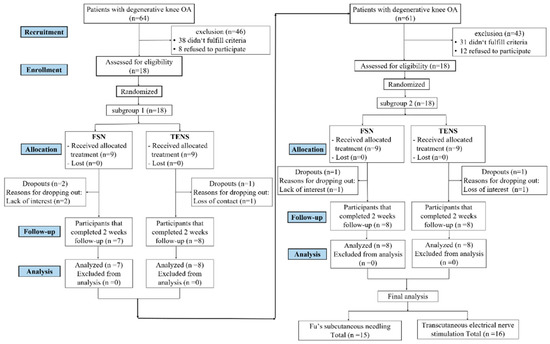

From July 2020 to December 2020, we screened 125 patients with knee OA and 36 of them who met the inclusion criteria were included and randomly assigned. The original estimate was 90 subjects in our study protocol [22]. We called for early trial termination in order to conduct the interim analysis [40]. We divided our participants into five subgroups, with 18 subjects in each subgroup, and then divided all the participants into random groups. Each intake of 18 participants was preceded by an interim analysis (Figure 3). There was no statistically significant difference in the first subgroup. Three participants were lost at the end of the first follow-up period (two in the FSN group and one in the TENS group). Regarding the second subgroup, although two participants were lost (one in the FSN group and one in the TENS group), a statistically significant difference was found. As a result, we terminated the participant recruitment project early. In total, 31 participants (10 male and 21 female) completed the study, with 15 in the FSN group (4 male and 11 female) and 16 in the TENS group (6 male, 10 female) (Figure 4).

3.1. Study and Patient Characteristics

Table 1 presents the participants’ baseline characteristics. The mean age in the FSN group was 65.73 ± 6.79 years old and that in the TENS group was 62.81 ± 5.72 years old. No significant differences in baseline demographic or clinical characteristics between these two groups were observed (p > 0.05).

3.2. Pain Qualities

Table 2 shows the VAS, PPT of the quadriceps muscle, walking speed, and ROM of the knee before and after each pre-treatment (pre-tx), and 1 and 2 weeks post-treatment (post-tx), in the FSN and TENS groups, where a p-value of less than 0.05 is statistically significant.
The analysis of the overall efficacy of the FSN and TENS treatments over time revealed a significant difference in VAS scores among the immediate (FSN: Day 1 pre-tx, 5.80 ± 1.42, post-tx, 4.40 ± 1.58; TENS: Day 1 pre-tx, 5.81 ± 0.91, post-tx, 4.75 ± 1.15; FSN: Day 2 pre-tx, 5.33 ± 1.30; post-tx, 4.00 ± 1.59; TENS: Day 2 pre-tx, 5.63 ± 1.17, post-tx, 5.00 ± 1.17; FSN: Day 4 pre-tx, 4.73 ± 1.73; post-tx, 3.27 ± 1.53; TENS: Day 4 pre-tx, 5.69 ± 1.10, post-tx, 4.63 ± 1.17), 1-week (FSN: post-tx, 2.73 ± 1.44; TENS: post-tx, 4.81 ± 1.07), and 2-week effects (FSN: post-tx, 2.67 ± 1.35; TENS: post-tx, 4.69 ± 1.04) at any given time (Figure 5a).
As for the PPT of the quadriceps muscle, no significant difference was observed among the groups, except for the first treatment of the FSN group (FSN: Day 1 pre-tx, 74.73 ± 28.63; post-tx, 93.20 ± 42.84) (Figure 5b).
As for the walking speed, a significant difference was observed between the first treatment (pre-tx, 32.80 ± 6.60 cm/s; post-tx, 35.25 ± 7.18 cm/s) and 1-week (post-tx, 38.02 ± 9.41 cm/s) and 2-week outcomes (post-tx, 38.61 ± 8.94 cm/s) in the FSN group, but not in the TENS group (Figure 5c).
A significant difference in AROM and PROM was observed among the first treatment (FSN, AROM: pre-tx, 103.87 ± 11.17; post-tx, 109.53 ± 12.86; PROM: pre-tx, 125.80 ± 15.33; post-tx, 130.60 ± 14.55), second treatment (FSN, AROM: pre-tx, 104.67 ± 12.85; post-tx, 112.07 ± 11.34; PROM: pre-tx, 127.87 ± 13.05; post-tx, 132.07 ± 12.94), and 1-week outcome (FSN, AROM: post-tx, 109.80 ± 9.55; PROM: PROM: post-tx, 133.07 ± 12.42). Compared with the TENS group, a significant difference was observed among the first treatment (TENS, AROM: pre-tx, 112.63 ± 16.31; post-tx, 117.44 ± 13.73), 1-week outcome (TENS, PROM: post-tx, 141.56 ± 11.32), and 2-week outcome (TENS, PROM: post-tx, 141.25 ± 11.50) (Figure 5d).

3.3. Muscle and Tendon Qualities

Table 3 shows the PPT and TH of the quadriceps muscle, pes anserinus, and gastrocnemius muscle before and after each treatment, and 1 and 2 weeks post-treatment, in the FSN and TENS groups, where a p-value of less than 0.05 is statistically significant.
Table
Table 2. Pain qualities (including VAS, PPT of quadriceps muscle, walking speed, and ROM of knee) compared between the FSN and TENS groups.
Table 2. Pain qualities (including VAS, PPT of quadriceps muscle, walking speed, and ROM of knee) compared between the FSN and TENS groups.
Day 1Day 2Day 4Day 8Day 15
Pre-txPost-txPPre-txPost-txPPre-txPost-txP1-Week F/UP2-Week F/UP
VAS
FSN group5.80 ± 1.424.40 ± 1.58<0.05 *5.33 ± 1.304.00 ± 1.59<0.05 *4.73 ± 1.733.27 ± 1.53<0.05 *2.73 ± 1.44<0.05 *2.67 ± 1.35<0.05 *
TENS group5.81 ± 0.914.75 ± 1.15<0.05 *5.63 ± 1.175.00 ± 1.17<0.05 *5.69 ± 1.104.63 ± 1.17<0.05 *4.81 ± 1.07<0.05 *4.69 ± 1.04<0.05 *
PPT of quadriceps muscle (N/cm2)
FSN group74.73 ± 28.6393.20 ± 42.84<0.05 *80.80 ± 31.4091.80 ± 33.420.0675.73 ± 22.5189.13 ± 37.550.1389.13 ± 31.370.0785.60 ± 33.370.31
TENS group86.56 ± 24.3589.88 ± 22.760.5790.06 ± 26.2691.81 ± 27.350.6692.13 ± 21.6685.31 ± 24.610.0893.88 ± 28.770.1893.44 ± 29.950.24
Walking speed (cm/s)
FSN group32.80 ± 6.6035.25 ± 7.18<0.05 *36.00 ± 8.7635.87 ± 8.870.9637.34 ± 13.2539.34 ± 10.940.3638.02 ± 9.41<0.05 *38.61 ± 8.94<0.05 *
TENS group35.96 ± 3.2037.16 ± 3.900.1537.66 ± 3.8836.84 ± 4.230.5037.57 ± 6.5138.74 ± 5.570.4436.98 ± 4.980.4737.74 ± 7.170.38
AROM of knee (degrees)
FSN group103.87 ± 11.17109.53 ± 12.86<0.05 *104.67 ± 12.85112.07 ± 11.34<0.05 *108.87 ± 11.45111.60 ± 10.300.27109.80 ± 9.55<0.05 *109.73 ± 10.020.09
TENS group112.63 ± 16.31117.44 ± 13.73<0.05 *118.81 ± 10.64121.75 ± 9.590.29116.63 ± 10.33118.25 ± 9.910.76115.94 ± 11.850.57116.13 ± 13.660.55
PROM of knee (degrees)
FSN group125.80 ± 15.33130.60 ± 14.55<0.05 *127.87 ± 13.05132.07 ± 12.94<0.05 *131.40 ± 11.80134.20 ± 12.900.23133.07 ± 12.42<0.05 *131.07 ± 12.900.25
TENS group135.69 ± 16.80138.94 ± 13.600.12142.50 ± 9.26143.94 ± 10.830.27140.19 ± 11.32142.69 ± 11.220.06141.56 ± 11.32<0.05 *141.25 ± 11.50<0.05 *
Data are expressed as the mean ± SD; * indicates a significant difference, analyzed by a paired t-test. Abbreviations: FNS, Fu’s subcutaneous needling; TENS, transcutaneous electrical nerve stimulation; VAS, visual analog scale; PPT, pain pressure threshold; AROM, active range of motion; PROM, passive range of motion.
Jcm 11 07184 g005 550

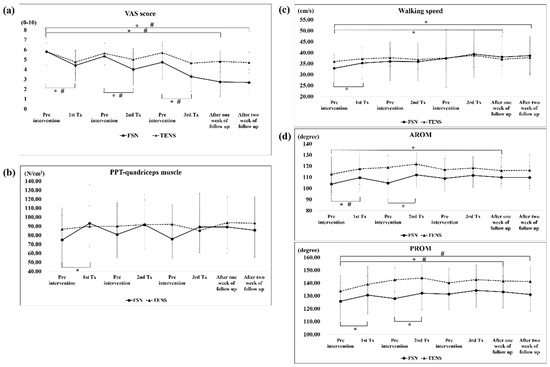

Figure 5. Comparison of the VAS, PPT of the quadriceps muscle, walking speed, and ROM between the two groups after each treatment. The pre- and post-treatment values of the VAS (a), PPT-quadriceps muscle (b), walking speed (c), and ROM (d) were measured in 3 treatment sessions in both groups and followed up after one week and two weeks in both groups. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. VAS: visual analog scale; PPT: pressure pain threshold; AROM: active range of motion; PROM: passive range of motion; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Figure 5. Comparison of the VAS, PPT of the quadriceps muscle, walking speed, and ROM between the two groups after each treatment. The pre- and post-treatment values of the VAS (a), PPT-quadriceps muscle (b), walking speed (c), and ROM (d) were measured in 3 treatment sessions in both groups and followed up after one week and two weeks in both groups. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. VAS: visual analog scale; PPT: pressure pain threshold; AROM: active range of motion; PROM: passive range of motion; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Jcm 11 07184 g005
Table
Table 3. Muscle and tendon qualities (including PPT and TH) compared between the FSN and TENS groups.
Table 3. Muscle and tendon qualities (including PPT and TH) compared between the FSN and TENS groups.
Day 1Day 2Day 4Day 8Day 15
Pre-txPost-txPPre-txPost-txPPre-txPost-txP1-Week F/UP2-Week F/UP
PPT of quadriceps muscle (N/cm2)
FSN group74.73 ± 28.6393.20 ± 42.84<0.05 *80.80 ± 31.4091.80 ± 33.420.0675.73 ± 22.5189.13 ± 37.550.1389.13 ± 31.370.0785.60 ± 33.370.31
TENS group86.56 ± 24.3589.88 ± 22.760.5790.06 ± 26.2691.81 ± 27.350.6692.13 ± 21.6685.31 ± 24.610.0893.88 ± 28.770.1893.44 ± 29.950.24
PPT of pes anserinus (N/cm2)
FSN group66.53 ± 34.0661.47 ± 26.260.7560.87 ± 28.6965.93 ± 23.370.1663.80 ± 25.1966.07 ± 25.650.3361.60 ± 22.810.7365.40 ± 22.550.22
TENS group63.38 ± 17.7664.25 ± 17.790.7872.06 ± 25.3372.44 ± 24.350.8768.00 ± 21.4867.25 ± 19.510.7871.00 ± 24.010.3676.44 ± 24.08<0.05 *
PPT of gastrocnemius muscle (N/cm2)
FSN group88.47 ± 34.0588.87 ± 37.900.8784.13 ± 32.7994.67 ± 34.560.1693.73 ± 29.3489.07 ± 29.120.3791.53 ± 24.250.4987.93 ± 20.030.69
TENS group82.13 ± 24.9791.06 ± 26.58<0.05 *92.75 ± 27.6689.19 ± 24.620.2893.50 ± 28.6488.13 ± 29.510.1392.38 ± 37.910.2487.38 ± 30.410.78
TH of quadriceps muscle (N)
FSN group47.79 ± 10.0445.89 ± 7.110.2645.55 ± 6.6445.98 ± 7.290.9146.01 ± 5.8642.87 ± 6.040.3142.99 ± 6.290.0746.73 ± 10.940.61
TENS group45.39 ± 9.5151.31 ± 8.47<0.05 *47.36 ± 10.3349.67 ± 7.730.2951.05 ± 9.9252.66 ± 8.220.7646.79 ± 7.930.5747.61 ± 6.640.55
TH of pes anserinus (N)
FSN group41.44 ± 9.9444.92 ± 10.900.3941.23 ± 9.1239.75 ± 8.190.6939.61 ± 11.1441.17 ± 9.640.3140.23 ± 13.780.3242.49 ± 11.950.78
TENS group37.80 ± 4.4034.81 ± 9.980.3337.16 ± 7.3238.59 ± 9.150.4536.76 ± 13.4038.47 ± 11.720.6534.41 ± 12.890.2431.57 ± 13.220.09
TH of gastrocnemius muscle (N)
FSN group36.79 ± 6.3039.75 ± 8.700.5039.15 ± 8.4639.67 ± 7.980.8038.13 ± 10.1841.15 ± 10.020.2937.13 ± 6.500.8236.04 ± 8.160.69
TENS group35.15 ± 6.9737.87 ± 9.470.2635.29 ± 7.7135.71 ± 6.330.5738.08 ± 6.9934.84 ± 6.720.0739.13 ± 8.040.0738.05 ± 5.770.16
Data are expressed as the mean ± SD; * indicates a significant difference, analyzed by a paired t-test. Abbreviations: FNS, Fu’s subcutaneous needling; TENS, transcutaneous electrical nerve stimulation; PPT, pain pressure threshold; TH, tissue hardness of muscle.

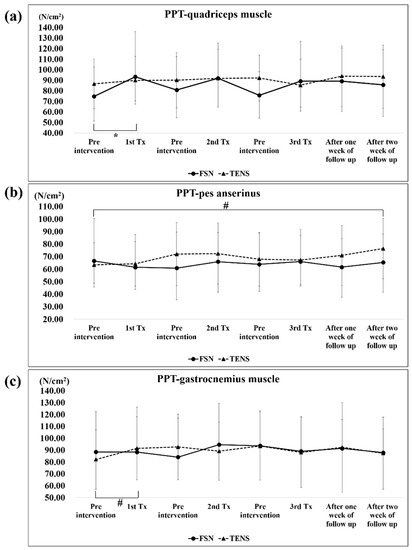

A significant difference in the PPT of the quadriceps muscle was only observed in the first FSN treatment (pre-tx, 74.73 ± 28.63; post-tx, 93.20 ± 42.84); no statistically significant differences were noted in the TENS groups. As for the pes anserinus, a significant difference was only observed in the 2-week outcomes (post-tx, 76.44 ± 24.08) in the TENS group but not in the FSN group. As regards the gastrocnemius muscle, a significant difference was only observed in the first TENS treatment (pre-tx, 82.13 ± 24.97; post-tx, 91.06 ± 26.58); no statistically significant differences were noted in the FSN group (Figure 6a–c).

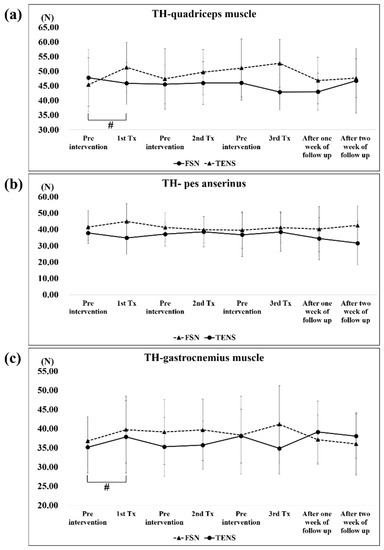

A significant difference in the TH of the quadriceps muscle was only observed in the first TENS treatment (pre-tx, 45.39 ± 9.51; post-tx, 51.31 ± 8.47). There were no significant changes in the TH of the pes anserinus and gastrocnemius muscles in both groups. In the FSN group, a slight decrease in tissue hardness was observed in the quadriceps muscle after each treatment, which then increased again before the next treatment, showing a sawtooth-like improvement, while the rest of the group showed no such improvement. In the TENS group, for the quadriceps muscle, there was a significant increase after each TENS treatment due to electrical stimulation (Figure 7a–c).

3.4. Functional Index Questionnaire Assessment

Table 4 shows the WOMAC and Lequesne indices before and after the treatment, and 1 and 2 weeks post-treatment in the FSN and TENS groups, where a p-value of less than 0.05 is statistically significant.
The analysis of the WOMAC scores of the overall efficacy of the FSN and TENS treatments over time revealed a significant difference between the two groups of the 1-week follow-up (FSN: post-tx, 21.87 ± 10.50; TENS: post-tx, 18.31 ± 15.02) and 2-week follow-up (FSN: post-tx, 22.00 ± 11.06; TENS: post-tx, 19.13 ± 16.64) at any given time. As for the Lequesne index score, a significant difference was observed only between the 1-week (post-tx, 8.20 ± 3.12) and 2-week outcomes (post-tx, 7.27 ± 2.95) in the FSN group; however, in the TENS group, a significant difference was only revealed in the 1-week outcome (post-tx, 7.50 ± 2.57) (Figure 8). Significant differences in the 1- and 2-week WOMAC effects were also observed between the two groups (Figure 8a). In addition, significant differences were observed in efficacy in the Lequesne index group between weeks 1 and 2 and in efficacy in the control group between weeks 1 and 2 (Figure 8b).

4. Discussion

To our knowledge, our study is the first randomized clinical trial comparing the effectiveness of FSN and TENS alone in patients with painful knee OA. We discuss this through three perspectives: pain qualities, muscle and tendon qualities, and functional index questionnaire assessment. The results of our study indicated that FSN reduced the pain significantly and the quadriceps muscle showed an immediate improvement in the PPT after each FSN treatment. As for the functional index questionnaire assessment, our research indicated that the treatment effects of FSN persisted for longer than those of TENS. These results indicate that FSN is an effective treatment for knee OA.
In recent years, many studies have shown that muscle dysfunction is the key issue for the development and progression of knee OA and MTrPs are a common cause of musculoskeletal pain conditions [41]. As a result, attention has begun to be focused on the soft tissues surrounding the knee joint. TENS was shown by many studies to be a safe and effective treatment for knee OA and it is also known as an effective pain management modality for OA-related knee pain. Vance et al. [36] noted that the effects of TENS on pain reduction are related to its effects on hyperalgesia through both peripheral and central mechanisms. This mechanism provides immediate pain relief caused by MTrPs [42]. FSN is considered one type of dry needling. In recent years, FSN therapy has been widely used in the treatment of pain-related musculoskeletal disorders [43]. Although the potential mechanism of FSN treatment remains unclear, it is generally accepted that MTrPs are a common cause of musculoskeletal pain; therefore, they have become the theoretical basis for much of the treatment [44]. FSN adopted this theory, where MTrPs were originally identified as a treatment target.

4.1. Pain Qualities (Including VAS, PPT, Walking Speed, and ROM of Knee)

Our clinical trial study demonstrated that subjective pain perception was reduced in both the FSN and TENS groups. We also observed that the pain level in the FSN group improved in most cases; however, the pain level gradually increased after the previous treatment. Similarly, the pain level before the second treatment was less than before the first treatment, and the pain level before the third treatment was between that before and after the second treatment, indicating a jagged decrease (Figure 5a), which is similar to most of the general patterns of pain treatment. In terms of reducing subjective pain perception, the FSN treatment was more effective; the gap in the line graph (Figure 5a) becomes more obvious over time. In objective experimental data, the PPT is used to measure the tolerance of intramuscular MTrPs to external pressure stimulation, also known as pain tolerance. A low PPT indicates a low tolerance. The line graph (Figure 5b) indicated that the PPT of the MTrPs in the quadriceps muscle increased after each treatment in the FSN group. Because the quadriceps muscle segment was treated with FSN in the experimental group, the local muscle tissue of the quadriceps muscle may have improved more after the treatment and the pain threshold of the MTrPs measured in the quadriceps muscle belly increased accordingly. The jagged decrease in the VAS corresponded to the increase in the jaggedness of the PPT. When the quadriceps muscle was treated with FSN, the muscle tissue improved to a greater extent, and the PPT at the MTrPs measured in the quadriceps muscle belly improved. As a result, the patient’s subjective VAS was reduced.
The line graph for average walking speed (Figure 5c) indicated that patients’ average walking speed increased after each FSN treatment. The first- and second-week post-treatment in the FSN group showed significant improvements because FSN reduced stiffness in the muscle tissue and relieved pain. The difference between the FSN group and the TENS group in the 1-week and 2-week effects in the line graphs (Figure 5c) progressively increases, demonstrating a greater improvement in the effectiveness of the FSN treatment. We already know that a slower walking speed is associated with incident knee OA and that decreasing walking speed has been suggested as one of the mechanisms to reduce pain in the knee [45]. However, according to previous studies, walking speed can be increased through specific exercise therapy programs or physiotherapy to improve the muscles around the knee joint [46,47]; our result is in agreement with the results of previous studies.
Furthermore, we measured the AROM and PROM of the treated knees separately. ROM increased after each FSN treatment and decreased before the subsequent treatment. Up to the 2-week follow-up, significant improvement was still observed after the FSN treatment. Because pain in the knee joint affects the knee movement angle, knee movement is correlated with patients’ pain level, as well as restricted knee function. Because TENS is only a localized pain relief therapy, the reperfusion approach with FSN treatment had a similar effect to the passive joint movement and muscle energy technique in physiotherapy, that is, increasing the extensibility of the tissues surrounding the knee joint, restoring the relationship between the length and tension of the muscles controlling joint movement, stretching tense muscles and fascia, reducing muscle tonus, improving local blood circulation, strengthening weak muscles, and increasing the angle of joint movement [48,49].
Inactivating MTrPs around the knee joint could reduce tension within the muscles and improve mechanical balance, thus relieving joint pain, and control of knee pain. Rahbar et al. [50] divided knee OA patients into two groups, with the control group undergoing 16 types of conventional physiotherapy and the intervention group targeting areas around the knee where MTrPs were present. The results showed that the intervention group recovered from knee OA pain to a greater extent than the control group. In our study, FSN was used to stimulate the MTrPs by performing a swaying movement under the skin to loosen the connective tissue, which similarly restored the tissue structure and improved the mechanical balance of the knee by changing the fascial tension [51].

4.2. Muscle and Tendon Qualities

As discussed previously, the PPT in the quadriceps muscle but not the gastrocnemius muscle and pes anserinus, increased after each treatment in the FSN group. The pes anserinus (“goose foot”) refers to the conjoined tendons of three muscles of the thigh; it is attached to the tibia. Because the target of FSN treatment is mainly the MTrPs in the muscles, no direct treatment exists for tendons. Thus, no direct statistical difference in the PPT of the pes anserinus tendon in each treatment of FSN was observed. The gastrocnemius muscle is at a more distal distance from the treatment area; therefore, it presents a tendency to be less variable, which is consistent with the original experimental design of the FSN treatment targeting the affected muscle MTrP.

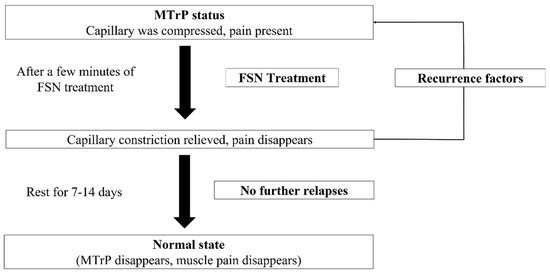

We learned that the MTrP in the taut band is caused by a shortening of the sarcomere, which should cause muscle tightness and presumably an increase in TH. In previous studies, TrP injection was found to cause changes in TH, therefore it might be meaningful to assume that TH could be used to observe changes in MTrPs after treatment with FSN or TENS [52]. However, in our study, we found that the TH of the quadriceps muscle decreased after each treatment and increased before subsequent treatments but non-significantly. The other two muscles were stretched to 2 weeks before and after treatment with no significant difference in efficacy, where it was expected that the tightened muscle would become soft after FSN and hard after electrical stimulation. Because the pes anserinus belongs to the sartorius muscle, gracilis muscle, and semitendinosus muscle at the point of the tibial attachment of the knee, and because the experimental group’s FSN was administered to increase the TH of the muscle belly, no increase in the TH of the pes anserinus was observed. Because the gastrocnemius muscle was far from the location of the treatment, the difference in TH was small. Another possible reason for the lack of a significant increase in TH with FSN or TENS is that values measured using a myotonic gauge may include both the subcutaneous fat layer and the TH. According to a study on temporomandibular disorders and masticatory myofascial pain, this makes experiments prone to errors and increases the difficulty in obtaining actual values through measurement; this affected the results of this study [53].

4.3. Functional Index Questionnaire Assessment

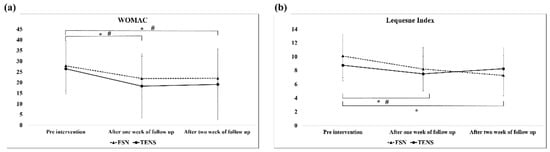

In our study, the WOMAC scores (Figure 8a) decreased in the first week and increased slightly in the second week because the patients were treated three times in the first week, which immediately relieved the pain and stiffness in their knees. We also found that the efficacy of the FSN treatment persisted for longer than that of the TENS treatment but the variance in the data during the first week was higher in the control group than in the FSN group. Because each item on the WOMAC questionnaire begins with the question, “How difficult is it for you to experience pain, discomfort, or arthritis?”, some studies have suggested that this questionnaire does not clearly distinguish between pain and functional structures [54]. The Lequesne questionnaire results indicated a significant difference in the FSN group in the first and second weeks and a significant difference in the TENS group in the first week but not in the second week, indicating that both FSN and TENS relieved pain in patients with knee OA immediately and that the relief lasted in the FSN group but not in the TENS group. The Lequesne index is a 10-question survey of patients with knee OA: five questions related to pain and discomfort, one question related to maximum walking distance, and four questions related to activities of daily living. This indicates that FSN can both reduce pain and increase distance and joint mobility for a long period. The line graph indicated that, although both groups exhibited improvement, the efficacy in the FSN group increased over time despite the fact that no additional treatment was administered in the second week. This might be because the local muscle tissue was in the process of returning to its normal state.
In our research results, we selected the quadriceps muscle belly for the FSN treatment. Although the local pressure point of the knee (tibial attachment of the pes anserinus tendon) did not improve, the overall knee symptoms and function (VAS, mean walking speed, ROM, WOMAC, Lequesne index) improved. This means that the pain site is not the actual site of the lesion. The actual site is the source of the symptoms in the other parts of the body and muscle belly, which suggests that the subjective pain in patients with knee OA is in the muscle. Studies have often suggested that the symptoms of knee OA are rather weakly associated with radiographic findings and vice versa [55]. However, this clinical trial demonstrated that functional changes in the MTrPs in the muscles are the main cause of knee pain. The main physiological effect of FSN on pain control is immediate and substantial pain relief at the point of muscle irritation, that is, improvement of the muscle where the MTrP is present. Because the abnormal contraction of the muscle segment worsens blood circulation, causing a lack of local oxygen and nutrients and the appearance of tight bands, blood circulation must be improved to relieve pain [56]. Muscles can compress blood vessels, obstructing blood circulation and nerves, affecting nerve conduction and bones, and causing bony changes that can limit movement and produce pain and paralysis. By eliminating the MTrP in the muscle, the pressure and constriction of blood vessels can be relieved, and local blood circulation and metabolism can be increased, enabling damaged local bodies to recover. In addition to the elimination of muscle pain, reduction in muscle contraction, and improvement of local circulation, reperfusion is a key element of FSN therapy for pain. Repeated stretching and contraction of the associated muscles through the reperfusion approach improve local circulation in damaged musculoskeletal tissues and modify ischemia and hypoxia at the point of myalgia [57]. However, during treatment, if the MTrP in the muscle is relieved but local tissues have not fully recovered, the state before treatment may recur. After resting and returning to normal metabolism, MTrPs can be completely eliminated. However, if other recurring factors appear during the process, the MTrP may return (Figure 9).

4.4. Limitations of This Study

This study had several limitations. First, because of differences in gender, age, and the location of bone growth, subgroup analysis may be required to determine the differences in the effectiveness of FSN therapy. Second, because the VAS, WOMAC, and Lequesne indices are subjective, the patients’ educational background and cognitive ability may have affected the results and produced bias in the outcome indicators. Third, the placebo and nocebo effects from the interventions in the clinical trial could have had repercussions for the patients and given rise to an improvement in symptoms. The insufficient placebo intervention should be modified in future clinically relevant trials of FSN, including both the swaying movement (passive treatment) and the reperfusion approach (active treatment). TENS is a totally passive treatment and lacks active treatment, so we will try to contract the leg muscles to make the procedures as similar as possible to each other in future research. Finally, the inability to blind therapists and participants to the therapeutic schemes may have affected the final results. Future research is required to establish a better experimental design.

5. Conclusions

Degenerative knee OA is usually diagnosed via an imaging study in modern medicine but it is sometimes asymptomatic. Soft tissues surrounding the knee joint, including muscles, ligaments, and tendons, play a bigger role in symptomatic knee OA. The MTrP in the muscle related to the knee joint may be suspected as a factor of symptomatic knee OA, and alleviating knee pain, strengthening walking ability, and improving overall functional performance by eliminating the MTrP in the muscle after the FSN treatment were found to be effective in our study. The swaying movement technique and reperfusion approach are used to increase local blood circulation and decrease muscle tightness and spasms. Our results demonstrated that pain relief was the primary benefit of FSN and that the most significant positive correlation was between pain suppression and the increase in joint mobility. Although this study demonstrated the effectiveness of FSN in the treatment of soft-tissue pain in degenerative knee OA, the mechanism of relieving muscle-excited pain points through FSN and reperfusion remains unknown. Further research is required to elicit and analyze this mechanism by using experimental animal models and exploring key elements of myofascial pain treatment through a scientific approach from the perspective of empirical medicine, thereby providing a reliable basis to increase the clinical applicability of FSN therapy.

Author Contributions

Conceptualization, P.-E.C., Z.F. and L.-W.C.; methodology, P.-E.C., Z.F. and L.-W.C.; software, P.-E.C. and G.-W.J.; validation, P.-E.C., G.-W.J. and L.-W.C.; formal analysis, P.-E.C. and G.-W.J.; investigation, P.-E.C. and G.-W.J.; resources, Z.F., J.S. and L.-W.C.; data curation, P.-E.C., G.-W.J. and T.-M.L.; writing—original draft preparation, P.-E.C. and J.S.; writing—review and editing, Z.F. and L.-W.C.; visualization, L.-W.C. and T.-M.L.; supervision, L.-W.C. and T.-M.L.; project administration, P.-E.C., Z.F. and L.-W.C.; funding acquisition, Z.F., J.S. and L.-W.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Asia University Hospital (11151005).

Institutional Review Board Statement

This study was conducted in accordance with the Declaration of Helsinki and approved by the Research Ethics Committee of China Medical University and Hospital, Taichung, Taiwan (protocol code CMUH107-REC3-027).

Informed Consent Statement

Informed consent was obtained from all the subjects involved in the study.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author, upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wick, M.C.; Kastlunger, M.; Weiss, R.J. Clinical imaging assessments of knee osteoarthritis in the elderly: A mini-review. Gerontology 2014, 60, 386–394. [Google Scholar] [CrossRef] [PubMed]
  2. Lespasio, M.J.; Piuzzi, N.S.; Husni, M.E.; Muschler, G.F.; Guarino, A.J.; Mont, M.A. Knee osteoarthritis: A primer. Perm. J. 2017, 21, 16–183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kellgren, J.H.; Lawrence, J.S. Radiological assessment of osteo-arthrosis. Ann. Rheum. Dis. 1957, 16, 494–502. [Google Scholar] [CrossRef] [Green Version]
  4. Woolf, A.D.; Pfleger, B. Burden of major musculoskeletal conditions. Bull. World Health Organ. 2003, 81, 646–656. [Google Scholar] [PubMed]
  5. Wallace, I.J.; Worthington, S.; Felson, D.T.; Jurmain, R.D.; Wren, K.T.; Maijanen, H.; Woods, R.J.; Lieberman, D.E. Knee osteoarthritis has doubled in prevalence since the mid-20th century. Proc. Natl. Acad. Sci. USA 2017, 114, 9332–9336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Deshpande, B.R.; Katz, J.N.; Solomon, D.H.; Yelin, E.H.; Hunter, D.J.; Messier, S.P.; Suter, L.G.; Losina, E. Number of persons with symptomatic knee osteoarthritis in the US: Impact of race and ethnicity, age, sex, and obesity. Arthritis Care Res. 2016, 68, 1743–1750. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Zhu, Z.L.; Hou, S.M.; Chen, Z.G.; Ye, K.L.; Shi, G.S.; Hong, L.W.; Xu, H.W.; Li, D.P. Evolution of osteoarthritis treatment: Mesenchymal stem cells of autologous fat. J. Taipei Med. Assoc. 2019, 63, 42–59. [Google Scholar]
  8. Dor, A.; Kalichman, L. A myofascial component of pain in knee osteoarthritis. J. Bodyw. Mov. Ther. 2017, 21, 642–647. [Google Scholar] [CrossRef]
  9. Hunter, D.J. Osteoarthritis. Best Pract. Res. Clin. Rheumatol. 2011, 25, 801–814. [Google Scholar] [CrossRef]
  10. Kornaat, P.R.; Bloem, J.L.; Ceulemans, R.Y.; Riyazi, N.; Rosendaal, F.R.; Nelissen, R.G.; Carter, W.O.; Hellio Le Graverand, M.P.; Kloppenburg, M. Osteoarthritis of the knee: Association between clinical features and MR imaging findings. Radiology 2006, 239, 811–817. [Google Scholar] [CrossRef]
  11. Sánchez Romero, E.A.; Fernández-Carnero, J.; Calvo-Lobo, C.; Ochoa Sáez, V.; Burgos Caballero, V.; Pecos-Martín, D. Is a Combination of Exercise and Dry Needling Effective for Knee OA? Pain Med. 2020, 21, 349–363. [Google Scholar] [CrossRef] [PubMed]
  12. Wheeler, A.H. Myofascial pain disorders: Theory to therapy. Drugs 2004, 64, 45–62. [Google Scholar] [CrossRef] [PubMed]
  13. Chou, L.W.; Kao, M.J.; Lin, J.G. Probable mechanisms of needling therapies for myofascial pain control. Evid.-Based Complement. Altern. Med. 2012, 2012, 705327. [Google Scholar] [CrossRef] [PubMed]
  14. Chou, L.W.; Hsieh, Y.L.; Kuan, T.S.; Hong, C.Z. Needling therapy for myofascial pain: Recommended technique with multiple rapid needle insertion. BioMedicine 2014, 4, 39–46. [Google Scholar] [CrossRef]
  15. Navarro-Santana, M.J.; Sanchez-Infante, J.; Fernández-de-Las-Peñas, C.; Cleland, J.A.; Martín-Casas, P.; Plaza-Manzano, G. Effectiveness of dry needling for myofascial trigger points associated with neck pain symptoms: An updated systematic review and meta-analysis. J. Clin. Med. 2020, 9, 3300. [Google Scholar] [CrossRef]
  16. Dorsher, P.T. Can classical acupuncture points and trigger points be compared in the treatment of pain disorders? Birch’s analysis revisited. J. Altern. Complement. Med. 2008, 14, 353–359. [Google Scholar] [CrossRef]
  17. Lo, P.C.; Lin, F.C.; Tsai, Y.C.; Lin, S.K. Traditional Chinese medicine therapy reduces the risk of total knee replacement in patients with knee osteoarthritis. Medicine 2019, 98, e15964. [Google Scholar] [CrossRef]
  18. Fu, Z.H. The Foundation of Fu’s Subcutaneous Needling; People’s Medical Publishing House Co., Ltd.: Beijing, China, 2016. [Google Scholar]
  19. Li, K.; Wu, W.T.; Fu, Z.H.; Chou, L.W. Fu’s subcutaneous needling, modern acupuncture. J. Chin. Med. Assoc. Acupunct. 2016, 19, 45–52. [Google Scholar]
  20. Fu, Z.; Chou, L.W. Chapter 16 Fu’s Subcutaneous Needling, Trigger Point Dry Needling: An Evidence and Clinical-Based Approach, 2nd ed.; Elsevier Health Sciences: Amsterdam, The Netherlands, 2018. [Google Scholar]
  21. Muraki, S.; Akune, T.; Oka, H.; En-yo, Y.; Yoshida, M.; Saika, A.; Suzuki, T.; Yoshida, H.; Ishibashi, H.; Tokimura, F.; et al. Association of radiographic and symptomatic knee osteoarthritis with health-related quality of life in a population-based cohort study in Japan: The ROAD study. Osteoarthr. Cartil. 2010, 18, 1227–1234. [Google Scholar] [CrossRef] [Green Version]
  22. Chiu, P.E.; Fu, Z.; Jian, G.W.; Huang, C.H.; Li, T.M.; Chou, L.W. Evaluating effectiveness of Fu’s subcutaneous needling for the pain nature and quality of life in patients with knee osteoarthritis: A study protocol of randomized clinical trial. J. Pain Res. 2021, 14, 3163–3172. [Google Scholar] [CrossRef]
  23. Fischer, A.A. Pressure algometry over normal muscles. Standard values, validity and reproducibility of pressure threshold. Pain 1987, 30, 115–126. [Google Scholar] [CrossRef] [PubMed]
  24. Fischer, A.A. Pressure threshold meter: Its use for quantification of tender spots. Arch. Phys. Med. Rehabil. 1986, 67, 836–838. [Google Scholar] [PubMed]
  25. Han, T.I.; Hong, C.Z.; Kuo, F.C.; Hsieh, Y.L.; Chou, L.W.; Kao, M.J. Mechanical pain sensitivity of deep tissues in children—Possible development of myofascial trigger points in children. BMC Musculoskelet. Disord. 2012, 13, 13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Jaworski, J.; Ambroży, T.; Lech, G.; Spieszny, M.; Bujas, P.; Żak, M.; Chwała, W. Absolute and relative reliability of several measures of static postural stability calculated using a GYKO inertial sensor system. Acta. Bioeng. Biomech. 2020, 22, 94–99. [Google Scholar] [CrossRef]
  27. Hamersma, D.T.; Hofste, A.; Rijken, N.H.; Rohé, M.R.; Oosterveld, F.G.; Soer, R. Reliability and validity of the Microgate Gyko for measuring range of motion of the low back. Musculoskelet. Sci. Pract. 2020, 45, 102091. [Google Scholar] [CrossRef]
  28. Soucie, J.M.; Wang, C.; Forsyth, A.; Funk, S.; Denny, M.; Roach, K.E.; Boone, D.; Hemophilia Treatment Center Network. Range of motion measurements: Reference values and a database for comparison studies. Haemophilia 2011, 17, 500–507. [Google Scholar] [CrossRef]
  29. Stathokostas, L.; McDonald, M.W.; Little, R.; Paterson, D.H. Flexibility of older adults aged 55-86 years and the influence of physical activity. J. Aging Res. 2013, 2013, 743843. [Google Scholar] [CrossRef] [Green Version]
  30. Hancock, G.E.; Hepworth, T.; Wembridge, K. Accuracy and reliability of knee goniometry methods. J. Exp. Orthop. 2018, 5, 46. [Google Scholar] [CrossRef] [Green Version]
  31. Aird, L.; Samuel, D.; Stokes, M. Quadriceps muscle tone, elasticity and stiffness in older males: Reliability and symmetry using the MyotonPRO. Arch. Gerontol. Geriatr. 2012, 55, e31–e39. [Google Scholar] [CrossRef]
  32. Pruyn, E.C.; Watsford, M.L.; Murphy, A.J. Validity and reliability of three methods of stiffness assessment. J. Sport Health Sci. 2016, 5, 476–483. [Google Scholar] [CrossRef] [Green Version]
  33. Wang, J.S.; Um, G.M.; Choi, J.H. Immediate effects of kinematic taping on lower extremity muscle tone and stiffness in flexible flat feet. J. Phys. Ther. Sci. 2016, 28, 1339–1342. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Symonds, T.; Hughes, B.; Liao, S.; Ang, Q.; Bellamy, N. Validation of the chinese western ontario and mcmaster universities osteoarthritis index in patients from mainland china with osteoarthritis of the knee. Arthritis Care Res. 2015, 67, 1553–1560. [Google Scholar] [CrossRef]
  35. Stucki, G.; Sangha, O.; Stucki, S.; Michel, B.A.; Tyndall, A.; Dick, W.; Theiler, R. Comparison of the WOMAC (Western Ontario and McMaster Universities) osteoarthritis index and a self-report format of the self-administered Lequesne-Algofunctional index in patients with knee and hip osteoarthritis. Osteoarthr. Cartil. 1998, 6, 79–86. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Vance, C.G.; Dailey, D.L.; Rakel, B.A.; Sluka, K.A. Using TENS for pain control: The state of the evidence. Pain Manag. 2014, 4, 197–209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Osiri, M.; Welch, V.; Brosseau, L.; Shea, B.; McGowan, J.L.; Tugwell, P.; Wells, G.A. Transcutaneous electrical nerve stimulation for knee osteoarthritis. Cochrane Database Syst. Rev. 2000, CD002823. [Google Scholar] [CrossRef]
  38. Zeng, C.; Yang, T.; Deng, Z.H.; Yang, Y.; Zhang, Y.; Lei, G.H. Electrical stimulation for pain relief in knee osteoarthritis: Systematic review and network meta-analysis. Osteoarthr. Cartil. 2015, 23, 189–202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Kim, E.D.; Won, Y.H.; Park, S.H.; Seo, J.H.; Kim, D.S.; Ko, M.H.; Kim, G.W. Efficacy and safety of a stimulator using low-intensity pulsed ultrasound combined with transcutaneous electrical nerve stimulation in patients with painful knee osteoarthritis. Pain Res. Manag. 2019, 2019, 7964897. [Google Scholar] [CrossRef]
  40. Kumar, A.; Chakraborty, B.S. Interim analysis: A rational approach of decision making in clinical trial. J. Adv. Pharm. Technol. Res. 2016, 7, 118–122. [Google Scholar]
  41. Iijima, H.; Eguchi, R.; Shimoura, K.; Yamada, K.; Aoyama, T.; Takahashi, M. Transcutaneous electrical nerve stimulation improves stair climbing capacity in people with knee osteoarthritis. Sci. Rep. 2020, 10, 7294. [Google Scholar] [CrossRef]
  42. Takla, M.K.N.; Rezk-Allah, S.S. Immediate effects of simultaneous application of transcutaneous electrical nerve stimulation and ultrasound phonophoresis on active myofascial trigger points. Am. J. Phys. Med. Rehabil. 2018, 97, 332–338. [Google Scholar] [CrossRef]
  43. Fu, Z.; Shepherd, R. Fu’s subcutaneous needling, a modern style of ancient acupuncture? In Acupuncture in Modern Medicine [Internet]; Chen, L.L., Cheng, T.O., Eds.; IntechOpen: London, UK, 2013. [Google Scholar]
  44. Fu, Z.H.; Wang, J.H.; Sun, J.H.; Chen, X.Y.; Xu, J.G. Fu’s subcutaneous needling: Possible clinical evidence of the subcutaneous connective tissue in acupuncture. J. Altern. Complement. Med. 2007, 13, 47–51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Purser, J.L.; Golightly, Y.M.; Feng, Q.; Helmick, C.G.; Renner, J.B.; Jordan, J.M. Association of slower walking speed with incident knee osteoarthritis-related outcomes. Arthritis Care Res. 2012, 64, 1028–1035. [Google Scholar]
  46. Roos, E.M.; Grønne, D.T.; Skou, S.T.; Zywiel, M.G.; McGlasson, R.; Barton, C.J.; Kemp, J.L.; Crossley, K.M.; Davis, A.M. Immediate outcomes following the GLA:D® program in Denmark, Canada and Australia. A longitudinal analysis including 28,370 patients with symptomatic knee or hip osteoarthritis. Osteoarthr. Cartil. 2021, 29, 502–506. [Google Scholar] [CrossRef] [PubMed]
  47. Tani, K.; Kola, I.; Dhamaj, F.; Shpata, V.; Zallari, K. Physiotherapy effects in gait speed in patients with knee osteoarthritis. Open Access Maced. J. Med. Sci. 2018, 6, 493–497. [Google Scholar] [CrossRef]
  48. Iwata, M.; Yamamoto, A.; Matsuo, S.; Hatano, G.; Miyazaki, M.; Fukaya, T.; Fujiwara, M.; Asai, Y.; Suzuki, S. Dynamic stretching has sustained effects on range of motion and passive stiffness of the hamstring muscles. J. Sports Sci. Med. 2019, 18, 13–20. [Google Scholar] [PubMed]
  49. Chen, C.H.; Xin, Y.; Lee, K.W.; Lin, M.J.; Lin, J.J. Acute effects of different dynamic exercises on hamstring strain risk factors. PLoS ONE 2018, 13, e0191801. [Google Scholar] [CrossRef] [Green Version]
  50. Bricca, A.; Roos, E.M.; Juhl, C.B. Infographic. Therapeutic exercise relieves pain and dose not harm knee cartilage nor trigger inflammation. Br. J. Sports Med. 2020, 54, 118–119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Plaut, S. Scoping review and interpretation of myofascial pain/fibromyalgia syndrome: An attempt to assemble a medical puzzle. PLoS ONE 2022, 17, e0263087. [Google Scholar] [CrossRef]
  52. Okada-Ogawa, A.; Sekine, N.; Watanabe, K.; Kohashi, R.; Asano, S.; Iwata, K.; Imamura, Y. Change in muscle hardness after trigger point injection and physiotherapy for myofascial pain syndrome. J. Oral Sci. 2019, 61, 36–44. [Google Scholar] [CrossRef] [Green Version]
  53. Hara, K.; Shinozaki, T.; Okada-Ogawa, A.; Matsukawa, Y.; Dezawa, K.; Nakaya, Y.; Chen, J.Y.; Noma, N.; Oka, S.; Iwata, K.; et al. Headache attributed to temporomandibular disorders and masticatory myofascial pain. J. Oral Sci. 2016, 58, 195–204. [Google Scholar] [CrossRef] [Green Version]
  54. Terwee, C.B.; van der Slikke, R.M.; van Lummel, R.C.; Benink, R.J.; Meijers, W.G.; de Vet, H.C. Self-reported physical functioning was more influenced by pain than performance-based physical functioning in knee-osteoarthritis patients. J. Clin. Epidemiol. 2006, 59, 724–731. [Google Scholar] [CrossRef] [PubMed]
  55. Bedson, J.; Croft, P.R. The discordance between clinical and radiographic knee osteoarthritis: A systematic search and summary of the literature. BMC Musculoskelet. Disord. 2008, 9, 116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Chen, Q.; Bensamoun, S.; Basford, J.R.; Thompson, J.M.; An, K.N. Identification and quantification of myofascial taut bands with magnetic resonance elastography. Arch. Phys. Med. Rehabil. 2007, 88, 1658–1661. [Google Scholar] [CrossRef] [PubMed]
  57. Cowled, P.; Fitridge, R. Pathophysiology of reperfusion injury. In Mechanisms of Vascular Disease: A Reference Book for Vascular Specialists [Internet]; Fitridge, R., Thompson, M., Eds.; University of Adelaide Press: Adelaide, AU, USA, 2011; p. 18. [Google Scholar]
Jcm 11 07184 g001 550
Figure 1. Illustration of the operations of Fu’s subcutaneous needling. FSN was performed as described in the Materials and Methods. (a) FSN needle. (b) Insertion point of FSN insertion. (c) Starting a swaying movement. (d) Dorsiflexion of the foot and resistance towards the practitioner in the reperfusion approach. (e) Knee extension and physician’s resistance in the reperfusion approach.
Figure 1. Illustration of the operations of Fu’s subcutaneous needling. FSN was performed as described in the Materials and Methods. (a) FSN needle. (b) Insertion point of FSN insertion. (c) Starting a swaying movement. (d) Dorsiflexion of the foot and resistance towards the practitioner in the reperfusion approach. (e) Knee extension and physician’s resistance in the reperfusion approach.
Jcm 11 07184 g001
Jcm 11 07184 g002 550
Figure 2. Illustration of the transcutaneous electrical nerve stimulation (TENS). (a) TENS. (b) TENS pads were attached at ST34, GB34, SP10, and SP9.
Figure 2. Illustration of the transcutaneous electrical nerve stimulation (TENS). (a) TENS. (b) TENS pads were attached at ST34, GB34, SP10, and SP9.
Jcm 11 07184 g002
Jcm 11 07184 g003 550
Figure 3. Flow chart of the adaptive study design with an interim analysis.
Figure 3. Flow chart of the adaptive study design with an interim analysis.
Jcm 11 07184 g003
Jcm 11 07184 g004 550
Figure 4. Flow chart summarizing follow-up on clinical outcomes and treatment preferences.
Figure 4. Flow chart summarizing follow-up on clinical outcomes and treatment preferences.
Jcm 11 07184 g004
Jcm 11 07184 g006 550
Figure 6. Comparison of the PPT of the quadriceps muscle (a), pes anserinus (b), and gastrocnemius muscle (c) between the two groups after each treatment. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. PPT: pressure pain threshold; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Figure 6. Comparison of the PPT of the quadriceps muscle (a), pes anserinus (b), and gastrocnemius muscle (c) between the two groups after each treatment. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. PPT: pressure pain threshold; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Jcm 11 07184 g006
Jcm 11 07184 g007 550
Figure 7. Comparison of TH in the quadriceps muscle (a), pes anserinus (b), and gastrocnemius muscle (c) between the two groups after each treatment. # represents the TENS group p < 0.05. TH: tissue hardness of muscle; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Figure 7. Comparison of TH in the quadriceps muscle (a), pes anserinus (b), and gastrocnemius muscle (c) between the two groups after each treatment. # represents the TENS group p < 0.05. TH: tissue hardness of muscle; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Jcm 11 07184 g007
Jcm 11 07184 g008 550
Figure 8. Comparison of WOMAC (a) and Lequesne index scores (b) between the two groups after each treatment. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. WOMAC: Western Ontario and McMaster Universities Osteoarthritis Index; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Figure 8. Comparison of WOMAC (a) and Lequesne index scores (b) between the two groups after each treatment. * represents the FSN group p < 0.05; # represents the TENS group p < 0.05. WOMAC: Western Ontario and McMaster Universities Osteoarthritis Index; FSN: Fu’s subcutaneous needling; TENS: transcutaneous electrical nerve stimulation.
Jcm 11 07184 g008
Jcm 11 07184 g009 550
Figure 9. Improvement process for MTrPs.
Figure 9. Improvement process for MTrPs.
Jcm 11 07184 g009
Table
Table 1. Baseline characteristics and clinical evaluation indicators of participants.
Table 1. Baseline characteristics and clinical evaluation indicators of participants.
CharacteristicsFSN (N = 15)TENS (N = 16)p-Value
Age (years old)65.73 ± 6.79 (54–77)62.81 ± 5.72 (54–72)0.24
Sex (M/F)4/116/100.70
Affected side (Left/Right)9/68/80.58
Height (cm)161.00 ± 6.11158.69 ± 6.250.34
Weight (kg)69.00 ± 13.1759.50 ± 9.570.14
VAS (0–10)5.80 ± 1.425.81 ± 0.910.98
WOMAC-Total (0–96)27.80 ± 12.1226.44 ± 12.540.61
Lequesne index (0–24)10.13 ± 3.278.75 ± 2.350.26
PPT (N/cm2)
Quadriceps muscle74.73 ± 28.6386.56 ± 24.350.41
Pes anserinus66.53 ± 34.0663.38 ± 17.760.84
Gastrocnemius muscle88.47 ± 34.0582.13 ± 24.970.89
TH (N)
Quadriceps muscle47.79 ± 10.0445.39 ± 9.510.83
Pes anserinus41.44 ± 9.9437.80 ± 4.400.14
Gastrocnemius muscle36.79 ± 6.3035.15 ± 6.970.68
ROM (degrees)
Active ROM103.87 ± 11.17112.63 ± 16.310.07
Passive ROM125.80 ± 15.33135.69 ± 16.800.06
Walking speed (cm/s)32.80 ± 6.6035.96 ± 3.200.11
Data are expressed as the mean ± SD; p-values were analyzed with an independent t-test. Abbreviations: FSN, Fu’s subcutaneous needling; TENS, transcutaneous electrical nerve stimulation; VAS, visual analog scale; WOMAC, Western Ontario and McMaster Universities Osteoarthritis Index; PPT, pain pressure threshold; TH, tissue hardness of muscle; ROM, range of motion.
Table
Table 4. WOMAC and Lequesne indices compared between the FSN and TENS groups.
Table 4. WOMAC and Lequesne indices compared between the FSN and TENS groups.
Day 1Day 8Day 15
Pre-tx1-Week Follow-Upp-Value2-Week Follow-Upp-Value
WOMAC
FSN group27.80 ± 12.1221.87 ± 10.50<0.05 *22.00 ± 11.06<0.05 *
TENS group26.44 ± 12.5418.31 ± 15.02<0.05 *19.13 ± 16.64<0.05 *
Lequesne index
FSN group10.13 ± 3.278.20 ± 3.12<0.05 *7.27 ± 2.95<0.05 *
TENS group8.75 ± 2.257.50 ± 2.57<0.05 *8.25 ± 3.050.44
Data are expressed as the mean ± SD; * indicates a significant difference, analyzed by a paired t-test. Abbreviations: FNS, Fu’s subcutaneous needling; TENS, transcutaneous electrical nerve stimulation; WOMAC, Western Ontario and McMaster Universities.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chiu, P.-E.; Fu, Z.; Sun, J.; Jian, G.-W.; Li, T.-M.; Chou, L.-W. Efficacy of Fu’s Subcutaneous Needling in Treating Soft Tissue Pain of Knee Osteoarthritis: A Randomized Clinical Trial. J. Clin. Med. 2022, 11, 7184. https://doi.org/10.3390/jcm11237184

AMA Style

Chiu P-E, Fu Z, Sun J, Jian G-W, Li T-M, Chou L-W. Efficacy of Fu’s Subcutaneous Needling in Treating Soft Tissue Pain of Knee Osteoarthritis: A Randomized Clinical Trial. Journal of Clinical Medicine. 2022; 11(23):7184. https://doi.org/10.3390/jcm11237184

Chicago/Turabian Style

Chiu, Po-En, Zhonghua Fu, Jian Sun, Guan-Wei Jian, Te-Mao Li, and Li-Wei Chou. 2022. "Efficacy of Fu’s Subcutaneous Needling in Treating Soft Tissue Pain of Knee Osteoarthritis: A Randomized Clinical Trial" Journal of Clinical Medicine 11, no. 23: 7184. https://doi.org/10.3390/jcm11237184

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
