Does Improvement towards a Normal Cervical Sagittal Configuration Aid in the Management of Lumbosacral Radiculopathy: A Randomized Controlled Trial

Ibrahim Moustafa Moustafa
Aliaa Attiah Mohamed Diab
1,2 and
Deed Eric Harrison
Department of Physiotherapy, College of Health Sciences, University of Sharjah, Sharjah P.O. Box 27272, United Arab Emirates
Faculty of Physical Therapy, Cairo University, Giza 12511, Egypt
Private Practice and CBP Non-Profit, Inc., Eagle, ID 83616, USA
Author to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(19), 5768;
Submission received: 13 September 2022 / Revised: 24 September 2022 / Accepted: 24 September 2022 / Published: 29 September 2022
(This article belongs to the Special Issue Spine Rehabilitation in 2022 and Beyond)


A randomized controlled study with a six-month follow-up was conducted to investigate the effects of sagittal head posture correction on 3D spinal posture parameters, back and leg pain, disability, and S1 nerve root function in patients with chronic discogenic lumbosacral radiculopathy (CDLR). Participants included 80 (35 female) patients between 40 and 55 years experiencing CDLR with a definite hypolordotic cervical spine and forward head posture (FHP) and were randomly assigned a comparative treatment control group and a study group. Both groups received TENS therapy and hot packs, additionally, the study group received the Denneroll cervical traction orthotic. Interventions were applied at a frequency of 3 x per week for 10 weeks and groups were followed for an additional 6-months. Radiographic measures included cervical lordosis (CL) from C2–C7 and FHP; postural measurements included: lumbar lordosis, thoracic kyphosis, trunk inclination, lateral deviation, trunk imbalance, surface rotation, and pelvic inclination. Leg and back pain scores, Oswestry Disability Index (ODI), and H-reflex latency and amplitude were measured. Statistically significant differences between the groups at 10 weeks were found: for all postural measures, CL (p = 0.001), AHT (p = 0.002), H-reflex amplitude (p = 0.007) and latency (p = 0.001). No significant difference for back pain (p = 0.2), leg pain (p = 0.1) and ODI (p = 0.6) at 10 weeks were identified. Only the study group’s improvements were maintained at the 6-month follow up while the control groups values regressed back to baseline. At the 6-month follow-up, it was identified in the study group that improved cervical lordosis and reduction of FHP were found to have a positive impact on 3D posture parameters, leg and back pain scores, ODI, and H-reflex latency and amplitude.

1. Introduction

Lumbosacral radiculopathy associated with disk herniation is one of the most common health-related complaints [1]. Radiculopathy of the S1 nerve root is a frequent pathology, strongly associated with delayed recovery, persistent disability, and increased health care utilization and costs [2]. Despite the high prevalence of this condition [3], its conservative treatment has long remained a challenge for the clinician [4], since there is no strong evidence of the effectiveness of most treatments, particularly for long-term management outcomes [5].
The challenge clinicians face is merging an understanding of the patient’s local pathology (e.g., disc herniation) as an etiological factor of their lower back pain (LBP) with an understanding of how altered regional and full spine alignment and biomechanics play a role in the patient’s unique condition. The interaction of tissue pathology and spine dysfunction is clearly ellicudated by Murphy’s concept [6], “pathoanatomy and dysfunction often interact to produce clinical symptoms”. In terms of local biomechanical dysfunction, several investigations have identified that altered trunk posture [7,8] and lumbar spine hypolordotic alignment [9,10] are important etiological factors contributing to the development of and with the presence associated LBP.
In the past decade several publications have identified that head and neck alignment plays a role in whole body pain and impairment including LBP and related disorders [11,12]; whether this is a pure mechanical phenomenon remains unclear. Studies have identified that several of the postural upright postural neurophysiological reflexes, are located within the head and neck region [13]. This implies that correction of the altered cervical spine alignment could be required to achieve optimal full spine postural correction, where the rest of the spine orients itself in a top-down fashion [14].
Besides the surgical outcomes of adult spine deformity linking head and neck alignment to health quality of life in thoraco-lumbar deformity patients [11,12], relatively few correlational studies were identified linking cervical spine alignment to thoracic spine ailments and full spine alignment to LBP [15,16]. However, considering the effect that abnormal cervical posture (flexion and translation) has on the stress and strain experienced in the entire spinal cord and nerve roots [17,18], it would seem logical that alterations in cervical spine alignment would influence, at least to some extent, pain and radiculopathy in lumbosacral disorders. It would seem that lumbosacral radiculopathy and LBP conservative treatment today is universally lacking investigations seeking to understand the influence of alignment of the cervical spine relative to pain, disability, and other management outcomes [19,20].
Despite the fact that there is some evidence of a link between lower back pain disorders and head/neck posture [11,12,21], there is limited experimental data to support a cause-and-effect relationship and interventional outcomes. Accordingly, the primary hypothesis of this study was that cervical curve restoration and forward head posture reduction will have short- and long-term effects on three-dimensional (3D) spinal posture parameters as well as lumbar radiculopathy management outcomes such as symptoms, disability, and neurophysiological findings [19,20].
In the current study we used a cervical traction orthotic device termed the Denneroll™ to help restore normal sagittal spinal configuration based on principles of 3-point bending traction methods [22]. The Denneroll device uses sustained cervical spine extension loading in a prone position in order to create visco-elastic creep-deformation in the connective tissues of the spine leading to more consistent and effective correction of the cervical sagittal alignment. This was the primary reason for choosing this device to test our working hypothesis.

2. Methods

A prospective, randomized, controlled study was conducted at a research laboratory of our university. All the patients were conveniently selected from our institution’s outpatient clinic. Recruitment began after approval was obtained from the Ethics Committee of the Faculty of Physical Therapy, Cairo University; all participants signed informed consent prior to data collection. Patients were recruited from May 2011 to June 2011 for a 10-week treatment investigation with a six-month follow-up. This trial was retrospectively registered at (accessed on 10 September 2022) with registration number: NCT05553002.
Participant inclusion
Pain, disability, and symptoms: Patients were included if they had a confirmed chronic unilateral lumbosacral radiculopathy associated with L5-S1 lumbar disc prolapse with symptoms lasting longer than 3 months to avoid the acute stage of inflammation. All the patients had unilateral leg pain with mild to moderate disability according to the Oswestry Disability Index (ODI) (up to 40%) [23]. All patients had side-to-side H-reflex latency differences of more than 1 ms. Further, patients were selected with lumbar hyperlordosis (sway back posture), which is considered a common posture aberration in CLBP patients [24].
Participant exclusion criteria
Exclusion criteria included previous history of lumbosacral surgery, metabolic system disorder, cancer, cardiac problems, peripheral neuropathy, history of upper motor neuron lesion, spinal canal stenosis, rheumatoid arthritis, osteoporosis and any lower extremity deformity that might interfere with global postural alignment. The demographic characteristics of the patients are shown in Table 1.
Radiography: Participants were screened prior to inclusion by measuring their lateral cervical for a cervical absolute rotatory angle (ARA) formed by two lines intersecting from the posterior body margins of C2–C7 and forward head distance (AHT measured as the horizontal displacement of the posterior superior body corner of C2 vertebra relative to a vertical line extending superiorly from the posterior inferior body corner of C7). Lateral cervical X-rays were obtained with the participant in an upright, neutral, standing posture. If the ARA angle was less than 25° and greater than 0, then a participant was included in the study; thus, straightened and kyphotic cervical curvatures were excluded. Also, if the AHT distance was greater than 15 mm then a participant was included in the study. These X-ray cut-points for ARA and AHT were based on the mean values reported in the study by Harrison et al. [25].
Randomization assignment
The patients were randomly assigned to to either the treatment group (n = 40) or the control group (n = 40). An independent person, blinded to the research protocol and not otherwise involved in the trial, operated the random assignment through picking one of the sealed envelopes which contained numbers chosen by a random number generator. A diagram of patients’ retention and randomization throughout the study is shown in Figure 1.
The patients in both groups received hot packs (15 min) and TENS therapy to control pain and eliminate the causal role of muscle spasms and/or tightness in changing the posture parameters; these procedures were applied with the patient in the prone position on an examination bench. The TENS treatment was introduced using an electrotherapy device (Phyaction 787, The Netherlands). The TENS therapy was delivered at the lumbosacral region for 20 min. The frequency was set to 80 Hz and pulse width to 50 µs due to its analgesic effect [26]. These conventional treatments were repeated three times per week over the course of 10 weeks for 30 total sessions. Those in the control group received this conventional treatment only.
The experimental group additionally received Deneroll cervical extension traction (Denneroll Industries ( (accessed on 10 September 2022)) of Sydney, Australia). Here, the patient lies flat on their back (supine) on the ground with their legs extended and arms by their sides. The patient is encouraged to relax whilst lying on the Denneroll [22]. The Denneroll was placed on the ground and postioned in the posterior aspect of the neck depending on the area needing to be addressed (Figure 2). Participants were screened and tested for tolerance to the extended position on the device to insure they were capable of performing this position; while the Denneroll takes the segments of the cervical spine near the apex of the curve to their end range of extension motion, it does not create hyperextension of the skull relative to the torso. See Figure 2. Patients began with 3 min per session and progressed to a maximum of 20 min per session in an incremental fashion.
The apex of the Denneroll orthotic was placed in one of three regions based on lateral cervical radiographic displacements:
  • In the upper cervical region (C2–C4) region. This position allows extension bending of the upper cervical segments while causing slight anterior head translation (AHT). One subject received this placement location.
  • The apex of the Denneroll orthotic is placed in the mid-cervical region (C4-C6) region. This position allows extension bending of the mid-upper cervical segments while creating a slight posterior head translation. Ten subjects received this placement location.
  • The apex of the Denneroll orthotic is placed in the upper thoracic lower-cervical region (C6-T1) region. This position allows extension bending of the lower to middle cervical segments while creating a significant posterior head translation. Twenty-nine subjects received this placement location.
Outcome Measures
A repeatable and reliable method [27,28] was used to quantify the main outcome measurement represented in cervical lordosis (ARA C2–C7) and any amount of anterior head posture AHT (C2–C7). Standard lateral cervical radiographs were obtained at three intervals (pretreatment, 10-weeks post-treatment, and at the six-month follow-up). A representative example of a lateral cervical X-ray in a study group patient at three intervals of measurement is given graphically in Figure 3.
Other outcome measures used to compare effectiveness of the treatment between the study and control groups included the 3D spinal posture parameters, disability, and neurophysiological findings.
Rasterstereography (Formetric 2, Diers International GmbH, Schlangenbad, Germany) was used to examine posture and back shape characteristics. All testing procedures were done following Lippold et al.’s protocol [29]. The Formetric scans were taken in a relaxed standing position. The patient was positioned in front of the black background screen at a distance of two meters from the measurement system. The column height was aligned to move the relevant parts of the patient’s back into the center of the control monitor by using the column up/down button of the control unit; to ensure the best lateral and longitudinal position of the patient a permanent mark on the floor was used. The patient’s back surface (including upper buttocks) was completely bare in order to avoid image disturbing structures.
After the patient and the system were correctly positioned, the system was ready for image recording. The image processing consisted of automatic back surface reconstruction and shape analysis. The sagittale plane parameters (lumbar angles, thoracic angles, and trunk inclination), the frontal plane parameters (trunk imbalance and lateral deviation) and the transversal plane parameters (vertebral surface rotation and pelvis torsion) were selected to cover the posture profile in three planes. A representative example of the Formetric system’s print out is given graphically for a study group participant (Figure 4).
Disability was measured using the Oswestry Disability Index. The total score is transferred onto a scale ranging from 0 to 100, where 0 indicates no disability and 100 indicates worst possible disability [23].
The back and leg pain intensity were measured using the numerical pain rating scale (NPRS), which is considered a valid and reliable scale [30]. The patients were asked to place a mark along a line to denote their pain level; 0 reflecting ‘‘no pain’’ and 10 reflecting the ‘‘worst pain’’.
Latency and peak-to-peak amplitude of the H-reflex, the recommended H-reflex diagnostic criteria for lumbosacral radiculopathy [20], were used in the current study. An electromyogram device (Tonneisneuroscreen plus version 1.59, Germany) was used to measure this variable for all patients before starting the treatment, at the end of 10 weeks, and at the six-month follow-up. All testing procedures were done following Al-Abdulwahab and Al-Jabrb’s protocol [31]. The patient was lying supine on a wooden padded table, with arms on the side. The knee was flexed 20 degrees by placing a small cushion under the knee to relax the gastrocnemius muscle. The tibial nerve was stimulated at the popliteal fossa, midway between the tendon of the biceps femoris and semimembranosus, using a silver–silver chloride surface-stimulating bar electrode with the cathode proximal to the anode.
For recording, surface bar electrodes were placed 3 cm distal to the bifurcation of the gastrocnemii and superior to the Achilles tendon. A ground surface metal electrode was positioned midway between the stimulation and recording electrodes to minimize the stimulus artifact. Before attaching the recording electrodes, the underlying skin was shaved and cleaned with a piece of cotton soaked with alcohol. The stimulation parameters were 1.0 ms pulse duration and intensity that elicited H-maximum with minimum and stable M-response at a frequency of 0.2 Hz. Four readings of the maximum H-reflex with minimum and stable M-responses were recorded and averaged from the involved leg. The signals were amplified 500–2000 × using differential amplification and filtered at 3 Hz–10 kHz, digitized (10 kHz) and stored on a computer for analysis.
Sample size determination
A prior power calculation indicated that 27 patients were needed in each group to detect a difference in cervical lordotic angle between the groups with 90% power and a 5% significance level; a 2-tailed test, and an expected effect size of d = 0.9 based on a pilot study consisted of 10 patients who received the same program. The sample size estimation was based on an unpublished pilot randomized controlled clinical trial that used a similar protocol for patients with discogenic lumbosacral radiculopathy. The population was in the same age range with minimal change in the control treatment (stretching vs. hot backs herein). In this pilot, the traditional therapy was TENS, back and lower limb stretching exercises, and ARA C2–C7 cervical lordosis for our primary outcome. The pilot project had no long-term follow-up; therefore, the sample size was calculated based on pre-post lordosis changes. The mean change and standard deviation of the cervical lordosis were estimated at 3.2 and 3.7, respectively. To account for the possibility of significant drop-out rates, the sample size was increased by 40%.
Data analysis
To compare the experimental group and the control group, statistical analysis was based on the intention-to-treat principle, and p-values less than 0.05 were considered significant. We used multiple imputations to handle missing data. To impute the missing data, we constructed multiple regression models including variables potentially related to the fact that the data were missing and also variables correlated with that outcome. We used Stata (Stata Corp, College Station, TX, USA). The 2-way repeated-measures analysis of covariance was used to compare between groups. The model included one independent factor (group), one repeated measure (time), and an interaction factor (group * time). The baseline values of the outcomes were used as covariates to assess the between-group differences, to center the baseline covariates, everyone’s score value was subtracted from the overall mean. A t-test at two follow-up points (after 10 weeks of treatment and at the six-month follow-up) was performed to test the between group differences at the different intervals.

3. Results

A diagram of patients’ retention and randomization throughout the study is shown in Figure 1. One hundred and fifty patients were initially screened. After the screening process, 84 patients were eligible to participate in the study and 80 completed the first follow up at 10 weeks, while 71 of them completed the entire study including the 6-month follow up. The study design did not include a pre-determined adverse event protocol. However, participants were formally asked during their treatment sessions if they were experiencing any unusual adverse events or increased pain due to the interventions. No adverse events were documented by the treating therapist aside from minimal and transient discomfort in the neck as the patient acclimatized to using the Denneroll device at the point of cervical spine contact.
Results are summarized and presented as mean (±SD) in Table 2. After 10 weeks of treatment, the analysis of covariance (ANCOVA) revealed a significant difference between the study and control groups adjusted to baseline values for all following variables: ARA (p = 0.001), AHT (p = 0.002), neurophysiological findings represented in H-reflex amplitude (p = 0.007) and H-reflex latency (p = 0.001); 3D postural parameters in terms of trunk inclination (p = 0.001), lumbar lordosis (p = 0.002), thoracic kyphosis (p = 0.001), trunk imbalance (p = 0.001), pelvic inclination (p = 0.005), and surface rotation (p = 0.01).
At the six-month follow-up, the analysis showed that there were still significant differences between the study and control groups for all the previous variables: radiographic measurements of cervical lordosis ARA (p = 0.01), AHT (p= 0.028); neurophysiological findings represented in H-reflex amplitude (p < 0.001) and H-reflex latency (p = 0.004); as well as the 3D postural parameters of trunk inclination (p = 0.04), lumbar lordosis (p = 0.001), thoracic kyphosis (p = 0.001), trunk imbalance (p < 0.001), pelvic inclination (p = 0.02), and surface rotation (p = 0.05). Table 2 presents this data. Figure 3 depicts an example of radiographic changes in the study group across the 3 time periods of evaluation. Figure 4 depicts an example of the 3D posture changes in the study group across the 3 time periods of evaluation.
At the 10-week post-treatment analysis, for back pain, leg pain and the ODI disability index, the between group analysis revealed insignificant difference between the groups at the first measurement interval: back pain, p = 0.27; leg pain, p = 0.1; and ODI, p = 0.6. In contrast, at the 6-month follow up, there was statistically significant differences between the groups for back pain (p < 0.001), leg pain (p < 0.001), and ODI (p < 0.001). These data are reported in Table 2. Specifically, the 6-month follow up data indicated that the control group’s scores regressed back to pre-intervention levels while the study groups’ improvements in these variables were maintained.

4. Discussion

This study tested the hypothesis that correction of sagittal cervical alignment would influence management outcomes of chronic lumbosacral radiculopathy. We compared TENS and hot packs in a control group to the outcomes of a study group receiving the control interventions plus the addition of an extension cervical traction device (the Denneroll) known to correct sagittal cervical spine alignment. [22] As expected, after 10 weeks of treatment, the study group (traction group) was found to have improvements in the cervical lordosis and anterior head translation compared to no change in the control group. Additionally, at 10 weeks, the study group was found to have improved 3D thoraco-lumbar-pelvic posture as well as improved neurophysiology as measured with the H-reflex.
Unexpectedly, the patient perceptive outcomes of lower back pain, leg pain, and lower back disability showed no differences between the groups; both groups improved equally at 10 weeks of treatment. However, after the 6-month follow-up with no further interventions, the control groups improvements regressed back to baseline values while the study group showed improved lumbar radiculopathy management outcomes for all variables. Thus, the difference in our study groups 6-month outcomes compared to the control group of improved radiographic, 3D postural parameters, clinical, and neurophysiological variables all indicate that our hypothesis is supported; improved cervical sagittal alignment does have a significant effect on the management outcomes of lumbosacral radiculopathy.
Back pain, leg pain improvements at 10 weeks
The outcomes of back pain, leg pain, and disability for both the study group and control group showed similar improvements at the 10-week post-treatment assessment. The temporal reduction of pain in both our groups can be attributed to the short-term effect of TENS and hotpacks. For instance, Escortell-Mayor et al. [32] reported that the effect of TENS significantly decreased 6 months after the intervention. Similarly, the systematic review of Gaid and Cozens [33] provides evidence to support the use of TENS as a short-term effective treatment modality for chronic lower back pain. This is likely the explanation for the worsening (waning of treatment effect) of pain and disability in our control group at 6 months.
Sagittal Cervical Alignment
The improvement in the forward head posture and cervical lordotic curve recorded by the study group receiving the Denneroll was anticipated in as much as previous investigations have identified that this device does indeed improve the cervical lordosis and reduce anterior head translation [22]. Sustained extension loading on devices like the Denneroll causes stretching of the visco-elastic tissues (discs, ligaments, muscles) of the cervical spine in the direction of the neutral head and neck posture and increased lordosis; this is the likely explanation and rationale for sustained extension loading restoring the cervical lordosis and improving anterior head translation [22,34,35].
Our study identified a smaller mean improvement in cervical lordosis compared to previous investigations using extension traction devices [22,34,35]. These smaller mean changes are likely a result of our use of only 30 sessions on the Denneroll and the pre-determined inclusion criteria of hypolordosis with AHT, thoracic hyperkyphosis, and lumbar hyperlordosis for subject participation. It is possible that if we allowed straight and reversed cervical curves in our population, the corrections would have been greater as the potential for improvement would be more. We suggest it is likely that the improved cervical sagittal alignment played a role in the improved outcomes of lumbosacral radiculopathy in our study group for the reasons discussed below.
3-D Posture Changes
The study group receiving the Denneroll traction experienced significant changes in posture parameters occurring in the sagittal, transverse, and coronal planes. These postural changes suggest an important role for the cervical spine on global spinal posture via complex neurophysiological reflex mechanisms [13]. For instance, studies have identified neurological regulation of static upright human posture that is largely dependent on head posture [36,37] and consequently a normal joint afferentation process.
Our results are conceptually in agreement with Lewit [31] who highlighted the association between head posture and the pelvo-ocular reflex, where an anterior pelvic translation to balance the head’s center of gravity may occur; this interdependence between body segments has been reported by others as well [38,39]. Additionally, in the study group receiving the Denneroll traction, the resultant changes in the sagittal contour of the whole spine may have contributed to the significant improvements of posture parameters in the transverse and coronal planes as well. For example, the relationship between the sagittal and coronal spinal contours [40,41,42] and between the sagittal configuration of the spine and axial rotation displacements [43] has been detailed.
It is likely that the continuous asymmetrical loading from altered postures (forward head posture, loss of cervical lordosis, sagittal, transverse and coronal displacements) may be the possible explanation for the decline in the functional status for the control group at the 6-month follow up as supported by predictions from experimental and biomechanical spine-posture modelling studies [44,45], surgical outcomes [11,12] and large cohort investigations [15]. Abnormal posture is considered as a predisposing factor for pain because it elicits abnormal stresses and strains in many structures, including bones, intervertebral discs, facet joints, musculotendinous tissues, and neural elements [11,12,17,18,44,45]. Thus, the 6-month improvement of pain for the study group seems reasonably attributable to the restoration of normal posture.
In contrast to our findings, other studies in the literature have reported that postural abnormalities were of minor importance for LBP and disability [46,47,48]. The lack of a clear correlation between sagittal spine curves and health was suggested in a systematic review conducted by Christensen and Hartvigsen [47]. However, the contradictory findings between the correlation between posture and pain in previous studies might simply be due to a lack of uniform classification and measures; most of the previous research is based on 2D posture analysis and poor experimental design. Further, when taken as a whole, comprehensive literature reviews including systematic literature reviews and meta-analyses on the topic, suggests a correlation between sagittal plane posture and patient outcomes [11,12,15,49,50]; especially in the cervical spine [51,52,53].
Neurophysiological improvements
The current investigation assessed neurophysiological responses at the nerve root by evaluating the H-reflex. Notably, we identified significantly improved H-reflex latency and amplitude in the study group compared with the control group at the 10-week evaluation and this improvement was maintained at the 6-month follow-up. The only explanation that seems reasonable herein, is that improved posture and cervical spine alignment in the study group reduced longitudinal stress and strain in the central nervous system and in the lumbosacral nerve roots. This concept is supported by biomechanical investigations confirming that abnormal posture of any part of the spinal column will induce abnormal stresses in the entire cord and nerve roots while normal posture will minimize these stresses [17,18]. This concept of altered postures of the thoraco-lumbar spine increasing tension on the nerve root and increasing the likelihood of radiculopathy has been documented elsewhere [54].
Specific to the cervical spine, Breig and Marions [18] demonstrated the effect that slight cervical spine flexion (straightening of the cervical lordosis) has on the lumbosacral nerve roots where increased tension was found as far down as the cauda equina and the sacral plexus. With loss of the cervical lordosis causing increased tension in the lumbosacral nerve roots, a disc herniation in the lumbosacral region would be associated with an increased shear load at the interface between the disc and the nerve root [17]. Finally, it has recently been confirmed that improvement of the sagittal cervical radiographic alignment does improve neurophysiological amplitudies and latencies of somatosensory evoked potentials in the cervical spine, both measured in the peripheral (nerve root) and central systems (central condition time) [22,55]. Thus, it seems logical that our study findings indicate that improved cervical sagittal alignment and improved 3D posture were the explanations for the improvements in the H-reflex identified in our study group.
Study limitations
Our study has some potential limitations, each of which points towards directions of future investigations. The primary limitations were the lack of investigator blinding and the sample was a convenient sample rather than a random sample of the whole population. Further, it remains to be seen what effect a greater frequency and number of traction sessions will produce and what effect the Denneroll would have on improvement of altered cervical curves with other types of primary lumbar disorders.

5. Conclusions

Our study identified that both groups experienced improvement in lower back pain, leg pain and disability levels after 10 weeks (30 sessions) of interventions. However, cervical lordosis, 3D posture of the trunk and the neurophysiological findings, represented in the H-reflex, identified greater improvements in the study group receiving the Denneroll. At the 6-month follow up, the control groups improvement in lower back pain, leg pain and disability reverted back to pre-study values. In contrast, at the 6-month follow-up the Denneroll traction study group showed improvements in all variables, including lower back pain, leg pain, disability, the 3D posture parameters, neurophysiological, and sagittal cervical alignment. These findings suggest that improving the cervical sagittal radiographic alignment offers benefits to this population suffering from chronic lower back pain and lumbosacral radiculopathy.

Author Contributions

I.M.M., A.A.M.D. and D.E.H. conceived the research idea and participated in its design. I.M.M., A.A.M.D. and D.E.H. all contributed to the statistical analysis. I.M.M. and A.A.M.D. participated in the data collection and study supervision. I.M.M., A.A.M.D. and D.E.H. all contributed to the interpretation of the results and wrote the original and final drafts. All authors agree with the order of presentation of the authors. All authors have read and agreed to the published version of the manuscript.


This research project received funding of the cervical Dennerolls used for the participants from CBP NonProfit, Inc. Eagle, ID, USA (836161).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the Faculty of Physical Therapy, Cairo University; all participants signed informed consent prior to data collection. This trial was retrospectively registered at (accessed on 10 September 2022) with registration number (NCT05553002).

Informed Consent Statement

Written informed consent was not obtained for the person depicted in Figure 2 as this is a photo from a model production shoot and the copyright holder is an author (D.E.H.) on the manuscript and has provided consent for this image to be reproduced.

Data Availability Statement

The datasets analyzed in the current study are available from the corresponding author on reasonable request.

Conflicts of Interest

D.E.H. teaches rehabilitation methods and sells the Denneroll products to physicians for patient care as used in this manuscript. D.E.H. is not a patent holder for the Denneroll products. All the other authors declare that they have no competing interests.


  1. Modic, M.; Ross, J.S.; Obuchowski, N.; Browning, K.; Cianflocco, A.; Mazanec, D. Contrast enhanced MR imaging in acute lumbar radiculopathy: A pilot study of the natural history. Radiology 1995, 195, 429–435. [Google Scholar] [CrossRef] [PubMed]
  2. Tubach, F.; Beaute, J.; Leclerc, A. Natural history and prognostic indicators of sciatica. J. Clin. Epidemiol. 2004, 57, 174–179. [Google Scholar] [CrossRef]
  3. Anderson, G.B.J. Epidemiology of spinal disorders. In The Adult Spine: Principles and Practice; Frymoyer, J.W., Ed.; Raven: New York, NY, USA, 1991; pp. 110–146. [Google Scholar]
  4. Heliovaraa, M.; Helmhout, P.H.; Harts, C.C.; Viechtbauer, W.; Staal, J.B.; de Bie, R.A. Isolated lumbar extensor strengthening versus regular physical therapy in an army working population with nonacute low back pain: A randomized controlled trial. Arch. Phys. Med. Rehabil. 2008, 89, 1675–1685. [Google Scholar]
  5. Boswell, M.V.; Trescot, A.M.; Datta, S.; Schultz, D.M.; Hansen, H.C.; Abdi, S.; Sehgal, N.; Shah, R.V.; Singh, V.; Benyamin, R.M.; et al. American Society of Interventional Pain Physicians. Interventional techniques: Evidence-based practice guidelines in the management of chronic spinal pain. Pain Physician 2007, 10, 7–11. [Google Scholar] [PubMed]
  6. Murphy, D. Conservative management of cervical spine syndromes. In Dysfunction in the Cervical Spine; Murphy, D., Ed.; McGraw-Hill: New York, NY, USA, 2000; pp. 71–103. [Google Scholar]
  7. Brumagne, S.; Janssens, L.; Knapen, S.; Claeys, K.; Suuden-Johanson, E. Persons with recurrent low back pain exhibit a rigid postural control strategy. Eur. Spine J. 2008, 17, 1177–1184. [Google Scholar] [CrossRef] [PubMed]
  8. Wong, K.C.; Lee, R.W.; Yeung, S.S. The association between back pain and trunk posture of workers in a special school for the severe handicap. BMC Musculoskelet. Disord. 2009, 10, 43–50. [Google Scholar] [CrossRef]
  9. Chun, S.W.; Lim, C.Y.; Kim, K.; Hwang, J.; Chung, S.G. The relationships between low back pain and lumbar lordosis: A systematic review and meta-analysis. Spine J. 2017, 17, 1180–1191. [Google Scholar] [CrossRef]
  10. Sadler, S.G.; Spink, M.J.; Ho, A.; De Jonge, X.J.; Chuter, V.H. Restriction in lateral bending range of motion, lumbar lordosis, and hamstring flexibility predicts the development of low back pain: A systematic review of prospective cohort studies. BMC Musculoskelet. Disord. 2017, 18, 179. [Google Scholar] [CrossRef]
  11. Protopsaltis, T.S.; Scheer, J.K.; Terran, J.S.; Smith, J.S.; Hamilton, D.K.; Kim, H.J.; Mundis, G.M., Jr.; Hart, R.A.; McCarthy, I.M.; Klineberg, E.; et al. How the neck affects the back: Changes in regional cervical sagittal alignment correlate to HRQOL improvement in adult thoracolumbar deformity patients at 2-year follow-up. J. Neurosurg. Spine 2015, 23, 153–158. [Google Scholar] [CrossRef]
  12. Scheer, J.K.; Passias, P.G.; Sorocean, A.M.; Boniello, A.J.; Mundis, G.M., Jr.; Klineberg, E.; Kim, H.J.; Protopsaltis, T.S.; Gupta, M.; Bess, S.; et al. Association between preoperative cervical sagittal deformity and inferior outcomes at 2-year follow-up in patients with adult thoracolumbar deformity: Analysis of 182 patients. J. Neurosurg. Spine 2016, 24, 108–115. [Google Scholar] [CrossRef]
  13. Morningstar, M.W.; Pettibon, B.R.; Schlappi, H.; Schlappi, M.; Ireland, T.V. Reflex control of the spine and posture: A review of the literature from a chiropractic perspective. Chiropr. Osteopath. 2005, 13, 16–26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Buchanan, J.J.; Horak, F.B. Emergence of postural patterns as a function of vision and translation frequency. J. Neurophysiol. 1999, 81, 2325–2339. [Google Scholar] [CrossRef] [PubMed]
  15. Glassman, S.D.; Bridwell, K.; Dimar, J.R.; Horton, W.; Berven, S.; Schwab, F. The impact of positive sagittal balance in adult spinal deformity. Spine 2005, 30, 2024–2029. [Google Scholar] [CrossRef] [PubMed]
  16. Lau, K.T.; Cheung, K.Y.; Chan, K.B.; Chan, M.H.; Lo, K.Y.; Chiu, T.T. Relationships between sagittal postures of thoracic and cervical spine, presence of neck pain, neck pain severity and disability. Man. Ther. 2010, 15, 457–462. [Google Scholar] [CrossRef] [PubMed]
  17. Harrison, D.E.; Cailliet, R.; Harrison, D.D.; Troyanovich, S.J.; Harrison, S.O. A review of biomechanics of the central nervous system. Part II: Strains in the spinal cord from postural loads. J. Manipulative Physiol. Ther. 1999, 22, 322–332. [Google Scholar] [CrossRef]
  18. Breig, A.; Marions, O. Biomechanics of the lumbosacral nerve roots. Acta Radiol. 1963, 1, 1141–1160. [Google Scholar] [CrossRef]
  19. Atlas, S.J.; Keller, R.B.; Wu, Y.A.; Deyo, R.A.; Singer, D.E. Long-term outcomes of surgical and nonsurgical management of sciatica secondary to a lumbar disc herniation: 10 year results from the maine lumbar spine study. Spine 2005, 30, 927–935. [Google Scholar] [CrossRef] [PubMed]
  20. Velazquez-Perez, L.; Sanchez-Cruz, G.; Perez-Gonzalez, R.M. Neurophysiological diagnosis of lumbosacral radicular compression syndrome from late responses. Rev. Neurol. 2002, 34, 819–823. [Google Scholar] [PubMed]
  21. Rocabado, M.; Iglarsh, Z.A. Musculoskeletal Approach to Maxillofacial Pain; Lippincott: Philadelphia, PA, USA, 1991; Volume 136–138, pp. 190–191. [Google Scholar]
  22. Moustafa, I.M.; Diab, A.A.; Taha, S.; Harrison, D.E. Addition of a Sagittal Cervical Posture Corrective Orthotic Device to a Multimodal Rehabilitation Program Improves Short- and Long-Term Outcomes in Patients with Discogenic Cervical Radiculopathy. Arch Phys. Med. Rehabil. 2016, 97, 2034–2044. [Google Scholar] [CrossRef]
  23. Fairbank, J.C.; Couper, J.; Davies, J.B.; O’Brien, J.P. The Oswestry low back pain disability questionnaire. Physiotherapy 1980, 66, 271–273. [Google Scholar]
  24. Christie, H.J.; Kuma, R.S.; Warren, S.A. Postural aberrations in low back pain. Arch Phys. Med. Rehabil. 1995, 76, 218–224. [Google Scholar] [CrossRef]
  25. Harrison, D.D.; Janik, T.J.; Troyanovich, S.J.; Holland, B. Comparisons of Lordotic Cervical Spine Curvatures to a Theoretical Ideal Model of the Static Sagittal Cervical Spine. Spine 1996, 21, 667–675. [Google Scholar] [CrossRef] [PubMed]
  26. Shanahan, C.; Ward, A.R.; Robertson, V.J. Comparison of the analgesic efficacy of interferential therapy and transcutaneous electrical nerve stimulation. Physiotherapy 2006, 92, 247–253. [Google Scholar] [CrossRef]
  27. Harrison, D.E.; Harrison, D.D.; Cailliet, R.; Troyanovich, S.J.; Janik, T.J.; Holland, B. Cobb mor Harrison posterior tangent method: Which is better for lateral cervical analysis? Spine 2000, 25, 2072–2078. [Google Scholar] [CrossRef] [PubMed]
  28. Jackson, B.L.; Harrison, D.D.; Robertson, G.A.; Barker, W.F. Chiropractic biophysics lateral cervical film analysis reliability. J. Manipulative Physiol. Ther. 1993, 16, 384–391. [Google Scholar]
  29. Lippold, C.; Danesh, G.; Hoppe, G.; Drerup, B.; Hackenberg, L. Trunk inclination, pelvic tilt and Pelvic rotation in relation to the craniofacial morphology in Adult. Angle Orthodontist. 2007, 77, 29–35. [Google Scholar] [CrossRef]
  30. Chuds, J.D.; Piva, S.R.; Fritz, J.M. Responsiveness of the numeric pain rating scale in patients with low back pain. Spine 2005, 30, 1331–1334. [Google Scholar]
  31. Lewit, K. Muscular and articular factors in movement restriction. Man. Med. 1985, 1, 83–85. [Google Scholar]
  32. Escortell-Mayor, E.; Riesgo-Fuertes, R.; Garrido-Elustondo, S.; Asúnsolo-del Barco, A.; Díaz-Pulido, B.; Blanco-Díaz, M.; Bejerano-Álvarez, E. Primary care randomized clinical trial: Manual therapy effectiveness in comparison with TENS in patients with neck pain. Man. Ther. 2011, 16, 66–73. [Google Scholar] [CrossRef]
  33. Gaid, M.; Cozens, A. The role of transcutaneous electric nerve stimulation (TENS) for the management of chronic low back pain. Int. Musculoskelet. Med. 2009, 31, 19. [Google Scholar]
  34. Harrison, D.E.; Harrison, D.D.; Betz, J.; Janik, T.J.; Holland, B.; Colloca, C. Increasing the Cervical Lordosis with CBP Seated Combined Extension-Compression and Transverse Load Cervical Traction with Cervical Manipulation: Non-randomized Clinical Control Trial. J. Manipulative Physiol. Ther. 2003, 26, 139–151. [Google Scholar] [CrossRef]
  35. Harrison, D.E.; Cailliet, R.; Harrison, D.D.; Janik, T.J.; Holland, B. A new 3-point bending traction method for restoring cervical lordosis and cervical manipulation: A nonrandomized clinical controlled trial. Arch Phys. Med. Rehabil. 2002, 83, 447–453. [Google Scholar] [CrossRef] [PubMed]
  36. Ledin, T.; Hafstrom, A.; Fransson, P.A.; Magnusson, M. Influence of neck proprioception on vibration-induced postural sway. Acta Oto-Laryngol. 2003, 123, 594–599. [Google Scholar] [CrossRef] [PubMed]
  37. Karnath, H.O.; Konczak, J.; Dichgans, J. Effect of prolonged neck muscle vibration on lateral head tilt in severe spasmodic torticollis. J. Neurol. Neurosurg. Psychiatry 2000, 69, 658–660. [Google Scholar] [CrossRef]
  38. Carlson, M. Clinical Biomechanics of Orthotic Treatment of Thoracic Hyperkyphosis. JPO 2003, 15, 31–35. [Google Scholar] [CrossRef]
  39. Sato, K.; Kikuchi, S.; Yonezawa, T. In vivo intradiscal pressure measurement in healthy individuals and in patient with ongoing back problems. Spine 2001, 24, 2468–2474. [Google Scholar] [CrossRef]
  40. Rigo, M.; Quera-Salvá, G.; Villagers, M. Sagittal configuration of the spine in girls with idiopathic scoliosis: Progressing rather than initiating factor. Stud. Health Technol. Inform. 2006, 123, 90. [Google Scholar]
  41. Dobosiewicz, K.; Durmala, J.; Jendrzejek, H.; Czernicki, K. Influence of method of asymmetric trunk mobilization on shaping of a physiological thoracic kyphosis in children and youth suffering from progressive idiopathic scoliosis. Stud. Health Technol. Inform. 2002, 91, 348–351. [Google Scholar]
  42. Kadoury, S.; Cheriet, F.; Labelle, H. Prediction of the T2-T12 kyphosis in adolescent idiopathic scoliosis using a multivariate regression model. Stud. Health Technol. Inform. 2008, 140, 269–272. [Google Scholar]
  43. Vuillerme, N.; Danion, F.; Forestier, N.; Nougier, V. Postural sway under muscle vibration and muscle fatigue in humans. Neurosci. Lett. 2002, 333, 131–135. [Google Scholar] [CrossRef]
  44. Harrison, D.E.; Colloca, C.J.; Keller, T.S.; Harrison, D.D.; Janik, T.J. Anterior thoracic posture increases thoracolumbar disc loading. Eur. Spine J. 2005, 14, 234–242. [Google Scholar] [CrossRef] [PubMed]
  45. Keller, T.S.; Colloca, C.J.; Harrison, D.E.; Harrison, D.D.; Janik, T.J. Morphological and Biomechanical Modeling of the Thoracoc-lumbar Spine: Implications for the Ideal Spine. Spine J. 2005, 5, 297–305. [Google Scholar] [CrossRef] [PubMed]
  46. Balague, F.; Troussier, B.; Salminen, J.J. Non-specific low back pain in children and adolescents: Risk factors. Eur. Spine J. 1999, 8, 429–438. [Google Scholar] [CrossRef]
  47. Christensen, S.T.; Hartvigsen, J. Spinal curves and health: A systematic critical review of the epidemiological literature dealing with associations between sagittal spinal curves and health. J. Manipulative Physiol. Ther. 2008, 31, 690–714. [Google Scholar] [CrossRef] [PubMed]
  48. Corso, M.; Cancelliere, C.; Mior, S.; Kumar, V.; Smith, A.; Côté, P. The clinical utility of routine spinal radiographs by chiropractors: A rapid review of the literature. Chiropr. Man. Therap. 2020, 28, 33. [Google Scholar] [CrossRef]
  49. Harrison, D.E.; Betz, J.; Ferrantelli, J.F. Sagittal spinal curves and health. J. Vertebr. Subluxation Res. 2009. Available online: (accessed on 12 September 2022).
  50. Oakley, P.A.; Betz, J.W.; Harrison, D.E.; Siskin, L.A.; Hirsh, D.W. International Chiropractors Association Rapid Response Research Review Subcommittee. Radiophobia Overreaction: College of Chiropractors of British Columbia Revoke Full X-ray Rights Based on Flawed Study and Radiation Fear-Mongering. Dose Response 2021, 19, 15593258211033142. [Google Scholar]
  51. Ling, F.P.; Chevillotte, T.; Leglise, A.; Thompson, W.; Bouthors, C.; Le Huec, J.C. Which parameters are relevant in sagittal balance analysis of the cervical spine? A literature review. Eur. Spine J. 2018, 27 (Suppl. S1), 8–15. [Google Scholar] [CrossRef]
  52. Azimi, P.; Yazdanian, T.; Benzel, E.C.; Hai, Y.; Montazeri, A. Sagittal balance of the cervical spine: A systematic review and meta-analysis. Eur. Spine J. 2021, 30, 1411–1439. [Google Scholar] [CrossRef] [PubMed]
  53. Oakley, P.A.; Ehsani, N.N.; Moustafa, I.M.; Harrison, D.E. Restoring cervical lordosis by cervical extension traction methods in the treatment of cervical spine disorders: A systematic review of controlled trials. J. Phys. Ther. Sci. 2021, 33, 784–794. [Google Scholar] [CrossRef]
  54. Ten Brinke, A.; Van der Aa, H.E.; Van der Palen, J.; Oosterveld, F. Is leg length discrepancy associated with the side of radiating pain in patients with a lumbar herniated disc? Spine 1999, 24, 684–686. [Google Scholar] [CrossRef]
  55. Moustafa, I.M.; Diab, A.A.; Hegazy, F.; Harrison, D.E. Demonstration of central conduction time and neuroplastic changes after cervical lordosis rehabilitation in asymptomatic subjects: A randomized, placebo-controlled trial. Sci. Rep. 2021, 11, 15379. [Google Scholar] [CrossRef] [PubMed]

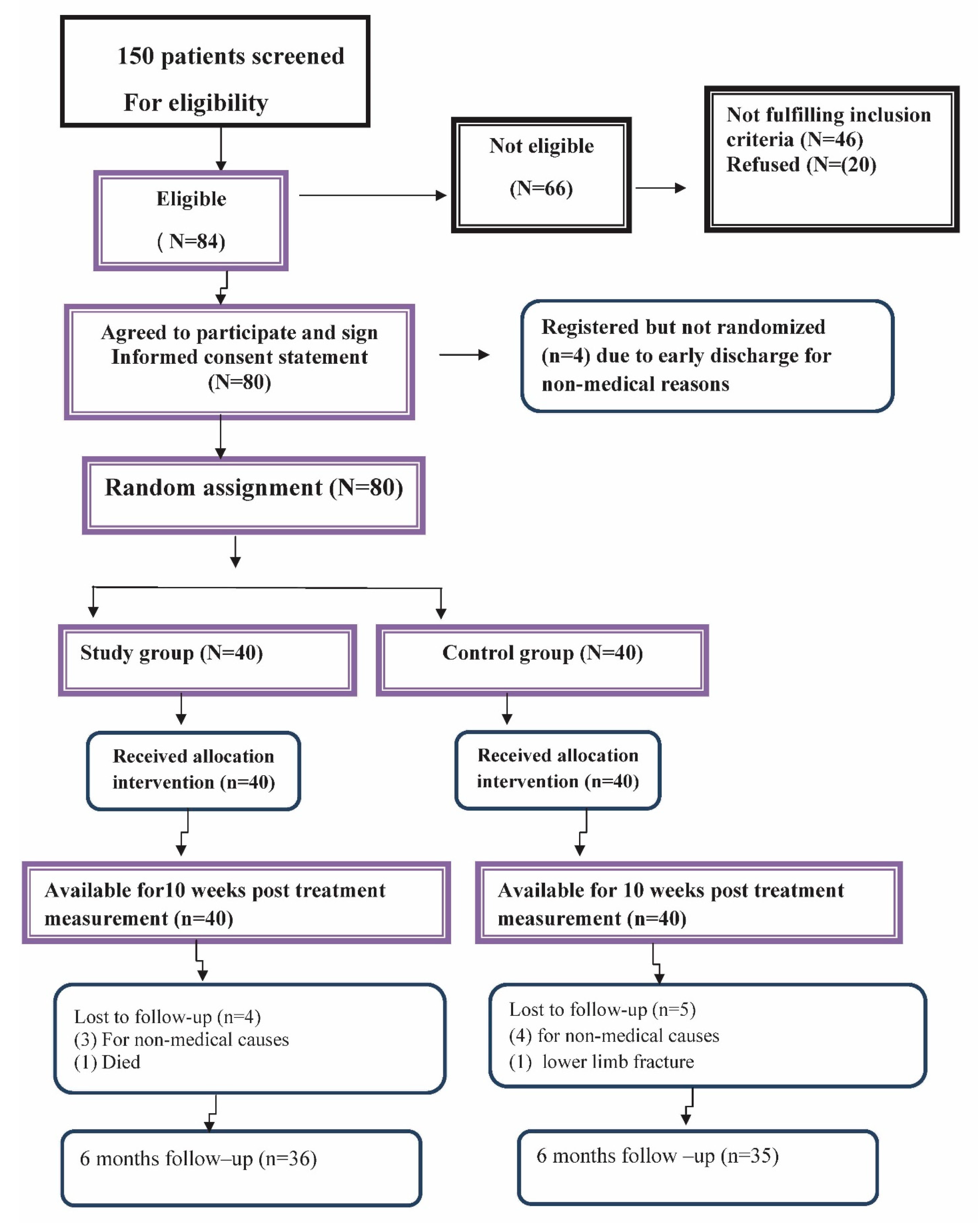

Figure 1. Flow of study participants.
Figure 1. Flow of study participants.
Jcm 11 05768 g001

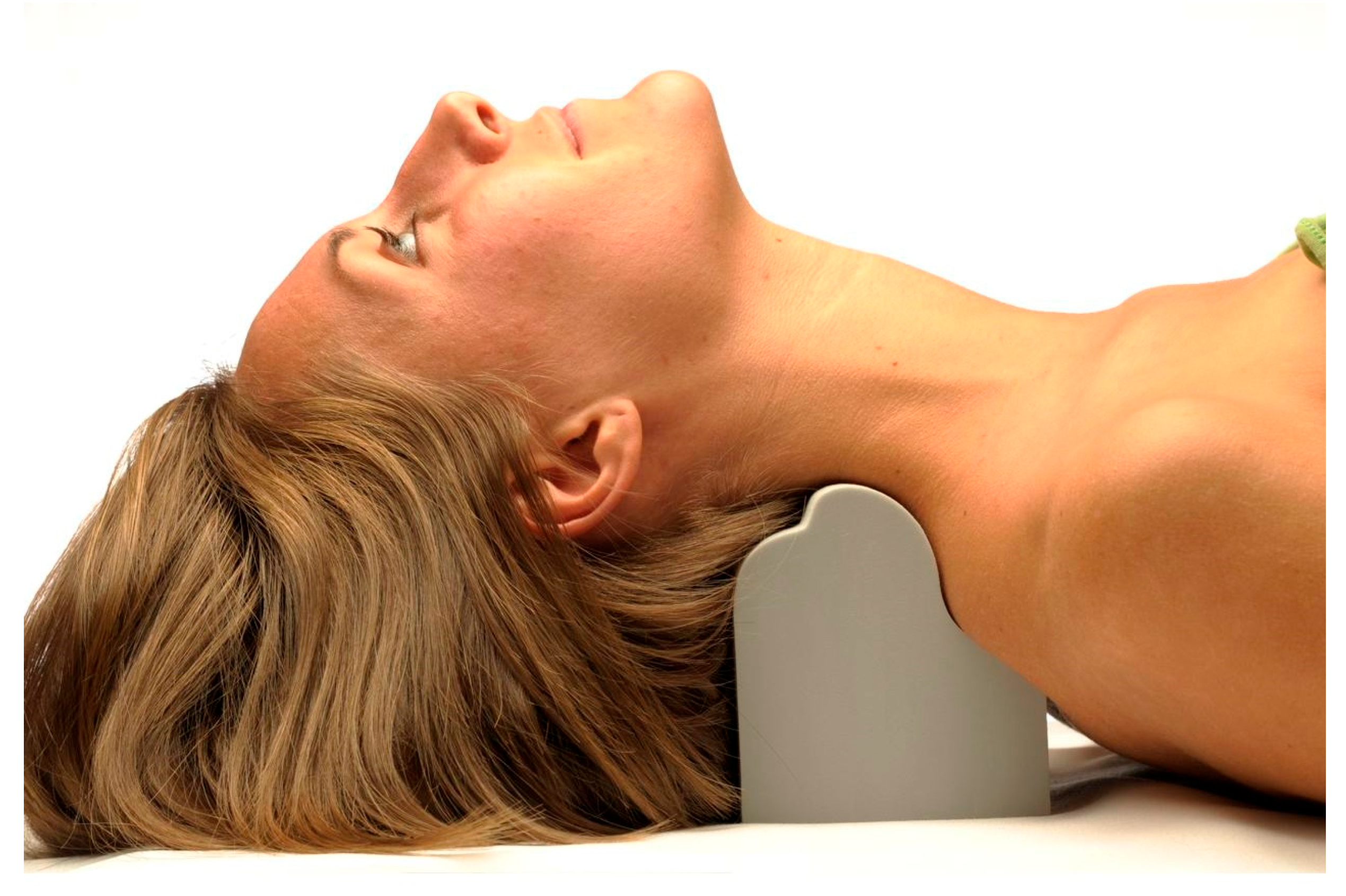

Figure 2. The Denneroll cervical traction orthotic. The participant must lie on a firm surface, such as the floor, and place the peak of the Denneroll just distal to the apex of their cervical lordotic abnormality as shown on the lateral cervical X-ray. Shown is a mid-cervical spine placement. ©Copyright CBP Seminars. Reprinted with permission.
Figure 2. The Denneroll cervical traction orthotic. The participant must lie on a firm surface, such as the floor, and place the peak of the Denneroll just distal to the apex of their cervical lordotic abnormality as shown on the lateral cervical X-ray. Shown is a mid-cervical spine placement. ©Copyright CBP Seminars. Reprinted with permission.
Jcm 11 05768 g002
Figure 3. Sample of lateral cervical X-ray findings of a participant in the study group receiving Denneroll traction application at the three intervals of measurement. Pre-treatment prior to study participation, 10-week post-treatment participation, and at the 6-month study follow up radiographs are shown demonstrating improved cervical lordosis and reduced anterior head posture.
Figure 3. Sample of lateral cervical X-ray findings of a participant in the study group receiving Denneroll traction application at the three intervals of measurement. Pre-treatment prior to study participation, 10-week post-treatment participation, and at the 6-month study follow up radiographs are shown demonstrating improved cervical lordosis and reduced anterior head posture.
Jcm 11 05768 g003

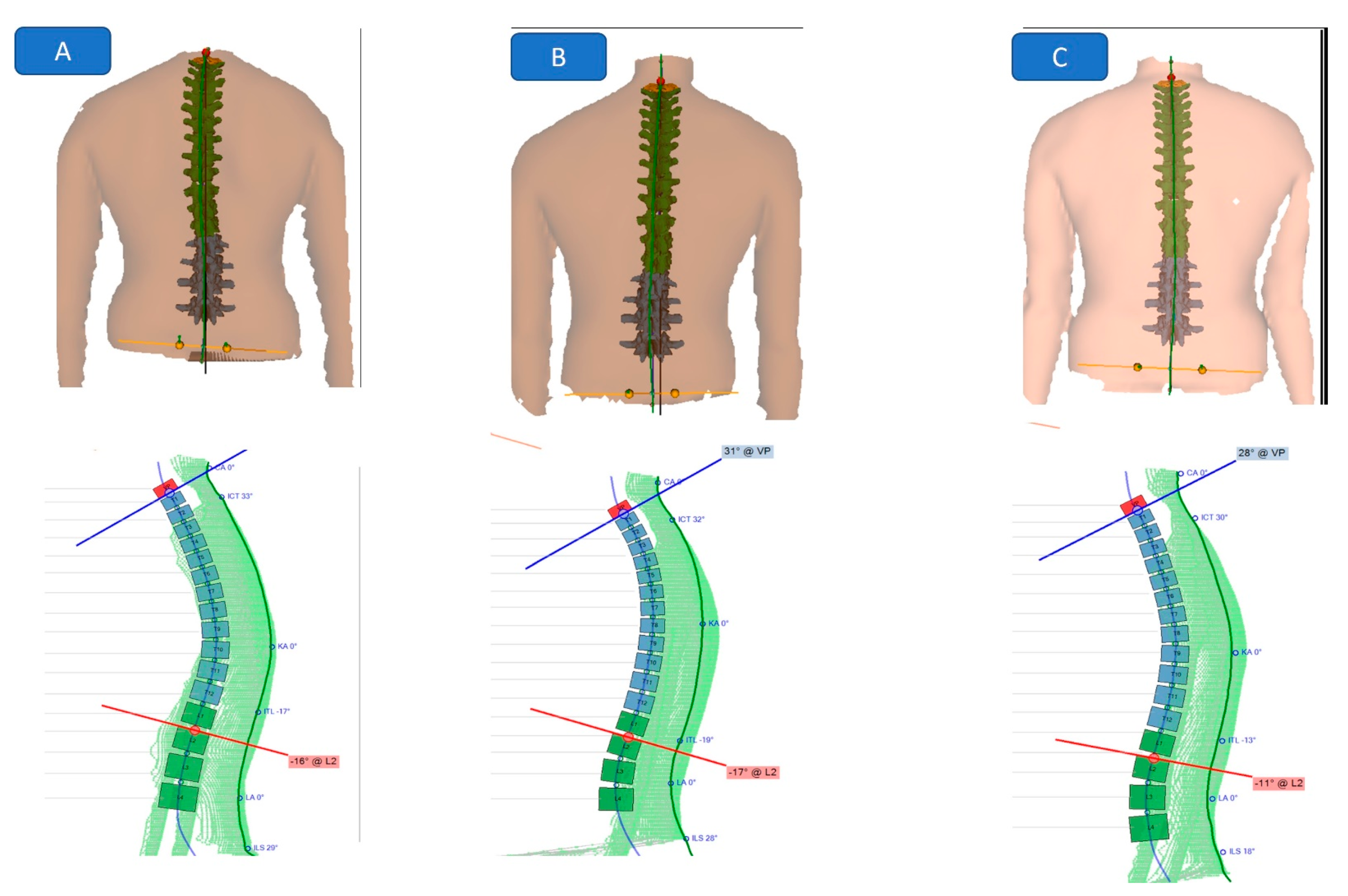

Figure 4. Formetric findings at the three intervals of measurement for a representative patient in the study group: In the left-hand column is the sagittal plane surface profile of the thoracic and lumbar spines while the right-hand column is the posterior view of the coronal and transverse aspects of posture deformity for the thoracic, lumbar, and top of the pelvic regions. (A) pre-treatment; (B) 10-weeks post-treatment; and (C) is the 6-month follow up.
Figure 4. Formetric findings at the three intervals of measurement for a representative patient in the study group: In the left-hand column is the sagittal plane surface profile of the thoracic and lumbar spines while the right-hand column is the posterior view of the coronal and transverse aspects of posture deformity for the thoracic, lumbar, and top of the pelvic regions. (A) pre-treatment; (B) 10-weeks post-treatment; and (C) is the 6-month follow up.
Jcm 11 05768 g004
Table 1. Baseline participant demographics and tests of significance of between group variables.
Table 1. Baseline participant demographics and tests of significance of between group variables.
Study Group (n = 40)Control Group (n = 40)p
Age (y) 46.3 ± 2.0545.9 ± 2.10.391
Height (cm)172 ± 9175 ± 100.162
Weight (kg)75 ± 980 ± 100.021 *
Male 2223
Sedentary and mobile412
Previous back pain treatment (yes/no)0.580
Physical therapy57
‡: Two-sided 2-sample t test for continuous variables and Fisher’s exact test for categorical variables. SD: Standard deviation; values are mean (±SD) for age, height, weight and number for the term ‘other’. *: Statistically significant difference between groups for weight.
Table 2. Means, standard deviations (±SD), and statistical significance for all outcome variables in the control group versus the study subjects at initial, 10 weeks of treatment, and 6-month follow up.
Table 2. Means, standard deviations (±SD), and statistical significance for all outcome variables in the control group versus the study subjects at initial, 10 weeks of treatment, and 6-month follow up.
Dependent Variables Initial Baseline10-Weeks Post6-Month Follow Upp-Value
Trunk inclinationStudy G6 ± 1.05.1 ± 1.15.5 ± 1.4<0.001<0.001<0.001
Control G6.7 ± 1.36.5 ± 1.16.8 ± 1.3
Between group analysis 0.010.04
Thoracic kyphosisStudy G64.9 ± 4.262.0 ± 5.363.1 ± 5.1<0.001<0.001<0.001
Control G62.2 ± 4.961.5 ± 4.961.9 ± 5.2
Between group analysis 0.0010.001
Lumbar lordosisStudy G49.5 ± 3.446.7 ± 3.547.1 ± 3.3<0.001<0.001<0.001
Control G49.1 ± 3.248.3 ± 3.248.9 ± 3.4
Between group analysis 0.0020.001
Trunk imbalanceStudy G20.4 ± 2.917.4 ± 2.817.8 ± 2.7<0.001<0.001<0.001
Control G20.1 ± 2.919.3 ± 2.419.5 ± 2.6
Between group analysis 0.001<0.001
Pelvic inclinationStudy G3.2 ± 0.61.9 ± 0.82.0 ± 1<0.001<0.001<0.001
Control G3.0 ± 0.63.0 ± 0.93.3 ± 0.8
Between group analysis 0.0050.02
Surface rotationStudy G5.6 ± 1.15.01 ± 1.35.6 ± 1.6<0.001<0.001<0.001
Control G6.4 ± 1.06.3 ± 0.96.7 ± 1.0
Between group analysis 0.010.05
+ Cervical ARAStudy G13.3 ± 318.25 ± 2.617.6 ± 2.8<0.001<0.001<0.001
Control G13.5 ± 2.714 ± 2.814 ± 2.9
Between group analysis 0.0010.01
Functional indexStudy G29 ± 5.625.3 ± 5.425 ± 5<0.001<0.001<0.001
Control G31.9 ± 5.831.6 ± 5.533 ± 6.2
Between group analysis 0.6<0.001
H-reflex amplitudeStudy G2.4 ± 0.32.8 ± 0.42.7 ± 0.3<0.001<0.001<0.001
Control G1.9 ± 0.22.1 ± 0.42 ± 0.6
Between group analysis 0.007<0.001
H-reflex latencyStudy G33.5 ± 0.732.4 ± 0.732.5 ± 0.6<0.001<0.001<0.001
Control G33.8 ± 0.633.5 ± 1.134 ± 2.1
Between group analysis 0.0010.004
Back painStudy G5.2 ± 0.83.5 ± 1.13.3 ± 1.5<0.001<0.001<0.001
Control G4.6 ± 13.4 ± 14.7 ± 1.5
Between group analysis 0.27<0.001
Leg painStudy G6.9 ± 0.74.8 ± 1.34.7 ± 1.5<0.001<0.001<0.001
Control G6.4 ± 1.14.7 ± 1.46.1 ± 1.6
Between group analysis 0.1<0.001
++ AHTStudy G26.5 ± 5.721 ± 5.322.0 ± 5.3<0.001<0.001<0.001
Control G26.1 ± 3.924.9 ± 3.825.3 ± 3.2
Between group analysis 0.0020.028
T2-way repeated-measures analysis of covariance was used to compare between groups. The model included one independent factor (group: G), one repeated measure (time: T), and an interaction factor (group * time: G*T). +ARA: Absolute rotation angle for cervical lordosis along the backs of vertebral body margins of C2 and C7. ++AHT: Forward or anterior head translation posture.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moustafa, I.M.; Diab, A.A.M.; Harrison, D.E. Does Improvement towards a Normal Cervical Sagittal Configuration Aid in the Management of Lumbosacral Radiculopathy: A Randomized Controlled Trial. J. Clin. Med. 2022, 11, 5768.

AMA Style

Moustafa IM, Diab AAM, Harrison DE. Does Improvement towards a Normal Cervical Sagittal Configuration Aid in the Management of Lumbosacral Radiculopathy: A Randomized Controlled Trial. Journal of Clinical Medicine. 2022; 11(19):5768.

Chicago/Turabian Style

Moustafa, Ibrahim Moustafa, Aliaa Attiah Mohamed Diab, and Deed Eric Harrison. 2022. "Does Improvement towards a Normal Cervical Sagittal Configuration Aid in the Management of Lumbosacral Radiculopathy: A Randomized Controlled Trial" Journal of Clinical Medicine 11, no. 19: 5768.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
