Hemodynamic Performance of Two Current-Generation Transcatheter Heart Valve Prostheses in Severely Calcified Aortic Valve Stenosis

by
Max Potratz
1,*,
Kawa Mohemed
1,
Hazem Omran
1,
Lasha Gortamashvili
1,
Kai Peter Friedrichs
1,
Werner Scholtz
1,
Smita Scholtz
1,
Volker Rudolph
1,
Cornelia Piper
1,
Tomasz Gilis-Januszewski
2,
René Schramm
2,
Nobuyuki Furukawa
2,
Jan Gummert
2,
Sabine Bleiziffer
2,† and
Tanja Katharina Rudolph
1,†
1
Clinic for General and Interventional Cardiology/Angiology, Herz-und Diabeteszentrum NRW, Ruhr-Universität Bochum, 32545 Bad Oeynhausen, Germany
2
Clinic for Thoracic and Cardiovascular Surgery, Herz-und Diabeteszentrum NRW, Ruhr-Universität Bochum, 32545 Bad Oeynhausen, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2022, 11(15), 4570; https://doi.org/10.3390/jcm11154570
Submission received: 28 June 2022 / Revised: 21 July 2022 / Accepted: 2 August 2022 / Published: 5 August 2022
(This article belongs to the Special Issue Transcatheter Aortic Valve Replacement in 2021 and Beyond)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Treatment of severely calcified aortic valve stenosis is associated with a higher rate of paravalvular leakage (PVL) and permanent pacemaker implantation (PPI). We hypothesized that the self-expanding transcatheter heart valve (THV) prostheses Evolut Pro (EPro) is comparable to the balloon-expandable Sapien 3 (S3) regarding hemodynamics, PPI, and clinical outcome in these patients. Methods: From 2014 to 2019, all patients with very severe calcification of the aortic valve who received an EPro or an S3 THV were included. Propensity score matching was utilized to create two groups of 170 patients. Results: At discharge, there was significant difference in transvalvular gradients (EPro vs. S3) (dPmean 8.1 vs. 11.1 mmHg, p ≤ 0.001) and indexed effective orifice area (EOAi) (1.1 vs. 0.9, p ≤ 0.001), as well as predicted EOAi (1 vs. 0.9, p ≤ 0.001). Moderate patient prosthesis mismatch (PPM) was significantly lower in the EPro group (17.7% vs. 38%, p ≤ 0.001), as well as severe PPM (2.9% vs. 8.8%, p = 0.03). PPI and the PVL rate as well as stroke, bleeding, vascular complication, and 30-day mortality were comparable. Conclusions: In patients with severely calcified aortic valves, both THVs performed similarly in terms of 30-day mortality, PPI rate, and PVL occurrence. However, patient prothesis mismatch was observed more often in the S3 group, which might be due to the intra-annular design.

1. Introduction

Since 2002, transcatheter aortic valve implantation (TAVI) has gradually developed from being a method reserved to treat aortic valve stenosis in high-risk patients to an alternative to surgical aortic valve replacement in intermediate and even low-risk patients [1,2,3].
However, despite its favorable outcome data, TAVI itself has been associated with severe complications [1,2,3]. Atrioventricular blockage, paravalvular leakage, stroke or vascular complication still pose a substantial problem [4].
Several risk factors have been identified as underlying causes for complications resulting in a worse outcome following TAVI. Severe calcification of the aortic valve leaflets, annulus, and left ventricular outflow tract is a particular challenging risk factor [5,6]. The degree and distribution of calcification have been linked to the permanent pacemaker implantation rate in balloon-expandable as well as self-expandable valves [7,8]. Paravalvular leakage, itself associated with a detrimental effect on prognosis [9], was found significantly more often in patients with a high calcification burden of the aortic valve [5]. The impact on stroke remains unclear, with some studies finding no correlation [10,11], while newer data reported by Spaziano et al. found a two-fold increase in the stroke rate and mortality at one year following TAVI in patients with moderate or severe left ventricular outflow tract (LVOT) calcification [6]. Furthermore, a study by Aggarwal et al. reported a significantly higher number of cranial embolization in patients with a higher valvular Agatston score [12]. The risk for annular rupture as well as mortality has been associated with valve calcification [13,14].
Addressing the procedural challenges when treating highly calcified valves as well as receiving the best hemodynamic outcomes in these patients is of great importance.
Self-expanding valves have a fundamentally different way of exerting pressure on the annulus than balloon-expandable valves [15]. A high calcification burden may impede TAVI deployment regardless of the expanding mechanism [16]. Much engineering effort has been undertaken to counter this, with additional features of modern transcatheter heart valves [17,18,19].
The Sapien 3 features a specific sealing skirt to tackle PVL for which several studies reported favorable results [18,20]. The Evolut Pro has an additional outer pericardium sheath over the bottom 1 ½ mesh segments to achieve better sealing, which translates into a reduced PVL rate [21].
The purpose of this study was to investigate the recent self-expanding THV generation—the Evolut Pro, in a head-to-head comparison against the Sapien 3 in the setting of severe calcification in propensity score-matched cohort data from our institution.

2. Materials and Methods

This retrospective single-center study included all patients with severe calcified aortic valve stenosis who received either an Evolut Pro (EPro, Medtronic, Minneapolis, Minnesota) or a Sapien 3 (S3, Edwards Lifesciences, Irvine, CA, USA) THV from June 2014 to December 2019. Patients were recruited from the ongoing prospective TAVI register at our institution. In total, 1988 patients were screened for enrollment in this study. All patients presented with a symptomatic, severe aortic valve stenosis as defined by ESC/AHA guidelines [22,23]. Every patient received a pre-procedural computed tomography of the heart and complete aorta. CT analysis was performed using 3 mensio structural heart software (Pie Medical Imaging, Maastricht, The Netherlands). The calcification burden was determined using a contrast-enhanced computed tomogram [24]. The region of interest was defined as reaching from the coronary ostia to the basal plane with further retrograde 10 mm into the LVOT. The severity of calcification was determined as extensive calcifications of all three cusps of the aortic valve as well as the LVOT [25]. Since exclusively an annular diameter from 18 mm to 26.4 mm can be treated with both studied THV prostheses, only patients with annular dimension within this range were included in the current analysis.
In total, 440 patients presented with severely calcified aortic valve complex and were subsequently enrolled in this analysis; 263 patients received an S3, and 177 patients received an EPro. All patients gave written informed consent for the procedure. The study protocol was approved by the local review board and ethics committee.
Eligibility of the individual candidate for TAVI had been decided by the local institutional heart team. The transfemoral artery was the preferred access route, but transsubclavian access was used when deemed more favorable in the presence of vascular calcification, small caliber, or kinking. In each group, 1 patient was treated via the subclavian access route while all others were treated transfemorally. Prosthesis selection was suggested by the heart team, but the final decision was made by the operating physician.
Echocardiographic evaluation was standardized and performed by an intervention-independent echocardiographer before TAVI and pre-discharge according to Valve Academic Research Consortium (VARC-2) recommendations [26]. The mean aortic valve gradient was measured by using continuous wave Doppler. Paravalvular leakage was classified as none/trace, mild, moderate, and severe [27]. The effective orifice area (EOA) was assessed using the continuity equation and indexed to the body surface area (EOAi). Measured EOAi was compared to predicted EOAi, which was obtained from published data [28]. PPM was classified as per the guidelines using the EOAi as follows: severe (<0.65 cm2/m2), moderate (0.65 to 0.85 cm2/m2), and not significant (>0.85 cm2/m2) in the general population, and as severe (<0.56 cm2/m2) or moderate (0.56 to 0.70 cm2/m2) in the obese population (body mass index ≥ 30 kg/m2) [29].
Procedural outcomes were reported according to the VARC2 consensus; 30-day mortality as well as stroke, life-threatening bleeding, stage 2 or 3 acute kidney injury, coronary artery obstruction requiring intervention, major vascular complication, and valve-related dysfunction requiring repeat procedure were assessed.
Statistical analysis: Continuous variables are expressed as the mean ± standard deviation (SD) and were compared among groups using Student’s t-test. Categorical data are presented as numbers and percentages. The chi-square test or Fisher’s exact test were used to evaluate differences among groups. A comparison of unpaired and paired continuous data was performed with the Wilcoxon rank sum test. Propensity score matching using the “nearest neighbor” algorithm with a caliper of 0.1 was used to match patients receiving EPro and S3 in a 1:1 fashion. The EPro group was used as the common reference. Matching parameters were the area-derived aortic annulus size, device landing zone calcification (DLZC) score, ejection fraction, age, and gender. A p value < 0.05 was considered significant. Statistical analysis was performed using Statistica 13.5 (TIBCO, Palo Alto, CA, USA) and R software version 3.6.3 (The R Foundation for Statistical Computing, Vienna, Austria).

3. Results

EPro patients were matched to S3 patients to control for confounders. Propensity score matching resulted in 170 pairs. The baseline characteristics of the unmatched and matched population are shown in Table 1. There were no differences regarding age (years): 82.5 ± 5.1 vs. 82.9 ± 6.7, p = 0.519, area-derived annulus size (mm2): 23.7 ± 1.6 vs. 23.9 ± 1.5, p = 0.41, gender (male): 74 (42%) vs. 71 (40%), p = 0.66, landing zone calcification score: 1239.4 ± 617.5 vs. 1209.3 ± 928.3, p = 0.73, and ejection fraction (%): 51.3 ± 7.6 vs. 51.2 ± 8.1, p = 0.87. The absolute standardized mean differences (d values) of all matching parameters were less than 0.1 (Figure A1), indicating adequate balance between groups and thus sufficient bias reduction [30]. Differences between groups regarding matching parameters and baseline Data are given in Table 1.
Procedural characteristics. Fluoroscopy time as well as the amount of contrast agent used was significantly higher in the EPro group compared to the S3 group (both p ≤ 0.001). Patients receiving the EPro experienced pre- and post-dilatation more often than those receiving an S3 THV (p ≤ 0.001). All data are given in Table 2.
Clinical outcomes. Analyzing for VARC 2 parameters, we found 30-day mortality, stroke rate, vascular complications (minor and major) as well as bleeding comparable between the groups. There was one case of periprocedural conversion to surgery in the S3 group because of an annular rupture. Three patients developed acute kidney failure, requiring dialysis, two in the EPro (1.2%) and one in the S3 (0.6%) group. Permanent pacemaker implantation following TAVI was (EPro vs. S3) 14.1% vs. 12.4% with a p-value of 0.65 (Table 2).
Hemodynamics and PPM. No differences were found regarding PVL between groups. Moderate PVL was found in 2.9% and 4.1% for EPro and S3, respectively (p = 0.56). Severe PVL did not occur in either group. When the calcification load of both groups was divided into thirds, no significant association with PVL was found for either THV. The calcification load between the thirds of both groups was similar; (EPro vs. S3: 1/3 698 mm3 vs. 470 mm3, 2/3 1123 mm3 vs. 1013 mm3, 3/3 1829 mm3 vs. 1963 mm3). Transthoracic echocardiography showed significant differences between groups in transvalvular gradients following implantation. Both the mean and maximal gradients were lower in the EPro group compared to the S3 group (p ≤ 0.001). The aortic valve area was also significantly larger in the EPro group compared to the S3 (p ≤ 0.001) group. EOAi was higher in the EPro group (p ≤ 0.001), which resulted in more moderate as well as more severe PPM in the S3 group (Table 2). Based on the predicted EOAi, PPM was generally lower, with less moderate PPM and no severe PPM in either group. However, predicted EOAi remained higher in the EPro group (p ≤ 0.001), and moderate PPM occurred significantly more often in the S3 group (p ≤ 0.001) (Table 3).

4. Discussion

The present study is a single-center, propensity score-matched comparison of the hemodynamic performance and clinical outcome of patients receiving the self-expanding supra-annular Evolut Pro and the balloon-expandable intra-annular Sapien 3 THV in patients with a severely calcified aortic valve. The major findings of our study are as follows: (1) Both THVs appear to be equally effective and safe in the setting of severe calcification, with a low 30-day mortality and no significant differences in PVL or PPI rate; (2) the overall achieved EOAi after implantation was significantly higher in the EPro group, with subsequent less moderate as well as severe patient prostheses mismatch.

4.1. Baseline Characteristics and Procedural Aspects

Overall matching was satisfactory (Appendix A, Figure A1). Atrial fibrillation was the only non-matched parameter that became insignificantly different between groups. The NYHA class and EuroSCORE II remained different between groups; however this might be due to the earlier recruitment of S3 patients starting in 2014 where TAVI was still restricted to high-risk patients, as opposed to a later enrollment of patients treated with EPro (starting in 2018), when TAVI was already considered for intermediate risk patients.
The significantly higher rate of pre- and post-dilation in self-expanding valves (SEV) in the present cohort is in line with previous comparisons of BEV and SEV [31,32]. This fact and the ability of repositioning the EPro THV may also be the reason for the significantly longer fluoroscopy time as well as the higher need for contrast agent in the EPro group. Although post-dilatation has been associated with higher cerebrovascular events [33] and contrast agent is a known risk factor for kidney injury [34], there was no significant difference in acute kidney failure as well as stroke across both groups, which is in line with recently published data comparing 224 patients with BEV (Sapien THV/XT and S 3) and SEV (CoreValve and Evolut R) [32].

4.2. Permanent Pacemaker Rate and Hemodynamics

The PPI rate in our study population was equally low and comparable to other published data. The reported PPI rate for the S3 covers a range from 8.5% to 20.5%, with randomized trials reporting lower rates than registries [35,36,37]. The PPI rate for the EPro ranges from 14.6% to 17.5%, although the latter stems from the FORWARD study, which also included previous generations of the Evolut THV [1,17,38]. Thus, our PPI rate of 12.4% in the BEV and 14.1% in the SEV group are in line with recent studies.
Paravalvular regurgitation has an important impact on outcome in TAVI patients. Substantial data have shown moderate and severe PVL to be associated with worse outcomes, and even mild PVL might impact prognosis [9]. In particular, a high calcification burden is a predictor for PVL [5]. We found moderate PVL in 4.1% of all patients who were treated with an S3 THV, in line with data from the PARTNER 2 (3.7%) and PARTNER 3 (3.9%) [2,35].
Moderate PVL was found in 2.9% of our patients who received an EPro THV, which is slightly higher than the rate reported in the FORWARD study (1.9%) [38] but comparable to real-world data (moderate or severe PVL: 2.8%) [17] (moderate PVL: 3.8%) [39].
A study by Mauri et al. compared BEV and SEV concerning PVL in the setting of different calcification loads of the DLZ. These authors showed that SEV had a higher risk for PVL in the setting of increased DLZ calcification [40]. In our study, we found that although BEV and SEV showed an increase in PVL at higher calcification levels, statistical significance was not reached with either SEV or BEV (Figure 1). The reason for this might be in the design improvements of the EPro compared to the Evolut R.
Transvalvular gradients were significantly lower in the supra-annular EPro THV as compared to the intra-annular S3 THV, which has been reported previously [41]. Supra-annular design has often been reported as advantageous over intra-annular design concerning PPM [31,32]. Because of its design, the S3 has been shown to be especially prone to PPM even compared to its own predecessor, the Sapien XT [42]. This resulted in a lower achieved effective orifice area and consequently higher rate of moderate as well as severe PPM in the S3 group as compared to the EPro group. While the effective orifice area is traditionally measured by the continuity equation, a novel method uses not measured, but predicted effective orifice area [28,29]. This new method generally results in a reduced occurrence of PPM and leads to a stronger association with clinical endpoints such as the remaining gradient [43]. Using predicted EOAi in our cohort, we saw a lower rate of PPM as well, but association with the remaining mean gradient was comparable using either method. Patient prosthesis mismatch as the phenomenon of an orifice area being too small in relation to the patient following surgical heart valve implantation was first described in 1978 [44]. Until this day, its impact on clinical outcome remains a matter of controversy, although two large meta-analyses of surgical patients found an association of moderate and severe PPM with all-cause and cardiac-related survival [45,46,47]. The impact of prosthesis mismatch in TAVI has not been clearly established [26,48,49]. PPM following TAVI was associated with worse survival in a Partner 1 subgroup analysis [50] as well as in a study by León del Pino et al. [51], whereas other studies found no association with mortality [48,49]. However, moderate PPM is considered a device failure according to the current valve academic research consortium (VARC) criteria [26]. It seems that PPM is associated with an impaired outcome in patients with reduced ejection fraction [52]. This has led some experts to prioritizing self-expanding THV in this patient group [53].

4.3. Clinical Outcomes

Life-threatening bleeding and major vascular complications in our cohort were not different between the two groups and were overall comparable to other published data [3,54].
The rate of disabling stroke was similar in both groups and comparable to other published data [17,35,36,38,39], and 30-day mortality was similar in both groups and in line with current data [17,36,38].

4.4. Limitations

There are several limitations to our investigation: first, it was an observational study, which makes it more prone to bias in comparison to randomized trials. Second, although we used a sophisticated matching algorithm, it cannot replace true prospective randomization. Third, it was a monocentric study, which may have been subjected to referral bias. Fourth, after matching, patients receiving an S3 THV had a slightly, but significantly, higher Euroscore II risk score, which may have affected the S3 performance evaluation in our study. Fifth, 30-day valve dysfunction was not examined in this study. Sixth, over the course of the enrollment period, the implantation strategy was adapted to the current standards, for example, from 2016, the S3 THV implantation height was increased. This may have altered the final results.

5. Conclusions

Overall, our study found both THVs to be safe and highly effective in patients with severely calcified aortic valve stenosis, displaying a low complication rate according to VARC II criteria. This marks a novel finding for self-expanding THVs, which seemed disadvantaged against balloon-expandable THVs in earlier generations. Patient prothesis mismatch—moderate as well as severe—was observed more often in the intra-annular balloon-expandable S3 group. Whether these findings impact long-term outcomes needs to be elucidated.

Author Contributions

Conceptualization, T.K.R. and S.B.; methodology, T.K.R., S.B. and M.P.; software, M.P.; validation, T.K.R. and S.B.; investigation, W.S., S.S., K.P.F., C.P. and N.F.; data curation, K.M., H.O., L.G. and M.P.; writing—original draft preparation, M.P.; writing—review and editing, T.K.R., S.B. and R.S.; visualization, M.P.; supervision, V.R., J.G., R.S., C.P., T.G.-J. and N.F.; project administration, T.K.R. All authors have read and agreed to the published version of the manuscript.

Funding

We acknowledge support by the DFG Open Access Publication Funds of the Ruhr-Universität Bochum.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and was approved by the Institutional Ethics Committee of the Ruhr University Bochum. Approval Code: 2019-534, Approval Date 5 August 2019.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data underlying this article will be shared upon reasonable request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Jcm 11 04570 g0a1 550

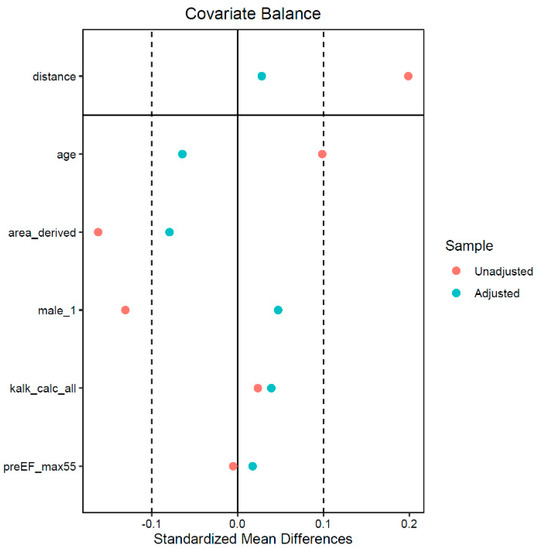

Figure A1. This figure shows the unadjusted (before matching) and adjusted (after matching) standardized mean differences of the matched parameters. Absolute standardized mean differences < 0.1 were considered indicator of adequate balance.
Figure A1. This figure shows the unadjusted (before matching) and adjusted (after matching) standardized mean differences of the matched parameters. Absolute standardized mean differences < 0.1 were considered indicator of adequate balance.
Jcm 11 04570 g0a1

References

  1. Popma, J.J.; Deeb, G.M.; Yakubov, S.J.; Mumtaz, M.; Gada, H.; O’Hair, D.; Bajwa, T.; Heiser, J.C.; Merhi, W.; Kleiman, N.S.; et al. Transcatheter Aortic-Valve Replacement with a Self-Expanding Valve in Low-Risk Patients. N. Engl. J. Med. 2019, 380, 1706–1715. [Google Scholar] [CrossRef] [PubMed]
  2. Mack, M.J.; Leon, M.B.; Thourani, V.H.; Makkar, R.; Kodali, S.K.; Russo, M.; Kapadia, S.R.; Malaisrie, S.C.; Cohen, D.J.; Pibarot, P.; et al. Transcatheter Aortic-Valve Replacement with a Balloon-Expandable Valve in Low-Risk Patients. N. Engl. J. Med. 2019, 380, 1695–1705. [Google Scholar] [CrossRef] [PubMed]
  3. Leon, M.B.; Smith, C.R.; Mack, M.; Miller, D.C.; Moses, J.W.; Svensson, L.G.; Tuzcu, E.M.; Webb, J.G.; Fontana, G.P.; Makkar, R.R.; et al. Transcatheter aortic-valve implantation for aortic stenosis in patients who cannot undergo surgery. N. Engl. J. Med. 2010, 363, 1597–1607. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Arnold, S.V.; Zhang, Y.; Baron, S.J.; McAndrew, T.C.; Alu, M.C.; Kodali, S.K.; Kapadia, S.; Thourani, V.H.; Miller, D.C.; Mack, M.J.; et al. Impact of Short-Term Complications on Mortality and Quality of Life After Transcatheter Aortic Valve Replacement. JACC Cardiovasc. Interv. 2019, 12, 362–369. [Google Scholar] [CrossRef]
  5. John, D.; Buellesfeld, L.; Yuecel, S.; Mueller, R.; Latsios, G.; Beucher, H.; Gerckens, U.; Grube, E. Correlation of Device landing zone calcification and acute procedural success in patients undergoing transcatheter aortic valve implantations with the self-expanding CoreValve prosthesis. JACC Cardiovasc. Interv. 2010, 3, 233–243. [Google Scholar] [CrossRef] [Green Version]
  6. Spaziano, M.; Chieffo, A.; Watanabe, Y.; Chandrasekhar, J.; Sartori, S.; Lefèvre, T.; Petronio, A.S.; Presbitero, P.; Tchetche, D.; Iadanza, A.; et al. Computed tomography predictors of mortality, stroke and conduction disturbances in women undergoing TAVR: A sub-analysis of the WIN-TAVI registry. J. Cardiovasc. Comput. Tomogr. 2018, 12, 338–343. [Google Scholar] [CrossRef]
  7. Mauri, V.; Reimann, A.; Stern, D.; Scherner, M.; Kuhn, E.; Rudolph, V.; Rosenkranz, S.; Eghbalzadeh, K.; Friedrichs, K.; Wahlers, T.; et al. Predictors of Permanent Pacemaker Implantation After Transcatheter Aortic Valve Replacement With the SAPIEN 3. JACC Cardiovasc. Interv. 2016, 9, 2200–2209. [Google Scholar] [CrossRef]
  8. Latsios, G.; Gerckens, U.; Buellesfeld, L.; Mueller, R.; John, D.; Yuecel, S.; Syring, J.; Sauren, B.; Grube, E. “Device landing zone” calcification, assessed by MSCT, as a predictive factor for pacemaker implantation after TAVI. Catheter. Cardiovasc. Interv. 2010, 76, 431–439. [Google Scholar] [CrossRef]
  9. Kodali, S.K.; Williams, M.R.; Smith, C.R.; Svensson, L.G.; Webb, J.G.; Makkar, R.R.; Fontana, G.P.; Dewey, T.M.; Thourani, V.H.; Pichard, A.D.; et al. Two-year outcomes after transcatheter or surgical aortic-valve replacement. N. Engl. J. Med. 2012, 366, 1686–1695. [Google Scholar] [CrossRef] [Green Version]
  10. Staubach, S.; Franke, J.; Gerckens, U.; Schuler, G.; Zahn, R.; Eggebrecht, H.; Hambrecht, R.; Sack, S.; Richardt, G.; Horack, M.; et al. Impact of aortic valve calcification on the outcome of transcatheter aortic valve implantation: Results from the prospective multicenter German TAVI registry. Catheter. Cardiovasc. Interv. 2013, 81, 348–355. [Google Scholar] [CrossRef]
  11. Morlock, J.; Schlick, S.; Psyrakis, D.; Sorg, S.; Schröfel, H.; Beyersdorf, F.; Reinöhl, J.; Heilmann, C. Calcification of Aortic Valve Is Not Associated with Neurologic Events or Need for Pacemaker Implantation in TAVI Patients. Thorac. Cardiovasc. Surg. 2016, 64. [Google Scholar] [CrossRef]
  12. Aggarwal, S.K.; Delahunty Rn, N.; Menezes, L.J.; Perry, R.; Wong, B.; Reinthaler, M.; Ozkor, M.; Mullen, M.J. Patterns of solid particle embolization during transcatheter aortic valve implantation and correlation with aortic valve calcification. J. Interv. Cardiol. 2018, 31, 648–654. [Google Scholar] [CrossRef] [PubMed]
  13. Hansson, N.C.; Nørgaard, B.L.; Barbanti, M.; Nielsen, N.E.; Yang, T.-H.; Tamburino, C.; Dvir, D.; Jilaihawi, H.; Blanke, P.; Makkar, R.R.; et al. The impact of calcium volume and distribution in aortic root injury related to balloon-expandable transcatheter aortic valve replacement. J. Cardiovasc. Comput. Tomogr. 2015, 9, 382–392. [Google Scholar] [CrossRef] [PubMed]
  14. Koos, R.; Reinartz, S.; Mahnken, A.H.; Herpertz, R.; Lotfi, S.; Autschbach, R.; Marx, N.; Hoffmann, R. Impact of aortic valve calcification severity and impaired left ventricular function on 3-year results of patients undergoing transcatheter aortic valve replacement. Eur. Radiol. 2013, 23, 3253–3261. [Google Scholar] [CrossRef]
  15. Tzamtzis, S.; Viquerat, J.; Yap, J.; Mullen, M.J.; Burriesci, G. Numerical analysis of the radial force produced by the Medtronic-CoreValve and Edwards-SAPIEN after transcatheter aortic valve implantation (TAVI). Med. Eng. Phys. 2013, 35, 125–130. [Google Scholar] [CrossRef]
  16. Sturla, F.; Ronzoni, M.; Vitali, M.; Dimasi, A.; Vismara, R.; Preston-Maher, G.; Burriesci, G.; Votta, E.; Redaelli, A. Impact of different aortic valve calcification patterns on the outcome of transcatheter aortic valve implantation: A finite element study. J. Biomech. 2016, 49, 2520–2530. [Google Scholar] [CrossRef] [Green Version]
  17. Forrest, J.K.; Kaple, R.K.; Tang, G.H.L.; Yakubov, S.J.; Nazif, T.M.; Williams, M.R.; Zhang, A.; Popma, J.J.; Reardon, M.J. Three Generations of Self-Expanding Transcatheter Aortic Valves: A Report From the STS/ACC TVT Registry. JACC Cardiovasc. Interv. 2020, 13, 170–179. [Google Scholar] [CrossRef]
  18. Meyer, A.; Unbehaun, A.; Hamandi, M.; Sündermann, S.H.; Buz, S.; Klein, C.; Stamm, C.; Falk, V.; Kempfert, J. Comparison of 1-Year Survival and Frequency of Paravalvular Leakage Using the Sapien 3 Versus the Sapien XT for Transcatheter Aortic Valve Implantation for Aortic Stenosis. Am. J. Cardiol. 2017, 120, 2247–2255. [Google Scholar] [CrossRef]
  19. Buono, A.; Gorla, R.; Ielasi, A.; Costa, G.; Cozzi, O.; Ancona, M.; Soriano, F.; de Carlo, M.; Ferrara, E.; Giannini, F.; et al. Transcatheter Aortic Valve Replacement with Self-Expanding ACURATE neo2: Postprocedural Hemodynamic and Short-Term Clinical Outcomes. JACC Cardiovasc. Interv. 2022, 15, 1101–1110. [Google Scholar] [CrossRef]
  20. Yang, T.-H.; Webb, J.G.; Blanke, P.; Dvir, D.; Hansson, N.C.; Nørgaard, B.L.; Thompson, C.R.; Thomas, M.; Wendler, O.; Vahanian, A.; et al. Incidence and severity of paravalvular aortic regurgitation with multidetector computed tomography nominal area oversizing or undersizing after transcatheter heart valve replacement with the Sapien 3: A comparison with the Sapien XT. JACC Cardiovasc. Interv. 2015, 8, 462–471. [Google Scholar] [CrossRef] [Green Version]
  21. Forrest, J.K.; Mangi, A.A.; Popma, J.J.; Khabbaz, K.; Reardon, M.J.; Kleiman, N.S.; Yakubov, S.J.; Watson, D.; Kodali, S.; George, I.; et al. Early Outcomes with the Evolut PRO Repositionable Self-Expanding Transcatheter Aortic Valve With Pericardial Wrap. JACC Cardiovasc. Interv. 2018, 11, 160–168. [Google Scholar] [CrossRef] [PubMed]
  22. Baumgartner, H.; Falk, V.; Bax, J.J.; de Bonis, M.; Hamm, C.; Holm, P.J.; Iung, B.; Lancellotti, P.; Lansac, E.; Rodriguez Muñoz, D.; et al. 2017 ESC/EACTS Guidelines for the management of valvular heart disease. Eur. Heart J. 2017, 38, 2739–2791. [Google Scholar] [CrossRef]
  23. Nishimura, R.A.; Otto, C.M.; Bonow, R.O.; Carabello, B.A.; Erwin, J.P.; Guyton, R.A.; O’Gara, P.T.; Ruiz, C.E.; Skubas, N.J.; Sorajja, P.; et al. 2014 AHA/ACC guideline for the management of patients with valvular heart disease: A report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines. J. Thorac. Cardiovasc. Surg. 2014, 148, e1–e132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Kim, W.-K.; Renker, M.; Rolf, A.; Liebetrau, C.; van Linden, A.; Arsalan, M.; Doss, M.; Rieck, J.; Opolski, M.P.; Möllmann, H.; et al. Accuracy of device landing zone calcium volume measurement with contrast-enhanced multidetector computed tomography. Int. J. Cardiol. 2018, 263, 171–176. [Google Scholar] [CrossRef] [PubMed]
  25. Barbanti, M.; Yang, T.-H.; Rodès Cabau, J.; Tamburino, C.; Wood, D.A.; Jilaihawi, H.; Blanke, P.; Makkar, R.R.; Latib, A.; Colombo, A.; et al. Anatomical and procedural features associated with aortic root rupture during balloon-expandable transcatheter aortic valve replacement. Circulation 2013, 128, 244–253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Kappetein, A.P.; Head, S.J.; Généreux, P.; Piazza, N.; van Mieghem, N.M.; Blackstone, E.H.; Brott, T.G.; Cohen, D.J.; Cutlip, D.E.; van Es, G.-A.; et al. Updated standardized endpoint definitions for transcatheter aortic valve implantation: The Valve Academic Research Consortium-2 consensus document. Eur. Heart J. 2012, 33, 2403–2418. [Google Scholar] [CrossRef]
  27. Pibarot, P.; Hahn, R.T.; Weissman, N.J.; Monaghan, M.J. Assessment of paravalvular regurgitation following TAVR: A proposal of unifying grading scheme. JACC Cardiovasc. Imaging 2015, 8, 340–360. [Google Scholar] [CrossRef] [Green Version]
  28. Hahn, R.T.; Leipsic, J.; Douglas, P.S.; Jaber, W.A.; Weissman, N.J.; Pibarot, P.; Blanke, P.; Oh, J.K. Comprehensive Echocardiographic Assessment of Normal Transcatheter Valve Function. JACC Cardiovasc. Imaging 2019, 12, 25–34. [Google Scholar] [CrossRef]
  29. Lancellotti, P.; Pibarot, P.; Chambers, J.; Edvardsen, T.; Delgado, V.; Dulgheru, R.; Pepi, M.; Cosyns, B.; Dweck, M.R.; Garbi, M.; et al. Recommendations for the imaging assessment of prosthetic heart valves: A report from the European Association of Cardiovascular Imaging endorsed by the Chinese Society of Echocardiography, the Inter-American Society of Echocardiography, and the Brazilian Department of Cardiovascular Imaging. Eur. Heart J. Cardiovasc. Imaging 2016, 17, 589–590. [Google Scholar] [CrossRef] [Green Version]
  30. Rosenbaum, P.R.; Rubin, D.B. Constructing a Control Group Using Multivariate Matched Sampling Methods That Incorporate the Propensity Score. Am. Stat. 1985, 39, 33–38. [Google Scholar] [CrossRef]
  31. Mauri, V.; Kim, W.K.; Abumayyaleh, M.; Walther, T.; Moellmann, H.; Schaefer, U.; Conradi, L.; Hengstenberg, C.; Hilker, M.; Wahlers, T.; et al. Short-Term Outcome and Hemodynamic Performance of Next-Generation Self-Expanding Versus Balloon-Expandable Transcatheter Aortic Valves in Patients with Small Aortic Annulus: A Multicenter Propensity-Matched Comparison. Circ. Cardiovasc. Interv. 2017, 10, e005013. [Google Scholar] [CrossRef] [PubMed]
  32. Okuno, T.; Khan, F.; Asami, M.; Praz, F.; Heg, D.; Winkel, M.G.; Lanz, J.; Huber, A.; Gräni, C.; Räber, L.; et al. Prosthesis-Patient Mismatch Following Transcatheter Aortic Valve Replacement with Supra-Annular and Intra-Annular Prostheses. JACC Cardiovasc. Interv. 2019, 12, 2173–2182. [Google Scholar] [CrossRef] [PubMed]
  33. Auffret, V.; Regueiro, A.; Del Trigo, M.; Abdul-Jawad Altisent, O.; Campelo-Parada, F.; Chiche, O.; Puri, R.; Rodés-Cabau, J. Predictors of Early Cerebrovascular Events in Patients with Aortic Stenosis Undergoing Transcatheter Aortic Valve Replacement. J. Am. Coll. Cardiol. 2016, 68, 673–684. [Google Scholar] [CrossRef] [PubMed]
  34. Zaleska-Kociecka, M.; Dabrowski, M.; Stepinska, J. Acute kidney injury after transcatheter aortic valve replacement in the elderly: Outcomes and risk management. Clin. Interv. Aging 2019, 14, 195–201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Leon, M.B.; Smith, C.R.; Mack, M.J.; Makkar, R.R.; Svensson, L.G.; Kodali, S.K.; Thourani, V.H.; Tuzcu, E.M.; Miller, D.C.; Herrmann, H.C.; et al. Transcatheter or Surgical Aortic-Valve Replacement in Intermediate-Risk Patients. N. Engl. J. Med. 2016, 374, 1609–1620. [Google Scholar] [CrossRef]
  36. Wendler, O.; Schymik, G.; Treede, H.; Baumgartner, H.; Dumonteil, N.; Ihlberg, L.; Neumann, F.-J.; Tarantini, G.; Zamarano, J.L.; Vahanian, A. SOURCE 3 Registry: Design and 30-Day Results of the European Postapproval Registry of the Latest Generation of the SAPIEN 3 Transcatheter Heart Valve. Circulation 2017, 135, 1123–1132. [Google Scholar] [CrossRef]
  37. Deharo, P.; Bisson, A.; Herbert, J.; Lacour, T.; Saint Etienne, C.; Grammatico-Guillon, L.; Porto, A.; Collart, F.; Bourguignon, T.; Cuisset, T.; et al. Impact of Sapien 3 Balloon-Expandable Versus Evolut R Self-Expandable Transcatheter Aortic Valve Implantation in Patients With Aortic Stenosis: Data From a Nationwide Analysis. Circulation 2020, 141, 260–268. [Google Scholar] [CrossRef]
  38. Grube, E.; van Mieghem, N.M.; Bleiziffer, S.; Modine, T.; Bosmans, J.; Manoharan, G.; Linke, A.; Scholtz, W.; Tchétché, D.; Finkelstein, A.; et al. Clinical Outcomes With a Repositionable Self-Expanding Transcatheter Aortic Valve Prosthesis: The International FORWARD Study. J. Am. Coll. Cardiol. 2017, 70, 845–853. [Google Scholar] [CrossRef]
  39. Kalogeras, K.; Ruparelia, N.; Kabir, T.; Jabbour, R.; Naganuma, T.; Vavuranakis, M.; Nakamura, S.; Wang, B.; Sen, S.; Hadjiloizou, N.; et al. Comparison of the self-expanding Evolut-PRO transcatheter aortic valve to its predecessor Evolut-R in the real world multicenter ATLAS registry. Int. J. Cardiol. 2020, 310, 120–125. [Google Scholar] [CrossRef]
  40. Mauri, V.; Frohn, T.; Deuschl, F.; Mohemed, K.; Kuhr, K.; Reimann, A.; Körber, M.I.; Schofer, N.; Adam, M.; Friedrichs, K.; et al. Impact of device landing zone calcification patterns on paravalvular regurgitation after transcatheter aortic valve replacement with different next-generation devices. Open Heart 2020, 7, e001164. [Google Scholar] [CrossRef]
  41. Abdelghani, M.; Allali, A.; Kaur, J.; Hemetsberger, R.; Mehilli, J.; Neumann, F.-J.; Frerker, C.; Kurz, T.; El-Mawardy, M.; Richardt, G.; et al. Impact of prosthesis-iteration evolution and sizing practice on the incidence of prosthesis-patient mismatch after transcatheter aortic valve replacement. Catheter. Cardiovasc. Interv. 2019, 93, 971–979. [Google Scholar] [CrossRef] [PubMed]
  42. Theron, A.; Pinto, J.; Grisoli, D.; Griffiths, K.; Salaun, E.; Jaussaud, N.; Ravis, E.; Lambert, M.; Messous, L.; Amanatiou, C.; et al. Patient-prosthesis mismatch in new generation trans-catheter heart valves: A propensity score analysis. Eur. Heart J. Cardiovasc. Imaging 2018, 19, 225–233. [Google Scholar] [CrossRef] [Green Version]
  43. Ternacle, J.; Guimaraes, L.; Vincent, F.; Côté, N.; Côté, M.; Lachance, D.; Clavel, M.-A.; Abbas, A.E.; Pibarot, P.; Rodés-Cabau, J. Reclassification of prosthesis-patient mismatch after transcatheter aortic valve replacement using predicted vs. measured indexed effective orifice area. Eur. Heart J. Cardiovasc. Imaging 2021, 22, 11–20. [Google Scholar] [CrossRef] [PubMed]
  44. Rahimtoola, S.H. The problem of valve prosthesis-patient mismatch. Circulation 1978, 58, 20–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Dayan, V.; Vignolo, G.; Soca, G.; Paganini, J.J.; Brusich, D.; Pibarot, P. Predictors and Outcomes of Prosthesis-Patient Mismatch After Aortic Valve Replacement. JACC Cardiovasc. Imaging 2016, 9, 924–933. [Google Scholar] [CrossRef] [PubMed]
  46. Head, S.J.; Mokhles, M.M.; Osnabrugge, R.L.J.; Pibarot, P.; Mack, M.J.; Takkenberg, J.J.M.; Bogers, A.J.J.C.; Kappetein, A.P. The impact of prosthesis-patient mismatch on long-term survival after aortic valve replacement: A systematic review and meta-analysis of 34 observational studies comprising 27 186 patients with 133 141 patient-years. Eur. Heart J. 2012, 33, 1518–1529. [Google Scholar] [CrossRef] [Green Version]
  47. Bilkhu, R.; Jahangiri, M.; Otto, C.M. Patient-prosthesis mismatch following aortic valve replacement. Heart 2019, 105, s28–s33. [Google Scholar] [CrossRef]
  48. Tzikas, A.; Piazza, N.; Geleijnse, M.L.; van Mieghem, N.; Nuis, R.-J.; Schultz, C.; van Geuns, R.-J.; Galema, T.W.; Kappetein, A.-P.; Serruys, P.W.; et al. Prosthesis-patient mismatch after transcatheter aortic valve implantation with the medtronic CoreValve system in patients with aortic stenosis. Am. J. Cardiol. 2010, 106, 255–260. [Google Scholar] [CrossRef]
  49. van Linden, A.; Kempfert, J.; Blumenstein, J.; Rastan, A.; Holzhey, D.; Lehmann, S.; Mohr, F.W.; Walther, T. Prosthesis-patient mismatch after transcatheter aortic valve implantation using the Edwards SAPIEN™ prosthesis. Thorac. Cardiovasc. Surg. 2013, 61, 414–420. [Google Scholar] [CrossRef]
  50. Pibarot, P.; Weissman, N.J.; Stewart, W.J.; Hahn, R.T.; Lindman, B.R.; McAndrew, T.; Kodali, S.K.; Mack, M.J.; Thourani, V.H.; Miller, D.C.; et al. Incidence and sequelae of prosthesis-patient mismatch in transcatheter versus surgical valve replacement in high-risk patients with severe aortic stenosis: A PARTNER trial cohort-A analysis. J. Am. Coll. Cardiol. 2014, 64, 1323–1334. [Google Scholar] [CrossRef] [Green Version]
  51. León Del Pino, M.D.C.; Ruíz Ortiz, M.; Delgado Ortega, M.; Sánchez Fernández, J.; Ferreiro Quero, C.; Durán Jiménez, E.; Romero Moreno, M.; Segura Saint-Gerons, J.; Ojeda Pineda, S.; Pan Álvarez-Ossorio, M.; et al. Prosthesis-patient mismatch after transcatheter aortic valve replacement: Prevalence and medium term prognostic impact. Int. J. Cardiovasc. Imaging 2019, 35, 827–836. [Google Scholar] [CrossRef] [PubMed]
  52. Schofer, N.; Deuschl, F.; Rübsamen, N.; Skibowski, J.; Seiffert, M.; Voigtländer, L.; Schaefer, A.; Schneeberger, Y.; Schirmer, J.; Reichenspurner, H.; et al. Prosthesis-patient mismatch after transcatheter aortic valve implantation: Prevalence and prognostic impact with respect to baseline left ventricular function. EuroIntervention 2019, 14, 1648–1655. [Google Scholar] [CrossRef]
  53. Bleiziffer, S.; Rudolph, T.K. Patient Prosthesis Mismatch After SAVR and TAVR. Front. Cardiovasc. Med. 2022, 9, 761917. [Google Scholar] [CrossRef] [PubMed]
  54. Reardon, M.J.; van Mieghem, N.M.; Popma, J.J.; Kleiman, N.S.; Søndergaard, L.; Mumtaz, M.; Adams, D.H.; Deeb, G.M.; Maini, B.; Gada, H.; et al. Surgical or Transcatheter Aortic-Valve Replacement in Intermediate-Risk Patients. N. Engl. J. Med. 2017, 376, 1321–1331. [Google Scholar] [CrossRef] [PubMed]
Jcm 11 04570 g001 550
Figure 1. (a) Paravalvular leakage ≥ the medium in relationship to the calcification burden in patients that received an EPro THV. The total calcification burden of these patients was sorted by size and then divided into thirds. (b) Paravalvular leakage ≥ the medium in relationship to the calcification burden in patients that received an S3 THV. The calcification burden was grouped similarly.
Figure 1. (a) Paravalvular leakage ≥ the medium in relationship to the calcification burden in patients that received an EPro THV. The total calcification burden of these patients was sorted by size and then divided into thirds. (b) Paravalvular leakage ≥ the medium in relationship to the calcification burden in patients that received an S3 THV. The calcification burden was grouped similarly.
Jcm 11 04570 g001
Table
Table 1. Characteristics of the matched study population grouped by patient receiving either an Evolut Pro or Sapien 3 prosthesis.
Table 1. Characteristics of the matched study population grouped by patient receiving either an Evolut Pro or Sapien 3 prosthesis.
Before Matching After Matching
EPro (N = 177)S3 (N = 263)p-ValueEPro (N = 170)S3 (N = 170)p-Value
Matching parameter
Age (years)82.4 ± 5.181.8 ± 7.70.3382.5 ± 5.182.9 ± 6.70.519
Anulus size (mm2)23.85 ± 1.824.1 ± 1.70.0923.7 ± 1.623.9 ± 1.50.41
Gender (male)74 (41.8)127 (48.3)0.1874 (42)71 (40)0.66
LZ Calcification score 21229.36 ± 612.51211.25 ± 889.80.811239.4 ± 617.51209.3 ± 928.30.73
Ejection fraction (%)51.27 ± 7.751.3 ± 7.710.9651.3 ± 7.651.2 ± 8.10.87
Baseline characteristics
BMI (kg/m2) 326.45 ± 4.626.96 ± 4.90.2726.4 ± 4.526.9 ± 4.90.29
EuroScore II (%)5.25 ± 56.49 ± 80.075.1 ± 4.97 ± 9.10.02
NYHA2.56 ± 0.62.72 ± 0.60.0082.5 ± 0.62.7 ± 0.60.004
Diabetes mellitus58 (32.8)78 (29.7)0.4945 (27)36 (21)0.25
Arterial Hypertension152 (85.9)238 (90.5)0.135146 (86)156 (92)0.05
CHD 199 (55.9)152 (57.8)0.798 (57.8)(61.2)0.53
Atrial fibrillation37 (20.9)81 (30.8)0.0224 (13.9)36 (21.2)0.08
RBB16 (9)31 (11.8)0.3515 (8.9)22 (13)0.22
LBB13 (7.3)9 (3.4)0.04613 (7.7)6 (3.6)0.1
AVB I1 (0.6)2 (0.8)0.851 (0.6)1 (0.6)0.99
AVB II1 (0.6)1 (0.4)0.751 (0.6)1 (0.6)0.99
Previous Pacemaker12 (6.9)30 (11)0.1513 (7.6)22 (13)0.65
Dialysis pre TAVI6 (3.4)11 (4.2)0.673 (1.8)7 (4.1)0.14
GFR (mL/min/1.72 m2)57.35 ± 18.255.35 ± 20.70.357.7 ± 18.454.6 ± 20.70.14
Haemoglobin (mg/dL)12.43 ± 1.712.46 ± 1.70.8412.4 ± 1.712.4 ± 1.70.74
Echocardiography
dPmean (mmHg)49 ± 15.747.5 ± 17.60.3649.1 ± 15.947.8 ± 18.10.48
dPmax (mmHg)74.12 ± 22.874 ± 25.40.9674.2 ± 23.274.5 ± 26.30.91
Aortic Valve Area (cm2)0.69 ± 0.20.71 ± 0.20.410.69 ± 0.170.69 ± 0.170.92
Values are the mean ± SD or n (%). 1 CHD = coronary heart disease, 2 LZ = Landing zone, 3 BMI = Body mass index.
Table
Table 2. Clinical and hemodynamic outcomes after transcatheter implantation.
Table 2. Clinical and hemodynamic outcomes after transcatheter implantation.
EPro (N = 170)S3 (N = 170)p-Value
Fluoroscopy time (s)880.3 ± 355.5747.8 ± 298.2<0.001
Contrast agent used (mL)120.7 ± 44.6103.1 ± 33.4<0.001
Prosthesis size
23/201 (0.6)0 (0)0.32
26/2345 (26.5)61 (35.9)0.06
29/26124 (72.9)109 (64.1)0.08
Pre-dilatation35 (20.6)14 (8.3)0.001
Post-dilatation79 (46.7)24 (14.3)<0.001
Valve in Valve00
Conversion to surgery0 (0)1 (0.6)0.32
Coronary obstruction00
Acute kidney failure2 (1.2)1 (0.6)0.73
Myocardial infarction00
Bleeding14 (8.4)15 (8.8)0.9
Minor7 (4.2)8 (4.7)0.83
Major4 (2.4)4 (2.4)0.97
Life threatening3 (1.8)3 (1.8)0.98
Vascular complication16 (9.6)19 (11.2)0.65
Minor13 (7.8)16 (9.4)0.61
Major3 (1.8)3 (1.8)0.98
Disabling Stroke3 (1.8)2 (1.2)0.63
New PPI 124 (14.1)21 (12.4)0.65
30-day mortality5 (2.9)4 (2.4)0.71
Values are the mean ± SD or n (%), 1 PPI: Permanent pacemaker implantation.
Table
Table 3. Echocardiographic outcomes.
Table 3. Echocardiographic outcomes.
EPro (N = 170)S3 (N = 170)p-Value
dPmean (mmHg)8.07 ± 4.2411.11 ± 4.14<0.001
dPmax (mmHg)14.09 ± 7.1119.81 ± 6.68<0.001
AVA post (cm2) 11.89 ± 0.461.62 ± 0.31<0.001
Aortic regurgitation
None/Trace108 (63.5)117 (68.8)0.3
mild57 (33.5)46 (27.1)0.2
moderate5 (2.9)7 (4.1)0.56
severe0 (0)0 (0)1
EOAi 21.07 ± 0.30.9 ± 0.18<0.001
PPM moderate 330 (17.7)65 (38)<0.001
PPM severe5 (2.9)15 (8.8)0.027
Predicted EOAi1.05 ± 0.130.92 ± 0.12<0.001
PPM moderate1 (0.6)25 (14.7)<0.001
PPM severe0 (0)0 (0)
Values are the mean ± SD or n (%), 1 AVA: Aortic valve area, 2 EOAi: Effective orifice area indexed, 3 PPM: Patient–prosthesis mismatch.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Potratz, M.; Mohemed, K.; Omran, H.; Gortamashvili, L.; Friedrichs, K.P.; Scholtz, W.; Scholtz, S.; Rudolph, V.; Piper, C.; Gilis-Januszewski, T.; et al. Hemodynamic Performance of Two Current-Generation Transcatheter Heart Valve Prostheses in Severely Calcified Aortic Valve Stenosis. J. Clin. Med. 2022, 11, 4570. https://doi.org/10.3390/jcm11154570

AMA Style

Potratz M, Mohemed K, Omran H, Gortamashvili L, Friedrichs KP, Scholtz W, Scholtz S, Rudolph V, Piper C, Gilis-Januszewski T, et al. Hemodynamic Performance of Two Current-Generation Transcatheter Heart Valve Prostheses in Severely Calcified Aortic Valve Stenosis. Journal of Clinical Medicine. 2022; 11(15):4570. https://doi.org/10.3390/jcm11154570

Chicago/Turabian Style

Potratz, Max, Kawa Mohemed, Hazem Omran, Lasha Gortamashvili, Kai Peter Friedrichs, Werner Scholtz, Smita Scholtz, Volker Rudolph, Cornelia Piper, Tomasz Gilis-Januszewski, and et al. 2022. "Hemodynamic Performance of Two Current-Generation Transcatheter Heart Valve Prostheses in Severely Calcified Aortic Valve Stenosis" Journal of Clinical Medicine 11, no. 15: 4570. https://doi.org/10.3390/jcm11154570

APA Style

Potratz, M., Mohemed, K., Omran, H., Gortamashvili, L., Friedrichs, K. P., Scholtz, W., Scholtz, S., Rudolph, V., Piper, C., Gilis-Januszewski, T., Schramm, R., Furukawa, N., Gummert, J., Bleiziffer, S., & Rudolph, T. K. (2022). Hemodynamic Performance of Two Current-Generation Transcatheter Heart Valve Prostheses in Severely Calcified Aortic Valve Stenosis. Journal of Clinical Medicine, 11(15), 4570. https://doi.org/10.3390/jcm11154570

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
