A Multi-Criteria Assessment Strategy for 3D Printed Porous Polyetheretherketone (PEEK) Patient-Specific Implants for Orbital Wall Reconstruction

Sharma, Neha; Welker, Dennis; Aghlmandi, Soheila; Maintz, Michaela; Zeilhofer, Hans-Florian; Honigmann, Philipp; Seifert, Thomas; Thieringer, Florian M.

doi:10.3390/jcm10163563

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessArticle

A Multi-Criteria Assessment Strategy for 3D Printed Porous Polyetheretherketone (PEEK) Patient-Specific Implants for Orbital Wall Reconstruction

^1,2

²,

³,

^2,4,

Hans-Florian Zeilhofer

¹,

Philipp Honigmann

^2,5,6

Thomas Seifert

⁷ and

Florian M. Thieringer

^1,2,*

Clinic of Oral and Cranio-Maxillofacial Surgery, University Hospital Basel, CH-4031 Basel, Switzerland

Medical Additive Manufacturing Research Group (Swiss MAM), Department of Biomedical Engineering, University of Basel, CH-4123 Allschwil, Switzerland

Basel Institute for Clinical Epidemiology and Biostatistics, Department of Clinical Research, University Hospital Basel, CH-4031 Basel, Switzerland

⁴

Institute for Medical Engineering and Medical Informatics, University of Applied Sciences and Arts Northwestern Switzerland, CH-4132 Muttenz, Switzerland

⁵

Hand Surgery, Cantonal Hospital Baselland, CH-4410 Liestal, Switzerland

⁶

Department of Biomedical Engineering and Physics, Amsterdam UMC, University of Amsterdam, Amsterdam Movement Sciences, NL-1105 Amsterdam, The Netherlands

⁷

Department of Mechanical and Process Engineering, University of Applied Sciences, DE-77652 Offenburg, Germany

Author to whom correspondence should be addressed.

Academic Editors: Samer Srouji and Gianrico Spagnuolo

J. Clin. Med. 2021, 10(16), 3563; https://doi.org/10.3390/jcm10163563

Received: 4 July 2021 / Revised: 2 August 2021 / Accepted: 10 August 2021 / Published: 13 August 2021

(This article belongs to the Special Issue 3D Printing and Virtual Surgical Planning in Oral and Maxillofacial Surgery)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

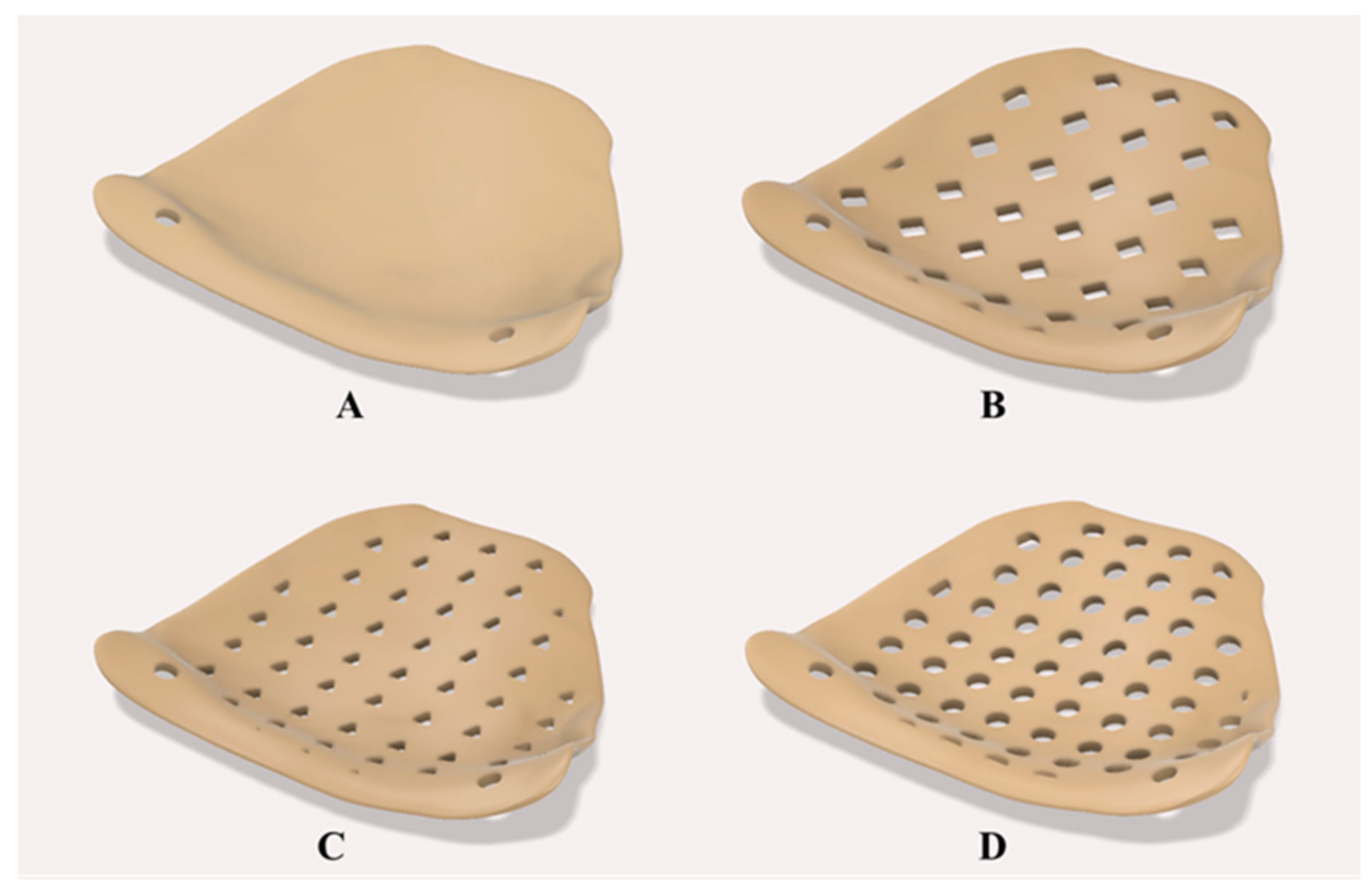

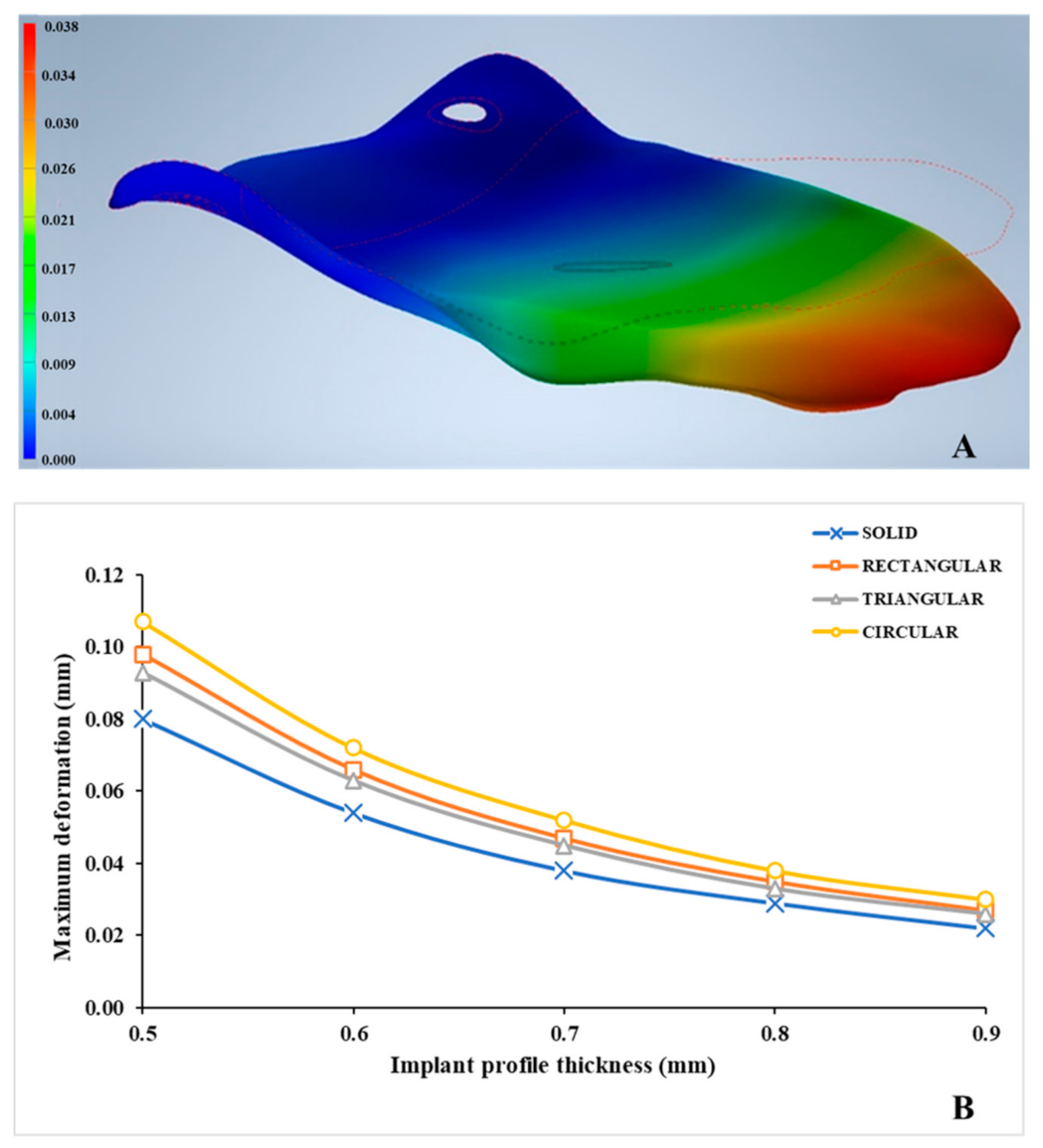

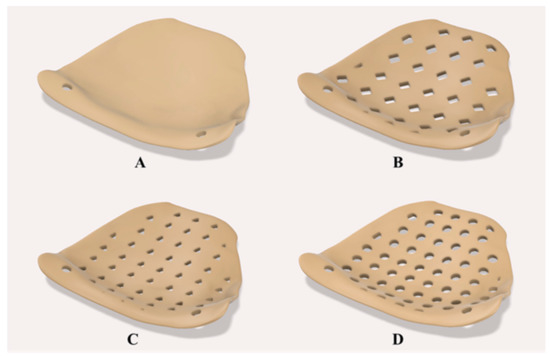

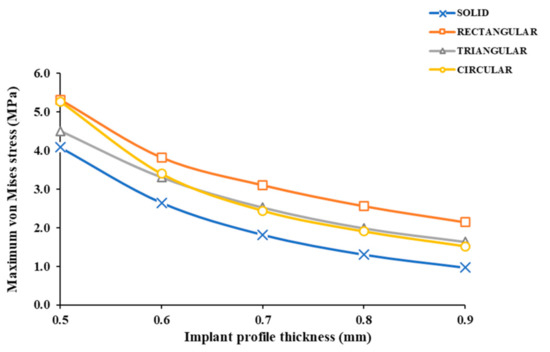

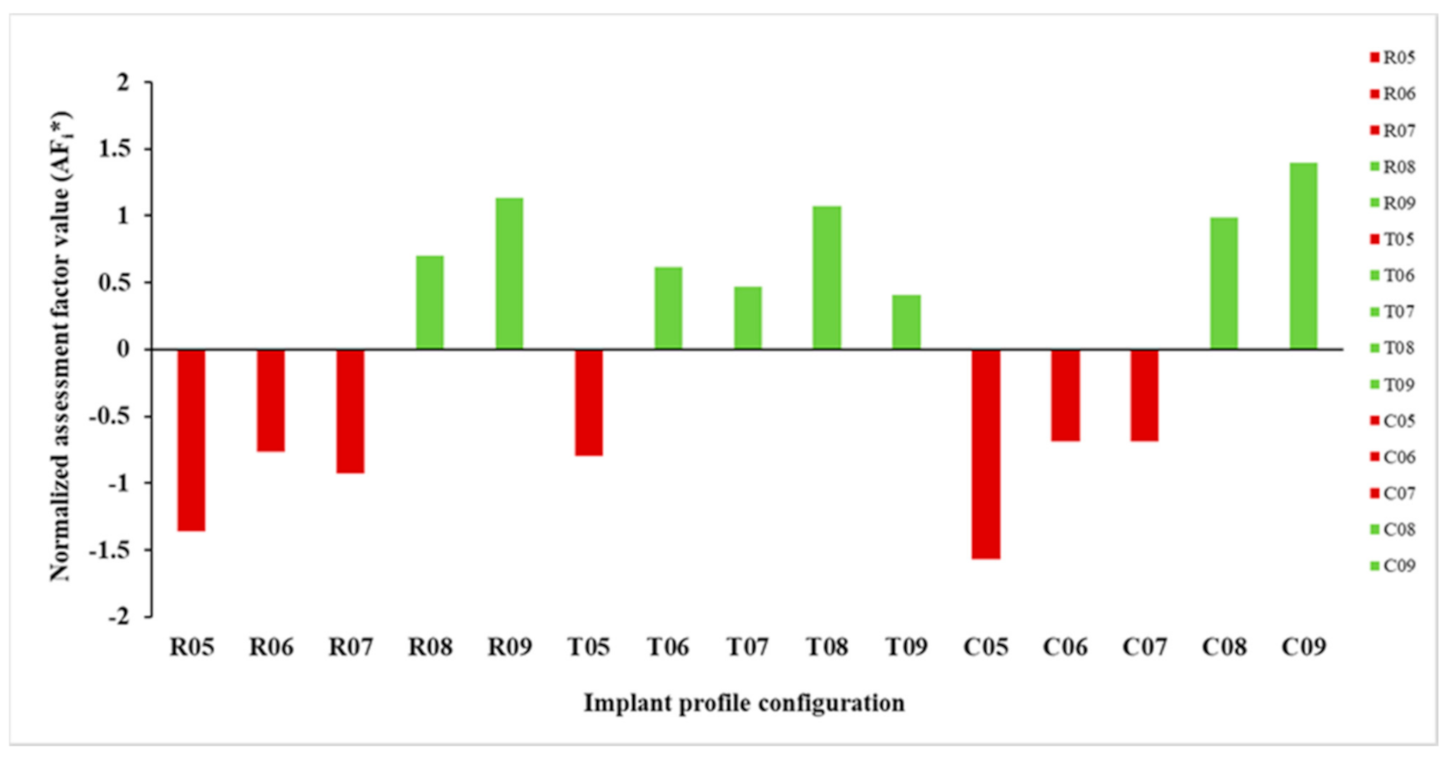

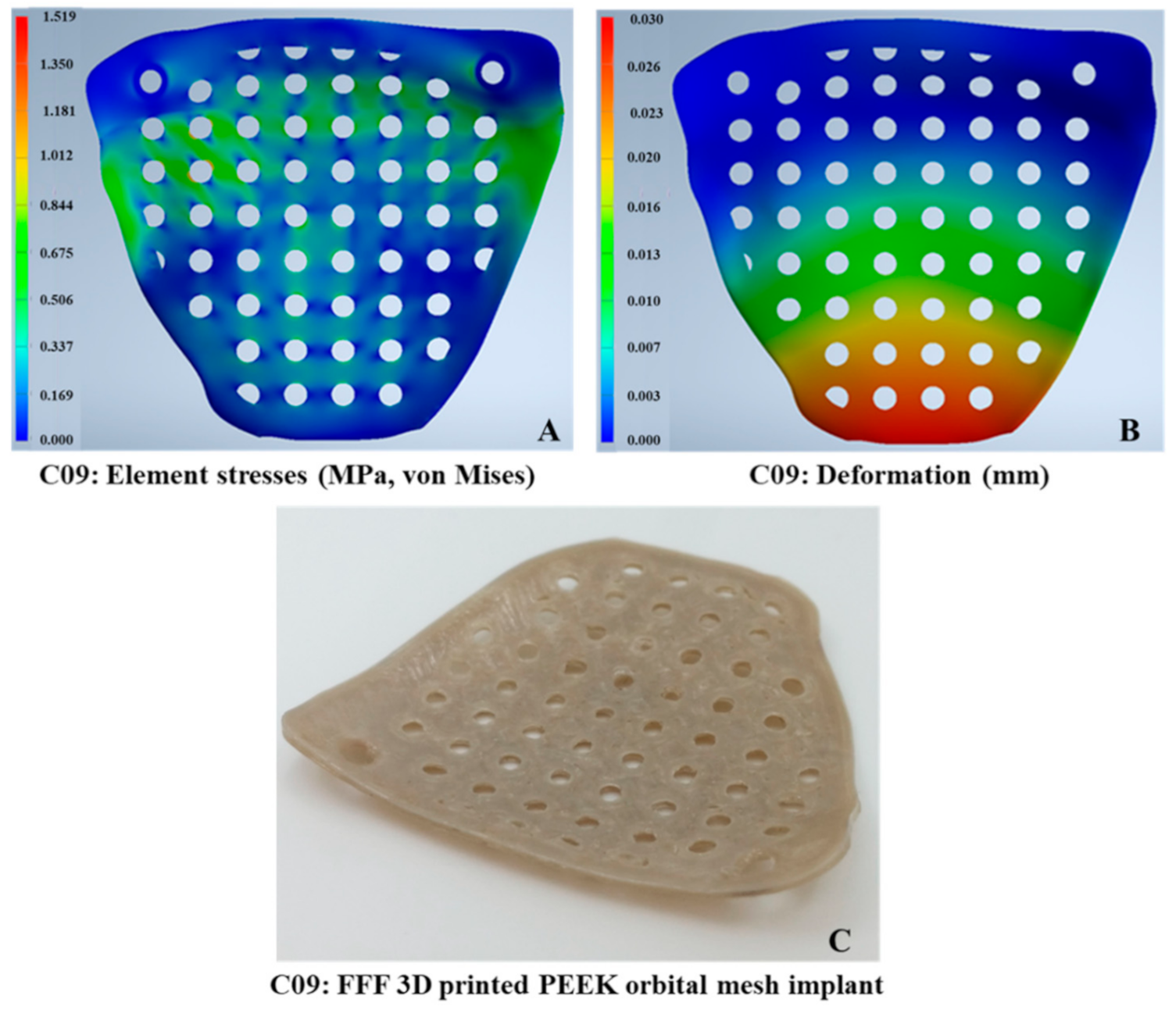

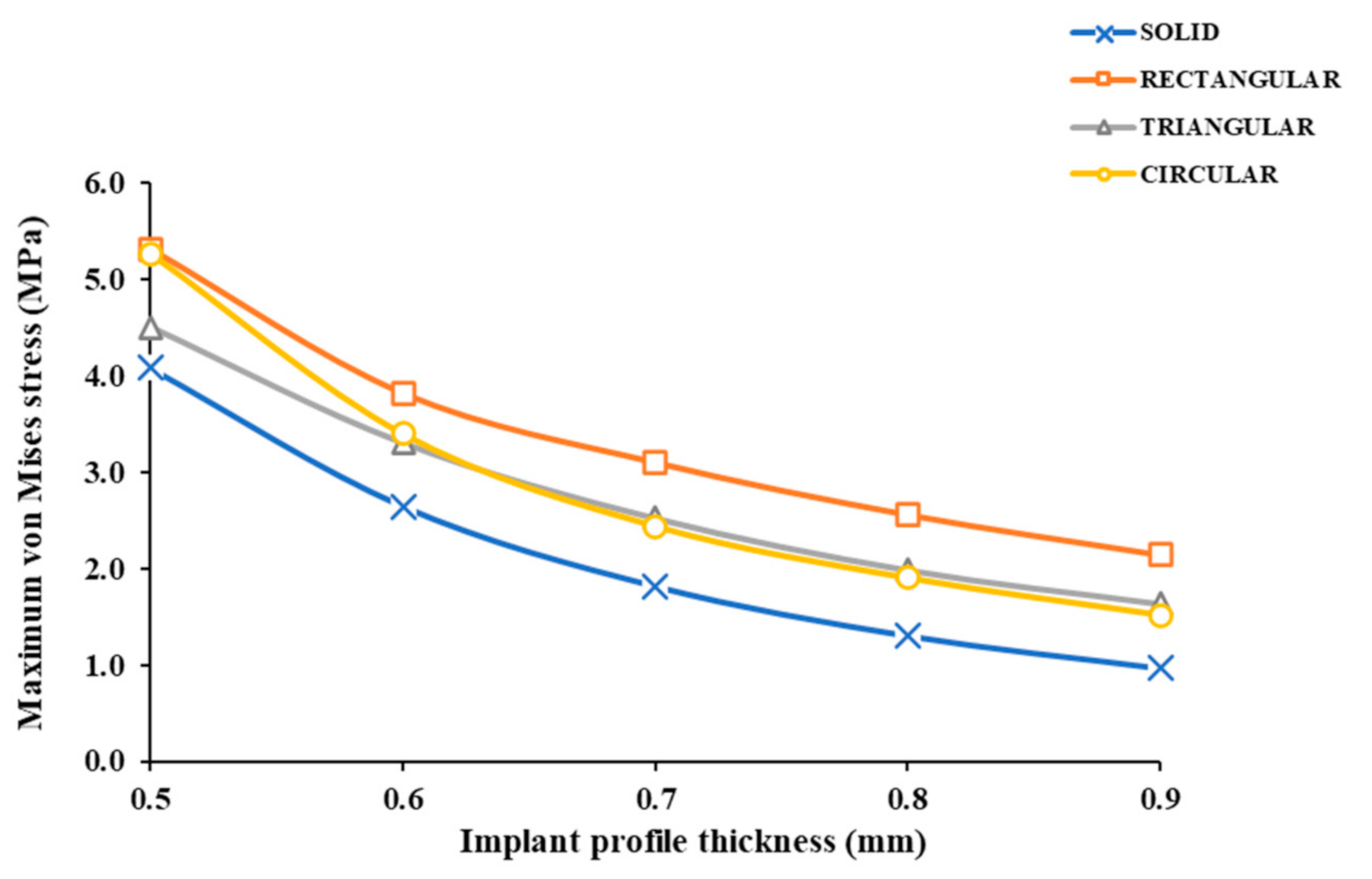

Pure orbital blowout fractures occur within the confines of the internal orbital wall. Restoration of orbital form and volume is paramount to prevent functional and esthetic impairment. The anatomical peculiarity of the orbit has encouraged surgeons to develop implants with customized features to restore its architecture. This has resulted in worldwide clinical demand for patient-specific implants (PSIs) designed to fit precisely in the patient’s unique anatomy. Material extrusion or Fused filament fabrication (FFF) three-dimensional (3D) printing technology has enabled the fabrication of implant-grade polymers such as Polyetheretherketone (PEEK), paving the way for a more sophisticated generation of biomaterials. This study evaluates the FFF 3D printed PEEK orbital mesh customized implants with a metric considering the relevant design, biomechanical, and morphological parameters. The performance of the implants is studied as a function of varying thicknesses and porous design constructs through a finite element (FE) based computational model and a decision matrix based statistical approach. The maximum stress values achieved in our results predict the high durability of the implants, and the maximum deformation values were under one-tenth of a millimeter (mm) domain in all the implant profile configurations. The circular patterned implant (0.9 mm) had the best performance score. The study demonstrates that compounding multi-design computational analysis with 3D printing can be beneficial for the optimal restoration of the orbital floor. View Full-Text

Keywords: blow-out; biocompatible materials; computer-aided design; finite element analysis; orbit; implant; orbital fracture; patient-specific modeling; printing; three-dimensional
