Membranes 2019, 9(12), 164; https://doi.org/10.3390/membranes9120164

Article
Synthesis of Imidazolium based PILs and Investigation of Their Blend Membranes for Gas Separation
1
Department of Chemistry, University of Patras, GR 26504 Patras, Greece
2
Foundation for Research and Technology, Institute of Chemical Engineering Sciences (FORTH/ICE-HT), GR 26504 Patras, Greece
*
Author to whom correspondence should be addressed.
Received: 19 November 2019 / Accepted: 29 November 2019 / Published: 3 December 2019

Abstract

:
Polymeric (ionic liquid) (PIL) copolymers bearing cationic imidazolium pendants and polar acrylic acid groups (P(VBCImY-co-AAx)), which both favor the interaction with CO2 molecules, have been synthesized and blended with film forming, high glass transition temperature aromatic polyether-based pyridinium PILs (PILPyr). The blend membranes based on the above combination have been prepared and characterized in respect to their thermal and morphological behavior as well as to their gas separation properties. The used copolymers and blends showed a wide range of glass transition temperatures from 32 to 286 °C, while blends exhibited two phase morphology despite the presence of polar groups in the blend components that could participate in specific interactions. Finally, the membranes were studied in terms of their gas separation behavior. It revealed that blend composition, counter anion type and acrylic acid molar percentage affect the gas separation properties. In particular, PILPyr-TFSI/P(VBCImTFSI-co-AA20) blend with 80/20 composition shows CO2 permeability of 7.00 Barrer and quite high selectivity of 103 for the CO2/CH4 gas pair. Even higher CO2/CH4. selectivity of 154 was achieved for PILPyr-BF4/P(VBCImBF4-co-AA10) blend with composition 70/30.
Keywords:
PILs; blends; membranes, gas separation; pyridinium based PIL (PILPyr); imidazolium based PILs

1. Introduction

Gas separation membranes are extensively applied in natural gas purification, CO2 capture, hydrogen recovery, and oxygen and nitrogen enrichment [1,2]. Among the various types of proposed membranes, polymeric membranes offer the advantages of energy efficiency, small footprint and scalability. Polymeric (ionic liquids) (PILs) have recently attracted considerable attention as CO2 separation membranes because they combine the inherent properties of polymers (e.g. processability, robustness) with the unique properties of ILs such as high CO2 sorption capacity, tunable physicochemical properties, and high thermal stability [3,4,5]. The majority of the PILs based on imidazolium, pyrrolidinium, or ammonium have been synthesized via free radical polymerization and show high CO2 permeability but low operation temperature and poor mechanical stability [6,7,8,9]. In order to overcome these obstacles and further increase the operation temperature, improve the separation properties and broaden their application range, the combination of a polymeric ionic liquid with a high glass transition temperature (Tg) polymer seems to be an ideal solution [10,11,12]. The idea of using polymer blends for the development of gas separation membranes gives also additional freedom on the selection of the blend components in order to control the miscibility of phase separation. Phase behavior of blends plays a critical role in determining gas transport properties. In particular, miscible polymer blends display gas separation properties that are intermediate of their comprising individual polymers, while immiscible blends can lead to unique properties depending on the membrane morphology, volume fraction, size and shape of the dispersed phase [13,14,15]. The fundamental understanding of phase behavior and the resulting molecular interactions are essential for developing desirable membrane materials for gas separation. In recent years, membrane research in blends has largely focused on miscible polymer blends and on uncompatibilized immiscible blends, which reflects the need for higher gas throughput.
Several blended membranes for gas separation have been reported so far, such as Matrimid/polybenzimidazole [16,17], polyimide/polysulfone [18] and polyimide/polybenzimidazole [19,20]. As an example, polybenzimidazole has been used in blends with several, low gas permeability types of polyimide (matrimide, torlon and P84) [16], where both polymers were selected due to their high thermal, chemical and mechanical resistance. In addition, polybenzimidazole (PBI) has very low permeation properties but high selectivity for various gas pairs. Blends that were prepared at different ratios, showed a selectivity increase for different gas pairs and a drop-in gas permeability that was correlated with PBI concentration in the blend.
Additionally, aromatic polyether based pyridinium PILs for use as CO2/CH4 gas separation membranes have been developed [10] that show high glass transition temperature, excellent thermal stability, enhanced solubility and outstanding film forming ability [21,22,23,24,25]. Since the CO2 permeability at ambient temperature is very low but their selectivity for the CO2/CH4 gas pair is quite favorable (with values up to ~50), a further increase of CO2 permeability while at the same time maintaining the satisfactory CO2/CH4 selectivity, could make these membranes promising candidates for natural gas and biogas purification.
In this study, we have focused on the above mentioned aromatic polyethers due to their superior solubility combined with high glass transition temperatures and a series of N-methyl imidazolium containing poly(vinyl benzyl chloride-co-acrylic acid) backbone PILs that were chosen and synthesized as the second component of blend materials. In particular, bulky imidazolium pendant groups can increase gas permeability due to chain packing disruption as well as due to their improved CO2 solubility. The incorporation of polar carboxylic acid groups onto the polymeric backbone also aims at the improvement of CO2 solubility. Thus, blends comprised of high molecular weight, thermally stable pyridinium based PILs (PILPyr) with excellent film forming ability and imidazolium functionalized poly(vinyl benzyl chloride-co-acrylic acid) backbone PILs have been prepared at different compositions. The effects of blend composition on miscibility, microstructure and gas separation performance of membranes are also investigated.
To the best of our knowledge, this is the first study focusing on the development of membranes by blending two different types of PILs for natural gas purification.

2. Materials and Methods

2.1. Materials

Aromatic polyethers bearing main chain pyridine units (Mn 60,000), were synthesized according to a previously reported procedure [20]. Thus, 4-vinylbenzyl chloride (VBC, 90%), acrylic acid (AA, 99%), lithium bis(trifluoromethyl)sulfonamide (TFSI, ≥99%), 1-methylimidazole (99%), dimethyl sulfate (DMSA, ≥ 99%), azobisisobutyronitrile (AIBN) (98%) and ethyl acetate (99.5%) were purchased from Sigma-Aldrich, Steinheim, Germany. Dimethylformamide (DMF, anhydrous, 99.8%), dimethylacetamide (DMAc, ≥99%), dimethylsulfoxide (DMSO, ≥99.7%), chloroform (99.8+%), diethyl ether (99%) and sodium tetrafluoroborate (NaBF4, 97%) were supplied from Fischer, Pittsburgh, Pennsylvania, WI, USA. All solvents and chemicals were used as received. Single gases, CO2, CH4, He, Ar were supplied by Air Liquide, Paris, France with 99.99% minimum purity.

2.2. PIL Synthesis

2.2.1. Synthesis of Pyridinium-Based PILs (PILPyr)

Pyridinium based PILs (PILPyr) have been synthesized by modification of aromatic polyether copolymers precursors bearing main chain pyridine units, as reported very recently by our group [10]. Specifically, precursor copolymers were converted to their PIL analogues via N-methylation and anion exchange metathesis reaction with the desirable anions (tetrafluoroborate and bis(trifluoromethylsolfonyl)imide). High molecular weight precursor copolymers ((Mn = 62,000, Mw = 128,000, PDI = 2.1) were prepared through nucleophilic aromatic substitution step growth polymerization of the tetramethyl biphenyl diol with 2,5 diphenyl substituted pyridine diol (molar ratio 60/40) and diphenyl sulfone difluoride, as described elsewhere [21].

2.2.2. Synthesis of Imidazolium-Based PILs (P(VBCImY-co-AAx))

Synthesis of Precursor Copolymers P(VBC-co-AAx)

The synthesis of poly(4-vinyl benzyl chloride-co-acrylic acid) precursor copolymers has been described previously by our group [26,27]. The copolymers were prepared via conventional free radical polymerization copolymerization of 4-vinyl benzyl chloride and acrylic acid (AA) monomers using azobisisobutyronitrile (AIBN) as an initiator and dimethylformamide (DMF) as solvent at 70 °C for 24 h. Copolymers with different compositions were prepared by varying the molar feeding ratios (90/10, 80/20). These copolymers will be denoted as P(VBC-co-AAx) copolymers where x is the molar fraction of AA units as determined by the Proton Nuclear Magnetic Resonance spectroscopy (1HNMR) characterization in CDCl3.

Synthesis of Imidazolium Functionalized P(VBCImCl-co-AAx)

The N-quaternization reaction of P(VBC-co-AAx) copolymers is described as follows: 2 g of P(VBC-co-AA20) (14.65 mmol) and 8 mL of DMF were added under argon atmosphere in a degassed round bottom flask. After the complete dissolution of the copolymer, 1.40 mL of 1-methylimidazole (17.58 mmol) was added to the yellowish solution. The reaction temperature was raised to 70 °C and the reaction mixture was left stirring for 24 h. One hour after the addition of 1-methylimidazole, a white solid started to precipitate and was dissolved by adding 2 mL of methanol. The quaternized copolymer was precipitated in diethyl ether, filtered and washed several times with diethyl ether. The obtained white powder was purified by re-dissolving in methanol and precipitation in diethyl ether. The product, denoted as P(VBCImCl-co-AA20), was dried in a vacuum oven for 12 h at 40 °C.

Anion Exchange of Imidazolium Functionalized P(VBCImCl-co-AAx)

Imidazolium based PILs were obtained by exchanging the chloride anion of the P(VBCImCl-co-AAx) with BF¬4- or TFSI- anions, using NaBF4 or LiTFSI salts respectively. In a typical anion exchange process (taking TFSI- as an example), 3 g of P(VBCImCl-co-AA20) were dissolved in 30 mL DMSO. A solution of LiTFSI in DMSO (1.5 molar equivalents of LiTFSI salt) was added dropwise into the copolymer solution. The reaction mixture was stirred for 48 h at room temperature. The resulting PIL, denoted as P(VBCImTFSI-co-AA20), was obtained by precipitation in deionized water. The solid white product was washed with deionized water, filtered and dried in vacuum oven at 40 °C for 12 h. The same procedure was followed for BF4- using NaBF4 salt (The PIL denoted as P(VBCImBF4-co-AA20)).

2.3. Membrane Preparation

Neat pyridinium and imidazolium based PILs as well as their blends (PILPyr/P(VBCImY-co-AAx) were examined regarding their film forming ability using the solution casting method. For pure PILs, 3 and 13 wt% solutions were prepared in DMA for PILPyr and P(VBCImY-co-AAx), respectively. The former was poured on a glass surface while the later was poured onto a Teflon surface, both left at 80 °C for 24 h to evaporate slowly the solvent. In the case of the blends, the two PILs components were initially dissolved separately (3% w/v in DMA, each solution) and then mixed together in different weight ratios to prepare a homogeneous solution. The obtained solution was casted on a flat glass surface at 80 °C for 24 h. After solvent evaporation, the formed membranes were peeled off and dried in a vacuum oven at 80 °C until constant weight was achieved.
The thickness of neat PILs and blend membranes (40–50 μm) was estimated using SEM microscopy, where average thickness was calculated from six measurements taken at different locations in each membrane sample.

2.4. Characterization

The 1HNMR and Fluorine Nuclear Magnetic Resonance (19FNMR) spectra were recorded on an Advance DPX 400 MHz spectrometer (Bruker, Karlsruhe, Germany). All solutions were made either in deuterated chloroform (CDCl3) or dimethylsulfoxide (DMSO-d6) and tetramethylsilane (TMS) was used as internal standard.
Thermogravimetric analysis (TGA) was conducted in the temperature range from room temperature to 800 °C under nitrogen atmosphere and a heating rate 20 °C min−1 using a Labsys TG (Setaram Instrumentation, Caluire-et-Cuire, France).
Attenuated Total Reflection Fourier Transform Infra Red (ATR-FT-IR) spectra were collected on a Platinum ATR spectrometer (Bruker, Ettlingen, Germany).
Scanning Electron Microscopy (SEM) was conducted on a LEO Supra 35VP microscope (Zeiss, Oberkochen, Germany). Membrane cross-sections for SEM imaging were prepared by freeze-fracturing the samples after immersion in liquid nitrogen.
Differential Scanning Calorimetry (DSC) was carried out on a Perkin Elmer DSC instrument (DSC Q100, Waltham, MA, USA) from −100 to 300 °C with a heating rate of 10 °C/min under a nitrogen flow. The effect of water and previous thermal history was erased by the first heating run while the glass transition temperatures were recorded in the second heating run.

2.5. Gas Separation Experiments

The room-temperature permeation of CO2 and CH4 pure gases was examined by the Wicke-Kallenbach method [28]. The membrane samples were disc-shaped with 5 cm diameter. The permeate side of the cell was purged with helium flowing at a rate of 20 cm3 min−1 and a pressure of 1 atm. Analysis of CH4 and CO2 molar fraction in the helium permeate stream was performed by gas chromatography (Shimadzu GC-2014, Kyoto, Japan, equipped with thermal conductivity (TCD) and flame ionization (FID) detectors and Porapak Q and Carboxen chromatographic columns).
A mass transfer mechanism incorporating solution and diffusion processes is generally used to describe the transport of gases through a dense polymeric membrane [29]. The permeability (P) can be calculated from Equation (1) [1,30]:
P = J Δ p l
where P is the permeability in Barrer units and Δp = p1p2, p1 and p2 being the partial pressures of the probe gas in the feed and permeate side (cm Hg), respectively. J represents the steady-state flux (cm3/cm2 s) and l is the thickness of the membrane (cm).
Three different membranes prepared under identical conditions were employed in the permeation measurements to confirm the reproducibility of the preparation method. The ideal selectivity, α(CO2/CH4), of the CO2/CH4 pair was calculated by the following equation:
α CO 2 / CH 4 = P CO 2 P CH 4

3. Results and Discussion

3.1. Synthesis and Characterization of Imidazolium-Based PILs

Combination of two polymeric ionic liquids obtained from chain growth (P(VBCImY-co-AAx)) and step growth (pyridinium based PIL, PILPyr) polymerizations were attempted here in order to take advantage of the high ionic liquid content and the presence of CO2 interactive groups like the carboxy groups in the P(VBCImY-co-AAx) as well as of the excellent film forming properties and the high Tg of pyridinium based PILs. Thus, pyridinium based PILs have been synthesized via modification of robust, high Tg, aromatic polyethers bearing main chain pyridine units [10]. The prepared PILs showed excellent film forming ability-free standing membranes with thickness down to 3 μm were fabricated—nevertheless, low CO2 permeability was obtained due to the close polymer chain packing. One way to increase CO2 permeability is to disrupt dense polymer chain packing by blending with another polymer containing bulky, CO2-philic groups. Thus, PIL copolymers bearing cationic imidazolium pendants and polar acrylic acid groups, which both favor the interaction with CO2 molecules, have been synthesized in order to be used as blend constituents. So, the first objective was to investigate the effect of blend composition on gas transport properties of the prepared blend membranes. Moreover, a second objective was to study whether the incorporation of polar acrylic acid groups into the imidazolium based PILs would provide better miscibility with pyridinium based PILs in blend membranes.
Imidazolium based PILs have been synthesized via the modification of a precursor copolymer containing vinyl benzyl chloride and acrylic acid units (P(VBC-co-AAx) as described in detail elsewhere [26,27]. The same polymeric backbone was also chosen for the synthesis of pyrrolidinium based PILs to be used as dye adsorbents [31]. By varying the molar ratios of vinyl benzyl chloride and acrylic acid monomers, copolymers with different compositions were obtained, as verified by 1HNMR spectroscopy. Although different experimental conditions (e.g. reduction of initiator/monomer molar ratio, increase of monomer concentration) were followed in order to obtain high molecular weight copolymers, in all cases, relatively low molecular weight copolymers (Mw = 12,000–17,000) were obtained, as determined using gel permeation chromatography (GPC). The corresponding imidazolium-based copolymers were synthesized via post modification of P(VBC-co-AAx) precursors through quaternization reaction of 1 methyl-imidazole with reactive benzyl chloride moieties. The PILs were converted to the desired anion form after anion exchange reaction with LITFSI or NaBF4 salts. The general synthetic route of imidazolium based PILs is illustrated in Scheme 1.
For reasons of simplicity, copolymers are denoted as P(VBCImY-co-AAx) where Y = TFSI, BF4, refers to anions, while x refers to the molar percentage of acrylic acid (AA) groups. The successful synthesis of the PILs was confirmed via proton nuclear magnetic resonance.
A characteristic 1HNMR spectrum of P(VBCImTFSI-co-AA20) based PIL with bis(tri-fluoromethylsulfonyl) imide as anion is given in Figure 1. The 1HNMR spectra of the precursor copolymer P(VBC-co-AA20), the P(VBCImCl-co-AA20) PIL as well as the P(VBCImBF4-co-AA10) based PIL with tetrafluoroborate as anion are given in Figure S1.
In the 1HNMR spectrum, the broad peaks in the range 0.8–2.1 ppm are assigned to the backbone protons of both poly(acrylic acid) (PAA) and PIL components. The CH2–N methylene protons c, close to the positively charged nitrogen are located at 5.2 ppm while the signals at 9.1 ppm and in the range 7.3–7.7 ppm are assigned to the imidazolium ring methine protons j and i, h protons, respectively. The broad peaks in the 6.3–7.3 ppm region correspond to the aromatic protons (a, b) of VBC backbone. All these data confirm the successful quaternization reaction. Moreover, evidence for the successful exchange to TFSI anions was collected by 1HNMR and 19F NMR spectroscopy (ESI, Figures S1 and S2). Regarding the 19F NMR spectrum of P(VBCImTFSI-co-AA20), a strong peak appears at −78.74 ppm which is assigned to the CF3 group of TFSI anion [12].
FT-IR spectroscopy was also used to verify the chemical structure of the synthesized PILs. Comparison of the FT–IR spectra of precursor P(VBC-co-AA20) copolymer, P(VBCImTFSI-co-AA20) and P(VBCImBF4-co-AA10) (Figure 2) reveals the disappearance of the peaks at 1264 and 672 cm−1 corresponding to stretching of the C-Cl bond and bending of CH2–Cl group of precursor P(VBC-co-AA20) after quaternization reaction. In addition, a new peak emerges at 1568 cm−1 assigned to the C=N bond of the imidazolium group [32,33].
In the case of P(VBCImTFSI-co-AA20), the pronounced peak located at 1176 cm−1 is assigned to C–F stretching of the CF3 group and the bands at 1347 and 1131 cm−1 can be attributed to the stretching of S–O in SO2 group. Finally, the asymmetric stretching band of the S–N–S group (1051 cm−1) can be identified as well, confirming the presence of the TFSI counter anion [34]. In P(VBCImBF4-co-AA10), the new band centered at 1041 cm−1 is assigned to the B-F stretching vibration [35].
Differential scanning Calorimetry (DSC) was used to determine glass transition temperatures of the synthesized P(VBCImY-co-AAx) based PILs. The modification of the P(VBC-co-AA10) precursor to its PIL analogue containing the Cl- anion resulted in a noticeable increase of Tg from 97 to 164 °C which could be probably attributed to the strong hydrogen bond formation between the chloride anion and the C-2 position proton of imidazolium group [34] (Figure 3). On the other hand, in the case of TFSI and BF4 anions, Tg is much reduced when compared to PIL containing the Cl anion, as these anions cannot form strong hydrogen bonds. P(VBCImTFSI-co-AA10) with TFSI anion is soft and has the lowest Tg value (32 °C) in comparison to BF4 (Tg = 118 °C) due to the presence of the bulkier TFSI anion which disrupts polymer chain packing density. In addition, the decreased Tg value is related to TFSI weakly coordinating anion nature which forms weak hydrogen bonds with C-2 proton of imidazolium group, facilitating thus polymer chain mobility [36].
Thermogravimetric analysis (TGA) was also used to evaluate the thermal stability of synthesized PILs (Figure S3). P(VBCImTFSI-co-AA10) showed increased thermal stability compared to the corresponding PILs with BF4 and Cl anions and its precursor. The PIL containing Cl anions showed a weight loss of 10% at temperature up to 150 °C due to traces of absorbed water since Cl anions are much more hydrophilic compared to the corresponding PILs containing the TFSI or BF4 anions. P(VBCImTFSI-co-AA10) started to decompose at 365 °C (defined as 5 wt% weight loss) while P(VBCImBF4-co-AA10) at 309 °C. The increased thermal stability of PIL containing the TFSI anion could be attributed to the reduced basicity of TFSI anion against BF4 and this behavior is in agreement with other studies [10,37].

3.2. Preparation and Characterization of PIL Blend Membranes

The neat imidazolium based PIL membranes were quite brittle due to their low molecular weights, and, as a result, could not be directly used for gas permeability measurements. So, these PILs were blended with high molecular weight pyridinium based PILs (PILPyr, Scheme 2) in order to prepare robust blend membranes. In Table 1 are given the blend membranes prepared by varying blend composition, counter anion type and molar fraction (x) of acrylic acid units containing in P(VBCImY-co-AAx).
Thermal transitions of the neat PILs and blended films were investigated to probe the influence of blend composition on the phase structure of the blends, using BF4 as counter anion in both PIL blend constituents and having the molar fraction of acrylic acid units 10% as representative examples. DSC thermograms of PILPyr-BF4/P(VBCImBF4-co-AA10) blends are illustrated in Figure S4. Blend membranes show two Tgs, suggesting that these blends are phase separated. Due to the small entropy of mixing, two mixed phases with differing composition are expected. The Tg at ~284 °C corresponds to the PILPyr-BF4 rich phase whereas the one at lower temperature corresponds to the P(VBCImBF4-co-AA10) rich phase.
Regarding the thermal stability of the prepared blends, the TGA curves of PILPyr-TFSI/ P(VBCImTFSI-co-AA10) blends are illustrated in Figure S5 as representative examples. Neat PILPyr-TFSI exhibited an early mass loss which is most likely due to residual water and DMA solvent (up to 205 °C has a weight loss 4.3%) followed by a single weight loss step with an onset degradation temperature at 240 °C. Blends 70/30 and 80/20 showed improved thermal stability and blend 80/20 had a small loss from solvent (3% weight loss around 212 °C) followed by a more significant onset of degradation around 280 °C.
The phase separated behavior of blends is further confirmed by the ATR–FT–IR and SEM data. ATR–FT–IR spectra of blend membranes confirm the presence of the characteristic peaks of both PILs (Figure 4). The neat PILPyr contains both pyridine and pyridinium units as only 50% N-quaternization degree was accomplished via conversion of the precursor aromatic polyether to its ionic analogue. Thus, characteristic peaks of both pyridine and pyridinium groups were observed. In specific, the bands centered at 1483 and 1631 cm−1 correspond to the stretching mode of pyridinium cation while the peak at 1584 cm−1 is attributed to the pyridine ring [38,39]. The shoulder located at 1609 cm−1 could probably be assigned to the free pyridine and pyridinium cation interaction. In the case of PILPyr-BF4/P(VBCImBF4-co-AA10) blends, with increasing P(VBCImBF4-co-AA10) composition, the peak at 1584 cm−1 remains unaltered, suggesting that free pyridine units do not participate in any interaction. Moreover, the intensity of the peaks at 1483 and 1631 cm−1 corresponding to pyridinium has also not changed upon blending. A closer inspection of neat P(VBCImBF4-co-AA10) in the region of 1700–1800 cm−1, reveals a broad peak located at 1725 cm−1, which can be attributed to the overlapping of two carbonyl stretching bands comprising of free as well as self-associated carboxylic groups [38]. It seems that this peak is shifted towards higher wavenumbers upon blending due to the liberation of carbonyl groups since hydroxyl groups of carboxylic acids probably participate to hydrogen bond formation with other groups (e.g. BF4 anion). It should be noted that these blends constitute a very complex system, making it difficult to study the development of specific electrostatic interactions between pyridine/pyridinium, pyridine/carboxylic acid, BF4/carboxylic acid groups. However, the absence of peak shifts or new peaks corresponding to hydrogen bonding formation between pyridine and carboxylic acid groups or protonation of pyridine by carboxylic acid groups (acid-base interaction) compared to pure PILs, implies that there are no strong interactions between the two PILs that could promote miscibility. The same trends were also observed in the case of PILPyr-TFSI/P(VBCImTFSI-co-AA10) blends where TFSI was used as counter anion in both PILs.
Since it is very important to prepare homogeneous, dense blend membranes for gas separation, one way to promote miscibility is to increase the number of acrylic acid units from 10 to 20% which can participate in specific interactions (e.g. hydrogen bonding) with polar free pyridine groups contained in PILPyr. Thus, PILPyr-TFSI/P(VBCImTFSI-co-AA20) blends with 20% molar percentage of acrylic acid units were studied with ATR-FT-IR spectroscopy, where no shift of new peaks was observed upon blending that could be attributed to specific interactions (Figure S6). These data are further supported by the DSC evidence where two peaks corresponding to the Tgs of the pure blend components were revealed implying that these blends are also phase separated (Figure 5).
The morphology of the blend membranes was studied by SEM microscopy. All blends exhibited biphasic morphology. Most of the two-phase blends consist of a continuous, single component phase into which a second component is dispersed. Typically, phase separated polymer blends can exhibit co-continuous, matrix-droplet, fiber and lamellar morphologies [40]. Morphology is highly dependent on the polymer blend composition. Figure 6 shows the cross-section SEM images of PILPyr-BF4/ P(VBCImBF4-co-AA10) blend membranes (having the BF4 anion in both blend components) containing 20 and 30 wt% of P(VBCImBF4-co-AA10). It should be mentioned here that both neat blend component form homogeneous, dense membranes. It is evident that as the weight fraction of P(VBCImBF4-co-AA10) component is increased, the domain size of the dispersed P(VBCImBF4-co-AA10) phase is also increased. Similar morphologies were observed for immiscible PI/PPO polymer blends as well [41].
In the case of PILPyr-TFSI/P(VBCImTFSI-co-AA10) with composition 80/20 whereas both blend components contain the TFSI anion, a matrix-droplet morphology is observed, where P(VBCImTFSI-co-AA10) droplets are embedded in a continuous PILPyr rich phase. Most of the dispersed domains have diameters ranging from 1–1.5 μm (Figure 7a). As the acrylic acid loading is increased to 20 %, the blend with the same 80/20 composition exhibits a different morphology (a lamellar like) and when the P(VBCImTFSI-co-AA20) content is increased to 30% (blend composition 70/30), spherical nodules with a large size distribution are dispersed in the continuous PILPyr rich phase (Figure 7b,c). The diameters of the dispersed nodules varied from 2.6 to 6.7 μm. This nodular morphology has also been observed in immiscible Polyamide 11/poly(hydroxyl amino ether) blends for PA11 contents higher than 50 wt% in the blends [42]. Moreover, further increase of P(VBCImTFSI-co-AA20) loading (40 wt%), leads to formation of void with dimensions up to 10 μm probably due to the lack of miscibility between the two components (Figure 7d).
Regarding the study of the gas separation properties of blend membranes, the imidazolium based PIL could not be prepared as a robust membrane, thus gas permeability measurements of the neat component were not conducted. Nevertheless, a CO2 permeability of 9 Barrer and selectivity of 39 for the CO2/CH4 gas pair for similar PILs based on methyl-imidazolium tethered to a polystyrene backbone has been reported [43]. The second component, PILPyr, can be prepared as a neat membrane and its CO2 and CH4 permeability values were reported by our group in a previous work [10]. Table 2 presents the permeability and ideal selectivity data for the prepared blend membranes. The effect of blend composition on gas transport properties for PILPyr-BF4/P(VBCImBF4-co-AA10) blends was studied. In particular, neat PILPyr-BF4 membrane has a very low CO2 permeability (2 Barrer). In the case of blends, as the P(VBCImBF4-co-AA10) content is increased from 20 to 30%, CO2 permeability is also increased from 1.97 to 2.78 Barrer (41% increment), while, on the contrary, CH4 permeability was much reduced from 0.041 to 0.018 Barrer (44% reduction). Consequently, the selectivity for CO2/CH4 gas pair shows a very significant increase from 77 to 154 for blend 70/30, corresponding to 100% increment. Generally, the low CO2 and CH4 permeability for the neat PILPyr-BF4 and its corresponding blends (80/ 20 and 70/30) can be related to their high Tg values due to the limited mobility of polymeric chains for gas diffusion [44].
Regarding the effect of counter anion containing in blends on gas permeability, the results of this study further confirm the literature data. In particular, CO2 permeability of PILPyr-TFSI/P(VBCImTFSI-co-AA10) blend membrane with composition 80/20 (TFSI is the counter anion of both PIL components), increases from 1.97 to 6.47 Barrer (228 % increment) with respect to the 80/20 blend containing BF4 as counter anion. This behaviour is attributed to the higher bulkiness of the TFSI anion based on its larger van der Waal’s volume compared to BF4 [45], thus enabling a looser chain packing. Interestingly, the selectivity of the blend containing the TFSI anion has only a slight decrease from 77 to 69 when compared to the blend containing the BF4 anion. An increase in P(VBCImTFSI-co-AA10) content results in an increase of CO2 and CH4 permeabilities (7.37 and 0.2 Barrer, respectively) of the resultant blend (70/30 composition). In contrast, gas selectivity is decreased from 69 to 37.
The effect of the molar percentage of acrylic acid units on the gas transport properties was also evaluated. The comparison of the permeability data of blends with the same composition and containing the same counter anion, but having 10% and 20% acrylic acid units revealed that blend PILPyr-TFSI/P(VBCImTFSI-co-AA20) 80/20 with the increased percentage shows a moderate increase in CO2 permeability from 6.47 to 7.00 Barrer (8% increment). However, the simultaneous, sharp increase of selectivity from 69 to 103, corresponding to 48% increment, is an important finding. It is speculated that carboxylic acid groups of acrylic acid participate in mild ionic cross-linking, thus leading to a tighter polymer chain packing and consequently to enhanced selectivity.
Further increase of the P(VBCImTFSI-co-AA20) content leads to a sharp increase of both CO2 and CH4 permeabilities, while the selectivity is abruptly decreased from 102 to 2 for the blend with composition 60/40. The increased permeability is related to the existence of voids (pores) due to the lack of miscibility, as was also evidenced by SEM microscopy (Figure 7d). Gas transport in homogeneous, dense membranes is governed by solution-diffusion mechanism, however, in this case, mass transfer is also facilitated by Knudsen diffusion and viscous flow that take place in porous membranes [46] causing a major drop of selectivity.
For phase separated blends, blend permeability is strongly dependent on the morphology of the two components (one is the lower permeability and the other is the higher permeability component) and can be described by various models such as series, parallel or Maxwell [13,47,48]. These models offer reasonable predictions where one phase is entirely the continuous phase at both ends of the composition range. It would be very useful to compare the experimental gas permeability values with those predicted by the models in order to understand the effect of morphology on gas transport properties. However, blend permeability using the different models can be calculated from the volume fraction and the permeability of each blend component. In our case, since the permeability of the neat imidazolium based PIL cannot be measured, it is not possible to calculate the blend permeability as predicted by the different models.
The correlation between permeability and selectivity for the CO2/CH4 gas pair in the form of Robeson plot is shown in Figure 8. Literature data for other immiscible polymer blend membranes are also illustrated in the same plot. The grey highlighted region depicts some of the data of this work. It is evident that the prepared blend membranes lie below the upper bound limit on the left part of the plot characterized by lower permeabilities and higher selectivities compared to other reported membranes. The selectivity in some cases is very high (e.g. 154 for PILPyr-BF4/P(VBCImBF4-co-AA10) with composition 70/30), however, a significant increase in the permeability (to 102–104 Barrer) would be required to compete with membranes at or close to the Robeson upper bound line.

4. Conclusions

In conclusion, blend membranes comprised of high molecular weight, thermally stable pyridinium based PIL with excellent film forming ability and imidazolium functionalized poly(vinyl benzyl chloride-co-acrylic acid) backbone PILs have been prepared at different compositions. The effect of blend composition, the type of counter anion as well as the molecular percentage of acrylic acid units on miscibility, microstructure and gas separation properties was investigated. In all cases, thermally stable phase separated blends with varying morphologies were obtained. Regarding the gas separation performance of membranes, in the case of PILPyr-BF4/P(VBCImBF4-co-AA10) blends, by increasing the P(VBCImBF4-co-AA10) content from 20 to 30%, the CO2 permeability is also increased from 1.97 to 2.78 Barrer (41% increment) while the selectivity for the CO2/CH4 gas pair shows a very significant increase from 77 to 154 (100 % increment) for blend 70/30. Another important finding resulted from the comparison of the permeability data of blends with the same composition and containing the same counter anion (TFSI) but having different percentages of acrylic acid units (10 and 20%). The blend PILPyr-TFSI/P(VBCImTFSI-co-AA20) 80/20 with 20% acrylic acid units shows a moderate increase in CO2 permeability from 6.47 to 7.00 Barrer (8% increment). Interestingly, CO2 permeability was increased and at the same time a very significant increase of the selectivity was also achieved. These membranes could be further developed targeting to CO2 permeability enhancement by tuning the imidazolium copolymer structure in order to be used as gas separation membranes.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0375/9/12/164/s1, Figure S1: 1HNMR spectra of (a) precursor copolymer P(VBC-co-AA), (b) P(VBCImCl-co-AA20) based PIL containing Cl anion, (c) P(VBCImBF4-co-AA10) based PIL containing BF4 anion and (d) P(VBCImTFSI-co-AA20) based PIL containing TFSI anion, Figure S2: 19F NMR spectra of (a) P(VBCImBF4-co-AA10) and (b) P(VBCImTFSI-co-AA20), Figure S3: TGA curves of precursor P(VBC-co-AA10) and its PILs analogues containing different counter anions, Figure S4: DSC thermograms of PILPyr-BF4/P(VBCImBF4-co-AA10) blends, Figure S5: TGA curves of PILPyr-TFSI/P(VBCImTFSI-co-AA10) blends, Figure S6: ATR-FT-IR spectra of PILPyr-TFSI/P(VBCImTFSI-co-AA20) blends.

Author Contributions

Conceptualization, V.D.; Investigation, T.C. and A.V.; Methodology, T.C., A.V., T.I., V.D. and J.K.; Resources, J.K.; Supervision, T.I. and V.D.; Validation, V.D. and J.K.; Writing—Original draft, V.D.; Writing—Review& editing, T.I., V.D. and J.K.

Funding

We acknowledge support of this work by the project “Materials and Processes for Energy and Environment Applications” (MIS 5002556) which is implemented under the “Action for the Strategic Development on the Research and Technological Sector”, funded by the Operational Programme "Competitiveness, Entrepreneurship and Innovation" (NSRF 2014-2020) and co-financed by Greece and the European Union (European Regional Development Fund).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baker, R.W. Membrane Technology and Applications, 3rd ed.; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
  2. Baker, R.W.; Low, B.T. Gas Separation Membrane Materials: A Perspective. Macromolecules 2014, 47, 6999–7013. [Google Scholar] [CrossRef]
  3. Tomé, L.C.; Marrucho, I.M. Ionic liquid-based materials: A platform to design engineered CO2 separation membranes. Chem. Soc. Rev. 2016, 45, 2785–27824. [Google Scholar] [CrossRef] [PubMed]
  4. Yuan, J.; Mecerreyes, D.; Antonietti, M. Poly(ionic liquids): An Update. Prog. Polym. Sci. 2013, 38, 1009–1036. [Google Scholar] [CrossRef]
  5. Mecerreyes, D. Polymeric ionic liquids: Broadening the properties and applications of polyelectrolytes. Prog. Polym. Sci. 2011, 36, 1629–1648. [Google Scholar] [CrossRef]
  6. Tang, J.; Tang, H.; Sun, W.; Radosz, M.; Shen, Y. Atom transfer radical polymerization of styrenic ionic liquid monomers and carbon dioxide absorption of the polymerized ionic liquids. J. Polym. Sci. Part A Polym. Chem. 2005, 43, 5477–5489. [Google Scholar] [CrossRef]
  7. Bara, J.E.; Gabriel, C.J.; Hatakeyama, E.S.; Carlisle, T.K.; Lessmann, S.; Noble, R.D.; Gin, D.L. Improving CO2 selectivity in polymerized room temperature ionic liquid gas separation membranes through incorporation of polar substituents. J. Membr. Sci. 2008, 321, 3–7. [Google Scholar] [CrossRef]
  8. Tomé, L.C.; Isik, M.; Freire, C.S.R.; Mecerreyes, D.; Marrucho, I.M. Novel pyrrolidinium-based polymeric ionic liquids with cyano counter-anions: High performance membrane materials for post-combustion CO2 separation. J. Membr. Sci. 2015, 483, 155–165. [Google Scholar] [CrossRef]
  9. Zulficar, S.; Sarwar, M.I.; Mecerreyes, D. Polymeric ionic liquids for CO2 capture and separation: Potential, progress and challenges. Polym. Chem. 2015, 6, 6435–6451. [Google Scholar] [CrossRef]
  10. Vollas, A.; Chouliaras, T.; Deimede, V.; Ioannides, T.; Kallitsis, J.K. New pyridinium type Poly(ionic liquids) as membranes for CO2 separation. Polymers 2018, 10, 912. [Google Scholar] [CrossRef]
  11. Bhavasar, R.S.; Kumbharkar, S.C.; Rewar, A.S.; Kharul, U.K. Polybenzimidazole based film forming polymeric ionic liquids: Synthesis and effects of cation-anion variation on their physical properties. Polym. Chem. 2014, 5, 4083–4096. [Google Scholar] [CrossRef]
  12. Shaplov, A.S.; Morozova, S.M.; Lozinskaya, E.I.; Vlasov, P.S.; Gouveia, A.S.L.; Tomé, L.C.; Marrucho, I.M.; Vygodskii, Y.S. Turning into poly(ionic liquid)s as a tool for polyimide modification: Synthesis, characterization and CO2 separation properties. Polym. Chem. 2016, 7, 580–591. [Google Scholar] [CrossRef]
  13. Robeson, L.M. Polymer Blends in Membrane Transport Processes. Ind. Eng. Chem. Res. 2010, 49, 11859–11865. [Google Scholar] [CrossRef]
  14. Mannan, H.A.; Mukhtar, H.; Murugesan, T.; Nasir, R.; Mohshim, D.F.; Mushtaq, A. Recent Applications of Polymer Blends in Gas separation Membranes. Chem. Eng. Technol. 2013, 36, 1–10. [Google Scholar] [CrossRef]
  15. Panapitiya, N.; Wijenayake, S.; Nguyen, D.; Karunaweera, C.; Huang, Y.; Balkus, K.; Musselman, I., Jr.; Ferraris, J. Compatibilized immiscible polymer blends for gas separations. Materials 2016, 9, 643. [Google Scholar] [CrossRef] [PubMed]
  16. Hosseini, S.S.; Teoh, M.M.; Chung, T.S. Hydrogen separation and purification in membranes of miscible polymer blends with interpenetration networks. Polymer 2008, 49, 1594–1603. [Google Scholar] [CrossRef]
  17. Chung, T.S.; Guo, W.F.; Liu, Y. Enhanced matrimid membranes for pervoration by homogeneous blends with polybenzimidazole (PBI). J. Membr. Sci. 2006, 271, 221–231. [Google Scholar] [CrossRef]
  18. Ismail, A.F.; Rahim, R.A.; Rahman, W.A. Characterization of polyethersulfone/Matrimid® 5218 miscible blend mixed matrix membranes for O2/N2 gas separation. Sep. Purif. Technol. 2008, 63, 200–206. [Google Scholar] [CrossRef]
  19. Pérez-Fransisco, J.M.; Santiago-Garcia, J.L.; Loria-Bastarrachea, M.I.; Aguilar-Vega, M. Evaluation of gas transport properties of highly rigid aromatic PI DPPD-IMM/PBI blends. Ind. Eng. Chem. Res. 2017, 56, 9355–9366. [Google Scholar] [CrossRef]
  20. Moon, J.D.; Bridge, A.T.; D’Ambra, C.; Freeman, B.D.; Paul, D.R. Gas separation properties of polybenzimidazole/thermally-rearranged polymer blends. J. Membr. Sci. 2019, 582, 182–193. [Google Scholar] [CrossRef]
  21. Pefkianakis, E.K.; Deimede, V.; Daletou, M.K.; Gourdoupi, N.; Kallitsis, J.K. Novel Polymer Electrolyte membrane based on pyridine containing poly(ether sulfone), for application in High-Temperature Fuel Cells. Macromol. Rapid Commun. 2005, 26, 1724–1728. [Google Scholar] [CrossRef]
  22. Geormezi, M.; Chochos, C.; Gourdoupi, N.; Neophytides, S.G.; Kallitsis, J.K. High performance polymer electrolytes based on main and side chain pyridine aromatic polyethers for high and medium temperature proton exchange membrane fuel cells. J. Power Sour. 2011, 196, 9382–9390. [Google Scholar] [CrossRef]
  23. Geormezi, M.; Deimede, V.; Kallitsis, J.K.; Neophytides, S. Polymer blends based on copolymers bearing both side and main chain pyridine units as proton exchange membranes for high temperature fuel cells. J. Membr. Sci. 2012, 396, 57–66. [Google Scholar] [CrossRef]
  24. Voege, A.; Deimede, V.; Kallitsis, J.K. Side chain crosslinking of aromatic polyethers for high temperature polymer electrolyte membrane fuel cell applications. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 207–216. [Google Scholar] [CrossRef]
  25. Deimede, V.; Voege, A.; Lainioti, G.; Elmasides, C.; Kallitsis, J.K. Large-Scale Separators Based on Blends of Aromatic Polyethers with PEO for Li-Ion batteries: Improving Thermal shrinkage and wettability behavior. Energy Technol. 2014, 2, 275–283. [Google Scholar] [CrossRef]
  26. Kougia, E.; Tselepi, M.; Vasilopoulos, G.; Lainioti, G.; Koromilas, N.D.; Druvari, D.; Bokias, G.; Vantarakis, A.; Kallitsis, J.K. Evaluation of Antimicrobial Efficiency of New Polymers Comprised by Covalently Attached and/or Electrostatically Bound Bacteriostatic Species, Based on Quaternary Ammonium Compounds. Molecules 2015, 20, 21313–21327. [Google Scholar] [CrossRef] [PubMed]
  27. Druvari, D.; Koromilas, N.D.; Lainioti, G.; Bokias, G.; Vasilopoulos, G.; Vasilopoulos, G.; Baras, I.; Dourala, N.; Kallitsis, J.K. Polymeric Quaternary Ammonium-Containing Coatings with Potential Dual Contact-Based and Release-Based Antimicrobial Activity. ACS Appl. Mater. Interfaces 2016, 8, 35593–35605. [Google Scholar] [CrossRef]
  28. Ruthven, D.M. Principles of Adsorption and Adsorption Processes; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 1984; pp. 127–128. [Google Scholar]
  29. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  30. Yampolskii, Y.; Pinnau, I.; Freeman, B.D. (Eds.) Materials Science of Membranes for Gas and Vapor Separation; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2006; pp. 251–270. [Google Scholar]
  31. Makrygianni, M.; Lada, Z.G.; Manousou, A.; Aggelopoulos, C.A.; Deimede, V. Removal of anionic dyes from aqueous solution by novel pyrrolidinium based Polymeric Ionic Liquid (PIL) as adsorbent: Investigation of the adsorption kinetics, equilibrium isotherms and the adsorption mechanism involved. J. Environ. Chem. Eng. 2019, 7, 103163. [Google Scholar] [CrossRef]
  32. Gong, X.; Yan, X.; Li, T.; Wu, X.; Chen, W.; Huang, S.; Wu, Y.; Zhen, D.; He, G. Design of pendent imidazolium side chain with flexible ether-containing spacer for alkaline anion exchange membrane. J. Membr. Sci. 2017, 523, 216–224. [Google Scholar] [CrossRef]
  33. Lu, W.; Shao, Z.-G.; Zhang, G.; Zhao, Y.; Yi, B. Crosslinked poly(vinylbenzyl chloride) with a macromolecular crosslinker for anion exchange membrane fuel cells. J. Power Sour. 2014, 248, 905–914. [Google Scholar] [CrossRef]
  34. Wu, Y.; Zhang, W.; Yuan, J. Reprocessable porous poly(ionic liquid) membranes derived from main-chain polyimidazolium. Eur. Polym. J. 2018, 103, 214–219. [Google Scholar] [CrossRef]
  35. Suarez, P.A.Z.; Dullius, J.E.L.; Einloft, S.; De Souza, R.F.; Dupont, J. The use of new ionic liquids in two phase catalytic hydrogenation reaction by rhodium complexes. Polyhedron 1996, 15, 1217–1219. [Google Scholar] [CrossRef]
  36. Depuydt, D.; Van den Bossche, A.; Dehaen, W.; Binnemans, K. Halogen-free synthesis of symmetrical 1,3-dialkylimidazolium ionic liquids using non- enolisable starting materials. RSC Adv. 2016, 6, 8848–8859. [Google Scholar] [CrossRef]
  37. Wang, C.; Luo, X.; Luo, H.; Jiang, D.-E.; Li, H.; Dai, S. Tuning the basicity of ionic liquids of equimolar CO2 capture. Angew. Chem. 2011, 50, 4918–4922. [Google Scholar] [CrossRef]
  38. Hameed, N.; Guo, Q. Self-Assembled complexes of poly(acrylic acid) and poly(styrene)-block-poly(4-vinyl pyridine). J. Polym. Sci. Part B Polym. Phys. 2009, 47, 1192–1202. [Google Scholar] [CrossRef]
  39. Sakurai, K.; Douglas, E.P.; MacKnight, W.J. Spectroscopic study of an ionic blend made from the acid form of sulfonated polystyrene and poly[ethyl acrylate-co-(4-vinylpyridine)]. Macromolecules 1992, 25, 4506–4510. [Google Scholar] [CrossRef]
  40. Cai, X.; Li, B.; Pan, Y.; Wu, G. Morphology evolution of immiscible polymer blends as directed by nanoparticle self-agglomeration. Polymer 2012, 53, 259–266. [Google Scholar] [CrossRef]
  41. Park, C.; Jo, W.H.; Park, H.C.; Kang, Y.S. Morphological effect of dispersed phase on gas permeation properties through heterophase polymer membrane: Theoretical and experimental approaches. Polymer 2000, 41, 1765–1771. [Google Scholar] [CrossRef]
  42. Lafitte, G.; Espuche, E.; Gérard, J.-F. Polyamide 11/poly(hydroxyl amino ether) blends: Influence of the blend composition and morphology on the barrier and mechanical properties. Eur. Polym. J. 2011, 47, 1994–2002. [Google Scholar] [CrossRef]
  43. Bara, J.E.; Lessmann, S.; Gabriel, C.J.; Hatakeyama, E.S.; Noble, R.D.; Gin, D.L. Synthesis and performance of polymerizable room-temperature ionic liquids as gas separation membranes. Ind. Eng. Chem. Res. 2007, 46, 5397–5404. [Google Scholar] [CrossRef]
  44. Li, S.; Jiang, X.; Jang, X.; Bai, Y.; Shao, L. Nanoporous framework “reservoir” maximizing low-molecular-weight enhancer impregnation into CO2-philic membranes for highly-efficient CO2 capture. J. Membr. Sci. 2019, 570–571, 278–285. [Google Scholar] [CrossRef]
  45. Park, J.Y.; Paul, D.R. Correlating and prediction of gas permeability in glassy polymer membrane materials via a modified free volume based group contribution method. J. Membr. Sci. 1997, 125, 23–39. [Google Scholar] [CrossRef]
  46. Nagy, E. Basic Equation of Mass Transport through a Membrane Layer, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2019. [Google Scholar]
  47. Paul, D.R.; Bucknall, C.B. Polymer Blends; John Wiley & Sons: New York, NY, USA, 2000; Volumes 1–2. [Google Scholar]
  48. Paul, D.R.; Yampolskii, Y.P. Polymeric Gas Separation Membranes; CRC Press: Boca Raton, FL, USA, 1994. [Google Scholar]
  49. Hosseini, S.S.; Chung, T.S. Carbon membranes from blends of PBI and Polyimides for N2/CH4 and CO2/CH4 separation and hydrogen purification. J. Membr. Sci. 2009, 328, 174–185. [Google Scholar] [CrossRef]
  50. Yong, W.F.; Li, F.Y.; Xiao, Y.C.; Li, P.; Pramoda, K.P.; Tong, Y.W.; Chung, T.S. Molecular engineering of PIM-1/Matrimid blend membranes for gas separation. J. Membr. Sci. 2012, 407–408, 47–57. [Google Scholar] [CrossRef]
Scheme 1. Synthetic route for synthesis of P(VBCImY-co-AAx) based PILs.
Scheme 1. Synthetic route for synthesis of P(VBCImY-co-AAx) based PILs.
Membranes 09 00164 sch001

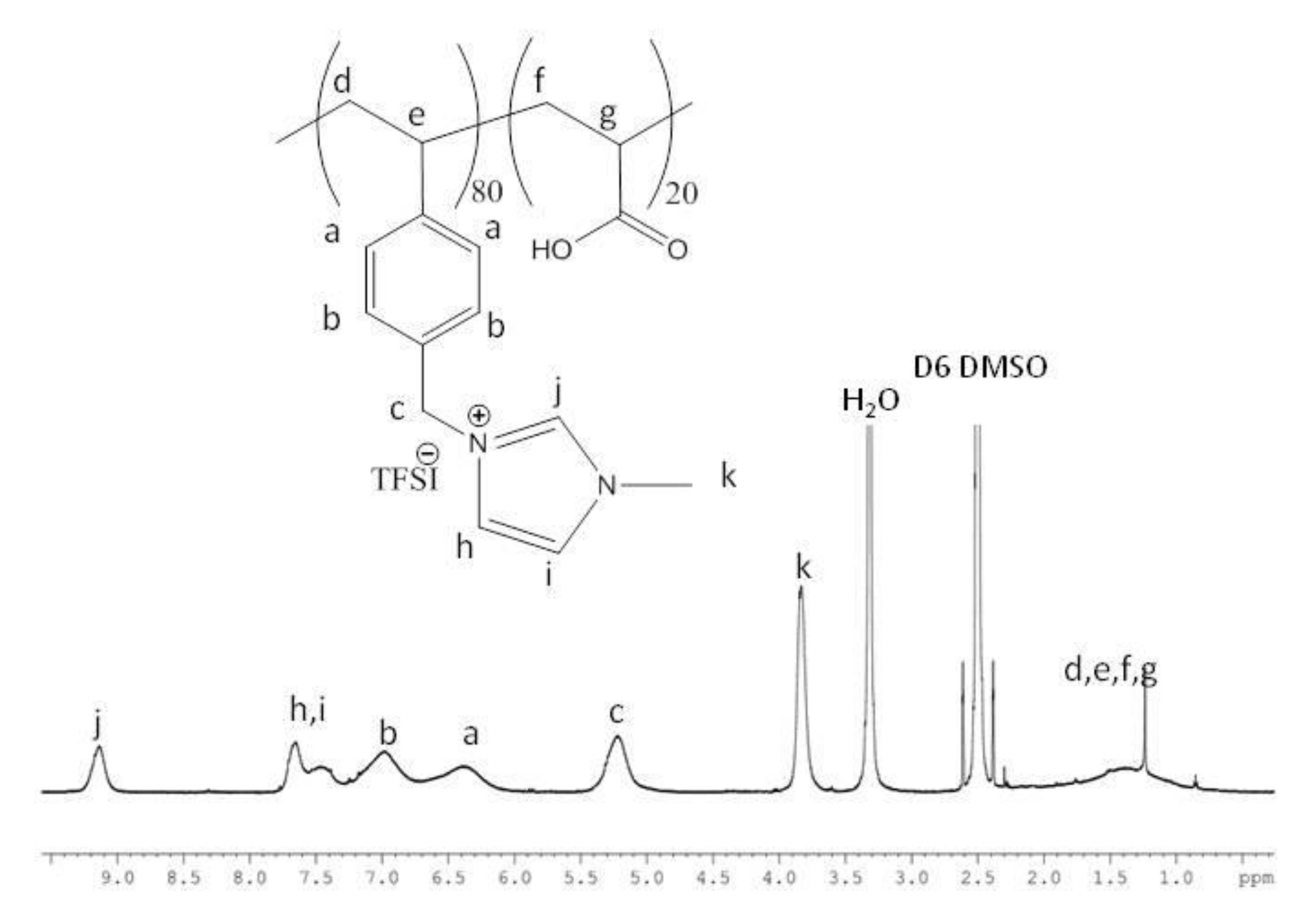

Figure 1. Proton Nuclear Magnetic Resonance (1HNMR) spectrum of imidazolium functionalized copolymer P(VBCImTFSI-co-AA20) in deuterated dimethylsulfoxide (d6-DMSO).
Figure 1. Proton Nuclear Magnetic Resonance (1HNMR) spectrum of imidazolium functionalized copolymer P(VBCImTFSI-co-AA20) in deuterated dimethylsulfoxide (d6-DMSO).
Membranes 09 00164 g001

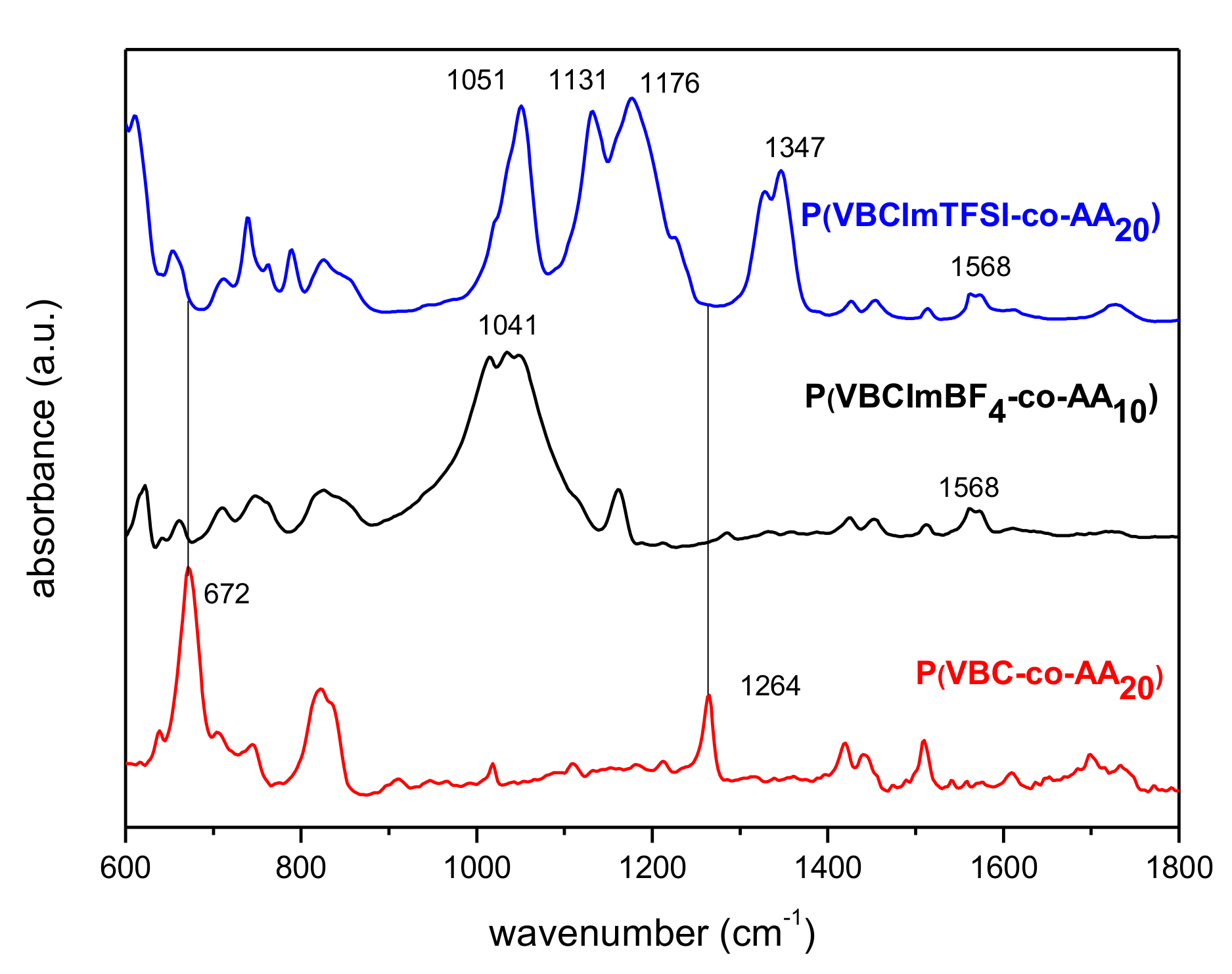

Figure 2. Attenuated Total Reflection Fourier Transform Infrared (ATR–FT–IR) spectra of precursor copolymer P(VBC-co-AA20), P(VBCImBF4-co-AA10) and P(VBCImTFSI-co-AA20).
Figure 2. Attenuated Total Reflection Fourier Transform Infrared (ATR–FT–IR) spectra of precursor copolymer P(VBC-co-AA20), P(VBCImBF4-co-AA10) and P(VBCImTFSI-co-AA20).
Membranes 09 00164 g002

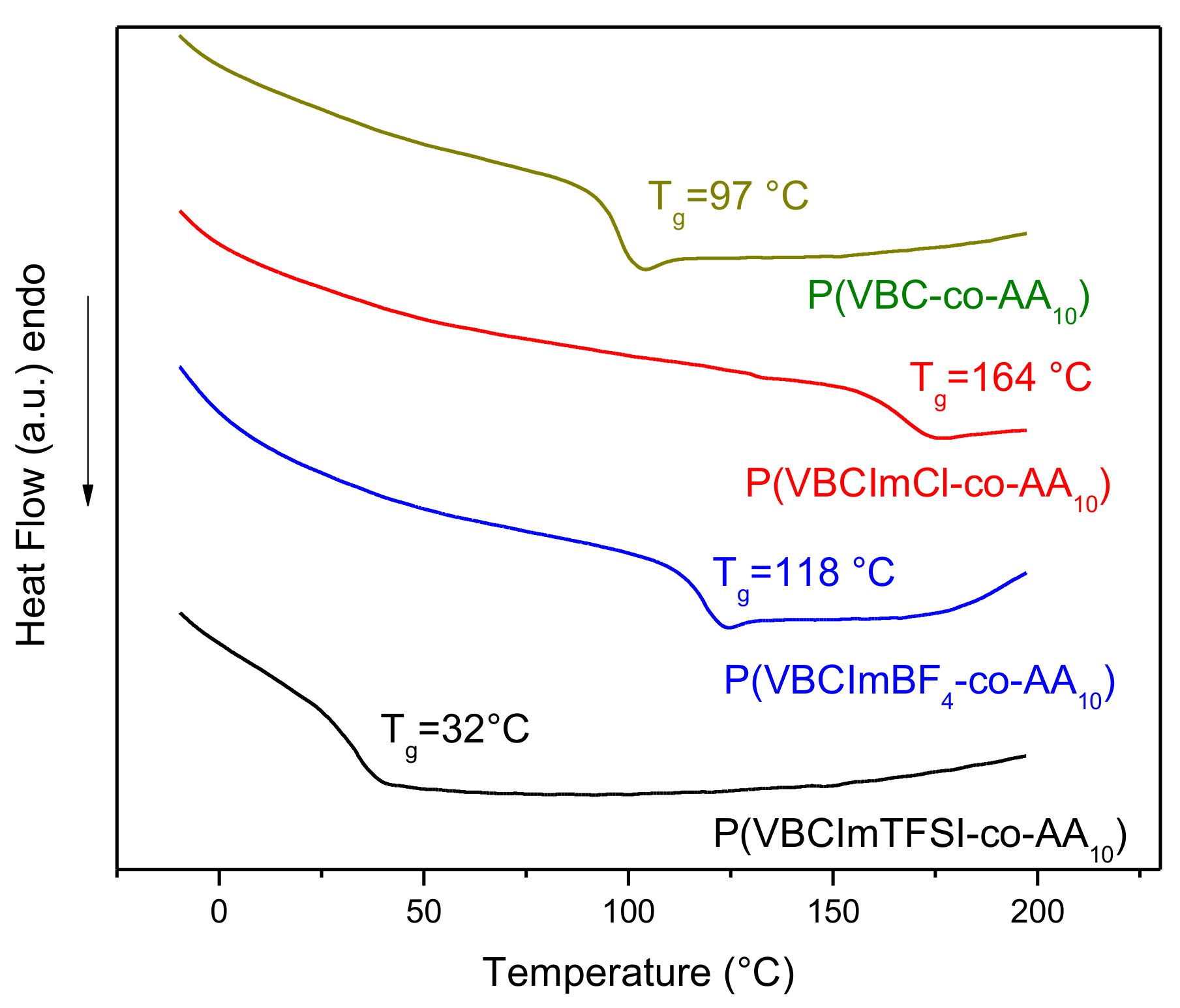

Figure 3. Differential scanning Calorimetry (DSC) thermograms of precursor copolymer P(VBC-co-AA10) and its corresponding PILs with different counter anions.
Figure 3. Differential scanning Calorimetry (DSC) thermograms of precursor copolymer P(VBC-co-AA10) and its corresponding PILs with different counter anions.
Membranes 09 00164 g003

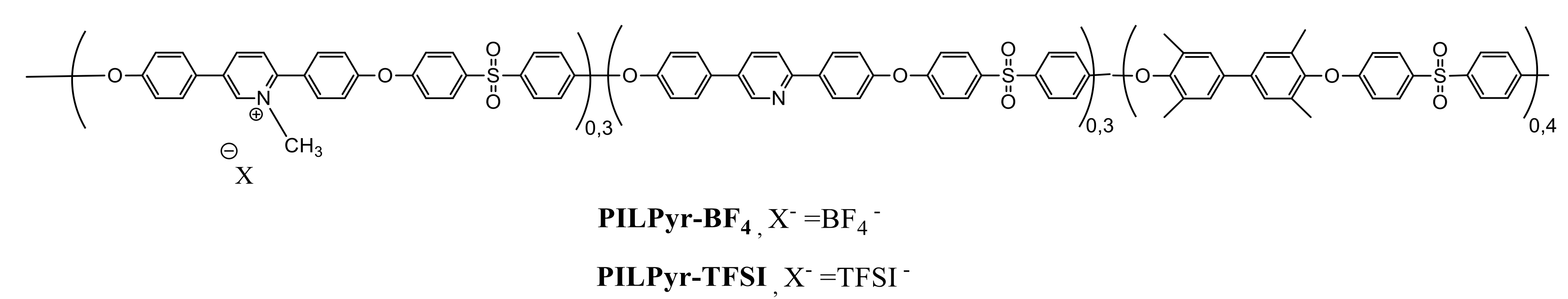

Scheme 2. Chemical structure of pyridinium based PIL (PILPyr-X where X=BF4, TFSI anions).
Scheme 2. Chemical structure of pyridinium based PIL (PILPyr-X where X=BF4, TFSI anions).
Membranes 09 00164 sch002

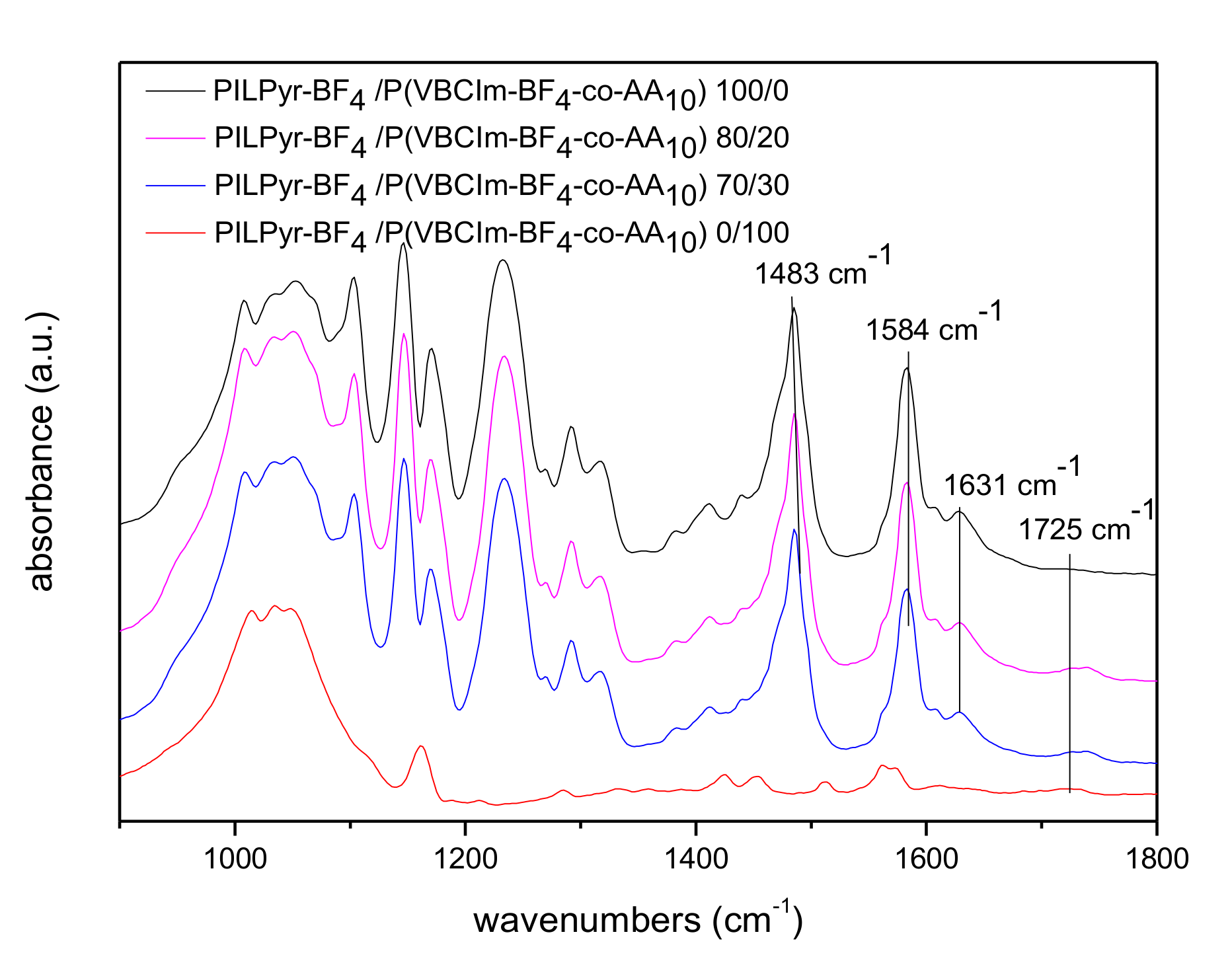

Figure 4. Attenuated Total Reflection Fourier Transform Infrared (ATR–FT–IR) spectra of PILPyr-BF4/P(VBCImBF4-co-AA10) blends.
Figure 4. Attenuated Total Reflection Fourier Transform Infrared (ATR–FT–IR) spectra of PILPyr-BF4/P(VBCImBF4-co-AA10) blends.
Membranes 09 00164 g004

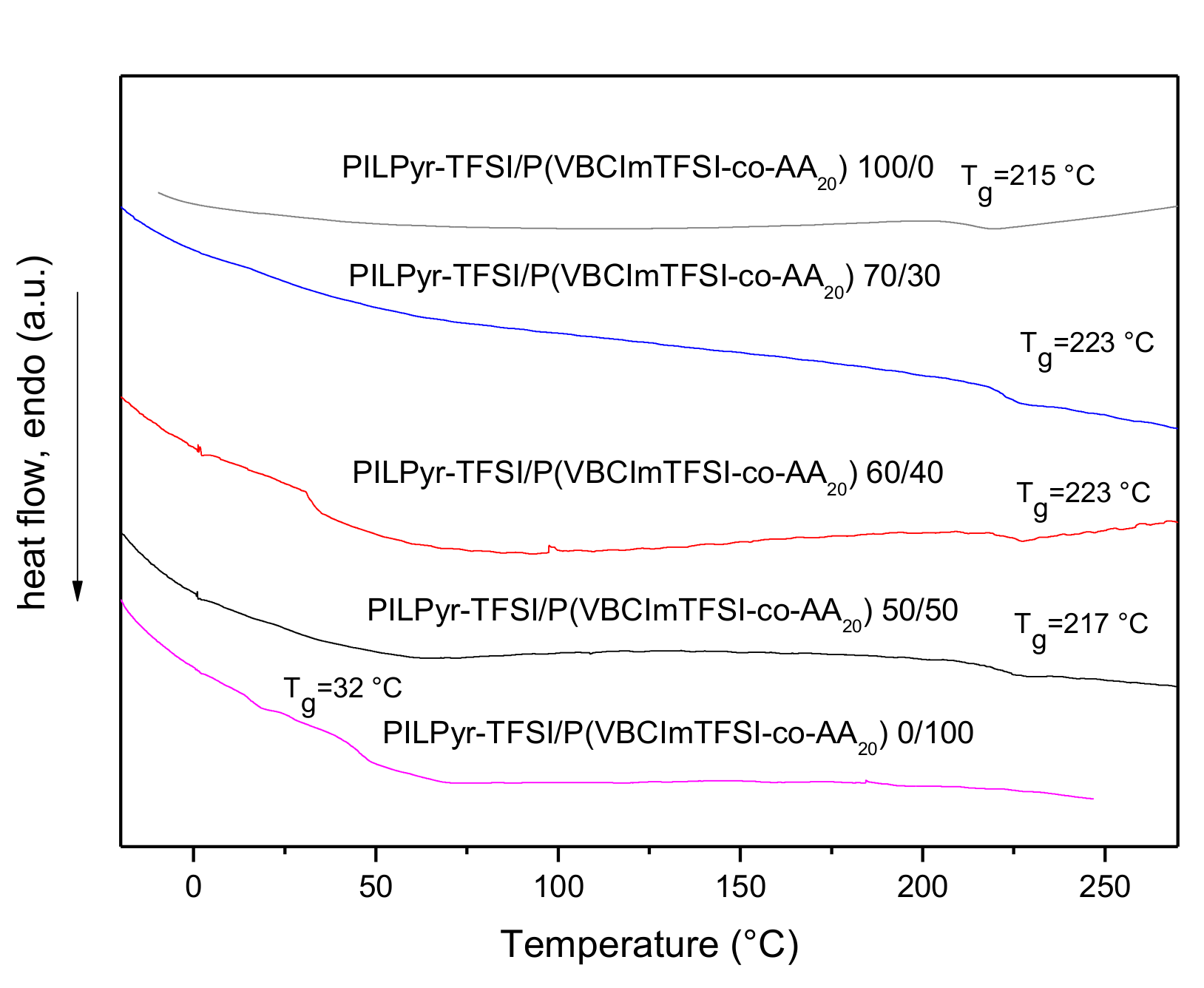

Figure 5. DSC thermograms of PILPyr-TFSI/P(VBCImTFSI-co-AA20) blends.
Figure 5. DSC thermograms of PILPyr-TFSI/P(VBCImTFSI-co-AA20) blends.
Membranes 09 00164 g005
Figure 6. SEM micrographs of PILPyr-BF4/P(VBCImBF4-co-AA10) blend membranes (a) with composition 80/20 and (b) with composition 70/30.
Figure 6. SEM micrographs of PILPyr-BF4/P(VBCImBF4-co-AA10) blend membranes (a) with composition 80/20 and (b) with composition 70/30.
Membranes 09 00164 g006
Figure 7. SEM micrographs of blend membranes (a) PILPyr-TFSI/P(VBCImTFSI-co-AA10) with composition 80/20, (b) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 80/20, (c) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 70/30 and (d) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 60/40.
Figure 7. SEM micrographs of blend membranes (a) PILPyr-TFSI/P(VBCImTFSI-co-AA10) with composition 80/20, (b) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 80/20, (c) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 70/30 and (d) PILPyr-TFSI/P(VBCImTFSI-co-AA20) with composition 60/40.
Membranes 09 00164 g007

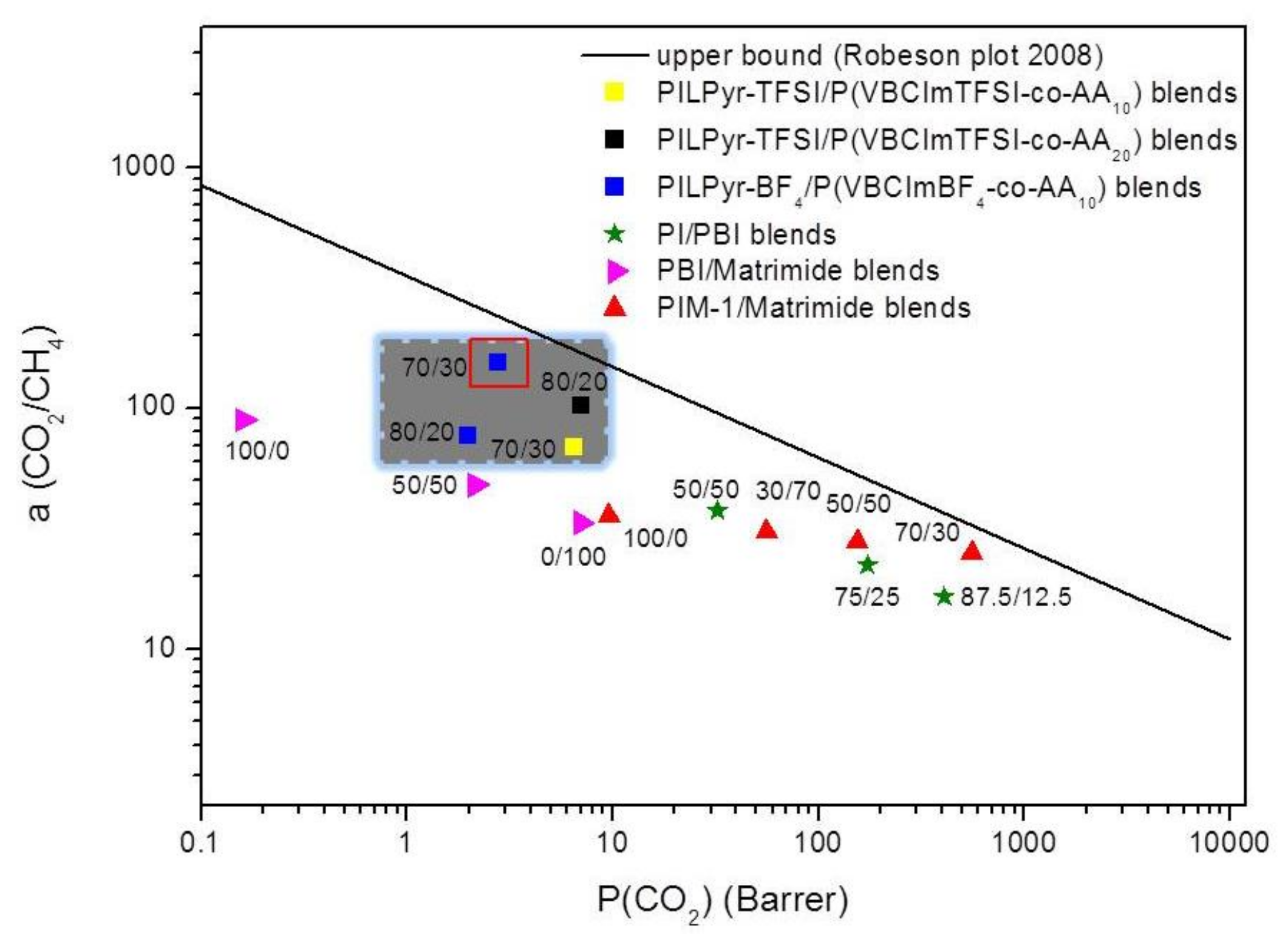

Figure 8. CO2/CH4 separation performance of prepared blend membranes compared to PI/PBI blends [19], PBI/Matrimid blends [49] and PIM-1/Matrimid blends [50].
Figure 8. CO2/CH4 separation performance of prepared blend membranes compared to PI/PBI blends [19], PBI/Matrimid blends [49] and PIM-1/Matrimid blends [50].
Membranes 09 00164 g008
Table 1. Blend membranes preparation by varying blend composition, counter anion type and molar fraction (x) of acrylic acid units contained in P(VBCImY-co-AAx).
Table 1. Blend membranes preparation by varying blend composition, counter anion type and molar fraction (x) of acrylic acid units contained in P(VBCImY-co-AAx).
Blend Composition PILPyr-X/P(VBCImY-co-AAx)PILPyr-XP(VBCImY-co-AAx)
-X-Counter AnionY-Counter Anionx Molar Fraction of AA Units
PILPyr-BF4/ P(VBCImBF4-co-AA10)
100/0BF4--
80/20BF4BF410
70/30BF4BF410
PILPyr-TFSI/ P(VBCImTFSI-co-AA10)
100/0TFSI--
80/20TFSITFSI10
70/30TFSITFSI10
PILPyr-TFSI/ P(VBCImTFSI-co-AA20)
80/20TFSITFSI20
70/30TFSITFSI20
60/40TFSITFSI20
Table 2. Single gas permeability as well as ideal selectivity (α) data for the prepared blend membranes.
Table 2. Single gas permeability as well as ideal selectivity (α) data for the prepared blend membranes.
Polymer BlendsCompositionPCO2 (Barrer)PCH4 (Barrer)αCO2/CH4
PILPyr-BF4 /(VBCImBF4-co-AA10)100/02.0 ± 0.20 a0.040 ± 0.01 a50 ± 5
PILPyr-BF4/P(VBCImBF4-co-AA10)80/201.97 ± 0.250.041 ± 0.000277 ± 2
PILPyr-BF4/P(VBCImBF4-co-AA10)70/302.78 ± 0.150.018 ± 0.0002154 ± 4
PILPyr-TFSI/P(VBCImBF4-co-AA10)100/04.1 ± 0.10 a0.100 ± 0.01 a41 ± 1
PILPyr-TFSI/P(VBCImTFSI-co-AA10)80/206.47 ± 0.040.094 ± 0,01969 ± 5
PILPyr-TFSI/P(VBCImTFSI-co-AA10)70/307.37 ± 0.030.200 ± 0.01437 ± 2
PILPyr-TFSI/P(VBCImTFSI-co-AA20)80/207.00 ± 0.120.068 ± 0.039103 ± 25
PILPyr-TFSI/P(VBCImTFSI-co-AA20)70/308.94 ± 0.591.43 ± 0.1546 ± 1
PILPyr-TFSI/P(VBCImTFSI-co-AA20)60/4017.84 ± 0.088.22 ± 0.2602 ± 0.1
a data obtained from our previous work [10].
Back to TopTop
