Article

Preparation of Ester-Crosslinked PI Membranes with Enhanced Gas Selectivity and Plasticization Resistance

by
Yu Li
,
Jiangzhou Luo
*,
Honglei Ling
and
Song Xue
*
Tianjin Key Laboratory of Organic Solar Cells and Photochemical Conversion, School of Chemistry & Chemical Engineering, Tianjin University of Technology, Tianjin 300384, China
*
Authors to whom correspondence should be addressed.
Membranes 2026, 16(1), 47; https://doi.org/10.3390/membranes16010047
Submission received: 10 November 2025 / Revised: 5 January 2026 / Accepted: 14 January 2026 / Published: 20 January 2026
(This article belongs to the Special Issue Membranes and Membrane Reactors for Gas Purification and Production: Towards More Sustainable Processes)
Browse Figures
Versions Notes

Abstract

Fabricating polyimide (PI) membranes with outstanding anti-plasticization ability and gas separation performance remains a challenge. In this study, two novel diamine monomers, DAMBO (methyl 3,5-diamino-4-methylbenzoate) and DAPGBO (3-hydroxypropyl 3,5-diamino-4-methylbenzoate), were synthesized through esterification reactions. Then, we copolymerized each of these two new monomers with 4,4′-diaminodiphenylmethane (DAM) and 4,4′-(Hexafluoroisopropylidene) diphthalic anhydride (6FDA) separately to yield two monoesterified PIs. Following this, we further prepared the ester-crosslinked PIs by inducing a transesterification crosslinking reaction within the PI-PGBO membrane via thermal treatment. As expected, we found that the formation of cross-linked structures can effectively regulate the microporous structure, enhance its sieving performance, and thus improve the membrane’s gas selectivity. Furthermore, the resulting network structure endowed the thermally treated PI membrane with excellent anti-plasticization ability. Physical characterization results show that after heat treatment, both the d-spacing and BET surface area of the PI membrane decreased, but the solvent resistance of the thermally treated PIs was significantly improved. Gas separation experiments revealed that the representative membrane (PI-PGBO-300) exhibited the optimal CO2/CH4 separation performance, with a CO2 permeability of 371.05 Barrer, a CO2/CH4 selectivity of 28.11, and a CO2 plasticization pressure exceeding 30 bar. This study provides valuable insights into the design of cross-linked polyimides (PIs) via transesterification reactions, which are capable of enhancing the performance of membrane-based gas separation processes.

1. Introduction

With the increasing global demand for energy structure transformation and environmental protection, gas separation membranes, characterized by low energy consumption, simple operation, and environmental friendliness, have shown great application potential in multiple gas treatment fields (such as natural gas purification, carbon capture and hydrogen recovery) [1,2]. Membrane materials are the core of membrane separation technology. Among them, polyimide (PI), as a high-performance polymer, has emerged as one of the ideal materials for gas separation membranes due to its excellent thermal stability, chemical resistance, and separation performance [3]. However, gas separation membranes face a series of urgent problems to be solved in practical applications. Firstly, they generally suffer from a “trade-off” effect between selectivity and permeability, making it difficult to meet the simultaneous demands of industrial production for high-efficiency separation and high flux [4,5]. Consequently, this limitation has become a key bottleneck restricting their performance improvement [5,6]. Secondly, conventional linear polymer membranes are prone to a plasticization issue [7]. Under high-pressure environments containing soluble gases, the selectivity and permeability of these membranes undergo a drastic reduction, which significantly impairs their separation efficiency [8].
To enhance the anti-plasticization and gas separation performance of polyimide (PI) membranes, researchers have developed various modification methods, which are mainly categorized into the following: introduction of rigid moieties (e.g., naphthalene rings, benzimidazoles, triptycene groups, spirobisindanes, ethanoanthracenes), thermal rearrangement (TR) [9], blending, and cross-linking [10]. For example, Qian Wang et al. introduced triptycene units into PI molecular chains, which increased the free volume of PI and simultaneously improved gas permeability and selectivity [11]. Shi et al. incorporated micron-sized ZIF-11 particles into a PI matrix. Compared to the pure BIMPI membrane, the MMM containing 50 wt% MZIF-11 exhibited a significant performance enhancement: the CO2 permeability increased by 410% to 99.0 Barrer, while the CO2/CH4 selectivity reached 60.7, representing a 35% improvement [12]. Notably, the CO2 plasticization pressure of this membrane exceeded 40 bar, demonstrating excellent anti-plasticization performance [13].
In addition, cross-linking is also recognized as an effective strategy for enhancing the stability and gas separation performance of PI membranes. Generally, cross-linking modification forms chemical bonds between PI molecular chains through cross-linking reactions, thus restricting the movement of chain segments and improving the stability of the entire aggregate framework. This modification method can usually improve the gas selectivity of PI membranes and simultaneously enhance the anti-plasticization performance. Up to now, common cross-linking methods include debromination cross-linking [14], decarboxylation cross-linking, and ester cross-linking. For example, Li et al. synthesized two carboxyl-containing diamines, termed CADA1 and CADA2, which were polymerized with 6FDA, BTDA, and DSDA, respectively, to form four types of PIs [15]. After thermally induced decarboxylation cross-linking, the CO2 permeability of the cross-linked PIs was highly improved. When the CO2 pressure reached up to 30 atm, no CO2-induced plasticization was observed in the cross-linked PIs [16]. The ester cross-linking of PI specifically refers to forming ester (–COO–) covalent bonds between PI molecular chains or between molecular chains and cross-linking agents through esterification or transesterification reactions [17]. This cross-linking process typically uses active groups such as carboxyl groups (–COOH) and hydroxyl groups (–OH) contained in PI molecular chains as reaction sites [18]. In our view, ester cross-linking plays a crucial role in regulating the microstructure (mainly the size and distribution of free volume) within the PI membrane. Consequently, this strategy enables the optimization of gas molecular transport channels and enhances the gas selectivity of the membrane. Meanwhile, it can also enhance the membrane’s anti-plasticization ability due to the formed network structure. Staudt-Bickel et al. chemically cross-linked carboxyl-containing 6FDA-mPD/DABA (9:1) PI with ethylene glycol at 250 °C for 14 h. Compared with the uncross-linked original membrane, the plasticization pressure of the cross-linked membrane increased from 14 atm to 35 atm, and the CO2/CH4 selectivity was also significantly improved [19]. Furthermore, Wind et al. studied the effects of chemical cross-linking and heat treatment on the gas permeability of PI membranes containing carboxyl groups. The results showed that chemical cross-linking with 1,4-butanediol and 1,4-cyclohexanedimethanol could increase the membrane’s plasticization pressure to 40 atm [20]. Liu et al. put forward an ester-crosslinked approach for carboxylated PIM, with PIM-1 employed as the base material. The resulting ester-crosslinked PIM-1 membrane exhibited outstanding gas separation performance that significantly surpassed the 2008 Robeson Upper Bound. Moreover, no apparent plasticization occurred even when the CO2 feed pressure reached as high as 4.2 MPa [21].
Numerous researchers have demonstrated that ester cross-linking can be achieved under mild conditions, typically below the glass transition temperature of PI, thereby preserving the membrane’s microporous structure and facilitating large-scale industrial production [22]. Moreover, the obtained cross-linked structure can simultaneously enhance PI membranes’ anti-plasticization performance and maintain the balance between gas permeability and selectivity [20]. Therefore, it is essential to further explore the structure-function relationship between ester cross-linking and the separation performance of PI membranes [18].
Based on these considerations, we utilized DAMBA (3,5-diamino-4-methylbenzoic acid) monomer as the precursor and synthesized two new monomers, namely DAMBO (methyl 3,5-diamino-4-methylbenzoate) and DAPGBO (3-hydroxypropyl 3,5-diamino-4-methylbenzoate), via esterification reactions. Then, we copolymerized each of these two new monomers with 4,4′-diaminodiphenylmethane (DAM) and 4,4′-(Hexafluoroisopropylidene)diphthalic anhydride (6FDA) separately to obtain the corresponding monoesterified PIs. Importantly, DAM monomer is widely used in the fabrication of high-permeability PI membranes [23]. Following this, we prepared network-structured PI materials by inducing a transesterification cross-linking reaction in the DAPGBO-based monoester PI material through thermal treatment. As expected, we found that the formation of cross-linked structures can effectively regulate the PI’s microporous structure, enhance its sieving performance, and thus improve PI membranes’ gas selectivity. Furthermore, the resulting network structure endowed the PI membrane with excellent anti-plasticization properties [24]. It is noteworthy that the thermal treatment temperature exerts a critical impact on the performance of ester-crosslinked PI membranes. Consequently, our research systematically investigated the effects of thermal treatment temperature on the molecular structure and gas separation performance of PI membranes. Additionally, we conducted a comprehensive analysis of PI materials both before and after cross-linking to evaluate their key properties, including physicochemical characteristics, morphology, thermal stability, gas separation performance, and anti-plasticization behavior.

2. Experimental Section

2.1. Chemical Materials

In this study, m-cresol (purity: 99%) was purchased from Energy Chemical (Annaiji Chemical, Shanghai, China). 4,4′-(Hexafluoroisopropylidene)diphthalic anhydride (6FDA) was obtained from Energy Chemical and dried under vacuum at 150 °C prior to use. 2,4,6-Trimethylbenzene-1,3-diamine (DAM) and 3,5-diamino-4-methylbenzoic acid (DAMBA) were both purchased from Energy Chemical and dried under vacuum at 60 °C prior to use. Anhydrous N,N-dimethylformamide (DMF), isoquinoline, and 1,3-propanediol were all procured from Energy Chemical. Anhydrous sodium carbonate, methanol, and ethyl acetate were all purchased from Tianjin Maiding Technology Co., Ltd., Tianjin, China, while concentrated sulfuric acid was acquired from Tianjin Kairuis Fine Chemical Co., Ltd., Tianjin, China. All the aforementioned reagents were used as received.

2.2. Synthesis of DAMBO and DAPGBO

3,5-Diamino-4-methylbenzoic acid (DAMBA) (1.0 g, 6.02 mmol) was added to a two-necked flask, and 8 mL of methanol was added. The mixture was stirred thoroughly until the solid was completely dissolved, then 1 mL of concentrated sulfuric acid was added as a catalyst. The reaction was carried out at 66 °C for 18 h. Subsequently, the mixture was allowed to cool down to room temperature, after which a saturated sodium carbonate solution was added to bring the pH within the range of 8–10. The mixture was placed in a low-temperature environment (0–4 °C) for cooling and crystallization. The target product, methyl 3,5-diamino-4-methylbenzoate (denoted as DAMBO hereinafter), was obtained by suction filtration. The product was dried in a vacuum drying oven at 70 °C for 12 h to remove moisture, and its structure was confirmed to be the target compound by proton nuclear magnetic resonance (1H NMR) spectroscopy. Using a similar method, 3,5-diamino-4-methylbenzoic acid 1,3-propanediol monoester (denoted as DAPGBO hereinafter) was synthesized.

2.3. Synthesis of PIs, Membrane Preparation, and Ester Cross-Linking via Heat Treatment

In this work, linear PIs were synthesized via polycondensation of 6FDA, commercial diamine (DAM), and one of the four selected diamines (DABA, DAMBA, DAMBO, and DAPGBO). The resultant PIs were named PI-DABA, PI-MBA, PI-MBO, and PI-PGBO according to the selected diamines. Each selected diamine was copolymerized with DAM at a 3:7 molar ratio, and the total diamines were reacted with dianhydride (6FDA) at a 1:1 molar ratio. The PI film preparation was described in detail using PI-PGBO as a representative example. As shown in Figure 1, DAPGBO (235.2 mg, 1.05 mmol), DAM (368.1 mg, 2.45 mmol), and 6FDA (1554.9 mg, 3.5 mmol) were weighed into a two-necked flask. 8 mL of m-cresol was added, and the mixture was stirred at room temperature until almost dissolved. After adding 0.2 mL of isoquinoline, the temperature was raised to 180 °C for 6 h. After cooling, the viscous solution obtained from the reaction was poured into methanol for precipitation. This precipitation step was repeated 2–3 times to remove as much m-cresol solvent as possible. Subsequently, a Soxhlet extraction device was set up for further solvent removal. The polymer powder was obtained by suction filtration and dried in a vacuum oven at 80 °C for 24 h, yielding the final PI-PGBO product.
Films of all synthesized copolymers were prepared by the solution casting method. Specifically, a 5 wt% solid content was used: 300 mg of polymer powder was weighed and dissolved in 5 mL of DMF with sufficient stirring. The resulting solution was passed through a PTFE filter prior to being transferred into a glass vessel, and then dried in a vacuum oven at 60 °C for 48 h. Flexible and transparent PI films with a thickness of approximately 50–60 μm were obtained. The films were then peeled off from the glass substrates and dried in a vacuum oven at 100 °C for 2 h. Other PI films were prepared using a similar method. All the as-prepared films were subjected to gas permeation testing and related characterization measurements.
The PI-PGBO films were heat-treated in a tube furnace (SK-G06123K) at a heating rate of 5 °C min−1. The specific process was as follows: the film was placed between two layers of carbon cloth; evacuation and nitrogen purging were repeated three times; then, ester cross-linking was induced at 250 °C, 300 °C, and 350 °C, respectively, for 4 h under a nitrogen atmosphere. The polymer chains obtained via the ester cross-linking reaction are shown in Figure 2. The network-structured PI films after ester cross-linking via heat treatment were named according to their heating temperatures. For example, PI-PGBO-250 refers to the PI-PGBO film heat-treated at 250 °C for 4 h.

2.4. Characterization and Testing

Wide-angle X-ray diffraction (WAXD) data were collected using a Rigaku Ultima IV X-ray diffractometer. The average interlayer spacing (d) was calculated according to Bragg’s Law: d = λ/(2sinθ), where λ = 1.5406 Å and θ is the X-ray diffraction angle. Fourier transform infrared (FT-IR) spectra of the PI films were acquired utilizing a PerkinElmer 782 Fourier transform spectrophotometer. The surface and cross-sectional morphologies of the films were observed using a high-resolution field-emission scanning electron microscope (SEM, Zeiss, Jena, Germany). Proton nuclear magnetic resonance (1H NMR) spectra were acquired on a Bruker Avance 400 spectrometer, with DMSO-d6 as the solvent. Thermogravimetric analysis (TGA) was performed using a TA Instruments Q500. All samples were first pre-dried under vacuum at 120 °C for 24 h to remove most moisture and solvents. The TGA experiments were conducted under a nitrogen flow of 50 mL/min, with the temperature ramped from 40 °C to 850 °C at a heating rate of 10 °C/min. Mechanical properties were measured using a UTM6103 electronic universal testing machine (Shenzhen SANS Material Testing Co., Ltd., Shenzhen, China). Test samples were cut into strips with a width of 3 mm and a length of 10 mm, then stretched to break at a displacement rate of 3 mm/min. The tensile strength and elongation at break were recorded. Adsorption experiments were carried out at 77 K using a Micromeritics ASAP 2460 2.02 surface area and porosity analyzer. Nitrogen adsorption behavior of the samples was measured to obtain the corresponding adsorption–desorption isotherms and specific surface area. The gel fraction was determined by measuring the mass of the film before and after immersion in DMF solvent, using the formula: Gel fraction = (Mass of film after immersion/Mass of film before immersion) × 100%.

3. Results and Discussion

3.1. Synthesis and Characterization of Monomers DAMBO, DAPGBO, and Corresponding PI

In this study, PI powders were synthesized via the copolymerization of 6FDA, DAM, and one of the selected diamine monomers (DABA, DAMBA, DAMBO, DAPGBO). The proton nuclear magnetic resonance (1H NMR) spectra of DAMBO and DAPGBO monomers are shown in Figure 3a and Figure 3b, respectively. The analysis results of the positions of each characteristic peak are consistent with the monomer structural formulas. Specifically, in the DAMBO structure, the methyl protons of the methyl ester group (–COOCH3) exhibit a characteristic peak around 3.7–3.9 ppm, confirming the successful conversion of carboxyl groups to methyl esters. Regarding DAPGBO monomer, the peaks ranging from 2.7 to 4.5 ppm can be assigned to the alkyl protons in the side chain. In addition, the appearance of a new peak located at 4.6 ppm could be assigned to the proton of the hydroxyl group. All these results confirmed that the esterification reaction between DAMBA and 1,3-propanediol occurred.
FT-IR analysis was conducted on the membranes fabricated from PI-MBO and PI-PGBO at different heating temperatures. The results are shown in Figure 4 below. As expected, all the prepared membranes exhibit distinct absorption bands corresponding to imide groups at specific wavenumbers: 724 cm−1 (imide bending), 1724 cm−1 (symmetric stretching of C=O), and 1787 cm−1 (asymmetric stretching of C=O) [25]. Furthermore, this typical PI structure remained unchanged after heat treatment at 250 °C, 300 °C, and 350 °C, proving that the main backbone of PI has not changed significantly [26]. In addition, all the membrane samples display characteristic peaks of –CH3 at 1365 cm−1.
To investigate the effect of cross-linking on the chemical structure of the membranes, FT-IR analysis was performed on samples subjected to heat treatment at different temperatures for 4 h. As shown in the figure, the absorption peak of alcoholic hydroxyl groups in PI-PGBO appears in the range of 3500–3590 cm−1 [27]. Upon closer inspection, it was found that as the cross-linking temperature rose, the intensity of the hydroxyl peak within the range of 3500–3590 cm−1 for the thermally treated PI-PGBO samples tended to decrease. This confirms that PI-PGBO underwent esterification cross-linking reactions at different heating temperatures, leading to a significant decrease in the intensity of the –OH absorption peak.
To further prove the occurrence of the cross-linking reaction, both the uncross-linked PI-PGBO membranes and the thermally treated PI-PGBO membranes were immersed in N,N-dimethylformamide (DMF) to investigate their degree of cross-linking [28]. The gel fraction data are presented in Table 1 below. According to the gel fraction test, both PI-MBO and PI-PGBO samples were completely soluble in DMF with a gel fraction of 0%, indicating the absence of cross-linking in their structures. After cross-linking at 250 °C, 300 °C, and 350 °C for 4 h, the samples were no longer completely soluble in DMF, and the degree of cross-linking gradually increased with rising temperature. PI-PGBO-300 was almost insoluble in DMF, exhibiting the highest degree of cross-linking with a calculated gel fraction of 100%, which indicates the formation of a highly cross-linked structure. However, when the temperature increased to 350 °C, the gel fraction decreased instead. A possible reason is that partial ester groups within the PI-PGBO treated at 350 °C decomposed [29]. Therefore, this undermined the stability of the network structure of PI-PGBO-350, resulting in a decrease in the gel fraction.
Furthermore, a scanning electron microscope (SEM) was used to observe the surfaces and cross-sections of the prepared samples, including PI-MBO membranes and PI-PGBO membranes, with the results presented in Figure S1. The results indicate that all the prepared films exhibit a smooth and dense morphology without obvious defects [30].

3.2. X-Ray Diffraction (XRD) Analysis of Membranes

Figure 5 displays the wide-angle X-ray diffraction (WAXD) patterns of all prepared membrane materials. It can be observed that all membranes exhibit two broad diffraction peaks centered around 2θ = 16° and 2θ = 25°, indicating their amorphous state. Typically, the average interchain distance (referred to as d-spacing) in polymers can be calculated using Bragg’s law (2dsinθ = nλ). Focusing on the main diffraction peak (near 2θ = 16°): compared with PI-MBO (2θ = 16.32°, d = 5.42 Å), the main diffraction peak of PI-PGBO shifts to a lower angle at 2θ = 16.04°, with its d-spacing increasing to 5.51 Å. This phenomenon can be attributed to the bulky occupying effect of the long side chains in PI-PGBO: the voluminous side groups disrupt the tight packing of the polymer chains, thereby reducing the diffraction angle, shifting the peak to a lower angle, and increasing the interchain distance.
After thermal treatment at different temperatures, the main diffraction peak of PI-PGBO progressively shifted to higher angles: for PI-PGBO-250, the main diffraction peak was located at 2θ = 16.15° (d = 5.48 Å); for PI-PGBO-300, it shifted to 2θ = 16.22° (d = 5.45 Å); and for PI-PGBO-350, it was at 2θ = 16.10° (d = 5.47 Å). Within the 250–300 °C range, the diffraction peak shifted toward larger 2θ values with increasing temperature, indicating the formation of a compact network structure due to ester cross-linking, which resulted in tighter molecular chain packing and a consequent reduction in d-spacing [31]. Among the cross-linked membranes, PI-PGBO-300 exhibited the largest diffraction angle (2θ = 16.22°) and the corresponding smallest d-spacing (5.45 Å), suggesting the highest degree of cross-linking, consistent with the gel content measurements and confirming that the ester-exchange cross-linking reaction was essentially complete at 300 °C. When the temperature was raised to 350 °C, the main diffraction peak shifted slightly to a lower angle (2θ decreased to 16.10°) and the d-spacing slightly increased to 5.47 Å, which can be attributed to partial decomposition of the PI side chains at elevated temperatures, leading to a slight loosening of the molecular chain packing [32].

3.3. Thermogravimetric (TGA) and Derivative Thermogravimetric (DTG) Tests of Membranes

The thermal stability of PI-MBO, PI-PGBO membranes, and the thermally treated PI-PGBO membranes was investigated via thermogravimetric analysis (TGA) and derivative thermogravimetry (DTG), with the results shown in Figure 6a and Figure 6b, respectively. All the prepared membranes exhibit the first weight loss in the temperature range of 375 –425 °C, which may be caused by the cleavage of ester groups in the side chains [33]. A second weight loss occurred at 550 °C for all membranes, resulting from the cleavage of the polyimide (PI) polymer main chain.
Concerning the PI-PGBO and its thermally treated membranes (PI-PGBO-250, PI-PGBO-300, and PI-PGBO-350), as the cross-linking temperature gradually increased, the first weight loss phenomenon in the range of 375–425 °C became increasingly less significant. This is because the thermal treatment initiates the ester cross-linking reaction, which can significantly enhance the thermal stability of polyimide membranes [34,35]. It is worth noting that the PI-PGBO-300 membrane exhibits the best thermal stability, with a 5% weight loss temperature (Td,5%) of 410 °C and a residual carbon rate of 53.02%, showing the optimal thermal stability [36]. In comparison, conventional aromatic polyimides typically exhibit Td,5% values in the range of 500–600 °C, whereas functionalized or side-chain-modified PIs often show a lower degradation onset temperature due to the introduction of thermally labile groups [37]. The observed Td,5% of ~410 °C for PI-PGBO-300, is comparable to that of other ester-cross-linked polyimide systems reported in the literature. For instance, cross-linked polyimide membranes derived from thermal treatment at 300 °C displayed Td,5% around 400–420 °C [38].
In the case of the PI-PGBO-350 membrane, although it underwent high-temperature heat treatment, its thermal stability was lower than that of PI-PGBO-300. This phenomenon can be attributed to the disruption of the network structure caused by excessively high temperatures, which subsequently impairs thermal stability [39]. Similar observations have been reported for thermally cross-linked polyimides, in which treatment above an optimal temperature leads to partial degradation of cross-links or side-chain decomposition, resulting in decreased thermal stability. These findings are consistent with the preliminary results from gel fraction measurements and X-ray diffraction (XRD) analysis reported earlier. The overall thermal behavior of the PI-PGBO series aligns with the general trend that moderate cross-linking enhances thermal stability, whereas excessive treatment can induce structural deterioration [40]. These results highlight the importance of optimizing the cross-linking temperature to achieve a balance between improved thermal stability and maintained structural integrity.

3.4. BET Test and Mechanical Property Test

To investigate the effect of ester cross-linking on the microporous structure of PI-PGBO and PI-PGBO-300, nitrogen adsorption–desorption isotherms of the PI membranes were tested at 77 K, and then the microporous characteristics of both membranes were analyzed. As shown in Figure 7a, compared with the original PI-PGBO membrane, the BET specific surface area of PI-PGBO-300 slightly decreased from 387.48 m2/g to 375.92 m2/g. This is mainly due to the ester cross-linking reaction, which reduces the molecular chain spacing of the membrane material and further decreases the micropore volume inside the membrane. This result is consistent with the variation law of d-spacing obtained from X-ray diffraction (XRD) analysis.
Moreover, the Horvath-Kawazoe (H-K) method was used to determine the corresponding pore size distribution of PI-PGBO and PI-PGBO-300. As shown in Figure 7b. Generally, pores with a pore size less than 0.7 nm are defined as ultra-micropores [41]. A substantial body of research has established that the concentration of ultra-micropores is highly significant for boosting the membrane’s gas selectivity. Although the pore size distributions of PI-PGBO and PI-PGBO-300 are very similar, PI-PGBO-300 exhibits smaller ultra-micropores in the range of 0.38–0.5 nm. This indicates that after thermal treatment at 300 °C, an increased content of ultra-micropores was formed in PI-PGBO-300 [42]. Therefore, it can be inferred that the thermally treated PI-PGBO-300 membrane may have excellent gas selectivity.
Figure 8 presents the tensile stress–strain curves of as-prepared PI-PGBO films and those subjected to heat treatment at different temperatures, where all samples exhibit the typical fracture behavior of brittle polymers [43]. Mechanical property data reveal that the as-prepared PI-PGBO film achieves the optimal mechanical performance with a tensile strength of 113 MPa and an elongation at break of 2.55%. For PI-PGBO-250, a sharp increase in brittleness was observed, with the elongation at break decreasing to 0.8% and the tensile strength dropping below 70 MPa. In contrast, PI-PGBO-300 treated at 300 °C exhibited recovered mechanical properties, featuring a tensile strength of 78 MPa and an elongation at break of 1.91%. Whereas PI-PGBO-350, subjected to 350 °C heat treatment, displayed the poorest mechanical performance, fracturing at a strain of less than 0.5% [44]. These results indicate that heat treatment temperature precisely regulates the mechanical behavior of PI-PGBO films by modulating the molecular chain structure [45]. Heat treatment at 300 °C can facilitate the complete imidization reaction and simultaneously induce moderate orientation and crosslinking of molecular chains, thereby exhibiting superior comprehensive mechanical properties, whereas heat treatment at 350 °C may cause excessive crosslinking or even degradation of molecular chains, completely destroying the mechanical integrity of the film and ultimately resulting in brittle fracture at low strain. This phenomenon is consistent with existing research conclusions that ester crosslinking enhances the brittleness of polymer materials [46], and also provides a mechanical property basis for the application of PI-PGBO-300 in fields such as flexible electronic substrates and high-temperature resistant films [47].

3.5. Pure Gas Separation Performance

In this study, we systematically tested the prepared polyimide membranes (PI-MBA, PI-MBO, and PI-PGBO) using the time-lag method. The tests were carried out under the conditions of 35 °C and 2 bar. We investigated their permeation performance with respect to four pure gases (CH4, N2, O2, and CO2) and their selective separation performance for three gas pairs (O2/N2, CO2/N2, and CO2/CH4). Among them, PI-MBA was used for the comparative research. The gas separation performance of various membrane materials is shown in Table 2 below. The experimental results showed that, based on the inverse relationship with the kinetic diameter of gas molecules (molecular diameter: CH4 > N2 > O2 > CO2), the gas permeability of all tested membranes exhibited a consistent order: P(CH4) < P(N2) < P(O2) < P(CO2) [48].
When compared to the PI-MBA membrane, the PI-MBO membrane that underwent methanol esterification modification exhibited a notable rise in CO2 permeability. It reached 360.59 Barrer, which represented a 68% increase. Meanwhile, the CO2/CH4 selectivity decreased by only 13%, reaching 26.13. To further enhance the comprehensive gas separation performance of the membrane, 1,3-propanediol was employed for monoesterification modification to prepare the PI-PGBO membrane. Compared with the PI-MBA, the CO2 permeability of the PI-PGBO membrane modified by 1,3-propanediol esterification increased by 118%, reaching 476.56 Barrer. As we know, the introduction of bulky pendant groups into the PI backbone reduces the segmental packing density [49]. This leads to the formation of more micropores inside the membrane and makes the molecular chain packing looser. As a result, the gas permeability of PI-MBO and PI-PGBO is significantly increased relative to that of PI-MBA. Meanwhile, limited by the trade-off effect, we also found that while achieving high gas permeability, the gas selectivities of PI-MBO and PI-PGBO would decline to some extent.
Next, the PI-PGBO was chosen for further thermal treatment due to its capacity for an ester cross-linking reaction. When the temperature increased from 250 °C to 300 °C, we could find that although the gas permeability of thermally treated PI-PGBO slightly decreased, its gas selectivity was increased obviously due to the rising cross-linking density of the PI-PGBO membrane with the rise in temperature [50]. For example, after the heat treatment at 300 °C, the CO2/CH4 selectivity of the PI-PGBO-300 membrane increased from 23.05 to 28.11, which was a 22% increase compared with the PI-MBA membrane. However, when the temperature exceeded 300 °C, the PI structure began to degrade, leading to an increase in CO2 permeability and a decrease in gas selectivity. For instance, the CO2/CH4 selectivity for PI-PGBO-350 decreased from 28.11 to 23.50 [51]. Overall, despite the slight reduction in gas permeability induced by 1,3-propanediol-based ester cross-linking modification, this strategy remarkably improves membrane selectivity, a property that is pivotal to the practical utilization of PI membranes.
The “Upper Bound” is currently a widely recognized standard for evaluating the permeability and selectivity of membrane materials [52], as it quantitatively defines the trade-off relationship between gas permeability and selectivity of membrane materials. Figure 9 illustrates the relationship between CO2 permeability and CO2/CH4 selectivity for the reported base membranes and the polyimide (PI) membranes prepared in this study. For the PI-PGBO-300 membrane developed herein, its CO2 permeability reaches 371.05 Barrer, with a CO2/CH4 selectivity of 28.11. Its performance falls between the 1991 and 2008 Robeson Upper Bound curves. This directly confirms that its comprehensive separation performance lies between the 1991 and 2008 Robeson Upper Bounds [53], and it significantly exceeds the selectivity level defined by the Upper Bounds at the corresponding permeability.
In addition, compared with commercial separation membranes, polysulfone has a CO2 permeability of 5.6 Barrer and a CO2/CH4 selectivity of 22, while Matrimid® has a permeability of 10 Barrer and a selectivity of 36 [54,55]. Although Matrimid® has slightly higher selectivity, the CO2 permeability of PI-PGBO-300 is 37.1 times that of Matrimid®, demonstrating a more balanced performance of high permeability and high selectivity. Compared with other cross-linked membranes, the PDMC membrane cross-linked at 295 °C has a CO2 permeability of 81.2 Barrer and a CO2/CH4 selectivity of 40.6 [50]. The CO2 permeability of PI-PGBO-300 is approximately 4.6 times that of the PDMC membrane, while the selectivity of PI-PGBO-300 reaches 28.11, achieving a more excellent balance between permeability and selectivity. This quantitative analysis fully demonstrates that the PI-PGBO-300 membrane has distinct advantages in comprehensive gas separation performance, and its permeability-selectivity trade-off relationship breaks through the limitations of traditional Upper Bounds at the corresponding permeability level.

3.6. Anti-Plasticization Performance and Aging Performance

As a condensable gas, CO2 can unexpectedly increase the mobility of polymer chains and expand the free volume under high-pressure conditions, and such a phenomenon is referred to as the “plasticization effect” [56]. This phenomenon typically impairs the sieving performance of PI membranes, consequently resulting in a substantial reduction in their selective separation capability. Figure 10 shows the CO2 permeability of the PI-PGBO and PI-PGBO-300 under different feed pressures ranging from 2 to 30 bar. It can be seen that the inflection point of gas permeability for the PI-PGBO membrane appears at 10 bar, indicating that the plasticization effect has occurred around this pressure point. However, after thermally induced ester-crosslinking, the PI-PGBO-300 membrane forms a highly interconnected three-dimensional network structure [57]. Even at a CO2 pressure as high as 30 bar, no significant plasticization behavior is detected. The results demonstrate that the ester-crosslinked PI-PGBO-300 membrane exhibits superior anti-plasticization performance [57].
A 180-day aging test was performed on two polyimide membranes, PI-PGBO and thermally crosslinked PI-PGBO-300. As shown in Table 3, the CO2 permeability of PI-PGBO decreased from 467.56 to 284.68 Barrer, while its CO2/CH4 selectivity increased from 23.05 to 26.26. Similarly, PI-PGBO-300 showed a decline in CO2 permeability from 371.05 to 208 Barrer, accompanied by an increase in CO2/CH4 selectivity from 28.11 to 29.25. The reduction in gas permeability with prolonged aging time is likely attributed to physical aging and structural relaxation of the polymer matrix, which reduces free volume and restricts chain segment mobility. Notably, despite the decline in permeability, the gas selectivity of both membranes improved gradually with aging time, indicating that the materials retain strong molecular sieving ability after long-term aging. Furthermore, PI-PGBO-300 exhibited higher initial selectivity and more stable aging performance compared with PI-PGBO, suggesting that thermal crosslinking effectively enhances the structural stability and long-term separation consistency of the membrane. These results demonstrate that PI-PGBO-300 possesses superior aging resistance and is more suitable for long-term gas separation applications.

4. Conclusions

In this study, we first prepared the monoesterified PIs, namely PI-MBO and PI-PGBO, via a copolycondensation reaction. Compared with the PI-MBO membrane, the CO2 permeability of the PI-PGBO membrane modified by 1,3-propanediol esterification increased by 118%, reaching 476.56 Barrer due to the steric effect of large-volume side groups. Subsequently, we carried out thermal treatment on the PI-PGBO membrane to trigger a transesterification cross-linking reaction, thereby further preparing the cross-linked PIs at different heating temperatures. Gel fraction results demonstrated that after cross-linking at 250 °C, 300 °C, and 350 °C, the thermally treated PI-PGBO membranes were no longer completely soluble in DMF, and the degree of cross-linking gradually increased with rising temperature. Compared with PI-PGBO, both the d-spacing value (5.51 Å vs. 5.45 Å) and the BET specific surface area (387.48 m2/g vs. 375.92 m2/g) decreased for PI-PGBO-300 due to the transesterification cross-linking reaction. The membrane named PI-PGBO-300 demonstrated the best CO2/CH4 separation performance with a CO2 permeability of 371.05 Barrer and a CO2/CH4 selectivity of 28.11. Meanwhile, even when the CO2 pressure reached as high as 30 bar, no obvious plasticization was observed for PI-PGBO-300. However, we found that after thermal treatment and cross-linking reaction, the mechanical properties of the PI membrane decreased significantly, which is not conducive to further processing and molding of the PI membrane material. Thus, it is also the focus of our future optimization work. In general, this research provides insights into the structural design of novel cross-linked polyimide (PI) materials through the transesterification cross-linking reaction. Particularly, it focuses on PI membranes that possess excellent selectivity and plasticization resistance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/membranes16010047/s1, Figure S1: SEM images of various membranes; Figure S2: Robeson Upper Bound Graph for CO2/N2 of Various Membranes; Table S1: Data on plasticization resistance of PI-PGBO and PI-PGBO-300.

Author Contributions

Conceptualization, S.X. and J.L.; methodology, H.L.; software, Y.L.; validation, J.L., H.L. and S.X.; formal analysis, S.X.; investigation, Y.L.; resources, J.L.; data curation, Y.L.; writing—original draft preparation, Y.L.; writing—review and editing, H.L.; supervision, J.L.; funding acquisition, S.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22308259) and the Natural Science Foundation of Tianjin (23JCQNJC00720).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding author.

Acknowledgments

We gratefully acknowledge financial support from the National Natural Science Foundation of China (22308259) and the Natural Science Foundation of Tianjin (23JCQNJC00720).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sueyoshi, Y.; Fukushima, C.; Yoshikawa, M. Molecularly imprinted nanofiber membranes from cellulose acetate aimed for chiral separation. J. Membr. Sci. 2010, 357, 90–97. [Google Scholar] [CrossRef]
  2. Senasu, T.; Lorwanishpaisarn, N.; Hemavibool, K.; Nijpanich, S.; Chanlek, N.; Nanan, S. Construction of g-C3N4/BiOCl/CdS heterostructure photocatalyst for complete removal of oxytetracycline antibiotic in wastewater. Sep. Purif. Technol. 2023, 306, 122735. [Google Scholar] [CrossRef]
  3. Zhang, P.; Rajabzadeh, S.; Istirokhatun, T.; Shen, Q.; Jia, Y.; Yao, X.; Venault, A.; Chang, Y.; Matsuyama, H. A novel method to immobilize zwitterionic copolymers onto PVDF hollow fiber membrane surface to obtain antifouling membranes. J. Membr. Sci. 2022, 656, 120592. [Google Scholar] [CrossRef]
  4. Kedem, O.; Freger, V. Determination of concentration-dependent transport coefficients in nanofiltration: Defining and optimal set of coefficients. J. Membr. Sci. 2008, 310, 586–593, Erratum in J. Membr. Sci. 2008, 322, 275–276. https://doi.org/10.1016/j.memsci.2008.05.017.. [Google Scholar] [CrossRef]
  5. Pereira, P.; Serra, A.C.; Coelho, J.F.J. Vinyl Polymer-based technologies towards the efficient delivery of chemotherapeutic drugs. Prog. Polym. Sci. 2021, 121, 101432. [Google Scholar] [CrossRef]
  6. Feng, Y.; Wang, H.; Zhang, F.; Ai, C.; Tang, J.; Gu, S.; Chen, C.; Yu, G. Thiazole Groups without Hydrogen-Bond Donors Endow PIM Membrane with High CO2 Separation Performance. ACS Macro Lett 2025, 14, 888–895. [Google Scholar] [CrossRef]
  7. Shen, Y.-x.; Saboe, P.O.; Sines, I.T.; Erbakan, M.; Kumar, M. Biomimetic membranes: A review. J. Membr. Sci. 2014, 454, 359–381. [Google Scholar] [CrossRef]
  8. Lee, J.; Kim, E.-Y.; Chang, B.-J.; Han, M.; Lee, P.-S.; Moon, S.-Y. Mixed-matrix membrane reactors for the destruction of toxic chemicals. J. Membr. Sci. 2020, 605, 118112. [Google Scholar] [CrossRef]
  9. Jonkers, W.A.; Cornelissen, E.R.; de Vos, W.M. Hollow fiber nanofiltration: From lab-scale research to full-scale applications. J. Membr. Sci. 2023, 669, 121234. [Google Scholar] [CrossRef]
  10. Song, J.; Xu, D.; Luo, X.; Han, Y.; Ding, J.; Zhu, X.; Yang, L.; Li, G.; Liang, H. In-situ assembled amino-quinone network of nanofiltration membrane for simultaneously enhanced trace organic contaminants separation and antifouling properties. J. Membr. Sci. 2022, 661, 120891. [Google Scholar] [CrossRef]
  11. Ghanem, B.S.; Swaidan, R.; Litwiller, E.; Pinnau, I. Ultra-microporous triptycene-based polyimide membranes for high-performance gas separation. Adv. Mater. 2014, 26, 3688–3692. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, S.; Tong, X.; Wang, C.; Han, X.; Jin, S.; Wang, D.; Yao, J.; Chen, C. The spirobichroman-based polyimides with different side groups: From structure-property relationships to chain packing and gas transport performance. RSC Adv. 2021, 11, 5086–5095. [Google Scholar] [CrossRef] [PubMed]
  13. Li, H.; Sun, Y.; Guan, J.; Bai, L.; Li, T.; Sun, F.; Liu, Y.; He, G.; Ma, C. Amidoxime-functionalized PIM-1 incorporating defect-engineered ZIF-8 for enhanced propylene/propane separation and plasticization resistance. J. Membr. Sci. 2025, 722, 123907. [Google Scholar] [CrossRef]
  14. Shi, Y.; Wang, Z.; Shi, Y.; Zhu, S.; Zhang, Y.; Jin, J. Synergistic Design of Enhanced π–π Interaction and Decarboxylation Cross-Linking of Polyimide Membranes for Natural Gas Separation. Macromolecules 2022, 55, 2970–2982. [Google Scholar] [CrossRef]
  15. Xie, J.M.; Xu, W.; Chen, Y.W.; Guan, J.; Liu, J.T.; Ye, B.J.; Zhang, H.J. Pore engineering of ZIF-L fillers to boost the carbon capture performance of Pebax-based mixed matrix membranes. J. Membr. Sci. 2025, 730, 124123. [Google Scholar] [CrossRef]
  16. Bian, Z.; Mou, L. A Large Language Model Framework for Causal Reasoning and Performance Prediction in Multimodal Time-Series Data. Preprints 2025. [Google Scholar] [CrossRef]
  17. An, H.; Lee, A.S.; Kammakakam, I.; Sang Hwang, S.; Kim, J.-H.; Lee, J.-H.; Suk Lee, J. Bromination/debromination-induced thermal crosslinking of 6FDA-Durene for aggressive gas separations. J. Membr. Sci. 2018, 545, 358–366. [Google Scholar] [CrossRef]
  18. Yushkin, A.; Balynin, A.; Efimov, M.; Pochivalov, K.; Petrova, I.; Volkov, A. Fabrication of Polyacrylonitrile UF Membranes by VIPS Method with Acetone as Co-Solvent. Membranes 2022, 12, 523. [Google Scholar] [CrossRef]
  19. Chen, Y.-W.; Venault, A.; Jhong, J.-F.; Ho, H.-T.; Liu, C.-C.; Lee, R.-H.; Hsiue, G.-H.; Chang, Y. Developing blood leukocytes depletion membranes from the design of bio-inert PEGylated hydrogel interfaces with surface charge control. J. Membr. Sci. 2017, 537, 209–219. [Google Scholar] [CrossRef]
  20. Falk, L.; Fletcher-Sandersjoo, A.; Hultman, J.; Broman, L.M. Conversion from Venovenous to Venoarterial Extracorporeal Membrane Oxygenation in Adults. Membranes 2021, 11, 188. [Google Scholar] [CrossRef]
  21. Sun, Y.; Zhang, J.; Li, H.; Fan, F.; Zhao, Q.; He, G.; Ma, C. Ester-crosslinked polymers of intrinsic microporosity membranes with enhanced plasticization resistance for CO2 separation. Sep. Purif. Technol. 2023, 314, 123623. [Google Scholar] [CrossRef]
  22. Han, K.I.; Kang, S.W.; Kim, J.; Kang, Y.S. Effect of ionic liquids on dissociation of copper flake into copper nanoparticles and its application to facilitated olefin transport membranes. J. Membr. Sci. 2011, 374, 43–48. [Google Scholar] [CrossRef]
  23. Lundin, S.B.; Wang, H.; Oyama, S.T. Synthesis and Characterization of Silica-Tantala Microporous Membranes for Gas Separations Fabricated Using Chemical Vapor Deposition. Membranes 2022, 12, 889. [Google Scholar] [CrossRef] [PubMed]
  24. Rodriguez, J.; Palmas, S.; Sanchez-Molina, M.; Amores, E.; Mais, L.; Campana, R. Simple and Precise Approach for Determination of Ohmic Contribution of Diaphragms in Alkaline Water Electrolysis. Membranes 2019, 9, 129. [Google Scholar] [CrossRef] [PubMed]
  25. Luo, J.R.; Liu, Y.D.; Liu, H.; Chen, W.P.; Cui, T.T.; Xiao, L.; Min, Y. Synthesis and Characterization of Polyimides with Naphthalene Ring Structure Introduced in the Main Chain. Materials 2022, 15, 8014. [Google Scholar] [CrossRef]
  26. Xia, Y.; Di, T.; Meng, Z.; Zhu, T.; Lei, Y.; Chen, S.; Li, T.; Li, L. Versatile One-Pot Construction Strategy for the Preparation of Porous Organic Polymers via Domino Polymerization. Macromolecules 2021, 54, 4682–4692. [Google Scholar] [CrossRef]
  27. Li, J.; Su, Z.; Huang, J.; Feng, W.; Wei, T.; Meng, K.; Muhammad, Y. Performance of biomimetic coating modified fiber incorporated styrene butadiene styrene modified asphalt. J. Appl. Polym. Sci. 2020, 138, 49967. [Google Scholar] [CrossRef]
  28. Taheri, A.H.; Sim, L.N.; Chong, T.H.; Krantz, W.B.; Fane, A.G. Prediction of reverse osmosis fouling using the feed fouling monitor and salt tracer response technique. J. Membr. Sci. 2015, 475, 433–444. [Google Scholar] [CrossRef]
  29. Fei, G.; Liu, Y.; Wang, Q. Synergistic effects of novolac-based char former with magnesium hydroxide in flame retardant polyamide-6. Polym. Degrad. Stab. 2008, 93, 1351–1356. [Google Scholar] [CrossRef]
  30. Zheng, Y.; Hashidzume, A.; Harada, A. pH-responsive self-assembly by molecular recognition on a macroscopic scale. Macromol. Rapid Commun. 2013, 34, 1062–1066. [Google Scholar] [CrossRef]
  31. Zhou, J.; Ünlü, M.; Anestis-Richard, I.; Kohl, P.A. Crosslinked, epoxy-based anion conductive membranes for alkaline membrane fuel cells. J. Membr. Sci. 2010, 350, 286–292. [Google Scholar] [CrossRef]
  32. Li, Y.; Shi, S.; Cao, H.; Zhao, Z.; Su, C.; Wen, H. Improvement of the antifouling performance and stability of an anion exchange membrane by surface modification with graphene oxide (GO) and polydopamine (PDA). J. Membr. Sci. 2018, 566, 44–53. [Google Scholar] [CrossRef]
  33. Vey, E.; Rodger, C.; Booth, J.; Claybourn, M.; Miller, A.F.; Saiani, A. Degradation kinetics of poly(lactic-co-glycolic) acid block copolymer cast films in phosphate buffer solution as revealed by infrared and Raman spectroscopies. Polym. Degrad. Stab. 2011, 96, 1882–1889. [Google Scholar] [CrossRef]
  34. Nguyen, H.; Wang, M.; Hsiao, M.-Y.; Nagai, K.; Ding, Y.; Lin, H. Suppression of crystallization in thin films of cellulose diacetate and its effect on CO2/CH4 separation properties. J. Membr. Sci. 2019, 586, 7–14. [Google Scholar] [CrossRef]
  35. Ravi, S.; Kang, W.S.; Lee, H.K.; Park, Y.I.; Park, H.; Kim, I.C.; Kwon, Y.N. Improvement in Acid Resistance of Polyimide Membranes: A Sustainable Cross-Linking Approach via Green-Solvent-Based Fenton Reaction. Polymers 2023, 15, 264. [Google Scholar] [CrossRef]
  36. Wenbin, L.; Jianfeng, H.; Jie, F.; Liyun, C.; Chunyan, Y. Mechanical and wet tribological properties of carbon fabric/phenolic composites with different weave filaments counts. Appl. Surf. Sci. 2015, 353, 1223–1233. [Google Scholar] [CrossRef]
  37. Wang, Y.; Song, J.; Tian, Q.; Song, N.; Liang, S.; Tian, C.; Qiang, X.; Lei, Y.; Chen, K.; Almásy, L. Understanding water absorption effect on molecular dynamics, microstructures and relaxation behavior of segmented polyurethane elastomers. Polym. Degrad. Stab. 2023, 214, 110415. [Google Scholar] [CrossRef]
  38. Rose, I.I.; Kather, M.; Roth, H.; Dünkelberg, H.; Rein, L.; Klimosch, S.N.; Schmolz, M.; Wessling, M. Single-step chitosan functionalized membranes for heparinization. J. Membr. Sci. 2022, 655, 120567. [Google Scholar] [CrossRef]
  39. He, T.; Hu, D.; Ren, Q.; Li, Z.; Han, S.; Ding, L.; Lu, Z.; Zhang, L. Promoting effect of proanthocyanidin-amorphous calcium phosphate nanoparticles on biomimetic mineralization of demineralized dentin. Eur. Polym. J. 2023, 201, 112589. [Google Scholar] [CrossRef]
  40. Lin, C.; Ge, H.; Ying, P.; Wang, T.; Huang, M.; Zhang, P.; Yang, T.; Wu, J.; Levchenko, V. Synthesis and Properties of Dynamic Crosslinking Polyurethane/PEG Shape-Stable Phase Change Materials Based on the Diels–Alder Reaction. ACS Appl. Polym. Mater. 2023, 5, 4190–4198. [Google Scholar] [CrossRef]
  41. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  42. Yildirim, E.; Dakshinamoorthy, D.; Peretic, M.J.; Pasquinelli, M.A.; Mathers, R.T. Synthetic Design of Polyester Electrolytes Guided by Hydrophobicity Calculations. Macromolecules 2016, 49, 7868–7876. [Google Scholar] [CrossRef]
  43. Lai, D.S.; Osman, A.F.; Adnan, S.A.; Ibrahim, I.; Ahmad Salimi, M.N.; Jaafar@Mustapha, M. Toughening mechanism of thermoplastic starch nano-biocomposite with the hybrid of nanocellulose/nanobentonite. Polymer 2023, 274, 125876. [Google Scholar] [CrossRef]
  44. Tang, S.; Lin, H.; Dong, K.; Zhang, J.; Zhao, C. Closed-loop recycling and degradation of guaiacol-based epoxy resin and its carbon fiber reinforced composites with S-S exchangeable bonds. Polym. Degrad. Stab. 2023, 210, 110298. [Google Scholar] [CrossRef]
  45. Yan, E.; Li, T.W.; Zhang, J.L.; Zhang, K.X.; Guo, Z.J.; Liu, W.; Zhang, S.; Wang, Y.H.; Zou, Y.J.; Chu, H.L.; et al. Improved the H2S corrosion resistance for Nb30Hf35Co35 alloy by modifying surface catalytic layer. J. Mater. Sci. 2023, 58, 17664–17674. [Google Scholar] [CrossRef]
  46. Wang, P.; Li, N.; Li, S.; Zhang, Y. Strategies for preparing hybrid nanomaterials via Polymerization-Induced Self-Assembly. Eur. Polym. J. 2022, 172, 111234. [Google Scholar] [CrossRef]
  47. Zhang, J.; Xu, Z.; Shan, M.; Zhou, B.; Li, Y.; Li, B.; Niu, J.; Qian, X. Synergetic effects of oxidized carbon nanotubes and graphene oxide on fouling control and anti-fouling mechanism of polyvinylidene fluoride ultrafiltration membranes. J. Membr. Sci. 2013, 448, 81–92. [Google Scholar] [CrossRef]
  48. Ghafari, S.; Aroua, M.K.; Hasan, M. Control of pH during water denitrification in an upflow bio-electrochemical reactor (UBER) using a pumparound system. Sep. Purif. Technol. 2010, 72, 401–405. [Google Scholar] [CrossRef]
  49. Li, Y.; Hu, X.; Liu, X.; Zhang, Y.; Zhao, Q.; Ning, P.; Tian, S. Adsorption behavior of phenol by reversible surfactant-modified montmorillonite: Mechanism, thermodynamics, and regeneration. Chem. Eng. J. 2018, 334, 1214–1221. [Google Scholar] [CrossRef]
  50. Mirzaei, A.; Eddah, M.; Roualdes, S.; Ma, D.; Chaker, M. Multiple-homojunction gradient nitrogen doped TiO2 for photocatalytic degradation of sulfamethoxazole, degradation mechanism, and toxicity assessment. Chem. Eng. J. 2021, 422, 130507. [Google Scholar] [CrossRef]
  51. de Sousa, K.M.; Lima, T.S.P.; de Souza, R.L.; Nerli, B.B.; Pereira, M.M.; Soares, C.M.F.; Lima, Á.S. Liquid-liquid equilibrium data for the ternary system based on ionic liquid + organic solvents + water at 298 K and atmospheric pressure applied in antidepressant partitioning. Sep. Purif. Technol. 2021, 278, 119532. [Google Scholar] [CrossRef]
  52. Kim, S.; Scholes, C.A.; Heath, D.E.; Kentish, S.E. Gas-liquid membrane contactors for carbon dioxide separation: A review. Chem. Eng. J. 2021, 411, 128468. [Google Scholar] [CrossRef]
  53. Zhu, Y.; Shen, J.; Yin, L.; Wei, X.; Chen, F.; Zhong, M.; Gu, Z.; Xie, Y.; Jin, W.; Liu, Z.; et al. Directly photopatterning of polycaprolactone-derived photocured resin by UV-initiated thiol-ene “click” reaction: Enhanced mechanical property and excellent biocompatibility. Chem. Eng. J. 2019, 366, 112–122. [Google Scholar] [CrossRef]
  54. Eray, E.; Candelario, V.M.; Boffa, V. Ceramic Processing of Silicon Carbide Membranes with the Aid of Aluminum Nitrate Nonahydrate: Preparation, Characterization, and Performance. Membranes 2021, 11, 714. [Google Scholar] [CrossRef]
  55. Deng, G.; Luo, J.; Liu, S.; Wang, Y.; Zong, X.; Xue, S. Molecular design and characterization of new polyimides based on binaphthyl-ether diamines for gas separation. Sep. Purif. Technol. 2020, 235, 116218. [Google Scholar] [CrossRef]
  56. Zhang, J.; Wang, L.; Zhang, C.; Long, X.; Zheng, Y.; Zuo, Y.; Jiao, F. MnO -mineralized oxidized-polypropylene membranes for highly efficient oil/water separation. Sep. Purif. Technol. 2021, 276, 119343. [Google Scholar] [CrossRef]
  57. Rodrigues Reis, C.E.; Hu, B. Volumetric Scale-Up of a Packed-Bed Ion-Exchange System to Extract Phytate from Thin Stillage. Membranes 2022, 12, 230. [Google Scholar] [CrossRef]
Membranes 16 00047 g001

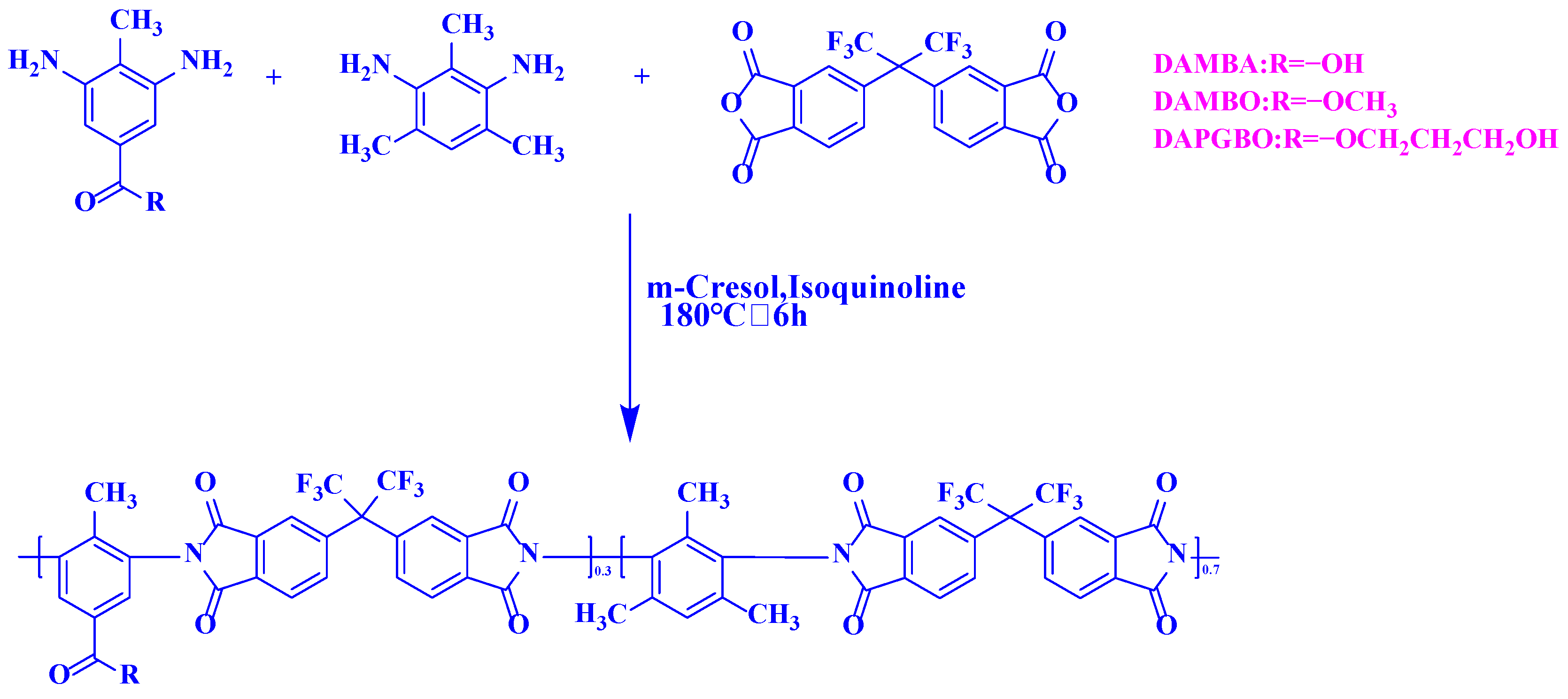

Figure 1. Synthesis methods of PI-MBA, PI-MBO, and PI-PGBO polymer powders.
Figure 1. Synthesis methods of PI-MBA, PI-MBO, and PI-PGBO polymer powders.
Membranes 16 00047 g001
Membranes 16 00047 g002

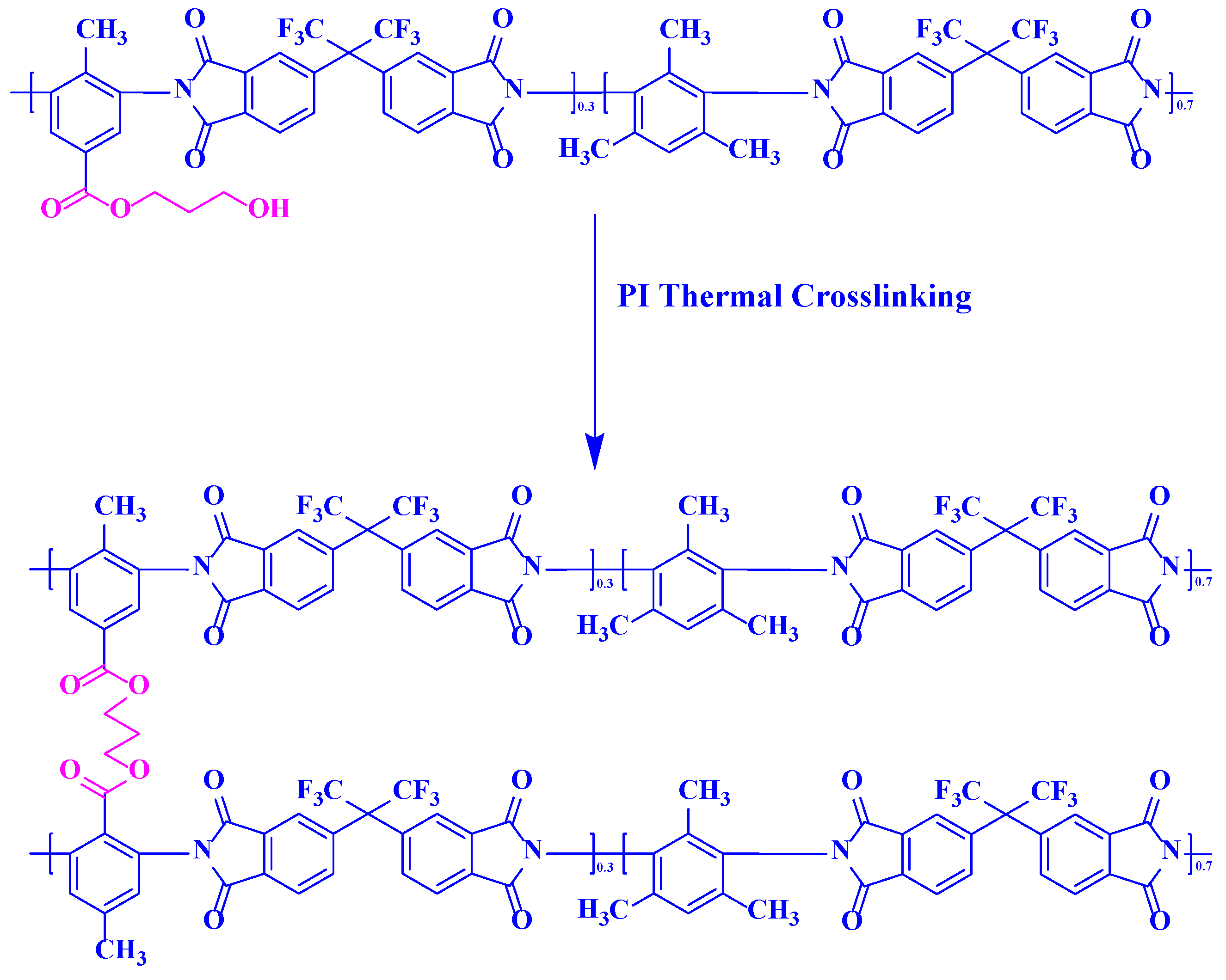

Figure 2. PI-PGBO polymer chains undergoing ester cross-linking reaction induced by thermal treatment.
Figure 2. PI-PGBO polymer chains undergoing ester cross-linking reaction induced by thermal treatment.
Membranes 16 00047 g002
Membranes 16 00047 g003

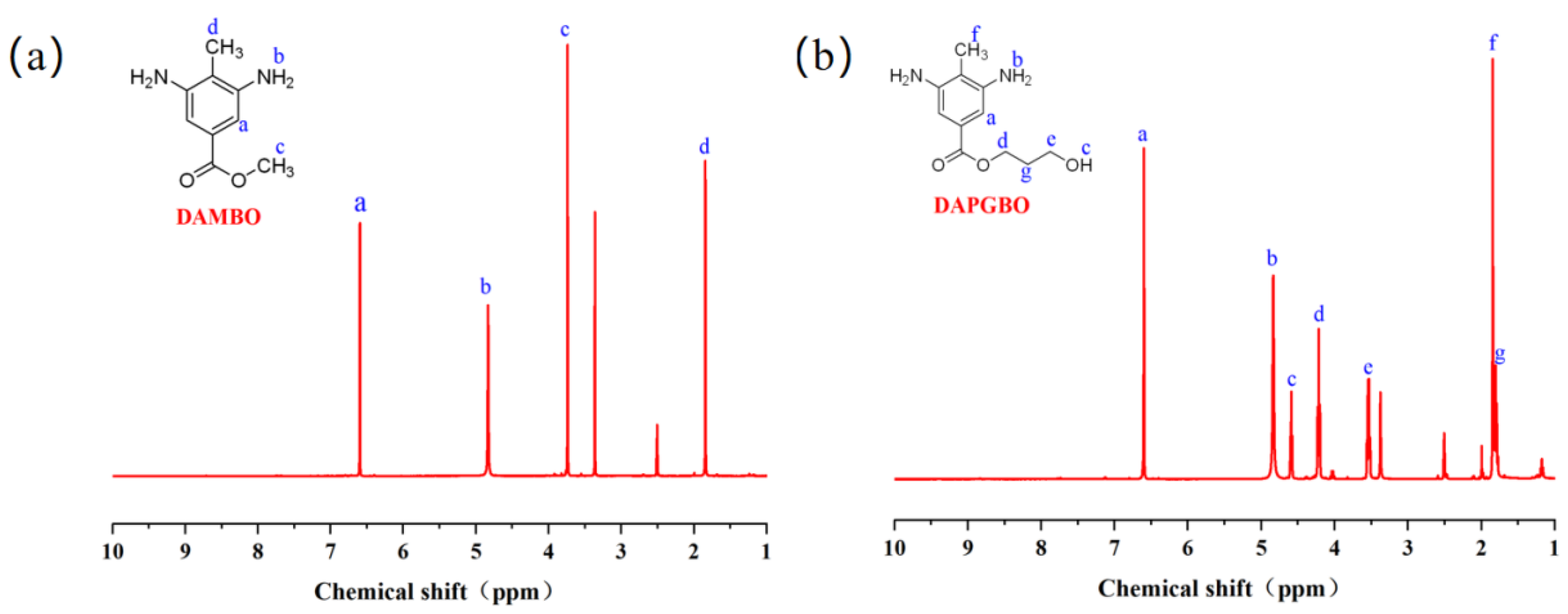

Figure 3. 1H NMR spectrum of DAMBO (a) and 1H NMR spectrum of DAPGBO (b).
Figure 3. 1H NMR spectrum of DAMBO (a) and 1H NMR spectrum of DAPGBO (b).
Membranes 16 00047 g003
Membranes 16 00047 g004

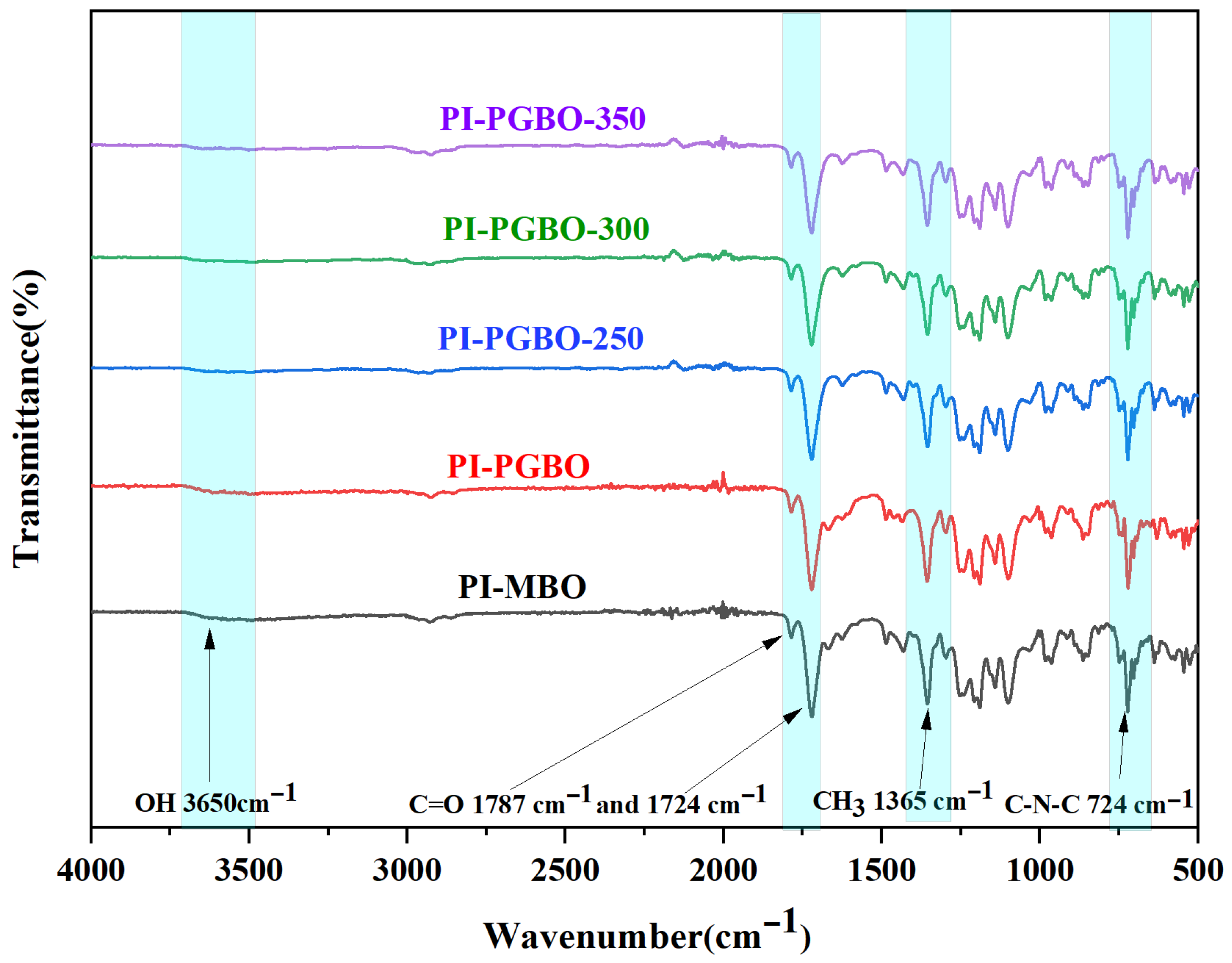

Figure 4. FT-IR spectra of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Figure 4. FT-IR spectra of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Membranes 16 00047 g004
Membranes 16 00047 g005

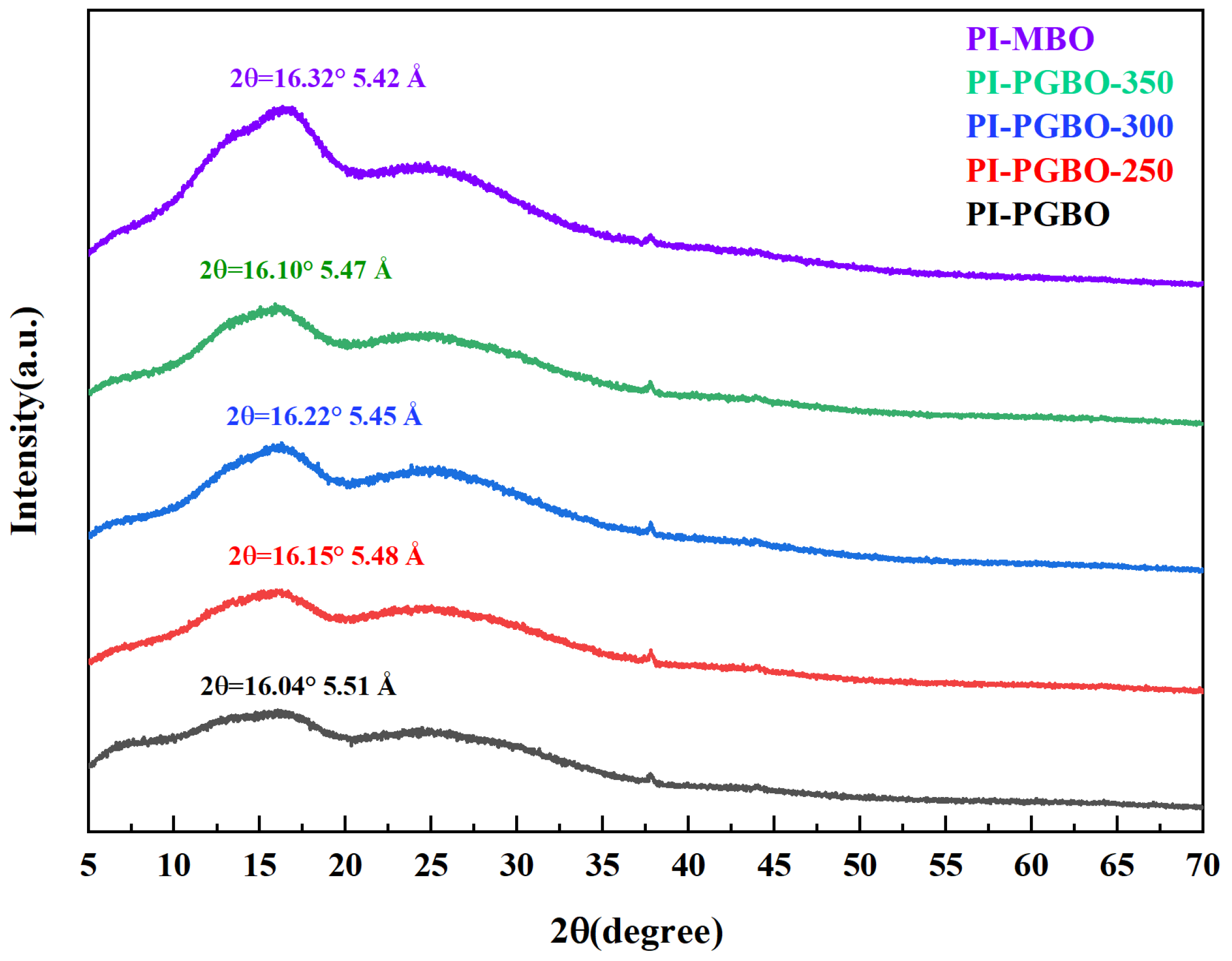

Figure 5. WAXD curves of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Figure 5. WAXD curves of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Membranes 16 00047 g005
Membranes 16 00047 g006

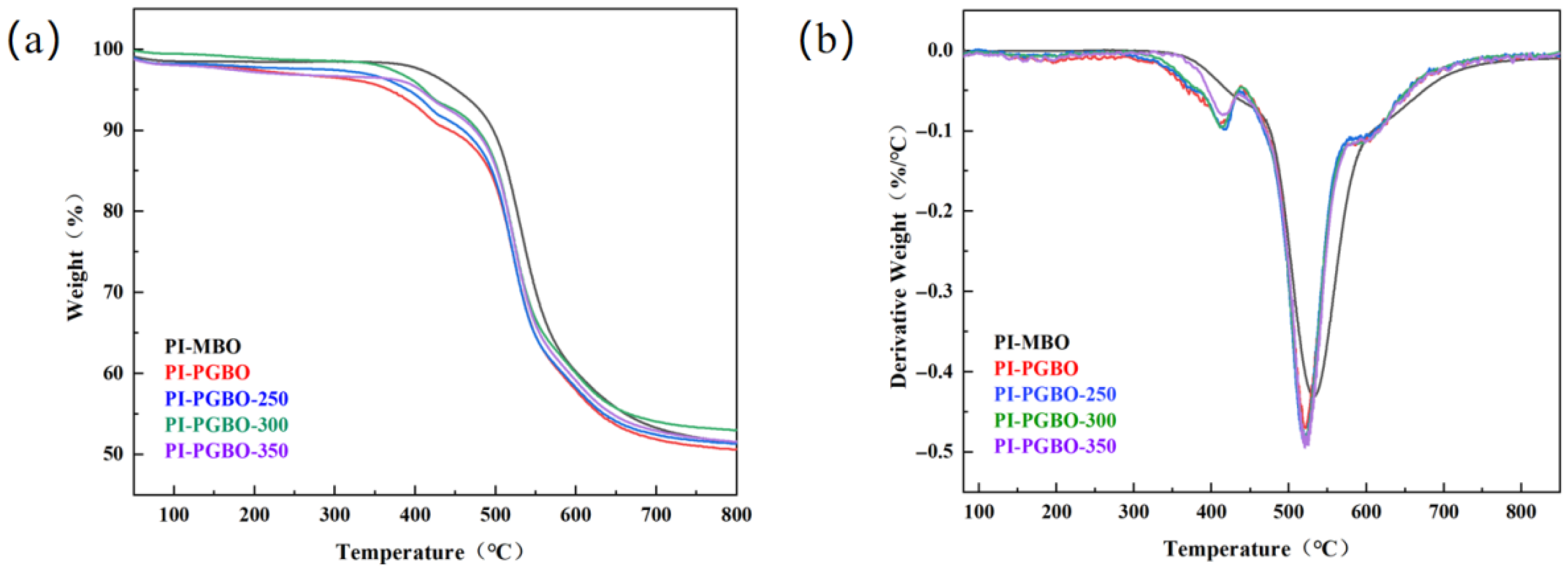

Figure 6. TGA curves (a) and DTG curves (b) of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Figure 6. TGA curves (a) and DTG curves (b) of PI-MBO, PI-PGBO, and PI-PGBO membranes treated at different temperatures.
Membranes 16 00047 g006
Membranes 16 00047 g007

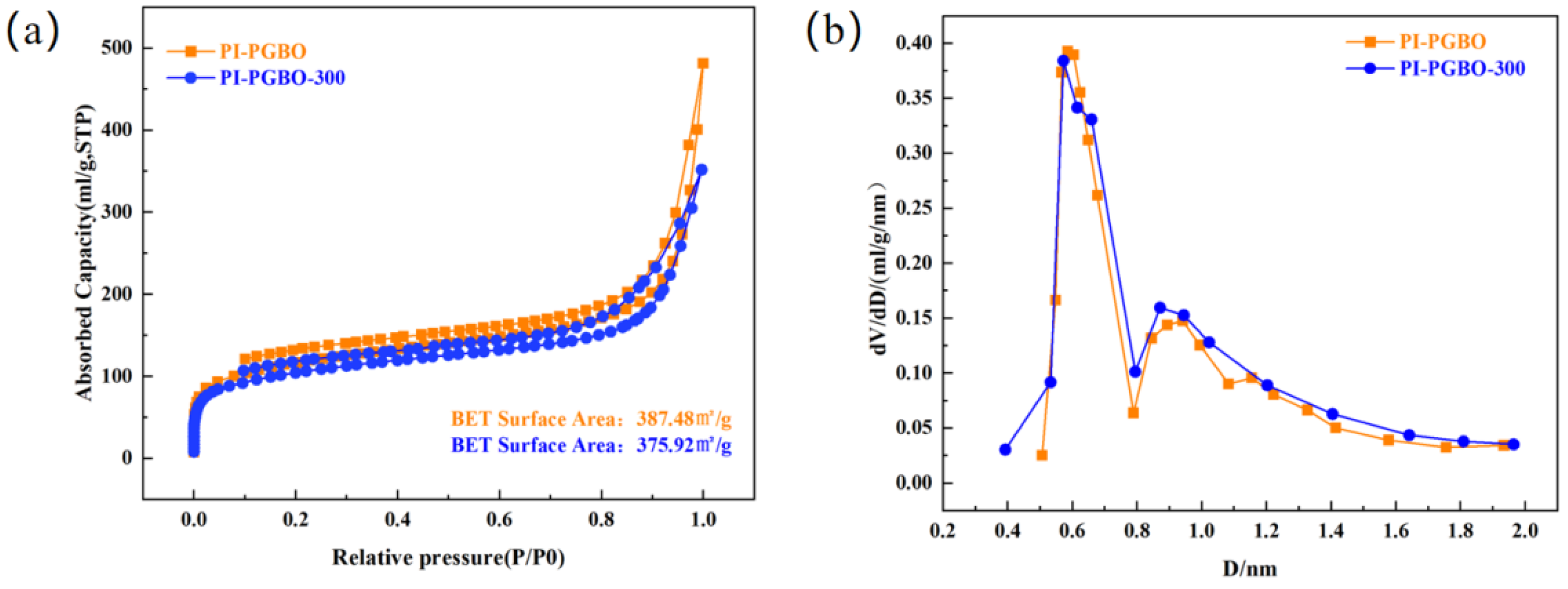

Figure 7. N2 adsorption–desorption isotherms (a) and H-K method-derived pore size distributions (b) of PI-PGBO and PI-PGBO-300.
Figure 7. N2 adsorption–desorption isotherms (a) and H-K method-derived pore size distributions (b) of PI-PGBO and PI-PGBO-300.
Membranes 16 00047 g007
Membranes 16 00047 g008

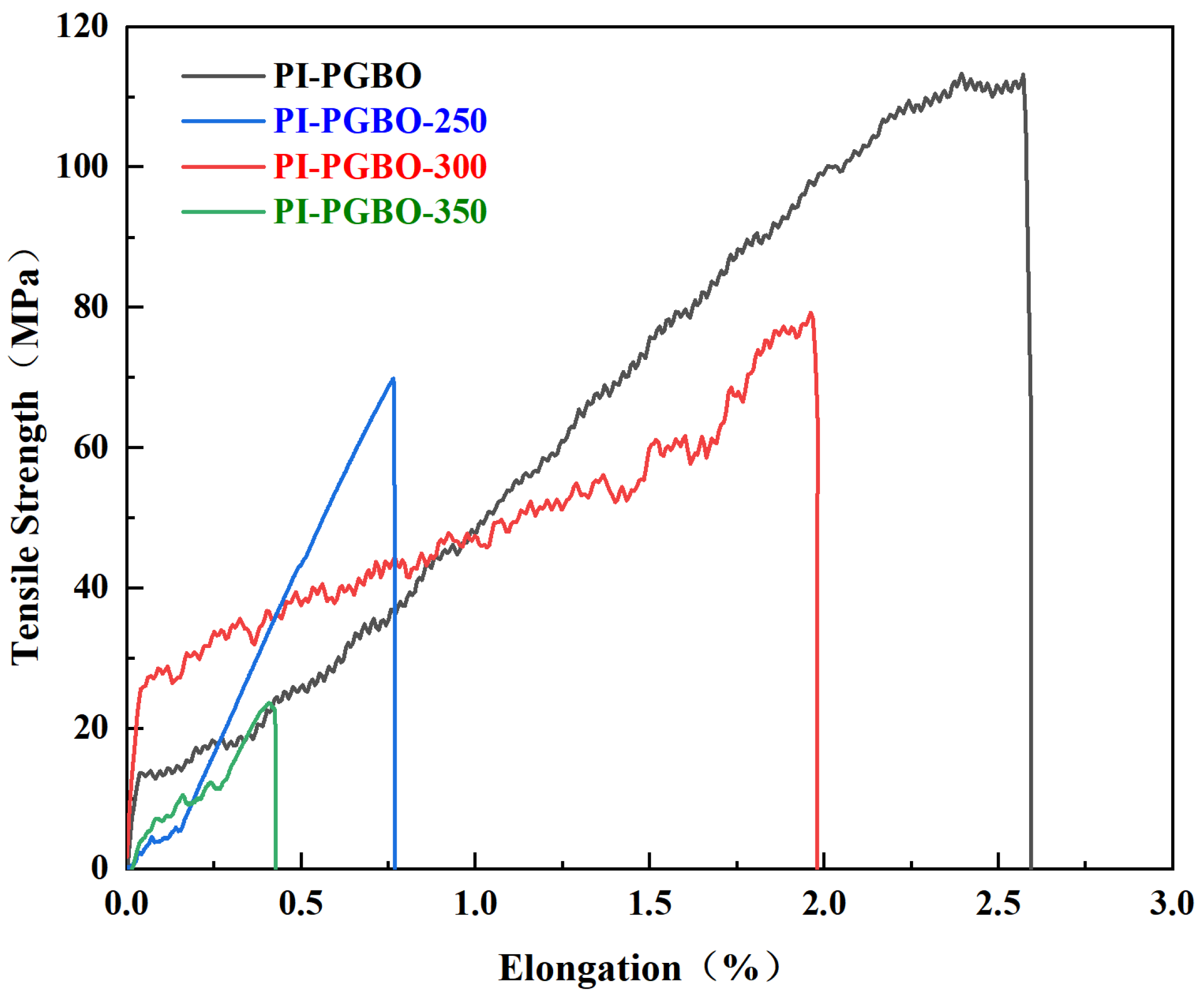

Figure 8. Tensile curves of PI-PGBO films and PI-PGBO films treated at different temperatures.
Figure 8. Tensile curves of PI-PGBO films and PI-PGBO films treated at different temperatures.
Membranes 16 00047 g008
Membranes 16 00047 g009

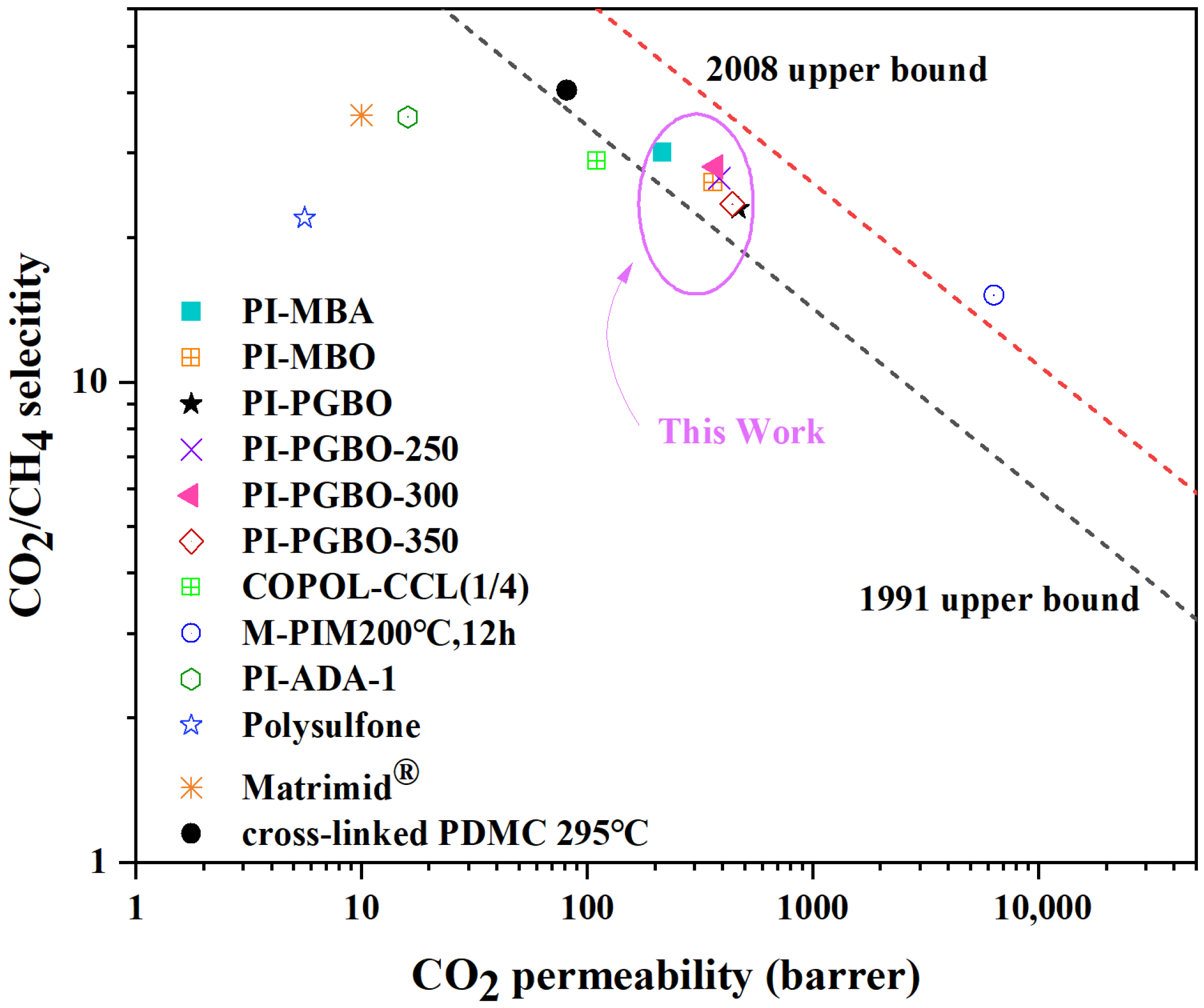

Figure 9. Relationships between permeability and selectivity of prepared membranes, and the 1991 and 2008 Robeson Upper Bounds for the CO2/CH4 system.
Figure 9. Relationships between permeability and selectivity of prepared membranes, and the 1991 and 2008 Robeson Upper Bounds for the CO2/CH4 system.
Membranes 16 00047 g009
Membranes 16 00047 g010

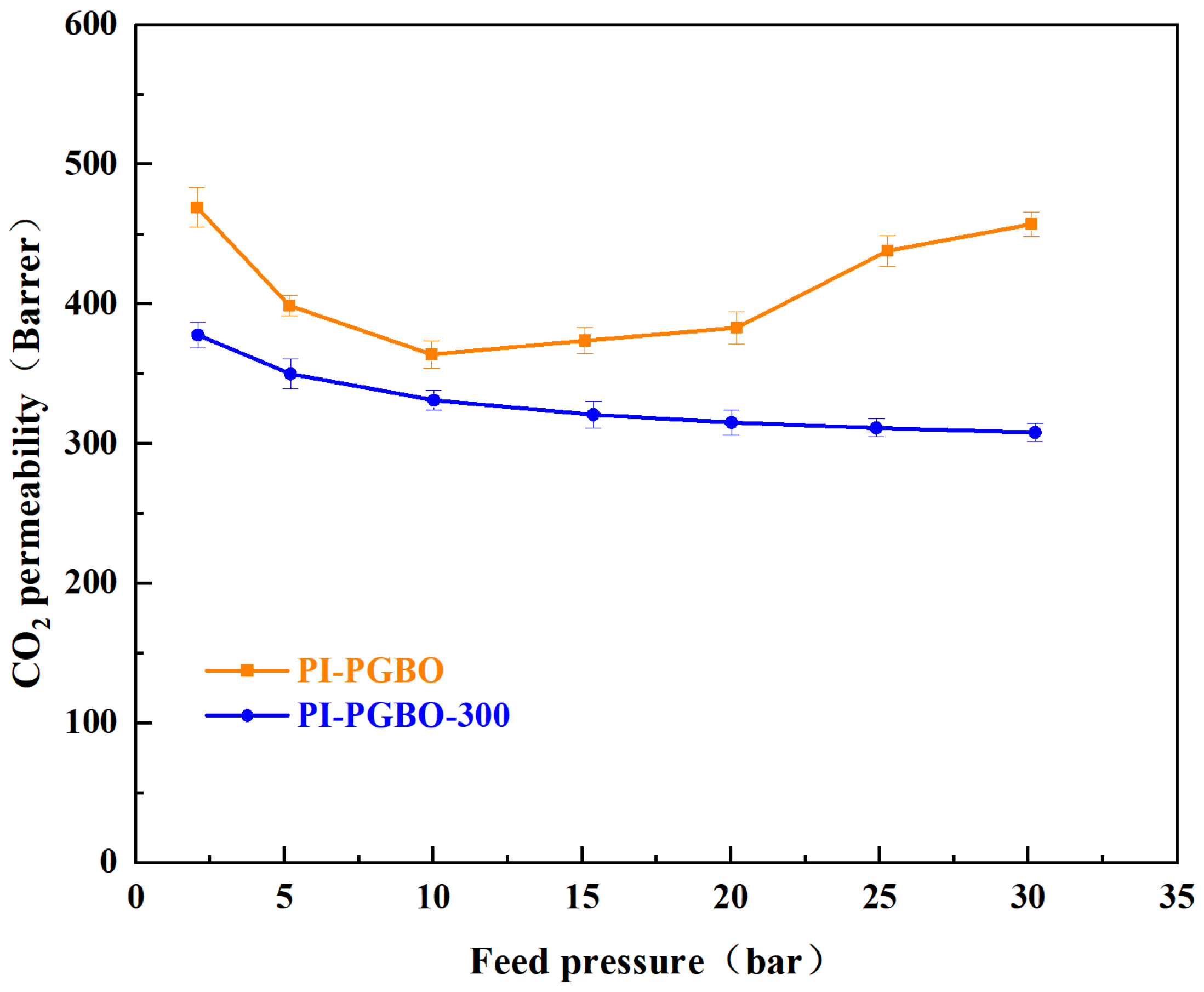

Figure 10. Plasticization resistance of PI-PGBO and PI-PGBO-300.
Figure 10. Plasticization resistance of PI-PGBO and PI-PGBO-300.
Membranes 16 00047 g010
Table 1. Diffraction angle (2θ), d-spacing, thermal properties, and gel fraction of PI-MBO, PI-PGBO, and PI-PGBO membranes thermally treated at different temperatures.
Table 1. Diffraction angle (2θ), d-spacing, thermal properties, and gel fraction of PI-MBO, PI-PGBO, and PI-PGBO membranes thermally treated at different temperatures.
Polyimides2θ (°)d-Spacing (Å)Td,5% (°C)ThermalstabilityGelfraction
PI-MBO16.325.4244551.580%
PI-PGBO16.045.5136650.620%
PI-PGBO-25016.155.4839051.3891.5%
PI-PGBO-30016.225.4541053.02100%
PI-PGBO-35016.105.4740551.5982.6%
Table 2. Pure gas permeabilities and selectivities of PI-MBO, PI-PGBO, and PI-PGBO membranes thermally treated at different temperatures.
Table 2. Pure gas permeabilities and selectivities of PI-MBO, PI-PGBO, and PI-PGBO membranes thermally treated at different temperatures.
PolyimidesPermeability (Barrer)Selectivity (Px/y)
CH4N2O2CO2PO2/N2PCO2/N2PCO2/CH4
PI-MBA7.87 ± 0.219.47 ± 0.3544.44 ± 1.22214.5 ± 5.804.69 ± 0.1522.65 ± 0.7830.15 ± 0.95
PI-MBO13.80 ± 0.4219.01 ± 0.6176.84 ± 2.10360.59 ± 8.954.04 ± 0.1218.96 ± 0.5526.13 ± 0.72
PI-PGBO20.28 ± 0.6527.36 ± 0.8890.76 ± 2.55467.56 ± 11.203.32 ± 0.1017.09 ± 0.4823.05 ± 0.62
PI-PGBO-25014.40 ± 0.4019.14 ± 0.5974.77 ± 2.05384.66 ± 9.503.91 ± 0.1120.10 ± 0.6026.63 ± 0.75
PI-PGBO-30013.20 ± 0.3817.03 ± 0.5268.96 ± 1.85371.05 ± 8.854.05 ± 0.1321.79 ± 0.6528.11 ± 0.80
PI-PGBO-35018.70 ± 0.5524.70 ± 0.7584.76 ± 2.30439.71 ± 10.503.73 ± 0.1017.80 ± 0.5223.50 ± 0.65
COPOL-CCL (1/4)3.85.4261104.920.429
M-PIM200 °C,12 h41630298463473.321.015.2
PI-ADA-10.450.834.7916.065.7719.3435.7
Polysulfone0.250.251.45.65.622.422
Matrimid®0.280.322.1106.63136
cross-linked PDMC 295 °C2.0--81.2--40.6
Footnote: All data in this table are presented as the mean ± standard deviation (SD) of three independent replicate experiments conducted under identical conditions.
Table 3. Aging performance of PI-PGBO and PI-PGBO-300.
Table 3. Aging performance of PI-PGBO and PI-PGBO-300.
PolyimidesPermeability (Barrer)Selectivity (Px/y)
CH4N2O2CO2PO2/N2PCO2/N2PCO2/CH4
PI-PGBO–0 days20.28 ± 0.6527.36 ± 0.8890.76 ± 2.55467.56 ± 11.203.32 ± 0.1017.09 ± 0.4823.05 ± 0.62
PI-PGBO–30 days19.44 ± 0.5823.22 ± 0.7084.76 ± 2.54456.30 ± 13.683.65 ± 0.1119.65 ± 0.5923.47 ± 0.70
PI-PGBO–90 days17.11 ± 0.5120.15 ± 0.6075.63 ± 2.27435.07 ± 13.053.75 ± 0.1121.59 ± 0.6525.43 ± 0.76
PI-PGBO–180 days10.84 ± 0.3212.94 ± 0.3950.85 ± 1.53284.68 ± 8.543.93 ± 0.1222.00 ± 0.6626.26 ± 0.79
PI-PGBO-300–0 days13.20 ± 0.3817.03 ± 0.5268.96 ± 1.85371.05 ± 8.854.05 ± 0.1321.79 ± 0.6528.11 ± 0.80
PI-PGBO-300–30 days12.63 ± 0.3816.28 ± 0.4966.65 ± 2.00359 ± 10.774.09 ± 0.1222.05 ± 0.6628.42 ± 0.85
PI-PGBO-300–90 days9.82 ± 0.2912.75 ± 0.3854.32 ± 1.63283.5 ± 8.514.23 ± 0.1322.28 ± 0.6728.87 ± 0.87
PI-PGBO-300–180 days7.11 ± 0.219.22 ± 0.2842.66 ± 1.28208 ± 6.244.17 ± 0.1322.56 ± 0.6829.25 ± 0.88
Footnote: All data in this table are presented as the mean ± standard deviation (SD) of three independent replicate experiments conducted under identical conditions.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, Y.; Luo, J.; Ling, H.; Xue, S. Preparation of Ester-Crosslinked PI Membranes with Enhanced Gas Selectivity and Plasticization Resistance. Membranes 2026, 16, 47. https://doi.org/10.3390/membranes16010047

AMA Style

Li Y, Luo J, Ling H, Xue S. Preparation of Ester-Crosslinked PI Membranes with Enhanced Gas Selectivity and Plasticization Resistance. Membranes. 2026; 16(1):47. https://doi.org/10.3390/membranes16010047

Chicago/Turabian Style

Li, Yu, Jiangzhou Luo, Honglei Ling, and Song Xue. 2026. "Preparation of Ester-Crosslinked PI Membranes with Enhanced Gas Selectivity and Plasticization Resistance" Membranes 16, no. 1: 47. https://doi.org/10.3390/membranes16010047

APA Style

Li, Y., Luo, J., Ling, H., & Xue, S. (2026). Preparation of Ester-Crosslinked PI Membranes with Enhanced Gas Selectivity and Plasticization Resistance. Membranes, 16(1), 47. https://doi.org/10.3390/membranes16010047

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
