Article

Palladium Membrane with High Density of Large-Angle Grain Boundaries to Promote Hydrogen Diffusivity

1
German Aerospace Center, Institute of Engineering Thermodynamics, DLR, Pfaffenwaldring 38-40, 70569 Stuttgart, Germany
2
Institute for Micro Process Engineering (IMVT), Karlsruhe Institute of Technology (KIT), Hermann-von-Helmholtz-Platz, 176344 Eggenstein-Leopoldshafen, Germany
3
LT GASETECHNIK, Martener Str. 535, 44379 Dortmund, Germany
*
Author to whom correspondence should be addressed.
Membranes 2022, 12(6), 617; https://doi.org/10.3390/membranes12060617
Submission received: 18 May 2022 / Revised: 10 June 2022 / Accepted: 11 June 2022 / Published: 14 June 2022
(This article belongs to the Special Issue Advances in Membrane Science for Sustainable Future)

Abstract

:
A higher density of large-angle grain boundaries in palladium membranes promotes hydrogen diffusion whereas small-angle grain boundaries suppress it. In this paper, the microstructure formation in 10 µm thick palladium membranes is tuned to achieve a submicronic grain size above 100 nm with a high density of large-angle grain boundaries. Moreover, changes in the grain boundaries’ structure is investigated after exposure to hydrogen at 300 and 500 °C. To attain large-angle grain boundaries in Pd, the coating was performed on yttria-stabilized zirconia/porous Crofer 22 APU substrates (intended for use later in an ultracompact membrane reactor). Two techniques of plasma sprayings were used: suspension plasma spraying using liquid nano-sized powder suspension and vacuum plasma spraying using microsized powder as feedstock. By controlling the process parameters in these two techniques, membranes with a comparable density of large-angle grain boundaries could be developed despite the differences in the fabrication methods and feedstocks. Analyses showed that a randomly oriented submicronic structure could be attained with a very similar grain sizes between 100 and 500 nm which could enhance hydrogen permeation. Exposure to hydrogen for 72 h at high temperatures revealed that the samples maintained their large-angle grain boundaries despite the increase in average grain size to around 536 and 720 nm for vacuum plasma spraying and suspension plasma spraying, respectively.

1. Introduction

Hydrogen is a key industrial chemical in fertilizers, alcohols, refineries, metal industry, etc. [1]. It can also be a clean fuel for power generation, for example, through fuel cells, in transport and stationary applications. Today, most of the hydrogen originates from reforming fossil fuels [2] and therefore cost [3,4], safety and high carbon dioxide (CO2) emission concerns demand decentralized production at a reasonable efficiency and cost. Membrane technology has gained much attention as membranes could operate more simply, with higher adaptability, lower weight, and more compact design compared to other conventional separation technologies. They not only have lower capital, operating, and maintenance costs but also a much lower impact on the environment [5]. Furthermore, they could be integrated with reactors into one module, so-called membrane reactors. Membrane reactors facilitate the proceeding of a reaction through the constant removal of a desired component from the retentate side to the permeate part so that it, in turn, might lead to reaching even beyond thermodynamics equilibrium [6]. With especial focus on membrane steam reformers where on-site hydrogen production–separation could be considered, the module should withstand operating conditions, e.g., rather high temperatures and pressures. Considering the requirements of a highly efficient membrane reactor, the membrane plays a vital role that is the main focus of this research. In the last few years, a vast range of membranes have been investigated in order to meet the hydrogen production needed for industry. We considered this spectrum from polymer-based membranes [7,8,9] to inorganic dense metallic ones, which are considered highly selective towards hydrogen, operate in the demanding conditions of higher temperatures and pressures and exhibit the ability to enable a single separation step with a solution-diffusion mechanism [4,10]. While many metals have been investigated (platinum (Pt), nickel (Ni), and metallic elements of groups III-V), palladium-based membranes have the highest interest because they are not only highly selective towards hydrogen [10,11,12] but they are also thermally and mechanically stable for a variety of applications.
The mechanism of hydrogen permeation through palladium follows a solution-diffusion mechanism, consisting of the dissociation of adsorbed hydrogen onto the metal surface, diffusion of atomic hydrogen through bulk metal, and associative desorption of the hydrogen from the metal surface. To date, there is a high interest in understanding whether larger grains can inhibit [13,14,15] or enhance [16,17] hydrogen flux. A possible correlation has been proposed between the solubility of hydrogen and the average grain boundary density which suggests that diffusion is practically unaffected as long as the hydrogen transport is controlled by bulk diffusion [18]. This is not always so simple, however, since introducing impurities and investigating alloys (a direction often discussed for decreasing the price of the membranes) [19], has shown the opposite effect [20]. It is well-known, nevertheless, that in pure metals, hydrogen segregates towards grain boundaries (GBs) [21,22]. Growing evidence shows that GBs play a crucial role in the overall performance of membranes and defects play an important role in the kinetics of hydrogen in metals [23].
Additionally, studies carried out on various types of grain boundaries over nickel found an enhanced hydrogen diffusion along large-angle boundaries (LAGB) [24]. This was also shown, using molecular dynamics simulations, in work by Ievlev et al. [25], who reported that the different types of GBs have a different effect of absorption activity for hydrogen. While discussing hydrogen permeation tests, Oudriss et al. [26] suggested that high-energy boundaries (consisting of large-angle boundaries—LAGB) act as fast diffusion paths while low-energy grain boundaries (consisting of low-angle boundaries) act as hydrogen trapping sites, lowering in this way the hydrogen flux. This trapping effect can weaken the metallic bond and cause intergranular fracture in the metal [27]. An effect which is also seen in body-centered cubic (BCC) [28] metals in comparison to face-centered cubic (FCC) ones [29,30]. It is not easy to give a direct relationship between grain boundaries and hydrogen flux, since many factors affect the determination. However, one can argue from the above-mentioned that, in general, an FCC metal with an increased amount of large-angle grain boundaries and nanoscale grain size is preferable as a membrane material [31].
Decreasing the grain size increases the GB and, therefore, theoretically a maximum permeation should be possible. Nanocrystalline microstructures (below 40 nm), lead to primarily GB diffusion instead of a lattice diffusion or even coexistence of both mechanisms that may improve the hydrogen permeation [23]. The high amount of free volume in GB enriches solubility, leading to faster diffusion for hydrogen and change of the rate-limiting step of the process. This effect has been observed in electrodeposited PdFe [13] and PdNi [32] alloy membranes.
An important aspect of Pd-based membranes is the α-β transition of palladium and its relation to grain size where a reduction in the grain size to nm size may suppress the palladium α-β transition [33] and increase the stability [34,35]. Moreover, the post-annealing at high temperatures of nanostructured coatings coated by chemical vapor deposition (CVD) or electroless plating (ELP) resulted in an increase in the grain size of the membrane and also an increase in diffusivity into the metallic layer and the selectivity of the hydrogen [36,37]. Guazzone and Ma [38] discussed in detail where nanograins might enhance hydrogen diffusion due to higher LAGB or mix diffusion, however, the inter-crystalline spaces also allow undesired gases to pass through, consequently reducing membrane selectivity. Moreover, they also suggested that the formation of pinholes in nanostructured palladium (Pd) when sintering due to palladium self-diffusion is significantly high. Furthermore, the formation of nanostructured Pd might result in SAGBs; consequently, suppressing the hydrogen diffusion. Another key parameter, when forming a Pd/Pd-alloy membrane, is the layer thickness. The thinner layer reduces mass transport resistance; however, thin layers need smooth substrates/diffusion barrier layer surfaces. For instance, the “pore-filled” method has been reported to form a thin layer of Pd, e.g., less than 2 µm onto an intermediate layer for Pd-based composite membranes, however, the difference between the thermal expansion coefficient of the intermediate layer and Pd is of great importance [33,39,40]. This work has been aimed at the formation of a layer (≈10 µm) on a porous substrate, as has been frequently reported [41,42].
The fabrication method influences drastically the final morphology of the membrane and resulting microstructures. In the literature, different techniques for the coating of a Pd/Pd-alloy could be found for which the pros and cons are discussed briefly here for the most common ones. The advantages of ELP could be the simplicity of the equipment needed for coating, its cheapness, and applicability for any membrane shape [43]. On the other hand, this technique requires several preparation steps such as activation and sensitization and it is also time consuming. In comparison with ELP, the method of CVD facilitates the control of film formation so that thinner films, e.g., <2 µm are often obtained. However, it requires Pd precursors of high volatility and high thermal stability for high yield and short processing times [44,45,46]. Another technique to be addressed is physical vapor deposition that provides the user with a good control of the thickness, phase and composition of the film. As drawbacks, this technique needs expensive equipment and it also might be limited to only flat geometries [47,48].
Combining the requirements of good hydrogen permeability and retaining sufficient selectivity remains a fundamental challenge for the fabrication processes [49]. This work attempts to produce a thin submicronic microstructured Pd through a promising cost and time-efficient production method based on industrially established plasma spraying techniques. In this case, it takes only minutes to deposit the 10–20 µm coating and substrates need no activation or other special treatment before use [50,51].
Plasma spraying typically uses metallic feedstock powders of particles size typically 20–60 µm and often leads to thicker palladium membranes in the range of 45–60 mm [52,53] which give unsatisfactory poor permeability due to high thickness but also, sometimes, poor selectivity towards hydrogen due to porosity, and the instability of the film. For thinner coatings, using a nanosized powder feedstock is one option. Dry powders of nanosize, however, lead to an agglomeration of particles, amorphous films with high porosity. Subsequently, for using particles smaller than 1 µm, the use of a solvent carrier is necessary for injecting the powder into the plasma. This solvent is evaporated when reaching the core of the plasma, while the solid particles melt, accelerate and impact on a substrate to form a coating [54]. Lee et al. [55] used a colloidal spray deposition of Pd particles in the range of 100–300 nm (using water with dispersing agent Darvan C as solvent) with additional heating during spraying at 110 °C. Their efforts resulted in porous Yttria-stabilized Zirconia (YSZ)supported Pd films after subsequent sintering (at 1160 °C for 3 h) with a controllable homogeneous thickness of about 5–11 µm and pores in the range of 3–7 µm. T. Boeltken et al. [56] tried to adapt a similar approach while using a solvent of higher viscosity with atmospheric plasma spraying (APS); 250–550 nm size particles were thus mixed in diethylene glycol monobutyl ether stabilized (DGME) with 10 wt.% ethyl cellulose while the suspension was heated at 65 °C for 24 h. Films of about 10 µm were formed on alumina and porous stainless steel with YSZ coatings used as diffusion barrier layer (produced also by APS). Both cases gave rise to reasonable hydrogen selectivity, revealing promising results. However, it does not yet meet the industrial application demands, due to challenges with the stability of the suspensions. Moreover, no information was given on the microstructure of the fabricated palladium membranes while using liquid suspension plasma spraying.
The selectivity of hydrogen and permeation of hydrogen through palladium membranes, alloyed or not, is a function of the microstructure and its changes due to prolonged heating during operation. Hence, this work focuses on forming a Pd coating with a submicronic microstructure with a large amount of LAGBs but suppressed SAGBs, using suspension plasma spraying (SPS) with nano-scale powder suspended in ethanol as well as using vacuum plasma spraying (VPS) using microscale powder. Both processes were developed to fabricate dense Pd membrane on porous supports. The main target was to see if these methods can offer the optimal grain size (100–500 nm) with LAGB for a stable membrane. In following work, this microstructure will be evaluated for hydrogen flux as well as selectivity at the working temperatures and under hydrogen atmosphere.

2. Materials and Methods

2.1. Membrane Supports

The metallic substrate used in this study was made of Crofer 22APU supplied by Thyssen VDM, Germany. The composition was 23% Cr, 0.45% Mn, 0.006% Ti, 0.1% La, <0.05% Al, <0.05% Si, 76.29% iron. The porous metallic substrate (with dimensions of 20.6 mm × 7.6 mm × 1 mm) was welded by laser to a dense frame of Crofer 22APU (48 mm × 35 mm × 1 mm). A layer of yttrium stabilized zirconia (YSZ) was coated on the porous metal with dip-coating technique. Detailed recipe for metal substrate preparation, coating of diffusion barrier layer is described in a previous study [11]. The porosity of porous Crofer 22APU was 32%, estimated with SEM images. Regarding the selection of the materials, Crofer 22APU is a ferritic steel that represents a thermal expansion coefficient of 12 × 10−6 K−1 at 20 °C to 11.6 × 10−6 K−1 at 800 °C. It is well compatible with other components, e.g., 8YSZ (10 × 10−6 K−1), and Pd (11.8 × 10−6 K−1) [56]. In order to minimize the effect of substrate quality on the coating of Pd, the same batch of sinter metal substrate was used. Moreover, around 30 samples were prepared and coated with 8YSZ (the same batch of coating suspension). Afterwards, the samples’ surfaces were observed and they were sorted based on defining class A (defect size < 1 µm), B, and C. In this study only, class A substrates were used for Pd coating.

2.2. Suspension Plasma Spraying

During this work, two different thermal plasma processes were examined for their suitability towards attaining the optimal microstructure of palladium coatings; either SPS using nanosized feedstock Pd powder injected as a suspension or VPS using microsized powder fed in as dry powder. Thermal plasma used in the current work was produced through a direct current (DC) arc giving a plasma jet exhibiting temperatures over 8000–14,000 K [57,58] and particle velocities in the range between 100 and 500 m.s−1 [59,60]. The temperature and momentum transfer from plasma to particle led to melting of the powder particles and their acceleration. These in-flight particle properties were controlled, along with the substrate temperature, to have the high bond strengths, low porosity and desired microstructure of the Pd coating in this work. Typically, the feedstock powders in thermal plasma are 10–100 µm [51,61]. In order to allow the use of nanoscale particles, particles were suspended and coatings were produced using SPS. Details can be found in References [62,63,64,65,66]. Nanosized metallic particles are pyrophoric and cannot be processed in plasma spraying as dry powder and therefore the use of a liquid makes this possible [56,61,62,67].
Figure 1 illustrates a schematic of the path the liquid suspension took in the SPS coating. For comparison, the VPS chamber is illustrated, showing how the process took place under vacuum, and using pure microstructure powder instead of liquid suspension. The gas flows were adjusted to increase the velocity and the temperature of the plasma accordingly, while reaching a comparable enthalpy of 9.48 KJ for the SPS and 11 KJ for the VPS.
For the SPS, experiments on the suspension supply and injection into the plasma jet were initially conducted while using pure solvent. It is necessary to adjust the injection parameters to ensure that the momentum of the particles is equal to the momentum of the plasma jet. In this way, the suspension bounces back from the plasma surface or crosses the plasma completely, and instead reaches the jet core [68]. Figure 1a–d summarizes the influence of the injection pressure used in the argon pressured tank (4 vs. 9 bar) for feeding the suspension to the jet and of the injection nozzle aperture used (0.2 mm vs. 0.3 mm). The trajectory of the suspension was indicated with a red line in all cases and compared to the entry point of the centerline. A 9-bar argon stream with nozzle size of 0.2 mm was found to be the most suitable injection condition.
The suspension/powder was then injected into the plasma (of a Sulzer-Metco TriplexPro 200 torch at a constant pressure of 9 bar. All plasma parameters, such as DC current, argon, helium and hydrogen flow were adjusted in order to optimize the treatment of the palladium particles to achieve a dense thin coating [69]. The Crofer 22 APU substrates coated with YSZ were clamped on the chamber holder and heated up to 500 °C during the entire process. The subsequent heating of the substrates permits better melting of the low concentration particles and therefore a denser microstructure at the final coating.

2.3. Palladium Powders

During this work, two different powders were used. A nanopowder from Daiken Chemicals for the suspensions prepared for the SPS coating and a micro-scale powder from Hafner for the VPS coating. The purification and particle size of the commercial palladium powders used were investigated and SEM images are shown in Figure 2a,b. An average particle size of 150 nm was obtained for the Daiken Chemicals with somewhat elongated areas and agglomerations. The particle size was required to be bigger in the Hafner powder since it was not used in a suspension and an average size of 8 µm was obtained with a variation of grains from 1–16 µm. ImageJ software was used to determine the particles size so that, for each powder, around 500 particles through different SEM images were analyzed. The corresponding elemental analysis by EDX for each powder is given in Figure 2c. Iron and nickel were shown as small impurities (less than 2 wt.%) in the case of the Daiken Chemicals powder. Both materials had a highly dense microstructure with few pores between the grains.
The viscosity of the suspension was adjusted to reduce the sedimentation of the particles, but at the same time avoid blocking of the nozzle when injecting. TEGOMER DA 850 from EVONIK was chosen as an additive in pure ethanol. The viscosity of the final suspension (with 10 wt.% Tegomer DA850) was measured using RheoSense µVISC to be equal to ≈1.8 mPa.s at RT. The pH of the solution was measured to be 6.5 and its density 1.05 g.cm−3.
The stability of the prepared suspension should meet the quality for SPS coating. Since the SPS may take only a few minutes, it was found to be satisfactory if the suspension stayed stable for couple of hours. To do so, photos were taken over a period of a week. The suspension was placed in an ultrasonic bath for 30 min before starting the process to resemble all the conditions of the SPS process. As shown in Figure 3, the suspension stayed significantly stable for a few hours allowing it to be used for SPS. First signs of segmentation appeared after 5 h; however, significant segmentation took place only after a few days. The remaining suspension after the SPS process could be recovered for further usage, if it was needed.

2.4. Coatings Characterization

Samples were investigated for screening the thickness and density of the coating with cross sectional imaging by a scanning electron microscopy-focus ion beam (SEM-FIB) dual beam microscope (Thermo Fisher SCIOS) with a gallium liquid metal field ionization source. The average thickness of Pd coatings was obtained by measuring the cross sections of the samples with SEM (Thermo Fisher SCIOS) analysis in both secondary electron (ETD) and backscattered (BSE) mode. A comparison of the coating stability before and after permeability tests was carried out. All electron microscopy images shown here were taken at 30 kV and 1.6 nA. Additional EDX analysis was carried out using EDAX TEAM analysis system from AMETEK material analysis division.
With the aim of investigating the crystallinity of the samples, a Siemens D5000 diffractometer was used, equipped with a Cobalt (Co) source: 6.9257 keV, λ = 1.7902 Å. A locked θ-2θ Bragg–Brentano geometry was used.
A Philipps CM200-FEG transmission electron microscope (TEM) was used at 200 kV for the bright and dark images, higher magnification images and selective area diffraction patterns (SADP). For TEM imaging, all samples were prepared by FIB lift outs. The preparation is explained in detail in Hadjixenophontos et al. [70]. For more detailed analysis of the grain orientation, boundaries and size EBSD from EDAX was used. The area of interest was cleaned with the ion beam used at 5 kV and 48 pA for 5 min in order to obtain a clear signal on the EBSD detector. The program OIM was used for the analysis of the data obtained using the TEAM software.
In order to study the grain changes and hydrogen influence on the morphology of the palladium coating, samples were exposed to pure hydrogen (10 bar) at 300 °C for a few days. For this, a cylindrical stainless-steel reactor from BERGHOF was used with a heating surrounding. The samples were later prepared by FIB lift-outs for TEM investigations.

3. Results and Discussion

Since the aim of this study was to form a palladium coating with grain size in the range of 100–500 nm and with higher density of LAGBs for better hydrogen flux, the first investigations were focused on the crystallinity and morphology of the coatings. After plasma spraying, the samples were first imaged with SEM for surface and cross-sectional characterization. Figure 4a,b,e shows sample A prepared using the Daiken Chemical Pd powder suspension in SPS, and confirms the density of the sample and ≈10 µm thickness of the coating. The 8YSZ layer is also shown and its thickness was measured to be ≈25 µm. The porosity of the Crofer 22 APU substrate is visible while the EDX elemental mapping analysis in Figure 4e shows the different layers and their clear interfaces. Some differences are to be seen in the VPS coating where the pores appear to be fewer and a denser structure is visible in Figure 4c,d. The layer thickness for this sample was also estimated ≈10 µm. What is important to note is that the pores in both cases were of a diameter less than 1 µm and were isolated, not connected to each other.
Additionally, the coating’s surface was measured using a TURBO WAVE V7.8 profilometer by HOMMELWERKE at room temperature. An average roughness Ra = 5.27 µm and Ra = 1.39 µm for the SPS and the VPS samples respectively was obtained. Moreover, considering the substrates from the same batch, the porous Crofer and coated 8YSZ surface roughness were estimated 1.72 µm and <1 µm, respectively. The surface roughness of the Crofer surface might affect the quality of the 8YSZ, therefore, a two-step dip coating was used to produce a quite even and smooth surface for Pd coating. On the other hand, too smooth a surface might lead to poor adhesion between the Pd layer and 8YSZ.
Additional characterization was carried out on both fabricated methods to examine the crystallinity of the palladium coating. The XRD spectra in Figure 5 indicated that the layers were fully crystalline and all palladium orientations were indicated with high intensities showing that there was no preferential orientation of the crystals. A small, inconsequential amount of impurities appeared at around 42°. Conclusively, suspension feedstock in SPS and powder feedstock in VPS are both capable of fabricating dense crystalline palladium membranes of a thickness of ≈10 µm.
As a comparison, the sample exposed to a 20-bar hydrogen atmosphere, at 300 °C for 75 h is shown in Figure 5. The XRD of the sample fitted to the previously as-prepared ones, with significantly broader peaks, showing signs of grain growth. The SEM micrograph in the image in Figure 5b is the same sample showing some pores still present in the sample after heat treatment. A more detailed analysis on the grains was carried out hereafter by TEM and EBSD.
In order to investigate the grain boundaries of the palladium coatings before exposing the samples to hydrogen atmosphere, high resolution imaging of sample A—SPS was carried out, showing in this case, two grains combined to one particle. The grain boundary is indicated clearly at the line where the change in fast Fourier transformation (FFT) of both grains is obtained. In Figure 6, two grains are shown with their respective FFT showing that they have different orientations. This shows that careful analysis for the correct grain size is needed. For this, many dark field images were obtained, by tilting the beam to the different orientations, making sure every time that only one orientation was visible under the aperture. This same procedure was carried out for both samples.
Figure 7 shows the bright field images of both samples before exposing them to hydrogen. Figure 7b,e for sample A—SPS and B—VPS, respectively, shows the dark field images representing the grains of different orientations. Each color represents a different orientation (different dark field image), showing in this way that there is a random orientation of the nanograins in both cases. In the case of the SPS sample, an average grain size of 540 nm was obtained with a wide range of grain size between 1.2 µm and 190 nm. While the VPS samples showed a slightly smaller grain size with an average of 400 nm (with grains between 650 nm and 110 nm). The SADP of both samples indicated the purity and crystallinity of the coatings indexed to pure palladium. Moreover, both samples showed the pure crystalline palladium in the HRTEM in Figure 7g,h.
Special care at the crucial temperature of 300 °C in hydrogen atmosphere needs to be given for palladium coatings intended for hydrogen production and purification [71]. Since the α-to-β phase transition may occur at this temperature, both samples were exposed to 300 °C to see how the microstructure was affected. Figure 8 shows dark field images of the sample at different orientations. Figure 8b specifies at which reflection the grains belong to each indicating color. The red colored grains belong to the same reflection and appear to have significantly greater size. No significant change in the grain size is shown in this case (average grain size 610 nm), however, a delamination from the substrate occurred. As discussed earlier, the surface roughness of the 8YSZ layer is of great importance. The delamination after exposure to H2 could happen if the adhesion between the Pd layer and 8YSZ is poor. A crystal lattice expansion might happen, which, in turn, would result in a dilation causing compressive strain in the longitudinal direction [72,73]. Increasing the roughness of the 8YSZ surface might enhance the adhesion so that the Pd layer is not delaminated. This effect will be studied and addressed separately in the future.
It is worth mentioning that the pores were still visible in the sample with a diameter less than 1 µm while they were isolated without interconnection.
In order to see the misorientation of the grains in a larger area of the sample and to be able to characterize whether they had large or small angle grain boundaries, EBSD analysis was used. Figure 9 presents the EBSD mapping analysis for each sample, along with the grain misorientation and grain size. In the maps, each color shows a different orientation and, therefore, all maps show that there is no preferred orientation in the grains of the samples. The areas indicated in black are areas that due to roughness could not be measured by the detector. After increasing the temperature to 300 °C, the sample increased in grain size from an average of 330 nm to 720 nm. The orientation of the grains stayed, however, on the favorable side of the large-angle grain boundaries for hydrogen diffusion. In blue, in the graph in Figure 9d, one can see that all samples had a misorientation preferentially over the range of 15–60°. This indicates that the samples with SPS and VPS were mainly composed of LAGBs which were well maintained after heat treatment and exposure to hydrogen. This should assist in enhancing hydrogen diffusion through the coating.

4. Conclusions

Two manufacturing techniques including SPS and VPS were used for the production of a Pd coating in an attempt to obtain Pd membranes with grain size 0.1–1 µm, promoting LAGB while suppressing SAGB, which would allow the high selectivity and permeability of hydrogen. The SPS technique required a suspension consisting of Pd particles of 150 nm (nanosize) while a dry Pd powder with a particle size of 1–16 µm (microsize) was used for VPS. The substrates of Crofer 22 APU sinter metals (Ra = 1.72 µm, thickness 1 mm), double-coated with 8YSZ (Ra < 1 µm, thickness ≈ 25 µm) were used for the Pd coating. The implemented techniques of Pd coating led to an average grain size ranging around 500 and 600, probably allowing a good selectivity-permeation of hydrogen. Considering the phase transition of Pd, the samples were treated at 300 °C with a pure hydrogen stream and pressure of 20 bar for 72 h. This caused a change in the average grain size from 100–500 nm to 536 and 720 nm for VPS and SPS, respectively. Such a rather low thickness of Pd in comparison with commercial Pd foils might enhance the performance of a membrane reactor which was the ultimate aim of this study.

Author Contributions

Conceptualization, E.H. and M.M.; methodology, E.H.; validation, E.H. and M.M.; formal analysis, M.M and A.A.; investigation, E.H., M.M. and D.U.; resources, E.H., M.M., A.C.H. and D.U., data curation, E.H.; writing—original draft preparation, E.H.; writing—review and editing, M.M. and F.R.; visualization, E.H.; supervision, M.R., A.A. and J.B.; project administration, R.D., A.A. and A.C.H.; funding acquisition, R.D., A.A. and A.C.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Arbeitsgemeinschaft industrieller Forschungsvereinigungen Otto von Guericke e.V. (AiF) under the agreement, ZF4591901ZG8.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors also thank Volker Thielke and Günter Roth for their professional support during the experiments and sample characterization. We also would like to thank Robert Lawitzki and Guido Schmitz from the Department of Materials Science, Institute of Materials Physics at the University of Stuttgart, for their support in the use of transmission electron microscopy at their facilities. In addition, the contribution and support of Torsten Wunsch (IMVT) for laser-cutting, Martin Bram and his group at the Institute of Energy and Climate Research (IEK-1), Forschungszentrum Jülich GmbH, Germany are gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dolan, M.D. Non-Pd BCC alloy membranes for industrial hydrogen separation. J. Membr. Sci. 2010, 362, 12–28. [Google Scholar] [CrossRef]
  2. Staffell, I.; Scamman, D.; Velazquez Abad, A.; Balcombe, P.; Dodds, P.E.; Ekins, P.; Shah, N.; Ward, K.R. The role of hydrogen and fuel cells in the global energy system. Energy Environ. Sci. 2019, 12, 463–491. [Google Scholar] [CrossRef] [Green Version]
  3. Peters, T.A.; Carvalho, P.A.; Stange, M.; Bredesen, R. Formation of hydrogen bubbles in Pd-Ag membranes during H2 permeation. Int. J. Hydrogen Energy 2019, 45, 7488–7496. [Google Scholar] [CrossRef]
  4. Peters, T.; Caravella, A. Pd-Based Membranes: Overview and Perspectives. Membranes 2019, 9, 25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Bernardo, G.; Araújo, T.; da Silva Lopes, T.; Sousa, J.; Mendes, A. Recent advances in membrane technologies for hydrogen purification. Int. J. Hydrog. Energy 2020, 45, 7313–7338. [Google Scholar] [CrossRef]
  6. Hafeez, S.; Al-Salem, S.; Manos, G.; Constantinou, A. Fuel production using membrane reactors: A review. Environ. Chem. Lett. 2020, 18, 1477–1490. [Google Scholar] [CrossRef]
  7. Freeman, B.D. Basis of Permeability/Selectivity Tradeoff Relations in Polymeric Gas Separation Membranes. Macromolecules 1999, 32, 375–380. [Google Scholar] [CrossRef]
  8. Ockwig, N.W.; Nenoff, T.M. Membranes for hydrogen separation. Chem. Rev. 2007, 107, 4078–4110. [Google Scholar] [CrossRef]
  9. Gallucci, F.; Fernandez, E.; Corengia, P.; van Sint Annaland, M. Recent advances on membranes and membrane reactors for hydrogen production. Chem. Eng. Sci. 2013, 92, 40–66. [Google Scholar] [CrossRef]
  10. Alique, D.; Martinez-Diaz, D.; Sanz, R.; Calles, J.A. Review of Supported Pd-Based Membranes Preparation by Electroless Plating for Ultra-Pure Hydrogen Production. Membranes 2018, 8, 5. [Google Scholar] [CrossRef] [Green Version]
  11. Wunsch, A.; Kant, P.; Mohr, M.; Haas-Santo, K.; Pfeifer, P.; Dittmeyer, R. Recent Developments in Compact Membrane Reactors with Hydrogen Separation. Membranes 2018, 8, 107. [Google Scholar] [CrossRef] [Green Version]
  12. Kiadehi, A.D.; Taghizadeh, M. Fabrication, characterization, and application of palladium composite membrane on porous stainless steel substrate with NaY zeolite as an intermediate layer for hydrogen purification. Int. J. Hydrogen Energy 2019, 44, 2889–2904. [Google Scholar] [CrossRef]
  13. Bryden, K. Nanostructured palladium–iron membranes for hydrogen separation and membrane hydrogenation reactions. J. Membr. Sci. 2002, 203, 29–42. [Google Scholar] [CrossRef]
  14. Natter, H.; Wettmann, B.; Heisel, B.; Hempelmann, R. Hydrogen in nanocrystalline palladium. J. Alloys Compd. 1997, 253–254, 84–86. [Google Scholar] [CrossRef]
  15. Stuhr, U.; Striffler, T.; Wipf, H.; Natter, H.; Wettmann, B.; Janssen, S.; Hempelmann, R.; Hahn, H. An investigation of hydrogen diffusion in nanocrystalline Pd by neutron spectroscopy. J. Alloys Compd. 1997, 253–254, 393–396. [Google Scholar] [CrossRef]
  16. McCool, B.A.; Lin, Y.S. Nanostructured thin palladium-silver membranes: Effects of grain size on gas permeation properties. J. Mater. Sci. 2001, 36, 3221–3227. [Google Scholar] [CrossRef]
  17. Okazaki, J.; Ikeda, T.; Pacheco Tanaka, D.A.; Suzuki, T.M.; Mizukami, F. In situ high-temperature X-ray diffraction study of thin palladium/α-alumina composite membranes and their hydrogen permeation properties. J. Membr. Sci. 2009, 335, 126–132. [Google Scholar] [CrossRef]
  18. Vicinanza, N.; Svenum, I.-H.; Næss, L.N.; Peters, T.A.; Bredesen, R.; Borg, A.; Venvik, H.J. Thickness dependent effects of solubility and surface phenomena on the hydrogen transport properties of sputtered Pd77%Ag23% thin film membranes. J. Membr. Sci. 2015, 476, 602–608. [Google Scholar] [CrossRef] [Green Version]
  19. Makrides, A.C.W.; Wright, M.A.; Jewett, D.A. Separation of Hydrogen by Permeation. U.S. Patent 3, 350,846, 7 November 1967. [Google Scholar]
  20. Zhang, K.; Gade, S.K.; Hatlevik, Ø.; Way, J.D. A sorption rate hypothesis for the increase in H2 permeability of palladium-silver (Pd–Ag) membranes caused by air oxidation. Int. J. Hydrogen Energy 2012, 37, 583–593. [Google Scholar] [CrossRef]
  21. Kirchheim, R.; Kownacka, I.; Filipek, S.M. Hydrogen segratation at grain boundaries in nanocrystalline nickel. Scr. Metall. Mater. 1993, 28, 1229–1234. [Google Scholar] [CrossRef]
  22. Lemier, C.; Weissmüller, J. Grain boundary segregation, stress and stretch: Effects on hydrogen absorption in nanocrystalline palladium. Acta Mater. 2007, 55, 1241–1254. [Google Scholar] [CrossRef]
  23. Lovvik, O.M.; Zhao, D.; Li, Y.; Bredesen, R.; Peters, T. Grain Boundary Segregation in Pd-Cu-Ag Alloys for High Permeability Hydrogen Separation Membranes. Membranes 2018, 8, 81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Oudriss, A.; Creus, J.; Bouhattate, J.; Conforto, E.; Berziou, C.; Savall, C.; Feaugas, X. Grain size and grain-boundary effects on diffusion and trapping of hydrogen in pure nickel. Acta Mater. 2012, 60, 6814–6828. [Google Scholar] [CrossRef]
  25. Ievlev, V.M.; Prizhimov, A.S.; Boldyreva, A.V. Interaction of Hydrogen Atoms with Grain Boundaries in Palladium Bicrystals. Inorg. Mater. 2018, 54, 421–425. [Google Scholar] [CrossRef]
  26. Oudriss, A.; Creus, J.; Bouhattate, J.; Savall, C.; Peraudeau, B.; Feaugas, X. The diffusion and trapping of hydrogen along the grain boundaries in polycrystalline nickel. Scr. Mater. 2012, 66, 37–40. [Google Scholar] [CrossRef]
  27. Mine, Y.; Tachibana, K.; Horita, Z. Grain-boundary diffusion and precipitate trapping of hydrogen in ultrafine-grained austenitic stainless steels processed by high-pressure torsion. Mater. Sci. Eng. A 2011, 528, 8100–8105. [Google Scholar] [CrossRef]
  28. Mine, Y.; Horita, Z.; Murakami, Y. Effect of high-pressure torsion on hydrogen trapping in Fe–0.01mass% C and type 310S austenitic stainless steel. Acta Mater. 2010, 58, 649–657. [Google Scholar] [CrossRef]
  29. Lee, S.M.; Lee, J.Y. The Trapping and Transport Phenomena of Hydrogen in Nickel. Metall. Trans. A 1986, 17, 181–187. [Google Scholar] [CrossRef]
  30. Choo, W.Y.; Lee, J.Y. Thermal Analysis of Trapped Hydrogen in Pure Iron. Metall. Trans. A 1982, 13, 135–140. [Google Scholar] [CrossRef]
  31. Iwaoka, H.; Arita, M.; Horita, Z. Hydrogen diffusion in ultrafine-grained palladium: Roles of dislocations and grain boundaries. Acta Mater. 2016, 107, 168–177. [Google Scholar] [CrossRef]
  32. Nam, S. A study on the palladium/nickel composite membrane by vacuum electrodeposition. J. Membr. Sci. 2000, 170, 91–99. [Google Scholar] [CrossRef]
  33. Arratibel Plazaola, A.; Pacheco Tanaka, D.A.; Van Sint Annaland, M.; Gallucci, F. Recent Advances in Pd-Based Membranes for Membrane Reactors. Molecules 2017, 22, 51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Gora, A.; Tanak, D.A.P.; Mizukami, F.; Suzuk, T.M. Lower Temperature Dehydrogenation of Methylcyclohexane by Membrane-assisted Equilibrium Shift. Chem. Lett. 2006, 35, 1372–1373. [Google Scholar] [CrossRef]
  35. Zhao, T.; Okazaki, J.; Tanaka, D.A.P.; Suzuki, T.M.; Wakui, Y. Hydrogen Separation with “Pore-Fill” Type Palladium Membrane. In Proceedings of the 2011 Spring Meeting & 7th Global Congress on Process Safety, Chicago, IL, USA, 13–17 March 2011. [Google Scholar]
  36. Lin, Y.S. Microporous and dense inorganic membranes: Current status and prospective. Sep. Purif. Technol. 2001, 25, 39–55. [Google Scholar] [CrossRef]
  37. Yeung, K.; Christiansen, S.C.; Varma, A. Palladium composite membranes by electroless plating technique relationships between plating kinetics, ®lm microstructure and membrane performance. J. Membr. Sci. 1999, 159, 107–122. [Google Scholar] [CrossRef]
  38. Guazzone, F.; Ma, Y.H. Leak growth mechanism in composite Pd membranes prepared by the electroless deposition method. AIChE J. 2008, 54, 487–494. [Google Scholar] [CrossRef]
  39. Rahimpour, M.R.; Samimi, F.; Babapoor, A.; Tohidian, T.; Mohebi, S. Palladium membranes applications in reaction systems for hydrogen separation and purification: A review. Chem. Eng. Processing Process Intensif. 2017, 121, 24–49. [Google Scholar] [CrossRef]
  40. Fernandez, E.; Helmi, A.; Medrano, J.A.; Coenen, K.; Arratibel, A.; Melendez, J.; de Nooijer, N.C.A.; Spallina, V.; Viviente, J.L.; Zuñiga, J.; et al. Palladium based membranes and membrane reactors for hydrogen production and purification: An overview of research activities at Tecnalia and TU/e. Int. J. Hydrogen Energy 2017, 42, 13763–13776. [Google Scholar] [CrossRef] [Green Version]
  41. Zheng, L.; Li, H.; Xu, H. “Defect-free” interlayer with a smooth surface and controlled pore-mouth size for thin and thermally stable Pd composite membranes. Int. J. Hydrogen Energy 2016, 41, 1002–1009. [Google Scholar] [CrossRef]
  42. Melendez, J.; Fernandez, E.; Gallucci, F.; van Sint Annaland, M.; Arias, P.L.; Pacheco Tanaka, D.A. Preparation and characterization of ceramic supported ultra-thin (~1 µm) Pd-Ag membranes. J. Membr. Sci. 2017, 528, 12–23. [Google Scholar] [CrossRef] [Green Version]
  43. Altinisik, O.; Dogan, M.; Dogu, G. Preparation and characterization of palladium-plated porous glass for hydrogen enrichment. Catal. Today 2005, 105, 641–646. [Google Scholar] [CrossRef]
  44. Ye, J.; Dan, G.; Yuan, Q. The preparation of ultrathin palladium membrane. In Key Engineering Materials; Trans Tech Publications, Ltd.: Bäch, Switzerland, 1992; pp. 437–442. [Google Scholar]
  45. Itoh, N.; Akiha, T.; Sato, T. Preparation of thin palladium composite membrane tube by a CVD technique and its hydrogen permselectivity. Catal. Today 2005, 104, 231–237. [Google Scholar] [CrossRef]
  46. Xomeritakis, G.; Lin, Y. Fabrication of a thin palladium membrane supported in a porous ceramic substrate by chemical vapor deposition. J. Membr. Sci. 1996, 120, 261–272. [Google Scholar] [CrossRef]
  47. Zhao, H.; Xiong, G.; Stroh, N.; Brunner, H. Preparation and characterization of Pd-Ag alloy composite membrane with magnetron sputtering. Sci. China Ser. B Chem. 1999, 42, 581–588. [Google Scholar] [CrossRef] [Green Version]
  48. Yun, S.; Oyama, S.T. Correlations in palladium membranes for hydrogen separation: A review. J. Membr. Sci. 2011, 375, 28–45. [Google Scholar] [CrossRef]
  49. Okazaki, J.; Ikeda, T.; Tanaka, D.A.P.; Sato, K.; Suzuki, T.M.; Mizukami, F. An investigation of thermal stability of thin palladium–silver alloy membranes for high temperature hydrogen separation. J. Membr. Sci. 2011, 366, 212–219. [Google Scholar] [CrossRef]
  50. Asif Ansar, G.S.; Patz, O.; Gregoire, J.B.; Ilhan, Z. Plasma Sprayed Oxygen Electrode for Solid Oxide Fuel Cells and High Temperature Electrolyzers. In Proceedings of the 8th European SOFC Forum, Lucerne, Switzerland, 30 June–3 July 2008. [Google Scholar]
  51. Fauchais, P.; Vardelle, M.; Vardelle, A.; Goutier, S. What Do We Know, What are the Current Limitations of Suspension Plasma Spraying? J. Therm. Spray Technol. 2015, 24, 1120–1129. [Google Scholar] [CrossRef] [Green Version]
  52. Quicker, P.; Höllein, V.; Dittmeyer, R. Dittmeyer Catalytic dehydrogenation of hydrocarbons in palladium composite membrane reactors. Catal. Today 2000, 56, 21–34. [Google Scholar] [CrossRef]
  53. Höllein, V.; Thornton, M.; Quicker, P.; Dittmeyer, R. Preparation and characterization of palladium composite membranes for hydrogen removal in hydrocarbon dehydrogenation membrane reactors. Catal. Today 2001, 67, 33–42. [Google Scholar] [CrossRef]
  54. Fauchais, P. Current status and future directions of thermal spray coatings and techniques. In Future Development of Thermal Spray Coatings; Elsevier: Amsterdam, The Netherlands, 2015; pp. 17–49. [Google Scholar]
  55. Lee, T.H.; Park, C.Y.; Lee, G.; Dorris, S.E.; Balachandran, U. Hydrogen transport properties of palladium film prepared by colloidal spray deposition. J. Membr. Sci. 2012, 415–416, 199–204. [Google Scholar] [CrossRef]
  56. Boeltken, T.; Soysal, D.; Lee, S.; Straczewski, G.; Gerhards, U.; Peifer, P.; Arnold, J.; Dittmeyer, R. Perspectives of suspension plasma spraying of palladium nanoparticles for preparation of thin palladium composite membranes. J. Membr. Sci. 2014, 468, 233–241. [Google Scholar] [CrossRef]
  57. Fauchais, P.; Vardelle, A.; Dussoubs, B. Quo VadisThermal Spraying? J. Therm. Spray Technol. 2001, 10, 44. [Google Scholar] [CrossRef]
  58. Crawmer, D.E. Thermal Spray Processes. In Handbook of Thermal Spray Technology; ASM International: Materials Park, OH, USA, 2013; pp. 54–76. [Google Scholar]
  59. Fauchais, P. Understanding plasma spraying. J. Phys. D Appl. Phys. 2004, 37, R86–R108. [Google Scholar] [CrossRef]
  60. Tejero-Martin, D.; Rezvani Rad, M.; McDonald, A.; Hussain, T. Beyond Traditional Coatings: A Review on Thermal-Sprayed Functional and Smart Coatings. J. Therm. Spray Technol. 2019, 28, 598–644. [Google Scholar] [CrossRef] [Green Version]
  61. Vaßen, R.; Kaßner, H.; Mauer, G.; Stöver, D. Suspension Plasma Spraying: Process Characteristics and Applications. J. Therm. Spray Technol. 2009, 19, 219–225. [Google Scholar] [CrossRef]
  62. Pawlowski, L. Suspension and solution thermal spray coatings. Surf. Coat. Technol. 2009, 203, 2807–2829. [Google Scholar] [CrossRef]
  63. Killinger, A.; Gadow, R.; Mauer, G.; Guignard, A.; Vaßen, R.; Stöver, D. Review of New Developments in Suspension and Solution Precursor Thermal Spray Processes. J. Therm. Spray Technol. 2011, 20, 677–695. [Google Scholar] [CrossRef]
  64. Kassner, H.; Siegert, R.; Hathiramani, D.; Vassen, R.; Stoever, D. Application of Suspension Plasma Spraying (SPS) for Manufacture of Ceramic Coatings. J. Therm. Spray Technol. 2007, 17, 115–123. [Google Scholar] [CrossRef]
  65. Fauchais, P.; Joulia, A.; Goutier, S.; Chazelas, C.; Vardelle, M.; Vardelle, A.; Rossignol, S. Suspension and solution plasma spraying. J. Phys. D Appl. Phys. 2013, 46, 224015. [Google Scholar] [CrossRef]
  66. Killinger, A. Status and future trends in suspension spray techniques. In Future Development of Thermal Spray Coatings; Elsevier: Amsterdam, The Netherlands, 2015; pp. 81–122. [Google Scholar]
  67. Fauchais, P.; Montavon, G.; Vardelle, M.; Cedelle, J. Developments in direct current plasma spraying. Surf. Coat. Technol. 2006, 201, 1908–1921. [Google Scholar] [CrossRef]
  68. Felipe Miranda, F.C. Alexei Essiptchouk and Gilberto Pertraconi. In Atmospheric Plasma Spray Processes: From Micro to Nanostructures; IntechOpen: London, UK, 2018. [Google Scholar]
  69. Mahade, S.; Narayan, K.; Govindarajan, S.; Bjorklund, S.; Curry, N.; Joshi, S. Exploiting Suspension Plasma Spraying to Deposit Wear-Resistant Carbide Coatings. Materials 2019, 12, 2344. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Hadjixenophontos, E.; Roussel, M.; Sato, T.; Weigel, A.; Stender, P.; Orimo, S.-I.; Schmitz, G. Imaging the hydrogenation of Mg thin films. Int. J. Hydrogen Energy 2017, 42, 22411–22416. [Google Scholar] [CrossRef]
  71. Peters, T.A.; Carvalho, P.A.; van Wees, J.F.; Overbeek, J.P.; Sagvolden, E.; van Berkel, F.P.F.; Løvvik, O.M.; Bredesen, R. Leakage evolution and atomic-scale changes in Pd-based membranes induced by long-term hydrogen permeation. J. Membr. Sci. 2018, 563, 398–404. [Google Scholar] [CrossRef]
  72. Bryden, K.J.; Ying, J.Y. Nanostructured palladium membrane synthesis by magnetron sputtering. Mater. Sci. Eng. A 1995, 204, 140–145. [Google Scholar] [CrossRef]
  73. Huang, Y.; Dittmeyer, R. Preparation and characterization of composite palladium membranes on sinter-metal supports with a ceramic barrier against intermetallic diffusion. J. Membr. Sci. 2006, 282, 296–310. [Google Scholar] [CrossRef]
Figure 1. Left-hand side: CCD camera recordings of the injected water suspensions into the plasma flame (a) 4 bar, nozzle diameter of 0.2 mm, (b) 9 bar, nozzle diameter of 0.2 mm, (c) 9 bar, nozzle diameter of 0.3 mm, (d) plasma with no suspension as a reference. Right-hand side: schematics of the process for two techniques of APS and VPS in this study.
Figure 1. Left-hand side: CCD camera recordings of the injected water suspensions into the plasma flame (a) 4 bar, nozzle diameter of 0.2 mm, (b) 9 bar, nozzle diameter of 0.2 mm, (c) 9 bar, nozzle diameter of 0.3 mm, (d) plasma with no suspension as a reference. Right-hand side: schematics of the process for two techniques of APS and VPS in this study.
Membranes 12 00617 g001
Figure 2. SEM images of the powders using 20 kV, 1.6 nA and ETD detector showing the average particle (a) Daiken chemicals Pd powder, (b) Hafner, and (c) EDX analysis of the powders showing their purity.
Figure 2. SEM images of the powders using 20 kV, 1.6 nA and ETD detector showing the average particle (a) Daiken chemicals Pd powder, (b) Hafner, and (c) EDX analysis of the powders showing their purity.
Membranes 12 00617 g002

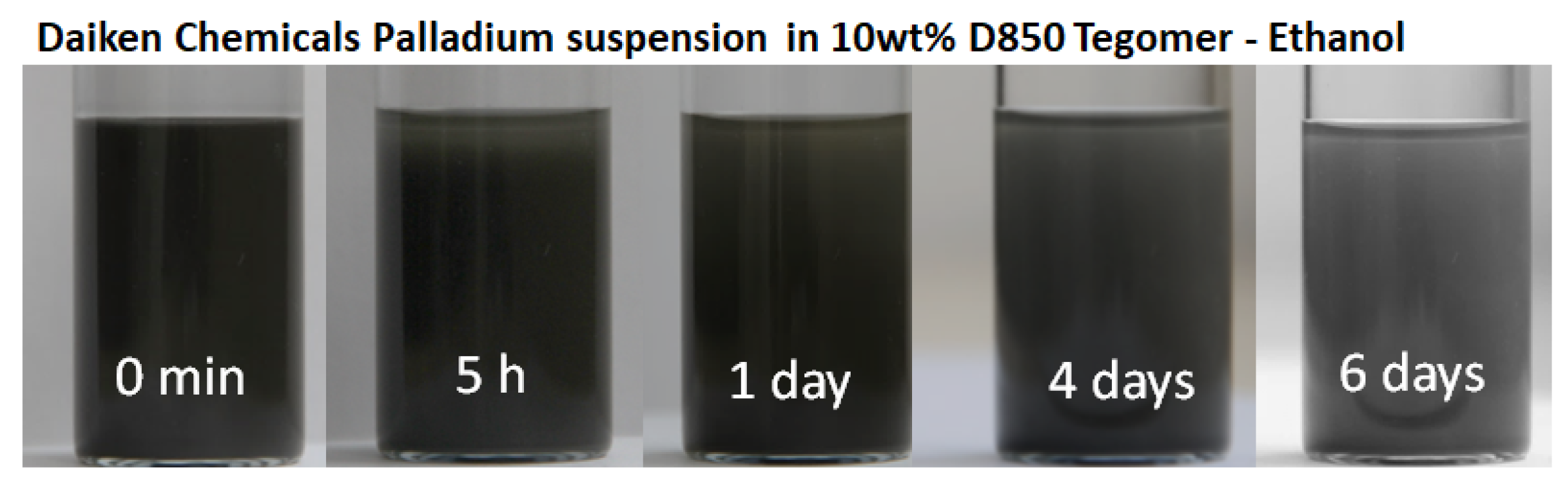

Figure 3. Photos taken of the suspension consisting of 5 wt.% of Daiken Chemicals palladium powder in 10 wt.% Tegomer in ethanol solution for different relaxing times.
Figure 3. Photos taken of the suspension consisting of 5 wt.% of Daiken Chemicals palladium powder in 10 wt.% Tegomer in ethanol solution for different relaxing times.
Membranes 12 00617 g003
Figure 4. SEM micrographs of the samples using 30 kV, 1.6 nA. Secondary electron image of the surface showing the roughness of the layers for samples of SPS (a), and VPS (c). Cross-section view of the layers of SPS (b), and VPS (d). Backscattered detector cross section image ((e) left) and EDX elemental mapping analysis ((e) right) for SPS sample.
Figure 4. SEM micrographs of the samples using 30 kV, 1.6 nA. Secondary electron image of the surface showing the roughness of the layers for samples of SPS (a), and VPS (c). Cross-section view of the layers of SPS (b), and VPS (d). Backscattered detector cross section image ((e) left) and EDX elemental mapping analysis ((e) right) for SPS sample.
Membranes 12 00617 g004

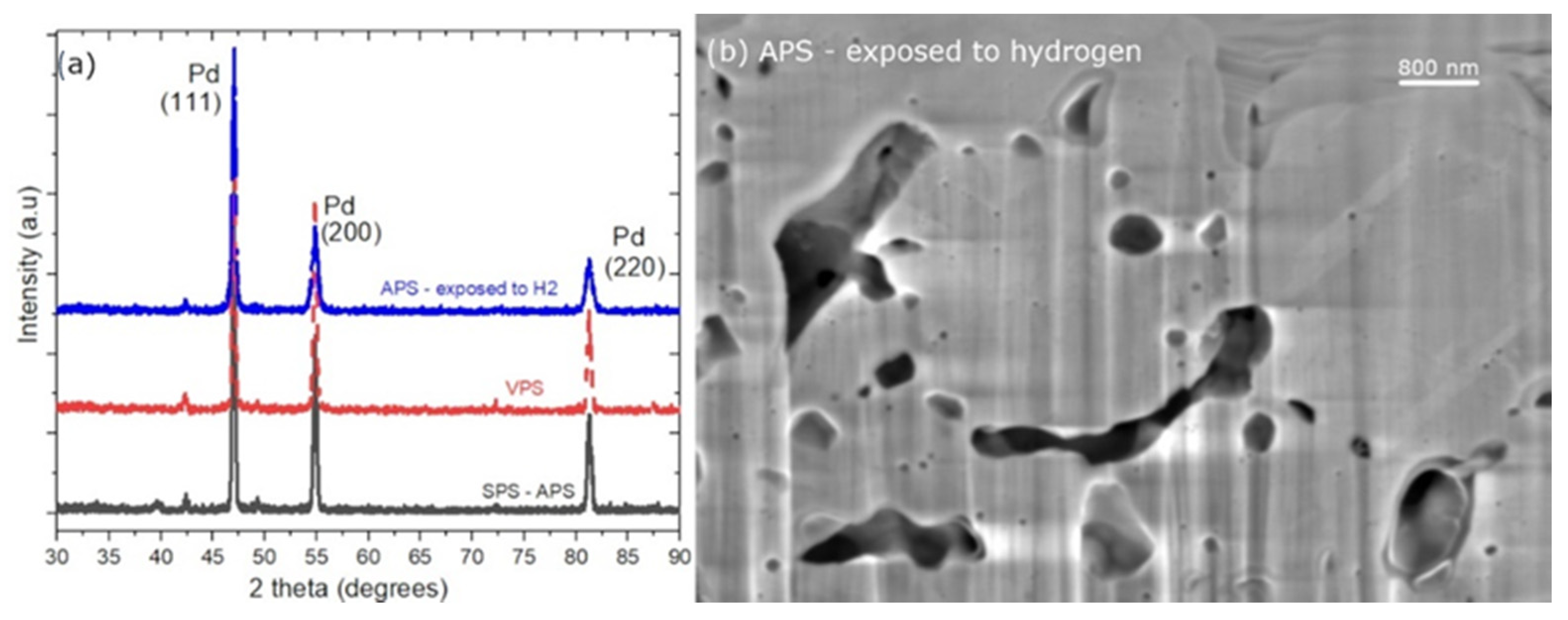

Figure 5. XRD patterns of the coated samples using a Co-source (a); samples of SPS-APS (black straight line), VPS (red dotted line), and APS exposed to H2 at 300 °C, 20 bars, for 75 h (blue dotted line). (b) SEM image of the APS sample showing remaining pores after treatment with H2 at 300 °C, 20 bars, for 75 h.
Figure 5. XRD patterns of the coated samples using a Co-source (a); samples of SPS-APS (black straight line), VPS (red dotted line), and APS exposed to H2 at 300 °C, 20 bars, for 75 h (blue dotted line). (b) SEM image of the APS sample showing remaining pores after treatment with H2 at 300 °C, 20 bars, for 75 h.
Membranes 12 00617 g005
Figure 6. TEM analysis of two grains at two different orientations for APS sample without H2 treatment.
Figure 6. TEM analysis of two grains at two different orientations for APS sample without H2 treatment.
Membranes 12 00617 g006
Figure 7. TEM bright field images of the samples (a,d), many dark field images of the coatings superposed with different colors showing the different orientations and the grain size (b,e), SADP of each sample showing in both cases the pure palladium (c,f), and HRTEM (g,h).
Figure 7. TEM bright field images of the samples (a,d), many dark field images of the coatings superposed with different colors showing the different orientations and the grain size (b,e), SADP of each sample showing in both cases the pure palladium (c,f), and HRTEM (g,h).
Membranes 12 00617 g007
Figure 8. Superposition of dark field images of the reflection in circles for each color (a), Diffraction pattern with each color (shown in (a)) indicating the different grain orientation (b).
Figure 8. Superposition of dark field images of the reflection in circles for each color (a), Diffraction pattern with each color (shown in (a)) indicating the different grain orientation (b).
Membranes 12 00617 g008
Figure 9. EBSD mapping of the samples: (a) as prepared after SPS-APS, (b) the SPS-APS sample heated at 300 °C, 20 bar of hydrogen for 72 h, (c) VPS samples exposed at 500 °C, 1 bar of hydrogen atmosphere, (d) misorientation angle between the grains, (e) the grain size distribution analysis from the respective EBSD map.
Figure 9. EBSD mapping of the samples: (a) as prepared after SPS-APS, (b) the SPS-APS sample heated at 300 °C, 20 bar of hydrogen for 72 h, (c) VPS samples exposed at 500 °C, 1 bar of hydrogen atmosphere, (d) misorientation angle between the grains, (e) the grain size distribution analysis from the respective EBSD map.
Membranes 12 00617 g009
