Functionalized GO Membranes for Efficient Separation of Acid Gases from Natural Gas: A Computational Mechanistic Understanding

by
Quan Liu
1,
Zhonglian Yang
1,*,
Gongping Liu
2,
Longlong Sun
1,
Rong Xu
3,* and
Jing Zhong
3
1
Analytical and Testing Center, School of Chemical Engineering, Anhui University of Science and Technology, Huainan 232001, China
2
State Key Laboratory of Materials-Oriented Chemical Engineering, College of Chemical Engineering, Nanjing Tech University, 30 Puzhu Road (S), Nanjing 211816, China
3
Key Laboratory of Advanced Catalytic Materials and Technology, School of Petrochemical Engineering, Changzhou University, Gehu Road, Changzhou 213164, China
*
Authors to whom correspondence should be addressed.
Membranes 2022, 12(11), 1155; https://doi.org/10.3390/membranes12111155
Submission received: 19 October 2022 / Revised: 10 November 2022 / Accepted: 15 November 2022 / Published: 16 November 2022
(This article belongs to the Special Issue Preparation and Application of Advanced Functional Membranes)
Browse Figures
Review Reports Versions Notes

Abstract

:
Membrane separation technology is applied in natural gas processing, while a high-performance membrane is highly in demand. This paper considers the bright future of functionalized graphene oxide (GO) membranes in acid gas removal from natural gas. By molecular simulations, the adsorption and diffusion behaviors of several unary gases (N2, CH4, CO2, H2S, and SO2) are explored in the 1,4-phenylenediamine-2-sulfonate (PDASA)-doped GO channels. Molecular insights show that the multilayer adsorption of acid gases evaluates well by the Redlich-Peterson model. A tiny amount of PDASA promotes the solubility coefficient of CO2 and H2S, respectively, up to 4.5 and 5.3 mmol·g−1·kPa−1, nearly 2.5 times higher than those of a pure GO membrane, which is due to the improved binding affinity, great isosteric heat, and hydrogen bonds, while N2 and CH4 only show single-layer adsorption with solubility coefficients lower than 0.002 mmol·g−1·kPa−1, and their weak adsorption is insusceptible to PDASA. Although acid gas diffusivity in GO channels is inhibited below 20 × 10−6 cm2·s−1 by PDASA, the solubility coefficient of acid gases is certainly high enough to ensure their separation efficiency. As a result, the permeabilities (P) of acid gases and their selectivities (α) over CH4 are simultaneously improved (PCO2 = 7265.5 Barrer, αCO2/CH4 = 95.7; P(H2S+CO2) = 42075.1 Barrer, αH2S/CH4 = 243.8), which outperforms most of the ever-reported membranes. This theoretical study gives a mechanistic understanding of acid gas separation and provides a unique design strategy to develop high-performance GO membranes toward efficient natural gas processing.

Graphical Abstract

1. Introduction

Methane (CH4), as the main constituent of natural gas, is one kind of renewable energy source [1]. The raw natural gas coming from crude oil wells always exists in the form of mixtures, containing other light hydrocarbons, nitrogen (N2), carbon dioxide (CO2), hydrogen sulfide (H2S), and sulfur dioxide (SO2). Among these impurities, significant amounts of CO2, H2S, and SO2 commonly called acid gases are the most harmful components in raw natural gas, which not only lowers the calorific value of CH4 but also causes internal corrosion in gas pipelines [2,3]. Therefore, to meet the requirements of end users and the specifications of transportation pipelines, the removal of acid gases is an essential process in natural gas processing [3,4]. Several processes can be adopted to remove acid gases, including pressure swing adsorption, supersonic separation, and membrane separation. In addition, natural gas can also be purified by forming CO2 hydrates from the gas mixtures [5,6,7]. The commercialized technology is amine scrubbing [8], which uses plenty of alkanolamine solutions in absorption columns to dissolve acid gases. However, it requires the use of large equipment, rapidly increasing the operating cost [9], and lots of undesirable liquid wastes produced in this process pose a threat to the environment. Alternatively, with low energy consumption, low pollution and high separation efficiency, membrane gas separation technology is regarded as a potential candidate for acid gas removal [10]. Especially under ordinary operation conditions (i.e., room temperature and low operating pressure), it will achieve better economic benefits in natural gas processing.
Various membrane materials have been developed to address these challenging separations, such as polymer [11,12], metal-organic framework (MOF) [13,14] and graphene [15]. Among them, the polymeric membrane is the most large-scale development for commercial, while its performance is somewhat low primarily due to the trade-off effect. Fortunately, two-dimensional (2D) graphene oxide (GO) membranes with tailorable channels and abundant active sites are emerging candidates for boosting molecular separation performance [15,16]. It is reported that their inherent transport channels can be regulated for selective permeation at the sub-nanometer scale [17]. For instance, by adjusting ultraviolet irradiation, the interlayer spacing of GO membrane was precisely controlled by Zheng et al. to improve the separation efficiency of these two species with a very low molecular weight difference [18]. Our previous work also showed that the 1,4-phenylenediamine-2-sulfonate (PDASA)-functionalized GO channels facilitated the adsorption of the polar molecule (i.e., water), and then largely promoted its permeation [19]. For acid gas removal, the CO2 permeability was successfully enhanced by incorporating GO nanosheets as the filler to create additional gas transport channels in polymers of intrinsic microporosity [20]. Additionally, using the strong affinity between GO and CO2 was a brilliant strategy to enhance the CO2 solubility in polyimide hybrid membranes [21]. After doping GO nanosheets, the CO2/CH4 separation performance of various polymeric membranes was promoted to outperform the 2008 Robeson upper bound [15,22].
However, as mentioned above, the GO nanosheet is mostly dispersed as a filler into mixed matrix membranes or prepared as hybrid membranes to separate CO2/CH4 [15,20,21,23], thus lack of exploration on pure GO membrane especially on its separation mechanism for acid gas removal. Fortunately, a few molecular simulations attempted to explore the CO2/CH4 separation process through pure GO membranes [24,25]. Whereas, for other 2D membranes, most previous simulations demonstrated that there were two main dominated separation mechanisms (i.e., the size-sieving effect and preferential adsorption) in natural gas processing [26,27,28]. A suitable aperture is key to the high separation performance of CO2/CH4 [26,27]. While in order to further improve the removal efficiency of CO2, the separation mechanism should be governed by preferential adsorption, which helps to improve CO2 separation selectivity [28]. However, until now, there has been no theoretical model established for acid gas separation through GO membranes. Therefore, in order to establish this theoretical model, it is necessary to study the acid gas permeation behavior in GO channels from the perspectives of adsorption and diffusion. Moreover, CO2 and other acid gases (i.e., H2S and SO2) need to be studied at the same time. Furthermore, to improve the removal efficiency, a rational design of a GO membrane at the molecular level is highly in demand. This study aims to theoretically design a high-performance GO membrane toward acid gas removal and explore the separation models.
In this work, GO membranes are functionalized by PDASA (this selection is inspired by our previous experimental work [19]) to examine how it performs in removing acid gases (CO2, H2S, and SO2) from CH4 and N2. By Grand Canonical Monte Carlo (GCMC) simulations, unary isotherms of different gases in GO membranes with variable doping amounts of PDASA are first studied by several adsorption models. To accurately describe the adsorption characteristics of different gases and provide molecular insights, structural and energetic analyses are conducted in GO channels via molecular distribution probability, radial distribution function (RDF), isosteric heat, and hydrogen bonds. The solubility coefficient is calculated to characterize the adsorption ability of different gases. Then gas diffusion behavior is explored by molecular dynamical (MD) simulations. After that, the acid gas separation performance is predicated on the basis of the solution-diffusion mechanism. Finally, a performance comparison with previous reports is enclosed to demonstrate the potential of the PDASA-doped GO membranes in natural gas processing.

2. Models and Methods

Figure 1 shows the simulation models. First of all, GO nanosheets with the format of C312(O)65(OH)79(COOH)4 were constructed by the Material studio in amorphous cell as per our previous works [16,29,30,31,32,33]. Functional groups were randomly distributed on the sp2-conjugated surface of which the dimensions were 3 × 3 nm2, as shown in Figure 1a. The numbers of epoxy, hydroxyl and carboxyl groups were 65, 79, and 4, respectively, similar to our previous experimental reports [19]. As a result, the oxidized ratio that was defined by the total number of oxygen atoms to carbon atoms was about 0.48, which is feasible in membrane process simulation for both gas and liquid separations [16,32,33]. Five gases with variable electronegativities and kinetic diameters were investigated, as shown in Figure 1b. Electrostatic potentials show that the acid gases of CO2, H2S and SO2 exhibit higher electronegativity compared to CH4 and N2. To reveal gas sorption and diffusion behaviors in the lamellar structure of GO membranes, two GO nanosheets were parallelly aligned with interlayer spacing initially set as 0.8 nm (Figure 1c). To increase the affinity between GO membrane and acid gases, interlayer channel was functionalized with PDASA groups (Figure 1f) that have a great affinity to polar molecules [19]. The number of doped PDASA molecules increased from 1 to 5, correspondingly to the doping amounts varying from 1.5 to 7.5 wt%. The atomic positions of GO nanosheets were flexible during simulations. After being loaded with PDASA groups, GO membranes were relaxed well, and then interlayer spacing was slightly enlarged, as shown in Figure 1d,e where the doping amounts are 4.5 wt% and 7.5 wt%, respectively.
Before GCMC simulations, GO membranes and gases were performed with geometry optimization to search for a minimum energy structure. In this process, the convergence thresholds of energy, force and displacement were specified as 10−5 kcal/mol, 10−3 kcal/mol/Å and 10−5 Å, respectively. To calculate adsorption isotherms of gases in flexible GO membranes, the Configurational bias method [34] was performed with 107 equilibration and production steps. The temperature was maintained at 298 K by the algorithm of Nosé-Hoover thermostat [35]. Production frame was output every 10,000 steps. Partial charges were taken from the Compass force field [36], which was also used to describe interatomic interactions among membrane and variable gases. Here, nonbonded interactions were summarized by electrostatic and van der Waals potentials. Long-range electrostatic interactions were handled with the Ewald method [37] with an accuracy of 10−5 kcal/mol, whereas van der Waals interaction potentials were predicated by the atom-based method with a 9.8 Å cut-off distance. Periodic boundary conditions are applied in all three directions. After adsorption simulations, the lowest energy configuration returned from the GCMC calculation was used as the initial frame to explore gas diffusion properties. In MD simulations, there were a total of 50 gas molecules inserted in GO membranes and they could freely roam in GO interlayers. The system reached temperature (298 K) equilibrium first in an isothermal-isobaric ensemble for 1 ns. The pressure was controlled at 1 bar by the Berendsen barostat [38] with a decay constant of 0.1 ps. Subsequently, the production runs were performed in a canonical ensemble. The time step was set as 0.5 fs and trajectories were recorded every 2 ps, and the total simulation time was 2 ns. The final results were averaged over three independent trials.

3. Results and Discussion

3.1. Adsorption Evaluation

To calculate the adsorption isotherms of different gases in GO membranes, GCMC simulations were performed under low pressures (0.01 KPa~1000 Kpa). The fugacity coefficients of unary gases (N2, CH4, CO2, H2S and SO2) are close to 1.0 under these pressures by physical property estimation in Aspen using the Peng-Robinson equation-of-state [39], indicating that the gas behavior approximates the ideal gas model. Therefore, the fugacity and pressure are approximately equal. Figure 2 shows the absolute adsorption isotherms of five gases are dependent on the relative pressures in GO membranes with variable doping amounts of PDASA. The adsorption capacities of CH4 and N2 slowly rise with increasing pressure. While for acid gases (CO2, H2S and SO2), their isotherms grow rapidly, especially a sudden increase at relatively low pressures, behaving in a different adsorption mode. As a result, the adsorption capacities of acid gases in GO membranes are obviously larger than those of CH4 and N2. In addition, the maximum absorption capacity increases in the order of N2 < CH4 < CO2 < SO2 < H2S. With increasing the doping amounts of PDASA from 0.0 to 7.5 wt%, the adsorption capacities of three acid gases increase at first and then decrease, as shown in Figure 1a–f. In view of the low density of adsorbed gases at low pressure and low temperature, the absolute adsorption capacity (Qab) obtained in our simulations is close to the excess adsorption capacity (Qex) that is determined in the experiment according to Equation (1) [40] where ρg is the gas density at simulated pressure and Vf is the free volume in GO membranes. Therefore, the absolute adsorption isotherms in Figure 1 without further conversion can be directly described by adsorption models.
Q e x   =   Q a b − ρ g V f
S 0   =   lim p → 0 Q e P
Q e x   =   δ P + β P 1 + γ P n   =   Q L K L P 1 + K L P       δ   =   0 ;   n   =   1   ( L a n g m u i r ,   f o r   C H 4   a n d   N 2 )                     ( 3 ) β P 1 + γ P n       δ   =   0 ;   0 < n < 1   ( R e d l i c h − P e t e r s o n ,   f o r   H 2 S   a n d   C O 2 )           ( 4 ) δ P + β P 1 + γ P n   δ ≠ 0 ;   0 < n < 1   ( D u a l - m o d e ,   f o r   S O 2 )                           ( 5 )
S 0   =   Q L K L         ( f o r   C H 4   a n d   N 2 )           ( 6 ) β             ( f o r   H 2 S   a n d   C O 2 )             ( 7 ) δ + β               ( f o r   S O 2 )                 ( 8 )
The solubility coefficient (S0) of infinite dilution is an important factor in characterizing membrane separation properties, which is defined as the slope of isotherm at infinite dilution (Equation (2)) [41,42,43]. When gas concentration is extremely low, several theoretical models (Equations (3)–(5)) are applied to fit isotherms to obtain the S0 of gases in GO membranes, where P is the sorbate pressure, and δ, β and γ are fitting parameters. After curve fitting, it shows that the adsorption of CH4 and N2 obey the Langmuir model [44] (Equation (3)) where QL is the maximal adsorption capacity and KL is the adsorption equilibrium constant, indicating a simple adsorption process. While simulation results suggest a three-parameter model (i.e., Redlich-Peterson [45], Equation (4)) for CO2 and H2S, where n is the empirical constant. The adsorption behavior for SO2 is a little complex as it needs more variables to fit the isotherm based on the dual-mode sorption model [46] as Equation (5). All fitting parameters are presented in Table S1. A high correlation coefficient (R2) above 0.992 for most systems indicates the reliability of these adopted adsorption models [45]. These different theoretical models are ascribed to the variable adsorption mechanism of gases in GO membranes, which will be discussed below. Thereafter, the S0 of different gases in GO membranes is accordingly calculated by Equations (6)–(8) [41,42,43].

3.2. Adsorption Insight

To quantitatively evaluate the adsorption ability of different gases in GO membranes and understand the variable adsorption models, Figure 3 presents the calculated S0 and the corresponding adsorption behaviors. The S0 as a function of variable doping amounts of PDASA is shown in Figure 3a. For CH4 and N2, the S0 values in different GO membranes are less than 0.002 mmol·g−1·kPa−1, almost invariable with the doped PDASA. The distribution probability in Figure 3b reveals that the particles of CH4 and N2 are highly concentrated, forming single-layer adsorption. Snapshots in Figure 3c,d provide a visual perspective for these single-adsorbate cases, where CH4 and N2 deposit in the center of GO channels, indicating a weak adsorption ability. That is the reason their adsorption behaviors in GO membranes can be accurately represented by Langmuir model [44]. On the contrary, CO2 and H2S exhibit a strong adsorption ability with the S0 all above 3.4 mmol·g−1·kPa−1. As seen in Figure 3a, when the PDASA-doping amount is 3.0 wt%, CO2 and H2S exhibit the maximum S0 values of 4.5 and 5.3 mmol·g−1·kPa−1, respectively, almost 2.5 times higher than those values of GO membranes without doping PDASA. Continuously increasing the doping amounts, the S0 shows a downward trend. The adsorption ability of SO2 in GO membranes is extremely strong as there is an almost vertical ascent motion at the start point of isotherms (Figure 2). Therefore, the S0 of SO2 are all above 80 mmol·g−1·kPa−1 and not compared in Figure 3a. Compared to CH4 and N2, for acid gases, their maximum distribution probability is not in the center of channels but on either side of the center. By visual of Figure 3e–g, CO2, H2S and SO2 present multilayer adsorption in GO channels. In addition, they also have a probability to distribute “outside” channels due to periodic boundary conditions. The above complex adsorption behavior of CO2 and H2S indicates a strong adsorption ability, thus deserving the Redlich-Peterson model [45,47].
To reveal the positive effect of PDASA on acid gas adsorption in GO membranes, RDF, isosteric heat and hydrogen bonds are analyzed in Figure 4 to provide molecular insight into the adsorption process. The dynamic binding process between gases and PDASA is evaluated with RDF graph g(r) based on Equation (9) [33], where r is the distance from species i to j, Ni represents the number of species i, Nij(r, r + Δr) is the number of i around j within a shell and V is the volume. The RDF value is a measure of binding affinity, whereas a high RDF value means a strong affinity of PDASA to gases. As seen in Figure 4a, the affinity increases following the sequence of N2 ≈ CH4 < CO2 < H2S ≈ SO2. The high affinity of PDASA to acid gases is the primary reason for its positive effect on acid gas adsorption, while the weak guest-membrane affinities lead to the weak adsorption of CH4 and N2 in GO channels. Isosteric heat, a decisive factor of adsorption strength, is analyzed in Figure 4b. Obviously, the isosteric heats of five gases in GO membranes increase in the order of N2 < CH4 < CO2 ≈ H2S < SO2, confirming the strong adsorption strength of acid gases in GO membranes, especially for SO2. Besides the binding affinity and isosteric heat, the strong adsorption of acid gases is also related to hydrogen bonds. Based on these two geometrical criteria [16], (1) r(H⋅⋅⋅O) ≤ 0.35 nm; (2) α(O-H⋅⋅⋅O) ≤ 30°, hydrogen bonds in acid gases adsorption process are pictured in Figure 4c–e. A great number of hydrogen bonds are formed between GO membranes and acid gases. In addition, the doped PDASA also contributes to the formation of hydrogen bonds, as shown in Figure 4f, which further helps GO membranes to capture H2S. The above effects synergistically promote acid gas adsorption, while large doping amounts will decrease the effective adsorption sites and reduce the packing efficiency of acid gases in GO channels due to the narrowing of the passage, which will be discussed below.
g i j ( r )   =   N i j ( r , r + Δ r ) V 4 π r 2 Δ r N i N j

3.3. Diffusion Evaluation

Dynamical properties of gases in GO channels are evaluated by mean square displacement (MSD) according to Equation (10) [32,33] in which the N refers to the total number of particles and ri(t) − ri(t0) is the displacement distance of particle i from the initial state t0 to the final state t. As shown in Figure 5, the gas mobility in GO channels with variable doping amounts of PDASA follows the sequence of N2 ≈ CH4 > H2S > CO2 > SO2, which means the diffusion process is not governed by the size-sieving effect. The large mobilities of CH4 and N2 in GO channels are attributed to their weak interactions with GO membranes, thus resulting in low mass-transfer resistance. Although with smaller molecular size, acid gases exhibit slow mobility in that the strong interactions generate a large transport resistance [16]. After doping the PDASA into GO channels, the mobilities of all gases slow down. Diffusion coefficient (D) is another key role in determining separation performance, which is calculated by the linear slope of MSD based on Equation (11) [32,33]. Taking the cases in pure GO membrane as examples, the logarithmic form shown in Figure S1 can be fitted linearly from 100 to 1000 ps with slopes larger than 0.94, indicating that the gas diffusion tends to stabilize and approach to a normal diffusion state [48]. Then the D can be obtained from this region in MSD curves. To uncover the diffusion mechanism of gases in GO channels, the quantitative diffusivity, accessible free volume (AFV) [49] and effective transport channels are analyzed in Figure 6. Figure 6a illustrates that the diffusion coefficient generally shows a decreasing trend with the increase in the PDASA-doping amount. For N2 and CH4, both have diffusion coefficients larger than 240 × 10−7 cm2·s−1 due to the low transfer resistance, which agrees well with previous work [25], demonstrating the reliability of our calculations. In contrast, for acid gases, their diffusivities in GO channels are relatively low. Especially for SO2, its dynamic motion is severely restricted with diffusion coefficients lower than 80 × 10−7 cm−2·s−1. The AFV in variable GO membranes as a function of probe radius is shown in Figure 6b based on Equation (12) where Vf and Vo denote the free and occupied volumes, respectively. It shows that the AFV is sensitive to the probe radius. In addition, when the probe radius is larger than the molecular sizes of acid gases, the AFV nearly declines with the increase in the PDASA-doping amounts (Figure 6c). Figure 6d–i show the visualization of free volume. Apparently, the PDASA severed as barriers in GO channels to block the passage of gases (green region). With increasing the doping amounts, the effective passage is narrowed especially in GO-7.5 wt% PDASA (Figure 6i). That is the reason molecular diffusion is severely inhibited by doping PDASA in GO channels. This confirms that doping PDASA into GO channels brings a change not only in their adsorption but also in their diffusion. However, in this condition, diffusion is not supposed to govern the separation process of acid gases through the PDASA-doped GO membranes.
M S D ( t )   =   1 N 〈 ∑ i   =   1 N [ r i ( t ) − r i ( t 0 ) ] 2 〉
D   =   1 6 lim t → ∞ d M S D d t
A F V   =   V f V f + V o × 100 %

3.4. Separation Performance Prediction

The permeability coefficient, Pi, with a typically reported unit of Barrer is determined on the basis of the solution-diffusion model in Equation (13), where the corresponding Si and Di have a unit of cm3(STP)·cm−3·mmHg and 10−7 cm2·s−1, respectively, which are included in Table S2. The ideal gas selectivity, αi/j, is defined as the ratio of permeabilities of i and j by Equation (14). The separation performance of acid gases (CO2 and H2S) through PDASA-doped GO membranes is predicated in Figure 7. For CH4 and N2, their permeabilities are relatively low, as shown in Figure 7a; in contrast, acid gases exhibit high permeabilities thanks to their extraordinarily high S0 in GO membranes, which indicates that this permeation process is governed by preferential adsorption. Doping a tiny amount of PDASA into GO channels helps to promote the permeability of CO2 and H2S by 21% and 18%, respectively. Figure 7b shows the ideal selectivities of CO2/CH4, CO2/N2, H2S/CH4 and H2S/N2. Apparently, the selectivities of the above four gas pairs also increase first and then decrease with the increase of PDASA-doping amounts, and their highest selectivities can be up to 95.7, 290.3, 200.8, and 608.2, respectively. The predicted separation performance is compared with experimental results. As shown in Figure 7c,d, the separation performance for both CO2/CH4 and (CO2 + H2S)/CH4 of the PDASA-doped GO membranes were several orders of magnitude greater than most of the ever-reported membranes (Table S3) and far exceed the 2008 Robeson upper bound [22], suggesting the promising potential of the adsorption-dominated separation in acid gas treatment.
P i   =   S i D i
α i j   =   P i P j   =   S i D i S j D j

4. Conclusions

In summary, molecular simulations are performed to investigate the adsorption and diffusion behaviors of several gases in the PDASA-doped GO membranes. Doping a tiny amount (3.0 wt%) of PDASA into GO channels effectively promotes the adsorption ability of acid gases, with the solubility coefficient of H2S and CO2 improving almost 2.5 times, while the adsorption abilities of CH4 and N2 are almost invariable with the doped PDASA. Theoretical analysis demonstrates that the isotherms of CH4 and N2 show weak adsorption, following the Langmuir model, while acid gases exhibit multilayer adsorption in GO membranes, which is relatively complex and described by the Redlich-Peterson model. Molecular insights reveal that the strong adsorption of acid gases in GO membranes is ascribed to their high isosteric heat, great binding affinity and hydrogen bonds. While their diffusion in GO channels is restrained by doping PDASA due to the narrowing of the passage. Even so, the permeability of acid gases and their ideal selectivities over CH4 are greatly enhanced over Robeson upper bound by doping a tiny amount of PDASA, which suggests that this removal process of acid gases is primarily dominated by preferential adsorption. From the bottom-up, this molecular understanding provides a strategy to develop high-performance GO membranes toward acid gas treatment. Such fundamental insights show the great potential of 2D membranes in the practical application of natural gas processing.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/membranes12111155/s1, Figure S1: The lg (MSD)-lg (t) curve for the transport of variable gases through pure GO and GO-7.5wt%PDASA membranes.; Table S1: Fitting parameters of α, γ, β, n and correlation coefficient (R2) for adsorption isotherms of different gases.; Table S2: The solubility co-efficient, diffusion coefficient and permeability with the typically reported unit.; Table S3: Perfor-mance comparison for separations of CO2/CH4 and (CO2+H2S)/CH4. (References [50,51,52,53,54,55,56,57,58,59] are cited in the supplementary materials.)

Author Contributions

Conceptualization, Q.L. and G.L.; methodology, Q.L. and G.L.; software, Q.L. and Z.Y.; validation, G.L., R.X. and J.Z.; formal analysis, L.S.; investigation, Q.L. and L.S.; resources, Z.Y. and J.Z.; data curation, Q.L. and R.X.; writing—original draft preparation, Q.L.; writing—review and editing, G.L.; visualization, G.L.; supervision, G.L.; project administration, G.L.; funding acquisition, Q.L. and G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Anhui Provincial Natural Science Foundation, grant number 2108085QB50, the University Natural Science Research Project of Anhui Province, grant number KJ2020A0286, and the National Natural Science Foundation of China, grant number 22278210. The numerical calculations in this paper have been done on the supercomputing system in the Supercomputing Center of University of Science and Technology of China.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Symbols
Qex, Qabexcess, absolute adsorption capacity (mmol·g−1)
ρggas density (mmol·cm−3)
Vf, Vofree, occupied volumes (cm3·g−1) per unit mass
δ, β and γfitting parameters in the adsorption model
QLmaximal adsorption capacity in the Langmuir model
KLadsorption equilibrium constant in the Langmuir model
nempirical constant in the Redlich-Peterson model
R2correlation coefficient
g(r)radial distribution function (RDF)
MSDmean square displacement (nm2)
AFVaccessible free volume (%)
Sisolubility coefficient (cm3(STP)·cm−3·mmHg)
Didiffusion coefficient (10−7 cm2·s−1)
Pipermeability coefficient (Barrer)
αi/j,gas selectivity of species i over j

References

  1. Plant, G.; Kort, E.A.; Brandt, A.R.; Chen, Y.; Fordice, G.; Negron, A.M.G.; Schwietzke, S.; Smith, M.; Zavala-Araiza, D. Inefficient and unlit natural gas flares both emit large quantities of methane. Science 2022, 377, 1566–1571. [Google Scholar] [CrossRef] [PubMed]
  2. Anyanwu, J.-T.; Wang, Y.; Yang, R.T. CO2 capture (including direct air capture) and natural gas desulfurization of amine-grafted hierarchical bimodal silica. Chem. Eng. J. 2021, 427, 131561. [Google Scholar] [CrossRef]
  3. Park, J.; Yoon, S.; Oh, S.-Y.; Kim, Y.; Kim, J.-K. Improving energy efficiency for a low-temperature CO2 separation process in natural gas processing. Energy 2020, 214, 118844. [Google Scholar] [CrossRef]
  4. Behmadi, R.; Mokhtarian, M.; Davoodi, A.; Hosseinpour, S. Desulfurization of natural gas condensate using polyethylene glycol and water intercalated activated γ-bauxite. J. Clean. Prod. 2022, 376, 134230. [Google Scholar] [CrossRef]
  5. He, Z.; Gupta, K.M.; Linga, P.; Jiang, J. Molecular Insights into the Nucleation and Growth of CH4 and CO2 Mixed Hydrates from Microsecond Simulations. J. Phys. Chem. C 2016, 120, 25225–25236. [Google Scholar] [CrossRef]
  6. He, Z.; Mi, F.; Ning, F. Molecular insights into CO2 hydrate formation in the presence of hydrophilic and hydrophobic solid surfaces. Energy 2021, 234, 121260. [Google Scholar] [CrossRef]
  7. He, Z.; Linga, P.; Jiang, J. What are the key factors governing the nucleation of CO2 hydrate? Phys. Chem. Chem. Phys. 2017, 19, 15657–15661. [Google Scholar] [CrossRef]
  8. Cavaignac, R.S.; Ferreira, N.L.; Guardani, R. Techno-economic and environmental process evaluation of biogas upgrading via amine scrubbing. Renew. Energy 2021, 171, 868–880. [Google Scholar] [CrossRef]
  9. Cheng, Y.; Wang, Z.; Zhao, D. Mixed Matrix Membranes for Natural Gas Upgrading: Current Status and Opportunities. Ind. Eng. Chem. Res. 2018, 57, 4139–4169. [Google Scholar] [CrossRef]
  10. Chen, X.; Liu, G.; Jin, W. Natural gas purification by asymmetric membranes: An overview. Green Energy Environ. 2020, 6, 176–192. [Google Scholar] [CrossRef]
  11. Mohsenpour, S.; Guo, Z.; Almansour, F.; Holmes, S.M.; Budd, P.M.; Gorgojo, P. Porous silica nanosheets in PIM-1 membranes for CO2 separation. J. Membr. Sci. 2022, 661, 120889. [Google Scholar] [CrossRef]
  12. Han, Y.; Ho, W.S.W. Polymeric membranes for CO2 separation and capture. J. Membr. Sci. 2021, 628, 119244. [Google Scholar] [CrossRef]
  13. Ahmad, M.Z.; Peters, T.A.; Konnertz, N.M.; Visser, T.; Téllez, C.; Coronas, J.; Fila, V.; de Vos, W.M.; Benes, N.E. High-pressure CO2/CH4 separation of Zr-MOFs based mixed matrix membranes. Sep. Purif. Technol. 2020, 230, 115858. [Google Scholar] [CrossRef]
  14. Liu, G.; Cadiau, A.; Liu, Y.; Adil, K.; Chernikova, V.; Carja, I.-D.; Belmabkhout, Y.; Karunakaran, M.; Shekhah, O.; Zhang, C.; et al. Enabling Fluorinated MOF-Based Membranes for Simultaneous Removal of H2S and CO2 from Natural Gas. Angew. Chem. 2018, 130, 15027–15032. [Google Scholar] [CrossRef] [Green Version]
  15. Singh, S.; Varghese, A.M.; Reinalda, D.; Karanikolos, G.N. Graphene-based membranes for carbon dioxide separation. J. CO2 Util. 2021, 49, 101544. [Google Scholar] [CrossRef]
  16. Liu, Q.; Chen, M.; Mao, Y.; Liu, G. Theoretical study on Janus graphene oxide membrane for water transport. Front. Chem. Sci. Eng. 2020, 15, 913–921. [Google Scholar] [CrossRef]
  17. Chen, L.; Shi, G.; Shen, J.; Peng, B.; Zhang, B.; Wang, Y.; Bian, F.; Wang, J.; Li, D.; Qian, Z.; et al. Ion sieving in graphene oxide membranes via cationic control of interlayer spacing. Nature 2017, 550, 380–383. [Google Scholar] [CrossRef] [PubMed]
  18. Zheng, J.; Wang, R.; Ye, Q.; Chen, B.; Zhu, X. Multilayered graphene oxide membrane with precisely controlled interlayer spacing for separation of molecules with very close molecular weights. J. Membr. Sci. 2022, 657, 120678. [Google Scholar] [CrossRef]
  19. Liang, F.; Liu, Q.; Zhao, J.; Guan, K.; Mao, Y.; Liu, G.; Gu, X.; Jin, W. Ultrafast water-selective permeation through graphene oxide membrane with water transport promoters. AIChE J. 2019, 66, e16812. [Google Scholar] [CrossRef]
  20. Mohsenpour, S.; Ameen, A.W.; Leaper, S.; Skuse, C.; Almansour, F.; Budd, P.M.; Gorgojo, P. PIM-1 membranes containing—Graphene oxide for CO2 separation. Sep. Purif. Technol. 2022, 298, 121447. [Google Scholar] [CrossRef]
  21. Wang, T.; Cheng, C.; Wu, L.-g.; Shen, J.-n.; Van der Bruggen, B.; Chen, Q.; Chen, D.; Dong, C.-y. Fabrication of polyimide membrane incorporated with functional graphene oxide for CO2 separation: The effects of GO surface modification on membrane performance. Environ. Sci. Technol. 2017, 51, 6202–6210. [Google Scholar] [CrossRef] [PubMed]
  22. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  23. Zhu, X.; Tian, C.; Do-Thanh, C.-L.; Dai, S. Two-Dimensional Materials as Prospective Scaffolds for Mixed-Matrix Membrane-Based CO2 Separation. ChemSusChem 2017, 10, 3304–3316. [Google Scholar] [CrossRef]
  24. Yan, F.; Guo, Y.; Wang, Z.; Zhao, L.; Zhang, X. Efficient separation of CO2/CH4 by ionic liquids confined in graphene oxide: A molecular dynamics simulation. Sep. Purif. Technol. 2022, 289, 120736. [Google Scholar] [CrossRef]
  25. Khakpay, A.; Rahmani, F.; Nouranian, S.; Scovazzo, P. Molecular insights on the CH4/CO2 separation in nanoporous graphene and graphene oxide separation platforms: Adsorbents versus membranes. J. Phys. Chem. C 2017, 121, 12308–12320. [Google Scholar]
  26. Zheng, X.; Ban, S.; Liu, B.; Chen, G. Strain-controlled graphdiyne membrane for CO2/CH4 separation: First-principle and molecular dynamic simulation. Chin. J. Chem. Eng. 2020, 28, 1898–1903. [Google Scholar] [CrossRef]
  27. Kallo, M.T.; Lennox, M.J. Understanding CO2/CH4 separation in pristine and defective 2D MOF CuBDC nanosheets via nonequilibrium molecular dynamics. Langmuir 2020, 36, 13591–13600. [Google Scholar]
  28. Wang, Z.; Yan, F.; Bai, L.; Zhang, X.; Liu, X.; Zhang, X. Insight into CO2/CH4 separation performance in ionic liquids/polymer membrane from molecular dynamics simulation. J. Mol. Liq. 2022, 357, 119119. [Google Scholar]
  29. Liu, Q.; Zhu, H.; Liu, G.; Jin, W. Efficient separation of (C1–C2) alcohol solutions by graphyne membranes: A molecular simulation study. J. Membr. Sci. 2021, 644, 120139. [Google Scholar] [CrossRef]
  30. Liu, Q.; Cheng, L.; Liu, G. Enhanced Selective Hydrogen Permeation through Graphdiyne Membrane: A Theoretical Study. Membranes 2020, 10, 286. [Google Scholar] [CrossRef]
  31. Liu, Q.; Liu, Y.; Liu, G. Simulation of cations separation through charged porous graphene membrane. Chem. Phys. Lett. 2020, 753, 137606. [Google Scholar] [CrossRef]
  32. Liu, Q.; Wu, Y.; Wang, X.; Liu, G.; Zhu, Y.; Tu, Y.; Lu, X.; Jin, W. Molecular dynamics simulation of water-ethanol separation through monolayer graphene oxide membranes: Significant role of O/C ratio and pore size. Sep. Purif. Technol. 2019, 224, 219–226. [Google Scholar] [CrossRef]
  33. Liu, Q.; Gupta, K.M.; Xu, Q.; Liu, G.; Jin, W. Gas permeation through double-layer graphene oxide membranes: The role of interlayer distance and pore offset. Sep. Purif. Technol. 2018, 209, 419–425. [Google Scholar] [CrossRef]
  34. Siepmann, J.I.; Frenkel, D. Configurational bias Monte Carlo: A new sampling scheme for flexible chains. Mol. Phys. 1992, 75, 59–70. [Google Scholar] [CrossRef] [Green Version]
  35. Braga, C.; Travis, K.P. A configurational temperature Nosé-Hoover thermostat. J. Chem. Phys. 2005, 123, 134101. [Google Scholar] [CrossRef]
  36. Sun, H. COMPASS: An ab Initio Force-Field Optimized for Condensed-Phase ApplicationsOverview with Details on Alkane and Benzene Compounds. J. Phys. Chem. B 1998, 102, 7338–7364. [Google Scholar] [CrossRef]
  37. Essmann, U.; Perera, L.; Berkowitz, M.L.; Darden, T.; Lee, H.; Pedersen, L.G. A smooth particle mesh Ewald method. J. Chem. Phys. 1995, 103, 8577–8593. [Google Scholar] [CrossRef] [Green Version]
  38. Lin, Y.; Pan, D.; Li, J.; Zhang, L.; Shao, X. Application of Berendsen barostat in dissipative particle dynamics for nonequilibrium dynamic simulation. J. Chem. Phys. 2017, 146, 124108. [Google Scholar] [CrossRef]
  39. Lopez-Echeverry, J.S.; Reif-Acherman, S.; Araujo-Lopez, E. Peng-Robinson equation of state: 40 years through cubics. Fluid Phase Equilib. 2017, 447, 39–71. [Google Scholar] [CrossRef]
  40. Chen, L.; Liu, K.; Jiang, S.; Huang, H.; Tan, J.; Zuo, L. Effect of adsorbed phase density on the correction of methane excess adsorption to absolute adsorption in shale. Chem. Eng. J. 2021, 420, 127678. [Google Scholar] [CrossRef]
  41. De Lorenzo, L.; Tocci, E.; Gugliuzza, A.; Drioli, E. Pure and modified co-poly(amide-12-b-ethylene oxide) membranes for gas separation studied by molecular investigations. Membranes 2012, 2, 346–366. [Google Scholar] [CrossRef] [Green Version]
  42. Zhou, J.; Zhu, X.; Hu, J.; Liu, H.; Hu, Y.; Jiang, J. Mechanistic insight into highly efficient gas permeation and separation in a shape-persistent ladder polymer membrane. Phys. Chem. Chem. Phys. 2014, 16, 6075–6083. [Google Scholar] [CrossRef]
  43. Tocci, E.; Gugliuzza, A.; De Lorenzo, L.; Macchione, M.; De Luca, G.; Drioli, E. Transport properties of a co-poly(amide-12-b-ethylene oxide) membrane: A comparative study between experimental and molecular modelling results. J. Membr. Sci. 2008, 323, 316–327. [Google Scholar] [CrossRef]
  44. Alafnan, S.; Awotunde, A.; Glatz, G.; Adjei, S.; Alrumaih, I.; Gowida, A. Langmuir adsorption isotherm in unconventional resources: Applicability and limitations. J. Pet. Sci. Eng. 2021, 207, 109172. [Google Scholar] [CrossRef]
  45. Liu, Q.; Guo, H.; Shan, Y. Adsorption of fluoride on synthetic siderite from aqueous solution. J. Fluor. Chem. 2010, 131, 635–641. [Google Scholar] [CrossRef]
  46. Tocci, E.; De Lorenzo, L.; Bernardo, P.; Clarizia, G.; Bazzarelli, F.; Mckeown, N.B.; Carta, M.; Malpass-Evans, R.; Friess, K.; Pilnáček, K.; et al. Molecular Modeling and Gas Permeation Properties of a Polymer of Intrinsic Microporosity Composed of Ethanoanthracene and Tröger’s Base Units. Macromolecules 2014, 47, 7900–7916. [Google Scholar] [CrossRef]
  47. Kalam, S.; Abu-Khamsin, S.A.; Kamal, M.S.; Patil, S. Surfactant adsorption isotherms: A review. ACS Omega 2021, 6, 32342–32348. [Google Scholar] [CrossRef]
  48. Javanainen, M.; Hammaren, H.; Monticelli, L.; Jeon, J.-H.; Miettinen, M.S.; Martinez-Seara, H.; Metzler, R.; Vattulainen, I. Anomalous and normal diffusion of proteins and lipids in crowded lipid membranes. Faraday Discuss. 2012, 161, 397–417. [Google Scholar] [CrossRef]
  49. Mazo, M.; Khudobin, R.; Balabaev, N.; Belov, N.; Ryzhikh, V.; Nikiforov, R.; Chatterjee, R.; Banerjee, S. Structure and free volume of fluorine-containing polyetherimides with Pendant di-tert-butyl groups investigated by molecular dynamics simulation. Polymer 2022, 14, 125318. [Google Scholar] [CrossRef]
  50. Qian, Q.; Wright, A.M.; Lee, H.; Dincă, M.; Smith, Z.P. Low-temperature H2S/CO2/CH4 separation in mixed-matrix membranes containing MFU-4. Chem. Mater. 2021, 33, 6825–6831. [Google Scholar] [CrossRef]
  51. Liu, G.; Cadiau, A.; Liu, Y.; Adil, K.; Chernikova, V.; Carja, I.-D.; Belmabkhout, Y.; Karunakaran, M.; Shekhah, O.; Zhang, C.; et al. Enabling fluorinated MOF-based membranes for simultaneous removal of H2S and CO2 from natural gas. Angew. Chem. Int. Ed. 2018, 57, 14811–14816. [Google Scholar] [CrossRef] [Green Version]
  52. Ahmad, M.Z.; Peters, T.A.; Konnertz, N.M.; Visser, T.; Téllez, C.; Coronas, J.; Fila, V.; de Vos, W.M.; Benes, N.E. High-pressure CO2/CH4 separation of Zr-MOFs based mixed matrix membranes. Sep. Purif. Technol. 2020, 230, 115858. [Google Scholar] [CrossRef]
  53. Yahaya, G.O.; Hayek, A.; Alsamah, A.; Shalabi, Y.A.; Ben Sultan, M.M.; Alhajry, R.H. Copolyimide membranes with improved H2S/CH4 selectivity for high-pressure sour mixed-gas separation. Sep. Purif. Technol. 2021, 272, 118897. [Google Scholar] [CrossRef]
  54. Hayek, A.; Alsamah, A.; Alaslai, N.; Maab, H.; Qasem, E.A.; Alhajry, R.H.; Alyami, N.M. Unprecedented Sour Mixed-Gas Permeation Properties of Fluorinated Polyazole-Based Membranes. ACS Appl. Polym. Mater. 2020, 2, 2199–2210. [Google Scholar] [CrossRef]
  55. Hayek, A.; Yahaya, G.O.; Alsamah, A.; Alghannam, A.A.; Jutaily, S.A.; Mokhtari, I. Pure- and sour mixed-gas transport properties of 4,4′-methylenebis(2,6-diethylaniline)-based copolyimide membranes. Polymer 2019, 166, 184–195. [Google Scholar] [CrossRef]
  56. Hayek, A.; Alsamah, A.; Yahaya, G.O.; Qasem, E.A.; Alhajry, R.H. Post-synthetic modification of CARDO-based materials: Application in sour natural gas separation. J. Mater. Chem. A 2020, 8, 23354–23367. [Google Scholar] [CrossRef]
  57. Alghannam, A.A.; Yahaya, G.O.; Hayek, A.; Mokhtari, I.; Saleem, Q.; Sewdan, D.A.; Bahamdan, A.A. High pressure pure- and mixed sour gas transport properties of Cardo-type block co-polyimide membranes. J. Membr. Sci. 2018, 553, 32–42. [Google Scholar] [CrossRef]
  58. Liu, Y.; Liu, Z.; Liu, G.; Qiu, W.; Bhuwania, N.; Chinn, D.; Koros, W.J. Surprising plasticization benefits in natural gas upgrading using polyimide membranes. J. Membr. Sci. 2020, 593, 117430. [Google Scholar] [CrossRef]
  59. Liu, G.; Chernikova, V.; Liu, Y.; Zhang, K.; Belmabkhout, Y.; Shekhah, O.; Zhang, C.; Yi, S.; Eddaoudi, M.; Koros, W.J. Mixed matrix formulations with MOF molecular sieving for key energy-intensive separations. Nat. Mater. 2018, 17, 283–289. [Google Scholar] [CrossRef]
Membranes 12 01155 g001 550

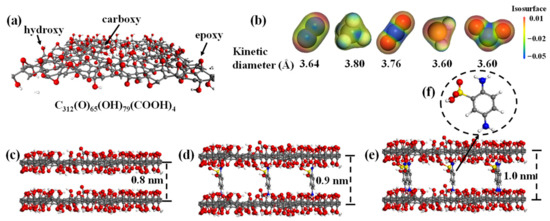

Figure 1. Simulation models. (a) GO nanosheet with the format of C312(O)65(OH)79(COOH)4. (b) Electrostatic potentials and kinetic diameters of gases. Configurations of GO membranes with variable PDASA-doping amounts: (c) 0.0%; (d) 4.5 wt%; (e) 7.5 wt%. (f) Molecular model of PDASA.
Figure 1. Simulation models. (a) GO nanosheet with the format of C312(O)65(OH)79(COOH)4. (b) Electrostatic potentials and kinetic diameters of gases. Configurations of GO membranes with variable PDASA-doping amounts: (c) 0.0%; (d) 4.5 wt%; (e) 7.5 wt%. (f) Molecular model of PDASA.
Membranes 12 01155 g001
Membranes 12 01155 g002 550

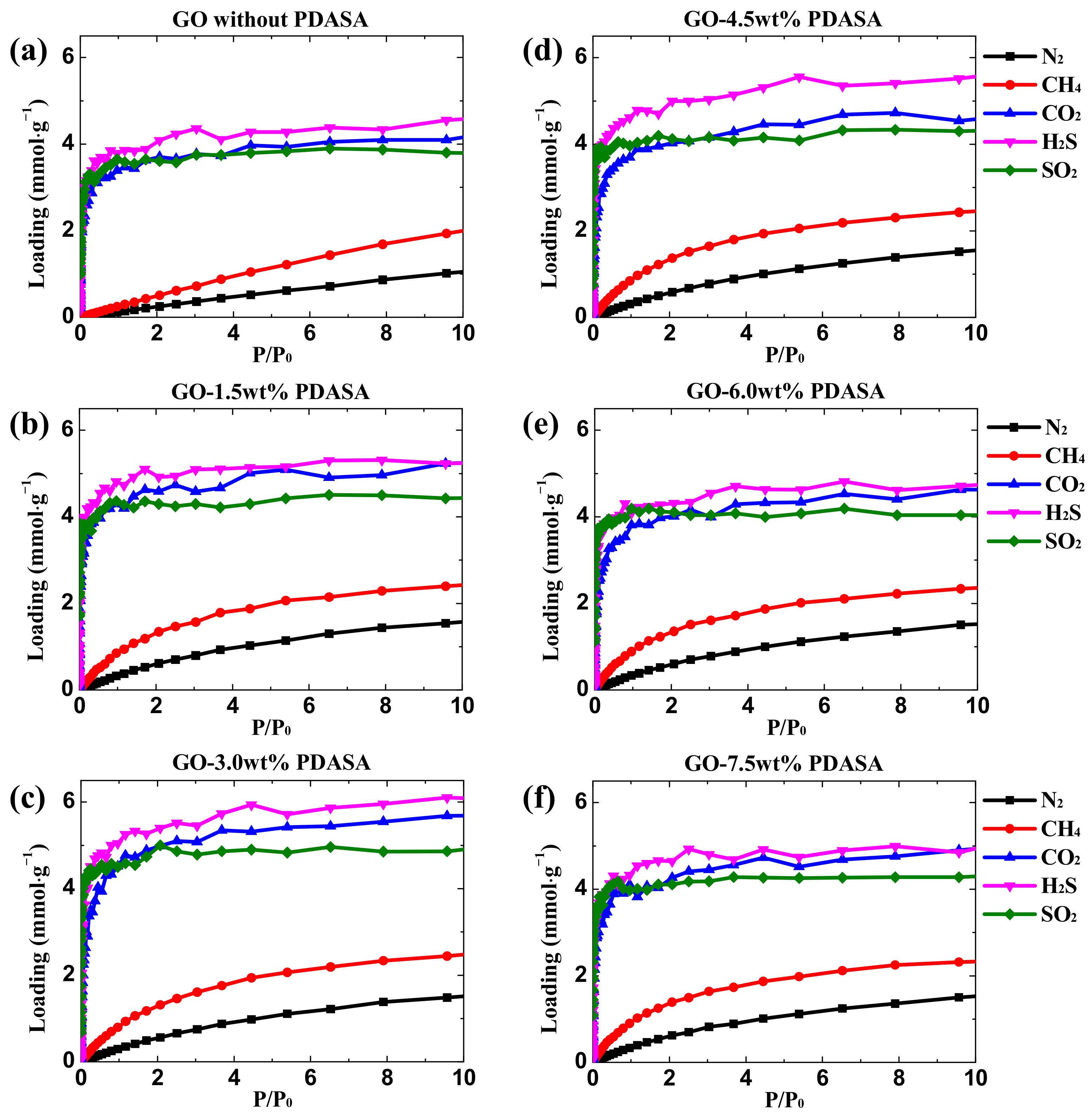

Figure 2. Unary isotherms of different gases in GO membranes with variable doping amounts of PDASA. (a) 0.0 wt%. (b) 1.5 wt%. (c) 3.0 wt%; (d) 4.5 wt%; (e) 6.0 wt%; (f) 7.5 wt%.
Figure 2. Unary isotherms of different gases in GO membranes with variable doping amounts of PDASA. (a) 0.0 wt%. (b) 1.5 wt%. (c) 3.0 wt%; (d) 4.5 wt%; (e) 6.0 wt%; (f) 7.5 wt%.
Membranes 12 01155 g002
Membranes 12 01155 g003 550

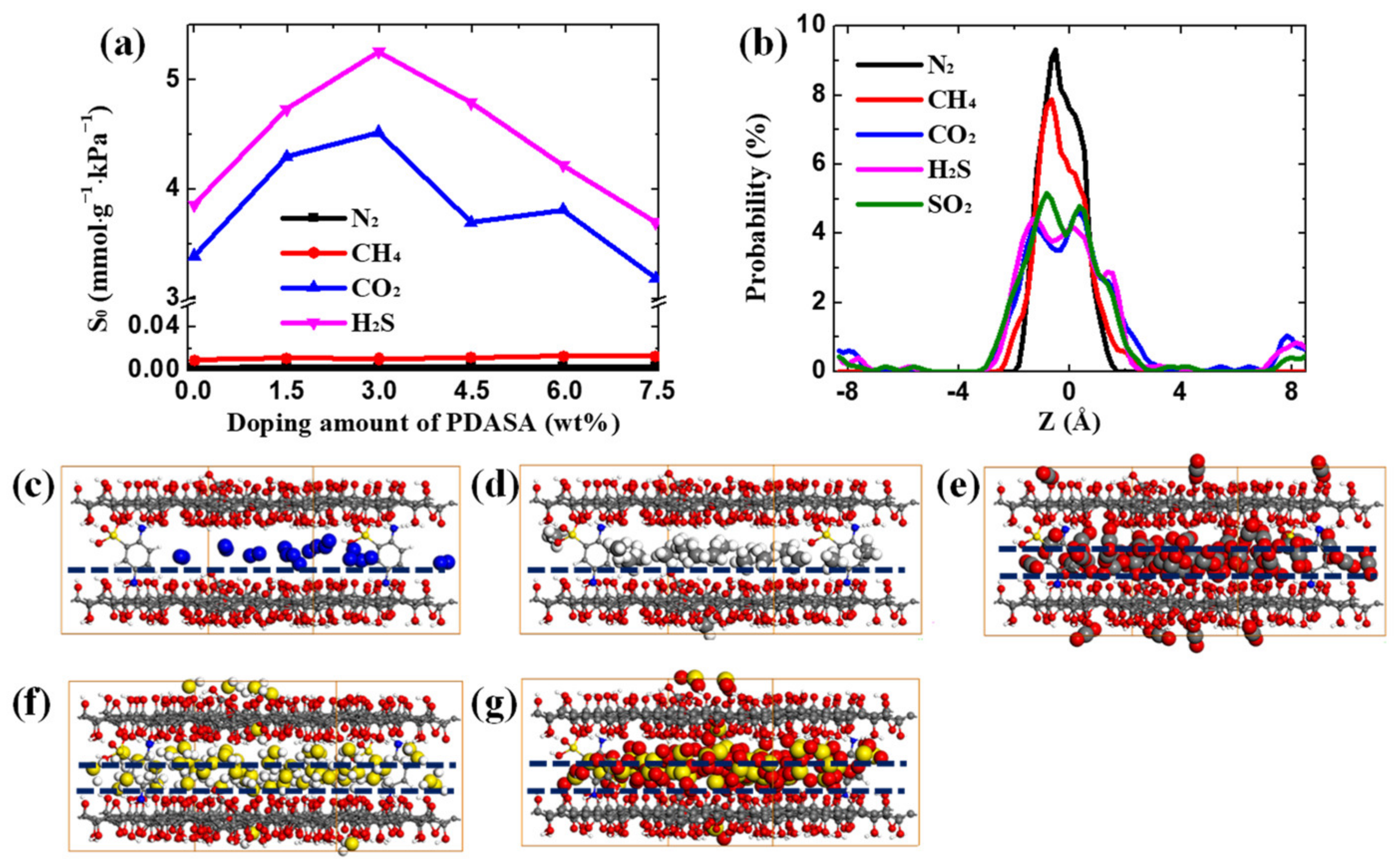

Figure 3. Adsorption behavior. (a) Solubility coefficient of different gases in GO membranes. (b) Distribution probability of gases in GO channels. Snapshots of variable gases adsorbed in GO channels. (c) N2; (d) CH4; (e) CO2; (f) H2S and (g) SO2.
Figure 3. Adsorption behavior. (a) Solubility coefficient of different gases in GO membranes. (b) Distribution probability of gases in GO channels. Snapshots of variable gases adsorbed in GO channels. (c) N2; (d) CH4; (e) CO2; (f) H2S and (g) SO2.
Membranes 12 01155 g003
Membranes 12 01155 g004 550

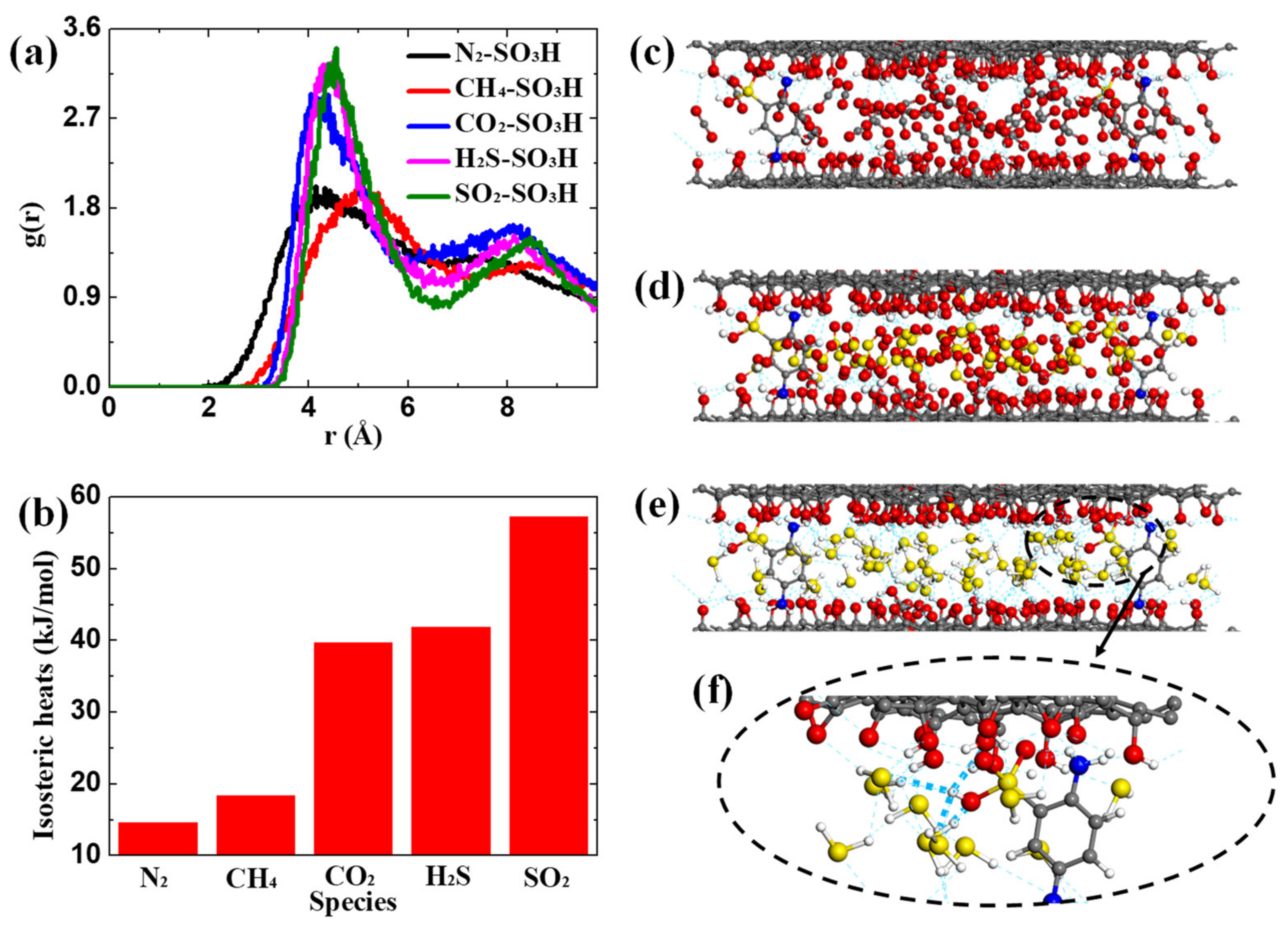

Figure 4. Adsorption Insights. (a) RDF of the doped PDASA to various gases. (b) Isosteric heats. Hydrogen bonds formed in the adsorption process of acid gases. (c) CO2. (d) SO2. (e) H2S. (f) Hydrogen bonds around PDASA.
Figure 4. Adsorption Insights. (a) RDF of the doped PDASA to various gases. (b) Isosteric heats. Hydrogen bonds formed in the adsorption process of acid gases. (c) CO2. (d) SO2. (e) H2S. (f) Hydrogen bonds around PDASA.
Membranes 12 01155 g004
Membranes 12 01155 g005 550

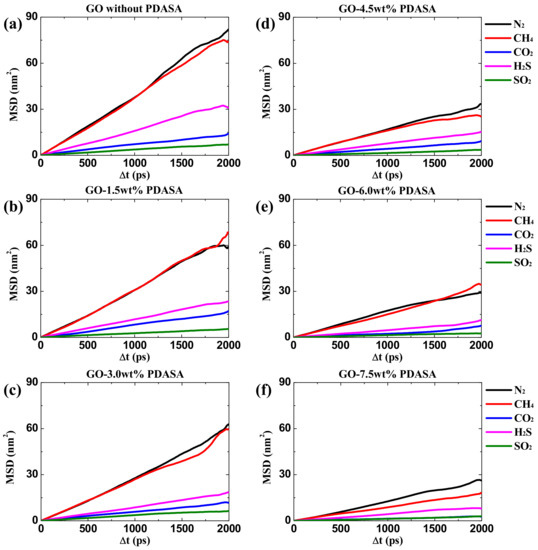

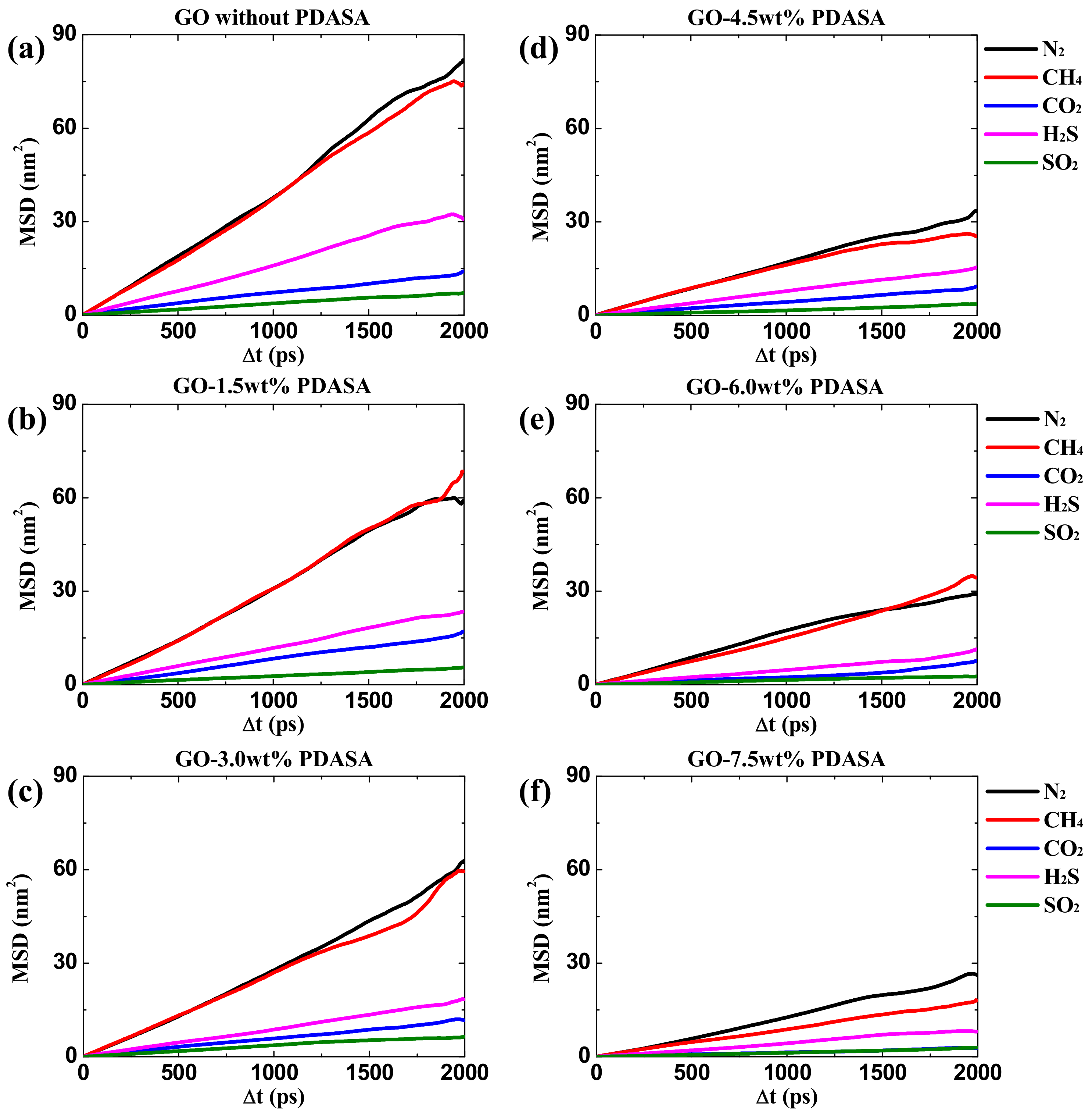

Figure 5. Mobility of gases in GO channels with variable doping amount of PDASA. (a) 0.0 wt%. (b) 1.5 wt%. (c) 3.0 wt%; (d) 4.5 wt%; (e) 6.0 wt%; (f) 7.5 wt%.
Figure 5. Mobility of gases in GO channels with variable doping amount of PDASA. (a) 0.0 wt%. (b) 1.5 wt%. (c) 3.0 wt%; (d) 4.5 wt%; (e) 6.0 wt%; (f) 7.5 wt%.
Membranes 12 01155 g005
Membranes 12 01155 g006 550

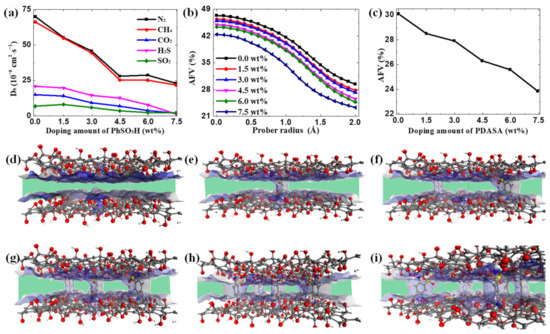

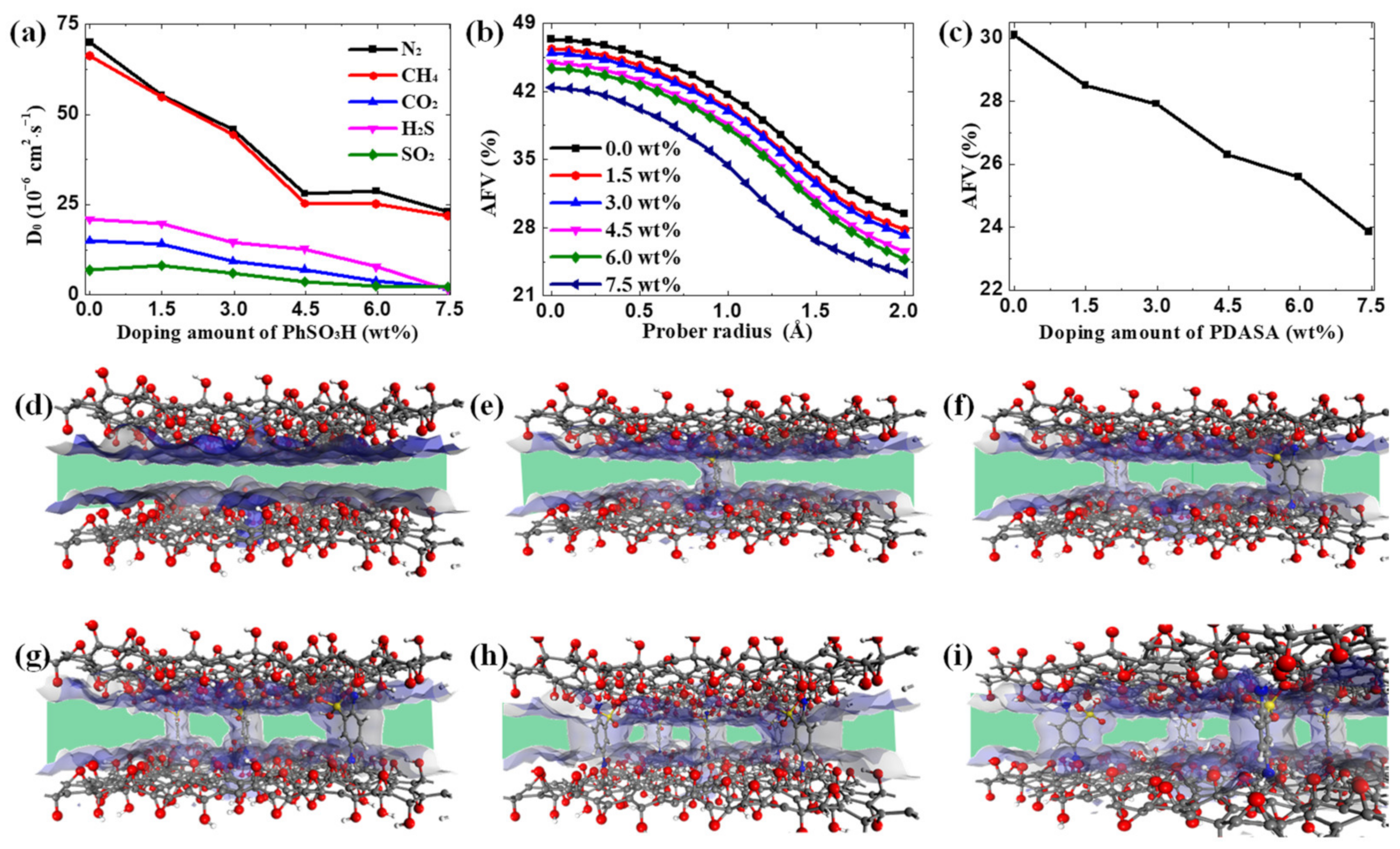

Figure 6. Diffusion insights. (a) Diffusion coefficient of different gases. (b) The free accessible volume of variable GO membranes. (c) The detected AFV with a 1.9 Å-sized prober is dependent on the doping amount of PDASA. Visualization of passage in variable GO channels. (d) 0.0 wt%. (e) 1.5 wt%. (f) 3.0 wt%; (g) 4.5 wt%; (h) 6.0 wt%; (i) 7.5 wt%.
Figure 6. Diffusion insights. (a) Diffusion coefficient of different gases. (b) The free accessible volume of variable GO membranes. (c) The detected AFV with a 1.9 Å-sized prober is dependent on the doping amount of PDASA. Visualization of passage in variable GO channels. (d) 0.0 wt%. (e) 1.5 wt%. (f) 3.0 wt%; (g) 4.5 wt%; (h) 6.0 wt%; (i) 7.5 wt%.
Membranes 12 01155 g006
Membranes 12 01155 g007 550

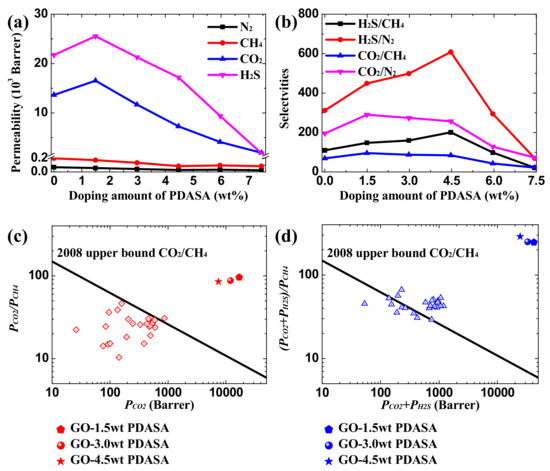

Figure 7. Separation performance. (a) Gas permeability. (b) Ideal selectivities of H2S/CH4, H2S/N2, CO2/CH4 and CO2/N2. Performance comparison for separations of (c) CO2/CH4 and (d) (CO2 + H2S)/CH4 with other potential membranes and the 2008 Robeson upper bound of CO2/CH4 (Black line).
