Article

The Natural Oligoribonucleotides Functionalized by D-Mannitol Affected Interactions of Hemagglutinin with Glycan Receptor Indicating Anti-Influenza Activity

1
Institute of Molecular Biology and Genetics, National Academy of Sciences of Ukraine, 03680 Kyiv, Ukraine
2
“Biocell” Subsidiary Company of Biocell Laboratories Inc. (USA), Klovskiy Uzviz 17, 03680 Kyiv, Ukraine
3
NanoBioMediacal Centre, Adam Mickiewicz University, Ul. Wszechnicy Piastowskiej 3, 61-614 Poznan, Poland
4
Institute of Biochemistry and Biophysics, Polish Academy of Sciences, Ul. Pawińskiego 5a, 02-106 Warsaw, Poland
*
Authors to whom correspondence should be addressed.
Membranes 2021, 11(10), 757; https://doi.org/10.3390/membranes11100757
Received: 31 July 2021 / Revised: 27 September 2021 / Accepted: 27 September 2021 / Published: 30 September 2021
(This article belongs to the Special Issue Biomolecules in Cell Membranes: Structure and Dynamics)

Abstract

:
Hemagglutinin (HA), the class I influenza A virus protein is responsible for the attachment of virus particles to the cell by binding to glycan receptors, subsequent virion internalization, and cell entry. Consequently, the importance of HA makes it a primary target for the development of anti-influenza drugs. The natural oligoribonucleotides (ORNs) as well as their derivatives functionalized with D-mannitol (ORNs-D-M) possess anti-influenza properties in vitro and in vivo due to interaction with HA receptor sites. This activity suppresses the viral infection in host cells. In the present work, the complexes of ORNs and ORNs-D-M with HA protein were studied by agglutination assay, fluorescence spectroscopy, as well as molecular docking simulations. Acquired experimental data exhibited a decrease in HA titer by 32 times after incubation with the ORNs-D-M for 0.5–24 h. Quenching fluorescence intensity of the HA suggests that titration by ORNs and ORNs-D-M probably leads to changes in the HA structure. Detailed structural data were obtained with the molecular docking simulations performed for ORNs and ORNs-D-M ligands containing three and six oligoribonucleotides. The results reveal that a majority of the ORNs and ORNs-D-M bind in a non-specific way to the receptor-binding domain of the HA protein. The ligand’s affinity to the hemagglutinin was estimated at the micromolar level. Presented experimental data confirmed that both natural ORNs and functionalized ORNs-D-M inhibit the interactions between HA and glycan receptors and demonstrate anti-influenza activity.

1. Introduction

Influenza epidemic activity causes significant morbidity and mortality. It increases the costs of health services and contributes to economic losses due to absence from work. The World Health Organization (WHO) estimated that the 2009 pandemic alone caused 100,000–400,000 deaths, not only among groups considered to be at a higher risk of complications, such as the elderly, persons with chronic conditions, and pregnant women but also in the group of young, healthy individuals. The annual trivalent or quadrivalent vaccines are the most effective way to prevent infection and severe outcomes caused by influenza viruses. However, due to rapid antigenic drift and shift in influenza viruses, the selection of appropriate vaccine strains is a formidable task [1,2,3]. In connection with the emergence of resistance to existing licensed anti-influenza drugs and the constant threat of an epidemic or pandemic of influenza virus, it is an urgent need to search for a new antiviral drug against new targets [4,5,6].
Influenza virion contains eight proteins which are surrounded by a protein coat that includes two major surface glycoproteins—hemagglutinin (HA) and neuraminidase. HA, the glycoprotein is located on the surface membrane of the influenza virus and is an integral part of its infectivity [7]. HA coding as the precursor (HA0) polypeptide which after cleavage by cellular proteases, generates the head (HA1) and stem (HA2) subunits linked by a single disulfide bond. The 3D structure of the HA presents as a symmetric trimer, with each monomer comprising a receptor-binding domain (RBD) interacting with sialylated glycan receptor (HA1), together with membrane fusion subdomains (HA2) [8,9] (Figure 1). The N-terminal fragment of HA2 subdomain constitutes the influenza fusion peptide inserted into the endosomal membrane during virus entry [9]. HA has a multifunctional activity and plays a critical role in viral binding, entry, and fusion processes into the host cell [10], therefore, it is a promising target for developing anti-influenza drugs acting as the initial entry blockers of the viral life cycle. However, the changeable nature of the HA creates difficulties in drug development [11]. Therefore, it is important to develop an anti-influenza drug based on non-specific interactions with hemagglutinin.
Natural oligoribonucleotides (ORNs) presented in total yeast RNA, together with their functionalized with D-mannitol (ORNs-D-M) variant, demonstrated antiviral activity against a wide range of DNA, and RNA viruses [12,13]. As reported previously, ORNs and ORNs-D-M show anti-influenza activity in vitro and in vivo [14] inhibiting the influenza-induced expression of innate immunity genes leading to reduce the influenza-mediated immunopathology [15]. The mechanism of inhibition infectivity of the influenza virus by ORNs-D-M based on blocking HA–glycan interactions has been proposed [16,17].
In this report, we demonstrate anti-influenza action of the ORNs and ORNs-D-M based on non-specific binding with moderate (micromolar) affinity to the hemagglutinin. The docking simulations performed by AutoDock Vina procedure [18] reveals that the binding site for the ORNs ligands is placed at the RBD domain, which is responsible for the interaction with glycan receptor. The ORNs and ORNs-D-M binding probably cause tiny changes in the spatial structure of HA. However, the detailed mechanism of the interaction remains unknown and requires further research.

2. Materials and Methods

2.1. Materials

Oligoribonucleotides (ORNs)—total yeast RNA with the dominant fraction of 3–8 nucleotides. ORNs-D-Mannitol (ORNs-D-M) complexes—total yeast RNA is modified with D-mannitol (D-M) in a mixing ratio of 2.5:1.0 mg. The RNA drugs (ORNs and ORNs-D-M complexes) were purchased from Goodwill Associates, Washington, DC, USA. Vaxigrip vaccine (Sanofi Pasteur, France) and used to study the interaction of the RNA drugs with the HA of the influenza virus. “Vaxigrip” is a split influenza virus, namely the surface antigen of HA at a concentration of 45 μg/0.5 mL (influenza viruses A/Michigan/45/2015) (H1N1) pdm09-like (A/Michigan/45/2015, NYMC X-275), A/Hong Kong/4801/2014 (H3N2)-like, (A/Hong Kong/4801/2014, NYMC X-263B), and B/Brisbane/60/2008-like (B/Brisbane/60/2008, wild type), which were cultured on chicken embryos of healthy chickens).

2.2. Hemagglutination Analysis

To evaluate the ability of the ORNs and ORNs-D-M complexes to inhibit the interaction between the HAs and glycans, we conducted the hemagglutination assay. The assays were performed on a round-bottomed 96-well plate using 1% of human erythrocytes 0 (I) in phosphate-buffered saline (PBS). Fifty microliters of PBS buffer (pH 7.4) were added to each well. The HA (225 ng/0.1 mL) was incubated with the ORNs (2.5 mg/mL), D-M (1 mg/mL) (SIGMA, St. Louis, MO, USA), the ORNs-D-M (0.8, 1.7, 3.5 mg/mL) at 20 °C for 30 min. In the first well of column, 50 μL of control or test sample were added. Each good sample was mixed and 50 μL were transferred to the next well on its right. Mixing was repeated and 50 μL were transferred down the length of the plate. The 50 μL from the last well was discarded. To each well, 50 μL of 1% erythrocytes working solution were added and mixed gently. The reaction mixtures were incubated at room temperature for 60 min to allow hemagglutination, followed by photography to document the results. HA control was incubated without drugs at 20 °C for 30 min. The negative results appeared as dots in the center of round-bottomed plates. The positive results formed a uniformly reddish color across the well. The HA titer was determined as the number of the highest dilution factor that produced a positive reading. To estimate the duration of the HA–ORN-D-M interaction, the HA (225 ng/0.1 mL) was incubated with the ORNs-D-M (3.5 mg/mL) for 30 min, 1, 2, 4, and 24 h at room temperature, followed performed the hemagglutination assay.

2.3. Fluorescence Measurements

The amino acids tryptophan (Trp), tyrosine (Tyr), and phenylalanine (Phe) are fluorescent in nature, thus contributing to the fluorescence of protein in which they are present [19]. The fluorescence spectrum of the HA fluorescence intensity quenching by the ORNs and ORNs-D-M was measured using JASCO FP-8200 spectrofluorometer (Jasco, Tokyo, Japan). The 3D and fluorescence spectra of the HA, ORNs, ORNs-D-M, HA-ORN, and HA-ORN-D-M were recorded at room temperature. The studies were performed in PBS buffer (Sigma Aldrich, St. Louis, MO USA), pH 7.4. The 3D fluorescence spectra (total fluorescence of the sample) of the HA protein and the ORNs and ORNs-D-M ligands were measured to determine the maximum of their excitation and the possibility of overlapping spectra. Fluorescence measurement of total HA (0.15 μM) and the ORNs, ORNs-D-M (54.3 μM) was performed at the following conditions: excitation wavelength— λ E x of 200–400 nm; measurement wavelength— λ E m 210–750; slit width—5 nm; scanning speed—10,000 nm/min; detector voltage—500 V.
Fluorescence spectra of the HA during titration with the ORNs and ORNs-D-M were recorded for the following parameters: λ E x of 275 nm; λ E m of 280–450 nm; data interval—1 nm; slit width—2.5 nm; scanning speed—100 nm/min; the voltage of the detector—500 V. The HA at a concentration of 0.15 μM was titrated with 5 μL of 1 mM ORNs and ORNs-D-M until complete quenching of the fluorescence signal. After that, the 3D fluorescence spectra were recorded, which aided in observe any changes in the HA structure due to interaction with the ORNs and ORNs-D-M.
Construction spectra of the HA fluorescence quenching by the ORNs and ORNs-D-M and calculations of the dissociation constant ( K d ) were performed using the program Origin 8.1 (OriginLab, USA) by the following expression:
K d = ( 1 θ ) ( D ( θ · P 0 ) θ
where θ is the fraction of bound to total protein at the stoichiometric point and P 0 the total protein concentration in the cuvette. D—ligand concentration at any titration point [20].

2.4. Docking of the ORNs and ORNs-D-M to Influenza Hemagglutinin

The docking procedure was performed with AutoDock Vina program [18] included in Yasara software (version 20.8.23) [21]. As a starting point, the 3D structure of the H3 strain of the HA protein was extracted from the A/Hong Kong/1/1968 (H3N2) influenza virus, solved with 2.6 Åresolution by X-ray diffraction (pdb 5t6n) (Figure 1) [22]. Taking into account a nucleotide length distribution detected for ORNs and ORNs-D-M, there are four ligands that were docked to the HA3—the ORNs with three (A3-ORNs) and six (A6-ORNs) units. The same procedure was applied for the variants functionalized with D-mannitol–A3-ORNs-D-M, and A6-ORNs-D-M (Figure S1). There are five runs of docking algorithm “VINA” with AMBER03 forcefield with 32 substrates in each round were performed at temperature 298 K. The simulations were conducted by the macro “dock_runensamble”, included in the Yasara Structure pack.

3. Results and Discussion

3.1. Analysis of the Interaction of ORNs and ORNs-D-M with HA

To study the interaction of ORNs and ORNs-D-M with the HA influenza virus, we used the isolated hemagglutinin in the form of vaccine “Vaxigrip”. Based on this hemagglutination analysis the HA titers were calculated as the reciprocal of the minimum dilution forming the red button, indicating HA unit (HAU). It was shown that the HA titer of the isolated HA at a concentration of 225 ng/0.1 mL was 65 HAU/0.1 mL (Figure 2). After incubation of the HA with the ORNs (2.5 mg/mL) and the ORNs-D-M (3.5 mg/mL) for 30 min at room temperature, the HA titer decreased 32 times compared to the HA control (p < 0.05). We have also investigated the effect of ORNs-D-M on the HA activity in the series of concentrations. The ORNs-D-M complexes at a concentration of 1.7 mg mL reduced the HA activity by 32 times, while the erythrocytes agglutination by the HA, pre-incubated with ORNs-D-M at a concentration of 0.8 mg/mL, remained unchanged in comparison to the HA control. The ORNs, ORNs-D-M, and D-M have been studied not to affect the erythrocytes during agglutination [16].
Subsequently, we estimated the minimum concentration of HA—3.5 ng/0.1 mL—at which the protein can agglutinate erythrocytes at a concentration of 1% (Figure 2). The ORNs-D-M complexes at concentrations of 1.7 and 3.5 mg/mL interact with ∼56 ng/0.1 mL of the HA.
The hemagglutination assay demonstrates the presence of the long-term interaction ORNs-D-M with the HA protein exhibiting a decrease HA activity by 32 times after pre-incubation for 30 min, 1, 2, 4, and 24 h compared to the control (Figure 3).

3.2. HA Fluorescence Quenching by the ORNs and ORNs-D-M

Fluorescence spectroscopy was used to measure the effect of ORNs and ORNs-D-M on the HA structure. Total fluorescence spectra of the HA, ORNs, and ORNs-D-M showed that the protein and ligands do not overlap with “landscape” spectra, indicating that the electron reabsorption effect can not occur during protein–ligand interaction study.
The 3D spectrum of HA fluorescence is found out to have two emission peaks. The first emission peak (I) with a maximum excitation λ E x 275 nm corresponds to the HA base (characterizes Trp and Tyr residues in HA), while the second peak (II)—with a maximum excitation λ E x 225 nm—corresponds to aromatic residues that have reached above the excited electronic states [23] (Figure 4). Any changes in the intensity and positioning of the peak I strongly suggest the presence of an alteration on the microenvironment of tryptophan and tyrosine residues [24].
An additional fluorescent component (peak III on Figure 4B,C), appeared near peak I under saturation by ORNs and ORNs-D-M, suggesting that ligand binding leads to tiny structural changes of the HA protein. At the same time, 3D fluorescence spectra of the HA–ORNs and HA–ORNs-D-M complexes showed effect fluorescence quenching for both HA peaks, which do not change their location in the three-dimensional coordinate system (Figure S2) [24]. Nevertheless, collected experimental data demonstrated that the effect of quenching is more significant for the functionalized (ORNs-D-M) version of the ligand (Figure 5).
The dissociation constants for the ORNs and ORNs-D-M ligands were evaluated on base experimental data (Figure S3). The K d around 10 7 10 6 M were obtained for both substrates, which can be defined as a moderate level of dissociation.

3.3. ORNs and ORNs-D-M Bind to the HA Protein Mostly in RBD Subdomain

To explore details of binding oligoribonucleotides to hemagglutinin we performed the docking procedure of the ORNs and ORNs-D-M to the H3 strain of the HA trimer (HA3). It was solved by X-ray crystallography with resolution 2.6 Åhigh-resolution 3D structure of the HA3 from pandemic H3N2 (A/Hong Kong/1968) influenza virus (pdb 5t6n) [22].
The ORNs and ORNs-D-M substrates used in our study exhibit a broad distribution in the length of nucleotides chains. According to our preliminary data, the distribution of oligoribonucleotides reveals variation from 1 up to 20 nucleotides or even longer. Nevertheless, the majority of the ORNs comprise between three and nine units with maximum populated chains with six nucleotides. THe length of the ORNs and functionalized ORNs-D-M can be an additional parameter regulated process of binding substrates to the HA protein, which we explored by the docking simulations with AutoDock Vina algorithm [18]. Taking into account distribution of chains length there are two types of ligands, with three (A3-ORNs) and six (A6-ORNs) nucleotides, together with their functionalized by D-mannitol (A3-ORNs-D-M and A6-ORNs-D-M) variants were selected as a reasonable choice for representation of whole ORNs and ORNs-D-M ensemble (Figure S1). Each run of simulations includes docking of the 32 substrates to the HA3 hemagglutinin. Visualized results demonstrated that all ORNs and functionalized by D-mannitol ORNs-D-M ligands occupy the various fragments of the HA3 structure (Figure S4). In spite of the majority bound oligoribonucleotides observed in the RBD fragment of the HA1 subunit, some complexes contain ORNs or ORNs-D-M in the stem region (HA2 subunit). Contrary to the HA1, the HA2 undergoes from a globular fold to three extended loops with central coil–coil structure under transition between prefusion to postfusion conformation [25].
Analysis of docking results was performed on four complexes of ligands that were selected basing on the low-energy criteria. The evaluated data showed that either ORNs or ORNs-D-M bind to the HA3 protein mostly at the membrane-distal end of the structure, inside the RBD fragment. The K d value obtained in the docking procedure is in the range of 10 8 10 4 M suggested that interactions between ORNs and ORNs-D-M and hemagglutinin are not specific and characterized by the moderate level of affinity (Tables S1 and S2). Extracted K d values are in line with previously on-base experimental data recorded by fluorescence spectroscopy (Figure S3). It is interesting that a similar K d was reported for binding Arbidol [22] and TBHQ [10] substrates to the HA protein from H3N2 and H14N5 influenza viruses, respectively.
Our data suggest a model of the multiple binding ORNs or ORNs-D-M ligand to the one HA that can dramatically amplify the effect of the hemagglutinin’s inhibition interaction with glycan receptor. For instance, a cavity characterized by a volume nearly 3000 Å3 was formed by three HA1 subunits inside the RBD domain (Figure 1). The docking procedure confirms the existence of the HA complex with two A3-ORNs or A3-ORNs-D-M substrates where the cavity is occupied by the two ligands (Figure S5).
The 3D structures evaluated by docking procedure reveals that the majority of the ORNs and ORNs-D-M ligands in complexes with HA3 protein binding inside the RBD fragment of HA1 subunit. Moreover, in many cases, the position substrates are close to the epitopes which are recognized by native human anti-bodies FluA-20 [26]. Based on the structural data, conserved residues involved in the interactions with glycan receptors in the hemagglutinin revealed the interface for binding sialic acid located at the membrane-distal tips of the RBD domain. The same epitopes are recognized specifically by IgG-type [27] or monoclonal mAb6-9-1 anti-bodies [28]. For the HA3 strain the conserved motif comprised α-helix (residues 190EQTNLYVQA199) together two loops (residues 130VTQNGGSNACK140, and 220RPWVGQSGRI230) on the two sides of central helix (numbering according to the sequence of HA3) (Figure 1) [8].
Decreased activity of HA by 32 times after incubation with the ORNs and ORNs-D-M was detected by agglutination assay (Figure 3). That anti-influenza effect is achieved by inhibition HA interaction with glycan receptor due to binding about 500 ORNs or ORNs-D-M molecules per influenza virion [29]. The small structural alterations of the hemagglutinin in complexes with the ORNs and ORNs-D-M suggest a new fluorescent component (peak III) observed on 3D fluorescence spectra due to interaction with the ORNs and ORNs-D-M [24].
The moderate values of K d observed in fluorescence experiments, confirmed by docking simulations with AutoDock Vina protocol, suggest a non-specific character for binding substrates to the HA glycoprotein. The HA3–ORNs and HA3–ORNs-D-M complexes exhibited three preferable localizations of the ORNs and ORNs-D-M ligands on the 3D structure. The majority of substrates bind to a membrane-distal fragment of HA, occupying positions in the RBD subdomain. In most cases, oligoribonucleotides show contacts with epitopes forming a conserved motif for interaction HA with glycan receptor (Figure 6), effectively block the HA–glycan interaction [16]. Structural analysis binding interface for low-energy structures of complexes reveals the existence of tryptophan residues in distances less than 5 Å, which can explain changes observed in the fluorescence data.
Another important aspect of functioning HA glycoprotein is which affects receptor-binding specificity. The effect of post-translational glycosylation for functioning HA glycoprotein has been known for years and is well documented (Figure S6A) [30,31]. The 3D structure of H3N2 A/Hong Kong/1968 (pdb 5t6n) evaluated by X-ray crystallography includes various oligosaccharides in several positions (Figure S6B). Analysis sequence of the HA3 hemagglutinin with GlyProt database (http://www.glycosciences.de/modeling/glyprot/php/main.php accessed 11 May 2021) shows the 18 sites possible for glycosylation. The 15 out of 18 possible epitopes are located at the membrane-distal end of the hemagglutinin structure. It is nteresting that two glycosylation positions—Asn81 and Asn165—are close to the glycan-binding consensus epitopes which are critical for interaction with the glycan receptor (Figure S7). It is clear that binding ORNs and their functionalized version ORNs-D-M provide to downregulation of post-translational glycosylation and block HA activity by inhibiting interactions HA with glycan receptor.
The HA3 complexes with ORNs and ORNs-D-M where ligands occupied positions in the stem region (HA2 subunit) were also detected. The low-energy structures characterized by such position of the A3-ORNs, or A6-ORNs and A6-ORNs-D-M are presented in Figure 7A,B and Figure 8A,B. Localization substrates in that region stabilize the HA3 structure preventing transition HA2 subunit of the hemagglutinin. In particular, the ORNs and ORNs-D-M mechanically block the rearrangement of fusion peptides located in the N-terminal fragment of HA2 and effectively inhibit the process of viral fusion saving HA glycoprotein in the prefusion state (Figure S8).
Docking for the ORNs and ORNs-D-M ligands exhibited diverse localization species on the HA structure. Moreover, taking into account distribution in length oligoribonucleotide sequences and their functionalized variant we can suggest an effective anti-influenza mechanism due to the non-specific character of interactions. In fact, we conclude that influenza virion can bind a hundred ligands with various lengths and positions on HA structure. In such a case, the ORNs and ORNs-D-M substrates can block both natural activities of the HA glycoprotein–interaction with glycan-receptor and integration to the host cell. The K d values of nearly 10 μM and non-specific character of binding suggest that a large dose has to be provided to obtain a strong anti-influenza effect.

4. Conclusions

Presented experimental data demonstrate that natural oligoribonucleotides and their derivatives functionalized by D-mannitol bind in a non-specific way to the hemagglutinin with moderate affinities of around 10 μM. We conclude that ORNs and ORNs-D-M would affect the interactions between HA and glycan receptors and pose a possible pathway for anti-influenza activity. In our opinion, natural oligoribonucleotides and their functionalized derivatives constitute promising ligands for future studies as novel anti-influenza drugs. Taking into account the recently published data describing the transition between two structural forms affected by N-glycosylation of SARS-CoV-2 spike protein regulating interaction with the angiotensin-converting enzyme 2 receptor (ACE2) in specific positions, we can speculate that ORNs functionalized by D-mannitol can present activity against the COVID-19-CoV-2 pandemic virus [32].

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/membranes11100757/s1. Figure S1: The structure of ligands used for docking in AutoDock Vina procedure. (A) A3-ORNs; (B) A3-ORNs-D-M; (C) A6-ORNs; (D) A6-ORNs-D-M. Figure S2: The total fluorescence data obtained for (A)—HA, (B)—ORNs and HA-ORNs, (C)—ORNs-D-M and HA-ORNs-D-M. Data for substrates (ORNs and ORNs-D-M) and complexes (HA-ONs and ORNs-D-M) are shown on panels (B) and (C) on left and right, respectively. Figure S3: Dependence of fluorescence intensity on concentration of the ORNs (A) and ORNs-D-M (B). Figure S4: The docking simulations performed with AutoDock Vina program includer in Yasara software bundle. (A) 3D structure of complex HA3 with A3-ORNs-D-M. (B) Complex of the HA3 hemagglutinin with 32 substrates A6-ORNs-D-M. Figure S5: The structure of HA3 complex with two A3-ORNs ligands inside the RBD cavity evaluated with AutoDock Vina procedure. Figure S6: 3D structure of the HA protein from the different strains of the influenza virus. (A) One subunit (HA1 and HA2 chains) of the HA trimer for H2N2 pandemic variant A/Singapure/1957 (pdb 2wr7). Inset presented the sialopentasaccharide analogues of human receptor. The conserved epitops formed sialic acid binding site comprise central a-helix (residues 190–199) together with two loops (residues 130–140 and 220–230), highlighted as green. (B) Structure of HA trimer from pandemic (A/HONG KONG/1/1968) variant H3N2 influenza virus (pdb 5t6n). Linked derivatives of the sialic acid are presented demonstrated importance of glycosylation hemagglutinin for proper binding to the glycan receptor. On the right, the 3D structure of the HA3 protein is rotated, the RBD fragment is presented as gray surface with glycans located at the distal end of the viral membrane are highlighted. Figure S7: 3D structure of the HA protein from the H3N2 (A/HONG KONG/1/1968) virus (pdb 5t6n). Positions of the N-glycosylation sites are shown as balls and numbering of the Asn residues. Glycosylation positions located at the distal end of the viral membrane (Asn81 and Asn165) are highlighted as orange. Figure S8: Proposed scheme of the interaction complex of the human HA3 hemagglutinin with A3-ORNs bound to the HA2 subunit. As a model of the cell membrane, we use the phosphatidylethanolamine lipid created by Yasara software. Table S1: Binding energies and dissociation constants evaluated for the complexes with of HA3 proten with A3-ORNs and A3-ORNs-D-M in obtained by docking procedures by the Yasara software. Table S2: Binding energies and dissociation constants evaluated for the complexes with of HA3 proten with A6-ORNs and A6-ORNs-D-M in obtained by docking procedures by the Yasara software.

Author Contributions

Conceptualization, Z.T.; methodology, Z.T., N.M., R.O.N., K.S. and I.Z.; software, K.S. and I.Z.; formal analysis, Z.T., N.M. and R.O.N.; resources, Z.T. and K.S.; data curation, N.M. and R.O.N.; visualization, I.Z.; resources, Z.T. and K.S.; supervision, Z.T.; project administration, Z.T. and I.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
HAhemagluttinin protein
HA3H3 HA strain of the influenza hemagluttinin from A/Hong Kong/1/1968 (H3N2)
RBDreceptor-binding domain
ORNsoligoribonucleotides
A3-ORNsligand comprized sequence of three oligoribonucleotides
A6-ORNsligand comprized sequence of six oligoribonucleotides
ORNs-D-Moligoribonucleotides functionalized with D-mannitol
A3-ORNs-D-Mligand comprized sequence of three oligoribonucleotides functionalized
with D-mannitol
A6-ORNs-D-Mligand comprized sequence of six oligoribonucleotides functionalized
with D-mannitol

References

  1. Salzberg, S. The contents of the syringe. Nature 2008, 454, 160–161. [Google Scholar] [CrossRef] [PubMed]
  2. Davlin, S.L.; Blanton, L.; Kniss, K.; Mustaquim, D.; Smith, S.; Kramer, N.; Cohen, J.; Cummings, C.N.; Garg, S.; Flannery, B.; et al. Influenza activity–United States, 2015–16 season and composition of the 2016–17 influenza vaccine. Morb. Mortal. Wkly. Rep. 2016, 65, 567–575. [Google Scholar] [CrossRef][Green Version]
  3. Hensley, S.E. Challenges of selecting seasonal influenza vaccine strains for humans with diverse pre-exposure histories. Curr. Opin. Virol. 2014, 8, 85–89. [Google Scholar] [CrossRef][Green Version]
  4. Moscona, A. Global transmission of oseltamivir-resistant influenza. N. Engl. J. Med. 2009, 360, 953–956. [Google Scholar] [CrossRef][Green Version]
  5. Sheu, T.G.; Fry, A.M.; Garten, R.J.; Deyde, V.M.; Shwe, T.; Bullion, L.; Peebles, P.J.; Li, Y.; Klimov, A.I.; Gubareva, L.V. Dual resistance to adamantanes and oseltamivir among seasonal influenza A (H1N1) viruses: 2008–2010. J. Infect. Dis. 2011, 203, 13–17. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Bright, R.A.; Shay, D.K.; Shu, B.; Cox, N.J.; Klimov, A.I. Adamantane resistance among influenza A viruses isolated early during the 2005–2006 influenza season in the United States. JAMA 2006, 295, 891–894. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Kobasa, D.; Takada, A.; Shinya, K.; Hatta, M.; Halfmann, P.; Theriault, S.; Suzuki, H.; Nishimura, H.; Mitamura, K.; Sugaya, N.; et al. Enhanced virulence of influenza A viruses with the haemagglutinin of the 1918 pandemic virus. Nature 2004, 431, 703–707. [Google Scholar] [CrossRef]
  8. de Graaf, M.; Fouchier, R.A. Role of receptor binding specificity in influenza A virus transmission and pathogenesis. EMBO J. 2014, 33, 823–841. [Google Scholar] [CrossRef][Green Version]
  9. Worch, R. Structural biology of the influenza virus fusion peptide. Acta Biochim. Pol. 2014, 61. [Google Scholar] [CrossRef][Green Version]
  10. Russell, R.J.; Kerry, P.S.; Stevens, D.J.; Steinhauer, D.A.; Martin, S.R.; Gamblin, S.J.; Skehel, J.J. Structure of influenza hemagglutinin in complex with an inhibitor of membrane fusion. Proc. Natl. Acad. Sci. USA 2008, 105, 17736–17741. [Google Scholar] [CrossRef][Green Version]
  11. Shen, X.; Zhang, X.; Liu, S. Novel hemagglutinin-based influenza virus inhibitors. J. Thorac. Dis. 2013, 5, S149. [Google Scholar]
  12. Tkachuk, Z. Multiantivirus Compound, Composition and Method for Treatment of Virus Diseases. U.S. Patent 8,420,617, 16 April 2013. [Google Scholar]
  13. Melnichuk, N.; Zarubaev, V.; Iosyk, I.; Andreychyn, M.; Semernikova, L.; Tkachuk, Z. Pre-clinical and clinical efficiency of complexes of oligoribonucleotides with D-Mannitol against respiratory viruses. Pharmaceutics 2018, 10, 59. [Google Scholar] [CrossRef][Green Version]
  14. Tkachuk, Z.; Rybalko, S.; LD, Z.; Starostyla, D. Antiinfluenzal activity of drug Nuclex. Rep. Natl. Acad. Sci. Ukr. 2010, 3, 191–196. [Google Scholar]
  15. Melnichuk, N.; Kashuba, V.; Rybalko, S.; Tkachuk, Z. Complexes of oligoribonucleotides with D-Mannitol modulate the innate immune response to influenza a virus H1N1 (A/FM/1/47) in vivo. Pharmaceuticals 2018, 11, 73. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Melnichuk, N.; Semernikova, L.; Tkachuk, Z. Complexes of Oligoribonucleotides with D-mannitol inhibit hemagglutinin–glycan interaction and suppress influenza A virus H1N1 (A/FM/1/47) infectivity in vitro. Pharmaceuticals 2017, 10, 71. [Google Scholar] [CrossRef][Green Version]
  17. Melnichuk, N.; Tkachuk, Z. Inhibition of hemagglutinin-glycan interaction by complexes of oligoribonucleotides with D-mannitol. Rep. Natl. Acad. Sci. Ukr. 2018, 3, 92–99. [Google Scholar] [CrossRef]
  18. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed][Green Version]
  19. Lakowicz, J.R. Introduction to fluorescence. In Principles of Fluorescence Spectroscopy; Springer: Berlin/Heidelberg, Germany, 1999; pp. 1–23. [Google Scholar]
  20. Favicchio, R.; Dragan, A.I.; Kneale, G.G.; Read, C.M. Fluorescence spectroscopy and anisotropy in the analysis of DNA-protein interactions. In DNA–Protein Interactions; Springer: Berlin/Heidelberg, Germany, 2009; pp. 589–611. [Google Scholar]
  21. Krieger, E.; Koraimann, G.; Vriend, G. Increasing the precision of comparative models with YASARA NOVA—A self-parameterizing force field. Proteins Struct. Funct. Bioinform. 2002, 47, 393–402. [Google Scholar] [CrossRef]
  22. Kadam, R.U.; Wilson, I.A. Structural basis of influenza virus fusion inhibition by the antiviral drug Arbidol. Proc. Natl. Acad. Sci. USA 2017, 114, 206–214. [Google Scholar] [CrossRef][Green Version]
  23. Bortolotti, A.; Wong, Y.H.; Korsholm, S.S.; Bahring, N.H.B.; Bobone, S.; Tayyab, S.; Van De Weert, M.; Stella, L. On the purported “backbone fluorescence” in protein three-dimensional fluorescence spectra. RSC Adv. 2016, 6, 112870–112876. [Google Scholar] [CrossRef][Green Version]
  24. Wani, T.A.; Bakheit, A.H.; Ansari, M.N.; Al-Majed, A.R.A.; Al-Qahtani, B.M.; Zargar, S. Spectroscopic and molecular modeling studies of binding interaction between bovine serum albumin and roflumilast. Drug Des. Dev. Ther. 2018, 12, 2627. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Lin, X.; Eddy, N.R.; Noel, J.K.; Whitford, P.C.; Wang, Q.; Ma, J.; Onuchic, J.N. Order and disorder control the functional rearrangement of influenza hemagglutinin. Proc. Natl. Acad. Sci. USA 2014, 111, 12049–12054. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Bangaru, S.; Lang, S.; Schotsaert, M.; Vanderven, H.A.; Zhu, X.; Kose, N.; Bombardi, R.; Finn, J.A.; Kent, S.J.; Gilchuk, P.; et al. A site of vulnerability on the influenza virus hemagglutinin head domain trimer interface. Cell 2019, 177, 1136–1152. [Google Scholar] [CrossRef]
  27. Watanabe, A.; McCarthy, K.R.; Kuraoka, M.; Schmidt, A.G.; Adachi, Y.; Onodera, T.; Tonouchi, K.; Caradonna, T.M.; Bajic, G.; Song, S.; et al. Antibodies to a conserved influenza head interface epitope protect by an IgG subtype-dependent mechanism. Cell 2019, 177, 1124–1135. [Google Scholar] [CrossRef] [PubMed]
  28. Sawicka, R.; Siedlecki, P.; Kalenik, B.; Radomski, J.P.; Sączyńska, V.; Porębska, A.; Szewczyk, B.; Sirko, A.; Góra-Sochacka, A. Characterization of mAb6-9-1 monoclonal antibody against hemagglutinin of avian influenza virus H5N1 and its engineered derivative, single-chain variable fragment antibody. Acta Biochim. Pol. 2017, 64, 85–92. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Lamb, R.A. The influenza virus RNA segments and their encoded proteins. In Genetics of Influenza Viruses; Springer: Berlin/Heidelberg, Germany, 1983; pp. 21–69. [Google Scholar]
  30. Wilson, I.A.; Skehel, J.J.; Wiley, D. Structure of the haemagglutinin membrane glycoprotein of influenza virus at 3 Å resolution. Nature 1981, 289, 366–373. [Google Scholar] [CrossRef]
  31. de Vries, R.P.; de Vries, E.; Bosch, B.J.; de Groot, R.J.; Rottier, P.J.; de Haan, C.A. The influenza A virus hemagglutinin glycosylation state affects receptor-binding specificity. Virology 2010, 403, 17–25. [Google Scholar] [CrossRef][Green Version]
  32. Sztain, T.; Ahn, S.H.; Bogetti, A.T.; Casalino, L.; Goldsmith, J.A.; Seitz, E.; McCool, R.S.; Kearns, F.L.; Acosta-Reyes, F.; Maji, S.; et al. A glycan gate controls opening of the SARS-CoV-2 spike protein. Nat. Chem. 2021, 1–6. [Google Scholar] [CrossRef]
Figure 1. 3D structure of the hemagglutinin from H3N2 A/Hong Kong/1968 (pdb 5t6n). Ribbon presentation of the trimer structure. The HA1 and HA2 subunits are discriminated by different colors. The glycan moieties presented in the solved structure are shown by the gray surface. The receptor-binding site—130 loop (epitopes 130–140), 190- α -helix (epitopes 190–199), and 220-loop (epitopes 220–230)—is highlighted by dark blue.
Figure 1. 3D structure of the hemagglutinin from H3N2 A/Hong Kong/1968 (pdb 5t6n). Ribbon presentation of the trimer structure. The HA1 and HA2 subunits are discriminated by different colors. The glycan moieties presented in the solved structure are shown by the gray surface. The receptor-binding site—130 loop (epitopes 130–140), 190- α -helix (epitopes 190–199), and 220-loop (epitopes 220–230)—is highlighted by dark blue.
Membranes 11 00757 g001
Figure 2. The erythrocyte agglutination mediated by the HA proteins (Vaxigrip). View of the hemagglutination reaction mixtures displayed in a round-bottomed microwell plate after the addition and dilution of the HA, which was pre-incubated with ORNs and ORNs-D-M in concentrations of 0.8–3.5 mg/mL. The picture demonstrates one of five independent experiments. Statistical significance was evaluated using the Student’s t-test, relative to the control HA (p < 0.05).
Figure 2. The erythrocyte agglutination mediated by the HA proteins (Vaxigrip). View of the hemagglutination reaction mixtures displayed in a round-bottomed microwell plate after the addition and dilution of the HA, which was pre-incubated with ORNs and ORNs-D-M in concentrations of 0.8–3.5 mg/mL. The picture demonstrates one of five independent experiments. Statistical significance was evaluated using the Student’s t-test, relative to the control HA (p < 0.05).
Membranes 11 00757 g002
Figure 3. View of the hemagglutination reaction mixtures displayed in a round-bottomed microwell plate after the addition and dilution of the HA (Vaxigrip), which was pre-incubated with the ORNs-D-M (3.5 mg/mL) at the different duration of the experiment in hours. The HA titer was tested by HA assay. The picture shows one of five independent experiments.
Figure 3. View of the hemagglutination reaction mixtures displayed in a round-bottomed microwell plate after the addition and dilution of the HA (Vaxigrip), which was pre-incubated with the ORNs-D-M (3.5 mg/mL) at the different duration of the experiment in hours. The HA titer was tested by HA assay. The picture shows one of five independent experiments.
Membranes 11 00757 g003

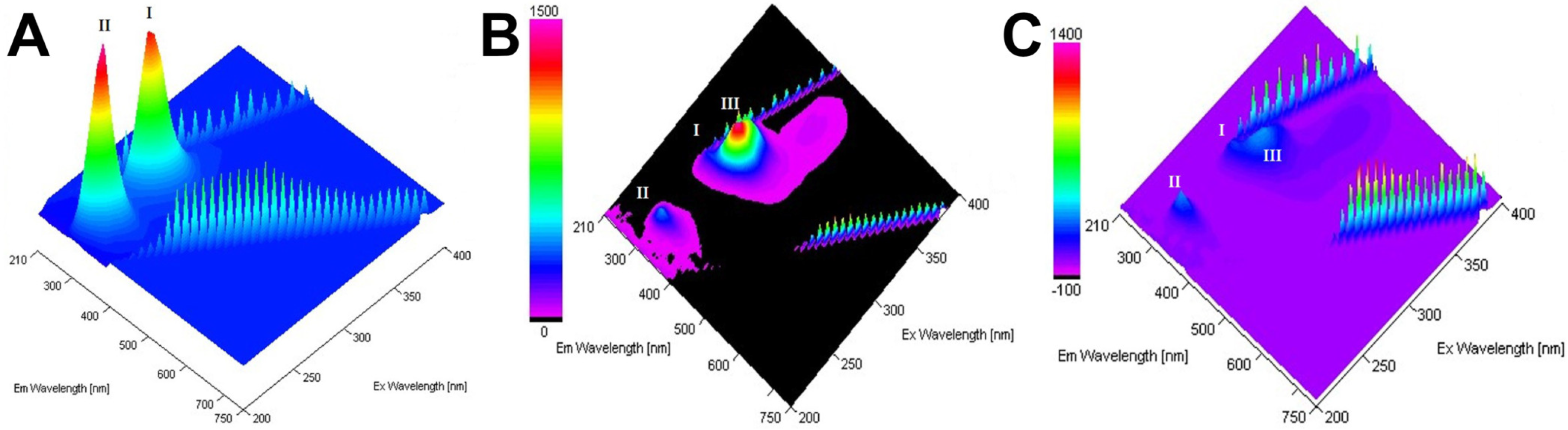

Figure 4. Total fluorescence spectra of the HA (A), HA–ORNs (B), and HA–ORNs-D-M (C) represented in the three-dimensional coordinate system. The amplitude of peaks presented according to the scale panel shown on the left side of the spectrum.
Figure 4. Total fluorescence spectra of the HA (A), HA–ORNs (B), and HA–ORNs-D-M (C) represented in the three-dimensional coordinate system. The amplitude of peaks presented according to the scale panel shown on the left side of the spectrum.
Membranes 11 00757 g004

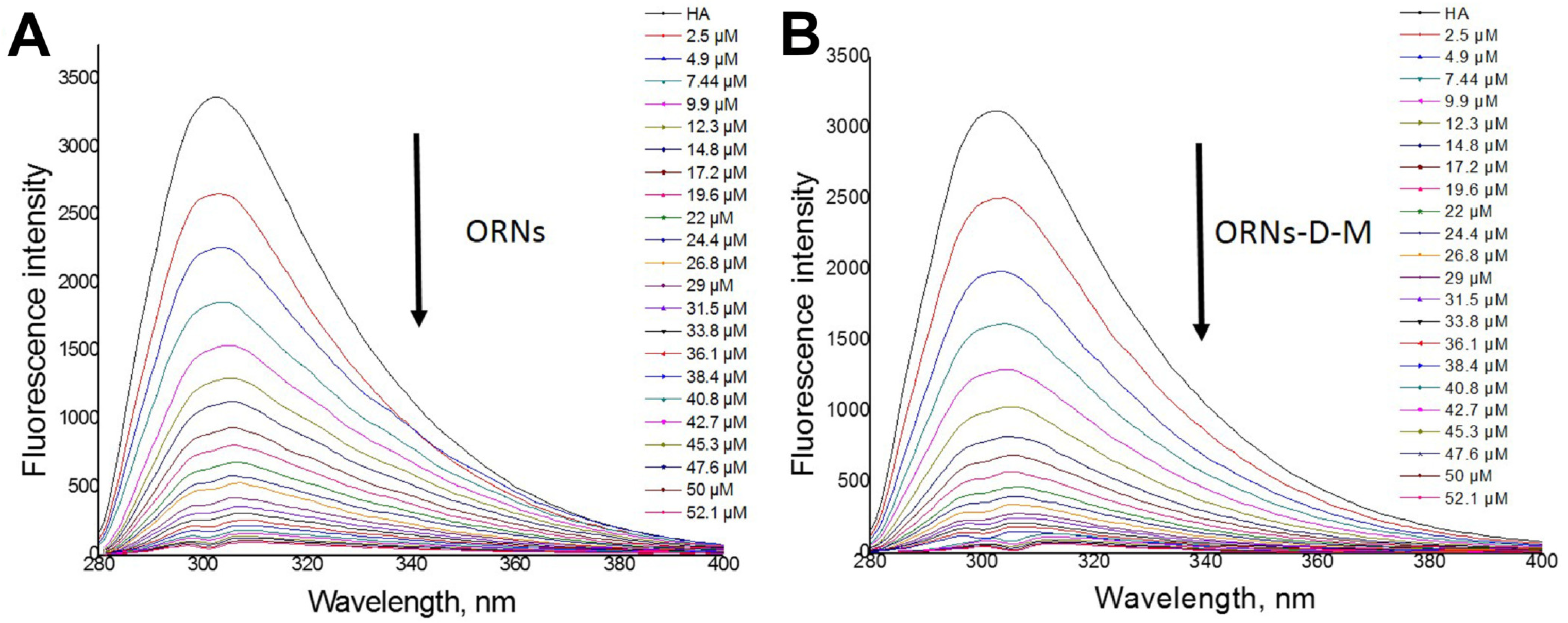

Figure 5. Quenching fluorescence of the hemagglutinin under titration with ORNs (A) and ORNs-D-M (B) ligands.
Figure 5. Quenching fluorescence of the hemagglutinin under titration with ORNs (A) and ORNs-D-M (B) ligands.
Membranes 11 00757 g005

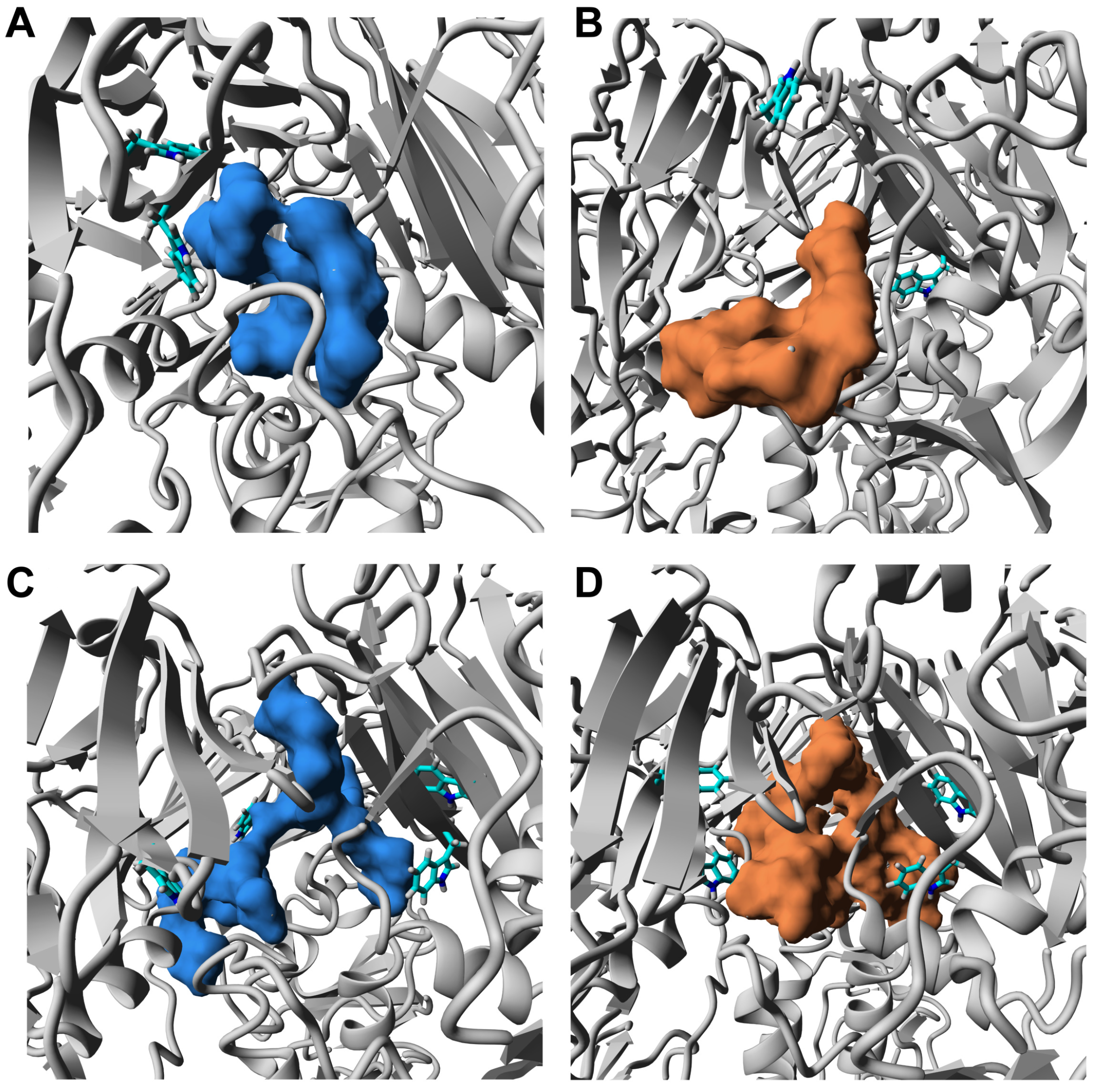

Figure 6. Close view position of the ORNs and ORNs-D-M ligands which non-specifically bind to the RBD domain. The HA3 complex with A3-ORNs (A), A3-ORNs-D-M (B), A6-ORNs (C), and A6-ORNs-D-M (D) ligands. The ORNs and functionalized ORNs-D-M ligands are highlighted as blue and brown, respectively. The side-chain of tryptophans (Trp180, Trp234) in HA1 subunits, detected as a part of the binding interface, are shown as a stick.
Figure 6. Close view position of the ORNs and ORNs-D-M ligands which non-specifically bind to the RBD domain. The HA3 complex with A3-ORNs (A), A3-ORNs-D-M (B), A6-ORNs (C), and A6-ORNs-D-M (D) ligands. The ORNs and functionalized ORNs-D-M ligands are highlighted as blue and brown, respectively. The side-chain of tryptophans (Trp180, Trp234) in HA1 subunits, detected as a part of the binding interface, are shown as a stick.
Membranes 11 00757 g006

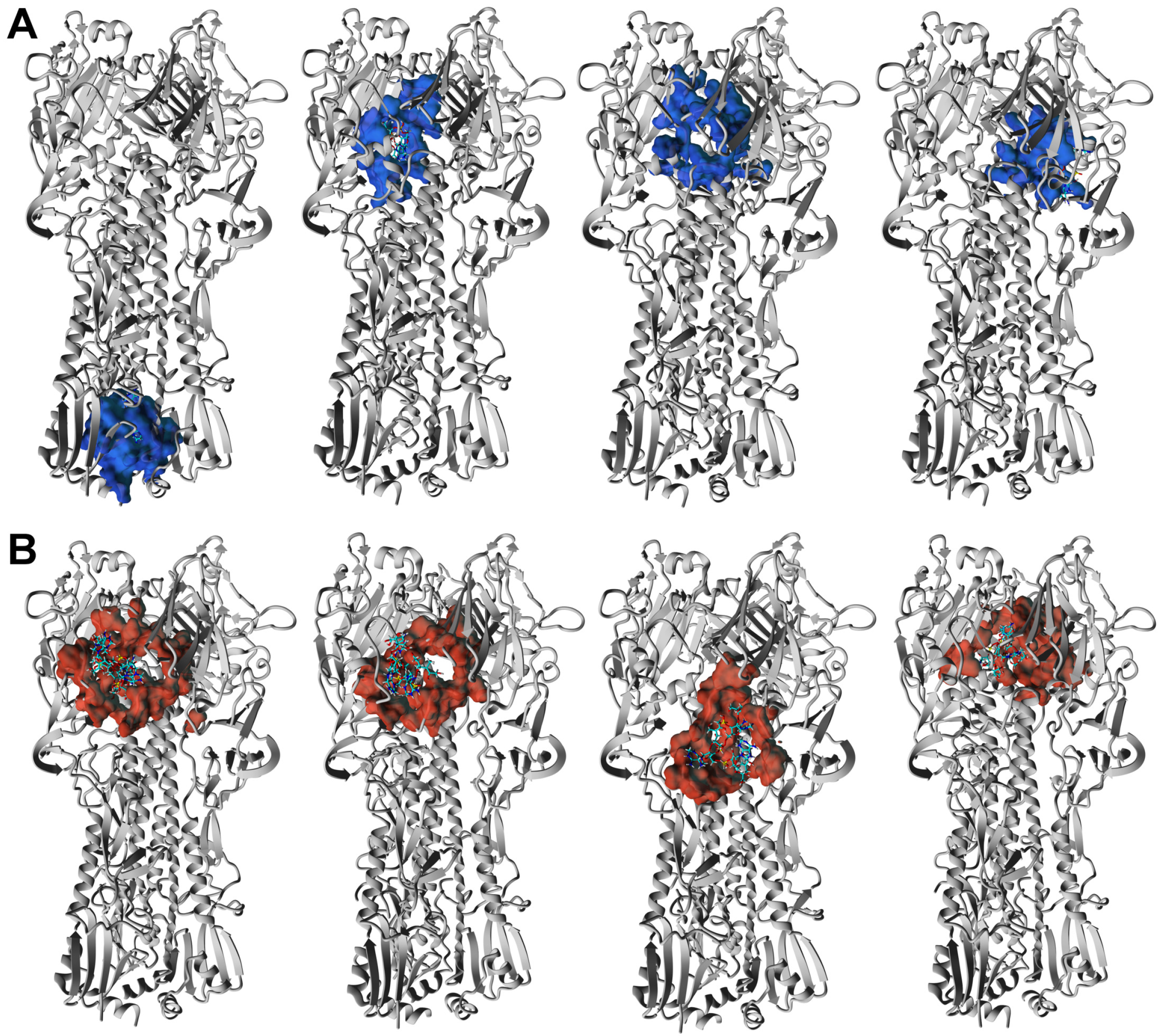

Figure 7. 3D structure of the four lowest energy complexes of the HA3 with A3-ORNs (A) and A3-ORNs-D-M (B) ligands. The surface of the HA3 residues involved in interactions with A3-ORNs and A3-ORNs-D-M substrates is highlighted as blue and red, respectively.
Figure 7. 3D structure of the four lowest energy complexes of the HA3 with A3-ORNs (A) and A3-ORNs-D-M (B) ligands. The surface of the HA3 residues involved in interactions with A3-ORNs and A3-ORNs-D-M substrates is highlighted as blue and red, respectively.
Membranes 11 00757 g007

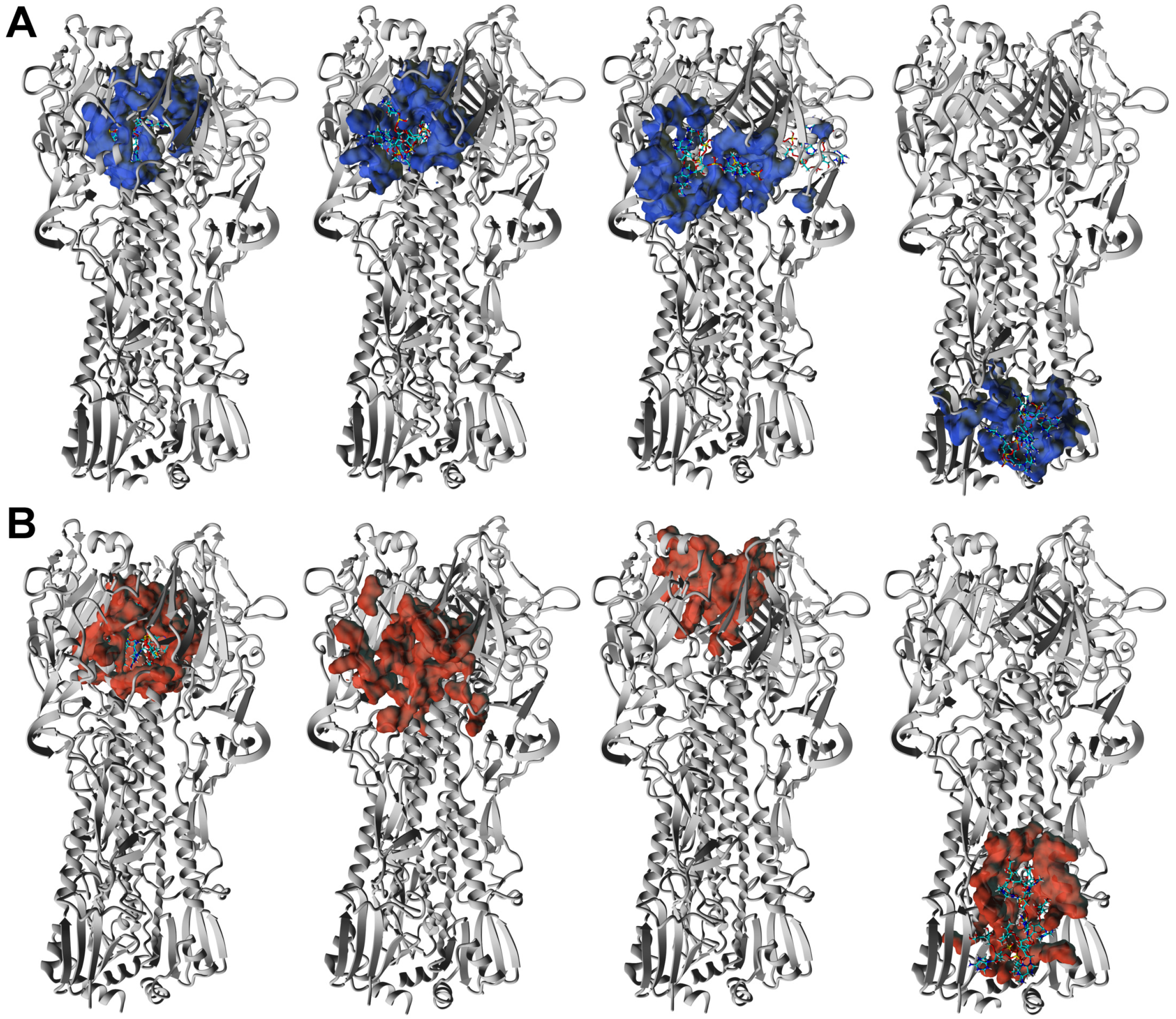

Figure 8. 3D structure of the four lowest energy complexes of the HA3 with A6-ORNs (A) and A6-ORNs-D-M (B) ligands. The hemagglutinin epitops involved in interactions with A6-ORNs and A6-ORNs-D-M are highlighted as blue and red, respectively.
Figure 8. 3D structure of the four lowest energy complexes of the HA3 with A6-ORNs (A) and A6-ORNs-D-M (B) ligands. The hemagglutinin epitops involved in interactions with A6-ORNs and A6-ORNs-D-M are highlighted as blue and red, respectively.
Membranes 11 00757 g008
