Article

Argon and Argon–Oxygen Plasma Surface Modification of Gelatin Nanofibers for Tissue Engineering Applications

by
Abolfazl Mozaffari
1,
Mazeyar Parvinzadeh Gashti
2,*,
Mohammad Mirjalili
1 and
Masoud Parsania
3
1
Department of Textile and Polymer Engineering, Yazd Branch, Islamic Azad University, Yazd 14515-775, Iran
2
Research and Development Laboratory, PRE Labs Inc., #100-2600 Enterprise Way, Kelowna, BC V1X 7Y5, Canada
3
Department of Microbiology, Faculty of Medicine, Tehran Medical Sciences, Islamic Azad University, Tehran 19395/1495, Iran
*
Author to whom correspondence should be addressed.
Membranes 2021, 11(1), 31; https://doi.org/10.3390/membranes11010031
Submission received: 30 November 2020 / Revised: 21 December 2020 / Accepted: 29 December 2020 / Published: 2 January 2021
(This article belongs to the Special Issue Development and Applications of Electrospun Nanofiber Membrane)
Browse Figures
Versions Notes

Abstract

:
In the present study, we developed a novel approach for functionalization of gelatin nanofibers using the plasma method for tissue engineering applications. For this purpose, tannic acid-crosslinked gelatin nanofibers were fabricated with electrospinning, followed by treatment with argon and argon–oxygen plasmas in a vacuum chamber. Samples were evaluated by using scanning electron microscopy (SEM), atomic force microscopy (AFM), attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy, contact angle (CA) and X-ray diffraction (XRD). The biological activity of plasma treated gelatin nanofibers were further investigated by using fibroblasts as cell models. SEM studies showed that the average diameter and the surface morphology of nanofibers did not change after plasma treatment. However, the mean surface roughness (RMS) of samples were increased due to plasma activation. ATR-FTIR spectroscopy demonstrated several new bands on plasma treated fibers related to the plasma ionization of nanofibers. The CA test results stated that the surface of nanofibers became completely hydrophilic after argon–oxygen plasma treatment. Finally, increasing the polarity of crosslinked gelatin after plasma treatment resulted in an increase of the number of fibroblast cells. Overall, results expressed that our developed method could open new insights into the application of the plasma process for functionalization of biomedical scaffolds. Moreover, the cooperative interplay between gelatin biomaterials and argon/argon–oxygen plasmas discovered a key composition showing promising biocompatibility towards biological cells. Therefore, we strongly recommend plasma surface modification of nanofiber scaffolds as a pretreatment process for tissue engineering applications.

1. Introduction

Since the mid-1990s, researchers have considered the potential production and implementation of nanofibers in various engineering applications. Electrospinning has been able to generate continuous fibers with diameters ranging from submicron down to the nanometer. As one-dimensional materials, nanofibers and nanowires have also been widely recognized in biomedical engineering due to the high surface area to volume ratio, nano-porosity, good absorption, biocompatibility, biodegradability, good breathability and mass transport properties [1,2,3,4]. In addition, flexibility of electrospinning process allows fabrication of continuous nanofibers for a various range of applications, including electronics and energy, textiles and protective clothing, sensors, energy storage and filtration [5,6,7].
Gelatin, as one of the main biopolymers, has been widely researched in tissue engineering through facile and effective electrospinning procedures. The ease of spinnability of this biomacromolecule resulted in morphologically uniform nano-fibrous scaffolds [5]. The aims of these studies have been accomplished in different tissue engineering applications, including cartilage, skin, vascular and hamstring systems [8,9,10]. In general, gelatin nanofibers can be achieved in relatively mild solvents, such as acetic acid/water and ethanol/formic acid/water solutions [5,10,11,12]. However, the main challenge in the application of gelatin nanofibers is their high solubility in water. In this regard, chemical and enzymatic cross-linking have been widely considered by researchers to improve their mechanical properties and preserve their morphology [13,14,15,16]. In addition, the toxicity of cross-linkers should be taken into consideration for biomedical applications. The majority of studies have demonstrated that cross-linked gelatin nanofibers can be produced via exposure to glutaraldehyde vapor, genipin, 1-ethyl-(3-3-dimethylaminopropyl) carbodiimide hydrochloride (EDC) and tannic acid [17,18,19]. It was reported that tannic acid crosslinked nanofibers were not only able to maintain the physical structure in water, but they can also act as antioxidants with antimicrobial functionality against different microorganisms including bacteria, viruses and fungi [20].
One of the most available approaches to modify the surface of polymers and fibers is the plasma activation method [21,22,23,24,25]. Many research works have focused on this process to increase the interaction of polymers with different materials. However, very few studies have been made to improve the bioactivity of nanofibers for tissue engineering applications [26,27,28]. Cheng et al. functionalized poly(L-lactide) micro-fibrous scaffolds with argon or argon-NH3/H2 plasmas to enhance affinity toward bovine aorta endothelial and bovine smooth muscle cells [29]. A similar study was conducted by Yoshida et al. to enhance the biocompatibility of polymer surfaces for controlled drug release purposes [30]. Indeed, very few studies on immobilization of gelatin on different plasma functionalized nanofibers are worthy of mention. Ma et al. activated polycaprolactone (PCL) nanofibers with air plasma grafted with gelatin. The resultant nanofibers had higher endothelial cell compatibility for blood vessel tissue engineering [31]. Studies have shown that fabrication of cationized gelatin on oxygen plasma treated poly(lactide-co-glycolide) can improve the affinity toward fibroblast cells [32]. Furthermore, this process introduced carboxylic acid groups on polylactic acid (PLLA) electrospun nanofibers that resulted in an improvement in immobilization of cationized gelatin. The final nanofibers were promising candidates for cartilage tissue generation [33]. Recently, Omrani and her group modified the surface of polyether ether ketone with gelatin in conjunction with oxygen plasma for bone related injuries [34]. Ghorbani et al. immobilized gelatin on the oxygen plasma-treated PCL that resulted in tunable pore structures for wound healing and skin tissue engineering [35]. However, to the best of our knowledge, there are no studies on plasma functionalization of gelatin nanofibers and evaluation of their bioactivities. Attempts were made in our research on argon and argon–oxygen plasma surface modification of gelatin nanofibers for tissue engineering applications.

2. Materials and Methods

Gelatin powder (type A, Bio Reagent with code G1890 from porcine skin), tannic acid and acetic acid (66%) were purchased from Sigma Aldrich.
According to the previous studies, we used acetic acid as a solvent for electrospinning of gelatin [29,36]. A solution containing 15% w/v gelatin and 5% w/v tannic acid was prepared in 10 mL acetic acid. Then, it was stirred for 4 h at 30 °C to achieve a homogenous solution. The electrospinning process was conducted at 15 kV voltage, and the distance of needle tip to metallic plate collector was set at 15 cm with a feeding rate of 0.6 mL/h. The electrospinning apparatus was from Fanavaran nano-meghyas Co. (Tehran, Iran). The collected nanofibers were then placed in a vacuum oven for 3 h at 45 °C to obtain a fully cross-linked scaffold.
Electrospun nanofiber scaffolds were treated in a plasma chamber (argon and argon–oxygen gas mixtures) for 90 s by using PF-200 plasma DBD device (Nik Fanavaran Plasma Co., Tehran, Iran). For pure argon gas, the flow rate was set at 2 L/min. On the other hand, we used an identical ratio for argon–oxygen gas mixtures at 2 L/min. The AC voltage was applied at 10 kV, and the distance between the sample and nozzle was 3 mm.
To evaluate the performance of the plasma modification process on the crosslinked gelatin for tissue engineering applications, gelatin films were prepared from the same electrospinning solution and were treated with argon and argon–oxygen plasmas. In this regard, primary human dermal fibroblast cells, derived from human skin fibroblasts (Royan Institute, Tehran, Iran), were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM; Biosera, England) supplemented with 10% fetal bovine serum (FBS; Gibco, Belgium), 100 IU/mL penicillin and 100 μg/mL streptomycin. The cells were maintained at 37 °C in 5% CO2 condition. Then, cells (fourth passage) were cultivated on gelatin films with a size of 10 mm × 10 mm, by using a microscope slide cover glass (22 mm × 22 mm). For this purpose, we utilized 6-well cell culture plates with a cell seeding density of 10,000 cells/cm2 of medium. After culturing, cells were grown for 24 h and then used for microscopy imaging. We utilized an image processor (ImageJ) to count the average cell numbers per captured image. Three images from different areas were used and the average cell numbers were measured for each sample. The morphology of crosslinked gelatin nanofibers was investigated by SEM (LEO1455VP, Cambridge, England). For this purpose, samples were sputter-coated with an Au layer under vacuum conditions, prior to the microscopic assessment. We used a pumping system along with a coating thickness controller of MTM-20 with a sputtering power of 30 W. The coating thickness and the target-to-substrate distance were 10 and 50 mm, respectively. The SEM working distance was 9 mm for all samples and two magnifications of ×5 K and ×10 K (K = 1000) were used. The SEM operated at a 25 kV accelerating voltage. The average diameter of various nanofibers were measured by ImageJ. We used five measurements and the mean values were reported. AFM was utilized to determine the surface topography and the roughness of nanofibers on a contact mode of Scanning probe microscope (SPM) microscope (Park Scientific Instrument, Auto Probe CP Model, Korea). For this purpose, the root mean square (RMS), as the most important parameter for roughness characterization, was calculated according to Equation (1):
R M S = ∑ n − 1 N ( Z n − Z m ) 2 N − 1 ,
where Z n is the height measurement of pixel n (from a total of N = 256 × 256 pixels), and Z m is the mean height. The chemical properties of nanofibers were assessed by the FTIR spectroscopy (Thermo Nicolet NEXUS 870 FTIR from Nicolet Instrument Corp., Madison, WI, USA). The spectrophotometer was set up with a single reflection ATR accessory for reflection mode and measurements were conducted over a range of 500–4000 cm−1 at a resolution of 5 cm−1. Wettability of the scaffolds were examined using a water contact angle system supported by video camera equipment (Perkin Elmer Spectrum RX-1, Waltham, MA, USA). XRD of gelatin nanofibers was evaluated from wide-angle X-ray diffractograms recorded with a Philips X’Pert Pro Multipurpose X-ray Diffractometer operating at 40 mA. Ni-filtered Cu Ka radiation generated at 40 kV (k = 0.1542 nm) and the measured angle ranged from 4 to 70°, with the scan speed of 1°/min.

3. Results and Discussion

3.1. Microscopic Evaluation of Plasma Treated Nanofibers

We used acetic acid for dissolving gelatin in water, owing to the fact that it prevents the bead-like non-uniform electrospun gelatin nanofibers [37]. SEM and AFM of tannic acid crosslinked nanofiber scaffolds before and after plasma process were assessed, and results are displayed in Figure 1 and Figure 2.
According to Figure 1a,b, untreated nanofibers are uniform before plasma treatment, with no beads and an average diameter of 300 ± 28 nm. Our previous study on fabrication of tannic acid crosslinked gelatin nanofibers revealed that a balance between the electrostatic repulsion, surface tension and viscoelastic properties were required to generate uniform nanofibers. The higher tannic acid content in gelatin bath, the higher the average diameter of nanofiber will be [36]. After plasma treatment with argon and argon–oxygen gases, the average diameter of nanofibers were not considerably changed (294 ± 37 nm and 291 ± 45 nm, respectively). Moreover, no considerable change was observed on the nanofiber surfaces. Shen et al. evaluated the role of oxygen plasma treatment on adhesion of cationized gelatin onto poly(lactide-co-glycolide) films. According to their SEM results, plasma was not only able to promote a uniform distribution of cationized gelatin on the biopolymer films, but it could also generate a mesh-like surface [32]. On the other hand, argon or argon–ammonia–hydrogen plasmas did not affect the surface morphology of PLLA microfibers [29]. Our SEM results are consistent with this study. The effect of solvent systems on the morphology of gelatin nanofibers has been extensively studied elsewhere [38,39]. Choktaweesap et al. demonstrated that electrospinning of 15–29% w/v gelatin solutions in acetic acid generated beads, beaded fibers and smooth fibers, depending on the concentration changes. On the other hand, dimethyl sulfoxide and ethylene glycol can reduce the diameter of fibers with smooth surface effects [38]. Horuz and Belibağlı employed Taguchi’s methodology to optimize electrospinning of gelatin nanofiber with acetic acid. The optimum process conditions were fixed in 20% acetic acid under a voltage of 18 kV, a flow rate of 15 μL min−1 and a distance of 12.5 cm [39].
We further investigated the surface properties of nanofibers with AFM due to the fact that it generally provides accurate measurements on surface topography. We also extracted the results from the AFM test, and roughness parameters are shown in Table 1. The surface of the untreated fibers was smooth, with the RMS being about 5.1 nm, as calculated from Figure 2a. The RMS for argon and argon–oxygen plasma treated samples (Figure 2b,c) were 31.54 and 27.76 nm, respectively. An increase in the surface roughness of nanofibers after plasma treatment can be attributed to the bombardment of energetic particles, including electrons, ions, radicals, neutrals and excited atoms/molecules [21,22,23]. Argon–oxygen plasma can result in chemical etching by bond breakage, chain scission, chemical degradation and surface oxidation, while argon plasma is an inert process and can physically etch nanofibers by removal of low molecular weight fragments [23,24,25]. Our previous studies demonstrated similar results on various films and fibers. However, a research group did not observe roughening effect on the plasma treated electrospun PLLA fibers due to stretched polymer chains oriented parallel to the longitudinal fiber direction [29].

3.2. Chemical Characteristics of Plasma Treated Nanofibers

Figure 3 illustrated the ATR-FTIR spectra for the crosslinked gelatin nanofibers, before and after treatment with argon and argon–oxygen plasmas. We also represented the major peaks for fabricated samples in Table 2. The FT-IR spectrum of gelatin (Figure 3A) indicated several bands for N–H stretching of amide bond at 3443 cm−1, C–H stretching at 2925 cm−1 and aromatic C–H bending at 610 cm−1 [38]. The amide II peak at 1538 cm−1 was attributed to N–O stretching of gelatin macromolecules [39,40,41]. The amide III band was attributed to the combination of N–H in plane bending, C–N stretching vibrations and N–H out-of-plane wagging at 1334 cm−1. The C–O stretching bands also appeared at 1242 and 1300 cm−1 [42,43,44,45].
After plasma treatment of nanofibers, several changes were observed in the ATR-FTIR spectrum of gelatin, including shifting of two peaks from 3443 (amide A) and 2925 to 3303 and 2947 cm−1, respectively; appearance of three peaks at 1651 (amide I), 1448 and 1441 cm−1 (amide II); and disappearance of a peak at 1300 cm−1 (amide III). Appearance of new peaks in the spectrum can be possibly due to generation of COO or carbonyl groups in nanofibers due to plasma ionization. In addition, plasma process could have a major effect on several peaks in the amide A, amide II and amide III regions in gelatin. Shen et al. used FTIR spectroscopy to detect gelatin on oxygen plasma treated poly(lactide-co-glycolide) films. They found that gelatin can be effectively anchored onto poly(lactide-co-glycolide) due to oxidation [32]. Similar to our study, Ghorbani et al. recently investigated the effect of oxygen plasma treatment on PCL nanofibers. They observed oxygen-containing functional groups, including carbonyl groups and –COO bonds at 1272 cm−1 and 1420 cm−1, respectively [35]. We should mention that there was not considerable difference between the ATR-FTIR spectra of argon and argon–oxygen plasma treated nanofibers.

3.3. Water Contact Angle Properties of Nanofibers

The importance of hydrophilic properties of gelatin scaffolds in tissue engineering applications has been reported in several studies [28,37]. We measured the water contact angle (CA) of nanofiber scaffolds by using the droplet size 0.5 mL. Three samples were selected in each experiment and the mean values of CA were reported. In general, gelatin has hydrophilic properties, and it displays excellent wettability in comparison with other polymers [46,47,48,49]. As can be seen in Table 3, the gelatin nanofiber scaffold had a mean CA of 20.65°. After argon plasma treatment, the mean CA value decreased to 14.6°, which can be due to the changes on the surface properties of nanofibers. However, we interestingly observed that argon–oxygen plasma treatment resulted in a highly hydrophilic gelatin nanofiber and the water droplet was completely absorbed into the scaffold. The introduction of polar groups onto the nanofiber surface by argon–oxygen plasma could lead to a completely hydrophilic scaffold, which was confirmed in our ATR-FTIR spectroscopy assessment.
Our results are also in agreement with several studies on plasma functionalization of polymers for tissue engineering purposes [29,30,31,32,33,34]. Ma et al. found that air plasma increases the hydrophilicity of PCL and improves the interactions with gelatin coating [31]. In two studies, oxygen, argon and argon–ammonia–hydrogen plasmas were able to decrease the CA of PLLA nanofibers from values higher that 110° to 15°, 85° and 0°, respectively. These groups confirmed generation of carboxylic acid groups on PLLA after plasma treatments [29,33]. Similar hydrophilic action was also observed for diamond like carbon films [30] and polyether ether ketone samples [34]. In our recent research, we compared the effect of crosslinking of gelatin with tannic acid on CA properties. Tannic acid reduced the CA due to crosslinking of functional groups at the scaffold surface and the presence of aromatic rings in tannic acid [36]. Our group previously investigated the moisture absorption of polyester fibers after air plasma treatment. Results postulated that air plasma increased the moisture absorption from 4.4% to 6.2% due to generation of polar groups on the fiber surfaces [21,22,23,24,25].

3.4. XRD Analysis of Nanofibers

The XRD patterns for the crosslinked gelatin nanofibers before and after treatment with argon and argon–oxygen plasmas are depicted in Figure 4. Gelatin is a partially crystalline biopolymer with a relatively intensive peak at 2θ = 8° (d101 = 11.08 Å) and a broad peak at 2θ = 24° (d101 = 4.01 Å). These characteristic peaks are related to the triple-helical crystalline structure of gelatin biomacromolecules. However, we did not observe the intensive peak at 2θ = 8° due to addition of tannic acid as crosslinker in the fiber processing (Figure 4a). This observation was previously stated by Peña et al. [50].
After argon (Figure 4b) and argon–oxygen plasma (Figure 4c) treatment of nanofibers, two peaks appeared at 2θ = 15° and 17°, demonstrating a new biomacromolecular orientation in plasma treated nanofibers. These peaks were more intensified in the argon–oxygen plasma sample due to the key role of oxygen gas in the crystallinity of gelatin scaffolds. An increase in the peak intensities for argon–oxygen plasma treated nanofibers can be attributed to the presence of bigger crystallites or an increase in the crystallinity fraction. In agreement to our results, two research groups recently reported appearance of new peaks in the XRD spectra of polyamide fibers after plasma activation [51,52].

3.5. Morphological Characterization of Cells on Nanofiber Scaffolds

Prepared gelatin films, before and after argon and argon–oxygen plasma treatments, were assessed regarding their ability to interact with fibroblast cells. The morphology of cells were observed by using SEM, and the images are illustrated in Figure 5. As can be seen from Figure 5b, fibroblast cells had their natural spindle shape on the gelatin film before plasma process (average cell number: 85 ± 6). After argon plasma treatment, the number of fibroblast cells increased on gelatin (average cell number: 96 ± 8; Figure 5b). We interestingly observed further increase in the number of these cells on the argon–oxygen plasma treated gelatin film (average cell number: 145 ± 9; Figure 5c). This is attributable to the fact that more polar groups were generated on the argon–oxygen plasma treated gelatin, and the affinity toward fibroblast cells was increased. This result is in agreement with water CA properties. Notably, there was no considerable difference in the shape of cells on argon and argon–oxygen plasma treated films. Shen et al. noted that deposition of gelatin layer on the oxygen plasma treated poly(L-lactide-co-glycolide) film could accelerate adhesion of fibroblast cells. The reason was generation of hydrophilic functional groups at the film surface [32]. Cheng et al. stated that the enhancement of cell adhesion and spreading on plasma treated surfaces was mainly due to improvements in hydrophilicity and the incorporation of O and N functional domains. Indeed, they did not find any relation between the cell numbers and the surface roughness after plasma treatment. Moreover, they depicted an increase in the cell spreading on argon–ammonia–hydrogen plasma treated surfaces, in comparison with the argon plasma-treated ones. Similar results can be seen in our study on argon and argon–oxygen plasma treated gelatin films [29]. We should also highlight research by Chandrasekaran et al. that is in agreement with our research. They demonstrated that poly(L-lactic acid)-co-poly(ε-caprolactone)/gelatin scaffolds exhibited significant increase in fibroblasts proliferation, morphology and secretion of collagen after plasma treatment [53].

4. Conclusions

We fabricated crosslinked gelatin nanofibers for treatment with argon and argon–oxygen plasma procedures. The main aims of this study were to evaluate the surface properties and bio-functionality for tissue engineering applications. We observed that the RMS of nanofibers were increased after plasma treatment. However, the argon plasma treated sample showed a rougher surface in comparison with the argon–oxygen plasma treated one. Surface roughness of samples was related to the changes in the chemical properties of nanofibers. Our results were further approved by CA evaluation test. The CA of argon plasma treated samples decreased in comparison with the untreated nanofibers. However, due to surface oxidation of argon–oxygen plasma treated nanofibers, the CA value was 0° and the sample was completely hydrophilic. We noted the appearance of a new peak in the XRD spectra of plasma treated nanofibers due to changes in the crystallinity. Finally, the number of fibroblast cells increased on the argon and argon–oxygen plasma treated gelatin films, and these cells maintained their normal shape.
Overall, the cooperative interplay between plasma surface modification and gelatin nanofiber fabrication resulted an improvement in the surface functionality, biocompatibility and bioactivity toward fibroblast cells. Here, we conclude that argon and argon–oxygen plasma methods are likely to play an important role in tissue engineering applications. Further studies are necessary in order to investigate the suitability of plasma for activation of other polymers in biomedical engineering and tissue regeneration.

Author Contributions

Conceptualization, M.P.G. and M.M.; methodology, M.P.G. and M.M.; validation, M.P.G., M.M. and M.P.; formal analysis, A.M.; investigation, A.M.; resources, A.M.; data curation, M.P.G., M.M. and M.P.; writing—original draft preparation, M.P.G. and A.M.; writing—review and editing, M.P.G.; visualization, M.P.G., M.M., M.P. and A.M.; supervision, M.P.G., M.M. and M.P.; project administration, M.M., M.P. and A.M.; funding acquisition, A.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bodillard, J.; Pattappa, G.; Pilet, P.; Weiss, P.; Réthoré, G. Functionalisation of Polysaccharides for the Purposes of Electrospinning: A Case Study Using HPMC and Si-HPMC. Gels 2015, 1, 44–57. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Szewczyk, P.K.; Ura, D.P.; Stachewicz, U. Humidity Controlled Mechanical Properties of Electrospun Polyvinylidene Fluoride (PVDF) Fibers. Fibers 2020, 8, 65. [Google Scholar] [CrossRef]
  3. Lubasova, D.; Netravali, A.N. A Novel Method for Electrospinning Nanofibrous 3-D Structures. Fibers 2020, 8, 27. [Google Scholar] [CrossRef]
  4. Trabelsi, M.; Mamun, A.; Klöcker, M.; Sabantina, L.; Großerhode, C.; Blachowicz, T.; Ehrmann, A. Increased Mechanical Properties of Carbon Nanofiber Mats for Possible Medical Applications. Fibers 2019, 7, 98. [Google Scholar] [CrossRef] [Green Version]
  5. Chiu, C.-M.; Nootem, J.; Santiwat, T.; Srisuwannaket, C.; Pratumyot, K.; Lin, W.-C.; Mingvanish, W.; Niamnont, N. Enhanced Stability and Bioactivity of Curcuma comosa Roxb. Extract in Electrospun Gelatin Nanofibers. Fibers 2019, 7, 76. [Google Scholar] [CrossRef] [Green Version]
  6. Bezir, N.Ç.; Evcin, A.; Diker, R.; Özcan, B.; Kır, E.; Akarca, G.; Çetin, E.S.; Kayalı, R.; Özen, M.K. Investigation of Antibacterial Properties of Ag Doped TiO2 Nanofibers Prepared by Electrospinning Process. Open Chem. 2018, 16, 732–737. [Google Scholar] [CrossRef]
  7. Almasian, A.; Najafi, F.; Mirjalili, M.; Parvinzadeh Gashti, M.; Fard, G.C. Zwitter Ionic Modification of Cobalt-Ferrite Nanofiber for the Removal of Anionic and Cationic Dyes. J. Taiwan Inst. Chem. Eng. 2016, 67, 306–317. [Google Scholar] [CrossRef]
  8. Deng, L.; Li, Y.; Feng, F.; Zhang, H. Study on Wettability, Mechanical Property and Biocompatibility of Electrospun Gelatin/Zein Nanofibers Cross-linked by Glucose. Food Hydrocoll. 2019, 87, 1–10. [Google Scholar] [CrossRef]
  9. Feng, B.; Tu, H.; Yuan, H.; Peng, H.; Zhang, Y. Acetic-Acid-Mediated Miscibility toward Electrospinning Homogeneous Composite Nanofibers of GT/PCL. Biomacromolecules 2012, 13, 3917–3925. [Google Scholar] [CrossRef]
  10. Feng, B.; Duan, H.; Fu, W.; Cao, Y.; Zhang, W.J.; Zhang, Y. Effect of Inhomogeneity of the Electrospun Fibrous Scaffolds of Gelatin/Polycaprolactone Hybrid on Cell Proliferation. J. Biomed. Mater. Res. Part A 2015, 103, 431–438. [Google Scholar] [CrossRef]
  11. Duan, H.; Xue, J.; Liu, Y.; Feng, B.; Zhao, S.; Zhu, Y.; Liu, Y.; He, A.; Zhang, W.; Liu, W.; et al. The Influence of Gelatin/PCL Ratio and 3-D Construct Shape of Electrospun Membranes on Cartilage Regeneration. Biomaterials 2014, 35, 152–164. [Google Scholar]
  12. He, X.; Feng, B.; Huang, C.; Wang, H.; Ge, Y.; Hu, R.; Yin, M.; Xu, Z.; Wang, W.; Fu, W.; et al. Electrospun Gelatin/Polycaprolactone Nanofibrous Membranes Combined with a Coculture of Bone Marrow Stromal Cells and Chondrocytes for Cartilage Engineering. Int. J. Nanomed. 2015, 17, 2089–2099. [Google Scholar]
  13. Tavassoli-Kafrani, E.; Goli, S.A.H.; Fathi, M. Fabrication and Characterization of Electrospun Gelatin Nanofibers Crosslinked with Oxidized Phenolic Compounds. Int. J. Biol. Macromol. 2017, 103, 1062–1068. [Google Scholar] [CrossRef] [PubMed]
  14. Yao, C.-H.; Lee, C.-Y.; Huang, C.H.; Chen, Y.S.; Che, K.Y. Novel Bilayer Wound Dressing Based on Electrospun Gelatin/Keratin Nanofibrous Mats for Skin Wound Repair. Mater. Sci. Eng. C 2017, 79, 533–540. [Google Scholar] [CrossRef] [PubMed]
  15. Sisson, K.; Zhang, C.; Farach-Carson, M.C.; Chase, D.B.; Rabolt, J.F. Evaluation of Cross-Linking Methods for Electrospun Gelatin on Cell Growth and Viability. Biomacromolecules 2009, 10, 1675–1680. [Google Scholar] [CrossRef]
  16. Tengroth, C.; Gasslander, U.; Andersson, F.O.; Jacobsson, S.P. Cross-Linking of Gelatin Capsules with Formaldehyde and other Aldehydes: An FTIR Spectroscopy Study. Pharm. Dev. Technol. 2005, 10, 405–412. [Google Scholar] [CrossRef]
  17. Laha, A.; Yadav, S.; Majumdar, S.; Sharma, C.S. In-Vitro Release Study of Hydrophobic Drug Using Electrospun Cross-Linked Gelatin Nanofibers. Biochem. Eng. J. 2016, 105, 481–488. [Google Scholar] [CrossRef]
  18. Choi, Y.S.; Lee, S.B.; Hong, S.R.; Lee, Y.M.; Song, K.W.; Park, M.H. Studies on Gelatin-Based Sponges. Part III: A Comparative Study of Cross-Linked Gelatin/Alginate, Gelatin/Hyaluronate and Chitosan/Hyaluronate Sponges and Their Application as a Wound Dressing in Full-Thickness Skin Defect of Rat. J. Mater. Sci. Mater. Med. 2001, 12, 67–73. [Google Scholar] [CrossRef]
  19. Zhang, X.; Do, M.D.; Casey, P.; Sulistio, A.; Qiao, G.G.; Lundin, L.; Lillford, P.; Kosaraju, S. Chemical Modification of Gelatin by a Natural Phenolic Cross-Linker, Tannic Acid. J. Agric. Food Chem. 2010, 58, 6809–6815. [Google Scholar] [CrossRef]
  20. Gunatillake, P.A.; Adhikari, R. Biodegradable Synthetic Polymers for Tissue Engineering. Eur. Cell Mater. 2003, 5, 1–16. [Google Scholar] [CrossRef]
  21. Parvinzadeh Gashti, M.; Ebrahimi, I.; Pousti, M. New Insights into Corona Discharge Surface Ionization of Polyethylene Terephthalate via a Combined Computational and Experimental Assessment. Curr. Appl. Phys. 2015, 15, 1075–1083. [Google Scholar] [CrossRef]
  22. Ebrahimi, I.; Kiumarsi, A.; Parvinzadeh Gashti, M.; Rashidian, R.; Norouzi, M.H. Atmospheric-Air Plasma Enhances Coating of Different Lubricating Agents on Polyester Fiber. Eur. Phys. J. Appl. Phys. 2011, 56, 10801. [Google Scholar] [CrossRef]
  23. Parvinzadeh Gashti, M.; Hegemann, D.; Stir, M.; Hulliger, J. Thin Film Plasma Functionalization of Polyethylene Terephthalate to Induce Bone-Like Hydroxyapatite Nanocrystals. Plasma Process. Polym. 2014, 11, 37–43. [Google Scholar] [CrossRef]
  24. Parvinzadeh, M.; Ebrahimi, I. Influence of Atmospheric-Air Plasma on the Coating of a Nonionic Lubricating Agent on Polyester Fiber. Radiat. Eff. Def. Solid. 2011, 166, 408–416. [Google Scholar] [CrossRef]
  25. Yamamoto, M.; Matsumae, T.; Kurashima, Y.; Takagi, H.; Suga, T.; Itoh, T.; Higurashi, E. Comparison of Argon and Oxygen Plasma Treatments for Ambient Room-Temperature Wafer-Scale Au–Au Bonding Using Ultrathin Au Films. Micromachines 2019, 10, 119. [Google Scholar] [CrossRef] [Green Version]
  26. Demina, T.; Zotova, D.Z.; Yablokov, M.; Gilman, A.; Akopova, T.; Markvicheva, E.; Zelenetskii, A. DC Discharge Plasma Modification of Chitosan/Gelatin/PLLA Films: Surface Properties, Chemical Structure and Cell Affinity. Surf. Coat. Technol. 2012, 207, 508–516. [Google Scholar] [CrossRef]
  27. Ferreira, B.; Pinheiro, L.M.P.; Nascente, P.A.P.; Ferreira, M.J.; Duek, E.A.R. Plasma Surface Treatments of Poly (l-Lactic Acid)(PLLA) and Poly (Hydroxybutyrate-co-Hydroxyvalerate)(PHBV). Mat. Sci. Eng. C 2009, 29, 806–813. [Google Scholar] [CrossRef]
  28. Chu, P.K.; Chen, J.Y.; Wang, L.P.; Huang, N. Plasma-Surface Modification of Biomaterials. Mat. Sci. Eng. R Rep. 2002, 36, 143–206. [Google Scholar] [CrossRef] [Green Version]
  29. Cheng, Q.; Lee, B.L.P.; Komvopoulos, K.; Yan, Z.; Li, S. Plasma Surface Chemical Treatment of Electrospun Poly(l-Lactide) Microfibrous Scaffolds for Enhanced Cell Adhesion, Growth, and Infiltration. Tissue Eng. Part A 2013, 19, 1188–1198. [Google Scholar] [CrossRef] [Green Version]
  30. Yoshida, S.; Hagiwara, K.; Hasebe, T.; Hotta, A. Surface Modification of Polymers by Plasma Treatments for the Enhancement of Biocompatibility and Controlled Drug Release. Surf. Coat. Technol. 2013, 233, 99–107. [Google Scholar] [CrossRef]
  31. Ma, Z.; He, W.; Yong, T.; Ramakrishna, S. Grafting of Gelatin on Electrospun Poly(caprolactone) Nanofibers to Improve Endothelial Cell Spreading and Proliferation and to Control Cell Orientation. Tissue Eng. 2005, 11, 1149–1158. [Google Scholar] [CrossRef] [PubMed]
  32. Shen, H.; Hu, X.; Yang, F.; Bei, J.; Wang, S. Combining Oxygen Plasma Treatment with Anchorage of Cationized Gelatin for Enhancing Cell Affinity of Poly(Lactide-co-Glycolide). Biomaterials 2007, 28, 4219–4230. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, J.P.; Su, C.H. Surface Modification of Electrospun PLLA Nanofibers by Plasma Treatment and Cationized Gelatin Immobilization for Cartilage Tissue Engineering. Acta Biomater. 2011, 1, 234–243. [Google Scholar] [CrossRef] [PubMed]
  34. Omrani, M.M.; Kumar, H.; Mohamed, M.G.A.; Golovin, K.; Milani, A.S.; Hadjizadeh, A.; Kim, K. Polyether Ether Ketone Surface Modification with Plasma and Gelatin for Enhancing Cell Attachment. J. Biomed. Mater. Res. Part B Appl. Biomat. 2020, 60. [Google Scholar] [CrossRef]
  35. Ghorbani, F.; Sahranavard, M.; Zamanian, A. Immobilization of Gelatin on the Oxygen Plasma-Modified Surface of Polycaprolactone Scaffolds with Tunable Pore Structure for Skin Tissue Engineering. J. Polym. Res. 2020, 27, 281. [Google Scholar] [CrossRef]
  36. Mirjalili, M.; Mozaffari, A.; Parvinzadeh Gashti, M.; Parsania, M. Effect of Tannic Acid on Properties of Electrospun Gelatin Nanofibers. Indian J. Fibre Text. Res. 2020, 45, 289–298. [Google Scholar]
  37. Ghasemi-Mobarakeh, L.; Prabhakaran, M.P.; Morshed, M.; Nasr-Esfahani, M.H.; Ramakrishna, S. Electrospun Poly(ε-Caprolactone)/Gelatin Nanofibrous Scaffolds for Nerve Tissue Engineering. Biomaterials 2008, 29, 4532–4539. [Google Scholar] [CrossRef]
  38. Choktaweesap, N.; Arayanarakul, K.; Aht-ong, D.; Meechaisue, C.; Supaphol, P. Electrospun Gelatin Fibers: Effect of Solvent System on Morphology and Fiber Diameters. Polym. J. 2007, 39, 622–631. [Google Scholar] [CrossRef] [Green Version]
  39. Horuz, T.I.; Belibağlı, K.B. Production of Electrospun Gelatin Nanofibers: An Optimization Study by Using Taguchi’s Methodology. Mater. Res. Express 2017, 4, 015023. [Google Scholar] [CrossRef]
  40. Parvinzadeh Gashti, M.; Helali, M.; Karimi, S. Biomineralization-Inspired Green Synthesis of Zinc Phosphate-Based Nanosheets in Gelatin Hydrogel. Int. J. Appl. Ceram. Technol. 2016, 13, 1069–1073. [Google Scholar] [CrossRef]
  41. Parvinzadeh Gashti, M.; Alimohammadi, F.; Hulliger, J.; Burgener, M.; Oulevey-Aboulfad, H.; Bowlin, G.L. Microscopic methods to study the structure of scaffolds in bone tissue engineering: A brief review. In Current Microscopy Contribution to Advances in Science and Technology; Méndez-Vilas, A., Ed.; Microscopy Book Series Number 5; Formatex Research Center: Badajoz, Spain, 2012; Volume 1, pp. 625–638. [Google Scholar]
  42. Gashti, M.P.; Dehghan, N. Gel Diffusion-Inspired Biomimetic Calcium Iodate/Gelatin Composite Particles: Structural Characterization and Antibacterial Activity. J. Solid State Chem. 2020, 285, 121262. [Google Scholar] [CrossRef]
  43. Parvinzadeh Gashti, M.; Shokri, A. Hydrogel-Assisted Low-Temperature Synthesis of Calcium Borate Nanoparticles. J. Aust. Ceram. Soc. 2018, 54, 601–607. [Google Scholar] [CrossRef]
  44. Parvinzadeh Gashti, M.; Burgener, M.; Stir, M.; Hulliger, J. Barium Hydrogen Phosphate/Gelatin Composites Versus Gelatin-Free Barium Hydrogen Phosphate: Synthesis and Characterization of Properties. J. Colloid Interf. Sci. 2014, 431, 149–156. [Google Scholar] [CrossRef] [PubMed]
  45. Parvinzadeh Gashti, M.; Burgener, M.; Stir, M.; Hulliger, J. Growth of Strontium Hydrogen Phosphate/Gelatin Composites: A Biomimetic Approach. New J. Chem. 2016, 40, 5495–5500. [Google Scholar] [CrossRef] [Green Version]
  46. Zhao, Y.; Liu, J.; Zhang, M.; He, J.; Zheng, B.; Liu, F.; Zhao, Z.; Liu, Y. Use of Silver Nanoparticle–Gelatin/Alginate Scaffold to Repair Skull Defects. Coatings 2020, 10, 948. [Google Scholar] [CrossRef]
  47. Char, C.; Padilla, C.; Campos, V.; Pepczynska, M.; Díaz-Calderón, P.; Enrione, J. Characterization and Testing of a Novel Sprayable Crosslinked Edible Coating Based on Salmon Gelatin. Coatings 2019, 9, 595. [Google Scholar] [CrossRef] [Green Version]
  48. Ramos, M.; Valdés, A.; Beltrán, A.; Garrigós, M.C. Gelatin-Based Films and Coatings for Food Packaging Applications. Coatings 2016, 6, 41. [Google Scholar] [CrossRef] [Green Version]
  49. Parvinzadeh, M.; Ebrahimi, I. Atmospheric Air-Plasma Treatment of Polyester Fiber to Improve the Performance of Nanoemulsion Silicone. Appl. Surf. Sci. 2011, 257, 4062–4068. [Google Scholar] [CrossRef]
  50. Peña, C.; de la Caba, K.; Eceiza, A.; Ruseckaite, R.; Mondragon, I. Enhancing Water Repellence and Mechanical Properties of Gelatin Films by Tannin Addition. Bioresour Technol. 2010, 101, 6836. [Google Scholar] [CrossRef]
  51. Al-Balakocy, N.G.; El-Ola, A. Effect of Surface Activation of Nylon-6 Fabrics by Plasma and Grafting with Vinyl Monomers on Its Functional Finishing with TiO2 Nanoparticles. J. Appl. Sci. Res. 2013, 9, 1743–1753. [Google Scholar]
  52. Gasi, F.; Petraconi, G.; Bittencourt, E.; Lourenço, S.R.; Castro, A.H.R.; Miranda, F.d.S.; Essiptchouk, A.M.; Nascimento, L.; Petraconi, A.; Fraga, M.A.; et al. Plasma Treatment of Polyamide Fabric Surface by Hybrid Corona-Dielectric Barrier Discharge: Material Characterization and Dyeing/Washing Processes. Mater. Res. 2020, 23, e20190255. [Google Scholar] [CrossRef]
  53. Chandrasekaran, A.R.; Venugopal, J.; Sundarrajan, S.; Ramakrishna, S. Fabrication of a Nanofibrous Scaffold with Improved Bioactivity for Culture of Human Dermal Fibroblasts for Skin Regeneration. Biomed. Mater. 2011, 6, 015001. [Google Scholar] [CrossRef] [PubMed]
Membranes 11 00031 g001 550

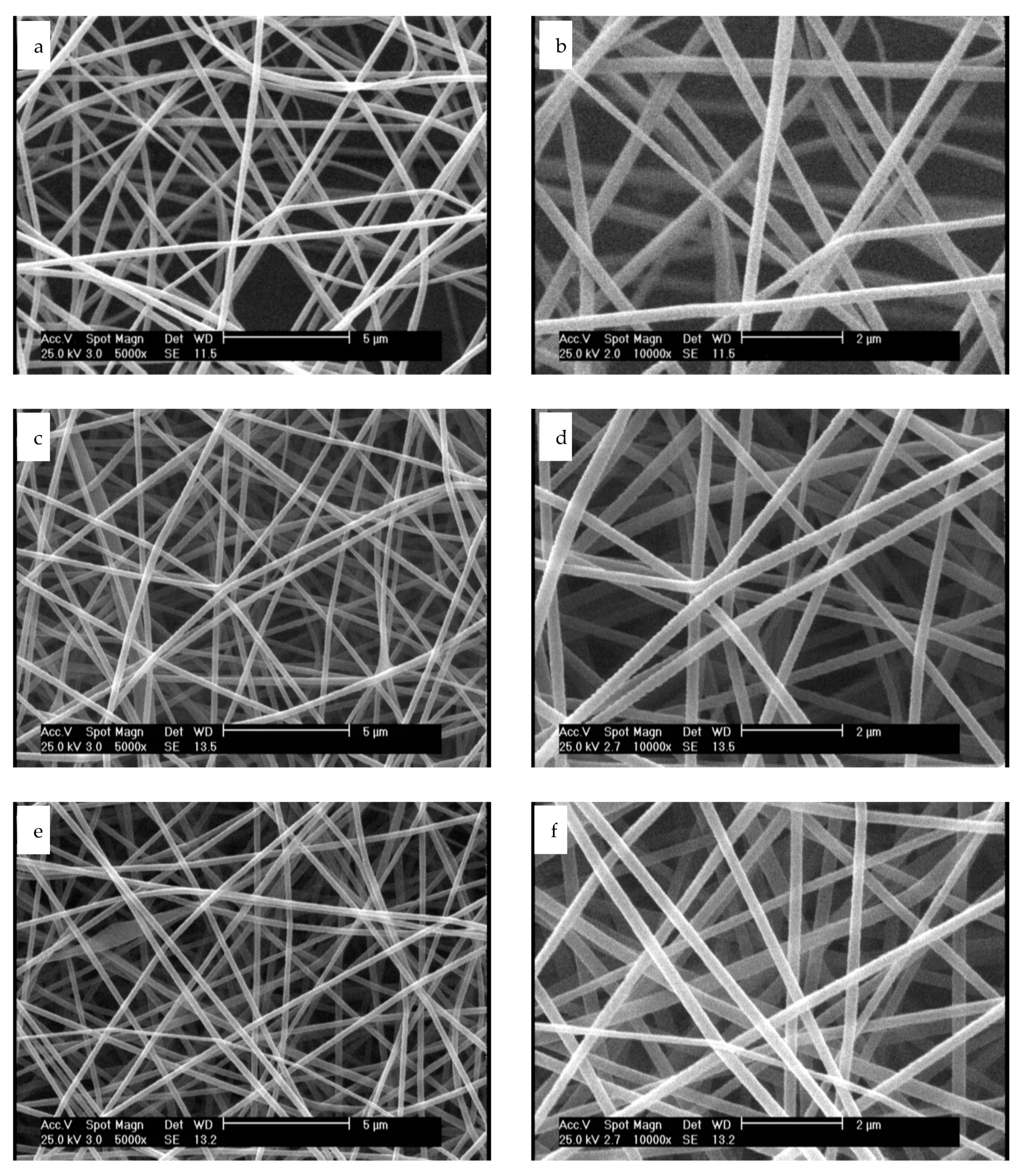

Figure 1. SEM images of: (a) nanofibers before plasma treatment at ×5000, (b) nanofibers before plasma treatment at ×10,000, (c) nanofibers after treatment with argon plasma at ×5000, (d) nanofibers after treatment with argon plasma at ×10,000, (e) nanofibers after treatment with argon–oxygen plasma at ×5000 and (f) nanofibers after treatment with argon–oxygen plasma at ×10,000.
Figure 1. SEM images of: (a) nanofibers before plasma treatment at ×5000, (b) nanofibers before plasma treatment at ×10,000, (c) nanofibers after treatment with argon plasma at ×5000, (d) nanofibers after treatment with argon plasma at ×10,000, (e) nanofibers after treatment with argon–oxygen plasma at ×5000 and (f) nanofibers after treatment with argon–oxygen plasma at ×10,000.
Membranes 11 00031 g001
Membranes 11 00031 g002 550

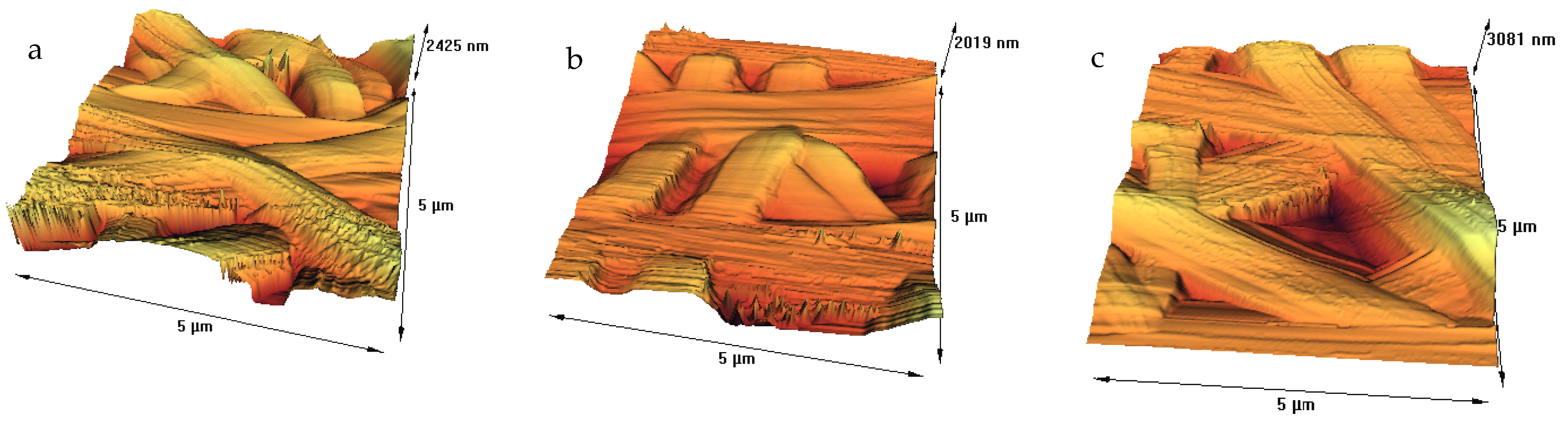

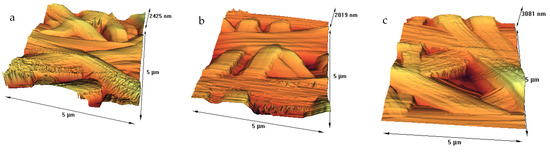

Figure 2. Atomic force microscopy (AFM) images of: (a) nanofibers before plasma treatment, (b) nanofibers after treatment with argon plasma and (c) nanofibers after treatment with argon–oxygen plasma.
Figure 2. Atomic force microscopy (AFM) images of: (a) nanofibers before plasma treatment, (b) nanofibers after treatment with argon plasma and (c) nanofibers after treatment with argon–oxygen plasma.
Membranes 11 00031 g002
Membranes 11 00031 g003 550

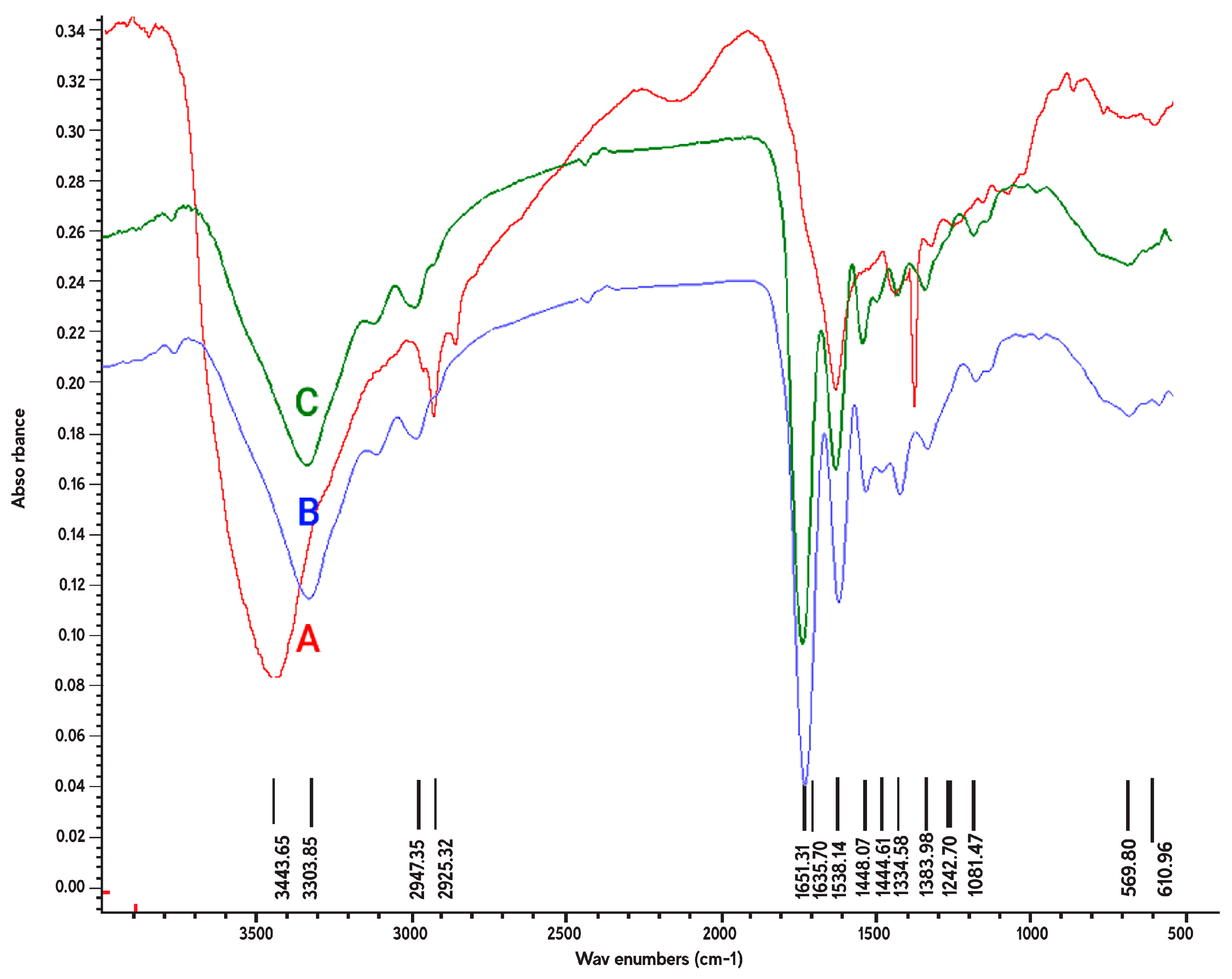

Figure 3. The attenuated total reflection Fourier transform infrared (ATR-FTIR) spectra of (A) crosslinked gelatin nanofibers before plasma treatment, (B) argon plasma treated nanofibers and (C) argon–oxygen plasma treated nanofibers.
Figure 3. The attenuated total reflection Fourier transform infrared (ATR-FTIR) spectra of (A) crosslinked gelatin nanofibers before plasma treatment, (B) argon plasma treated nanofibers and (C) argon–oxygen plasma treated nanofibers.
Membranes 11 00031 g003
Membranes 11 00031 g004 550

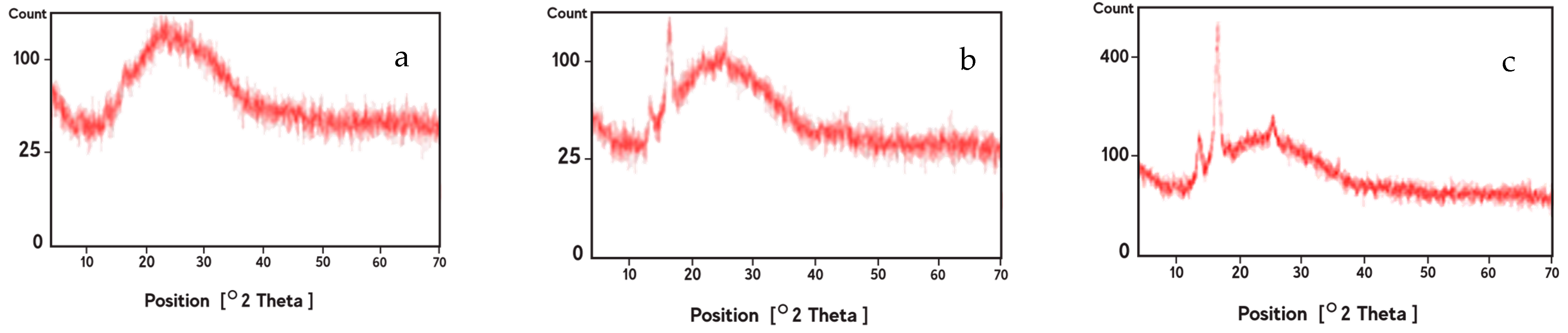

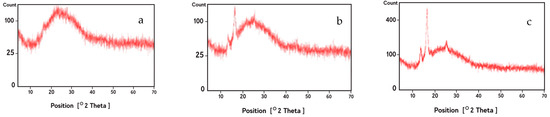

Figure 4. XRD analysis of (a) crosslinked gelatin nanofibers scaffolds before plasma treatment, (b) nanofibers after argon plasma treatment and (c) nanofibers after argon–oxygen plasma treatment.
Figure 4. XRD analysis of (a) crosslinked gelatin nanofibers scaffolds before plasma treatment, (b) nanofibers after argon plasma treatment and (c) nanofibers after argon–oxygen plasma treatment.
Membranes 11 00031 g004
Membranes 11 00031 g005 550

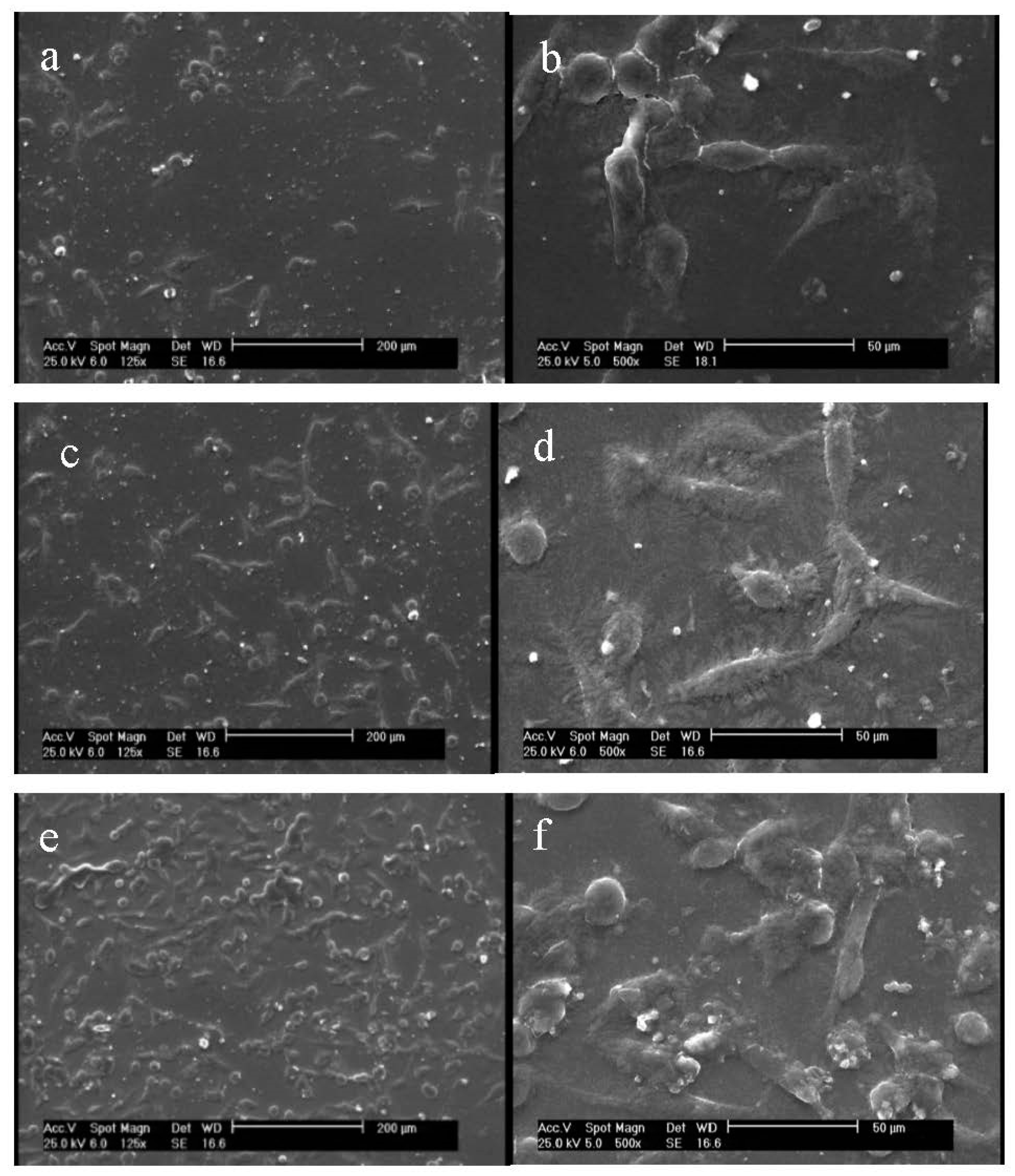

Figure 5. SEM images of cultured fibroblast cells on the gelatin films: (a) cells on the untreated gelatin film at ×125, (b) cells on the untreated gelatin film at ×500, (c) cells on the argon plasma treated gelatin film at ×125, (d) cells on the argon plasma treated gelatin film at ×500, (e) cells on the argon–oxygen plasma treated gelatin film at ×125 and (f) cells on the argon–oxygen plasma treated gelatin film at ×500.
Figure 5. SEM images of cultured fibroblast cells on the gelatin films: (a) cells on the untreated gelatin film at ×125, (b) cells on the untreated gelatin film at ×500, (c) cells on the argon plasma treated gelatin film at ×125, (d) cells on the argon plasma treated gelatin film at ×500, (e) cells on the argon–oxygen plasma treated gelatin film at ×125 and (f) cells on the argon–oxygen plasma treated gelatin film at ×500.
Membranes 11 00031 g005
Table
Table 1. Roughness values as a function of plasma treatment on crosslinked gelatin nanofibers.
Table 1. Roughness values as a function of plasma treatment on crosslinked gelatin nanofibers.
SamplesPlasma Treatment Time (s)Maximum Peak Height, Ra (nm)Maximum Valley Depth, Rz (nm)Average Peak-to-Valley Height
Rq (nm)		RMS (nm)
Untreated nanofibers06.585276.847.485.1
Argon plasma treated nanofibers901.63522.9511.7931.54
Argon–oxygen plasma treated nanofibers901.05620.7310.6327.76
Table
Table 2. The main ATR-FTIR peaks observed in crosslinked gelatin nanofibers before and after plasma treatment.
Table 2. The main ATR-FTIR peaks observed in crosslinked gelatin nanofibers before and after plasma treatment.
Crosslinked Gelatin Nanofibers before Plasma TreatmentCrosslinked Gelatin Nanofibers after Argon Plasma TreatmentCrosslinked Gelatin Nanofibers after Argon/Oxygen Plasma Treatment
Peak Position (cm−1)Band AssignmentPeak Position (cm−1)Band AssignmentPeak Position (cm−1)Band Assignment
610–669–CH bending610–669–CH bending610–669–CH bending
1242C–O stretching/Amide III1242Amide III1242Amide III
1300C–O stretching----
1334C–N stretching/Amide III 1334Amide III 1334Amide III
--1444Amide II1444Amide II
--1448Amide II1448Amide II
1538N–O stretching/Amide II 1538Amide II1538Amide II
--1651C=O stretching1651C=O stretching
2925–CH stretching----
--2947–CH stretching2947–CH stretching
--3303Amide A3303Amide A
3443O–H Stretching/Amide A----
Table
Table 3. Water contact angle of (a) crosslinked gelatin nanofibers scaffolds before plasma treatment, (b) nanofibers after argon plasma treatment and (c) nanofibers after argon–oxygen plasma treatment.
Table 3. Water contact angle of (a) crosslinked gelatin nanofibers scaffolds before plasma treatment, (b) nanofibers after argon plasma treatment and (c) nanofibers after argon–oxygen plasma treatment.
SamplesMean Contact Angle, CA (°)Camera Image
Untreated nanofibers20.65 Membranes 11 00031 i001
Argon plasma treated nanofibers14.6 Membranes 11 00031 i002
Argon–oxygen plasma treated nanofibers0Completely hydrophilic
