Leveraging Nanocrystal HKUST-1 in Mixed-Matrix Membranes for Ethylene/Ethane Separation

1
Singapore Membrane Technology Centre, Nanyang Environment and Water Research Institute, Nanyang Technological University, Singapore 637141, Singapore
2
School of Chemical and Biomedical Engineering, Nanyang Technological University, Singapore 637459, Singapore
3
Department of Chemical and Biomolecular Engineering, Korea Advanced Institute of Science and Technology, Daejeon 34141, Korea
*
Authors to whom correspondence should be addressed.
Membranes 2020, 10(4), 74; https://doi.org/10.3390/membranes10040074
Received: 28 March 2020 / Revised: 10 April 2020 / Accepted: 14 April 2020 / Published: 16 April 2020
(This article belongs to the Special Issue Membranes for Gas Separation)

Abstract

The energy-intensive ethylene/ethane separation process is a key challenge to the petrochemical industry. HKUST-1, a metal–organic framework (MOF) which possesses high accessible surface area and porosity, is utilized in mixed-matrix membrane fabrication to investigate its potential for improving the performance for C2H4/C2H6 separation. Prior to membrane fabrication and gas permeation analysis, nanocrystal HKUST-1 was first synthesized. This step is critical in order to ensure that defect-free mixed-matrix membranes can be formed. Then, polyimide-based polymers, ODPA-TMPDA and 6FDA-TMPDA, were chosen as the matrices. Our findings revealed that 20 wt% loading of HKUST-1 was capable of improving C2H4 permeability (155% for ODPA-TMPDA and 69% for 6FDA-TMPDA) without excessively sacrificing the C2H4/C2H6 selectivity. The C2H4 and C2H6 diffusivity, as well as solubility, were also improved substantially as compared to the pure polymeric membranes. Overall, our results edge near the upper bound, confirming the effectiveness of leveraging nanocrystal HKUST-1 filler for performance enhancements in mixed-matrix membranes for C2H4/C2H6 separation.
Keywords: C2H4/C2H6 separation; HKUST-1; gas permeation; solubility; diffusivity C2H4/C2H6 separation; HKUST-1; gas permeation; solubility; diffusivity

1. Introduction

Olefin is one of the most important building blocks in the petrochemical industry. One example is ethylene (C2H4). The global annual production of ethylene reached to almost 150 million tons in 2016, and is projected to exceed 200 million tons in the year of 2020 [1,2]. However, looking forward, the need for future energy security through renewable energies, the measurable socio-economic impact due to climate change, and the inexorable call for a circular economy, are likely to drive a transition in the petrochemical industry to generate value-creating opportunities to deal with the shrinking demand for ethylene, and an impending slower market growth [2,3]. Despite that, ethylene remains as an active pharmaceutical ingredient and is used in the production of polymers such as polyethylene and polyvinyl chloride [4,5,6]. Ethylene (alkene in general) is typically produced via hydrocarbon cracking (either from naphtha in crude oil or ethane from natural gas). There are also efforts in producing ethylene through environmental-friendly means, such as ethylene biosynthesis in biorefinery [7,8,9]. However, doing so requires a complex coalition of both the petrochemical and biorefining industries, which will involve challenges including finding affordable feedstock access, enabling capabilities for industrial-scale commercialization and value-chain integration, as well as soliciting stable and supportive regulations by the government [10,11]. Regardless of how the industry eventually evolves, light hydrocarbon separation, such as the separation of ethylene from its paraffin counterpart, ethane (C2H6), is deemed necessary after contaminants removal to give the precursor [12,13]. Essentially, ethylene/ethane (C2H4/C2H6) separation is critical as the purity of the ethylene precursor directly influences the quality of the high-value commercial end-products.
In a typical petrochemical process where high purity ethylene feed is desired, a high-pressure (c.a. 23 bar) cryogenic distillation process that operates at low temperature (−160 °C) is necessary to separate ethylene from ethane at the desired purity in view of their close melting and boiling points. This process is energy intensive, with 75–85% of the total cost expected to be siphoned out from the ethylene production [1,12,14,15,16,17]. Adsorptive separation via pressure swing adsorption (PSA) is also energy-intensive as it requires additional energy supply to regenerate the saturated adsorbents for enabling a repetitive adsorption–desorption cycling process. In comparison, gas separation membrane technology is comparatively low cost and energy efficient as the separation is carried out without any phase change and usually under ambient conditions [18,19,20,21,22,23]. Polymeric membranes are at the core of this technology, considering their high mechanical stability and ease of processability. Nonetheless, conventional polymeric membranes are hampered by an inevitable permeability–selectivity trade-off given that solution–diffusion is the main separation mechanism [24,25,26,27,28,29]. Apart from this, inorganic membranes, such as those based on pure zeolites and metal–organic frameworks (MOFs), are typically high-performing but hampered by their poor scalability potential [30]. Beyond membrane performances, other real-life challenges, such as effects of high temperatures and pressures, presence of moisture in the feed gas and impurities such as H2S that are damaging to the membranes, must be addressed to realize industrial applications [31,32,33,34,35,36,37]. However, in this work, our aim is to develop mixed-matrix membranes, which amalgamate the merits of both polymeric and inorganic membranes, to achieve enhanced C2H4/C2H6 separation.
Mixed-matrix membranes achieve enhanced separation performance of the polymeric matrices by incorporating nanoporous materials as fillers to provide pathways of higher diffusion coefficient to engineer the transport properties of the membranes [35,38,39,40]. To date, MOF is an attractive filler material for mixed-matrix membranes for gas separation process, owing to its large pore volume and accessible surface area for increasing gas diffusivity. On the other hand, facile post- and pre-synthetic functionalization of MOFs can enhance the affinity of the gas molecules to the filler materials, leading to an improvement in gas solubility [36,37,41,42]. More importantly, MOFs is more compatible with the organic polymer matrix in view of the moieties in the frameworks that are similarly organic in nature. This eliminates the need for compatibilizers to enhance the interfacial morphology between the polymer and filler [43,44].
For these reasons, we have chosen to focus on HKUST-1 to investigate its potential utility as a filler for mixed-matrix membrane for C2H4/C2H6 separation. HKUST-1 possesses large square pores of 9 × 9 Å and, more importantly, unsaturated metal sites that favor interaction towards the π-electron system (sp2 hybridized) of the ethylene molecules. In comparison with other well-reported MOFs, such as IRMOF-8, ZIF-7, and ZIF-8, which do not contain these strong metal sites, favorable interaction with C2H4 is improbable, resulting in less competitive C2H4/C2H6 separation [45,46,47]. Furthermore, as compared to MOF-74, which contains open metal sites, HKUST-1 is generally more tolerable towards water vapor and humidity, rendering it more practical for mixed-matrix membrane fabrication [48,49]. At present, micron-sized HKUST-1 is commercially available under the tradename Basolite C300 (produced by BASF, Ludwigshafen, Germany). Nonetheless, the particle size is too large for membrane fabrication. Hence, we chose to synthesis nanocrystals of HKUST-1 to increase its effectiveness as a nanoporous filler for the development of mixed-matrix membrane [50].
In this work, C2H4/C2H6 separation performance of mixed-matrix membranes is conducted using a 50/50 mixture gas. Nanocrystal HKUST-1 was incorporated into two glassy polymers, namely ODPA-TMPDA and 6FDA-TMPDA (The abbreviations of these polymers will be explained in Section 2.1). These polymers were selected for its higher C2H4 permeability as compared to commercially available glassy polymers (e.g., Matrimid®, polysulfone, and Ultem®/P84) [32,33,51,52]. Our results showed that, with the addition of HKUST-1 nanocrystals, a clear improvement in C2H4 permeability of the membranes can be observed. Comprehensive analyses (C2H4 and C2H6 solubility and diffusivity) on the addition of HKUST-1 nanocrystals in polymeric membrane were evaluated to elucidate the possible reasons behind the improved performances.

2. Materials and Methods

2.1. Materials

2,4,6-trimethyl-m-phenylenediamine (TMPDA), 4,4′-(hexafluoroisopropylidene)diphthalic anhydride (6FDA), 4,4′-oxydiphthalic anhydride (ODPA), acetic anhydride (Ac2O), copper(II) nitrate trihydrate (Cu(NO3)2.3H2O), N-methyl-2-pyrrolidone (NMP), triethylamine (TEA), and trimesic acid (C9H6O6) were purchased from Sigma Aldrich (Singapore). Absolute ethanol, dimethylacetamide (DMAc), methanol, and chloroform were purchased from VWR (Singapore). For the synthesis of 6FDA-TMPDA, the respective monomers were purified first via a sublimation process (under vacuum). All other chemicals and reagents were used as received.

2.2. Synthesis of Nanocrystal HKUST-1

Nanocrystal HKUST-1 were developed based on the method use in the literature as indicated elsewhere [53]. First, addition of Cu(NO3)2.3H2O (1.2 g) was conducted in a glass vial that contains absolute ethanol (20 mL). Next, C9H6O6 (0.6 g) was added and agitated at room temperature with relative humidity of 60–70% for 1 day. Vacuum filtration was used to recover the HKUST-1 nanocrystals under extensive washing by copious amounts of ethanol:water mixture in the volume ratio of 1:1.

2.3. Synthesis of ODPA-TMPDA Polymer

The ODPA-TMPDA polymer (Figure 1) was synthesized under an inert atmosphere based on the procedures as elaborated below [39,54]. First, TMPDA (1.63 g) was added into a flask, which was followed by the incorporation of DMAc (20.0 g). The solution was vigorously stirred before the addition of ODPA (3.36 g) into the resulting mixture. The mixture was then stirred for 1 day to obtain a viscous polyamic acid solution. Next, 4.39 g of TEA and 4.44 g of Ac2O were added to the solution to initiate an imidization process. The solution was allowed to agitate for an additional of 1 day before it was poured slowly into a beaker that contained absolute ethanol so as to precipitate out the product polymer. The product polymer was washed several times with fresh absolute ethanol before drying under vacuum at 160 °C overnight.

2.4. Synthesis of 6FDA-TMPDA Polymer

Separately, the 6FDA-TMPDA polymer (Figure 2) was developed using the method as described below [19]. Similar to ODPA-TMPDA, the whole synthesis was conducted in an inert atmosphere. 6FDA (0.44 g) was first added into a round-bottom flask. NMP (1.6 mL) and TMPDA (0.15 g) was then gradually added. The mixture was stirred for about 30 min before the solution was diluted further with 9.6 mL of NMP. 5-h agitation of the mixture was conducted to ensure that the viscous polyamic acid solution can be formed. This was followed by the imidization process, with the addition of TEA (0.20 g) and Ac2O (0.82 g). The process is allowed to go to completion by mixing for 20 h. The solution was finally precipitated with methanol, where the polymer was washed several times with fresh methanol before drying under vacuum at 160 °C overnight.

2.5. Membrane Fabrication

The fabrication of dense mixed-matrix membranes was adopted via solution casting approach. First, 0.5 g of nanocrystal HKUST-1 was dispersed in 3 mL chloroform. The potential agglomeration of nanocrystal HKUST-1 was minimized with the addition of sonication horn for 5-min duration (Qsonica, Q125, Newtown, CT, USA). After the sonication completes, the polymers were added into the solution and the resulting mixture was agitated overnight. Next, the dope solution was poured onto a flat glass plate and cast into a continuous film. The thickness of the membrane was controlled with the use of a casting knife. The membranes were cast inside a glove bag to ensure a casting environment filled with chloroform vapor so as to inhibit rapid solvent evaporation. After providing sufficient evaporation time for phase inversion, a vacuum oven was used to anneal the resulting membranes at 160 °C for 24 h.

2.6. Characterization

2.6.1. Characterization of Nanocrystal HKUST-1

NOVATouch LX2 (volumetric gas sorption analyzer, Quantachrome, Boynton Beach, FL, USA) was utilized in this study to investigate the C2H4 and C2H6 adsorption properties of the nanocrystal HKUST-1. The nanocrystal HKUST-1 was first outgassed at 160 °C for 1 day under high vacuum to remove any potential residual solvents in the nanocrystal HKUST-1. C2H4 and C2H6 isotherms were measured in the range of 0–1 bar at 25 and 35 °C. Water circulator is used to ensure that the temperature does not fluctuate during the measurement. The isotherms of C2H4 and C2H6 were fitted accordingly with dual-site and single-site Langmuir equations (Equations (1) and (2)) [55].
q = q s a t , 1 b 1 p 1 + b 1 p + q s a t , 2 b 2 p 1 + b 2 p
q = q s a t b 1 p 1 + b 1 p
where q s a t , 1 , q s a t , 2 = saturation loading in mmol g−1, b 1 , b 2 = Langmuir constant in bar−1, p = pressure in bar, and q = amount of C2H4 and C2H6 adsorption in mmol g−1. The mixture–gas selectivity (Ideal Adsorbed Solution Theory, IAST) was used to determine the C2H4/C2H6 selectivity of the nanocrystal HKUST-1 [56], as exemplified in Equation (3):
S e l e c t i v i t y = x 1 / x 2 y 1 / y 2
where x 1 , x 2 = mole fractions of the adsorbed phase, and y 1 , y 2 = mole fraction of the gas phase. Isosteric heat of adsorption, Q s t was determined from the Clausius-Clapeyron equation by measuring the C2H4 and C2H6 isotherms of nanocrystal HKUST-1 at 25 and 35 °C [57,58,59].
Q s t = R T 2 l n p T q
In this expression, R = molar gas constant, T = temperature in K, p = pressure in bar and q = adsorbed amount in mmol g−1, which can be obtained either from the dual-site or single-site Langmuir equation. Besides, volumetric gas sorption analyzer was used to measure N2 physisorption at −196 °C (77 K) to determine the porosity properties of the nanocrystal HKUST-1, for which similar activation condition as elaborated above was utilized. A D2 phaser (X-ray diffraction, Bruker, Billerica, MA, United States) was used to verify the crystallinity of the nanocrystal HKUST-1 using a laser beam (with a CuKα radiation, 0.154 nm). At room temperature, the analysis condition (step size of 0.02° and 2θ from 5 to 40°) was set. Field-emission scanning electron microscope (FESEM, JSM6701, JEOL, Akishima, Japan), which is set at 5 kV acceleration voltage, was used to investigate the structural morphology of nanocrystal HKUST-1. The particle size distribution (mean and standard deviation) of nanocrystal HKUST-1 was calculated with the aid of image analysis tool (Nano Measure). The thermal stability of nanocrystal HKUST-1 was measured with the use of a thermogravimetric analyzer (TGA, SDT Q600, TA instrument, New Castle, DE, United States), which was conducted under a temperature scan of 40 to 800 °C at a ramping rate of 10 °C min−1. Nitrogen gas is used as purging gas at a flow rate of 100 mL min−1. Change in mass per unit temperature ( d m / d T ) was calculated to investigate the thermal behavior of nanocrystal HKUST-1.

2.6.2. Characterization of Mixed-Matrix Membranes

FESEM (JSM6701, JEOL, Akishima, Japan) at 5 kV acceleration voltage was used to determine the cross-sectional morphology of the mixed-matrix membranes. The membranes were fractured under liquid nitrogen prior to the gold coating process. Fourier transform-infrared spectroscopy (FT-IR, PerkinElmer, Spectrum One, Waltham, MA, USA) was used to understand the functional groups of the pure polymeric membrane. The measurement was conducted in the range of 4000 to 450 cm−1 with a 4 cm−1 resolution. TGA (SDT Q600, TA instrument, New Castle, DE, USA) was used to determine the thermal properties of both mixed-matrix and polymeric membranes. Similarly, d m / d T was also calculated to investigate the behavior of membranes developed in this work. Temperature scan (40 to 800 °C) and ramping rate at 10 °C min−1 (together with the purging of pure nitrogen at 100 mL min−1) were set. An analytical balance with a density kit feature (Mettler Toledo, ME204, Columbus, OH, USA) was utilized to determine the respective density of mixed-matrix and polymeric membranes. This value was calculated by measuring the sample in both auxiliary liquid (ethanol) and air using Archimedes’ principle.

2.6.3. Mixture Gas Permeation Analysis

Mixture gas permeation analysis was measured by using a permeation setup from GTR Tec Corporation (constant pressure-variable volume system). The ethylene/ethane mixture (C2H4/C2H6 = 50:50 vol%) and helium gas (He, 99.9995%) utilized in this set-up were obtained from Air Liquide, Singapore Pte Ltd. This composition of the C2H4/C2H6 mixture has been widely used as an initial screening for the preliminary investigation of the separation performance of membranes and porous materials [60,61,62]. Hence, we have adopted the same C2H4/C2H6 mixture composition in this work. To measure the separation performances, the membrane was first mounted in a permeation cell (permeation area = 1.77 cm2). The up and downstream of the membrane were subjected to test gas (C2H4/C2H6 mixture) and inert carrier gas (i.e., He), which flow rate is set as 20 sccm and 5 sccm, respectively. Mass flow controllers were used to control the flow rate. At periodic time interval, gases that permeated through the membrane were sampled by a gas chromatography fitted with a thermal conductivity detector (TCD), using He as a sweeping gas. The steady-state reading was taken after the concentrations of C2H4 and C2H6 does not demonstrate substantial fluctuation. During the measurement, the environment was remained isothermal (35 °C). At least three different samples for each membrane type were measured to ensure that the gas permeation results are reproducible, with the error bars determined by standard deviation.

2.6.4. C2H4 and C2H6 Adsorption Analysis of Membranes

Similarly, pure component C2H4 and C2H6 adsorption of each respective membrane was evaluated using the conditions as elaborated in Section 2.6.1 to give the solubility–diffusivity behavior of the membranes. The same activation conditions as described above were used for all membranes. All the isotherms were fitted using single-site Langmuir equation (equation 2) so as to determine the C2H4 and C2H6 adsorption at a specified pressure. The results of all parameters were summarized in Table S1. The solubility, S , of C2H4 and C2H6 in each membrane can be determined using Equation (5):
S = q ρ p
where q = amount of gas adsorbed per unit membrane mass based on a specified pressure, p , and ρ = membrane’s density. The gas diffusivity, D , was calculated by taking the ratio between permeability, P and solubility, S , given that P = D S . The units of P and S are expressed as m o l · m / m 2 · s · bar and m o l / m 3 · b a r , respectively.

3. Results and Discussion

3.1. Characterization of Nanocrystal HKUST-1

XRD (X-ray diffraction) as shown in Figure S1a was first verified to confirm the crystallinity of nanocrystal HKUST-1. The diffraction peaks are in general similar to the data reported in the literature [34,63], as well as the simulated pattern of HKUST-1 [64]. N2 physisorption measurement at −196 °C (77 K) (Figure S1b) showed a large N2 sorption at low P/Po, which is a clear indication of a Type 1 isotherm. In other words, large micropore volumes are present in our nanocrystal HKUST-1 sample (Table S2). The FT-IR analysis indicates a successful formation of the characteristic Cu2(COO)4 paddle wheel of HKUST-1, on the basis of the absorption bands detected at 1647, 1615, 1451 and 1376 cm−1 (Figure S1c) [65]. Besides, the nanocrystal HKUST-1 is thermally stable up until 350 °C, as shown by the TGA curve (Figure S1d). Successful nanosizing of HKUST-1 crystals was demonstrated through the FESEM image (Figure 3a). As exemplified by the particle size distribution (Figure 3b), the mean particle size is about 260 nm with a distribution ranging from 100–500 nm, which is a stark contrast to the micron-sized Basolite C300 HKUST-1 bulk crystals [66].

3.2. C2H4 and C2H6 Adsorption of Nanocrystal HKUST-1

To attest the merits of using nanocrystal HKUST-1, the C2H4 and C2H6 adsorption isotherms were studied at 35 °C (Figure 4a). The C2H4 and C2H6 isotherm at 25 °C were also included in Figure S2a,b (fitting parameters are summarized in Table S3) and the results were used in the calculation of the isosteric heat of adsorption ( Q s t ). Generally, nanocrystal HKUST-1 showed a preferential adsorption towards C2H4and C2H6 despite the latter having a higher polarizability (C2H4: 42.5 × 10−25 cm3 vs. C2H6: 44.3 × 10−25 cm3) [67]. We attribute this observation to the presence of coordinatively unsaturated metal sites that allows the formation of olefin (C2H4) complexation. Metal sites are generally capable of accepting π electron from the olefin as well as donating electrons to the empty π* antibonding orbital of the olefin, thus leading to a stronger C2H4 interaction by the metal cations, which in this case is Cu2+ [68,69]. This is further verified by a higher Q s t at zero coverage for C2H4 (36.3 kJ mol−1) as compared to C2H6 (27.9 kJ mol−1) (Figure S2c), indicating that the adsorption of olefin to the unsaturated metal sites is indeed favorable. The overall IAST selectivity as a function of the feed pressure was plotted in Figure 4b, where the C2H4/C2H6 selectivity is approximately at 3.7 under 1 bar feed pressure.

3.3. Characterizaiton of Mixed-Matrix Membranes

In this work, in-house polyimide ODPA-TMPDA and 6FDA-TMPDA polymers were used for mixed-matrix membrane fabrication. To ensure successful syntheses of the polyimides, FT-IR spectroscopy was conducted to verify the functional groups (Figure S3). In general, both polymers showed the characteristic imide peaks at 1774 cm−1 and 1719 cm−1 that corresponded to asymmetric and symmetric C=O stretching, respectively. Besides, C-N stretching (1358 cm−1) was also detected in both spectra [39,70,71]. As the polyimides were synthesized via a two-step reaction (where monomers were first condensed to form polyamic acid before subsequent chemical imidization), it is important to determine that all polyamic acid has been successfully reacted. This is evidenced by the absence of the O-H peak (3500 cm−1), which indicates a successful imidization process (Figure S3). The resulting polymer is well-dissolved in chloroform, which is a typical solvent used in polymeric membrane fabrication. Hence, mixed-matrix membranes were developed from these polyimides using 10 and 20 wt% loadings of HKUST-1. Typically, a 20 wt% filler loading is not uncommon for a three-dimensional porous filler in a mixed-matrix membrane [19]. In this work, the 20 wt% loading of HKUST-1 is the optimal amount, as also evidenced by other studies on mixed-matrix membranes [72,73]. Next, the structural morphology of the membranes was examined using FESEM (Figure 5). In general, the cross-sectional morphology of all membranes exhibits an intact and homogeneous integrity. The polymer/filler interface is visibly free from the sieve-in-a-cage morphology—a defective interface that is commonly found in zeolite-based mixed-matrix membranes [74]. This good structural integrity stems from the organic moieties of the nanocrystal HKUST-1, which increases the compatibility between the filler and polymer. The nanosized HKUST-1 crystals can also facilitate easy wrapping by the polyimide chains, and coupled with the intrinsically good compatibility, a more intimate contact at the polymer/filler interface can be realized, rendering a defect-free mixed-matrix membrane [50,66]. Furthermore, as compared with micron-sized bulk HKUST-1 crystals, our nanosized HKUST-1 are less prone to particle sedimentation during membrane fabrication. This helps create a uniform filler dispersion as well as homogenous mixed-matrix membrane morphology, as evidenced by our FESEM images (Figure 5). In contrast, as observed by several other studies, micron-sized fillers are more likely to settle at the bottom of the membrane, creating potential defects in the membrane structure [19,75]. Additionally, TGA analysis revealed that the thermal stability of the polymers remained unchanged with the incorporation of nanocrystal HKUST-1 in the mixed-matrix membranes (Figure S4). Based on the profile, it can be observed that there are two peaks in the case of mixed-matrix membrane as compared with the one peak in pure polymeric membrane. The first peak corresponds to the degradation of the HKUST-1 nanocrystals in the membrane, as corroborated by the thermal stability profile of the nanocrystal HKUST-1 (Figure S1d). The second peak is attributed to the degradation of the polymer matrices. In terms of the mechanical properties of the mixed-matrix membranes, we are expecting a marginal decrease in comparison to the pure polymeric membranes due to the incorporation of the nanocrystal HKUST-1. However, this anticipated drop is unlikely to create a negative impact as the membranes continued to demonstrate good manageability and robustness during measurements and characterization. As reported by Ge and coworkers, the problem only surfaced at 50 wt% HKUST-1 loading when the mechanical properties of the membranes were reportedly found to be insufficient to support normal performance measurements [76].

3.4. Gas Permeation Behavior of Membranes

Gas permeation analysis of each membrane was performed at 35 °C under 1 bar upstream pressure using ethylene/ethane (C2H4/C2H6) gas at 50/50 mixture, with results summarized in Table 1. In general, a substantial enhancement in the C2H4 permeability was observed when HKUST-1 was loaded. Particularly, the incorporation of 20 wt% HKUST-1 gave a 155% and 69% improvement in C2H4 permeability when ODPA-TMPDA and 6FDA-TMPDA was used as the matrix, respectively. The improvement in permeability was, however, accompanied by a marginal drop in the C2H4/C2H6 selectivity. We reckon that the large pore window in the nanocrystal HKUST-1 reduces the transport resistance and allows faster diffusion, but it was not selective. Next, to attest our claims, we quantify the C2H4 and C2H6 diffusivity and solubility of these membranes (Figure 6). The calculated C2H4 and C2H6 diffusivity and solubility are compiled accordingly (Table 2). Based on the isotherm profile, substantially higher C2H4 and C2H6 adsorptions were observed for the mixed-matrix membranes as compared to pure polymeric membranes. This increases both the absolute values of the C2H4 and C2H6 diffusivity and solubility of the mixed-matrix membranes. Nevertheless, the solubility selectivity remains relatively constant while the diffusivity selectivity decreases slightly. Evidently, our results suggest that the incorporation of nanocrystal HKUST-1 indeed provides diffusion pathways of lower resistance to facilitate gas transport, but these pathways are indiscriminatory towards C2H4 and C2H6. The selectivity continues to be delivered by the polyimide matrices.

3.5. Comparison of Gas Separation Performance

Subsequently, our mixed-matrix membranes were benchmarked against an upper bound for the C2H4/C2H6 gas separation performance. Besides, the membrane performances were compared to the current literature data. As demonstrated in Figure 7a, the performances of our mixed-matrix membranes edge generally close to the upper bound limit as compared to the pure polymeric membranes. The choice of polymer matrix is an important parameter that can critically affect the overall performance of the mixed-matrix membranes. This deduction is corroborated as we compare the performance of our mixed-matrix membranes with the current literature data. Furthermore, most studies to date mainly focus on pure gas permeation (Table 3), giving only ideal C2H4/C2H6 selectivity. While evaluating ideal selectivity is a convenient way to assess membrane performance, it is not entirely representative as we know that competitive sorption by two gases of similar polarizabilities and dipole moments can result in lower than expected performance, rendering most results in the literature overrated. Thus, to indicate the potential relevance in industrial gas separation process, the investigation of gas permeation under mixture–gas is always desirable as mixture–gas evaluation generally gives more accurate gas separation performances. Comparing mixture–gas performances with others in the literature [52,60], our mixed-matrix membranes are highly competitive, as shown in Figure 7b. There are some high-performing mixed-matrix membranes, comprising advanced MOFs (MOF-74) [60], which exhibit separation performances that transcend the upper bound limit (Figure 7b). From a practical perspective, such tailor-made MOFs are not readily scalable and have a lower potential for commercialization. In contrast, commercial HKUST-1 (Basolite C300) is already available in the market, and hence up-scaling nanocrystal HKUST-1 is deemed less challenging. On this basis, we believe that leveraging nanocrystal HKUST-1 as a filler for mixed-matrix membranes for C2H4/C2H6 separation is not only effective but also attractive.

4. Conclusions

Nanocrystal HKUST-1 was successfully synthesized and incorporated as mixed-matrix membranes in both ODPA-TMPDA and 6FDA-TMPDA matrices. Nanosizing HKUST-1 not only helps to mitigate polymer/filler interfacial defects, but also achieves a homogeneous morphology of the mixed-matrix membranes. The coordinatively unsaturated open metal sites of the nanocrystal HKUST-1 favor C2H4 adsorption. At 20 wt% nanocrystal HKUST-1 loading, the C2H4 permeability was found to increase up to 155% with a marginal drop in the C2H4/C2H6 selectivity. We attribute this to the large pore size of HKUST-1 (9 × 9 Å), which provides indiscriminatory diffusion pathways of lower resistance to the gas molecules. Solubility–diffusivity analysis of both C2H4 and C2H6 gases corroborated this conclusion. In addition, it was revealed that the polymer matrices continued to deliver the required C2H4/C2H6 selectivity as demonstrated by the relatively constant solubility selectivity in the mixed-matrix membranes. As a result, the performance of our mixed-matrix membranes was found to edge closer towards the upper bound, enabling nanocrystal HKUST-1 as an effective porous filler to enhance the performance of mixed-matrix membranes for ethylene/ethane separation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0375/10/4/74/s1, Figure S1: Characterization of nanocrystal HKUST-1, showing (a) X-ray diffraction pattern, (b) N2 physisorption isotherm at 77 K (open and closed symbols indicate adsorption and desorption branches, respectively), (c) FT-IR spectrum, as well as (d) TGA curve, showing weight loss and d m / d T against temperature, of nanocrystal HKUST-1 from 40 to 800 °C. Figure S2: C2H4 and C2H6 adsorption of HKUST-1 at (a) 25 °C and (b) 35 °C, (c) −Qst of HKUST-1 for C2H4 and C2H6. Figure S3: FT-IR spectrum of (a) ODPA-TMPDA and (b) 6FDA-TMPDA polymer. Figure S4: TGA analysis (a,b) weight loss against temperature and (c,d) d m / d T against temperature of 10 wt% and 20 wt% nanocrystal HKUST-1 in (a,c) ODPA-TMPDA and (b,d) 6FDA-TMPDA polymer. Table S1: Fitting parameters for C2H4 and C2H6 for membranes at 35 °C. Table S2: Porosity properties of nanocrystal HKUST-1 based on N2 physisorption at 77 K. Table S3: Fitting parameters for C2H4 and C2H6 for HKUST-1 at 25 and 35 °C.

Author Contributions

Original draft preparation and experimental: C.Y.C., assistance in the synthesis of polymer: S.A.S.C.S. and W.L.; Writing-review and editing: K.G. and T.-H.B. All authors have read and agreed to the published version of this manuscript.

Funding

T.-H.B. would like to thank Korea Advanced Institute of Science and Technology (KAIST) for the financial support. K.G would also like to thank the Singapore Economic Development Board (EDB) for the funding support to Singapore Membrane Technology Centre (SMTC).

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

List of symbols
b 1 , b 2 Langmuir constant ( b a r 1 )
d m / d T Change in mass per unit temperature ( m g   o C 1 )
D Diffusivity ( m 2 / s )
p Pressure ( b a r )
P Permeability (Barrer or m o l · m / m 2 · s · b a r )
Q s t Isosteric heat of adsorption ( k J   m o l 1 )
q Adsorbed amount (mmol g−1)
q s a t , 1 , q s a t , 2 Saturation loading (mmol g−1)
R Molar gas constant ( J   m o l 1   K 1 )
S Solubility ( m o l / m 3 · b a r )
T Temperature ( K )
x 1 , x 2 Mole fractions of the adsorbed phase
y 1 , y 2 Mole fractions of the gas phase
ρ Density ( g   c m 3 )
Abbreviations
6FDA4,4′-(hexafluoroisopropylidene) diphthalic anhydride
Ac2OAcetic anhydride
BuI5-tert-butyl isophthalic acid
C2H4Ethylene
C2H6Ethane
CACellulose acetate
Cu(NO3)2.3H2OCopper(II) nitrate trihydrate
C9H6O6Trimesic acid
DAM (or TMPDA)2,4,6-trimethyl-m-phenylenediamine
DBzPBISubstituted polybenzimidazole
DMAcDimethylacetamide
NMPN-methyl-2-pyrrolidone
ODPA4,4′-oxydiphthalic anhydride
PBIPolybenzimidazole
TEATriethylamine

References

  1. Sholl, D.; Lively, R. Seven chemical separations to change the world. Nature 2016, 532, 435–437. [Google Scholar] [CrossRef]
  2. Cetinkaya, E.; Liu, N.; Jan Simons, T.; Wallach, J. Petrochemicals 2030: Reinventing the Way to Win in a Changing Industry. Available online: https://www.mckinsey.com/industries/chemicals/our-insights/petrochemicals-2030-reinventing-the-way-to-win-in-a-changing-industry# (accessed on 8 April 2020).
  3. Hays, K.; Cambeiro, M.; Dobashi, F.; Ang, S. New Capacities, Weaker Downstream Markets to Weigh on Ethylene in 2020. Available online: https://www.spglobal.com/platts/en/market-insights/latest-news/petrochemicals/112619-commodities-2020-new-capacities-weaker-downstream-markets-to-weigh-on-ethylene (accessed on 4 April 2020).
  4. Wang, X.; Wu, Y.; Zhou, X.; Xiao, J.; Xia, Q.; Wang, H.; Li, Z. Novel C-PDA adsorbents with high uptake and preferential adsorption of ethane over ethylene. Chem. Eng. Sci. 2016, 155, 338–347. [Google Scholar] [CrossRef]
  5. Naghsh, M.; Sadeghi, M.; Moheb, A.; Chenar, M.P.; Mohagheghian, M. Separation of ethylene/ethane and propylene/propane by cellulose acetate–silica nanocomposite membranes. J. Membr. Sci. 2012, 423, 97–106. [Google Scholar] [CrossRef]
  6. Lee, J.; Chuah, C.Y.; Kim, J.; Kim, Y.; Ko, N.; Seo, Y.; Kim, K.; Bae, T.H.; Lee, E. Separation of Acetylene from Carbon Dioxide and Ethylene by a Water-Stable Microporous Metal–Organic Framework with Aligned Imidazolium Groups inside the Channels. Angew. Chem. Int. Ed. 2018, 57, 7869–7873. [Google Scholar] [CrossRef] [PubMed]
  7. Nitzsche, R.; Budzinski, M.; Gröngröft, A. Techno-economic assessment of a wood-based biorefinery concept for the production of polymer-grade ethylene, organosolv lignin and fuel. Bioresour. Technol. 2016, 200, 928–939. [Google Scholar] [CrossRef]
  8. Santos-Panqueva, Y.; Guerrero-Fajardo, C.A.; Cuevas-Rodriguez, E.O.; Picos-Corrales, L.A.; Silva, C.M.; Contreras-Andrade, I. Production of bio-ethylene from wastes of microalgae to biodiesel biorefinery. Waste Biomass Valoriz. 2019, 10, 377–386. [Google Scholar] [CrossRef]
  9. De Jong, E.; Jungmeier, G. Chapter 1—Biorefinery Concepts in Comparison to Petrochemical Refineries. In Industrial Biorefineries & White Biotechnology; Pandey, A., Höfer, R., Taherzadeh, M., Nampoothiri, K.M., Larroche, C., Eds.; Elsevier: Amsterdam, The Netherlands, 2015; pp. 3–33. [Google Scholar] [CrossRef]
  10. Bennett, S.J.; Pearson, P.J.G. From petrochemical complexes to biorefineries? The past and prospective co-evolution of liquid fuels and chemicals production in the UK. Chem. Eng. Res. Des. 2009, 87, 1120–1139. [Google Scholar] [CrossRef]
  11. Alfano, S.; Berruti, F.; Denis, N.; Santagostino, A. The Future of Second-Generation Biomass. Available online: https://www.mckinsey.com/business-functions/sustainability/our-insights/the-future-of-second-generation-biomass (accessed on 8 April 2020).
  12. Liang, W.; Zhang, Y.; Wang, X.; Wu, Y.; Zhou, X.; Xiao, J.; Li, Y.; Wang, H.; Li, Z. Asphalt-derived high surface area activated porous carbons for the effective adsorption separation of ethane and ethylene. Chem. Eng. Sci. 2017, 162, 192–202. [Google Scholar] [CrossRef]
  13. Kunjattu, S.H.; Ashok, V.; Bhaskar, A.; Pandare, K.; Banerjee, R.; Kharul, U.K. [email protected] DBzPBI-BuI composite membranes for olefin/paraffin separation. J. Membr. Sci. 2018, 549, 38–45. [Google Scholar] [CrossRef]
  14. Van Miltenburg, A.; Zhu, W.; Kapteijn, F.; Moulijn, J. Adsorptive separation of light olefin/paraffin mixtures. Chem. Eng. Res. Des. 2006, 84, 350–354. [Google Scholar] [CrossRef]
  15. Burns, R.L.; Koros, W.J. Defining the challenges for C3H6/C3H8 separation using polymeric membranes. J. Membr. Sci. 2003, 211, 299–309. [Google Scholar] [CrossRef]
  16. Sungpet, A.; Way, J.; Thoen, P.; Dorgan, J. Reactive polymer membranes for ethylene/ethane separation. J. Membr. Sci. 1997, 136, 111–120. [Google Scholar] [CrossRef]
  17. Staudt-Bickel, C.; Koros, W.J. Olefin/paraffin gas separations with 6FDA-based polyimide membranes. J. Membr. Sci. 2000, 170, 205–214. [Google Scholar] [CrossRef]
  18. Wang, H.; Werth, S.; Schiestel, T.; Caro, J. Perovskite Hollow-Fiber Membranes for the Production of Oxygen-Enriched Air. Angew. Chem. Int. Ed. 2005, 44, 6906–6909. [Google Scholar] [CrossRef] [PubMed]
  19. Gong, H.; Chuah, C.Y.; Yang, Y.; Bae, T.-H. High performance composite membranes comprising Zn(pyrz)2(SiF6) nanocrystals for CO2/CH4 separation. J. Ind. Eng. Chem. 2018, 60, 279–285. [Google Scholar] [CrossRef]
  20. Chuah, C.Y.; Kim, K.; Lee, J.; Koh, D.-Y.; Bae, T.-H. CO2 absorption using membrane contactors: Recent progress and future perspective. Ind. Eng. Chem. Res. 2019. [Google Scholar] [CrossRef]
  21. Jiang, X.; Kumar, A. Performance of silicone-coated polymeric membrane in separation of hydrocarbons and nitrogen mixtures. J. Membr. Sci. 2005, 254, 179–188. [Google Scholar] [CrossRef]
  22. Pinnau, I.; Toy, L.G. Solid polymer electrolyte composite membranes for olefin/paraffin separation. J. Membr. Sci. 2001, 184, 39–48. [Google Scholar] [CrossRef]
  23. Chuah, C.Y.; Goh, K.; Yang, Y.; Gong, H.; Li, W.; Karahan, H.E.; Guiver, M.D.; Wang, R.; Bae, T.-H. Harnessing filler materials for enhancing biogas separation membranes. Chem. Rev. 2018, 118, 8655–8769. [Google Scholar] [CrossRef]
  24. Rungta, M.; Zhang, C.; Koros, W.J.; Xu, L. Membrane-based ethylene/ethane separation: The upper bound and beyond. AIChE J. 2013, 59, 3475–3489. [Google Scholar] [CrossRef]
  25. Robeson, L.M. Correlation of separation factor versus permeability for polymeric membranes. J. Membr. Sci. 1991, 62, 165–185. [Google Scholar] [CrossRef]
  26. Zhang, C.; Dai, Y.; Johnson, J.R.; Karvan, O.; Koros, W.J. High performance ZIF-8/6FDA-DAM mixed matrix membrane for propylene/propane separations. J. Membr. Sci. 2012, 389, 34–42. [Google Scholar] [CrossRef]
  27. Robeson, L.M. The upper bound revisited. J. Membr. Sci. 2008, 320, 390–400. [Google Scholar] [CrossRef]
  28. Yang, Y.; Chuah, C.Y.; Nie, L.; Bae, T.-H. Enhancing the mechanical strength and CO2/CH4 separation performance of polymeric membranes by incorporating amine-appended porous polymers. J. Membr. Sci. 2019, 569, 149–156. [Google Scholar] [CrossRef]
  29. Yang, Y.; Goh, K.; Weerachanchai, P.; Bae, T.-H. 3D covalent organic framework for morphologically induced high-performance membranes with strong resistance toward physical aging. J. Membr. Sci. 2019, 574, 235–242. [Google Scholar] [CrossRef]
  30. Pera-Titus, M. Porous inorganic membranes for CO2 capture: Present and prospects. Chem. Rev. 2013, 114, 1413–1492. [Google Scholar] [CrossRef]
  31. Usman, M.; Ahmed, A.; Yu, B.; Peng, Q.; Shen, Y.; Cong, H. A review of different synthetic approaches of amorphous intrinsic microporous polymers and their potential applications in membrane-based gases separation. Eur. Polym. J. 2019, 120, 109262. [Google Scholar] [CrossRef]
  32. Álvarez, C.; Lozano, Á.E.; Juan-y-Seva, M.; de la Campa, J.G. Gas separation properties of aromatic polyimides with bulky groups. Comparison of experimental and simulated results. J. Membr. Sci. 2020, 602, 117959. [Google Scholar] [CrossRef]
  33. Ploegmakers, J.; Japip, S.; Nijmeijer, K. Mixed matrix membranes containing MOFs for ethylene/ethane separation—Part B: Effect of Cu3BTC2 on membrane transport properties. J. Membr. Sci. 2013, 428, 331–340. [Google Scholar] [CrossRef]
  34. Zamaro, J.M.; Pérez, N.C.; Miró, E.E.; Casado, C.; Seoane, B.; Téllez, C.; Coronas, J. HKUST-1 MOF: A matrix to synthesize CuO and CuO–CeO2 nanoparticle catalysts for CO oxidation. Chem. Eng. J. 2012, 195, 180–187. [Google Scholar] [CrossRef]
  35. Casado-Coterillo, C.; Fernández-Barquín, A.; Zornoza, B.; Téllez, C.; Coronas, J.; Irabien, Á. Synthesis and characterisation of MOF/ionic liquid/chitosan mixed matrix membranes for CO2/N2 separation. RSC Adv. 2015, 5, 102350–102361. [Google Scholar] [CrossRef]
  36. Pu, S.; Wang, J.; Li, L.; Zhang, Z.; Bao, Z.; Yang, Q.; Yang, Y.; Xing, H.; Ren, Q. Performance comparison of metal–organic framework extrudates and commercial zeolite for ethylene/ethane separation. Ind. Eng. Chem. Res. 2018, 57, 1645–1654. [Google Scholar] [CrossRef]
  37. Krokidas, P.; Moncho, S.; Brothers, E.N.; Castier, M.; Economou, I.G. Tailoring the gas separation efficiency of metal organic framework ZIF-8 through metal substitution: A computational study. Phys. Chem. Chem. Phys. 2018, 20, 4879–4892. [Google Scholar] [CrossRef] [PubMed]
  38. Chung, T.-S.; Jiang, L.Y.; Li, Y.; Kulprathipanja, S. Mixed matrix membranes (MMMs) comprising organic polymers with dispersed inorganic fillers for gas separation. Prog. Polym. Sci. 2007, 32, 483–507. [Google Scholar] [CrossRef]
  39. Samarasinghe, S.; Chuah, C.Y.; Yang, Y.; Bae, T.-H. Tailoring CO2/CH4 separation properties of mixed-matrix membranes via combined use of two-and three-dimensional metal-organic frameworks. J. Membr. Sci. 2018, 557, 30–37. [Google Scholar] [CrossRef]
  40. Mueller, R.; Hariharan, V.; Zhang, C.; Lively, R.; Vasenkov, S. Relationship between mixed and pure gas self-diffusion for ethane and ethene in ZIF-8/6FDA-DAM mixed-matrix membrane by pulsed field gradient NMR. J. Membr. Sci. 2016, 499, 12–19. [Google Scholar] [CrossRef]
  41. Montoro, C.; García, E.; Calero, S.; Pérez-Fernández, M.A.; López, A.L.; Barea, E.; Navarro, J.A. Functionalisation of MOF open metal sites with pendant amines for CO2 capture. J. Mater. Chem. 2012, 22, 10155–10158. [Google Scholar] [CrossRef]
  42. Planas, N.; Dzubak, A.L.; Poloni, R.; Lin, L.-C.; McManus, A.; McDonald, T.M.; Neaton, J.B.; Long, J.R.; Smit, B.; Gagliardi, L. The mechanism of carbon dioxide adsorption in an alkylamine-functionalized metal–organic framework. J. Am. Chem. Soc. 2013, 135, 7402–7405. [Google Scholar] [CrossRef]
  43. Duval, J.M.; Kemperman, A.; Folkers, B.; Mulder, M.; Desgrandchamps, G.; Smolders, C. Preparation of zeolite filled glassy polymer membranes. J. Appl. Polym. Sci. 1994, 54, 409–418. [Google Scholar] [CrossRef]
  44. Yang, Y.; Goh, K.; Wang, R.; Bae, T.-H. High-performance nanocomposite membranes realized by efficient molecular sieving with CuBDC nanosheets. Chem. Commun. 2017, 53, 4254–4257. [Google Scholar] [CrossRef]
  45. Guücuüyener, C.; van den Bergh, J.; Gascon, J.; Kapteijn, F. Ethane/ethene separation turned on its head: Selective ethane adsorption on the metal− organic Framework ZIF-7 through a gate-opening mechanism. J. Am. Chem. Soc. 2010, 132, 17704–17706. [Google Scholar] [CrossRef] [PubMed]
  46. Pires, J.O.; Pinto, M.S.L.; Saini, V.K. Ethane selective IRMOF-8 and its significance in ethane–ethylene separation by adsorption. ACS Appl. Mater. Interfaces 2014, 6, 12093–12099. [Google Scholar] [CrossRef] [PubMed]
  47. Boöhme, U.; Barth, B.; Paula, C.; Kuhnt, A.; Schwieger, W.; Mundstock, A.; Caro, J.R.; Hartmann, M. Ethene/ethane and propene/propane separation via the olefin and paraffin selective metal–organic framework adsorbents CPO-27 and ZIF-8. Langmuir 2013, 29, 8592–8600. [Google Scholar] [CrossRef]
  48. Chanut, N.; Bourrelly, S.; Kuchta, B.; Serre, C.; Chang, J.S.; Wright, P.A.; Llewellyn, P.L. Screening the effect of water vapour on gas adsorption performance: Application to CO2 capture from flue gas in metal–organic frameworks. ChemSusChem 2017, 10, 1543–1553. [Google Scholar] [CrossRef] [PubMed]
  49. Li, W.; Chuah, C.Y.; Yang, Y.; Bae, T.-H. Nanocomposites formed by in situ growth of NiDOBDC nanoparticles on graphene oxide sheets for enhanced CO2 and H2 storage. Microporous Mesoporous Mater. 2018, 265, 35–42. [Google Scholar] [CrossRef]
  50. Bae, T.H.; Lee, J.S.; Qiu, W.; Koros, W.J.; Jones, C.W.; Nair, S. A high-performance gas-separation membrane containing submicrometer-sized metal–organic framework crystals. Angew. Chem. Int. Ed. 2010, 122, 10059–10062. [Google Scholar] [CrossRef]
  51. Davoodi, S.M.; Sadeghi, M.; Naghsh, M.; Moheb, A. Olefin–paraffin separation performance of polyimide Matrimid®/silica nanocomposite membranes. RSC Adv. 2016, 6, 23746–23759. [Google Scholar] [CrossRef]
  52. Ploegmakers, J.; Japip, S.; Nijmeijer, K. Mixed matrix membranes containing MOFs for ethylene/ethane separation Part A: Membrane preparation and characterization. J. Membr. Sci. 2013, 428, 445–453. [Google Scholar] [CrossRef]
  53. Chuah, C.Y.; Goh, K.; Bae, T.-H. Hierarchically structured HKUST-1 nanocrystals for enhanced SF6 capture and recovery. J. Phys. Chem. C 2017, 121, 6748–6755. [Google Scholar] [CrossRef]
  54. Duan, C.; Jie, X.; Liu, D.; Cao, Y.; Yuan, Q. Post-treatment effect on gas separation property of mixed matrix membranes containing metal organic frameworks. J. Membr. Sci. 2014, 466, 92–102. [Google Scholar] [CrossRef]
  55. Chuah, C.Y.; Yu, S.; Na, K.; Bae, T.-H. Enhanced SF6 recovery by hierarchically structured MFI zeolite. J. Ind. Eng. Chem. 2018, 62, 64–71. [Google Scholar] [CrossRef]
  56. Myers, A.; Prausnitz, J.M. Thermodynamics of mixed-gas adsorption. AIChE J. 1965, 11, 121–127. [Google Scholar] [CrossRef]
  57. Mason, J.A.; Sumida, K.; Herm, Z.R.; Krishna, R.; Long, J.R. Evaluating metal-organic frameworks for post-combustion carbon dioxide capture via temperature swing adsorption. Energy Environ. Sci. 2011, 4, 3030–3040. [Google Scholar] [CrossRef]
  58. Mathias, P.M.; Kumar, R.; Moyer, J.D.; Schork, J.M.; Srinivasan, S.R.; Auvil, S.R.; Talu, O. Correlation of multicomponent gas adsorption by the dual-site Langmuir model. Application to nitrogen/oxygen adsorption on 5A-zeolite. Ind. Eng. Chem. Res. 1996, 35, 2477–2483. [Google Scholar] [CrossRef]
  59. Chuah, C.Y.; Yang, Y.; Bae, T.-H. Hierarchically porous polymers containing triphenylamine for enhanced SF6 separation. Microporous Mesoporous Mater. 2018, 272, 232–240. [Google Scholar] [CrossRef]
  60. Bachman, J.E.; Smith, Z.P.; Li, T.; Xu, T.; Long, J.R. Enhanced ethylene separation and plasticization resistance in polymer membranes incorporating metal–organic framework nanocrystals. Nat. Mater. 2016, 15, 845. [Google Scholar] [CrossRef] [PubMed]
  61. Bereciartua, P.J.; Cantín, Á.; Corma, A.; Jordá, J.L.; Palomino, M.; Rey, F.; Valencia, S.; Corcoran, E.W.; Kortunov, P.; Ravikovitch, P.I. Control of zeolite framework flexibility and pore topology for separation of ethane and ethylene. Science 2017, 358, 1068–1071. [Google Scholar] [CrossRef]
  62. Sakai, M.; Sasaki, Y.; Tomono, T.; Seshimo, M.; Matsukata, M. Olefin selective Ag-exchanged X-type zeolite membrane for propylene/propane and ethylene/ethane separation. ACS Appl. Mater. Interfaces 2019, 11, 4145–4151. [Google Scholar] [CrossRef]
  63. Wee, L.H.; Lohe, M.R.; Janssens, N.; Kaskel, S.; Martens, J.A. Fine tuning of the metal–organic framework Cu3(BTC)2 HKUST-1 crystal size in the 100 nm to 5 micron range. J. Mater. Chem. 2012, 22, 13742–13746. [Google Scholar] [CrossRef]
  64. Xin, C.; Zhan, H.; Huang, X.; Li, H.; Zhao, N.; Xiao, F.; Wei, W.; Sun, Y. Effect of various alkaline agents on the size and morphology of nano-sized HKUST-1 for CO2 adsorption. RSC Adv. 2015, 5, 27901–27911. [Google Scholar] [CrossRef]
  65. Loera-Serna, S.; Solis, H.; Ortiz, E.; Martínez-Hernandéz, A.; Noreña, L. Elimination of Methylene Blue and Reactive Black 5 from Aqueous Solution Using HKUST-1. Ind. J. Environ. Sci. Dev. 2017, 8, 241. [Google Scholar] [CrossRef]
  66. Chuah, C.Y.; Bae, T.-H. Incorporation of Cu3BTC2 nanocrystals to increase the permeability of polymeric membranes in O2/N2 separation. BMC Chem. Eng. 2019, 1, 2. [Google Scholar] [CrossRef]
  67. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef] [PubMed]
  68. Geier, S.J.; Mason, J.A.; Bloch, E.D.; Queen, W.L.; Hudson, M.R.; Brown, C.M.; Long, J.R. Selective adsorption of ethylene over ethane and propylene over propane in the metal–organic frameworks M2(dobdc)(M = Mg, Mn, Fe, Co, Ni, Zn). Chem. Sci. 2013, 4, 2054–2061. [Google Scholar] [CrossRef]
  69. Ziegler, T.; Rauk, A. A theoretical study of the ethylene-metal bond in complexes between copper (1+), silver (1+), gold (1+), platinum (0) or platinum (2+) and ethylene, based on the Hartree-Fock-Slater transition-state method. Inorg. Chem. 1979, 18, 1558–1565. [Google Scholar] [CrossRef]
  70. Li, W.; Samarasinghe, S.; Bae, T.-H. Enhancing CO2/CH4 separation performance and mechanical strength of mixed-matrix membrane via combined use of graphene oxide and ZIF-8. J. Ind. Eng. Chem. 2018, 67, 156–163. [Google Scholar] [CrossRef]
  71. Samarasinghe, S.; Chuah, C.Y.; Li, W.; Sethunga, G.; Wang, R.; Bae, T.-H. Incorporation of CoIII acetylacetonate and SNW-1 nanoparticles to tailor O2/N2 separation performance of mixed-matrix membrane. Sep. Purif. Technol. 2019, 223, 133–141. [Google Scholar] [CrossRef]
  72. Fernández-Barquín, A.; Casado-Coterillo, C.; Palomino, M.; Valencia, S.; Irabien, A. LTA/Poly (1-trimethylsilyl-1-propyne) Mixed-Matrix Membranes for High-Temperature CO2/N2 Separation. Chem. Eng. Technol. 2015, 38, 658–666. [Google Scholar] [CrossRef]
  73. Li, W.; Chuah, C.Y.; Nie, L.; Bae, T.-H. Enhanced CO2/CH4 selectivity and mechanical strength of mixed-matrix membrane incorporated with NiDOBDC/GO composite. J. Ind. Eng. Chem. 2019, 74, 118–125. [Google Scholar] [CrossRef]
  74. Goh, P.; Ismail, A.; Sanip, S.; Ng, B.; Aziz, M. Recent advances of inorganic fillers in mixed matrix membrane for gas separation. Sep. Purif. Technol. 2011, 81, 243–264. [Google Scholar] [CrossRef]
  75. Gong, H.; Nguyen, T.H.; Wang, R.; Bae, T.-H. Separations of binary mixtures of CO2/CH4 and CO2/N2 with mixed-matrix membranes containing Zn(pyrz)2(SiF6) metal-organic framework. J. Membr. Sci. 2015, 495, 169–175. [Google Scholar] [CrossRef]
  76. Ge, L.; Zhou, W.; Rudolph, V.; Zhu, Z. Mixed matrix membranes incorporated with size-reduced Cu-BTC for improved gas separation. J. Mater. Chem. A 2013, 1, 6350–6358. [Google Scholar] [CrossRef]
  77. Zhang, C.; Lively, R.P.; Zhang, K.; Johnson, J.R.; Karvan, O.; Koros, W.J. Unexpected molecular sieving properties of zeolitic imidazolate framework-8. J. Phys. Chem. Lett. 2012, 3, 2130–2134. [Google Scholar] [CrossRef] [PubMed]

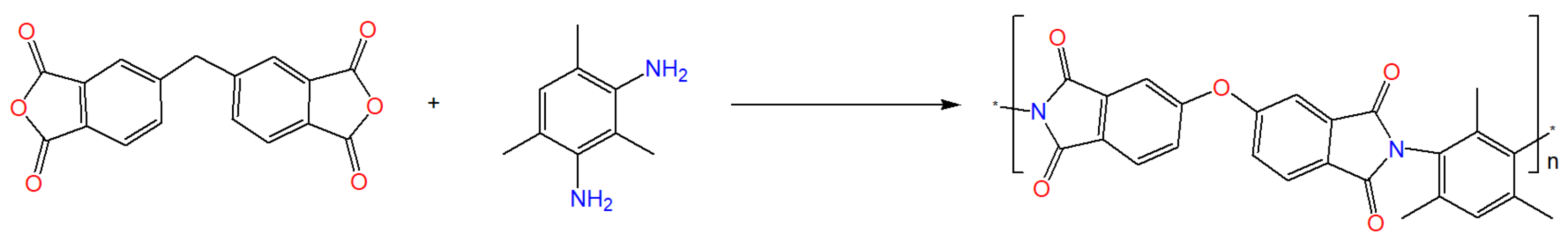

Figure 1. Reaction scheme of ODPA-TMPDA synthesis.
Figure 1. Reaction scheme of ODPA-TMPDA synthesis.
Membranes 10 00074 g001
Figure 2. Reaction scheme of 6FDA-TMPDA synthesis.
Figure 2. Reaction scheme of 6FDA-TMPDA synthesis.
Membranes 10 00074 g002
Figure 3. (a) FESEM image of nanocrystal HKUST-1; (b) Particle size distribution of nanocrystal HKUST-1. The mean and standard deviation are included in the figure.
Figure 3. (a) FESEM image of nanocrystal HKUST-1; (b) Particle size distribution of nanocrystal HKUST-1. The mean and standard deviation are included in the figure.
Membranes 10 00074 g003
Figure 4. (a) C2H4 and C2H6 adsorption isotherm of nanocrystal HKUST-1 at 35 °C; (b) The Ideal Adsorbed Solution Theory (IAST) selectivity of HKUST-1 nanocrystal at 35 °C as a function of feed pressure.
Figure 4. (a) C2H4 and C2H6 adsorption isotherm of nanocrystal HKUST-1 at 35 °C; (b) The Ideal Adsorbed Solution Theory (IAST) selectivity of HKUST-1 nanocrystal at 35 °C as a function of feed pressure.
Membranes 10 00074 g004
Figure 5. FESEM images of the mixed-matrix membranes: (a,b) 10 wt%, and (c,d) 20 wt% HKUST-1 with ODPA-TMPDA; and (e,f) 10 wt%, and (g,h) 20 wt% HKUST-1 with 6FDA-TMPDA.
Figure 5. FESEM images of the mixed-matrix membranes: (a,b) 10 wt%, and (c,d) 20 wt% HKUST-1 with ODPA-TMPDA; and (e,f) 10 wt%, and (g,h) 20 wt% HKUST-1 with 6FDA-TMPDA.
Membranes 10 00074 g005aMembranes 10 00074 g005b

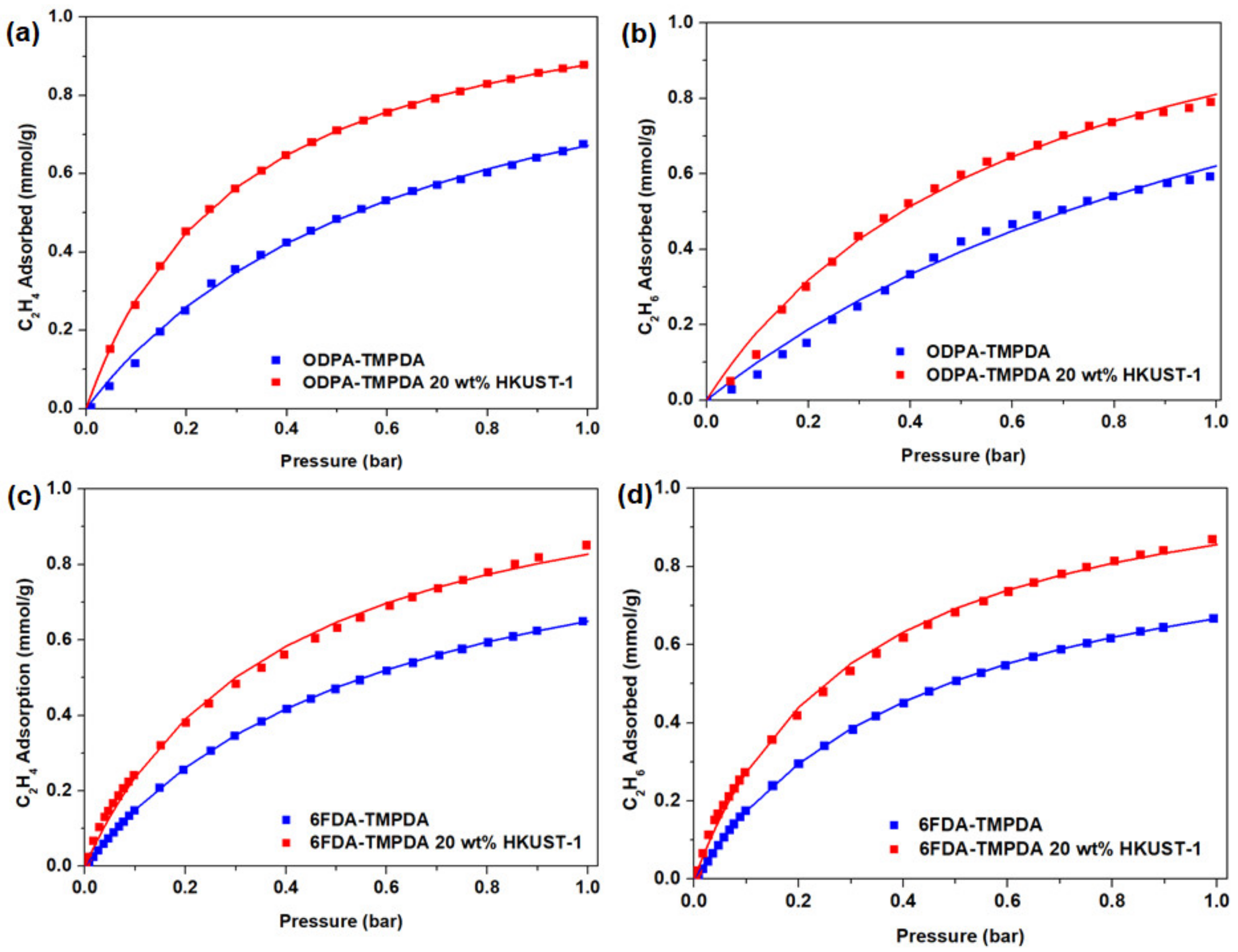

Figure 6. Adsorption isotherm of (a,c) C2H4 and (b,d) C2H6 of pure polymeric and mixed-matrix membranes.
Figure 6. Adsorption isotherm of (a,c) C2H4 and (b,d) C2H6 of pure polymeric and mixed-matrix membranes.
Membranes 10 00074 g006

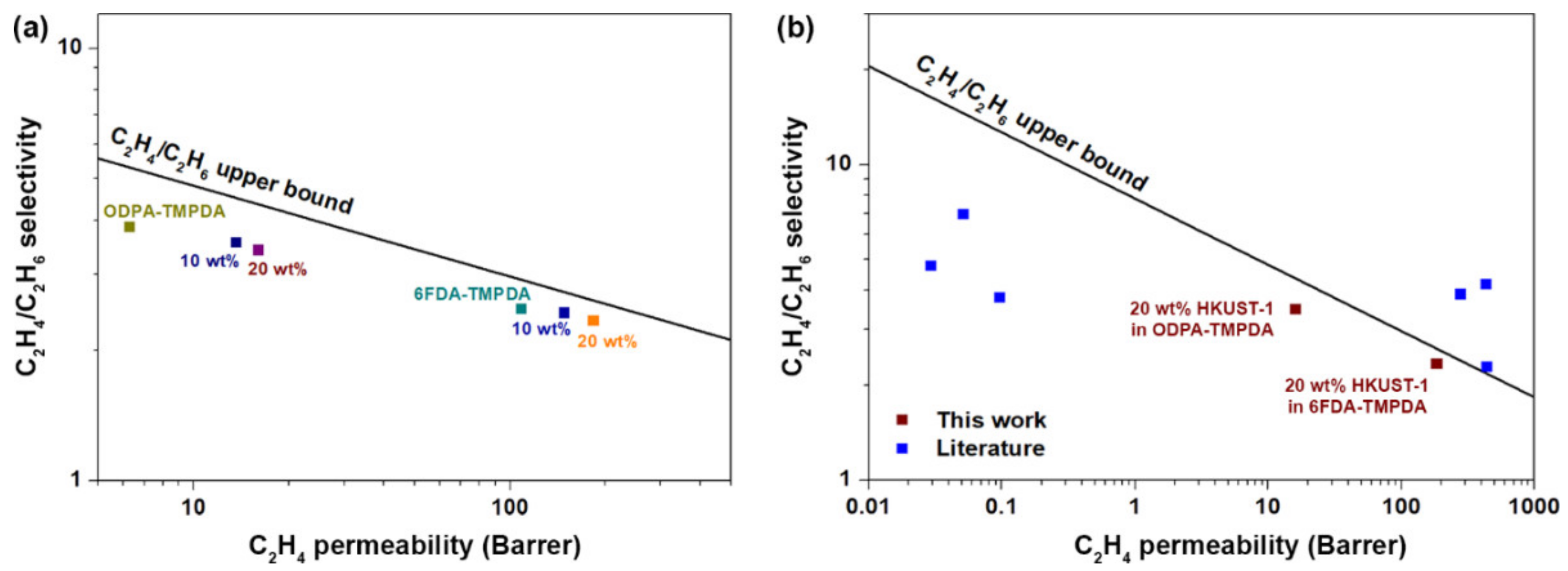

Figure 7. (a) Comparison of the synthesized membranes (pure polymer and mixed-matrix) with reference to the C2H4/C2H6 upper bound. The upper bound is constructed based on ref. [24]. (b) Mixture–gas performance comparison of our mixed-matrix membranes with literature data [52,60].
Figure 7. (a) Comparison of the synthesized membranes (pure polymer and mixed-matrix) with reference to the C2H4/C2H6 upper bound. The upper bound is constructed based on ref. [24]. (b) Mixture–gas performance comparison of our mixed-matrix membranes with literature data [52,60].
Membranes 10 00074 g007
Table 1. C2H4/C2H6 permeation behavior of pure ODPA-TMPDA and 6FDA-TMPDA membranes together with nanocrystal HKUST-1-containing mixed-matrix membranes. a
Table 1. C2H4/C2H6 permeation behavior of pure ODPA-TMPDA and 6FDA-TMPDA membranes together with nanocrystal HKUST-1-containing mixed-matrix membranes. a
MembraneC2H4 Permeability (Barrer)C2H4/C2H6 Selectivity
ODPA-TMPDA6.3 ± 0.43.9 ± 0.4
ODPA-TMPDA + 10 wt% HKUST-113.6 ± 1.73.6 ± 0.3
ODPA-TMPDA + 20 wt% HKUST-116.0 ± 0.23.4 ± 0.2
6FDA-TMPDA108 ± 7.22.5 ± 0.1
6FDA-TMPDA + 10 wt% HKUST-1148 ± 11.82.5 ± 0.5
6FDA-TMPDA + 20 wt% HKUST-1183 ± 3.82.4 ± 0.1
a The measurement condition is stated as follows: 1 bar feed pressure and C2H4/C2H6 mixture (50/50) at 35 °C.
Table 2. C2H4 and C2H6 solubility and diffusivity parameters of pure polymeric and mixed-matrix membranes at 35 °C.
Table 2. C2H4 and C2H6 solubility and diffusivity parameters of pure polymeric and mixed-matrix membranes at 35 °C.
MembraneDensity (g cm−3)C2H4 Solubility, × 103 (mol m−3 bar−1)C2H4 Diffusivity, × 10−13 (m2 s−1)C2H6 Solubility, × 103 (mol m−3 bar−1)C2H6 Diffusivity, × 10−13 (m2 s−1)Solubility SelectivityDiffusivity Selectivity
ODPA-TMPDA1.251.210.3940.9890.1241.223.17
ODPA-TMPDA + 20 wt% HKUST-11.241.770.6881.460.2441.212.82
6FDA-TMPDA1.261.190.6871.282.570.9332.68
6FDA-TMPDA + 20 wt% HKUST-11.221.580.8801.693.500.9342.51
Table 3. Summary of C2H4/C2H6 pure component gas permeation results of the mixed-matrix membranes that are available in the literature. a
Table 3. Summary of C2H4/C2H6 pure component gas permeation results of the mixed-matrix membranes that are available in the literature. a
FillerPolymerFiller Loading (wt%)Separation PerformanceRef.
Testing ConditionP(C2H4) (Barrer)Permeability Enhancement (%)α(C2H4/C2H6)Selectivity Enhancement (%)
Pressure (bar)Temp. (°C)
Silica nanoparticlesCA302350.111004.1173[5]
Silica nanoparticlesMatrimid®203300.19137.53.298.1[51]
ZIF-86FDA-DAM23.823572.985.03.2−3.1[77]
ZIF-8DBzPBI-BuI302.73511129532.6−2.29[13]
HKUST-1 bODPA-TMPDA2013516155.23.4−11.6This work
HKUST-1 b6FDA-TMPDA2013518369.42.4−6.0This work
a Optimal performance in terms of C2H4 permeability and (or) C2H4/C2H6 selectivity were selected and tabulated in this table; b The data for this work is included as reference.
Back to TopTop
