Effect of Bridgehead Methyl Substituents on the Gas Permeability of Tröger’s-Base Derived Polymers of Intrinsic Microporosity

1
EaStCHEM, School of Chemistry, University of Edinburgh, Joseph Black Building, David Brewster Road, Edinburgh, Scotland EH9 3FJ, UK
2
Institute on Membrane Technology, CNR-ITM, Via P. Bucci 17/C, 87036 Rende (CS), Italy
3
Department of Chemistry, College of Science, Swansea University, Grove Building, Singleton Park, Swansea SA2 8PP, UK
*
Authors to whom correspondence should be addressed.
Membranes 2020, 10(4), 62; https://doi.org/10.3390/membranes10040062
Received: 27 February 2020 / Revised: 30 March 2020 / Accepted: 1 April 2020 / Published: 3 April 2020
(This article belongs to the Special Issue Membranes for Gas Separation)

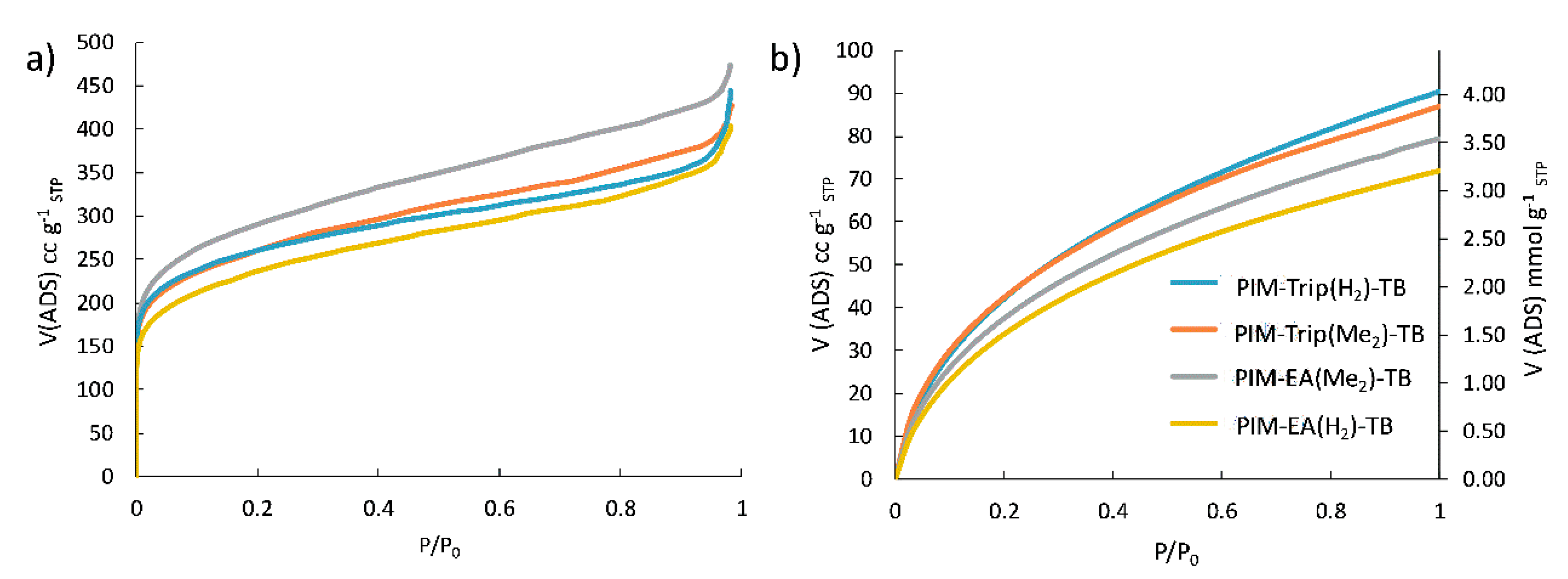

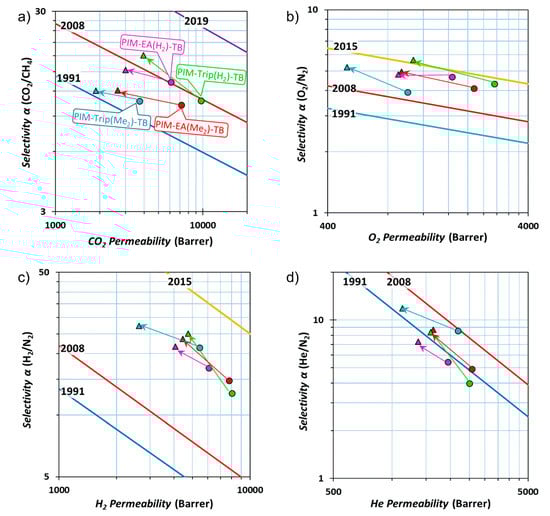

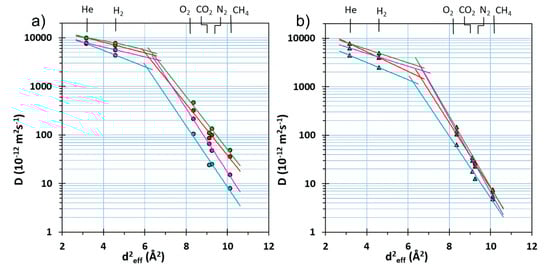

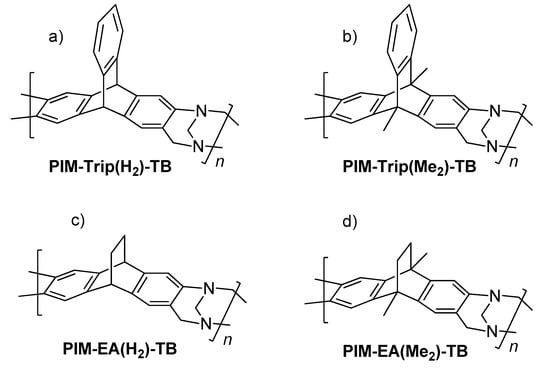

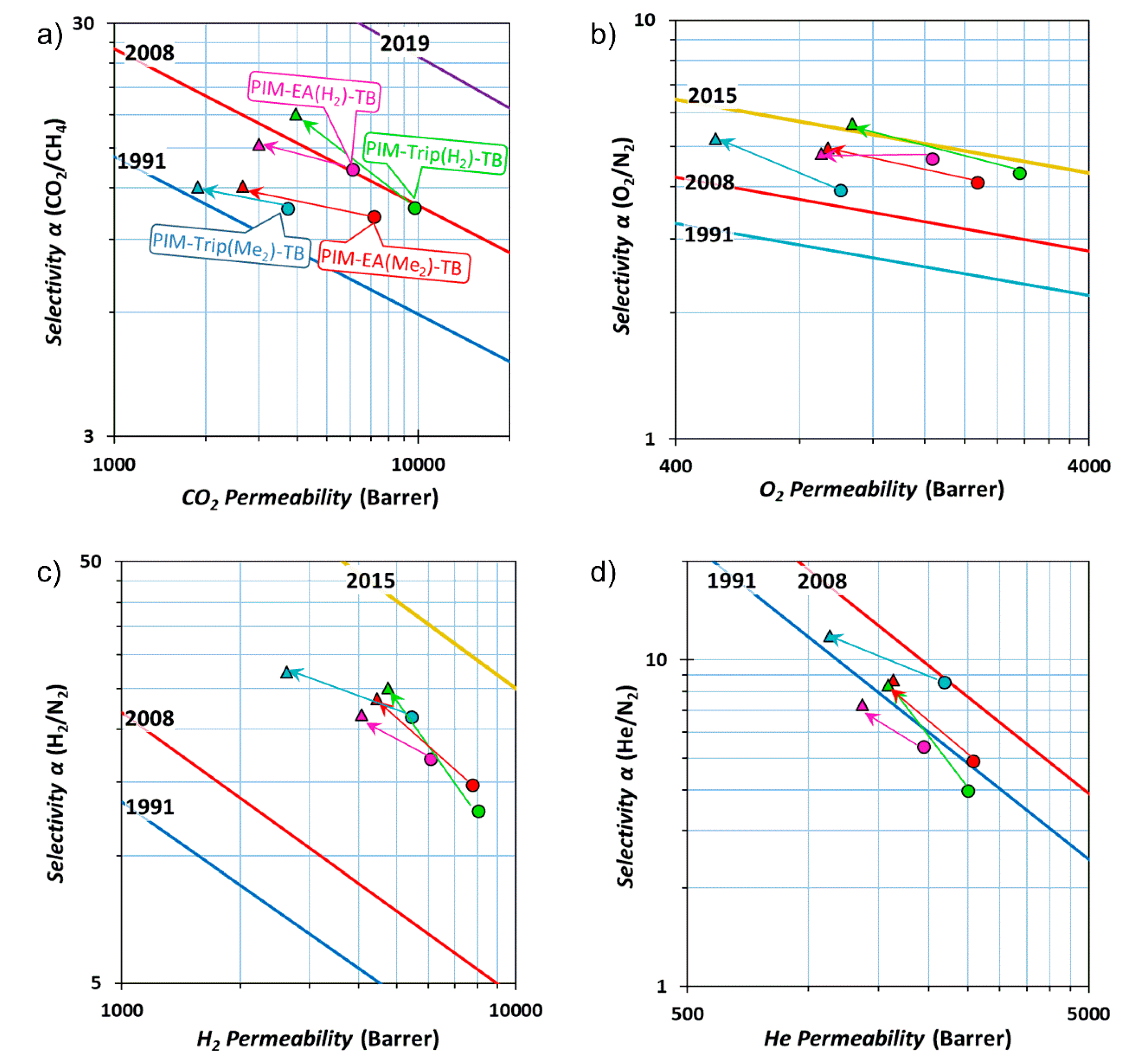

A detailed comparison of the gas permeability of four Polymers of Intrinsic Microporosity containing Tröger’s base (TB-PIMs) is reported. In particular, we present the results of a systematic study of the differences between four related polymers, highlighting the importance of the role of methyl groups positioned at the bridgehead of ethanoanthracene (EA) and triptycene (Trip) components. The PIMs show BET surface areas between 845–1028 m2 g−1 and complete solubility in chloroform, which allowed for the casting of robust films that provided excellent permselectivities for O2/N2, CO2/N2, CO2/CH4 and H2/CH4 gas pairs so that some data surpass the 2008 Robeson upper bounds. Their interesting gas transport properties were mostly ascribed to a combination of high permeability and very strong size-selectivity of the polymers. Time lag measurements and determination of the gas diffusion coefficient of all polymers revealed that physical ageing strongly increased the size-selectivity, making them suitable for the preparation of thin film composite membranes. View Full-Text
Keywords: polymers of intrinsic microporosity (PIMs); Tröger’s base; gas separation; membrane polymers of intrinsic microporosity (PIMs); Tröger’s base; gas separation; membrane
Show Figures

Graphical abstract

MDPI and ACS Style

Malpass-Evans, R.; Rose, I.; Fuoco, A.; Bernardo, P.; Clarizia, G.; McKeown, N.B.; Jansen, J.C.; Carta, M. Effect of Bridgehead Methyl Substituents on the Gas Permeability of Tröger’s-Base Derived Polymers of Intrinsic Microporosity. Membranes 2020, 10, 62.
