Regioselective and Stereoselective Epoxidation of n-3 and n-6 Fatty Acids by Fungal Peroxygenases

by
Alejandro González-Benjumea
1,
Dolores Linde
2,
Juan Carro
2,
René Ullrich
3,
Martin Hofrichter
3,
Angel T. Martínez
2,* and
Ana Gutiérrez
1,*
1
Instituto de Recursos Naturales y Agrobiología de Sevilla (IRNAS), Consejo Superior de Investigaciones Científicas (CSIC), Reina Mercedes 10, E-41012 Seville, Spain
2
Centro de Investigaciones Biológicas “Margarita Salas” (CIB), Consejo Superior de Investigaciones Científicas (CSIC), Ramiro de Maeztu 9, E-28040 Madrid, Spain
3
International Institute Zittau (IHIZ), Technische Universität Dresden, Markt 23, D-02763 Zitau, Germany
*
Authors to whom correspondence should be addressed.
Antioxidants 2021, 10(12), 1888; https://doi.org/10.3390/antiox10121888
Submission received: 19 October 2021 / Revised: 20 November 2021 / Accepted: 25 November 2021 / Published: 25 November 2021
(This article belongs to the Special Issue Dream Peroxygenases)
Browse Figures
Versions Notes

Abstract

:
Epoxide metabolites from n-3 and n-6 polyunsaturated fatty acids arouse interest thanks to their physiological and pharmacological activities. Their chemical synthesis has significant drawbacks, and enzymes emerge as an alternative with potentially higher selectivity and greener nature. Conversion of eleven eicosanoid, docosanoid, and other n-3/n-6 fatty acids into mono-epoxides by fungal unspecific peroxygenases (UPOs) is investigated, with emphasis on the Agrocybe aegerita (AaeUPO) and Collariella virescens (rCviUPO) enzymes. GC-MS revealed the strict regioselectivity of the n-3 and n-6 reactions with AaeUPO and rCviUPO, respectively, yielding 91%-quantitative conversion into mono-epoxides at the last double bond. Then, six of these mono-epoxides were obtained at mg-scale, purified and further structurally characterized by 1H, 13C and HMBC NMR. Moreover, chiral HPLC showed that the n-3 epoxides were also formed (by AaeUPO) with total S/R enantioselectivity (ee > 99%) while the n-6 epoxides (from rCviUPO reactions) were formed in nearly racemic mixtures. The high regio- and enantioselectivity of several of these reactions unveils the synthetic utility of fungal peroxygenases in fatty acid epoxidation.

Graphical Abstract

1. Introduction

Epoxylipids include a series of epoxide metabolites from n-3 and n-6 (also known as omega 3 and omega 6) polyunsaturated eicosanoid and docosanoid acids, among others, that play important roles in a range of biological processes [1]. These compounds are mediators in the inflammatory response [2] and are also involved in the regulation of blood pressure [3], pain perception [4], and angiogenesis [5]. Moreover, epoxylipids are strongly linked to the endothelial system as well as to organs such as heart and kidney, contributing to controlling hypertension and cardiovascular diseases [6,7,8].
Epoxides of polyunsaturated fatty acids—such as arachidonic (AA), eicosapentaenoic (EPA) and docosahexaenoic acids (DHA)—are naturally synthesized by cytochrome P450 monooxygenases (P450s) as animal metabolites, delivering them in a range of regioisomers. These cis-epoxides can subsequently be hydrolyzed to vicinal diols by epoxide hydrolases making the study of their biological activities difficult. Moreover, the above epoxides can be synthesized as a pair of R/S and S/R enantiomers from the two distinguishable faces of the substrate double bond (re,si and si,re).
Non-enzymatic synthesis of the above compounds with peracids, such as m-chloroperbenzoic acid, generally yields complex mixtures of mono-epoxides, together with minor amounts of other epoxides, that make the synthesis scarcely effective for obtaining individual epoxides. Other (semi)synthetic approaches have been explored [9,10], but they have the drawbacks of involving several steps, with low overall yields and use of high-cost and hazardous reagents. The enzymatic synthesis by P450 enzymes (EC 1.14) emerged as an alternative to classical chemical synthesis supported by its higher regio- and stereoselectivities, P450 BM3 from Bacillus megaterium and its variants being the most studied enzymes [11,12]. Plant peroxygenases have also been used for these enzymatic syntheses [13,14,15].
Unspecific peroxygenases (UPOs, EC 1.11.2.1) are a (super)family of mono(per)oxygenases firstly described for Agrocybe aegerita cultures in 2004 [16] that, in contrast to the above P450s, only require H2O2 for activation and function, as other peroxygenases. UPOs have demonstrated to catalyze a great repertoire of oxygenation reactions discussed in several reviews [17,18,19,20,21,22]. Additionally, epoxidation of complex mixtures of unsaturated free fatty acids and their methyl esters from vegetable oils have been recently reported for UPOs [23]. The advantages of UPOs, compared with P450, are related with the use of H2O2 (or organic hydroperoxides) as the only co-substrate, and with a better stability thanks to their extracellular nature, while compared to plant peroxygenases UPOs have the advantage of their microbial origin facilitating the enzyme production. The above characteristics turned UPOs into powerful tools for synthetic applications to obtain a variety of added value oxyfunctionalized compounds [19,22].
Although thousands of putative UPO genes have been identified in genomes [24] since the discovery of A. aegerita UPO (AaeUPO), only a few additional UPO enzymes are available from: (i) fungal wild-type cultures—such as those of the basidiomycetes Coprinellus radians [25], Marasmius rotula [26] and Marasmius wettsteinii [27], and the ascomycete Chaetomium globosum [28]; and (ii) heterologous expression of UPO genes from Coprinopsis cinerea (rCciUPO) [29] and Humicola insolens [28] in Aspergillus oryzae, M. rotula (rMroUPO) [30], Collariella virescens (rCviUPO) and Daldinia caldariorum [31] in Escherichia coli, and an evolved AaeUPO [32,33], whose mutations have been also exported for expressing two other UPOs [34], in yeast. However, a modular yeast secretion system has been recently claimed for the universal heterologous production of UPOs [35,36]. The above heterologous expression systems allowed the design of mutated variants that spread and improve the performance of native UPOs [30,37,38,39,40].
The present work describes the selective conversion of representative n-3 and n-6 polyunsaturated fatty acids (i.e., those with the last double bond located at the third and sixth positions from the end of the molecule, respectively) to the corresponding mono-epoxides by AaeUPO and rCviUPO, which were selected in an initial screening also including rCciUPO and rMroUPO. The substrate conversion and regioselectivity of the enzymatic reactions were evaluated by GC-MS. Furthermore, mono-epoxides from six fatty acids were obtained at mg-scale, purified, and their structures confirmed by 1H, 13C and HMBC NMR. Finally, chiral HPLC analyses were performed to determine the enantioselectivity of the AaeUPO and rCviUPO reactions.

2. Materials and Methods

2.1. Chemicals

Eleven n-3 (1–8) and n-6 (9–11) polyunsaturated fatty acids (Figure 1) were tested as substrates for UPO epoxidation. These compounds −namely hexadeca-7,10,13-trienoic acid (HTA; 1), octadeca-6,9,12,15-tetraenoic acid (stearidonic acid, SDA; 2), eicosa-11,14,17-trienoic acid (ETE; 3), eicosa-5,8,11,14,17-pentaenoic acid (EPA; 4), heneicosa-6,9,12,15,18-pentaenoic acid (HPA; 5), docosa-7,10,13,16,19-pentaenoic acid (DPA; 6), docosa-4,7,10,13,16,19-hexaenoic acid (DHA; 7), tetracosa-6,9,12,15,18,21-hexaenoic acid (nisinic acid; 8), eicosa-8,11,14-trienoic acid (dihomo-γ-linoleic acid, DGLA; 9), eicosa-5,8,11,14-tetraenoic acid (AA; 10) and docosa-7,10,13,16-tetraenoic acid (adrenic acid, AdA; 11)− were supplied by Larodan (cis isomers in all cases).
Mono-epoxide standards −namely (±)17,18-epoxyeicosa-5,8,11,14-tetraenoic acid (17,18-EpETrE), (±)19,20-epoxydocosa-7,10,13,16-tetraenoic acid (19,20-EpDTrE), (±)19,20-epoxydocosa-4,7,10,13,16-pentaenoic acid (19,20-EpDPE), (±)14,15-epoxyeicosa-5,8,11-trienoic acid (14,15-EpETE) and 14(S),15(R)-epoxyeicosa-5,8,11-trienoic acid (14(S),15(R)-EpETE)—were supplied by Cayman (cis isomers in all cases). The GC/HPLC-derivatizing reagents BSTFA ([N,O-bistrimethylsilyl]trifluoroacetamide) and trimethylsilyldiazomethane were obtained from Merck.

2.2. Enzymes

AaeUPO is a wild-type enzyme obtained from cultures of the agaric basidiomycete A. aegerita TM-A1 in soybean-peptone medium, and purified as described elsewhere [24]. Recombinant rCciUPO was supplied by Novozymes A/S and corresponds to the protein model 7249 from the genome of C. cinerea sequenced at the DOE JGI (http://genome.jgi.doe.gov/Copci1, accessed on 19 October 2021) expressed in A. oryzae (patent WO/2008/119780). Recombinant rMroUPO and rCviUPO enzymes were produced by expressing the corresponding gene sequences—from Gröbe et al. [26] and Lund et al. [41], respectively—in E. coli as active cytosolic proteins, and purified as reported previously [30,39]. Site-directed mutagenesis production of the F88L and T158F variants of rCviUPO has also already been reported [41]. In all cases, enzyme concentrations were spectrophotometrically estimated from the spectra of the reduced-UPO adducts with CO [42].

2.3. Enzymatic Reactions

The enzymes—namely AaeUPO (50 pmol), rCciUPO (25–50 pmol), rMroUPO (50–100 pmol), rCviUPO and its variants (100 pmol)—were added to a solution of the substrate (0.1 μmol) in 1 mL of phosphate, pH 7 (pH 5.5 for rMroUPO), containing 20% acetone. The solution was heated to 30 °C and the reaction triggered by adding H2O2 (initial and 4 subsequent pulses up to 1 µmol). After 30-min reaction, the products were recovered with methyl tert-butyl ether and derivatized with BSTFA (80 °C, 1 h) for GC-MS analyses as trimethylsilyl derivatives, as described below.
For preparative synthesis, the reactions were carried out following the procedures described above but in larger volumes (50–500 mL) and purified by silica-gel (60–200 μm) column chromatography with hexane-EtOAc (10:1→1:5) as mobile phase. The isolated products were further characterized by chiral HPLC (after methylation with trimethylsilyl diazomethane for 1 h at room temperature) and NMR, as described below.

2.4. GC-MS Analyses

GC-MS analyses were performed with a Shimadzu GC-MS QP2020 Ultra equipment using a DB-5HT (30 m × 0.25 mm i.d. and 0.1 μm film thickness) capillary column. Helium was used as carrier gas at a flow of 0.83 mL·min−1. The injection was performed at 300 °C, the oven was heated from 120 °C (1 min) to 300 °C (15 min) at a rate of 5 °C·min−1 and the transfer line was set at 300 °C. Compounds were identified by mass fragmentography and by comparison with authentic standards. Quantification was carried out from total-ion peak areas, after deconvolution (with Origin, 2020, software) when partial overlapping was produced.

2.5. HPLC Analyses

Chiral analyses of the mono-epoxides purified as described above were performed with a Shimadzu i-Prominence 2030C equipment using an OB-H (250 × 4.6 cm, 5 μm particle) column. Compounds were eluted with hexane-isopropanol-AcOH (99.65:0.3:0.05), at a flow rate of 1 mL·min−1, and monitored at 202 or 204 nm depending on the maximal absorbance of the epoxide product. Authentic standards were used for assigning retention times.

2.6. NMR Analyses

1D and 2D NMR analyses were carried out with a Bruker AVIII 500 MHz equipment coupled with a cryoprobe. The 1H and 13C NMR chemical shifts (δ, ppm), calibrated using the signal of residual non-deuterated chloroform (at 7.26 and 77.16 ppm, respectively), and the coupling constants (J, Hz) of the six mono-epoxides analyzed (Figure 2, compounds 14, 15, 17, 18, 20 and 21) are provided below.
17,18-Epoxyeicosa-11,14-dienoic acid (17,18-EpEDE; 14). 1H-NMR (CDCl3, 500 MHz; Figure S3 top) δ: 5.53–5.29 (m, 4H, H-11, H-12, H-14, H-15), 2.97 and 2.91 (2dt, 1H each, J17,18 = 4.2 Hz, J17,16 = 6.4 Hz, J18,19 = 6.3 Hz, H-17, H-18), 2.80 (t, 2H, J = 7.0 Hz, H-13), 2.42 (dt, 1H, J16a,16b = 15.0 Hz, J = 6.3 Hz, H-16a), 2.34 (t, 2H, J = 7.6 Hz, H-2), 2.22 (dt, 1H, J16b,16a = 15.0 Hz, J = 6.9 Hz, H-16b), 2.04 (dt, 2H, J = 7.0 Hz, J = 6.9 Hz, H-10), 1.66–1.49 (m, 4H, H-3, H-19), 1.34–1.27 (m, 12H, H-4, H-5, H-6, H-7, H-8, H-9), 1.05 (t, 3H, J = 7.6 Hz, H-20) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S3 bottom) δ: 179.0 (C-1), 131.0, 130.8, 127.6 and 124.3 (C-11, C-12, C-14, C-15), 58.6 (C-18), 56.8 (C-17), 34.0 (C-2), 29.7, 29.6, 29.5, 29.4, 29.3, 29.2, 27.4, 26.3, 26.0, 24.8 (C-3, C-4, C-5, C-6, C-7, C-8, C-9, C-10, C-13, C-16), 21.2 (C-19). 10.7 (C-20) ppm.
17,18-EpETrE (15). 1H-NMR (CDCl3, 500 MHz; Figure S4 top) δ: 5.55–5.34 (m, 8H, H-5, H-6, H-8, H-9, H-11, H-12, H-14, H-15), 3.02 and 2.95 (2dt, 1H each, J17,18 = 4.3 Hz, J17,16 = 6.4 Hz, J18,19 = 6.3 Hz, H-17, H-18), 2.86–2.81 (m, 6H, H-7, H-10, H-13), 2.50–2.43 (m, 1H, H-16a), 2.38–2.34 (m, 2H, H-2), 2.22 (dt, 1H, J16a,16b = 14.9 Hz, J = 7.3 Hz, H-16b), 2.14 (dt, 2H, J = 7.6 Hz, J = 6.9 Hz, H-4), 1.71 (q, 2H, J = 7.2 Hz, H-3), 1.66–1.52 (m, 2H, H-19), 1.05 (t, 3H, J = 7.4 Hz, H-20) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S4 bottom) δ: 177.5 (C-1), 130.6 (C-14), 129.0, 128.8, 128.4, 128.3, 128.0 and 127.8 (C-5, C-6, C-8, C-9, C-11 and C-12), 127.3 (C-15), 58.7 (C-18), 56.8 (C-17), 33.0 (C-2), 27.0, 26.4, 26.1, 25.8, 25.7 and 24.5 (C-3, C-4, C-7, C-10, C-13 and C-16), 21.0 (C-19), 10.6 (C-20) ppm.
19,20-EpDTrE (17). 1H-NMR (CDCl3, 500 MHz; Figure S5 top) δ: 5.54–5.31 (m, 8H, H-7, H-8, H-10, H-11, H-13, H-14, H-16, H-17), 2.97 and 2.91 (2dt, 1H each, J19,20 = 4.2 Hz, J19,18 = 6.4 Hz, J20,21 = 6.3 Hz, H-19, H-20), 2.85–2.79 (m, 6H, H-9, H-12, H-15), 2.44-2.38 (m, 1H, H-18a), 2.34 (t, 2H, J = 7.5 Hz, H-2), 2.25–2.19 (m, 1H, H-18b), 2.06 (dt, 2H, J = 6.5 Hz, J = 6.6 Hz, H-6), 1.67–1.49 (m, 4H, H-3, H-21), 1.39–1.32 (m, 4H, H-4, H-5), 1.05 (t, 3H, J = 7.5 Hz, H-22) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S5 bottom) δ: 178.6 (C-1), 130.6, 130.2, 128.7, 128.6, 128.0, 127.9 and 127.8 (C-7, C-8, C-10, C-11, C-13, C-14, C-16), 124.6 (C-17), 58.6 (C-20), 56.8 (C-19), 34.0 (C-2), 29.3, 28.8, 27.1, 26.3, 25.9, 25.8 and 24.7 (C-3, C-4, C-5 C-6, C-9, C-12, C-15, C-18), 21.2 (C-21), 10.7 (C-22) ppm.
19,20-EpDPE (18). 1H-NMR (CDCl3, 500 MHz; Figure S6 top) δ: 6.54–5.33 (m, 10H, H-4, H-5, H-7, H-8, H-10, H-11, H-13, H-14, H-16, H-17), 2.98 and 2.92 (2dt, 1H each, J19,20 = 4.2 Hz, J19,18 = 6.4 Hz, J20,21 = 6.3 Hz, H-19, H-20), 2.85–2.83 (m, 8H, H-6, H-9, H-12, H-15), 2.45–2.40 (m, 5H, H-2, H-3, H-18a), 2.25–2.19 (m, 1H, H-18b), 1.66–1.49 (m, 2H, H-21), 1.05 (t, 3H, J = 7.5 Hz, H-22) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S6 bottom) δ: 178.0 (C-1), 130.6, 129.6, 128.5, 128.3, 128.2, 128.1, 128.0 and 127.8 (C-4, C-5, C-7, C-8, C-10, C-11, C-13, C-14, C-16), 124.5 (C-17), 58.7 (C-20), 56.9 (C-19), 34.0 (C-2), 26.2, 26.0, 25.8, 25.7, 25.6 and 22.7 (C-3, C-6, C-9, C-12, C-15, C-18, C-19), 21.1 (C-21), 10.7 (C-22) ppm.
14,15-Epoxyeicosa-8,11-dienoic acid (14,15-EpEDE; 20). 1H-NMR (CDCl3, 500 MHz; Figure S7 top) δ: 5.53–5.31 (m, 4H, H-8, H9, H-11, H-12), 2.98–2.93 (m, 2H, H-14, H-15), 2.80 (t, 2H, J = 6.9 Hz, H-10), 2.41 (dt, 1H, J13a,13b = 15.0 Hz, J = 6.3 Hz, H-13a), 2.35 (t, 2H, J2,3 = 7.5 Hz, H-2), 2.21 (dt, 1H, J13b,13a = 15.0 Hz, J = 6.5 Hz, H-13b), 2.07–2.03 (m, 2H, H-7), 1.64 (q, 2H, J = 7.3 Hz, H-3), 1.57–1.48 (m, 3H, H-16a, H-17), 1.45–1.44 (m, 1H, H-16b), 1.38–1.30 (m, 10H, H-4, H-5, H-6, H-18, H-19), 0.90 (t, 3H, J = 7.3 Hz, H-20) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S7 bottom) δ: 178.5 (C-1), 130.8 and 127.5 (C-8, C-12), 130.5 and 124.2 (C-9, C-11), 57.4 (C-15), 56.6 (C-14), 33.8 (C-2), 31.8 (C-18), 29.4, 28.8 (C-5, C-6), 28.9 (C-4), 27.7 (C-17), 27.2 (C-7), 26.3 (C-16), 26.2 (C-13), 25.9 (C-10), 24.7 (C-3), 22.6 (C-19), 14.0 (C-20) ppm.
14,15-EpETE (21). 1H-NMR (CDCl3, 500 MHz; Figure S8 top) δ: 5.57–5.34 (m, 6H, H-5, H-6, H-8, H-9, H-11, H-12), 3.00–2.95 (m, 2H, H-14, H-15), 2.86–2.80 (m, 4H, H-7, H-10), 2.48–2.40 (m, 1H, H-13a), 2.36 (t, 2H, J2,3 = 7.3 Hz, H-2), 2.28–2.19 (m, 1H, H-13b), 2.14 (c, 2H, J = 7.3 Hz, H-4), 1.72 (q, 2H, J = 7.4 Hz, H-3), 1.59–1.43 (m, 4H, H-16, H-17), 1.37–1.28 (m, 4H, H-18, H-19), 0.90 (t, 3H, J = 7.1 Hz, H-20) ppm. 13C-NMR (CDCl3, 125 MHz; Figure S8 bottom) δ: 177.9 (C-1), 130.7, 129.1, 129.0, 128.6, 127.8 and 124.4 (C-5, C-6, C-8, C-9, C-11 and C-12), 57.8 (C-15), 56.8 (C-14), 33.2 (C-2), 31.9 (C-18), 27.8 (C-16), 26.6 (C-4), 26.4 (C-17), 26.3 (C-13), 26.0 (C-7), 25.8 (C-10), 24.6 (C-3), 22.7 (C-19), 14.1 (C-20) ppm.

3. Results and Discussion

3.1. UPO Screening for Epoxidation of n-3 and n-6 Fatty Acids

For studying the enzymatic epoxidation patterns, EPA (4) and DGLA (9) were selected as model n-3 and n-6 fatty acids, respectively, and four fungal UPOs representative of the long—AaeUPO (353 aa) and CciUPO (329 aa)—and short—MroUPO (234 aa) and CviUPO (259 aa)—families [16] were screened (Figure 3 and Figure 4).
With EPA (4), AaeUPO (Figure 3A) exhibited the highest substrate conversion (lowest substrate peak at 21.6 min retention time) only yielding one mono-epoxide (tentatively 17-epoxide) and very small amounts of hydroxy-epoxides. The same mono-epoxide was formed by rCciUPO (Figure 3B) but hydroxylated EPA derivatives were also observed (50% of the total products) mainly at the ω-4 position. Conversely, rMroUPO (Figure 3C) produced mixtures of mono-epoxide and di-epoxide regioisomers, together with some hydroxy-epoxides. Likewise, rCviUPO (Figure 3D) caused unspecific mono-epoxidation, yielding at least 2 mono-epoxides, as well as one hydroxy fatty acid (at ω-6 position).
The enzymatic activity of AaeUPO with DGLA (9) considerably differed from the reaction with its n-3 counterpart, since only hydroxy and ketone derivatives (at ω-1 and ω-2 positions) were found (Figure 4A) and no epoxidation products were formed. These results reveal that epoxidation of subterminal double bond (n-3 position in EPA) is strongly preferred over alkyl chain hydroxylation at the same position (in DGLA).
rCciUPO (Figure 4B) showed a similar oxygenation pattern to that of AaeUPO but with a higher proportion of the hydroxy derivative at ω-1 position. The oxygenation profile obtained with rMroUPO (Figure 4C) was similar to that produced with EPA, mainly forming complex mixtures of mono-epoxides (including hydroxy-epoxides) and di-epoxides. Finally, high conversion and successful mono-epoxidation of DGLA (product tentatively assigned to the 14-epoxide) was accomplished in the reaction with rCviUPO (Figure 4D), where only negligible amounts of di-epoxides and hydroxy derivatives were observed.
The results of rMroUPO reactions with both EPA and DGLA are in agreement with previous reports showing that this enzyme exhaustively epoxidizes polyunsaturated plant fatty acids, such as linoleic and α-linolenic acids, producing mixtures of mono- and di-epoxides [43]. Moreover, the oxygenation patterns by AaeUPO and rCciUPO can be correlated with another previous work [38] where AaeUPO allowed the epoxidation of α-linolenic acid at the last double bond with strict regioselectivity.
These results can be partially rationalized in accordance with the topology of the heme-access channels (Figure 5). Under this assumption, narrow-channel UPOs, such as AaeUPO (Figure 5A) and rCciUPO (Figure 5B), would only oxygenate at most terminal positions. Therefore, subterminal double bonds, as present in n-3 fatty acids, are epoxidized by AaeUPO since only their last double bond could attain the active site, whereas with n-6 acids it only produces subterminal hydroxy and keto derivatives (Figure 3A and Figure 4A). In contrast, the enzymatic activity that rMroUPO exhibited with polyunsaturated fatty acids could be explained thanks to its wider access channel, which allows substrate bending and, thus, promotes EPA (4) diepoxidation (Figure 3C). Finally, rCviUPO turned out to be an intermediate between AaeUPO (and rCciUPO) and rMroUPO in terms of the access channel, resulting in non-specific mono-epoxidation of EPA (4), which becomes highly regioselective with DGLA (9) (Figure 3D and Figure 4D, respectively). These findings reveal that AaeUPO and rCviUPO are good candidates for the selective synthesis of mono-epoxides at the last double bond of n-3 and n-6 unsaturated fatty acids, respectively, as described below.

3.2. Regioselective Synthesis of n-3 Fatty-Acid Mono-Epoxides by AaeUPO

The results reported in Section 3.1 prompted the study of up to eight n-3 compounds—namely HTA (1), SDA (2), ETE (3), EPA (4), HPA (5), DPA (6), DHA (7), and nisinic acid (8) (see Figure 1)— as substrates of AaeUPO. All these compounds yielded mono-epoxides at the last (n-3) double bond (products 12–19 in Figure 2) at high proportion (91–97% of products) in quantitative conversions, along with negligible amounts of other hydroxylated (epoxidized or not) compounds (Table 1) as revealed by the chromatographic analyses (Figure S1).
It is remarkable that the enzyme showed strict regioselectivity (>99% of products) towards compound 2 (SDA). Such epoxidation at the last double bond was confirmed by GC-MS using authentic standards when available, as in the cases of 15, 17 and 18 products. Otherwise, regioselectivity was also tentatively assigned by mass fragmentography, due to the characteristic fragment originating from interaction of the carbonyl group and the open oxirane ring (Scheme S1) that appears at 217, 247, 243, 271, 269, and 297 m/z in the spectra of 13–15 and 17–19, respectively.
Then, the epoxides from easily available compounds 3, 4, 6 and 7 (products 14, 15, 17 and 18) were synthesized with AaeUPO, isolated by column chromatography at mg-scale (68–77% yield), and characterized by NMR. The epoxidation at the last double bond was confirmed by 1D (Figures S3–S6) and 2D (Figures S9 and S10 top) NMR thanks to: (i) the shift downfield, from 0.97–0.98 to 1.05 ppm, of the triplet signal of the terminal methyl in the 1H-NMR spectrum, due to the induction effect of the oxirane ring; and (ii) the correlation signals observed in the HMBC spectra: H20-C18 and H18-C19,20 for eicosanoid acids, and H22-C20 and H20-C21,22 for docosanoid acids. Two examples of HMBC analyses of one n-3 and one n-6 epoxide are shown in Figure 6A,B, respectively (and additional HMBC spectra are provided in Figures S9 and S10).
Among n-3 epoxides, NMR spectra of 15 and 18 were already available in the literature [10,44], but those of compounds 14 and 17 were not previously reported. The regioselectivities observed in the AaeUPO reactions are the highest reported to date for these compounds. In different publications, P450 BM3 and its F87V variant have demonstrated to be capable of yielding mono-epoxides at the last double bond from 4 and 7, but with lower regioselectivities [11,45,46].

3.3. Regioselective Synthesis of n-6 Fatty-Acid Mono-Epoxides by rCviUPO and Two Variants

In the light of the results reported in Section 3.1, three n-6 compounds —namely DGLA (9), AA (10) and AdA (11) (see Figure 1)— were studied as substrates of rCviUPO and its F88L and T158F variants, that differ in the size of the access channel [39]. These variants were preferred over the heme-channel variants previously generated for rMroUPO [38] because of the much better heterologous expression of rCviUPO [39]. The rCviUPO reactions (Table 1) resulted in high conversions (94–99%) and yielded the mono-epoxides at the last double bond (compounds 20–22 in Figure 2) as the main products (74–92%) as revealed by the chromatographic analyses (Figure S2). Nevertheless, some hydroxy and/or di-epoxide derivatives were also observed, especially with DGLA and AdA.
In the F88L reactions (Figure S2B), the conversions were in the same range (95–99%) as with the wild-type enzyme (while T158F conversion of AA was comparatively low), but the amounts of di-epoxides were higher, especially with AdA (80% of the F88L reaction products). The above results are consistent with a wider heme access-channel in this variant (Figure S11B), enabling epoxidation at two different double bonds (most probably at n-9 in addition to n-6) yielding di-epoxides. On the other hand, with T158F the selectivity to form mono-epoxides was higher since no di-epoxides were detected (Figure S2C), in agreement with its narrowed heme channel (Figure S11C). In this sense, the rCviUPO T158F variant is reminiscent of the narrow-channel I153F/S156F variant of rMroUPO [38], but the former has the advantage of its much better heterologous expression levels, as mentioned above.
In the case of n-6 fatty acids, identification of the mono-epoxide by GC-MS of an authentic standard could only be confirmed for 21, as it is the only commercially available product. In order to unequivocally assign the regioselectivity of mono-epoxidation in the n-6 reactions, the epoxides from 9 and 10 (compounds 20 and 21) were enzymatically synthesized, isolated at mg-scale (63% and 66% yield, respectively) and characterized by NMR spectroscopy. Spectra of the n-6 epoxides compounds 20 and 21 were already available in the literature [47,48]. Indeed, HMBC correlations between the oxirane ring and the surrounding nucleus were observed for both 20 and 21 epoxides, which unambiguously confirmed the regioselective epoxidation, as illustrated in Figure 6B (and Figure S10 bottom).
As mentioned for n-3 fatty acids, the P450 BM3 enzyme and its F87V variant (since wild-type BM3 has the disadvantage of also introducing subterminal hydroxyls) have been used in the synthesis of mono-epoxides of polyunsaturated fatty acids. Among n-6 fatty acids, only 10 (arachidonic acid) showed total regioselectivity for the 14,15-epoxide in P450 reactions [49], although with low substrate conversion.
The different regioselectivities of AaeUPO and rCviUPO in mono-epoxidation of n-3 and n-6 fatty acids are illustrated in Scheme 1 top and bottom, respectively.

3.4. Stereoselectivity of Mono-Epoxides from n-3 and n-6 Fatty Acids

Animated by the high regioselectivity of the enzymatic mono-epoxidation reactions, the stereoselectivity of the products was analyzed by chiral HPLC. These analyses were performed with compounds 14, 15, 17, 18, 20 and 21, after production at mg-scale with 74%, 68%, 71%, 77%, 63% and 66% yields, respectively, and derivatization into methyl esters. For product identification, racemic standards of 15, 17, 18 and 21 were separated. The elution order of the enantiomers was assigned: (i) as described in the literature for n-3 epoxides (analyzed with the same chiral column) after determining the absolute configuration of epoxide 15 [11], which was extended to other n-3 mono-epoxides [49]; and (ii) by comparison with the commercially available 14(S),15(R)-EpETE for n-6 epoxides. In general, R/S enantiomers in racemic standards (Figure 7A,B and Figure S12A–D, bottom) eluted at lower retention times than S/R enantiomers under the chromatographic conditions used.
Chiral analysis of the AaeUPO reactions with n-3 fatty acids (Figure 7A, Figure S12A–C top, and S12E) revealed that the mono-epoxides were selectively produced as S/R enantiomers exclusively (Table 2). Conversely, the mono-epoxides from n-6 fatty acids (Figure 7B, Figures S12D top and S12F,) were synthesized with low enantioselectivity, as shown by the reactions with rCviUPO and its T158F variant yielding in both cases 56% of the 14(S),15(R)-EpEDE (20) (tentative enantiomeric identification) and 14(R),15(S)-EpETE (21) enantiomers, respectively (Table 2).
On the one hand, these results reveal that AaeUPO is a powerful tool to get access to mono-epoxides of n-3 fatty acids with high conversion (>99%), regioselectivity (>90%) and total enantioselectivity (ee > 99%) towards the S/R enantiomers. The same stereoselectivity as observed with P450 BM3, while the opposite enantiomer (R/S) is produced by other P450s [49] and plant peroxygenases [14,50].
These stereoselective bioconversions are of interest since recent studies suggest that the bioactivity of oxylipins and derived products can be exerted exclusively by one enantiomer [51,52]. Although the identity of the therapeutically active isomer remains unclear in many diseases, there are some examples of enantiospecific activity reported in the literature. For instance, in addition to the general anti-inflammatory activity displayed by the 15 epoxide, only its R/S enantiomer has a vasodilatory effect [52], while the S/R enantiomer has anti-allergy effect [53].
On the other hand, the enzymatic epoxidations with rCviUPO and its T158F variant did not show such a stereoselectivity (yielding nearly racemic mixtures). Nevertheless, an inversion of the configuration was observed between 21 (56% R/S by rCviUPO) and 20 (56% S/R by the T158F variant), probably induced by the T158F mutation that would affect the fitting of the substrate at the active site.

4. Conclusions

When analyzing mono-epoxidation of a series of n-3 and n-6 polyunsaturated fatty acids by several UPOs, high conversions (93%-quant) and regioselectivities (91%-quant) towards the last double bond were accomplished with AaeUPO and rCviUPO (Scheme 1). In the above reactions, AaeUPO effectively epoxidize n-3 fatty acids, but it fails to do so with their n-6 counterparts, which, in contrast, are indeed epoxidized by rCviUPO. Differences in the heme-access channels of these two enzymes seem to lie behind this ability to synthesize n-3 or n-6 mono-epoxides, since the more accessible active site of rCviUPO allows the substrate to approach the n-6 unsaturation to the heme cofactor.
The regioselectivity of the above reactions was confirmed by 1D and 2D NMR of a selection of mono-epoxide products—17,18-EpEDE (14), 17,18-EpETrE (15), 19,20-EpDTrE (17), 19,20-EpDPE (18), 14,15-EpEDE (20) and 14,15-EpETE (21)—after isolation at mg-scale. Additionally, the total selectivity to S/R enantiomer of the mono-epoxides from n-3 substrates formed by AaeUPO (long UPO family) was demonstrated. Although such stereoselectivity is similar to that of the well-known P450 BM3, UPOs give higher conversion yields and avoid some P450 disadvantages. Contrarily to AaeUPO, the reactions with rCviUPO (short UPO family) pointed out nearly racemic mixtures. The selective synthesis of pure enantiomers of fatty-acid mono-epoxides can shed light on the physiological and pharmacological properties of these compounds.

Supplementary Materials

The following are available online (at https://www.mdpi.com/article/10.3390/antiox10121888/s1) includes: Figure S1: Fragmentation pattern of n-3 mono-epoxides (Scheme S1); Selective epoxidation of eight n-3 fatty acids by AaeUPO; Figure S2: Selective epoxidation of three n-6 fatty acids by rCviUPO and its variants; Figure S3: 1H and 13C-NMR characterization of 17,18-EpEDE (14); Figure S4: 1H and 13C-NMR characterization of 17,18-EpETrE (15); Figure S5: 1H and 13C-NMR characterization of 19,20-EpDTrE (17); Figure S6: 1H and 13C-NMR characterization of 19,20-EpDPE (18); Figure S7: 1H and 13C-NMR characterization of 14,15-EpEDE (20); Figure S8: 1H and 13C-NMR characterization of 14,15-EpETE (21); Figure S9: HMBC spectra of 17,18-EpEDE (14) and 17,18-EpETrE (15); Figure S10: HMBC spectra of 19,20-EpDTrE (17) and 14,15-EpEDE (20); Figure S11: Sections of the CviUPO and in-silico mutated F88L and T158F molecules; Figure S12: Chiral HPLC analyses of isolated n-3 and n-6 mono-epoxides.

Author Contributions

Conceptualization, methodology, investigation and writing—original draft preparation A.G.-B.; resources (rCviUPO and its F88L and T158F variants) and writing—review and editing J.C. and D.L.; resources (AaeUPO) R.U. and M.H.; conceptualization, project administration, funding acquisition and writing—review and editing A.T.M. and A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by BioBased Industries Joint Undertaking under the European Union’s Horizon 2020 Research and Innovation Programme, grant number 792063 (SusBind project; https://susbind.eu, accessed on 19 October 2021; to A.G., A.T.M. and M.H.), the BIO2017-86559-R and PID2020-118968RB-100 projects of the Spanish Ministry of Science & Innovation (co-financed by FEDER funds) to A.T.M. and A.G., respectively; the CSIC projects PIE-202040E185 (to A.G.) and PIE-202120E019 (to A.T.M.); and the CSIC SusPlast platform (to A.T.M.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We thank NMR services of University of Sevilla for performing the spectra of epoxides and Novozymes for supplying rCciUPO. Finally, we acknowledge support of the publication fee by the CSIC Open Access Publication Support Initiative through its Unit of Information Resources for Research (URICI).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sisignano, M.; Steinhilber, D.; Parnham, M.J.; Geisslinger, G. Exploring CYP2J2: Lipid mediators, inhibitors and therapeutic implications. Drug Discov. 2020, 25, 1744–1753. [Google Scholar] [CrossRef]
  2. Jones, R.D.; Liao, J.; Tong, X.; Xu, D.; Sun, L.; Li, H.; Yang, G.Y. Epoxy-oxylipins and soluble epoxide hydrolase metabolic pathway as targets for NSAID-induced gastroenteropathy and inflammation-associated carcinogenesis. Front. Pharmacol. 2019, 10, 731. [Google Scholar] [CrossRef] [Green Version]
  3. Darwesh, A.M.; Bassiouni, W.; Adebesin, A.M.; Mohammad, A.S.; Falck, J.R.; Seubert, J.M. A synthetic epoxydocosapentaenoic acid analogue ameliorates cardiac ischemia/reperfusion injury: The involvement of the sirtuin 3-NLRP3 pathway. Int. J. Mol. Sci. 2020, 21, 5261. [Google Scholar] [CrossRef]
  4. Chen, X.; Li, Z.; Zhang, B.; Hu, R.; Li, J.; Feng, M.; Yao, W.; Zhang, C.; Wan, L.; Zhang, Y. Alleviation of mechanical allodynia by 14,15-epoxyeicosatrienoic acid in a central poststroke pain model: Possible role of allopregnanolone and d-subunit-containing gamma-aminobutyric acid A receptors. J. Pain 2019, 20, 577–591. [Google Scholar] [CrossRef]
  5. Leineweber, C.G.; Pietzner, A.; Zhang, I.W.; Blessin, U.B.; Rothe, M.; Schott, E.; Schebb, N.H.; Weylandt, K.H. Assessment of the effect of sorafenib on omega-6 and omega-3 epoxyeicosanoid formation in patients with hepatocellular carcinoma. Int. J. Mol. Sci. 2020, 21, 1875. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Imig, J.D. Epoxyeicosatrienoic acids, hypertension, and kidney injury. Hypertension 2015, 65, 476–482. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Aliwarga, T.; Evangelista, E.A.; Sotoodehnia, N.; Lemaitre, R.N.; Totah, R.A. Regulation of CYP2J2 and EET levels in cardiac disease and diabetes. Int. J. Mol. Sci. 2018, 19, 1916. [Google Scholar] [CrossRef] [Green Version]
  8. Imig, J.D.; Jankiewicz, W.K.; Khan, A.H. Epoxy fatty acids: From salt regulation to kidney and cardiovascular therapeutics. Hypertension 2020, 76, 3–15. [Google Scholar] [CrossRef] [PubMed]
  9. Falck, J.R.; Kumar, P.S.; Reddy, Y.K.; Zou, G.; Capdevila, J.H. Stereospecific synthesis of EET metabolites via Suzuki-Miyaura coupling. Tetrahedron Lett. 2001, 42, 7211–7212. [Google Scholar] [CrossRef]
  10. Nanba, Y.; Shinohara, R.; Morita, M.; Kobayashi, Y. Stereoselective synthesis of 17,18-epoxy derivative of EPA and stereoisomers of isoleukotoxin diol by ring opening of TMS-substituted epoxide with dimsyl sodium. Org. Biomol. Chem. 2017, 15, 8614–8626. [Google Scholar] [CrossRef]
  11. Capdevila, J.H.; Wei, S.Z.; Helvig, C.; Falck, J.R.; Belosludtsev, Y.; Truan, G.; GrahamLorence, S.E.; Peterson, J.A. The highly stereoselective oxidation of polyunsaturated fatty acids by cytochrome P450BM-3. J. Biol. Chem. 1996, 271, 22663–22671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Graham-Lorence, S.; Truan, G.; Peterson, J.A.; Falck, J.R.; Wei, S.; Helvig, C.; Capdevila, J.H. An active site substitution, F87V, converts cytochrome P450 BM-3 into a regio- and stereoselective (14S,15R)-arachidonic acid epoxygenase. J. Biol. Chem. 1997, 272, 1127–1135. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Piazza, G.J.; Nuñez, A.; Foglia, T.A. Epoxidation of fatty acids, fatty methyl esters, and alkenes by immobilized oat seed peroxygenase. J. Mol. Catal. B Enzym. 2003, 21, 143–151. [Google Scholar] [CrossRef]
  14. Sanfilippo, C.; Paterna, A.; Biondi, D.M.; Patti, A. Lyophilized extracts from vegetable flours as valuable alternatives to purified oxygenases for the synthesis of oxylipins. Bioorg. Chem. 2019, 93, 103325. [Google Scholar] [CrossRef] [PubMed]
  15. Fuchs, C.; Schwab, W. Epoxidation, hydroxylation and aromatization is catalyzed by a peroxygenase from Solanum lycopersicum. J. Mol. Catal. B Enzym. 2013, 96, 52–60. [Google Scholar] [CrossRef]
  16. Hofrichter, M.; Kellner, H.; Herzog, R.; Karich, A.; Liers, C.; Scheibner, K.; Wambui, V.; Ullrich, R. Fungal peroxygenases: A phylogenetically old superfamily of heme enzymes with promiscuity for oxygen transfer reactions. In Grand Challenges in Fungal Biotechnology; Nevalainen, H., Ed.; Springer: Cham, Switzerland, 2020; pp. 369–403. [Google Scholar]
  17. Hofrichter, M.; Ullrich, R. Oxidations catalyzed by fungal peroxygenases. Curr. Opin. Chem. Biol. 2014, 19, 116–125. [Google Scholar] [CrossRef] [PubMed]
  18. Martínez, A.T.; Ruiz-Dueñas, F.J.; Camarero, S.; Serrano, A.; Linde, D.; Lund, H.; Vind, J.; Tovborg, M.; Herold-Majumdar, O.M.; Hofrichter, M.; et al. Oxidoreductases on their way to industrial biotransformations. Biotechnol. Adv. 2017, 35, 815–831. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Wang, Y.; Lan, D.; Durrani, R.; Hollmann, F. Peroxygenases en route to becoming dream catalysts. What are the opportunities and challenges? Curr. Opin. Chem. Biol. 2017, 37, 1–9. [Google Scholar] [CrossRef]
  20. Hobisch, M.; Holtmann, D.; Gomez de Santos, P.; Alcalde, M.; Hollmann, F.; Kara, S. Recent developments in the use of peroxygenases- Exploring their high potential in selective oxyfunctionalisations. Biotechnol. Adv. 2020, 51, 107615. [Google Scholar] [CrossRef]
  21. Grogan, G. Hemoprotein catalyzed oxygenations: P450s, UPOs, and progress toward scalable reactions. JACS Au 2021, 1, 1312–1329. [Google Scholar] [CrossRef]
  22. Aranda, C.; Carro, J.; González-Benjumea, A.; Babot, E.D.; Olmedo, A.; Linde, D.; Martínez, A.T.; Gutiérrez, A. Advances in enzymatic oxyfunctionalization of aliphatic compounds. Biotechnol. Adv. 2021, 51, 107703. [Google Scholar] [CrossRef]
  23. González-Benjumea, A.; Marques, G.; Herold-Majumdar, O.M.; Kiebist, J.; Scheibner, K.; del Río, J.C.; Martínez, A.T.; Gutiérrez, A. High epoxidation yields of vegetable oil hydrolyzates and methyl esters by selected fungal peroxygenases. Front. Bioeng. Biotechnol. 2021, 8, 605854. [Google Scholar] [CrossRef] [PubMed]
  24. Ullrich, R.; Nuske, J.; Scheibner, K.; Spantzel, J.; Hofrichter, M. Novel haloperoxidase from the agaric basidiomycete Agrocybe aegerita oxidizes aryl alcohols and aldehydes. Appl. Environ. Microbiol. 2004, 70, 4575–4581. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Anh, D.H.; Ullrich, R.; Benndorf, D.; Svatos, A.; Muck, A.; Hofrichter, M. The coprophilous mushroom Coprinus radians secretes a haloperoxidase that catalyzes aromatic peroxygenation. Appl. Environ. Microbiol. 2007, 73, 5477–5485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Gröbe, G.; Ullrich, M.; Pecyna, M.; Kapturska, D.; Friedrich, S.; Hofrichter, M.; Scheibner, K. High-yield production of aromatic peroxygenase by the agaric fungus Marasmius rotula. AMB Express. 2011, 1, 31–42. [Google Scholar] [CrossRef] [Green Version]
  27. Ullrich, R.; Poraj-Kobielska, M.; Scholze, S.; Halbout, C.; Sandvoss, M.; Pecyna, M.J.; Scheibner, K.; Hofrichter, M. Side chain removal from corticosteroids by unspecific peroxygenase. J. Inorg. Biochem. 2018, 183, 84–93. [Google Scholar] [CrossRef]
  28. Kiebist, J.; Schmidtke, K.U.; Zimmermann, J.; Kellner, H.; Jehmlich, N.; Ullrich, R.; Zänder, D.; Hofrichter, M.; Scheibner, K. A peroxygenase from Chaetomium globosum catalyzes the selective oxygenation of testosterone. ChemBioChem 2017, 18, 563–569. [Google Scholar] [CrossRef] [Green Version]
  29. Babot, E.D.; del Río, J.C.; Kalum, L.; Martínez, A.T.; Gutiérrez, A. Oxyfunctionalization of aliphatic compounds by a recombinant peroxygenase from Coprinopsis cinerea. Biotechnol. Bioeng. 2013, 110, 2332. [Google Scholar] [CrossRef] [Green Version]
  30. Carro, J.; González-Benjumea, A.; Fernández-Fueyo, E.; Aranda, C.; Guallar, V.; Gutiérrez, A.; Martínez, A.T. Modulating fatty acid epoxidation vs hydroxylation in a fungal peroxygenase. ACS Catal. 2019, 9, 6234–6242. [Google Scholar] [CrossRef] [Green Version]
  31. Linde, D.; Olmedo, A.; González-Benjumea, A.; Renau, C.; Estévez, M.; Carro, J.; Fernández-Fueyo, E.; Gutiérrez, A.; Martínez, A.T. Two new unspecific peroxygenases from heterologous expression of fungal genes in Escherichia coli. Appl. Environ. Microbiol. 2020, 86, e02899-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Molina-Espeja, P.; Garcia-Ruiz, E.; Gonzalez-Perez, D.; Ullrich, R.; Hofrichter, M.; Alcalde, M. Directed evolution of unspecific peroxygenase from Agrocybe aegerita. Appl. Environ. Microbiol. 2014, 80, 3496–3507. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Molina-Espeja, P.; Ma, S.; Maté, D.M.; Ludwig, R.; Alcalde, M. Tandem-yeast expression system for engineering and producing unspecific peroxygenase. Enzyme Microb. Technol. 2015, 73–74, 29–33. [Google Scholar] [CrossRef]
  34. Gomez de Santos, P.; Hoang, M.D.; Kiebist, J.; Kellner, H.; Ullrich, R.; Scheibner, K.; Hofrichter, M.; Liers, C.; Alcalde, M. Functional expression of two unusual acidic peroxygenases from Candolleomyces aberdarensis in yeasts by adopting evolved secretion mutations. Appl. Environ. Microbiol. 2021, 87, e00878-21. [Google Scholar]
  35. Püllmann, P.; Knorrscheidt, A.; Münch, J.; Palme, P.R.; Hoehenwarter, W.; Marillonnet, S.; Alcalde, M.; Westermann, B.; Weissenborn, M.J. A modular two yeast species secretion system for the production and preparative application of unspecific peroxygenases. Commun. Biol. 2021, 4, 562. [Google Scholar] [CrossRef] [PubMed]
  36. Püllmann, P.; Weissenborn, M.J. Improving the heterologous production of fungal peroxygenases through an episomal Pichia pastoris promoter and signal peptide shuffling system. ACS Synth. Biol. 2021, 10, 1360–1372. [Google Scholar] [CrossRef] [PubMed]
  37. Molina-Espeja, P.; Gómez de Santos, P.; Alcalde, M. Directed evolution of unspecific peroxygenase. In Directed Enzyme Evolution: Advances and Applications; Alcalde, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2017; pp. 127–143. [Google Scholar]
  38. Municoy, M.; González-Benjumea, A.; Carro, J.; Aranda, C.; Linde, D.; Renau-Mínguez, C.; Ullrich, R.; Hofrichter, M.; Guallar, V.; Gutiérrez, A.; et al. Fatty-acid oxygenation by fungal peroxygenases: From computational simulations to preparative regio- and stereo-selective epoxidation. ACS Catal. 2020, 10, 13584–13595. [Google Scholar] [CrossRef]
  39. González-Benjumea, A.; Carro, J.; Renau, C.; Linde, D.; Fernández-Fueyo, E.; Gutiérrez, A.; Martínez, A.T. Fatty acid epoxidation by the new Collariella virescens peroxygenase and heme-channel variants. Catal. Sci. Technol. 2020, 10, 717–725. [Google Scholar] [CrossRef] [Green Version]
  40. Knorrscheidt, A.; Soler, J.; Hünecke, N.; Püllmann, P.; Garcia-Borràs, M.; Weissenborn, M.J. Accessing chemo- and regioselective benzylic and aromatic oxidations by protein engineering of an unspecific peroxygenase. ACS Catal. 2021, 11, 7327–7338. [Google Scholar] [CrossRef]
  41. Lund, H.; Kalum, L.; Hofrichter, M.; Peter, S. Epoxidation Using Peroxygenase. US Patent US 9908860 B2, 6 March 2018. [Google Scholar]
  42. Otey, C.R. High-throughput carbon monoxide binding assay for cytochromes P450. Methods Mol. Biol. 2003, 230, 137–139. [Google Scholar]
  43. Aranda, C.; Olmedo, A.; Kiebist, J.; Scheibner, K.; del Río, J.C.; Martínez, A.T.; Gutiérrez, A. Selective epoxidation of fatty acids and fatty acid methyl esters by fungal peroxygenases. ChemCatChem 2018, 10, 3964–3968. [Google Scholar] [CrossRef] [Green Version]
  44. Cinelli, M.A.; Lee, K.S.S. Asymmetric Total Synthesis of 19,20-Epoxydocosapentaenoic Acid, a Bioactive Metabolite of Docosahexaenoic Acid. J. Org. Chem. 2019, 84, 15362–15372. [Google Scholar] [CrossRef]
  45. Cinelli, M.A.; Yang, J.; Scharmen, A.; Woodman, J.; Karchalla, L.M.; Lee, K.S.S. Enzymatic synthesis and chemical inversion provide both enantiomers of bioactive epoxydocosapentaenoic acids. J. Lipid Res. 2018, 59, 2237–2252. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Woodman, J.W.; Cinelli, M.A.; Scharmen-Burgdolf, A.; Lee, K.S.S. Enzymatic synthesis of epoxidized metabolites of docosahexaenoic, eicosapentaenoic, and arachidonic acids. J. Vis. Exp. 2019, 148, e59770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Sood, R.; Nagasawa, M.; Sih, C.J. Synthesis and metabolism of(+/−)-eicosa-cis-14,15-epoxy-cis-8,11-dienoic acid. Tetrahedron Lett. 1974, 15, 423–425. [Google Scholar] [CrossRef]
  48. Xie, F.; Li, B.X.; Alkayed, N.J.; Xiao, X. Synthesis of 14,15-EET from Arachidonic Acid Using Urea-Hydrogen Peroxide as the Oxidant. Synth. Commun. 2015, 45, 105–110. [Google Scholar] [CrossRef]
  49. Lucas, D.; Goulitquer, S.; Marienhagen, J.; Fer, M.; Dreano, Y.; Schwaneberg, U.; Amet, Y.; Corcos, L. Stereoselective epoxidation of the last double bond of polyunsaturated fatty acids by human cytochromes P450. J. Lipid Res. 2010, 51, 1125–1133. [Google Scholar] [CrossRef] [Green Version]
  50. Sanfilippo, C.; Patti, A. Biocatalytic regio- and stereoselective access to w-3 endocannabinoid epoxides with peroxygenase from oat flour. Bioorg. Chem. 2021, 113, 105014. [Google Scholar] [CrossRef]
  51. Falck, J.R.; Wallukat, G.; Puli, N.; Goli, M.; Arnold, C.; Konkel, A.; Rothe, M.; Fischer, R.; Müller, D.N.; Schunck, W.H. 17(R),18(S)-epoxyeicosatetraenoic acid, a potent eicosapentaenoic acid (EPA) derived regulator of cardiomyocyte contraction: Structure-activity relationships and stable analogues. J. Med. Chem. 2011, 54, 4109–4118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Lauterbach, B.; Barbosa-Sicard, E.; Wang, M.H.; Honeck, H.; Kärgel, E.; Theuer, J.; Schwartzman, M.L.; Haller, H.; Luft, F.C.; Gollasch, M.; et al. Cytochrome P450-dependent eicosapentaenoic acid metabolites are novel BK channel activators. Hypertension 2002, 39, 609–613. [Google Scholar] [CrossRef]
  53. Saika, A.; Nagatake, T.; Kishino, S.; Park, S.B.; Honda, T.; Matsumoto, N.; Shimojou, M.; Morimoto, S.; Tiwari, P.; Node, E.; et al. 17(S),18(R)-epoxyeicosatetraenoic acid generated by cytochrome P450 BM-3 from Bacillus megaterium inhibits the development of contact hypersensitivity via G-protein-coupled receptor 40-mediated neutrophil suppression. FASEB Bioadv. 2020, 2, 59–71. [Google Scholar] [CrossRef] [Green Version]
Antioxidants 10 01888 g001 550

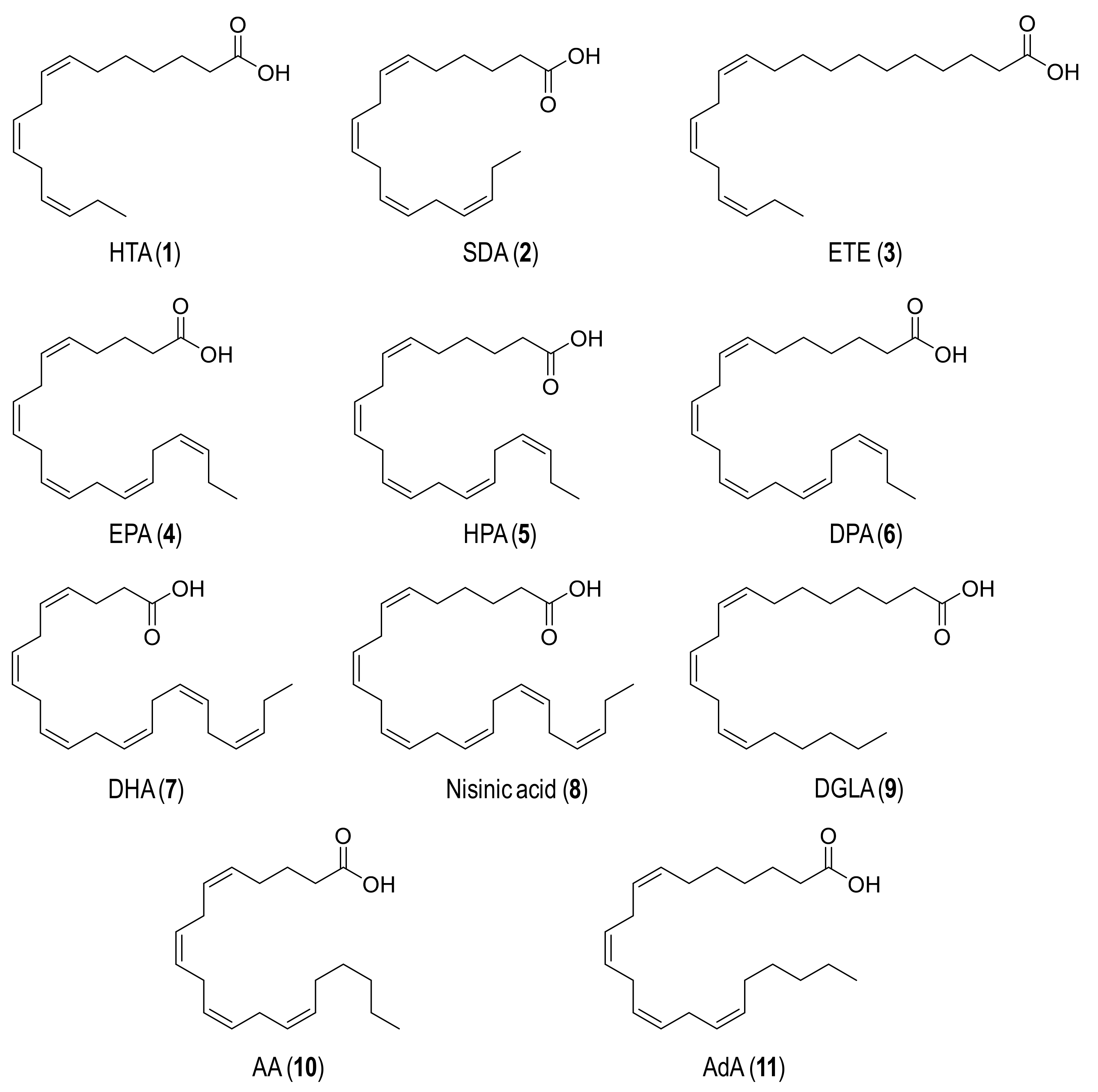

Figure 1. Formulae of the n-3 (1–8) and n-6 (9–11) fatty acids used in enzymatic epoxidation reactions: (1) Hexadeca-7,10,13-trienoic acid (HTA); (2) Octadeca-6,9,12,15-tetraenoic acid (SDA); (3) Eicosa-11,14,17-trienoic acid (ETE); (4) Eicosa-5,8,11,14,17-pentaenoic acid (EPA); (5) Heneicosa-6,9,12,15,18-pentaenoic acid (HPA); (6) Docosa-7,10,13,16,19-pentaenoic acid (DPA); (7) Docosa-4,7,10,13,16,19-hexaenoic acid (DHA); (8) Tetracosa-6,9,12,15,18,21-hexaenoic acid (nisinic acid); (9) Eicosa-8,11,14-trienoic acid (DGLA); (10) Eicosa-5,8,11,14-tetraenoic acid (AA); and (11) Docosa-7,10,13,16-tetraenoic acid (AdA).
Figure 1. Formulae of the n-3 (1–8) and n-6 (9–11) fatty acids used in enzymatic epoxidation reactions: (1) Hexadeca-7,10,13-trienoic acid (HTA); (2) Octadeca-6,9,12,15-tetraenoic acid (SDA); (3) Eicosa-11,14,17-trienoic acid (ETE); (4) Eicosa-5,8,11,14,17-pentaenoic acid (EPA); (5) Heneicosa-6,9,12,15,18-pentaenoic acid (HPA); (6) Docosa-7,10,13,16,19-pentaenoic acid (DPA); (7) Docosa-4,7,10,13,16,19-hexaenoic acid (DHA); (8) Tetracosa-6,9,12,15,18,21-hexaenoic acid (nisinic acid); (9) Eicosa-8,11,14-trienoic acid (DGLA); (10) Eicosa-5,8,11,14-tetraenoic acid (AA); and (11) Docosa-7,10,13,16-tetraenoic acid (AdA).
Antioxidants 10 01888 g001
Antioxidants 10 01888 g002 550

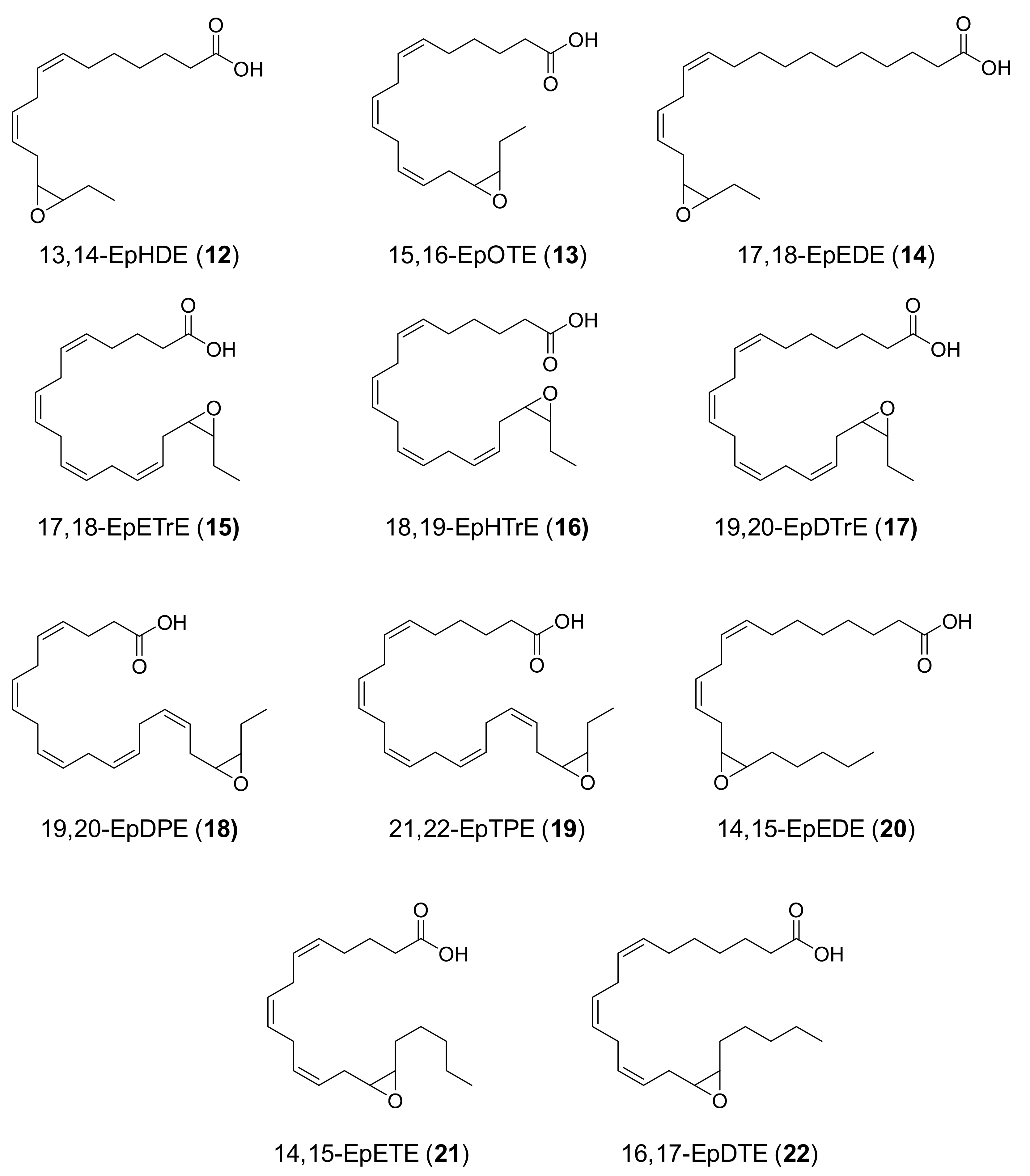

Figure 2. Formulae of main products (12–22) from UPO epoxidation of n-3/n-6 fatty acids (Figure 1): (12) 13,14-epoxyhexadeca-7,10-dienoic acid (13,14-EpHDE); (13) 15,16-epoxyoctadeca-6,9,12-trienoic acid (15,16-EpOTE); (14) 17,18-epoxyeicosa-11,14-dienoic acid (17,18-EpEDE); (15) 17,18-epoxyeicosa-5,8,11,14-tetraenoic acid (17,18-EpETrE); (16) 18,19-epoxyheneicosa-6,9,12,15-tetraenoic acid (18,19-EpHTrE); (17) 19,20-epoxydocosa-7,10,13,16-tetraenoic (19,20-EpDTrE); (18) 19,20-epoxydocosa-4,7,10,13,16-pentaenoic acid (19,20-EpDPE); (19) 21,22-epoxytetracosa-6,9,12,15,18-pentaenoic acid (21,22-EpTPE); (20) 14,15-epoxyeicosa-8,11-dienoic acid (14,15-EpEDE); (21) 14,15-epoxyeicosa-5,8,11-trienoic acid (14,15-EpETE); and (22) 16,17-epoxydocosa-7,10,13-trienoic acid (16,17-EpDTE).
Figure 2. Formulae of main products (12–22) from UPO epoxidation of n-3/n-6 fatty acids (Figure 1): (12) 13,14-epoxyhexadeca-7,10-dienoic acid (13,14-EpHDE); (13) 15,16-epoxyoctadeca-6,9,12-trienoic acid (15,16-EpOTE); (14) 17,18-epoxyeicosa-11,14-dienoic acid (17,18-EpEDE); (15) 17,18-epoxyeicosa-5,8,11,14-tetraenoic acid (17,18-EpETrE); (16) 18,19-epoxyheneicosa-6,9,12,15-tetraenoic acid (18,19-EpHTrE); (17) 19,20-epoxydocosa-7,10,13,16-tetraenoic (19,20-EpDTrE); (18) 19,20-epoxydocosa-4,7,10,13,16-pentaenoic acid (19,20-EpDPE); (19) 21,22-epoxytetracosa-6,9,12,15,18-pentaenoic acid (21,22-EpTPE); (20) 14,15-epoxyeicosa-8,11-dienoic acid (14,15-EpEDE); (21) 14,15-epoxyeicosa-5,8,11-trienoic acid (14,15-EpETE); and (22) 16,17-epoxydocosa-7,10,13-trienoic acid (16,17-EpDTE).
Antioxidants 10 01888 g002
Antioxidants 10 01888 g003 550

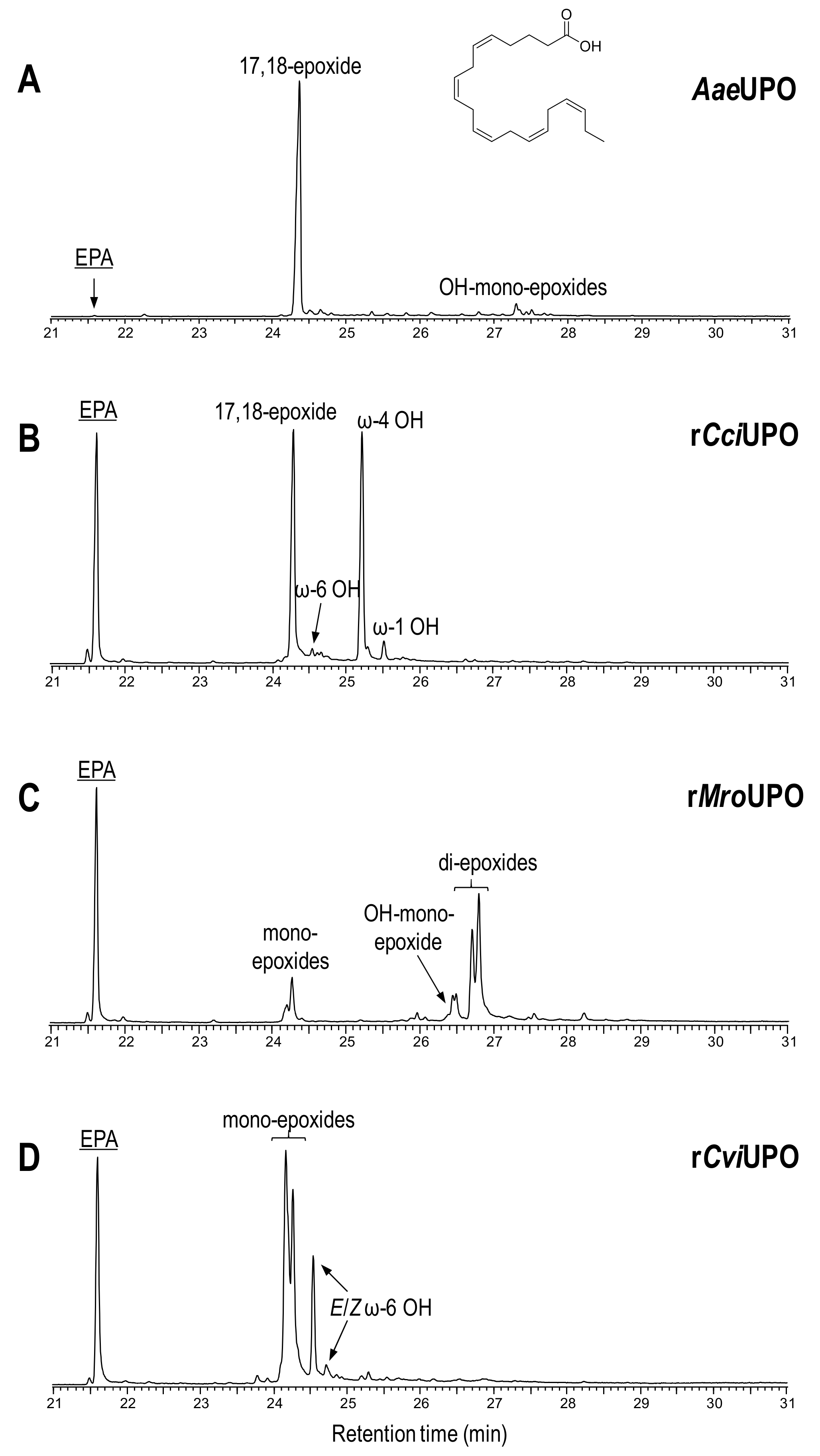

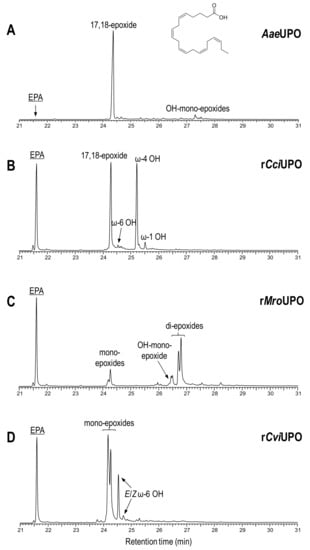

Figure 3. Oxyfunctionalization patterns of n-3 compound 4 (EPA) by different UPOs.
Figure 3. Oxyfunctionalization patterns of n-3 compound 4 (EPA) by different UPOs.
Antioxidants 10 01888 g003
Antioxidants 10 01888 g004 550

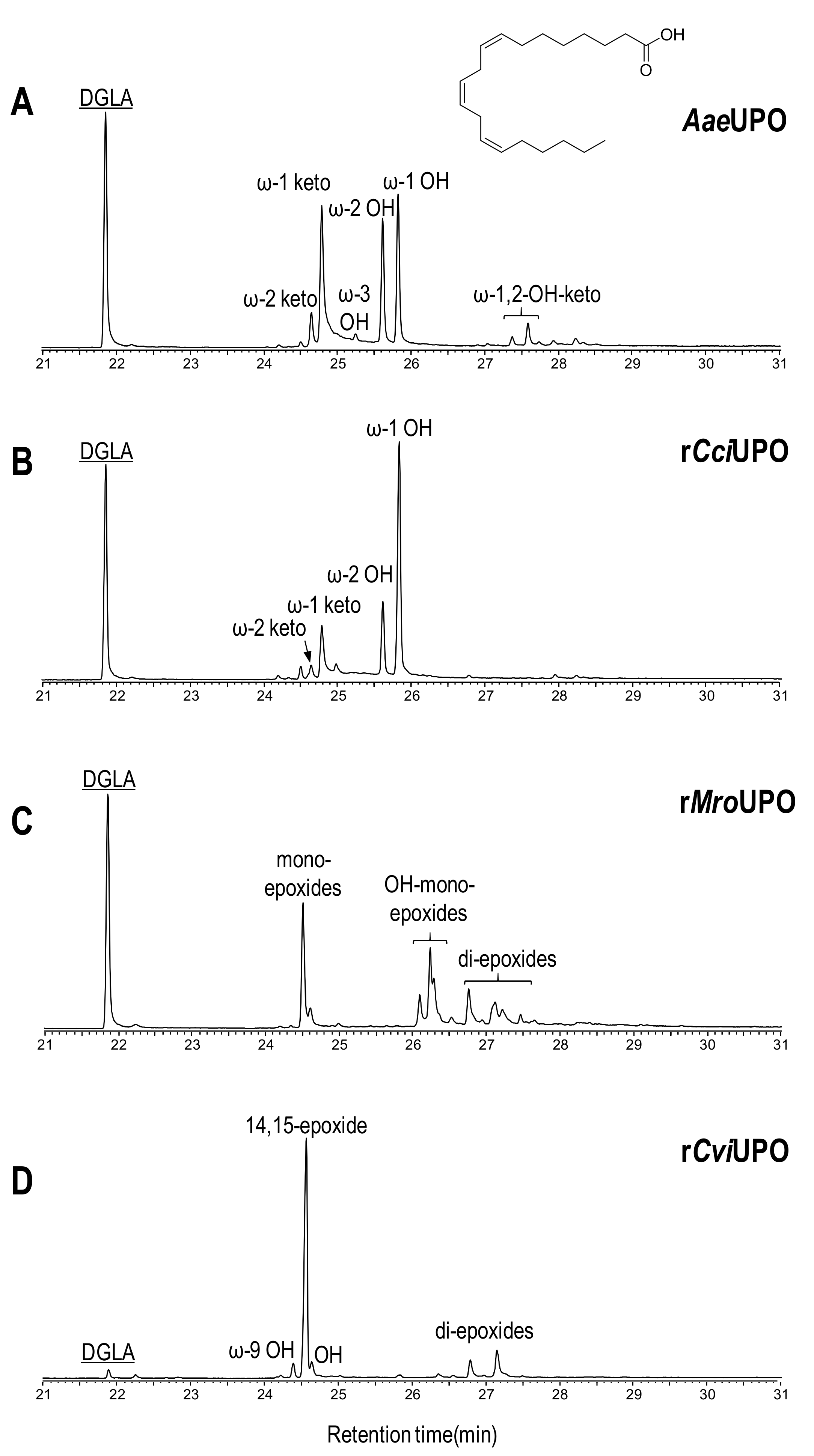

Figure 4. Oxyfunctionalization patterns of n-6 compound 9 (DGLA) by different UPOs.
Figure 4. Oxyfunctionalization patterns of n-6 compound 9 (DGLA) by different UPOs.
Antioxidants 10 01888 g004
Antioxidants 10 01888 g005 550

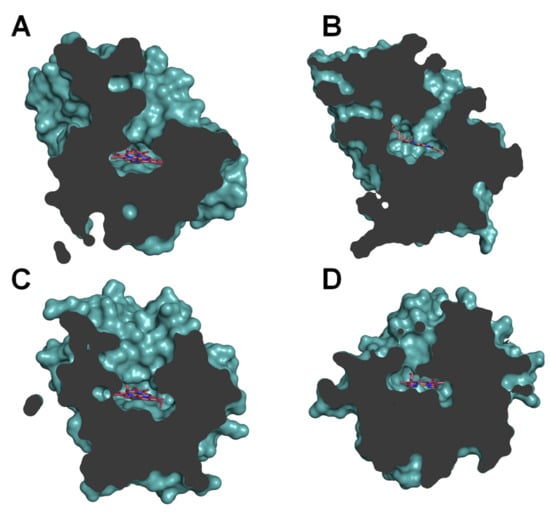

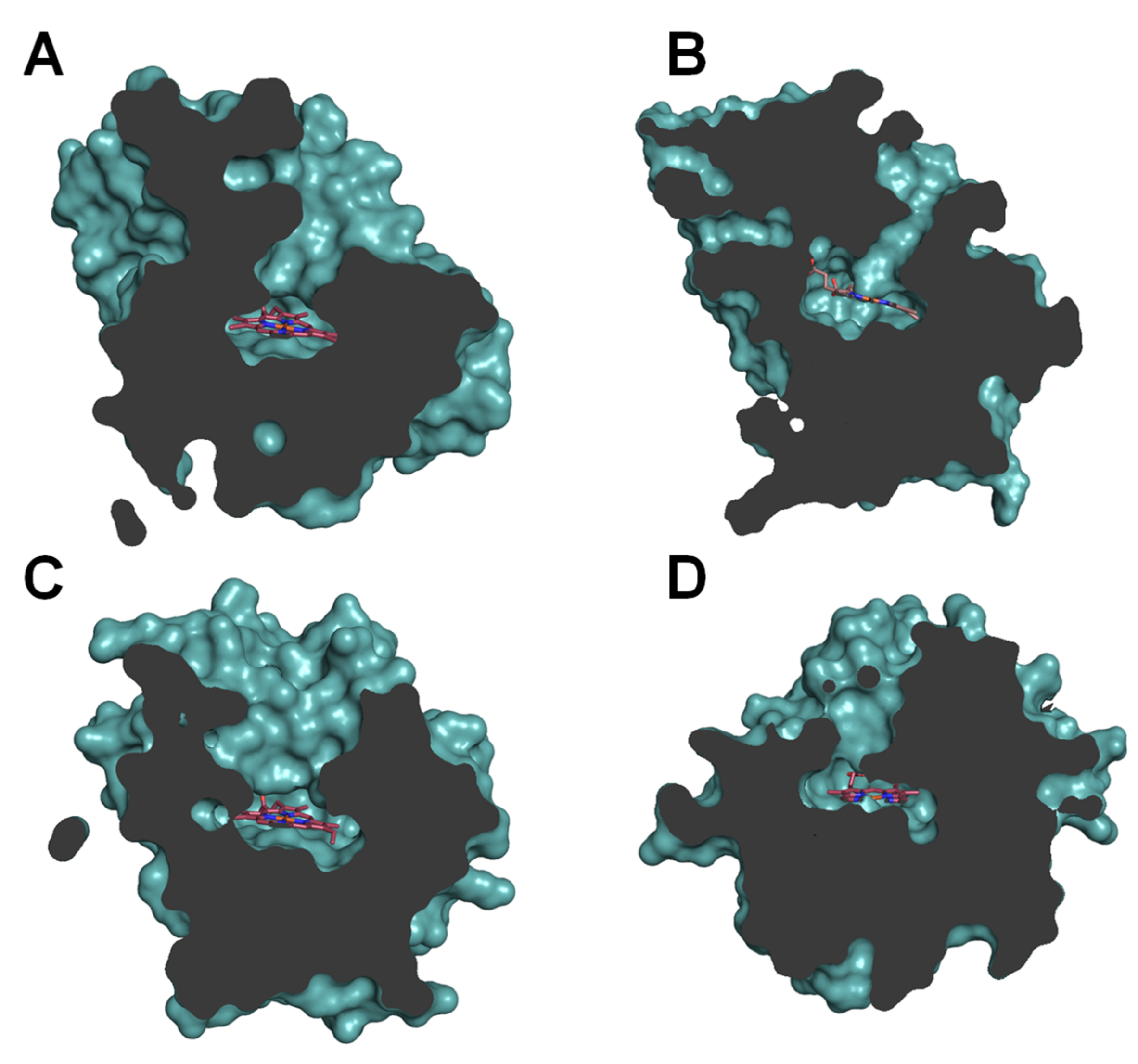

Figure 5. Sections of the AaeUPO (A), CciUPO (B), MroUPO (C) and CviUPO (D) molecules, highlighting the differences in heme access channels. External surface of the protein and surface of the residues lining the channel are shown in light teal, and the buried heme is displayed as sticks in CPK coloring. From PDB entries 2YP1 (A) and 5FUJ (C) and homology models (B,D).
Figure 5. Sections of the AaeUPO (A), CciUPO (B), MroUPO (C) and CviUPO (D) molecules, highlighting the differences in heme access channels. External surface of the protein and surface of the residues lining the channel are shown in light teal, and the buried heme is displayed as sticks in CPK coloring. From PDB entries 2YP1 (A) and 5FUJ (C) and homology models (B,D).
Antioxidants 10 01888 g005
Antioxidants 10 01888 g006 550

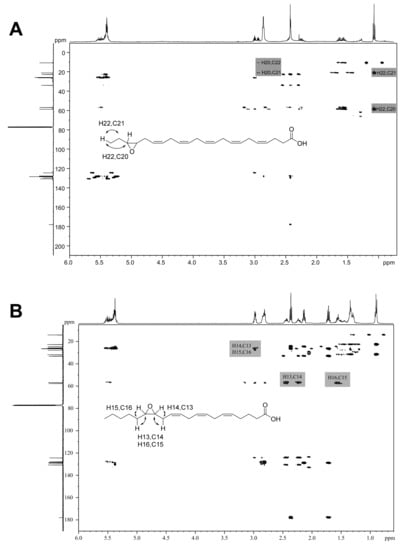

Figure 6. HMBC 2D-NMR spectra of enzymatic epoxides: (A) 19,20-EpDPE (18) from DHA (7) reaction with AaeUPO; and (B) 14,15-EpETE (21) from AA (10) reaction with rCviUPO. Several relevant correlation signals are indicated.
Figure 6. HMBC 2D-NMR spectra of enzymatic epoxides: (A) 19,20-EpDPE (18) from DHA (7) reaction with AaeUPO; and (B) 14,15-EpETE (21) from AA (10) reaction with rCviUPO. Several relevant correlation signals are indicated.
Antioxidants 10 01888 g006
Antioxidants 10 01888 sch001 550

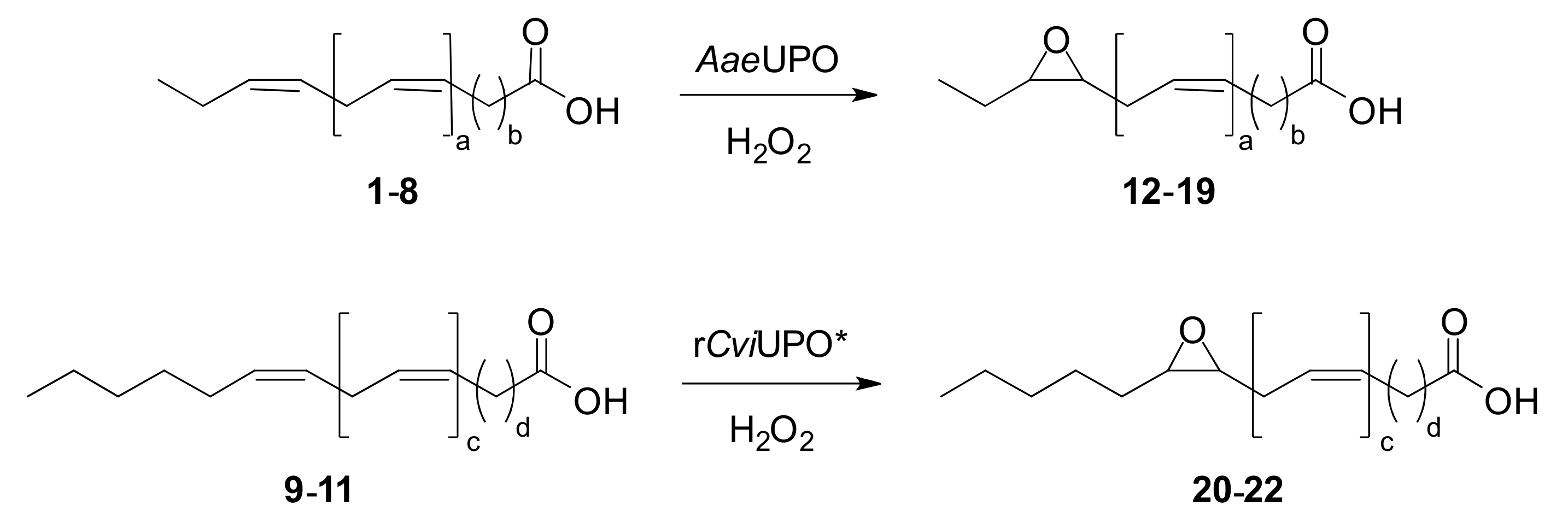

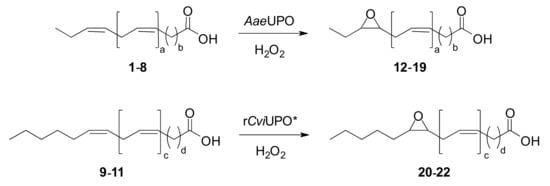

Scheme 1. Characteristic enzymatic mono-epoxidation patterns of n-3 and n-6 polyunsaturated fatty acids by AaeUPO and rCviUPO, respectively. * Also including the rCviUPO T158F variant.
Scheme 1. Characteristic enzymatic mono-epoxidation patterns of n-3 and n-6 polyunsaturated fatty acids by AaeUPO and rCviUPO, respectively. * Also including the rCviUPO T158F variant.
Antioxidants 10 01888 sch001
Antioxidants 10 01888 g007 550

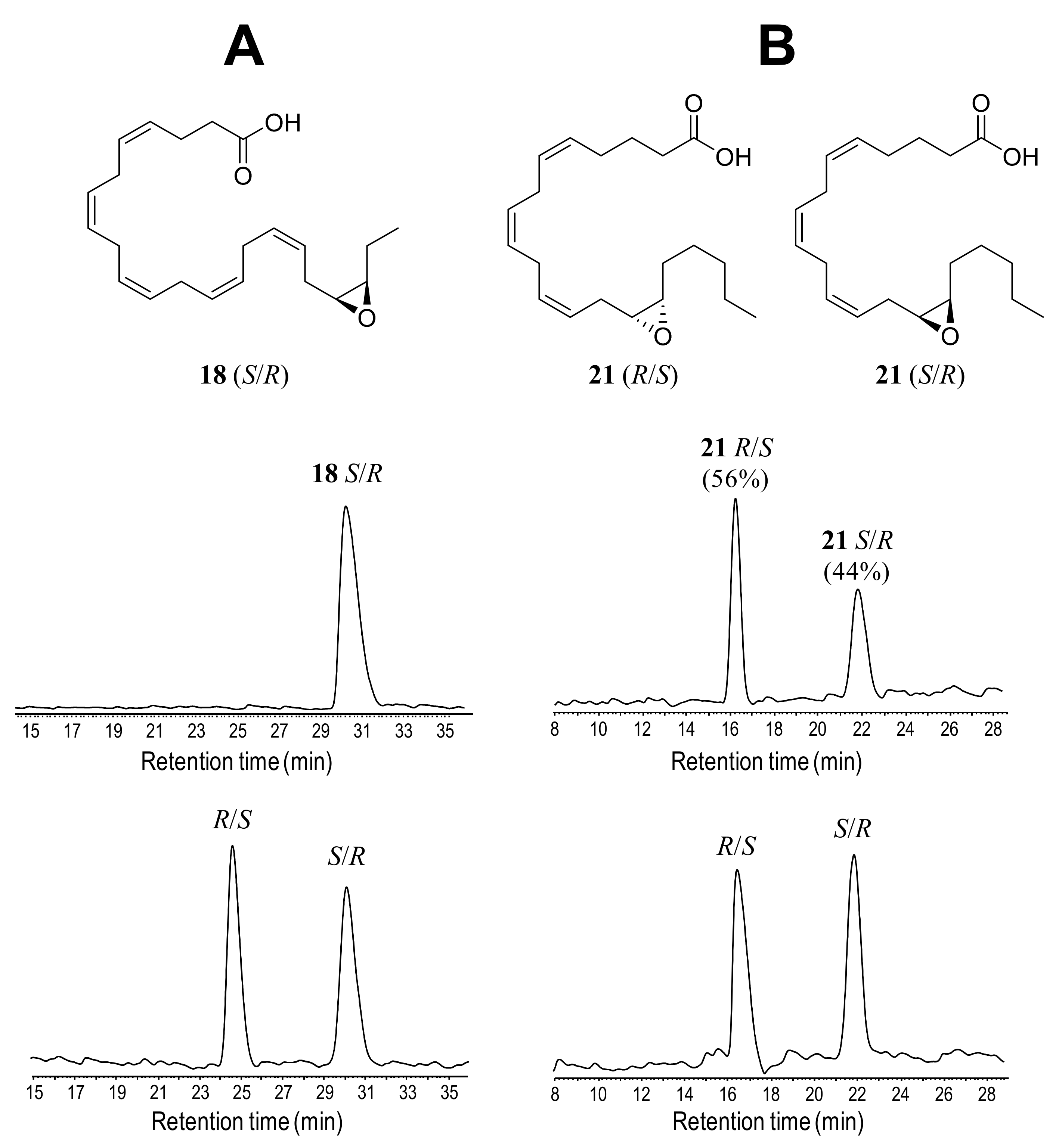

Figure 7. Chiral HPLC profiles (at 202 nm) and formulae of isolated n-3 and n-6 mono-epoxides: (A) 19(S),20(R)-EpDPE (18) from AaeUPO reaction with DHA (7) (top) compared with a racemic standard (bottom); and (B) 14(R),15(S)-EpETE and 14(S),15(R)-EpETE (21) from rCviUPO reaction with AA (10) (top) compared with a racemic standard (bottom).
Figure 7. Chiral HPLC profiles (at 202 nm) and formulae of isolated n-3 and n-6 mono-epoxides: (A) 19(S),20(R)-EpDPE (18) from AaeUPO reaction with DHA (7) (top) compared with a racemic standard (bottom); and (B) 14(R),15(S)-EpETE and 14(S),15(R)-EpETE (21) from rCviUPO reaction with AA (10) (top) compared with a racemic standard (bottom).
Antioxidants 10 01888 g007
Table
Table 1. Product percentages (relative to total products) and substrate conversions in UPO reactions with n-3 (1–8) and n-6 (9–11) polyunsaturated fatty acids (see Figures S1 and S2 for chromatographic profiles, and Figure 1 and for substrate, 1–11, and product, 12–22, formulae).
Table 1. Product percentages (relative to total products) and substrate conversions in UPO reactions with n-3 (1–8) and n-6 (9–11) polyunsaturated fatty acids (see Figures S1 and S2 for chromatographic profiles, and Figure 1 and for substrate, 1–11, and product, 12–22, formulae).
SubstrateEnzymeMono-
Epoxide
Production 1		Mono-
Epoxide
Formulae		Other
Epoxides 2		Hydroxy
Fatty Acids		Conversion
HTA (1)AaeUPO97%12-3%>99%
SDA (2)AaeUPO>99%13-->99%
ETE (3)AaeUPO93%146%1%>99%
EPA (4)AaeUPO95%155%->99%
HPA (5)AaeUPO96%16-4%>99%
DPA (6)AaeUPO91%179%->99%
DHA (7)AaeUPO94%186%->99%
Nisinic (8)AaeUPO91%199%->99%
DGLA (9)rCviUPO74%2019%7%96%
DGLA (9)F88L51%2048%1%95%
DGLA (9)T158F92%20-8%93%
AA (10)rCviUPO92%21-8%94%
AA (10)F88L74%2125%1%99%
AA (10)T158F95%21-5%57%
AdA (11)rCviUPO74%2219%7%>99%
AdA (11)F88L20%2280%->99%
AdA (11)T158F95%22-5%94%
1 Mono-epoxides are located at the last double bond. 2 Other epoxides include hydroxy-epoxides and di-epoxides from the n-3 and n-6 fatty acids, respectively.
Table
Table 2. Stereoselectivity analysis of mono-epoxides produced by UPOs (see Figure 7 and Figure S12 for HPLC profiles).
Table 2. Stereoselectivity analysis of mono-epoxides produced by UPOs (see Figure 7 and Figure S12 for HPLC profiles).
SubstrateEnzymeEpoxide ProductMain Enantiomer
ETE (3)AaeUPO17,18-EpEDE (14)>99% S/R 1
EPA (4)AaeUPO17,18-EpETrE (15)>99% S/R
DPA (6)AaeUPO19,20-EpDTrE (17)>99% S/R
DHA (7)AaeUPO19,20-EpDPE (18)>99% S/R
DGLA (9)T158F14,15-EpEDE (20)56% S/R 1
AA (10)rCviUPO14,15-EpETE (21)56% R/S
1 Assigned following the elution order of related epoxides since no standards are available.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

González-Benjumea, A.; Linde, D.; Carro, J.; Ullrich, R.; Hofrichter, M.; Martínez, A.T.; Gutiérrez, A. Regioselective and Stereoselective Epoxidation of n-3 and n-6 Fatty Acids by Fungal Peroxygenases. Antioxidants 2021, 10, 1888. https://doi.org/10.3390/antiox10121888

AMA Style

González-Benjumea A, Linde D, Carro J, Ullrich R, Hofrichter M, Martínez AT, Gutiérrez A. Regioselective and Stereoselective Epoxidation of n-3 and n-6 Fatty Acids by Fungal Peroxygenases. Antioxidants. 2021; 10(12):1888. https://doi.org/10.3390/antiox10121888

Chicago/Turabian Style

González-Benjumea, Alejandro, Dolores Linde, Juan Carro, René Ullrich, Martin Hofrichter, Angel T. Martínez, and Ana Gutiérrez. 2021. "Regioselective and Stereoselective Epoxidation of n-3 and n-6 Fatty Acids by Fungal Peroxygenases" Antioxidants 10, no. 12: 1888. https://doi.org/10.3390/antiox10121888

APA Style

González-Benjumea, A., Linde, D., Carro, J., Ullrich, R., Hofrichter, M., Martínez, A. T., & Gutiérrez, A. (2021). Regioselective and Stereoselective Epoxidation of n-3 and n-6 Fatty Acids by Fungal Peroxygenases. Antioxidants, 10(12), 1888. https://doi.org/10.3390/antiox10121888

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
