Comparison of Transcranial Direct Current Stimulation Electrode Montages for the Lower Limb Motor Cortex
Abstract
:1. Introduction
2. Materials and Methods
2.1. Participants
2.2. Experimental Study Design
2.3. Electromyography and Maximum Voluntary Contractions
2.4. Transcranial Magnetic Stimulation
2.5. Transcranial Direct Current Stimulation
- (a)

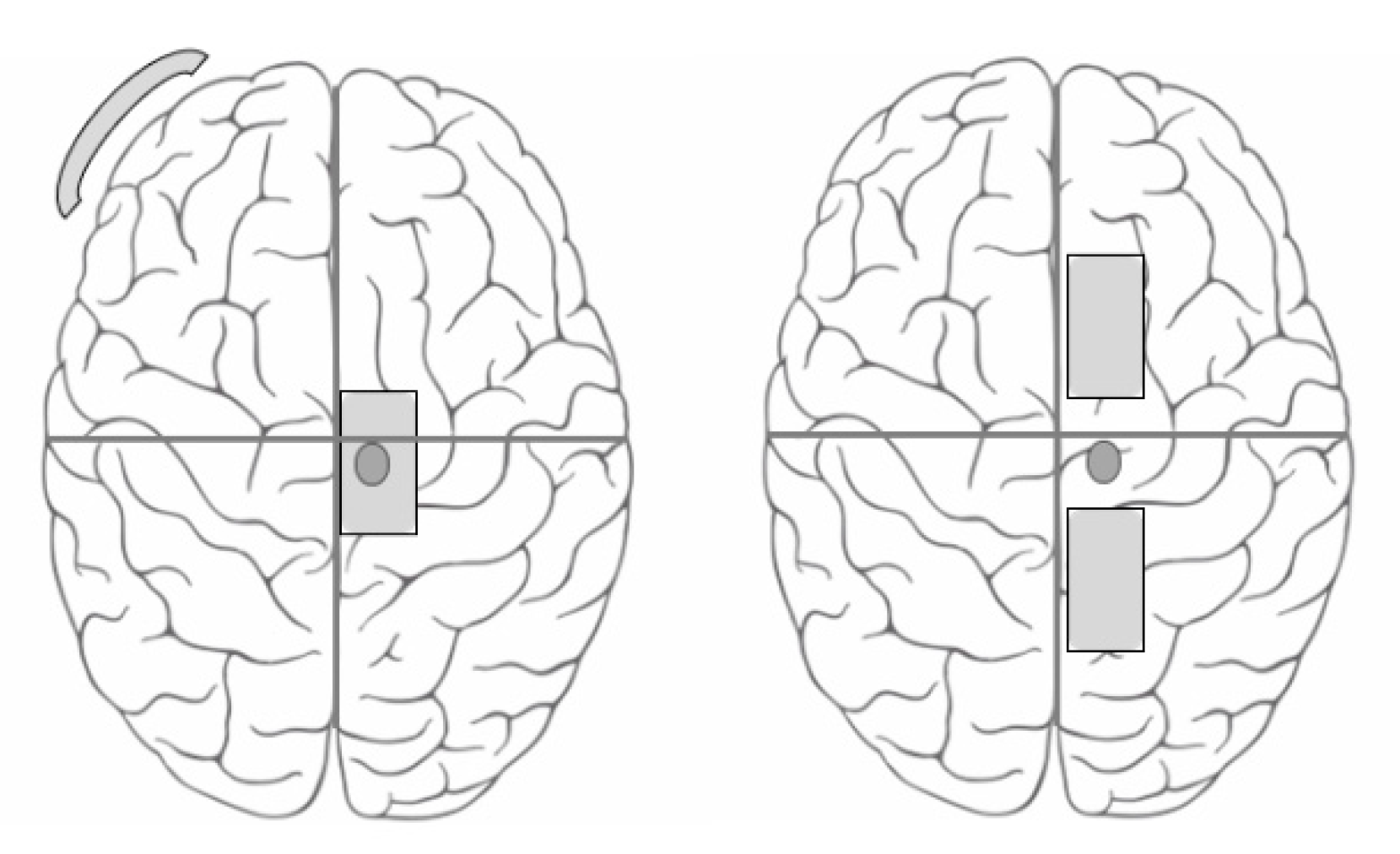

- Traditional Electrode Montage (TRAD): The conventional electrode placement with the active electrode over the TA hotspot and the reference electrode over the contralateral supra-orbital region [19,20,21,33]. The stimulating electrode was a 13 cm2 (5 cm × 2.6 cm) butterfly saline-soaked electrode and the reference electrode was a 35 cm2 (7 cm × 5 cm) self-adhesive carbonized electrode.
- (b)
- Anterior Posterior Montage (AP): The active electrode was placed 5 cm posterior to the tibialis anterior hotspot and the reference electrode was placed 5 cm anterior to the hotspot [18]. Both the stimulating and reference electrodes were 13 cm2 (5 cm × 2.6 cm) butterfly saline soaked electrodes, as it was not possible to fix the self-adhesive carbonized electrode (that was used as a reference electrode in the TRAD montage) to the scalp. The sponge electrodes were held on the scalp using a comfortably wrapped elastic bandage wrap.
2.6. Motor Control Task
2.7. Data Analyses
2.8. TMS
2.9. Statistical Analyses
3. Results
3.1. CME Changes
3.2. Ankle Motor Control
4. Discussion
5. Conclusions
