# The Size Effect on Flexural Fracture of Polyolefin Fibre-Reinforced Concrete

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Programme

#### 2.1. Materials and Specimen Fabrication

^{3}and a Blaine surface of 400–450 m

^{2}/kg. The silica aggregate contained two coarse size ranges: 4–8 mm grit and 8–12 mm gravel with a maximum size of 12.7 mm. The sand size range was 0–2 mm. Polycarboxilate-based superplasticizer, named Sika-Viscocrete 5720 (ManuSIKA, Madrid, Spain), with a density of 1090 kg/m³ and a solid content of 36% was also included in the mix. The mix formulation is shown in Table 1 and was that used in previous experimental campaigns [25]. The 48 mm long macro fibres type SikaFiber, with an embossed surface, were added to the mix in a volume fraction of 1.1%, equivalent to 10 kg/m³. Table 1 also shows the main fibre properties. The visual aspect of the fibres can be seen in Figure 2.

_{500}= 6 s and the diameter of the patty d

_{m}= 570 mm. Concrete was poured into the moulds from one end, leaving the concrete flows towards the opposite end with the only compaction action being its own weight as it is recommended by the standards and bibliography [24,27]. The fresh specimens were covered with plastic film to keep the upper surface from drying. The beams were unmoulded 24 h later and placed in a humid chamber at 20 °C and 90% of relative humidity for a minimum of 28 days (the point when they were ready for testing).

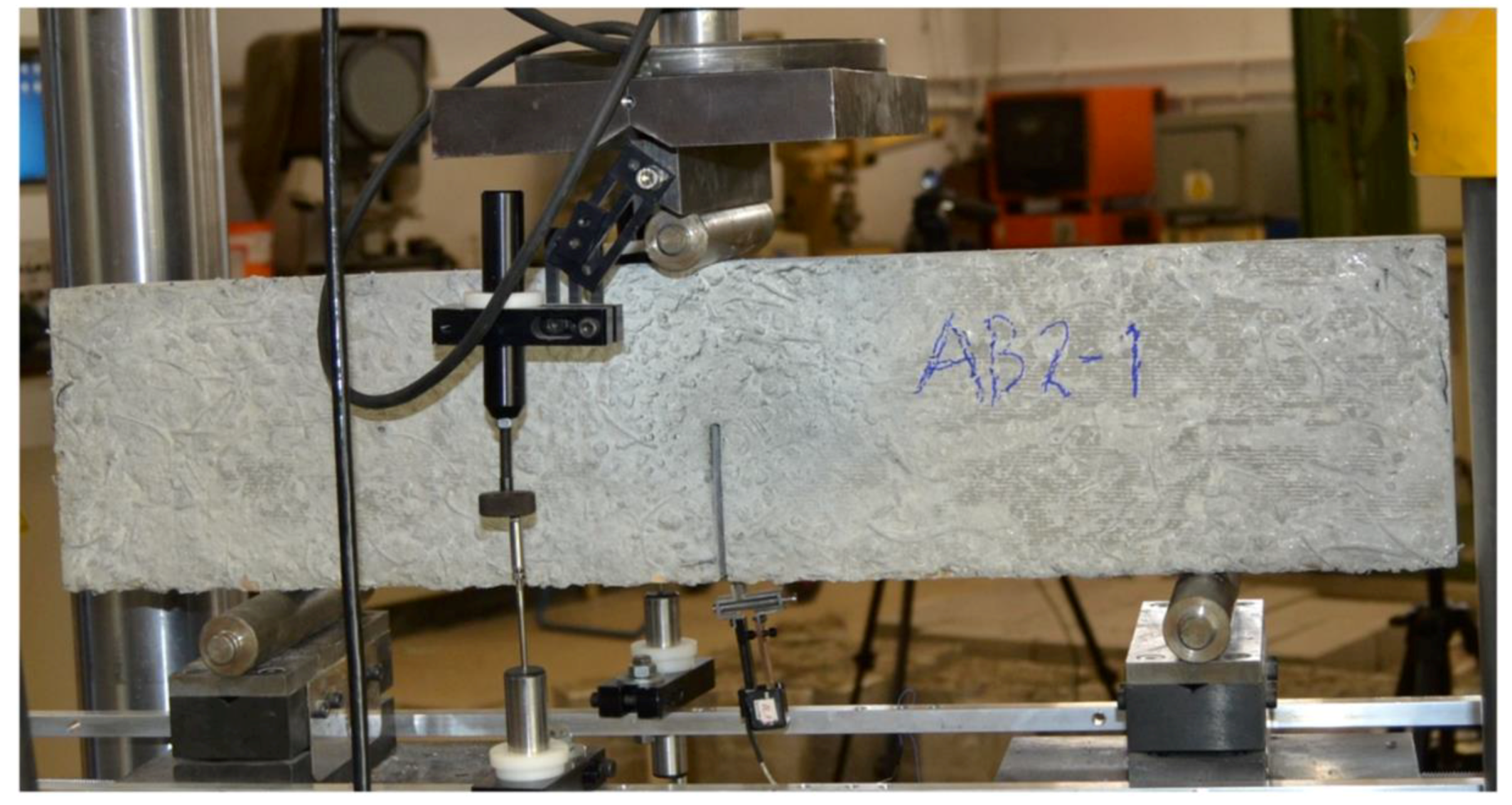

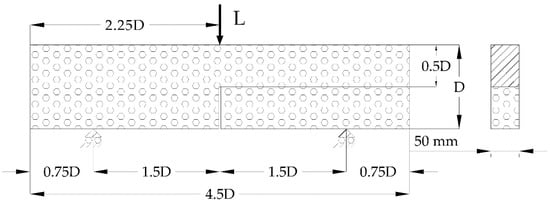

#### 2.2. Testing Development

## 3. Results

_{sp}the length of the ligament resisting section.

_{R,j}= 3F

_{j}L/2bh

_{sp}

^{2}

#### 3.1. Fracture Behaviour Results

_{LOP}, then after the first crack is generated there is a sharply descendent branch down to a minimum post-cracking load value, L

_{MIN,}followed by a reloading branch when the fibres start assuming the internal tension stresses up to a relative maximum post-cracking load (L

_{REM}) and lastly descending branch where the fibres are either breaking or sliding inside the concrete matrix. This reloading branch remained active up to a deflection value of about 5 mm. It is worth noting that all specimens maintained some residual load for deflections as high as 15 mm.

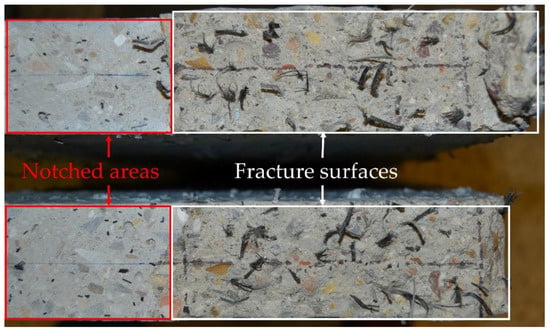

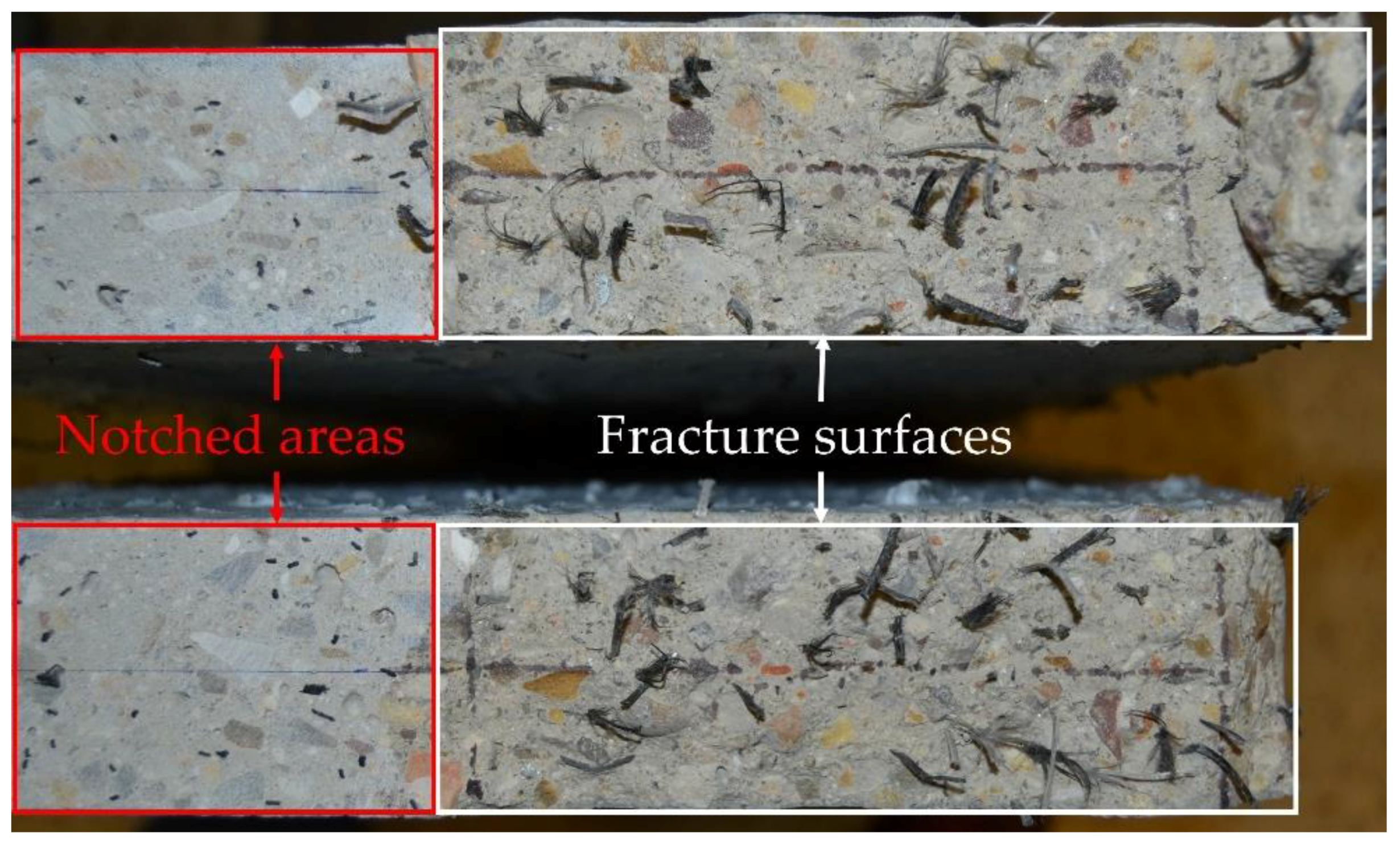

#### 3.2. Fracture Surface Analysis

## 4. Discussion

#### 4.1. Size Effect and Strength-CMOD Curves

_{R1}and f

_{R3}which are the main values of strength used in structural design.

_{LOP}), the curve of the small specimens presents a higher peak-stress level compared with the other sizes, as can be understood by observing Figure 9. The strength values at the limit of proportionality were 5.86 MPa, 5.07 MPa and 3.85 MPa for, respectively, the small, medium and large specimens. Therefore, the small specimens experienced stresses 52.2% higher than the large size specimens (the scale effect). In such a sense, the expected following size effect classical law for concrete occurs: the larger the size, the lower are the strengths obtained. Since the limit of proportionality (f

_{LOP}) is controlled by the concrete matrix, not by the fibres, the size effect observed is in accordance with the results of previous published works for plain concrete, such as [32].

_{LOP}) trend to decrease as a consequence of the specimen size increase and behave inversely to size. Contrarily, the rest of residual strengths behaved in the same direct sense as the fracture surface size, the number of fibres and the specimen size. In Figure 10 these tendencies can be observed for the three sizes with respect to the proportionality limit (f

_{LOP}), minimum strength value at the end of the discharge branch (f

_{MIN}) and the strengths for the CMOD values of 0.5 mm and 2.5 mm (f

_{R1}and f

_{R3}) in relation to specimen depth D. It was then necessary to analyse the effect of the fibre counting and orientation on the residual strength in order to decouple these effects from the size effect.

_{MIN}) the curve shows increasing strength values which mean an increase in the fracture energy up to a second relative maximum (f

_{REM}) and a smoothly decreasing residual strength. This behaviour shows the superior ductility and toughness of PFRC compared with unreinforced concrete.

_{R1}, f

_{R3}, f

_{min}and f

_{REM}as a function of the number of fibres in the fracture surface. As can be seen, keeping constant the volume fraction, the number of fibres in the fracture surface in the smallest specimens is about 50, in the medium-sized specimens around 100 and close to 200 for the largest specimens. To assess the size effect in f

_{min}, Figure 12 was performed. In this figure, the results of Figure 11a were extended by a linear fitting for the comparison with the same number of fibres. It has been shown [33] that residual strength in fibre-reinforced concrete is directly related with the number of fibres in the fracture surface. Figure 12 shows that with the same number of fibres there is a clear size effect. Considering, for example, 50 fibres the strength of the large specimens (point A) corresponds to a minimum value of 0.48 MPa, whereas this value increases to 0.78 MPa (point B) for medium-size specimens and reaches 1.11 MPa (point C) in case of small specimens. This data means a 231% strength increment in the small specimens in relation to the big specimens. Again, this behaviour confirmed that the size effect occurred for PFRC elements, according to the classical theory of size effect for quasi-brittle materials [32].

_{LOP}) but also in the post-cracking strength values.

#### 4.2. Fracture Energy

_{F}) of all the mixes was analysed by means of the load-deflection curves and processed by using Equation (4).

_{f}was the fracture work borne by the sample, b the width of the sample (50 mm) and h

_{sp}the length of the ligament (0.5D for each size).

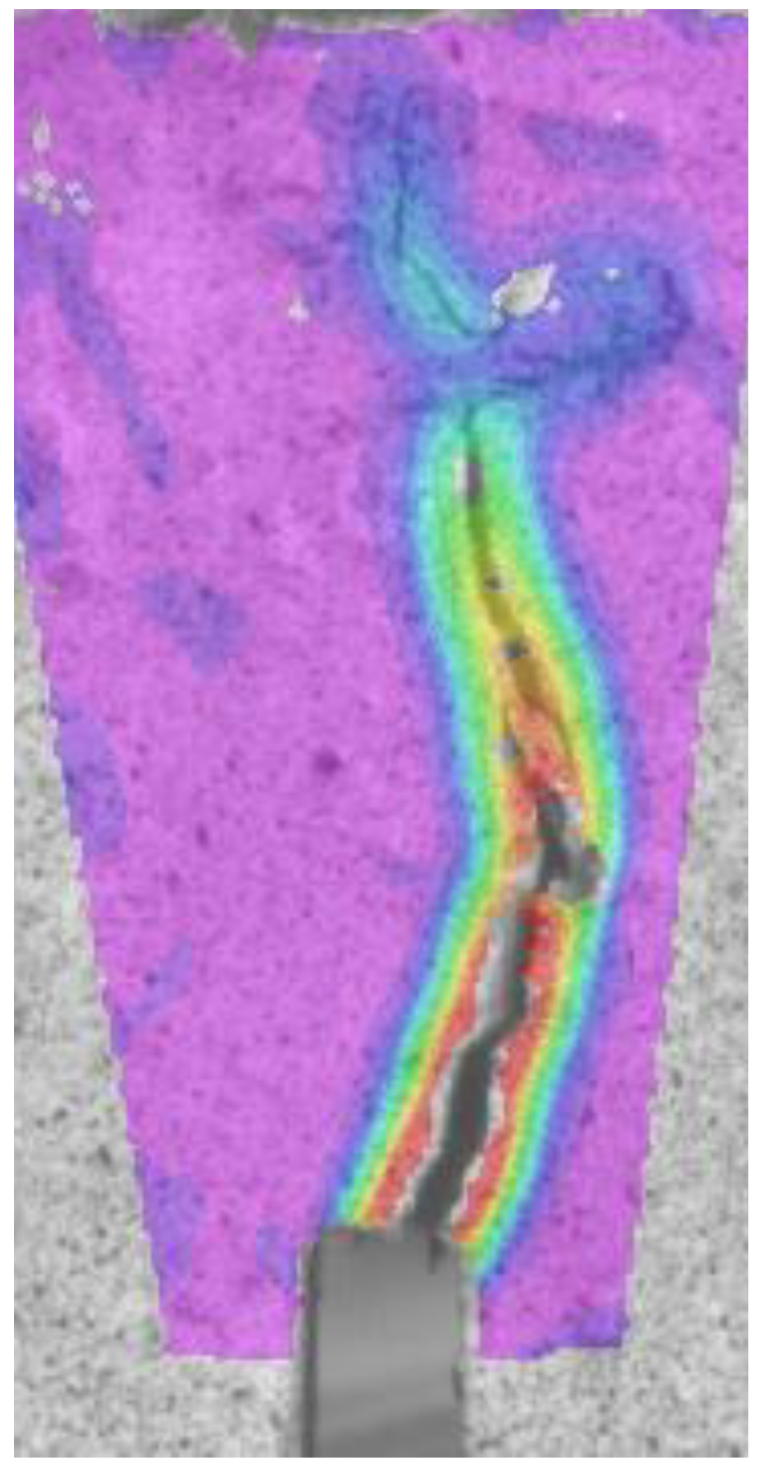

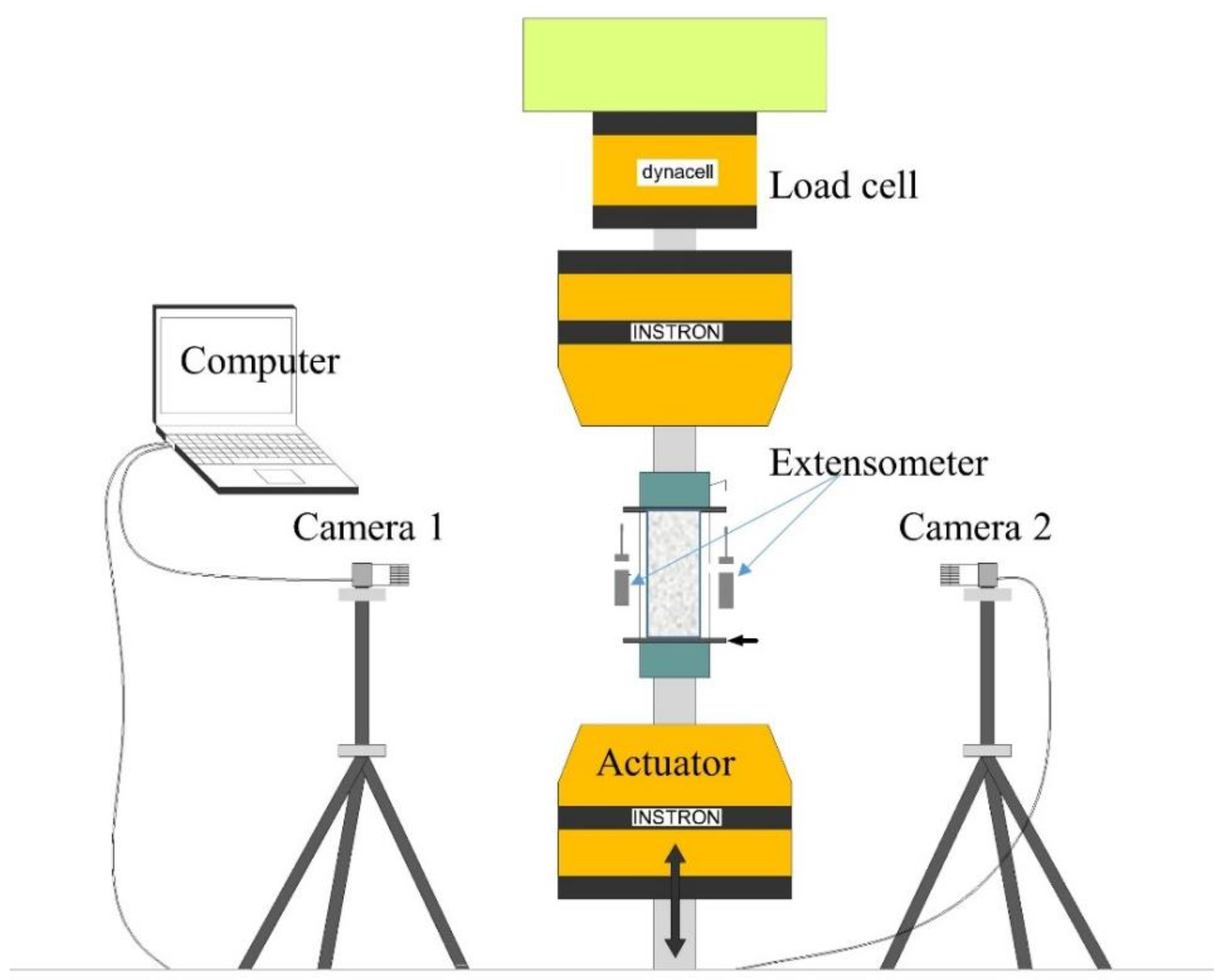

#### 4.3. Video-Extensometry

## 5. Concluding Remarks

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Torroja, E. Razón y ser de Los Tipos Estructurales; Editorial CSIC-CSIC Press: Madrid, Spain, 2007. [Google Scholar]
- Malatesta, S.C. Caracterización de la fractura del hormigón y de vigas de hormigón armado. Inf. de la Construcción
**1997**, 48, 60. [Google Scholar] - Banthia, N.; Gupta, R. Influence of polypropylene fiber geometry on plastic shrinkage cracking in concrete. Cem. Concr. Res.
**2006**, 36, 1263–1267. [Google Scholar] - Li, V.C.; Ward, R.; Hamza, A.M. Steel and Synthetic Fibers as Shear Reinforcement. ACI Mater. J.
**1992**, 89, 499–508. [Google Scholar] - Voo, Y.L.; Poon, W.K.; Foster, S.J. Shear strength of steel fiber-reinforced ultrahigh-performance concrete beams without stirrups. J. Struct. Eng.
**2010**, 136, 1393–1400. [Google Scholar] [CrossRef] - International Federation for Structural Concrete (fib). The Fib Model Code for Concrete Structures 2010; International Federation for Structural Concrete: Lausanne, Switzerland, 2010. [Google Scholar]
- Spanish Minister of Public Works. Spanish Structural Concrete Code EHE-08; Spanish Minister of Public Works: Madrid, Spain, 2008. [Google Scholar]
- Romualdi, J.P.; Mandel, J.A. Tensile strength of concrete affected by uniformly distributed and closely spaced short lengths of wire reinforcement. J. Proc.
**1964**, 61, 657–672. [Google Scholar] - Bencardino, F. Mechanical parameters and post-cracking behaviour of HPFRC according to three-point and four-point bending test. Adv. Civ. Eng.
**2013**, 2013, 1–9. [Google Scholar] [CrossRef] - Bernard, E. Durability of cracked fibre reinforced shotcrete. In Shotcrete: More Engineering Developments; CRC Press: Boca Raton, FL, USA, 2004; pp. 69–76. [Google Scholar]
- Serna, P.; López, J.Á.; Coll, H.; Camacho, E.; Navarro-Gregori, J.; Galán, F. Pasarela de hormigón de muy alto rendimiento sobre el Barranco de las Ovejas (Alicante). Hormigón Y Acero
**2015**, 66, 23–42. [Google Scholar] [CrossRef][Green Version] - Grünewald, S.; Walraven, J. High strength self-compacting fibre reinforced concrete: Behaviour in the fresh and hardened state. In Proceedings of the Sixth International Symposium on HSC/HPC, Leipzig, Germany, June 2002; Volume 2, pp. 977–989. [Google Scholar]
- Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. Fracture mechanics of polyolefin fibre reinforced concrete: Study of the influence of the concrete properties, casting procedures, the fibre length and specimen size. Eng. Fract. Mech.
**2016**, 154, 225–244. [Google Scholar] [CrossRef] - Bazant, Z.P.; Ožbolt, J.; Eligehausen, R. Fracture size effect: Review of evidence for concrete structures. J. Struct. Eng.
**1994**, 120, 2377–2398. [Google Scholar] [CrossRef] - Carpinteri, A.; Spagnoli, A. A fractal analysis of size effect on fatigue crack growth. Int. J. Fatigue
**2004**, 26, 125–133. [Google Scholar] [CrossRef] - Bazant, Z.P. Size effect in tensile and compression fracture of concrete structures: Computational modeling and design. In Fracture Mechanics of Concrete Structures; AEDIFICATIO Publishers: Freiburg, Germany, 1998; Volume 3, pp. 1905–1922. [Google Scholar]
- Bazant, Z.P.; Gambarova, P.G. Crack shear in concrete: Crack band microplane model. J. Struct. Eng.
**1984**, 110, 2015–2035. [Google Scholar] [CrossRef] - Alberti, M.G. Polyolefin Fiber-Reinforced Concrete: From Material Behavior to Numerical and Design Considerations. PhD Thesis, Universidad Politécnica de Madrid, Madrid, Spain, 2 July 2015. [Google Scholar]
- Ghasemi, M.; Ghasemi, M.R.; Mousavi, S.R. Investigating the effects of maximum aggregate size on self-compacting steel fiber reinforced concrete fracture parameters. Constr. Build. Mater.
**2018**, 162, 674–682. [Google Scholar] [CrossRef] - Mahmud, G.H.; Yang, Z.; Hassan, A.M. Experimental and numerical studies of size effects of Ultra High Performance Steel Fibre Reinforced Concrete (UHPFRC) beams. Constr. Build. Mater.
**2013**, 48, 1027–1034. [Google Scholar] [CrossRef] - Yoo, D.-Y.; Banthia, N.; Yang, J.-M.; Yoon, Y.-S. Size effect in normal-and high-strength amorphous metallic and steel fiber reinforced concrete beams. Constr. Build. Mater.
**2016**, 121, 676–685. [Google Scholar] [CrossRef] - Cifuentes, H. Análisis del Comportamiento en Fractura y del Efecto de Borde en Hormigones de Altas Prestaciones Reforzados Con Fibras de Polipropileno. PhD Thesis, Universidad de Sevilla, Sevilla, Spain, January 2010. [Google Scholar]
- Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. A review on the assessment and prediction of the orientation and distribution of fibres for concrete. Compos. Part B Eng.
**2018**, 151, 274–290. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C.; Agrawal, V. Fibre distribution and orientation of macro-synthetic polyolefin fibre reinforced concrete elements. Constr. Build. Mater.
**2016**, 122, 505–517. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. Comparison between polyolefin fibre reinforced vibrated conventional concrete and self-compacting concrete. Constr. Build. Mater.
**2015**, 85, 182–194. [Google Scholar] [CrossRef] - European Committee for Standardization. Testing Fresh Concrete. Part 8: Self-Compacting Concrete. Slump-Flow Test; EN12350-8; European Committee for Standardization: Brussels, Belgium, 2010. [Google Scholar]
- European Committee for Standardization. Test Method for Metallic Fiber Concrete. Measuring the Flexural Tensile Strength (Limit of Proportionality (LOP), Residual); EN14651:2007+A1; European Committee for Standardization: Brussels, Belgium, 2007. [Google Scholar]
- Hoult, N.A.; Take, W.A.; Lee, C.; Dutton, M. Experimental accuracy of two dimensional strain measurements using digital image correlation. Eng. Struct.
**2013**, 46, 718–726. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. On the prediction of the orientation factor and fibre distribution of steel and macro-synthetic fibres for fibre reinforced concrete. Cem. Concr. Compos.
**2017**, 77, 29–48. [Google Scholar] [CrossRef] - Laranjeira, F.; Aguado, A.; Molins, C.; Grünewald, S.; Walraven, J.; Cavalaro, S. Framework to predict the orientation of fibers in FRC: A novel philosophy. Cem. Concr. Res.
**2012**, 42, 752–768. [Google Scholar] [CrossRef] - Alberti, M.G.; Enfedaque, A.; Gálvez, J.C.; Agrawal, V. Reliability of polyolefin fibre reinforced concrete beyond laboratory sizes and construction procedures. Compos. Struct.
**2016**, 140, 506–524. [Google Scholar] [CrossRef] - Bazant, Z.P.; Planas, J. Fracture and Size Effect in Concrete and Other Quasibrittle Materials; CRC Press: Boca Raton, FL, USA, 1997; Volume 16. [Google Scholar]
- Alberti, M.G.; Enfedaque, A.; Gálvez, J.C. On the mechanical properties and fracture behavior of polyolefin fiber-reinforced self-compacting concrete. Constr. Build. Mater.
**2014**, 55, 274–288. [Google Scholar] [CrossRef]

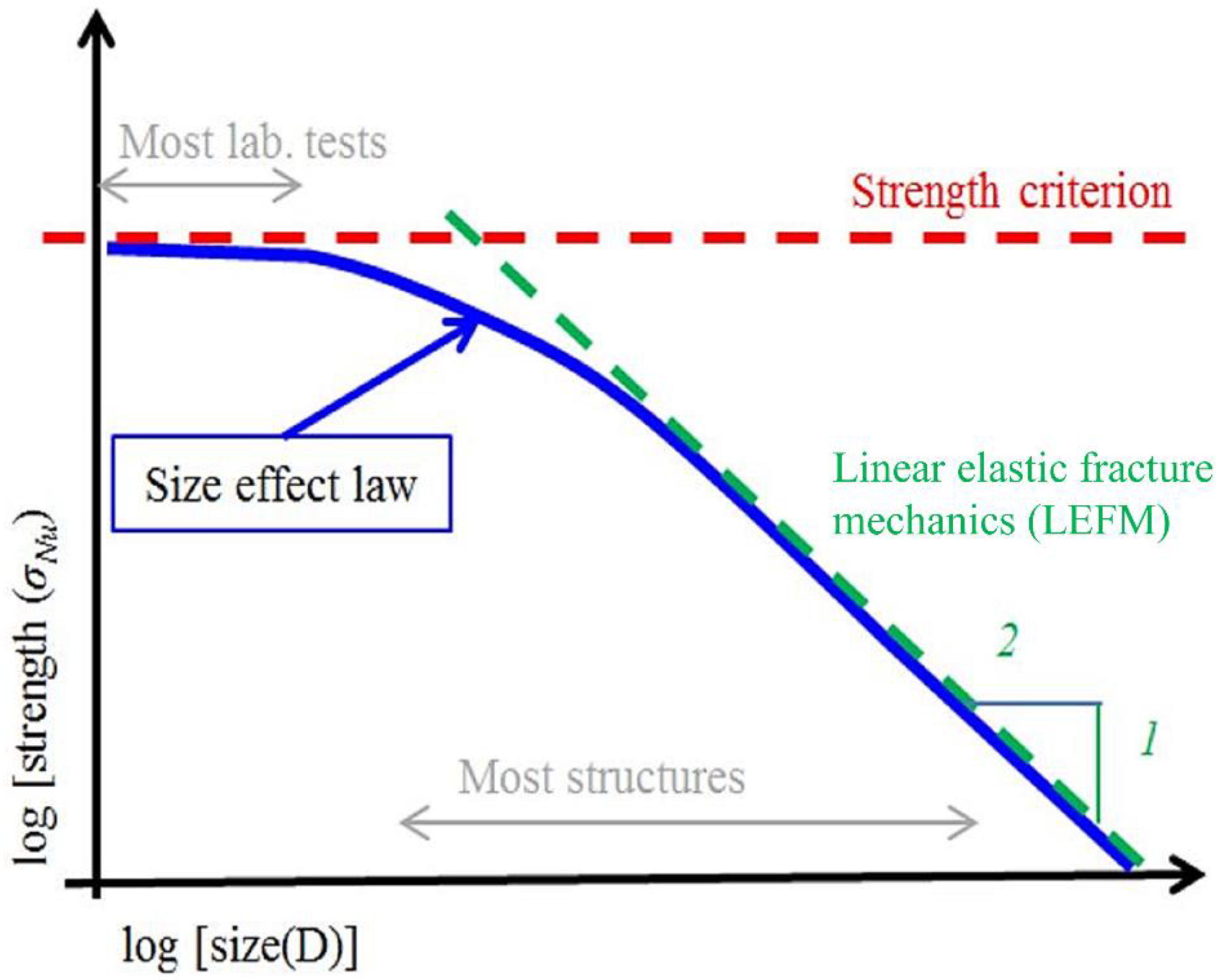

**Figure 1.**Size effect on member strength (adapted from Reference [18]).

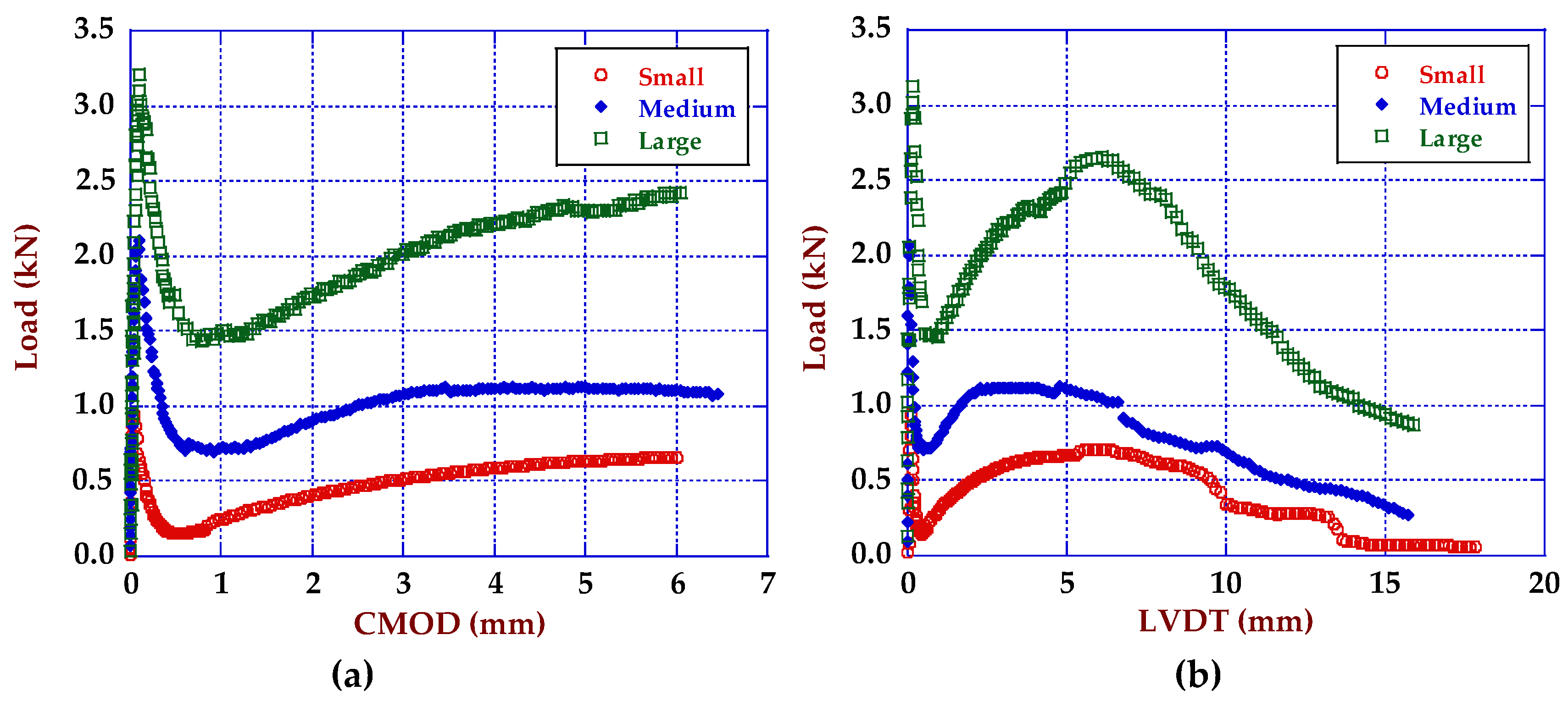

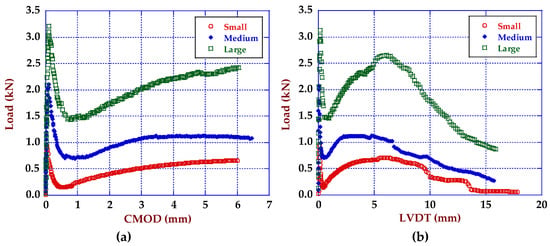

**Figure 7.**Average fracture curves for the three specimen sizes: (

**a**) load-crack mouth opening displacement (CMOD) plots; (

**b**) load-mid-span deflection (LVDT).

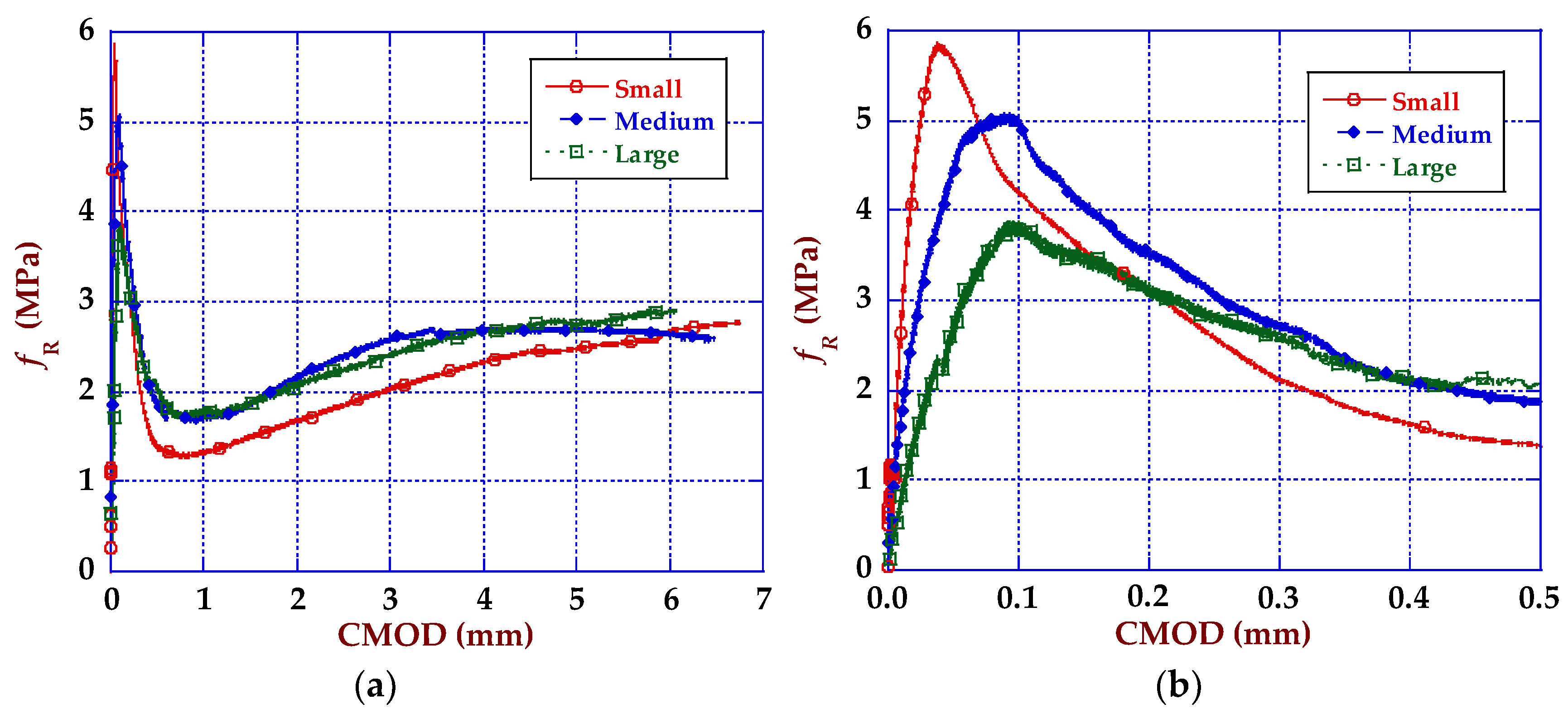

**Figure 9.**Residual strength-CMOD curves: (

**a**) complete test; (

**b**) for a notch tip opening up to 0.5 mm.

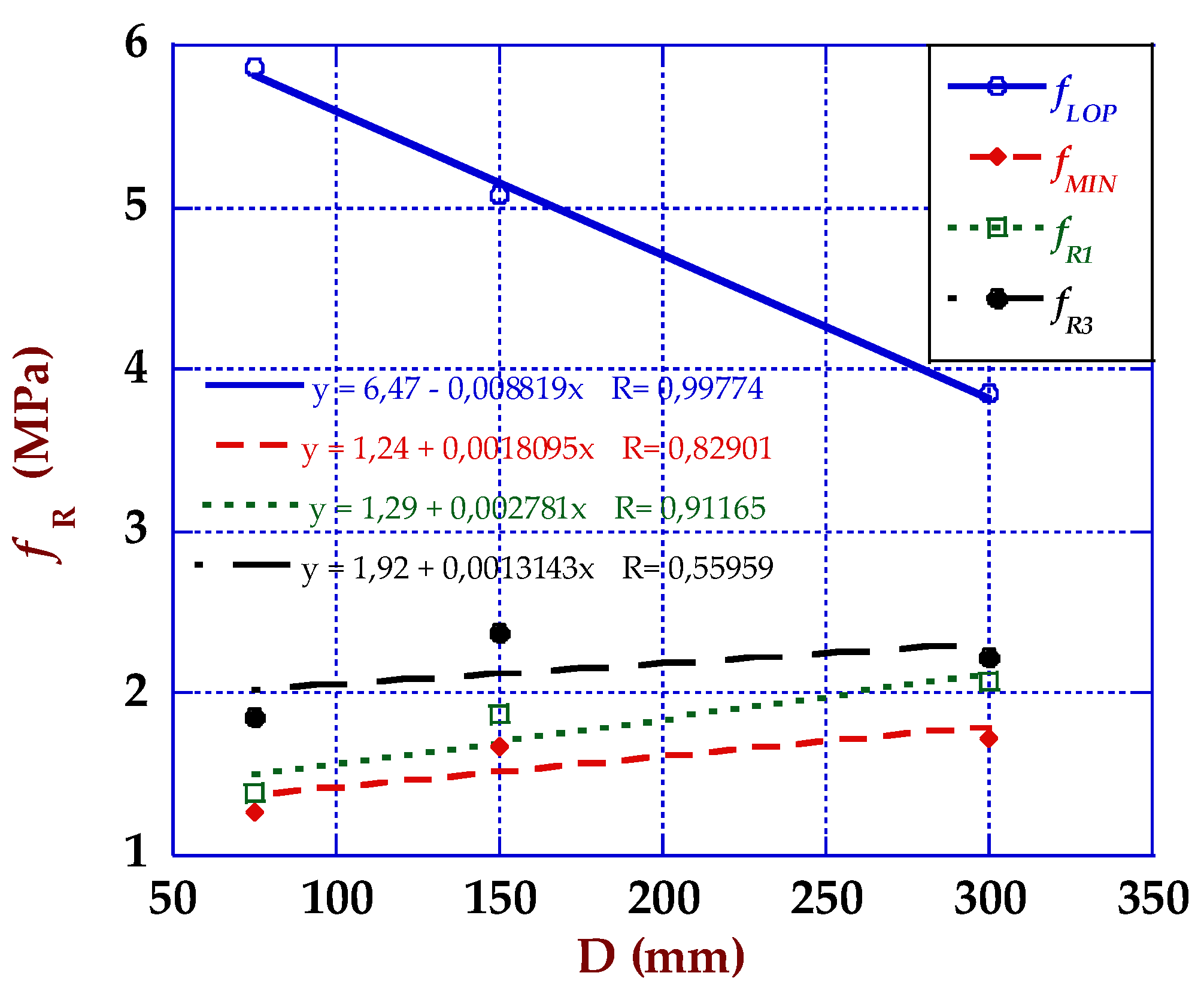

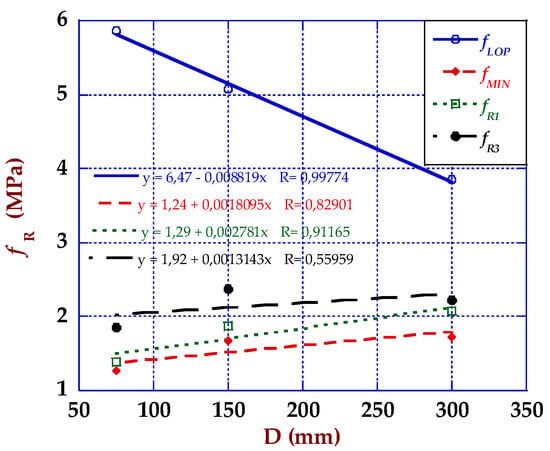

**Figure 10.**Plots of average values of proportionality limit strength (f

_{LOP}), minimum strength at the end of discharging branch (f

_{MIN}), CMOD opening of 0.5 mm (f

_{R1}) and CMOD of 2.5 mm (f

_{R3}) versus the total specimen depth D.

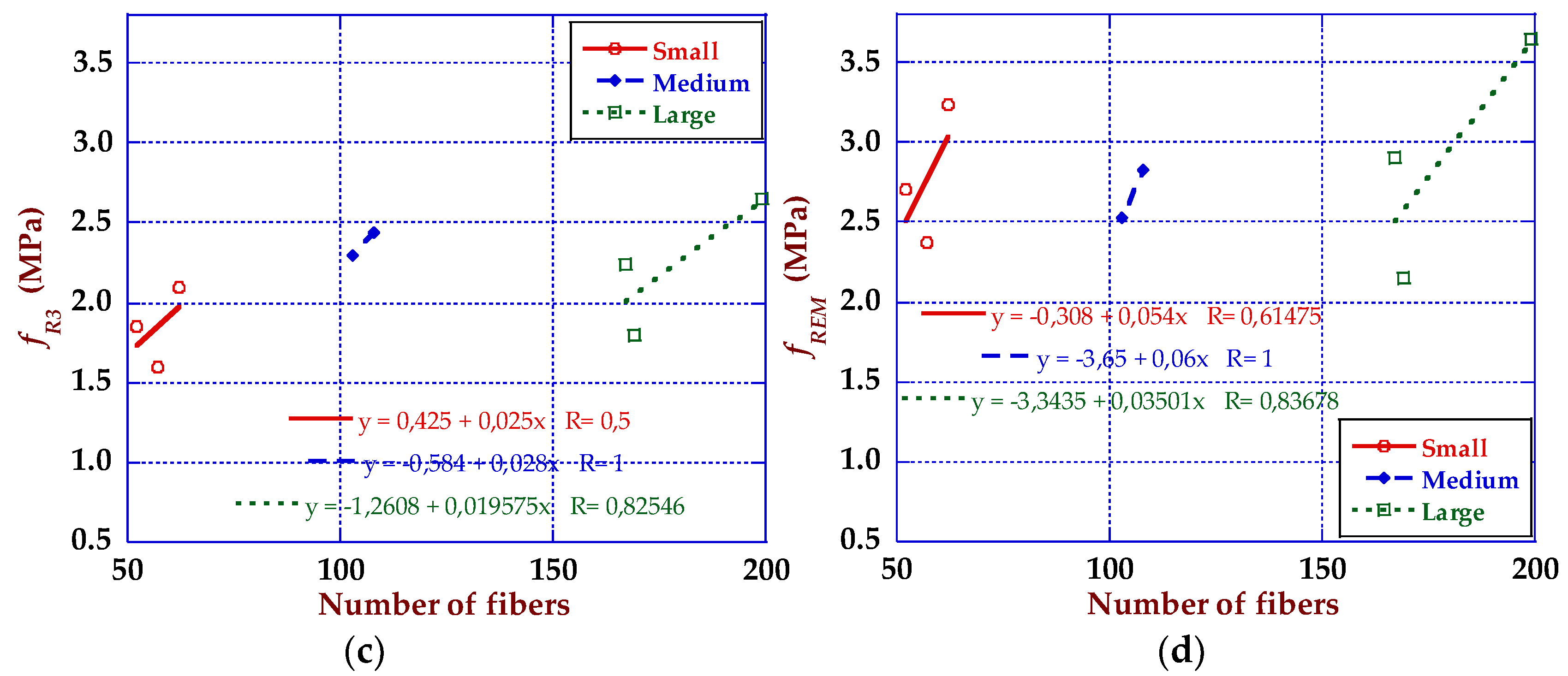

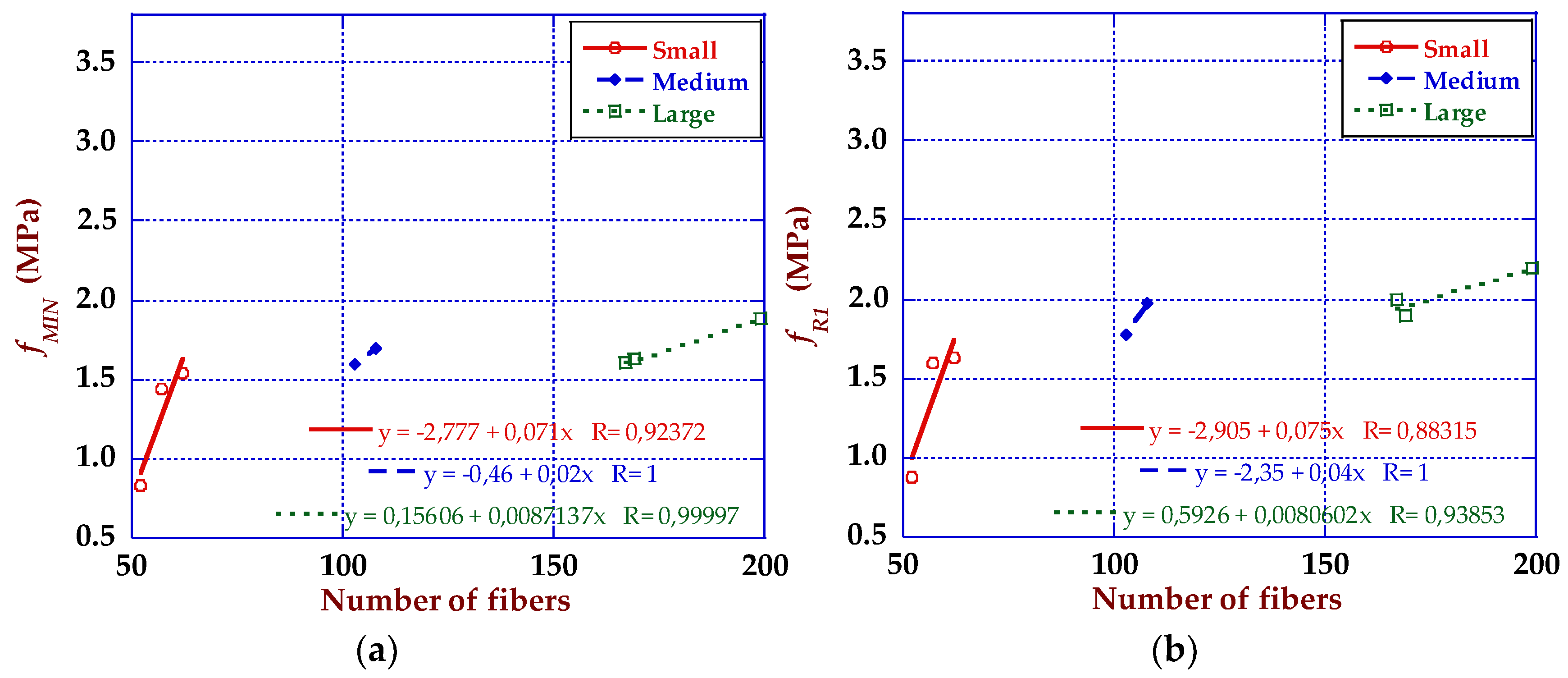

**Figure 11.**Tendency lines of the distinct residual strength values in relation to the number of fibres for the three specimen sizes: (

**a**) for the minimum strength (f

_{MIN}), (

**b**) for CMOD of 0.5 mm (f

_{R1}), (

**c**) for CMOD of 2.5 mm (f

_{R3}) and (

**d**) for the maximum residual post-cracking strength (f

_{REM}).

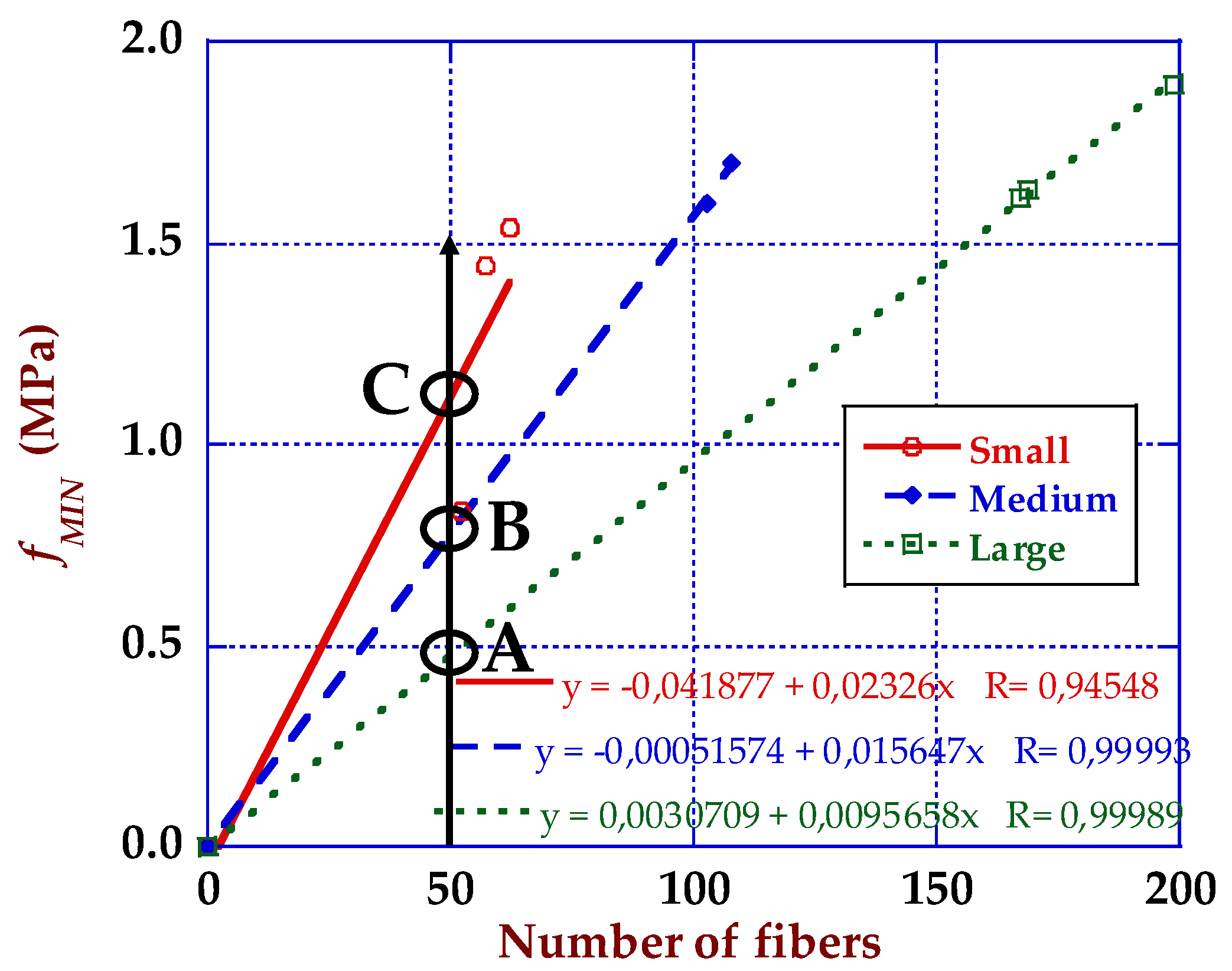

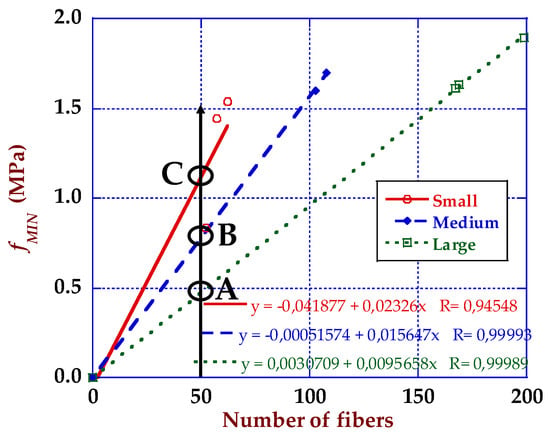

**Figure 12.**Fitting lines of the relationship average minimum residual strength versus number of fibres.

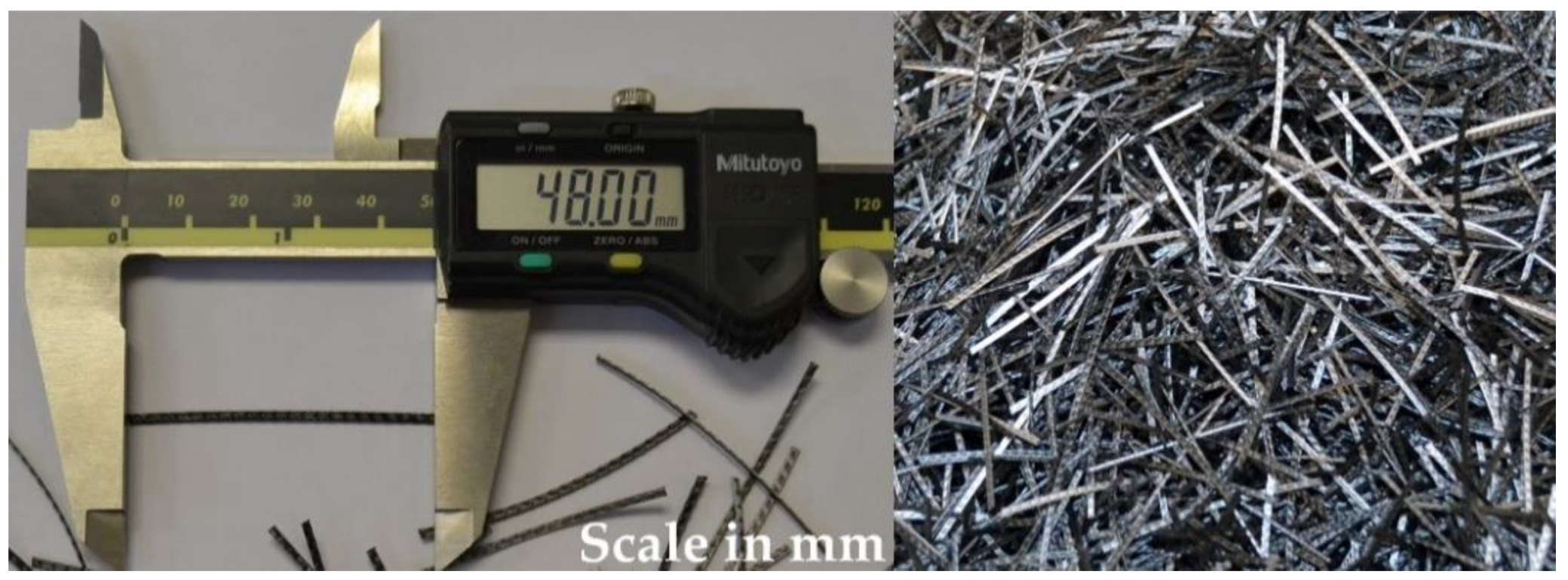

Material | SCC10 | PF48 Fibre Properties | |
---|---|---|---|

Cement (kg/m^{3}) | 375 | Length (mm) | 48 |

Limestone (kg/m^{3}) | 200 | Equivalent diameter (mm) | 0.903 |

Water (kg/m^{3}) | 188 | Aspect ratio | 53 |

Water/cement | 0.5 | Tensile strength (MPa) | >400 |

Gravel (kg/m^{3}) | 245 | Density (g/cm^{3}) | 0.91 |

Grit (kg/m^{3}) | 367 | Modulus of elasticity (GPa) | >6 |

Sand (kg/m^{3}) | 918 | Fibre shape | Straight |

Superplasticizer (% cement) | 1.25 | Surface structure | Rough |

PF48 (kg/m^{3}) | 10 | Fibres per kg | 32,895 |

Fibre volume fraction (%) | 1.10 |

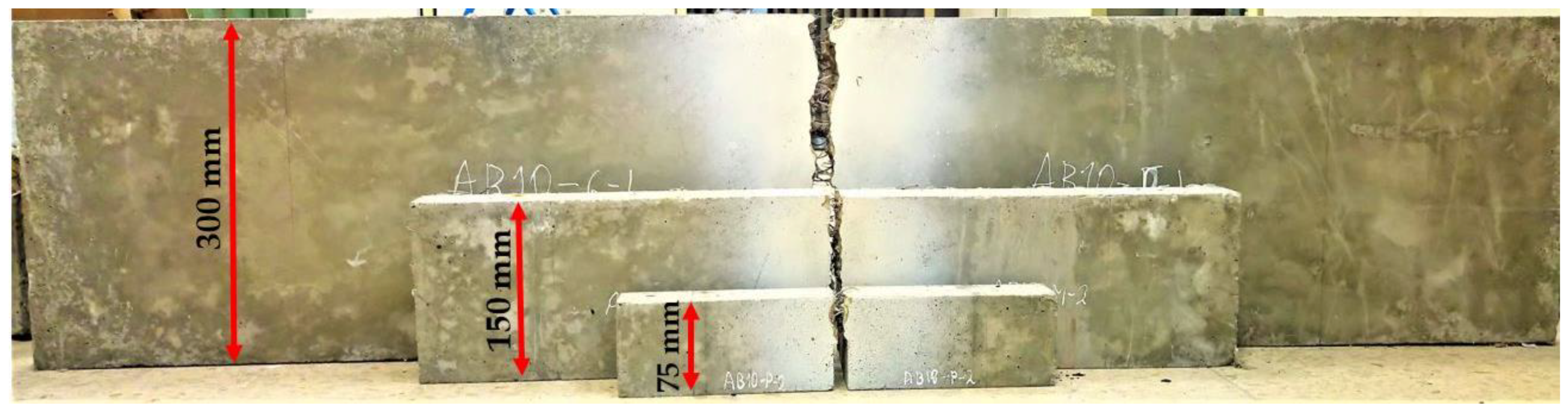

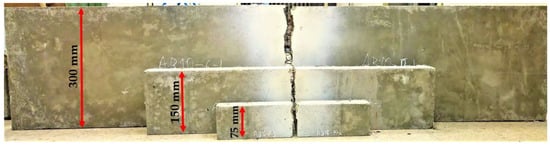

Specimen | Units | Length (mm) | Width (mm) | High (mm) |
---|---|---|---|---|

Large | 3 | 1350 | 50 | 300 |

Medium | 2 | 675 | 50 | 150 |

Small | 3 | 340 | 50 | 75 |

**Table 3.**Average number of fibres in the fracture surface with their coefficient of variation (c.v.) and the overall orientation factor (θ) for each specimen size.

Specimen | Fibres (c.v.) | Orientation Factor (θ) |
---|---|---|

Large | 178 (0.10) | 0.63 |

Medium | 106 (0.03) | 0.62 |

Small | 57 (0.08) | 0.72 |

**Table 4.**Fracture energy values (N/m) for different deflection values and the coefficient of variation.

Specimen | G_{F} (1 mm) | G_{F} (5 mm) | G_{F} (10 mm) | G_{F} (15 mm) |
---|---|---|---|---|

Large | 249 (0.06) | 1436 (0.21) | 2979 (0.21) | 3939 (0.15) |

Medium | 242 (0.01) | 1374 (0.01) | 2495 (0.01) | 2722 (0.05) |

Small | 163 (0.25) | 1296 (0.18) | 2947 (0.18) | 3330 (0.17) |
