Next Article in Journal
Generalization of an Optical ASA Switch
Previous Article in Journal
Spatial Uncertainty Modeling for Surface Roughness of Additively Manufactured Microstructures via Image Segmentation
Article

Micro-Brazing of Stainless Steel Using Ni-P Alloy Plating

1
Graduate School of Science and Technology, Gunma University, 1-5-1, Tenjin-cho, Kiryu 376-8515, Japan
2
Faculty of Science and Technology, Gunma University, 1-5-1 Tenjin-cho, Kiryu 376-8515, Japan
3
Waki Factory Inc., 6-760 Higashi-sayamagaoka, Tokorozawa 359-1106, Japan
4
Faculty of Engineering, Shinshu University, 4-17-1 Wakasato, Nagano 380-8553, Japan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(6), 1094; https://doi.org/10.3390/app9061094
Received: 27 December 2018 / Revised: 21 February 2019 / Accepted: 11 March 2019 / Published: 15 March 2019
(This article belongs to the Section Nanotechnology and Applied Nanosciences)

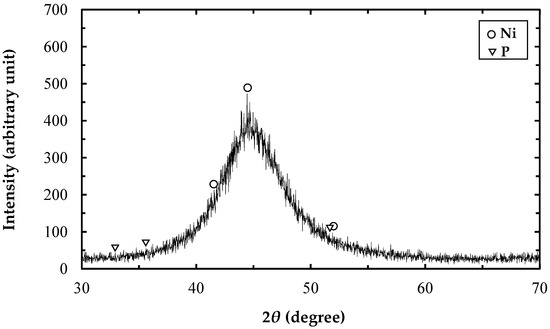

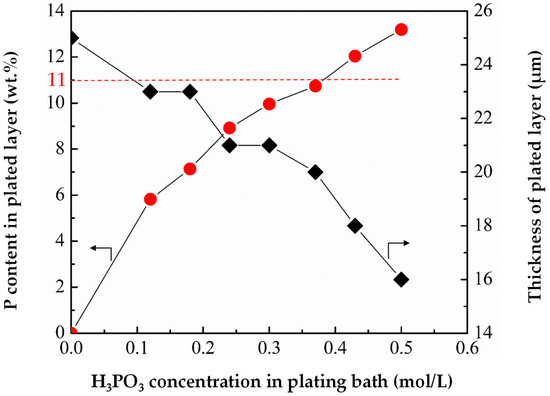

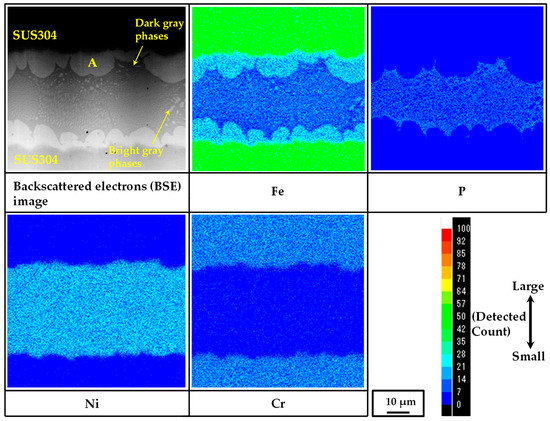

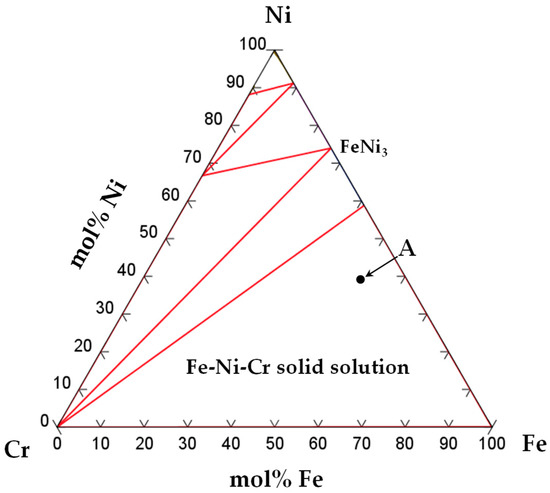

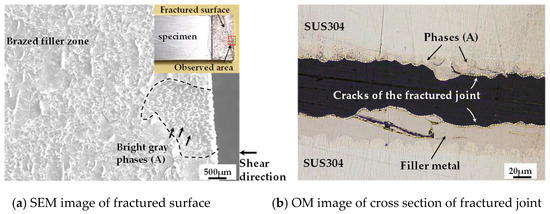

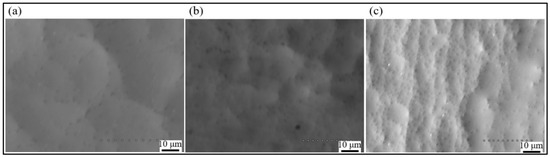

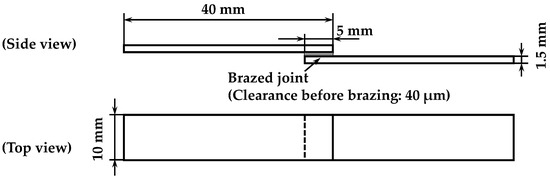

A Ni-P plated layer of 20 μm thickness containing 11 wt.% P was formed on the surface of a stainless steel (SUS304) plate by electroplating. The microstructure and joint strength of the brazed joint with the electroplated Ni-11P layer were investigated. The results indicated that the filler metal was homogeneously distributed between the SUS304 plates and no voids or flaws formed in the brazed filler zone. Fe-Ni-Cr solid solutions were formed at the brazed interface. Moreover, P was mainly concentrated in such brazed filler zone to form P-containing phases. The average shear strength of the brazed joints was determined to be 47.3 MPa. The results demonstrated that the brazing of SUS304 plates using the electroplated Ni-11P layer as the filler metal was successfully realized. View Full-Text
Keywords: electroplating; Ni-11 wt.% P layer; filler metal; microstructure; shear strength electroplating; Ni-11 wt.% P layer; filler metal; microstructure; shear strength
Show Figures

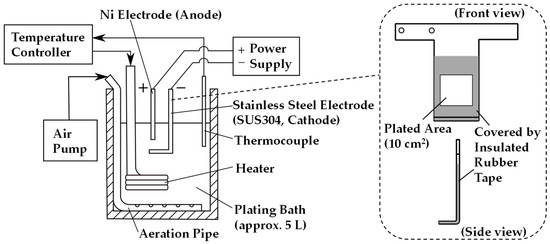

Figure 1

MDPI and ACS Style

Liu, S.; Shohji, I.; Iioka, M.; Hashimoto, A.; Hirohashi, J.; Wake, T.; Arai, S. Micro-Brazing of Stainless Steel Using Ni-P Alloy Plating. Appl. Sci. 2019, 9, 1094. https://doi.org/10.3390/app9061094

AMA Style

Liu S, Shohji I, Iioka M, Hashimoto A, Hirohashi J, Wake T, Arai S. Micro-Brazing of Stainless Steel Using Ni-P Alloy Plating. Applied Sciences. 2019; 9(6):1094. https://doi.org/10.3390/app9061094

Chicago/Turabian Style

Liu, Shubin, Ikuo Shohji, Makoto Iioka, Anna Hashimoto, Junichiro Hirohashi, Tsunehito Wake, and Susumu Arai. 2019. "Micro-Brazing of Stainless Steel Using Ni-P Alloy Plating" Applied Sciences 9, no. 6: 1094. https://doi.org/10.3390/app9061094

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
