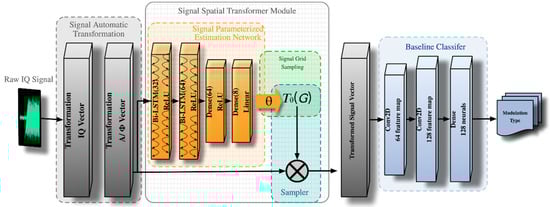

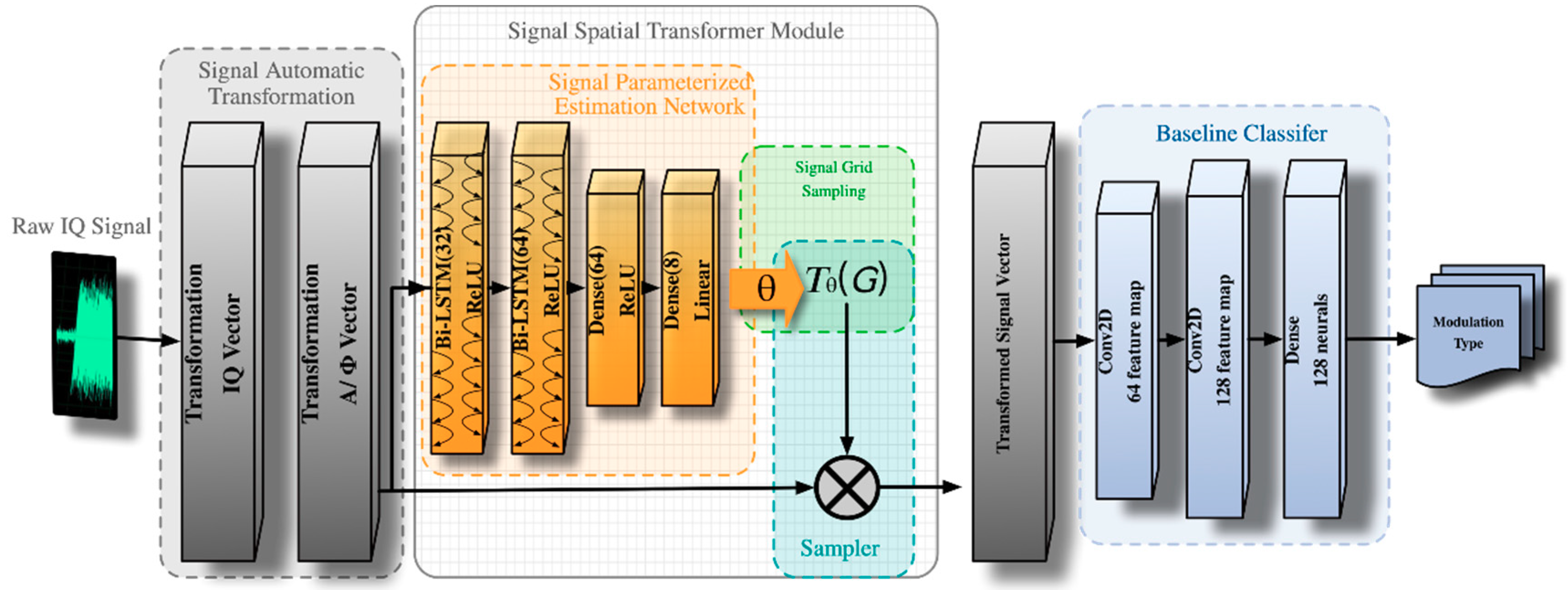

Recently, automatic modulation recognition has been an important research topic in wireless communication. Due to the application of deep learning, it is prospective of using convolution neural networks on raw in-phase and quadrature signals in developing automatic modulation recognition methods. However, the errors introduced during signal reception and processing will greatly deteriorate the classification performance, which affects the practical application of such methods. Therefore, we first analyze and quantify the errors introduced by signal detection and isolation in noncooperative communication through a baseline convolution neural network. In response to these errors, we then design a signal spatial transformer module based on the attention model to eliminate errors by a priori learning of signal structure. By cascading a signal spatial transformer module in front of the baseline classification network, we propose a method that can adaptively resample the signal capture to adjust time drift, symbol rate, and clock recovery. Besides, it can also automatically add a perturbation on the signal carrier to correct frequency offset. By applying this improved model to automatic modulation recognition, we obtain a significant improvement in classification performance compared with several existing methods. Our method significantly improves the prospect of the application of automatic modulation recognition based on deep learning under nonideal synchronization.
