Appl. Sci. 2019, 9(4), 644; https://doi.org/10.3390/app9040644

Design of a Liquid-Crystal-Tunable Terahertz Demultiplexer Based on a Metal-Insulator-Metal Waveguide

1
School of Automation, Guangdong University of Technology, Guangzhou 510006, China
2
College of Electronic Science and Technology, Shenzhen University, Shenzhen 518060, China
3
Institute of Electronic Paper Displays, South China Academy of Advanced Optoelectronics, South China Normal University, Guangzhou 510631, China
4
Department of Electrical and Computer Engineering, Duke University, Durham, NC 27708, USA
*
Author to whom correspondence should be addressed.
Received: 25 December 2018 / Revised: 11 February 2019 / Accepted: 11 February 2019 / Published: 14 February 2019
Full-Text   |   PDF [1920 KB, uploaded 14 February 2019]   |

Abstract

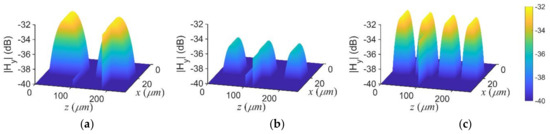

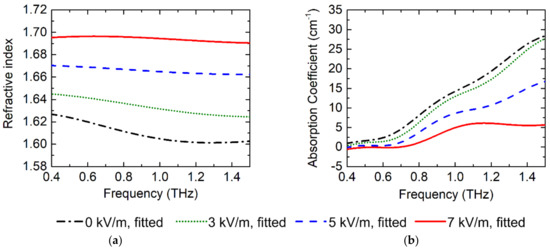

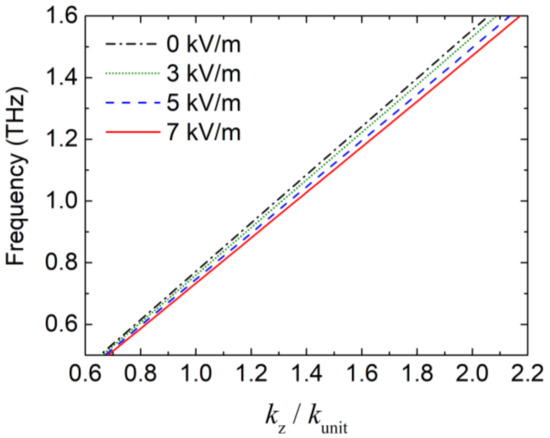

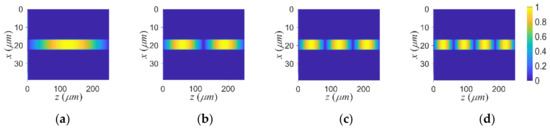

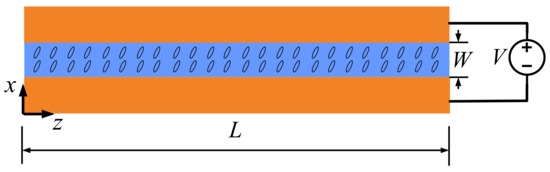

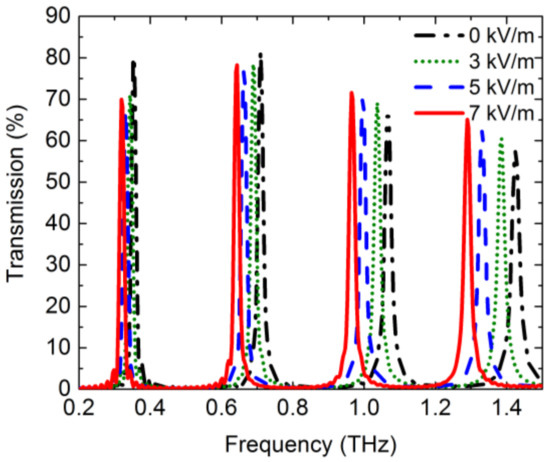

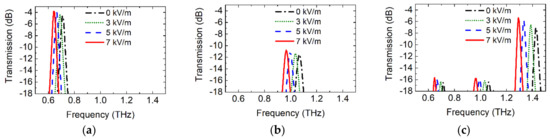

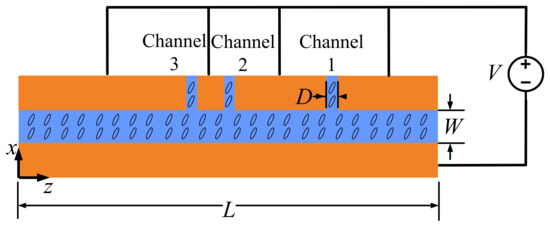

A tunable demultiplexer with three output channels infiltrated by liquid crystal (LC) is presented, which is based on a metal-insulator-metal (MIM) waveguide. The operating frequencies of the three output channels can be tuned simultaneously at will by changing the external bias electric field applied to the LC. By analyzing the Fabry-Pérot (FP) resonance modes of the finite-length MIM waveguide both theoretically and numerically, the locations of the three channels are delicately determined to achieve the best demultiplexing effects. Terahertz (THz) signals input from the main channel can be demultiplexed by channels 1, 2 and 3 at 0.7135 THz, 1.068 THz and 1.429 THz, respectively. By applying an external electric field to alter the tilt angle of the infiltrating LC material, the operating frequencies of channels 1, 2 and 3 can be relatively shifted up to 12.3%, 9.6% and 9.7%, respectively. The designed demultiplexer can not only provide a flexible means to demultiplex signals but also tune operating bands of output channels at the same time. View Full-Text
Keywords: liquid-crystal devices; demultiplexer; terahertz; metal-insulator-metal waveguide liquid-crystal devices; demultiplexer; terahertz; metal-insulator-metal waveguide
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
