Influence of Pre-Ionized Plasma on the Dynamics of a Tin Laser-Triggered Discharge-Plasma

1
College of Science, Northeast Forestry University, Harbin 150040, China
2
National Key Laboratory of Science and Technology on Tunable Laser, Harbin Institute of Technology, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(23), 4981; https://doi.org/10.3390/app9234981
Received: 16 October 2019 / Revised: 11 November 2019 / Accepted: 16 November 2019 / Published: 20 November 2019
(This article belongs to the Special Issue Ultraviolet Light Research and Fabrication)

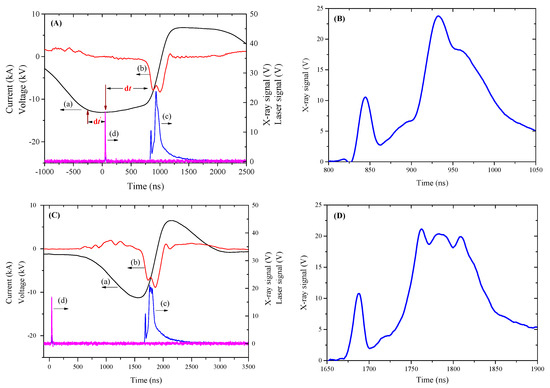

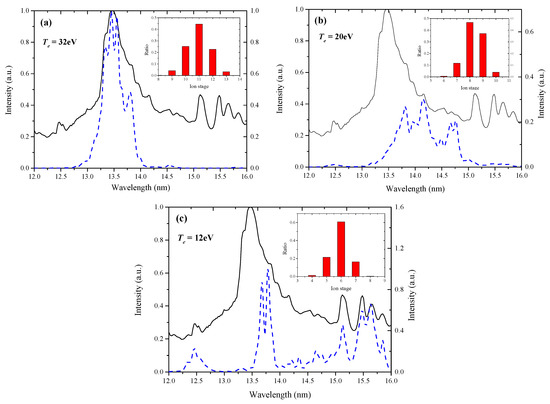

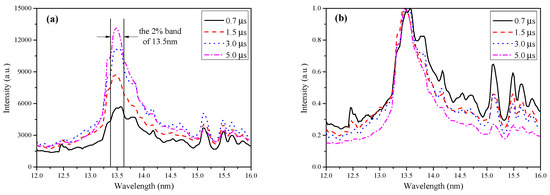

The effect of laser-current delay on extreme ultraviolet emission by laser-triggered discharge-plasma has been investigated. Typical waveforms for current, voltage, laser signals, and X-ray signals have been compared. Theoretical tin spectra were simulated among the electron temperature ranges from 10 to 50 eV to compare with the experimental results. The results show that longer laser-current delay time is propitious to increase the steady-state time of plasma at high temperatures, and it increases the intensity and spectral purity of 13.5 nm emission in 2% band. The 13.5 nm radiation intensity increases about 120% with the delay increasing from 0.7 to 5 μs, and the extreme ultraviolet (EUV) emission conversion efficiency (CE) increases from 0.5% to 1.1%. View Full-Text
Keywords: EUV emission; laser-triggered discharge plasma; pre-ionized plasma; tin spectra; 13.5 nm emission EUV emission; laser-triggered discharge plasma; pre-ionized plasma; tin spectra; 13.5 nm emission
Show Figures

Figure 1

MDPI and ACS Style

Xu, Q.; Deng, X.; Tian, H.; Zhao, Y.; Wang, Q. Influence of Pre-Ionized Plasma on the Dynamics of a Tin Laser-Triggered Discharge-Plasma. Appl. Sci. 2019, 9, 4981.
