Next Article in Journal
Time Shared Optical Network (TSON): A Programmable Network Edge Solution for Multi-Access Support
Previous Article in Journal
Probing Electronic Strain Generation by Separated Electron-Hole Pairs Using Time-Resolved X-ray Scattering
Previous Article in Special Issue
Study of Mixed-Mode Cracking of Dovetail Root of an Aero-Engine Blade Like Structure
Open AccessArticle

Effects of Ultrasonic Impact Treatment on the Stress-Controlled Fatigue Performance of Additively Manufactured DMLS Ti-6Al-4V Alloy

1
Department of Mechanical and Aerospace Engineering, Carleton University, Ottawa, ON K1S 5B6, Canada
2
Department of Mechanical Engineering, University of Rostock, 18051 Rostock, Germany
3
Department of Advanced Structures, Bombardier Aerospace, Toronto, ON M3K 1Y5, Canada
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(22), 4787; https://doi.org/10.3390/app9224787
Received: 10 September 2019 / Revised: 12 October 2019 / Accepted: 18 October 2019 / Published: 8 November 2019

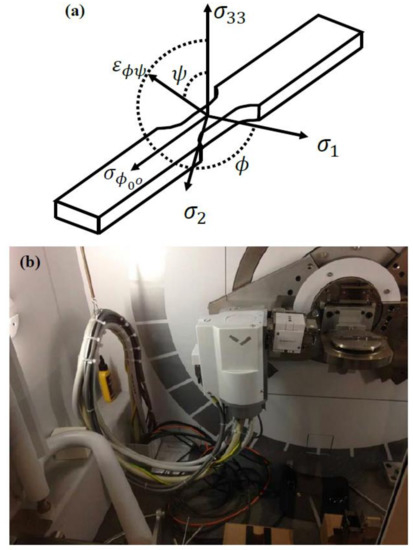

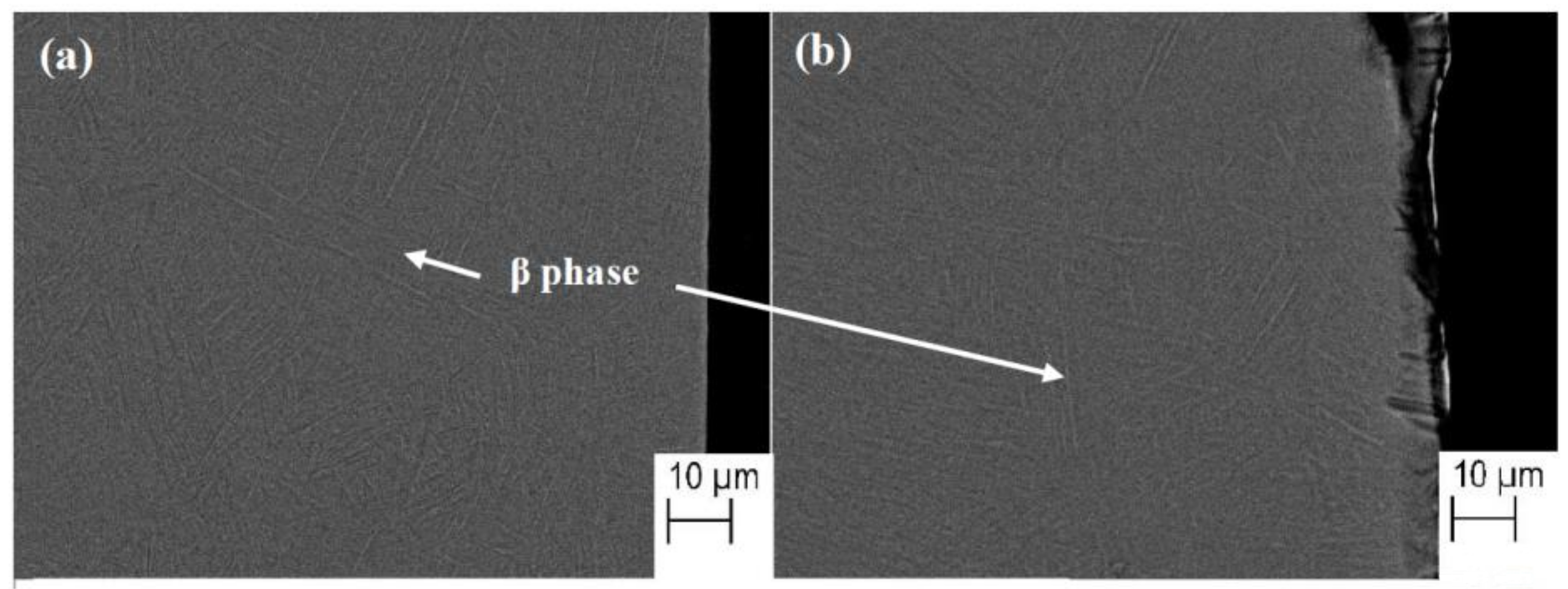

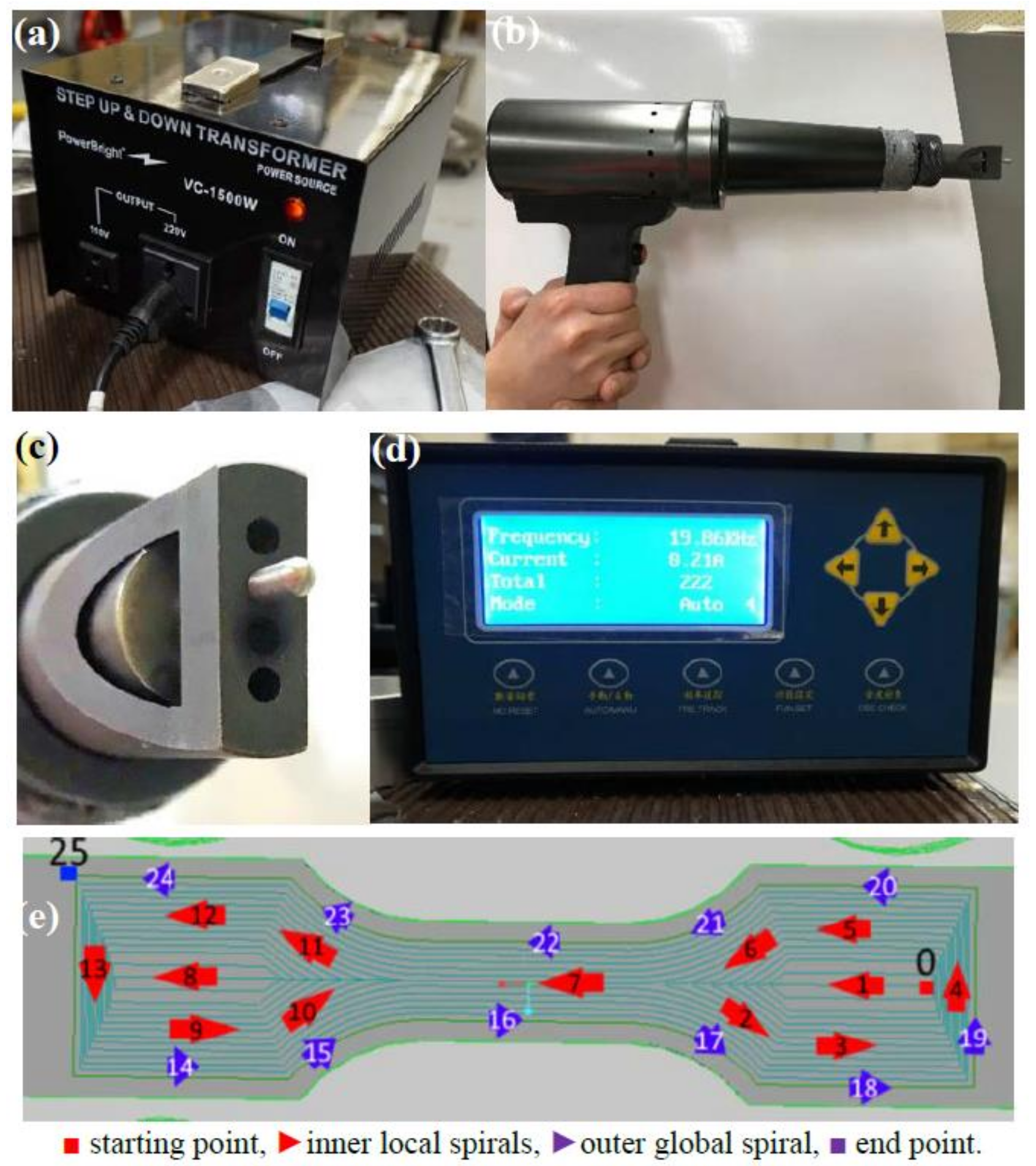

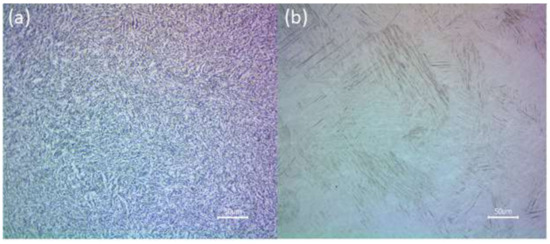

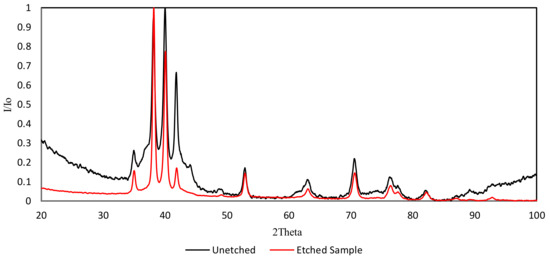

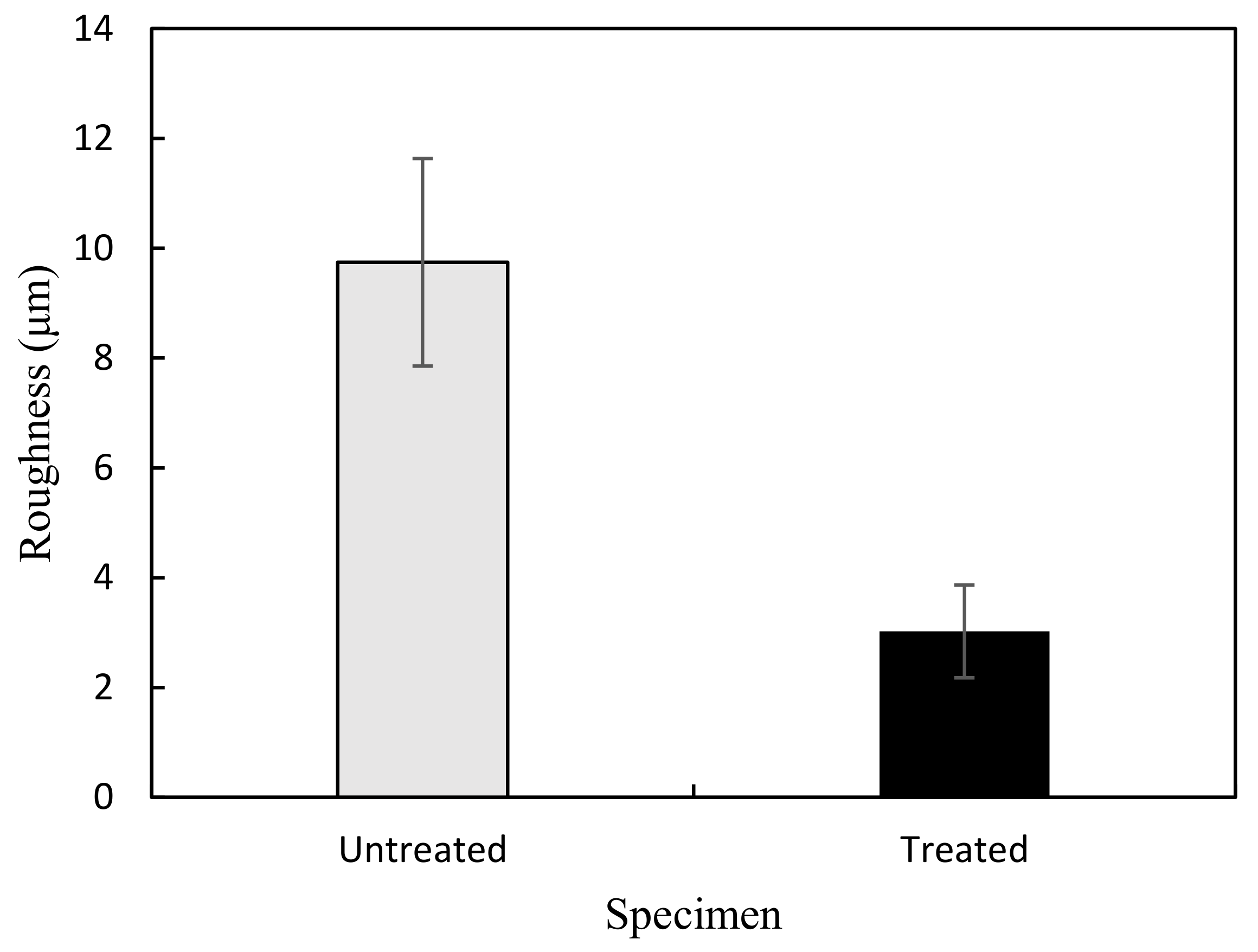

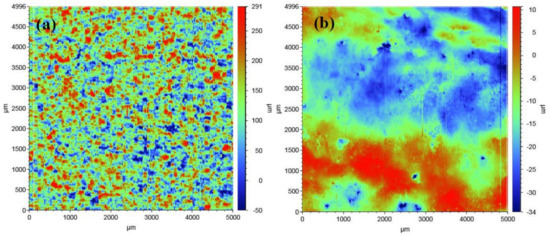

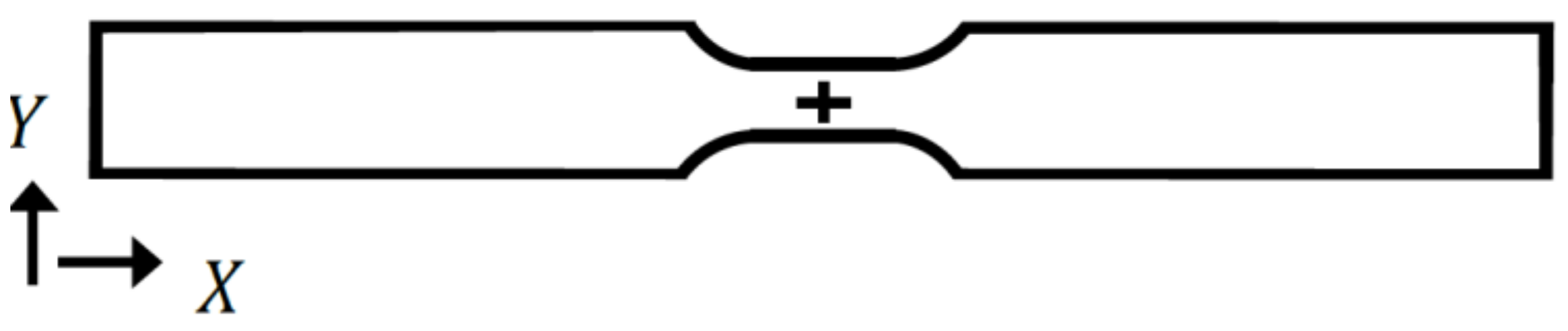

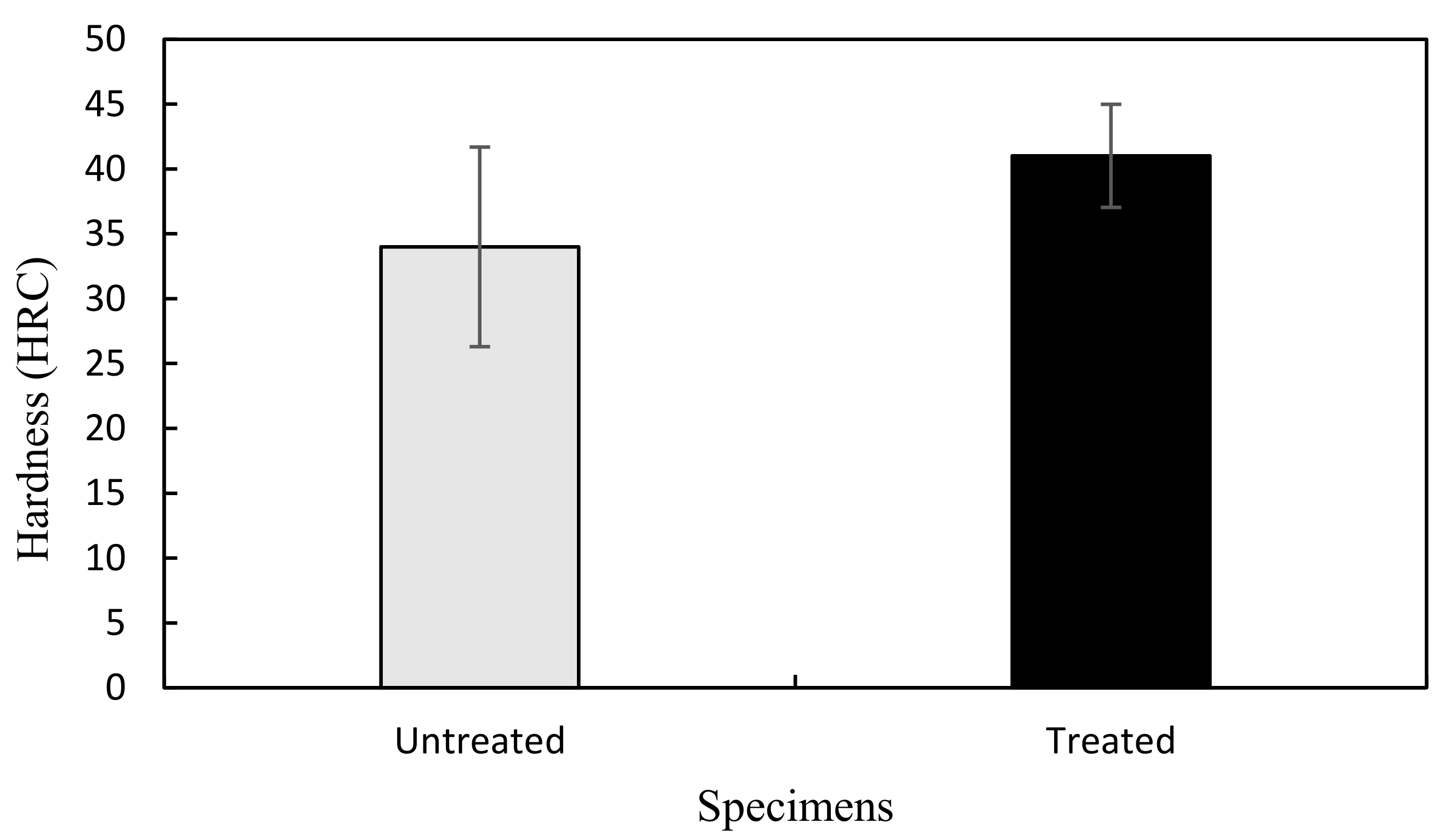

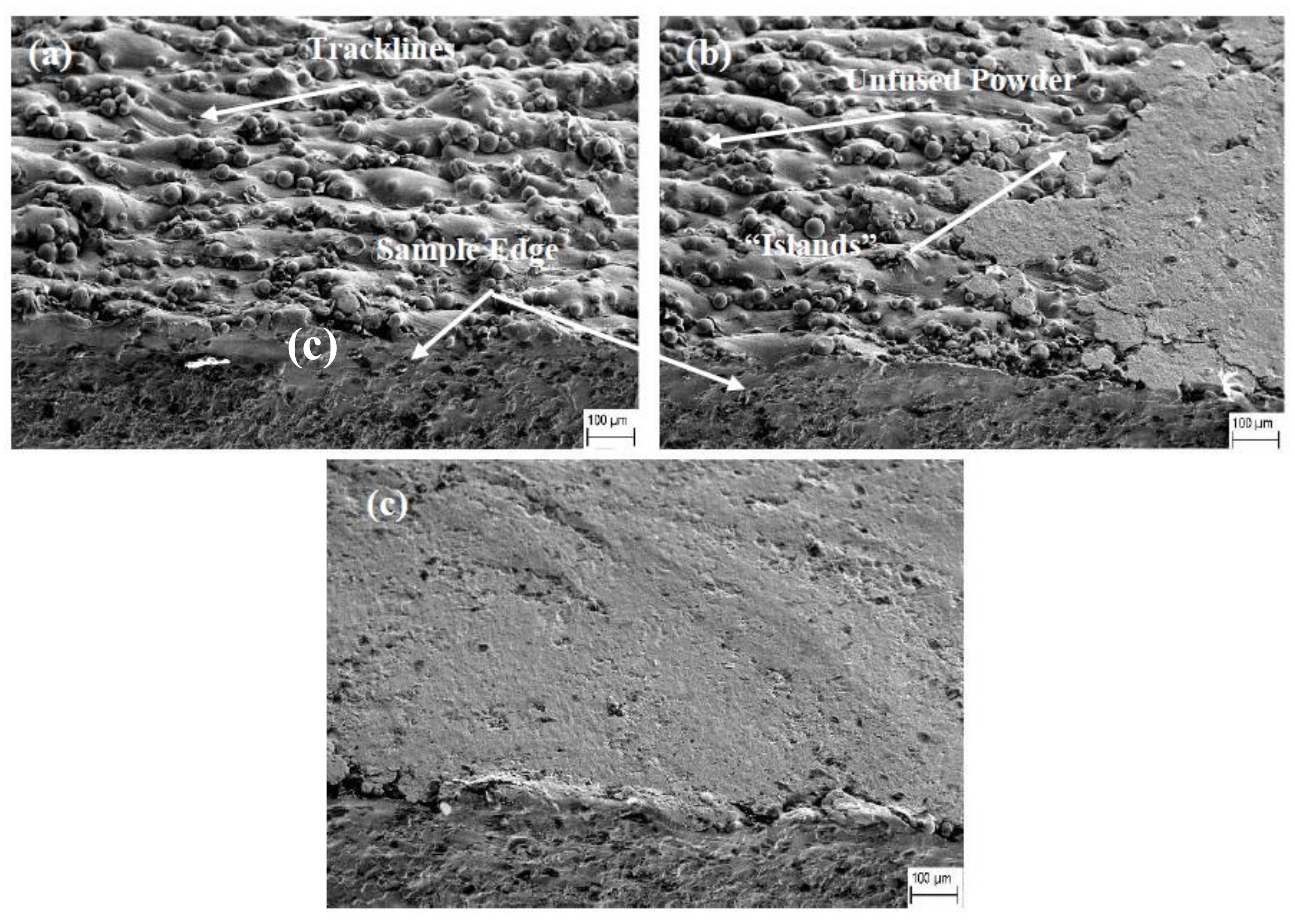

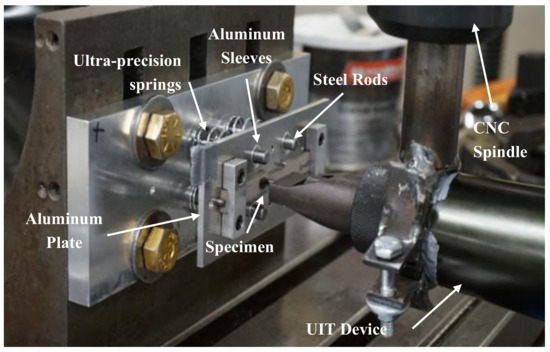

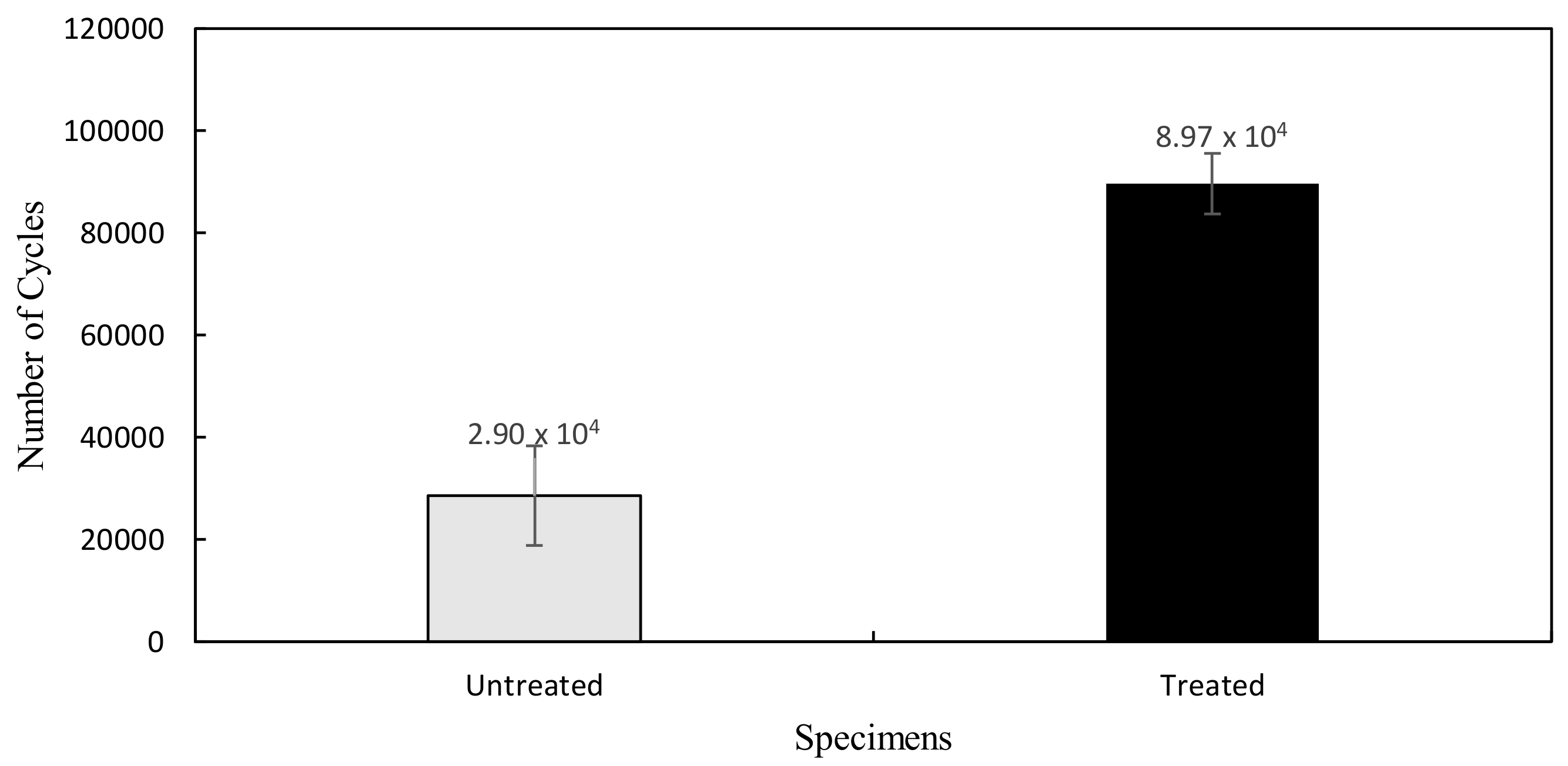

Additive manufacturing (AM) offers many advantages for the mechanical design of metal components. However, the benefits of AM are offset to a certain extent by the poor surface finish and high residual stresses resulting from the printing process, which consequently compromise the mechanical properties of the parts, particularly their fatigue performance. Ultrasonic impact treatment (UIT) is a surface modification process which is often used to increase the fatigue life of welds in ship hulls and steel bridges. This paper studies the effect of UIT on the fatigue life of Ti-6Al-4V manufactured by Direct Metal Laser Sintering (DMLS). The surface properties before and after the UIT are characterized by surface porosity, roughness, hardness and residual stresses. Results show that UIT enhances the fatigue life of DMLS Ti-6Al-4V parts by suppressing the surface defects originating from the DMLS process and inducing compressive residual stresses at the surface. At the adopted UIT application parameters, the treatment improved the fatigue performance by 200%, significantly decreased surface porosity, reduced the surface roughness by 69%, and imposed a compressive hydrostatic stress of 1644 MPa at the surface. View Full-Text
Keywords: fatigue life improvement; materials characterization; additive manufacturing; ultrasonic impact treatment; DMLS fatigue life improvement; materials characterization; additive manufacturing; ultrasonic impact treatment; DMLS
Show Figures

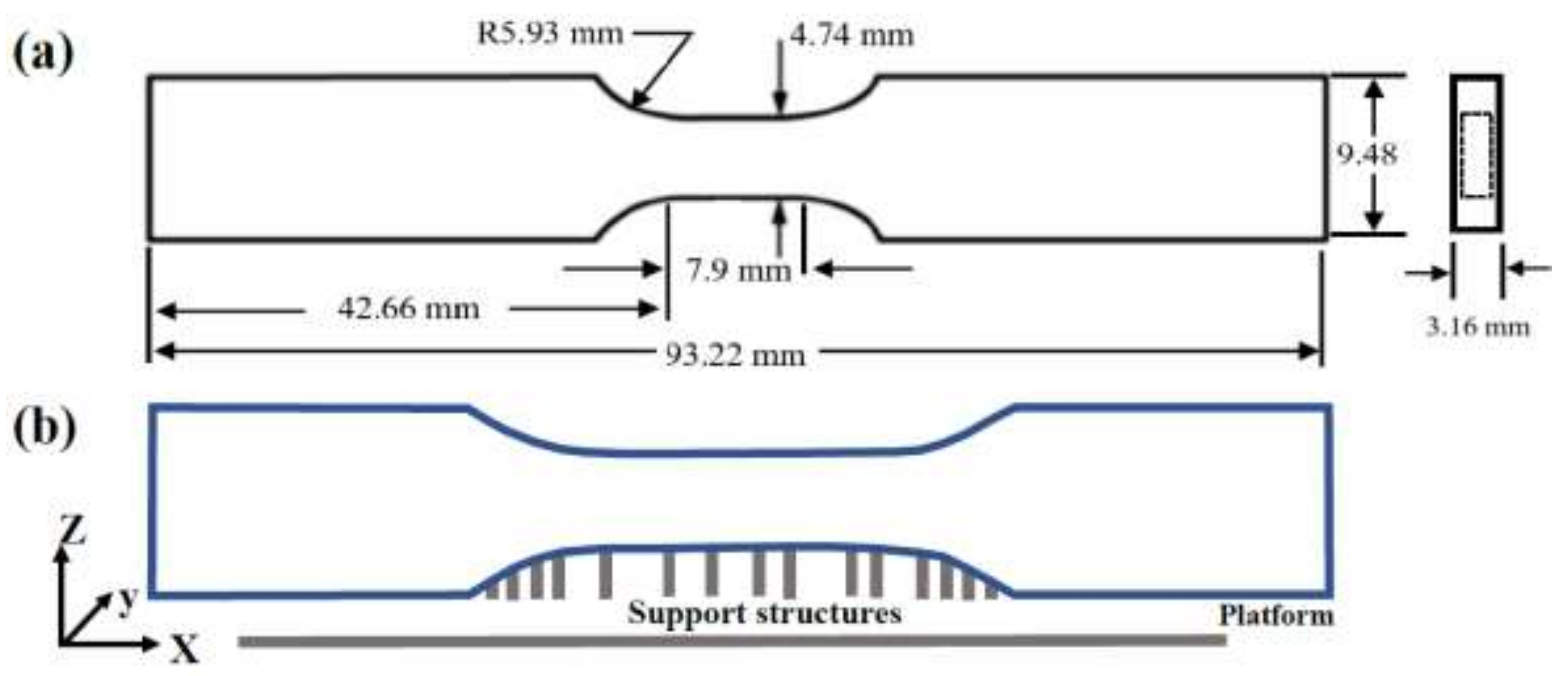

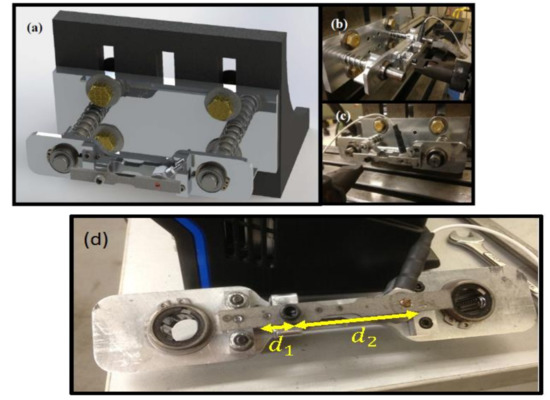

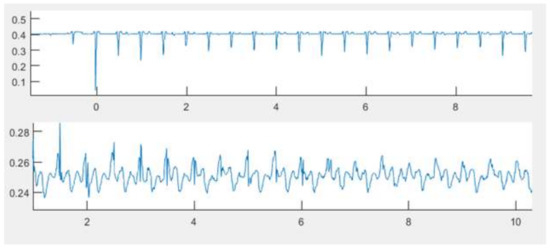

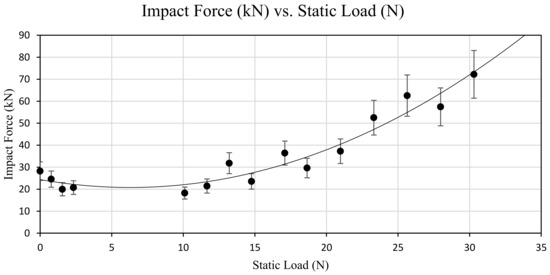

Figure 1

MDPI and ACS Style

Walker, P.; Malz, S.; Trudel, E.; Nosir, S.; ElSayed, M.S.; Kok, L. Effects of Ultrasonic Impact Treatment on the Stress-Controlled Fatigue Performance of Additively Manufactured DMLS Ti-6Al-4V Alloy. Appl. Sci. 2019, 9, 4787.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
