Study on Femtosecond Laser Processing Characteristics of Nano-Crystalline CVD Diamond Coating

School of Mechanical and Electrical Engineering, Anhui Jianzhu University, Hefei 230601, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(20), 4273; https://doi.org/10.3390/app9204273
Received: 5 September 2019 / Revised: 30 September 2019 / Accepted: 8 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Ultrafast Optics 2020: Trends and Prospects)

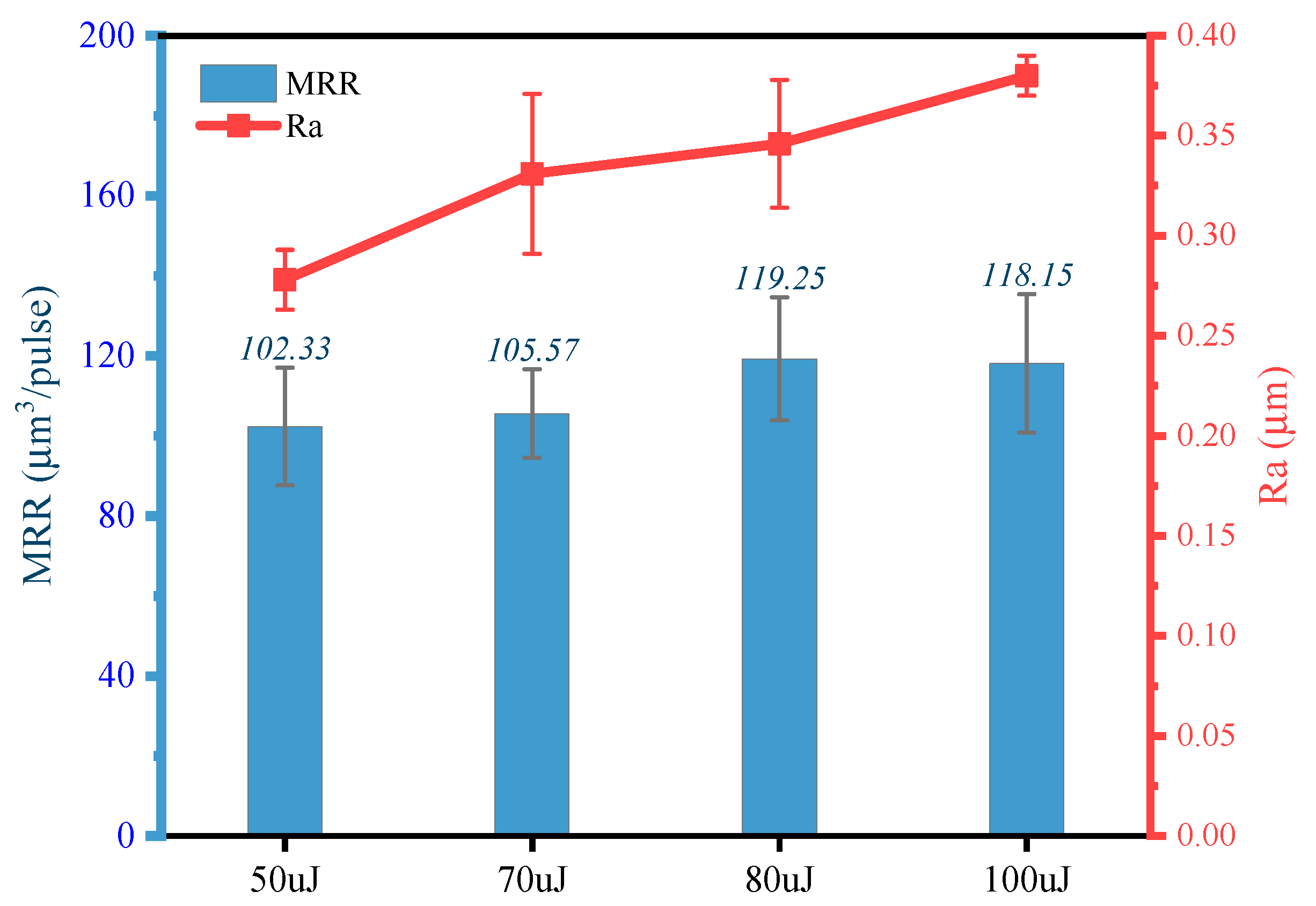

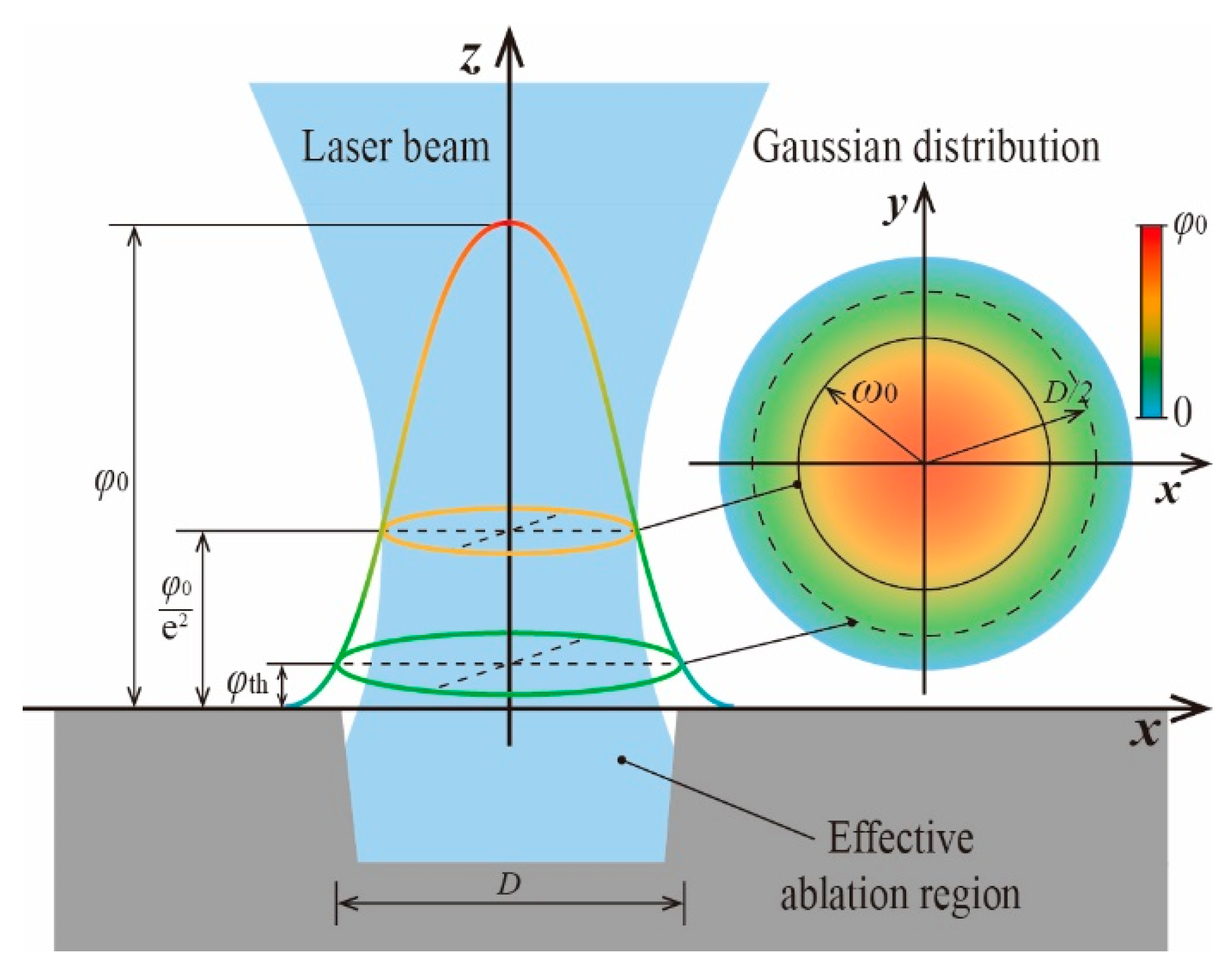

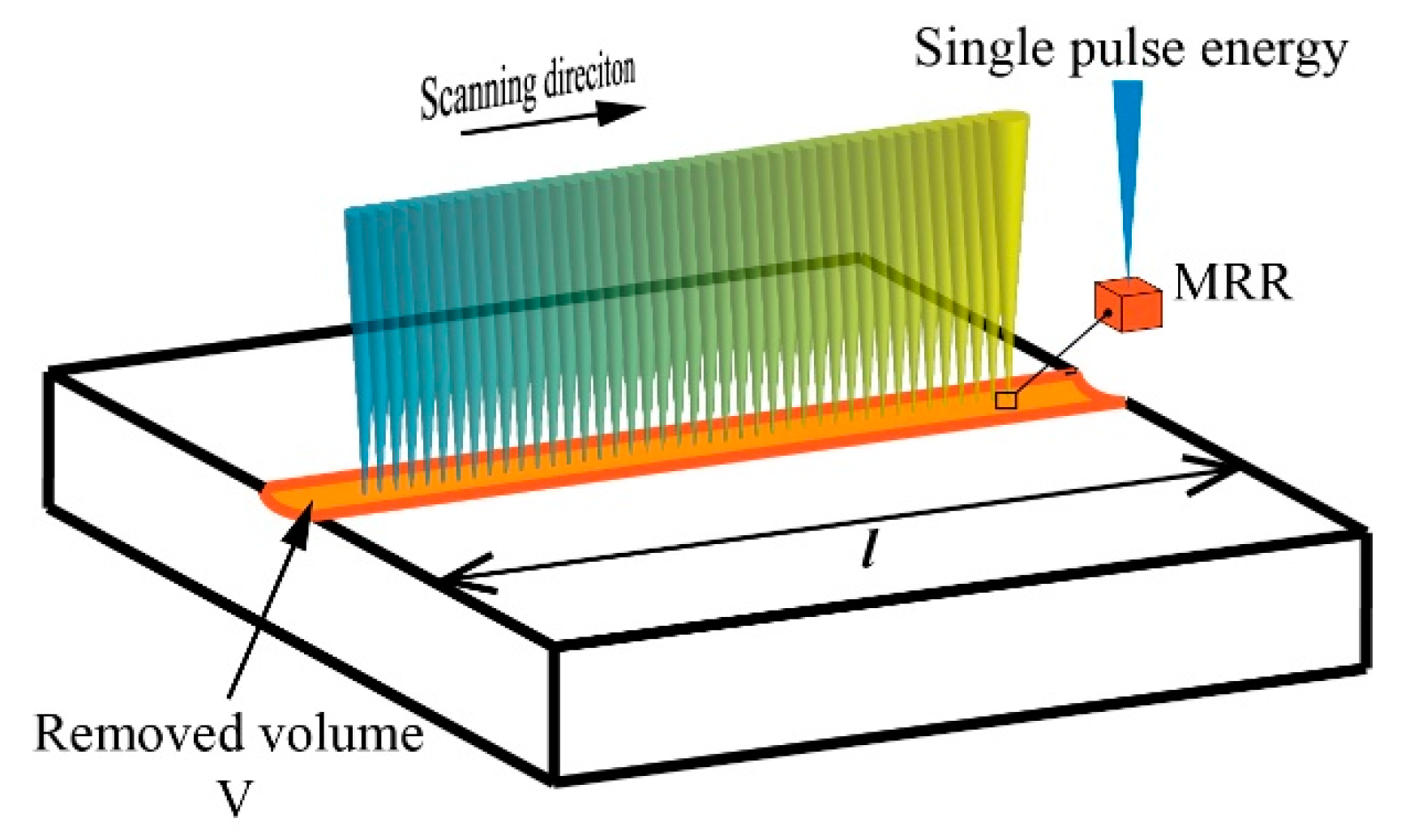

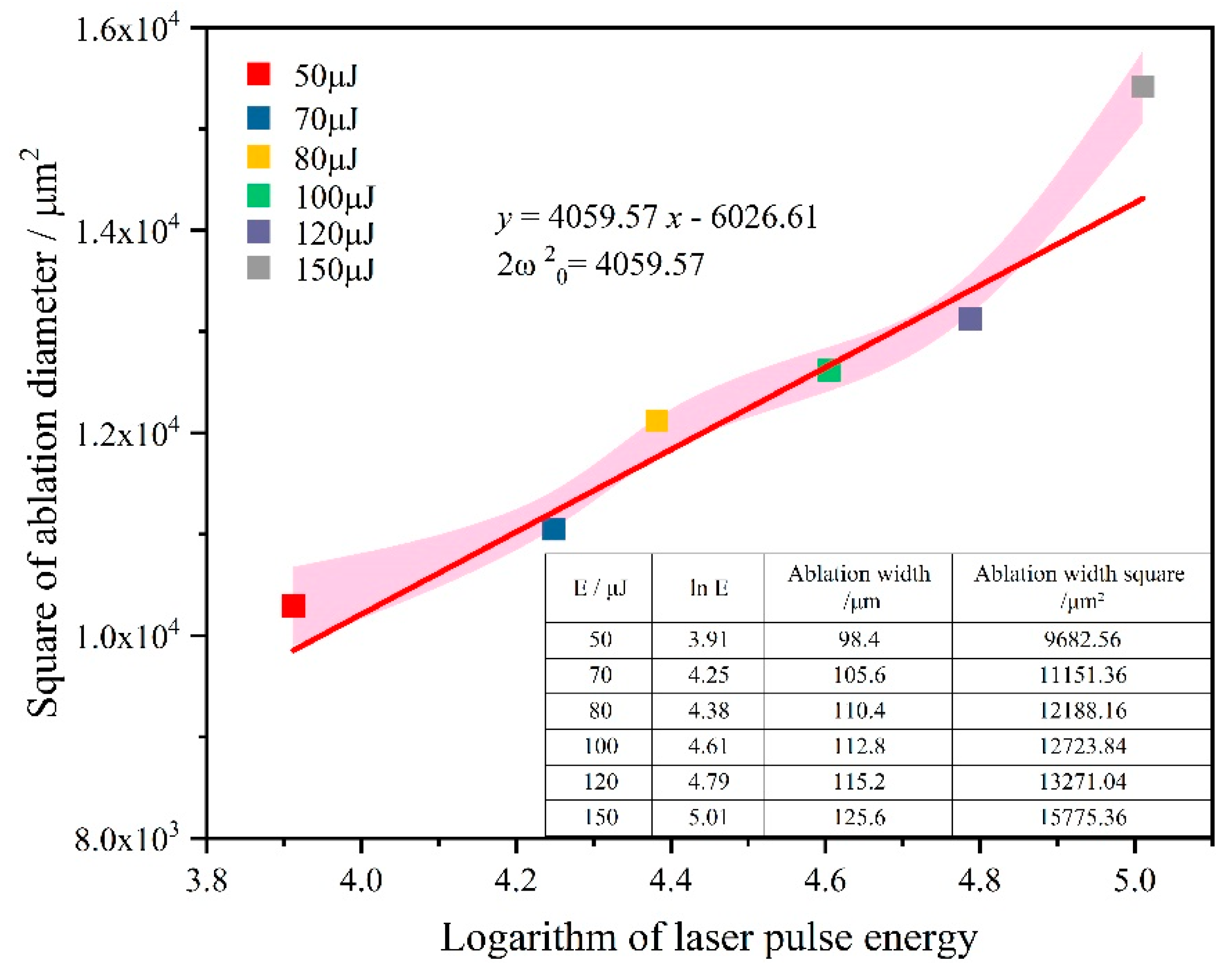

Ultra-short pulse laser interaction with diamond materials has attracted extensive interest in micro- and nano-machining, especially for the fabrication of micro tools, because of the straightforward method and high precision. Thanks to the development of chemical vapor deposition (CVD) technology, high-quality CVD diamonds are employed in more varieties of tools as performance-enhancing coatings. The purpose of the experiments reported here was to explore the machinability of CVD diamond coating under the irradiation of femtosecond (fs) pulsed laser. The factor-control approach was adopted to investigate the influence of scanning speed, single pulse energy and repetition rate on the surface quality and carbon phase transition of CVD diamond coating. The material removal rate and surface roughness were evaluated. The interaction mechanism of scanning speed, single pulse energy, and repetition rate were discussed, and the fs laser ablation threshold of CVD diamond coating was calculated. It was demonstrated that two ablation mechanisms (weak and intensive) were in existence as evidenced by the distinct surface morphologies induced under different processing conditions. A strong dependence on the variation of scanning speed and pulse energy is identified in the examination of surface roughness and removal rate. Lorentzian–Gaussian deconvolution of Raman spectra illustrates that fs laser irradiation yields a strong modification effect on the coating and release the compressive stress in it. Furthermore, a newly defined parameter referring to the fs laser energies applied to unit volume was introduced to depict the degree of ablation and the Taguchi method was used to figure out the significance of different parameters. The ablation threshold of CVD diamond coating at the effective pulses of 90 is calculated to be 0.138 J/cm2. View Full-Text
Keywords: femtosecond laser ablation; CVD diamond coating; surface quality; material removal rate; Raman spectra deconvolution; interaction mechanism; ablation threshold femtosecond laser ablation; CVD diamond coating; surface quality; material removal rate; Raman spectra deconvolution; interaction mechanism; ablation threshold
Show Figures

Figure 1

MDPI and ACS Style

Wei, C.; Ma, Y.; Han, Y.; Zhang, Y.; Yang, L.; Chen, X. Study on Femtosecond Laser Processing Characteristics of Nano-Crystalline CVD Diamond Coating. Appl. Sci. 2019, 9, 4273.
