A 28 GHz 5G Phased Array Antenna with Air-Hole Slots for Beam Width Enhancement

Department of Electronics and Computer Engineering, Hanyang University, Seoul 133-791, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(20), 4204; https://doi.org/10.3390/app9204204
Received: 9 September 2019 / Revised: 26 September 2019 / Accepted: 4 October 2019 / Published: 9 October 2019

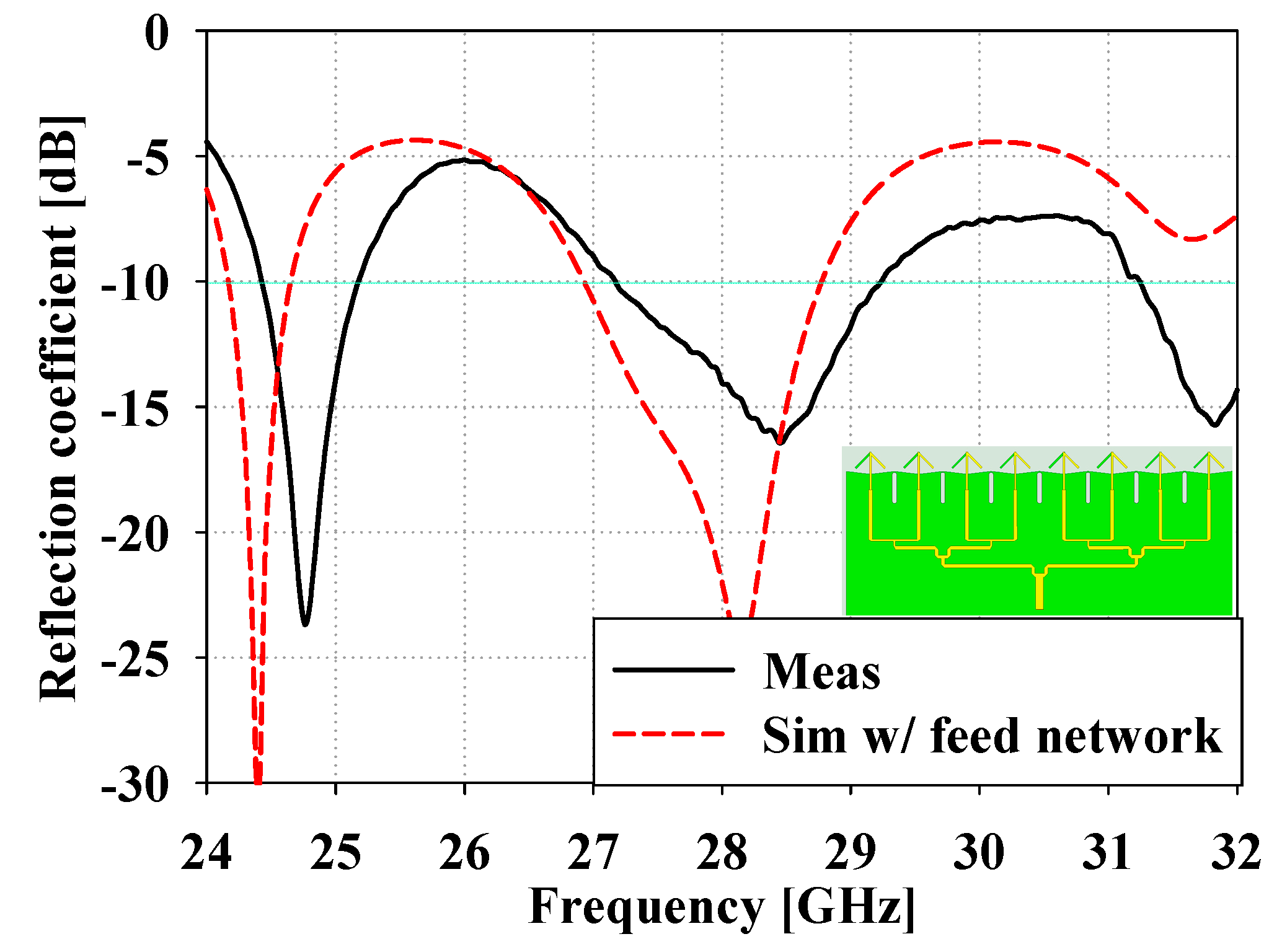

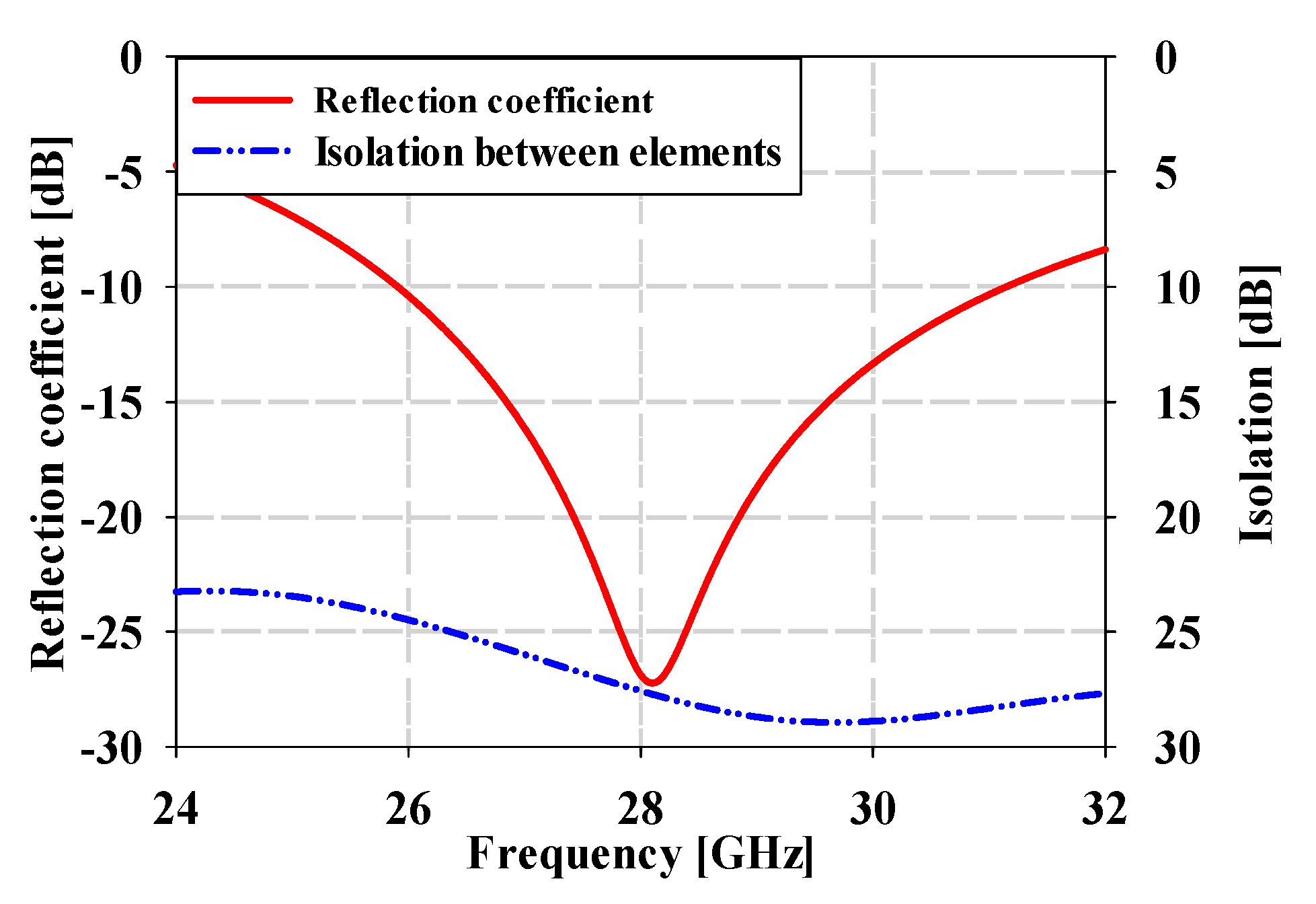

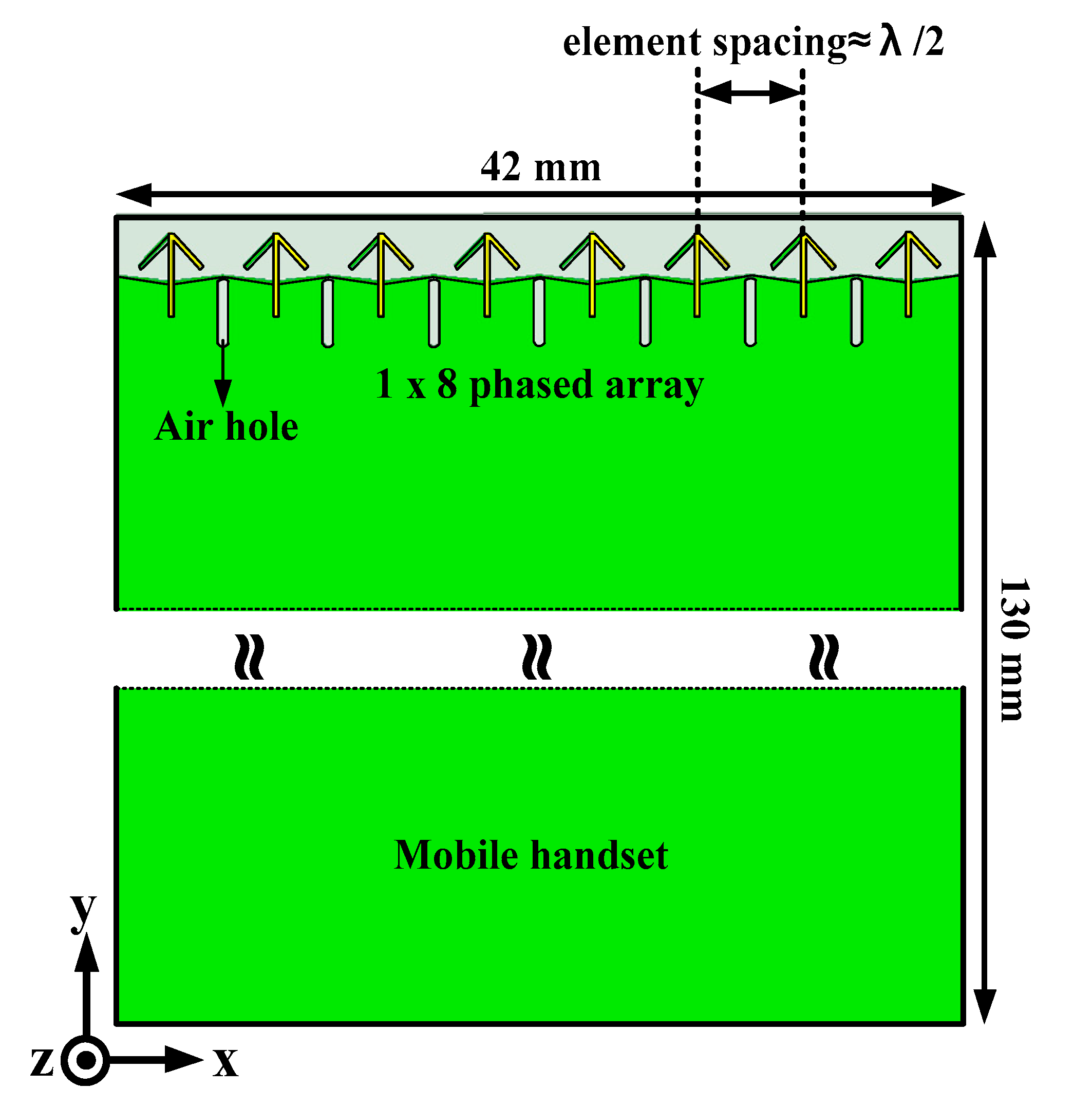

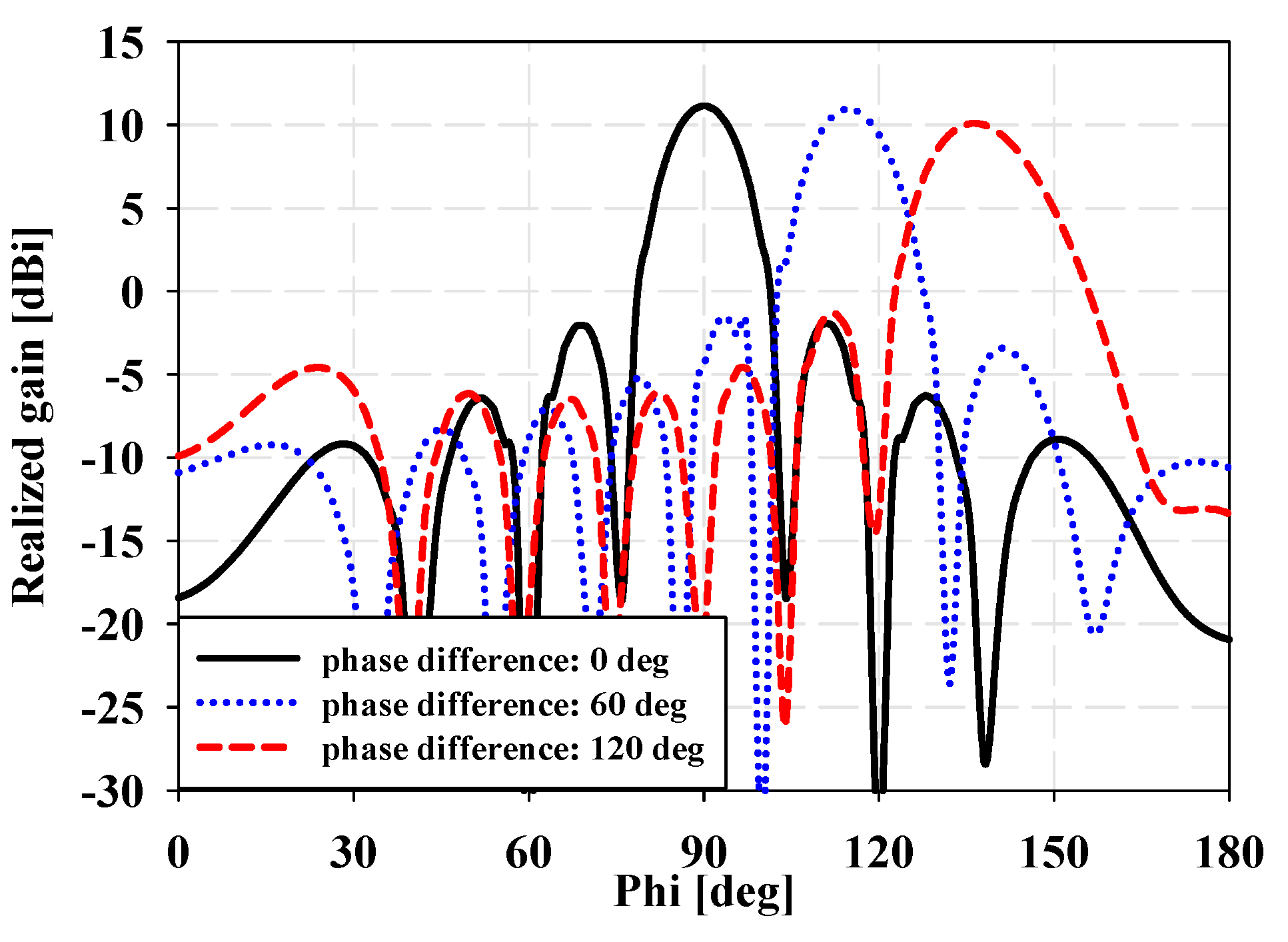

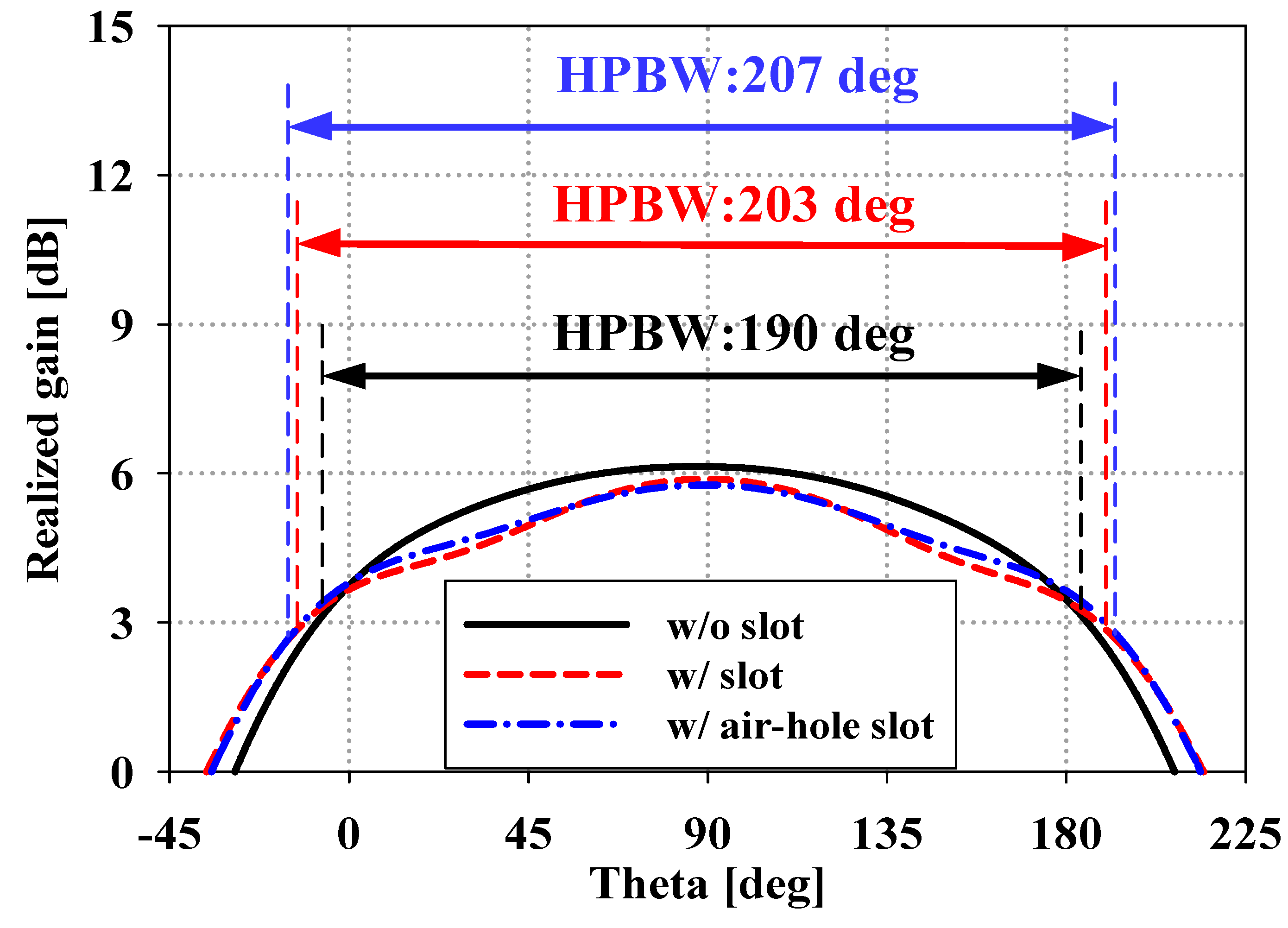

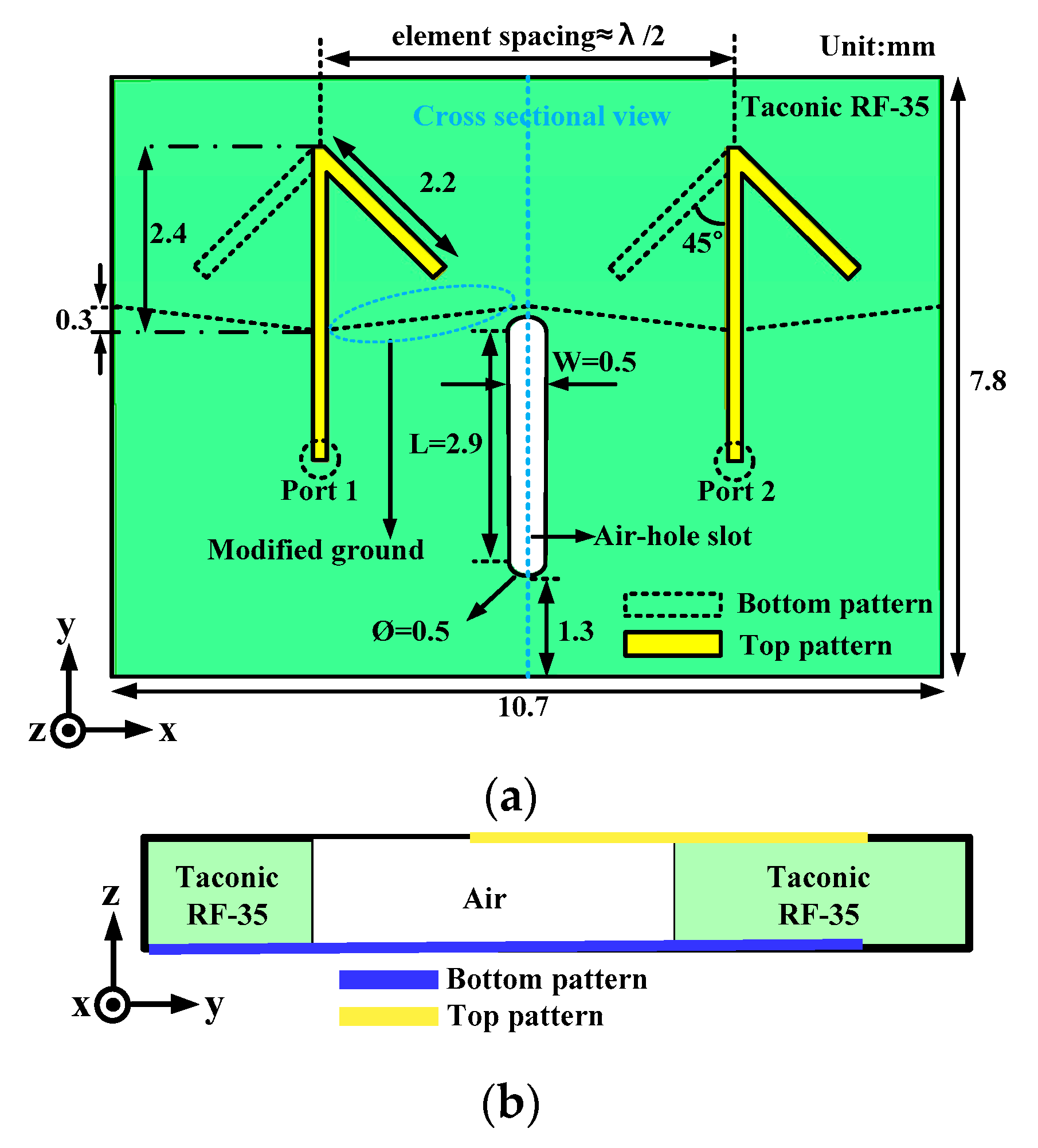

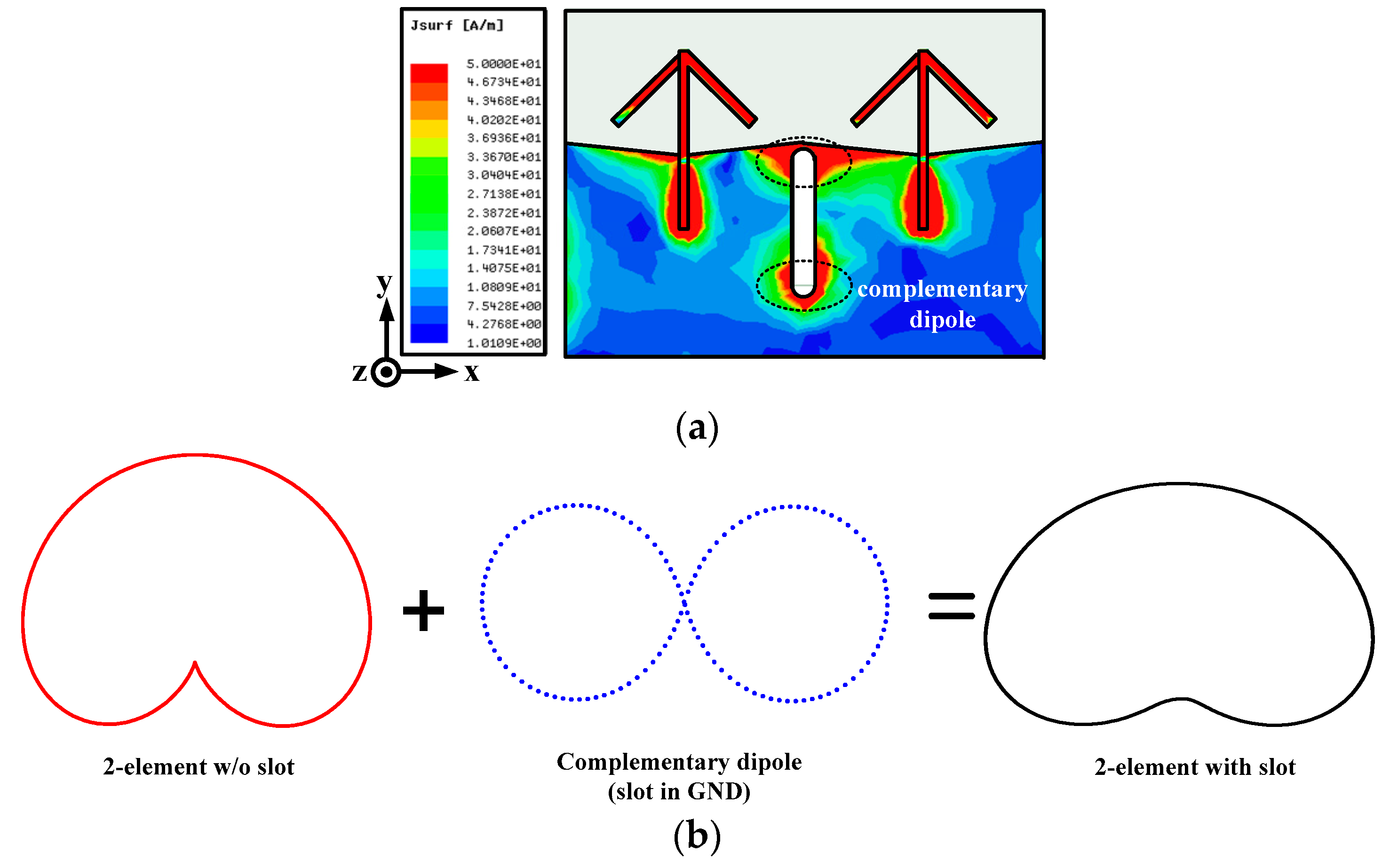

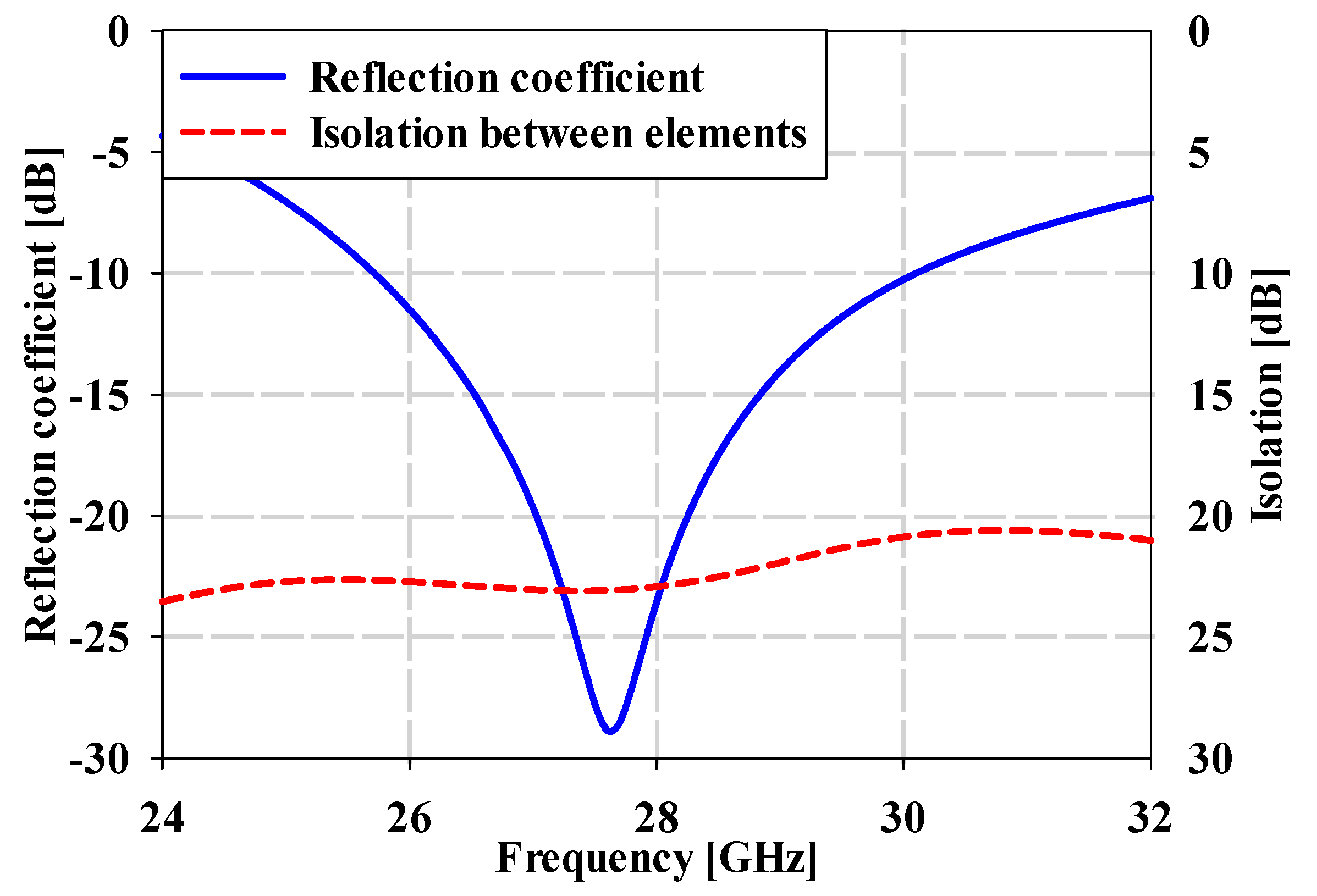

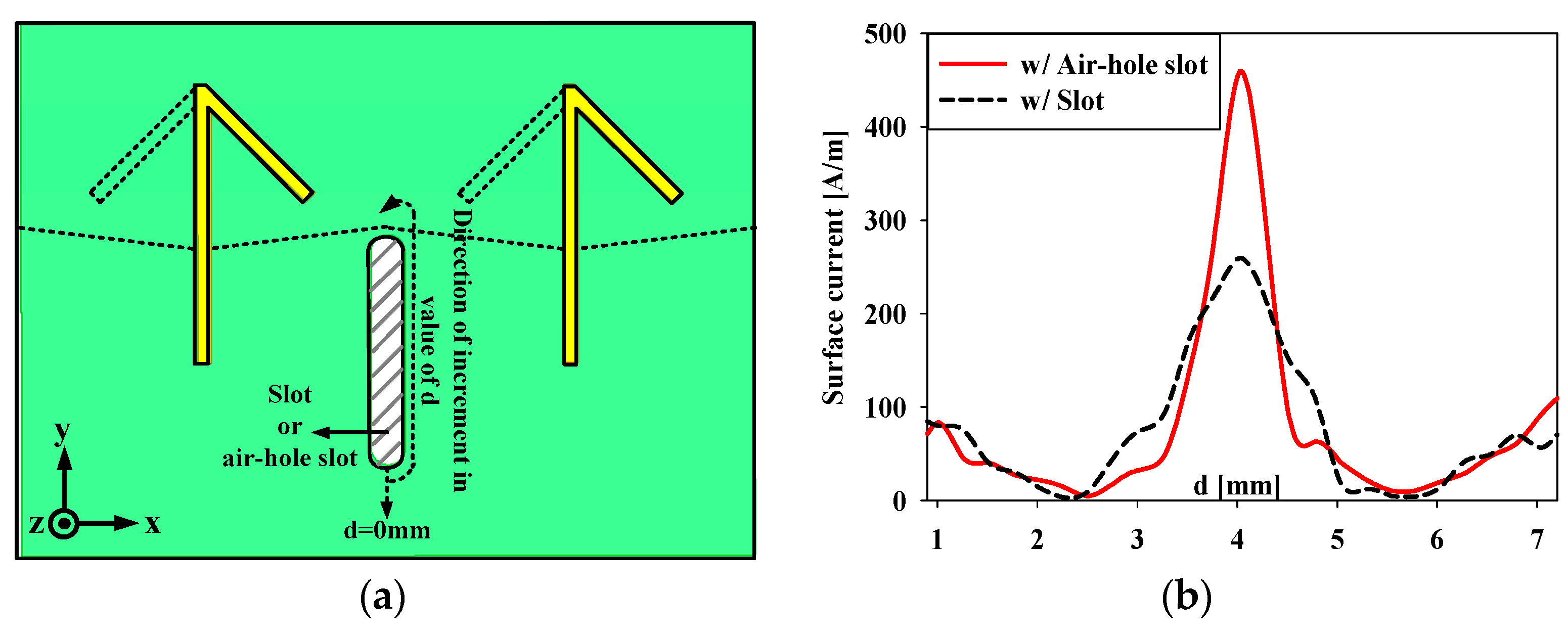

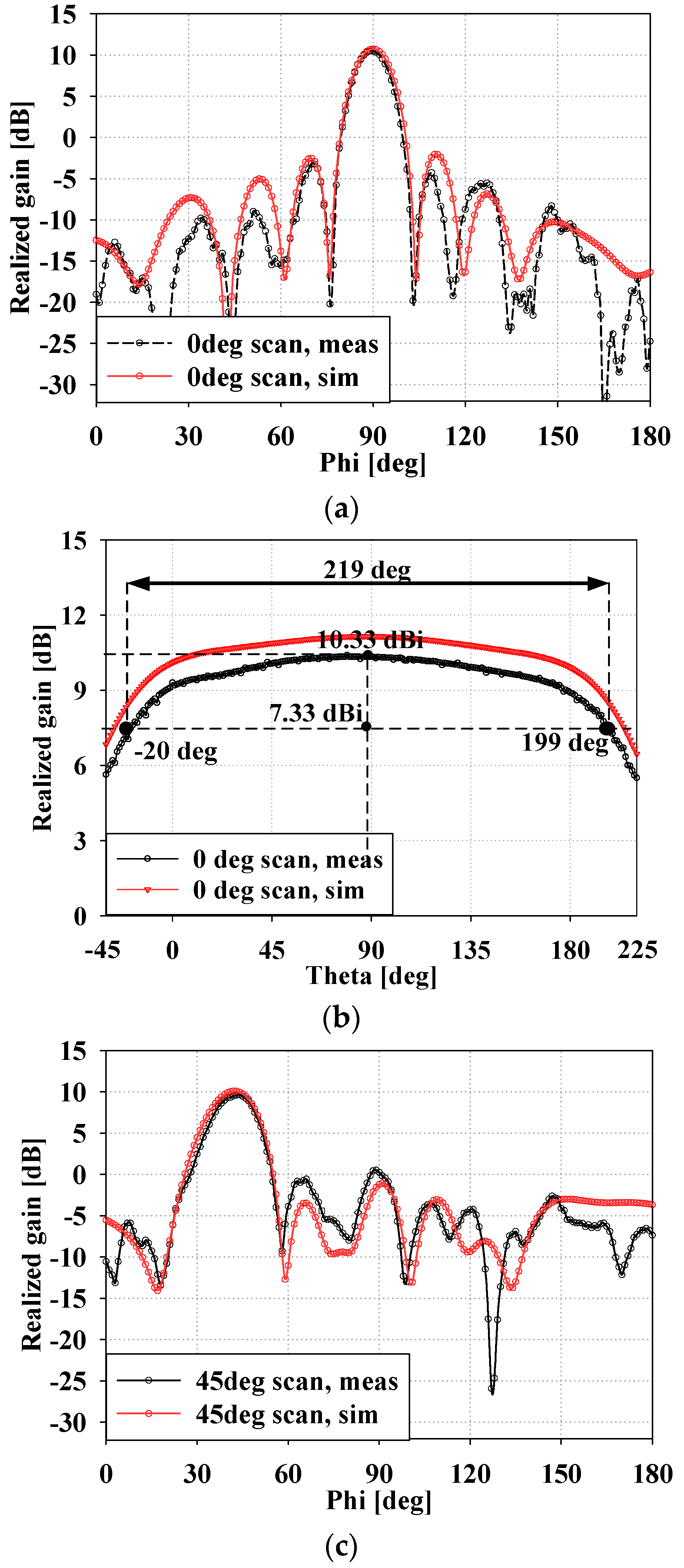

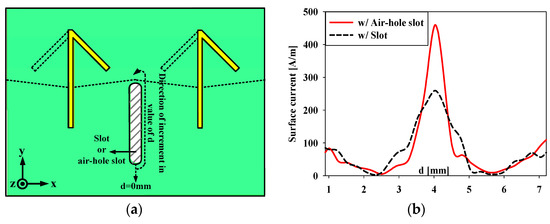

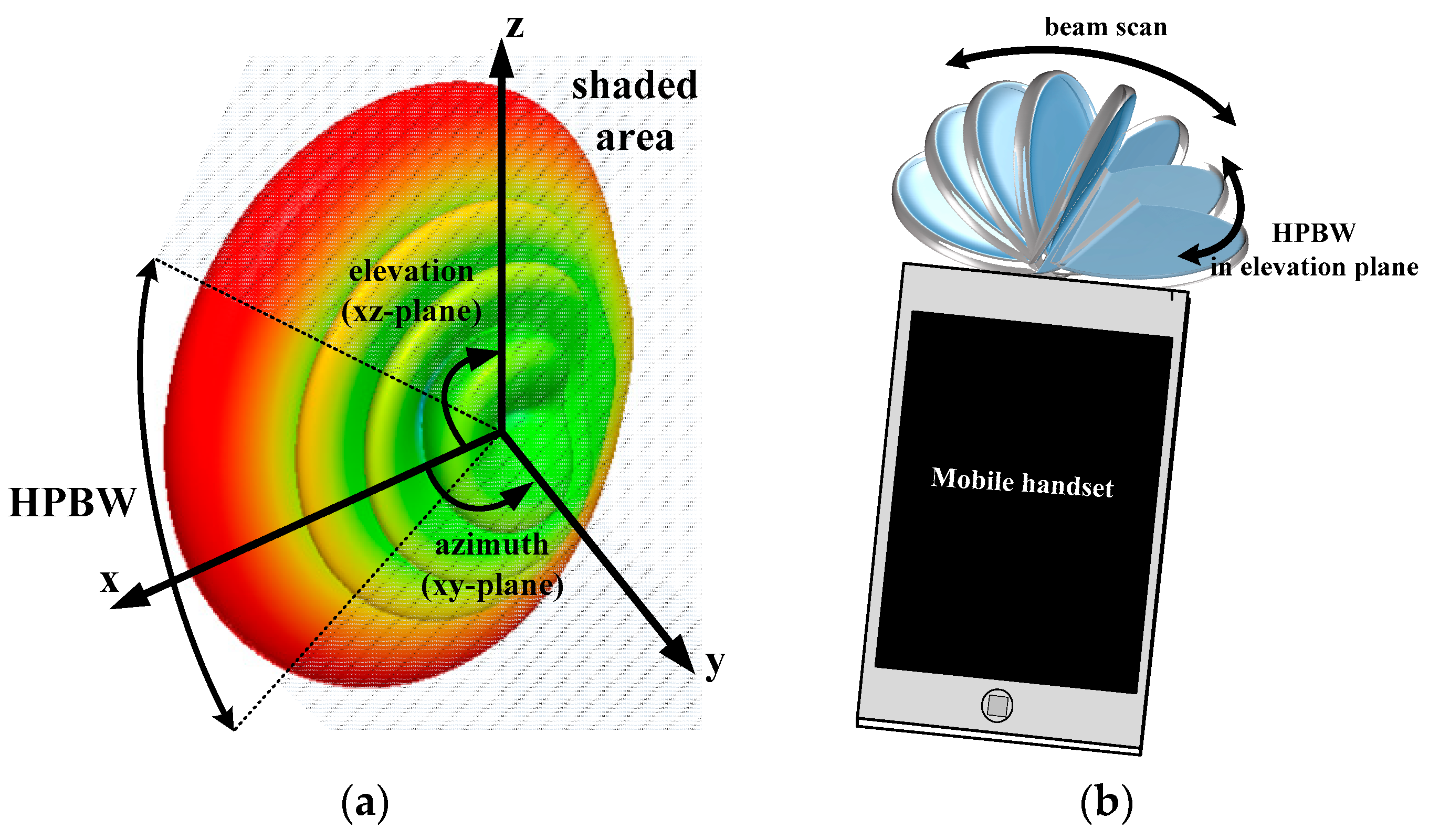

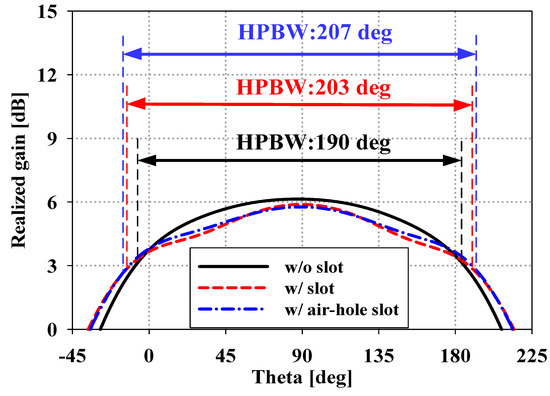

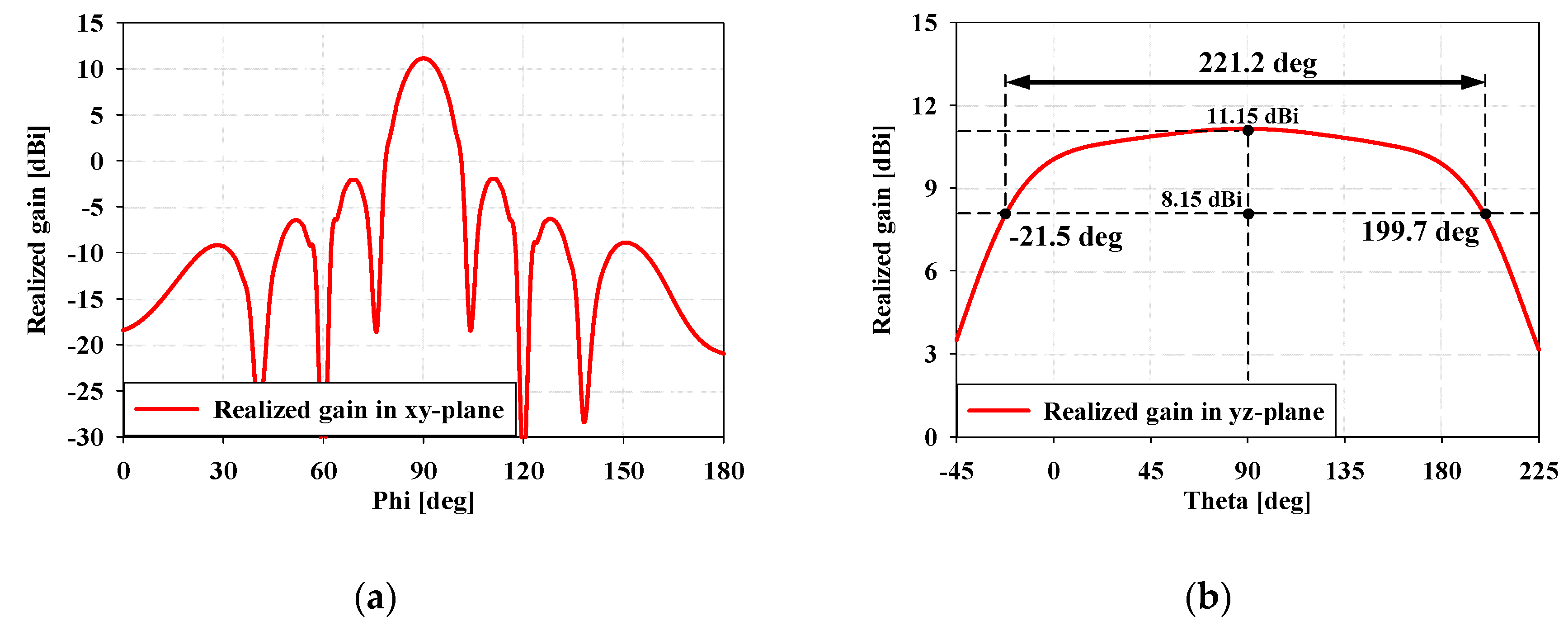

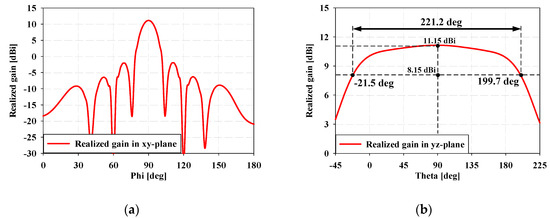

In this paper, a 28 GHz fifth-generation (5G) phased array antenna with air-hole slots for beam width enhancement is proposed. The proposed antenna consists of eight dipole radiators on a mobile handset-sized ground with air-hole slots between the two adjacent elements for enhancing the half power beam width (HPBW) in the elevation plane. The dimensions of the proposed antenna are 130 mm × 42 mm × 0.127 mm. The proposed array antenna satisfies a −10 dB reflection coefficient in the frequency range from 27.2 to 29.2 GHz with a peak gain of 10.33 dBi and a side lobe level (SLL) of 13 dB. In addition to its good performance, the proposed antenna has a very wide HPBW (measured) in the elevation plane, up to 219 degree with a scan coverage of ±45 degree in the azimuth plane. The proposed antenna demonstrates excellent hemispheric beam coverage for 5G mobile handset devices and can enable cost-effective mass production. View Full-Text
Keywords: fifth-generation (5G); millimeter-wave; phased array; air hole; beam width fifth-generation (5G); millimeter-wave; phased array; air hole; beam width
Show Figures

Figure 1

MDPI and ACS Style

Lee, H.; Kim, S.; Choi, J. A 28 GHz 5G Phased Array Antenna with Air-Hole Slots for Beam Width Enhancement. Appl. Sci. 2019, 9, 4204.
