Enhanced Thermal Properties of Zirconia Nanoparticles and Chitosan-Based Intumescent Flame Retardant Coatings

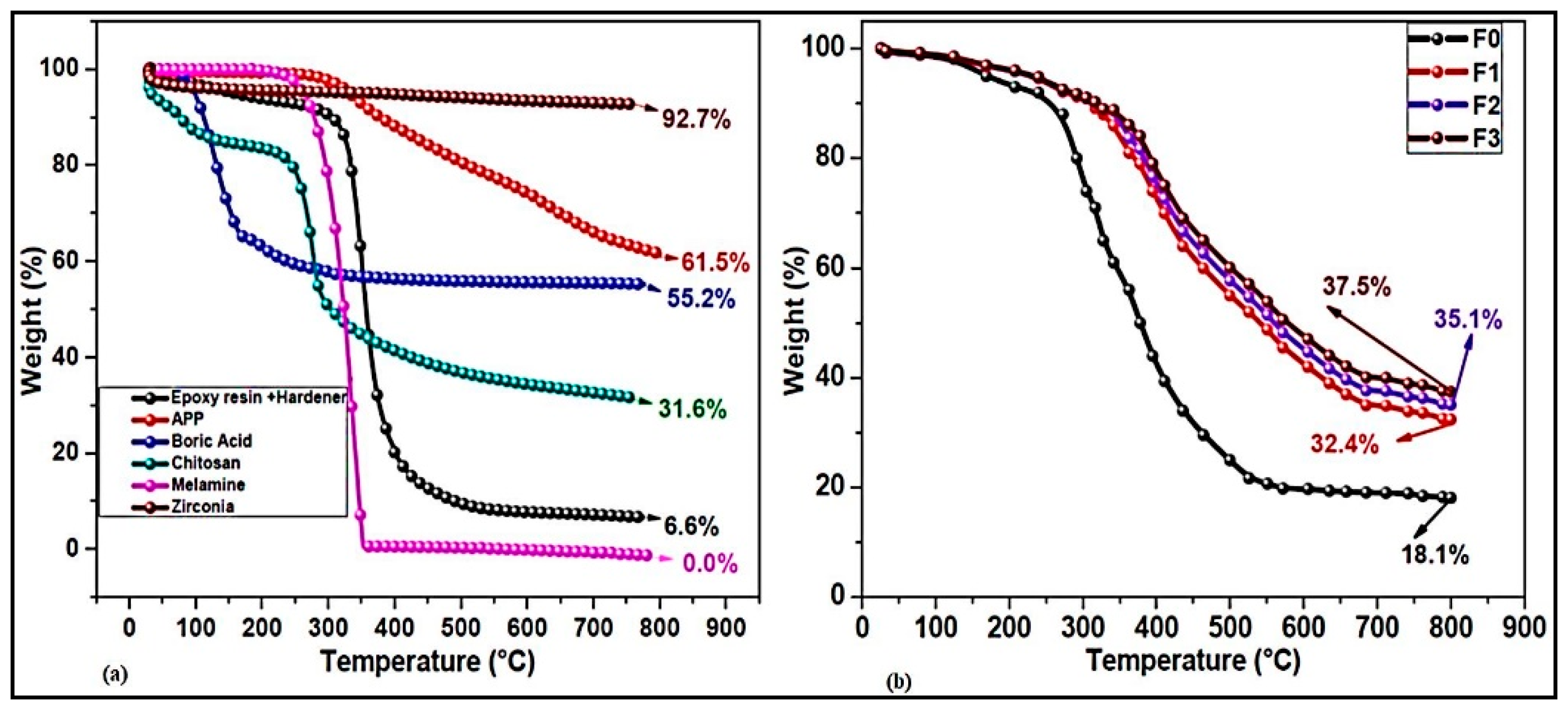

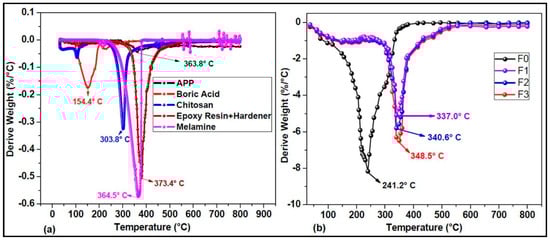

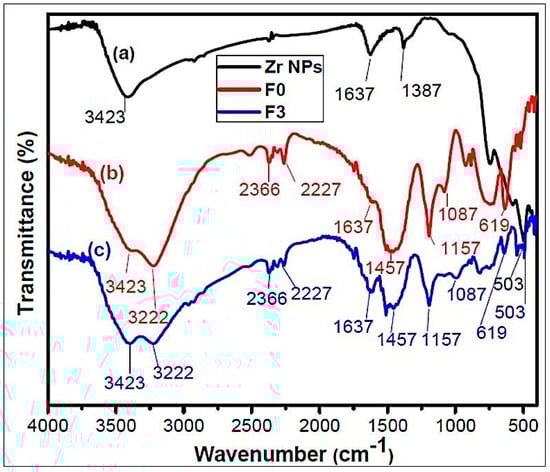

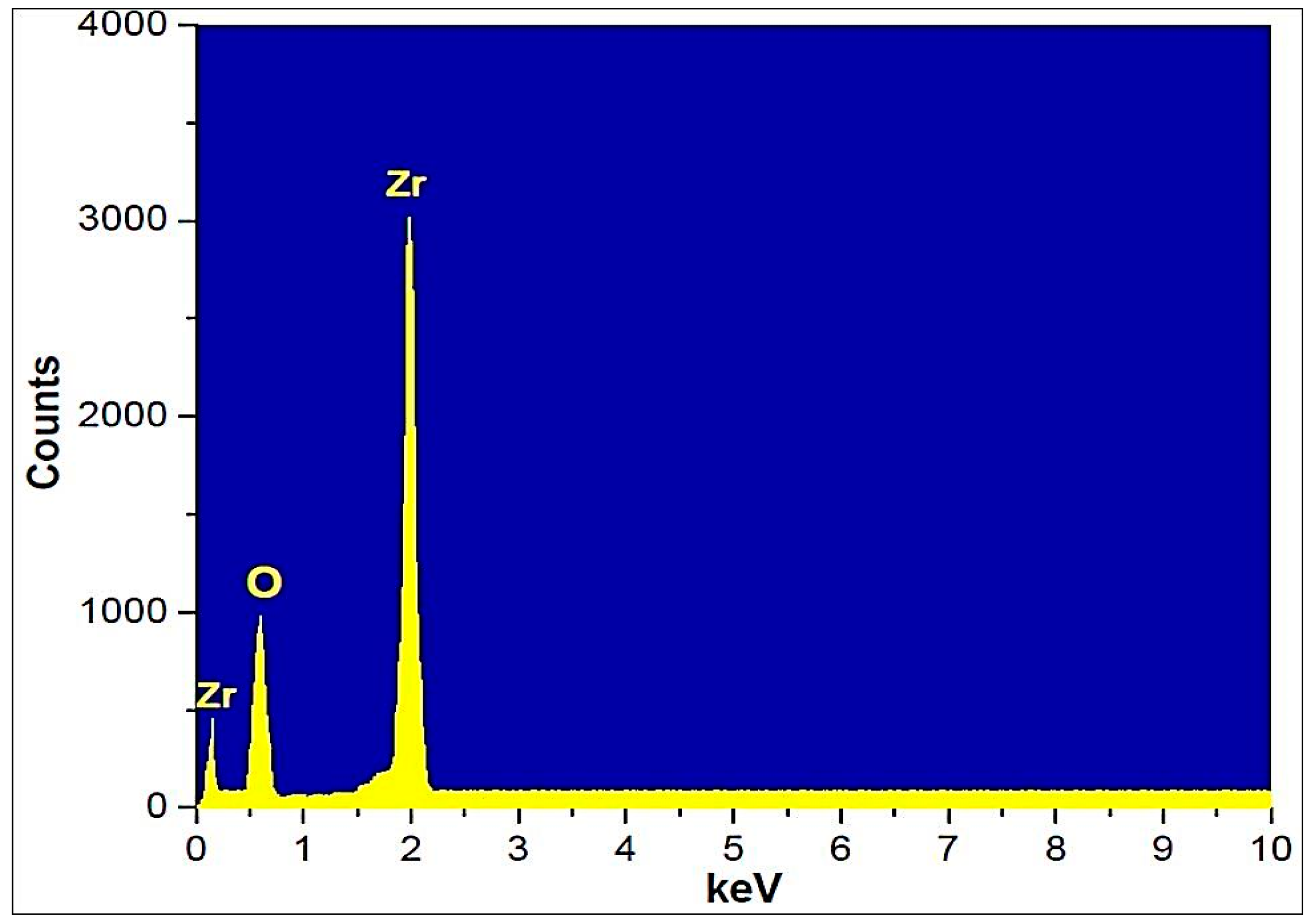

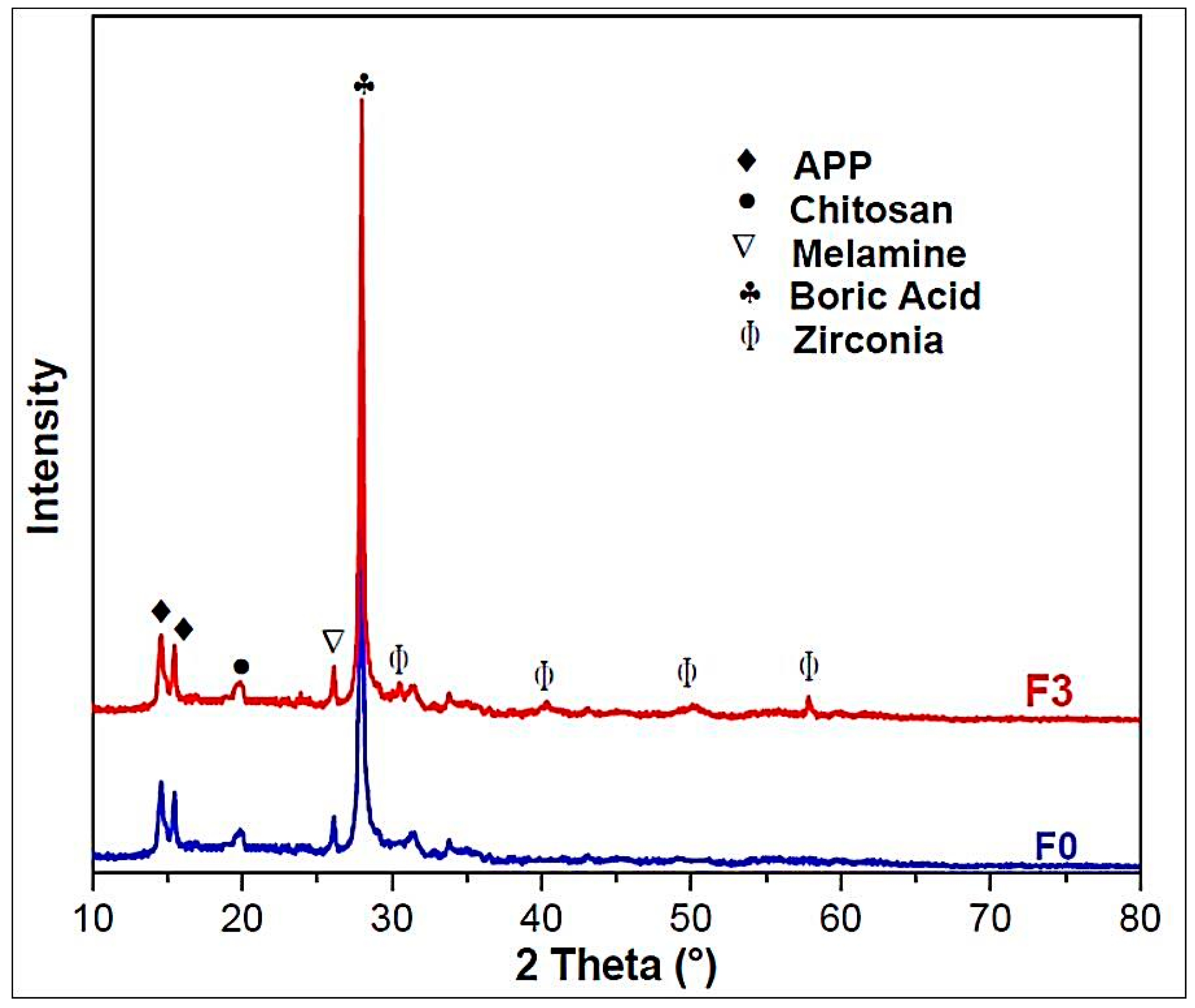

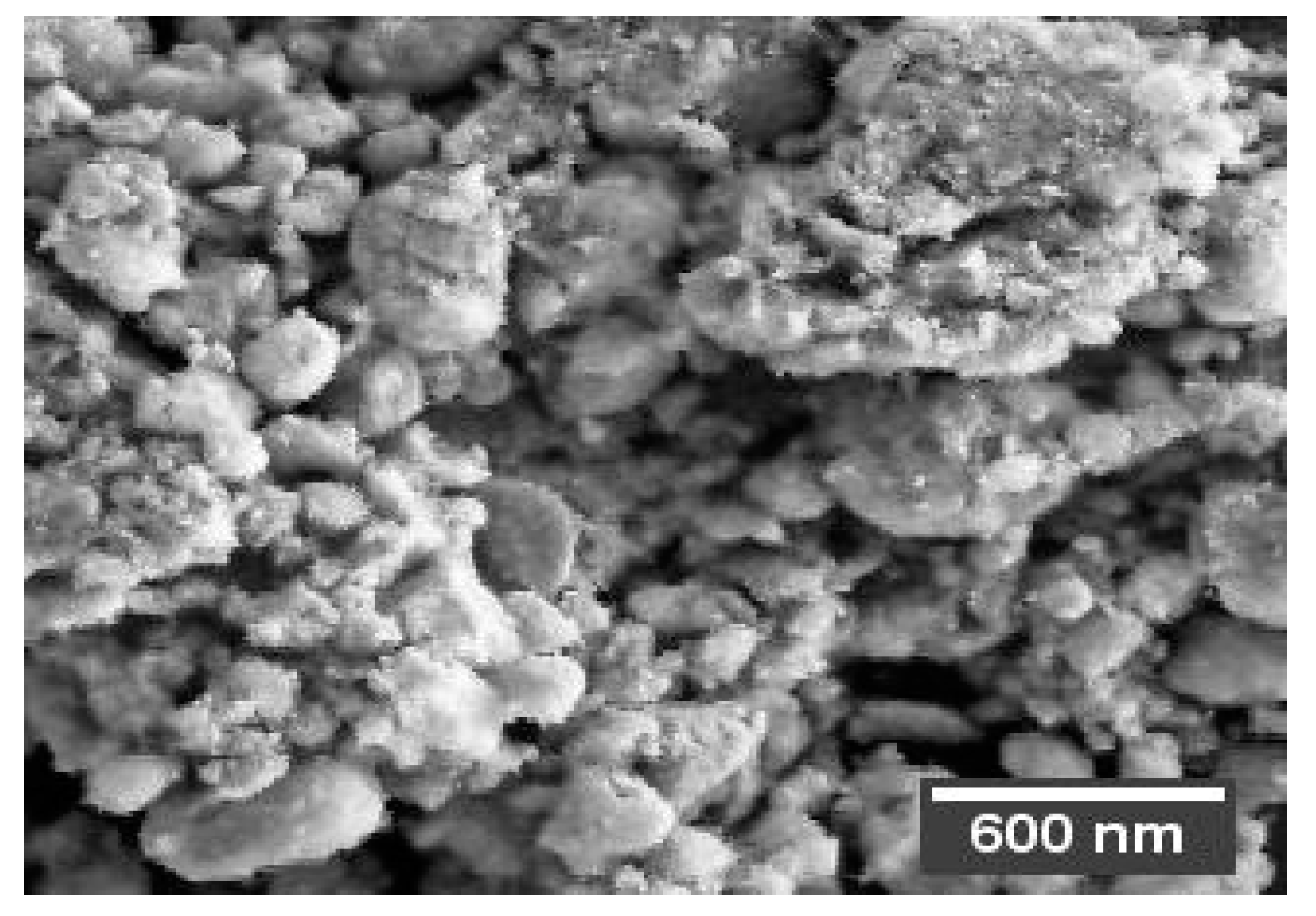

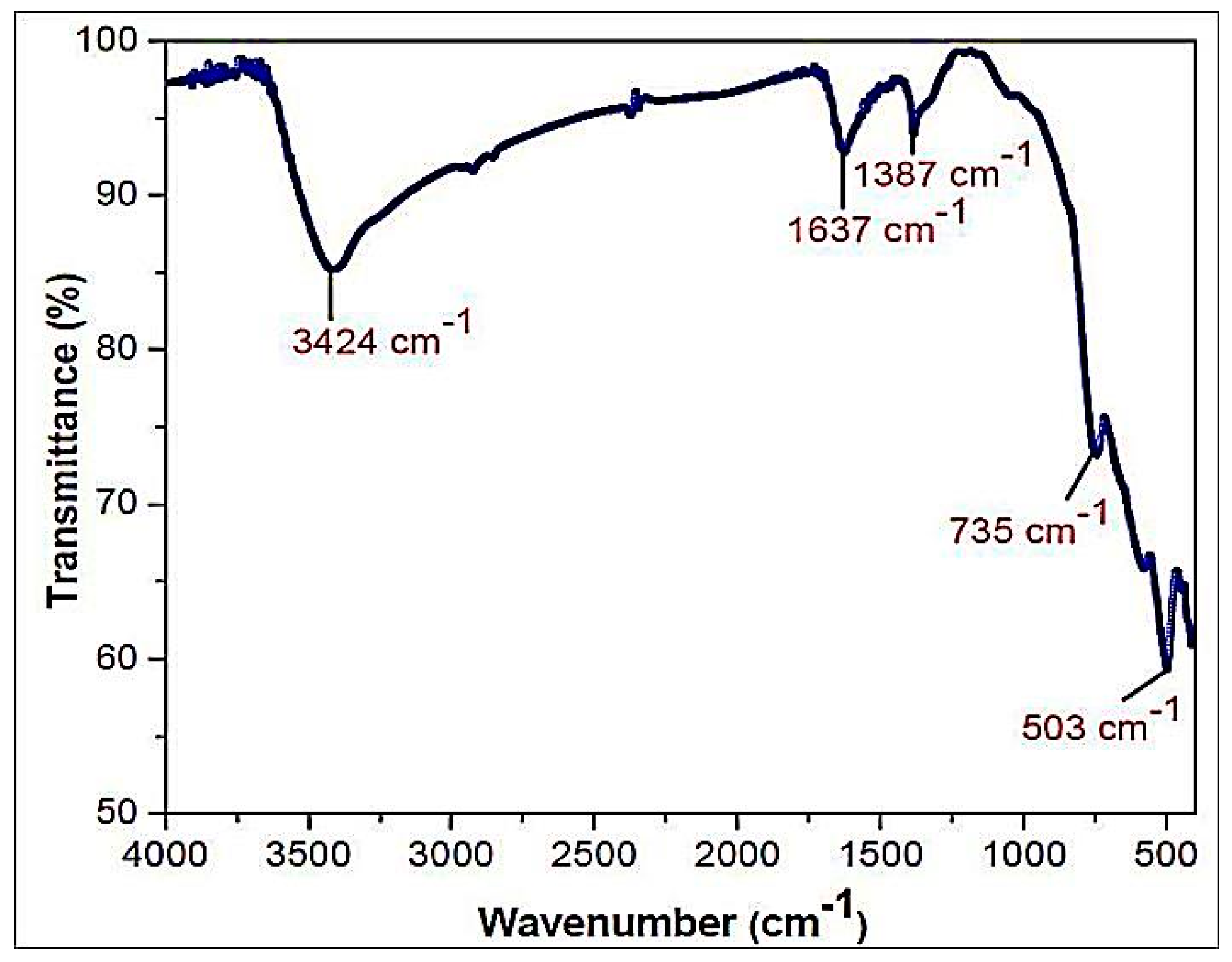

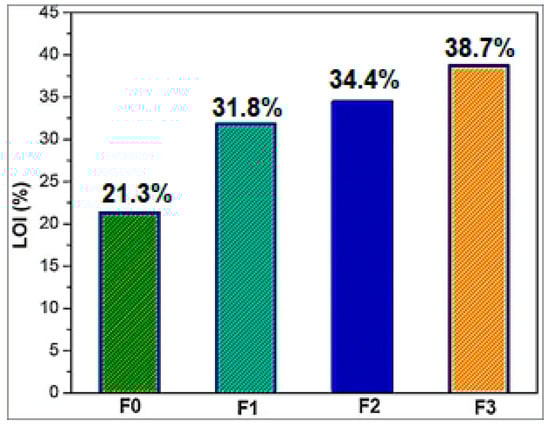

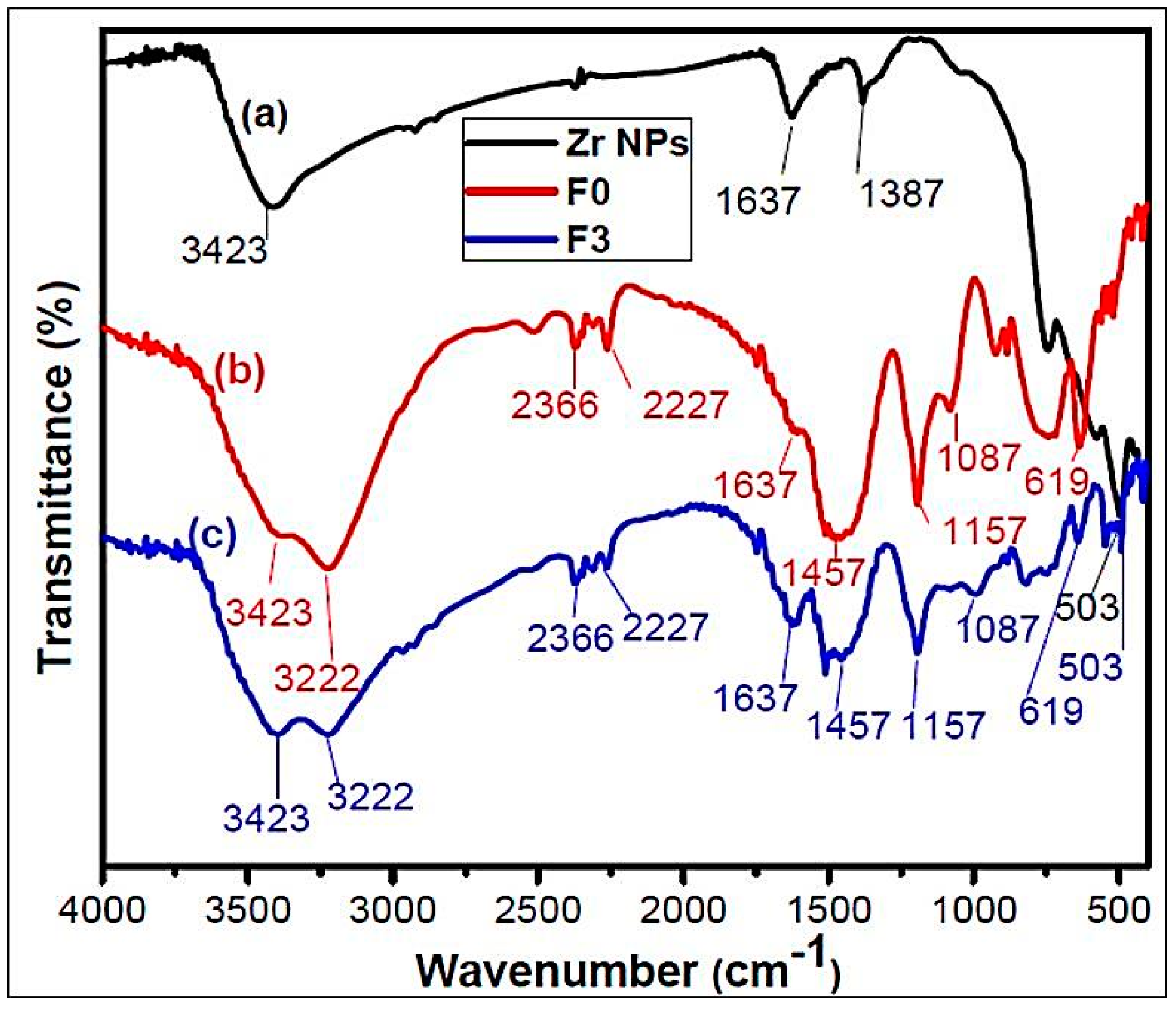

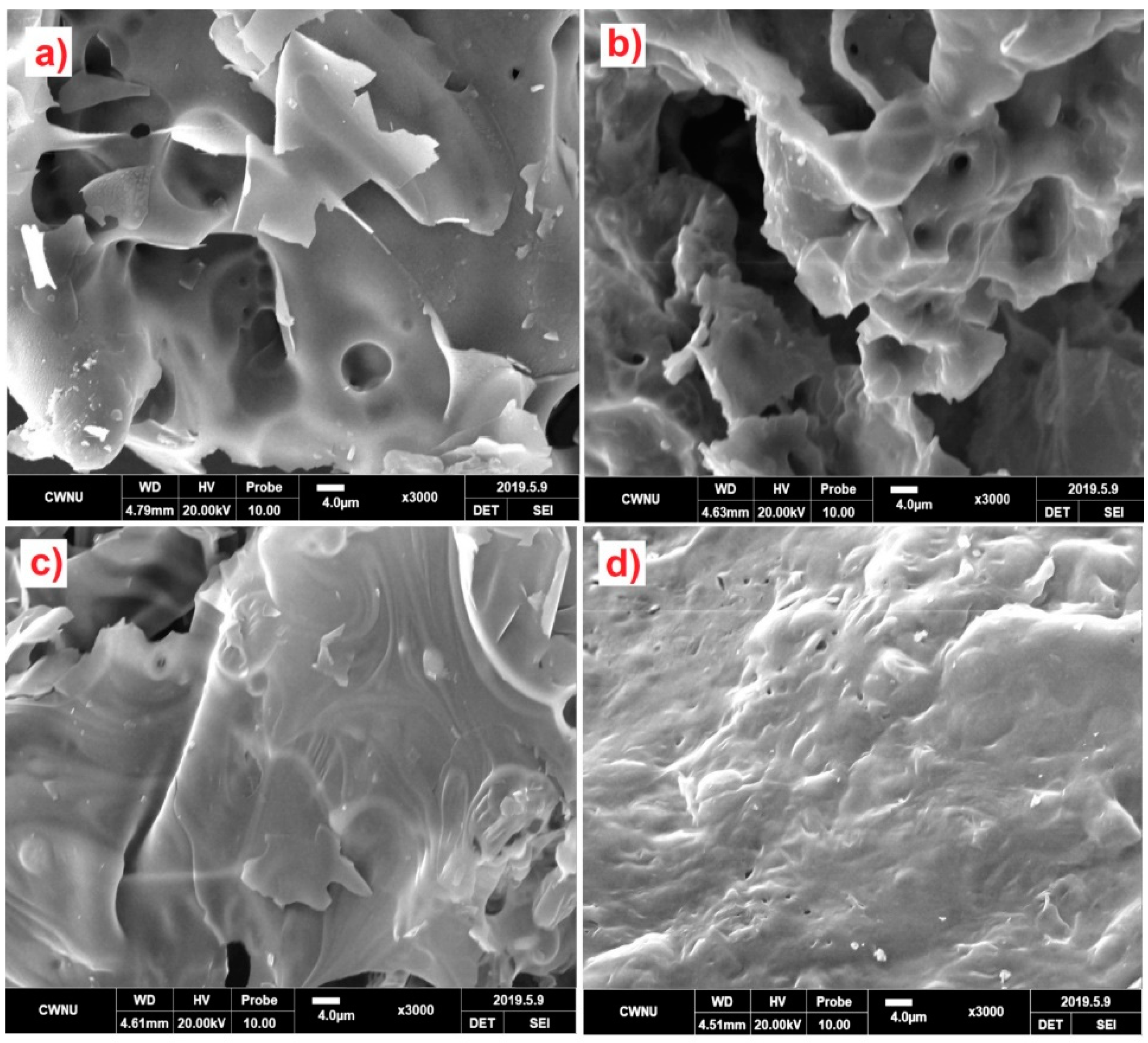

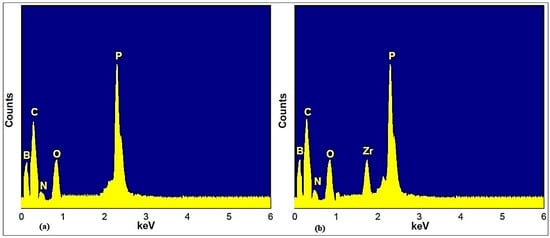

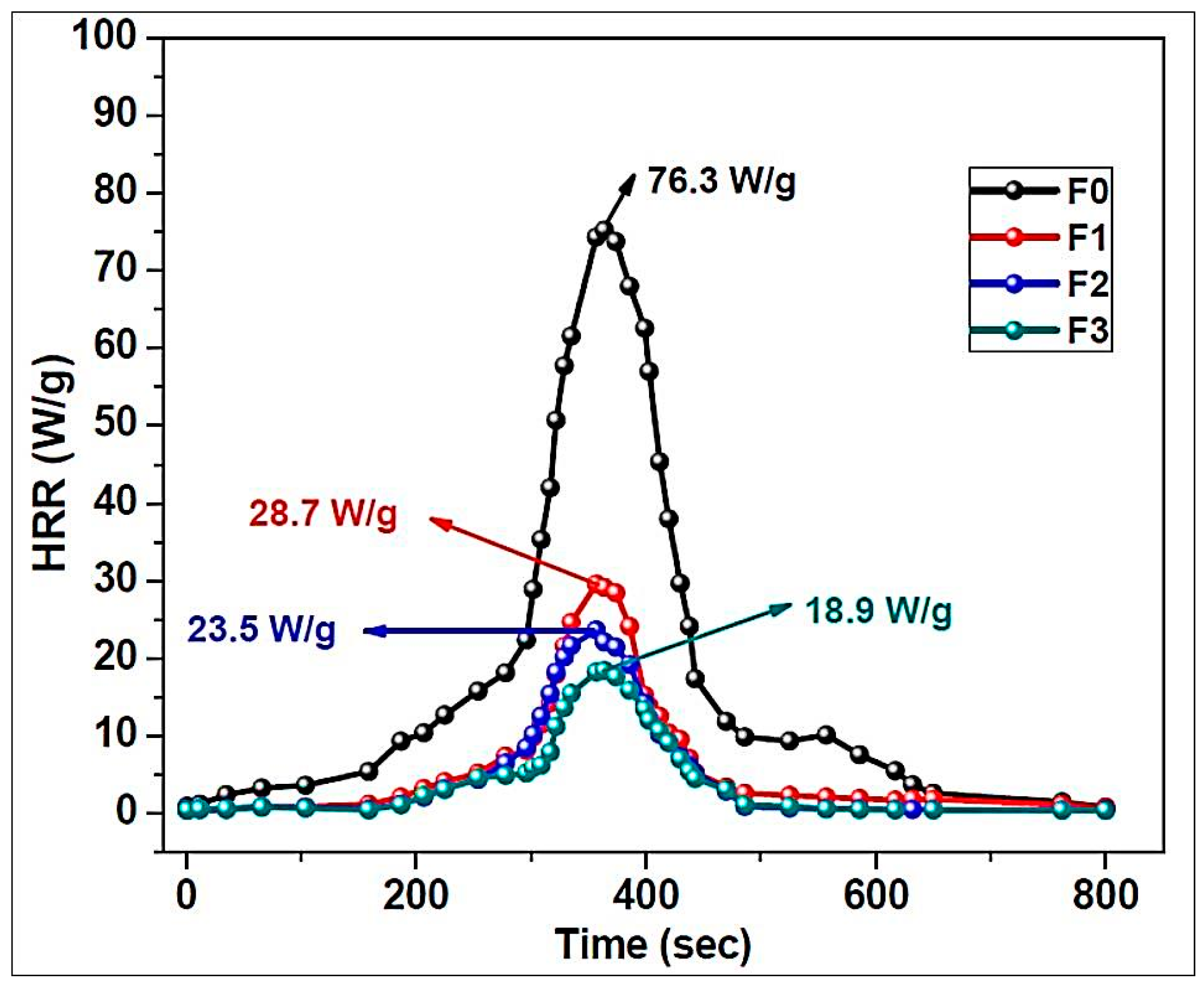

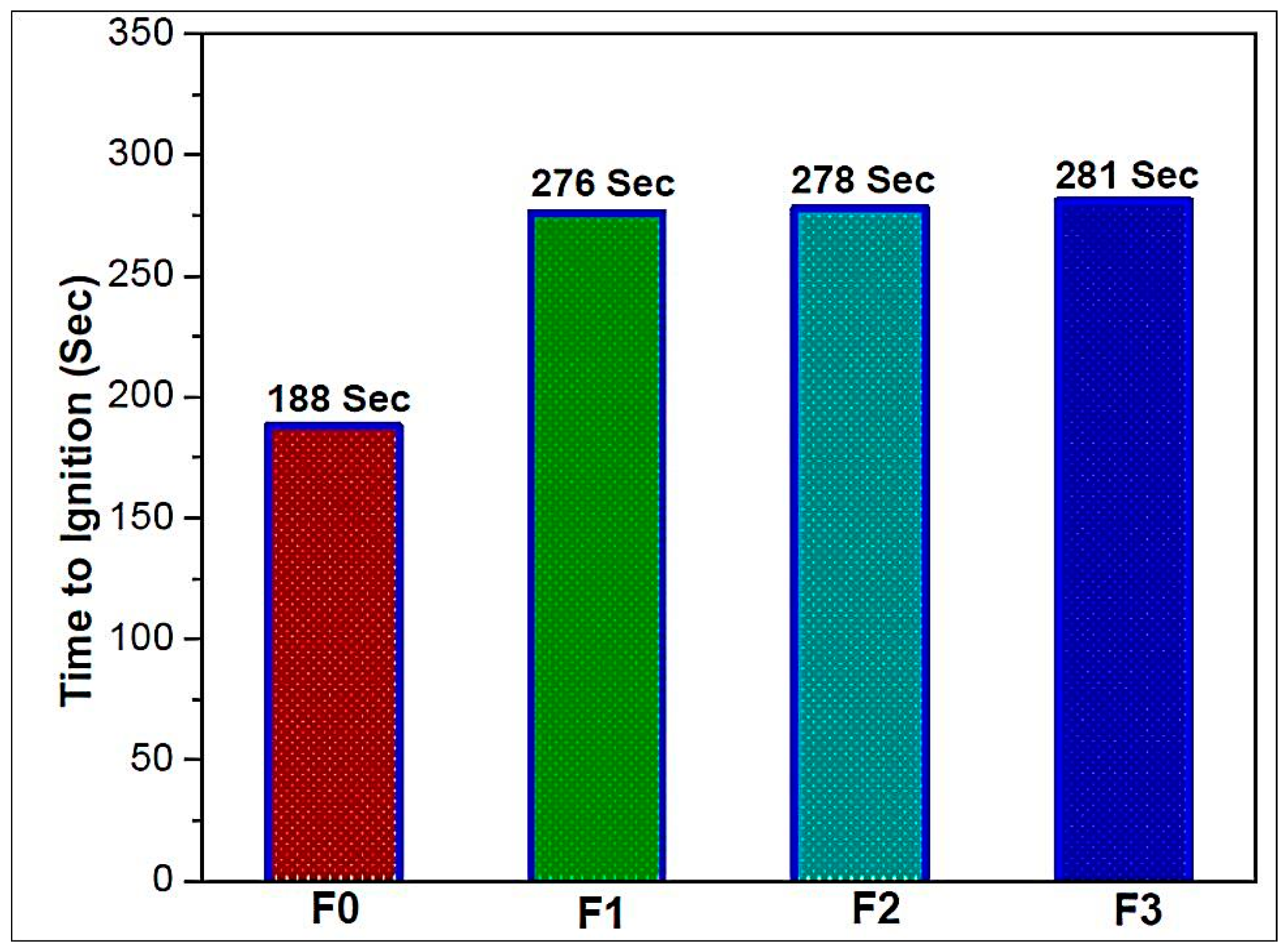

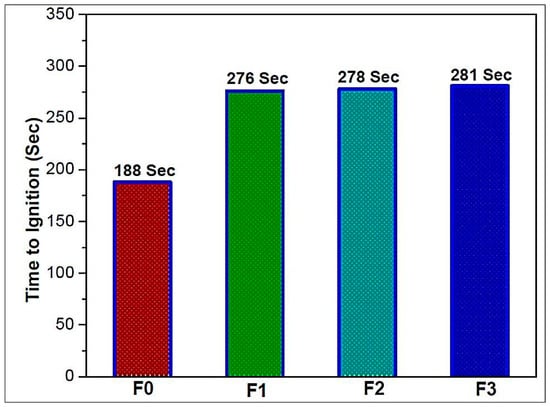

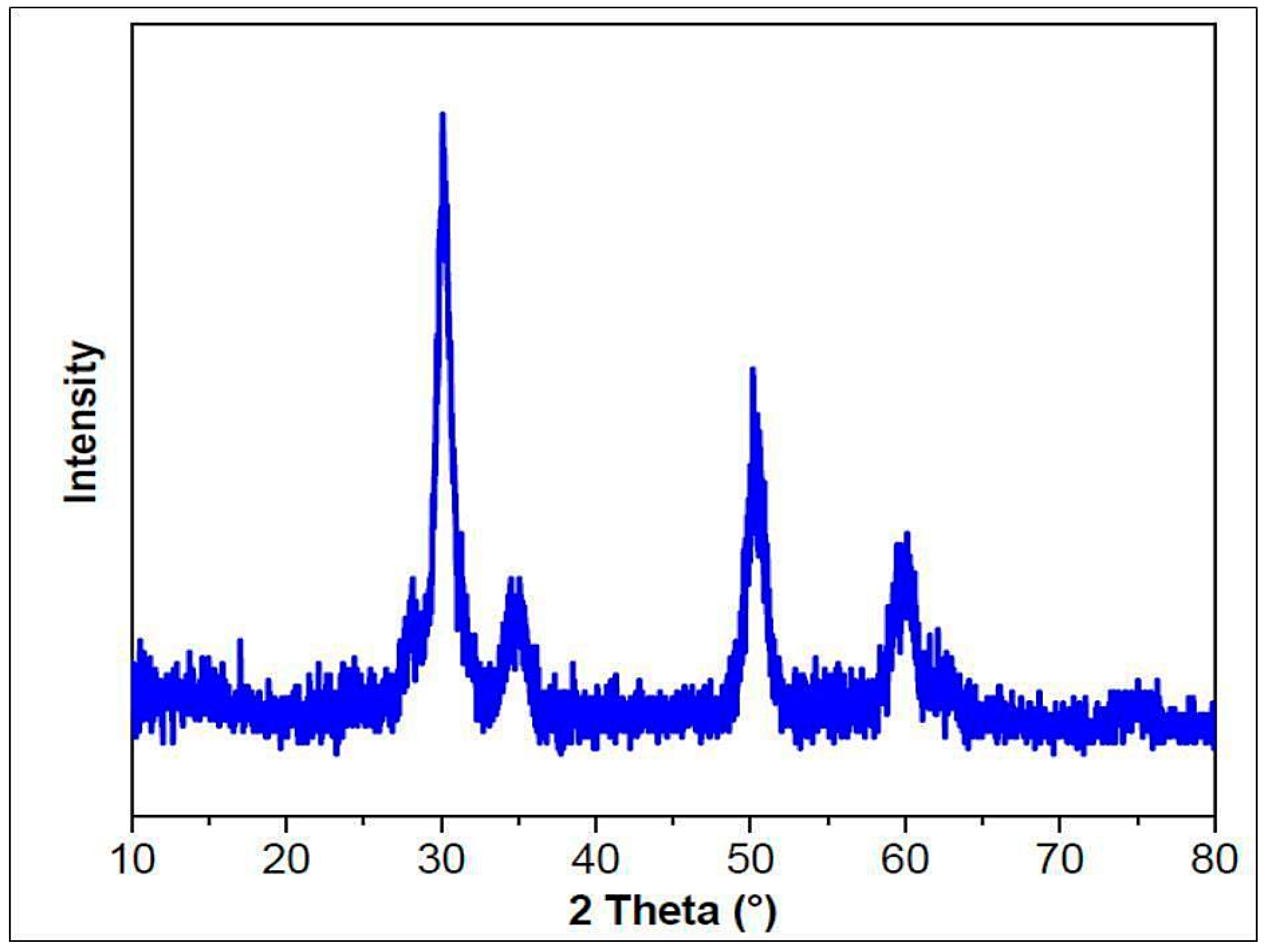

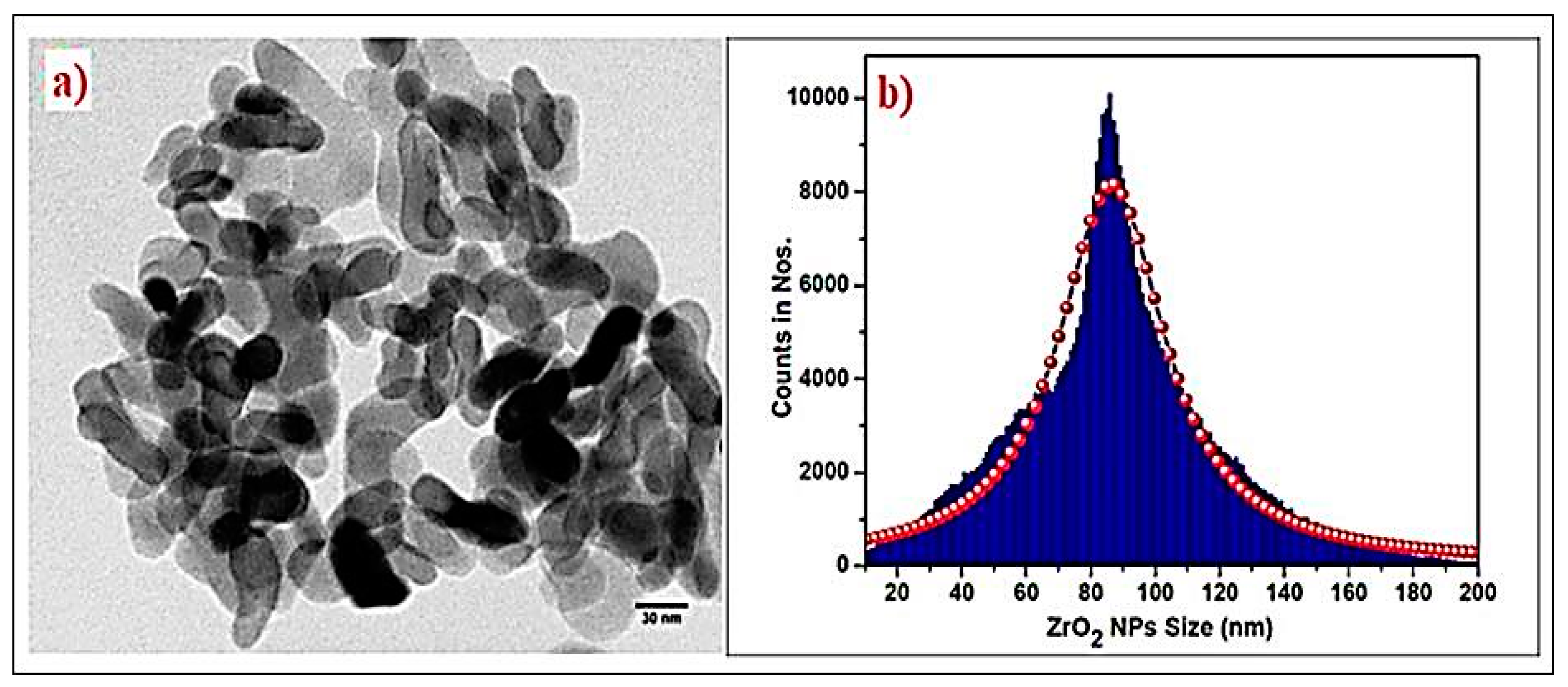

Zirconia (ZrO₂)-based flame retardant coatings were synthesized through the process of grinding, mixing, and curing. The flame retardant coatings reinforced with zirconia nanoparticles (ZrO₂ NPs) were prepared at four different formulation levels marked by F0 (without adding ZrO₂ NPs), F1 (1% w/w ZrO₂ NPs), F2 (2% w/w ZrO₂ NPs), and F3 (3% w/w ZrO₂ NPs) in combination with epoxy resin, ammonium polyphosphate, boric acid, chitosan, and melamine. The prepared formulated coatings were characterized by flammability tests, combustion tests, and thermogravimetric analysis. Finally, char residues were examined with scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS). The peak heat release rate (PHRR) of the controlled sample filled with functionalized ZrO₂ NPs was observed to decrease dramatically with increasing functionalized ZrO₂ NPs loadings. There was an increase in the limit of oxygen index (LOI) value with the increase in the weight percentage of ZrO₂ NPs. The UL-94V data clearly revealed a V-1 rating for the F0 sample; however, with the addition of ZrO₂ NPs, the samples showed enhanced properties with a V-0 rating. Thermal gravimetric analysis (TGA) results revealed that addition of ZrO₂ NPs Improved composite coating thermal stability at 800 °C by forming high residual char. The results obtained here reveal that the addition of ZrO₂ NPs in the formulated coatings has shown the excellent impact as flame retardant coatings. View Full-Text
