TiO2/ZnO Nanofibers Prepared by Electrospinning and Their Photocatalytic Degradation of Methylene Blue Compared with TiO2 Nanofibers

by
Chang-Gyu Lee
1,
Kyeong-Han Na
1,
Wan-Tae Kim
1,
Dong-Cheol Park
1,2,
Wan-Hee Yang
2 and
Won-Youl Choi
1,3,*
1
Department of Advanced Materials Engineering, Gangneung-Wonju National University, Gangneung, Gangwon 25457, Korea
2
WITH M-TECH Co., Ltd., Suwon, Gyeonggi 16229, Korea
3
Research Institute for Dental Engineering, Gangneung-Wonju National University, Gangneung, Gangwon 25457, Korea
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(16), 3404; https://doi.org/10.3390/app9163404
Submission received: 19 July 2019 / Revised: 3 August 2019 / Accepted: 16 August 2019 / Published: 19 August 2019
(This article belongs to the Special Issue NANO KOREA 2019)
Browse Figures
Review Reports Versions Notes

Abstract

:
TiO2 nanofibers have high chemical stability and high strength and are applied to many fields such as air pollution sensors and air pollutant removal filters. ZnO nanofibers also have very high absorptivity in that air and are used as germicides and ceramic brighteners. TiO2/ZnO nanofibers, which have a composite form of TiO2 and ZnO, were fabricated and show higher photocatalytic properties than existing TiO2. The precursor, including zinc nitrate hexahydrate, polyvinyl acetate, and titanium isopropoxide, was used as a spinning solution for TiO2/ZnO nanofibers. Electrospun TiO2/ZnO nanofibers were calcined at 600 °C and analyzed by field emission scanning electron microscope (FE-SEM) and X-ray diffraction (XRD). The average diameter of TiO2/ZnO nanofibers was controlled in the range of 189 nm to 1025 nm. XRD pattern in TiO2/ZnO nanofibers have a TiO2 anatase, ZnO, Ti2O3, and ZnTiO3 structure. TiO2/ZnO nanofibers with a diameter of 400 nm have the best photocatalytic performance in the methylene blue degradation experiments and an absorbance decrease of 96.4% was observed after ultraviolet (UV) irradiation of 12 h.

1. Introduction

There is a growing concern about air pollution due to internal combustion engines installed in vehicles and the large amount of exhaust gas generated in various industrial fields. Typical air pollutants include volatile organic compounds which are known to be very harmful to the human body. The World Health Organization (WHO) has announced that the incidence of various respiratory diseases can be lowered by reducing air pollution. Air pollution will become more and more serious as the scale of various industries increases. Accordingly, various solutions for reducing the concentrations of pollutants in the air such as microorganisms, photocatalysts, and activated carbon have been proposed. Among them, photocatalyst technology has attracted attention because it can continuously decompose pollutants by using renewable energy [1,2,3]. A photocatalytic method has been studied as a method of removing pollutants. A photocatalyst means that the oxidation-reduction reaction on the surface of a substance occurs by absorbing light. It is applied to various tasks such as decomposition of harmful substances by the oxidation-reduction reaction that occurs on the surface, gas detection, ultraviolet blocking, antibacterial function, and midnight function. The photocatalytic reaction does not require other energy because the reaction is also caused by solar energy and light. Since CO2 and H2O generated by these photocatalytic reactions do not pollute the environment, they are environmentally friendly and economical because they can be used semipermanently [4,5,6,7]. Many TiO2 nanomaterials and ZnO nanomaterials are used as these photocatalyst materials [8,9,10,11,12,13,14,15]. This is because TiO2 nanomaterials are very stable physically and chemically and have excellent heat resistance and bio-friendly properties [16,17,18,19]. ZnO nanomaterials have a high degree of adsorption and are used as ceramic brighteners, germicides, and the like [20,21,22,23].
Nanomaterials such as nanofibers, nanotubes, and nanoparticles have various physical and chemical properties because they have various structures and pore distribution [24,25,26]. Among such nanomaterials, one-dimensional nanomaterials have different properties from bulk materials and have been studied in various fields for the application of chemical sensors, photovoltaic cells, optical filters, and improvement of catalytic activity [27,28,29,30,31,32,33]. Nanofibers have excellent photocatalytic and electrical properties because of their large specific surface area and one-dimensional structure [34,35,36,37]. The electrospinning process is a practical technique with a low cost and high efficiency, and many studies have reported producing these various nanofibers [38,39,40,41,42,43]. In the electrospinning process, the precursor solution flows through at a constant rate through a pump in such a way as to create a continuous nanofiber; then electrodes are connected to the inflowing electrospinning solution and other electrodes are connected to the appliance plate. At this time, if a high voltage is applied, it is emitted in a conical shape by surface tension at the electrospinning solution end. The charge is subsequently stored in the electrospinning solution, and the mutual repulsion causes the cone to be radiatively stretched to jet when the surface tension of the electrospinning solution is exceeded. In the radiation-stretched electrospinning solution, volatilization of the solvent occurs before it collects in the plate, and it is possible to obtain disorderly arranged nanofibers in the plate [44,45].
In this study, the electrospinning process was used to fabricate TiO2/ZnO nanofibers for photocatalyst materials and process variables were controlled to obtain a stable and optimized one-dimensional structure. The microstructure and phase of the electrospun TiO2/ZnO nanofibers were analyzed through field emission scanning electron microscopy (FE-SEM) and X-ray diffraction (XRD), respectively. The photocatalytic efficiencies of TiO2/ZnO nanofibers and TiO2 nanofibers were observed by ultraviolet–visible spectroscopy (UV–Vis) using the photocatalytic decomposition of methylene blue.

2. Materials and Methods

2.1. Electrospinning Process

The solution, N,N-Dimethylformamide (DMF, extra pure, DAEJUNG Chemicals and Metals Co., Ltd., Siheung-Si, Korea), was used as a solvent for dissolving a polyvinyl acetate (PVAc, Mw~500,000 by GPC, Powder, Sigma-Aldrich Co., Ltd., St. Louis, MO, USA) and 5 wt % PVAc was dissolved. DMF solution of 5g with PVAc was stirred for 4 h using a stirrer. After dissolution was complete, 6 g titanium (IV) isopropoxide (TTIP, JUNSEI Co., Ltd., Tokyo, Japan) and 21–35 wt % acetic acid (extra pure, DAEJUNG Chemicals and Metals Co. Ltd., Siheung-Si, Korea) were added. The solution became clear and 0.1 g zinc powder (Powder, Sigma-Aldrich Co., Ltd., St. Louis, MO, USA) was added and stirred for 2 h.
Figure 1 is a diagram schematically showing the electrospinning process. The distance between the needle and the plate was 15 cm and a 10-mL syringe was used. To obtain the various microstructures of TiO2/ZnO nanofibers, experimental variables such as voltage, inflow rate, and amount of acetic acid were controlled. The applied voltages of 12 kV, 15 kV, and 18 kV, the pump inflow rates of 1 mL/h, 0.8 mL/h, and 0.6 mL/h, and 21 wt %, 28 wt %, and 35 wt % of acetic acid were used, respectively. The electrospinning process variables for TiO2/ZnO nanofibers are summarized in Table 1.
Electrospun TiO2/ZnO nanofibers were dried at 80 °C for 24 h in an oven. The dried TiO2/ZnO nanofibers was heat-treated at 600 °C for 1 h in a furnace. The microstructure of TiO2/ZnO nanofibers was observed using FE-SEM (SU-70, Hitachi Co., Tokyo, Japan) and the diameters of TiO2/ZnO nanofibers were measured. To confirm the metal oxide phase of TiO2/ZnO nanofibers, XRD (AXS-D8, Bruker Co., Madison, WI, USA) patterns were also observed from 20° to 80° at a rate of 0.03° per step using a Cu Kα target.

2.2. Evaluation of Photocatalytic Efficiency

The photocatalytic decomposition reaction was carried out using an ultraviolet lamp (JINLED Co., Ltd.) of 10 W at room temperature as an irradiation light source. The irradiation distance between the lamp and the sample was fixed to 10 cm. A nanofiber of 0.5 g was added to the methylene blue aqueous solution, and the mixture was stirred to irradiate the light source. To compare TiO2/ZnO nanofibers with TiO2 nanofibers, TiO2 nanofibers were fabricated by the electrospinning process. The electrospinning process conditions for the nanofibers are shown in Table 2.
To fabricate TiO2 nanofibers, polyvinylpyrrolidone (PVP, MW 1,300,000 Powder, ALFA AESAR Co., Ltd., Tewksbury, MA, USA) and ethyl alcohol (EtOH, 99.5%, SAMCHUN Chemical Co., Ltd., Seoul, Korea) were used. TTIP and acetylacetone (ACAC, JUNSEI Chemical Co., Ltd., Tokyo, Japan) were also added into the PVP-based solution and the mixed solution was stirred for 2 h. The prepared TiO2 electrospinning solution was mounted on the pump and the electrospinning was conducted at the pump inlet rate of 1 mL/h and voltage of 15 kV. As-spun TiO2 nanofibers were heat-treated at 450 °C for 3 h and TiO2 nanofibers with an anatase phase were prepared to compare with TiO2/ZnO nanofibers. The molar ratio of TiO2 to ZnO was equal to 17:1 in TiO2/ZnO-1 and TiO2/ZnO-2 nanofibers. To obtain a different diameter, the flow rate was controlled. TiO2/ZnO-1 and TiO2/ZnO-2 nanofibers were fabricated at a flow rate of 3 mL/h and 2 mL/h, respectively. The prepared TiO2/ZnO nanofibers were dried at 80 °C for 24 h. The dried specimen was placed in a heating furnace and heat-treated at 600 °C for 1 h. To evaluate the photocatalytic activity, UV–Vis spectrums with the TiO2 and TiO2/ZnO nanofibers were observed using the photocatalytic decomposition of methylene blue.

3. Results

3.1. TiO2/ZnO Nanofibers

Figure 2 shows the FE-SEM images of TiO2/ZnO nanofibers fabricated by the electrospinning process at various applied voltages of 12 kV, 15 kV, and 18 kV. TiO2/ZnO nanofibers have a typical one-dimensional and clean microstructure without droplets. Increasing the voltage during the electrospinning process increased the charge density of the solution and nanofibers with a small diameter were obtained. When voltage exceeding the limit was applied, nanofibers were not formed and sprayed. If a lower voltage is used then surface tension is applied, and nanofibers in the form of nanofiber intermediate beads can be obtained instead of nanofibers of a constant diameter.
The average diameters of TiO2/ZnO nanofibers with applied voltage was 1025 nm, 735 nm, and 694 nm, respectively. It reveals that the higher the voltage, the smaller the diameter. The diameters of TiO2/ZnO nanofibers with applied voltage are plotted in Figure 3.
Figure 4 shows FE-SEM images of TiO2/ZnO nanofibers fabricated by the electrospinning process at various inflow rates of 1.0 mL/h, 0.8 mL/h, and 0.6 mL/h. A one-dimensional nanofiber was observed in all TiO2/ZnO nanofibers. When the flow rate of the electrospinning solution is fast, the size of the droplet that forms on the tip of the needle becomes large. Even when the solution is reached at the collector, the solvent in the solution may not be completely evaporated, and a nanofiber with a bead-shape or large diameter can be obtained.
The average diameters of TiO2/ZnO nanofibers with an inflow rate were 1025 nm, 771 nm, and 728 nm, respectively. The average diameter of TiO2/ZnO nanofibers increased with inflow rate. The diameters of TiO2/ZnO nanofibers with an inflow rate are plotted in Figure 5.
Figure 6 shows FE-SEM images of TiO2/ZnO nanofibers fabricated by the electrospinning process at various amounts of acetic acid—21 wt %, 28 wt %, and 35 wt %—in the precursor solution. All TiO2/ZnO nanofibers have nanofiber structural networks. As the amount of acetic acid in the electrospinning solution increases, the viscosity decreases, and the diameter of the nanofibers dramatically decreases. This reveals that the viscosity is the most important parameter for controlling the diameter in the electrospinning process.
The average diameters of TiO2/ZnO nanofibers with an inflow rate were 1025 nm, 233 nm, and 189 nm, respectively and the average diameter dramatically decreased with the amount of acetic acid. The diameters of TiO2/ZnO nanofibers with different amounts of acetic acid are plotted in Figure 7.
To observe the crystal phase of TiO2/ZnO nanofibers, XRD analysis was conducted. Figure 8 shows the XRD pattern of TiO2/ZnO nanofibers. The peaks of TiO2 anatase, ZnO, Ti2O3, and ZnTiO3 were identified and the peak of ZnTiO3 was obtained by the reaction of TiO2 and ZnO.

3.2. Photocatalytic Performance Evaluation

The photocatalytic reaction of TiO2/ZnO is schematically shown in Figure 9. The electrons in the valence band can move to the conduction band and generate holes in the valence band by ultraviolet (UV) rays in sunlight. In heterojunction of ZnO with an energy band gap of 3.2 eV and TiO2 with an energy band gap of 3.4 eV, the electrons in the conduction band of ZnO move to the conduction band of TiO2; then the holes move from the valence band of TiO2 to the valence band of ZnO. Electrons transferred to the TiO2 conduction band react with O2 to form a superoxide anion (O2¯). The holes transferred to the ZnO valence band react to form a strong hydroxyl radical (OH•). Such reactions continuously occur under UV irradiation, and high active radicals such as O2− and OH• can promote the photodegradation of organic pollutants [46,47,48,49]. Photodegradation characteristics using methylene blue were investigated for photocatalytic performance evaluation of TiO2/ZnO nanofibers. TiO2 nanofibers were used as a reference material to compare with TiO2/ZnO nanofibers. All nanofibers were fabricated by the electrospinning process.
Figure 10 shows the FE-SEM images of TiO2 nanofibers and TiO2/ZnO-1 and TiO2/ZnO-2 nanofibers used in methylene blue photolysis experiments for photocatalytic performance evaluation. The microstructure in all nanofibers shows a typical one-dimensional nanofiber structure and their shapes are similar to each other. The diameters of TiO2, TiO2/ZnO-1, and TiO2/ZnO-2 nanofibers are 400 nm, 600 nm, and 400 nm, respectively. The diameters of TiO2 nanofibers and TiO2/ZnO-1 and TiO2/ZnO-2 nanofibers are summarized in Table 3.
Figure 11 shows the absorption spectra to evaluate the photocatalytic performance of TiO2/ZnO nanofibers observed by UV–Vis analysis. Figure 11a–d are the spectra of methylene blue without nanofibers, with TiO2 nanofibers, with TiO2/ZnO-1 nanofibers, and with TiO2/ZnO-2 nanofibers, respectively. A total of 0.5 g of nanofiber was added in a 200 mL methylene blue solution (Figure 11b–d). All spectra have peaks at wavelength of 291 nm, 611 nm, and 656 nm. The intensity of the peaks gradually decreased with time because some factors such as UV, TiO2 nanofibers, and TiO2/ZnO nanofibers, cause methylene blue to decompose. Since methylene blue shows a low absorbance when photolyzed by photocatalytic reaction, it is possible to know whether the photocatalytic reaction has occurred or not [50,51].
To make sure methylene blue decomposed by photocatalytic reaction, the concentration of methylene blue on time was measured and normalized. The curves of normalized value (C/Co) were plotted as shown in Figure 12. In methylene blue solution without TiO2 nanofibers, the concentration very slowly decreased with time and only UV irradiation decomposed the methylene blue. After UV irradiation of 12 h, the normalized value of 0.874 was shown and the photodegradation rate was 12.6%. In methylene blue solution with TiO2 nanofibers, the normalized value decreased to 0.581 and the photodegradation rate was 41.9%. In methylene blue solution with TiO2/ZnO nanofibers, the normalized value dramatically decreased. This reveals that UV irradiation and photocatalytic reaction of TiO2/ZnO nanofibers affect the decomposition of methylene blue. After UV irradiation of 12 h, the normalized values in methylene blue with TiO2/ZnO-1 nanofibers and TiO2-ZnO-2 nanofibers were 0.054 and 0.037 and a photodegradation rate of 94.6% and 96.3% were observed, respectively. The photodegradation rate in methylene blue with TiO2/ZnO nanofibers was higher than with TiO2 nanofibers. This shows that TiO2/ZnO nanofibers decompose methylene blue more efficiently than TiO2 nanofibers, and the photodegradability of TiO2/ZnO nanofibers is better than that of TiO2 nanofibers. The best photocatalytic decomposition performance for methylene blue was observed in methylene blue with TiO2/ZnO-2 nanofibers. It was found that TiO2/ZnO-2 nanofibers with a small diameter have better photolytic properties than TiO2/ZnO-1 nanofibers [46,47,48,49,50,51].

4. Conclusions

One-dimensional TiO2/ZnO nanofibers were fabricated by the electrospinning process with various process conditions. The voltage, inflow rate, and amount of acetic acid in precursor were controlled to obtain the optimized microstructure of TiO2/ZnO nanofibers. The average diameter of TiO2/ZnO nanofibers decreased with an increase in the applied voltage and amount of acetic acid and increased with inflow rate. Electrospun TiO2/ZnO nanofibers have the crystalline structures of TiO2 anatase, ZnO, Ti2O3, and ZnTiO3. The best photocatalytic decomposition performance of methylene blue was observed in TiO2/ZnO-2 nanofibers having a diameter of 400 nm. To increase the specific surface area in a way that improves the photocatalytic properties of these TiO2/ZnO nanofibers, variables of the electrospinning process should be controlled to make the diameter small. Electrospun TiO2/ZnO nanofibers with a small diameter will be excellent in photocatalytic properties and bio-friendly properties generated on a large specific surface area and will be utilized in various fields as well as in air pollution removal filters.

Author Contributions

Conceptualization, D.-C.P. and W.-Y.C.; methodology, C.-G.L.; validation, C.-G.L., K.-H.N., and W.-T.K.; formal analysis, C.-G.L.; investigation, C.-G.L.; resources, W.-H.Y. and W.-Y.C.; data curation, C.-G.L.; writing—original draft preparation, C.-G.L.; writing—review and editing, W.-Y.C.; visualization, K.-H.N. and W.-T.K.; supervision, W.-Y.C.; project administration, W.-H.Y. and W.-Y.C.; funding acquisition, D.-C.P. and W.-Y.C.

Funding

This work was supported by Gangneung-Wonju National University, Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry and Energy (MOTIE) (Grant No. 20181110200070), Korea Agency for Infrastructure Technology Advancement under Construction Technology R&D project (Grant No. 18SCIP-B146646-01), and National Research Foundation of Korea (Grant No. 2019R1I1A3A01057765).

Acknowledgments

The authors thank the researchers (Tae-Hyeob Song and Jisun Park) of the Korea Institute of Civil Engineering and Building Technology, for their time and contributions to the study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Griffiths, W.; Bennett, A.; Speight, S.; Parks, S. Determining the performance of a commercial air purification system for reducing airborne contamination using model micro-organisms: A new test methodology. J. Hosp. Infect. 2005, 61, 242–247. [Google Scholar] [CrossRef] [PubMed]
  2. Khalil, L.; Mourad, W.; Rophael, M. Photocatalytic reduction of environmental pollutant cr (vi) over some semiconductors under uv/visible light illumination. Appl. Catal. B Environ. 1998, 17, 267–273. [Google Scholar] [CrossRef]
  3. Phillips, M.; Gleeson, K.; Hughes, J.M.B.; Greenberg, J.; Cataneo, R.N.; Baker, L.; McVay, W.P. Volatile organic compounds in breath as markers of lung cancer: A cross-sectional study. Lancet 1999, 353, 1930–1933. [Google Scholar] [CrossRef]
  4. Fukuzumi, S.; Ohkubo, K. Selective photocatalytic reactions with organic photocatalysts. Chem. Sci. 2013, 4, 561–574. [Google Scholar] [CrossRef]
  5. Hashimoto, K.; Kawai, T.; Sakata, T. Photocatalytic reactions of hydrocarbons and fossil fuels with water. Hydrogen production and oxidation. J. Phys. Chem. 1984, 88, 4083–4088. [Google Scholar] [CrossRef]
  6. Ohko, Y.; Hashimoto, K.; Fujishima, A. Kinetics of photocatalytic reactions under extremely low-intensity uv illumination on titanium dioxide thin films. J. Phys. Chem. A 1997, 101, 8057–8062. [Google Scholar] [CrossRef]
  7. Tachikawa, T.; Fujitsuka, M.; Majima, T. Mechanistic insight into the TiO2 photocatalytic reactions: Design of new photocatalysts. J. Phys. Chem. C 2007, 111, 5259–5275. [Google Scholar] [CrossRef]
  8. Behnajady, M.; Modirshahla, N.; Hamzavi, R. Kinetic study on photocatalytic degradation of ci acid yellow 23 by zno photocatalyst. J. Hazard. Mater. 2006, 133, 226–232. [Google Scholar] [CrossRef]
  9. Jassby, D.; Farner Budarz, J.; Wiesner, M. Impact of aggregate size and structure on the photocatalytic properties of TiO2 and ZnO nanoparticles. Environ. Sci. Technol. 2012, 46, 6934–6941. [Google Scholar] [CrossRef]
  10. Miyauchi, M.; Nakajima, A.; Watanabe, T.; Hashimoto, K. Photocatalysis and photoinduced hydrophilicity of various metal oxide thin films. Chem. Mater. 2002, 14, 2812–2816. [Google Scholar] [CrossRef]
  11. Ohno, T.; Sarukawa, K.; Tokieda, K.; Matsumura, M. Morphology of a TiO2 photocatalyst (degussa, p-25) consisting of anatase and rutile crystalline phases. J. Catal. 2001, 203, 82–86. [Google Scholar] [CrossRef]
  12. Qu, Y.; Duan, X. Progress, challenge and perspective of heterogeneous photocatalysts. Chem. Soc. Rev. 2013, 42, 2568–2580. [Google Scholar] [CrossRef] [PubMed]
  13. Ramírez-Ortega, D.; Meléndez, A.M.; Acevedo-Peña, P.; González, I.; Arroyo, R. Semiconducting properties of zno/tio2 composites by electrochemical measurements and their relationship with photocatalytic activity. Electrochim. Acta 2014, 140, 541–549. [Google Scholar] [CrossRef]
  14. Shan, G.; Yan, S.; Tyagi, R.; Surampalli, R.Y.; Zhang, T.C. Applications of nanomaterials in environmental science and engineering. Pract. Period. Hazard. Toxic Radioact. Waste Manag. 2009, 13, 110–119. [Google Scholar] [CrossRef]
  15. William, L., IV; Kostedt, I.; Ismail, A.A.; Mazyck, D.W. Impact of heat treatment and composition of ZnO−TiO2 nanoparticles for photocatalytic oxidation of an azo dye. Ind. Eng. Chem. Res. 2008, 47, 1483–1487. [Google Scholar]
  16. Tang, H.; Yan, F.; Tai, Q.; Chan, H.L. The improvement of glucose bioelectrocatalytic properties of platinum electrodes modified with electrospun TiO2 nanofibers. Biosens. Bioelectron. 2010, 25, 1646–1651. [Google Scholar] [CrossRef]
  17. Gouma, P.-I. Nanomaterials for Chemical Sensors and Biotechnology; Pan Stanford Publishing: Singapore, 2010. [Google Scholar]
  18. Lin, Z.-H.; Xie, Y.; Yang, Y.; Wang, S.; Zhu, G.; Wang, Z.L. Enhanced triboelectric nanogenerators and triboelectric nanosensor using chemically modified TiO2 nanomaterials. ACS Nano 2013, 7, 4554–4560. [Google Scholar] [CrossRef]
  19. Qiu, J.; Zhang, S.; Zhao, H. Recent applications of TiO2 nanomaterials in chemical sensing in aqueous media. Sens. Actuators B Chem. 2011, 160, 875–890. [Google Scholar] [CrossRef]
  20. Bignozzi, C.A.; Dissette, V. Material, Item and Products Comprising a Composition Having Anti-Microbial Properties. U.S. Patent No. 8,389,022, 5 March 2013. [Google Scholar]
  21. Bian, S.-W.; Mudunkotuwa, I.A.; Rupasinghe, T.; Grassian, V.H. Aggregation and dissolution of 4 nm zno nanoparticles in aqueous environments: Influence of ph, ionic strength, size, and adsorption of humic acid. Langmuir 2011, 27, 6059–6068. [Google Scholar] [CrossRef]
  22. Wu, C.-M.; Baltrusaitis, J.; Gillan, E.G.; Grassian, V.H. Sulfur dioxide adsorption on zno nanoparticles and nanorods. J. Phys. Chem. C 2011, 115, 10164–10172. [Google Scholar] [CrossRef]
  23. Weintraub, B.; Zhou, Z.; Li, Y.; Deng, Y. Solution synthesis of one-dimensional zno nanomaterials and their applications. Nanoscale 2010, 2, 1573–1587. [Google Scholar] [CrossRef] [PubMed]
  24. Chopra, N.; Gavalas, V.G.; Bachas, L.G.; Hinds, B.J.; Bachas, L.G. Functional one-dimensional nanomaterials: Applications in nanoscale biosensors. Anal. Lett. 2007, 40, 2067–2096. [Google Scholar] [CrossRef]
  25. Gibson, P.; Schreuder-Gibson, H.; Rivin, D. Transport properties of porous membranes based on electrospun nanofibers. Colloids Surf. A Physicochem. Eng. Asp. 2001, 187, 469–481. [Google Scholar] [CrossRef]
  26. Long, Y.-Z.; Li, M.-M.; Gu, C.; Wan, M.; Duvail, J.-L.; Liu, Z.; Fan, Z. Recent advances in synthesis, physical properties and applications of conducting polymer nanotubes and nanofibers. Prog. Polym. Sci. 2011, 36, 1415–1442. [Google Scholar] [CrossRef]
  27. Hwang, T.-H.; Kim, W.-T.; Choi, W.-Y. Photoconversion of dye-sensitized solar cells with a 3d-structured photoelectrode consisting of both TiO2 nanofibers and nanoparticles. J. Electron. Mater. 2016, 45, 3195–3199. [Google Scholar] [CrossRef]
  28. Kim, B.-Y.; Yoon, J.-W.; Lee, C.; Park, J.-S.; Lee, J.-H. Trimethylamine sensing characteristics of molybdenum doped ZnO hollow nanofibers prepared by electrospinning. J. Sens. Sci. Technol. 2015, 24, 419–422. [Google Scholar] [CrossRef]
  29. Kim, W.-T.; Choi, W.-Y. Fabrication of TiO2 photonic crystal by anodic oxidation and their optical sensing properties. Sens. Actuators A Phys. 2017, 260, 178–184. [Google Scholar] [CrossRef]
  30. Choi, W.-Y.; Chung, J.; Cho, C.-H.; Kim, J.-O. Fabrication and photocatalytic activity of a novel nanostructured TiO2 metal membrane. Desalination 2011, 279, 359–366. [Google Scholar] [CrossRef]
  31. Hu, J.; Odom, T.W.; Lieber, C.M. Chemistry and physics in one dimension: Synthesis and properties of nanowires and nanotubes. Acc. Chem. Res. 1999, 32, 435–445. [Google Scholar] [CrossRef]
  32. Lu, X.; Wang, C.; Wei, Y. One-dimensional composite nanomaterials: Synthesis by electrospinning and their applications. Small 2009, 5, 2349–2370. [Google Scholar] [CrossRef]
  33. Ramaseshan, R.; Sundarrajan, S.; Jose, R.; Ramakrishna, S. Nanostructured ceramics by electrospinning. J. Appl. Phys. 2007, 102, 7. [Google Scholar] [CrossRef]
  34. Hwang, T.-H.; Kim, W.-T.; Choi, W.-Y. Mixed dimensionality with a TiO2 nanostructure and carbon nanotubes for the photoelectrode in dye-sensitized solar cells. J. Nanosci. Nanotechnol. 2017, 17, 4812–4816. [Google Scholar] [CrossRef]
  35. Kim, W.-T.; Hwang, T.-H.; Choi, W.-Y. Composite photoelectrode with TiO2 nanofibers and nanoparticles in dye-sensitized solar cells. Sci. Adv. Mater. 2018, 10, 210–214. [Google Scholar] [CrossRef]
  36. Nakata, K.; Fujishima, A. TiO2 photocatalysis: Design and applications. J. Photochem. Photobiol. C Photochem. Rev. 2012, 13, 169–189. [Google Scholar] [CrossRef]
  37. Zhang, M.; Shao, C.; Mu, J.; Zhang, Z.; Guo, Z.; Zhang, P.; Liu, Y. One-dimensional Bi2MoO6/TiO2 hierarchical heterostructures with enhanced photocatalytic activity. CrystEngComm 2012, 14, 605–612. [Google Scholar] [CrossRef]
  38. Li, H.; Zhang, W.; Li, B.; Pan, W. Diameter-dependent photocatalytic activity of electrospun TiO2 nanofiber. J. Am. Ceram. Soc. 2010, 93, 2503–2506. [Google Scholar] [CrossRef]
  39. Doshi, J.; Reneker, D.H. Electrospinning process and applications of electrospun fibers. J. Electrost. 1995, 35, 151–160. [Google Scholar] [CrossRef]
  40. Ramakrishna, S. An Introduction To Electrospinning And Nanofibers; World Scientific: Singapore, 2005. [Google Scholar]
  41. Luo, C.; Stoyanov, S.D.; Stride, E.; Pelan, E.; Edirisinghe, M. Electrospinning versus fibre production methods: From specifics to technological convergence. Chem. Soc. Rev. 2012, 41, 4708–4735. [Google Scholar] [CrossRef]
  42. Persano, L.; Camposeo, A.; Tekmen, C.; Pisignano, D. Industrial upscaling of electrospinning and applications of polymer nanofibers: A review. Macromol. Mater. Eng. 2013, 298, 504–520. [Google Scholar] [CrossRef]
  43. Nayak, R.; Padhye, R.; Kyratzis, I.L.; Truong, Y.B.; Arnold, L. Recent advances in nanofibre fabrication techniques. Text. Res. J. 2012, 82, 129–147. [Google Scholar] [CrossRef]
  44. Bognitzki, M.; Czado, W.; Frese, T.; Schaper, A.; Hellwig, M.; Steinhart, M.; Greiner, A.; Wendorff, J.H. Nanostructured fibers via electrospinning. Adv. Mater. 2001, 13, 70–72. [Google Scholar] [CrossRef]
  45. Spivak, A.; Dzenis, Y.; Reneker, D. Model of steady state jet in the electrospinning process. Mech. Res. Commun. 2000, 27, 37–42. [Google Scholar] [CrossRef]
  46. Liu, R.; Ye, H.; Xiong, X.; Liu, H. Fabrication of TiO2/ZnO composite nanofibers by electrospinning and their photocatalytic property. Mater. Chem. Phys. 2010, 121, 432–439. [Google Scholar] [CrossRef]
  47. Wang, S.; Yun, J.-H.; Luo, B.; Butburee, T.; Peerakiatkhajohn, P.; Thaweesak, S.; Xiao, M.; Wang, L. Recent progress on visible light responsive heterojunctions for photocatalytic applications. J. Mater. Sci. Technol. 2017, 33, 1–22. [Google Scholar] [CrossRef]
  48. Ke, J.; Younis, M.A.; Kong, Y.; Zhou, H.; Liu, J.; Lei, L.; Hou, Y. Nanostructured ternary metal tungstate-based photocatalysts for environmental purification and solar water splitting: A review. Nano-Micro Lett. 2018, 10, 69. [Google Scholar] [CrossRef]
  49. Wang, H.; Zhang, L.; Chen, Z.; Hu, J.; Li, S.; Wang, Z.; Liu, J.; Wang, X. Semiconductor heterojunction photocatalysts: Design, construction, and photocatalytic performances. Chem. Soc. Rev. 2014, 43, 5234–5244. [Google Scholar] [CrossRef]
  50. Ullah, R.; Dutta, J. Photocatalytic degradation of organic dyes with manganese-doped ZnO nanoparticles. J. Hazard. Mater. 2008, 156, 194–200. [Google Scholar] [CrossRef]
  51. Yogi, C.; Kojima, K.; Wada, N.; Tokumoto, H.; Takai, T.; Mizoguchi, T.; Tamiaki, H. Photocatalytic degradation of methylene blue by TiO2 film and Au particles-TiO2 composite film. Thin Solid Film. 2008, 516, 5881–5884. [Google Scholar] [CrossRef]
Applsci 09 03404 g001 550

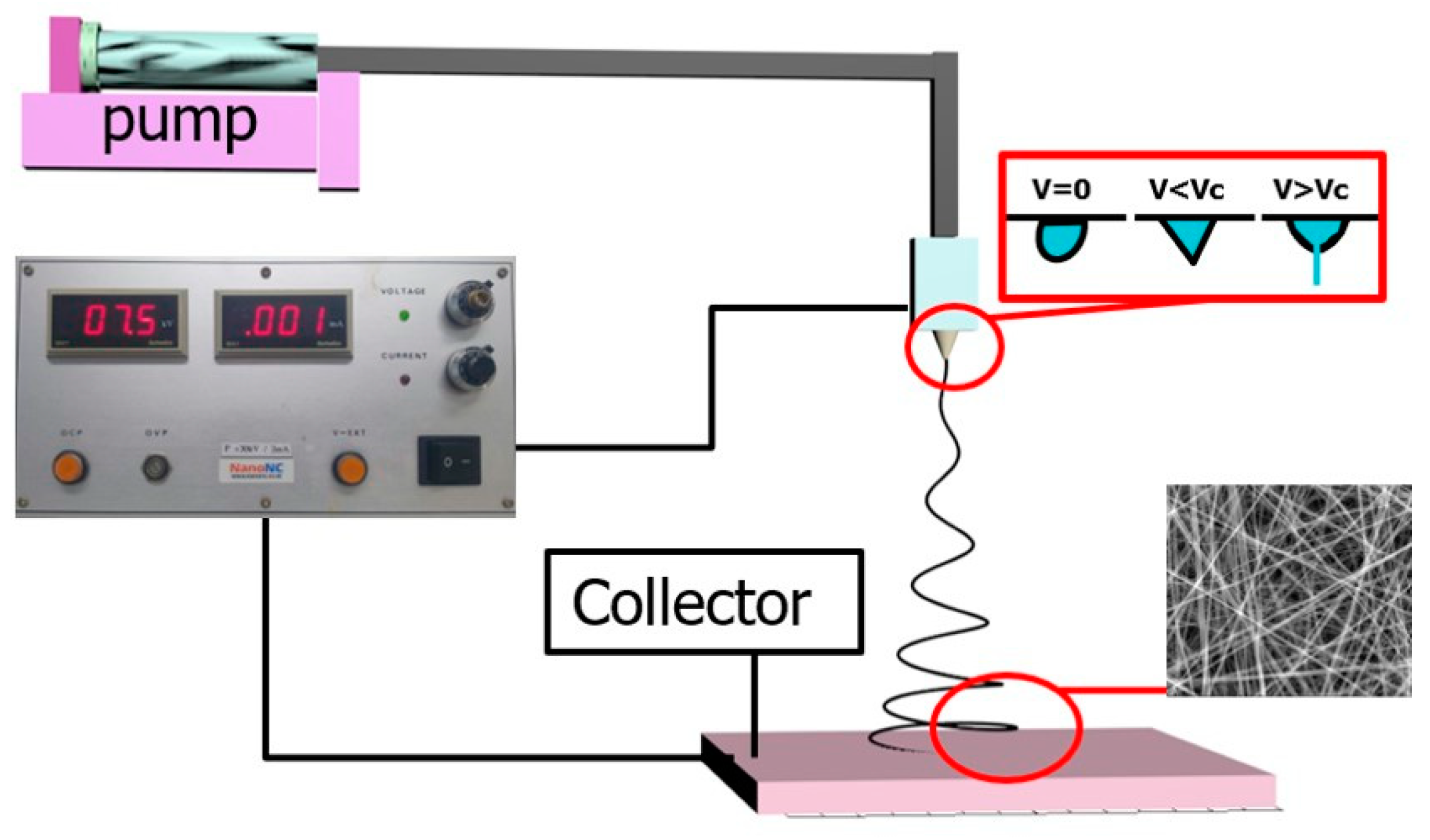

Figure 1. Schematic diagram of electrospinning process.
Figure 1. Schematic diagram of electrospinning process.
Applsci 09 03404 g001
Applsci 09 03404 g002 550

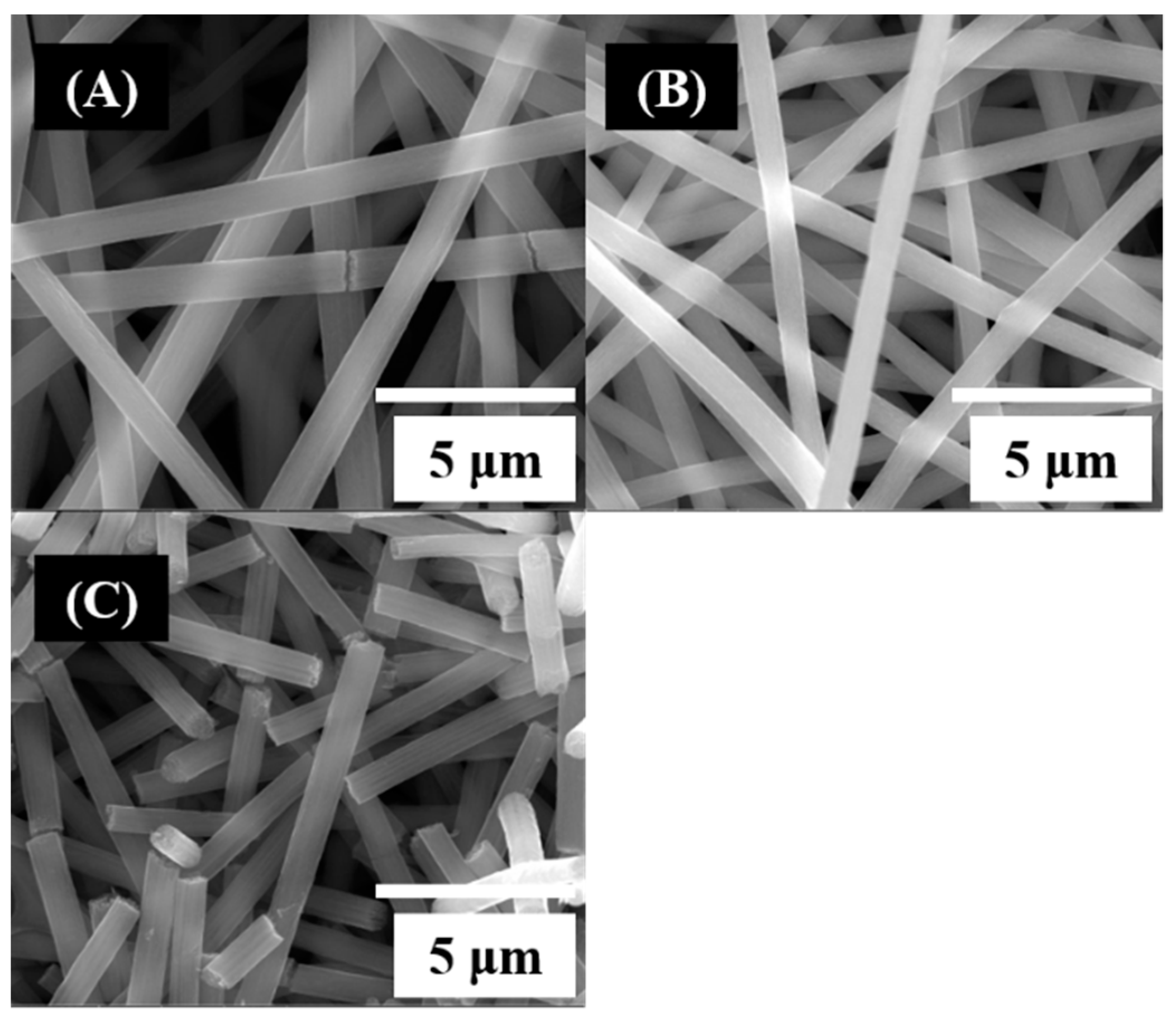

Figure 2. Field emission scanning electron microscope (FE-SEM) images of electrospinning TiO2/ZnO nanofibers: (A) 12 kV, (B) 15 kV, and (C) 18 kV.
Figure 2. Field emission scanning electron microscope (FE-SEM) images of electrospinning TiO2/ZnO nanofibers: (A) 12 kV, (B) 15 kV, and (C) 18 kV.
Applsci 09 03404 g002
Applsci 09 03404 g003 550

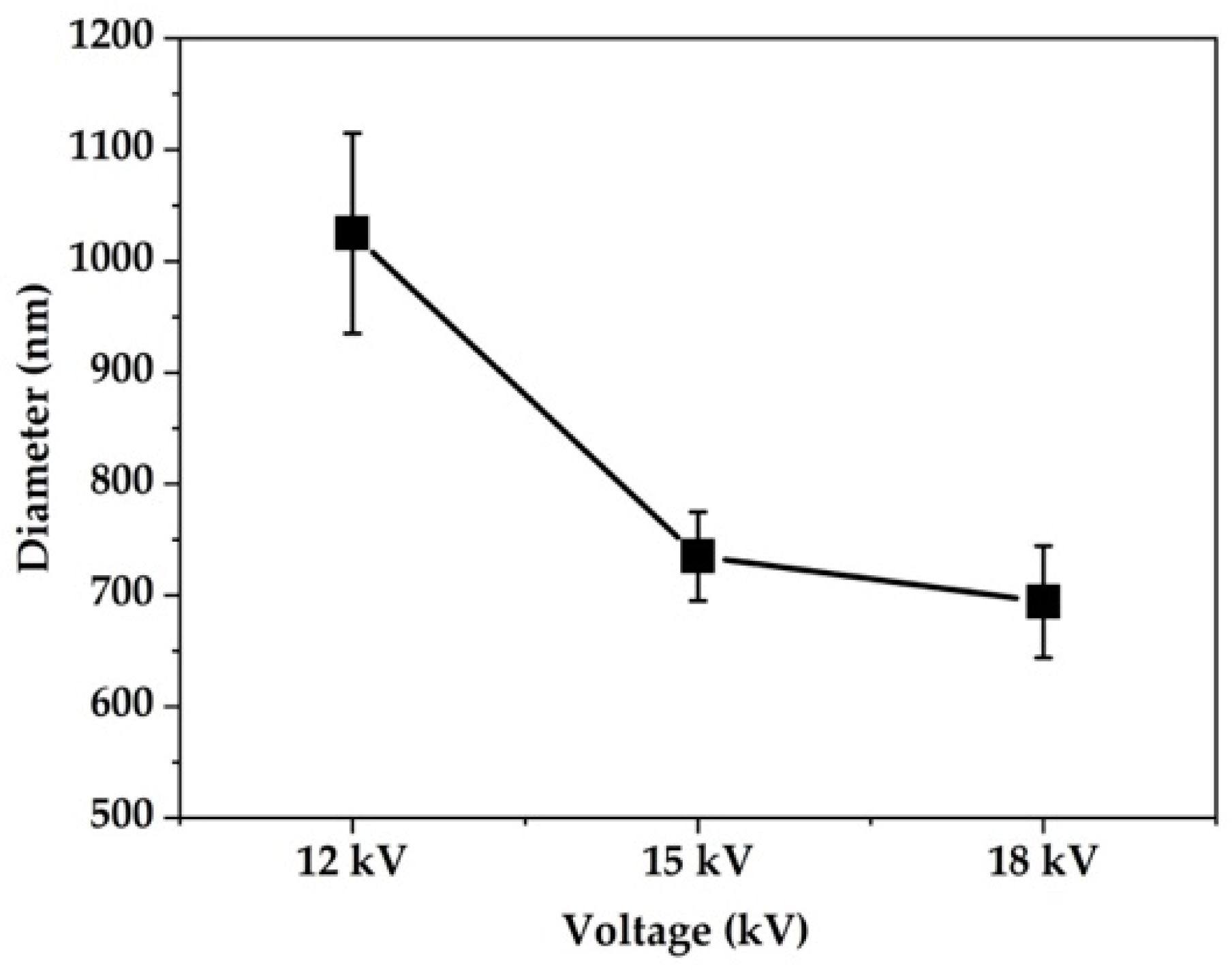

Figure 3. Average diameters of TiO2/ZnO nanofibers with voltage.
Figure 3. Average diameters of TiO2/ZnO nanofibers with voltage.
Applsci 09 03404 g003
Applsci 09 03404 g004 550

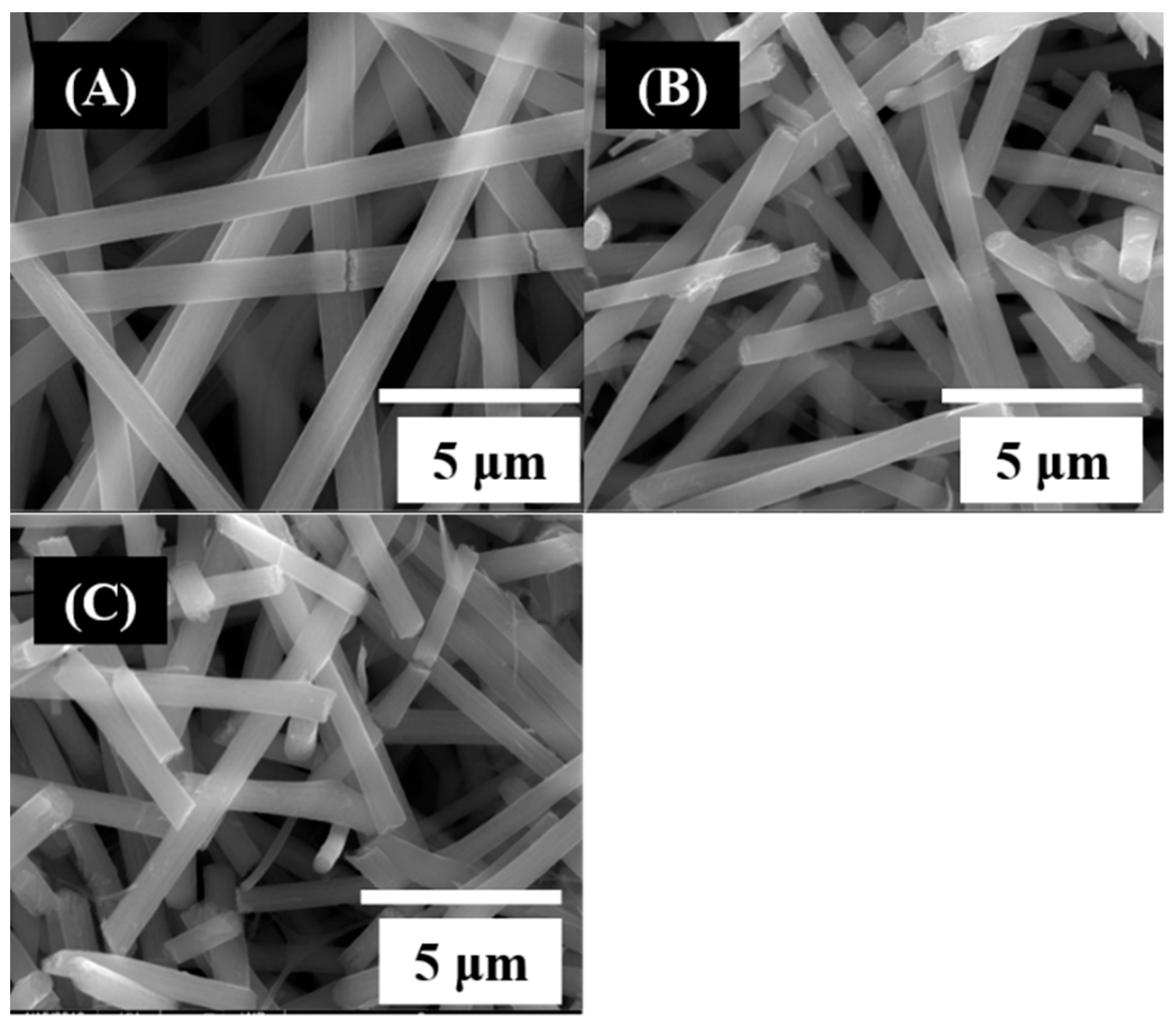

Figure 4. FE-SEM images of electrospinning TiO2/ZnO nanofibers: (A) 1 mL/h, (B) 0.8 mL/h, and (C) 0.6 mL/h.
Figure 4. FE-SEM images of electrospinning TiO2/ZnO nanofibers: (A) 1 mL/h, (B) 0.8 mL/h, and (C) 0.6 mL/h.
Applsci 09 03404 g004
Applsci 09 03404 g005 550

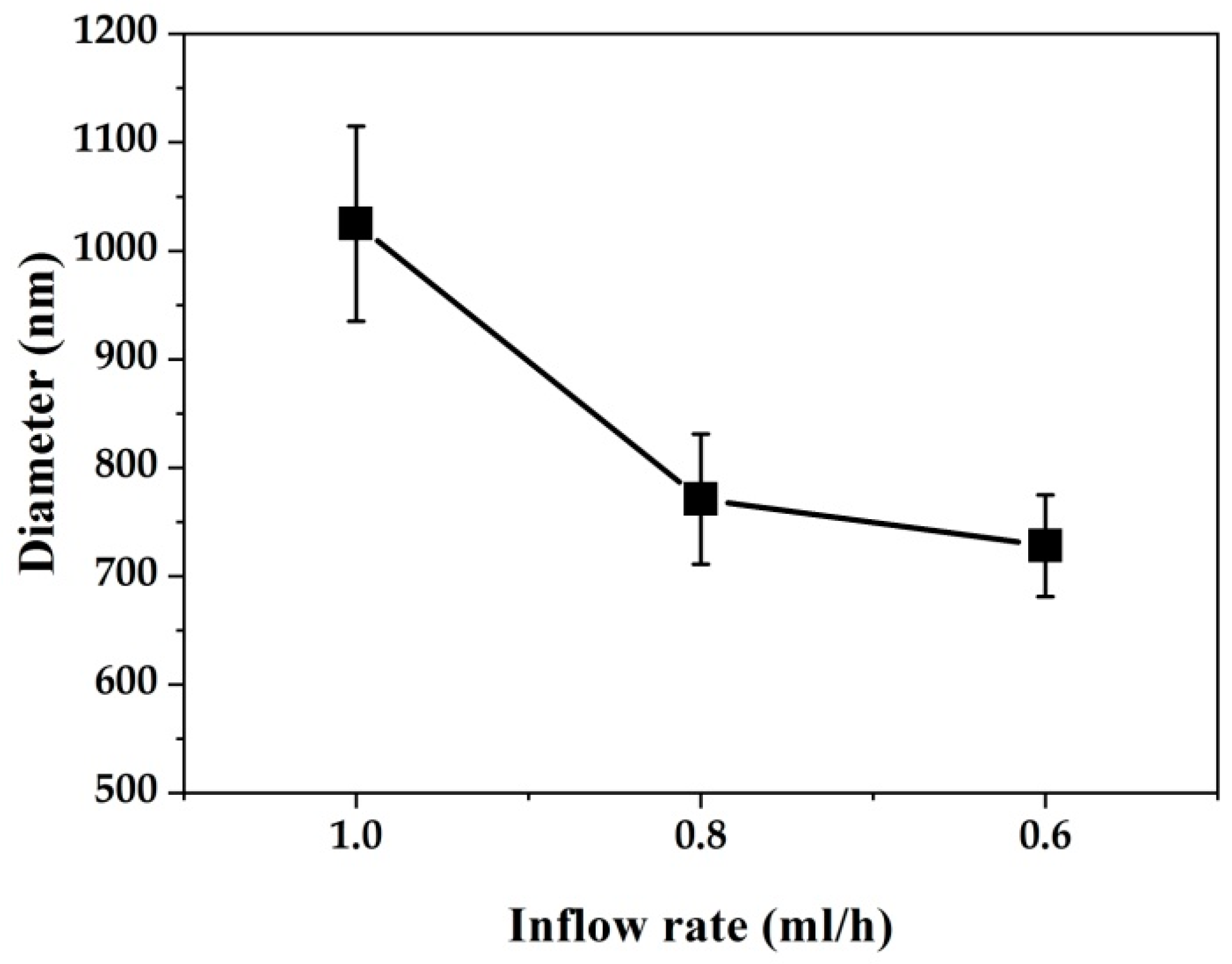

Figure 5. Average diameters of TiO2/ZnO nanofibers with inflow rate.
Figure 5. Average diameters of TiO2/ZnO nanofibers with inflow rate.
Applsci 09 03404 g005
Applsci 09 03404 g006 550

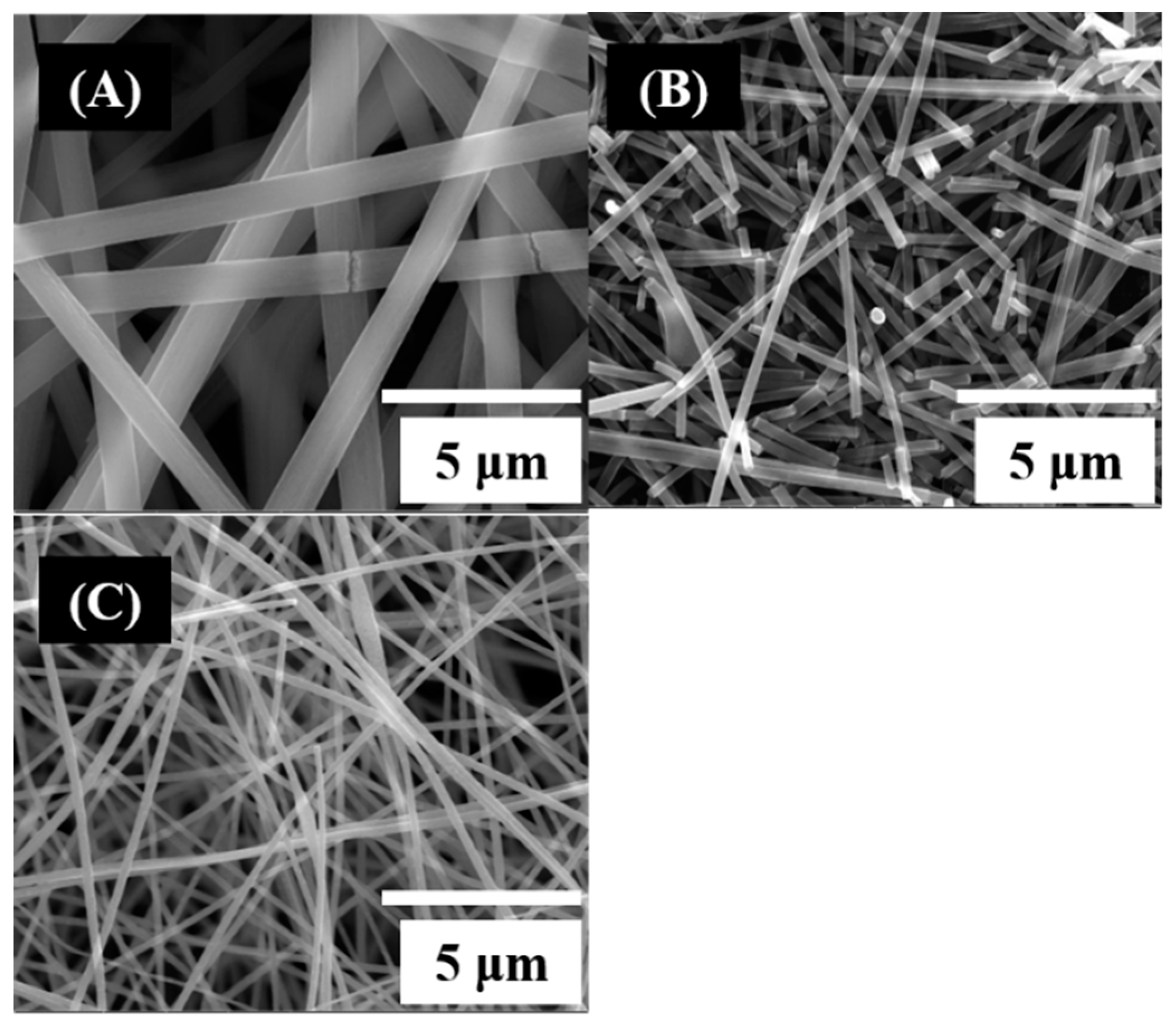

Figure 6. FE-SEM images of electrospinning TiO2/ZnO nanofibers: (A) 21 wt %, (B) 28 wt %, and (C) 35 wt %.
Figure 6. FE-SEM images of electrospinning TiO2/ZnO nanofibers: (A) 21 wt %, (B) 28 wt %, and (C) 35 wt %.
Applsci 09 03404 g006
Applsci 09 03404 g007 550
Figure 7. Average diameters of TiO2/ZnO nanofibers according to the amount of acetic acid.
Figure 7. Average diameters of TiO2/ZnO nanofibers according to the amount of acetic acid.
Applsci 09 03404 g007
Applsci 09 03404 g008 550
Figure 8. X-ray diffraction (XRD) pattern of TiO2/ZnO nanofibers.
Figure 8. X-ray diffraction (XRD) pattern of TiO2/ZnO nanofibers.
Applsci 09 03404 g008
Applsci 09 03404 g009 550

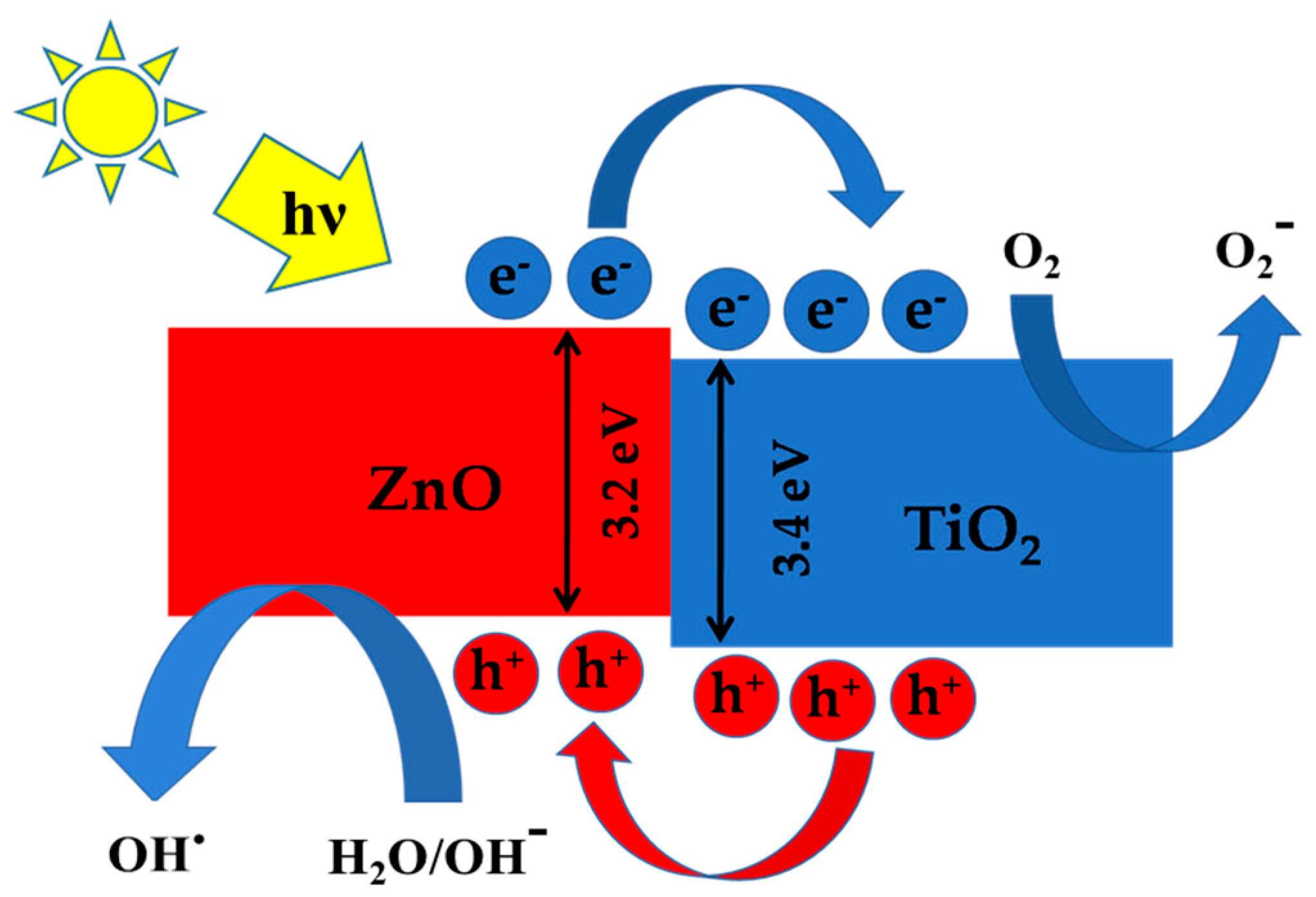

Figure 9. Illustration of photocatalytic mechanism in TiO2/ZnO heterojunction [46].
Figure 9. Illustration of photocatalytic mechanism in TiO2/ZnO heterojunction [46].
Applsci 09 03404 g009
Applsci 09 03404 g010 550

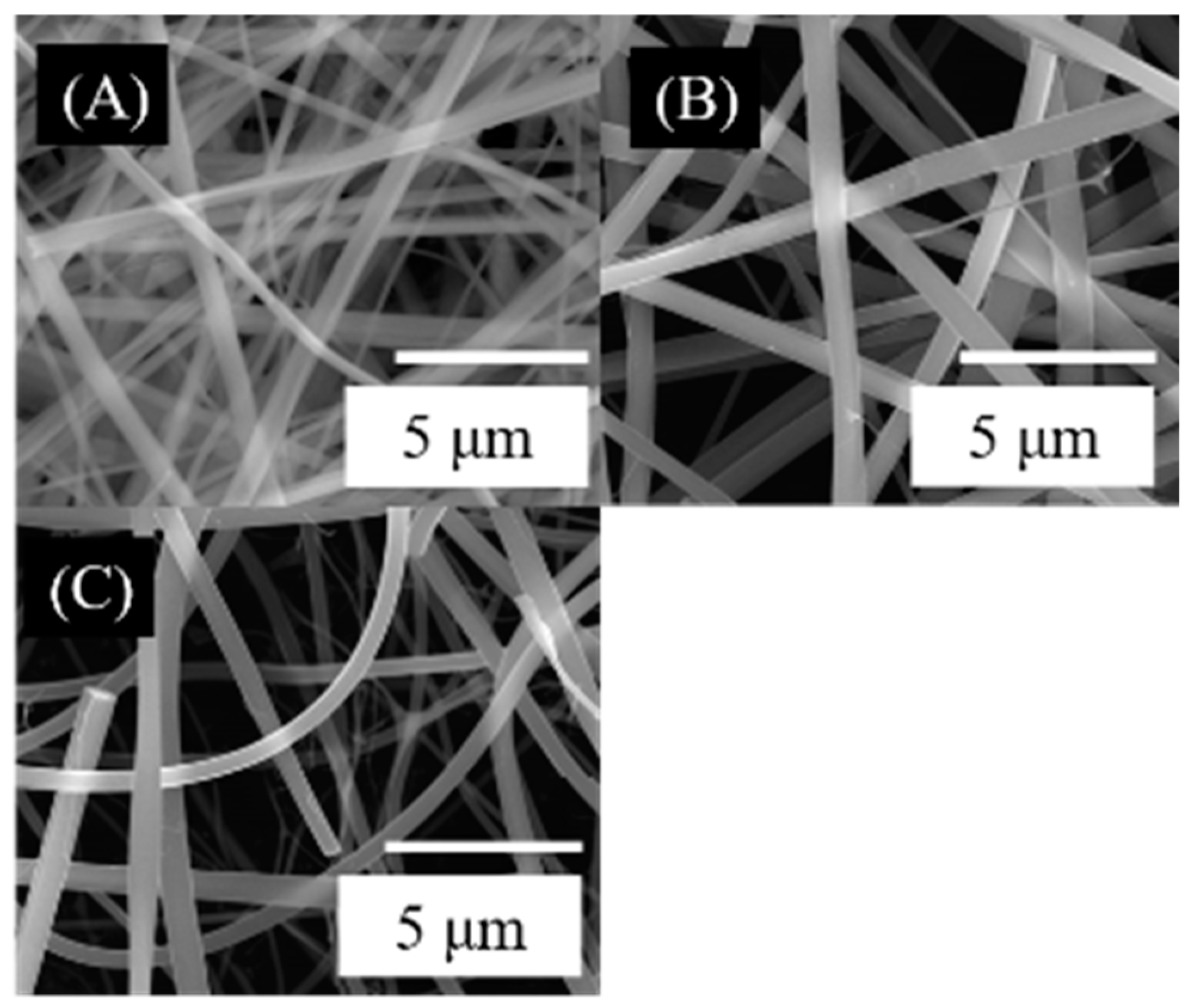

Figure 10. FE-SEM images of electrospinning process conditions of nanofibers used in the decomposition of methylene blue for photocatalytic performance evaluation: (A) TiO2 nanofibers, (B) TiO2/ZnO-1 nanofibers, (C) TiO2/ZnO-2 nanofibers.
Figure 10. FE-SEM images of electrospinning process conditions of nanofibers used in the decomposition of methylene blue for photocatalytic performance evaluation: (A) TiO2 nanofibers, (B) TiO2/ZnO-1 nanofibers, (C) TiO2/ZnO-2 nanofibers.
Applsci 09 03404 g010
Applsci 09 03404 g011 550

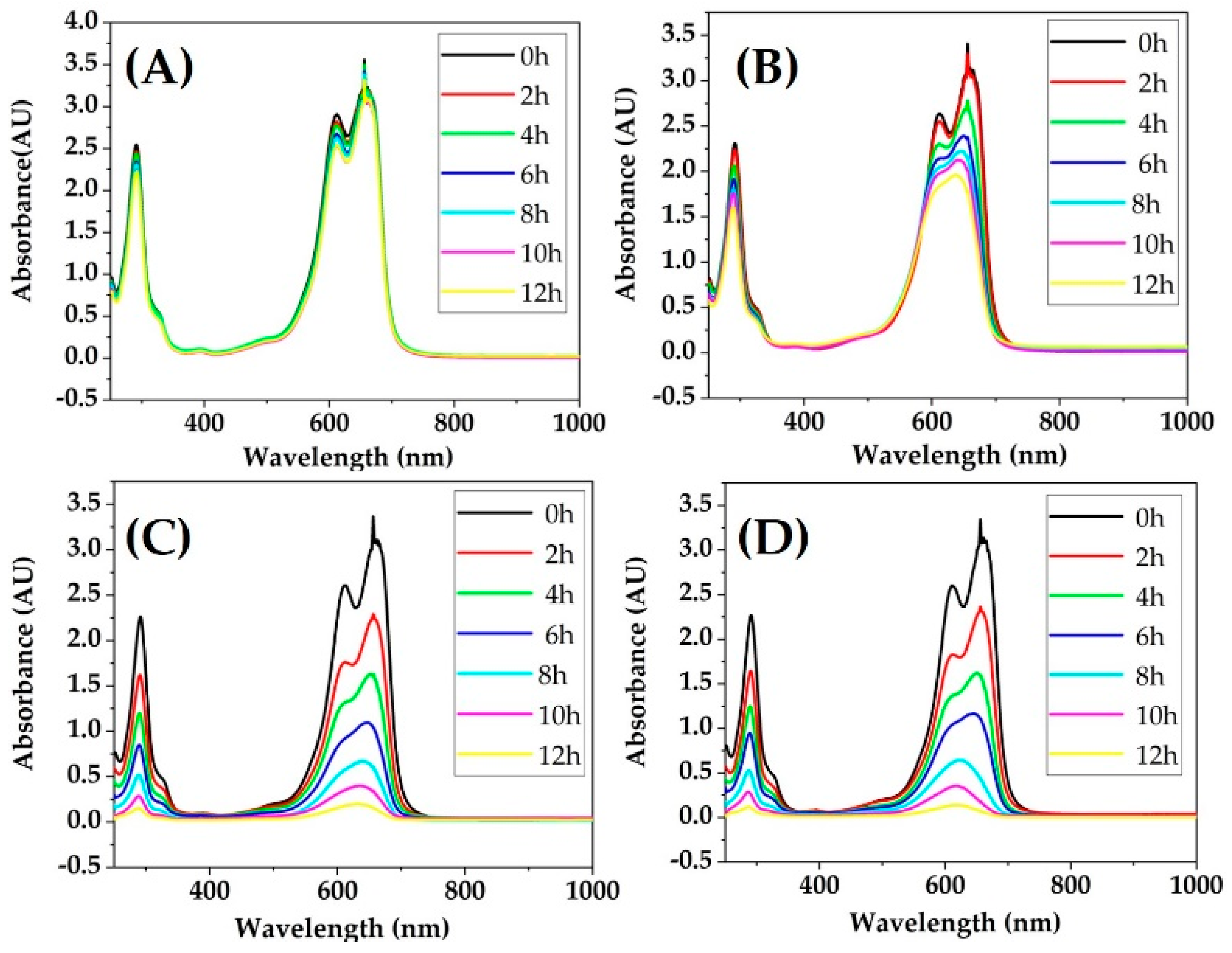

Figure 11. Ultraviolet–visible spectroscopy (UV–Vis) spectral change of photocatalytic decomposition of methylene blue over time using diameter-controlled nanofibers: (A) UV without nanofibers, (B) UV with 0.5 g TiO2 nanofiber added, (C) UV with 0.5 g TiO2/ZnO-1 nanofiber added, (D) UV with 0.5 g TiO2/ZnO-2 nanofiber added.
Figure 11. Ultraviolet–visible spectroscopy (UV–Vis) spectral change of photocatalytic decomposition of methylene blue over time using diameter-controlled nanofibers: (A) UV without nanofibers, (B) UV with 0.5 g TiO2 nanofiber added, (C) UV with 0.5 g TiO2/ZnO-1 nanofiber added, (D) UV with 0.5 g TiO2/ZnO-2 nanofiber added.
Applsci 09 03404 g011
Applsci 09 03404 g012 550

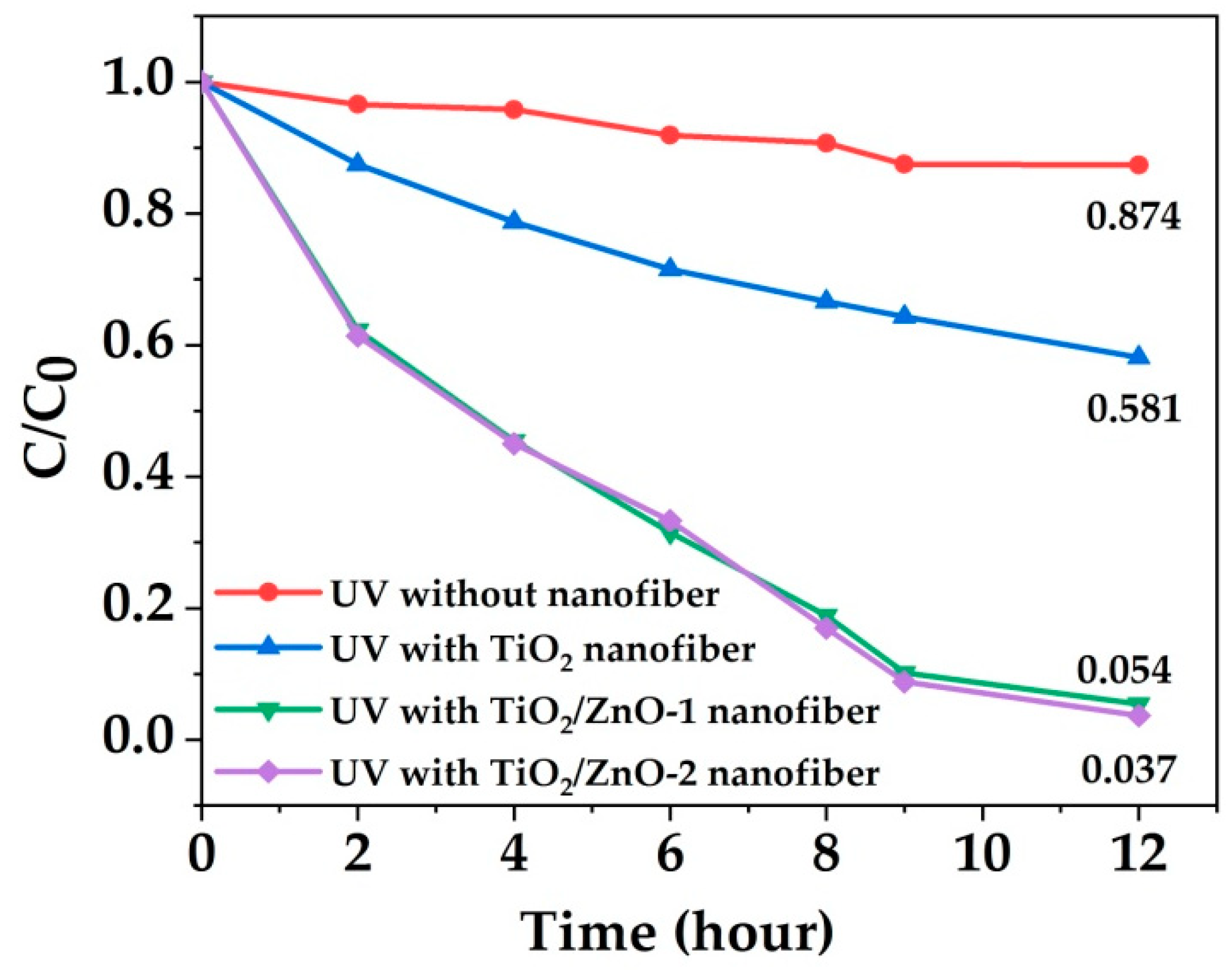

Figure 12. Photodegradation efficiency of TiO2/ZnO nanofibers under UV irradiation for the decomposition of methylene blue.
