Ultrathin and Electrically Tunable Metamaterial with Nearly Perfect Absorption in Mid-Infrared

Abstract

Metamaterials integrated with graphene exhibit tremendous freedom in tailoring their optical properties, particularly in the infrared region, and are desired for a wide range of applications, such as thermal imaging, cloaking, and biosensing. In this article, we numerically and experimentally demonstrate an ultrathin (total thickness $<{\mathsf{\lambda }}_0/15$) and electrically tunable mid-infrared perfect absorber based on metal–insulator–metal (MIM) structured metamaterials. The Q-values of the absorber can be tuned through two rather independent parameters, with geometrical structures of metamaterials tuning radiation loss (Q_r) of the system and the material loss (tanδ) to further change mainly the intrinsic loss (Q_a). This concise mapping of the structural and material properties to resonant mode loss channels enables a two-stage optimization for real applications: geometrical design before fabrication and then electrical tuning as a post-fabrication and fine adjustment knob. As an example, our device demonstrates an electrical and on-site tuning of ~5 dB change in absorption near the perfect absorption region. Our work provides a general guideline for designing and realizing tunable infrared devices and may expand the applications of perfect absorbers for mid-infrared sensors, absorbers, and detectors in extreme spatial-limited circumstances.

1. Introduction

Metamaterial absorbers are two-dimensional electromagnetic structures absorbing light at the resonance, which have attracted huge attention over the years [1,2,3]. Many functional absorbers integrated with various metamaterial structures have been reported [4,5,6], holding potential in a broad range of applications, such as sensors [7], spectroscopy [8], and thermal emitters [9,10]. In particular, a metamaterial perfect absorber (MPA) based on a metal–insulator–metal (MIM) structure has been a hotspot for researchers due to its near unity absorptivity. By optimizing the periodic subwavelength arrays topping the device, with the bottom layer as effective reflector, near unity absorption can be achieved at its resonance. Although different types of perfect absorbers with various metamaterial structures have been widely investigated and analyzed [11,12,13,14,15], the realization of MPA structures typically requires heavy computation and repetitive trial and error experiments to achieve the critical damping condition (i.e., Q_r = Q_a, where Q_r and Q_a are quality factors related to radiative loss and intrinsic loss, respectively), because a large amount of geometrical and material parameters are involved and entangled. It is therefore anticipated that the independent tuning of Q_r and Q_a by individual parameters can facilitate the easy design. What’s more, absorbers in extreme forms, like ultrathin and compact absorbers, are desirable for scaling down the device size and/or minimizing parasitic effects, such as thermal leak conductance and large heat capacity for bolometric detector arrays [16,17,18,19,20].

With its unique electronic and optical features, graphene has drawn tremendous attention in recent years [21,22]. Graphene, with a single atomic layer thickness of only 0.33 nm, is by now the thinnest two-dimensional material and exhibits the remarkable property of changing its conductivity through electrical modulation [23]. Graphene has been reported to be applicable for modulators over a large wavelength region, ranging from near-infrared to far-infrared frequencies [24,25,26,27]. As a result, graphene integrated into metamaterials provides tremendous freedom in tailoring their optical properties. The reported works, however, typically utilized complicated device structures, such as ion-gel gating, to realize electrical modulation [28] and sophisticated interplay between graphene and background absorption remains elusive. It is therefore desirable to design more compact metamaterials with built-in tunability.

In this article, we demonstrate an ultrathin and electrically tunable graphene MIM metamaterial perfect absorber working at the mid-infrared region, with a total thickness of ~270 nm (thickness $<{\mathsf{\lambda }}_0/15$). The MIM tri-layer structure forms an agile platform to engineer the infrared optical properties of the structure. The bottom metal layer of the MIM structure provides two-fold functions: a mirror to form resonant cavity and an effective gate to adjust the Fermi level in the graphene layer, and hence the absorption. This tunable absorption provides a compact, flexible, and post-fabrication fine adjustment freedom to the hybrid metamaterials.

2. Materials and Methods

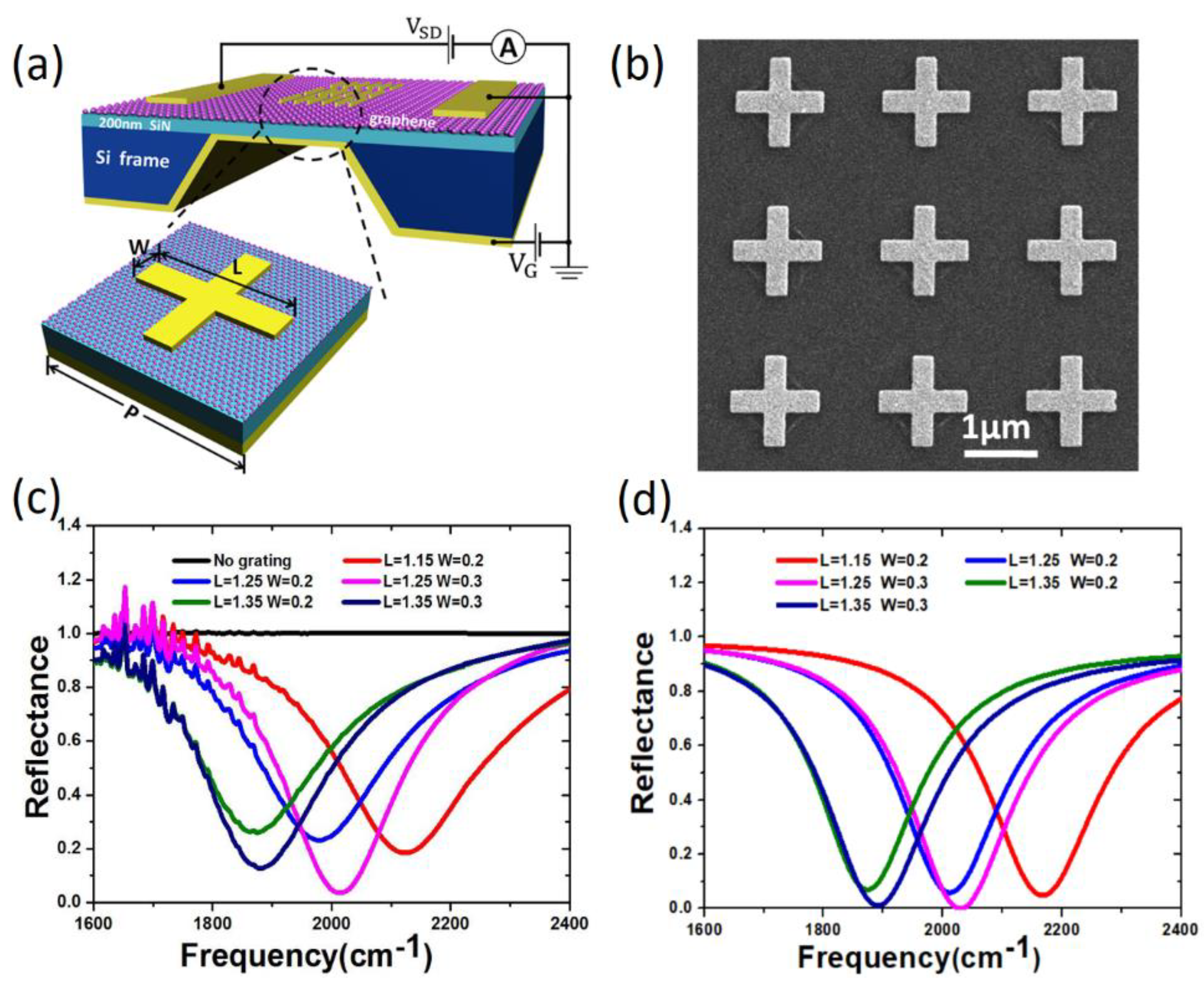

The metamaterial absorbers were fabricated on a Si₃N₄ membrane with supporting Si frame, as schematically illustrated in Figure 1a. The thickness of the Si₃N₄ membrane was 200 nm. A series of nano-fabrication processes were performed on the membrane. The reflecting layer underneath the membrane, which was also used as the back-gate of the absorber, was prepared with 5 nm Cr and 30 nm Au by electron beam evaporation. Graphene on top of Si₃N₄ was grown using the chemical vapor deposition (CVD) method and subsequently transferred onto the membrane. Source and drain contacts, grown with 5 nm Cr and 50 nm Au, were then fabricated onto the graphene by photolithography procedures. Standard electron-beam lithography and lift-off processes were finally used to pattern the cross-shaped Au metamaterial arrays (5 nm Cr/30 nm Au), whose scanning electron microscope (SEM) image is shown in Figure 1b. For each absorber, the total patterned area was about 50 μm × 50 μm. The period (P) of each square unit cell in these arrays was 2.3 μm, while the arm width (W) and arm length (L) of the cross-shaped microstructures were to be optimized. All of the following optical and electrical experiments were carried out at room temperature.

The reflectance spectra of our absorbers are shown in Figure 1c, with the back-gate voltage fixed at 0 V. Considering the transmittance of the device with a reflecting layer underneath the Si₃N₄ membrane was nearly 0, the absorption (A) of our device is closely related to the reflectance (R). Their relationship can be written as A = 1 − R. From Figure 1c, the reflectance of the absorber without a metasurface was nearly constant and equal to 1, indicating that the absorber reflected almost all the mid-infrared light without noticeable absorption. For those with different patterns, different modes of localized plasmon induced by metamaterial arrays can resonate with light of a specific wavelength. With the help of the reflecting layer, the light trapped in the Si₃N₄ membrane will finally contribute to the absorption of the device. As a result, mid-infrared light is largely absorbed at the resonant wavelength. The absorber with parameters of L = 1.25 μm and W = 0.3 μm exhibited the best performance, with reflectance $<0.03$, or absorptance $>0.963$, at the frequency of 2013 ${\mathrm{cm}}^{-1}$. The reflectance of the device was mainly influenced by the length and width of the arm. More systematic studies indicate that a longer arm length results in a red-shift of its resonant frequency, while the arm width affects the depth of reflectance [29]. These patterns can generate different dips in reflectance at its resonance frequency. Figure 1d depicts numerical results based on the Finite-Difference Time-Domain (FDTD) method. The parameters of the MIM structure in the simulation were nearly identical to our experiments. The metals in the simulation were based on the Drude model. The plasma frequency for Au was set to be ${\mathsf{\omega }}_{\mathrm{p}}=1.365\times {10}^{16}\mathrm{rad}/\mathrm{s}$ and the collision frequency was $\mathsf{\gamma }=5.78\times {10}^{13} \mathrm{Hz}$. The relative permittivity for the semiconductor layer (Si₃N₄) was chosen to be 3 [30]. The perfect matched layer was introduced as the boundary condition in our system. The simulation results are reasonably consistent with our experimental results, except that the absorption peaks are wider and the absorption rates are lower in the experiments than in the simulation. The discrepancy in peak width may have arisen from the imperfection of the sample fabrication, such as variations in period and length, which were not considered in the simulation. However, it is certain that the MIM structures offers an important and effective approach to design a cavity-like absorber, which can efficiently harvest mid-infrared photons for real applications.

3. Results and Discussion

According to coupled-mode theory (CMT) [28,29,31,32], the optical properties of the MIM structures are determined essentially by two competing loss channels, namely, the radiation loss of the resonance cavity and intrinsic loss due to material absorption. The tunable property of the MIM structure is therefore realizable by changing either of these two channels. From CMT theory, the reflection coefficient (r) of our system can be written as [29],

$$\mathrm{r}\left(\mathsf{\omega }\right)=-1+\frac{2/{\mathsf{\tau }}_{\mathrm{r}}}{-\mathrm{i}\left(\mathsf{\omega }-{\mathsf{\omega }}_0\right)+1/{\mathsf{\tau }}_{\mathrm{r}}+1/{\mathsf{\tau }}_{\mathrm{a}}},$$

(1)

where and $1/{\mathsf{\tau }}_{\mathrm{a}}$ are the decay rates of radiation and absorption, respectively. Furthermore, the radiative and absorptive quality factors (Q-value) of the system are defined as Q_r = ω₀τ_r/2 and Q_a = ω₀τ_a/2, which determine the physical properties of the system. From Equation (1), $\mathrm{r}\left({\mathsf{\omega }}_0\right)=\frac{{\mathrm{Q}}_{\mathrm{a}}/{\mathrm{Q}}_{\mathrm{r}}-1}{{\mathrm{Q}}_{\mathrm{a}}/{\mathrm{Q}}_{\mathrm{r}}+1}$ when frequency is at its resonance ($\mathsf{\omega }={\mathsf{\omega }}_0$), which shows that Q_a/Q_r is the physical quantity to decide the minimum reflection or maximum absorption. Based on Equation (1) and the definitions of Q_a and Q_r we mentioned above, Q_a and Q_r of the system with specific structural parameters can be obtained through numerical fitting of our simulation or experimental results [29]. Figure 2a depicts the phase diagram of Q_a/Q_r as a function of the geometrical parameter W and the material loss tanδ. tanδ defines the dielectric loss angular tangent of the system, which can indicate the inherent dissipation (such as heat) of electromagnetic energy in the dielectric layer [33]. When Q_r > Q_a, the resonator is overdamped and the variation of phase only occupies a small range, less than $180°$. The solid line shows the perfect absorption condition with Q_r = Q_a. Interestingly, this line shows a simple and approximately linear dependence in the region with small W (≤0.6 μm) and tanδ (≤0.08) This implies that the loss channel of the resonant mode may depend on specific parameters, W or tanδ. In Figure 2b,c, Q_r and Q_a are displayed as functions of W or tanδ when the other one is fixed. It is obvious that Q_r is affected mainly by W (≤0.6 μm), while Q_a is affected by tanδ. This appears to be physically reasonable, since the non-radiative loss leads to material absorption and therefore depends on the imaginary part of its dielectric permittivity, while the radiation loss relies on the dipole oscillation strength of the resonant mode and hence increases with W. When W > 0.6 μm, the field distribution becomes dramatically different from the case with small W, which prevents the radiative loss rate from further increase.

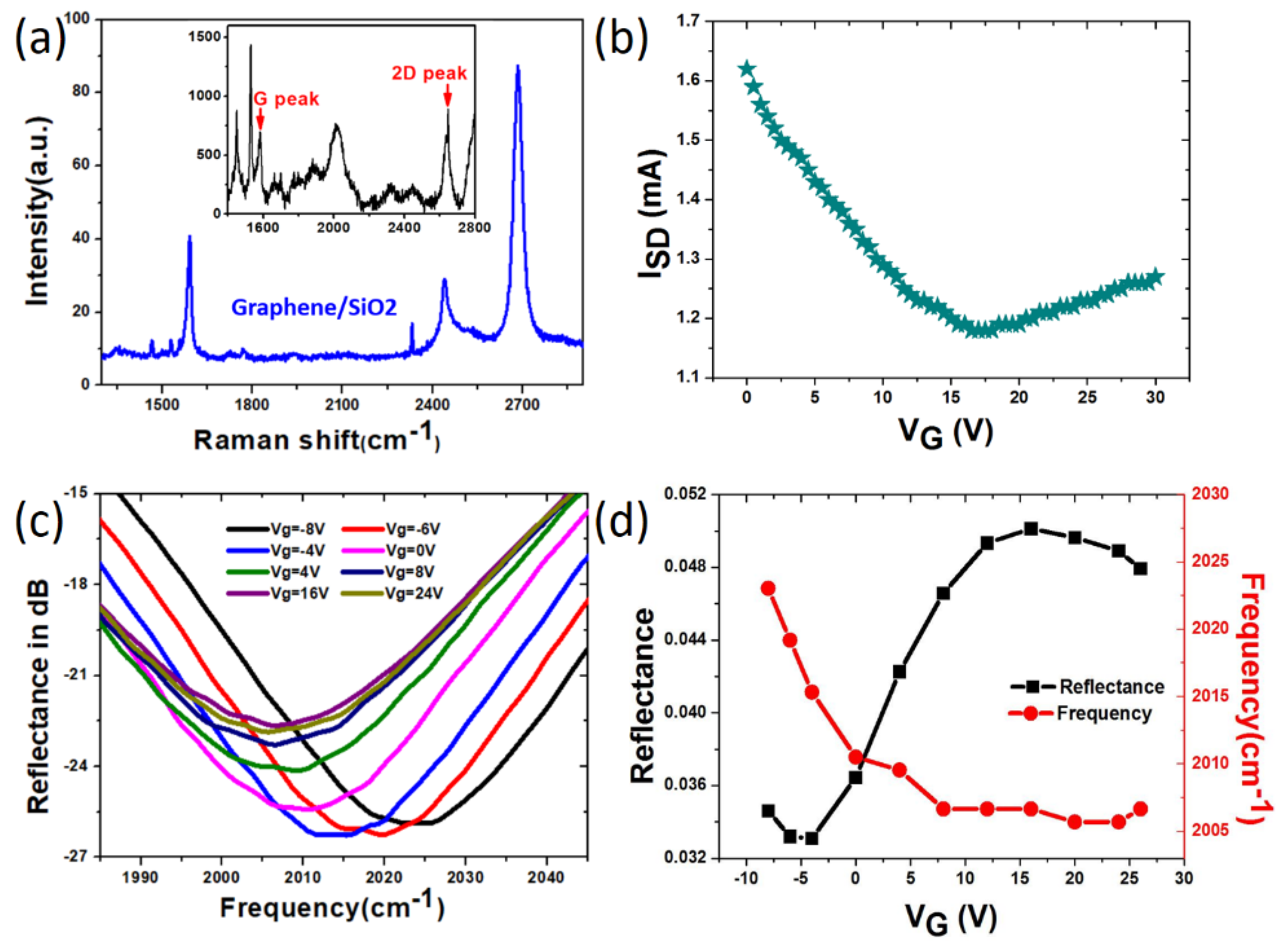

The above scenario provides useful hints for the realization of tunable infrared devices with nearly perfect absorption. Experimentally, we examined the tuning performance through back-gating in our compact MIM structure with fixed geometrical parameters (L = 1.25 μm and W = 0.3 μm). The Raman spectra of the graphene we used are shown in Figure 3a. The inset figure in Figure 3a shows the Raman spectrum of the graphene after being integrated into our device using an excitation laser of λ = 633 nm. We can clearly see that the intrinsic G peak and 2D peak of graphene are around 1580 ${\mathrm{cm}}^{-1}$ and 2680 ${\mathrm{cm}}^{-1}$, which are consistent with precious reports [34], despite the series of nano-fabrication processes. The source-drain current (${\mathrm{I}}_{\mathrm{SD}}$) in graphene is modulated by back-gate bias (${\mathrm{V}}_{\mathrm{G}}$), which is shown in Figure 3b. When the source–drain current reaches its lowest level, namely ${\mathrm{V}}_{\mathrm{G}}={\mathrm{V}}_{\mathrm{F}}$, which is at around 17 V, the Fermi level matches the Dirac point. As the back-gate voltage increases, the source–drain current curve shows an obvious kink shape, indicating that the concentration of carriers in graphene is varying due to the change of Fermi energy level (${\mathrm{V}}_{\mathrm{F}}$). When ${\mathrm{V}}_{\mathrm{G}}<{\mathrm{V}}_{\mathrm{F}}$, the carriers transported in graphene are hole-dominated, and when ${\mathrm{V}}_{\mathrm{G}}<{\mathrm{V}}_{\mathrm{F}}$, transport in graphene is electron-dominated.

Figure 3c shows the reflection spectra at different back-gate voltages. It can be seen that the reflection spectra can be tuned continuously by the gate bias, and the change of r(ω₀) due to back-gating can reach about 5 dB (dip-to-dip). The minimum reflectance, r(ω₀), at different biases is depicted as black squares in Figure 3d. From Figure 3d, the largest reflection value at resonant dip is near the Dirac point (${\mathrm{V}}_{\mathrm{G}}$ ~ 17 V) and, with increasing the carrier density (no matter electron or hole), the reflection value decreases, which indicates additional absorption. In the meantime, with decreasing V_G, the resonant frequency increases slightly (~1%), which may be ascribed to a smaller effective mode volume. The rather limited tunability of the present device is associated with the quality of the graphene layer, which consisted of impurities and defects due to CVD growth and device fabrication processing. The tunability can be further improved with better sample quality or using BN/graphene/BN sandwiched structures.

To reveal the physical insights behind the demonstrated tunability, we followed CMT and numerically fit the experimental data with equation 1 to extract Q_r and Q_a values. As the reflectances (R = ${\left|\mathrm{r}\left(\mathsf{\omega }\right)\right|}^2$) of the device under different bias are known, Q_r and Q_a of the system can be easily obtained by numerical fitting based on Equation (1). The results are shown by red hollow squares in Figure 2c and it can be seen that the extracted Q_r and Q_a agree reasonably with the simulation data. This agreement validates the simplified model to treat graphene as an effective layer with tunable absorption. The apparent deviation in the region of ${\mathrm{V}}_{\mathrm{G}}$ > 17 V is attributable to the fact that carriers are inverted into electron type, and that the carrier density shows a non-monotonous dependency upon ${\mathrm{V}}_{\mathrm{G}}$. In the region of ${\mathrm{V}}_{\mathrm{G}}$ < 17 V, Q_r appears to be almost independent of back-gating, while Q_a can be considerably modulated by back-gate biasing. The Q_a/Q_r value extracted from experimental data is also displayed in Figure 2d, and a similar agreement can be clearly identified. 2D images in the inset of Figure 2d show the modular z-component of the electric field ($\left|{\mathrm{E}}_{\mathrm{Z}}\right|$) of a unit cell at ${\mathrm{V}}_{\mathrm{G}}=-8\mathrm{V}$ and ${\mathrm{V}}_{\mathrm{G}}=26\mathrm{V}$. As ${\mathrm{V}}_{\mathrm{G}}$ decreases, the difference between Q_r and Q_a also decreases. Accordingly, the electrical field around the cross increases, which leads to a condition closer to perfect absorption (Q_a/Q_r = 1). In our present work, although the Q_a/Q_r change covered only a limited interval along the dashed line and perfect absorption (Q_a/Q_r = 1) was not yet reached, it is evident that electrical tuning of graphene Fermi level by back-gating is effective for modulating the optical property of the hybrid metamaterial structure. In addition, it is expected that electrical tuning at a different geometrical parameter W (and therefore different Q_r) will lead to a different tunable range, and the same electrical gating at a larger W will lead to possibly perfect absorption, as indicated by the phase diagram in Figure 2a.

4. Conclusions

In summary, we studied an ultrathin ($<{\mathsf{\lambda }}_0/15$) and electrically tunable graphene metamaterial perfect absorber working at the mid-infrared region. The Q-values of the absorber can be tuned through rather independent parameters, namely, radiation loss (Q_r), mainly modulated by W, and intrinsic loss (Q_a) by the graphene with tunable absorption through back-gating. Our work suggests that near-independent Q-tuning could be realized by integrating graphene into metamaterial absorbing systems, which may facilitate the devising and experimental process of finding critical damping. Our work also provides new thinking for designing and realizing tunable infrared devices, and may be valuable for wider applications of perfect absorbers in mid-infrared sensors, absorbers, and detectors.
