Research on Composite Control Strategy of Quasi-Z-Source DC–DC Converter for Fuel Cell Vehicles

School of Electrical and Electronic Engineering, Harbin University of Science and Technology, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(16), 3309; https://doi.org/10.3390/app9163309
Received: 3 July 2019 / Revised: 7 August 2019 / Accepted: 9 August 2019 / Published: 12 August 2019
(This article belongs to the Special Issue Fuel Cell Electric Vehicles)
  |
PDF [9257 KB, uploaded 12 August 2019]
  |     |

Abstract

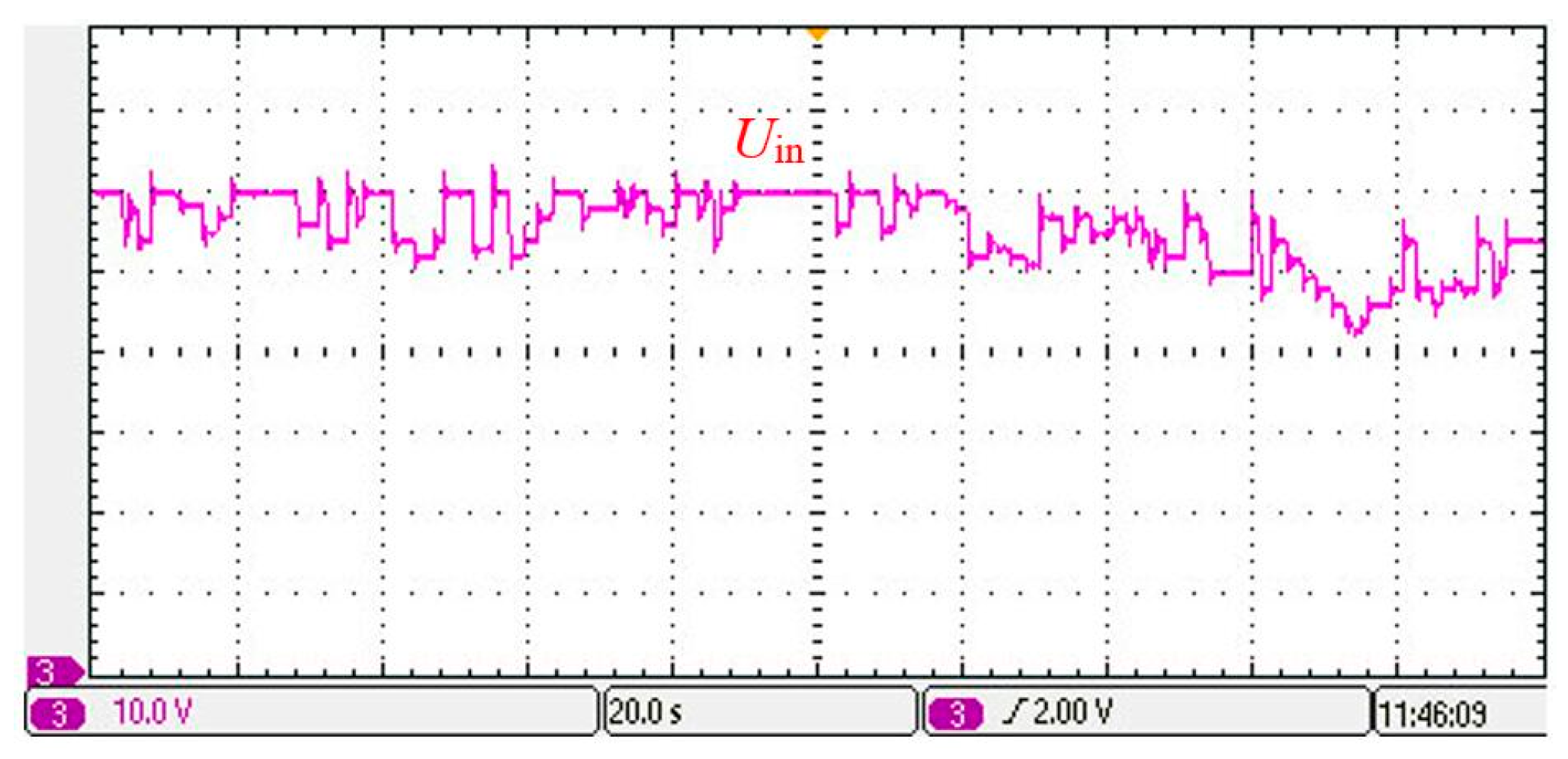

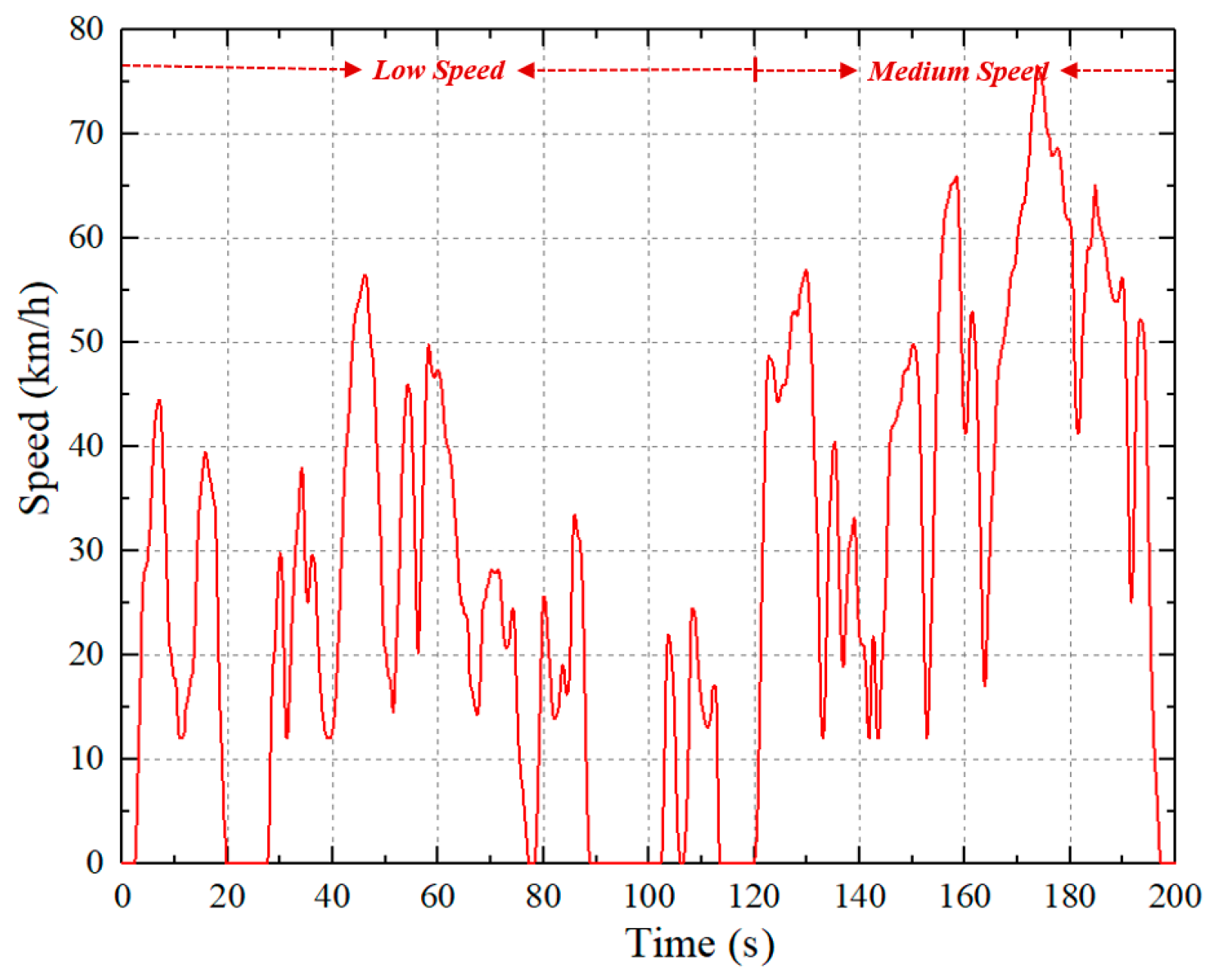

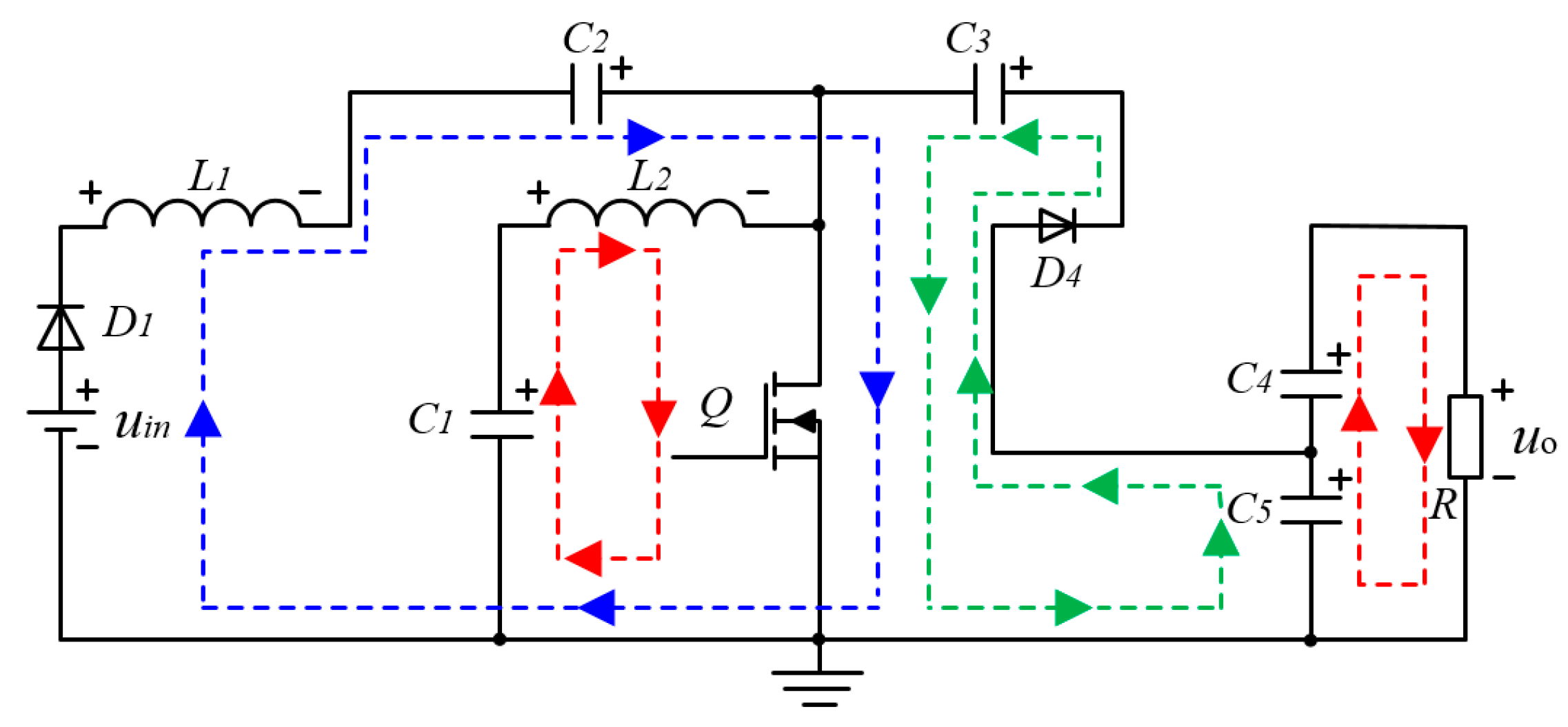

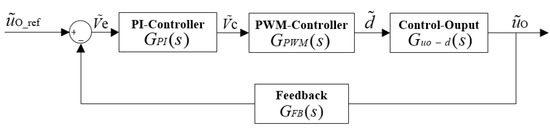

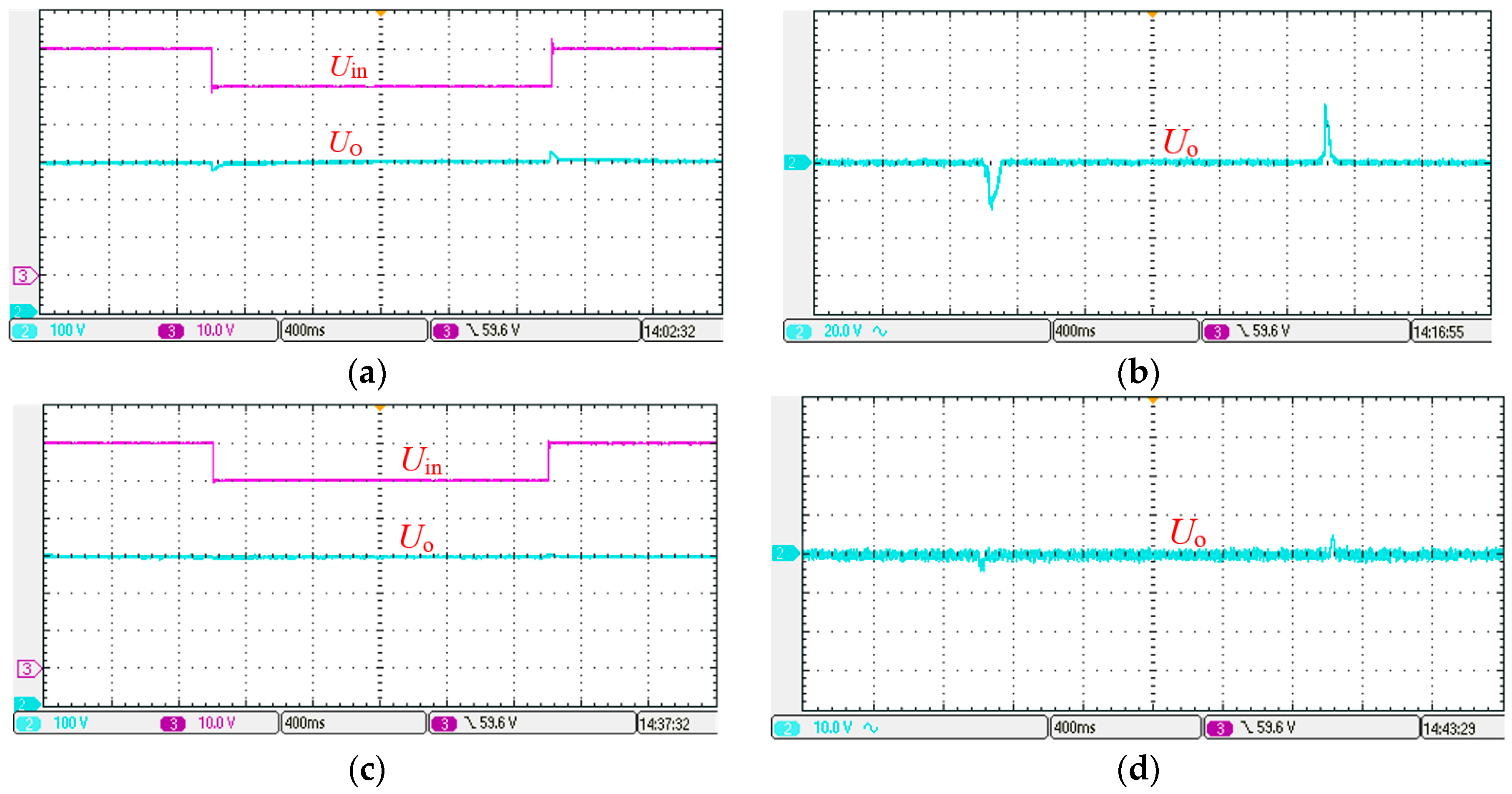

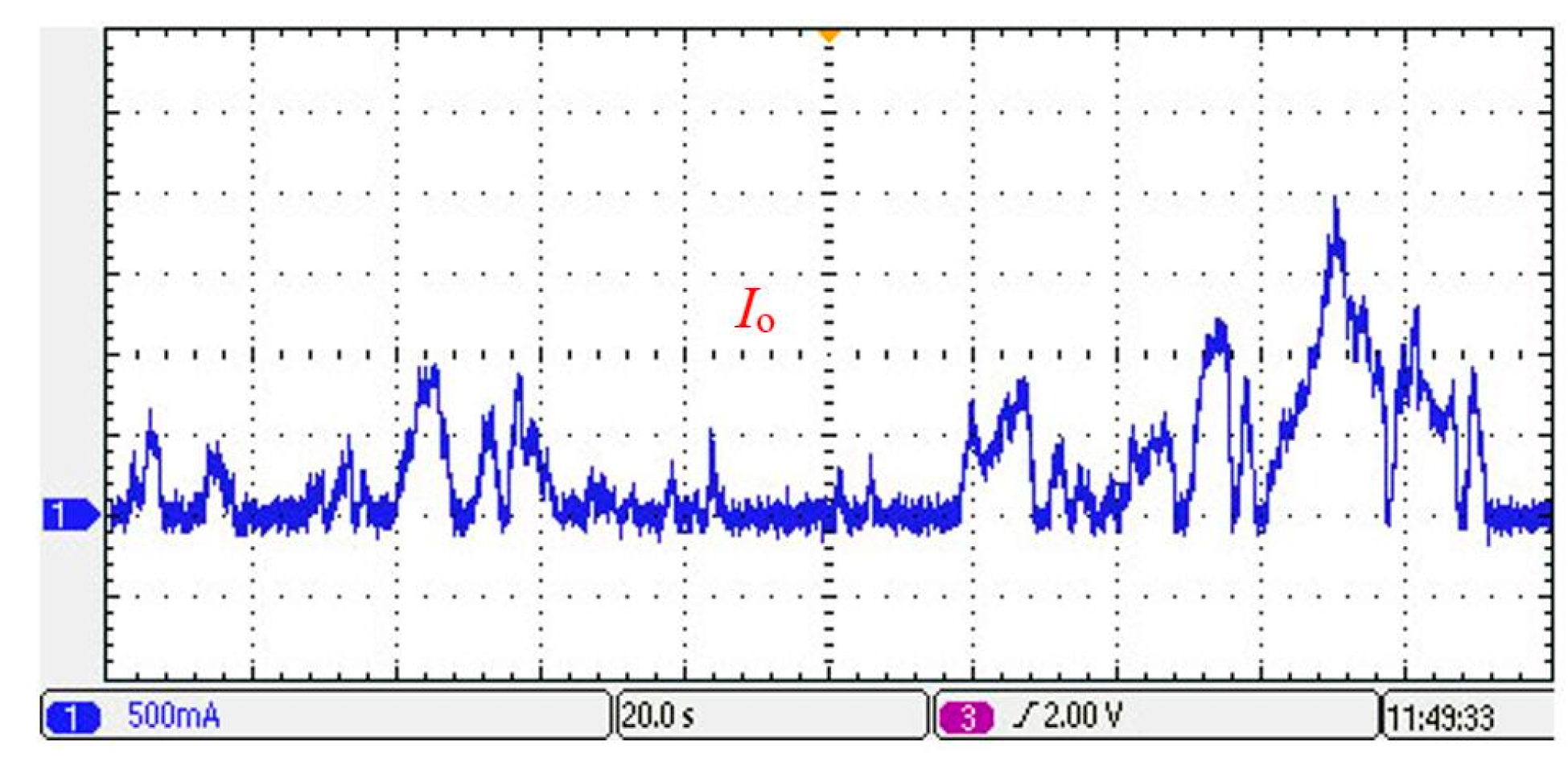

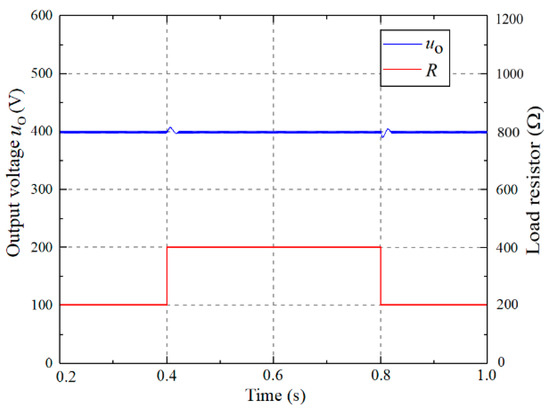

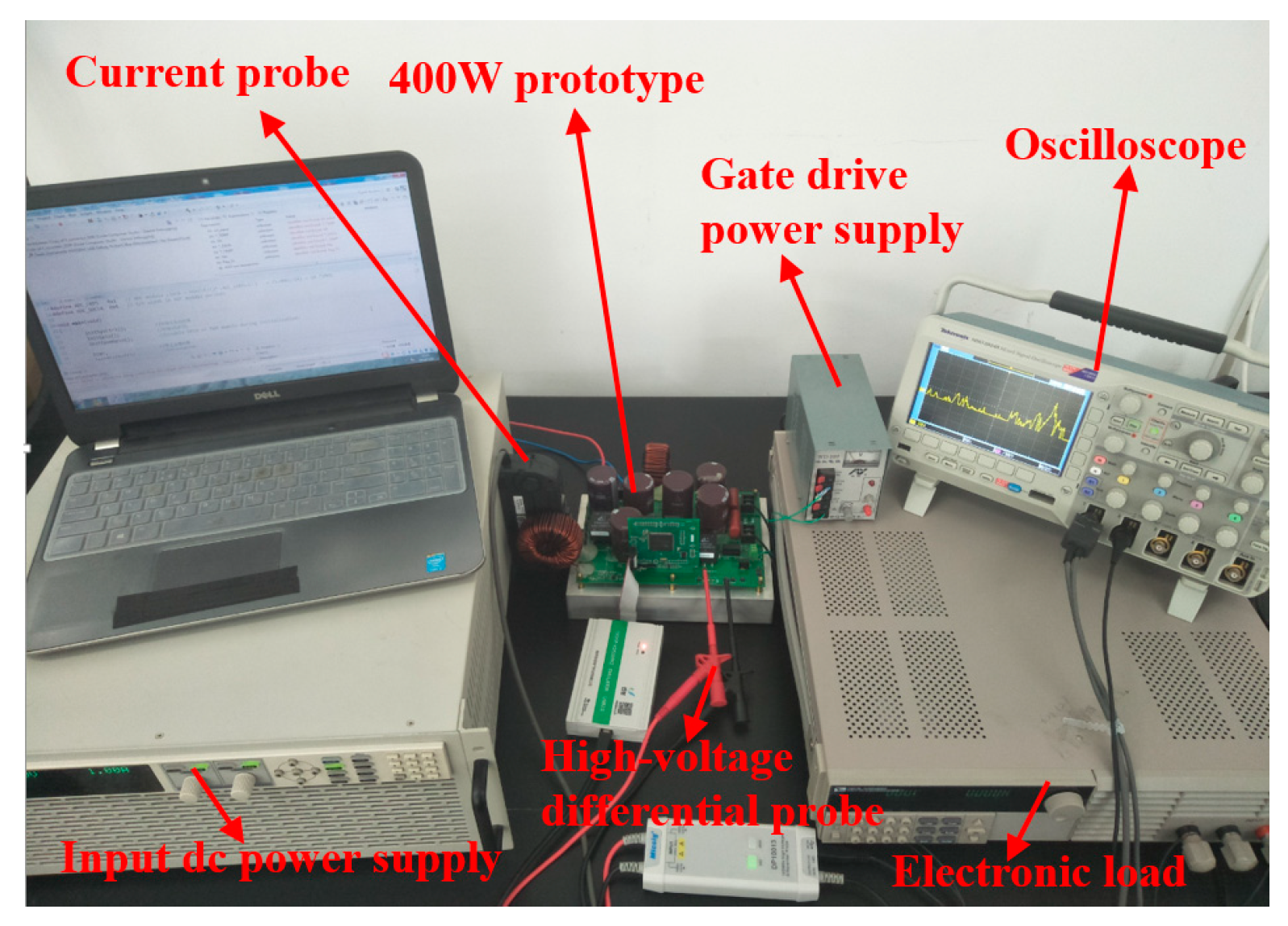

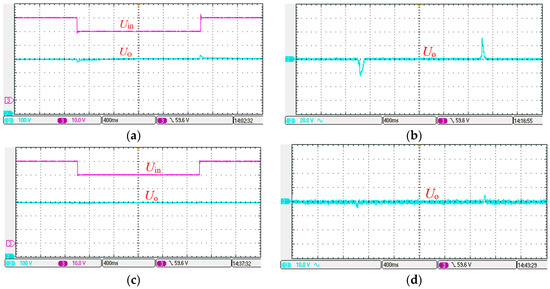

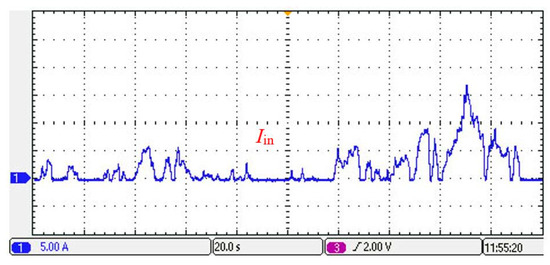

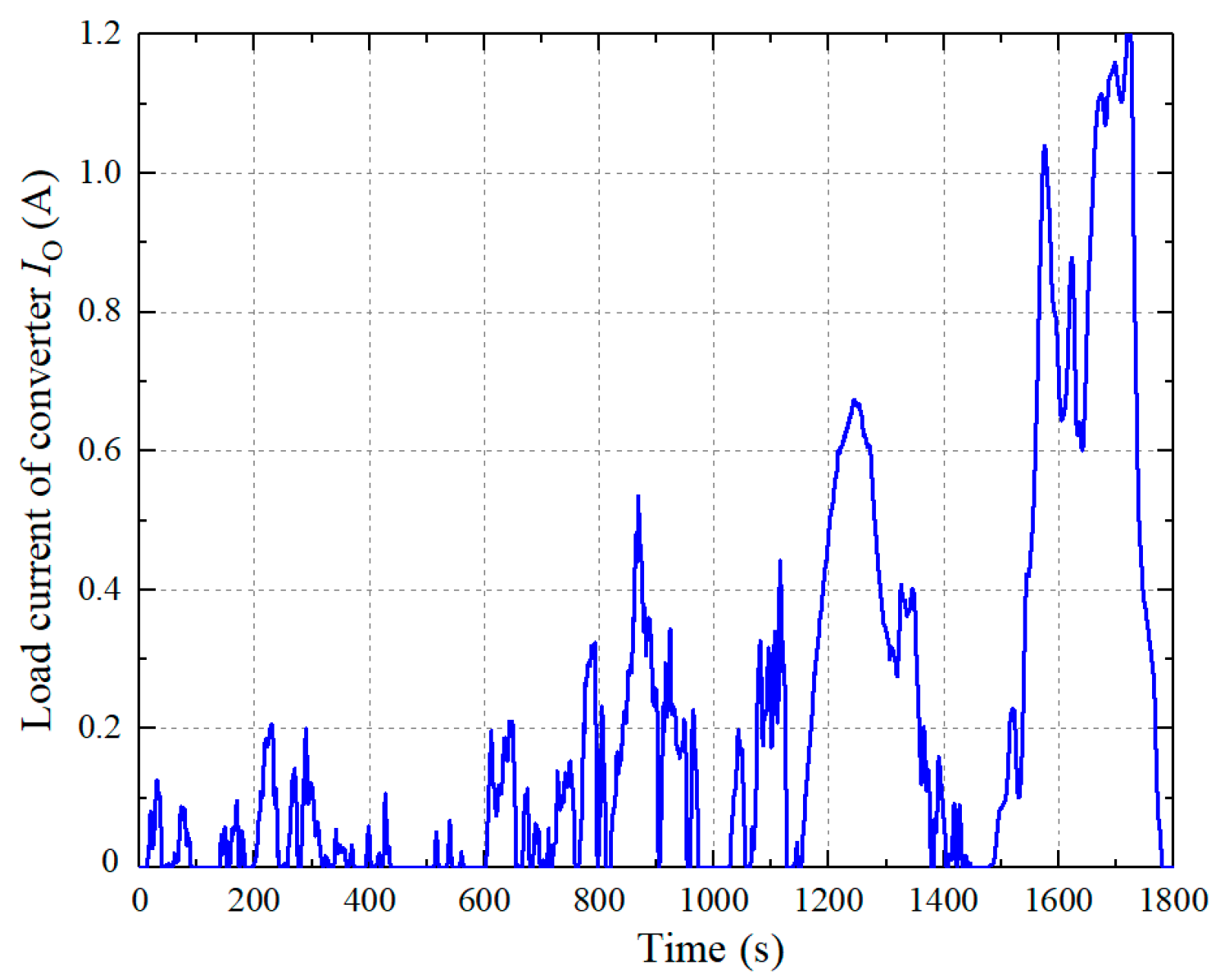

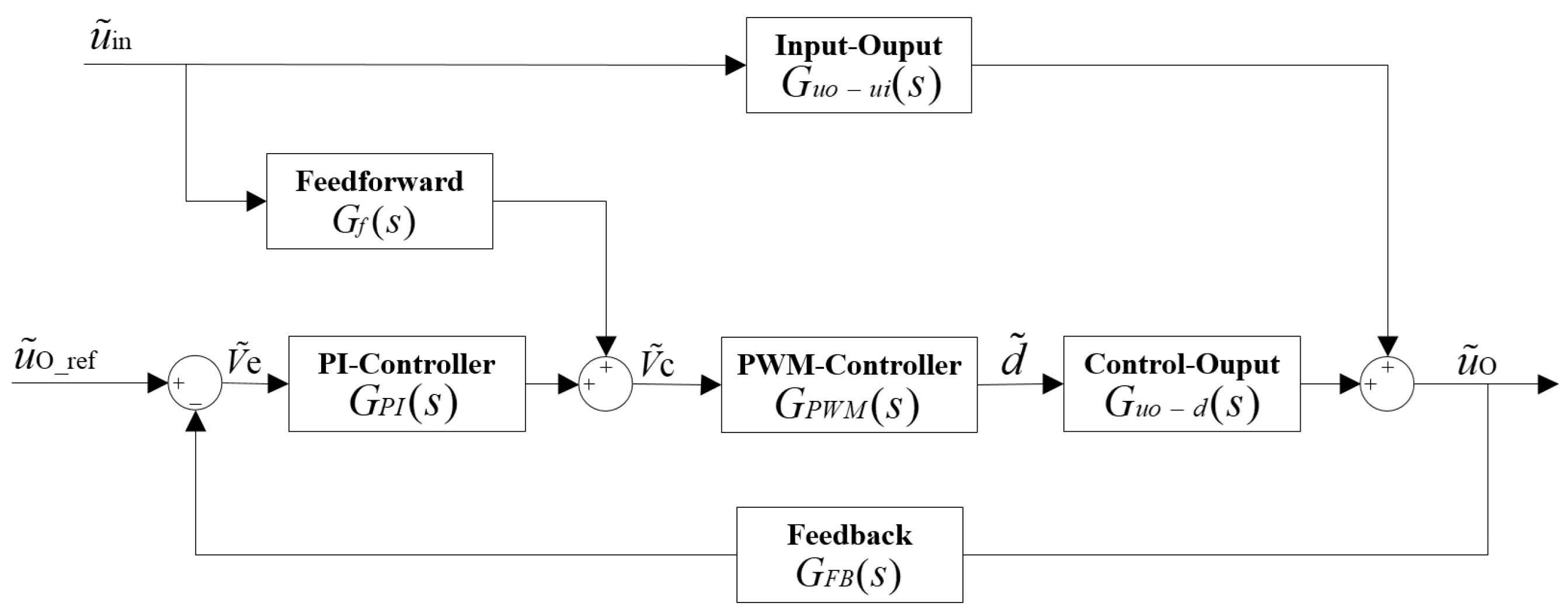

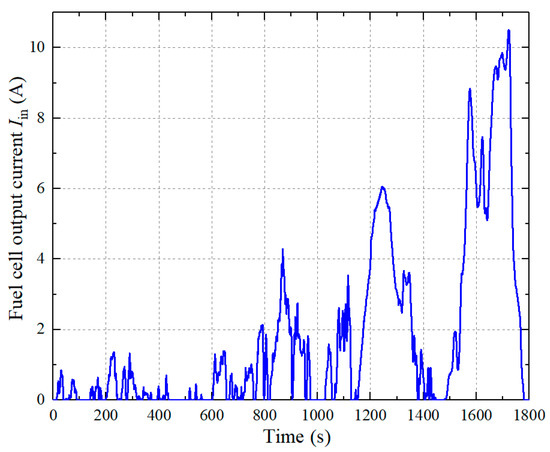

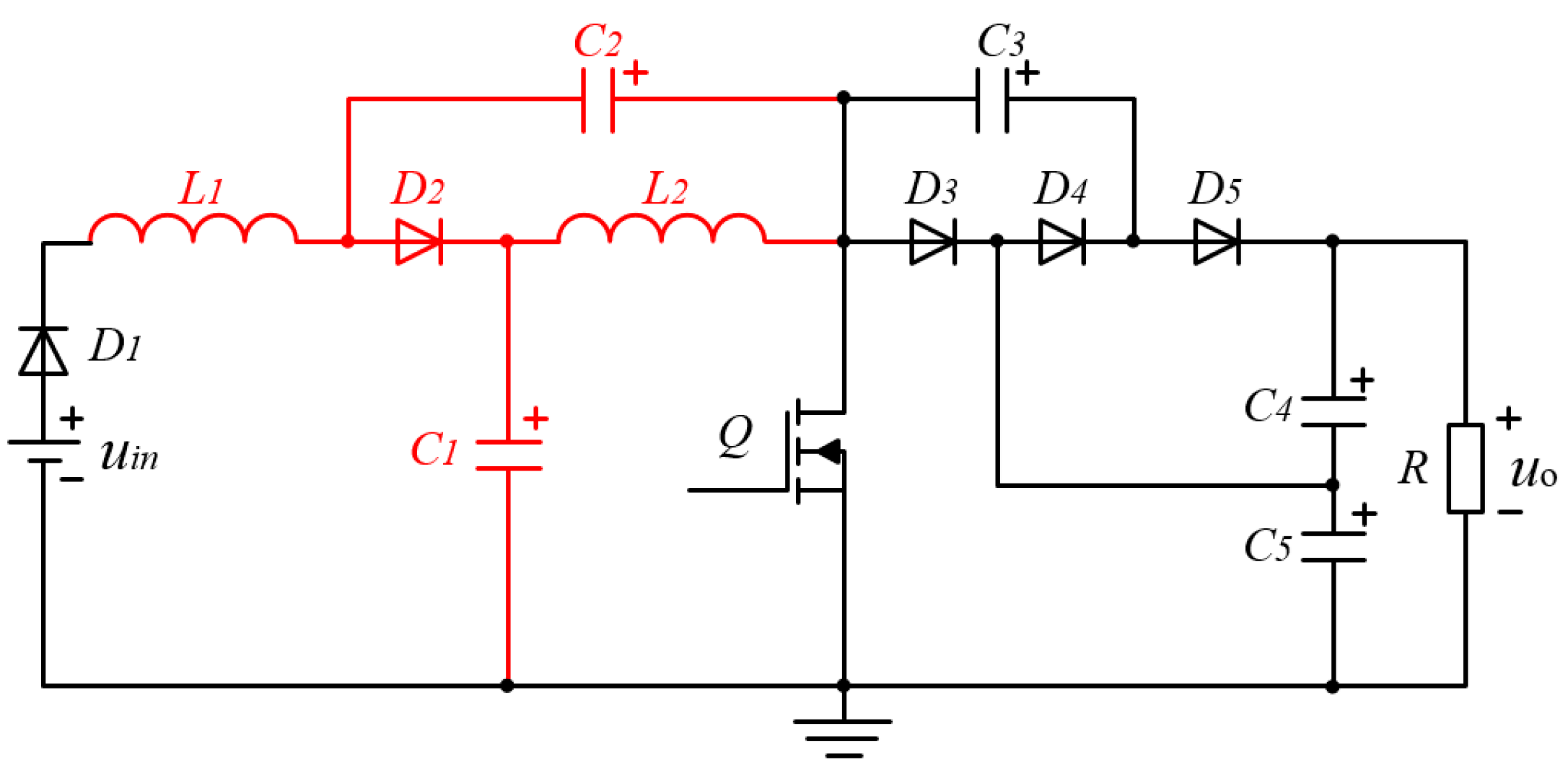

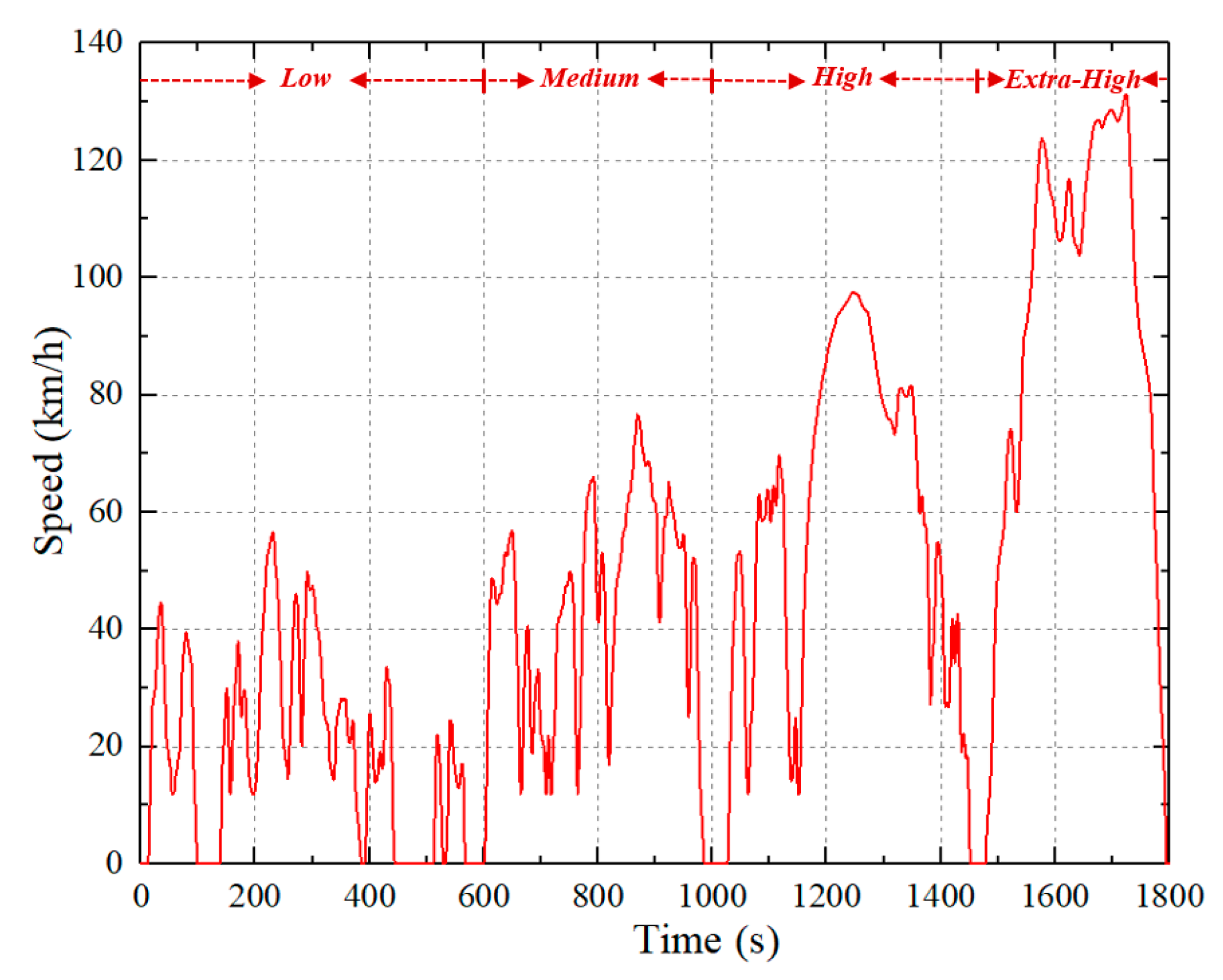

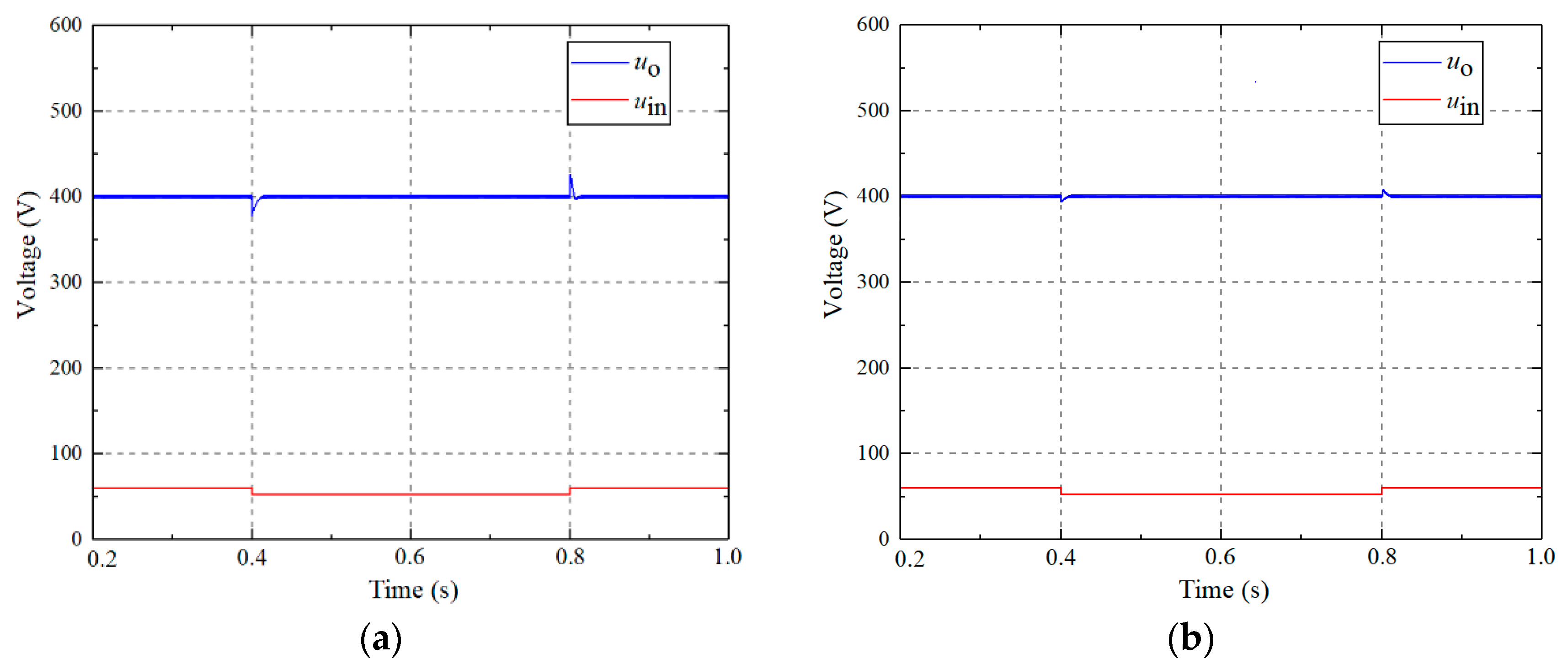

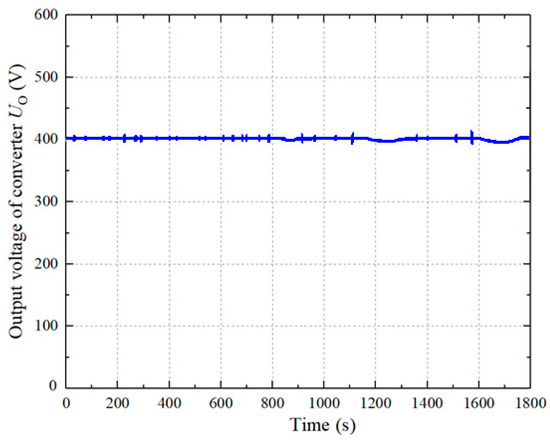

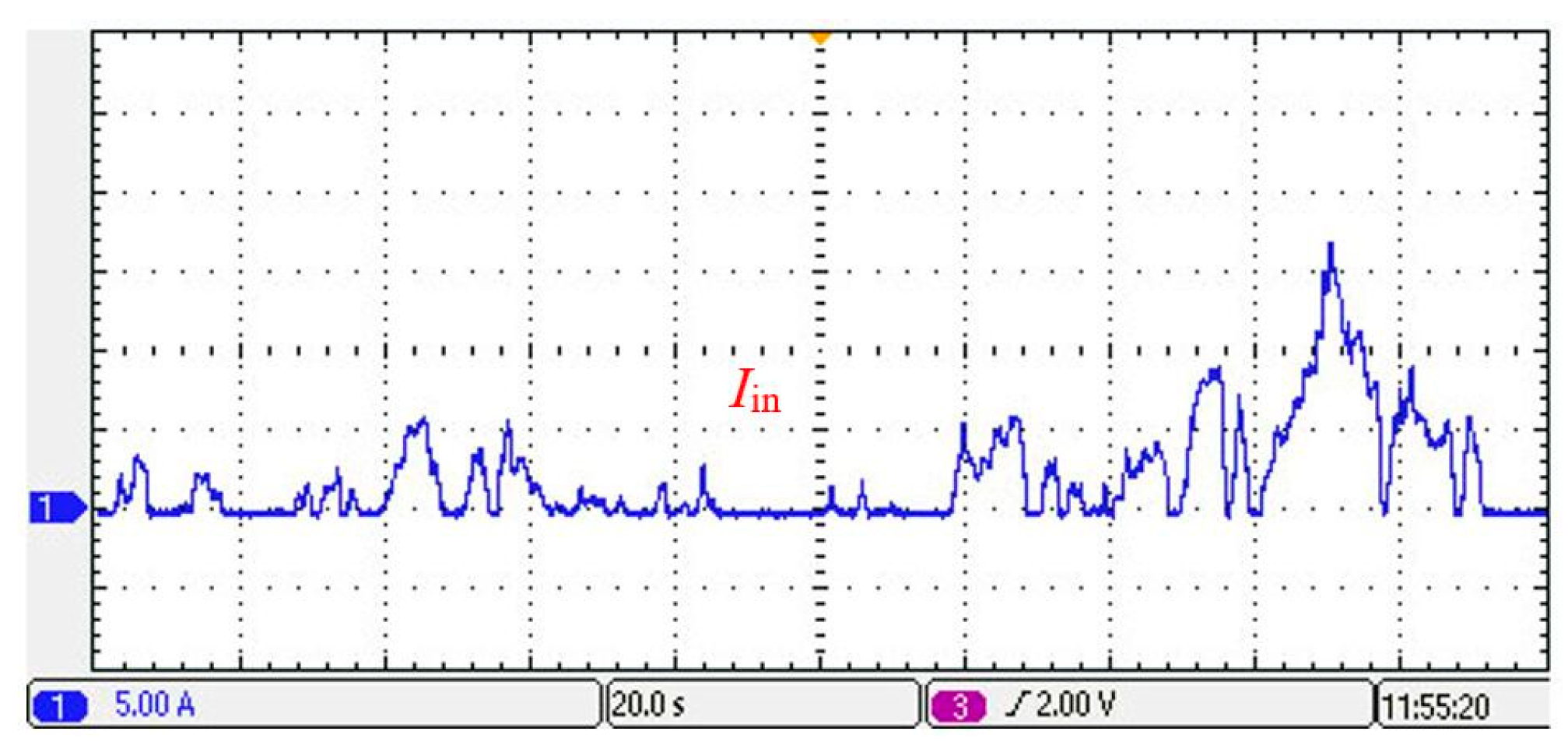

The DC–DC converter for fuel cell vehicles requires high gain and wide voltage input range to boost the voltage of the fuel cell. However, with the traditional boost converter, it is difficult to meet the requirements of the fuel cell vehicle power system. Based on a quasi-Z-source network DC–DC converter, this paper proposes a composite controller, which includes a feedforward compensation network and feedback control to meet the control robustness requirement of the fuel cell vehicle power system. The dynamic model of the converter is obtained by using the state space averaging method and the small-signal dynamic modeling method. The input voltage and load disturbance experiments are performed on the DC–DC converter. Moreover, the converter is tested under the worldwide harmonised light vehicle test procedure (WLTP) to validate the effectiveness of the proposed composite controller. The simulation and experiment results show that the proposed composite controller effectively enhances the converter’s ability to resist input and load disturbance, and improves the dynamic response performance of the DC–DC converter for fuel cell vehicles. View Full-Text
Keywords: fuel cell vehicles; quasi-Z-source DC–DC converter; feedforward compensation; small-signal dynamic modeling; feedback control fuel cell vehicles; quasi-Z-source DC–DC converter; feedforward compensation; small-signal dynamic modeling; feedback control
