Experimental Investigations into Earthquake Resistance of Steel Frame Retrofitted by Low-Yield-Point Steel Energy Absorbers
1
Department of Civil Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China
2
Department of Civil Engineering, School of Engineering, University of Birmingham, Birmingham B15 2TT, UK
3
Department of Mechanics and Structural Engineering, Yancheng Institute of Technology, Yancheng 224051, China
4
Department of Civil Engineering, Kaili University, Kaili 556011, China
*
Author to whom correspondence should be addressed.
Received: 25 June 2019 / Accepted: 8 August 2019 / Published: 12 August 2019

Abstract

:

Featured Application

A novel earthquake-energy absorber using extremely low-yield-point steel applicable to buildings’ steel frame is proposed. It can significantly improve the seismic performance of buildings and infrastructures. Essentially, nonlinear dynamic behaviors and corresponding failure modes have been identified by conducting rigorous shaking table tests. The insights derived from this work will guide the advanced design of the new, innovated energy absorber.

Abstract

This paper is the world’s first to highlight an experimental investigation into the earthquake responses of a steel frame retrofitted by novel metallic bending energy absorbers made of low-yield-point steel with the yield strength of approximately 100 MPa. New results have been achieved by conducting comprehensive shaking table tests on a quarter-scaled model of a two-story, one-span building structure subjected to incremental intensity levels of input earthquake records. The detailed information of the specimens, material properties, monitoring sensors, and dynamic loading mechanisms has been presented. The experimental results in terms of seismic phenomena, dynamic characteristics, acceleration, inter-story drift ratios, and strain distributions are also analyzed by the data collected from a wide range of sensors. It is found that the seismic failure of the specimens depends largely on the energy absorbers, which dissipate the majority of seismic input energy in order to prevent the parent steel frame from being damaged by a severe earthquake. In addition, the retrofitted structure sufficiently satisfies the design criteria considering allowable drift limits under both frequent and rare earthquakes. This indicates the influential role of the novel low-yield-point absorber, in that the overall seismic performance of the retrofitted structure can be improved adequately for survival in high-intensity seismic fortification areas.
Keywords:
steel frame; low-yield-point steel; energy absorber; shaking table test

1. Introduction

Earthquakes are always seriously taken into account when designing and constructing an engineering structure such as a high-rise building, a long-span railway bridge, a sport arena, etc. [1,2,3,4,5,6]. The influence of an earthquake on building structures can tremendously cause the losses of either lives or investments. Any landmark engineering structure can be destroyed in an instant because of the occurrence of extreme motions caused by natural disasters such as earthquakes and strong winds, or even by high-speed traffic motions [7,8].
In a traditional seismic design of building structures, an earthquake energy input is designed to be dissipated by the plastic deformation of some significant structural members such as frame columns, beams, joints, and braces. The energy dissipation mechanism may cause some structural damages or a total collapse subjected to earthquake motions [9]. In order to alleviate the risk of seismic damages to urban infrastructures, many scholars have engaged in the research frontier of earthquake engineering and have continuously developed various technologies to improve the structural safety of a building under severe earthquakes. A passive energy dissipation system has been widely used in seismic regions to absorb the input energy of earthquake excitations. In addition, a structural seismic control is commonly adopted to change or adjust the dynamic characteristics of the structure by installing special devices (e.g., seismic isolation bearing [10,11,12]), some other structural modifications (e.g., energy-dissipation braces and joints [13,14,15,16,17], fluid viscous energy absorber [18,19,20], and metallic energy absorber [21,22,23,24]), or additional substructures (e.g., tuned mass energy absorber [25,26,27]) in a certain part of the structure. These devices, which require no additional energy to operate, generate a controlled counterbalance force and provide the ability to improve energy dissipation in structural systems [28]. On the other hand, a passive energy dissipation device can be used as a special structural element that, when incorporated into a structure, absorbs or consumes a significant portion of the input energy. Thereby it reduces energy dissipation demand on primary structural members and minimizes possible structural damage.
Engineers are constantly looking for new materials that increase the seismic performance of a building, and one of the most effective materials that have been found in recent decades is the low-yield-point (LYP) steel. The LYP steel possesses extremely low yield strength, low yield ratio, and high elongation capacity much larger than that of conventional structural steel. It also exhibits excellent strain hardening characteristics when subjected to cyclic loads [29,30,31]. With a low yield ratio, the structure that utilizes LYP steel can redistribute the inelastic stress easily and provides a larger plastic zone. Due to its superior deformation capacity, researches on the application of LYP steel in building structures in the forms of shear walls can be found [32,33,34]. The LYP steel is also frequently adopted in hysteretic metallic energy absorbers. The advantages of LYP steel energy absorbers as a novel kind of passive energy dissipation device include simple conformation, stable hysteretic performance, low cost, and explicit early-warning mechanism under earthquake action. Significant attention has been paid to the development as well as the seismic evaluation of LYP steel energy absorbers, so as to remarkably improve the performance by decreasing any damage of the parent structure [35,36,37,38,39,40,41]. The LYP steel hysteretic energy absorbers applied in the buildings are designed to reduce the dynamic responses of drift and stress, which utilize the considerable plastic deformation to absorb the input energy under earthquakes or other natural forces.
Previous researchers carried out significant work on the hysteretic seismic performance of LYP steel energy absorbers, which promote the application and development for building systems. However, their researches are restricted to focus on the static or cyclic loading tests and finite-element numerical simulations at a component level of LYP steel energy absorbers. Any new study on time-history dynamic seismic performance of an overall structure combined with additional energy absorbers is rarely carried out, let alone the shaking table tests of structures.
In this paper, a novel type of metallic bending panel energy absorber fabricated by using low-yield-point steel with a yield strength of approximately 100 MPa is presented. The quarter-scaled steel frame specimen retrofitted by LYP steel energy absorbers is designed, and the peak ground accelerations of three seismic records, including El Centro, Kobe and Taft waves with different motion characteristics, are scaled to a series of amplitude modulations. In order to investigate the nonlinear seismic behaviors of the structure, such as the failure modes, dynamic properties, acceleration responses, inter-story drift ratios, and strain distribution, shaking table tests are performed on the specimen, subjected to the increasing intensity levels of earthquake records. The comprehensive test results provide novel and practical insights and act as a new technical reference on the engineering application and theoretical analysis for this kind of metallic energy absorber.

2. Specimen Design and Test Method

2.1. Specimen Design

Due to the limitation of bearing capacity provided by our shaking table facility, a quarter-scale spatial structural model of a single-span, two-story steel frame retrofitted by low-yield-point steel energy absorbers was designed in accordance with the Chinese Code for Seismic Design of Buildings (GB 50011-2010) [42]. The materials used for the test model were identical to those of the prototype structure, thereby indicating that the similitude ratio of the elastic modulus is SE = 1. The scaling factor of the acceleration was thus taken as Sα = 2.5 according to the maximum acceleration of ground records provided by the shaking table in laboratory conditions. The remaining similitude ratios of the mechanical parameters are listed in Table 1. The experimental results of the scaled model were then converted by the corresponding similitude ratios to obtain the dynamic responses of the prototype structure.
The plane size of a specimen with a height of 0.8 m at each story, shown in Figure 1, was 1.2 × 1.2 m considering the limited size and loading capacity of the shaking table. Hot-rolled H-shaped steel with type specification of H 100 × 100 × 6 × 8 mm was adopted for all the frame columns (FC), and the I-shaped steel of I10 was used for all the main beams (MB) and secondary beams (SB). The LYP steel energy absorbers were connected to the lower flange of the main frame beam by equal-leg, double-angle steel bracing (EDB) with a type specification of 2L 45 × 3 mm (Figure 1c). The low yield strength steel was then used for the four middle plates with a thickness of 8 mm welded to the two upper and lower ordinary steel plates with a 20 mm thickness in the metallic energy absorbers, whereas ordinary Q235B steel was applied in all other steel components. The additional mass blocks with a weight of 2 tons were mounted on each story of the specimen to simulate the weight distribution of the prototype structure accurately. Taking the mass blocks into consideration, the total weight of this specimen including the mass of the steel columns, beams, bracings, metallic energy absorbers, and connecting plates, was approximately 4.41 tons.
The bottom of the steel column in Figure 2 was strengthened by multiple stiffeners to achieve sufficient strength and stiffness, in order to prevent the column base from any premature formation of local buckling or plastic hinge during the tests. A cantilever splicing section located at the weak axis of the frame column was connected with the main frame beam by the full penetration butt weld to ensure the rigid beam-column joint, as shown in Figure 3. The energy absorber in Figure 4 was designed to bend and yield from the middle at first and then spread to the two ends during the test, which was composed of four LYP steel plates with the middle section smaller than the upper and lower end sections. The arc transition at the cross-sectional change was then adopted to avoid the premature failure caused by the local stress concentration.

2.2. Material Property Test

The chemical compositions of test materials are given in Table 2. The content of carbon and manganese in low-yield-point steel was much lower than that in ordinary steel. The lower the carbon content, the better the plasticity, cold bending performance, weldability, and corrosion resistance of steel, but the lower the strength of steel. Manganese can significantly improve the strength of steel, but reduce the weldability of steel. These indicate that the yield strength of low-yield-point steel is lower, whereas the plasticity and weldability are better than that of ordinary steel.
The uniaxial tensile test on steel coupons had been carried out to obtain fundamental mechanical properties of the materials including the yield strength, ultimate tensile strength, modulus of elasticity, elongation, and yield ratios. The typical steel coupons designed as the shape of the plate shown in Figure 5 for the material tensile test were cut from the base metals. Table 3 presents the detailed sizes of different geometric parameters about the coupons, and three tensile coupons with the actually measured sizes listed in Table 4 were tested for the LYP steel with the nominal yield strength of 100 MPa.
These steel coupons for tensile tests were respectively installed on the electro-hydraulic universal material-testing machine, which can automatically record the maximum load, yield strength, and ultimate strength at the end of the test (Figure 6). The tensile coupons of LYP steel were observed to stretch considerably long, from the initial elasticity to the yield and then to the strain hardening stage until the necking fracture. The cross-sectional area was reduced to a sufficiently small section, and the fractured surface was uneven and jagged after tensile fracture of LYP steel coupons, as shown in Figure 7, which indicates that this LYP steel exhibits superior ductile performance.
Table 5 presents the different mechanical behaviors of low-yield-point and ordinary steel specimens under quasi-static tensile tests. In comparison, the ratios of yield strength, ultimate tensile strength, and yield ratio of LYP steel to Q235 steel were approximately 0.41, 0.64, and 0.63, respectively, whereas the elongation of LYP steel was approximately 1.36 times that of Q235 steel. The actual engineering stress–strain curves of LYP steel could then be calculated and achieved based on the test results, as shown in Figure 8.
The characteristics of LYP steel regarded as an ideal material for energy absorption and its advantages in engineering applications can be summarized as follows: (i) the yield strength of LYP steel is much lower than that of ordinary steel, which will enable metallic energy absorbers made of LYP steel to form the plastic deformation, prior to other structural members, for energy dissipation when subjected to earthquake load or intensive wind load; (ii) the yield strength is less than 0.5 times ultimate strength, and the much prolonged strain-hardening process accompanied by the accumulation of plastic deformation will contribute to the seismic-resisting capacity and guarantee the required lateral stiffness under earthquake action; and (iii) the elongation at break is approximately 48% and the favorable plastic capacity without deterioration will ensure the superior structural ductility. Attributable to its high plastic deformation capacity, the LYP steel has thus been widely applied in seismic engineering.

2.3. Fabrication and Installation of the Specimen

All the steel components in the specimen were fabricated and connected in the factory. The LYP steel energy absorbers after the completed fabrication, as shown in Figure 9, was welded to the lower flange of the frame beam through the end plate, and also welded together with the equal-leg, double-angle steel bracing through the connecting plate. The welded connection was adopted in the beam–column joints to possess a rigid stiffness. A bottom plate was welded to the end of the steel column, which was firmly attached to the shaking table surface with the high-strength bolt. A hole was reserved at the center of each floor plate for the placement and fixation of additional mass blocks.
After being transported to the structural laboratory, the whole specimen was hoisted to the shaking table surface by a bridge crane in the laboratory and fixed by the anchor bolt. Then, artificial counterweights of additional mass blocks in the form of rubber isolation bearings were deployed and bolted to the steel floor slab in order to ensure that no slipping could be occurred throughout the test, as shown in Figure 10.

2.4. Instrumentation

A series of shaking table tests under three seismic waves, with the scaled amplitude modulation of peak acceleration, was carried out to investigate the overall damage process of the structure subjected to the different intensity levels of earthquake records. The strains and displacements at various locations of the specimen under the action of different seismic waves were monitored to analyze the nonlinear dynamic time-history responses of the structural model during the test.
The geometric working size was 4.0 × 6.0 m for the loading test of the shaking table facility with a maximum capacity of up to 250 kN, operating frequency range 0.1–50 Hz, and maximum velocity of ±6 mm/s. The shaking table could produce a maximum acceleration of 3.0 g at the non-load condition and 1.5 g at the loading condition of 250 kN, with a maximum displacement of ±250 mm, as shown in Figure 11.
The resistance strain gauges were adopted to investigate the strain variance of steel members during this test (as shown in Figure 12a). The displacement sensor (type: YHD-50) with a range of ±50 mm and another jacking displacement meter (type: TST-250) with a range of ±250 mm were mounted on the model to monitor the inter-story drift ratios (see Figure 12b,c). The corresponding dynamic signal processing system was used for data acquisition and analysis (see Figure 12d).

2.5. Layout of Monitoring Points

The appropriate positions of measurement were defined to capture the overall time-history dynamic responses of the test model during seismic loadings, as well as any local effects such as yielding of LYP steel energy absorbers. Figure 13 shows the arrangement of monitoring points where the strain gauges and displacement sensors for the measurement of each component are placed. The strain gauges used for acquiring the maximum stress to monitor the damaged condition of frame members were respectively glued on the flanges at both ends of columns or beams. They were located at the area where the stress induced by bending moment under the horizontal ground motion was much higher than that at the middle or other parts. The measurement points of strains in the energy absorbers were arranged at the center of each LYP steel plate, where the stress caused by the bending deformation under the action of horizontal shear force transferred from the frame beam was the maximum. The waterproof treatment and protection measures were performed to prevent dampness and damage after the strain gauges had been glued on the polished steel surface with the dirt removed. The YHD type of displacement sensors were fixed on the outer flange of the frame column, at the beam–column connections of each story, by a magnetic suction seat to measure the inter-story drift of the specimen. Another TST type of displacement meter was installed on the bracket by a steel wire to obtain the absolute displacement at the monitoring point.

2.6. Loading Protocol

The shaking table tests were rigorously carried out to evaluate the seismic performance of the model by the increasing earthquake excitation magnitudes. Three ground input excitations, representative of actual earthquake records, which conform to the dynamic characteristics of the standardized response spectrum put forward by GB 50011-2010, were selected: El Centro wave (Imperial Valley earthquake, 1940), Kobe wave (Hyogoken-Nanbu earthquake, 1995), and Taft wave (California earthquake, 1952). The unidirectional alternative-loading method of the seismic wave was applied to investigate the dynamic characteristics of the model under different levels of earthquake intensity in this test.
Firstly, the model was scanned by 3D white noise signals, for which the peak ground acceleration (PGA) level was limited to 0.05 g, to obtain the original dynamic characteristics, including the natural frequency and damping ratio, before applying the ground motion. Subsequently, a white noise excitation was applied to identify any variation in the dynamic characteristics of the test model after each level of adjusted PGA for the earthquake records.
Three different levels of earthquake hazard with 63.2%, 10%, and 2% probabilities of exceedance in 50 years of the design reference period are referred to as “frequent earthquake”, “occasional earthquake” and “rare earthquake”, respectively. Table 6 lists the loading plan consisting of 47 seismic cases during the shaking table test program. The loading-scaled PGAs of input El Centro and Taft waves were increased from 0 to 1.0 g, with each case increased by 0.1 g, whereas the Kobe wave was scaled up to 1.6 g due to the different maximum oil pressures caused by the individual dynamic characteristics of seismic waves. The adjusted PGAs were involved in all levels of earthquake fortification intensity, from frequent 7 to rare 9, for the test model presented in Table 7. The representative seismic waves and corresponding frequency spectra, derived from converting the input time domain into the frequency domain by fast Fourier transform under PGA = 0.3 g, as an example for three ground records, are shown in Figure 14 and Figure 15, from which the dominant frequencies of 1.82, 2.54, and 1.72 Hz were obtained for the El Centro, Kobe, and Taft earthquake waves, respectively.

3. Experimental Results and Discussion

3.1. Experimental Observations

It could be observed from the structural responses that the specimens vibrated most intensely under the input excitations of the Kobe wave, which possessed the larger vibration amplitude and stronger excitation energy, seen from Figure 15, compared to the El Centro and Taft waves when subjected to the same PGA during the shaking table tests. Before the loading case #10 with a maximum PGA of 0.4 g, no visual and acoustical evidence of all the steel components was demonstrated in the test model, and the structural performance remained in an elastic working condition during the frequent earthquake. When the PGA reached up to 0.6 g, a noticeable tremor and shaking sound could be observed from the upper additional mass block, and only a slight shaking response was found at the lower mass block. However, local or lateral buckling in the LYP steel energy absorbers or columns was not observable, thereby revealing that the test model remained elastic until such loading stage. When the PGA level of the input ground motions increased from 0.7 to 1.0 g, a significantly strong shaking response, with an extremely loud and continuous sound, occurred in the mass block. It was accompanied by a considerable amount of dust drifting down, and the overall model intensely vibrated with the increasingly visible displacement. Meanwhile, loosening of the high-strength bolts at the column bases incurred. Moreover, a small number of the displacement sensors mounted on the model broke and dropped down, and some connecting wires of strain gauges fell off (Figure 16a). When the PGA reached up to 1.3 g, the columns, beams, and lateral braces continued to work well. However, the dramatically visible and irreversible bending deformation close to the middle of the LYP steel plates, caused by the shear action, was observed (Figure 16b). This indicates that the ability to dissipate the input earthquake energy mainly relies on the out-of-plane bending mechanism of energy absorbers in any rare earthquake. When the PGA further increased from 1.4 to 1.6 g, the energy absorbers buckled severely, and the corresponding residual plastic deformation was more prominent. In addition, the welds located at the energy absorbers and beam–column joints, where the uneven tension texture appeared on the steel surface, were slightly fractured due to the recursive tensile and compressive forces, as shown in Figure 16c,d.
Throughout the whole loading process of the tests, except for the LYP steel energy absorbers, no apparent failure occurred for the frame columns, frame beams, and lateral braces. The test model did not seriously damage and collapse until the end of the seismic loading cases. In summary, out-of-plane local buckling accompanied by significant bending deformation of LYP steel plates, and the slight fracture of fillet welds, were considered to be the governing failure modes for the test model in this research. These results clearly suggest that the seismic resisting performance of a steel structure retrofitted by additional LYP steel energy absorbers is superior. As the first line of defense in the lateral force resisting system, the energy absorbers, as seismic applications in a structure, contained adequate elastic stiffness to withstand a small earthquake or wind load. However, they performed really well in the elastic-plastic stage and exhibited excellent energy absorbability in a rare earthquake or severe wind, thereby reducing or avoiding the damage of the primary structures, such as frame columns and beams.

3.2. Natural Vibration Properties

Before and after each intensity level test, the white noise wave was utilized to sweep through the test model in order to investigate the change of its vibration properties. The structural natural frequencies of the specimen after each loading case can be obtained by analyzing the time-history acceleration responses derived from the second order differential of the measured displacement, spectrum characteristic, and the transfer function of each story under the white noise excitation. In addition, the corresponding damping ratio at a specific natural frequency can be calculated by adopting the half-power bandwidth method in Figure 17 as follows:
ξ = ( f 2 f 1 ) / ( 2 f ) ,
where ξ is the damping ratio, f is the frequency corresponding to the peak amplitude Amax of the transfer function, f1 and f2 are the frequencies corresponding to the value equal to 0.707 Amax, respectively.
Table 8 presents the fundamental natural frequencies of vibration and damping ratios of the test model under the different increasing seismic excitation cases. It was found that the fundamental natural frequencies of the specimen were much higher than the dominant frequencies of three seismic waves applied as the earthquake excitations. It reveals that the occurrence of the resonance phenomenon can be avoided due to the significant differences of these frequencies. According to the expression of natural frequency f = k / m / ( 2 π ) , the structural stiffness k is directly proportional to the square of the frequency. The measured initial natural frequency and initial damping ratio of the specimen were 15.68 Hz and 3.17% subjected to the first loading stage of 0.1 g, respectively. Furthermore, the natural frequency remained essentially unchanged before PGA of 0.6 g, which implies that the test model without the stiffness degradation remains completely elastic during these stages. However, the natural frequency of vibration gradually decreased with the increase of PGA from 0.7 to 1.0 g, demonstrating that the structural stiffness gradually declined, in agreement with the observed loosening of the high-strength bolts at the column bases. On the other hand, the damping ratio slightly increased during these loading cases because the damping of the structure resulted from a variety of sources, including various connection frictions and external aerodynamic frictions, except for the internal elastic material. A considerable amount of bolt connections were adopted in the column base, which was firmly attached to the vibration table surface with high-strength bolts in the test, and, in addition, all the additional mass blocks were connected by the bolts to the steel floor slab in the frame, which contributed to the increase of the damping ratio.

3.3. Acceleration Responses

Given the mentioned limitations of sensors, one common alternative to indirectly measure the accelerations is to carry out a second derivative of time-history displacement responses retrieved from the displacement sensors. The acceleration of amplification factor β, as an essential index, is used to reflect the structural dynamic amplification effect, because the input peak acceleration is different under each loading earthquake intensity, which can be expressed as follows:
β i = max ( a i ( t ) ) max ( a g ( t ) ) ,
where ag and ai are the measured maximum acceleration responses at the shaking table and floor i, respectively.
Figure 18 shows the variation of acceleration amplification factor β with the increasing input PGA from weak to strong. It could be seen that the measured β of the test model under the Taft wave was the largest compared to the other earthquake motions, and all acceleration amplification factors at the second floor were significantly higher than those at the first floor subjected to the three earthquake records. The β value was observed to sharply increase at each acceleration level within a PGA of less than 0.3 g, before frequent earthquake intensity 9, and then reached a maximum, whereas, the value steadily decreased with the increase of PGA from 0.3 to 1.0 g. When the input PGA reached 1.0 g of the rare earthquake intensity 8 for the test model, the acceleration amplification factors at the second floor were 2.3, 2.42, and 2.63, respectively, subjected to the El Centro, Kobe, and Taft waves, while those at the first floor were 1.4, 1.32, and 1.78, respectively. In conclusion, β exhibited a sharp increase before a certain acceleration level and then gradually decreased with the further increasing acceleration owing to the structural stiffness degradation.

3.4. Displacement Responses

The maximum relative displacements at each story and inter-story drift ratios of the specimen were derived from the data collected by displacement sensors installed at each floor for the different earthquake intensity levels. Only the displacement data within the PGA of 1.0 g were recorded because one part of the displacement sensors mounted on the steel column fell down when PGA reached 1.0 g. The collected time-history inter-story displacements of the test model at the bottom story under the PGA of 0.5 g, as an example for three seismic waves, are shown in Figure 19. Although the PGA was scaled to the same level for different seismic waves, the peak inter-story responses of the specimen subjected to the El Centro, Kobe, and Taft waves were still inconsistent and reached 0.53, 0.64, and 0.6 mm, respectively. This indicates that the influence of different seismic waves, possessing individual dynamic characteristics, on the structural performance varies from each other.
The measured maximum inter-story drift ratios of the specimen, which are obtained by dividing the relative lateral displacements of two adjacent floors by the corresponding story height, for three seismic waves under different earthquake intensity levels are summarized in Table 9. The drift ratios at each story exhibited a gradually increasing trend with PGA growth. The average peak drift ratio of the test model subjected to a frequent earthquake (PGA = 0.35 g) was between 1/2310 and 1/1742, which was far less than the elastic limit value of 1/250 for the multi-story steel structure given by the GB 50011-2010. This indicates that the test structure meets the specific seismic fortification goal of “no damage under minor earthquakes”. Furthermore, the corresponding value subjected to a rare earthquake (PGA = 1.0 g) was 1/233, indicating a satisfactory performance within the elastic-plastic allowable limit value of 1/50 described in this code. This also indicates that the structure meets another required goal of “no collapsing under strong earthquakes”.
The above results clearly reveal that the test model sufficiently satisfies the design requirements of the seismic code and possesses a significantly high structural safety reserve even when subjected to a strong earthquake, which is attributable to the abundant lateral stiffness and remarkable energy dissipation of the structure provided by the energy absorbers installed on the inner braces. It can be concluded that the prototype structure, as a novel horizontal lateral force-resisting system, is highly applicable to high-intensity seismic fortification areas.
Figure 20 presents the variation trends of inter-story drift ratios at the top and bottom floors under different intensity levels of three seismic waves. It was found that the differences of drift ratios between the two stories under the lower intensity, before PGA < 0.7 g, were quite small; however, by further increasing the intensity level of the input seismic wave, these differences became more significant, and the measured drift ratios at the bottom story were dramatically higher than those at the top story. This indicates that the structural stiffness and strength at the bottom story are more flexible compared to the top story under the high-intensity level. In conclusion, it is recommended that the steel members at the lower stories be appropriately strengthened, by increasing the cross-sectional areas or adding more LYP plates in energy absorbers, to assure the uniform distribution of lateral stiffness along the vertical height direction for all stories, in order to avoid the occurrence of weak floors when performing the seismic design.

3.5. Strain Responses of Frame

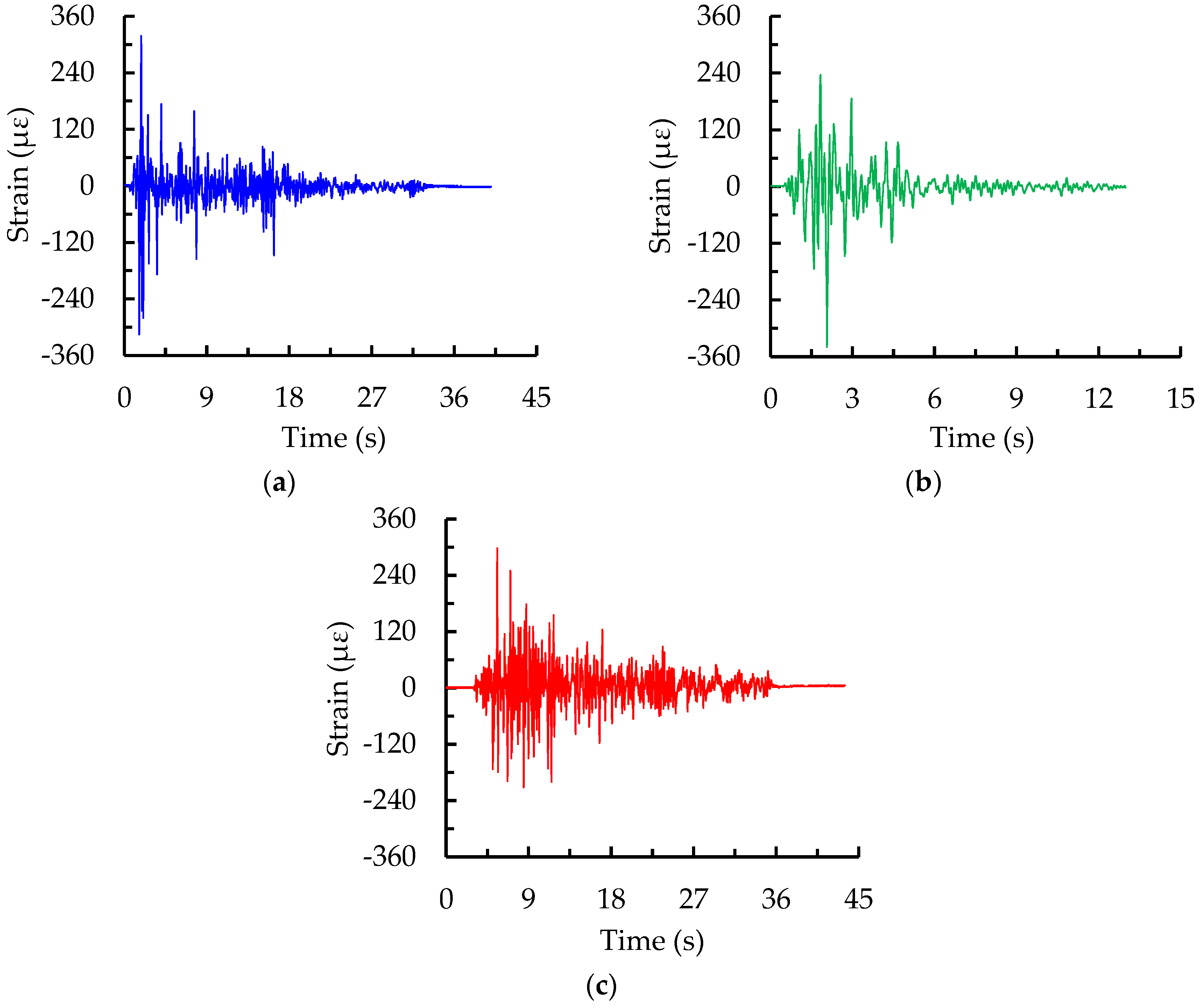

Figure 21 presents the time-history curves of strains at the bottom of the column as an example under the rare earthquake intensity 8 with PGA of 1.0 g for three seismic waves. The strain envelope values subjected to the El Centro, Kobe, and Taft waves were 318, 340, and 298 με, respectively, which were less than the yield strain of 1140 με deduced from the measured yield strength of Q235 steel in Table 5, indicating that the frame column was still in the elastic stage under a rare earthquake. The measured maximum strain derived from the Kobe record with stronger excitation energy seen from Figure 15 was more significant compared to that from the other two records. The strain result clearly demonstrates that the strain responses are inconsistent, even when PGA is scaled to adjust at the same level for different ground excitations, due to the individually essential factors of motion including the duration and spectrum characteristics.
The measured strain responses of the model at each monitoring point under three earthquake records were obtained by the strain gauges, glued on the flange of the frame beam or column at each story. Strain gauge data were collected until the end of the test, in which the final loading PGA level was 1.6 g for the Kobe wave. The maximum tensile and compressive strains derived from the time-history strains, measured at the bottom, middle with an 800 mm height from the ground, and top with a 1600 mm height of the frame column, under the action of different seismic waves are shown in Figure 22. The strains in the column increased steadily with the increment of earthquake intensity levels. The envelope strain at the bottom of the frame column was the largest, followed by the middle, and the strain at the top was the smallest under the same PGA action, illustrating that the column base was the weakest compared to the components at the other locations of the column.
The maximum strains of the upper and lower flanges at the ends of the bottom and top beams, subjected to the different intensity levels, are shown in Figure 23. The discrepancy of strains between the bottom and top beams was not remarkable when PGA was less than 0.7 g. However, the maximum strain at the bottom beam was slightly higher than that at the top beam after PGA = 0.7 g, because the slopes of the strain curves at the bottom beam increased sharply. This reveals that the strength requirement of the bottom beam, in the practical design of the structure, should be given more attention compared to the top beam under the higher intensity level. In addition, the maximum strains at the upper and lower flanges of beams at each story were approximately equivalent and symmetrical, and this regularity of strain distribution was almost identical for the three seismic waves.
It could be seen from Figure 22 and Figure 23 that the maximum strains in the frame column and beam were, respectively, 550 and 363 με under the final loading PGA level of 1.6 g, approximately to rare earthquake intensity 9, which were far less than the measured yield strain of 1140 με obtained by the material test for the utilized Q235 steel. This shows that no yielding or failure occurs in the frame column and beam, and the main structural members continue to remain elastic. This phenomenon can be attributed to the fact that most of the hysteretic input energy is significantly dissipated by the LYP steel energy absorbers, thus reducing the force acting on the parent structure induced by the earthquake or wind loads.

3.6. Strain Responses of Energy Absorbers

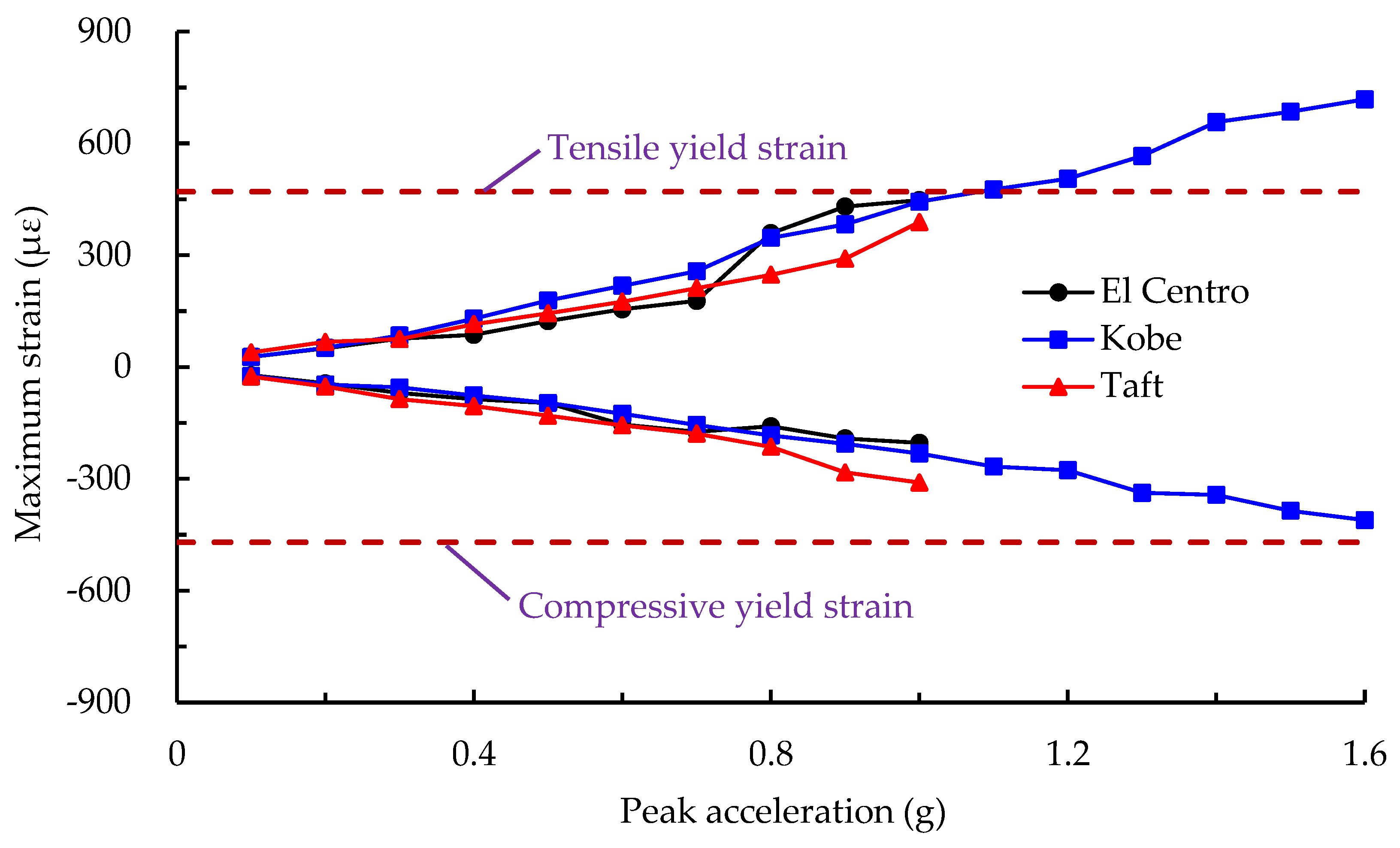

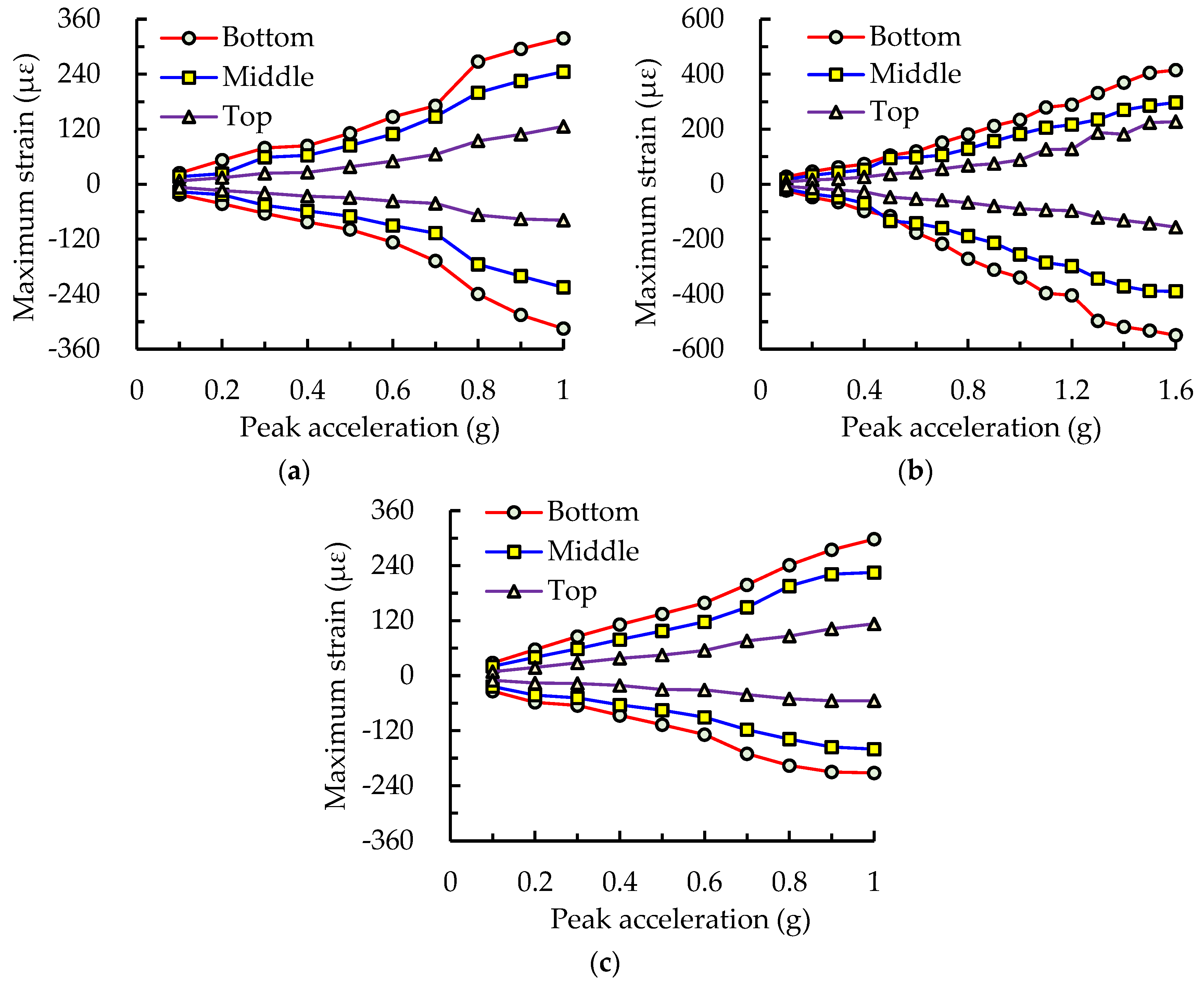

Figure 24 presents the maximum strain responses of low-yield-point steel energy absorbers at the bottom floor under different loading intensity levels of three seismic waves. When the PGA of the earthquake record was less than 0.7 g, the line connecting the envelope strain points of energy absorbers at each level was approximately straight, and the strain discrepancies under the same intensity level for different seismic waves were quite small. However, the discrepancies became more significant after the increasing PGA was greater than 0.7 g, in agreement with the initially intense vibration of the overall specimen, accompanied by the visible displacement observed in the tests. The maximum tensile strain in the energy absorbers was 476 με, reaching and slightly exceeding its average yield strain of 470 με calculated from Table 5, when the PGA of the Kobe wave was 1.1 g. It reveals that the LYP plates gradually begin to dissipate the earthquake energy. With the further increase of loading intensity level, the envelope tensile strain of LYP energy absorbers became much larger and reached 718 με, far exceeding its yield strain, under PGA of 1.6 g nearly rare earthquake intensity 9 at the end of the test. A considerable plastic deformation was formed in the metallic energy absorbers, and its energy dissipation performance was gradually shown during the strong excitations.
It could be concluded, from the aforementioned analyses, that the frame columns or beams remained in the elastic stage with minor deformation, but energy absorbers significantly yielded and underwent permanent deformation. In other words, the structural failure of the steel frame retrofitted by energy absorbers primarily concentrated at the LYP plate, which utilized its superior ductility to form hysteretic bending plastic deformation, with an abundant amount of energy dissipation, so as to prevent the parent structure from damage under the severe earthquake.

4. Conclusions

Several high-intensity earthquakes have occurred worldwide and caused enormous economic losses or deaths in recent years. With the aim of mitigating the detrimental effects induced by earthquake disasters, LYP steel, with excellent ductility capacity, can be potentially adopted as an effective energy dissipation device in structural systems such as high-rise buildings, long-span structures, and railway bridges. However, the inelastic dynamic responses, with repeated cyclic out-of-plane buckling and yielding of the LYP steel energy absorbers subjected to the earthquake action, is highly complex and difficult to predict accurately by any conventionally analytical or numerical method. The goal of this paper is to clearly demonstrate, by a rigorous experimental program, that the benefits of using energy absorbers, which behave just like a “fuse” in buildings, can significantly improve the seismic performance of structures. The insight into the dynamic behaviors of the test structure will enable a better guideline for seismic design under strong earthquakes.
In this study, a number of experiments were conducted to investigate the non-linear dynamic seismic responses of a quarter-scaled model of a steel frame retrofitted by LYP steel energy absorbers. The test specimens were subjected to a shaking table test with gradually increasing acceleration amplitudes, representing incremental earthquake intensities. The following main conclusions can be drawn from the experimental studies.
(1)
Incorporation of the energy absorbers into high-rise buildings can significantly enhance the seismic performance of the structure, which provides a low-cost alternative solution for structural designers. The low-yield-point steel with superior hysteretic behavior should be primarily adopted as the material used in the energy absorbers, which enter the yield stage prior to the main members of the frame in order to provide energy dissipation when subjected to the earthquake action. Attention should be paid to the shape of the plate when designing the energy absorbers. The cross-sectional width of the LYP plate varies with the height, which is smallest at the middle and largest at both ends. The arc transition adopted at the cross-sectional change is an effective way to improve the local stress concentration.
(2)
The measured initial fundamental natural frequency and initial damping ratio of the specimen were 15.68 Hz and 3.17% subjected to the first loading stage of 0.1 g, respectively, which remained essentially unchanged before PGA < 0.6 g. As the PGA increased from 0.7 g to 1.0 g, the natural frequency gradually decreased while the damping ratio slightly increased. These results indicated that structural stiffness degradation and slightly accumulated damage occurred. The results were in a good agreement with the experimental observations on the loosening of the high-strength bolts at column bases.
(3)
The acceleration amplification factors β under PGA = 1.0 g at the second floor were, respectively, 2.3, 2.42, and 2.63, subjected to the El Centro, Kobe, and Taft waves, while those at the first floor were 1.4, 1.32, and 1.78, respectively. The β value increased with the height and exhibited a sharp increase before a certain input acceleration level, and then it gradually decreased with a further increasing acceleration.
(4)
The maximum inter-story drift ratio of the test model was between 1/2310 and 1/1742 in the case of frequent earthquakes and was 1/233 in the case of rare earthquakes, which was significantly less than the allowable limit values given in China’s seismic code. This clearly reveals that the structure possesses an extremely high safety reserve, to sufficiently satisfy the design requirements, and is remarkably suitable for applicability in high-intensity seismic fortification areas.
(5)
The maximum strains in the frame column and beam under the final loading PGA level of 1.6 g were 550 and 363 με, respectively, which were less than the measured yield strain of 1140 με from the material tests. On the other hand, the envelope tensile strain of the LYP energy absorbers reached 718 με, far exceeding its average yield strain of 470 με. This indicates that no yielding or failure occurs in the frame column and beam, and the seismic failure concentrates on the energy absorbers. It can be concluded that the failure mechanism of steel frame retrofitted by energy absorbers is primarily located at the LYP plate. The retrofitted steel frame utilizes its ductility to develop hysteretic bending plastic deformation, unleashing an abundant amount of energy dissipation in order to prevent the parent structure from damage under a severe earthquake.

Author Contributions

Conceptualization, J.S., K.W. and S.K.; methodology, J.S. and W.C.; data curation, J.S., K.W. and Z.W.; formal analysis, J.S., K.W. and S.K.; investigation, J.S., K.W. and S.K.; resources, Z.W.; writing—original draft, J.S. and K.W.; writing—review and editing, S.K. and W.C.; visualization, J.S. and K.W.; supervision, S.K.; project administration, Z.W.; funding acquisition, J.S., S.K. and Z.W.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 51308260), Jiangsu Overseas Visiting Scholar Program for University Prominent Young and Middle-Aged Teachers and Presidents (Grant No. 2018169), Science and Technology Program of Guizhou Province (Grant No. [2019]1288), and Innovation Group Major Research Project of Guizhou Education Department (Grant No. [2017]048).

Acknowledgments

The third author wishes to gratefully acknowledge the Japan Society for Promotion of Science (JSPS) for his JSPS Invitation Research Fellowship (Long-term), Grant No. L15701, at Track Dynamics Laboratory, Railway Technical Research Institute and at Concrete Laboratory, the University of Tokyo, Tokyo, Japan. The JSPS financially supports this work as part of the re-search project, entitled “Smart and reliable railway infrastructure”. Special thanks to European Commission for H2020-MSCA-RISE Project No. 691135 “RISEN: Rail Infrastructure Systems Engineering Network” (www.risen2rail.eu) [43]. In addition, the collaboration and assistance from EU Cost Action TU1404 (Towards the next generation standards for service life of cement-based materials and structures) is highly appreciated.

Conflicts of Interest

The authors declare that there are no conflicts of interest regarding the publication of this paper.

References

  1. Lignos, D.G.; Chung, Y.; Nagae, T.; Nakashima, M. Numerical and experimental evaluation of seismic capacity of high-rise steel buildings subjected to long duration earthquakes. Comput. Struct. 2011, 89, 959–967. [Google Scholar] [CrossRef]
  2. Mirza, O.; Kaewunruen, S.; Galia, G. Seismic vulnerability analysis of Bankstown’s West Terrace railway bridge. Struct. Eng. Mech. 2016, 57, 569–585. [Google Scholar] [CrossRef]
  3. Jiang, L.; Kang, X.; Li, C.; Shao, G. Earthquake response of continuous girder bridge for high-speed railway: A shaking table test study. Eng. Struct. 2019, 180, 249–263. [Google Scholar] [CrossRef]
  4. Setsobhonkul, S.; Kaewunruen, S.; Sussman, J.M. Lifecycle assessments of railway bridge transitions exposed to extreme climate events. Front. Built Environ. 2017, 3, 35. [Google Scholar] [CrossRef]
  5. Remennikov, A.M.; Kaewunruen, S. Impact resistance of reinforced concrete columns: Experimental studies and design considerations. In Proceedings of the Mechanics of Structures and Materials-Proceedings of the 19th Australasian Conference on the Mechanics of Structures and Materials, Christchurch, New Zealand, 29 November–1 December 2006. [Google Scholar]
  6. Griffin, D.W.P.; Mirza, O.; Kwok, K.; Kaewunruen, S. Composite slabs for railway construction and maintenance: A mechanistic review. IES J. Part A Civ. Struct. Eng. 2014, 7, 243–262. [Google Scholar]
  7. Ngamkhanong, C.; Kaewunruen, S. The effect of ground borne vibrations from high speed train on overhead line equipment (OHLE) structure considering soil-structure interaction. Sci. Total Environ. 2018, 627, 934–941. [Google Scholar] [CrossRef] [PubMed]
  8. Liu, P.; Kaewunruen, S.; Tang, B. Dynamic pressure analysis of hemispherical shell vibrating in unbounded compressible fluid. Appl. Sci. 2018, 8, 1938–1956. [Google Scholar] [CrossRef]
  9. Xu, T.; Shao, J.H.; Zhang, J.Y.; Kaewunruen, S. Experimental performance evaluation of multi-storey steel plate shear walls designed by different methods. Int. J. Civ. Eng. 2019, 17, 1145–1154. [Google Scholar] [CrossRef]
  10. Li, X.; Xue, S.; Cai, Y. Three-dimensional seismic isolation bearing and its application in long span hangars. Earthq. Eng. Eng. Vib. 2013, 12, 55–65. [Google Scholar] [CrossRef]
  11. Marin-Artieda, C.C.; Whittaker, A.S. Theoretical studies of the XY-FP seismic isolation bearing for bridges. J. Bridge Eng. 2010, 15, 631–638. [Google Scholar] [CrossRef]
  12. Bhuiyan, A.R.; Alam, M.S. Seismic performance assessment of highway bridges equipped with superelastic shape memory alloy-based laminated rubber isolation bearing. Eng. Struct. 2013, 49, 396–407. [Google Scholar] [CrossRef]
  13. Ghobarah, A.; Abou Elfath, H. Rehabilitation of a reinforced concrete frame using eccentric steel bracing. Eng. Struct. 2001, 23, 745–755. [Google Scholar] [CrossRef]
  14. Wang, X.; Ye, J.; Yu, Q. Improved equivalent bracing model for seismic analysis of mid-rise CFS structures. J. Constr. Steel Res. 2017, 136, 256–264. [Google Scholar] [CrossRef]
  15. Pan, Z.; Si, Q.; Zhou, Z.; Zhang, Y.; Zhu, Y.; Chen, X. Experimental and numerical investigations of seismic performance of hybrid joints with bolted connections. J. Constr. Steel Res. 2017, 138, 867–876. [Google Scholar] [CrossRef]
  16. Montuori, R.; Sagarese, V. The use of steel rbs to increase ductility of wooden beams. Eng. Struct. 2018, 169, 154–161. [Google Scholar] [CrossRef]
  17. Imanpour, A.; Torabian, S.; Mirghaderi, S.R. Seismic design of the double-cell accordion-web reduced beam section connection. Eng. Struct. 2019, 191, 23–38. [Google Scholar] [CrossRef]
  18. Silwal, B.; Michael, R.J.; Ozbulut, O.E. A superelastic viscous damper for enhanced seismic performance of steel moment frames. Eng. Struct. 2015, 105, 152–164. [Google Scholar] [CrossRef]
  19. Jiao, X.; Zhao, Y.; Ma, W. Nonlinear dynamic characteristics of a micro-vibration fluid viscous damper. Nonlinear Dyn. 2018, 92, 1167–1184. [Google Scholar] [CrossRef]
  20. Abdi, H.; Hejazi, F.; Saifulnaz, R.; Karim, I.A.; Jaafar, M.S. Response modification factor for steel structure equipped with viscous damper device. Int. J. Steel Struct. 2015, 15, 605–622. [Google Scholar] [CrossRef]
  21. Bagheri, S.; Barghian, M.; Saieri, F.; Farzinfar, A. U-shaped metallic-yielding damper in building structures: Seismic behavior and comparison with a friction damper. Structures 2015, 3, 163–171. [Google Scholar] [CrossRef]
  22. Shen, H.; Zhang, R.; Weng, D.; Gao, C.; Luo, H.; Pan, C. Simple design method of structure with metallic yielding dampers based on elastic–plastic response reduction curve. Eng. Struct. 2017, 150, 98–114. [Google Scholar] [CrossRef]
  23. Motamedi, M.; Nateghi-A, F. Study on mechanical characteristics of accordion metallic damper. J. Constr. Steel Res. 2018, 142, 68–77. [Google Scholar] [CrossRef]
  24. De Matteis, G.; Brando, G. Comparative analysis of dual steel frames with dissipative metal shear panels. Key Eng. Mater. 2018, 763, 735–742. [Google Scholar] [CrossRef]
  25. Domizio, M.; Ambrosini, D.; Curadelli, O. Performance of tuned mass damper against structural collapse due to near fault earthquakes. J. Sound Vib. 2015, 336, 32–45. [Google Scholar] [CrossRef]
  26. Brzeski, P.; Lazarek, M.; Perlikowski, P. Experimental study of the novel tuned mass damper with inerter which enables changes of inertance. J. Sound Vib. 2017, 404, 47–57. [Google Scholar] [CrossRef]
  27. Sgobba, S.; Marano, G.C. Optimum design of linear tuned mass dampers for structures with nonlinear behaviour. Mech. Syst. Signal Process. 2010, 24, 1739–1755. [Google Scholar] [CrossRef]
  28. Xu, Z.; Agrawal, A.K.; He, W.L.; Tan, P. Performance of passive energy dissipation systems during near-field ground motion type pulses. Eng. Struct. 2007, 29, 224–236. [Google Scholar] [CrossRef]
  29. Nakashima, M.; Akazawa, T.; Tsuji, B. Strain-hardening behaviour of shear panels made of low-yield steel, II: Model. J. Struct. Eng. 1995, 121, 1750–1757. [Google Scholar] [CrossRef]
  30. Susantha, K.A.S.; Aoki, T.; Kumano, T.; Yamamoto, K. Applicability of low-yield-strength steel for ductility improvement of steel bridge piers. Eng. Struct. 2005, 27, 1064–1073. [Google Scholar] [CrossRef]
  31. Brando, G.; De Matteis, G. Design of low strength-high hardening metal multi-stiffened shear plates. Eng. Struct. 2014, 60, 2–10. [Google Scholar] [CrossRef]
  32. Chen, S.J.; Jhang, C. Experimental study of low-yield-point steel plate shear wall under in-plane load. J. Constr. Steel Res. 2011, 67, 977–985. [Google Scholar] [CrossRef]
  33. Chen, S.J.; Jhang, C. Cyclic behavior of low yield point steel shear walls. Thin Wall Struct. 2006, 44, 730–738. [Google Scholar] [CrossRef]
  34. Ma, Z.Y.; Hao, J.P.; Yu, H.S. Shaking-table test of a novel buckling-restrained multi-stiffened low-yield-point steel plate shear wall. J. Constr. Steel Res. 2018, 145, 128–136. [Google Scholar] [CrossRef]
  35. De Matteis, G.; Landolfo, R.; Mazzoloni, F.M. Seismic response of MR steel frames with low-yield steel shear panels. Eng. Struct. 2003, 25, 155–168. [Google Scholar] [CrossRef]
  36. Zhang, C.; Zhang, Z.; Shi, J. Development of high deformation capacity low yield strength steel shear panel damper. J. Constr. Steel Res. 2012, 75, 116–130. [Google Scholar] [CrossRef]
  37. Abebe, D.Y.; Jeong, S.J.; Getahune, B.M.; Segu, D.Z.; Choi, J.H. Hysteretic characteristics of shear panel damper made of low yield point steel. Mater. Res. Innov. 2015, 19, 902–910. [Google Scholar] [CrossRef]
  38. Zhang, C.; Zhang, Z.; Zhang, Q. Static and dynamic cyclic performance of a low-yield-strength steel shear panel damper. J. Constr. Steel Res. 2012, 79, 195–203. [Google Scholar] [CrossRef]
  39. Zhang, C.; Aoki, T.; Zhang, Q.; Wu, M. Experimental investigation on the low-yield-strength steel shear panel damper under different loading. J. Constr. Steel Res. 2013, 84, 105–113. [Google Scholar] [CrossRef]
  40. Xu, L.Y.; Nie, X.; Fan, J.S. Cyclic behavior of low-yield-point steel shear panel dampers. Eng. Struct. 2016, 126, 391–404. [Google Scholar] [CrossRef]
  41. Xu, L.Y.; Tao, M.X.; Nie, X.; Fan, J.S.; Taciroglu, E. Modeling techniques for strain-range-dependent hardening behavior of low-yield-point steel shear panel dampers. J. Struct. Eng. 2017, 143, 04017172. [Google Scholar] [CrossRef]
  42. Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Code for Seismic Design of Buildings (GB 50011-2010); Ministry of Housing and Urban-Rural Development of the People’s Republic of China: Beijing, China, 2016.
  43. Ngamkhanong, C.; Kaewunruen, S.; Baniotopoulos, C. Far-field earthquake responses of overhead line equipment (OHLE) structure considering soil-structure interaction. Front. Built Environ. 2018, 4, 35. [Google Scholar] [CrossRef]

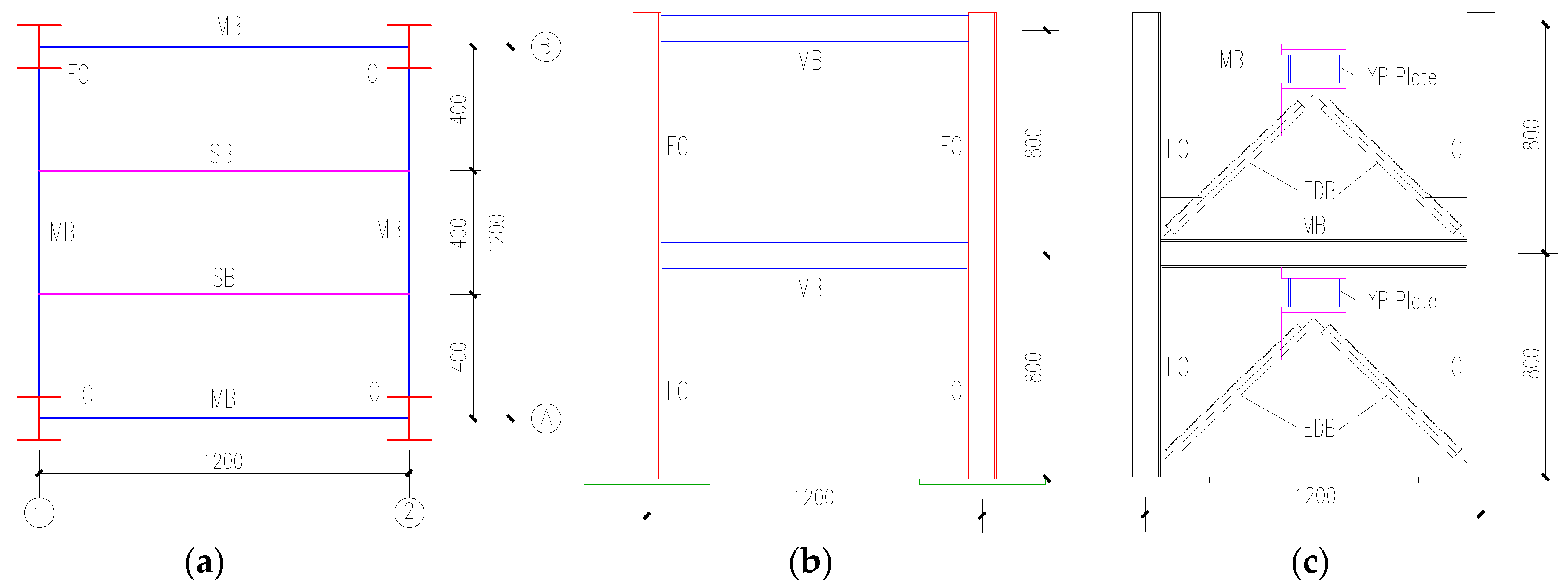

Figure 1. Specimen size (unit: mm). (a) Plane layout; (b) elevation at first or second axis; (c) elevation at A or B axis.
Figure 1. Specimen size (unit: mm). (a) Plane layout; (b) elevation at first or second axis; (c) elevation at A or B axis.
Applsci 09 03299 g001

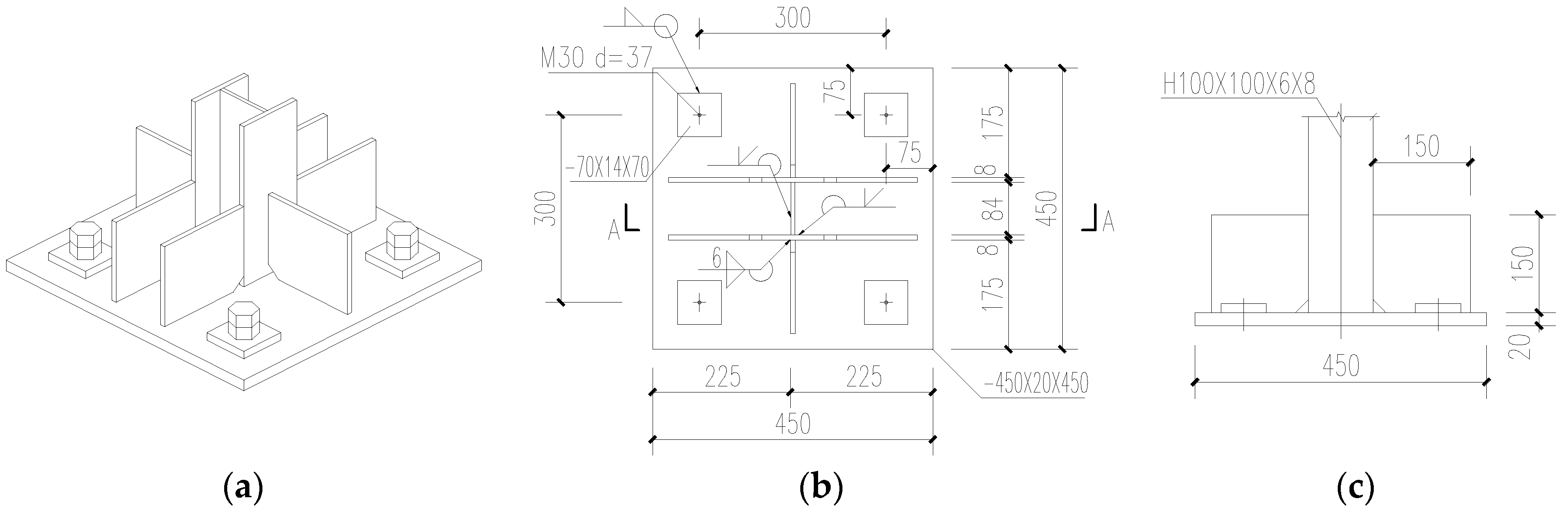

Figure 2. Detailed connections at the bottom of columns (unit: mm). (a) 3D; (b) plane; (c) section A–A.
Figure 2. Detailed connections at the bottom of columns (unit: mm). (a) 3D; (b) plane; (c) section A–A.
Applsci 09 03299 g002

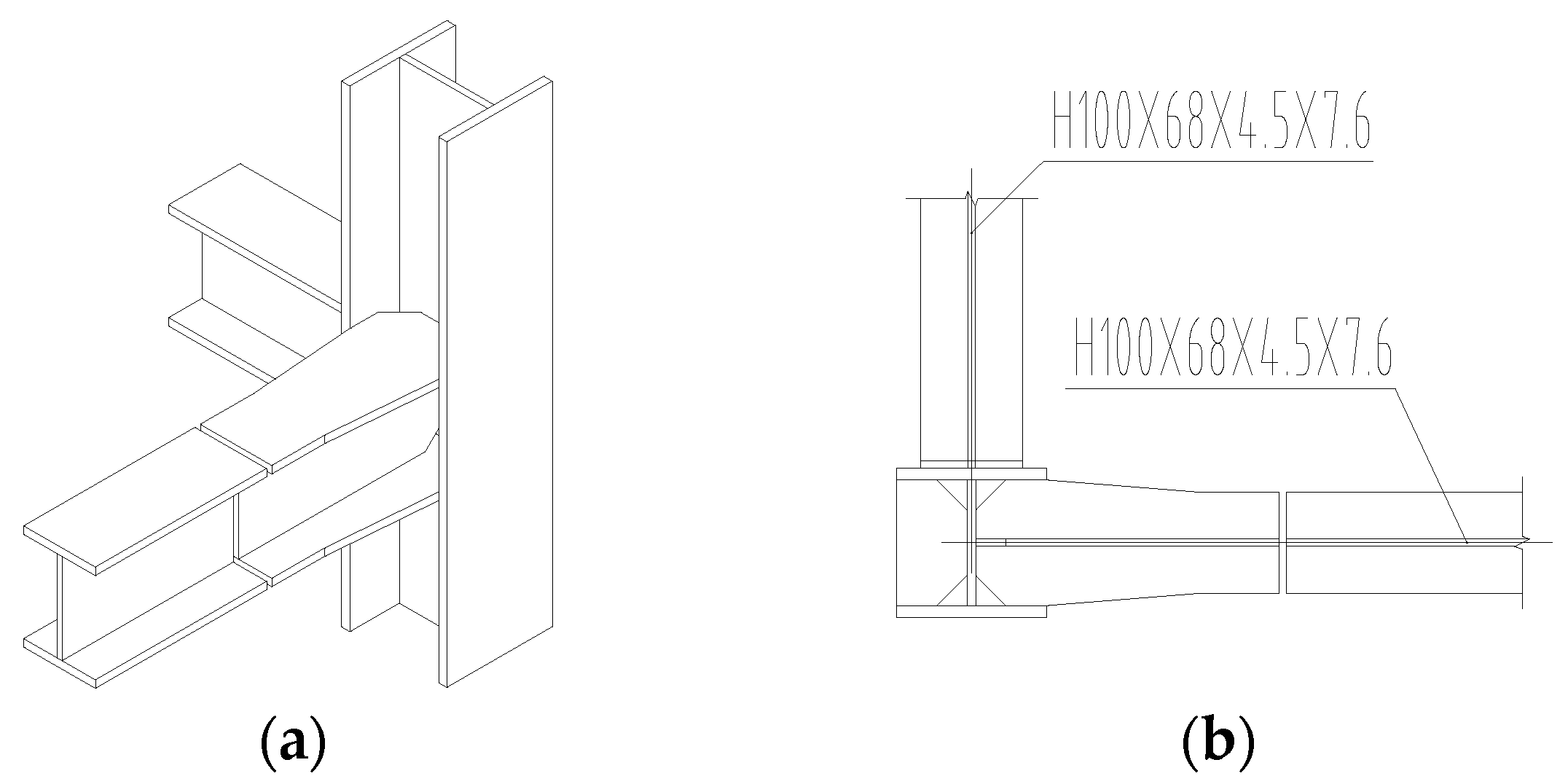

Figure 3. Beam–column joint. (a) 3D; (b) plane.
Figure 3. Beam–column joint. (a) 3D; (b) plane.
Applsci 09 03299 g003

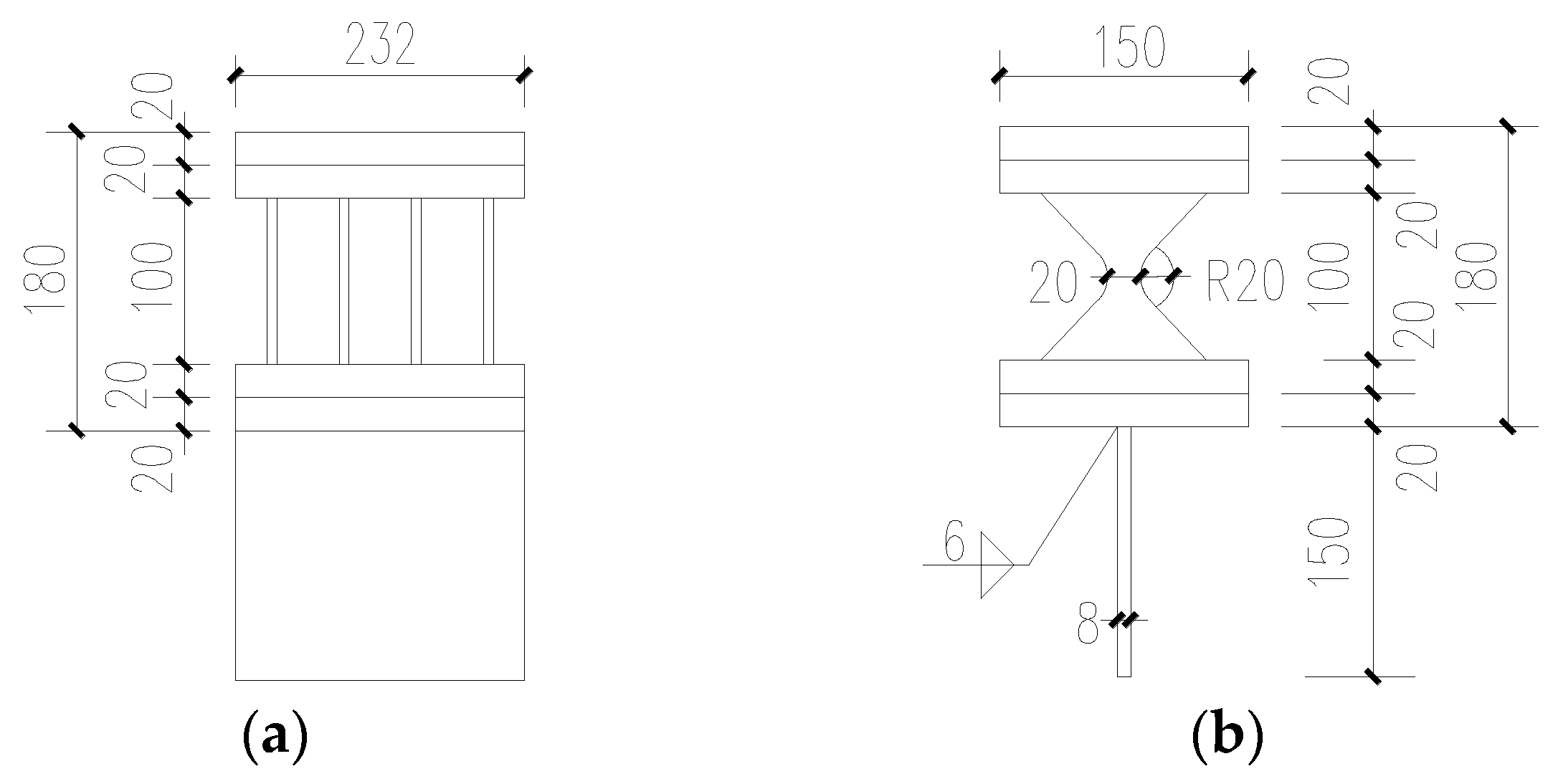

Figure 4. Energy absorbers (unit: mm). (a) Front; (b) side.
Figure 4. Energy absorbers (unit: mm). (a) Front; (b) side.
Applsci 09 03299 g004

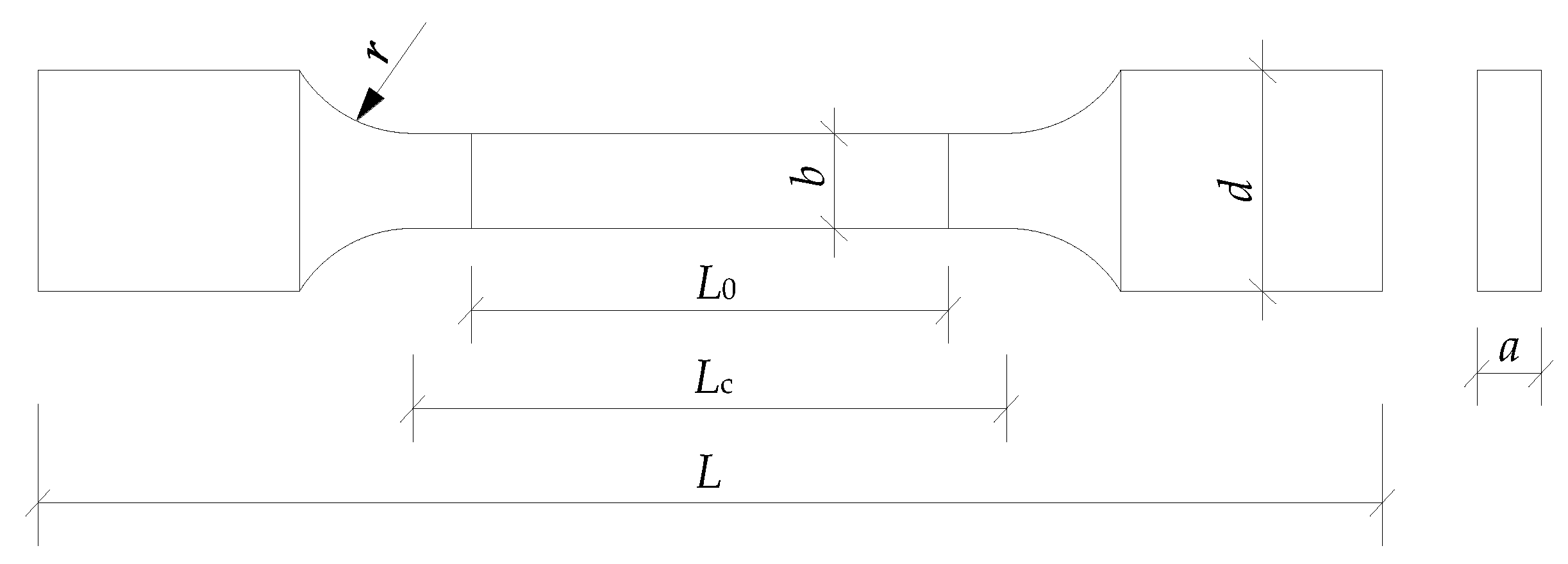

Figure 5. Fabricated coupon.
Figure 5. Fabricated coupon.
Applsci 09 03299 g005

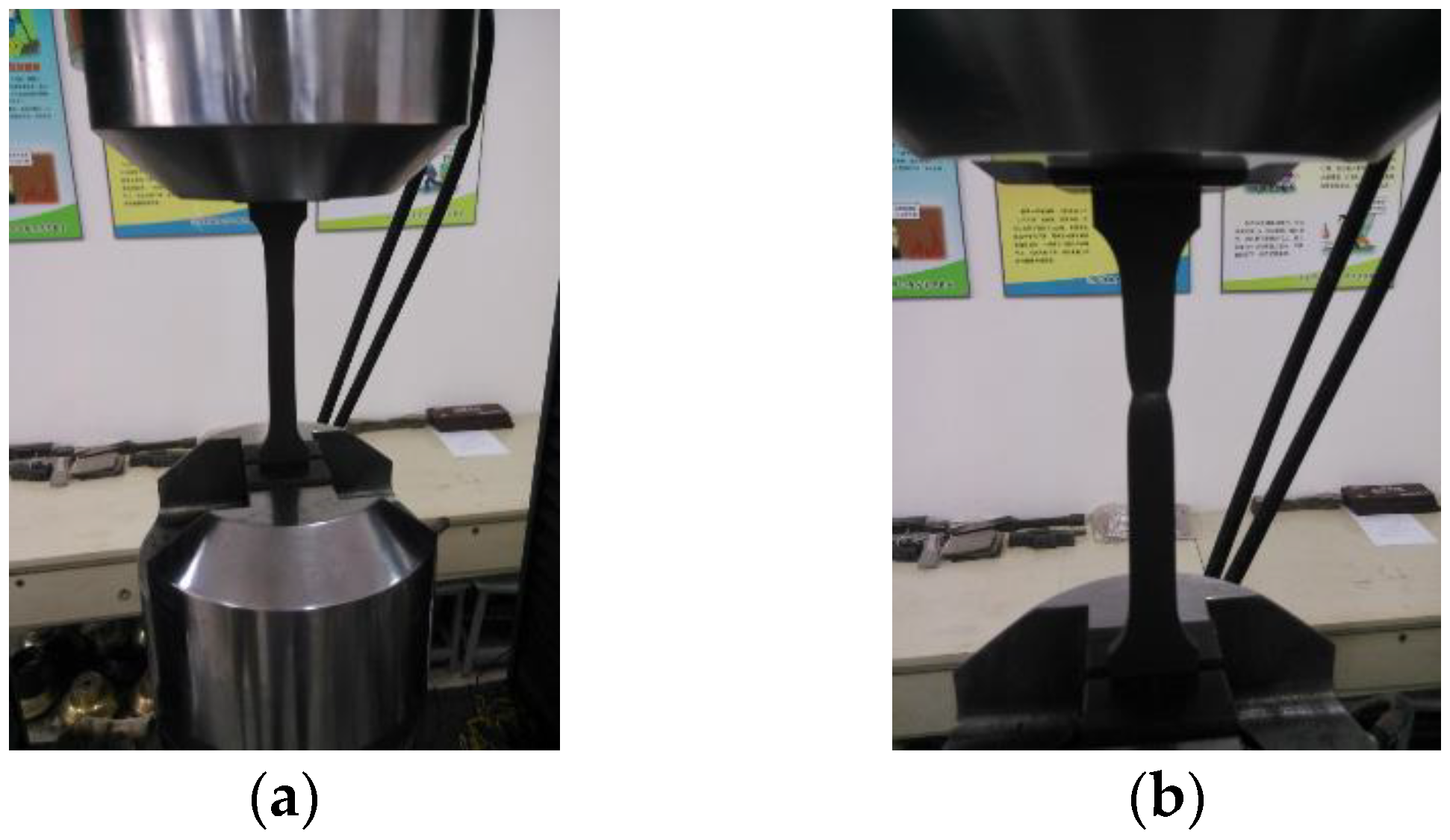

Figure 6. Material tensile test. (a) Installation; (b) fracture.
Figure 6. Material tensile test. (a) Installation; (b) fracture.
Applsci 09 03299 g006

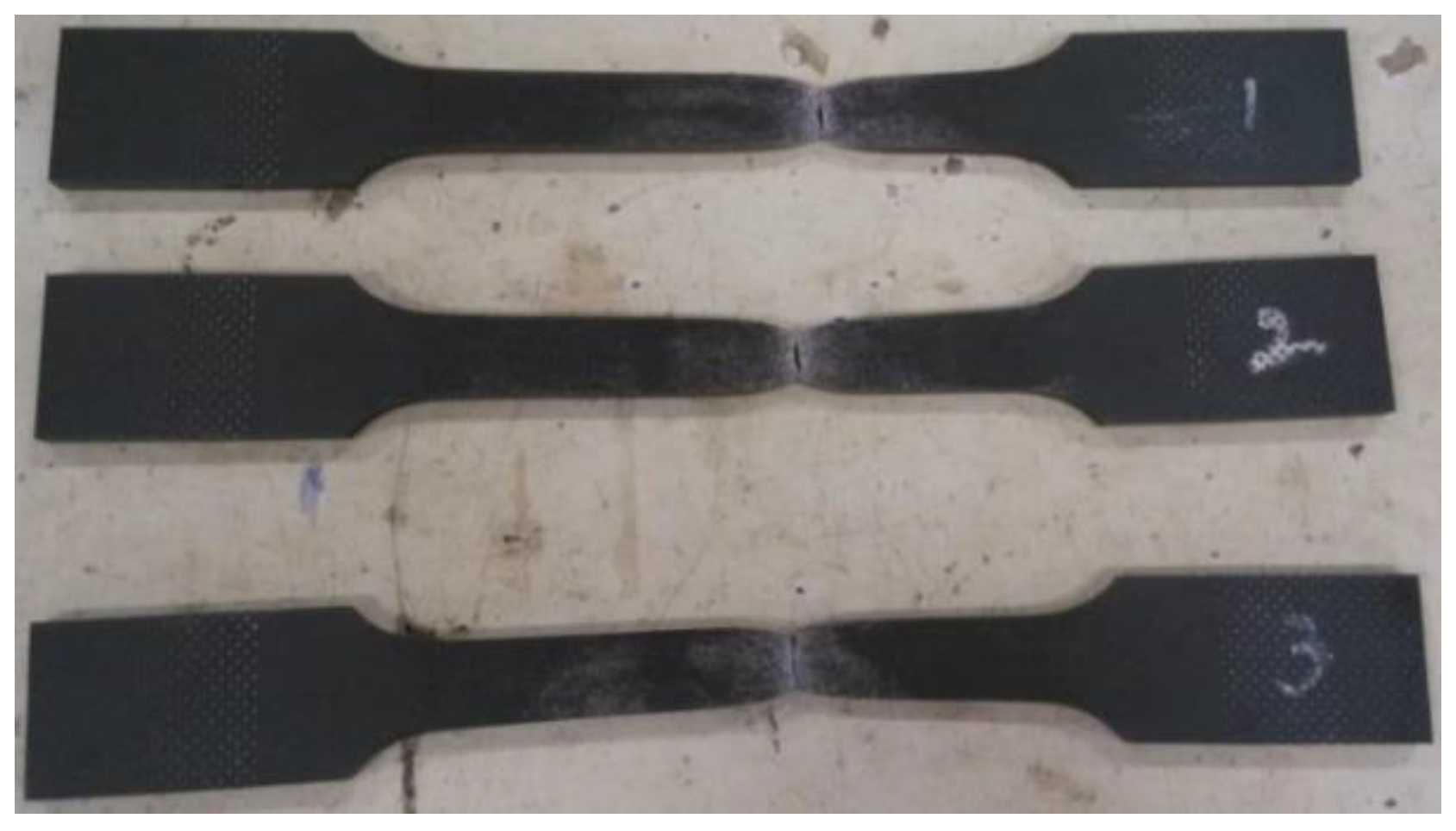

Figure 7. Fractured LYP steel coupons.
Figure 7. Fractured LYP steel coupons.
Applsci 09 03299 g007

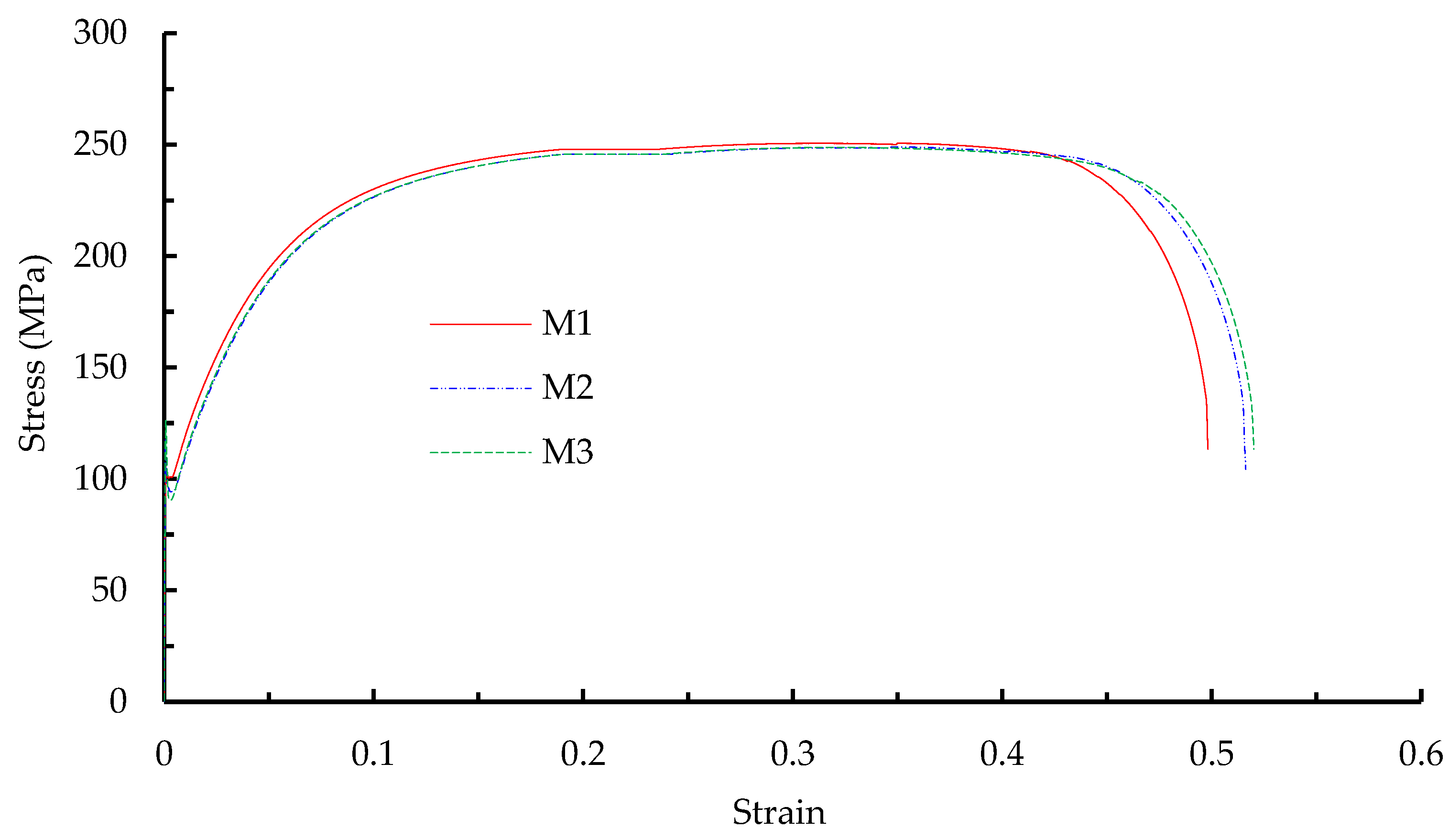

Figure 8. Stress–strain curves of the LYP steel.
Figure 8. Stress–strain curves of the LYP steel.
Applsci 09 03299 g008

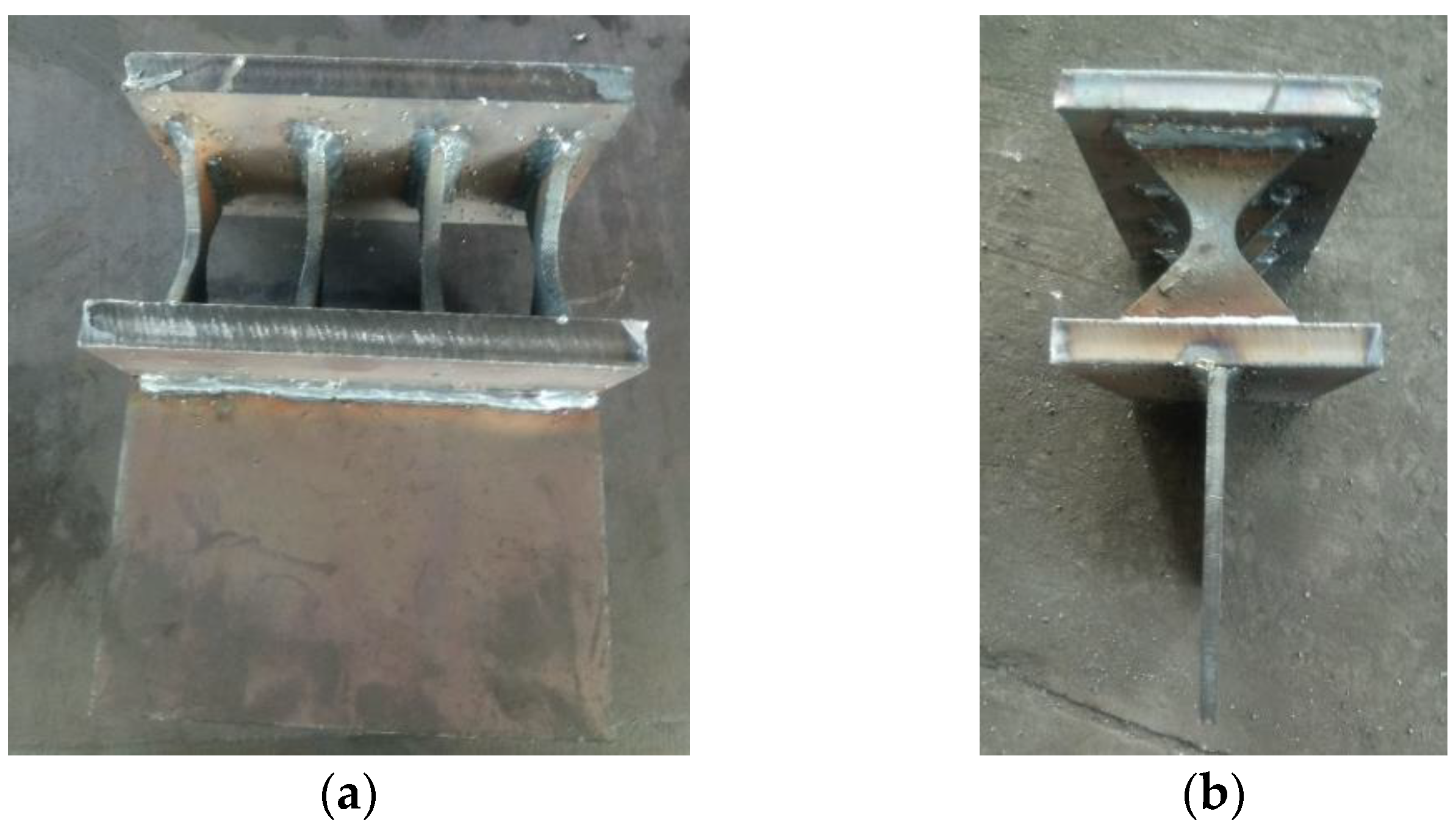

Figure 9. Manufactured LYP steel energy absorbers. (a) Front view; (b) side view.
Figure 9. Manufactured LYP steel energy absorbers. (a) Front view; (b) side view.
Applsci 09 03299 g009

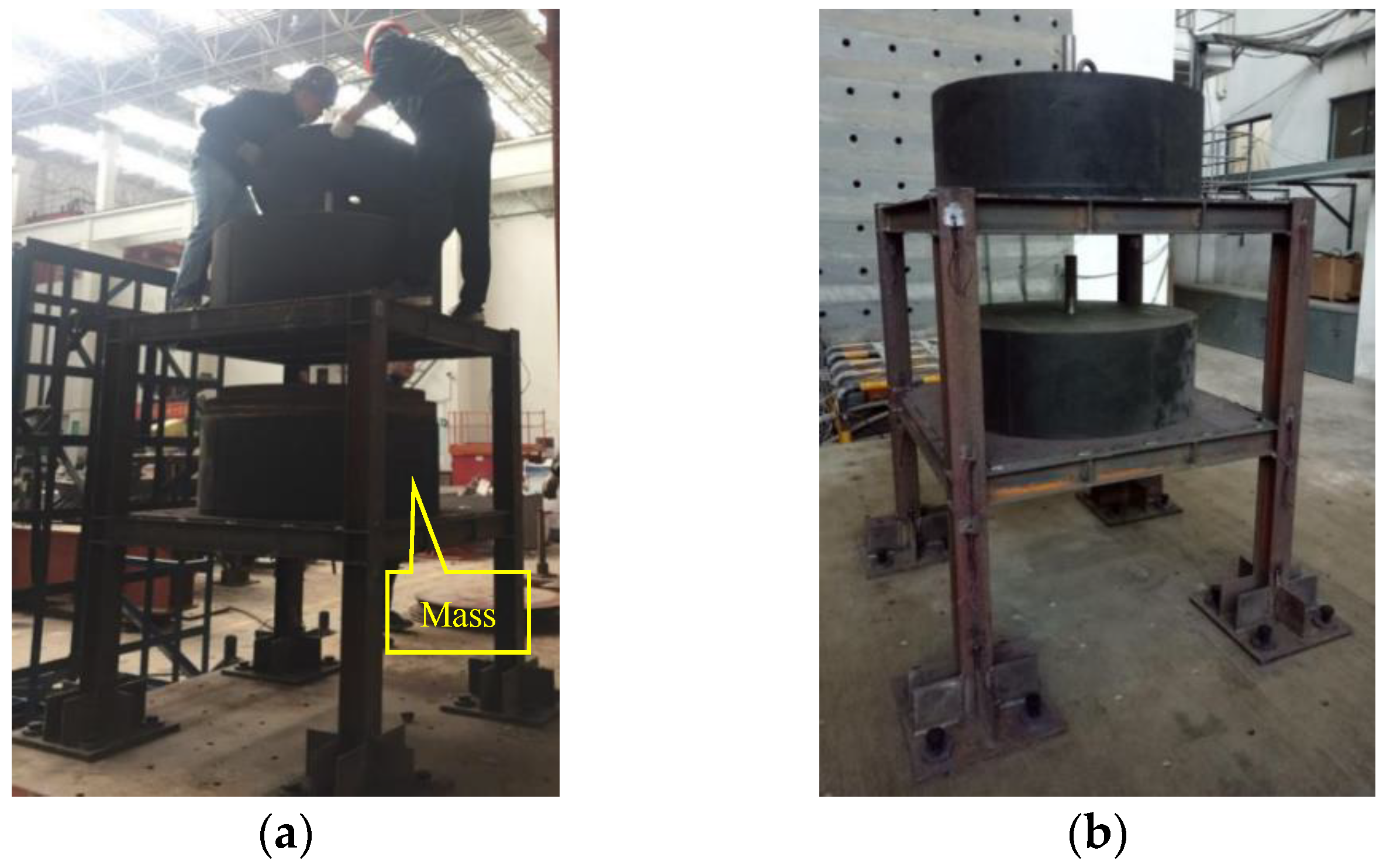

Figure 10. Installed specimen. (a) Placing mass block; (b) hoisting at the appropriate position.
Figure 10. Installed specimen. (a) Placing mass block; (b) hoisting at the appropriate position.
Applsci 09 03299 g010

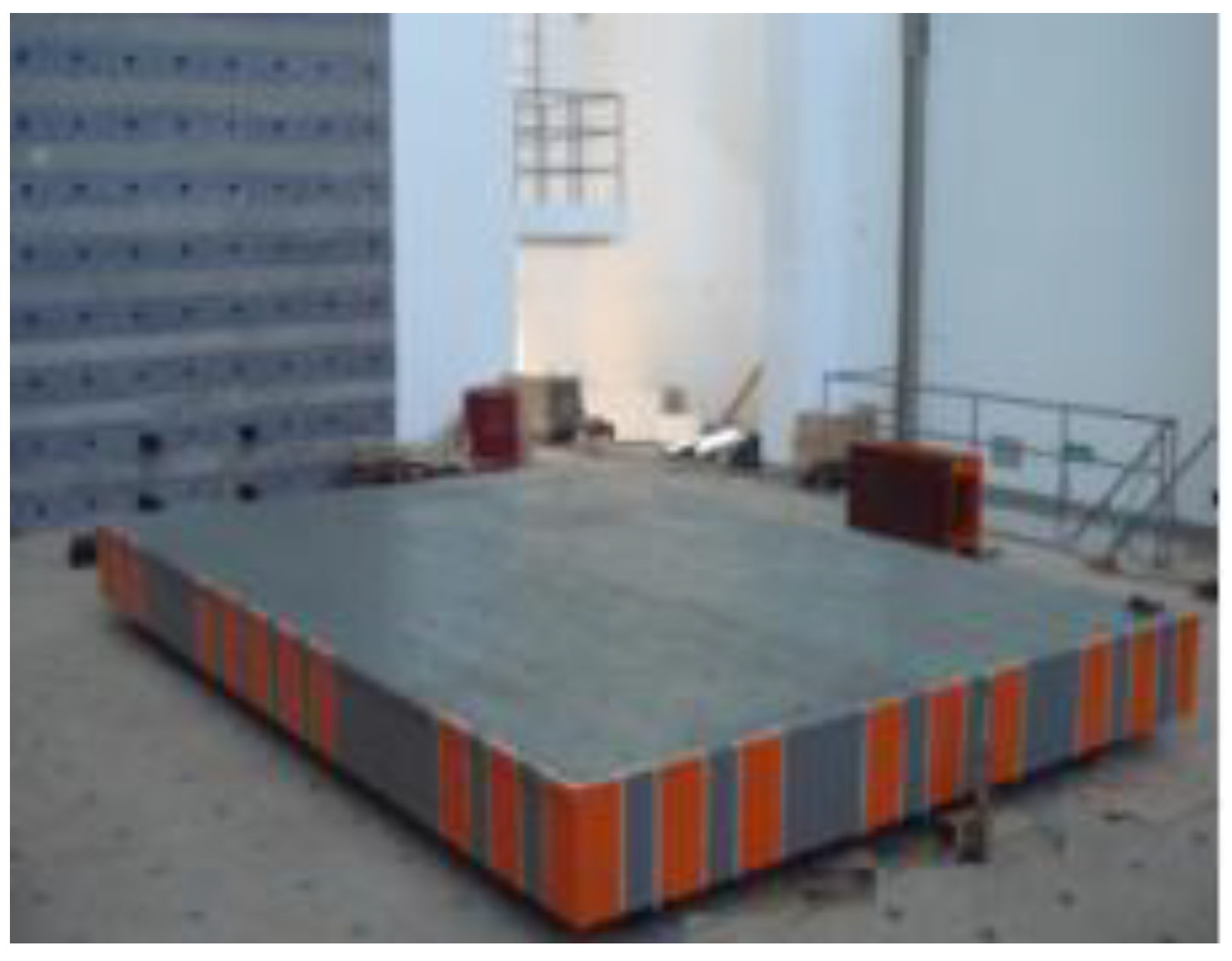

Figure 11. Shaking table.
Figure 11. Shaking table.
Applsci 09 03299 g011
Figure 12. Measuring devices of the specimen. (a) Connection of strain gauges; (b) YHD sensors; (c) TST sensors; (d) data acquisition instrument.
Figure 12. Measuring devices of the specimen. (a) Connection of strain gauges; (b) YHD sensors; (c) TST sensors; (d) data acquisition instrument.
Applsci 09 03299 g012

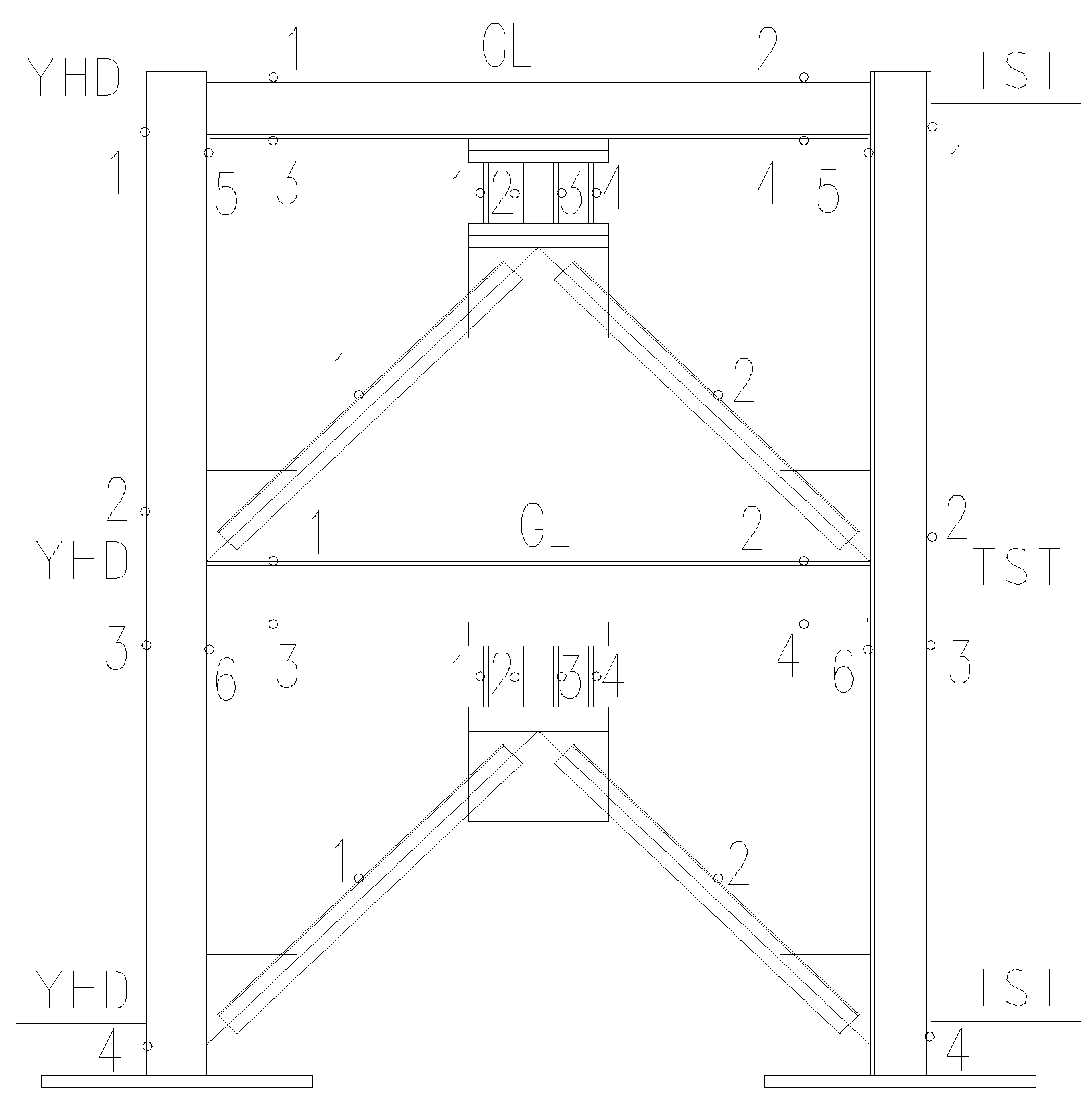

Figure 13. Layout of monitoring points.
Figure 13. Layout of monitoring points.
Applsci 09 03299 g013
Figure 14. Loading earthquake waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 14. Loading earthquake waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g014

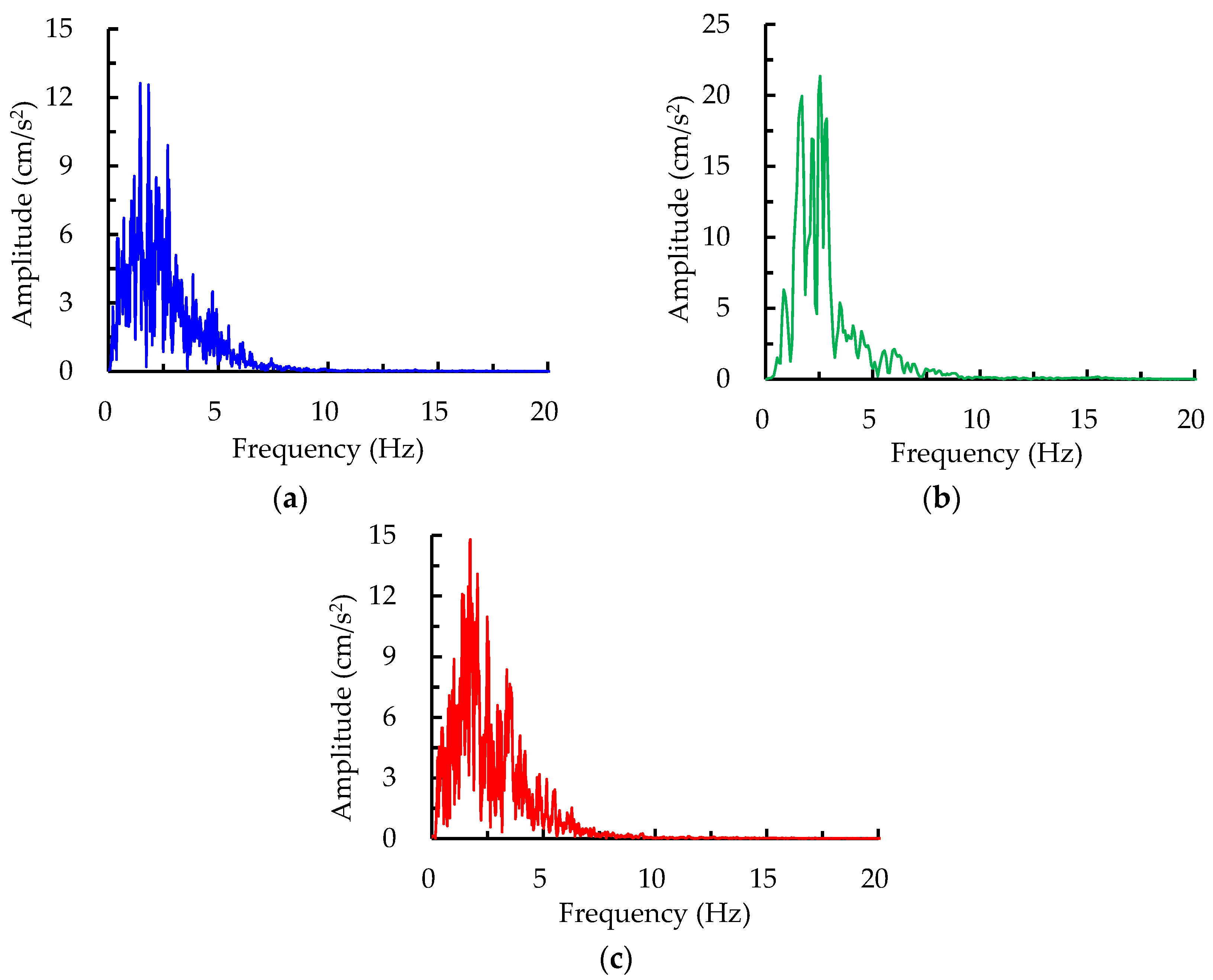

Figure 15. Corresponding frequency spectra of waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 15. Corresponding frequency spectra of waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g015

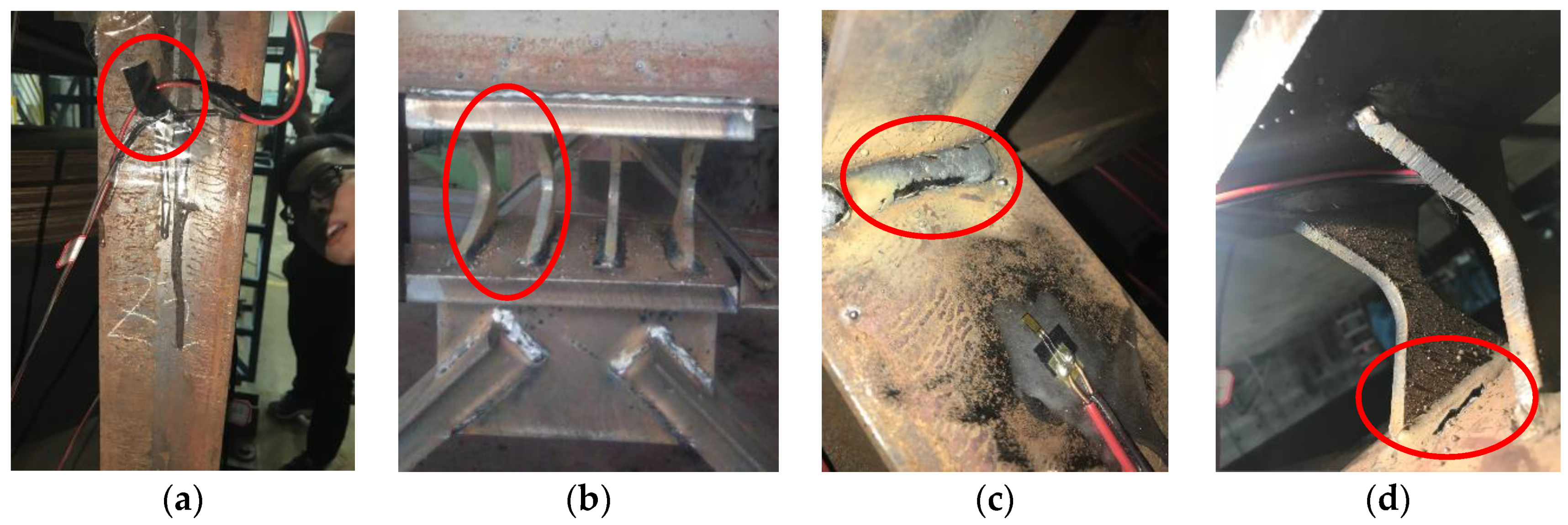

Figure 16. Test phenomena of the specimen. (a) Fallen wire; (b) deflection of energy absorbers; (c) fracture of the weld at the beam–column joint; (d) fracture of the weld at the LYP plate.
Figure 16. Test phenomena of the specimen. (a) Fallen wire; (b) deflection of energy absorbers; (c) fracture of the weld at the beam–column joint; (d) fracture of the weld at the LYP plate.
Applsci 09 03299 g016

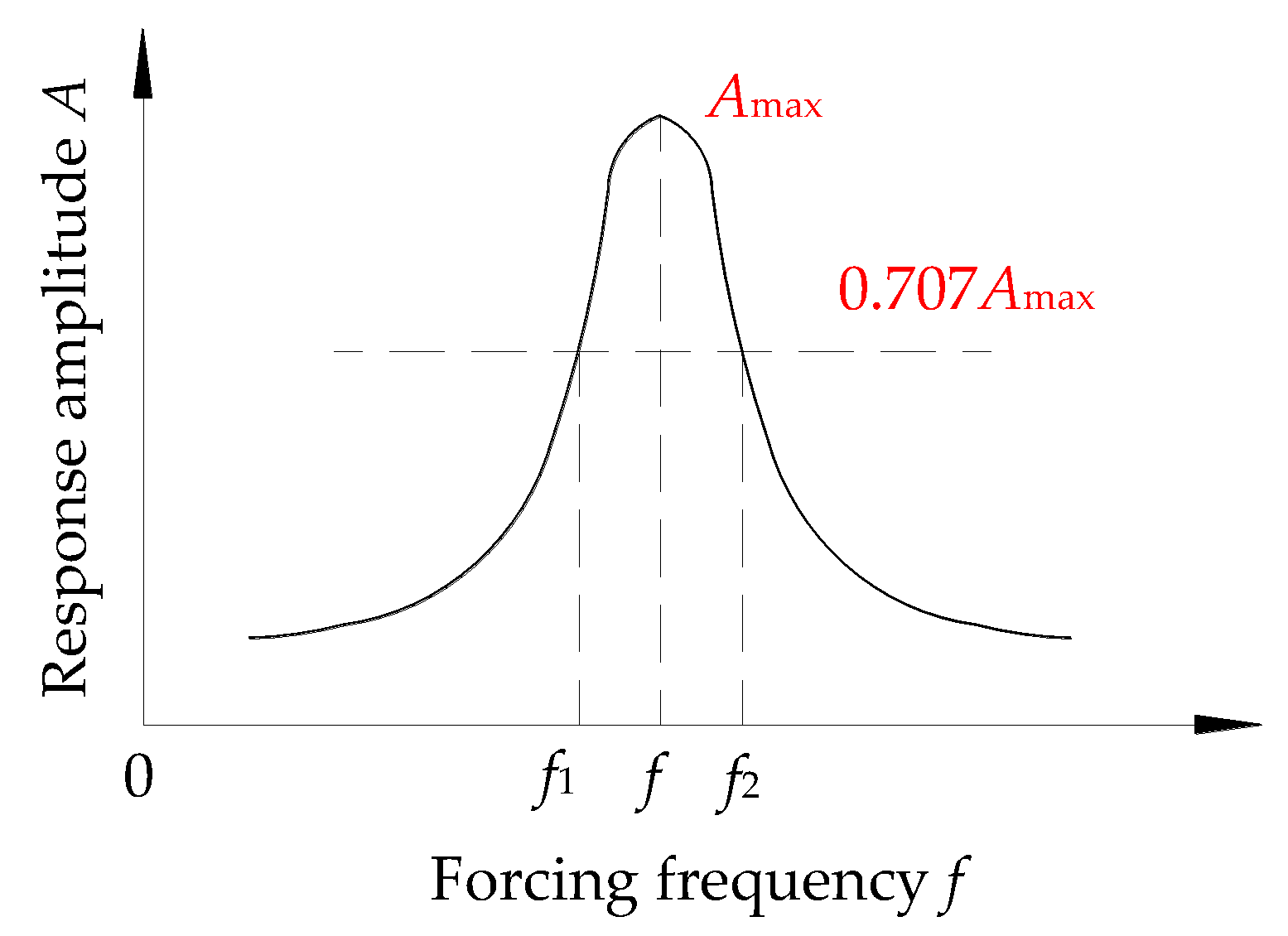

Figure 17. Half-power bandwidth method.
Figure 17. Half-power bandwidth method.
Applsci 09 03299 g017
Figure 18. Acceleration amplification factor. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 18. Acceleration amplification factor. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g018

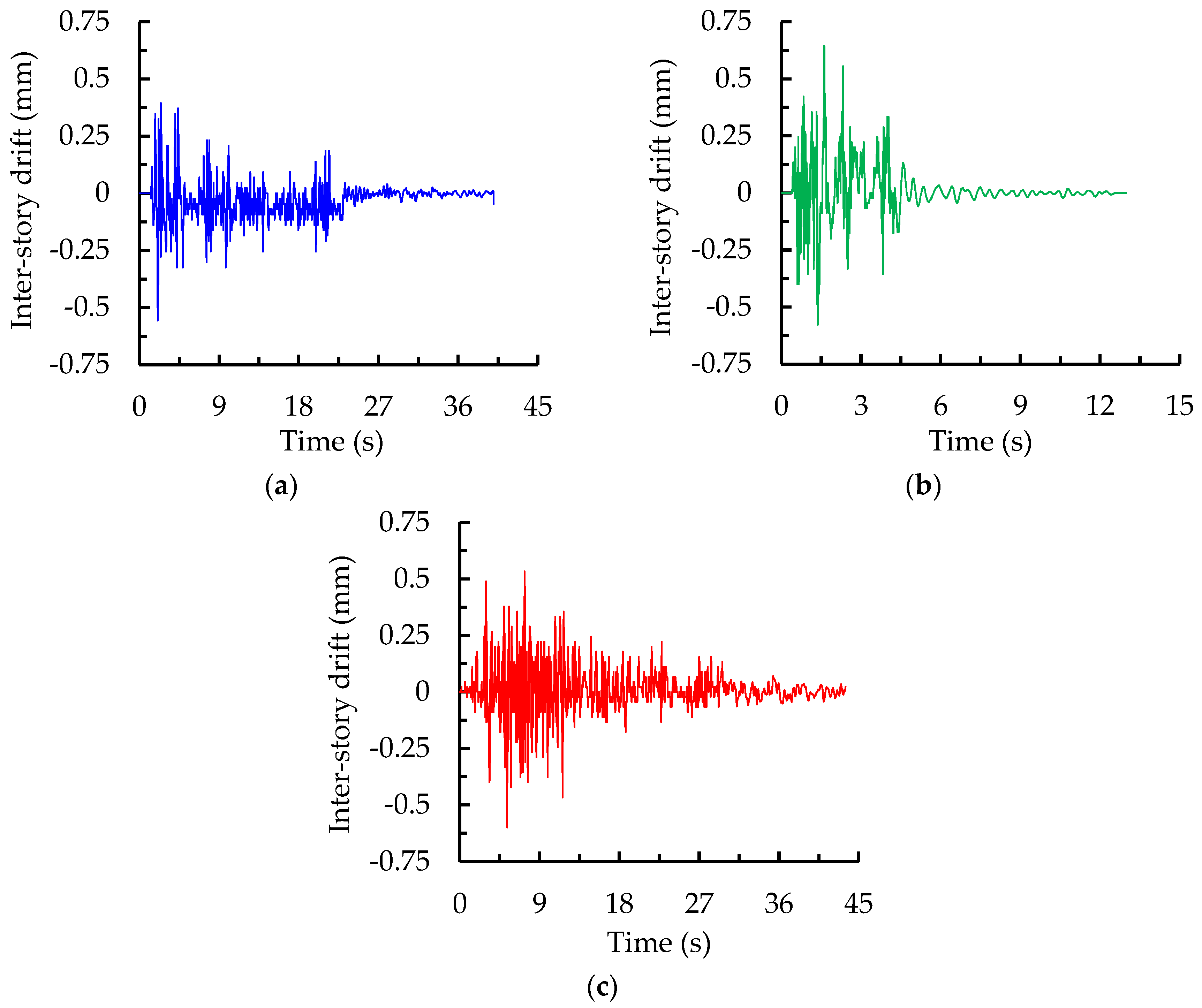

Figure 19. Inter-story drifts at the bottom floor under PGA of 0.5 g for three seismic waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 19. Inter-story drifts at the bottom floor under PGA of 0.5 g for three seismic waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g019

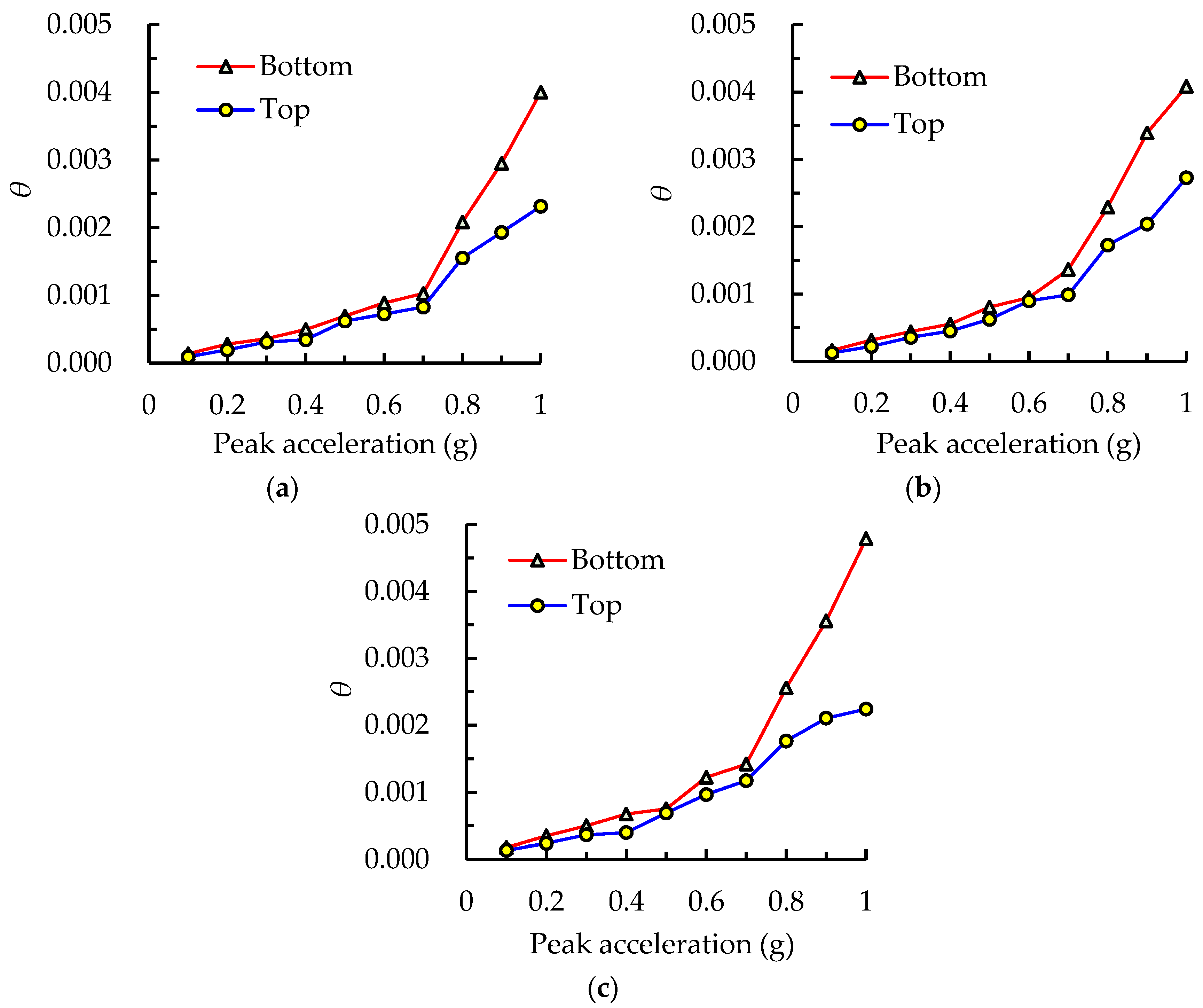

Figure 20. Maximum inter-story drift ratios versus loading peak accelerations for three seismic waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 20. Maximum inter-story drift ratios versus loading peak accelerations for three seismic waves. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g020
Figure 21. Time-history curves of strains at the bottom of the column under PGA of 1.0 g. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 21. Time-history curves of strains at the bottom of the column under PGA of 1.0 g. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g021
Figure 22. Maximum strains of the frame column subjected to the different intensity levels. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 22. Maximum strains of the frame column subjected to the different intensity levels. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g022
Figure 23. Maximum strains of the flange at the end of the frame beam subjected to the different intensity levels. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Figure 23. Maximum strains of the flange at the end of the frame beam subjected to the different intensity levels. (a) El Centro wave; (b) Kobe wave; (c) Taft wave.
Applsci 09 03299 g023aApplsci 09 03299 g023b
Figure 24. Maximum strains of LYP energy absorbers subjected to different intensity levels.
Figure 24. Maximum strains of LYP energy absorbers subjected to different intensity levels.
Applsci 09 03299 g024
Table 1. Similitudes of the test model.
Table 1. Similitudes of the test model.
Physical QuantitiesDimensionsSimilarity RatiosPhysical QuantitiesDimensionsSimilarity Ratios
LengthLSL = 1/4TimeTST = 0.315
Young’s modulusFL−2SE = 1Poisson ratio1Sν = 1
StressFL−2Sσ = 1StiffnessFL−1Sk = 1/4
MassFT2L−1Sm = 1/40.3FrequencyT−1Sf = 3.175
AccelerationLT−2Sα = 2.5Strain1Sε = 1
Table 2. Chemical compositions of test materials (unit: %).
Table 2. Chemical compositions of test materials (unit: %).
Test MaterialsCSiMnPSN
Low-yield-point steel0.010.060.080.0070.010.0024
Ordinary steel0.160.150.330.0280.0210.045
Table 3. Sizes of the coupon (unit: mm).
Table 3. Sizes of the coupon (unit: mm).
ParametersThickness
a
Gauge Width
b
Gauge Length
L0
Parallel Length
Lc
Transition Arc Length
r
Clamp Width
d
Overall Length
L
Sizes825801102545310
Table 4. Measured sizes of LYP steel coupons (unit: mm).
Table 4. Measured sizes of LYP steel coupons (unit: mm).
NumberM1M2M3
Measured thickness a7.567.577.57
Measured width b25.0225.0124.98
Table 5. Results of the material test.
Table 5. Results of the material test.
SpecimenMaximum Load
F (kN)
Yield Strength
fy (MPa)
Tensile Strength
fu (MPa)
Modulus of Elasticity
E (MPa)
Elongation (%)Yield Ratio fy/fu
MaterialNumber
Low-yield-point steelM147.42100.59250.68198,63946.360.40
M247.1394.74248.96208,73448.180.38
M347.0490.76248.76200,97448.180.36
Ordinary steel (Q235)74.26234.91391.21200,15235.100.60
Table 6. Seismic loading plan.
Table 6. Seismic loading plan.
CaseEarthquakePGA
(g)
CaseEarthquakePGA
(g)
CaseEarthquakePGA
(g)
CaseEarthquakePGA
(g)
1aWhite noise0.054aWhite noise0.057aWhite noise0.0510aWhite noise0.05
1El Centro0.110El Centro0.419El Centro0.728El Centro1.0
2Kobe0.111Kobe0.420Kobe0.729Kobe1.0
3Taft0.112Taft0.421Taft0.730Taft1.0
2aWhite noise0.055aWhite noise0.058aWhite noise0.0511aWhite noise0.05
4El Centro0.213El Centro0.522El Centro0.831Kobe1.1
5Kobe0.214Kobe0.523Kobe0.832Kobe1.2
6Taft0.215Taft0.524Taft0.833Kobe1.3
3aWhite noise0.056aWhite noise0.059aWhite noise0.0534Kobe1.4
7El Centro0.316El Centro0.625El Centro0.935Kobe1.5
8Kobe0.317Kobe0.626Kobe0.936Kobe1.6
9Taft0.318Taft0.627Taft0.9
Table 7. PGA of earthquake intensity for the test.
Table 7. PGA of earthquake intensity for the test.
PGA (g)0.08750.1750.250.350.50.551.01.55
Earthquake IntensityFrequent 7Frequent 8Occasional 7Frequent 9Occasional 8Rare 7Rare 8/Occasional 9Rare 9
Table 8. Natural frequencies and damping ratios.
Table 8. Natural frequencies and damping ratios.
Cases1a to 5a6a7a8a9a10a
Natural Frequencies (Hz)15.6815.6815.5715.3515.0114.82
Damping Ratios (%)3.173.183.193.213.233.27
Table 9. Maximum inter-story drift ratios under various intensity levels.
Table 9. Maximum inter-story drift ratios under various intensity levels.
PGA (g)Earthquake BottomTopPGA
(g)
EarthquakeBottomTop
θAverageθAverageθAverageθAverage
El Centro1/7182 1/10505 El Centro1/1125 1/1381
0.1Kobe1/61671/63221/80031/84450.6Kobe1/10581/9811/11151/1160
Taft1/5775 1/7402 Taft1/818 1/1036
El Centro1/3560 1/5103 El Centro1/972 1/1208
0.2Kobe1/31851/31811/45181/45680.7Kobe1/7341/7871/8531/1004
Taft1/2872 1/4177 Taft1/705 1/1012
El Centro1/2769 1/3207 El Centro1/480 1/644
0.3Kobe1/22711/23101/28161/29150.8Kobe1/4371/4331/5801/595
Taft1/2011 1/2760 Taft1/391 1/567
El Centro1/2015 1/2900 El Centro1/339 1/518
0.4Kobe1/18121/17421/22311/25230.9Kobe1/2951/3031/4911/494
Taft1/1484 1/2525 Taft1/281 1/475
El Centro1/1437 1/1611 El Centro1/250 1/432
0.5Kobe1/12411/13321/16001/15501.0Kobe1/2451/2331/3671/412
Taft1/1333 1/1450 Taft1/209 1/446

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
