Thermal and Mechanical Analysis of a 72/48 Switched Reluctance Motor for Low-Speed Direct-Drive Mining Applications

1
School of Electrical Engineering, Dalian University of Technology, Dalian 116023, China
2
Faculty of Engineering, Blue Nile University, Blue Nile State 26613, Sudan
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(13), 2722; https://doi.org/10.3390/app9132722
Received: 2 June 2019 / Revised: 24 June 2019 / Accepted: 2 July 2019 / Published: 5 July 2019
  |
PDF [9298 KB, uploaded 5 July 2019]
  |     |

Abstract

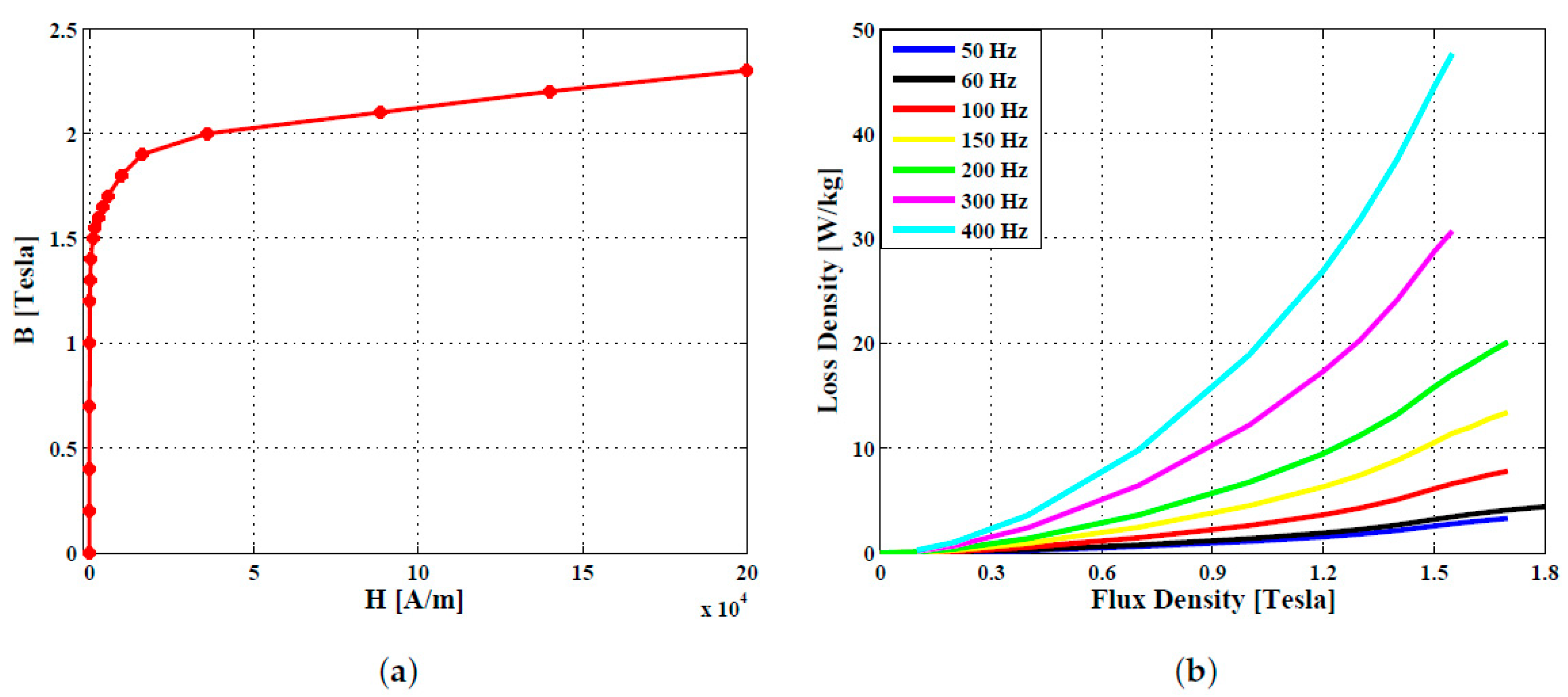

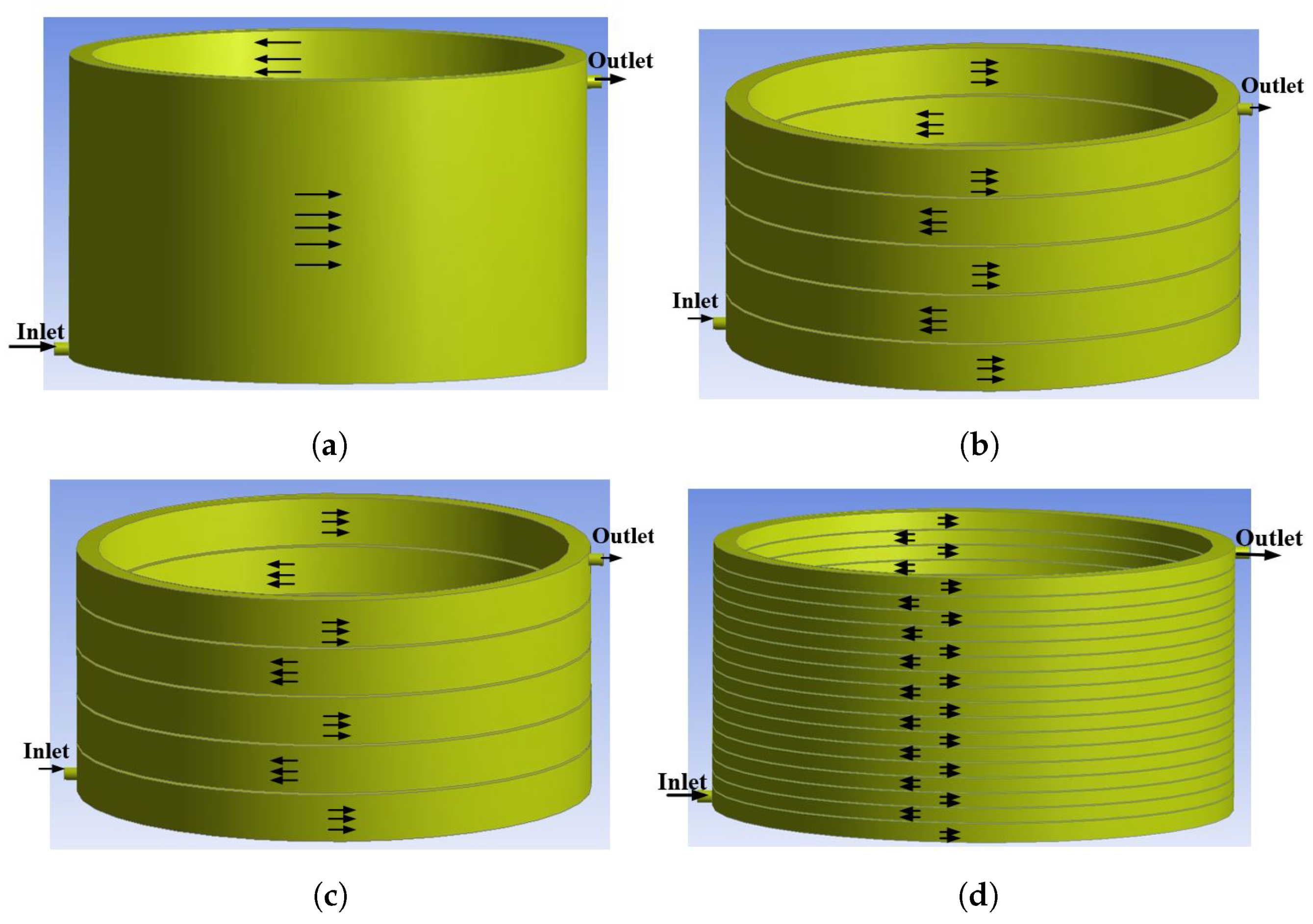

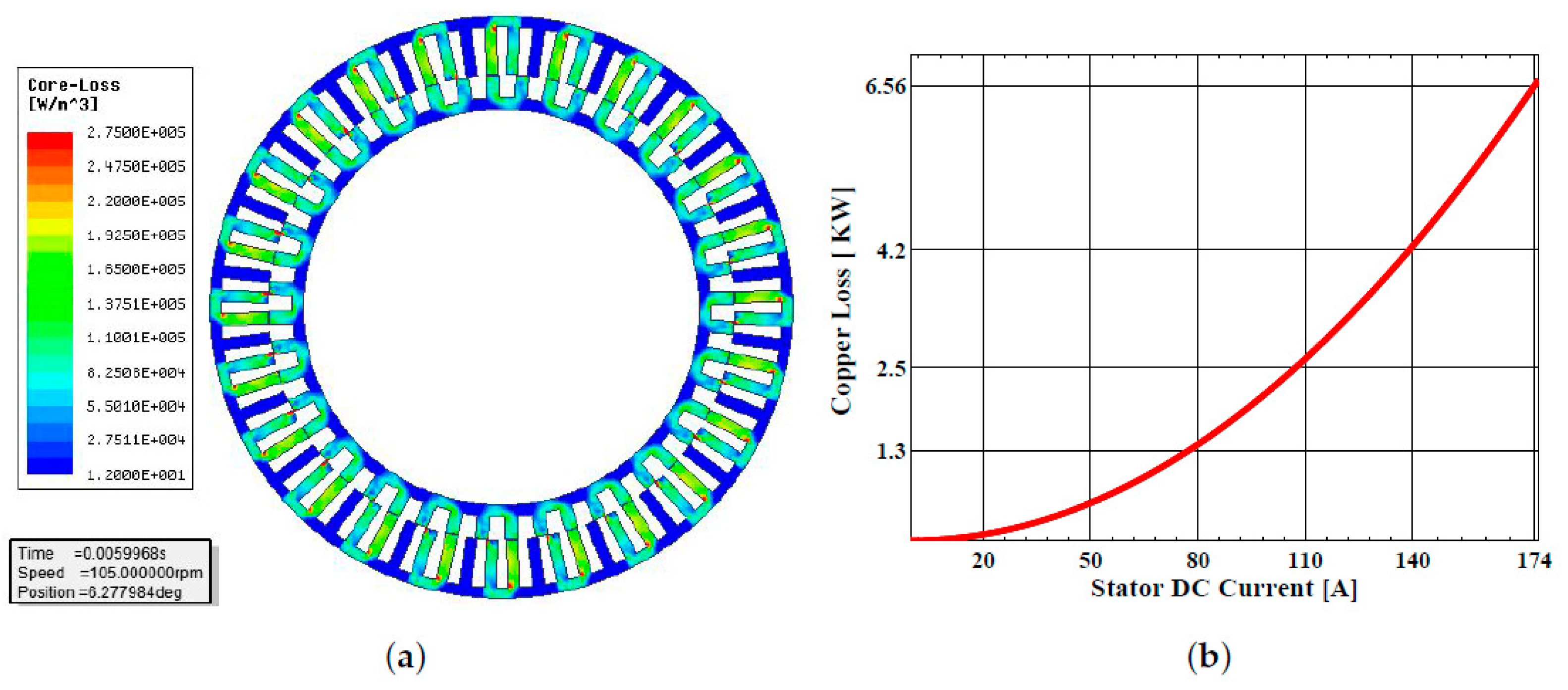

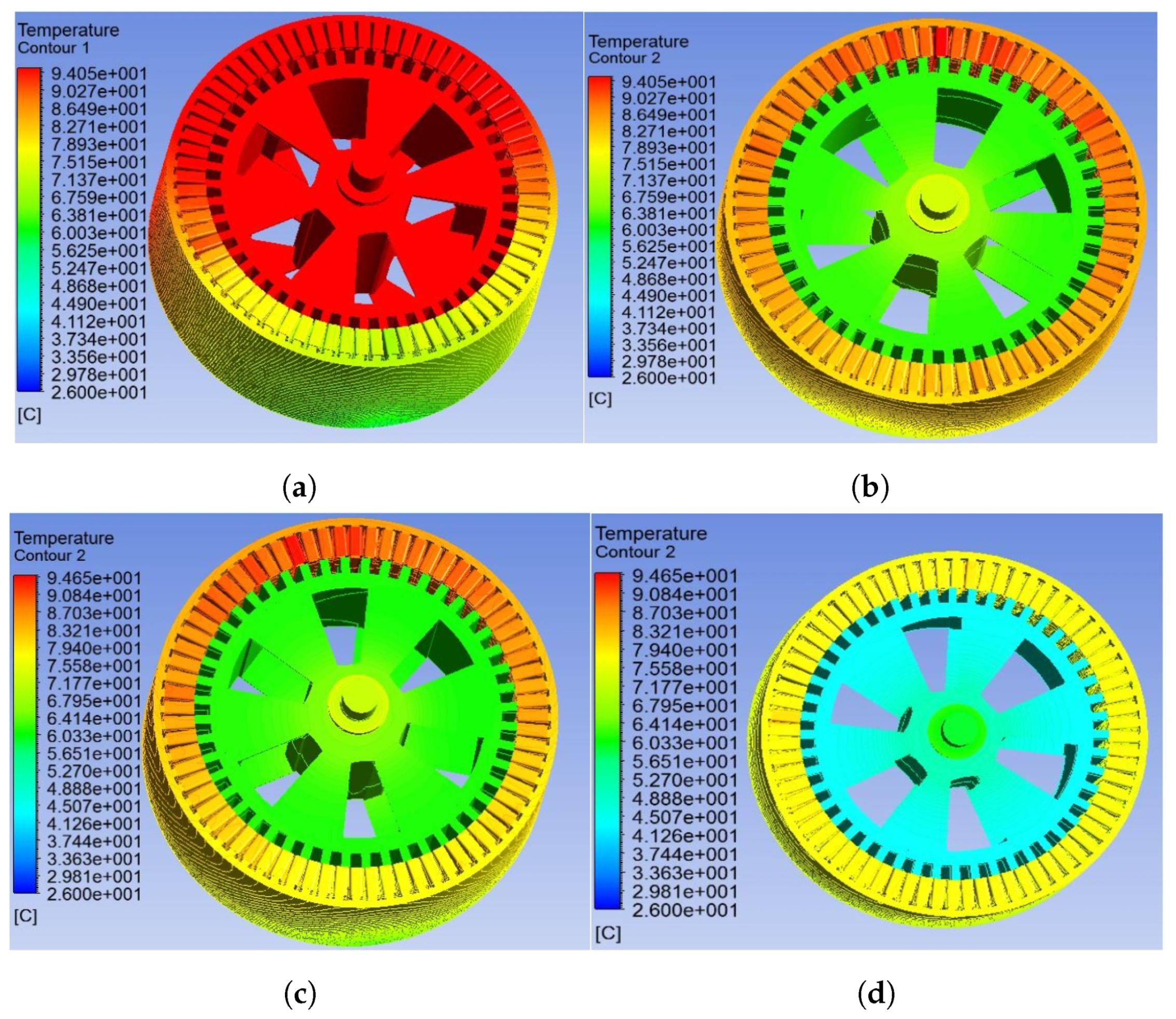

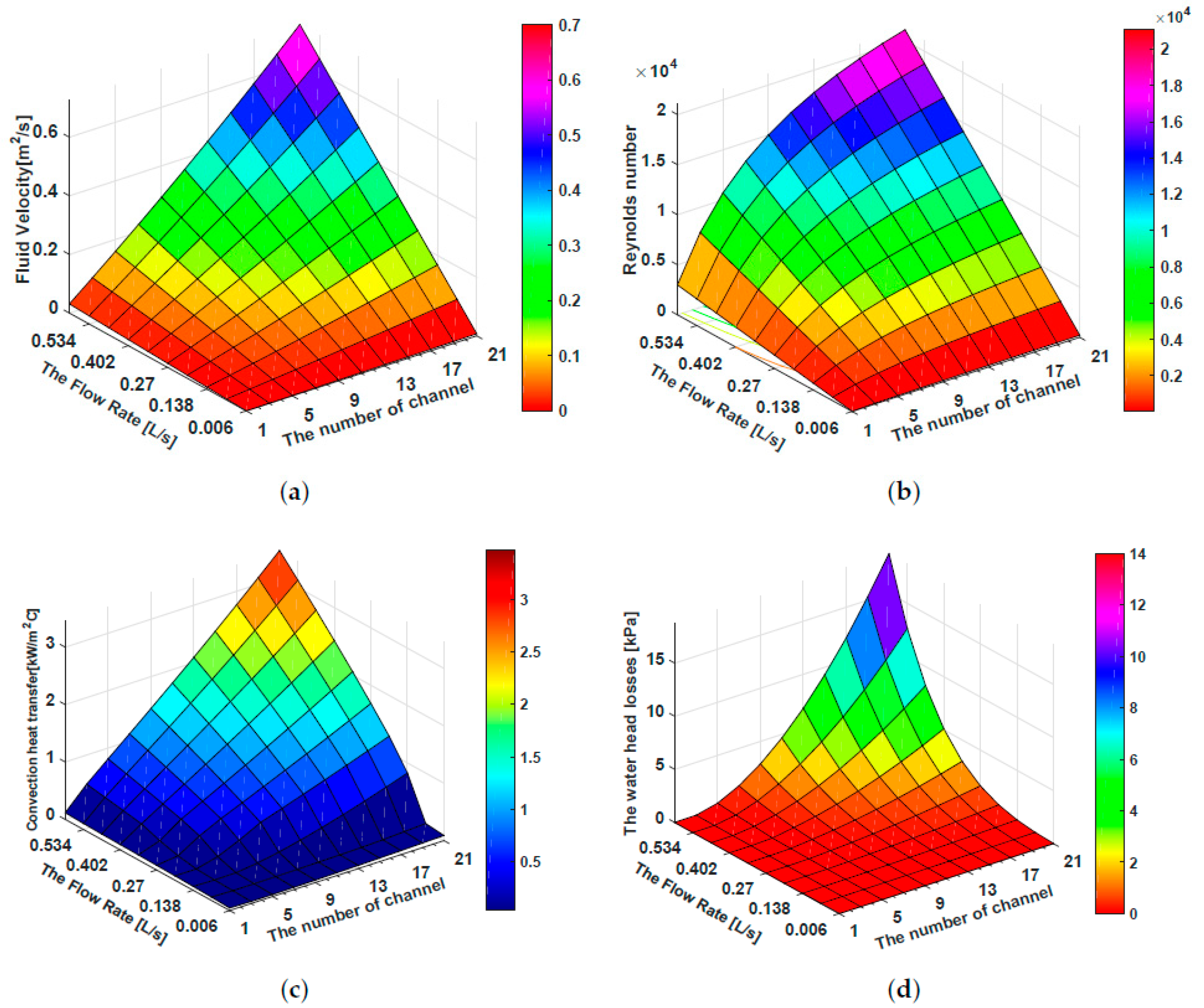

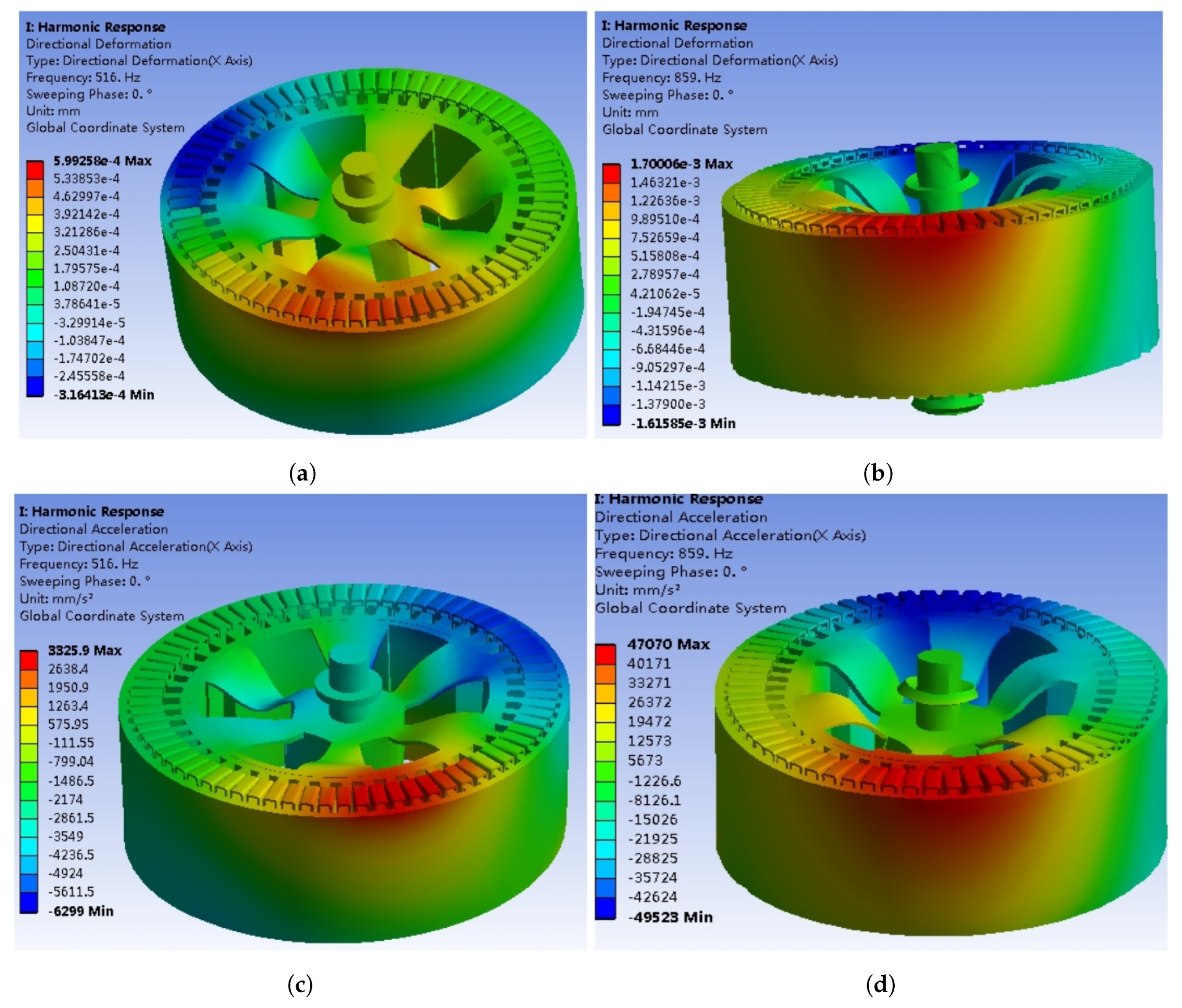

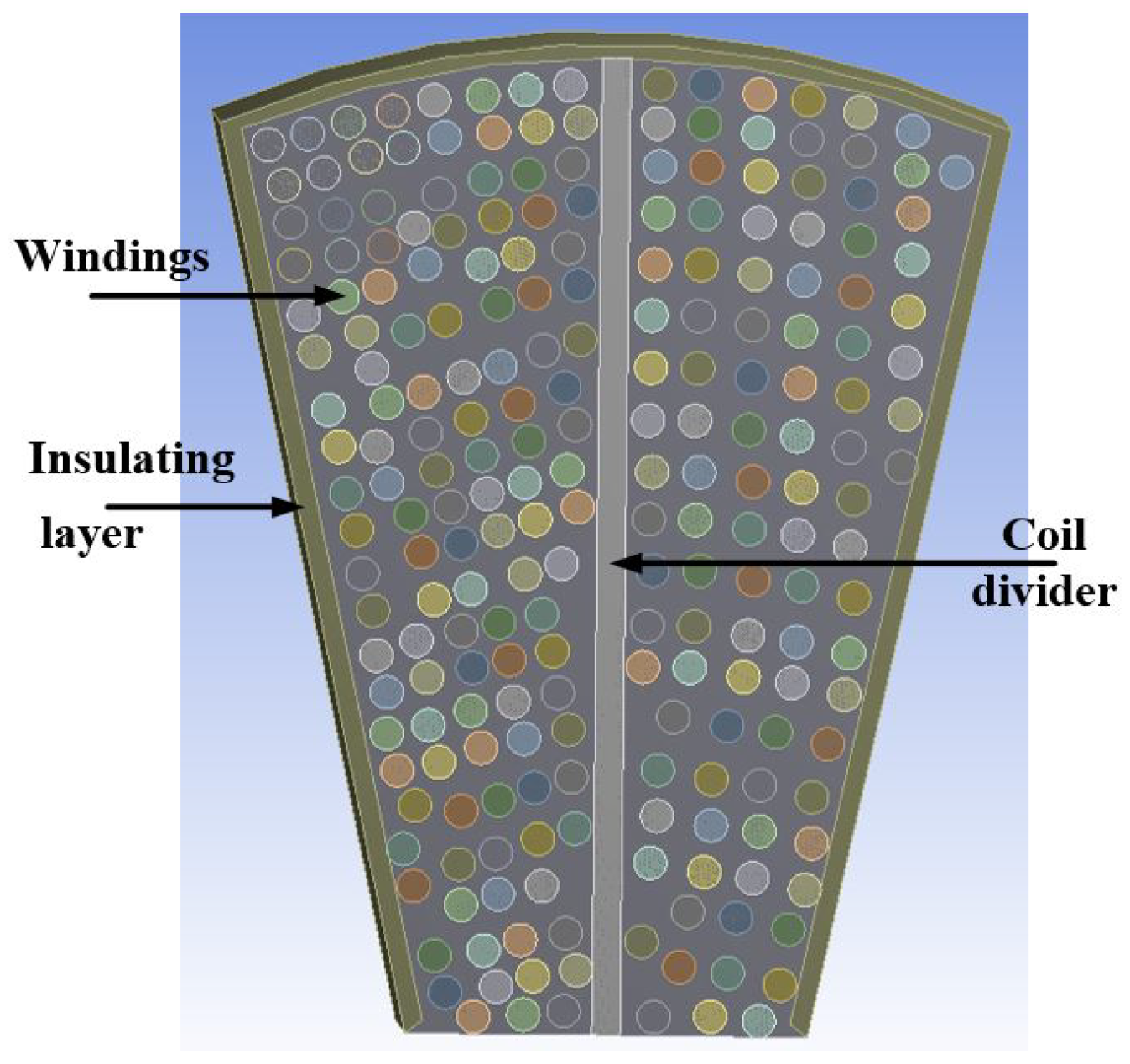

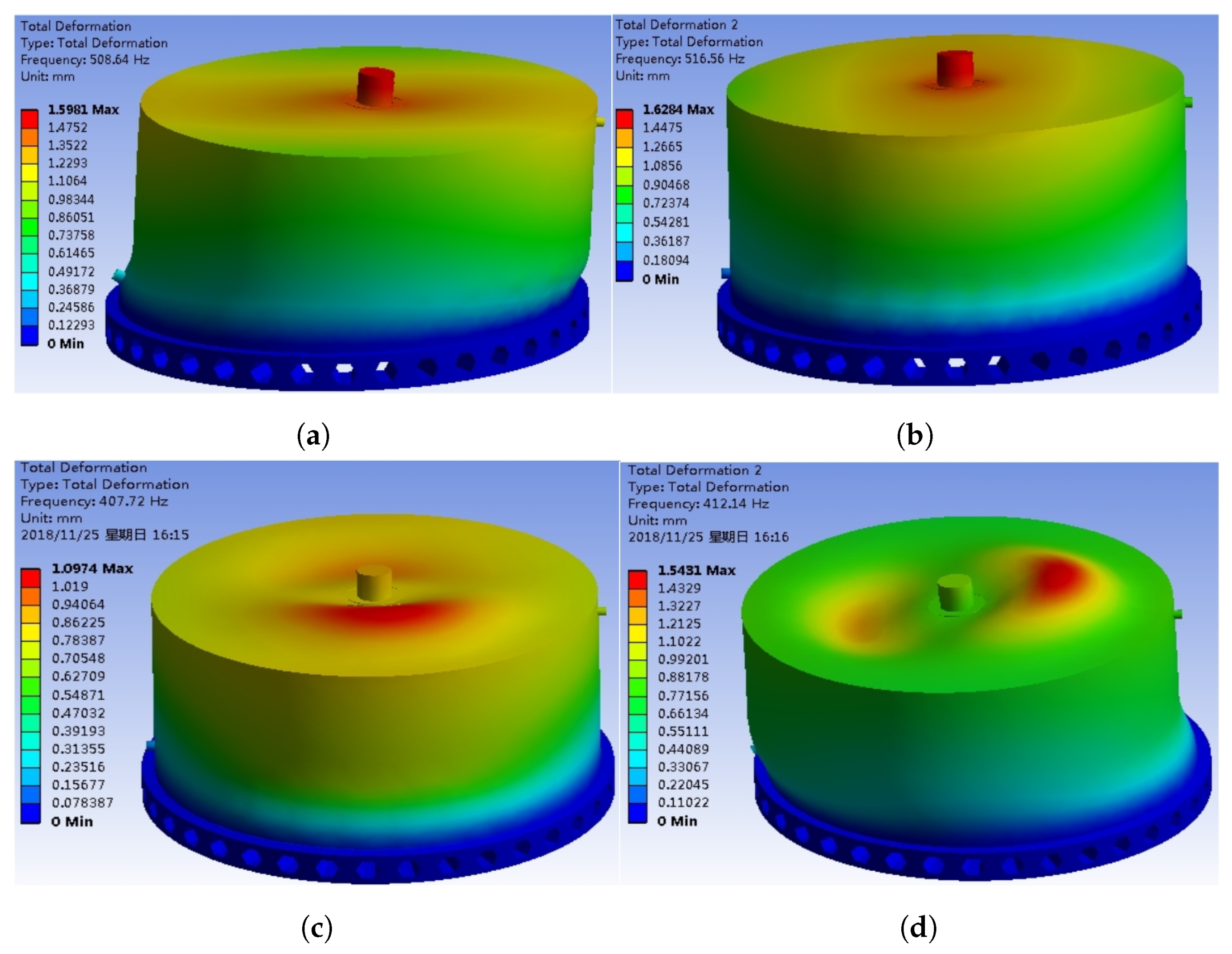

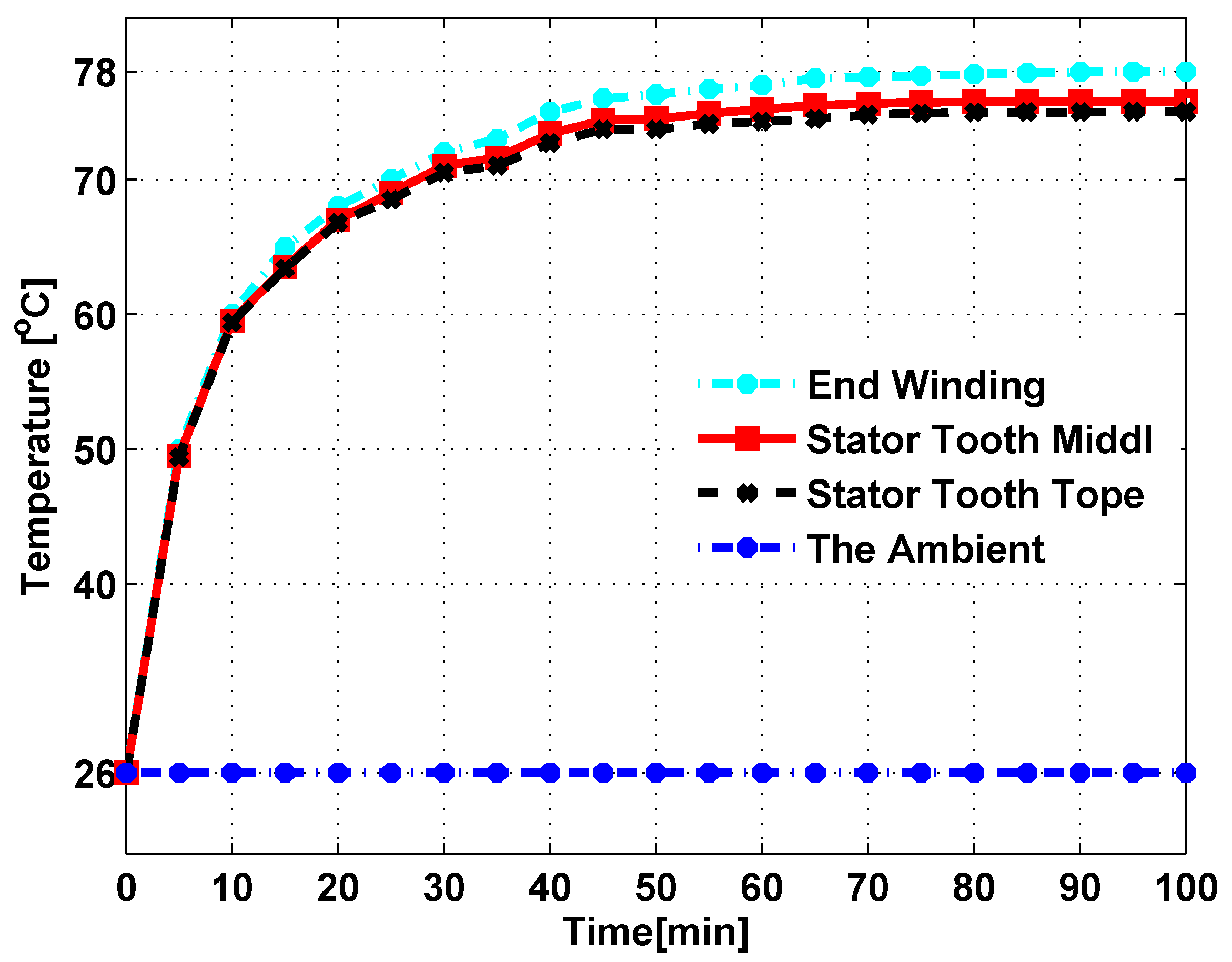

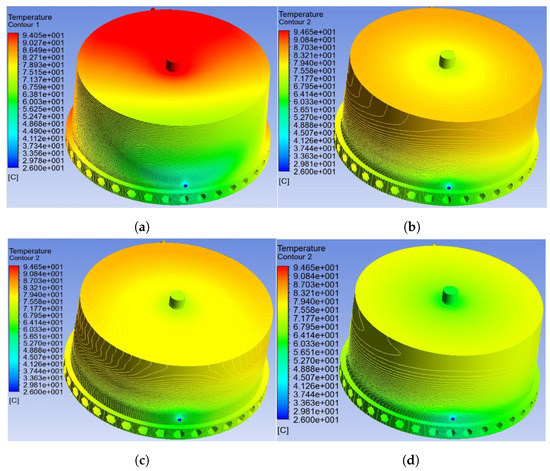

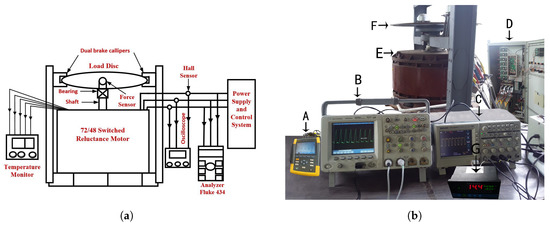

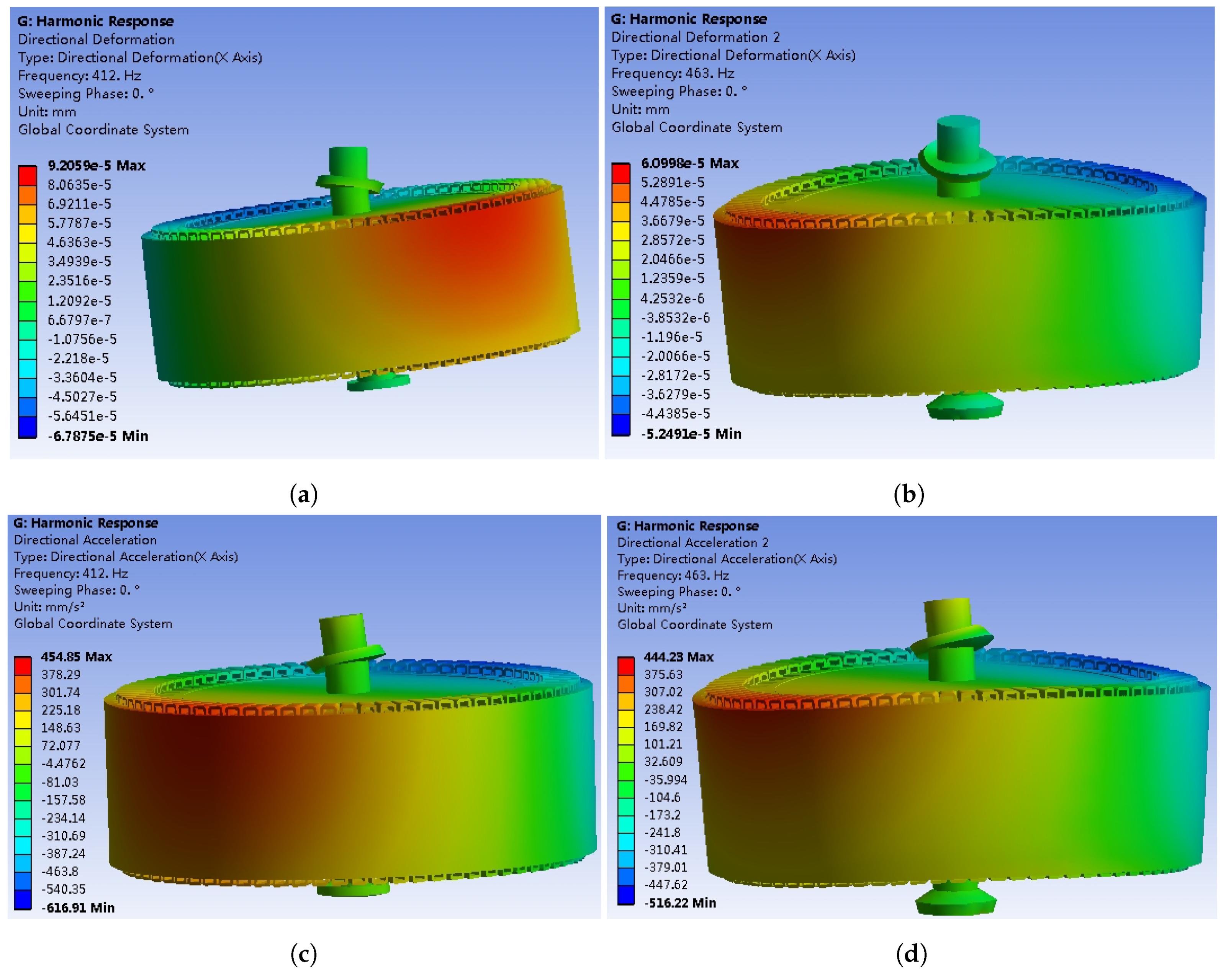

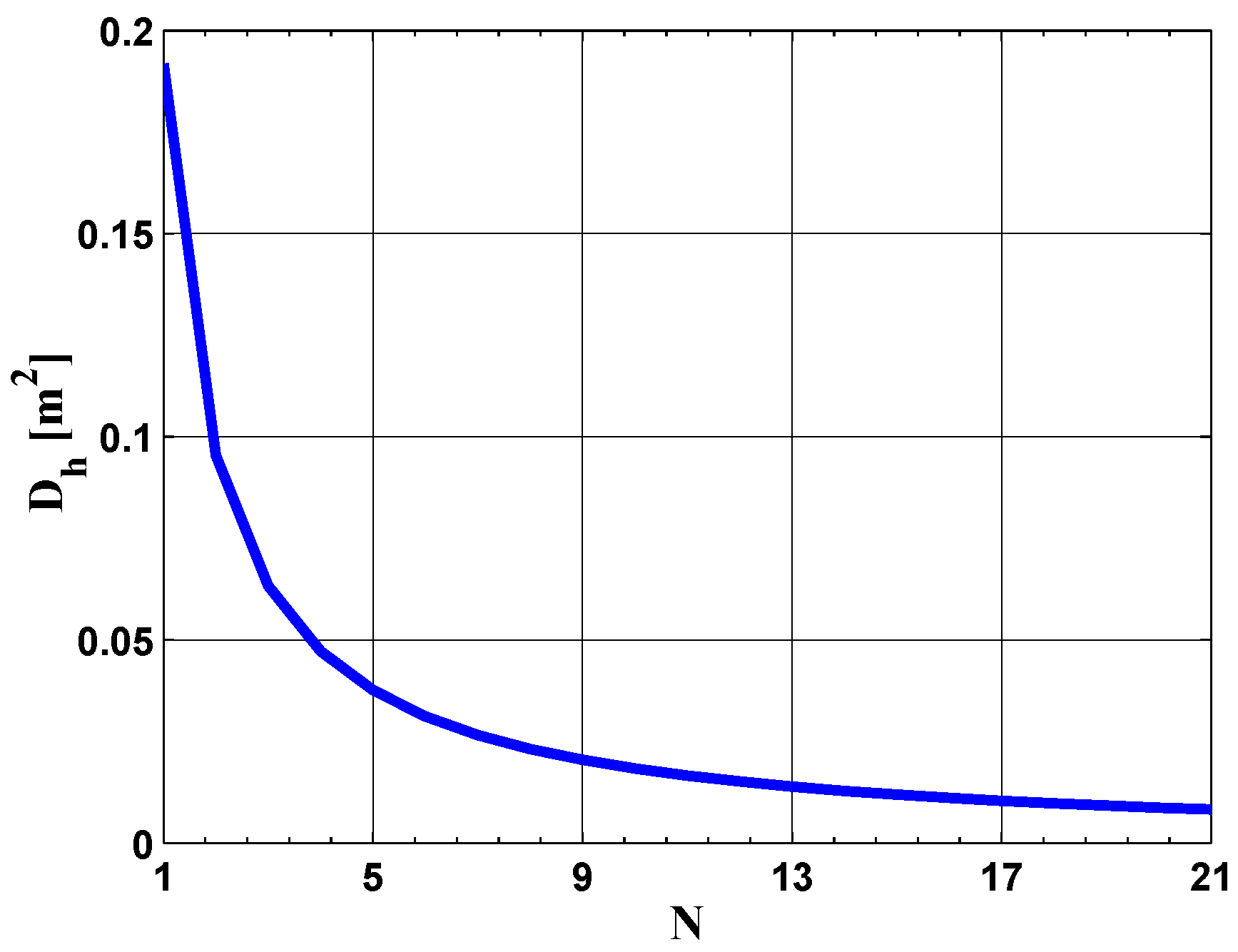

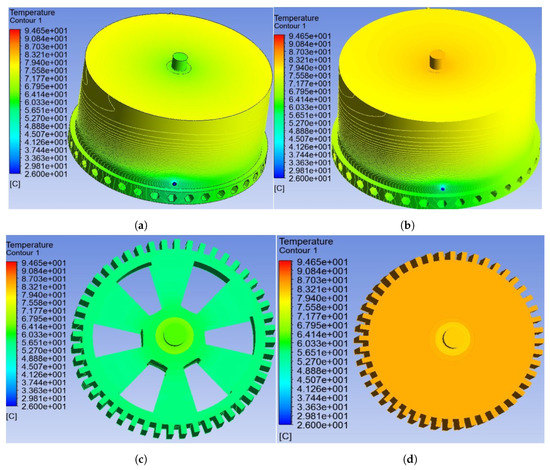

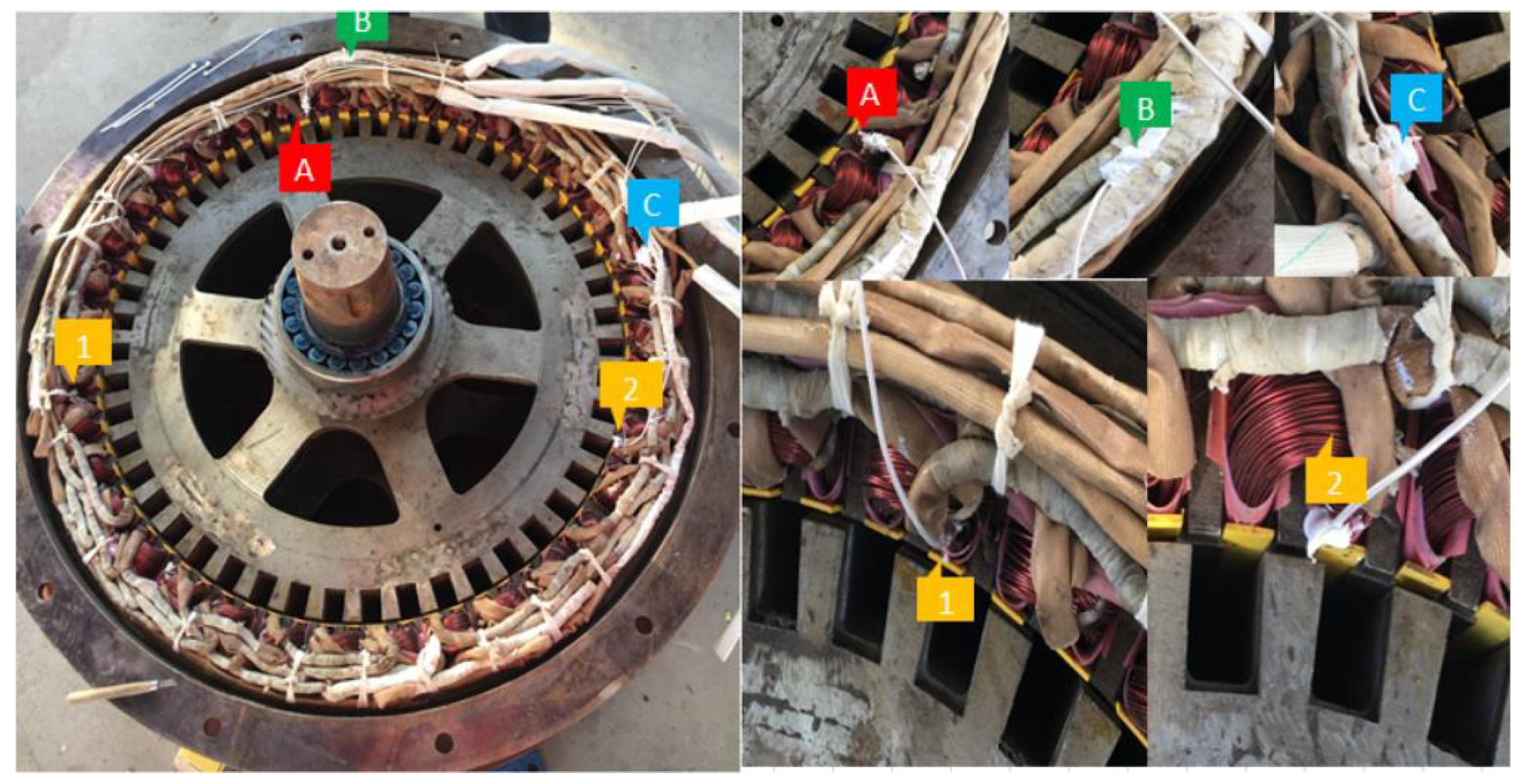

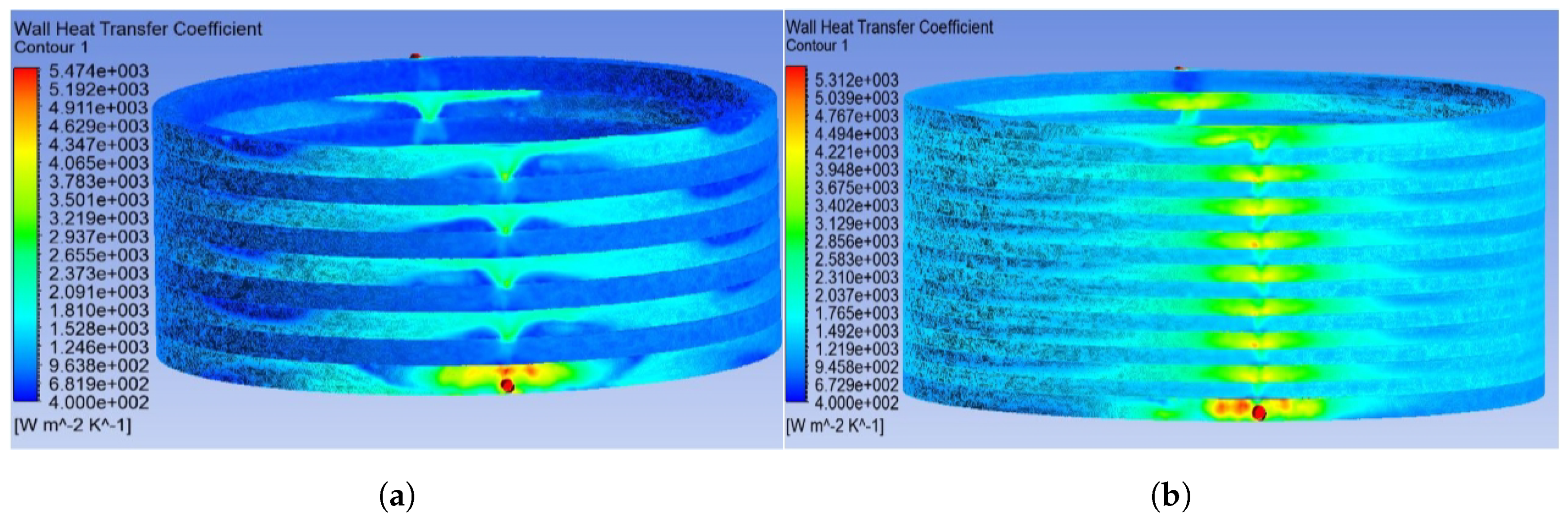

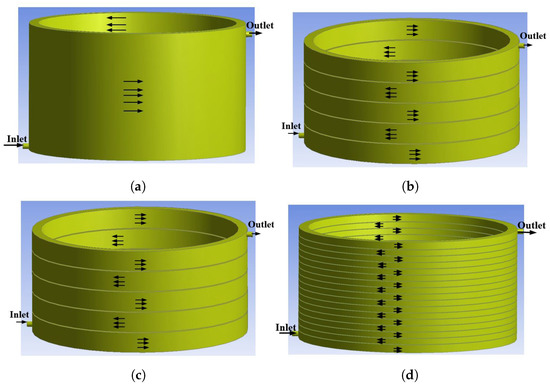

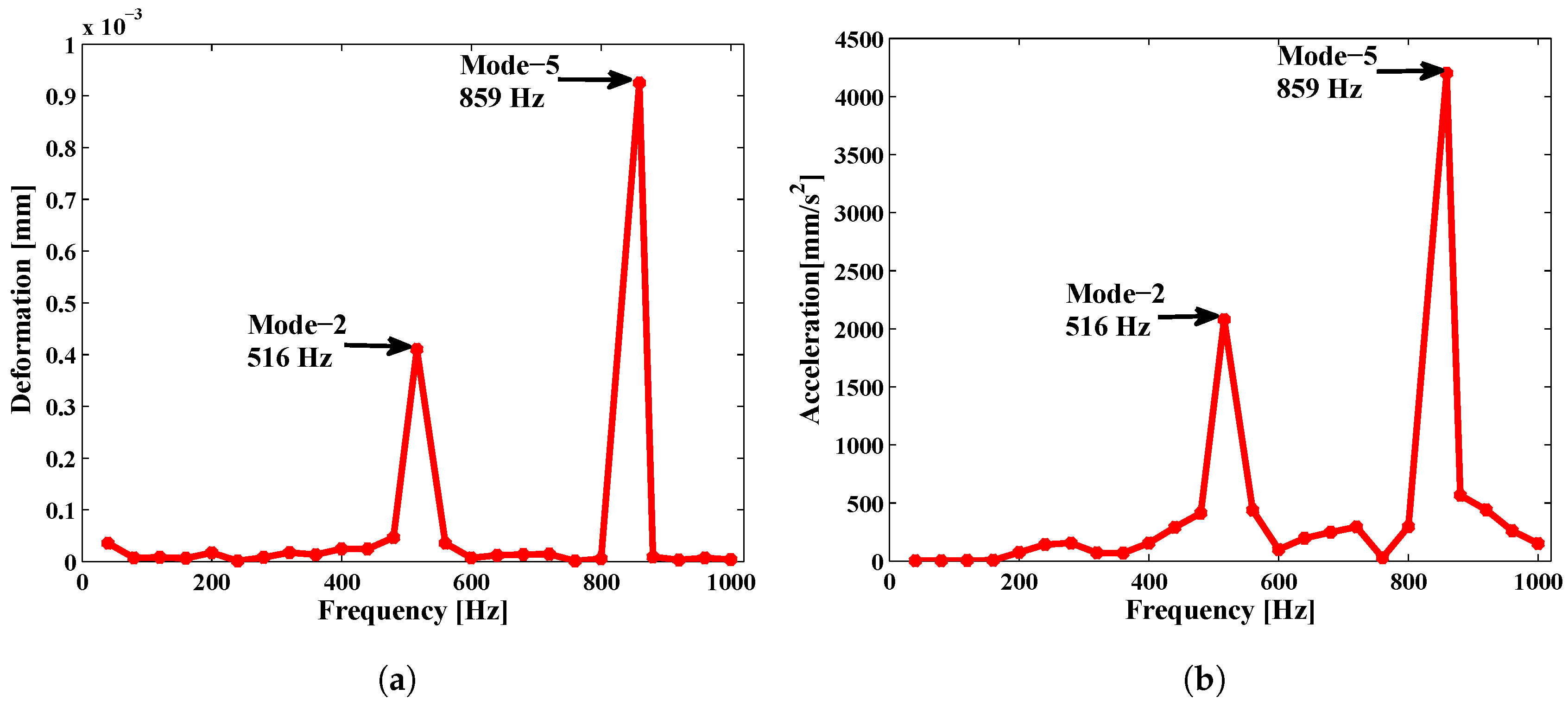

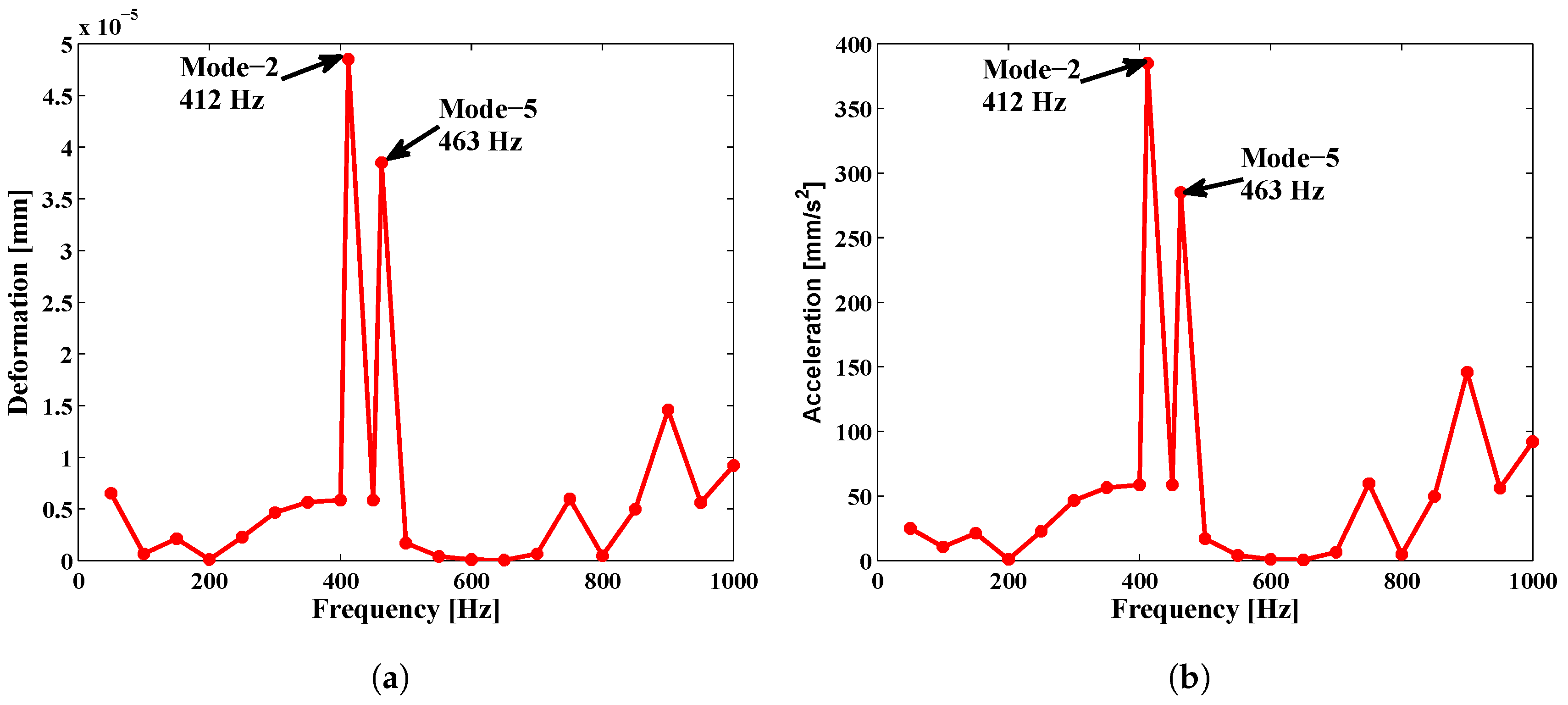

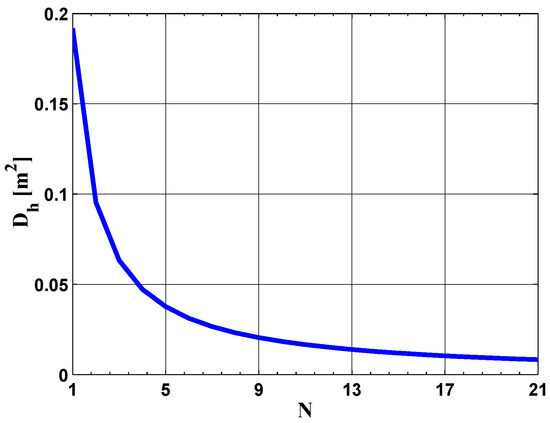

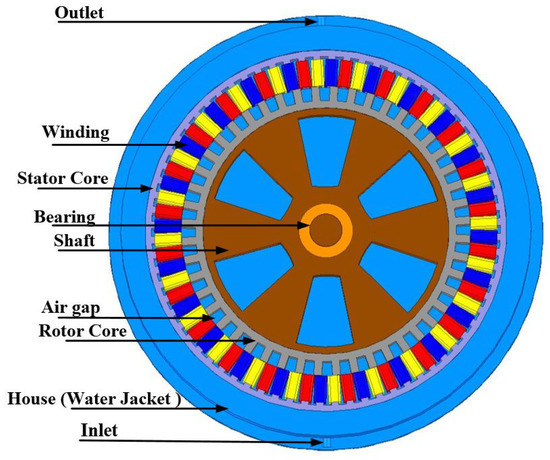

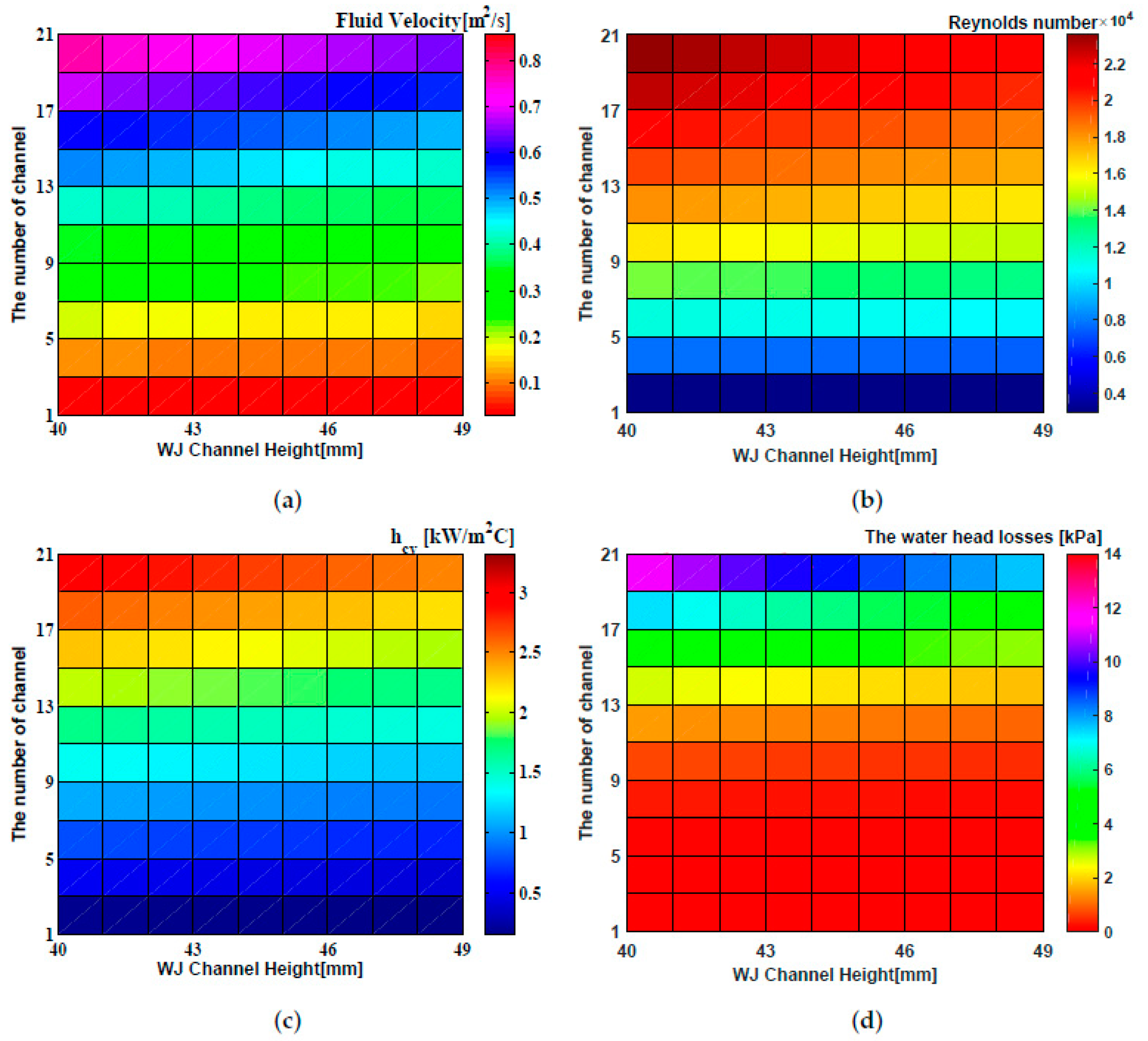

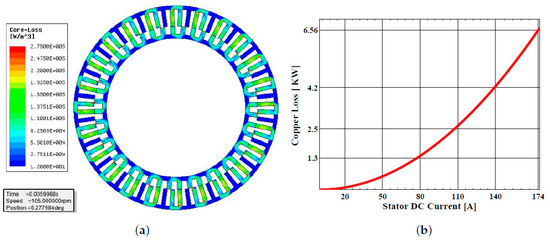

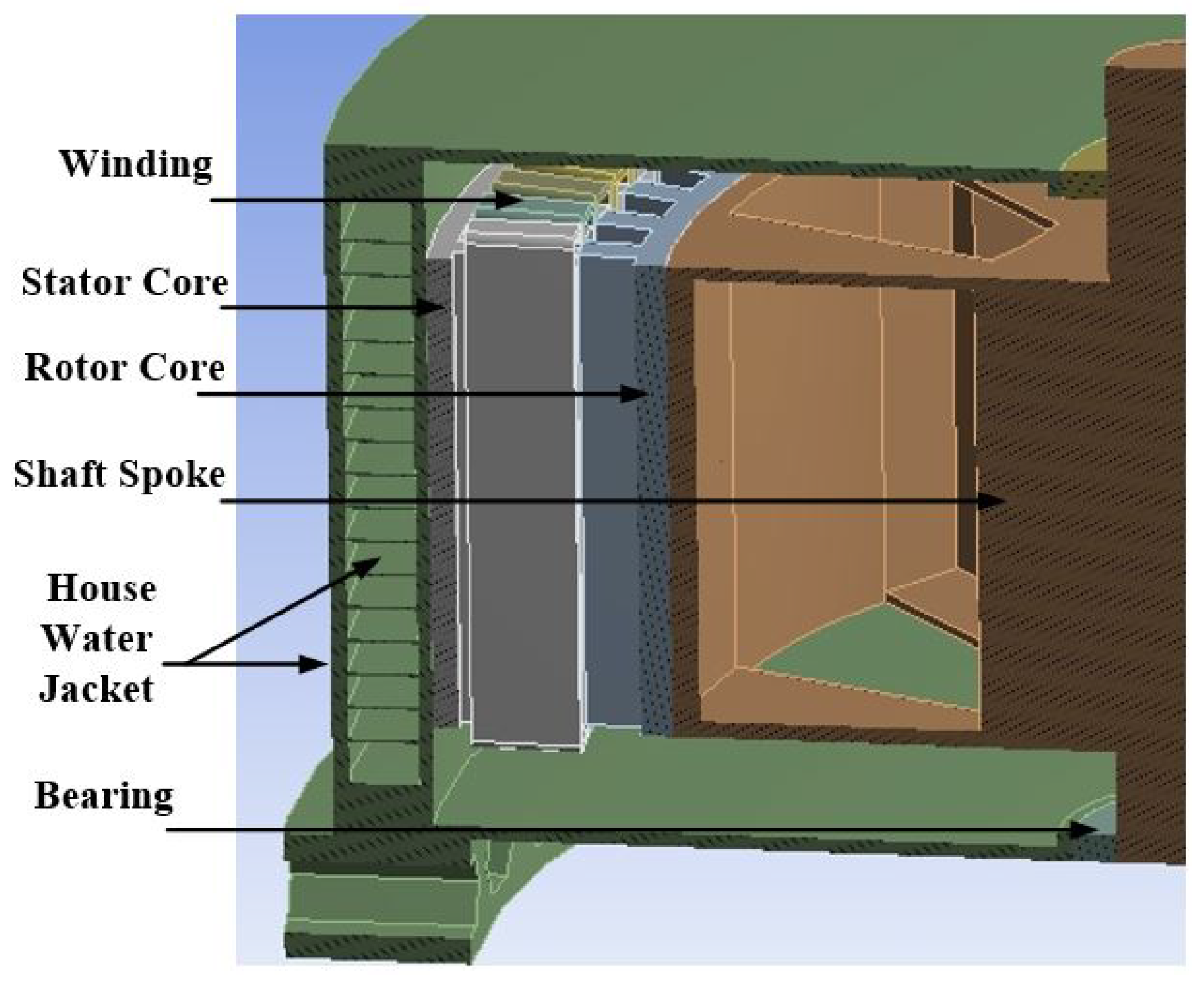

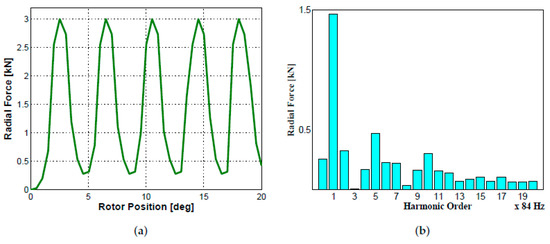

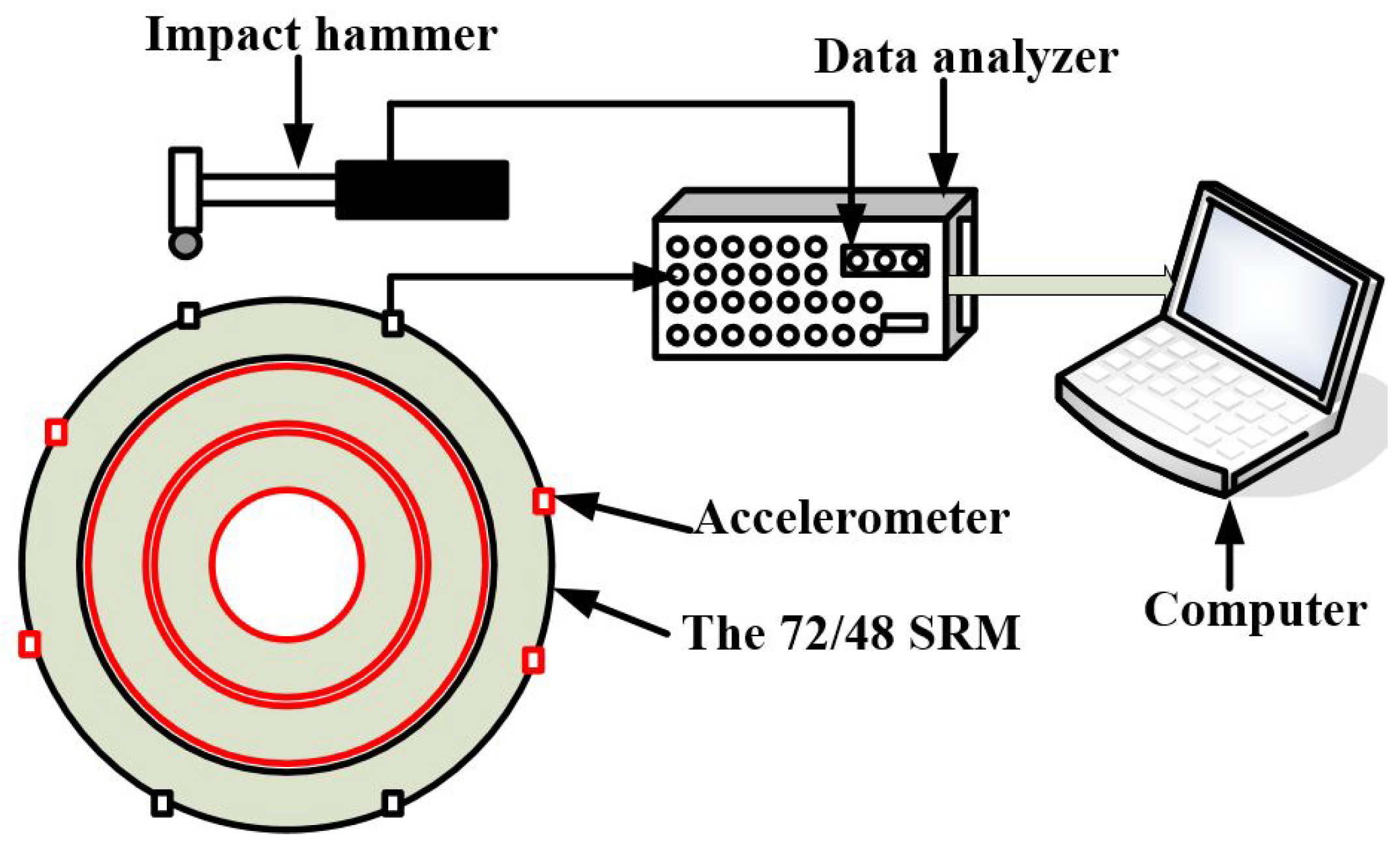

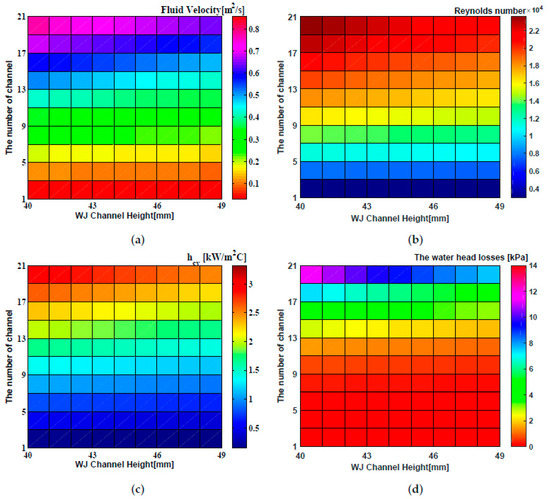

In the process of electric motor design, it is essential to predict and provide an accurate thermal and mechanical model. The aim of this research is to improve the thermal and mechanical performance—which is implemented into a 72/48 switched reluctance motor (SRM) with 75 kW—of a low-speed direct-drive mining system (pulverizer). Thermal analysis of the SRM requires a deep understanding of the coolant behavior and the thermal mechanism in the motor. Computational fluid dynamics (CFD) based finite element analysis (FEA) was carried out in order to precisely visualize and estimate fluid state and temperature distribution inside the motor. Several different coolant configurations were carried out, with the purpose of determining an appropriate one for uniform temperature distribution in the SRM. The natural frequencies are presented with the developed finite element mechanical, structural model. To adapt in the mining application, the cooling jacket configurations with 17 channels and the shaft with spoke was found to be optimal for the SRM, which may raise the natural frequency and reduce the weight and temperature of the motor. The simulations results showed a good agreement with experimental results regarding temperature distribution within the motor. View Full-Text
Keywords: computational fluid dynamics; finite element method; mechanical analysis; switched reluctance motor; 3D thermal model computational fluid dynamics; finite element method; mechanical analysis; switched reluctance motor; 3D thermal model
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Elhomdy, E.; Liu, Z.; Li, G. Thermal and Mechanical Analysis of a 72/48 Switched Reluctance Motor for Low-Speed Direct-Drive Mining Applications. Appl. Sci. 2019, 9, 2722.
