# Associative Memories to Accelerate Approximate Nearest Neighbor Search

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

## 3. Search Problems with Sparse Patterns

**Theorem**

**1.**

- 1.
- $d\ll k\ll {d}^{2}$, i.e., $\frac{k}{{d}^{2}}\to 0$ and $\frac{k}{d}\to \infty $,
- 2.
- $c\ll d$ and $c\ll {\left(\frac{{d}^{7}}{{k}^{3}}\right)}^{\frac{1}{6}}$
- 3.
- and $q{e}^{-\frac{1}{33}\frac{{d}^{2}}{k}}\to 0$.

**Proof.**

**Corollary**

**1.**

- 1.
- $d\ll k\ll {d}^{2}$,
- 2.
- $c\ll d$ and $c\ll {\left(\frac{{d}^{7}}{{k}^{3}}\right)}^{\frac{1}{6}}$
- 3.
- and $q{e}^{-\frac{{\alpha}^{4}}{33}\frac{{d}^{2}}{k}}\to 0$.

**Proof.**

**Remark**

**1.**

## 4. Dense, Unbiased Patterns

**Theorem**

**2.**

- 1.
- $d\ll k\ll {d}^{2}$, i.e., $\frac{k}{{d}^{2}}\to 0$ and $\frac{k}{d}\to \infty $, and either
- 2.
- $q{e}^{-\frac{1}{8}\frac{{d}^{2}}{k}}\to 0$ if ${d}^{4}\ll {k}^{3}$,
- 3.
- or $qexp\left(-\frac{{d}^{2}}{{k}^{\frac{5}{4}}}\right)\to 0$ if $k\le C{d}^{\frac{4}{3}}$, for some $C>0$.

**Proof.**

**Corollary**

**2.**

- 1.
- $d\ll k\ll {d}^{2}$, i.e., $\frac{k}{{d}^{2}}\to 0$ and $\frac{k}{d}\to \infty $,
- 2.
- and either $q{e}^{-\frac{1}{8}\frac{{\alpha}^{4}{d}^{2}}{k}}\to 0$ if ${d}^{4}\ll {k}^{3}$,
- 3.
- or $q{e}^{-\frac{{\alpha}^{4}{d}^{2}}{{k}^{\frac{5}{4}}}}\to 0$ if $k\le C{d}^{\frac{4}{3}}$ for some $C>0$.

**Proof.**

**Remark**

**2.**

## 5. Experiments

#### 5.1. Synthetic Data

#### 5.1.1. Sparse Patterns

#### 5.1.2. Dense Patterns

#### 5.2. Real Data

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Muja, M.; Lowe, D.G. Scalable Nearest Neighbor Algorithms for High Dimensional Data. IEEE Trans. Pattern Anal. Mach. Intell.
**2014**, 36, 2227–2240. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Muja, M.; Lowe, D.G. Fast Approximate Nearest Neighbors with Automatic Algorithm Configuration. In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications (VISAPP 2009), Lisboa, Portugal, 5–8 February 2009. [Google Scholar]
- Gong, Y.; Lazebnik, S. Iterative quantization: A procrustean approach to learning binary codes. In Proceedings of the 2011 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Colorado Springs, CO, USA, 20–25 June 2011; pp. 817–824. [Google Scholar]
- Jegou, H.; Douze, M.; Schmid, C. Product quantization for nearest neighbor search. IEEE Trans. Pattern Anal. Mach. Intell.
**2011**, 33, 117–128. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Datar, M.; Immorlica, N.; Indyk, P.; Mirrokni, V.S. Locality-sensitive hashing scheme based on p-stable distributions. In Proceedings of the Twentieth Annual Symposium on Computational Geometry, Brooklyn, NY, USA, 8–11 June 2004; pp. 253–262. [Google Scholar]
- Iscen, A.; Furon, T.; Gripon, V.; Rabbat, M.; Jégou, H. Memory vectors for similarity search in high-dimensional spaces. IEEE Trans. Big Data
**2018**, 4, 65–77. [Google Scholar] [CrossRef] - Yu, C.; Gripon, V.; Jiang, X.; Jégou, H. Neural Associative Memories as Accelerators for Binary Vector Search. In Proceedings of the COGNITIVE 2015: 7th International Conference on Advanced Cognitive Technologies and Applications, Nice, France, 22–27 March 2015; pp. 85–89. [Google Scholar]
- Hopfield, J.J. Neural networks and physical systems with emergent collective computational abilities. Proc. Natl. Acad. Sci. USA
**1982**, 79, 2554–2558. [Google Scholar] [CrossRef] [PubMed] - McEliece, R.J.; Posner, E.C.; Rodemich, E.R.; Venkatesh, S.S. The capacity of the Hopfield associative memory. IEEE Trans. Inform. Theory
**1987**, 33, 461–482. [Google Scholar] [CrossRef] [Green Version] - Löwe, M.; Vermet, F. The storage capacity of the Hopfield model and moderate deviations. Stat. Probab. Lett.
**2005**, 75, 237–248. [Google Scholar] [CrossRef] - Löwe, M.; Vermet, F. The capacity of q-state Potts neural networks with parallel retrieval dynamics. Stat. Probab. Lett.
**2007**, 77, 1505–1514. [Google Scholar] [CrossRef] - Gripon, V.; Heusel, J.; Löwe, M.; Vermet, F. A comparative study of sparse associative memories. J. Stat. Phys.
**2016**, 164, 105–129. [Google Scholar] [CrossRef] - Löwe, M. On the storage capacity of the Hopfield model with biased patterns. IEEE Trans. Inform. Theory
**1999**, 45, 314–318. [Google Scholar] [CrossRef] - Newman, C. Memory capacity in neural network models: Rigorous lower bounds. Neural Netw.
**1988**, 1, 223–238. [Google Scholar] [CrossRef] - Löwe, M.; Vermet, F. The Hopfield model on a sparse Erdos-Renyi graph. J. Stat. Phys.
**2011**, 143, 205–214. [Google Scholar] [CrossRef] - Arya, S.; Mount, D.M.; Netanyahu, N.S.; Silverman, R.; Wu, A.Y. An optimal algorithm for approximate nearest neighbor searching fixed dimensions. J. ACM (JACM)
**1998**, 45, 891–923. [Google Scholar] [CrossRef] [Green Version] - Tagami, Y. AnnexML: Approximate nearest neighbor search for extreme multi-label classification. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining (KDD ’17), Halifax, NS, Canada, 13–17 August 2017; ACM: New York, NY, USA, 2017; pp. 455–464. [Google Scholar]
- He, K.; Wen, F.; Sun, J. K-means hashing: An affinity-preserving quantization method for learning binary compact codes. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Portland, OR, USA, 23–28 June 2013; pp. 2938–2945. [Google Scholar]
- Weiss, Y.; Torralba, A.; Fergus, R.; Weiss, Y.; Torralba, A.; Fergus, R. Spectral Hashing. Available online: http://papers.nips.cc/paper/3383-spectral-hashing.pdf (accessed on 15 September 2018).
- Ge, T.; He, K.; Ke, Q.; Sun, J. Optimized product quantization for approximate nearest neighbor search. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Portland, OR, USA, 23–28 June 2013; pp. 2946–2953. [Google Scholar]
- Norouzi, M.; Fleet, D.J. Cartesian k-means. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Portland, OR, USA, 23–28 June 2013; pp. 3017–3024. [Google Scholar]
- Andoni, A.; Indyk, P. Near-optimal hashing algorithms for approximate nearest neighbor in high dimensions. In Proceedings of the 47th Annual IEEE Symposium on Foundations of Computer Science (FOCS’06), Berkeley, CA, USA, 21–24 October 2006; pp. 459–468. [Google Scholar]
- Norouzi, M.; Punjani, A.; Fleet, D.J. Fast search in hamming space with multi-index hashing. In Proceedings of the 2012 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Providence, RI, USA, 16–21 June 2012; pp. 3108–3115. [Google Scholar]
- Liu, Y.; Cui, J.; Huang, Z.; Li, H.; Shen, H.T. SK-LSH: An efficient index structure for approximate nearest neighbor search. Proc. VLDB Endow.
**2014**, 7, 745–756. [Google Scholar] [CrossRef] - Kraska, T.; Beutel, A.; Chi, E.H.; Dean, J.; Polyzotis, N. The case for learned index structures. In Proceedings of the 2018 International Conference on Management of Data, Houston, TX, USA, 10–15 June 2018; pp. 489–504. [Google Scholar]
- Lindeberg, J.W. Über das Exponentialgesetz in der Wahrscheinlichkeitsrechnung. Ann. Acad. Sci. Fenn.
**1920**, 16, 1–23. [Google Scholar] - Eichelsbacher, P.; Löwe, M. 90 Jahre Lindeberg-Methode. Math. Semesterber.
**2014**, 61, 7–34. [Google Scholar] [CrossRef] - Eichelsbacher, P.; Löwe, M. Lindeberg’s method for moderate deviations and random summation. arXiv, 2017; arXiv:1705.03837. [Google Scholar]
- Demircigil, M.; Heusel, J.; Löwe, M.; Upgang, S.; Vermet, F. On a model of associative memory with huge storage capacity. J. Stat. Phys.
**2017**, 168, 288–299. [Google Scholar] [CrossRef]

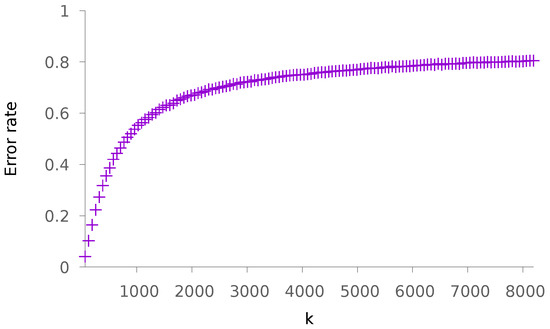

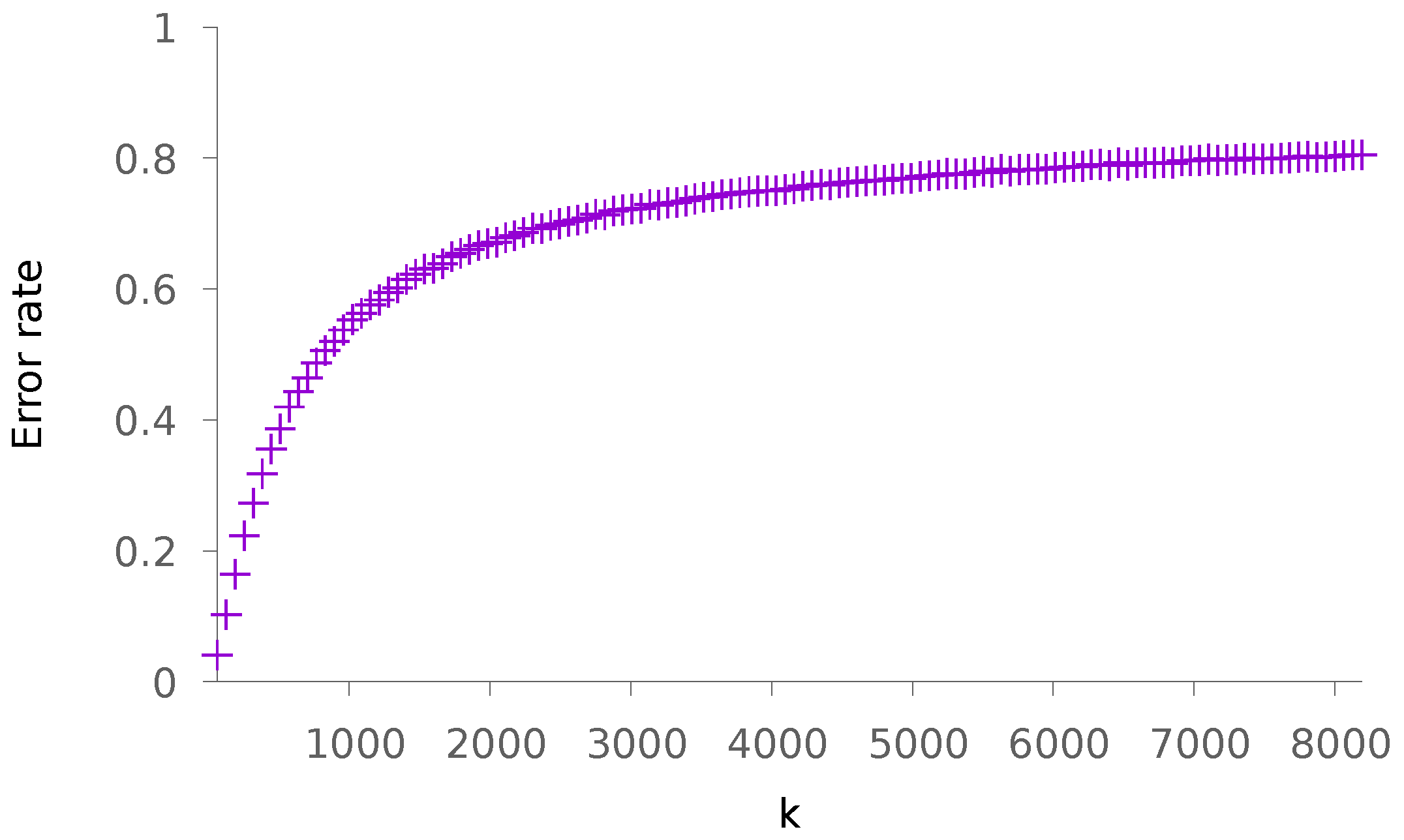

**Figure 1.**Evolution of the error rate as a function of k. The other parameters are $q=10$, $d=128$ and $c=8$.

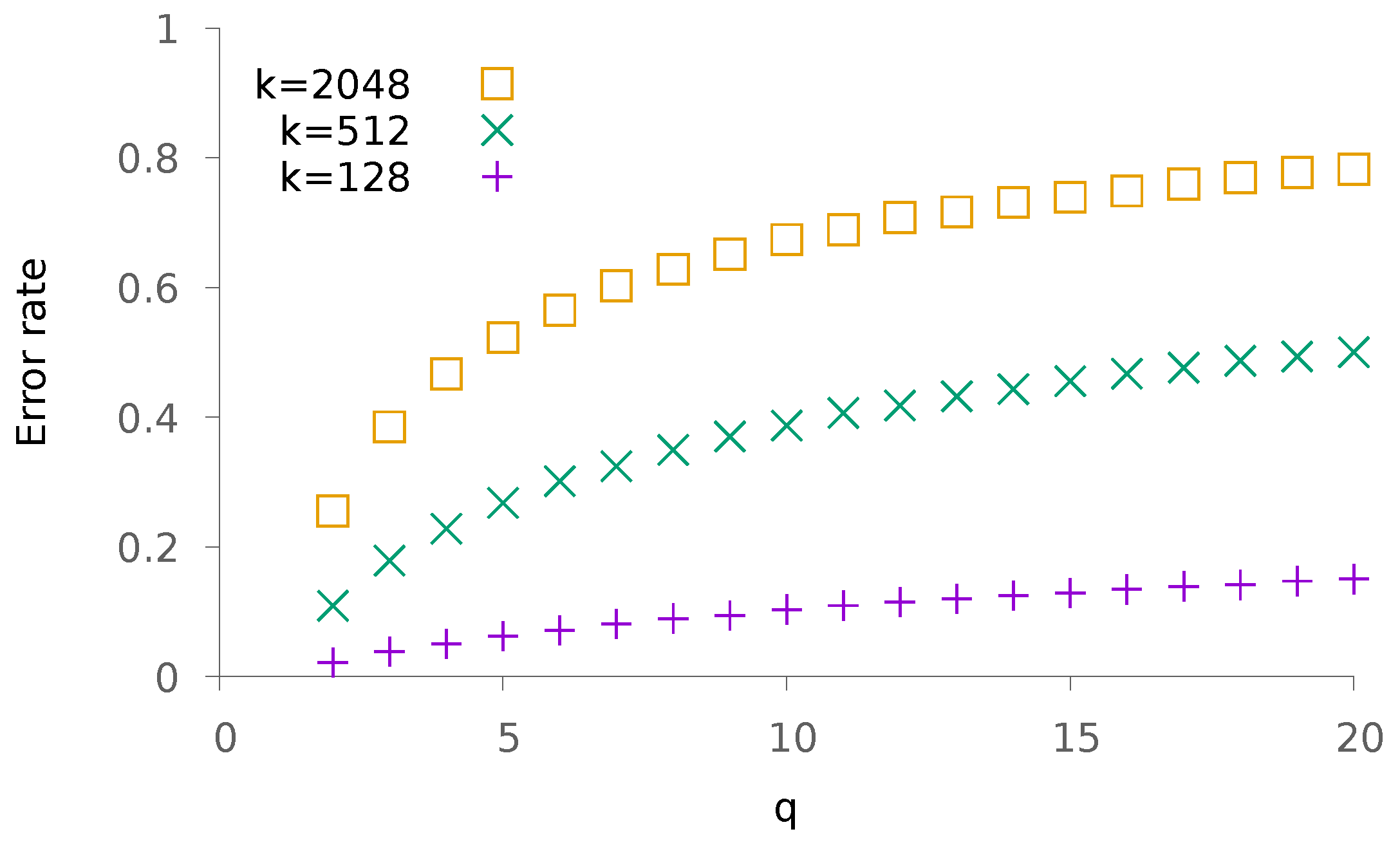

**Figure 2.**Evolution of the error rate as a function of q and for various values of k. The other parameters are $d=128$ and $c=8$.

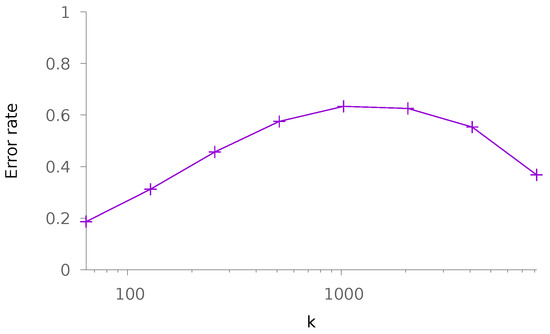

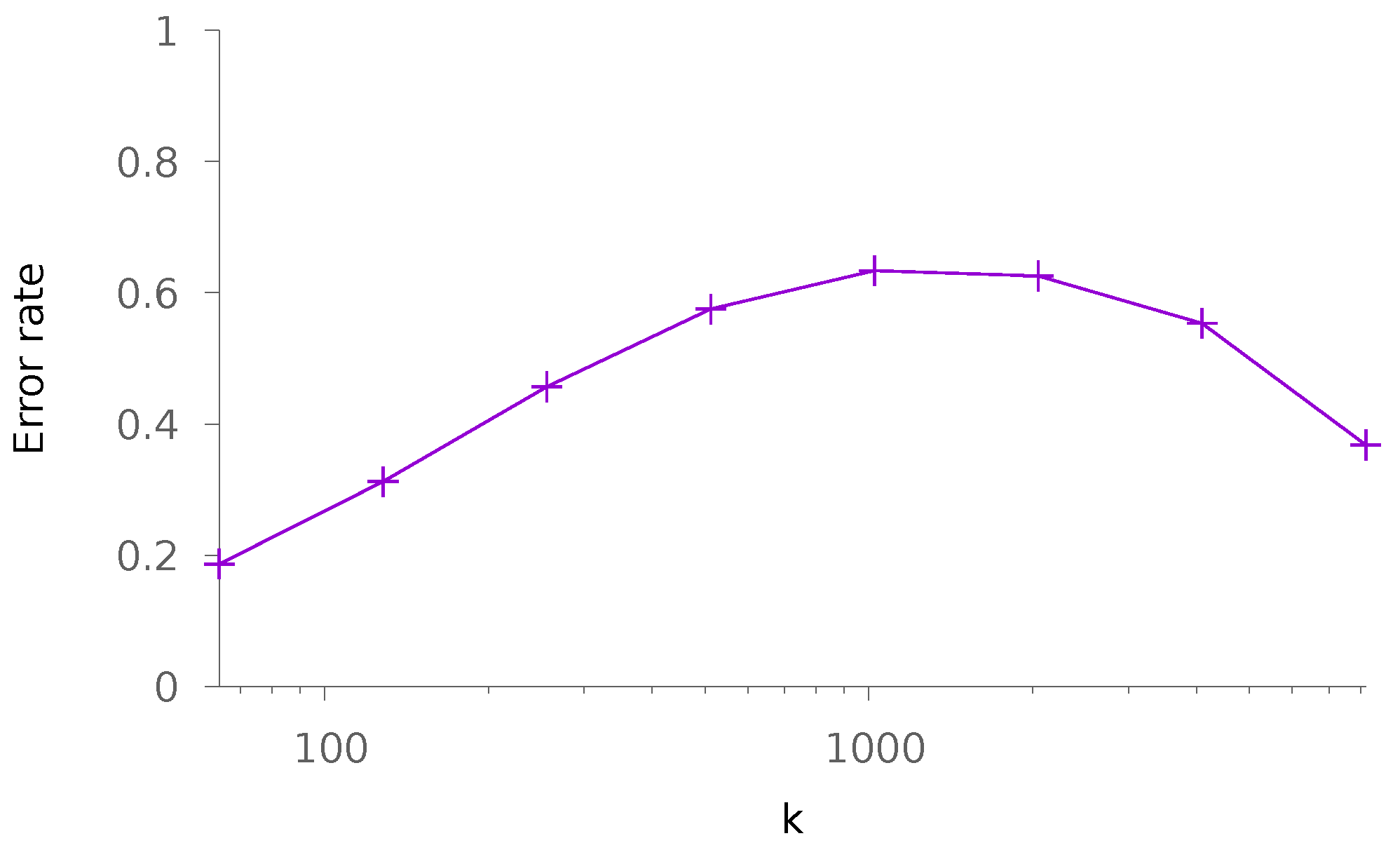

**Figure 3.**Evolution of the error rate for a fixed number of stored messages $n=$ 16,384 as a function of k (recall that $q=n/k$). The generated messages are such that $d=128$ and $c=8$.

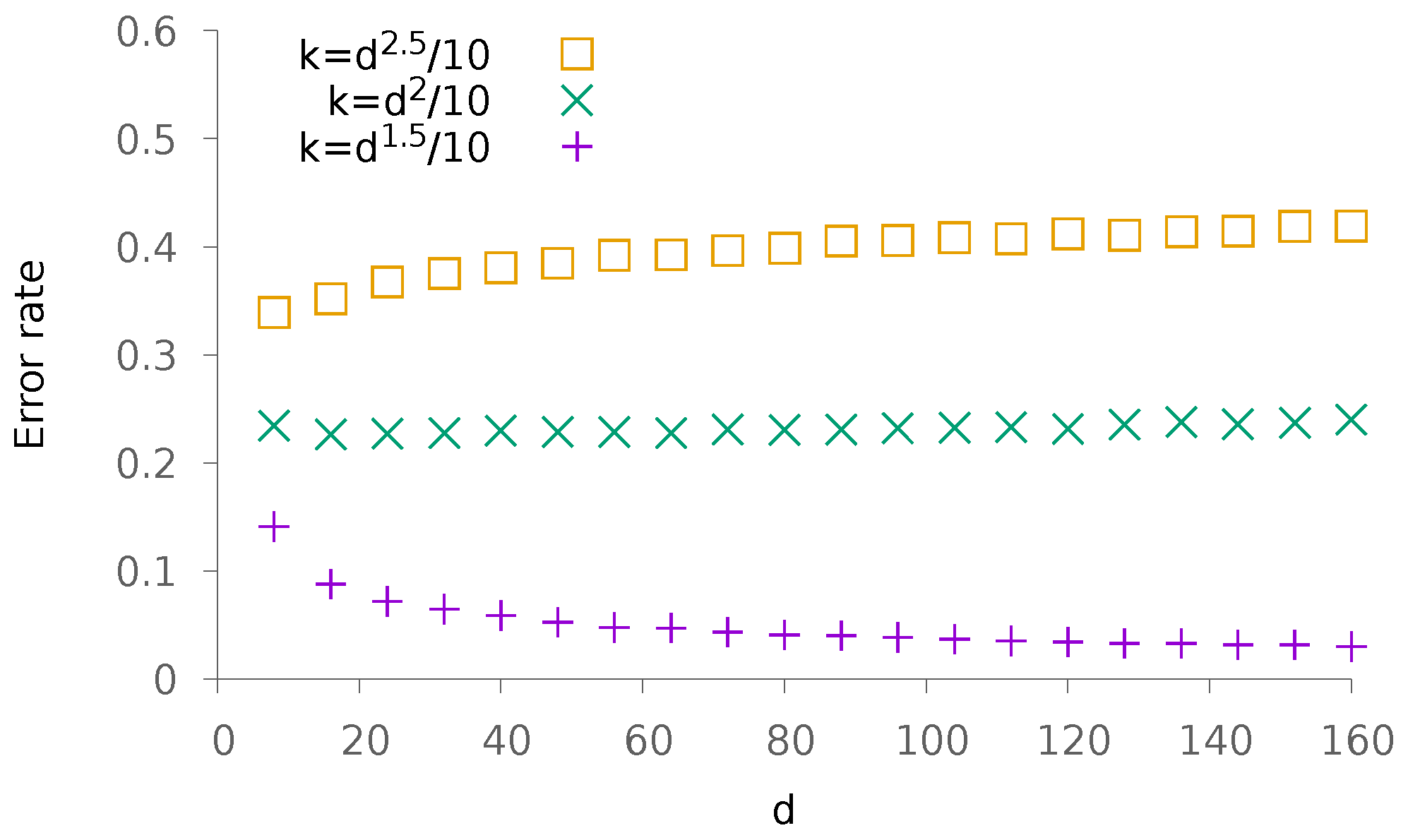

**Figure 4.**Evolution of the error rate as a function of d. The other parameters are $q=2$, $c={log}_{2}(d)$ and $k={d}^{\alpha}/10$ with various values of $\alpha $.

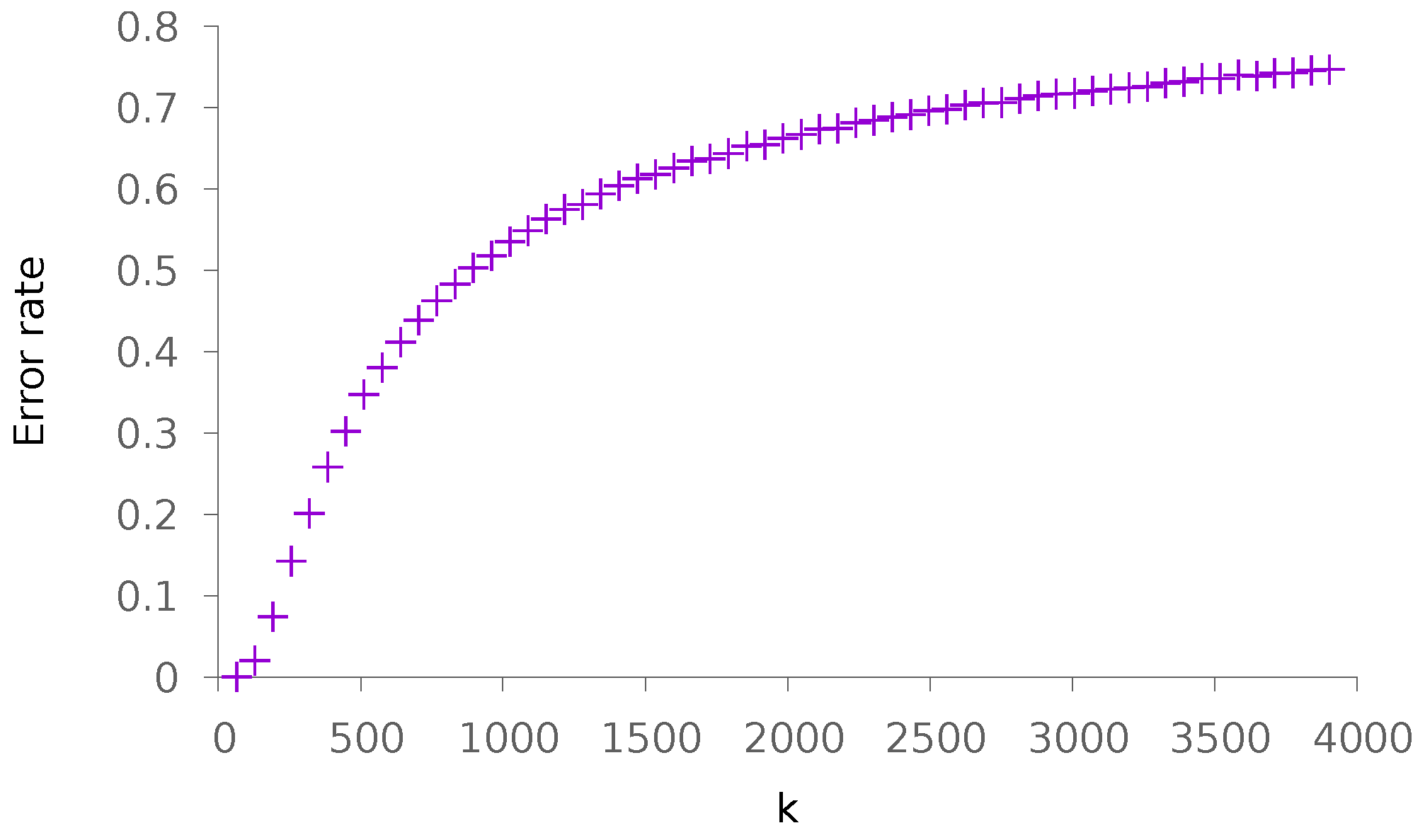

**Figure 5.**Evolution of the error rate as a function of k. The other parameters are $q=10$ and $d=64$.

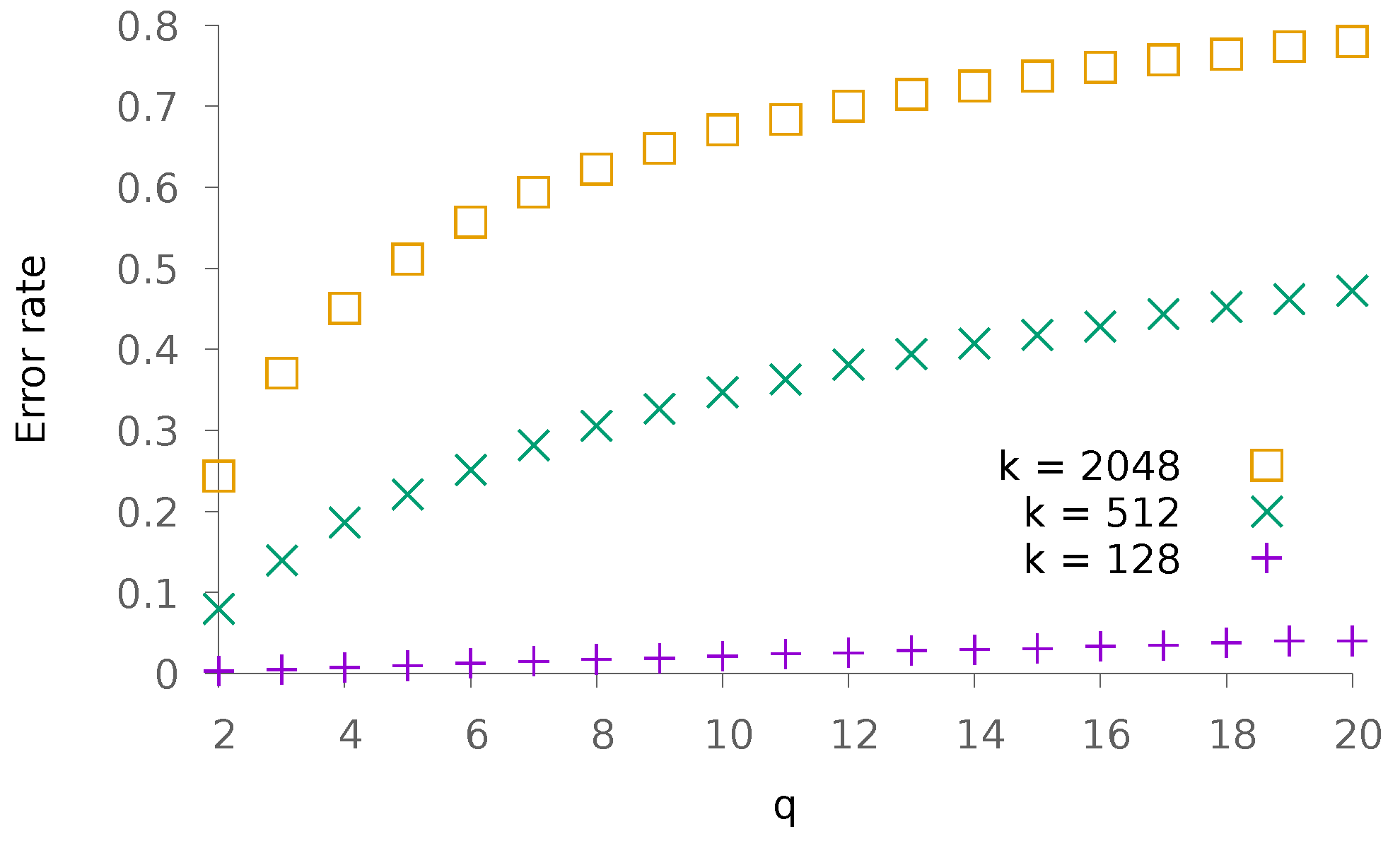

**Figure 6.**Evolution of the error rate as a function of q. We fix the value $d=64$ and consider various values of k.

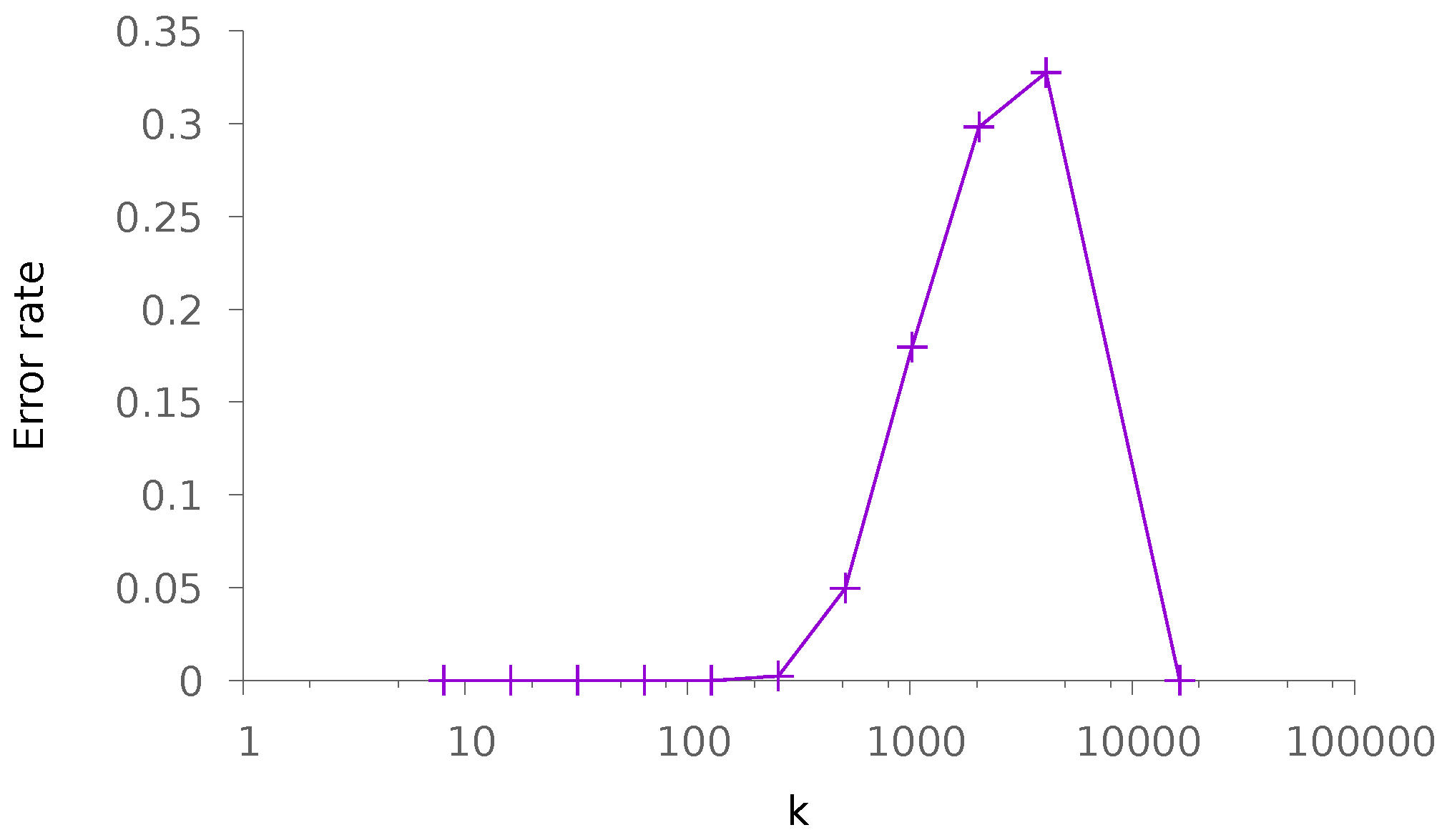

**Figure 7.**Evolution of the error rate for a fixed total number of samples as a function of k. The other parameters are $n=$ 16,384 and $d=64$.

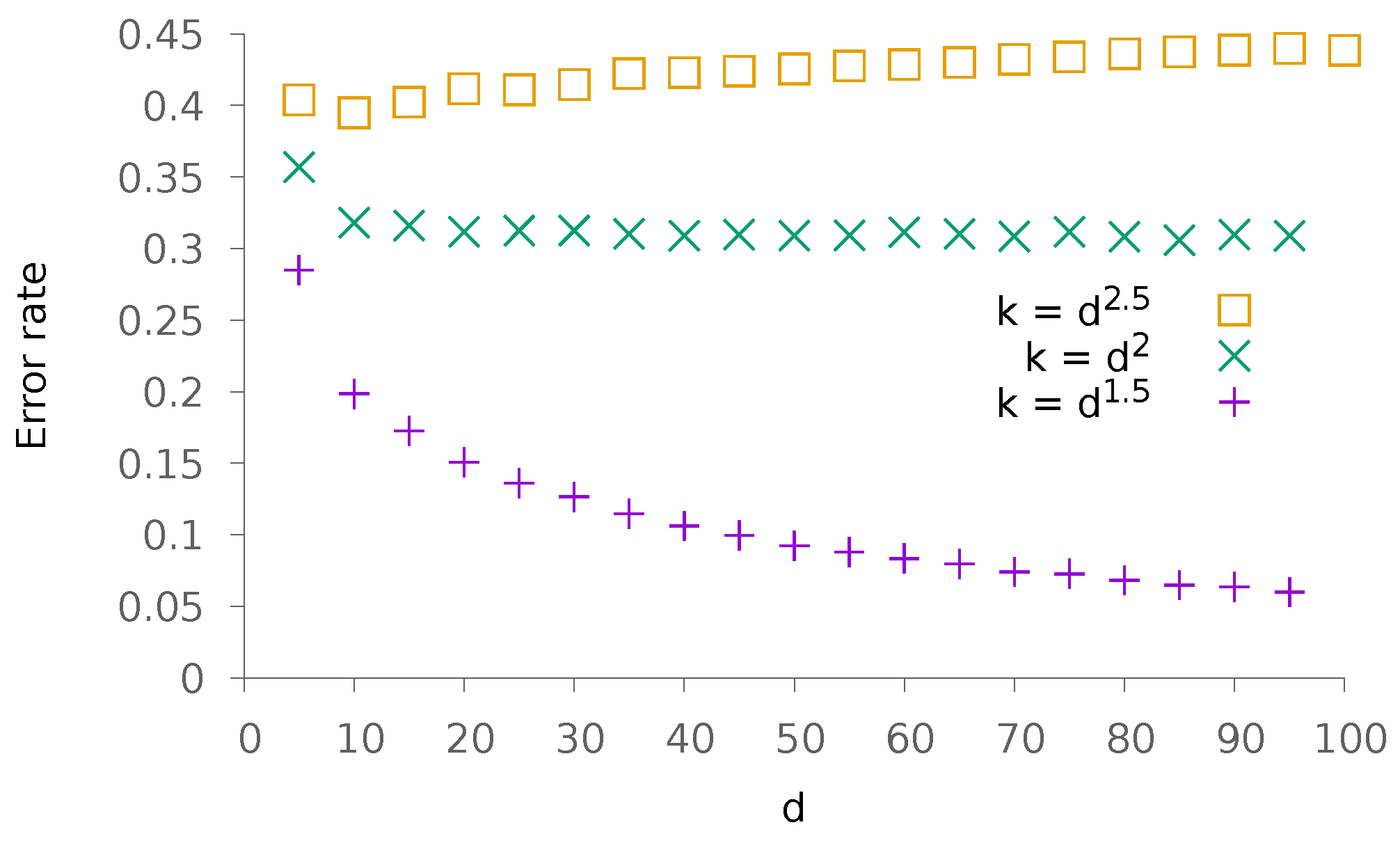

**Figure 8.**Evolution of the error rate as a function of d. In this scenario, we choose $k={d}^{\alpha}$ with various values of $\alpha $ and $q=2$.

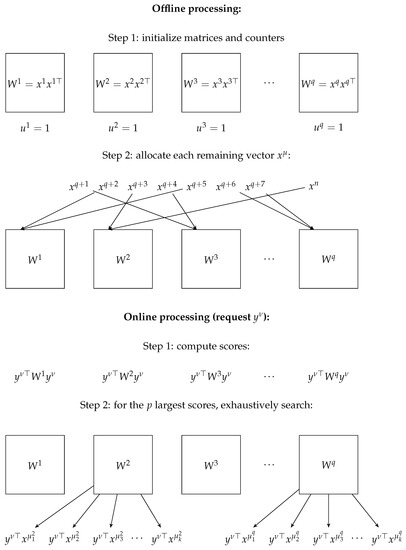

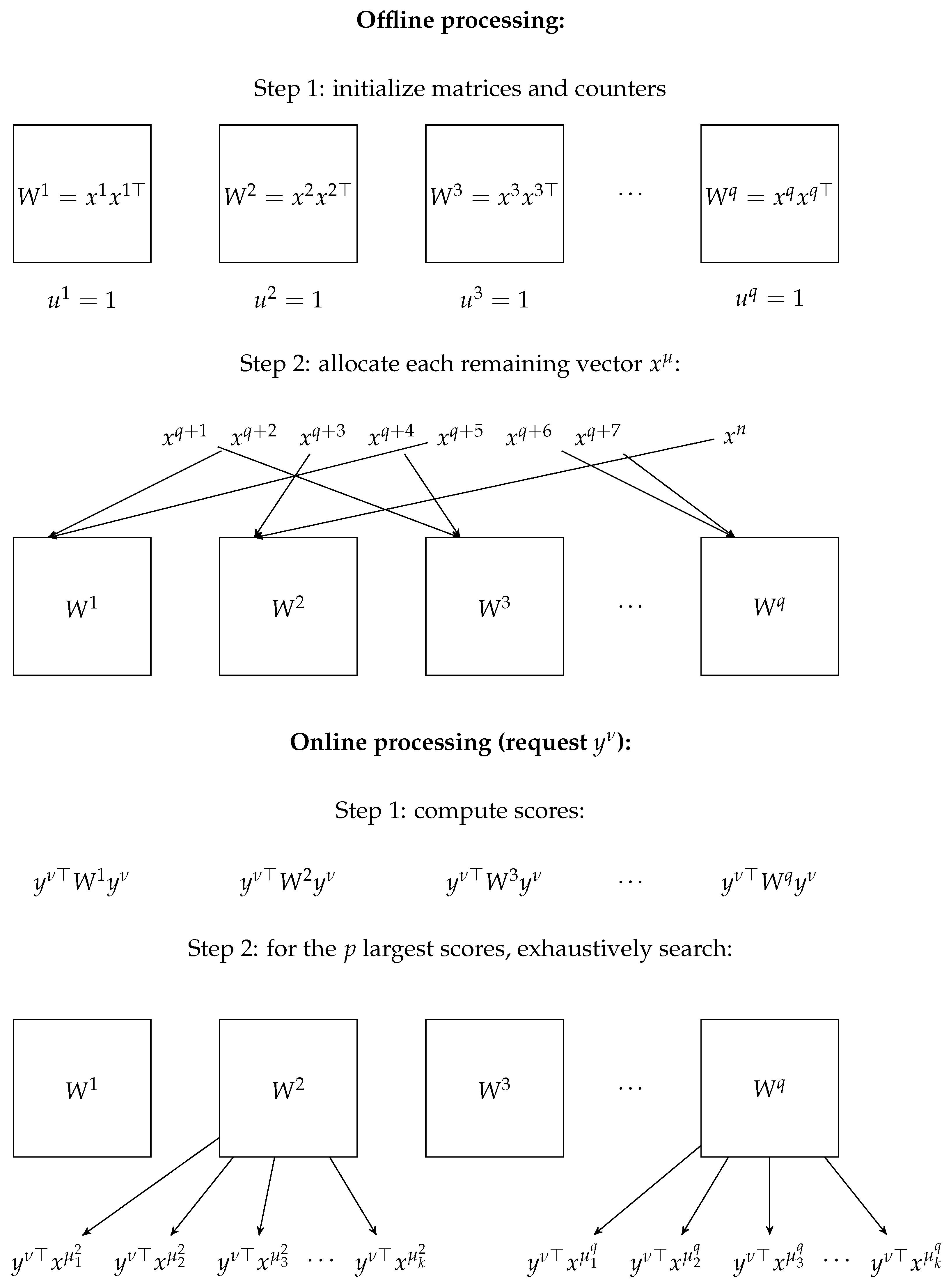

**Figure 9.**Illustration of the proposed method. Consider ${x}^{\mu}$ denotes a pattern of the collection to be searched and ${y}^{\nu}$ a request pattern. For any column vector x, ${x}^{\top}$ denotes its transpose.

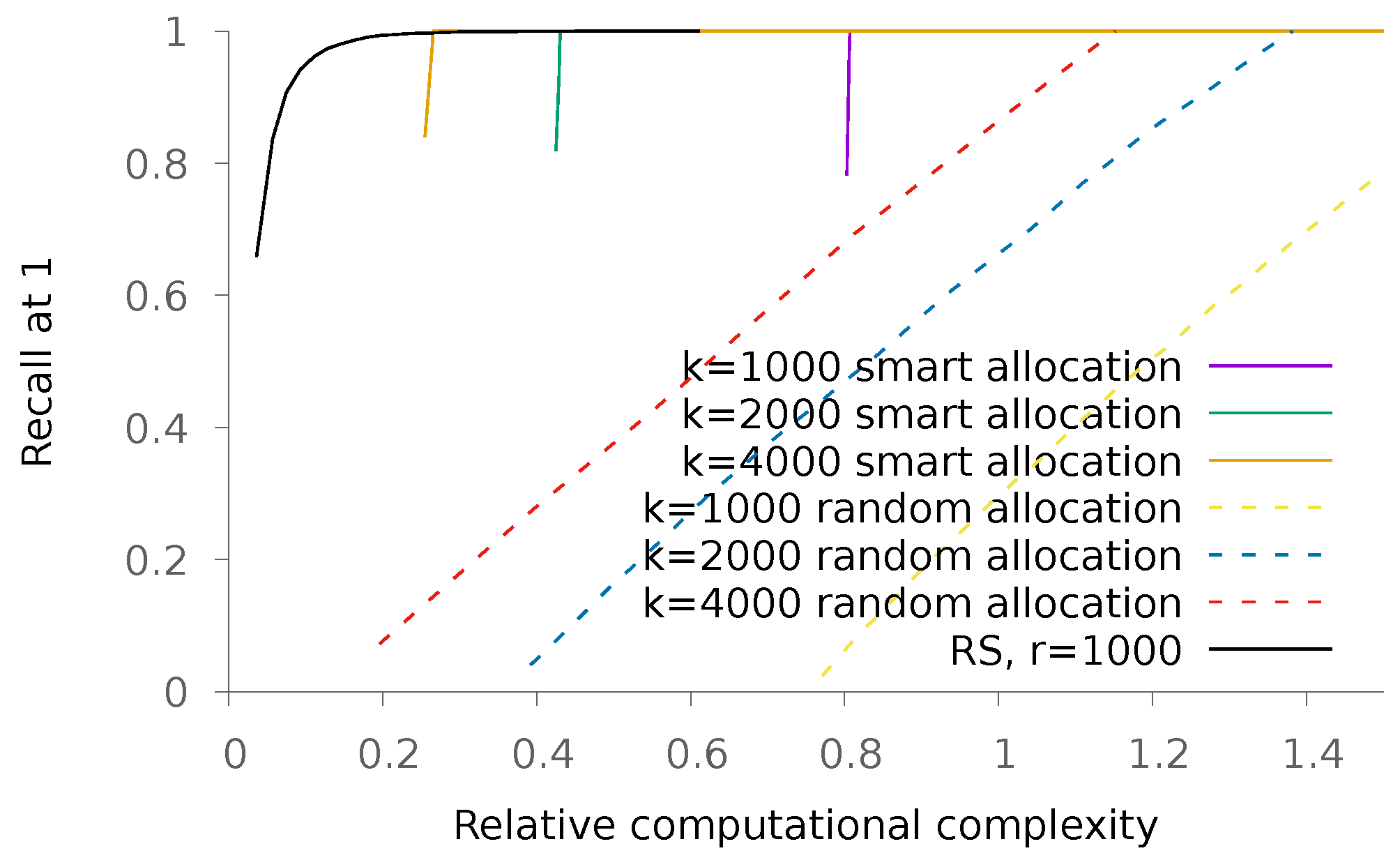

**Figure 10.**Recall@1 on the MNISTdataset as a function of the relative complexity of the proposed method with regards to an exhaustive search, for various values of k and allocation methods. Each curve is obtained by varying the value of p.

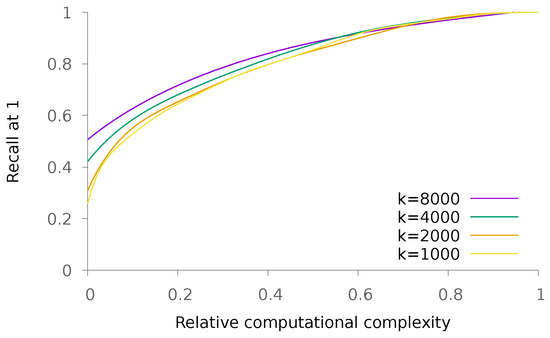

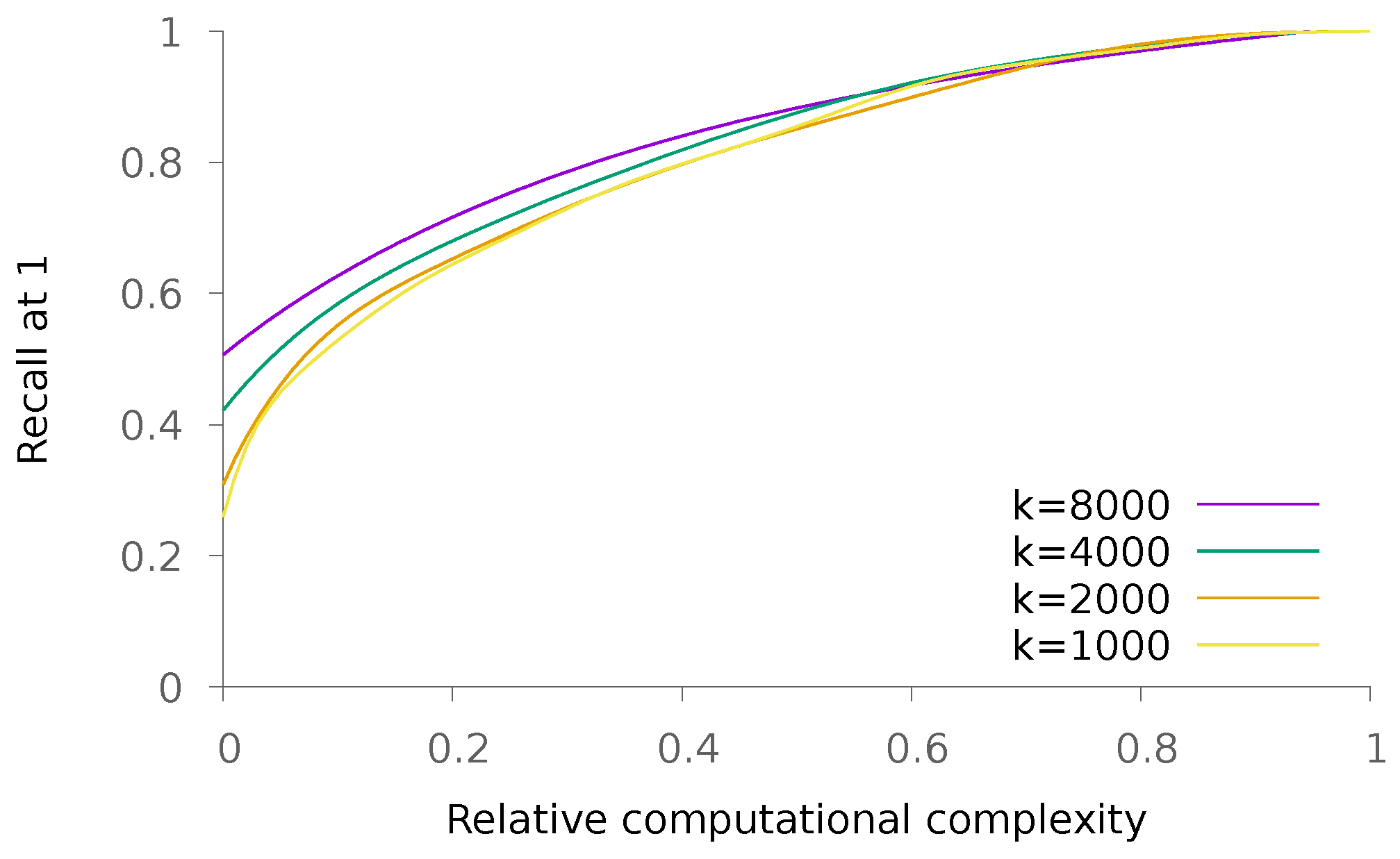

**Figure 11.**Recall@1 on the Santander customer satisfaction dataset as a function of the relative complexity of the proposed method with regards to an exhaustive nearest neighbor search, for various values of k. Each curve is obtained by varying the value of p.

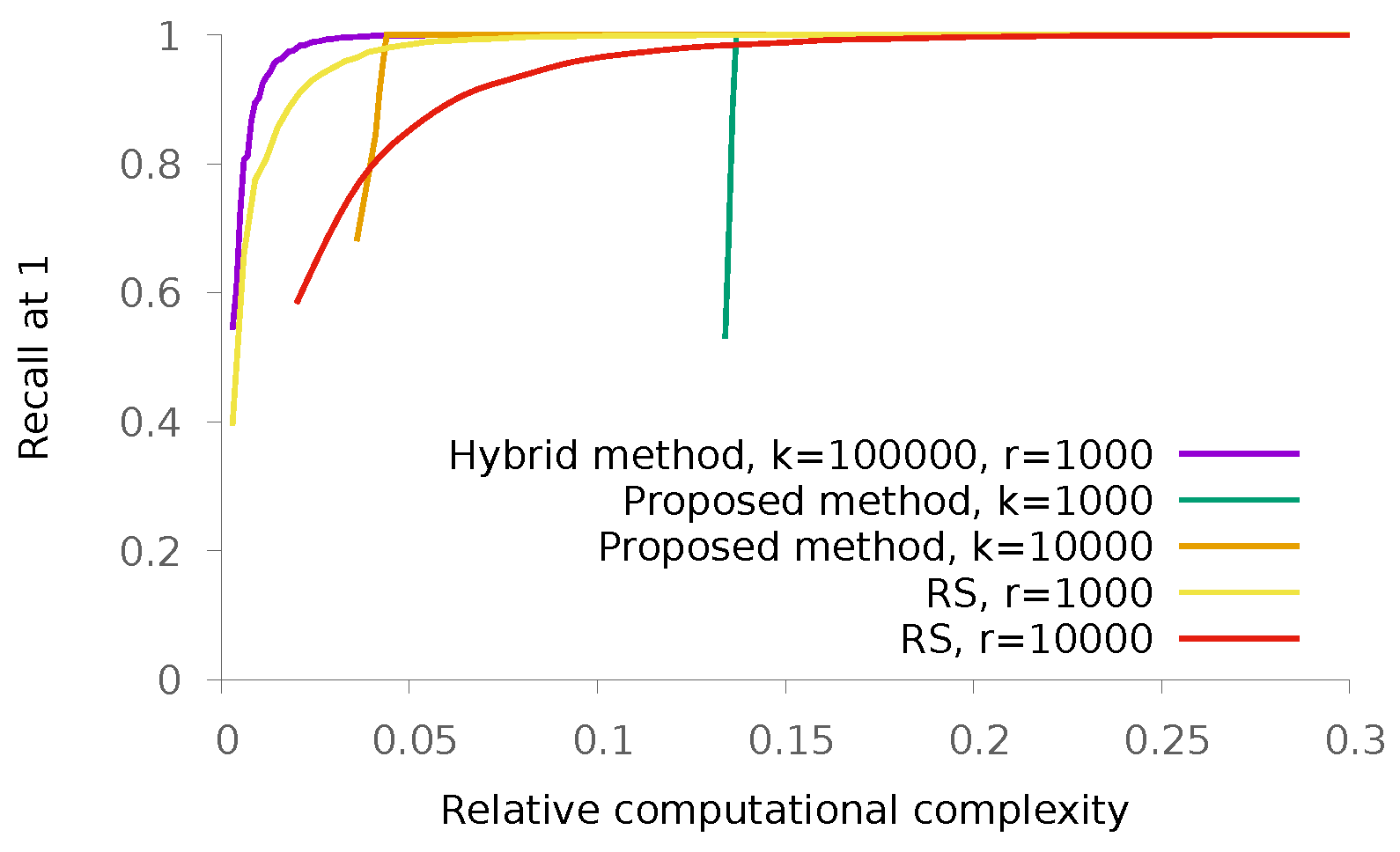

**Figure 12.**Recall@1 on the SIFT1Mdataset as a function of the relative complexity of the proposed method with regards to an exhaustive nearest neighbor search, for various values of k. Each curve is obtained by varying the value of p.

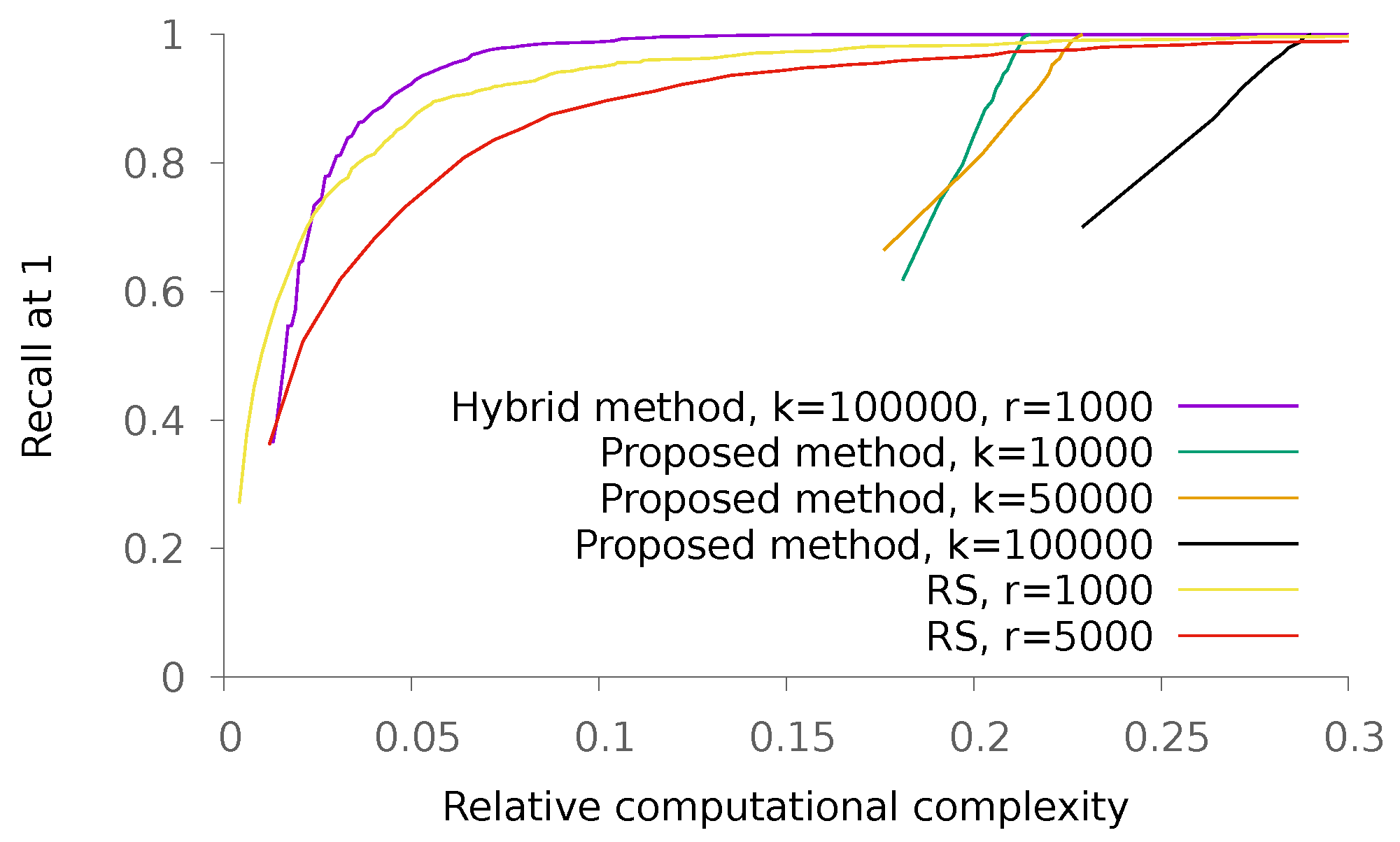

**Figure 13.**Recall@1 on the GIST1Mdataset as a function of the relative complexity of the proposed method with regards to an exhaustive nearest neighbor search, for various values of k. Each curve is obtained by varying the value of p.

Scan Time | Recall@1 | Scan Time | Recall@1 | Scan Time | Recall@1 | |
---|---|---|---|---|---|---|

Random kd-trees [1] | 0.04 | 0.6 | 0.22 | 0.8 | 3.1 | 0.95 |

K-means trees [1] | 0.06 | 0.6 | 0.25 | 0.8 | 2.8 | 0.99 |

Proposed method (hybrid) | 0.17 | 0.6 | 0.25 | 0.8 | 1.1 | 0.99 |

ANN [16] | 3.7 | 0.6 | 8.2 | 0.8 | 24 | 0.95 |

LSH [22] | 6.4 | 0.6 | 11.1 | 0.8 | 28 | 0.98 |

**Table 2.**Comparison of the asymptotical complexity of the scan of one element in the search space for various methods, as a function of the cardinal n and the dimensionality d of the search space.

Technique | Scan Complexity | $\mathit{d}=\mathcal{O}(1)$ | $\mathit{d}=\mathit{o}(log(\mathit{n}))$ | $\mathit{d}=\mathbf{\Theta}({\mathit{n}}^{1/3})$ | $\mathit{d}=\mathbf{\Theta}(\sqrt{\mathit{n}})$ |
---|---|---|---|---|---|

Quantization | $\mathcal{O}(n)$ | $\mathcal{O}(n)$ | $\mathcal{O}(n)$ | $\mathcal{O}(n)$ | $\mathcal{O}(n)$ |

RS or K-means | $\mathcal{O}(d\sqrt{n})$ | $\mathcal{O}(\sqrt{n})$ | $o(log(n)\sqrt{n})$ | $\mathcal{O}({n}^{5/6})$ | $\mathcal{O}(n)$ |

Proposed | $\mathcal{O}\left(q{d}^{2}+(n/q)d\right)$ | $\mathcal{O}(\sqrt{n})$ | $o(\sqrt{n}{log}^{3/2}(n))$ | $\mathcal{O}(n)$ | $\mathcal{O}(n)$ |

Hybrid scheme | $\mathcal{O}\left(q{d}^{2}+\left(k+n/q/k\right)d\right)$ | $\mathcal{O}({n}^{1/3})$ | $o({log}^{2}(n){n}^{1/3})$ | $\mathcal{O}({n}^{7/9})$ | $\mathcal{O}(n)$ |
