Appl. Sci. 2018, 8(3), 386;

Nanometric Plasmonic Rulers Based on Orthogonal Plasmonic Gap Modes in Metal Nanoblocks

Department of Physics, Chung-Ang University, Seoul 06974, Korea
Author to whom correspondence should be addressed.
Received: 22 January 2018 / Revised: 21 February 2018 / Accepted: 28 February 2018 / Published: 6 March 2018
(This article belongs to the Special Issue Photonic Metamaterials)
Full-Text   |   PDF [4152 KB, uploaded 7 March 2018]   |

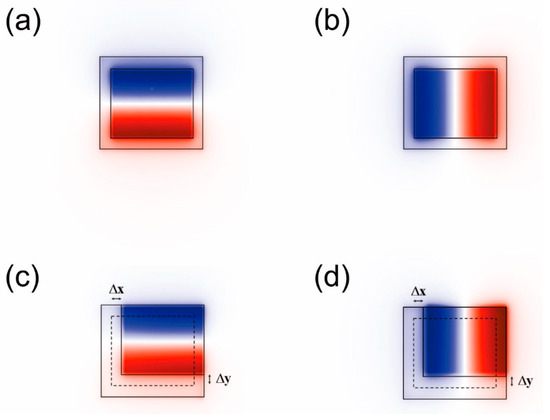

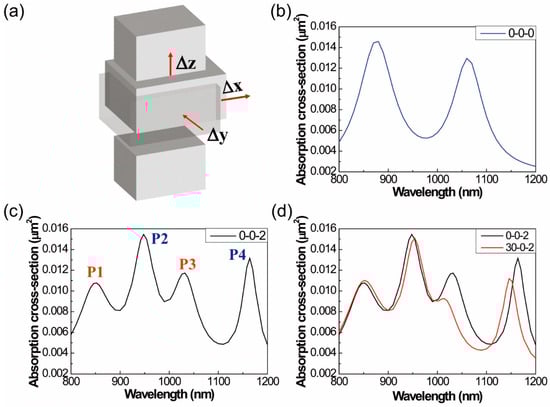

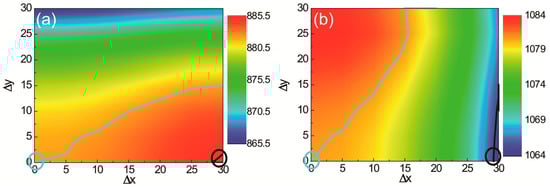

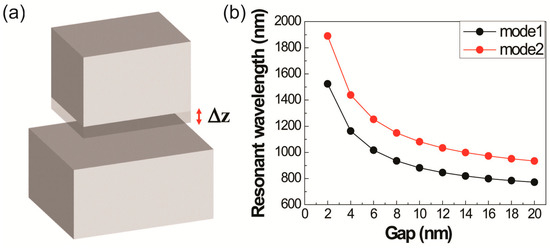

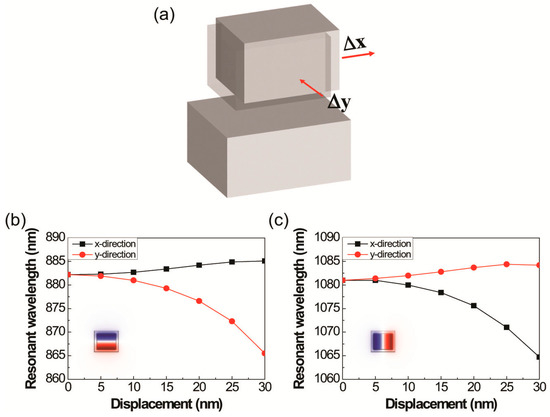

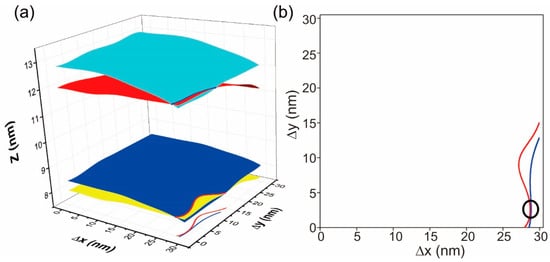

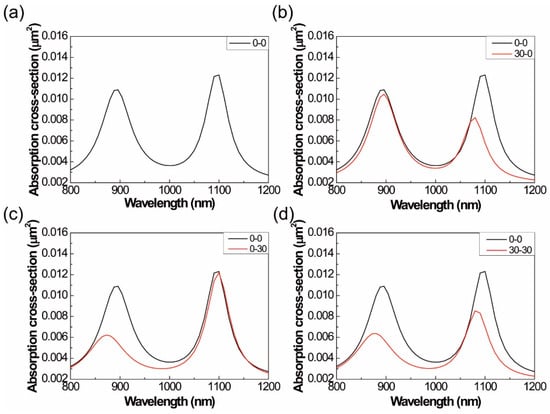

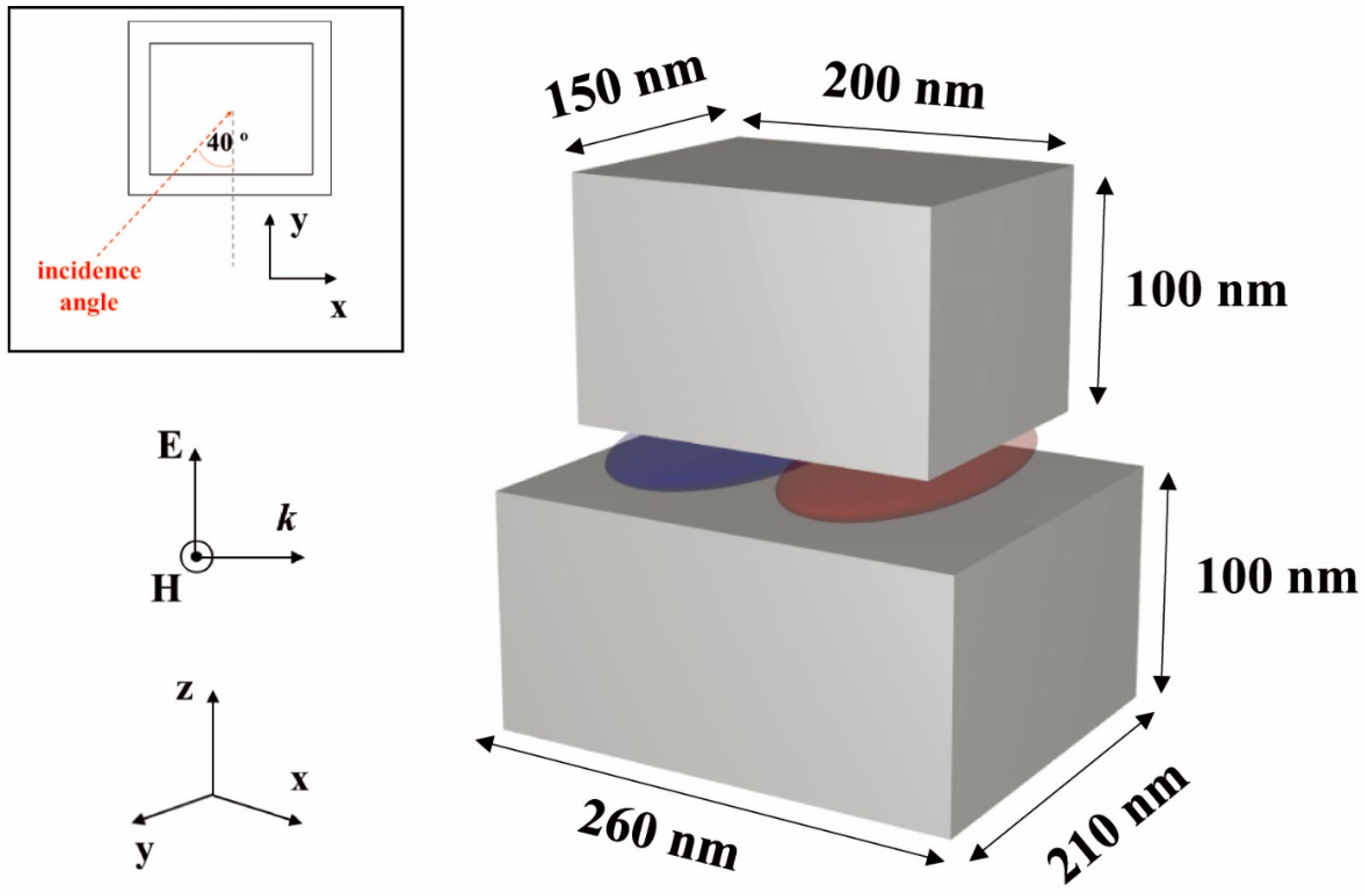

We theoretically propose a three-dimensional (3D) plasmonic ruler based on orthogonal plasmonic gap modes which have different wavelengths. The ruler consists of three silver nanoblocks with two ten-nanometer air gaps. First, in a two-block structure, the lateral displacement of one block can be determined by the absorption spectrum, in which two orthogonal modes are observed with different wavelengths. Secondly, in a three-block structure, due to the distinctive wavelength dependencies on the x- or y-directional movement of the two orthogonal modes and the strong dependencies on the air gap size, the 3D positioning of one nanoblock relative to a reference nanoblock can be measured with a 2.5 nm resolution using the spectral positions of the absorption spectrum. View Full-Text
Keywords: surface plasmon; plasmon ruler; sensor; nanoparticles surface plasmon; plasmon ruler; sensor; nanoparticles
