# Numerical Investigation into Effects of Viscous Flux Vectors on Hydrofoil Cavitation Flow and Its Radiated Flow Noise

^{*}

## Abstract

**:**

## 1. Introduction

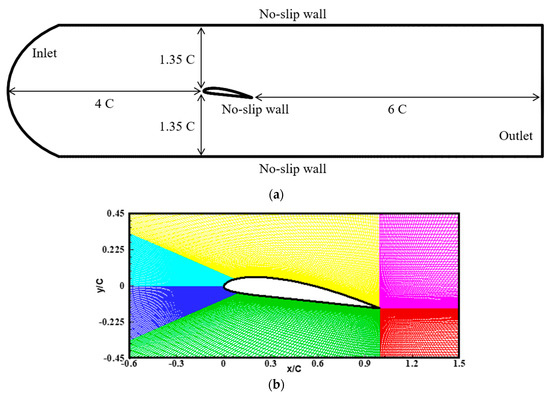

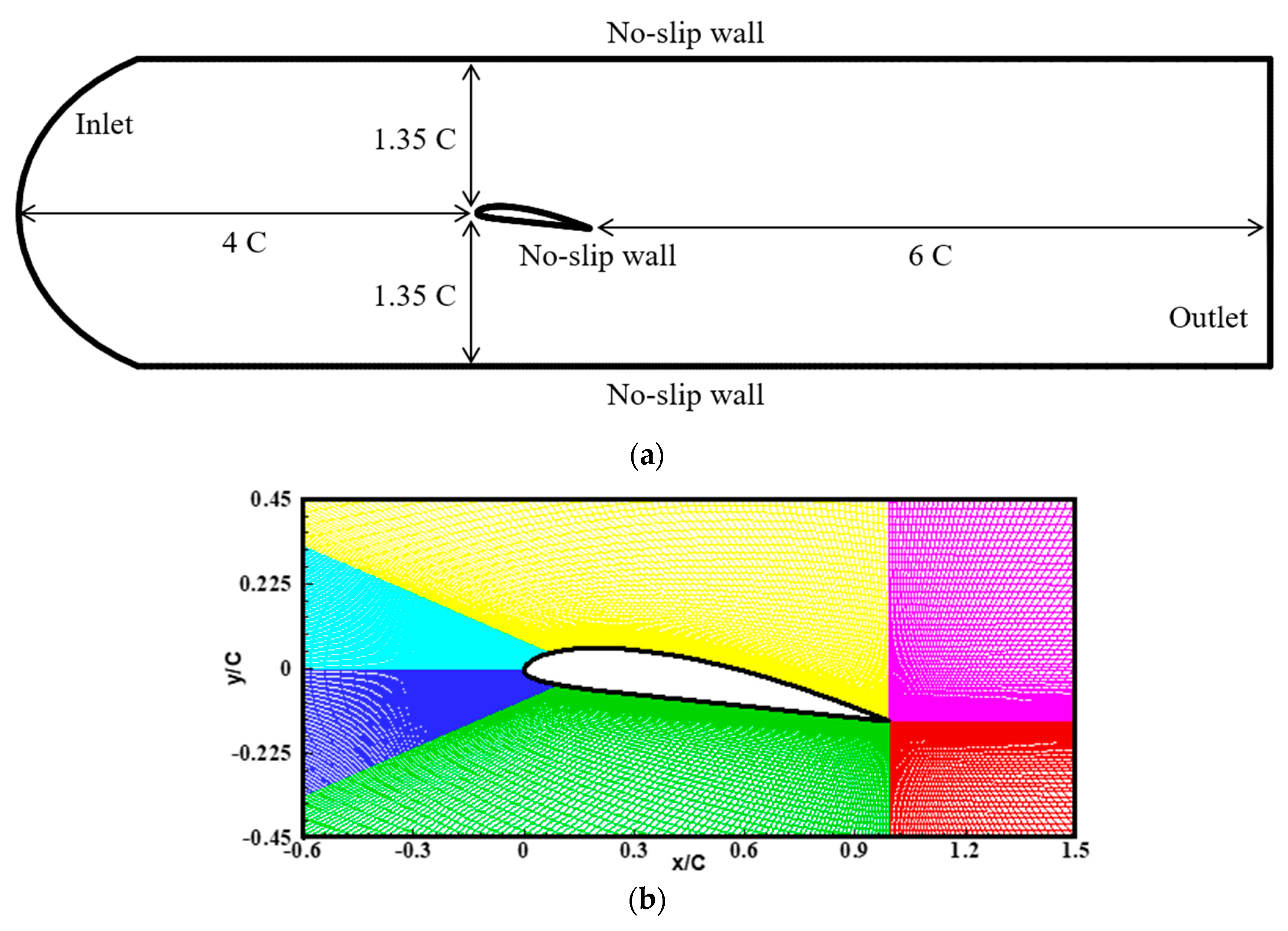

## 2. Target Problem Description

## 3. Governing Equations and Numerical Implementations

#### 3.1. Governing Equations

#### 3.2. Turbulence Modeling

#### 3.3. Numerical Implementations

#### 3.4. Viscous Flux Treatements

#### 3.4.1. Viscous Lagging Approach

#### 3.4.2. Full Viscous Approach

#### 3.4.3. Thin-Layer Approximation

#### 3.5. Acoustic Analogy for Cavitation Noise Prediction

## 4. Results and Discussion

#### 4.1. Verification Tests

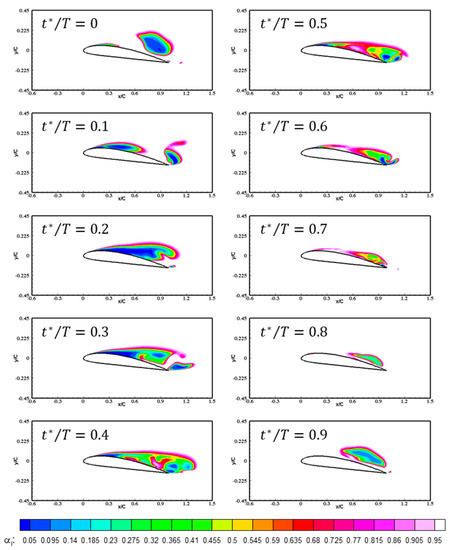

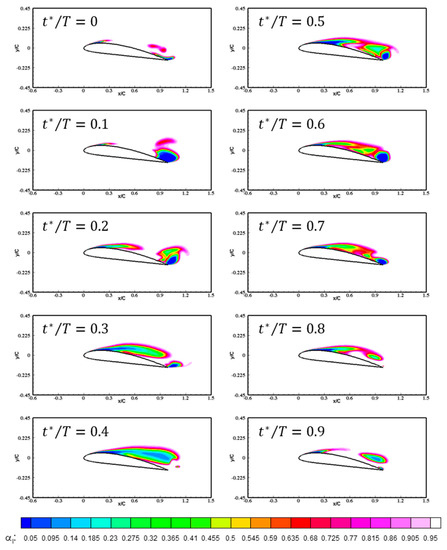

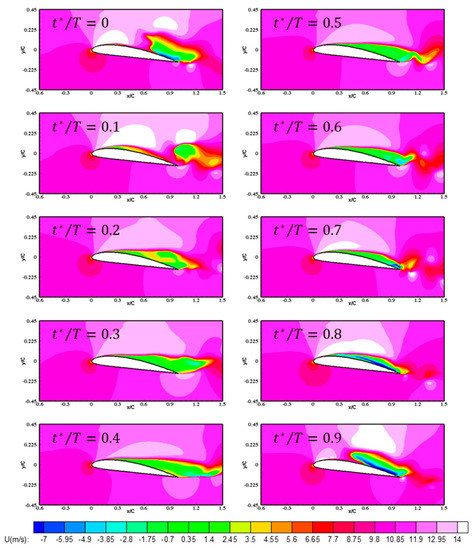

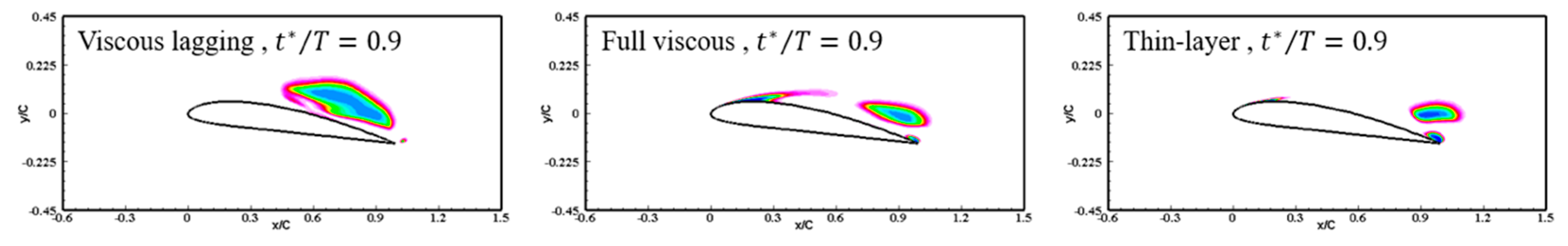

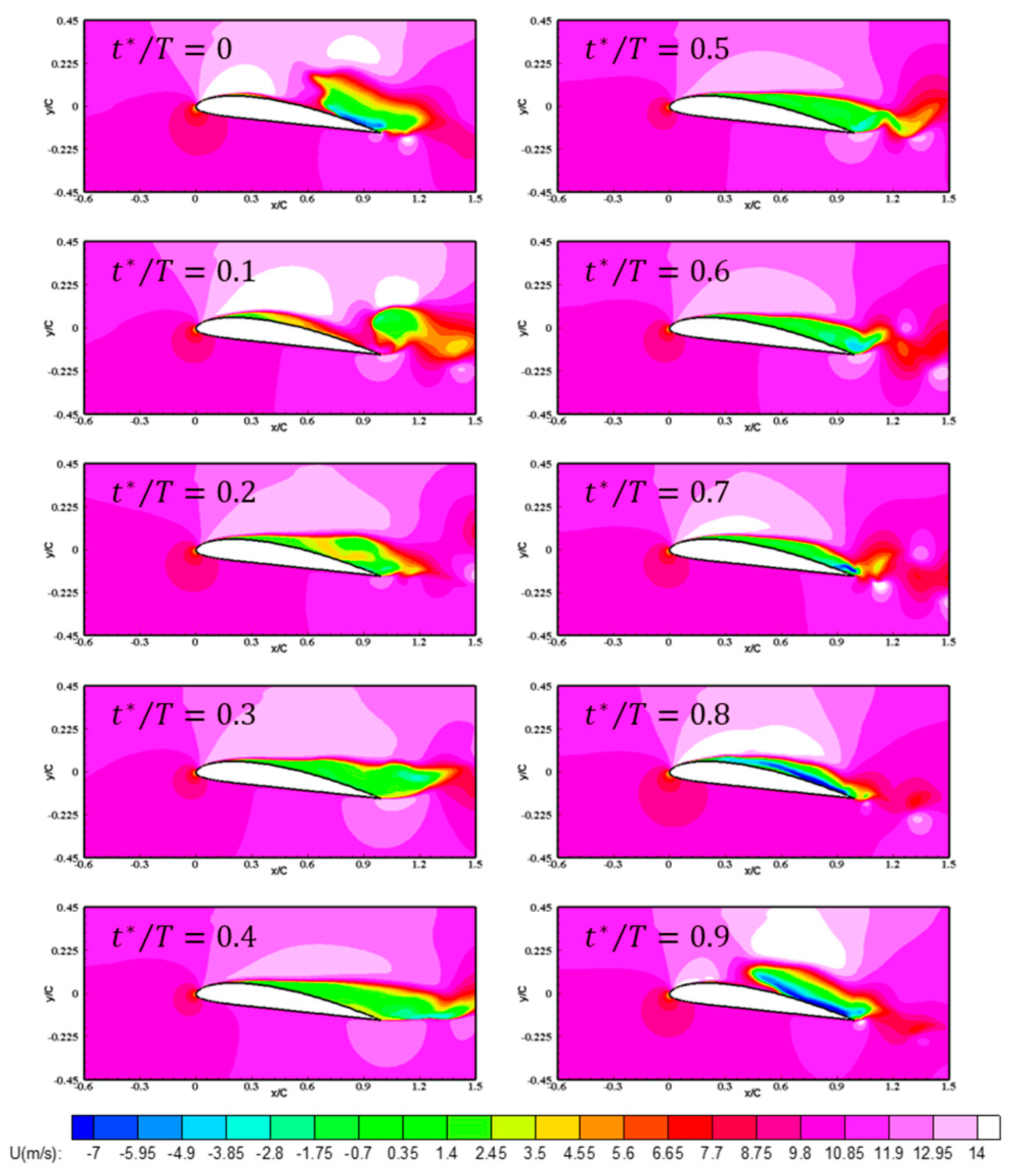

#### 4.2. Viscous Effects on Flow Field Prediction

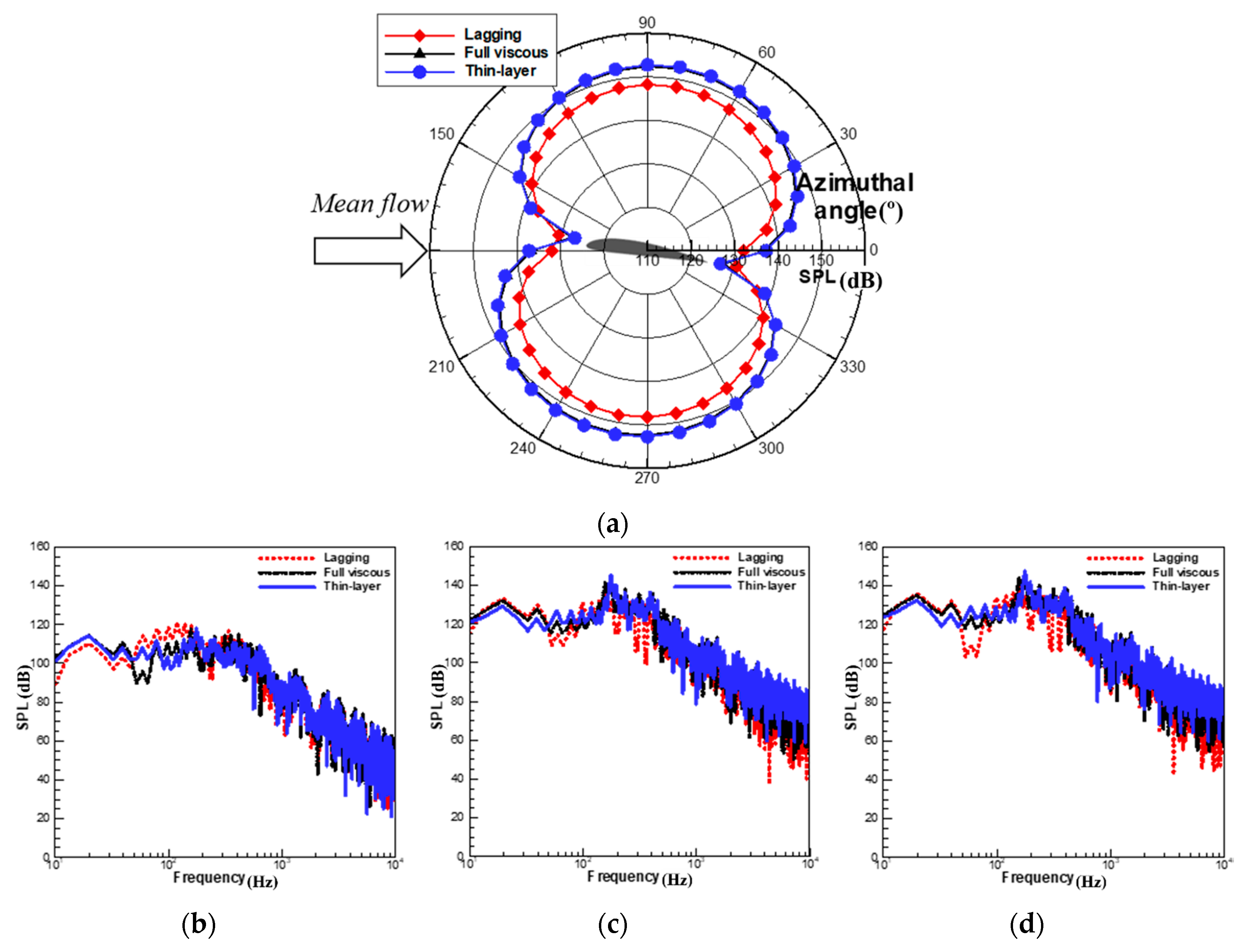

#### 4.3. Viscous Effects on Hydro-Acoustic Field Prediction

^{−5}s.) and total three-cycle data are used. The predicted acoustic wave directivity for each case is presented in Figure 15.

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Shen, Y.T.; Dimotakis, P.E. The influence of surface cavitation on hydrodynamic forces. In Proceedings of the 22nd American Towing Tank Conference, St. John’s, NL, Canada, 8–11 August 1989. [Google Scholar]
- Kawanami, H.; Kato, H.; Yamaguchi, H.; Tanimura, M.; Tagaya, Y. Mechanism and control of cloud cavitation. J. Fluids Eng.
**1997**, 119, 788–794. [Google Scholar] [CrossRef] - Wang, G.; Senocak, I.; Shyy, W.; Ikohagi, T.; Cao, S. Dynamics of attached turbulent cavitating flows. Prog. Aerosp. Sci.
**2001**, 37, 551–581. [Google Scholar] [CrossRef] - Park, C.; Seol, H.; Kim, K.; Seong, W. A study on propeller noise source localization in a cavitation tunnel. Ocean Eng.
**2009**, 36, 754–762. [Google Scholar] [CrossRef] - Kopriva, J.; Arndt, R.E.A.; Amromin, E.L. Improvement of hydrofoil performance by partial ventilated cavitation in steady flow and periodic gusts. J. Fluids Eng.
**2008**, 130, 031301. [Google Scholar] [CrossRef] - Karn, A.; Arndt, R.E.A.; Hong, J. Dependence of supercavity closure upon flow unsteadiness. Exp. Therm. Fluid Sci.
**2015**, 68, 493–498. [Google Scholar] [CrossRef] - Merkle, C.L.; Feng, J.H.; Buelow, P.E.O. Computational modeling of the dynamics of sheet cavitation. In Proceedings of the 3rd International Symposium on Cavitation, Grenoble, France, 7–10 April 1998. [Google Scholar]
- Singhal, A.K.; Athavale, M.M.; Li, H.; Jiang, Y. Mathematical basis and validation of the full cavitation model. J. Fluids Eng.
**2002**, 124, 617–624. [Google Scholar] [CrossRef] - Kunz, R.F.; Boger, D.A.; Stinebrin, D.R.; Chyczewsky, T.S.; Lindau, J.W.; Gilbeling, H.J.; Venkateswaran, S.; Govindan, T.R. A preconditioned Navier-Stokes method for two-phase flows with application to cavitation prediction. Comput. Fluids
**2000**, 29, 849–875. [Google Scholar] [CrossRef] - Huang, D.G. Preconditioned dual-time procedures and its application to simulating the flow with cavitations. J. Comput. Phys.
**2007**, 223, 685–689. [Google Scholar] [CrossRef] - Esfahanian, V.; Akbarzadeh, P. Numerical investigation on a new local preconditioning method for solving the incompressible inviscid, non-cavitating and cavitating flows. J. Frankl. Inst.
**2011**, 348, 1208–1230. [Google Scholar] [CrossRef] - Ha, C.T.; Park, W.G. Evaluation of a new scaling term in preconditioning schemes for computations of compressible cavitating and ventilated flows. Ocean Eng.
**2016**, 126, 432–466. [Google Scholar] [CrossRef] - Johansen, S.T.; Wu, J.; Shyy, W. Filter-based unsteady RANS computations. Int. J. Heat Fluid Flow
**2004**, 25, 10–21. [Google Scholar] [CrossRef] - Tseng, C.; Wang, L. Investigation of empirical coefficients of cavitation and turbulence model through steady and unsteady turbulent cavitating flows. Comput. Fluids
**2014**, 103, 262–274. [Google Scholar] [CrossRef] - Zhang, D.; Wang, H.; Shi, W.; Zhang, G.; Van Esch, B.B. Numerical analysis of the unsteady behavior of cloud cavitation around a hydrofoil based on an improved filter-based model. J. Hydrodyn.
**2015**, 27, 795–808. [Google Scholar] [CrossRef] - Kim, S.; Cheong, C.; Park, W.G. Numerical investigation on cavitation flow of hydrofoil and its flow noise with emphasis on turbulence models. AIP Adv.
**2017**, 7, 065114. [Google Scholar] [CrossRef] - Venkateswaran, S.; Merkle, C.L. Dual time stepping and preconditioning for unsteady computations. In Proceedings of the 33rd Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 9–12 January 1995. [Google Scholar]
- Venkateswaran, S.; Lindau, J.W.; Kunz, R.F.; Merkle, C.L. Preconditioning algorithms for the computation of multi-phase mixture flows. In Proceedings of the 39th Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 8–11 January 2001. [Google Scholar]
- Owis, F.M.; Nayfeh, A.H. Numerical simulation of 3-D incompressible, multi-phase flows over cavitating projectiles. Eur. J. Mech. B Fluids
**2004**, 23, 339–351. [Google Scholar] [CrossRef] - Wagner, W.; Kretzschmar, H. International Steam Tables: Properties of Water and Steam Based on the Industrial Formulation IAPWS0IF97, 2nd ed.; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2007; ISBN 978-3-540-21419-9. [Google Scholar]
- Jones, W.P.; Launder, B.E. The prediction of laminarization with a two-equation model of turbulence. Int. J. Heat Mass Transf.
**1972**, 15, 301–314. [Google Scholar] [CrossRef] - Jones, W.P.; Launder, B.E. The calculation of low-Reynolds-number phenomena with a two-equation model of turbulence. Int. J. Heat Mass Transf.
**1973**, 16, 1119–1130. [Google Scholar] [CrossRef] - Hoffmann, K.A. Chiang, S.T. Computational Fluid Dynamics, 4th ed.; Engineering Education System: Wichita, KS, USA, 2000; ISBN 978-0962373107. [Google Scholar]
- Beam, R.M.; Warming, R.F. An implicit factored scheme for the compressible Navier-Stokes equations. AIAA J.
**1978**, 16, 393–402. [Google Scholar] [CrossRef] - Steger, J.L. Implicit finite-difference simulation of flow about arbitrary two-dimensional geometries. AIAA J.
**1978**, 16, 679–686. [Google Scholar] [CrossRef] - Pletcher, R.; Chen, K. On solving the compressible Navier-Stokes equations for unsteady flows at very low Mach number. In Proceedings of the 11th Computational Fluid Dynamics Conference, Orlando, FL, USA, 6–9 July 1993. [Google Scholar]
- Wang, Y.; Sun, X.J.; Zhu, B.; Zhang, H.J.; Huang, D.G. Effect of blade vortex interaction on performance of Darrieus-type cross flow marine current turbine. Renew. Energy
**2016**, 86, 316–323. [Google Scholar] [CrossRef] - Granier, B.; Lerat, A.; Wu, Z. An implicit centered scheme for steady and unsteady incompressible one and two-phase flows. Comput. Fluids
**1997**, 26, 373–393. [Google Scholar] [CrossRef] - Senocak, I.; Shyy, W. A pressure-based method for turbulent cavitating flow computations. J. Comput. Phys.
**2001**, 176, 363–383. [Google Scholar] [CrossRef] - Pulliam, T.H.; Steger, J.L. Implicit finite-difference simulations of three-dimensional compressible flow. AIAA J.
**1980**, 18, 159–167. [Google Scholar] [CrossRef] - Tysinger, T.L.; Caughey, D.A. Implicit multigrid algorithm for the Navier-Stokes equations. In Proceedings of the 29th Aerospace Sciences Meeting, Reno, NV, USA, 7–10 January 1991. [Google Scholar]
- Ffowcs Williams, J.E.; Hawkings, D.L. Sound generation by turbulence and surfaces in arbitrary motion. Philos. Trans. R. Soc. A
**1969**, 264, 321–342. [Google Scholar] [CrossRef] - Singer, B.A.; Lockard, D.P.; Lilley, G.M. Hybrid acoustic preditions. Comput. Math. Appl.
**2003**, 46, 647–669. [Google Scholar] [CrossRef] - Khorrami, M.R.; Singer, B.A.; Berkman, M.E. Time-accurate simulations and acoustic analysis of slat free shear layer. AIAA J.
**2002**, 40, 1284–1291. [Google Scholar] [CrossRef] - Wang, M.; Freund, J.B.; Lele, S.K. Computational prediction of flow-generated sound. Annu. Rev. Fluid Mech.
**2006**, 38, 483–512. [Google Scholar] [CrossRef] - Farassat, F.; Casper, J.H. Toward an airframe noise prediction methodology: Survey of current approaches. In Proceedings of the 44th Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 9–12 January 2006. [Google Scholar]
- Lighthill, M.J. On sound generated aerodynamically. I. General theory. Proc. R. Soc. Lond. A Math. Phys. Sci.
**1952**, 211, 564–587. [Google Scholar] [CrossRef] - Lighthill, M.J. On sound generated aerodynamically. II. Turbulence as a source of sound. Proc. R. Soc. Lond. A Math. Phys. Sci.
**1954**, 222, 1–32. [Google Scholar] [CrossRef] - Curle, N. The influence of solid boundaries upon aerodynamic sound. Proc. R. Soc. Lond. A Math. Phys. Eng. Sci.
**1955**, 231, 505–514. [Google Scholar] [CrossRef] - Roohi, E.; Zahiri, A.P.; Passandideh-Fard, M. Numerical simulation of cavitation around a two-dimensional hydrofoil using VOF method and LES turbulence model. Appl. Math. Model.
**2013**, 37, 6469–6488. [Google Scholar] [CrossRef] - Huang, B.; Young, Y.L.; Wang, G.; Shyy, W. Combined experimental and computational investigation of unsteady structure of sheet/cloud cavitation. J. Fluids Eng.
**2013**, 135, 071301. [Google Scholar] [CrossRef] - Watanabe, S.; Tsujimoto, Y.; Furukawa, A. Theoretical analysis of transitional and partial cavity instabilities. J. Fluids Eng.
**2001**, 123, 692–697. [Google Scholar] [CrossRef] - Leroux, J.B.; Coutier-Delgosha, O.; Astolfi, J.A. A joint experimental and numerical study of mechanisms associated to instability of partial cavitation on two-dimensional hydrofoil. Phys. Fluids
**2005**, 17, 052101. [Google Scholar] [CrossRef] - Coutier-Delgosha, O.; Stutz, B.; Vabre, A.; Legoupil, S. Analysis of cavitating flow structure by experimental and numerical investigations. J. Fluid Mech.
**2007**, 578, 171–222. [Google Scholar] [CrossRef]

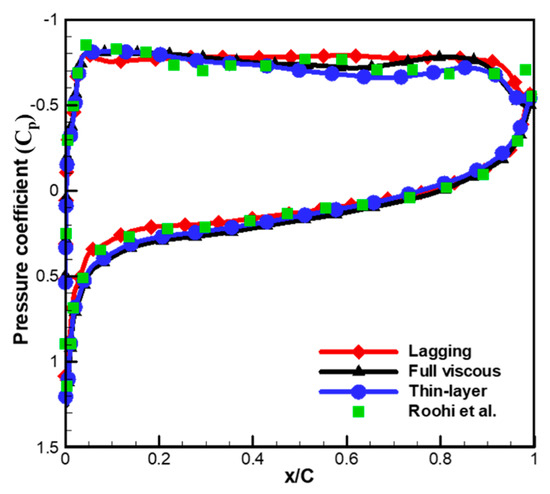

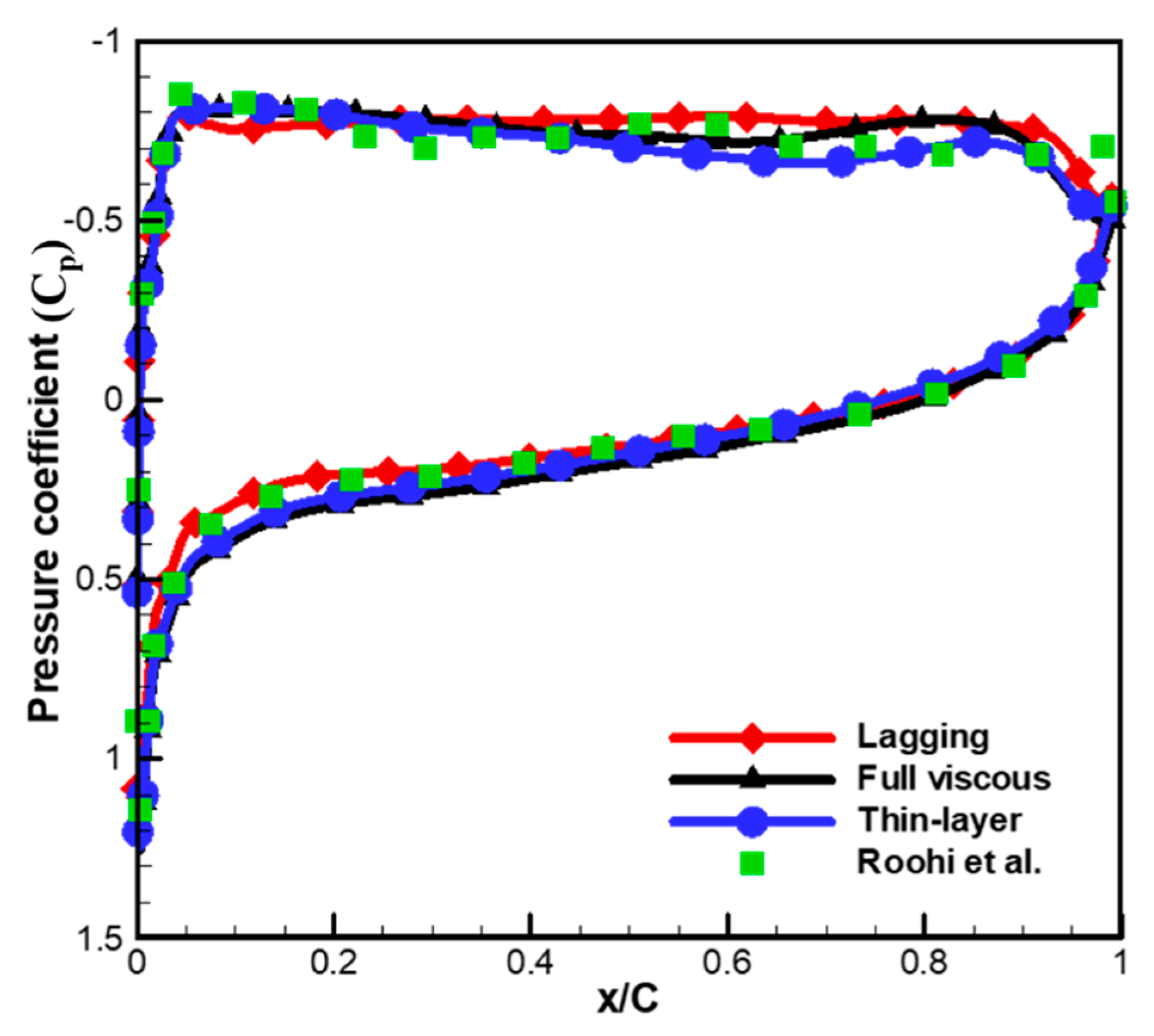

**Figure 2.**Comparison of predicted pressure coefficient distribution with large eddy simulation (LES) data by Roohi et al. [40].

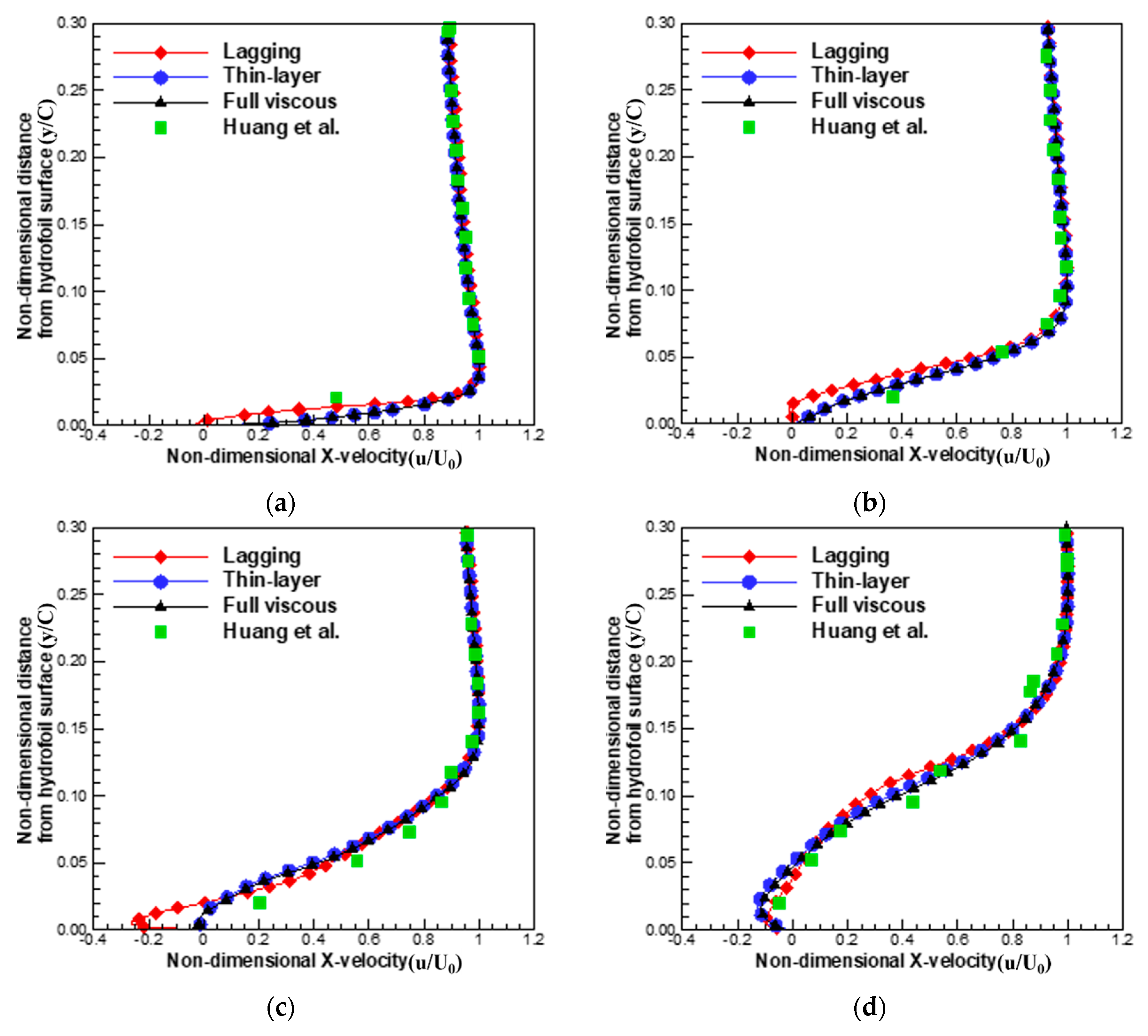

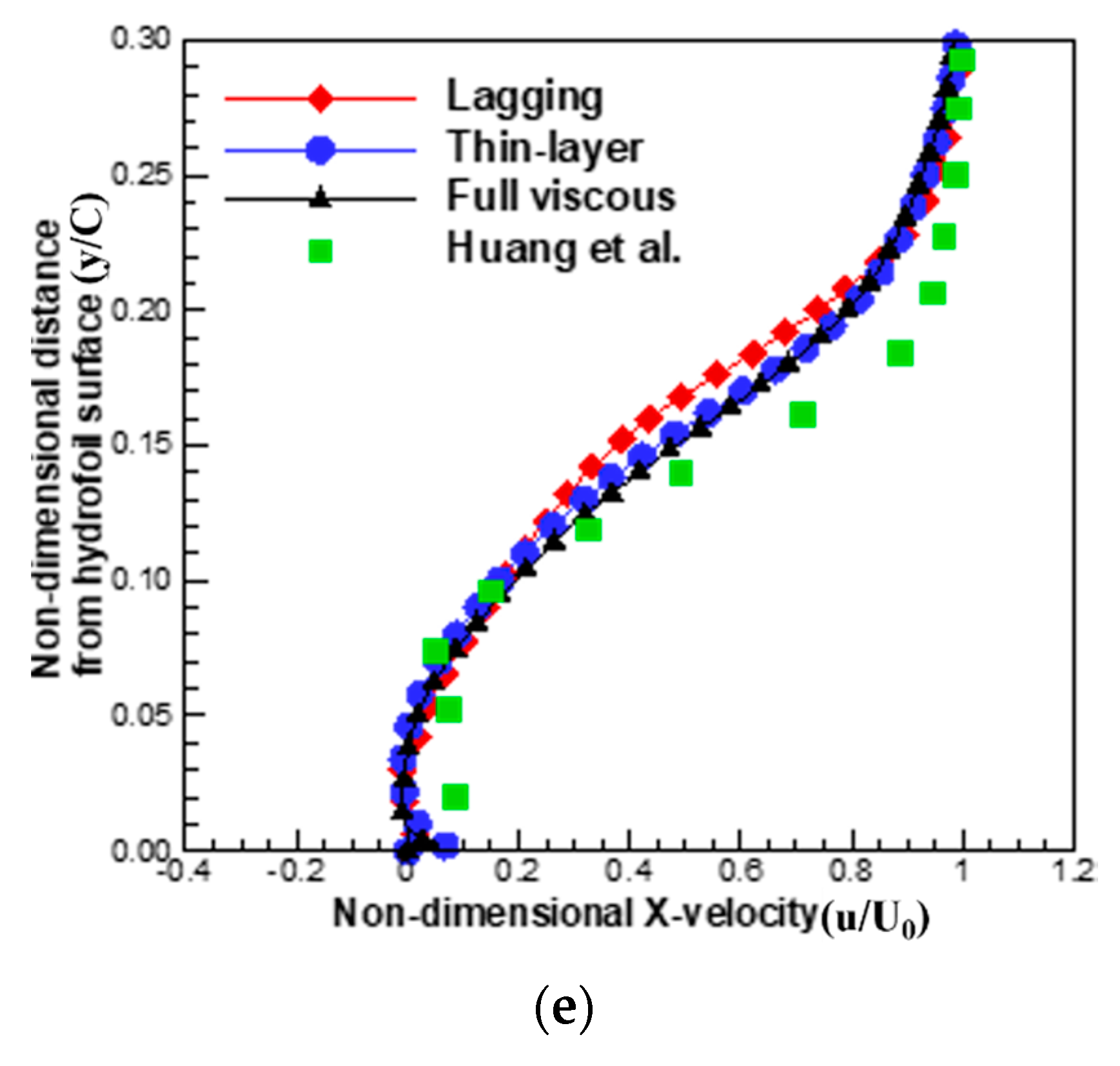

**Figure 3.**Comparison of time-averaged x-directional velocity distribution with experimental results by Huang et al. [41]: (

**a**) $x/C=0.2$; (

**b**) $x/C=0.4$; (

**c**) $x/C=0.6$; (

**d**) $x/C=0.8$; and (

**e**) $x/C=1.0$.

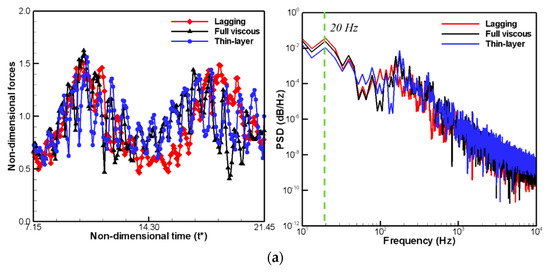

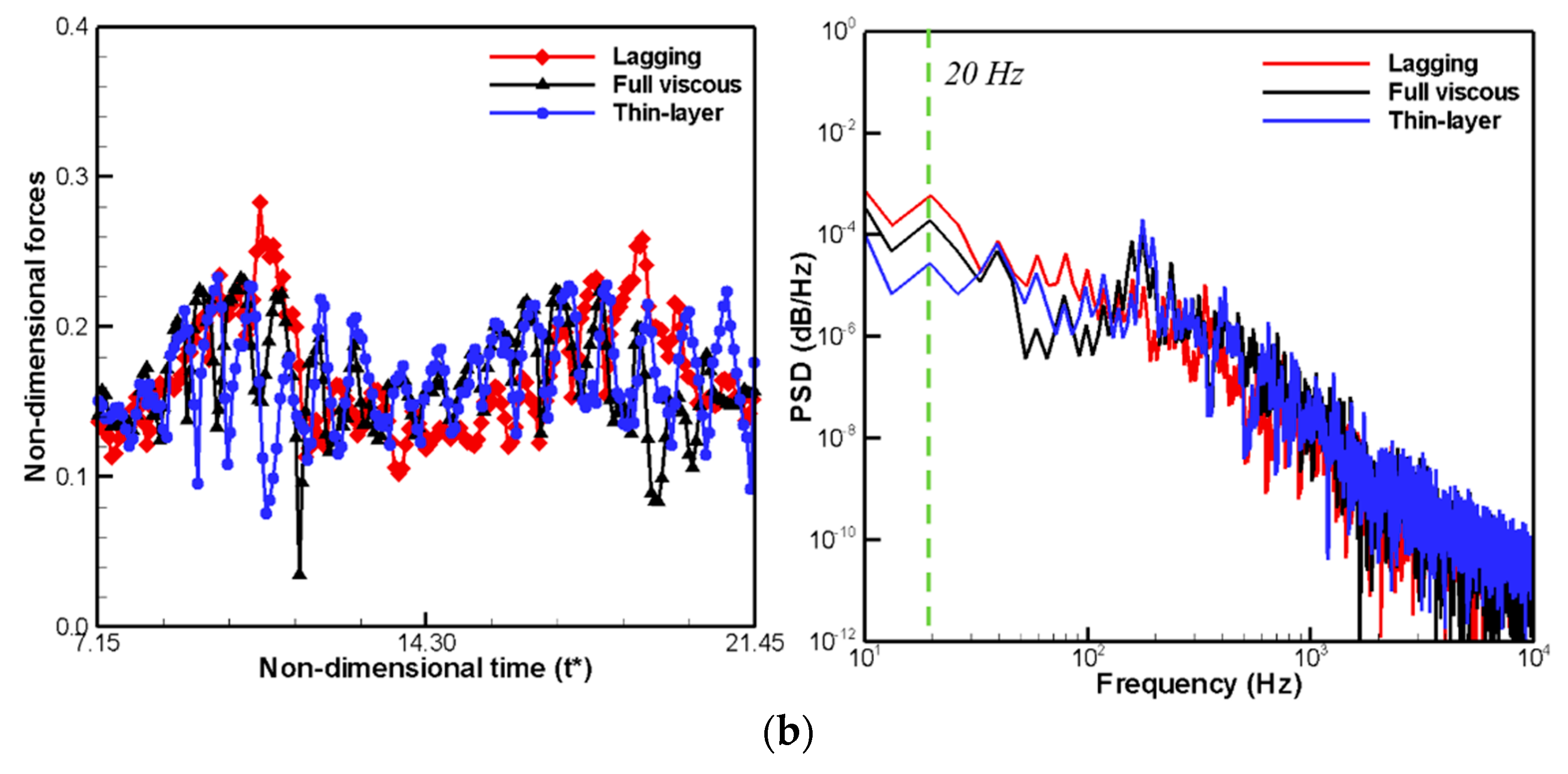

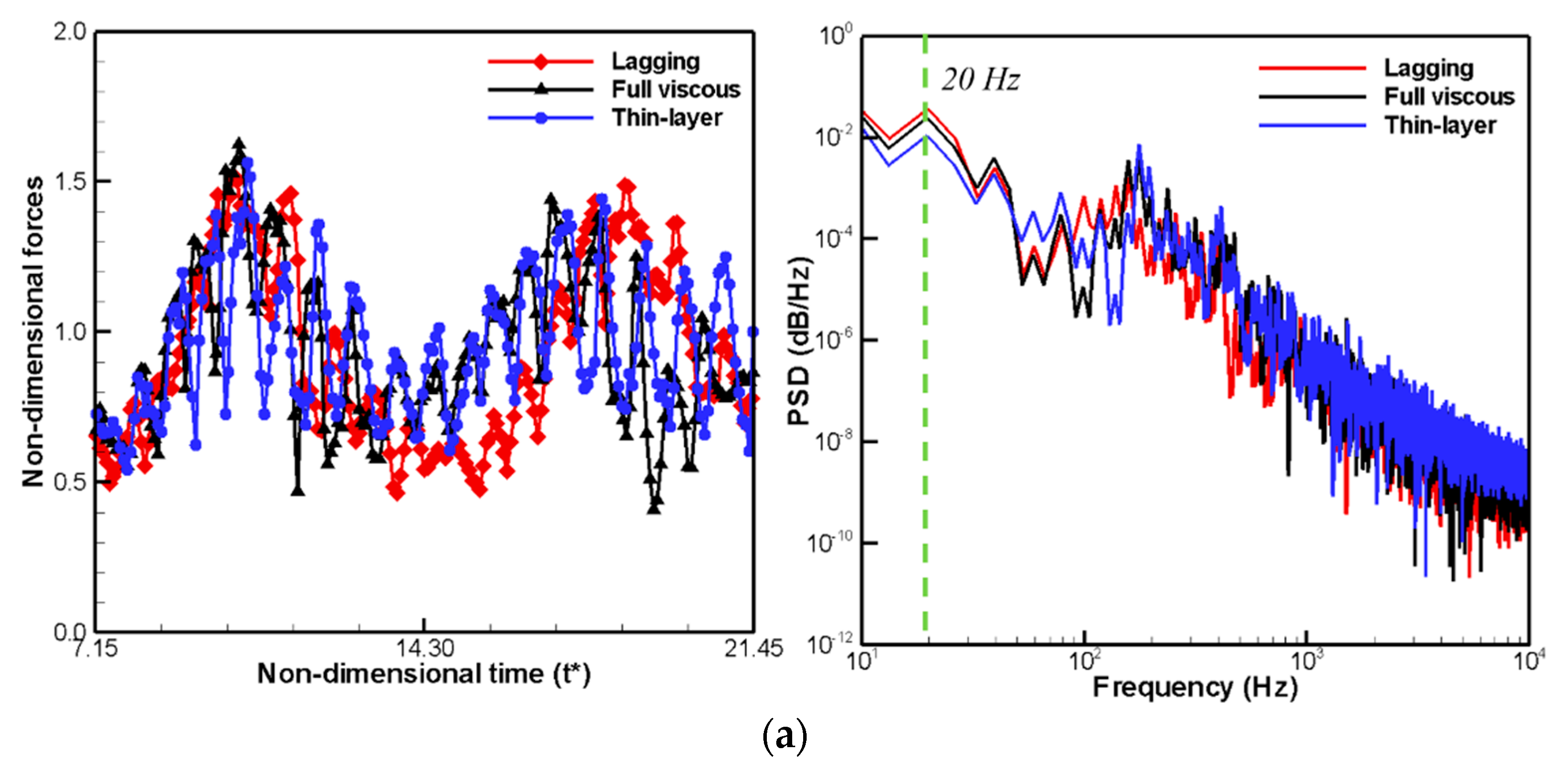

**Figure 4.**Predicted time-variation and power spectral density of non-dimensional hydrodynamic forces: (

**a**) lift force; (

**b**) drag force.

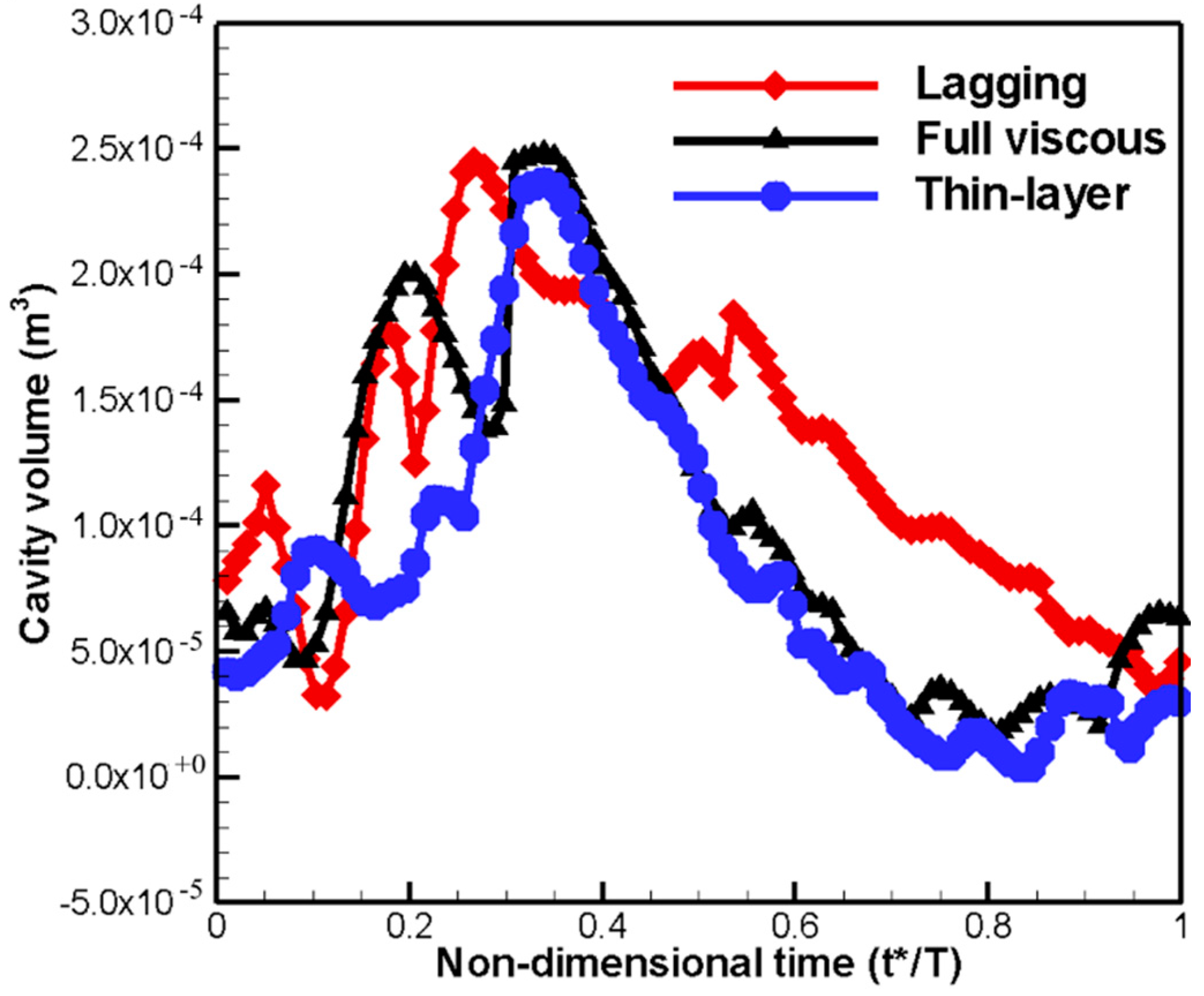

**Figure 5.**Time-variations of predicted cavity volume of three different viscous flux vector treatment methods.

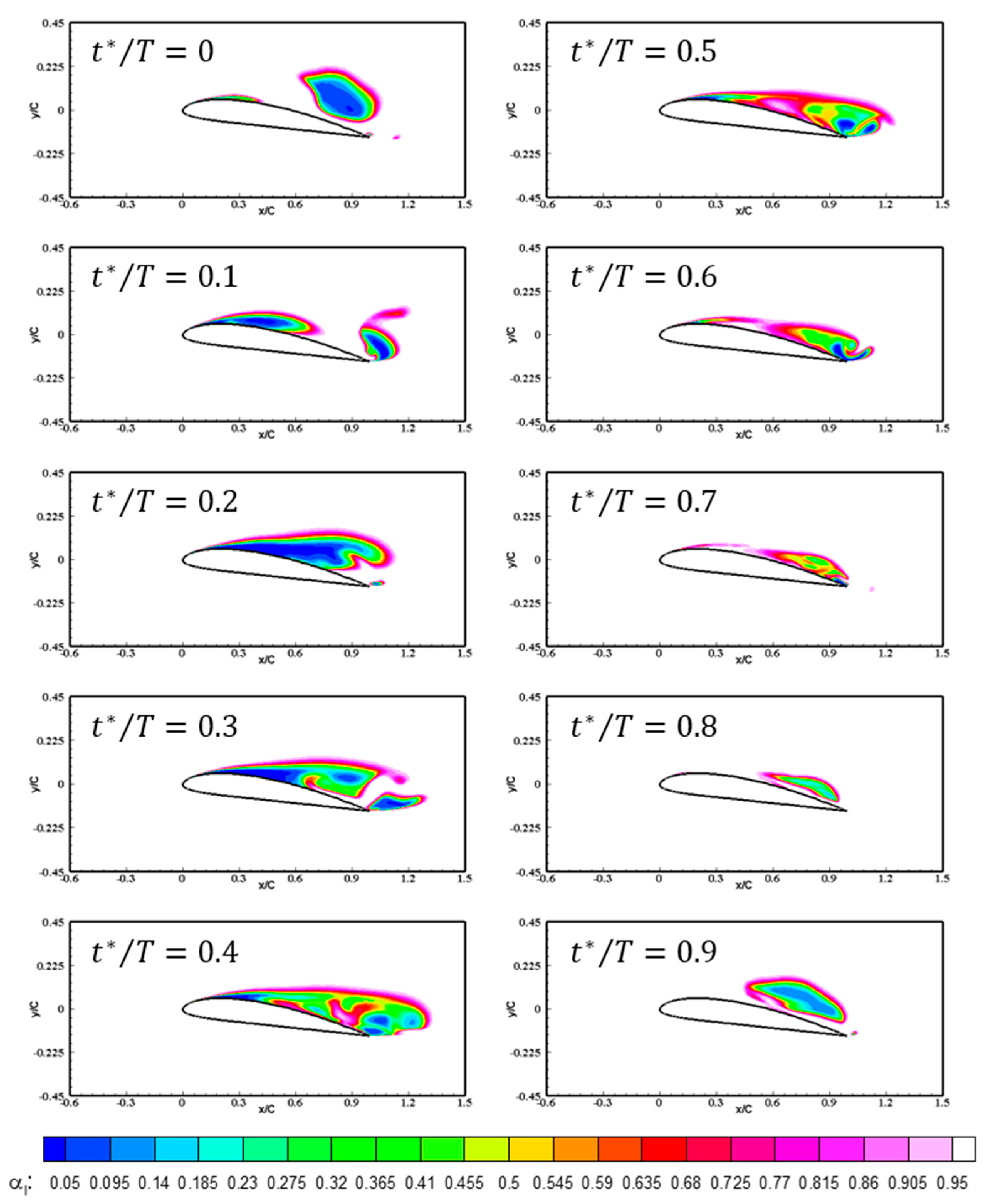

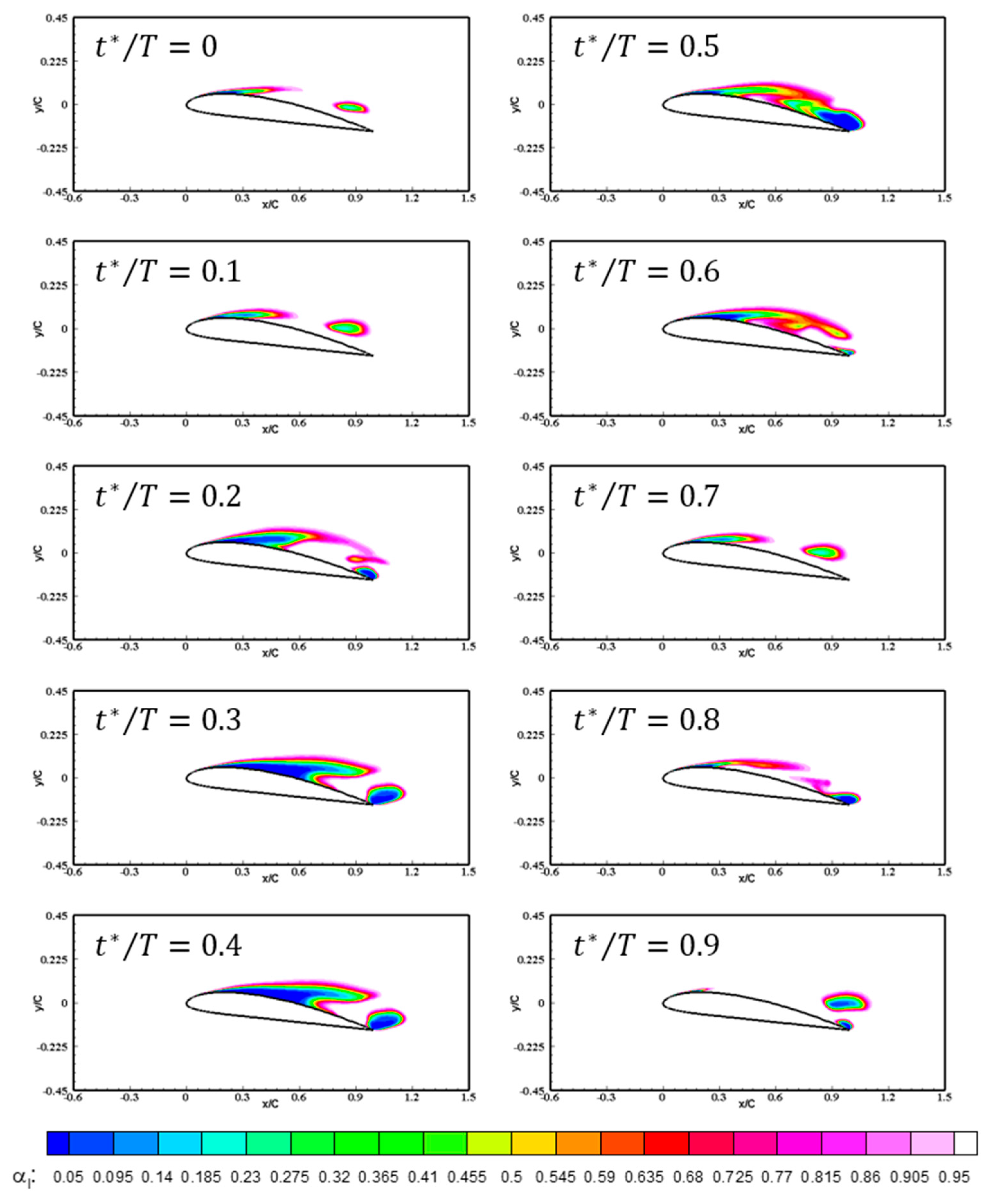

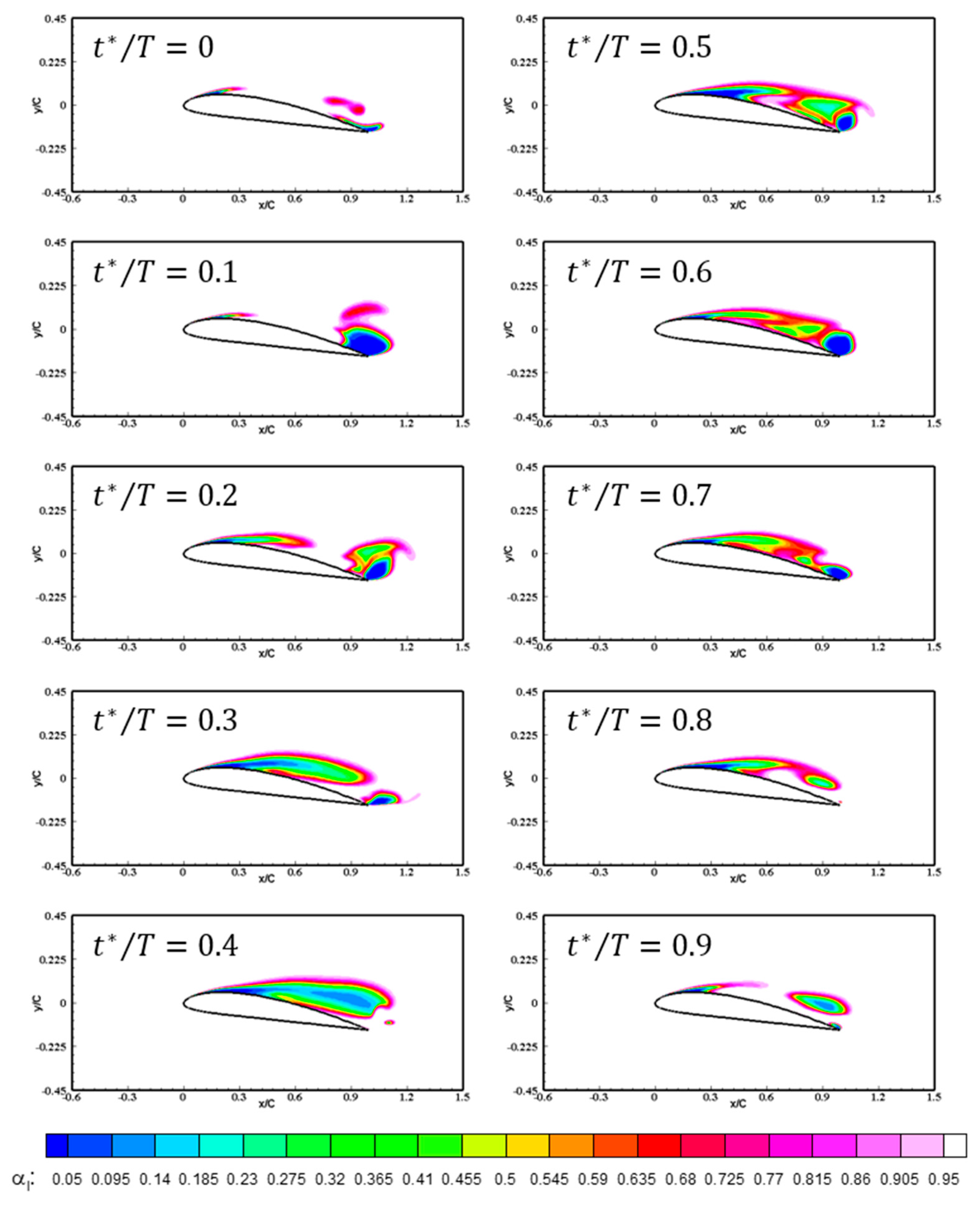

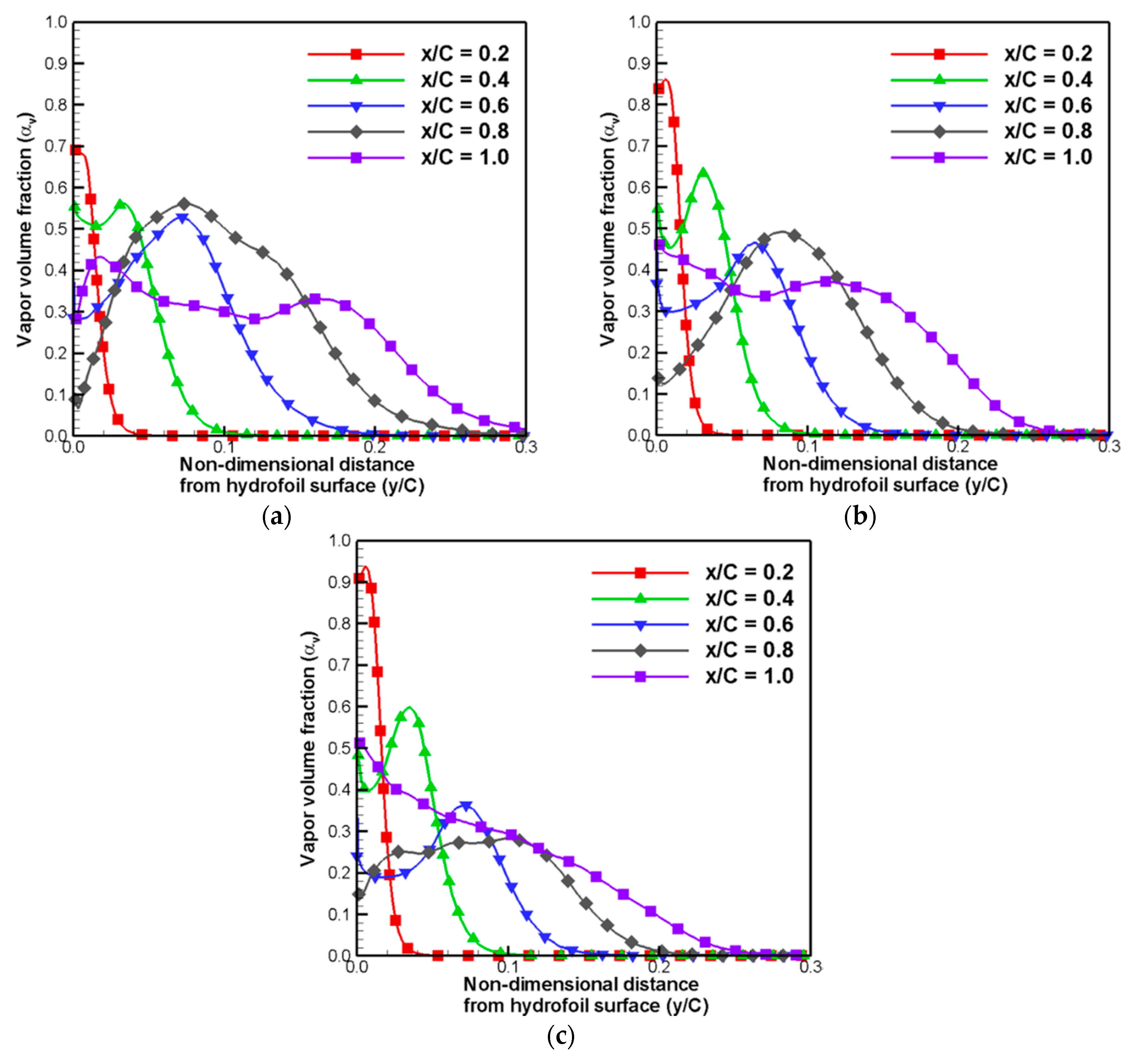

**Figure 10.**Time-averaged vapor volume fraction distribution at five stream-wise locations: (

**a**) viscous lagging; (

**b**) full viscous; and (

**c**) thin-layer cases.

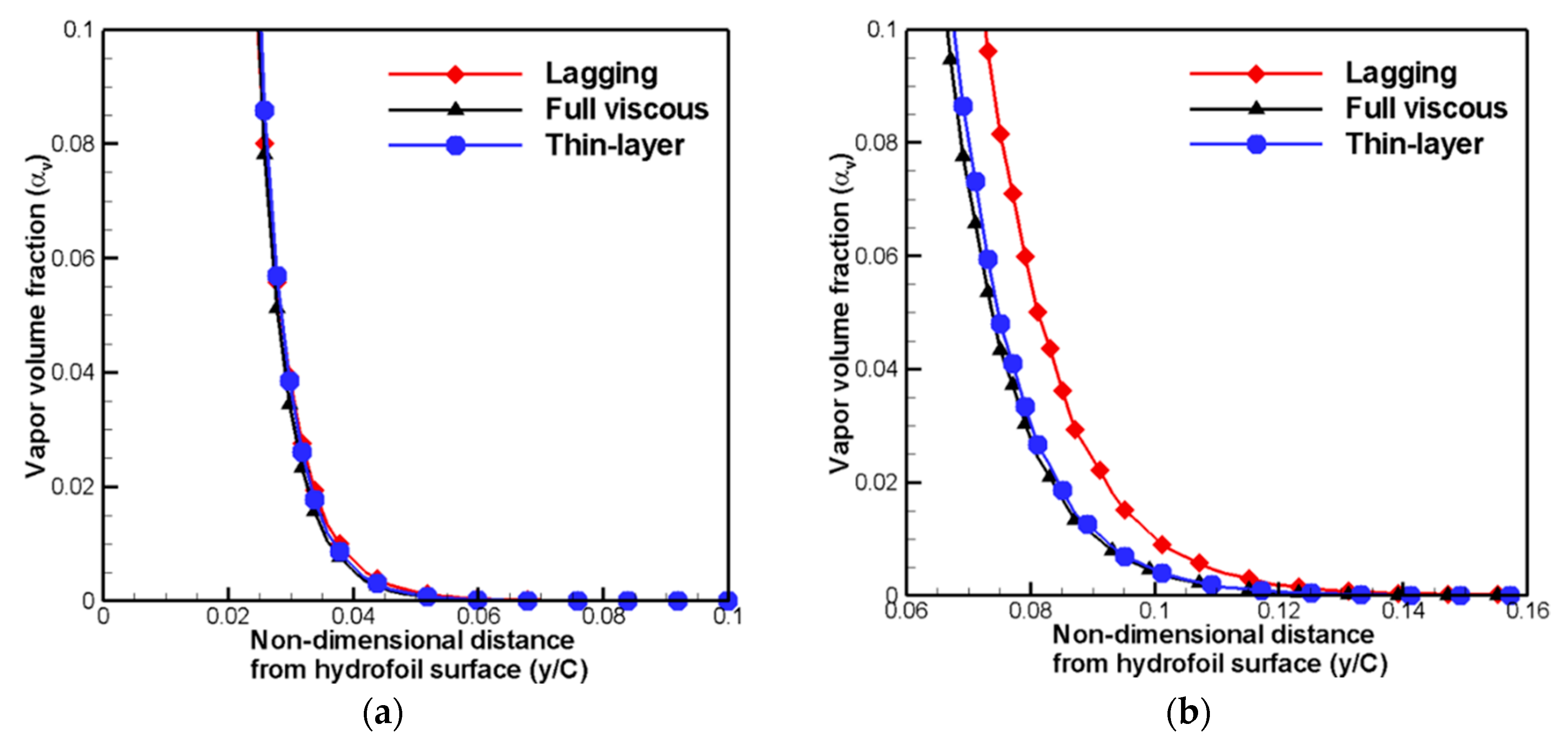

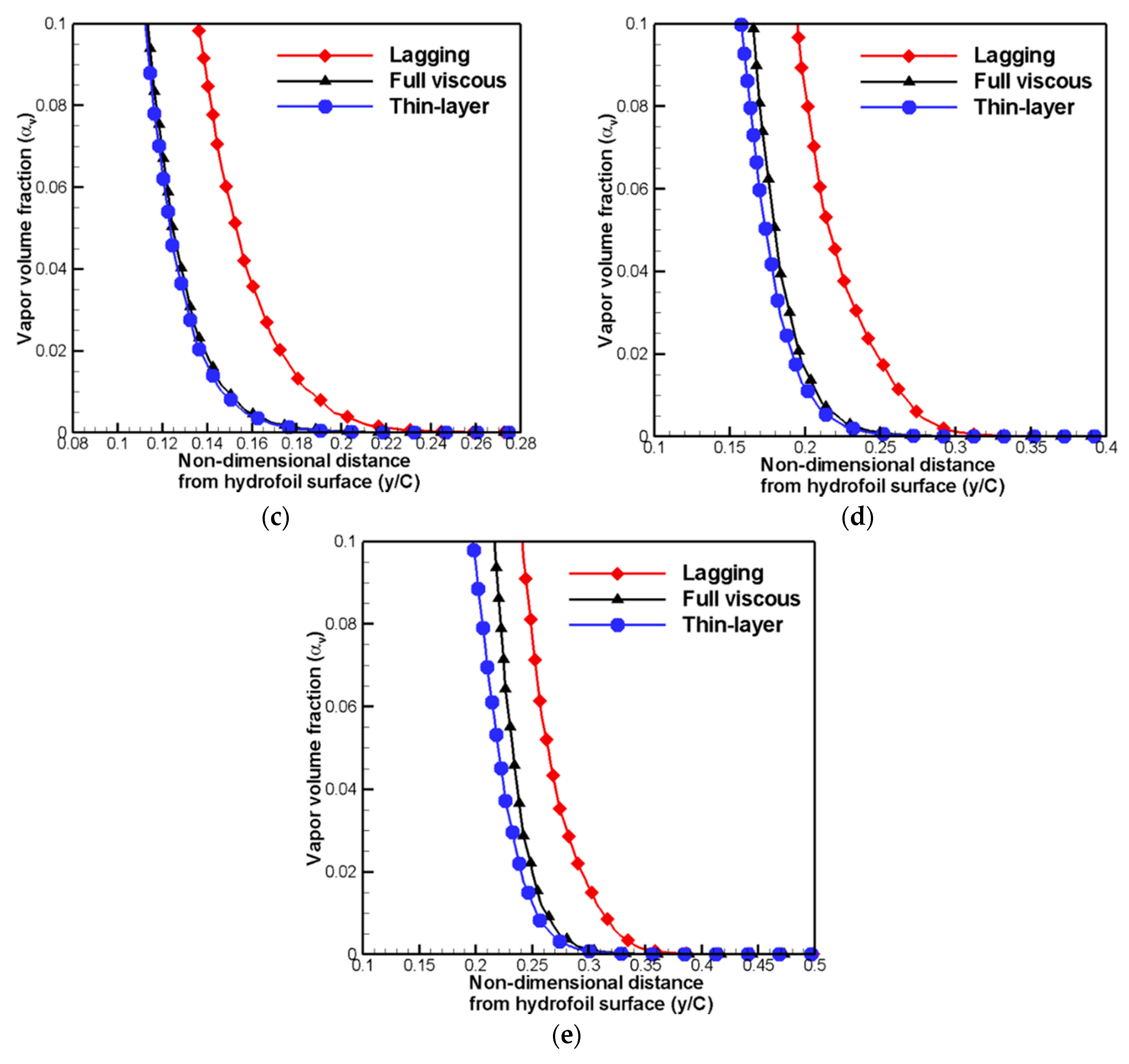

**Figure 11.**Comparison of zoomed time-averaged vapor volume fraction distribution for three different viscous flux treatment methods at five stream-wise locations: (

**a**) $x/C=0.2$; (

**b**) $x/C=0.4$; (

**c**) $x/C=0.6$; (

**d**) $x/C=0.8$; and (

**e**) $x/C=1.0$.

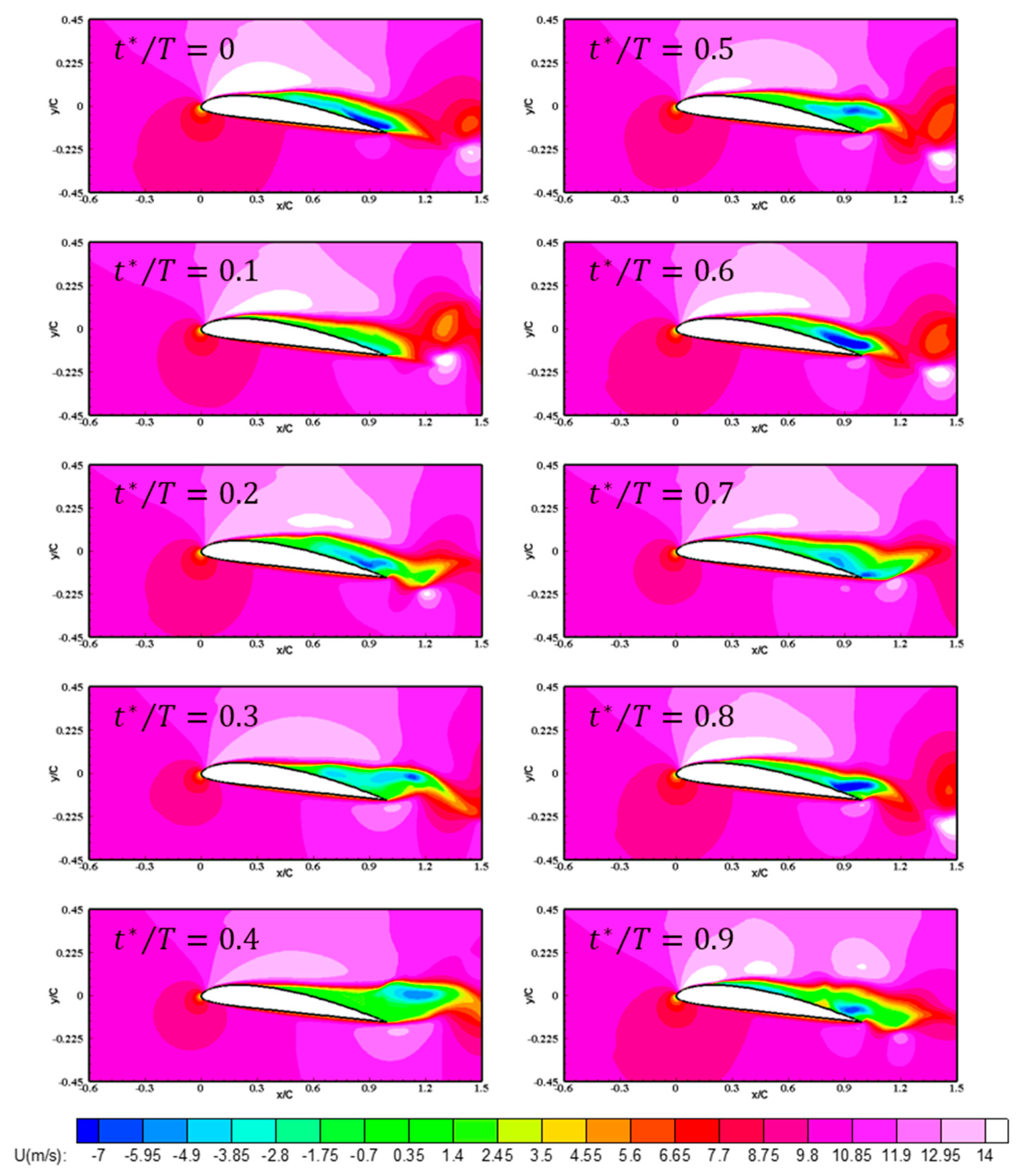

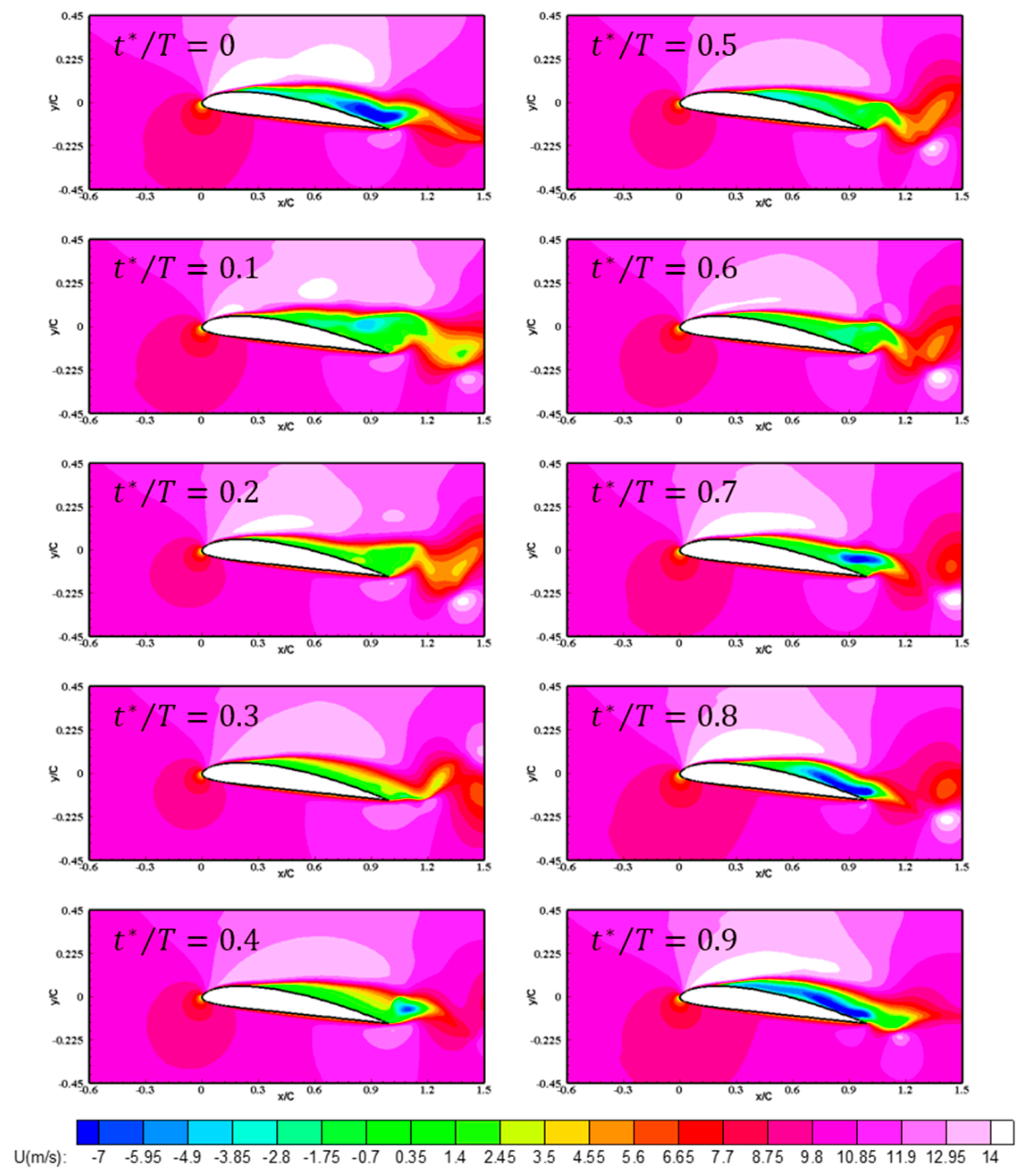

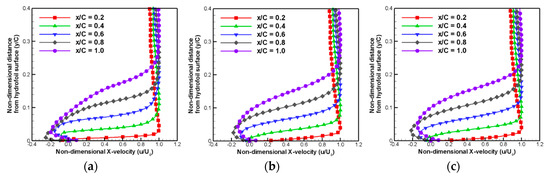

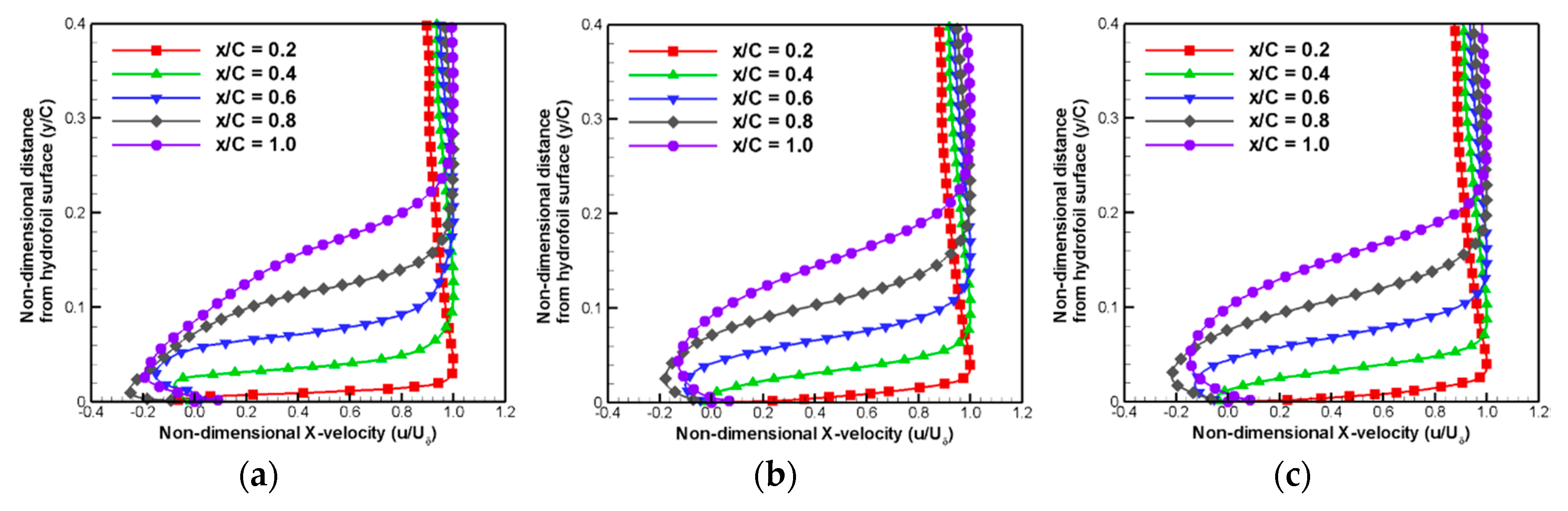

**Figure 15.**Time-averaged x-directional velocity distribution at five stream-wise locations: (

**a**) viscous lagging; (

**b**) full viscous; and (

**c**) thin-layer cases.

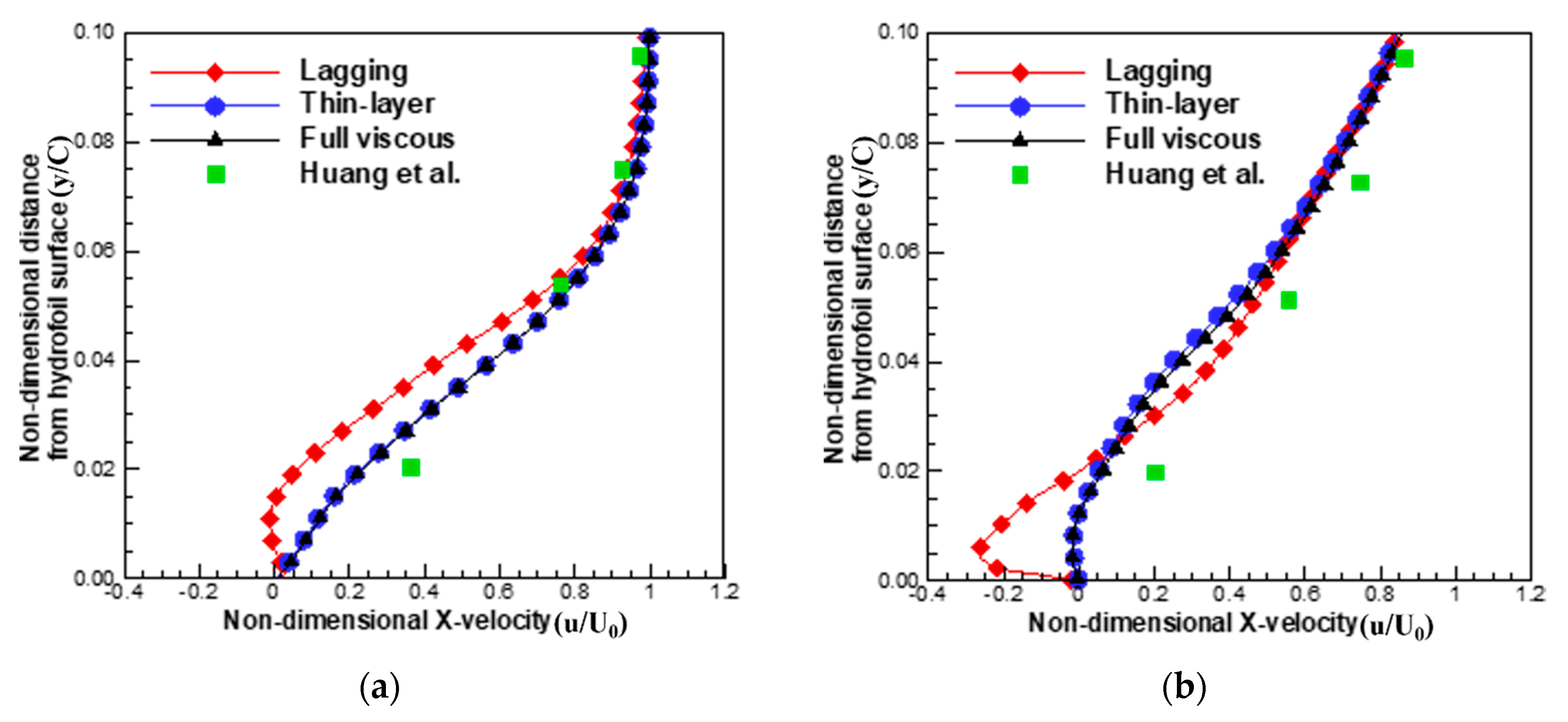

**Figure 16.**Comparison of zoomed time-averaged x-directional velocity distribution with experimental results by Huang et al. [40]: (

**a**) x/C = 0.4; and (

**b**) x/C = 0.6.

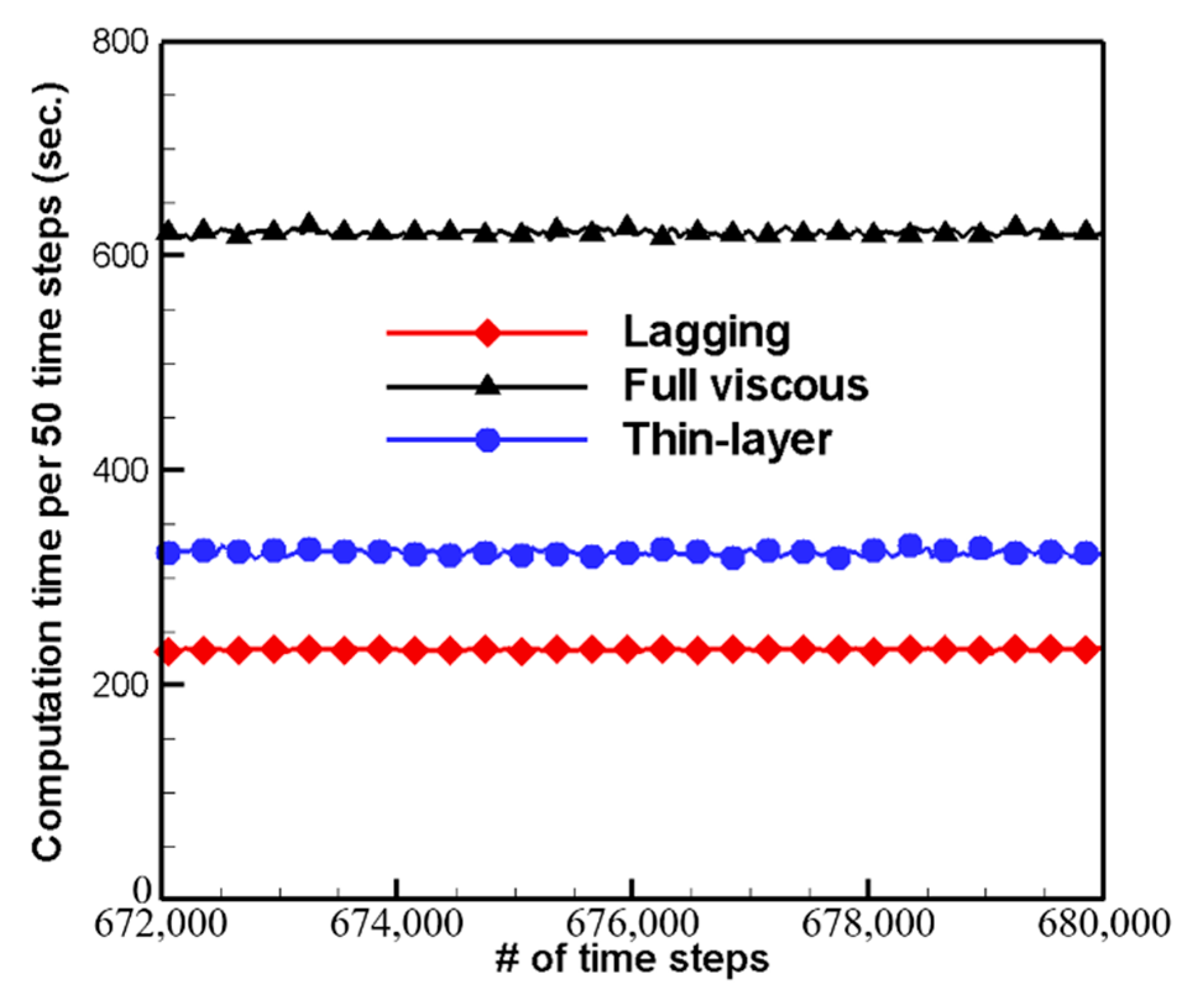

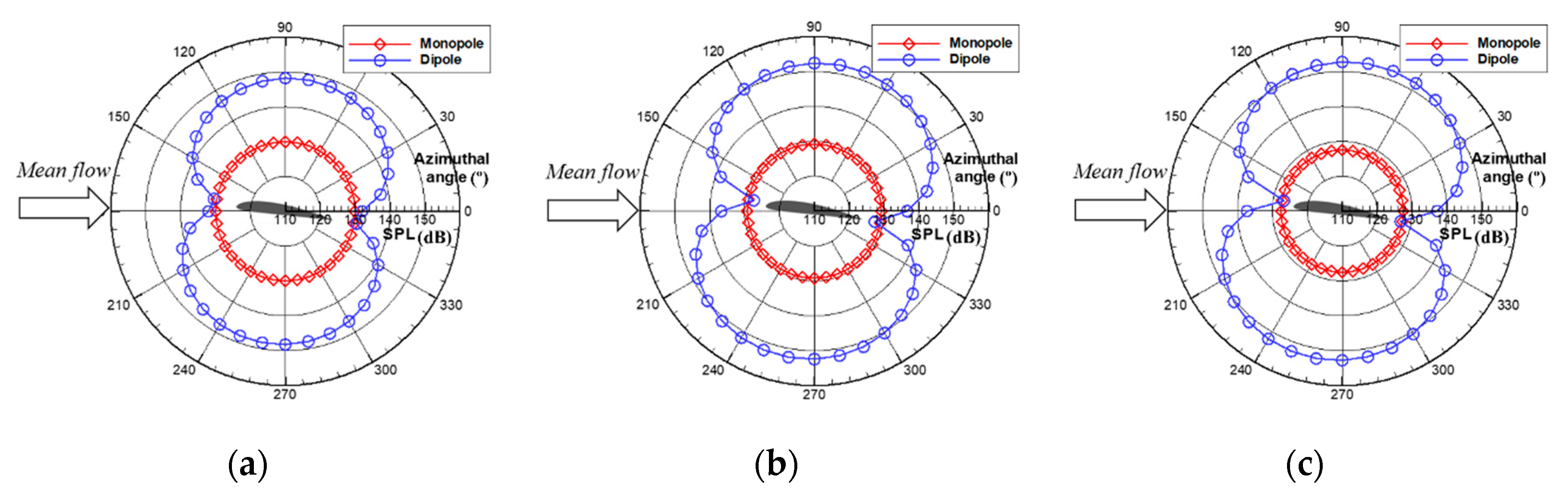

**Figure 18.**Predicted directivity of radiated hydro-acoustic noise: (

**a**) viscous lagging; (

**b**) fill viscous; and (

**c**) thin-layer cases.

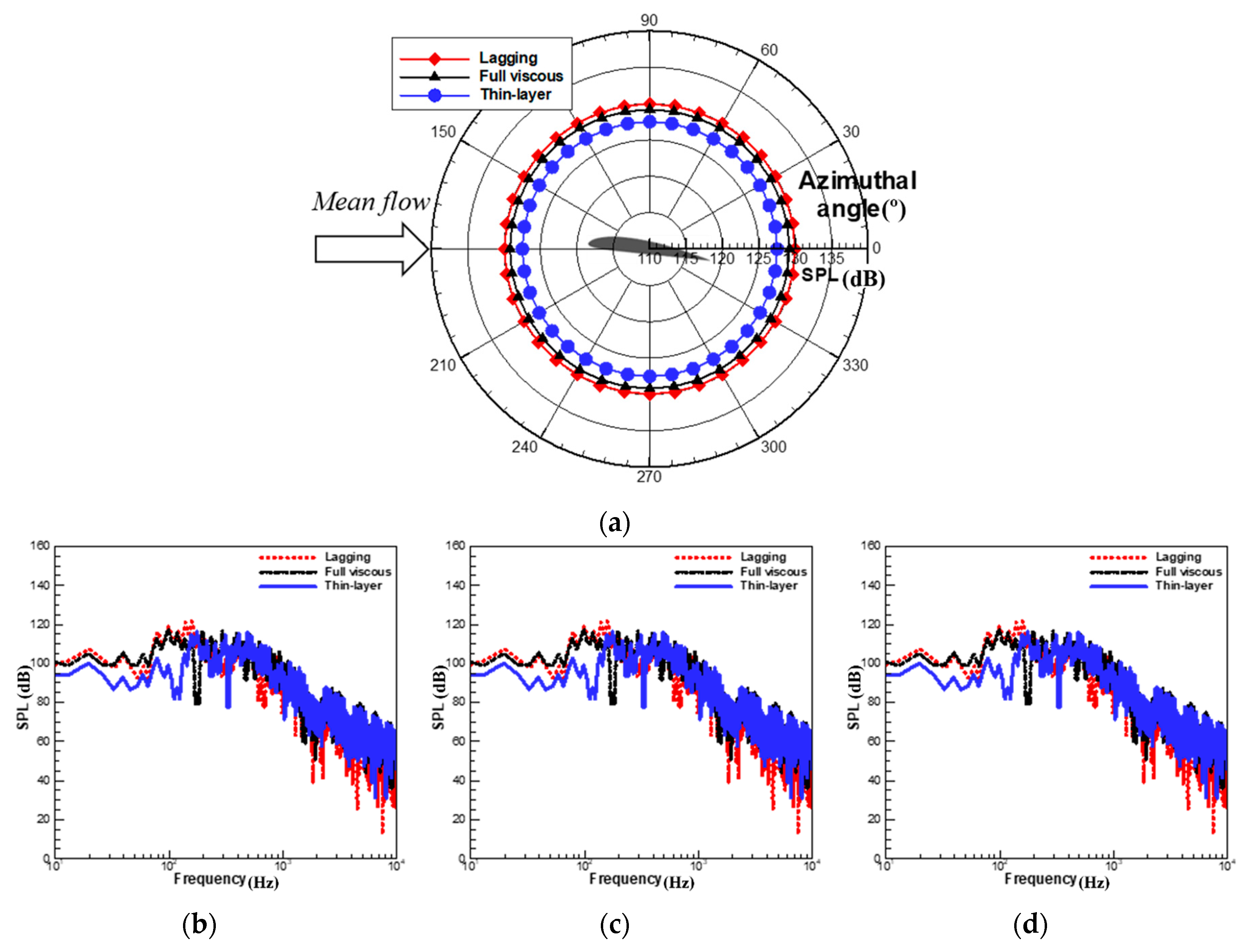

**Figure 19.**Predicted hydro-acoustic pressure due to monopole source: (
