Appl. Sci. 2018, 8(2), 262; https://doi.org/10.3390/app8020262

Aerodynamics and Motion Performance of the H-Type Floating Vertical Axis Wind Turbine

State Key Laboratory of Hydraulic Engineering Simulation and Safety, Tianjin University, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Received: 15 December 2017 / Revised: 1 February 2018 / Accepted: 7 February 2018 / Published: 9 February 2018
(This article belongs to the Special Issue Wind Turbine Aerodynamics)
Full-Text   |   PDF [7126 KB, uploaded 9 February 2018]   |

Abstract

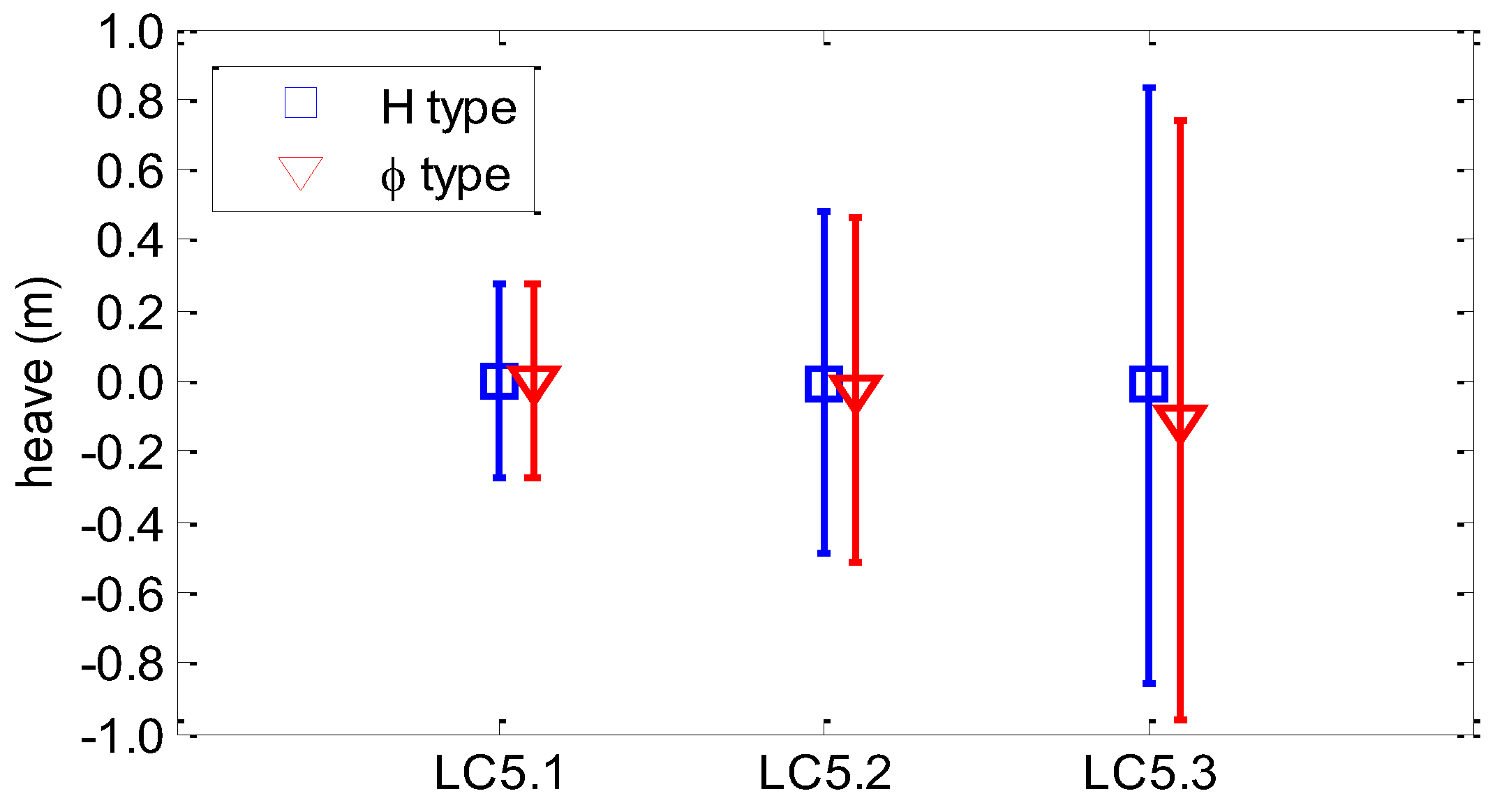

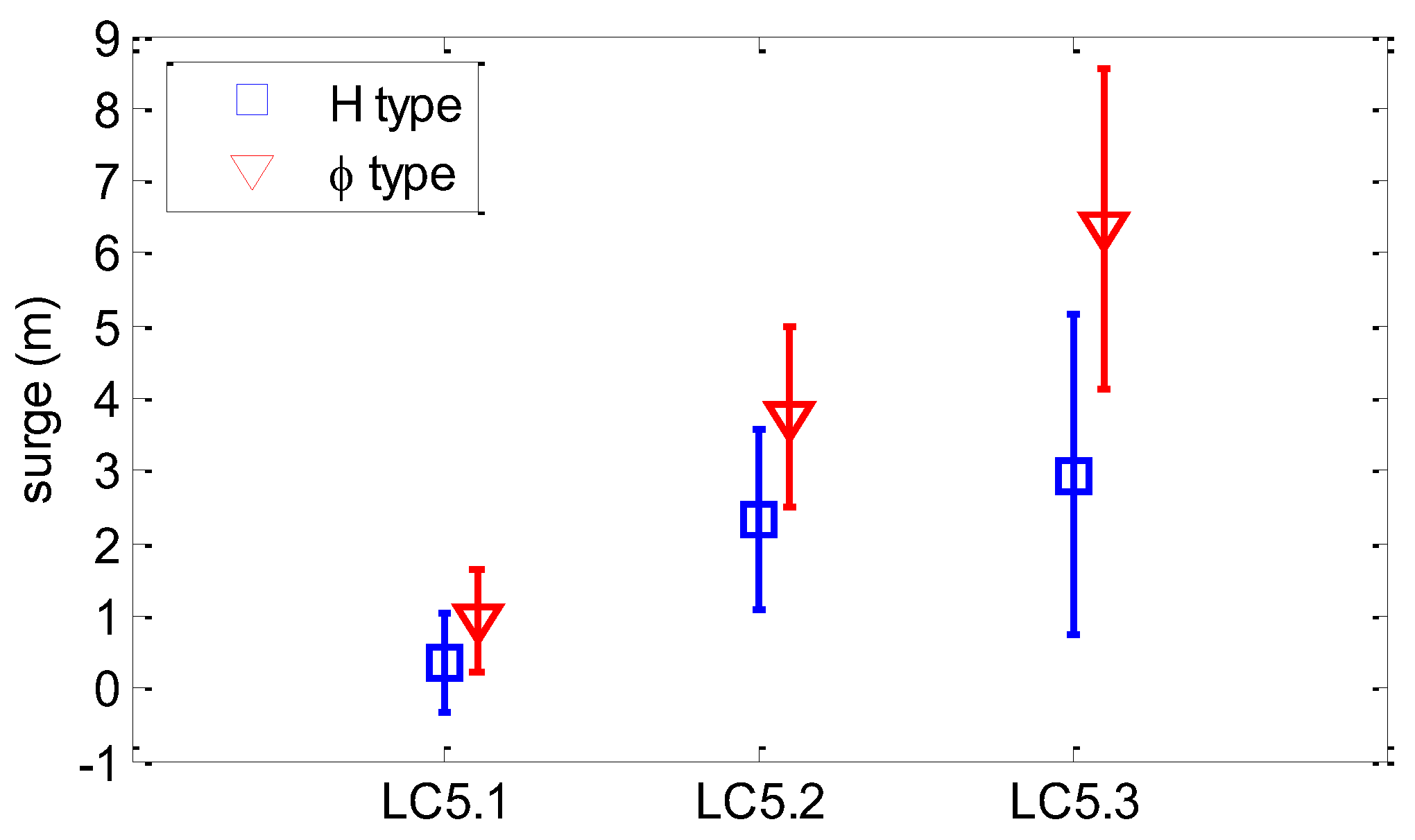

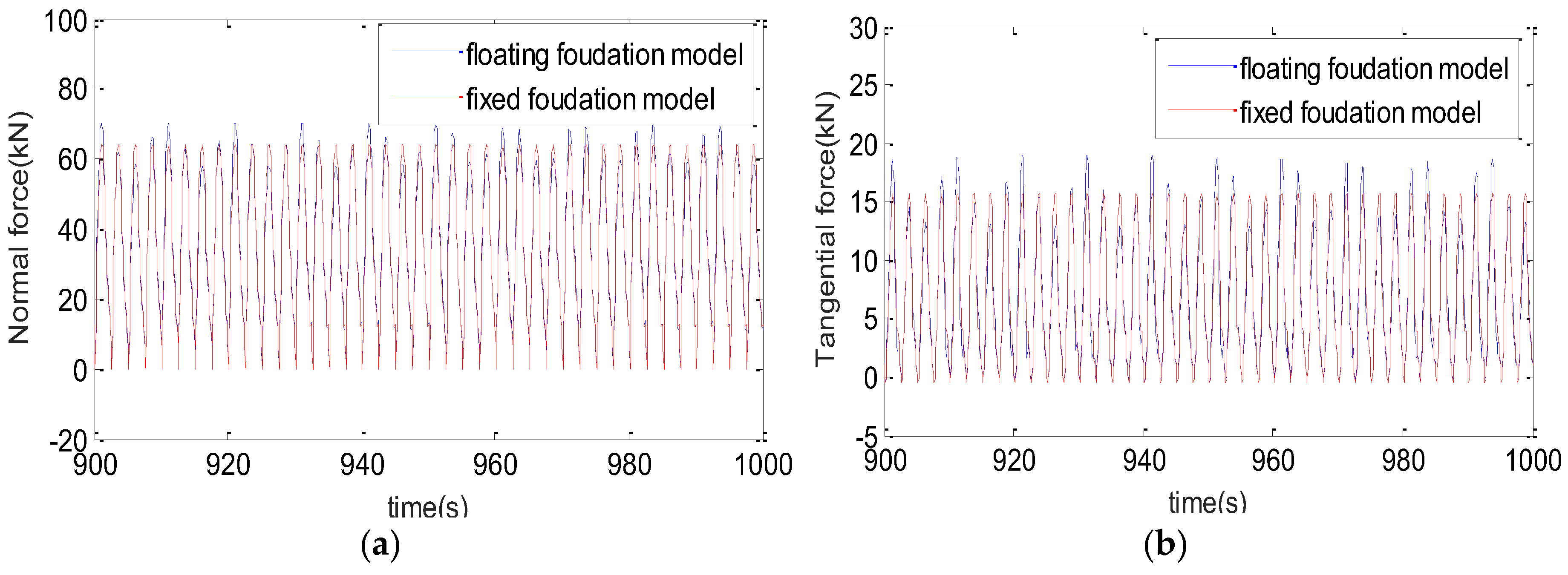

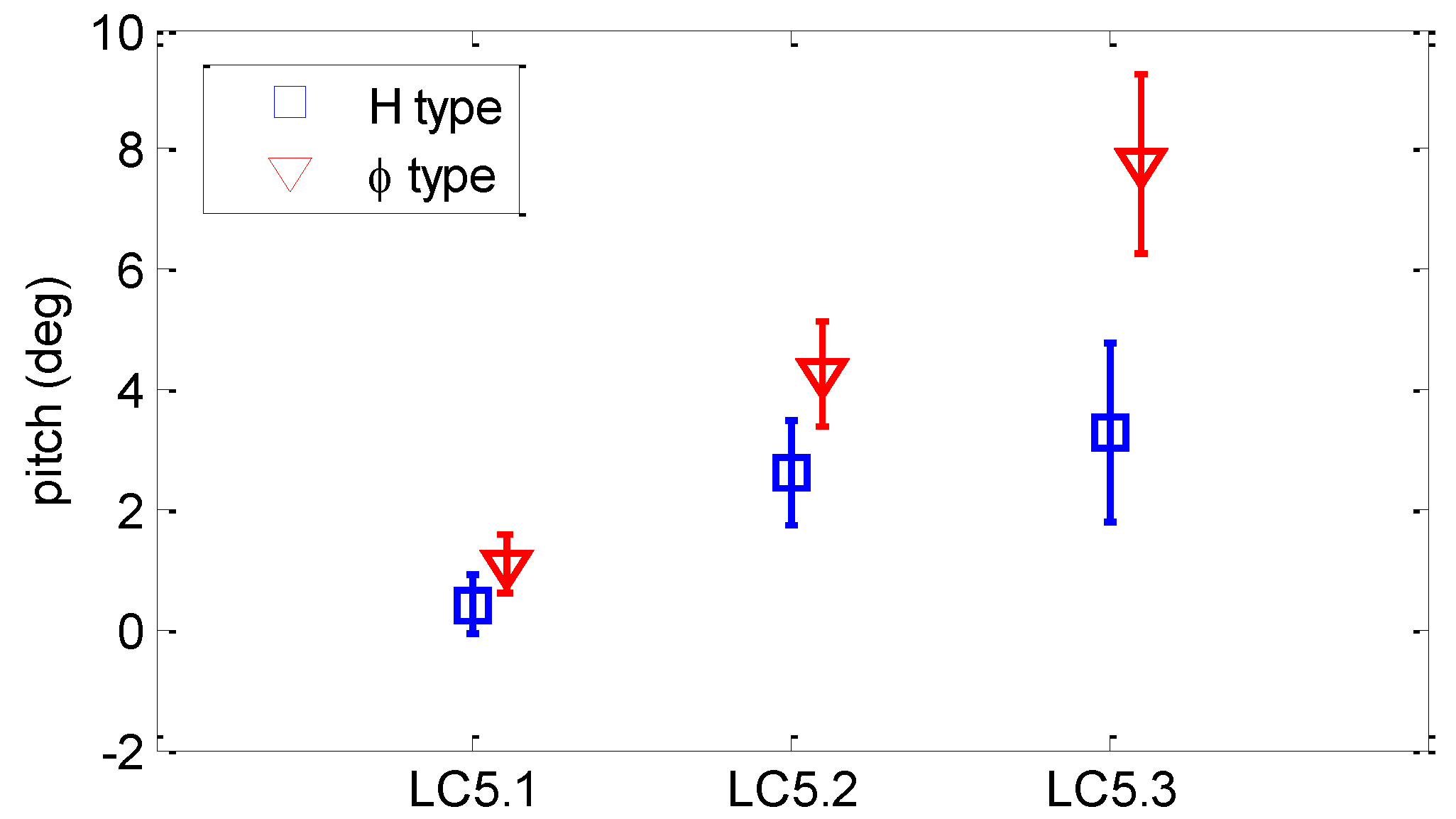

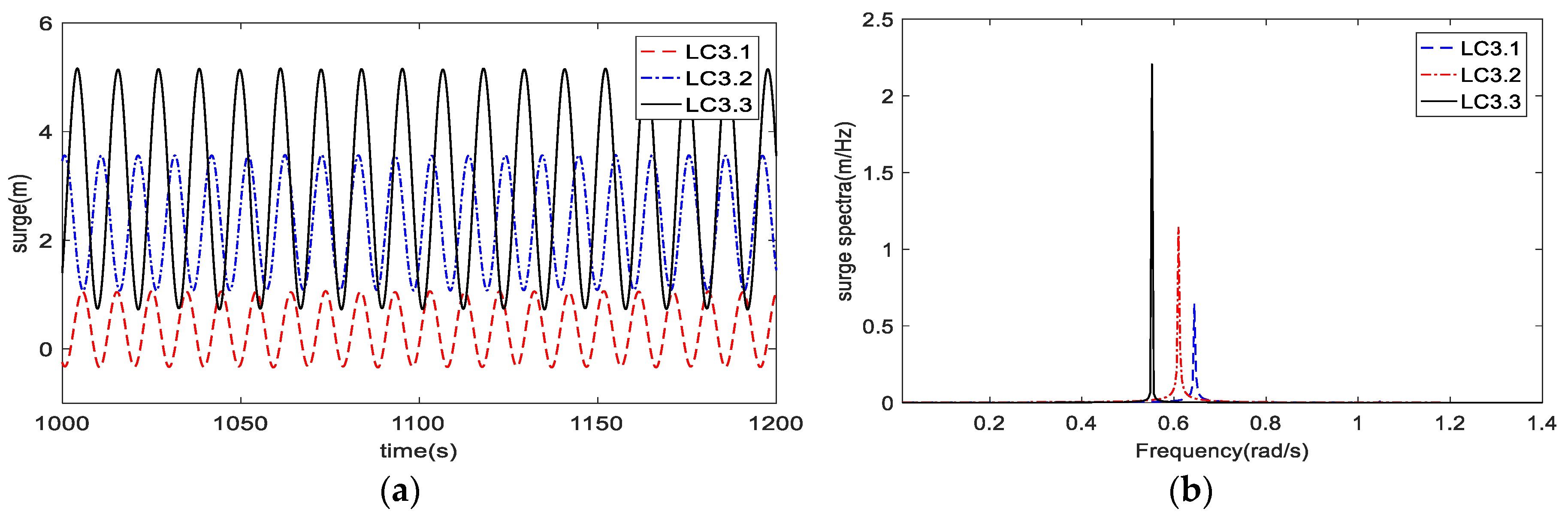

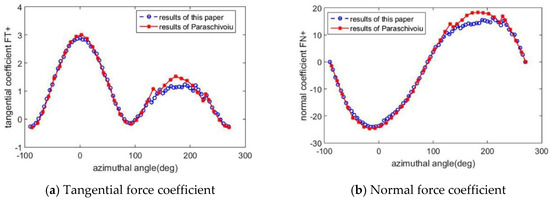

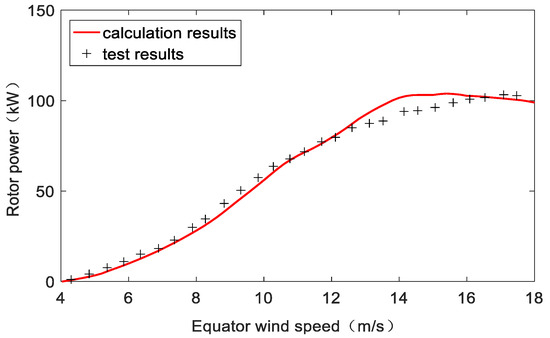

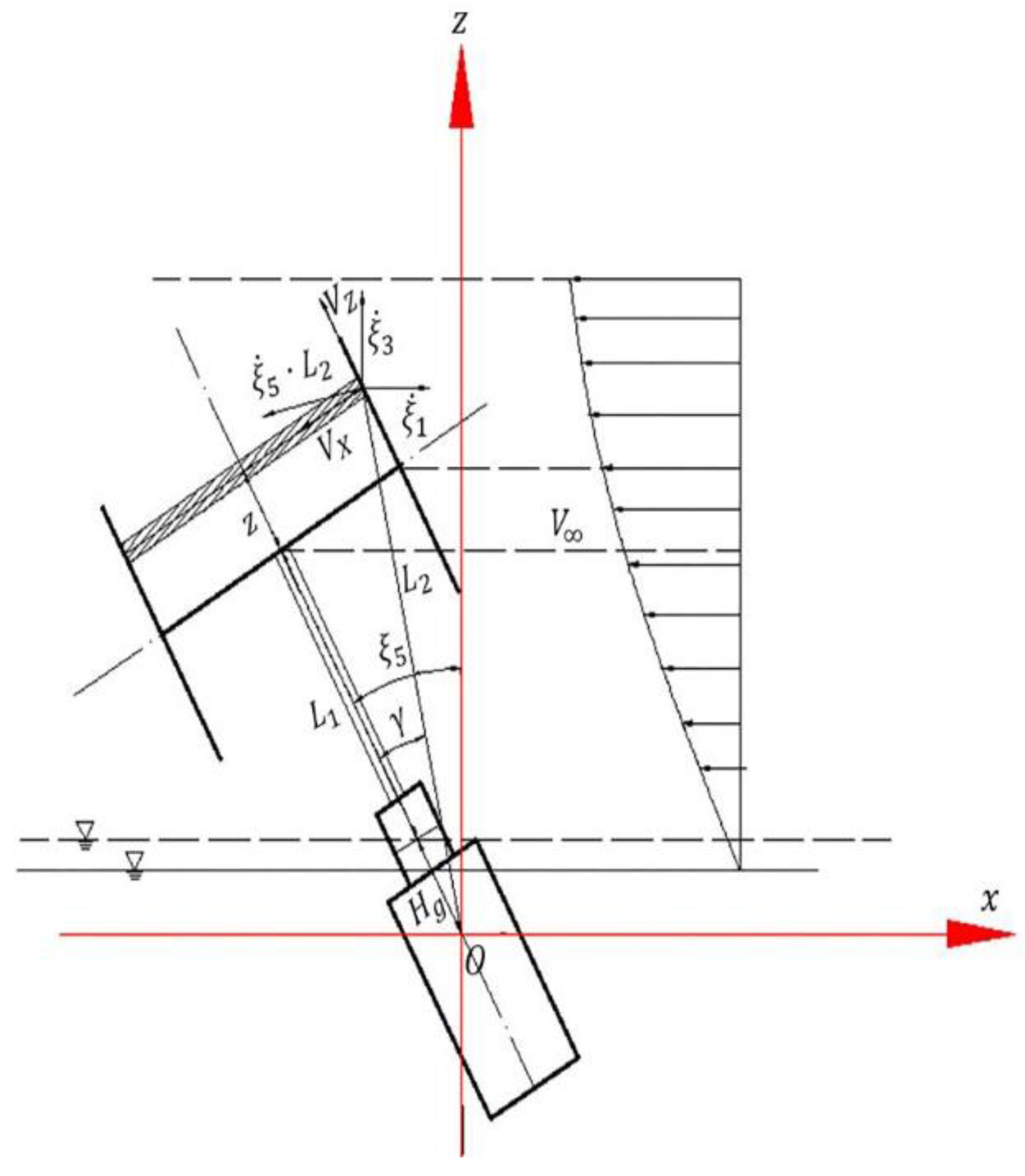

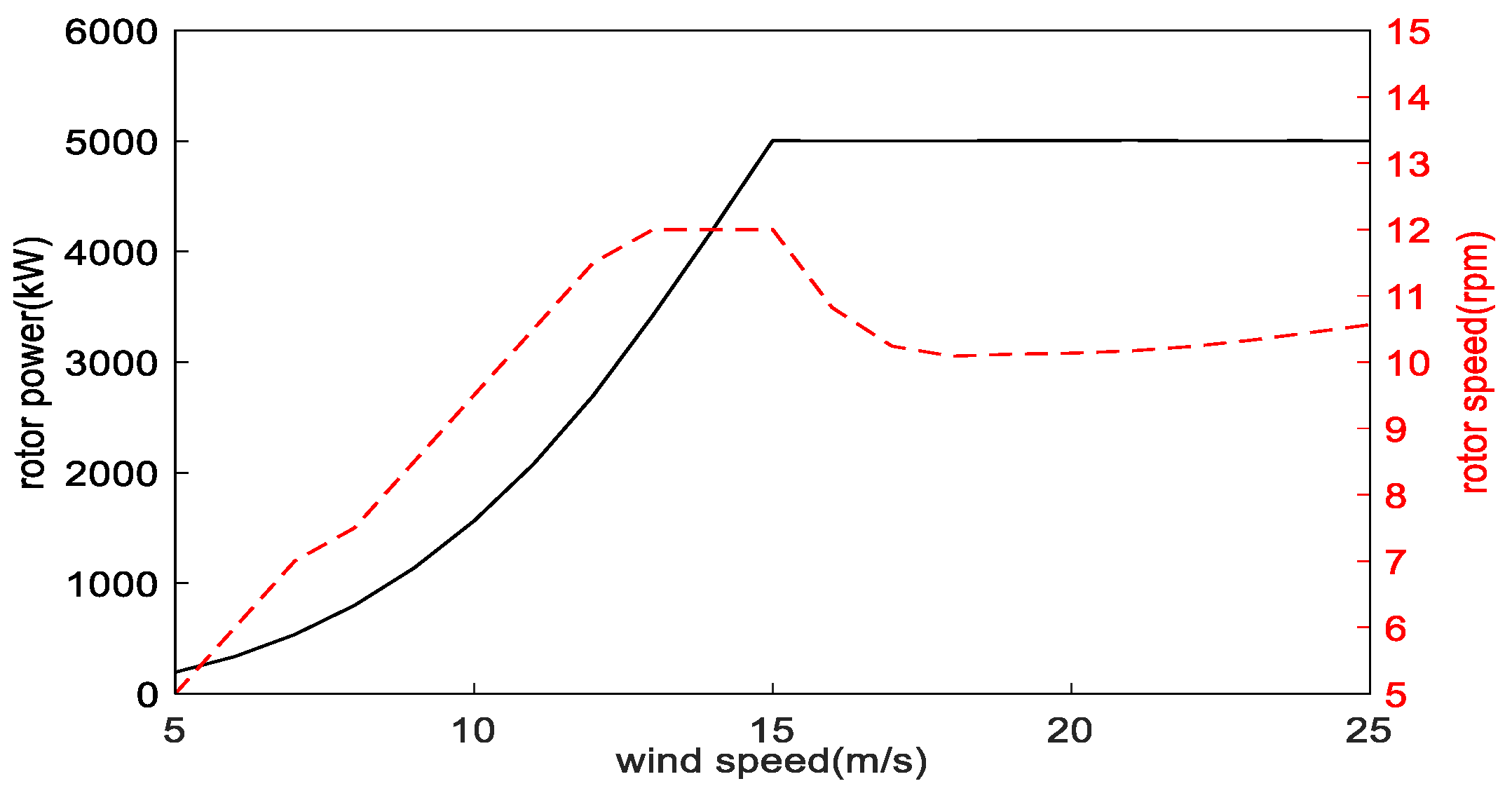

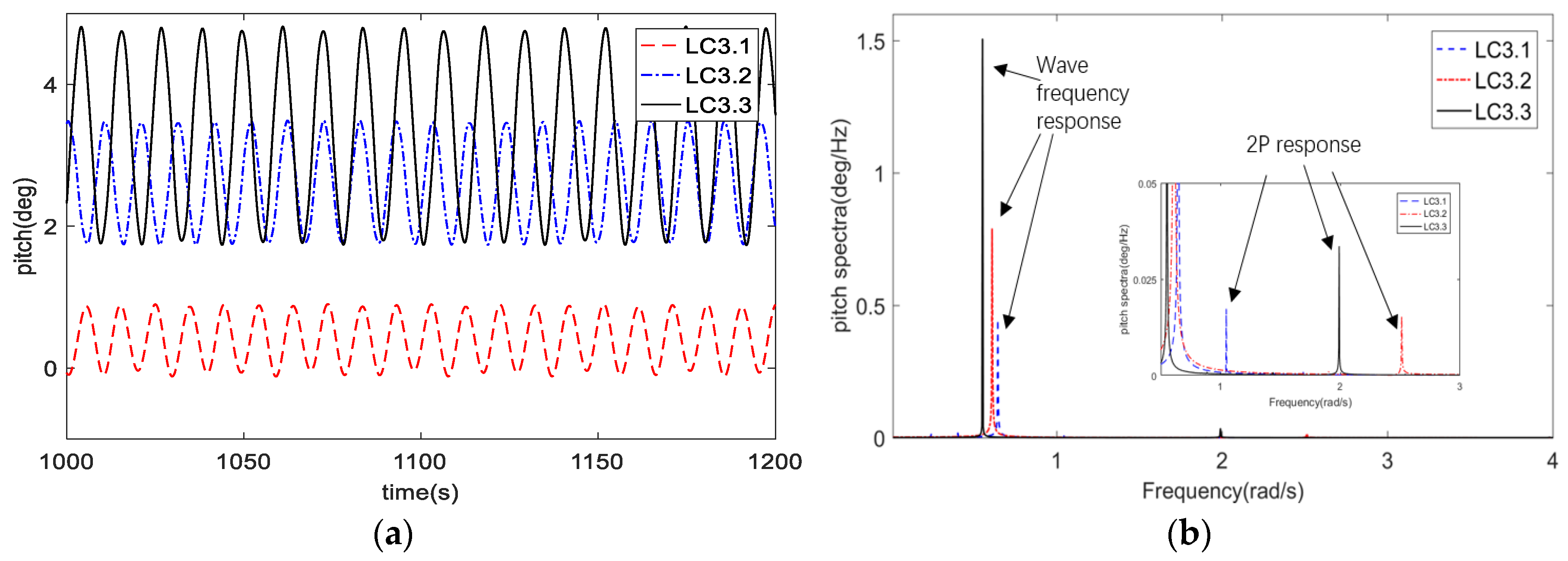

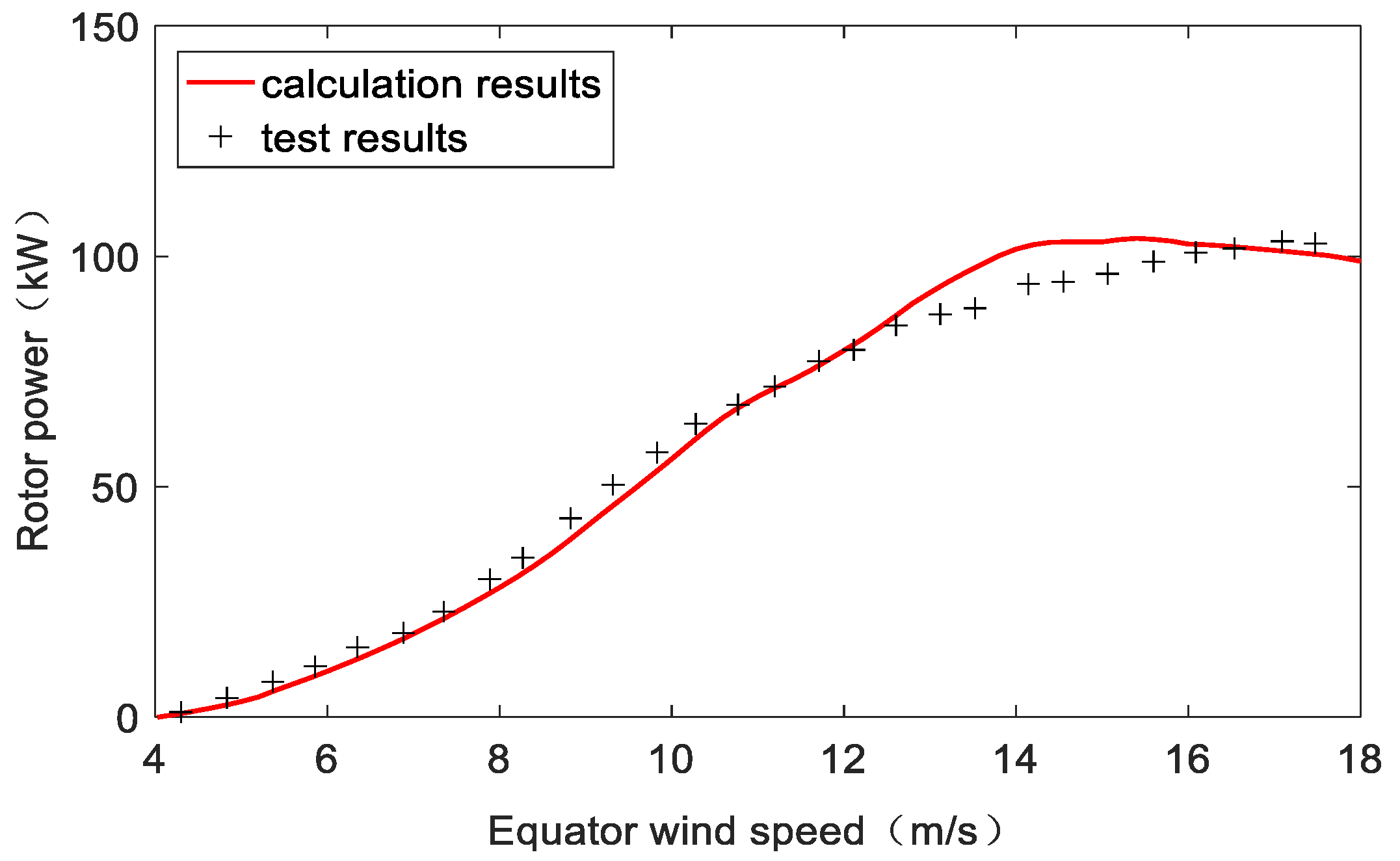

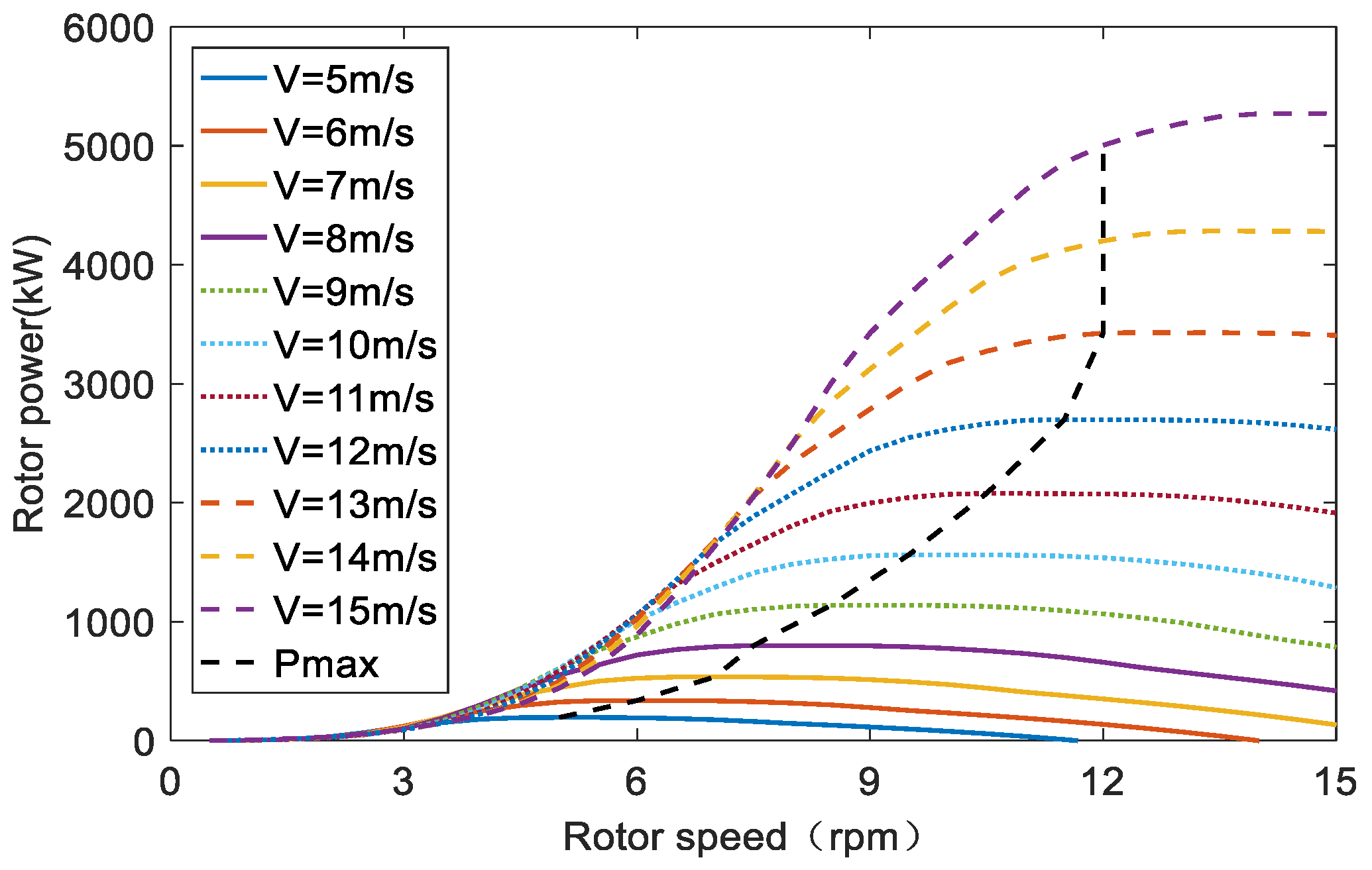

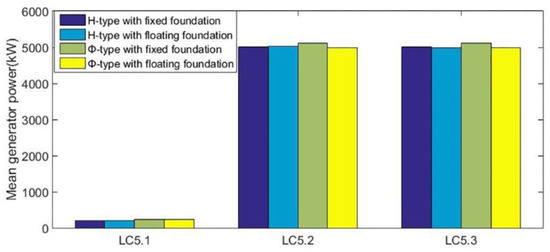

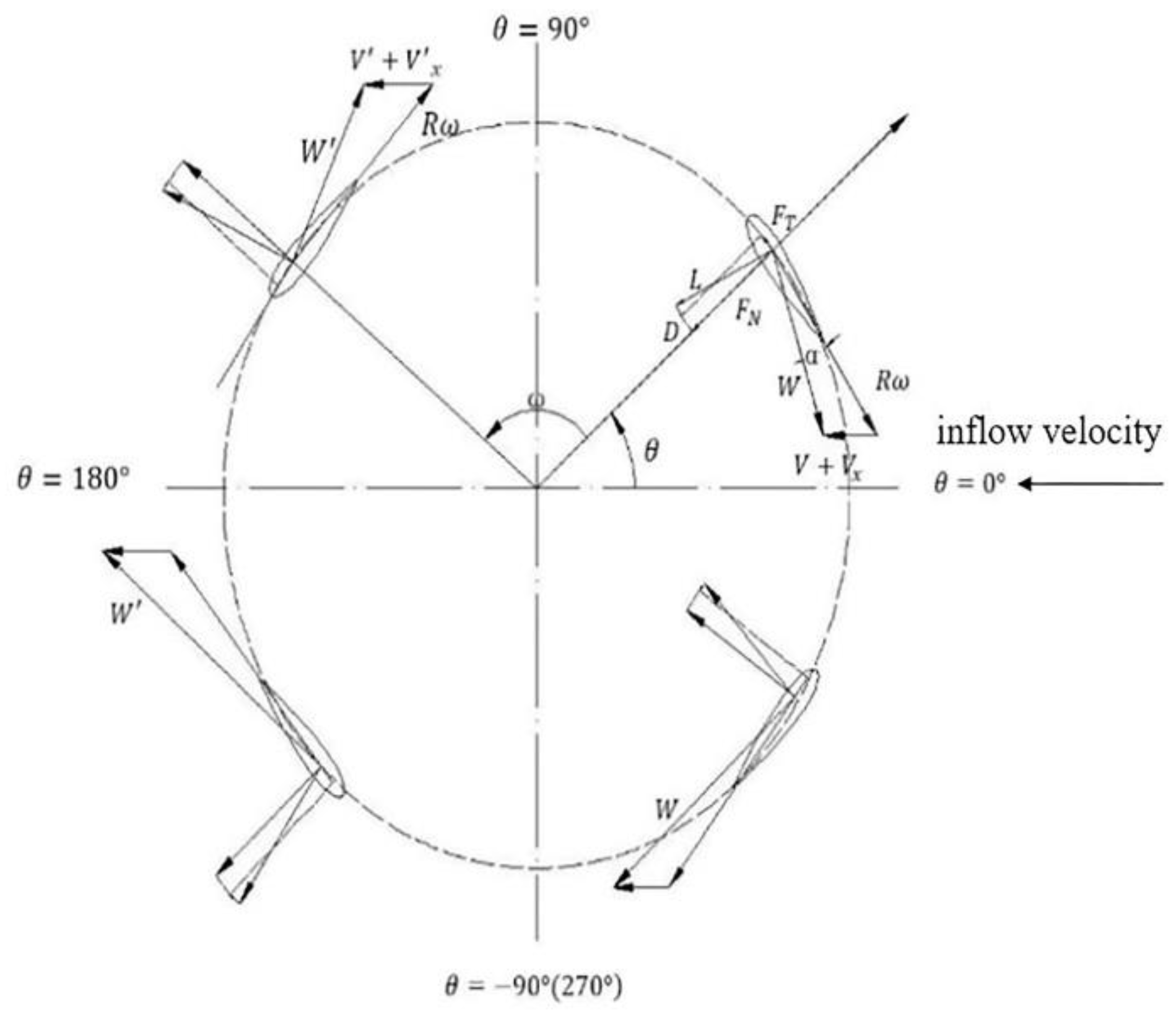

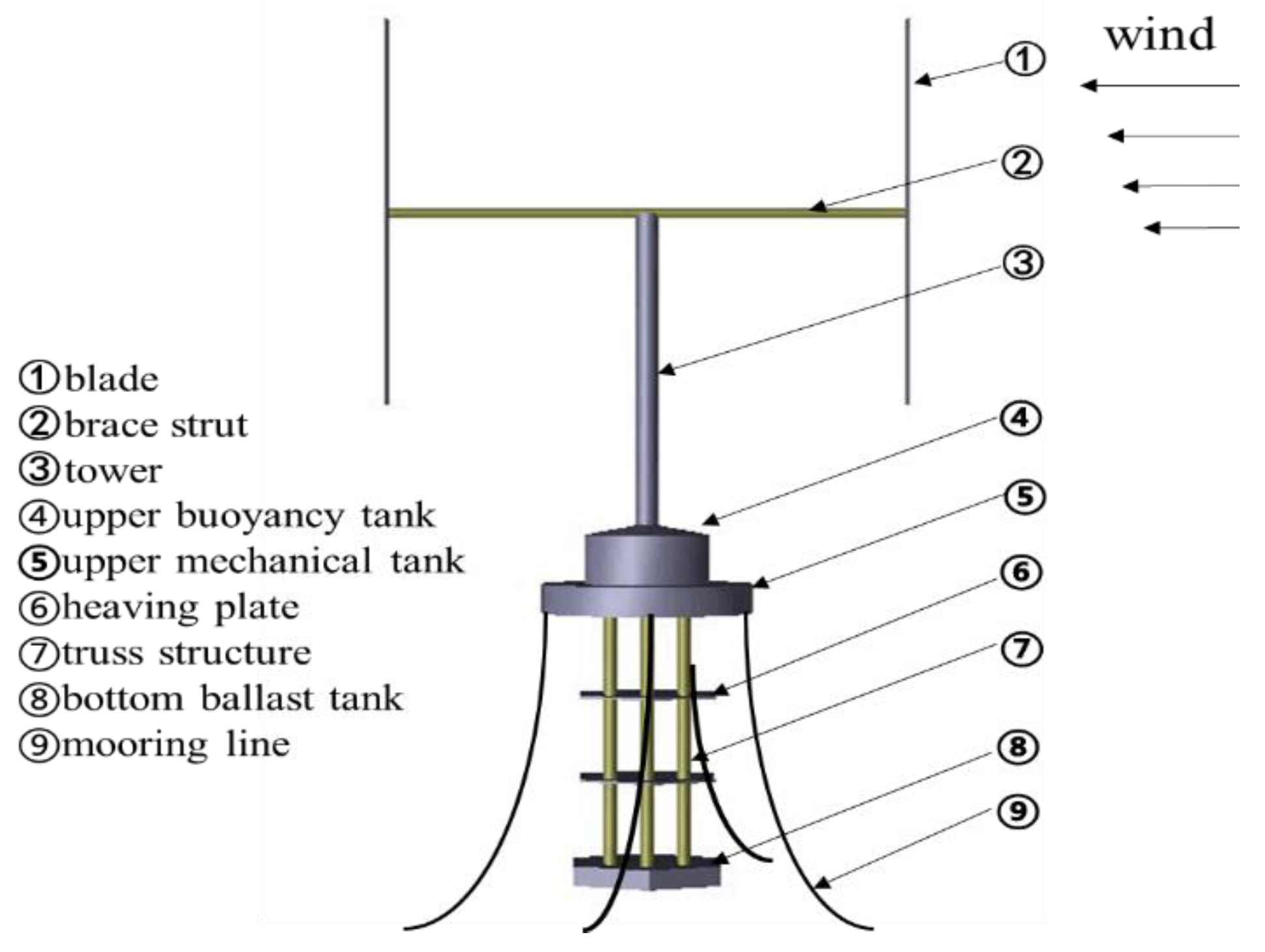

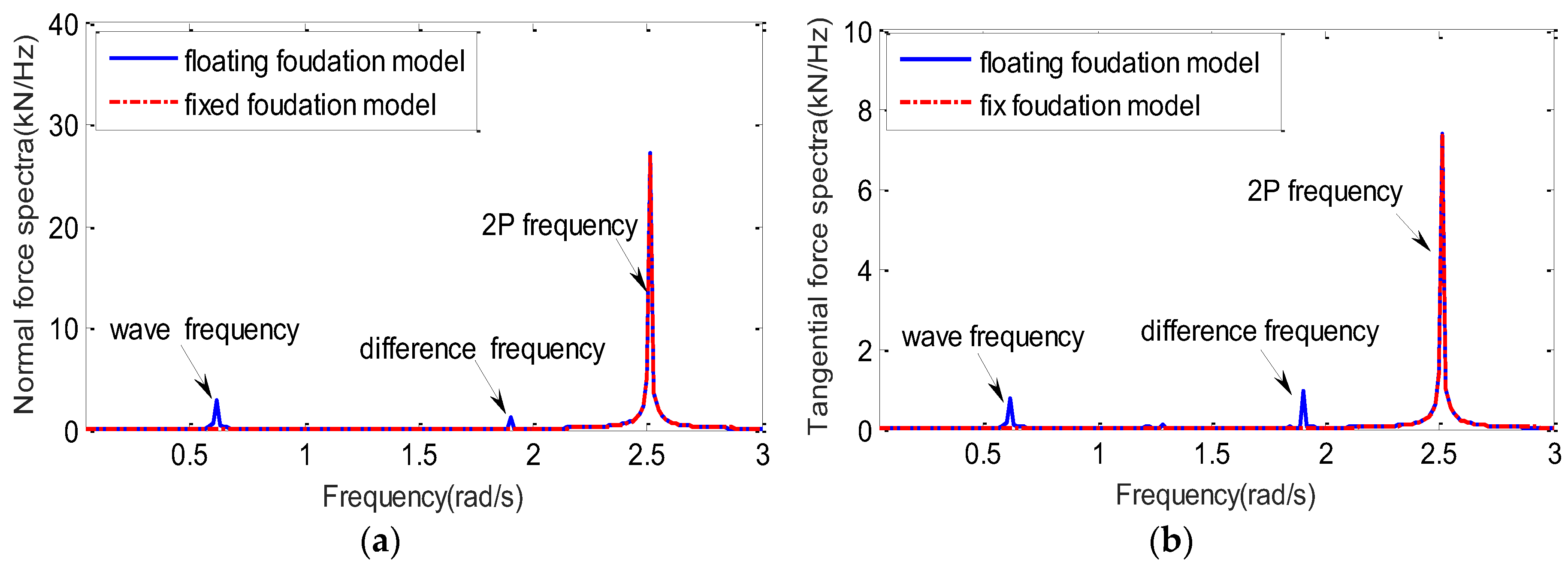

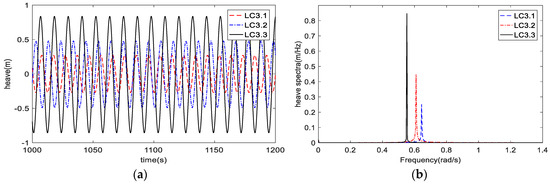

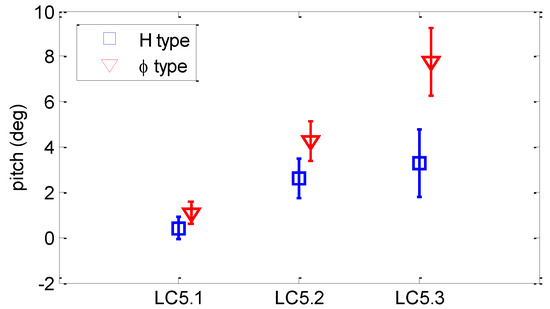

Aerodynamics and motion performance of the floating vertical wind turbine (VAWT) were studied in this paper, where the wind turbine was H-type and the floating foundation was truss spar type. Based on the double-multiple-stream-tube theory, the formulae were deduced to calculate the aerodynamic loads acting on the wind turbine considering the motions of the floating foundation. The surge-heave-pitch nonlinear coupling equations of the H-type floating VAWT were established. Aerodynamics and motion performance of a 5 MW H-type floating VAWT was studied, and the effect of the floating foundation motions on the aerodynamic loads was analyzed. It is shown that the motions of the floating foundation on the aerodynamics cannot be ignored. The motion of the H-type floating VAWT was also compared with that of the Φ-type floating VAWT: they have the same floating foundation, rated output power, mooring system and total displacement. The results show that the H-type floating VAWT has better motion performance, and the mean values of surge, heave and pitch of the H-type floating VAWT are much smaller comparing with the Φ-type floating VAWT. View Full-Text
Keywords: H-type floating VAWT; truss Spar floating foundation; coupling of aerodynamics and hydrodynamics H-type floating VAWT; truss Spar floating foundation; coupling of aerodynamics and hydrodynamics
