Appl. Sci. 2018, 8(2), 234; https://doi.org/10.3390/app8020234

Object Tracking with LiDAR: Monitoring Taxiing and Landing Aircraft

Department of Civil, Environmental and Geodetic Engineering, The Ohio State University, 470 Hitchcock Hall, 2070 Neil Ave, Columbus, OH 43210, USA
*
Author to whom correspondence should be addressed.
Received: 16 January 2018 / Revised: 31 January 2018 / Accepted: 1 February 2018 / Published: 3 February 2018
(This article belongs to the Special Issue Laser Scanning)
Full-Text   |   PDF [6757 KB, uploaded 6 February 2018]   |

Abstract

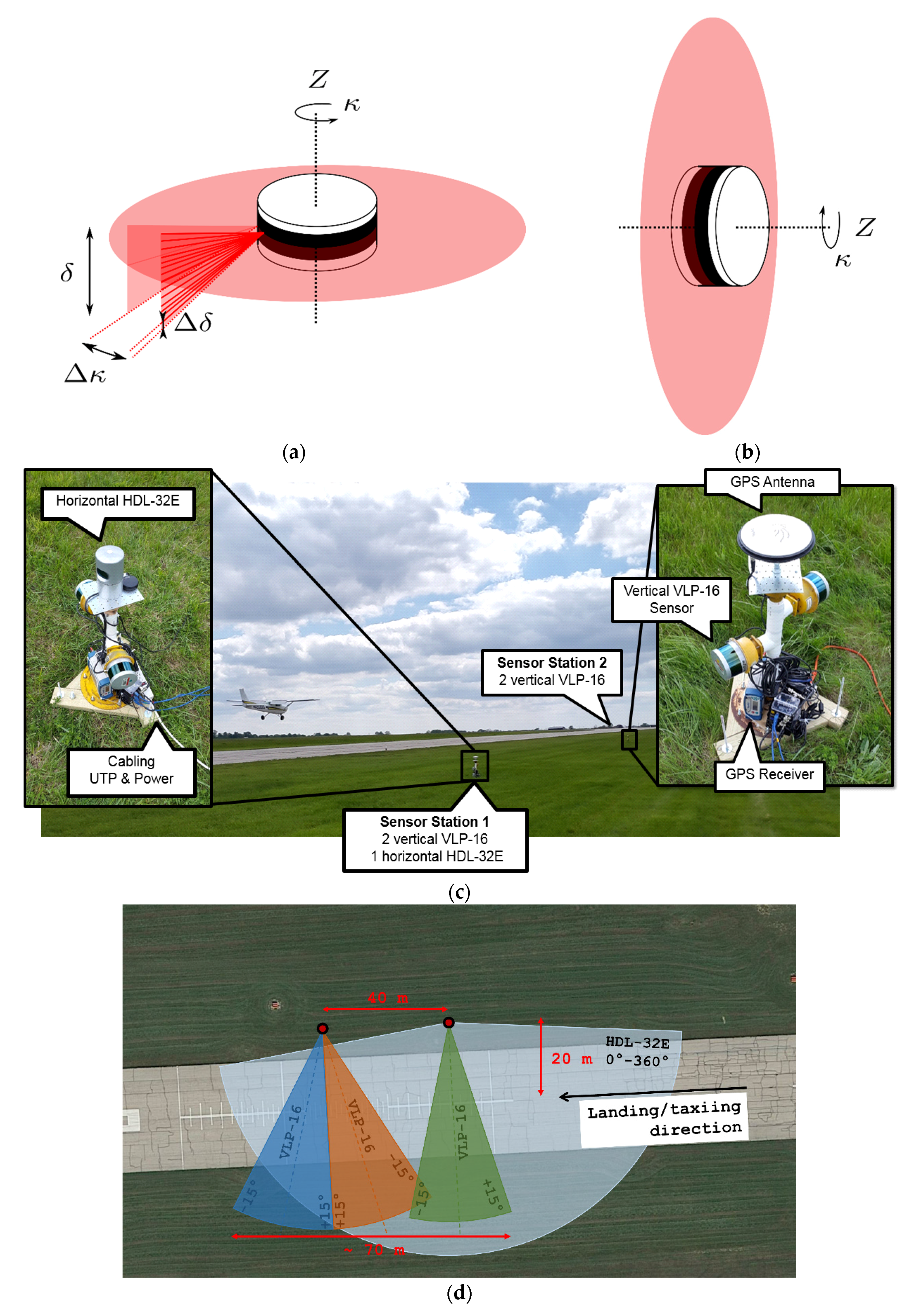

Mobile light detection and ranging (LiDAR) sensors used in car navigation and robotics, such as the Velodyne’s VLP-16 and HDL-32E, allow for sensing the surroundings of the platform with high temporal resolution to detect obstacles, tracking objects and support path planning. This study investigates the feasibility of using LiDAR sensors for tracking taxiing or landing aircraft close to the ground to improve airport safety. A prototype system was developed and installed at an airfield to capture point clouds to monitor aircraft operations. One of the challenges of accurate object tracking using the Velodyne sensors is the relatively small vertical field of view (30°, 41.3°) and angular resolution (1.33°, 2°), resulting in a small number of points of the tracked object. The point density decreases with the object–sensor distance, and is already sparse at a moderate range of 30–40 m. The paper introduces our model-based tracking algorithms, including volume minimization and cube trajectories, to address the optimal estimation of object motion and tracking based on sparse point clouds. Using a network of sensors, multiple tests were conducted at an airport to assess the performance of the demonstration system and the algorithms developed. The investigation was focused on monitoring small aircraft moving on runways and taxiways, and the results indicate less than 0.7 m/s and 17 cm velocity and positioning accuracy achieved, respectively. Overall, based on our findings, this technology is promising not only for aircraft monitoring but for airport applications. View Full-Text
Keywords: mobile LiDAR; object tracking; entropy minimization; object recognition; airport safety mobile LiDAR; object tracking; entropy minimization; object recognition; airport safety
