Waveguided Approach for Difference Frequency Generation of Broadly-Tunable Continuous-Wave Terahertz Radiation

1
INO, Istituto Nazionale di Ottica-CNR, Largo E. Fermi 6, I-50125 Firenze, Italy
2
LENS, European Laboratory for Nonlinear Spectroscopy, Via N. Carrara 1, Sesto, I-50019 Fiorentino, Italy
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(12), 2374; https://doi.org/10.3390/app8122374
Received: 9 October 2018 / Revised: 19 November 2018 / Accepted: 20 November 2018 / Published: 24 November 2018
(This article belongs to the Special Issue Recent Advances in Plasmonics and Nanophotonics)

Abstract

:

Featured Application

Trace gas sensing, local oscillator for astronomical heterodyne systems, high-accuracy spectroscopy.

Abstract

The 1–10 terahertz (THz) spectral window is emerging as a key region for plenty of applications, requiring not yet available continuous-wave room-temperature THz spectrometers with high spectral purity and ultra-broad tunability. In this regard, the spectral features of stabilized telecom sources can actually be transferred to the THz range by difference frequency generation, considering that the width of the accessible THz spectrum generally scales with the area involved in the nonlinear interaction. For this reason, in this paper we extensively discuss the role of Lithium Niobate (LN) channel-waveguides in the experimental accomplishment of a room-temperature continuous wave (CW) spectrometer, with μW-range power levels and a spectral coverage of up to 7.5 THz. To this purpose, and looking for further improvements, a thought characterization of specially-designed LN waveguides is presented, whilst discussing its nonlinear efficiency and its unprecedented capability to handle high optical power (107 W/cm2), on the basis of a three-wave-mixing theoretical model.

1. Introduction

The terahertz (THz) spectral window, generally considered to span from 1 to 10 THz, is nowadays crucial for plenty of normal day-to-day, as well as scientific applications, in areas that include things like homeland security [1], quality inspection of industrial products [2,3], and biomedicine [4]. Among these applications, high-precision molecular spectroscopy and trace gas sensing, requiring powerful and widely tunable continuous wave (CW) sources, play a central role [5]. Indeed, in many cases, the chemical composition of gas mixtures of a very practical interest can be retrieved by observing only a limited part of their spectrum, as long as it contains a sufficient amount of intense transitions serving as a signature for the molecules of interest.
For example, in measuring the concentration of specific chemical species on Earth and astrophysical environments, crucial information can be retrieved about global warming mechanisms [6], star and galaxies formation processes [7], and planetary atmospheres’ composition [8].
Because of their strong permanent dipole moment, the rotational transitions of many light molecules, lying in the THz spectral range, are usually comparable in intensity with the strongest ro-vibrational transitions in the mid-IR fingerprint region [9]. Furthermore, the low sensitivity to diffusion losses by micrometric powders and the Doppler linewidths, being one order of magnitude smaller with respect to the mid-IR transitions, make the THz window particularly suitable for the identification of complex line patterns and for in situ measurements [10].
Anyway, despite its undoubted usefulness, the THz interval is still relatively unexploited as a “fingerprint region”. This fact is mainly due to the lack of room-temperature and high-power source, able to combine the narrow-linewidth emission required for high-precision spectroscopy (typically in the order of a few kHz) with a spectral coverage and tunability extended to the whole 1–10 THz frequency range.
Actually, emblematic and extreme examples are represented by tunable far-IR lasers (Tu-FIR) which date back to the mid-80s [11,12,13] and, on the other hand, by THz quantum cascade lasers (THz-QCLs) [14], whose specific features are, in some ways, complementary. Indeed, THz-QCLs are capable of providing THz radiation in the milliwatt range by a cascade of intra-sub-band laser transitions, but their spectral coverage is generally limited to a few percent of the emission frequency [15], which is fixed by the specific device design. Remarkably, at the state-of-the-art level, the maximum frequency achievable with CW THz-QCLs (requiring cryogenic cooling to operate) is limited to 4.75 THz [16,17]. Conversely, an emission of up to 9 THz has been demonstrated with Tu-FIR lasers, taking advantage of a difference frequency generation (DFG) approach [18]. Despite the very low generated power (generally tens of nW, requiring liquid-He cooled detectors), such a wide-tunability approach has produced, in about fifteen years, plenty (several tens) of significant spectroscopic results (e.g., [6,18,19,20,21,22,23]). However, after a comparable time-span, THz QCLs have provided mostly proof-of-principle spectroscopic results [10,24,25,26] to date, thus paying the price for insufficient tunability in regard to spectroscopy.
Nonlinear generation of THz radiation by DFG in nonlinear ferroelectric materials, like Lithium Tantalite [27] and Lithium Niobate (LN), provides a suitable alternative with respect to the previous approaches. Indeed, DFG-based setups have been demonstrated to be capable of transferring some of the most interesting features of visible and near-IR sources directly in the far-IR part of the electromagnetic spectrum. For instance, generation of ultrashort THz pulses and comb-like THz emission has been demonstrated by optical rectification (OR) of femtosecond pulses provided by commercial mode-locked lasers [28,29]. On the other hand, the DFG approach can be exploited to transfer the spectral purity and wide mode-hop-free tunability characteristics of the currently available telecom laser systems to the THz range.
Generally, the THz frequency range, achievable with a DFG setup, coincides with the phase-matching (PM) bandwidth of the process, which, in accordance with Heisenberg’s uncertainty principle, is limited by the finite interaction area within the nonlinear material [30]. Several different PM geometries have so far been adopted, including tilted-front-pulse generation [31], collinear and non-collinear quasi-PM in periodically-poled LN crystals [29], and Cherenkov generation [32,33]. The intensity-dependent self-beam-defocusing effects in LN [34,35], incompatible with the achievement of an adequate PM, have hampered the possibility to produce broadly-tunable and spectrally pure CW THz radiation by means of bulk nonlinear crystals.
Conversely, by exploiting the confining properties of an MgO-doped LN waveguide, we recently realized an ultra-narrow-linewidth THz spectrometer capable of absolute frequency measurements of molecular transition in the whole 1–7.5 THz range [36]. The current accuracy ( ~ 10 9 ) , achieved in a direct-absorption configuration, was limited by the Doppler linewidth of the measured absorption profiles. However, improvement of the order of magnitude is possible by implementing more advanced setups [26,37]. To this purpose, higher THz power levels, in the order of a few μ W and not yet available with our source, are desirable.
The goal of this paper is to clarify the centrality of the guided-wave approach in overcoming the main difficulties of CW THz-DFG, and, at the same time, to identify a suitable strategy in order to overcome the existing criticalities, as well as to obtain, if possible, the desired power levels. To this purpose, here we provide a comprehensive characterization of the source described in [36], and we discuss its spectral coverage and efficiency on the basis of the three-coupled-wave theory.

2. Theory

DFG is a three-wave-mixing process, basically taking advantage of the anharmonic response of a nonlinear medium to an external dual frequency field. Let us consider a laser beam resulting on the superposition of two monochromatic waves at angular frequencies ω 1 and ω 2 (whose difference lies in the THz range ω T H z = ω 1 ω 2 ), where their propagation direction is indicated as x. When it passes through a non-centrosymmetric nonlinear medium, it excites a second-order polarization field P ( 2 ) , which acts as a source of new spectral components and, in particular, of a new field at angular frequency ω T H z .
In the most general picture, the three waves E ( ω 1 ) , E ( ω 2 ) , and E ( ω T H z ) are coupled by the three nonlinear wave equations:
2 E ( r , ω i ) + ω i 2 n 2 ( ω i ) c   E ( r , ω i ) = μ 0 ω i 2 P ( D F G ) ( r , ω i ) ,                         ( i = 1 ,   2 ,   T H z ) ,
where μ 0 is the magnetic permeability of the vacuum, and c / n ( ω ) is the phase velocity of the electric field Fourier component at the angular frequency ω . When the conversion efficiency is sufficiently low and the field amplitude does not vary appreciably within one wavelength (slow-varying-envelope approximation), one can assume the two optical waves to be independent on the THz one. Under these assumptions, the THz field can be described by the nonlinear equation:
d E T H z d x = i ω T H z d e f f n T H z c E 1 ( y , z ) E 2 * ( y , z ) exp ( i Δ k x ) ,
where d e f f is the effective nonlinear coefficient of the medium, and the wavevectors’ mismatch Δ k depends on the refractive indexes for the optical pump fields n p u m p = def n 1 = n 2 , the refractive index for the THz wave is n T H z , and the angle θ is formed by the emitted THz wave with respect to the x direction (see Figure 1a): Δ k = ω T H z c ( n p u m p n T H z c o s θ ) .
Assuming the two pump beams have a Gaussian shape with a r 0 radius at the 1/e level, the nonlinear wave equation can be easily integrated over the propagation length within the nonlinear medium L , leading to a nonlinear efficiency η (defined by the ratio P T H z P 1 P 2 between the THz power and the product of the pump beam powers).
η = μ 0 L 2 d e f f 2 c π 2 n T H z n p u m p 2 r 0 2 g ( ω T H z , r 0 ) s i n c 2 ( Δ k   L 2 ) ,
where:
g ( ω T H z ,   r 0 ) = ω T H z 2 exp ( ω T H z 2 r 0 2 4 c 2 ( n T H z 2 n p u m p 2 ) ) .
As it can be seen, unless a perfect phase-matching condition ( Δ k = 0 ) is achieved, the THz generation process will take place only within a finite thickness of the nonlinear medium. It is given by the so-called coherence length L c o h = 2 π / Δ k , depending on the optical features of the material and on the wave vectors’ geometry. In order to overcome this problem, different techniques have so far been developed. For example, perfect phase-matching in a collinear geometry (i.e., for θ = 0 ) can be achieved by taking advantage of the velocity mismatch experienced by non-parallel-polarized pump fields in birefringent materials [38]. To maximally exploit the nonlinear properties of certain materials, a parallel arrangement of the three involved polarizations is often required. This is the case for Lithium Niobate (LN), which is one of the best-suited materials for THz DFG because of its strong nonlinearities [39,40], high photorefractive damage threshold [41,42], and small absorption coefficient, in the order of 10 4 cm 1 in the infrared spectral region [43]. In LN-based setups, a viable alternative consists of restoring a quasi-phase matching condition after each coherence length (only few tens of μ m) by introducing a periodic modulation of nonlinear susceptibility. The achievement of collinear generation schemes by means of periodically-poled (PPLN) crystals is a fundamental step in order to accomplish optical parametric oscillators [44,45] capable of THz emission with power levels in the order of tens of μ W. However, the strong THz absorption of LN [46] and the quasi-PM bandwidth limits the spectral coverage of these sources to few hundreds of GHz around a specific frequency fixed by the PPLN crystal design.
This serious drawback can be completely overcome by realizing the PM in a non-collinear emission scheme within a LN surface waveguide. Indeed, since IR light propagates faster than the THz waves ( n p u m p < n T H z ) [47,48] in such a material, a perfect PM condition can be fulfilled exactly, and a THz wave with a conical wave-front, defined by the relation:
  θ C = arccos ( n p u m p n T H z ) ,
is coherently generated along the whole crystal length. In LN, the angle θ C (called the Cherenkov angle because of the analogy with the light emission by ultra-relativistic particles) is of about 64°, requiring a cladding material with a proper prism shape to be held in optical contact with the emitting surface, in order to avoid total internal reflection of the produced THz radiation. Since the Cherenkov PM results in an infinite coherence length, it entails the experimental need to keep the IR pump beams collimated along the whole crystal length and, at the same time, overlapped on a small interaction area ( η L 2 / r 0 2 ). To this purpose, the most suitable choice is to couple the IR light with the fundamental mode of a tiny channel waveguide. Furthermore, as the waveguide is ion-planted, it lies just beneath the surface of the LN substrate, and the THz radiation can be immediately extracted, minimizing the absorption losses.
Another important advantage rising from the waveguided approach, is the reduction of the area of the interacting wave fronts. This leads to a dramatic increase in the generation bandwidth. Indeed, looking at the frequency dependence of the nonlinear efficiency entirely contained into the g function, we can see that while at the low frequencies, the efficiency scales as ω 2 , the high-frequency behavior is described by a Gaussian profile with full-width-at-half-maximum 1 / r 0 . From a physical point of view, the high-frequency cut-off can be seen as a consequence of the destructive interference between THz waves generated on the crystal surface and the ones generated at a depth of about λ T H z / 2 . Since LN possesses a refractive index of about 5.2 in the THz range, only the waves generated within a few microns below the surface will experience coherent interference.
In Figure 1b, the function g ( ω T H z , r 0 ) has been plotted for different mode radii. As it can be seen, a broadening of the achievable bandwidth and a high-frequency shift of the maximum available efficiency rapidly occurs once the mode size is reduced. For example, radiation beyond 4.5 THz, representing the current frequency limitation in CW THz QCLs, can hardly be obtained with mode dimensions exceeding 10 µm. Conversely, a beam radius smaller than 5−6 µm should, in principle, be sufficient in order to achieve nonlinear generation along the whole THz bandwidth.

3. Experimental Results and Discussion

A schematic of our experimental setup is shown in Figure 2. Two telecom laser diodes (Toptica DL Pro and MOT/DL Pro) emitting wavelengths at about 1.5   μ m provided narrow linewidth radiation (tens of kHz on a millisecond timescale), tunable over more than 10 THz by means of a stepping-motor-controlled external cavity. The two monochromatic sources seeded two distinct fiber amplifiers (A1 and A2 in Figure 2). Amplifier A1 (IPG Photonics EAR-10K-C-SF, power up to 11 W) operates between 1540   nm and 1565   nm wavelength, correspondingly to a tunability of about 3 THz. For the other amplifier (A2), two models can be used, operating in two different narrow bands: 1573 1577   nm (IPG Photonics EAR-7K-1575-SF, power up to 7 W) and 1603 1607   nm (IPG Photonics EAR-3K-1605-SF, power up to 3 W), respectively. The two available combinations allow for generation in the 0.97–4.57 THz range and in the 4.54–8.12 THz range, respectively, while the DFG process transfers the spectral properties of the seed telecom lasers to the THz domain.
The two amplified laser beams are overlapped by a non-polarizing beam splitter and focalized on the input facet of a 5% MgO-doped LN crystal plate (HCP Photonics) by means of a 4 mm focal lens. The crystal plate, having a size of 5 × 8 × 10 mm 3 , contains two planar waveguides (not confining light in the z direction) and nine channel waveguides, ion-planted on the whole of the side which is 1 cm long.
The THz radiation, extracted by means of a 45° cut, high-resistivity silicon (HR-Si) prism, is collimated by a cylindrical mirror and focalized on a room-temperature, Golay-type detector (Tydex GC-1P) with a noise-equivalent power of about 10 10 W H z at 10 Hz, and with a calibrated responsivity of 20 kV/W. A 10 Hz mechanical modulation on one of the pump beams, and a fast detector (an InGaAs photodiode with 150 MHz bandwidth—Thorlabs PDA10CF-EC) placed at the waveguide output allowed us to achieve real-time monitoring of the coupled mode powers P 1 and P 2 , and retrieve the nonlinear generation efficiency.

3.1. Waveguide Characterization and Power Handling

Knowledge of the geometrical parameters describing the intensity distribution of the guided fields, related to the refractive index gap Δ n between the core of the nonlinear waveguide and the bulk LN crystal, is crucial for estimation of both the spectral coverage of the CW source (see Equations (3) and (4)) and the maximum IR power available for frequency down-conversion. Indeed, the generation of broadly tunable CW THz radiation, with power levels allowing room-temperature detection, implies the IR pump fields’ intensity in the order of I 10 7   W / cm 2 . In these conditions, third-order nonlinear susceptibility and extrinsic defects in the material commonly trigger thermo-optic (TOE) and photo-refractive (PRE) effects, inducing self-defocusing of the pump beams and hampering the achievement of DFG phase-matching [35]. Since the self-defocusing is caused by an intensity-dependent negative modulation of the refractive index ( Δ n ( I ) < 0 ) between the center and peripheral rays of the Gaussian IR mode, the waveguide refractive index gap has to be larger than | Δ n ( I ) | .
In order to measure the size of the guided mode, the crystal plate containing the surface waveguides, held by a metallic support, is mounted on a 3 axis platform (Thorlabs MAX313D) allowing a 1 µm accuracy in the positioning of the waveguide input facet with respect to the incoming beam axis. Referring to Figure 1a and Figure 3b, we will indicate the propagation direction as the x axis, coinciding with the side of the crystal that is 1 cm long. The plane containing the input facet will be indicated as yz, being the vertical z axis parallel to the extraordinary crystallographic axis. The crystal is mechanically held between a copper plate (ensuring optimal heat dissipation) on one side, and the HR-Si prism on the side containing the waveguides. When the pump fields are coupled to the waveguide, the transmitted intensity can be measured as a function of the displacement of the center of the guiding core with respect to the optical axis. Hence, the resulting spatial distribution in the yz plane will be in the form of a convolution that is integral between the intensity profile of the field I f and of the guided mode I g :
  T ( y , z ) = I f ( y ˜ , z ˜ )   I g ( y ˜ y , z ˜ z )   d y ˜ d z ˜
Generally, the guided mode intensity profile I g can undergo an exponential or a Gaussian decay at the edge of the guiding core, depending on the fabrication process [49]. In the following, we will assume for it a Gaussian profile, since the convolution integral obtained assuming an exponential decay did not reproduce our experimental data. On the contrary, as it will be shown, they are correctly reproduced by assuming a Gaussian shape for both the field intensity I f ( y , z ) = I f 0 exp ( 2 ( y 2 + z 2 ) w 0 2 ) and the guided mode I g ( y , z ) = I g 0 exp ( 2 ( y 2 r 0 y 2 + z 2 r 0 z 2 ) ) . In so doing, even the transmitted power profile will be described by a Gaussian with radii at the 1/e level:
σ j = 1 2 w 0 2 + r 0 j 2   ( j = y , z ) .
The measurement of the waist of the input beam w 0 is non-trivial. Indeed, since an optimal mode coupling requires w 0 to be of the same order of magnitude of the mode size (namely, a few microns), it cannot be measured by means of the standard knife-edge method [50]. Our approach consists in acquiring different transmission profiles for different positions of the waveguide facet with respect to the focal plane. According with the Gaussian beam propagation, the acquired profiles will be broadened, increasing the relative displacement Δ x between the two planes. The transmitted intensity radius can be expressed as:
  σ 2 = a + b ( Δ x ) 2
where the guided mode radius is related to the linear parameters a and b by:
r 0 = 2 b a b ( λ 2 π ) 2 .
Such a broadening effect can be clearly observed in the different experimental traces of Figure 3b,c, representing the transmitted profiles in the y and z directions, respectively. It must be noted that, while the Gaussian shapes obtained in the z direction are symmetric for every value of Δ x , the LN-Silicon interface implies a visible decrease in guiding capability in the y > 0 half-space. Furthermore, since only the volume corresponding to y < 0 is involved in the generation process, the data corresponding to positive values of y have not been fitted.
In Figure 3d,e, the σ 2 -parameter has been plotted as a function of the squared waist displacement Δ x 2 , while the measured waveguide parameters have been summarized in Table 1. The radii r 0 y and r 0 z of the guided mode have been obtained by substituting the fitting parameters into Equation (7), and the corresponding uncertainties have been calculated by means of the standard propagation formula. Knowledge of the intensity distribution I g allows us to estimate the refractive index gap Δ n between the guiding material and the substrate. It has been calculated on the basis of the measured geometrical parameters by applying the inverse WKB method [51]. In the weak guidance approximation ( Δ n n p u m p ), the n-gap can be obtained by evaluating the expression:
  Δ n ( y , z ) = 2 I g ( y , z ) 2 n p u m p k 0 2 I g ( y , z )
In the guiding core ( y = z = 0 ). In the previous expression, k 0 represents the free-space IR wavevector, while for n p u m p the value provided by the Sellmeier semi-empirical formula has been used [47].
The obtained result of Δ n = 0.004 has been compared with the contribution, opposite in sign, due to the thermo-optic and photo-refractive effects. These quantities have been estimated from the relations [52]:
  Δ n T O E = ( d n d T )   α   r 0 2   I k
and:
  Δ n P R E = ( n p u m p ) 5 2   r 33 ( I   2 c ε 0 ) 1 / 2
providing a contribution in the order of 10 6 and 10 4 , respectively. In the previous equations, α , k and r 33 are the absorption coefficient, the thermal conductivity, and the electro-optic coefficient of the LN crystal, respectively, whose values used for calculations are summarized in Table 2. When compared with the previous ones, the measured value Δ n predicts, for our waveguide, the capability to confine an IR intensity of up to 10 7   W / cm 2 in the guided mode.
The experimental curve, printed in blue in Figure 4a, represents the measured values of the coupled vs. incoming IR power. For the sake of clarity, these data have been compared with an analogous measurement performed by confining light in the fundamental mode of a planar waveguide (red trace in Figure 4a). Such a waveguide is characterized by the same geometrical and optical properties of the channel one, except for the radius of the beam in the non-guiding direction z , which, in this case, is r 0 z = 150   μ m. The measurements here reported show how, in the absence of a guiding structure, the coupling efficiency rapidly decreases as the input power exceeds the value of about 1 W, correspondingly to an optical energy density of 1.3 × 10 5   W / cm 2 . Conversely, using a channel-shaped waveguide, up to 3.6 W of IR power (corresponding to 10 7   W / cm 2 intensity) have been coupled to the guided mode, with a constant coupling efficiency of about 57.3%. This result demonstrates the channel waveguide to be a fundamental tool in high-power frequency down-conversion experiments.

3.2. THz Generation Efficiency and Spectral Coverage

The generation bandwidth achieved by our CW THz source has been investigated by tuning the wavelength (i.e., the frequency ω 1 ) of one of the laser telecom diodes along the 1540–1565 nm operational bandwidth of the A1 amplifier, while the frequency ω 2 of the other laser is fixed within the A2 bandwidth. As previously discussed, two different combinations are possible, allowing us to span two different portions of the THz spectral window. Figure 4b shows two examples of these frequency scans, one for each amplifier’s configuration, demonstrating a spectral coverage extended from 1 to 7.5 THz. The first half of the curve, spanning the 1 to 4.5 THz spectral window, has been obtained by fixing λ 2 = 2 π c / ω 2 at 1575 nm and adjusting λ 1 from 1541 nm to 1563.5 nm. In this range, a maximum THz power of 0.52 µW has been measured at 4.1 THz. This value, corresponding to 3.6 W of IR power confined in the waveguide (distributed in P 1 = 1.8 W and P 2 = 1.8 W), leads to a nonlinear efficiency of η = 1.5 × 10 7   W 1 . The second part of the blue trace in Figure 4b, from 5 to 7.5 THz, has been achieved with the same λ 1 scan and setting λ 2 = 1605 nm. Here, a maximum THz power of 0.2 μ W (with P 1 = 1.8 W and P 2 = 0.75 W) has been measured at 5 THz, correspondingly, to the same nonlinear efficiency.
The operation of a room-temperature setup, spanning the entire 1–7.5 THz frequency range (i.e., almost 3 octaves and well beyond the 4.5 THz current limit of THz-QCLs) with a fraction of μ W generated power can represent a groundbreaking achievement for a number of applications. Nevertheless, some hints for further improvements can be found by comparing the experimental generation curve with the expected one.
To this purpose, the nonlinear efficiency η has been calculated by numerical integration of Equation (3) over the emission angles. To this regard, given the asymmetric profile of the guided mode ( r 0 y > r 0 z ), Equation (4) has been generalized to:
  g ( ω T H z .   r 0 y , r 0 z ) = ω T H z   2 exp ( ω T H z 2   n T H z 2 4 c 2 ( r 0 y 2 sin 2 ϕ sin 2 θ + r 0 z 2 sin 2 θ cos 2 ϕ ) ) .
Since for L = 1   cm , the term s i n c 2 ( Δ k   L / 2 ) in Equation (3) is sharply peaked around Δ k = 0 , θ has simply been evaluated at the Cherenkov angle, while the integration on ϕ has been performed within the range allowed for transmission across the Si-air interface. The angular dependence has also been included to take into account the Fresnel losses at both the LN-Si and Si-air interfaces and in a multiplicative term sin 2 ϕ , in analogy with a linear dipole emission. In order to correctly reproduce the spectral profile of the measured efficiency, frequency dependence of n T H z and of the HR-Si have been considered. In particular, the dispersion curve for 5% MgO:LN has been obtained assuming the Sellmeier equation to be valid in the whole 1–8 THz spectral window, while the absorption spectrum of HR-Si has been retrieved from the THz-bridge spectral database [53]. The numerical result of such a calculation is represented by the red dashed line in Figure 4b. Despite the abundance of considered parameters, a significative discrepancy between the predicted values and measured ones can be noticed. In particular, the high frequency cut-off at 7.3 THz, limiting the achieved spectral coverage, is not reproduced by the simulation. In our opinion, such a discrepancy can be ascribed to the THz absorption in LN, which was so far neglected because the generated radiation went through a very small thickness in the surface waveguide. Remarkably, the absorption profile of MgO:LN is dominated by a transverse-optical phonon resonance centered at 7.5 THz, being strongly dependent on crystal temperature and the MgO-doping concentration. In order to include such an effect in our simulation, the absorption coefficient has been calculated by combining the four-resonances phonon-polariton dispersion model developed by Bakker et al. [54], with the measured parameters provided by Unferdorben et al. for 6.1% MgO:LN at room temperature [46].
A significant improvement in the matching between the predicted and observed efficiency is represented by the red solid curve in Figure 4b. This suggests that the presence of the phonon mode in MgO:LN plays a dominant role, limiting the maximum achievable spectral coverage of our source, even for less than 10 μ m THz propagation within the nonlinear medium. A residual discrepancy at the higher frequencies can still be noticed. In our opinion, this could be ascribed to the presence of a thin air gap Δ between the waveguide surface and the silicon prism. Indeed, since the Cherenkov angle is not sufficient to allow for THz transmission at the LN-air interface, in this case the amplitude of the extracted THz wave would be attenuated by an exponential factor e β Δ , where the cut-off parameter increases as β n T H z 2 ω T H z [55]. In our setup, the high IR power levels used in the THz generation process hamper the possibility to use an additional matching material between the LN crystal and the prism. For this reason, we are not comfortable in providing a quantitative value for the cut-off frequency, the Δ parameter being substantially unknown. It is important to stress that, in principle, even an air gap in the order of a few hundreds of nm could be sufficient to justify both the high-frequency limitation and the overall efficiency of the CW THz source.
The previous analysis suggests considerable room for improvement, both in terms of absolute THz power and of spectral coverage. In particular, the dimensions of the optical guiding structure allow for a PM bandwidth as wide as 1–8 THz, that can be further enhanced by optimizing the optical contact between the waveguide surface and the HR-Si prism. At the same time, the phonon-induced THz absorption can be minimized by inducing a fast thermo-electric heat dissipation of the LN crystal, preserving the room-temperature operation of our source.

4. Conclusions

In this work, the central role of nonlinear optical waveguides in the Cherenkov generation of a broadly tunable CW THz radiation has been extensively discussed. In particular, a comprehensive experimental characterization of a MgO:LN waveguide has been carried out, and its capabilities to achieve unprecedented optical power confinement (with an intensity in the order of 10 7   W / cm 2 ) have been demonstrated. Moreover, the analytical expression for the nonlinear generation efficiency has been derived on the basis of a general three-coupled-waves model. Such a calculation, combined with the guided mode-size experimental measurement, provided a close comparison between the experimental generation curve and the simulated one. In this way, the main technical criticalities and possible improvements of our CW THz source have been pointed out, suggesting a phonon-induced absorption and low extraction efficiency at the LN-Si interface as the main causes of the frequency roll-off and limitations in THz power.
The measurements carried out in this work also suggest that our source, in principle, could emit several microwatts of CW THz power, by optimizing the waveguide heat dissipation (through a simple thermo-electric cooling system) and surface-matching with the cladding substrate. The achievement of these power levels, fostering more sophisticated sub-Doppler spectroscopic setups, would represent a breakthrough for THz science, opening the way to measurements of unprecedented accuracy in the 1–8 THz range.

Author Contributions

Conceptualization, P.D.N.; methodology, M.D.R. and L.C.; software, M.D.R., L.C. and S.B.; formal analysis, M.D.R. and L.C.; investigation, M.D.R., L.C. and S.B.; data curation, M.D.R.; original draft preparation, M.D.R.; review and editing, L.C., S.B. and P.D.N.; visualization, M.D.R.; supervision, P.D.N.

Acknowledgments

Authors would like to acknowledge support from: European Union FET-Open grant 665158 “Ultrashort Pulse Generation from Terahertz Quantum Cascade Lasers”—ULTRAQCL Project; European ESFRI Roadmap “Extreme Light Infrastructure”—ELI Project; European Commission–H2020 Laserlab-Europe, EC grant agreement number: 654148.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Federici, J.F. THz imaging and sensing for security applications-explosives, weapons and drugs. Semicond. Sci. Technol. 2005, 20, 266–280. [Google Scholar] [CrossRef]
  2. Mittleman, D.M.; Jacobsen, R.H.; Nuss, M.C. T-ray imaging. IEEE J. Sel. Top. Quantum Electron. 1996, 2, 679–692. [Google Scholar] [CrossRef]
  3. Joerdens, C. Detection of foreign bodies in chocolate with pulsed terahertz spectroscopy. Opt. Eng. 2008, 47. [Google Scholar] [CrossRef]
  4. Locatelli, M.; Ravaro, M.; Bartalini, S.; Consolino, L.; Vitiello, M.S.; Cicchi, R.; de Natale, P. Real-time terahertz digital holography with a quantum-cascade-laser. Sci. Rep. 2015, 5, 13566. [Google Scholar] [CrossRef] [PubMed]
  5. Consolino, L.; Bartalini, S.; de Natale, P. Terahertz Frequency Metrology for Spectroscopic Applications: A Review. J. Infrared, Millim. Terahertz Waves 2017, 38, 12891315. [Google Scholar] [CrossRef]
  6. Bellini, M.; Catacchini, E.; de Natale, P.; di Lonardo, G.; Fusina, L.; Inguscio, M. Coherent FIR spectroscopy of molecules of atmospheric interest. Infrared Phys. Technol. 1995, 36, 37–44. [Google Scholar] [CrossRef]
  7. Pagani, L.; Herpin, F.; Gerin, M.; Encrenaz, P.J. Herschel and the TeraHertz sky. Comptes Rendus Phys. 2012, 13, 5–13. [Google Scholar] [CrossRef]
  8. Webster, C.R.; Mahaffy, P.R. Determining the local abundance of Martian methane and its13C/12C and D/H isotopic ratios for comparison with related gas and soil analysis on the 2011 Mars Science Laboratory (MSL) mission. Planet. Space Sci. 2011, 59, 2–3. [Google Scholar] [CrossRef]
  9. de Lucia, F.C. The submillimeter: A spectroscopists view. J. Mol. Spectrosc. 2010, 261, 1–17. [Google Scholar] [CrossRef]
  10. Consolino, L.; Bartalini, S.; Beere, H.E.; Ritchie, D.A.; Vitiello, M.S.; DeNatale, P. THz QCL based cryogen-free spectrometer for in Situ trace gas sensing. Sensors 2013, 13, 3331–3340. [Google Scholar] [CrossRef] [PubMed]
  11. Evenson, K.M.; Jennings, D.A.; Petersen, F.R. Tunable far-infrared spectroscopy. Appl. Phys. Lett. 1984, 44, 576–578. [Google Scholar] [CrossRef]
  12. Nolt, I.G.; Radostitz, J.V.; di Lonardo, G.; Evenson, K.M.; Jennings, D.A.; Leopold, K.R.; Vanek, M.D.; Zink, L.R.; Hinz, A.; Chance, K.V. Accurate rotational constants of CO, HCl, and HF: Spectral standards for the 0.3- to 6-THz (10- to 200 cm−1) region. J. Mol. Spectrosc. 1987, 125, 274–287. [Google Scholar] [CrossRef]
  13. Zink, L.R.; de Natale, P.; Pavone, F.S.; Prevedelli, M.; Evenson, K.M.; Inguscio, M. Rotational far infrared spectrum of 13CO. J. Mol. Spectrosc. 1990, 143, 304–310. [Google Scholar] [CrossRef]
  14. Khler, R.; Tredicucci, A.; Beltram, F.; Beere, H.E.; Linfield, E.H.; Davies, A.G.; Ritchie, D.A.; Iotti, R.C.; Rossi, F. Terahertz semiconductor-heterostructure laser. Nature 2002, 411, 156–159. [Google Scholar] [CrossRef] [PubMed]
  15. Belkin, M.A.; Capasso, F. New frontiers in quantum cascade lasers: High performance room-temperature terahertz sources. Phys. Scr. 2015, 90, 118002. [Google Scholar] [CrossRef]
  16. Schrottke, L.; Wienold, M.; Sharma, R.; Biermann, K.; Hey, R.; Tahraoui, A.; Richter, H.; Huebers, H.W.; Grahn, H.T. Quantum-cascade lasers as local oscillators for heterodyne spectrometers in the spectral range around 4.745 THz. Semiconduct. Sci. Technol. 2013, 28, 035011. [Google Scholar] [CrossRef]
  17. Ohtani, K.; Turinkov, D.; Bonzon, C.; Benea-Chelmus, I.C.; Beck, M.; Faist, J.; Justen, M.; Graf, U.U.; Mertens, M.; Stutzki, J. High performance 4.7 THz GaAs quantum cascade lasers based on four quantum wells. New J. Phys. 2016, 18, 035011. [Google Scholar] [CrossRef]
  18. Odashima, H.; Zink, L.R.; Evenson, K.M. Tunable far-infrared spectroscopy extended to 9.1 THz. Opt. Lett. 1999, 18, 123004. [Google Scholar] [CrossRef]
  19. di Lonardo, G.; Fusina, L.; de Natale, P.; Inguscio, M.; Prevedelli, M. The pure rotation spectrum of HBr in the submillimeter-wave region. J. Mol. Spectrosc. 1991, 24, 406–407. [Google Scholar] [CrossRef]
  20. Bellini, M.; de Natale, P.; di Lonardo, G.; Fusina, L.; Inguscio, M.; Prevedelli, M. Tunable far infrared spectroscopy of 16O3 ozone. J. Mol. Spectrosc. 1992, 152, 256–259. [Google Scholar] [CrossRef]
  21. Modugno, G.; de Natale, P.; Bellini, M.; Inguscio, M.; di Lonardo, G.; Fusina, L.; Auwera, J.V. Precise measurement of molecular dipole moments with a tunable far-infrared Stark spectrometer: Application to HOCl. J. Opt. Soc. Am. B 1996, 13, 1645–1649. [Google Scholar] [CrossRef]
  22. Odashima, H.; Tachikawa, M.; Zink, L.R.; Evenson, K.M. Extension of tunable far-infrared spectroscopy to 7.9THz. Opt. Lett. 1997, 22, 822–824. [Google Scholar] [CrossRef] [PubMed]
  23. Viciani, S.; de Natale, P.; Gianfrani, L.; Inguscio, M. Magnetic-field effects on molecular transitions in the far-infrared region: Prospects for more-sensitive spectrometers. J. Opt. Soc. Am. B-Opt. Phys. 1999, 16, 301–307. [Google Scholar] [CrossRef]
  24. Bartalini, S.; Consolino, L.; Cancio, P.; de Natale, P.; Bartolini, P.; Taschin, A.; de Pas, M.; Beere, H.; Ritchie, D.; Vitiello, M.S.; et al. Frequency-comb-assisted terahertz quantum cascade laser spectroscopy. Phys. Rev. X 2014. [Google Scholar] [CrossRef]
  25. Consolino, L.; Campa, A.; Ravaro, M.; Mazzotti, D.; Vitiello, M.S.; Bartalini, S.; de Natale, P. Saturated absorption in a rotational molecular transition at 2.5 THz using a quantum cascade laser. Appl. Phys. Lett. 2015, 4, 021006. [Google Scholar] [CrossRef]
  26. Wienold, M.; Alam, T.; Schrottke, L.; Grahn, H.T.; Huebers, H.W. Doppler-free spectroscopy with a terahertz quantum-cascade-laser. Opt. Exp. 2018, 26, 315862–316870. [Google Scholar] [CrossRef] [PubMed]
  27. Yu, N.E.; Oh, M.K.; Kang, H.; Jung, C.; Kim, B.H.; Lee, K.S.; Ko, D.K.; Takekawa, S.; Kitamura, K. Continuous tuning of a narrow-band terahertz wave in periodically poled stoichiometric LiTaO3 crystal with a fan-out grating structure. Appl. Phys. Express. 2014, 7. [Google Scholar] [CrossRef]
  28. Consolino, L.; Taschin, A.; Bartolini, P.; Bartalini, S.; Cancio, P.; Tredicucci, A.; Beere, H.E.; Ritchie, D.A.; Torre, R.; Vitiello, M.S.; et al. Phase-locking to a free-space terahertz comb for metrological-grade terahertz lasers. Nat. Commun. 2012, 3, 1040. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Huillier, J.A.L.; Torosyan, G.; Theuer, M.; Rau, C.; Avetisyan, Y.; Beigang, R. Generation of THz radiation using bulk, periodically and aperiodically poled lithium niobate-Part 2: Experiments. Appl. Phys. B Lasers Opt. 2007, 86, 197–208. [Google Scholar] [CrossRef]
  30. Huillier, J.A.L.; Torosyan, G.; Theuer, M.; Rau, C.; Avetisyan, Y.; Beigang, R. Generation of THz radiation using bulk, periodically and aperiodically poled lithium niobate-Part 1: Theory. Appl. Phys. B Lasers Opt. 2007, 86, 185–196. [Google Scholar] [CrossRef]
  31. Palfalvi, L.; Fulop, J.A.; Almasi, G.; Hebling, J. Novel setups for extremely high power single-cycle terahertz pulse generation by optical rectification. Appl. Phys. Lett. 2008, 92, 171107. [Google Scholar] [CrossRef]
  32. Theuer, M.; Torosyan, G.; Rau, C.; Beigang, R.; Maki, K.; Otani, C.; Kawase, K. Efficient generation of Cherenkov-type terahertz radiation from a lithium niobite crystal with a silicon prism output coupler. Appl. Phys. Lett. 2006, 88, 071122. [Google Scholar] [CrossRef]
  33. Kawase, K.; Ichino, S.; Suizu, K.; Shibuya, T. Half cycle terahertz pulse generation by prism coupled cherenkov phase-matching method. J. Infrared Millim. Terahertz Waves 2011, 32, 1168–1177. [Google Scholar] [CrossRef]
  34. Wang, J.; Zhu, B.; Hao, Z.; Bo, F.; Wang, X.; Gao, F.; Li, Y.; Zhang, G.; Xu, J.J. Thermo-optic effects in on-chip lithium niobate microdisk resonators. Opt. Exp. 2016, 24, 21869–21879. [Google Scholar] [CrossRef] [PubMed]
  35. Villarroel, J.; Carnicero, J.; Luedtke, F.; Carrascosa, M.; Cabaes, G.; Cabrera, J.M.; Alcazar, A.; Ramiro, B. Analysis of photorefractive optical damage in lithium niobate: Application to planar waveguides. Opt. Express 2010, 18, 20852–20861. [Google Scholar] [CrossRef] [PubMed]
  36. de Regis, M.; Bartalini, S.; Ravaro, M.; Calonico, D.; de Natale, P.; Consolino, L. Room-Temperature Continuous-Wave Frequency-Referenced Spectrometer up to 7.5 THz. 2018; Submitted for publication. [Google Scholar]
  37. Cazzoli, G.; Puzzarini, C. Sub-doppler resolution in the THz frequency domain: 1 kHz accuracy at 1 THz by exploiting the lamb-dip technique. J. Phys. Chem. A 2013, 117, 13759–13766. [Google Scholar] [CrossRef] [PubMed]
  38. Tanabe, T.; Suto, K.; Nishizawa, J.I.; Sasaki, T. Characteristic of terahertz-wave generation from GaSe crystals. J. Phys. D Appl. Phys. 2004, 37, 155–158. [Google Scholar] [CrossRef]
  39. Roberts, D.A. Simplified Characterization of Uniaxial and Biaxial Nonlinear Optical Crystals: A Plea for Standardization of Nomenclature and Conventions. IEEE J. Quantum Electron. 1992, 28, 2057–2074. [Google Scholar] [CrossRef]
  40. Harada, A.; Nihei, Y. Bulk periodically poled MgO-LiNbO3 by corona discharge method. Appl. Phys. Lett. 1996, 69, 2629. [Google Scholar] [CrossRef]
  41. Furuya, H.; Morikawa, A.; Mizuuchi, K.; Yamamoto, K. High-beam-quality continuous wave 3 W green-light generation in bulk periodically poled MgO:LiNbO3. Jpn. J. Appl. Phys. Part 1 2006, 45, 6704–6707. [Google Scholar] [CrossRef]
  42. Bryan, D.A.; Gerson, R.; Tomaschke, H.E. Increased optical damage resistance in lithium niobate. Appl. Phys. Lett. 1984, 44, 847. [Google Scholar] [CrossRef]
  43. Schwesyg, J.R.; Phillips, C.R.; Ioakeimidi, K.; Kajiyama, M.C.C.; Falk, M.; Jundt, D.H.; Fejer, M.M. Suppression of mid-infrared light absorption in undoped congruent lithium niobate crystals. Opt. Lett. 2010, 35, 1070–1072. [Google Scholar] [CrossRef] [PubMed]
  44. Kiessling, J.; Breunig, I.; Schunemann, P.G.; Buse, K.; Vodopyanov, K.L. High power and spectral purity continuous-wave photonic THz source tunable from 1 to 4.5THz for nonlinear molecular spectroscopy. New J. Phys. 2013, 15, 105014. [Google Scholar] [CrossRef]
  45. Sowade, R.; Breunig, I.; Mayorga, I.C.; Kiessling, J.; Tulea, C.; Dierolf, V.; Buse, K. Continuous-wave optical parametric terahertz source. Opt. Express 2009, 17, 22303–22310. [Google Scholar] [CrossRef] [PubMed]
  46. Unferdorben, M.; Szaller, Z.; Hajdara, I.; Hebling, J.; Palfalvi, L. Measurement of Refractive Index and Absorption Coefficient of Congruent and Stoichiometric Lithium Niobate in the Terahertz Range. J. Infrared Millim. Terahertz Waves 2015, 36, 1203–1209. [Google Scholar] [CrossRef]
  47. Gayer, O.; Sacks, Z.; Galun, E.; Arie, A. Temperature and wavelength dependent refractive index equations for MgO-doped congruent and stoichiometric LiNbO3. Appl. Phys. B Lasers Opt. 2008, 91, 343–348. [Google Scholar] [CrossRef]
  48. Kiessling, J.; Buse, K.; Breunig, I. Temperature-dependent Sellmeier equation for the extraordinary refractive index of 5%MgO-dopedLiNbO3 in the terahertz range. J. Opt. Soc. Am. B. 2013, 30, 950–952. [Google Scholar] [CrossRef]
  49. Schmidt, R.V.; Kaminow, I.P. Metal-diffused optical waveguide in LiNbO3. Appl. Phys. Lett. 1974, 25, 458. [Google Scholar] [CrossRef]
  50. Suzaki, Y.; Tachibana, A. Measurement of the µm sized radius of Gaussian laser beam using the scanning knife-edge. App. Opt. 1975, 14, 2809–2810. [Google Scholar] [CrossRef] [PubMed]
  51. Kaul, A.N.; Thyagarajan, K. Inverse WKB method for refractive index profile estimation of monomode graded index planar optical waveguides. Opt. Commun. 1984, 48, 313316. [Google Scholar] [CrossRef]
  52. Boyd, R.W. Nonlinear Optics, 3rd ed.; Academic Press: Orlando, FL, USA, 2008; ISBN 0123694701, 9780123694706. [Google Scholar]
  53. Gallerano, P.; Doria, A.; Giovenale, E.; Spassovsky, I. High power THz sources and applications at ENEA-Frascati. J. Infrared Millim. Terahertz Waves 2014, 35, 1724. [Google Scholar] [CrossRef]
  54. Bakker, H.J.; Hunsche, S.; Kurz, H. Investigation of anharmonic lattice vibrations with coherent phonon polaritons. Phys. Rev. B 1994, 50, 914–920. [Google Scholar] [CrossRef]
  55. Born, M.; Wolf, E. Principles of Optics: Electromagnetic Theory of Propagation, Interference and Diffraction of Light; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar] [CrossRef]

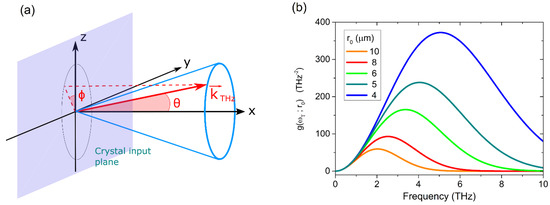

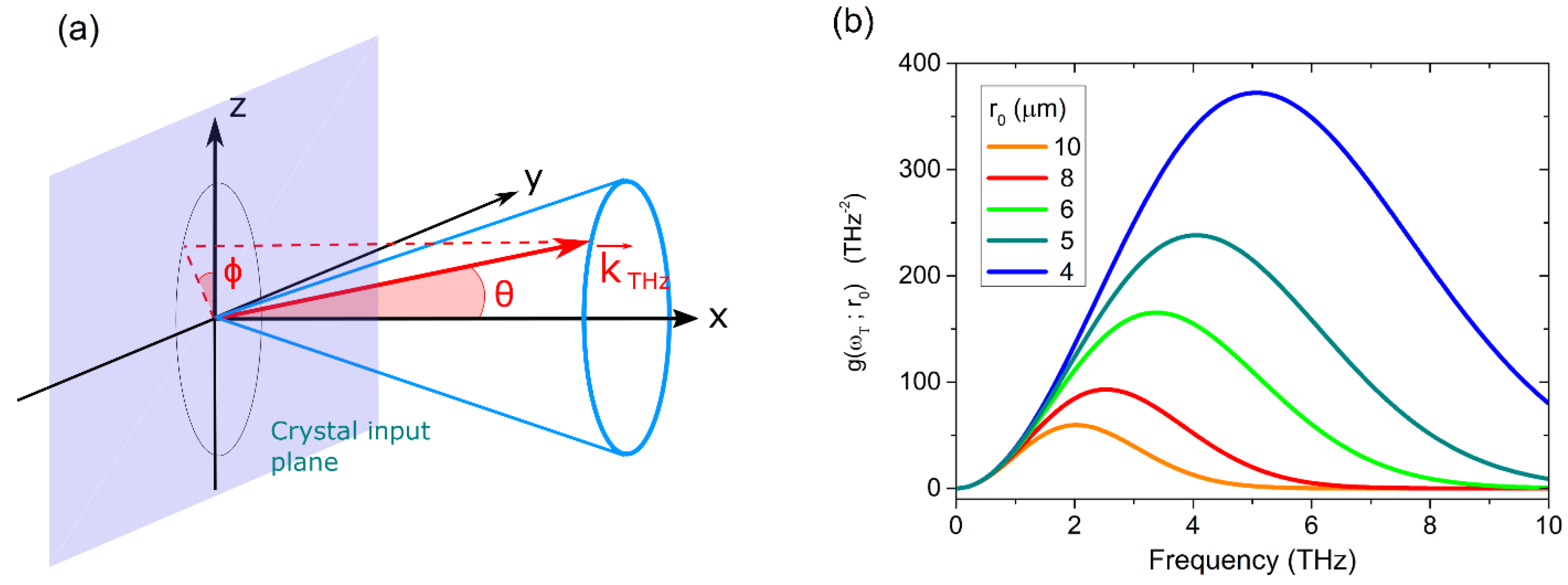

Figure 1. (a) Polar coordinates reference system with respect to the waveguide input facet. (b) Accessible THz bandwidth for a continuous wave (CW) waveguided difference frequency generation (DFG) process in MgO-doped Lithium Niobate (LN). Different lines correspond to different guided mode radii between 4   μ m and 10   μ m.
Figure 1. (a) Polar coordinates reference system with respect to the waveguide input facet. (b) Accessible THz bandwidth for a continuous wave (CW) waveguided difference frequency generation (DFG) process in MgO-doped Lithium Niobate (LN). Different lines correspond to different guided mode radii between 4   μ m and 10   μ m.
Applsci 08 02374 g001

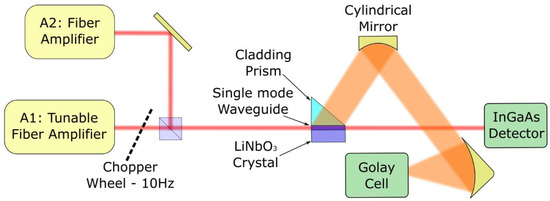

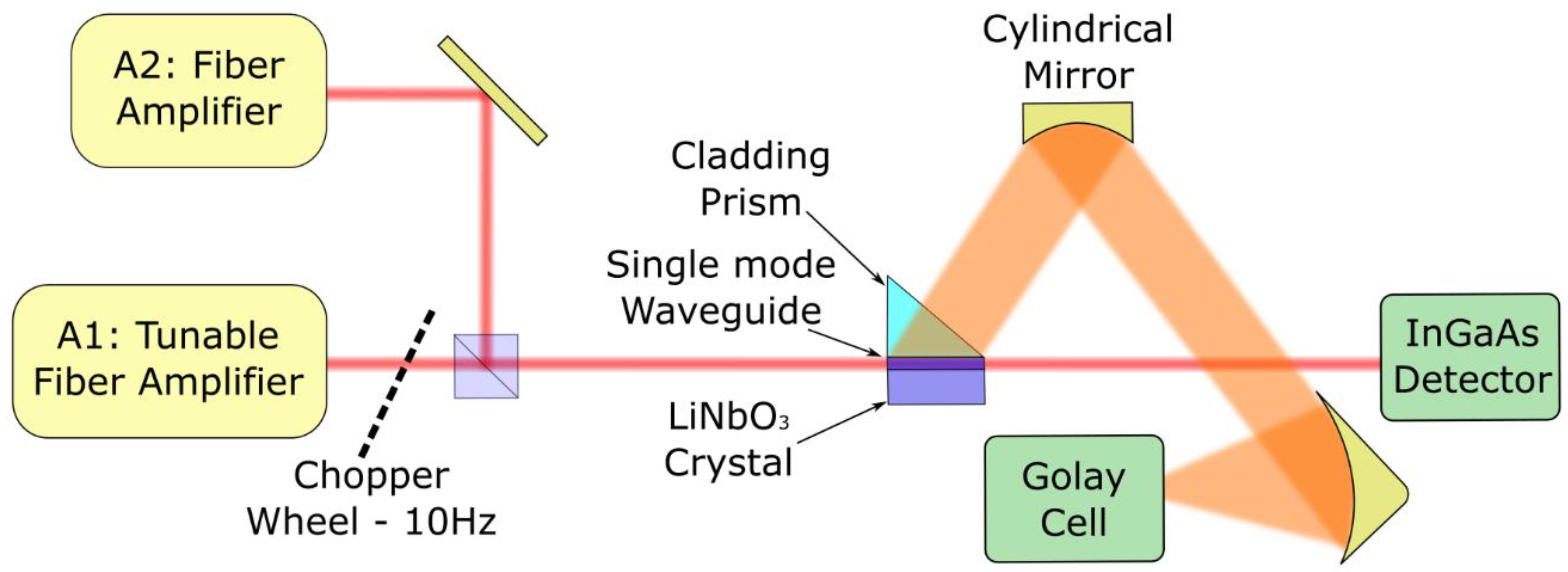

Figure 2. Schematic of the experimental setup for waveguided CW THz DFG.
Figure 2. Schematic of the experimental setup for waveguided CW THz DFG.
Applsci 08 02374 g002

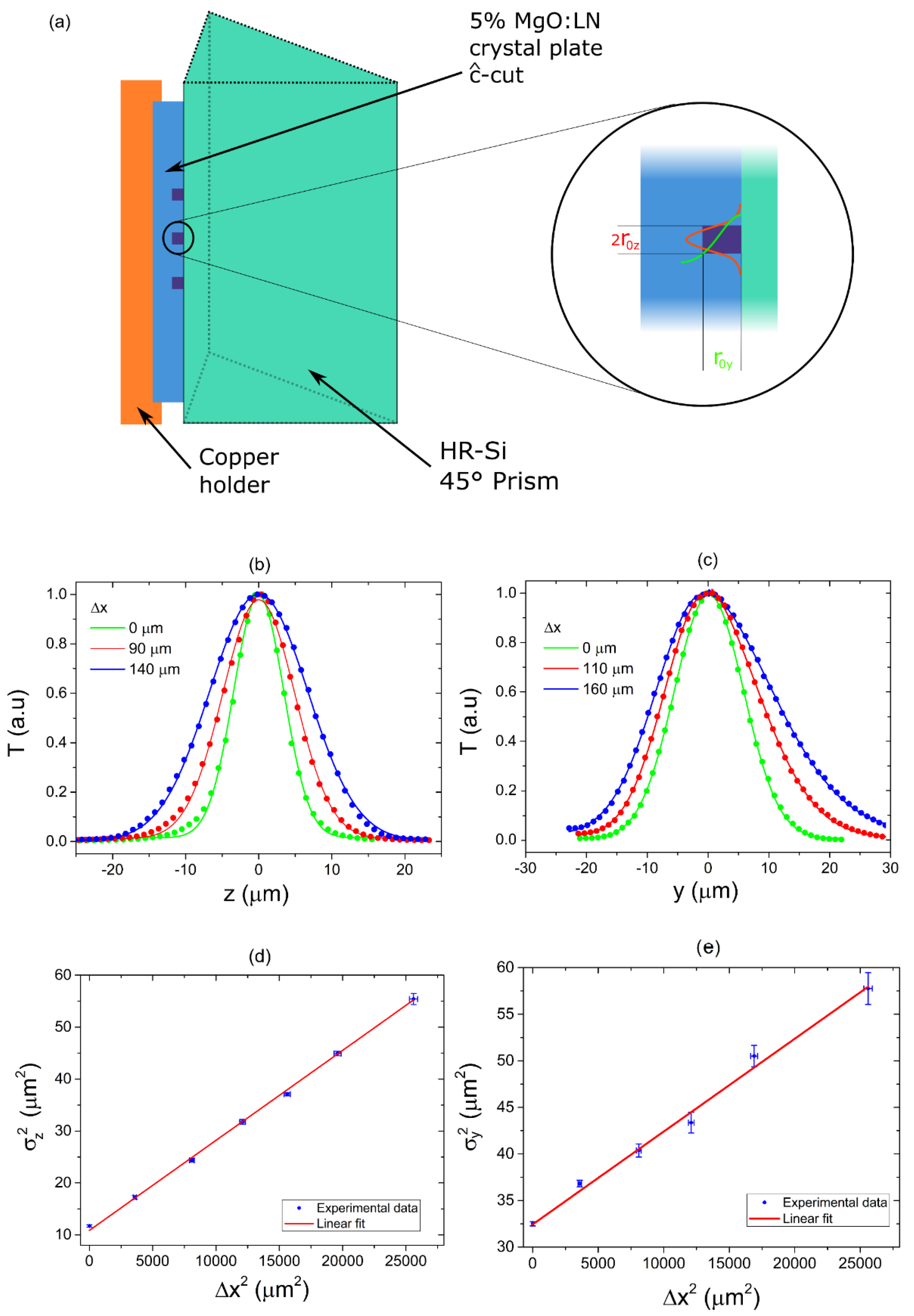

Figure 3. (a) Representation of the crystal plate containing the channel waveguides. (b,c) Transmission profiles in the z and y directions, respectively, measured for different waist displacement Δ x . (d,e) Mode Radii at the 1/e level as a function of Δ x .
Figure 3. (a) Representation of the crystal plate containing the channel waveguides. (b,c) Transmission profiles in the z and y directions, respectively, measured for different waist displacement Δ x . (d,e) Mode Radii at the 1/e level as a function of Δ x .
Applsci 08 02374 g003

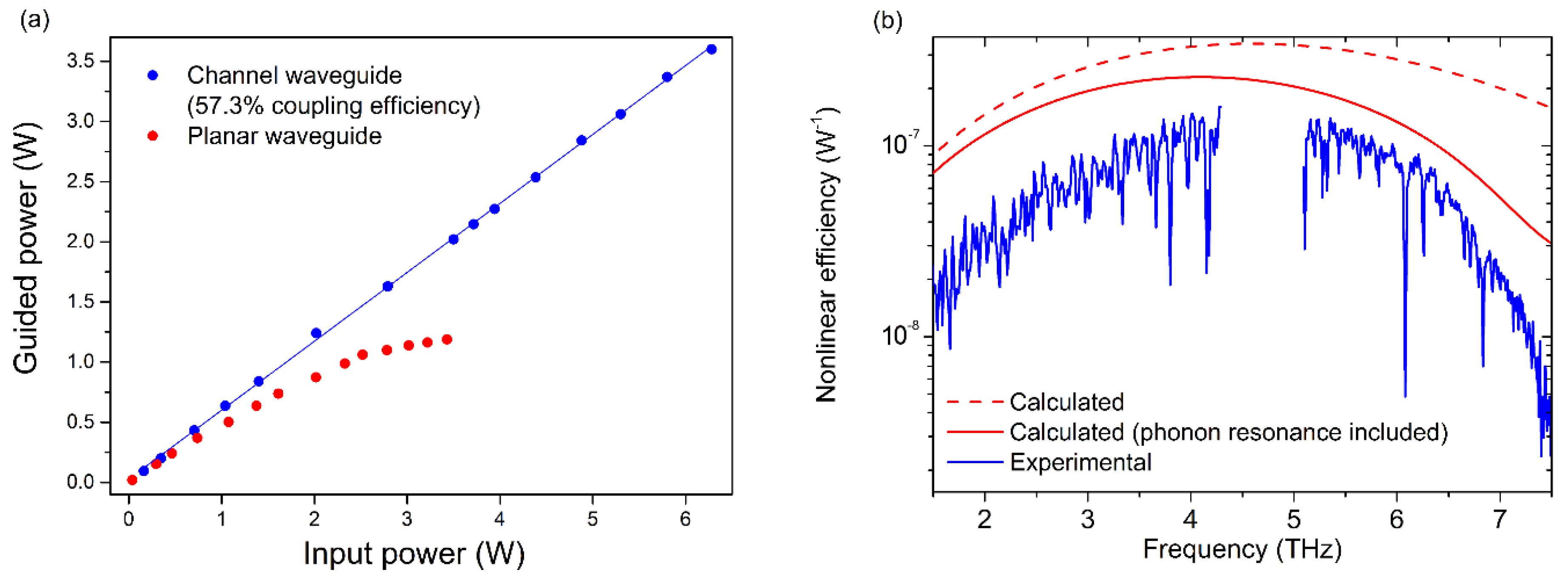

Figure 4. (a) Infrared power coupled to the guided mode as a function of the incoming power for a channel waveguide (blue) and a planar waveguide (red). (b) The red curves represent the calculated nonlinear efficiency η , with (solid) and without (dashed) the contribution of the transverse-optical phonon resonance at 7.5 THz. The blue curve is an example of the experimental nonlinear efficiency obtained with two different frequency scans. The low- and the high-frequency parts of the blue trace have been obtained by scanning the A1 amplifier from 1541 to 1563.5 nm and fixing the A2 wavelength at 1575 nm and 1605 nm, respectively.
Figure 4. (a) Infrared power coupled to the guided mode as a function of the incoming power for a channel waveguide (blue) and a planar waveguide (red). (b) The red curves represent the calculated nonlinear efficiency η , with (solid) and without (dashed) the contribution of the transverse-optical phonon resonance at 7.5 THz. The blue curve is an example of the experimental nonlinear efficiency obtained with two different frequency scans. The low- and the high-frequency parts of the blue trace have been obtained by scanning the A1 amplifier from 1541 to 1563.5 nm and fixing the A2 wavelength at 1575 nm and 1605 nm, respectively.
Applsci 08 02374 g004
Table 1. Measured waveguide parameters.
Table 1. Measured waveguide parameters.
  r 0 y     r 0 z     n p u m p   Δ n
( 8.3 ± 0.2 )   μ m ( 2.95 ± 0.27 )   μ m 2.13 ( 4 ± 1 ) × 10 3
Table 2. Characteristic parameters of LN crystal [52].
Table 2. Characteristic parameters of LN crystal [52].
  d n / d T     α   k   r 33
3 × 10 5   K 1 10 4   cm 1 5   Wm 1 K 1 30   pm / V

Share and Cite

MDPI and ACS Style

De Regis, M.; Consolino, L.; Bartalini, S.; De Natale, P. Waveguided Approach for Difference Frequency Generation of Broadly-Tunable Continuous-Wave Terahertz Radiation. Appl. Sci. 2018, 8, 2374. https://doi.org/10.3390/app8122374

AMA Style

De Regis M, Consolino L, Bartalini S, De Natale P. Waveguided Approach for Difference Frequency Generation of Broadly-Tunable Continuous-Wave Terahertz Radiation. Applied Sciences. 2018; 8(12):2374. https://doi.org/10.3390/app8122374

Chicago/Turabian Style

De Regis, Michele, Luigi Consolino, Saverio Bartalini, and Paolo De Natale. 2018. "Waveguided Approach for Difference Frequency Generation of Broadly-Tunable Continuous-Wave Terahertz Radiation" Applied Sciences 8, no. 12: 2374. https://doi.org/10.3390/app8122374

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
