# Peridynamic Analysis of Rail Squats

^{1}

^{2}

^{*}

## Abstract

**:**

## Featured Application

## Abstract

## 1. Introduction

## 2. Methods

#### 2.1. State-Based Peridynamic Theory

#### 2.2. Computational Model

#### 2.3. Model of a Rail

^{3}, Poisson’s ratio 0.3, and Young’s modulus 189.9 GPa, obtained from [40]. The LPS model is the peridynamic equivalent to the elastic material model in continuum mechanics. It has been selected because the applied loads do not cause the material to exceed its yield strength.

^{−7}m. It should have no effect on the PD model’s accuracy.

#### 2.4. Fatigue Damage Model Parameters

^{10}N/m

^{3}(equivalent to 50 MPa) has been applied to nodes within one $\delta $ of both the top and bottom, and damage is disabled for nodes within $3\delta $ from the top and bottom, to avoid unphysical behavior near the boundary conditions. Crack growth speed data only from phase II are required, so switching to phase II at low damage reduces the simulation time. The damage required for transition from phase I to phase II has been, therefore, set to 0.017. For the trial simulation, ${A}_{II}^{\prime}=1e6$ and ${m}_{II}=\mathrm{4.00.}$ An LPS material model with the same parameters as for the rail head simulation is used. The first simulation (with ${A}_{II}^{\prime}$) ran for 163,100 cycles, after which the crack turned upward, so Equation (23) is no longer accurate; the second simulation runs for 13,275,999 cycles until the crack splits in two. Figure 7 shows the simulation with ${A}_{II}$ at cycle 309,999 (top) and step 13,275,999 (bottom). The number of cycles is large because a low applied stress causes fatigue damage to increase slowly.

#### 2.5. Boundary Conditions

^{3}, from the elastic pressure (data from Figure 5f in [48]) can be computed from a modified ellipsoid’s formula:

^{3}), $x,z$ are node coordinates (m), and $h$ is the node size (m). Since loads are applied to a $1\delta $ (three node spacings) thick layer, the computed value at a position $\left(x,z\right)$ has been divided by 3 and applied to each of three nodes under this position.

## 3. Results

## 4. Discussion and Concluding Remarks

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Grassie, S.L.; Fletcher, D.I.; Gallardo Hernandez, E.A.; Summers, P. Studs: A squat-type defect in rails. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit
**2012**, 226, 243–256. [Google Scholar] [CrossRef] - Grassie, S.L. Squats and squat-type defects in rails: The understanding to date. Proc. Inst. Mech. Eng. Part F J. Rail Rapid Transit
**2012**, 226, 235–242. [Google Scholar] [CrossRef] - Remennikov, A.M.; Kaewunruen, S. A review of loading conditions for railway track structures due to train and track vertical interaction. Struct. Control Health Monit.
**2008**, 15, 207–234. [Google Scholar] [CrossRef] - Kaewunruen, S.; Remennikov, A.M. Progressive failure of prestressed concrete sleepers under multiple high-intensity impact loads. Eng. Struct.
**2009**, 31, 2460–2473. [Google Scholar] [CrossRef] - Kaewunruen, S.; Remennikov, A.M. Dynamic properties of railway track and its components: Recent findings and future research direction. Insight Non-Destr. Test. Cond. Monit.
**2010**, 52, 20–22. [Google Scholar] [CrossRef] - Carden, E.P. Vibration Based Condition Monitoring: A Review. Struct. Health Monit.
**2004**, 3, 355–377. [Google Scholar] [CrossRef][Green Version] - Kaewunruen, S.; Remennikov, A.M. On the residual energy toughness of prestressed concrete sleepers in railway track structures subjected to repeated impact loads. Electron. J. Struct. Eng.
**2013**, 13, 41–61. [Google Scholar] - Seo, J.; Kwon, S.; Jun, H.; Lee, D. Numerical stress analysis and rolling contact fatigue of White Etching Layer on rail steel. Int. J. Fatigue
**2011**, 33, 203–211. [Google Scholar] [CrossRef] - Li, Z.; Zhao, X.; Dollevoet, R.; Molodova, M. Differential wear and plastic deformation as causes of squat at track local stiffness change combined with other track short defects. Veh. Syst. Dyn.
**2008**, 46, 237–246. [Google Scholar] [CrossRef] - Li, Z.; Zhao, X.; Esveld, C.; Dollevoet, R.; Molodova, M. An investigation into the causes of squats-Correlation analysis and numerical modeling. Wear
**2008**, 265, 1349–1355. [Google Scholar] [CrossRef] - Li, Z.; Zhao, X.; Dollevoet, R. An approach to determine a critical size for rolling contact fatigue initiating from rail surface defects. Int. J. Rail Transp.
**2017**, 5, 16–37. [Google Scholar] [CrossRef] - Zhao, X.; An, B.; Zhao, X.; Wen, Z.; Jin, X. Local rolling contact fatigue and indentations on high-speed railway wheels: Observations and numerical simulations. Int. J. Fatigue
**2017**, 103, 5–16. [Google Scholar] [CrossRef] - Freimanis, A.; Kaewunruen, S.; Ishida, M. Peridynamics Modelling of Rail Surface Defects in Urban Railway and Metro Systems. Proceedings
**2018**, 2, 1147. [Google Scholar] [CrossRef] - Kaewunruen, S.; Ishida, M. In Situ Monitoring of Rail Squats in Three Dimensions Using Ultrasonic Technique. Exp. Tech.
**2016**, 40, 1179–1185. [Google Scholar] [CrossRef] - Silling, S.A. Reformulation of elasticity theory for discontinuities and long-range forces. J. Mech. Phys. Solids
**2000**, 48, 175–209. [Google Scholar] [CrossRef][Green Version] - Silling, S.A.; Epton, M.; Weckner, O.; Xu, J.; Askari, E. Peridynamic states and constitutive modeling. J. Elast.
**2007**, 88, 151–184. [Google Scholar] [CrossRef] - Hu, Y.L.L.; De Carvalho, N.V.V.; Madenci, E. Peridynamic modeling of delamination growth in composite laminates. Compos. Struct.
**2015**, 132, 610–620. [Google Scholar] [CrossRef] - Hu, Y.; Madenci, E.; Phan, N. Peridynamics for predicting damage and its growth in composites. Fatigue Fract. Eng. Mater. Struct.
**2017**, 40, 1214–1226. [Google Scholar] [CrossRef] - Kilic, B.; Agwai, A.; Madenci, E. Peridynamic theory for progressive damage prediction in center-cracked composite laminates. Compos. Struct.
**2009**, 90, 141–151. [Google Scholar] [CrossRef] - Bobaru, F.; Ha, Y.D.; Hu, W. Damage progression from impact in layered glass modeled with peridynamics. Cent. Eur. J. Eng.
**2012**, 2, 551–561. [Google Scholar] [CrossRef][Green Version] - Bobaru, F.; Zhang, G. Why do cracks branch? A peridynamic investigation of dynamic brittle fracture. Int. J. Fract.
**2016**, 196, 1–40. [Google Scholar] [CrossRef] - Perré, P.; Almeida, G.; Ayouz, M.; Frank, X. New modelling approaches to predict wood properties from its cellular structure: Image-based representation and meshless methods. Ann. For. Sci.
**2015**, 73. [Google Scholar] [CrossRef] - Gerstle, W.; Sau, N.; Sakhavand, N. On Peridynamic Computational Simulation of Concrete Structures; American Concrete Institute, ACI Special Publication: Detroit, MI, USA, 2009; pp. 245–264. ISBN 9781615678280. [Google Scholar]
- Shen, F.; Zhang, Q.; Huang, D. Damage and Failure Process of Concrete Structure under Uniaxial Compression Based on Peridynamics Modeling. Math. Probl. Eng.
**2013**, 2013, 631074. [Google Scholar] [CrossRef] - Yaghoobi, A.; Chorzepa, M.G. Meshless modeling framework for fiber reinforced concrete structures. Comput. Struct.
**2015**, 161, 43–54. [Google Scholar] [CrossRef] - De Meo, D.; Diyaroglu, C.; Zhu, N.; Oterkus, E.; Amir Siddiq, M. Modelling of stress-corrosion cracking by using peridynamics. Int. J. Hydrogen Energy
**2016**, 41, 6593–6609. [Google Scholar] [CrossRef][Green Version] - Bobaru, F.; Foster, J.T.; Geubelle, P.H.; Silling, S.A. Handbook of Peridynamic Modeling; CRC Press: Boca Raton, FL, USA, 2016; ISBN 9781482230437. [Google Scholar]
- Madenci, E.; Oterkus, E. Peridynamic Theory and Its Applications; Springer: New York, NY, USA, 2014; ISBN 978-1-4614-8464-6. [Google Scholar]
- Silling, S.A.; Lehoucq, R.B. Peridynamic theory of solid mechanics. Advances in Applied Mechanics. Adv. Appl. Mech.
**2010**, 44, 73–168. [Google Scholar] - Seleson, P.; Parks, M. On the Role of the Influence Function in the Peridynamic Theory. Int. J. Multiscale Comput. Eng.
**2011**, 9, 689–706. [Google Scholar] [CrossRef] - Silling, S.A.; Askari, E. A meshfree method based on the peridynamic model of solid mechanics. Comput. Struct.
**2005**, 83, 1526–1535. [Google Scholar] [CrossRef] - Silling, S.; Askari, A. Peridynamic Model for Fatigue Cracks SANDIA REPORT SAND2014-18590; Sandia National Laboratories: Albuquerque, NM, USA, 2014.
- Zhang, G.; Le, Q.; Loghin, A.; Subramaniyan, A.; Bobaru, F. Validation of a peridynamic model for fatigue cracking. Eng. Fract. Mech.
**2016**, 162, 76–94. [Google Scholar] [CrossRef] - Jung, J.; Seok, J. Mixed-mode fatigue crack growth analysis using peridynamic approach. Int. J. Fatigue
**2017**, 103, 591–603. [Google Scholar] [CrossRef] - Jung, J.; Seok, J. Fatigue crack growth analysis in layered heterogeneous material systems using peridynamic approach. Compos. Struct.
**2016**, 152, 403–407. [Google Scholar] [CrossRef] - Oterkus, E.; Guven, I.; Madenci, E. Fatigue failure model with peridynamic theory. In Proceedings of the ITherm 2010: 12th IEEE Intersociety Conference on Thermal and Thermomechanical Phenomena in Electronic Systems, Las Vegas, NV, USA, 2–5 June 2010. [Google Scholar]
- Baber, F.; Guven, I. Solder joint fatigue life prediction using peridynamic approach. Microelectron. Reliab.
**2017**, 79, 20–31. [Google Scholar] [CrossRef] - Parks, M.L.; Littlewood, D.J.; Mitchell, J.A.; Silling, S.A. Peridigm Users’ Guide; Digital Library: Piscataway, NJ, USA, 2012. [Google Scholar]
- Littlewood, D.J. Roadmap for Peridynamic Software Implementation; Sandia National Laboratories: Albuquerque, NM, USA, 2015.
- Scutti, J.J.; Pelloux, R.M.; Fuquen-Moleno, R. Fatigue behavior of a rail steel. Fatigue Fract. Eng. Mater. Struct.
**1984**, 7, 121–135. [Google Scholar] [CrossRef] - Ahlström, J.; Karlsson, B. Fatigue behaviour of rail steel—A comparison between strain and stress controlled loading. Wear
**2005**, 258, 1187–1193. [Google Scholar] [CrossRef] - Schone, D.; Bork, C.-P. Fatigue Investigations of Damaged Railway Rails of UIC 60 PROFILE. In Proceedings of the 18th European Conference on Fracture: Fracture of Materials and Structures from Micro to Macro Scale, Dresden, Germany, 30 August–3 September 2010. [Google Scholar]
- Eisenmann, J.; Leykauf, G. The Effect of Head Checking on the Bending Fatigue Strength of Railway Rails. In Rail Quality and Maintenance for Modern Railway Operation; Springer: Dordrecht, The Netherlands, 1993; pp. 425–433. [Google Scholar]
- Christodoulou, P.I.; Kermanidis, A.T.; Haidemenopoulos, G.N. Fatigue and fracture behavior of pearlitic Grade 900A steel used in railway applications. Theor. Appl. Fract. Mech.
**2016**, 83, 51–59. [Google Scholar] [CrossRef] - Deshimaru, T.; Kataoka, H.; Abe, N. Estimation of Service Life of Aged Continuous Welded Rail. Q. Rep. RTRI
**2006**, 47, 211–215. [Google Scholar] [CrossRef][Green Version] - Cannon, D.F.; Pradier, H. Rail rolling contact fatigue Research by the European Rail Research Institute. Wear
**1996**, 191, 1–13. [Google Scholar] [CrossRef] - Bobaru, F.; Yang, M.; Alves, L.F.; Silling, S.A.; Askari, E.; Xu, J. Convergence, adaptive refinement, and scaling in 1D peridynamics. Int. J. Numer. Methods Eng.
**2009**, 77, 852–877. [Google Scholar] [CrossRef][Green Version] - Wei, Z.; Li, Z.; Qian, Z.; Chen, R.; Dollevoet, R. 3D FE modelling and validation of frictional contact with partial slip in compression–shift–rolling evolution. Int. J. Rail Transp.
**2016**, 4, 20–36. [Google Scholar] [CrossRef] - Freimanis, A.; Kaewunruen, S.; Ishida, M. Peridynamic Modeling of Rail Squats. In Sustainable Solutions for Railways and Transportation Engineering; El-Badawy, S., Valentin, J., Eds.; GeoMEast 2018. Sustainable Civil Infrastructures; Springer: Cham, Switzerland, 2018. [Google Scholar] [CrossRef]
- Ye, L.Y.; Wang, C.; Chang, X.; Zhang, H.Y. Propeller-ice contact modeling with peridynamics. Ocean Eng.
**2017**, 139, 54–64. [Google Scholar] [CrossRef] - Tupek, M.R.; Rimoli, J.J.; Radovitzky, R. An approach for incorporating classical continuum damage models in state-based peridynamics. Comput. Methods Appl. Mech. Eng.
**2013**, 263, 20–26. [Google Scholar] [CrossRef][Green Version] - Ferdous, W.; Manalo, A.; Van Erp, G.; Aravinthan, T.; Kaewunruen, S.; Remennikov, A.M. Composite railway sleepers–Recent developments, challenges and future prospects. Comp. Struct.
**2015**, 134, 158–168. [Google Scholar] [CrossRef] - Kaewunruen, S.; Chiengson, C. Railway track inspection and maintenance priorities due to dynamiccoupling effects of dipped rails and differential track settlements. Eng. Fail. Anal.
**2018**, 93, 157–171. [Google Scholar] [CrossRef] - Kaewunruen, S.; Sussman, J.M.; Matsumoto, A. Grand challenges in transportation and transit systems. Front. Built Environ.
**2016**, 2, 4. [Google Scholar] [CrossRef]

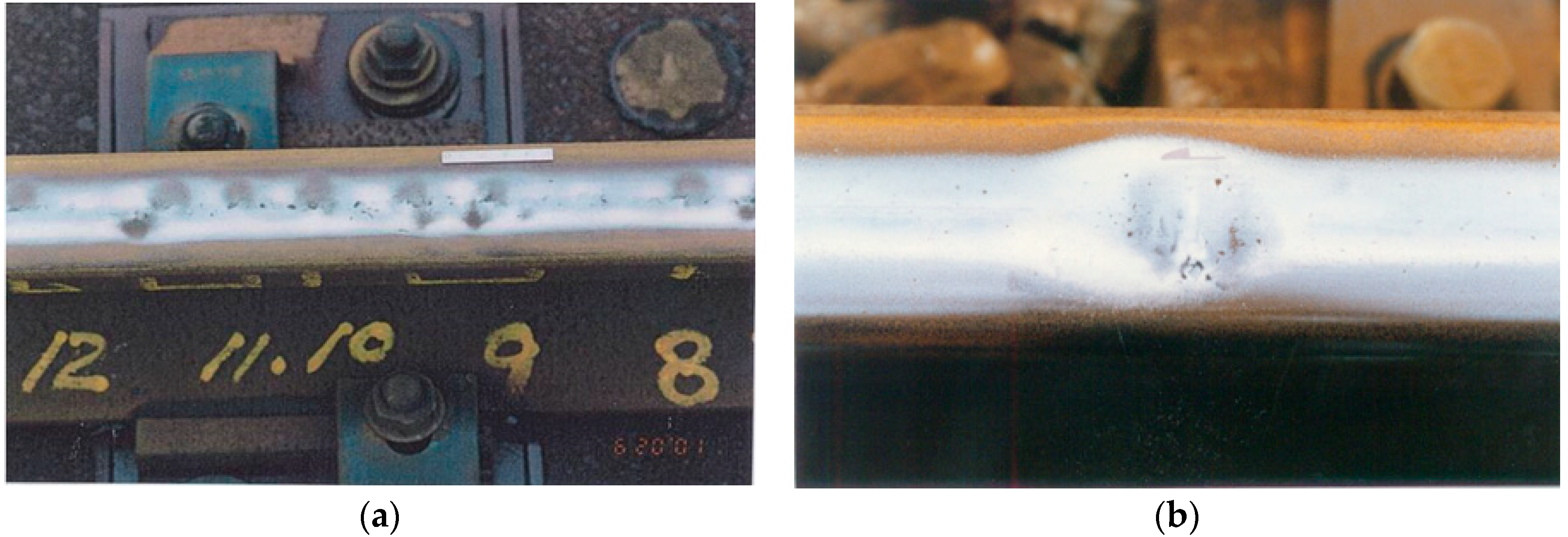

**Figure 1.**Rail surface defects: (

**a**) white etching layer (WEL)-related rail studs (multiple studs); (

**b**) a rolling contact fatigue (RCF)-related rail squat (single squat).

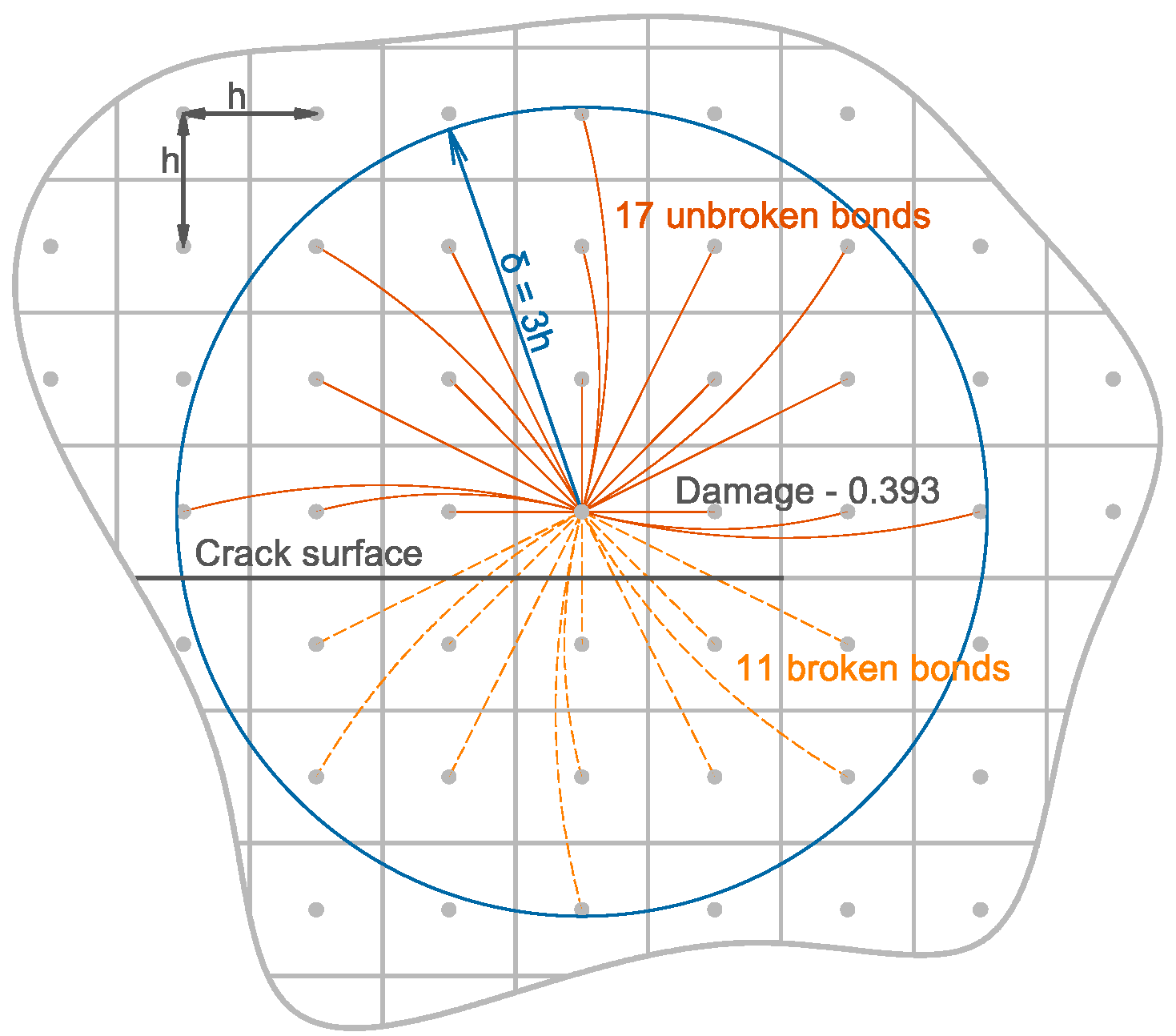

**Figure 2.**The most conservative two-dimensional (2D) case when it could be thought that a crack has appeared. Some bonds are drawn curved to avoid overlapping.

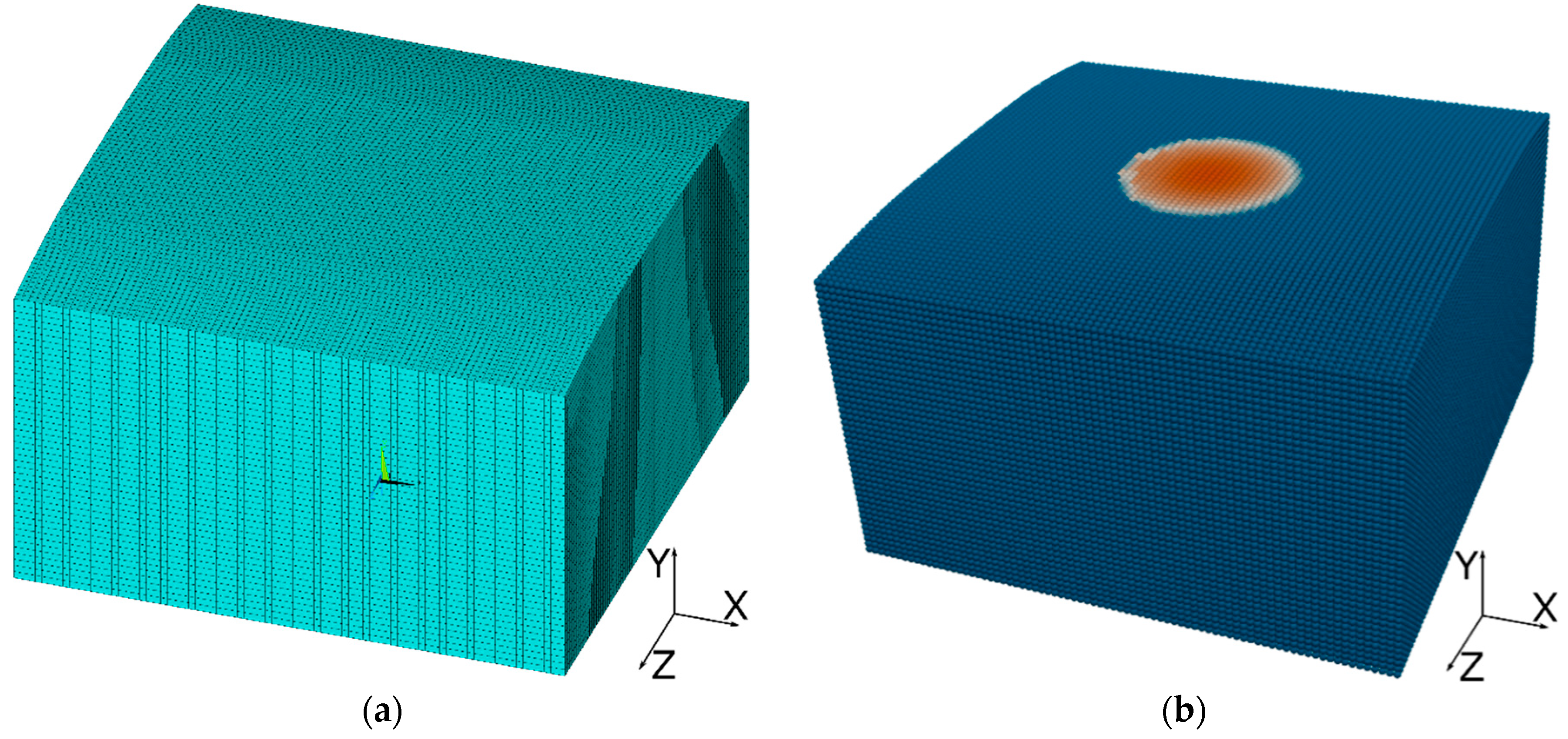

**Figure 3.**A model of a rail: (

**a**) an Ansys model with solid elements; (

**b**) peridynamic (PD) mesh-free discretization with the load area highlighted.

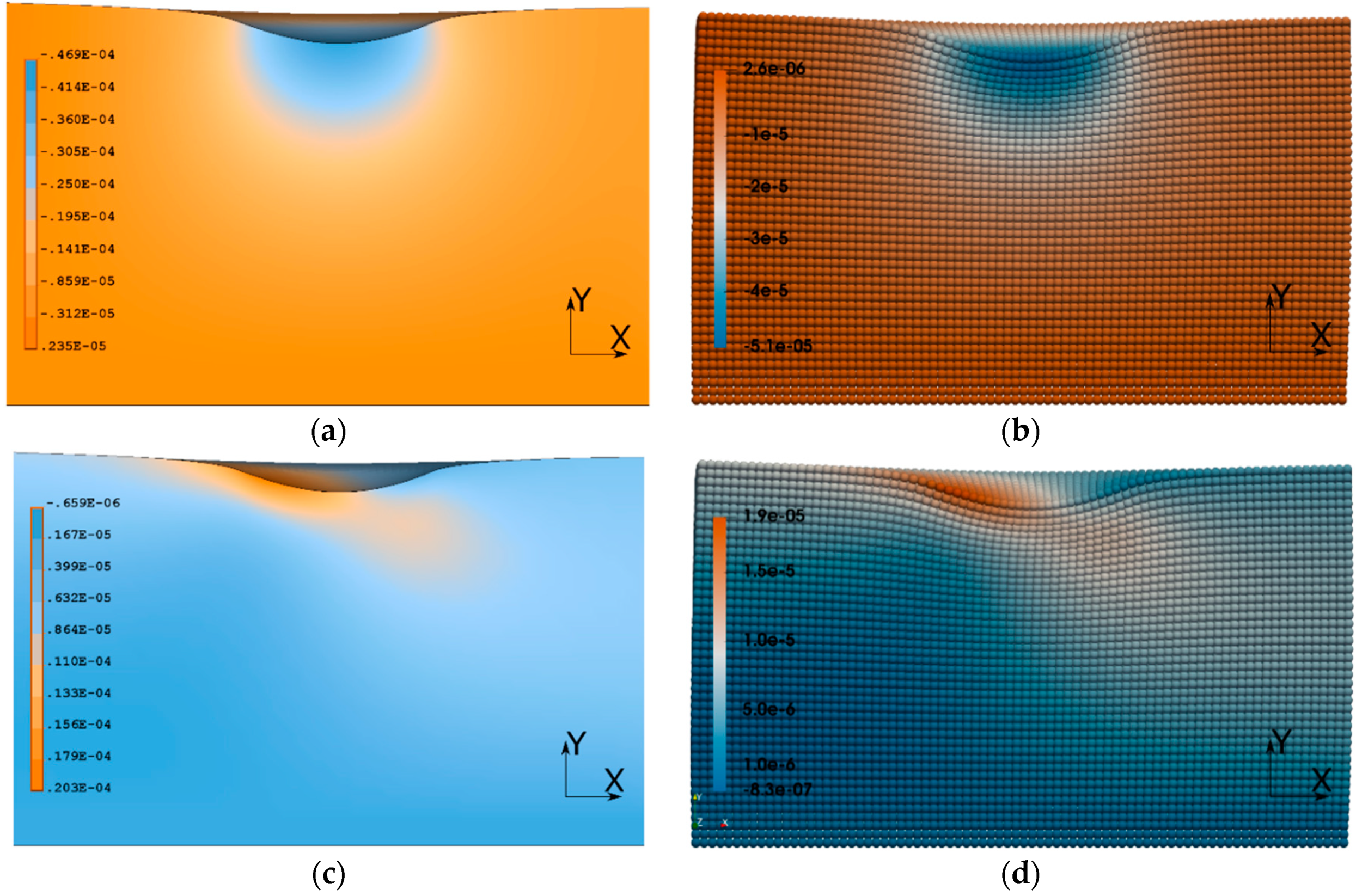

**Figure 4.**The displacement in the cross-section of an undamaged model: (

**a**) the Y displacement finite element (FE) model; (

**b**) the Y displacement PD model; (

**c**) the X displacement FE model; (

**d**) the X displacement PD model. Deformations are increased 50 times.

**Figure 7.**A single edge notch (SEN) specimen at: (

**a**) 3,099,999 cycles; (

**b**) 13,275,999 cycles. Displacements are increased 10 times.

**Figure 8.**Half of the load area divided into four parts with a tri-linear function for each part. Functions describe the shear traction stress values in the load area. The other half of the load area is a mirror image. The axis directions and node size are the same as in the rail head’s model.

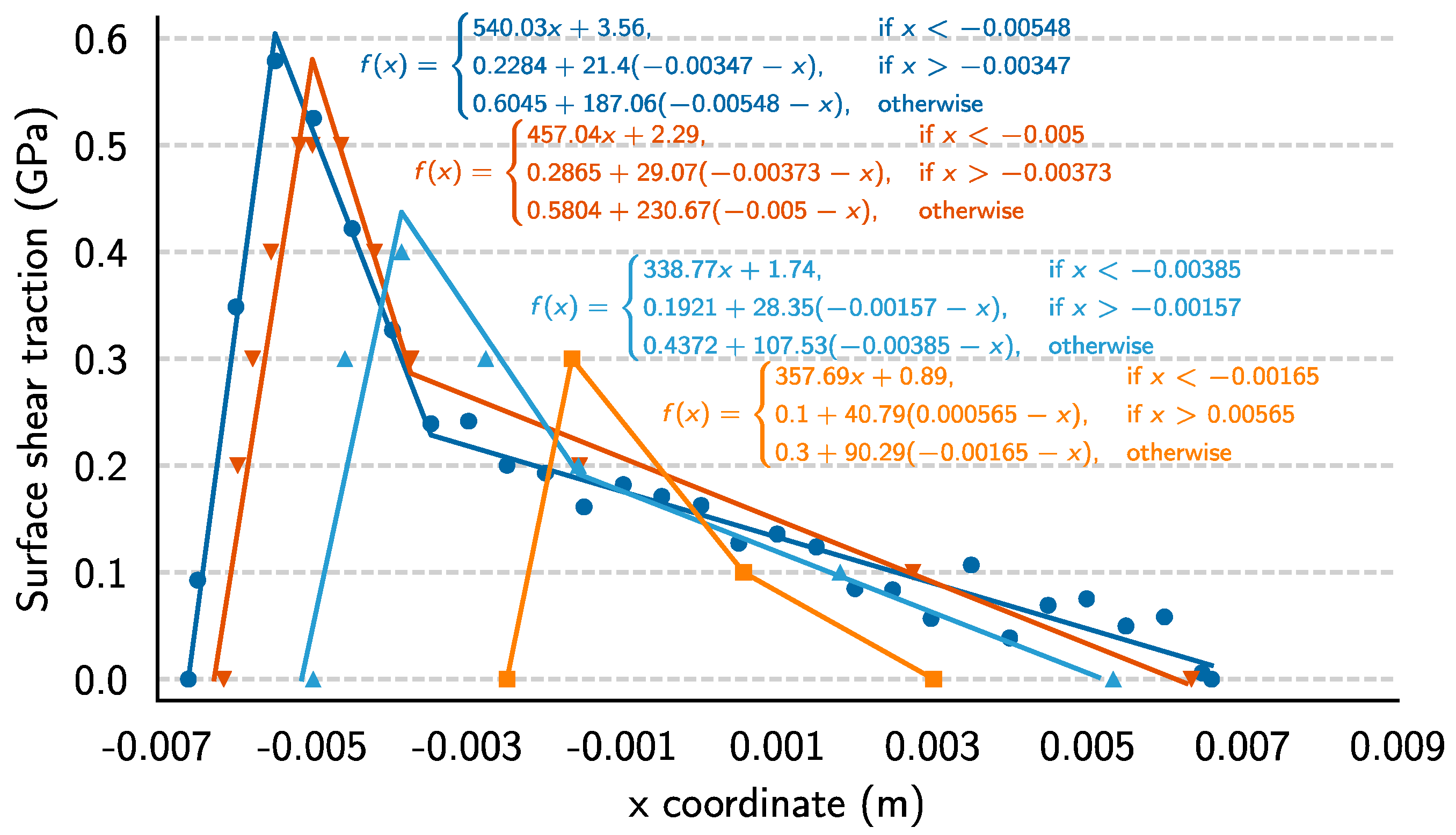

**Figure 9.**Surface shear traction data from [48] (shown with symbols) and the tri-linear functions used to describe the shear traction values in the load area.

**Figure 10.**The cross-section (x-y plane) along the middle of the rail head in the longitudinal direction. Damage is shown in the top part of the model after: (

**a**) 37,000; (

**b**) 42,500; (

**c**) 42,850; and (

**d**) 42,884 cycles.

**Figure 11.**The cross-section (x-z plane) along the middle of the rail head in the transversal direction. Damage is shown in the top half of the model after: (

**a**) 37,000; (

**b**) 42,500; (

**c**) 42,850; and (

**d**) 42,884 cycles.

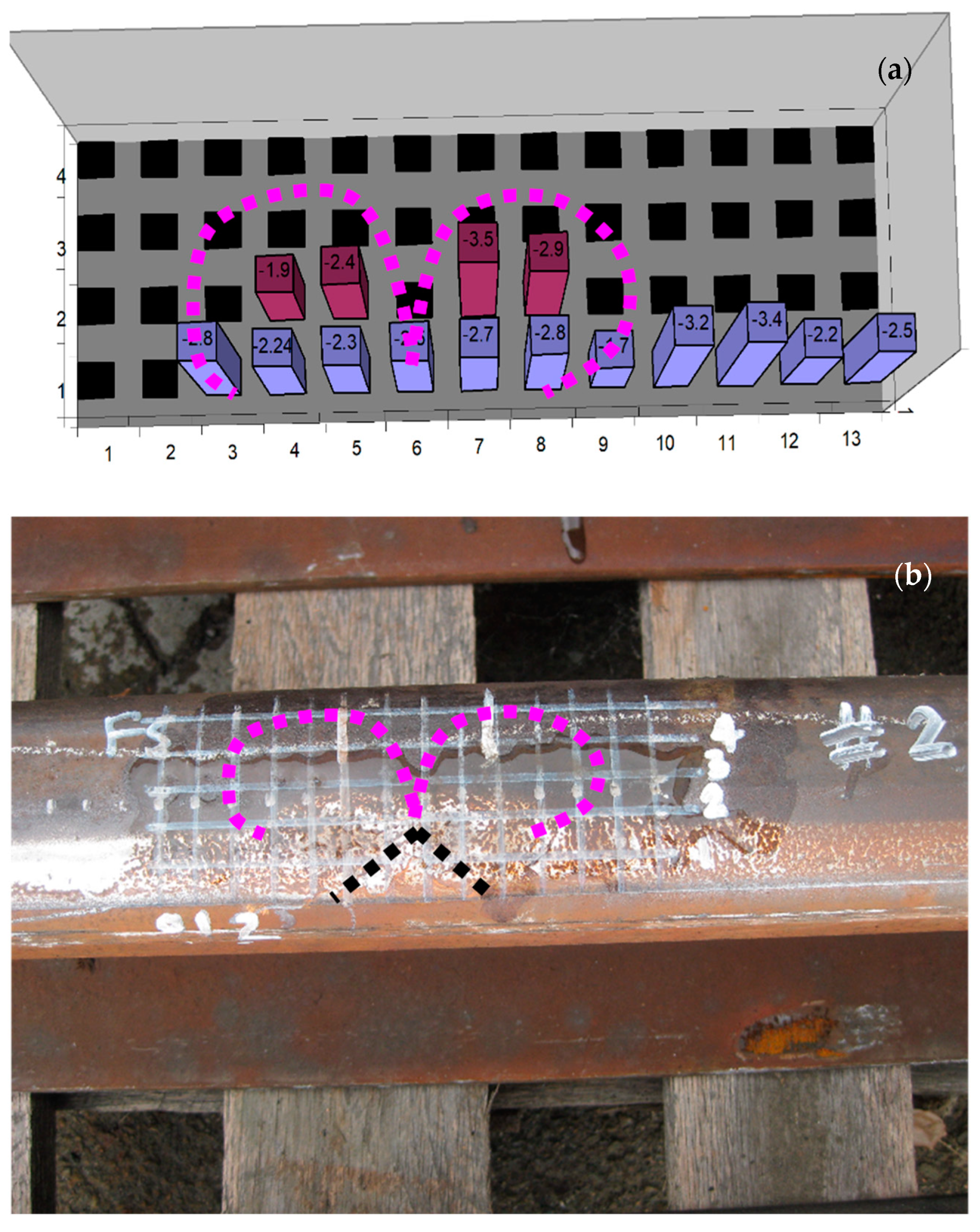

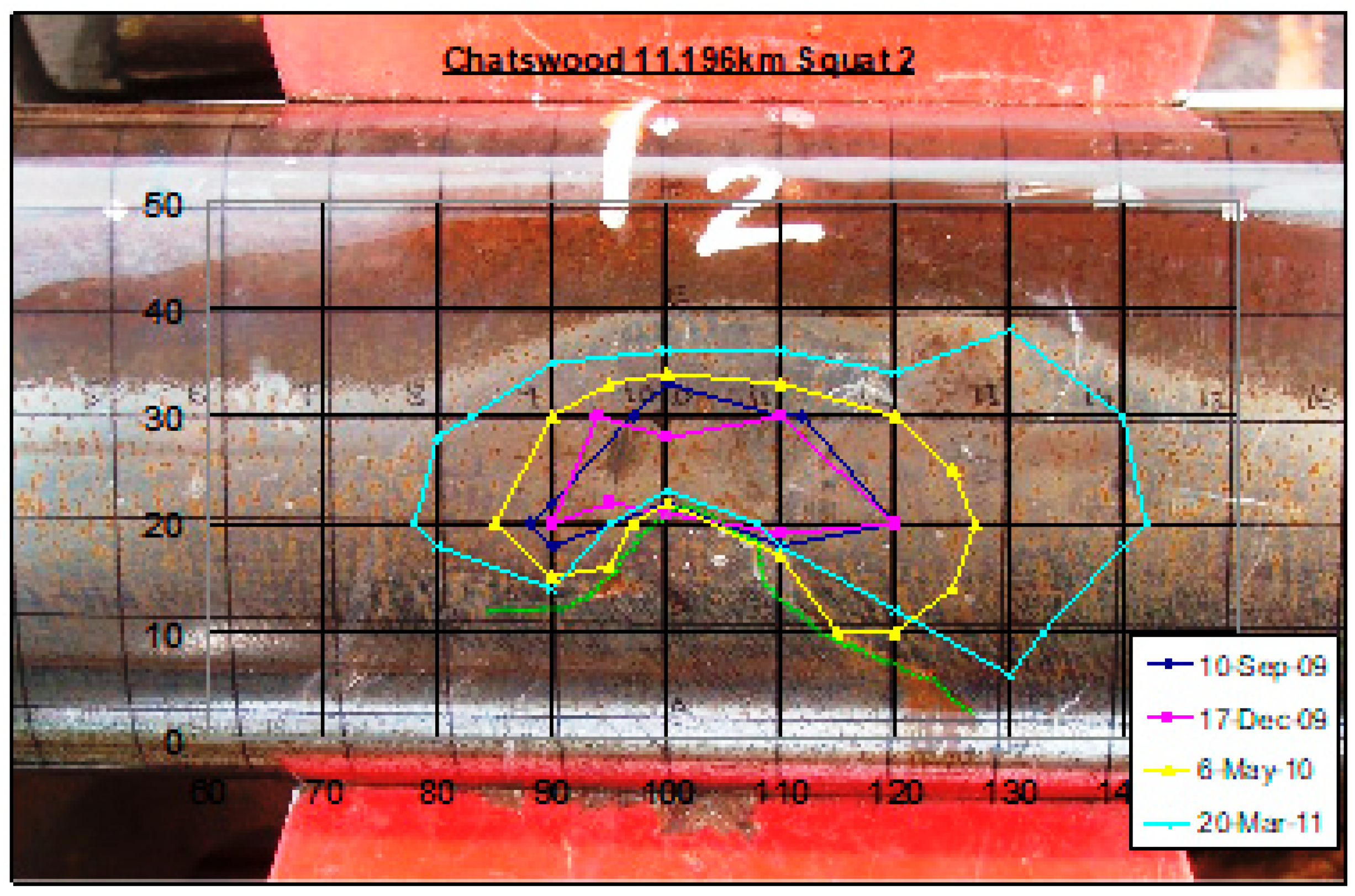

**Figure 12.**An ultrasonic rail squat measurement: (

**a**) crack depths at each grid point; (

**b**) top view of the rail surface.

Parameter | Volume, m^{3} | % Difference |
---|---|---|

Cubic | 1.25000 × 10^{−10} | 0.00% |

Min | 1.18960 × 10^{−10} | −4.83% |

Max | 1.29750 × 10^{−10} | 3.80% |

Average | 1.26464 × 10^{−10} | 1.17% |

**Table 2.**Maximum and minimum displacement values in the X and Y directions from the finite-element (FE) and Peridynamic (PD) simulations.

Value | X | Y | ||||
---|---|---|---|---|---|---|

FE, m | PD, m | Difference | FE, m | PD, m | Difference | |

Max | 2.03 × 10^{−5} | 1.90 × 10^{−5} | −6.95% | 2.35 × 10^{−6} | 2.55 × 10^{−6} | 7.92% |

Min | −6.59 × 10^{−7} | −8.30 × 10^{−7} | 20.61% | −4.69 × 10^{−5} | −5.07 × 10^{−5} | 7.48% |

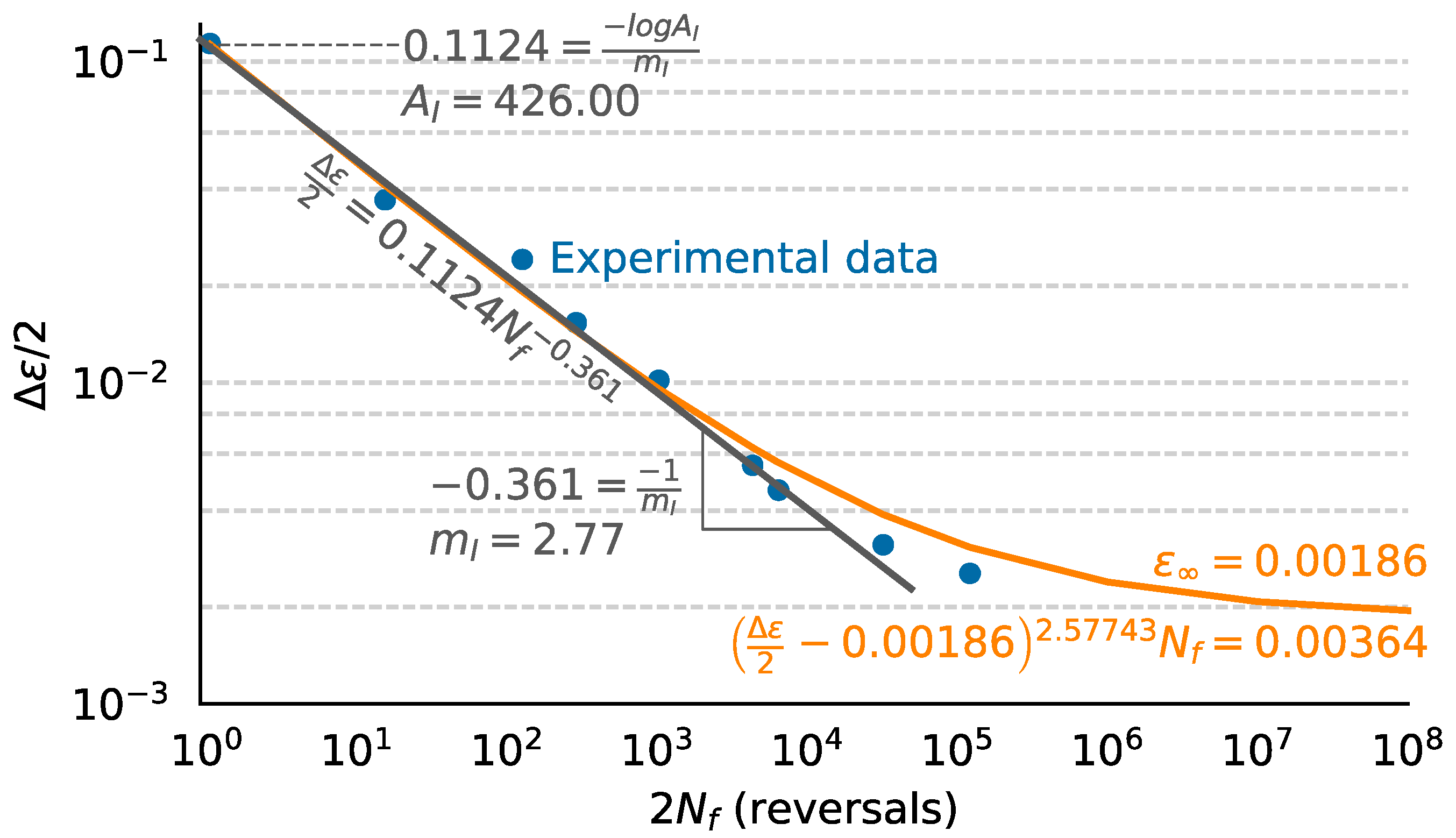

Phase I | Phase II | |
---|---|---|

A | 426.00 | 25,237.48 |

m | 2.77 | 4.00 |

ε_{∞} | 0.00186 | -- |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Freimanis, A.; Kaewunruen, S. Peridynamic Analysis of Rail Squats. *Appl. Sci.* **2018**, *8*, 2299.
https://doi.org/10.3390/app8112299

**AMA Style**

Freimanis A, Kaewunruen S. Peridynamic Analysis of Rail Squats. *Applied Sciences*. 2018; 8(11):2299.
https://doi.org/10.3390/app8112299

**Chicago/Turabian Style**

Freimanis, Andris, and Sakdirat Kaewunruen. 2018. "Peridynamic Analysis of Rail Squats" *Applied Sciences* 8, no. 11: 2299.
https://doi.org/10.3390/app8112299
