A Microwave-Assisted Simultaneous Distillation and Extraction Method for the Separation of Polysaccharides and Essential Oil from the Leaves of Taxus chinensis Var. mairei

Abstract

An efficient microwave-assisted simultaneous distillation and extraction (MA-SDE) method has been developed for the separation of polysaccharides and essential oil from Taxus chinensis var. mairei. The key operating parameters for MA-SDE were optimized by single factor and central composite design experiments, and the optimal conditions were found to include a particle size of 60–80 mesh, liquid/solid ratio of 22.5 mL/g, extraction time of 17.5 min, microwave power of 547 W, and dichloromethane was used as the extraction solvent of the essential oil. The yields obtained for polysaccharides and essential oil under the optimized conditions were 6.39% ± 0.12% and 0.27% ± 0.03%, respectively. The MA-SDE method was also compared with conventional heat reflux extraction (HRE) and hydrodistillation extraction (HDE). The MA-SDE method not only allowed for the simultaneous extraction of polysaccharides and essential oil, but also completed the task with a much shorter extraction time of 17.5 min (HRE and HDE required 3 and 6 h, respectively). Furthermore, the MA-SDE method gave increased extraction yields for polysaccharides (1.14-fold higher than HRE) and essential oil (1.23-fold higher than HDE). Based on these results, this MA-SDE method represents a rapid and efficient technique for the simultaneous extraction of polysaccharides and essential oil.

1. Introduction

Taxus chinensis var. mairei is an evergreen conifer native to China, where it is also referred to as “Beauteous Taxus”. This plant is a source of active diterpenoids belonging to the taxane class of compounds [1]. The most well-known member of this class is taxol, which is an anti-cancer agent used in the clinic for the treatment of ovarian and breast cancers [2]. With the further study of Taxus, some the other bioactive components with human health benefits, such as, polysaccharide and essential oil were found and have attracted considerable attention throughout the world [3,4].

Recently, the results of numerous reports published have suggested that the polysaccharides from T. chinensis var. mairei possess potent antitumor, antidiabetic, and immunity enhancing activities [3,5,6]. Furthermore, the essential oils from T. chinensis var. mairei have been reported to exhibit remedial effects in improving sleep quality, resisting consenescence and stabilizing blood pressure [4]. In light of the notable pharmacological activities of the polysaccharides and essential oils derived from plants belonging to the genus Taxus, there is an urgent need for the development of a robust and efficient separation technology to allow them to be studied in greater detail. Unfortunately however, there have been few reports pertaining to the extraction and separation of the polysaccharides or essential oil found in T. chinensis var. mairei.

The polysaccharides and essential oils of plants have traditionally been extracted in separate processes. Conventional heat reflux extraction (HRE) process has been used for the extraction of polysaccharides from plants belonging to the genus Taxus [7]. Microwave-assisted extraction (MAE) has recently been used for the isolation of target ingredients [8,9]. There are several advantages associated with the use of MAE over traditional extraction methods, including better yields, improved extract quality, shorter extraction time and reduced solvent consumption [10]. The results of several studies have shown that MAE is more effective than conventional techniques for the extraction of polysaccharides from plants [11,12,13]. In these cases, the extraction time and levels of solvent consumption were reduced compared with the conventional techniques, whereas the amount of extracted polysaccharide increased. However, the method can only extract polysaccharides.

The essential oils of a plant can be isolated by traditional hydrodistillation extraction (HDE) [14] or steam distillation extraction [15]. However, the general application of these traditional techniques has been limited by several shortcomings, including the long extraction times and poor recoveries, making them particularly inefficient [16,17]. Simultaneous distillation extraction (SDE) using the Likens-Nickerson apparatus effectively combines the advantages associated with liquid–liquid and steam distillation extraction, and its extract efficiency and recovery of volatile compounds was higher than traditional hydrodistillation extraction and steam distillation extraction [18,19]. Several microwave-assisted distillation techniques have recently also been reported for the extraction of essential oils, with satisfactory results being obtained in all cases [20,21,22,23]. The operation for microwave assisted distillation-solvent extraction of essential oil was developed [24]. However, the operation can only obtain essential oil.

The aim of this study was to develop an effective method for the simultaneous extraction of polysaccharides and essential oils from T. chinensis var. mairei. Our research group developed a microwave-assisted extraction coupled with hydrodistillation method for simultaneous extraction of essential oils and biphenyl cyclooctene lignans from Schisandra chinensis Baill fruits previously [25]. Considering the advantages of SDE techniques, we improved the previous devices and developed a microwave-assisted simultaneous distillation extraction (MA-SDE) method for synchronous extraction of polysaccharides and essential oils from T. chinensis var. mairei.

In this study, experimental design was performed to identify the optimum values for the process variables, including the particle size of the samples, the solvent used for the extraction of the essential oils, the extraction time, microwave power and the liquid/solid ratio. Furthermore, the optimized MA-SDE procedure was compared with conventional extraction techniques for the extraction of the polysaccharides and essential oils from T. chinensis var. mairei.

2. Experimental Section

2.1. Chemicals and Reagents

Analytical grade dichloromethane, chloroform, n-hexane, petroleum ether (30–60 °C), diethyl ether, glucose, phenol, sulfuric acid, sodium sulfate anhydrous, and ethanol were obtained from Tianjin Kermel Chemical Reagent Co. Ltd (Tianjin, China).

2.2. Materials

Fresh leaves of T. chinensis var. mairei were obtained from Fujian Sansan pharmaceutical Ltd. (Nanping, Fujian, China). The leaves were then dried in the shade at room temperature before being milled and passed through 40 mesh, 60 mesh, 80 mesh, and 100 mesh sieves, in turn. The resulting powders were stored in a sealed desiccator at 4 °C prior to being used.

2.3. Apparatus

The MA-SDE device consisted of an MAE system (Shanghai Xintuo Analytical Instruments Co.; Ltd, Shanghai, China) connected to a SDE unit (Shanghai Chaoyue Laboratory Instrument Works Co.; Shanghai, China). A schematic representation of the MA-SDE apparatus used in the current study is shown in Figure 1. The MAE apparatus was operated at an irradiation frequency of 2450 MHz with the output power in the range of 10–800 W and the effect mode of microwave was set as non-pulsed microwave heating. The dimensions of the interior cavity of the oven were 430 × 512 × 510 mm, making the oven large enough to accommodate a 500-mL flask.

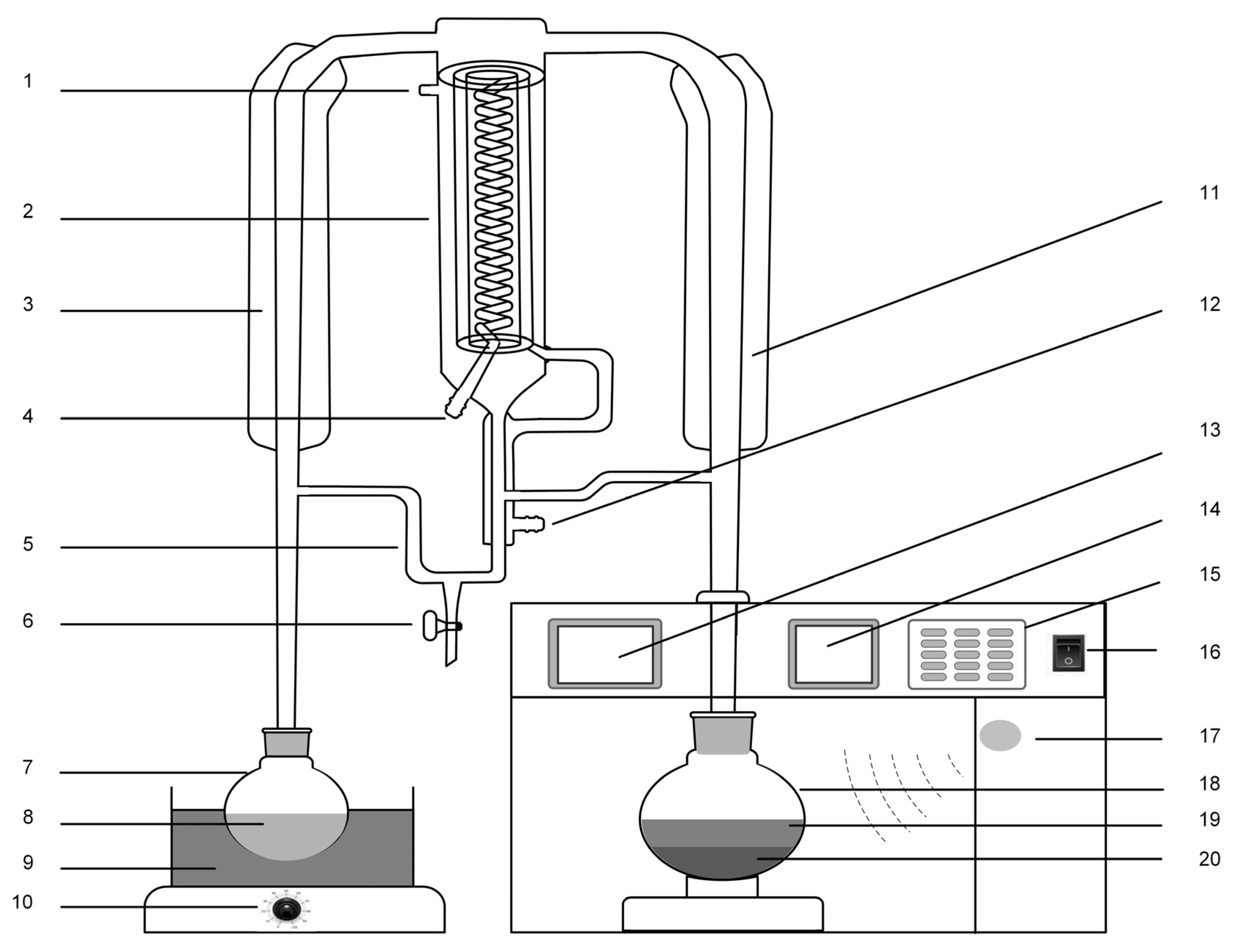

Figure 1. Schematic representation of the MA-SDE device: (1) air-vent; (2) condenser; (3) vacuum tube; (4) water outlet; (5) extraction cell; (6) valve cock; (7) flask I; (8) organic solvents; (9) water bath; (10) power switch; (11) vacuum tube; (12) water inlet; (13) video display; (14) program display; (15) control panel; (16) power switch; (17) microwave generator; (18) flask II; (19) water; and (20) plant materials.

Figure 1. Schematic representation of the MA-SDE device: (1) air-vent; (2) condenser; (3) vacuum tube; (4) water outlet; (5) extraction cell; (6) valve cock; (7) flask I; (8) organic solvents; (9) water bath; (10) power switch; (11) vacuum tube; (12) water inlet; (13) video display; (14) program display; (15) control panel; (16) power switch; (17) microwave generator; (18) flask II; (19) water; and (20) plant materials.

The MA-SDE device is made up of SDE unit and a MAE system. The microwave irradiation can disrupt plant cell walls of plant sample and the phytoconstituents are released into the solvent environment easily [26,27]. Thus, microwave-assisted extraction process can improve extraction of polysaccharides and essential oils. The water in the sample flask and extraction organic solvents are heated to boil, respectively. Then, the water steam with volatile compounds and organic solvents are condensed in the condenser. The volatile compounds are extracted from water into organic solvents in the extraction cell. The organic solvents containing volatile compounds and water will return to each flask through each return arm. Finally, the essential oils are obtained from organic solvent and polysaccharides are obtained from water. In other words, polysaccharides and essential oils are simultaneous extracted from T. chinensis var. mairei by the MA-SDE device.

2.4. Extraction Procedure

2.4.1. Conventional Hydrodistillation Extraction (HDE)

Twenty grams of the powdered T. chinensis var. mairei leaves were subjected to a conventional HDE procedure in 400 mL of water for 6 h (until no more essential oil was obtained) using a Clevenger-type apparatus. Notably, this procedure was conducted in accordance with the method described in the European Pharmacopoeia [28]. This experiment was carried out under atmospheric pressure and the water was heated to boiling.

2.4.2. Conventional Heat Reflux Extraction (HRE)

Twenty grams of the powdered T. chinensis var. mairei leaves were placed in a round-bottomed flask followed by 400 mL of distilled water, and the flask was then placed into a heating mantle and fitted with a reflux condenser before being heated at reflux for 3 h.

2.4.3. Microwave-Assisted Simultaneous Distillation Extraction (MA-SDE)

Extraction experiments were carried out using the MA-SDE apparatus illustrated in Figure 1. 50 mL of an extraction solvent was put into a 100-mL flask (I), and twenty-gram samples of powdered T. chinensis var. mairei leaves were mixed with water in a 500-mL flask (II). In detail, different extraction solvents, including 50 mL portions of dichloromethane, chloroform, n-hexane, petroleum ether (30–60 °C) or diethyl ether, were respectively evaluated as extraction solvent in flask (I). The flask (I) was heated in a water bath at 55, 72, 75, 70, and 45 °C for dichloromethane, chloroform, n-hexane, petroleum ether, and diethyl ether, respectively. At the same time, flask (II) containing a mixture of water and the sample was subjected to microwave irradiation in the oven of the MA-SDE apparatus. After the extraction process, the organic solvent in flask (I) was collected and dried overnight over anhydrous sodium sulfate. The solvent was then removed under reduced pressure to give the essential oil, which was stored at 4 °C prior to being analyzed. The mixture in flask (II) was centrifuged (10,000× g, 5 min, 25 °C), and the supernatant was collected and concentrated under reduced pressure. The concentrated solution was then treated with absolute ethanol to give a precipitate, which was collected by filtration and dried at 60 °C until its weight remained constant and to give crude polysaccharides.

2.5. Quantification of Polysaccharides and Essential Oil

The yields of the target analytes in the samples were determined as the average values from three independent experiments. The polysaccharides content in the crude polysaccharides extract was determined by the phenol-sulfuric method using d-glucose as a standard [29]. The polysaccharide yield was calculated according to the following equation [30]:

$$Y_1=W_1\times C/W_2\times 100$$

(1)

where Y₁ is the polysaccharide yield (%), W₁ is the weight of crude polysaccharides (g),W₂ is the weight of the raw material (g) and C is the polysaccharides content in the crude polysaccharides extract (%).

The essential oil yield was calculated using the following equation:

$$Y_2=W_3/W_2\times 100$$

(2)

where Y₂ is the essential oil yield (%), W₂ is the weight of the raw material (g), and W₃ is the weight of the essential oil (g).

2.6. Qualification of Essential Oil by GC-MS

GC-MS analysis was performed using on a GC system equipped with a GC-MSD 7890 N-5973 insert plus mass spectrometer (Agilent, Santa Clara, CA, USA). The separation of the essential oil was carried out using a HP-5MS capillary column (5% phenyl siloxane/95% methyl polyorganosiloxane, 30 m × 0.25 mm × 0.25 μm). Helium was used as the carrier gas, and the flow rate was 1.0 mL/min. Samples (1.0 μL) were injected in splitless mode with a split ratio of 20:1. The temperature of the column was kept at 70 °C for 3 min, increased to 200 °C at a rate of 2 °C/min and then raised to 240 °C at a rate of 8 °C/min. The column was then held at 240 °C for 5 min before being raised to 260 °C at a rate of 5 °C/min. Finally, the column was then held at 260 °C for 5 min. The GC-MS connector temperature was kept at 280 °C. The temperature of the ionization source, solvent delay time, and electron energy were set at 230 °C, 4 min and 70 eV, respectively. The mass range of the detector was set as 20–400 atomic mass units (amu).

2.7. Experimental Design

The influencing factors, including the solvent used for the extraction of the essential oil, liquid/solid ratio, microwave power, extraction time and particle size of sample, were systematically evaluated using an experimental design process. Based on the single factor experimental results, a 2³ factorial portion central composite design (CCD) combined with response surface methodology (RSM) was used for optimizing the microwave power (X₁: 400–600 W), extraction time (X₂: 10–20 min) and liquid/solid ratio (X₃: 15–25 mL/g). Twenty different experiments with six center points (six replicates for each center point) were used in the CCD test to fit the full quadratic equation model. The general equation was as follows:

$$Y={\beta }_0+{\displaystyle \sum }_{i=1}^k{\beta }_i{X}_i+{\displaystyle \sum }_{i=1}^k{\beta }_{ii}{X}_i^2+{\displaystyle \sum }_{\begin{array}{c}i=1\\ i<j\end{array}}^{k–1}{\displaystyle \sum }_{j=2}^k{\beta }_{ij}{X}_i{X}_j\left(k=3\right)$$

(3)

where Y represents the response variable; β₀, β_i, β_ii, and β_ij are the regression coefficients of the intercept, linearity, square, and interaction terms, respectively; X_i and X_j are the independent coded variables affecting the response variable Y; and k is the number of variables. Each factor for the test variables was set at one of five different levels (i.e., −1.68, −1, 0, +1, +1.68) to evaluate the equation. The dependent variables were set as the yields of the polysaccharides and essential oil from the powdered leaves of T. chinensis var. mairei. The actual and coded levels of the independent variables used in the experimental design are shown in Table 1. All of the experiments were conducted in triplicate and the yields reported in the table represent the average values of the three experiments.

Table 1. Experimental conditions used for the central composite design analysis and the corresponding measured responses.

Runs	Factors			Yields (%)
	X1 (W) a	X2 (min) b	X3 (mL/g) c	Polysaccharides	Essential oil
1	1 (600)	1 (20)	−1 (15)	6.07	0.23
2	0 (500)	0 (15)	0 (20)	6.22	0.27
3	0 (500)	0 (15)	0 (20)	6.32	0.27
4	1 (600)	−1 (10)	1 (25)	6.01	0.18
5	−1 (400)	−1 (10)	−1 (15)	5.22	0.16
6	1 (600)	1 (20)	1 (25)	6.34	0.25
7	−1 (400)	1 (20)	1 (25)	5.77	0.24
8	1 (600)	−1 (10)	−1 (15)	5.64	0.16
9	−1 (400)	−1 (10)	1 (25)	5.52	0.18
10	0 (500)	0 (15)	0 (20)	6.15	0.27
11	−1 (400)	1 (20)	−1 (15)	5.54	0.23
12	0 (500)	0 (15)	0 (20)	6.33	0.26
13	−1.68 (331.82)	0 (15)	0 (20)	5.49	0.20
14	0 (500)	0 (15)	0 (20)	6.12	0.27
15	1.68 (668.18)	0 (15)	0 (20)	6.27	0.20
16	0 (500)	0 (15)	−1.68 (11.59)	5.41	0.22
17	0 (500)	−1.68 (6.59)	0 (20)	5.45	0.13
18	0 (500)	0 (15)	1.68 (28.41)	5.94	0.27
19	0 (500)	0 (15)	0 (20)	6.29	0.27
20	0 (500)	1.68 (23.41)	0 (20)	5.91	0.24

^a X₁ is expressed as the irradiation power (W); ^b X₂ is expressed as the extraction time (min); ^c X₃ is expressed as the liquid/solid ratio (mL/g).

Table 1. Experimental conditions used for the central composite design analysis and the corresponding measured responses.

Runs	Factors			Yields (%)
	X1 (W) a	X2 (min) b	X3 (mL/g) c	Polysaccharides	Essential oil
1	1 (600)	1 (20)	−1 (15)	6.07	0.23
2	0 (500)	0 (15)	0 (20)	6.22	0.27
3	0 (500)	0 (15)	0 (20)	6.32	0.27
4	1 (600)	−1 (10)	1 (25)	6.01	0.18
5	−1 (400)	−1 (10)	−1 (15)	5.22	0.16
6	1 (600)	1 (20)	1 (25)	6.34	0.25
7	−1 (400)	1 (20)	1 (25)	5.77	0.24
8	1 (600)	−1 (10)	−1 (15)	5.64	0.16
9	−1 (400)	−1 (10)	1 (25)	5.52	0.18
10	0 (500)	0 (15)	0 (20)	6.15	0.27
11	−1 (400)	1 (20)	−1 (15)	5.54	0.23
12	0 (500)	0 (15)	0 (20)	6.33	0.26
13	−1.68 (331.82)	0 (15)	0 (20)	5.49	0.20
14	0 (500)	0 (15)	0 (20)	6.12	0.27
15	1.68 (668.18)	0 (15)	0 (20)	6.27	0.20
16	0 (500)	0 (15)	−1.68 (11.59)	5.41	0.22
17	0 (500)	−1.68 (6.59)	0 (20)	5.45	0.13
18	0 (500)	0 (15)	1.68 (28.41)	5.94	0.27
19	0 (500)	0 (15)	0 (20)	6.29	0.27
20	0 (500)	1.68 (23.41)	0 (20)	5.91	0.24

^a X₁ is expressed as the irradiation power (W); ^b X₂ is expressed as the extraction time (min); ^c X₃ is expressed as the liquid/solid ratio (mL/g).

3. Results and Discussion

3.1. Single-Factor Experiments

3.1.1. Effect of Extraction Solvent on the Yield of Essential Oil

Obviously, for MA-SDE, the nature of the extraction solvent could have a significant impact on the yield of the essential oil, but not impact on the yield of the polysaccharides. MA-SDE with different extraction solvent, including hexane, dichloromethane, petroleum ether (30–60 °C), diethyl ether, and chloroform was investigated. Effect of the extraction solvents on the yield of the essential oil obtained from the powdered leaves of T. chinensis var. mairei was seen in Figure 2. It is clear from the results shown in Figure 2 that the use of hexane, petroleum ether, diethyl ether, or chloroform as the extraction solvent resulted in a low yield of the essential oil. In contrast, the use of dichloromethane as the extraction solvent gave much higher yields. The results are consistent with the reference [31]. Based on these results, dichloromethane was identified as the optimum solvent for the extraction of the essential oil from T. chinensis var. mairei leaves and used in all of the following experiments.

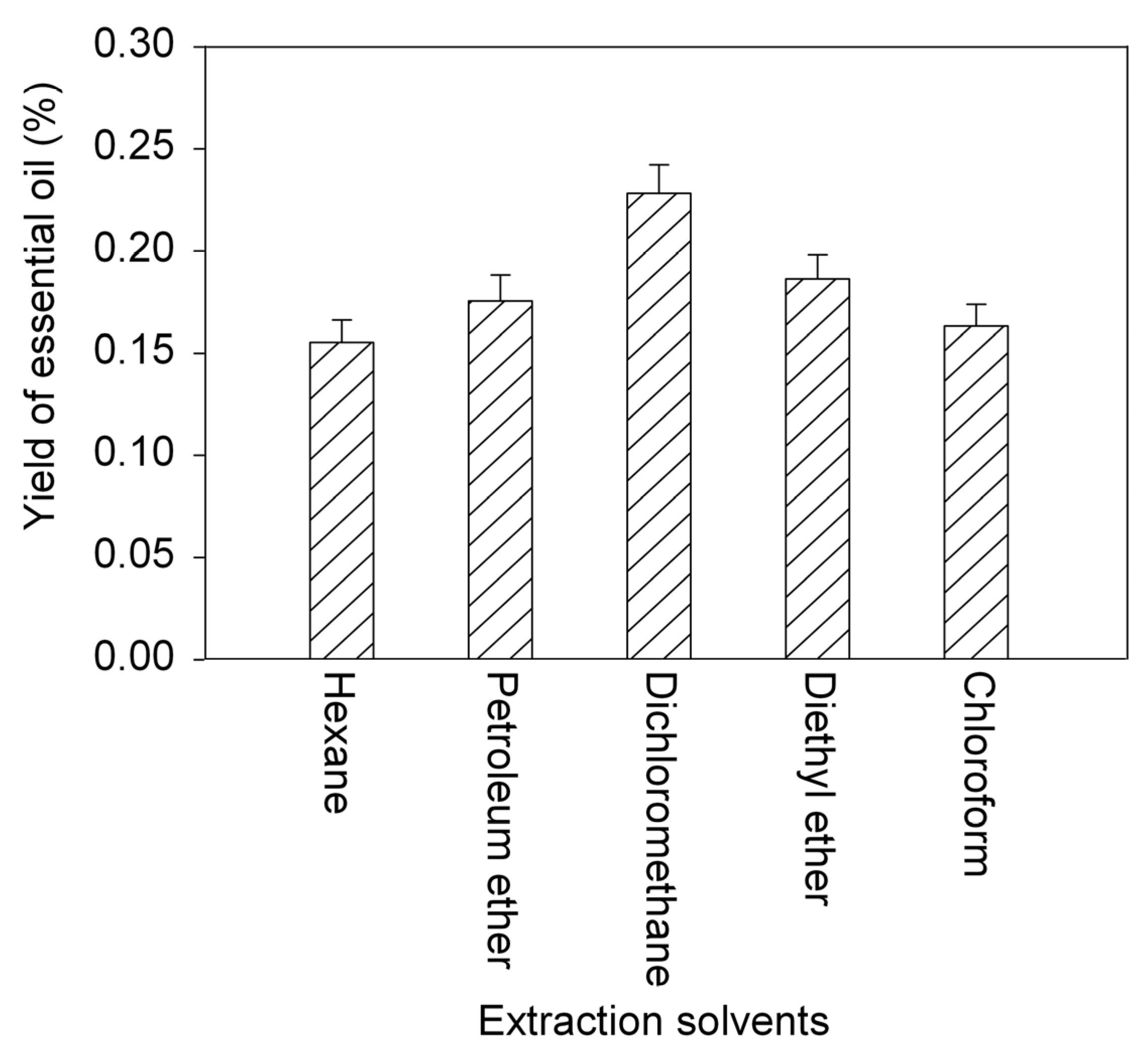

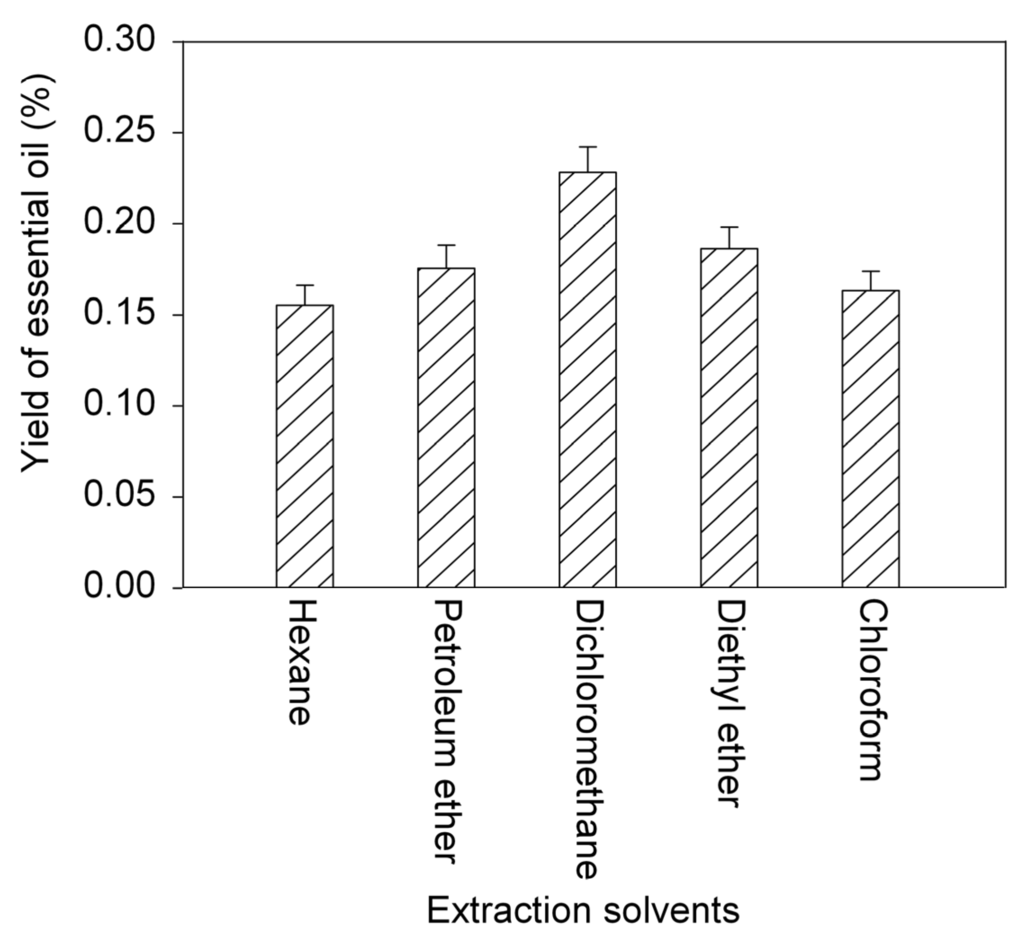

Figure 2. Effect of different extraction solvents on yields of essential oil. Error bars indicate standard deviation (n = 3).

Figure 2. Effect of different extraction solvents on yields of essential oil. Error bars indicate standard deviation (n = 3).

3.1.2. Effect of Particle Size of Sample

The particle size of the powdered T. chinensis var. mairei leaves was classified into five fractions using sieves (<40 mesh, 40–60 mesh, 60–80 mesh, 80–100 mesh, and >100 mesh). The effect of the particle size on the extraction yields of the polysaccharides and essential oil are shown in Figure 3A. When the particle size of sample was less than 80 mesh, with the decrease of particle size of the sample, the extraction yields of polysaccharides and essential oil were increased. It can be related to an increase in the specific surface area which allows more contact of the sample with the solvent and a better penetration of the microwave [32,33]. However, when the particle size of sample was more than 80 mesh, with the decrease of particle size of the sample, the extraction yields of polysaccharides and essential oil were decreased. It may be smaller particle size was easy to absorb target compounds [34], thus decreasing the diffusion rate of target compounds from sample into solvent. It is clear from the results in Figure 3A that the highest yields of the polysaccharides and the essential oil were obtained when the particle size of the sample was 60–80 mesh.

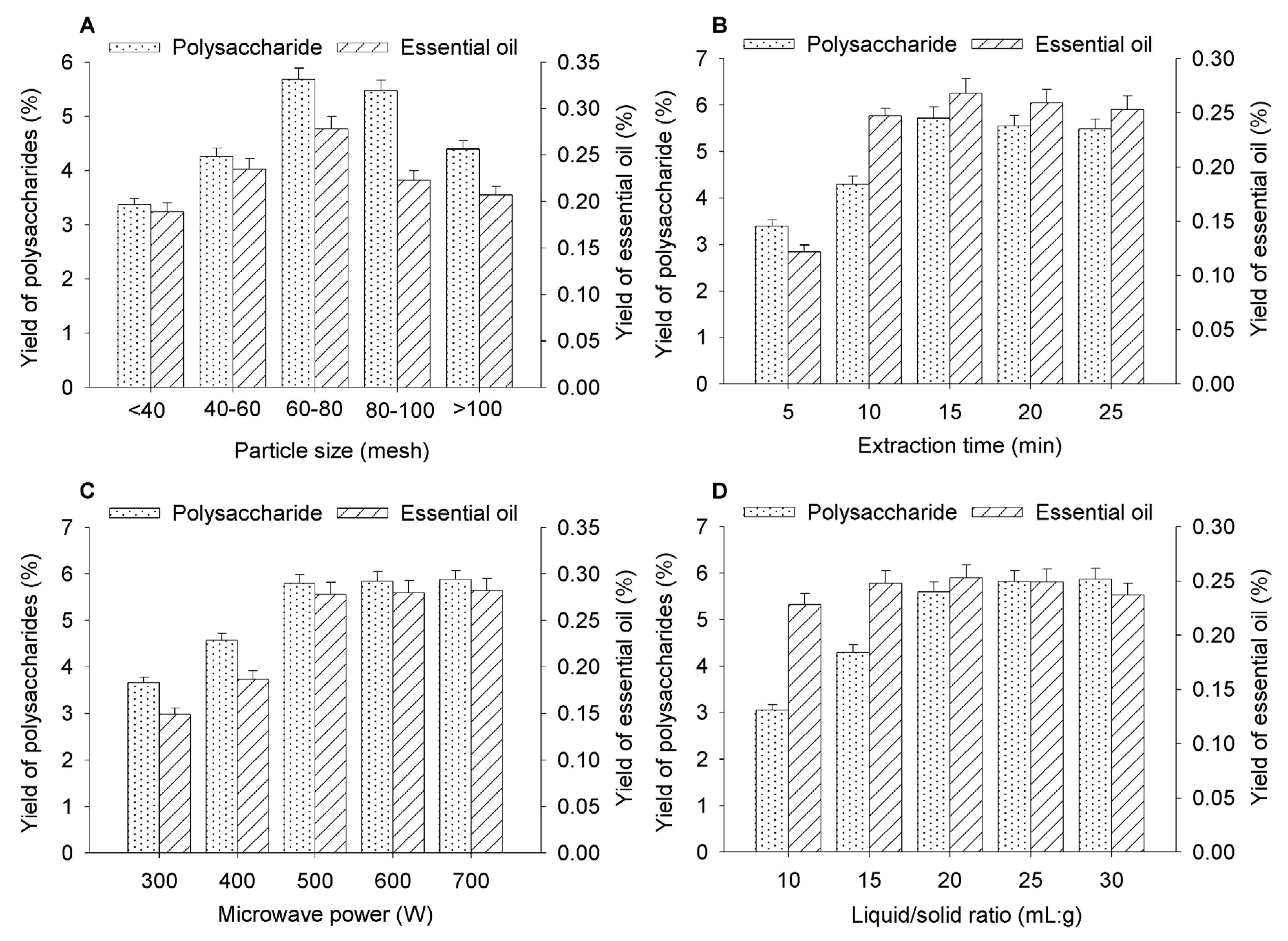

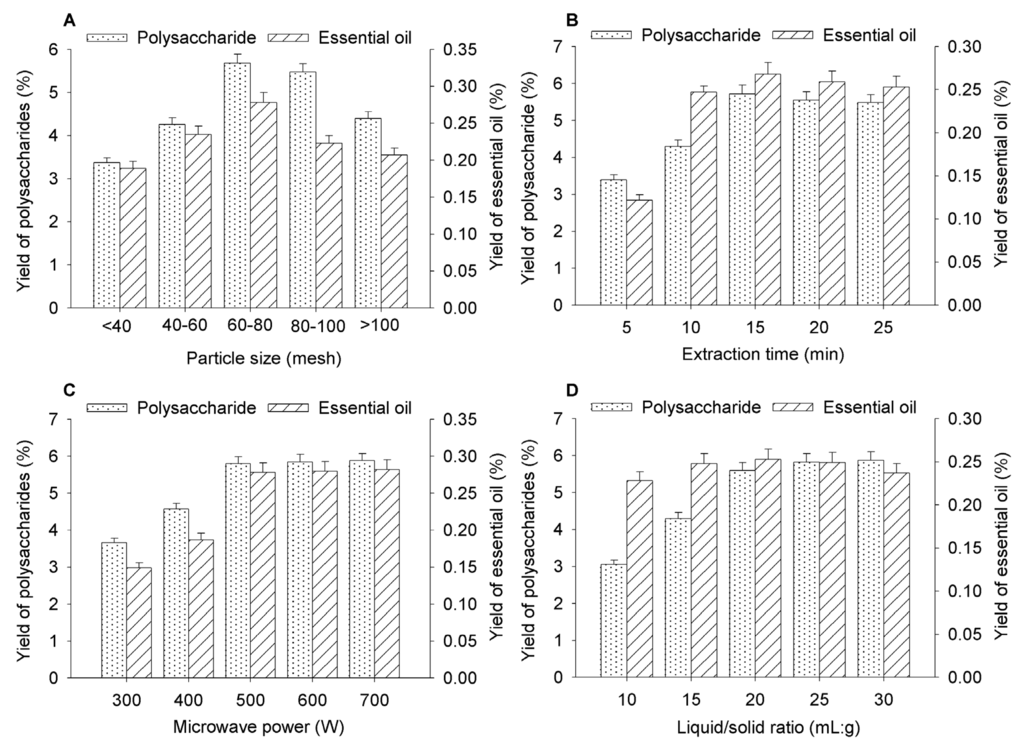

Figure 3. Effects of the different factors on the yields of the polysaccharides and essential oil from T. chinensis var. mairei. (A) effect of particle size of sample; (B) effect of extraction time; (C) effect of the microwave power; (D) effect of liquid/solid ratio. The error bars represent the standard deviation (n = 3).

Figure 3. Effects of the different factors on the yields of the polysaccharides and essential oil from T. chinensis var. mairei. (A) effect of particle size of sample; (B) effect of extraction time; (C) effect of the microwave power; (D) effect of liquid/solid ratio. The error bars represent the standard deviation (n = 3).

3.1.3. Effect of Extraction Time

The effect of extraction time on the yields of the polysaccharides and essential oil was investigated in the range of 5–25 min. Based on the results shown in Figure 3B, it is clear that the yields of the polysaccharides and essential oil increased significantly as the extraction time was increased from 5 to 15 min. However, further increasing the extraction time from 15 to 25 min led to a slight decrease in the yields of polysaccharides and essential oil. This decrease in the yields following an extended extraction time could be attributed to the decomposition of polysaccharides and essential oil under the high temperatures required of the extraction process, resulting in a decrease in their yield. Based on these results, an extraction time of 15 min was identified as the optimum extraction and used for the subsequent experiments.

3.1.4. Effect of the Microwave Power

The microwave power was found to have a significant effect on the yields of the target compounds from the powdered leaves of T. chinensis var. mairei (see Figure 3C). When the microwave power was increased from 300 to 500 W, the yields of the target compounds increased significantly. This increase in the yields was attributed to the fact that microwave irradiation energy can enhance the extent to which the solvent penetrates into the solid matrix of the powdered sample [35]. In this way, the solvent can be efficiently delivered to the target compounds through molecular interaction with the electromagnetic field, allowing for the rapid transfer of energy to the solvent and matrix and the facile extraction of the dissolved components [36]. However, the too high power may lead to loss of volatile oil and degradation of polysaccharides [37]. When the microwave power was beyond 500 W, the yields of essential oil and polysaccharides leveled off, which is probably because that the extraction and degradation of target compounds arrive a balance at this circumstance. Hence, the optimal microwave power was determined to be 500 W and used in the subsequent reactions.

3.1.5. Effect of Liquid/Solid Ratio

A series of extractions were performed with different liquid/solid ratios to evaluate the effect of the liquid/solid ratio on the yields of the polysaccharides and essential oil. Figure 3D shows that the yields of the polysaccharide and essential oil significantly increased when the liquid/solid ratio was increased from 10 to 20 mL/g. When the liquid/solid ratio was varied from 20 to 30 mL/g, there was no discernible difference in the yields of target compounds. Based on these results, the optimal liquid/solid ratio was determined to be 20 mL/g and used for the subsequent experiments.

3.2. Optimization of the Extraction by RSM

The individual and combined effects of these factors on the efficiency of the isolation procedure can be estimated by statistical methods such as RSM [38]. According to the results of the single-factor experiments, three major parameters, including the microwave power, extraction time and liquid/solid ratio were further optimized by CCD combined with RSM. The center points were set as 500 W (microwave power), 15 min (extraction time), and 20 mL/g (liquid/solid ratio), and the results are shown in Table 1. Regression analyses were conducted to fit the models of the experimental data form Table 1. A second-order polynomial model was used to express the yields of the polysaccharides and essential oil, and two equations with the three independent variables are as follows:

Y₁ = −3.25 + 1.22 × 10⁻²X₁ + 0.25X₂ + 0.33X₃ + 4.75 × 10⁻⁵X₁X₂ + 2.75 × 10⁻⁵X₁X₃ − 8.50 × 10⁻⁵X₂X₃ − 2.50 × 10⁻⁶X₁² − 1.20 × 10⁻³X₂² − 3.50 × 10⁻⁴X₃²

(4)

Y₂ = −0.88 + 2.39 × 10⁻³X₁ + 4.25 × 10⁻²X₂ + 1.59 × 10⁻²X₃ + 2.50 × 10⁻⁶X₁X₂ + 2.50 × 10⁻⁶X₁X₃ + 5.00 × 10⁻⁵X₂X₃ − 1.15 × 10⁻⁵X₁² − 7.45 × 10⁻³X₂² − 7.52 × 10⁻³X₃²

(5)

where Y₁ and Y₂ are the yields of the polysaccharide and essential oil (%), respectively; X₁ is the microwave power (W); X₂ is the extraction time (min); and X₃ is the liquid/solid ratio (mL/g).

The significance of each coefficient was determined based on the results of an F test and the corresponding p-values, as well as the results of variance analysis (ANOVA) for the quadratic model, as shown in Table 2 and Table 3. A large F-value with a small p-value indicated that the corresponding term in the model was more likely to be significant. The coefficient (r²) obtained from the calculated model was 0.9836 for the polysaccharides and the lack-of-fit (p > 0.05) was not found to be significant. The coefficient (r²) obtained from the calculated model was 0.9941 for the essential oil and the lack-of-fit (p > 0.05) was not found to be significant.

Table 2. ANOVA of response surface quadratic model for extraction yield of polysaccharides from T. chinesis var. mairei.

Source	Sum of Squares	DF	Mean Square	F-Value	p-Value
Block	2.19 × 10−2	1	2.19 × 10−2	–	–
Model	2.47	9	0.27	59.88	0.00
X1	0.81	1	0.81	176.41	0.00
X2	0.32	1	0.32	70.75	0.00
X3	0.31	1	0.31	67.93	0.00
X1X2	4.51 × 10−3	1	4.51 × 10−3	0.99	0.35
X1X3	1.51 × 10−3	1	1.51 × 10−3	0.33	0.58
X2X3	3.61 × 10−3	1	3.61 × 10−3	0.79	0.40
X12	0.19	1	0.19	42.05	0.00
X22	0.50	1	0.50	109.19	0.00
X32	0.51	1	0.51	111.27	0.00
Residual	0.041	9	4.58 × 10−3	–	–
Lack of fit	4.67 × 10−3	5	9.34 × 10−4	0.10	0.99
Pure error	0.037	4	9.14 × 10−3	–	–
Cor total	2.53	19	–	–	–

Table 2. ANOVA of response surface quadratic model for extraction yield of polysaccharides from T. chinesis var. mairei.

Source	Sum of Squares	DF	Mean Square	F-Value	p-Value
Block	2.19 × 10−2	1	2.19 × 10−2	–	–
Model	2.47	9	0.27	59.88	0.00
X1	0.81	1	0.81	176.41	0.00
X2	0.32	1	0.32	70.75	0.00
X3	0.31	1	0.31	67.93	0.00
X1X2	4.51 × 10−3	1	4.51 × 10−3	0.99	0.35
X1X3	1.51 × 10−3	1	1.51 × 10−3	0.33	0.58
X2X3	3.61 × 10−3	1	3.61 × 10−3	0.79	0.40
X12	0.19	1	0.19	42.05	0.00
X22	0.50	1	0.50	109.19	0.00
X32	0.51	1	0.51	111.27	0.00
Residual	0.041	9	4.58 × 10−3	–	–
Lack of fit	4.67 × 10−3	5	9.34 × 10−4	0.10	0.99
Pure error	0.037	4	9.14 × 10−3	–	–
Cor total	2.53	19	–	–	–

As shown in Table 2, the model terms with significant effects on the polysaccharide yields (p < 0.01) were determined to be the linear terms of X₁, X₂, and X₃, and the quadratic terms of X₁², X₂², and X₃², while the interaction terms (X₁X₂, X₁X₃, and X₂X₃) were not significant (p > 0.05).

Table 3. ANOVA of response surface quadratic model for the extraction yield of the essential oil from T. chinensis var. mairei.

Source	Sum of Squares	DF	Mean Square	F-Value	p-Value
Block	0.00	1	0.00	–	–
Model	3.71 × 10−2	9	4.12 × 10−3	168.37	0.00
X1	7.32 × 10−6	1	7.32 × 10−6	0.30	0.60
X2	1.52 × 10−2	1	1.52 × 10−2	619.48	0.00
X3	1.74 × 10−3	1	1.74 × 10−3	71.05	0.00
X1X2	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X1X3	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X2X3	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X12	8.84 × 10−3	1	8.84 × 10−3	361.15	0.00
X22	1.30 × 10−2	1	1.30 × 10−2	532.33	0.00
X32	1.13 × 10−3	1	1.13 × 10−3	46.23	0.00
Residual	2.20 × 10−4	9	2.45 × 10−5	–	–
Lack of fit	1.45 × 10−4	5	2.90 × 10−5	1.55	0.35
Pure error	7.52 × 10−5	4	1.88 × 10−5	–	–
Cor total	3.73 × 10−2	19	–	–	–

Table 3. ANOVA of response surface quadratic model for the extraction yield of the essential oil from T. chinensis var. mairei.

Source	Sum of Squares	DF	Mean Square	F-Value	p-Value
Block	0.00	1	0.00	–	–
Model	3.71 × 10−2	9	4.12 × 10−3	168.37	0.00
X1	7.32 × 10−6	1	7.32 × 10−6	0.30	0.60
X2	1.52 × 10−2	1	1.52 × 10−2	619.48	0.00
X3	1.74 × 10−3	1	1.74 × 10−3	71.05	0.00
X1X2	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X1X3	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X2X3	1.25 × 10−5	1	1.25 × 10−5	0.51	0.50
X12	8.84 × 10−3	1	8.84 × 10−3	361.15	0.00
X22	1.30 × 10−2	1	1.30 × 10−2	532.33	0.00
X32	1.13 × 10−3	1	1.13 × 10−3	46.23	0.00
Residual	2.20 × 10−4	9	2.45 × 10−5	–	–
Lack of fit	1.45 × 10−4	5	2.90 × 10−5	1.55	0.35
Pure error	7.52 × 10−5	4	1.88 × 10−5	–	–
Cor total	3.73 × 10−2	19	–	–	–

As shown in Table 3, the model terms with significant effects on the yield of the essential oil (p < 0.01) were determined to be the linear terms of X₂ and X₃, and the quadratic terms of X₁², X₂² and X₃², while the interaction terms (X₁X₂, X₁X₃, and X₂X₃) and the linear term of X₁ were not significant (p > 0.05).

Three dimensional response surfaces show the effects of the mutual interactions between the independent variables. The yields of the polysaccharides and essential oil were predicted for the different values of the test variables and the interactions between the microwave power, extraction time and liquid/solid ratio (see Figure 4).

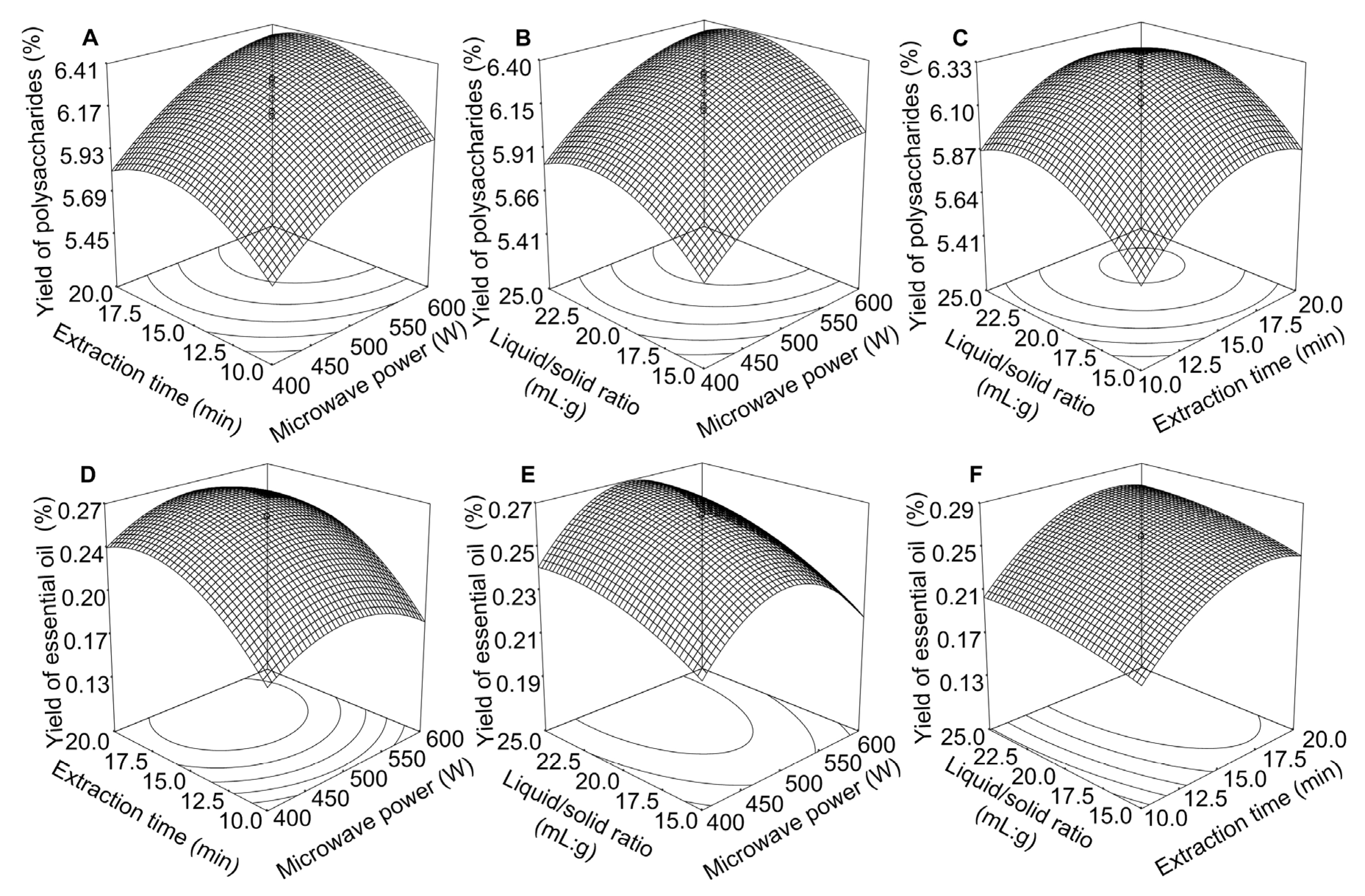

Figure 4. Response surface plots for the extraction of the polysaccharides and essential oil using the MA-SDE method: impact of the extraction time and microwave power on the yields of the polysaccharide (A) and essential oil (D); impact of the liquid/solid ratio and microwave power on the yields of the polysaccharides (B) and essential oil (E); and the effects of the liquid/solid ratio and extraction time on the yields of the polysaccharides (C); and essential oil (F).

Figure 4. Response surface plots for the extraction of the polysaccharides and essential oil using the MA-SDE method: impact of the extraction time and microwave power on the yields of the polysaccharide (A) and essential oil (D); impact of the liquid/solid ratio and microwave power on the yields of the polysaccharides (B) and essential oil (E); and the effects of the liquid/solid ratio and extraction time on the yields of the polysaccharides (C); and essential oil (F).

Based on the above model, the maximum predicted yield of the polysaccharides was 6.43%, corresponding to an extraction time of 17.2 min, liquid/solid ratio of 22.0 (mL/g) and microwave power of 590 W. The maximum predicted yield of the essential oil was predicted to be 0.28%, corresponding to an extraction time of 17.7 min, liquid/solid ratio of 23.0 (mL/g), and microwave power of 504 W. Considering the recovery yields of the polysaccharides and essential oil, the optimal conditions for extracting these materials were identified as an extraction time of 17.5 min, liquid/solid ratio of 22.5 (mL/g), and microwave power of 547 W. Based on above the optimal conditions, a validation experiment was performed. The experimental results show that the yields of the polysaccharides and essential oil under the optimal extraction conditions were determined to be 6.39% ± 0.12% and 0.27% ± 0.03%, respectively.

3.3. MA-SDE Was Compared with the Traditional Extraction Methods

Three extraction methods, including the HRE, HDE, and MA-SDE methods were compared in terms of their ability to affect the extraction of the polysaccharides and essential oil from the powdered leaves of T. chinensis var. mairei (see Figure 5). The results in Figure 5 clearly show that the yield of the polysaccharides obtained by the MA-SDE method was 6.39% ± 0.12%, which was 1.14-fold higher than that of the yield obtained by the conventional HRE method. Furthermore, the yield of essential oil obtained by the MA-SDE method was 0.27% ± 0.03%, which was 1.23-fold higher than the yield obtained using the conventional HDE method. The use of an extraction time of 17.5 min with the MA-SDE method provided yields that could only be achieved after 6.0 and 3.0 h extraction times for the HDE and HRE methods.

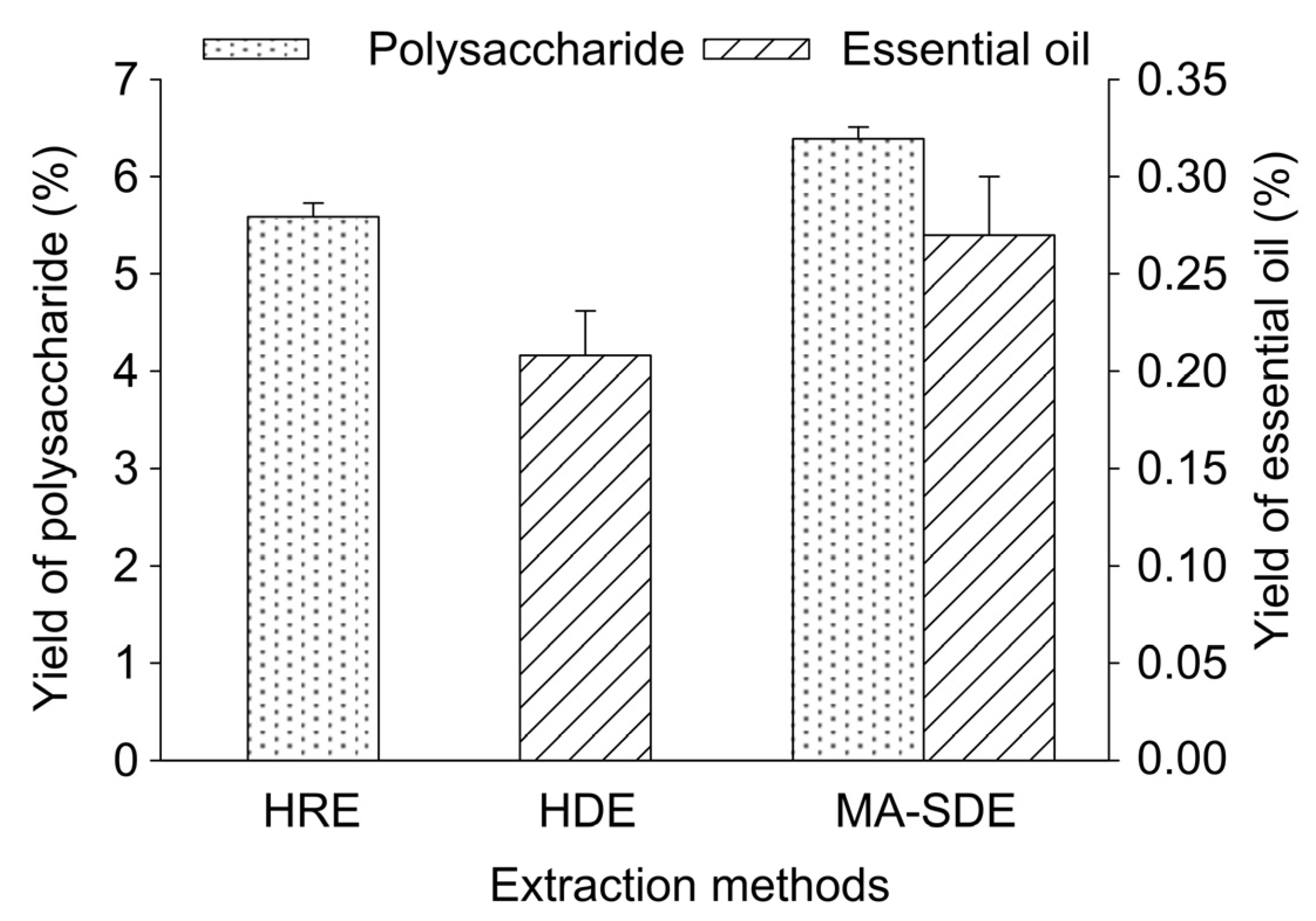

Figure 5. Effect of different extraction methods on yields of essential oil and polysaccharide. Error bars indicate standard deviation (n = 3).

Figure 5. Effect of different extraction methods on yields of essential oil and polysaccharide. Error bars indicate standard deviation (n = 3).

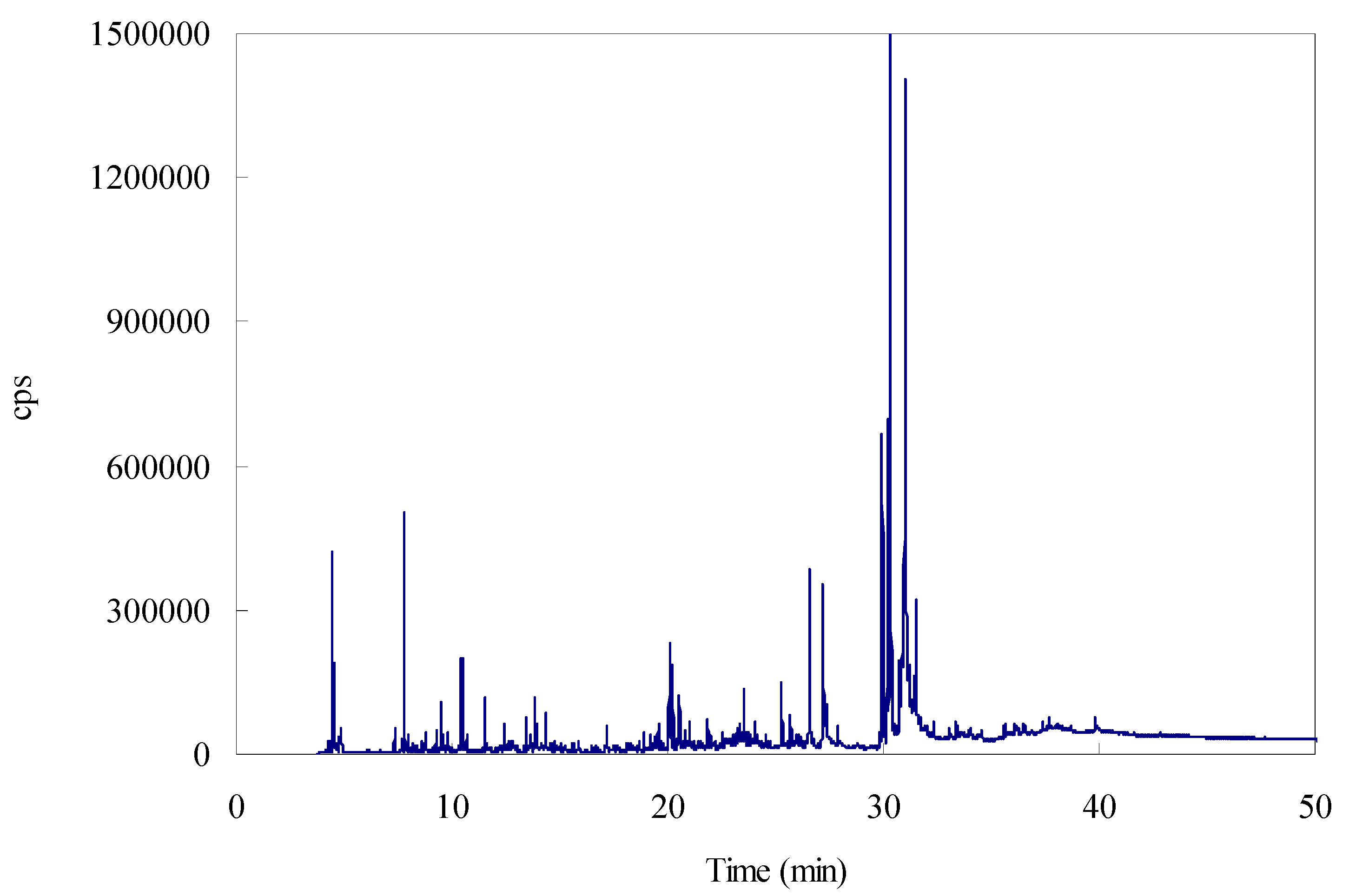

Figure 6. GC-MS chromatogram of the essential oil from the leaves of T. chinensis var. mairei.

Figure 6. GC-MS chromatogram of the essential oil from the leaves of T. chinensis var. mairei.

3.4. GC-MS Analysis of the Essential Oil Derived from the Powdered Leaves of T. chinensis var. mairei

The components of the essential oil were identified based on a comparison of their retention indices and mass spectra with those recorded in the NIST02 Mass Spectral Library. GC-MS chromatogram of the essential oil from the leaves of T. chinensis var. mairei is shown in Figure 6. The quantitative analysis of each essential oil component (expressed as an area percentage) was carried out by peak area normalization. The components of the essential oil identified by MA-SDE and HDE are listed in Table 4. Thirty-three components were identified in the essential oil extracted from the powdered leaves of T. chinensis var. mairei using MA-SDE and HDE, accounting for 94.59% and 95.05% of the total essential oil, respectively. The compounds and contents of essential oil obtained by MA-SDE are almost the same as those obtained by HDE, and the most abundant components of the essential oil were determined to be fatty acids, including cis-vaccenic acid, (E)-palmitoleic acid, n-hexadecanoic acid, (Z,Z)-9,12-octadecadienoic acid, oleic acid, and hexanoic acid by the two methods. This means that essential oil could be extracted using MA-SDE without causing major changes in the essential oil components.

Table 4. Composition of the essential oil from T. chinensis var. mairei.

No.	Compound	CAS Number	Molecular Formula	RI a	Content (%) b
					MA-SDE	HDE
1	Hexanal	66-25-1	C6H12O	802	0.26	0.28
2	Benzaldehyde	100-52-7	C7H6O	960	0.46	0.45
3	1-Octen-3-ol	3391-86-4	C8H16O	978	0.42	0.42
4	Hexanoic acid	142-62-1	C6H12O2	981	1.01	1.01
5	3-Octanol	20296-29-1	C8H18O	995	0.56	0.55
6	3-Carene	13466-78-9	C10H16	1010	0.73	0.72
7	Benzeneacetaldehyde	122-78-1	C8H8O	1045	0.43	0.42
8	1-Octanol	111-87-5	C9H18O	1070	0.34	0.33
9	Nonanal	124-19-6	C9H18O	1102	1.68	1.68
10	3,7-Dimethyloct-1-en-3-ol	18479-49-7	C10H20O	1135	0.43	0.43
11	Tetradecane	629-59-4	C14H30	1400	0.16	0.16
12	α-Ionone	127-41-3	C13H20O	1429	0.40	0.39
13	β-Ionone	79-77-6	C13H20O	1490	0.31	0.31
14	2-Hexyl-1-decanol	2425-77-6	C16H34O	1504	1.27	1.27
15	Dodecanoic acid	143-07-7	C12H24O2	1570	0.23	0.23
16	Hexadecane	544-76-3	C16H34	1600	0.53	0.53
17	2,6,10,14-Tetramethyl-pentadecane	1921-70-6	C19H40	1707	1.87	1.89
18	Tetradecanoic acid	544-63-8	C14H28O2	1770	0.26	0.25
19	Octadecane	593-45-3	C18H38	1800	0.30	0.30
20	Phytane	638-36-8	C20H42	1810	0.28	0.28
21	1,2-Benzenedicarboxylic acid, bis(2-methylpropyl) ester	84-69-5	C16H22O4	1867	0.88	0.86
22	Hexadecanoic acid methyl ester	112-39-0	C17H34O2	1928	4.84	4.82
23	n-Hexadecanoic acid	57-10-3	C16H32O2	1971	6.19	6.19
24	Eicosane	112-95-8	C20H42	2000	1.06	1.08
25	Heneicosane	629-94-7	C21H44	2100	1.01	1.00
26	Phytol	150-86-7	C20H40O	2112	0.27	0.27
27	cis-Vaccenic acid	506-17-2	C18H34O2	2123	36.73	36.96
28	Oleic acid	112-80-1	C18H34O2	2142	1.67	1.70
29	(Z,Z)-9,12-Octadecadienoic acid	60-33-3	C18H32O2	2156	1.88	1.83
30	(E)-Palmitoleic acid	112-79-8	C18H34O2	2163	23.66	24.05
31	Linolenic acid ethyl ester	1191-41-9	C20H34O2	2170	0.53	0.52
32	Ethyl oleate	111-62-6	C20H38O2	2179	3.44	3.37
33	Eicosanoic acid, ethyl ester	18281-05-5	C22H44O2	2380	0.51	0.50
Total					94.59	95.05

^a RI is retention indices relative to C8-C24 n-alkanes on the HP-5MS capillary column; ^b The content was expressed as peak area of individual component relative to the total peak areas (%).

Table 4. Composition of the essential oil from T. chinensis var. mairei.

No.	Compound	CAS Number	Molecular Formula	RI a	Content (%) b
					MA-SDE	HDE
1	Hexanal	66-25-1	C6H12O	802	0.26	0.28
2	Benzaldehyde	100-52-7	C7H6O	960	0.46	0.45
3	1-Octen-3-ol	3391-86-4	C8H16O	978	0.42	0.42
4	Hexanoic acid	142-62-1	C6H12O2	981	1.01	1.01
5	3-Octanol	20296-29-1	C8H18O	995	0.56	0.55
6	3-Carene	13466-78-9	C10H16	1010	0.73	0.72
7	Benzeneacetaldehyde	122-78-1	C8H8O	1045	0.43	0.42
8	1-Octanol	111-87-5	C9H18O	1070	0.34	0.33
9	Nonanal	124-19-6	C9H18O	1102	1.68	1.68
10	3,7-Dimethyloct-1-en-3-ol	18479-49-7	C10H20O	1135	0.43	0.43
11	Tetradecane	629-59-4	C14H30	1400	0.16	0.16
12	α-Ionone	127-41-3	C13H20O	1429	0.40	0.39
13	β-Ionone	79-77-6	C13H20O	1490	0.31	0.31
14	2-Hexyl-1-decanol	2425-77-6	C16H34O	1504	1.27	1.27
15	Dodecanoic acid	143-07-7	C12H24O2	1570	0.23	0.23
16	Hexadecane	544-76-3	C16H34	1600	0.53	0.53
17	2,6,10,14-Tetramethyl-pentadecane	1921-70-6	C19H40	1707	1.87	1.89
18	Tetradecanoic acid	544-63-8	C14H28O2	1770	0.26	0.25
19	Octadecane	593-45-3	C18H38	1800	0.30	0.30
20	Phytane	638-36-8	C20H42	1810	0.28	0.28
21	1,2-Benzenedicarboxylic acid, bis(2-methylpropyl) ester	84-69-5	C16H22O4	1867	0.88	0.86
22	Hexadecanoic acid methyl ester	112-39-0	C17H34O2	1928	4.84	4.82
23	n-Hexadecanoic acid	57-10-3	C16H32O2	1971	6.19	6.19
24	Eicosane	112-95-8	C20H42	2000	1.06	1.08
25	Heneicosane	629-94-7	C21H44	2100	1.01	1.00
26	Phytol	150-86-7	C20H40O	2112	0.27	0.27
27	cis-Vaccenic acid	506-17-2	C18H34O2	2123	36.73	36.96
28	Oleic acid	112-80-1	C18H34O2	2142	1.67	1.70
29	(Z,Z)-9,12-Octadecadienoic acid	60-33-3	C18H32O2	2156	1.88	1.83
30	(E)-Palmitoleic acid	112-79-8	C18H34O2	2163	23.66	24.05
31	Linolenic acid ethyl ester	1191-41-9	C20H34O2	2170	0.53	0.52
32	Ethyl oleate	111-62-6	C20H38O2	2179	3.44	3.37
33	Eicosanoic acid, ethyl ester	18281-05-5	C22H44O2	2380	0.51	0.50
Total					94.59	95.05

^a RI is retention indices relative to C8-C24 n-alkanes on the HP-5MS capillary column; ^b The content was expressed as peak area of individual component relative to the total peak areas (%).

4. Conclusions

A MA-SDE method has been successfully developed for the simultaneous separation of the polysaccharides and essential oil from the powdered leaves of T. chinensis var. mairei. First, extraction solvent of essential oil, particle size of sample, extraction time, microwave power, and liquid/solid ratio were optimized using single factor experiment. Then, based on the single-factor experimental results, a CCD combined with RSM was used for further optimizing the microwave power, extraction time, and liquid/solid ratio. Based on the results of single factor experiments and CCD tests, the optimal conditions for the extraction of the essential oil were determined to be dichloromethane as the extraction solvent, a sample particle size of 60–80 mesh, liquid/solid ratio of 22.5 mL/g, extraction time of 17.5 min and microwave power of 547 W. MAE is well known as a technique for green extraction [39,40] and adheres to the technical advantages of MAE. Compared to conventional HRE and HDE methods, the MA-SDE method provided higher yields, less energy consumption, and shorter extraction duration, which suggested that this method is highly effective for the extraction of the polysaccharides from T. chinensis var. mairei. In addition, this method accelerates the isolation of essential oil from T. chinensis var. mairei without causing major changes in the essential oil composition. The proposed green and effective MA-SDE method could also be used for the simultaneous separation of volatile compounds and polysaccharides from other plants.
