# Multi-Objective Resource Allocation Scheme for D2D Multicast with QoS Guarantees in Cellular Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. System Model and Problem Formulation

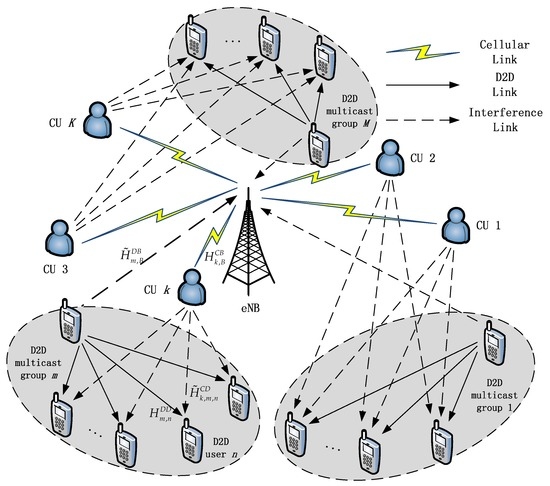

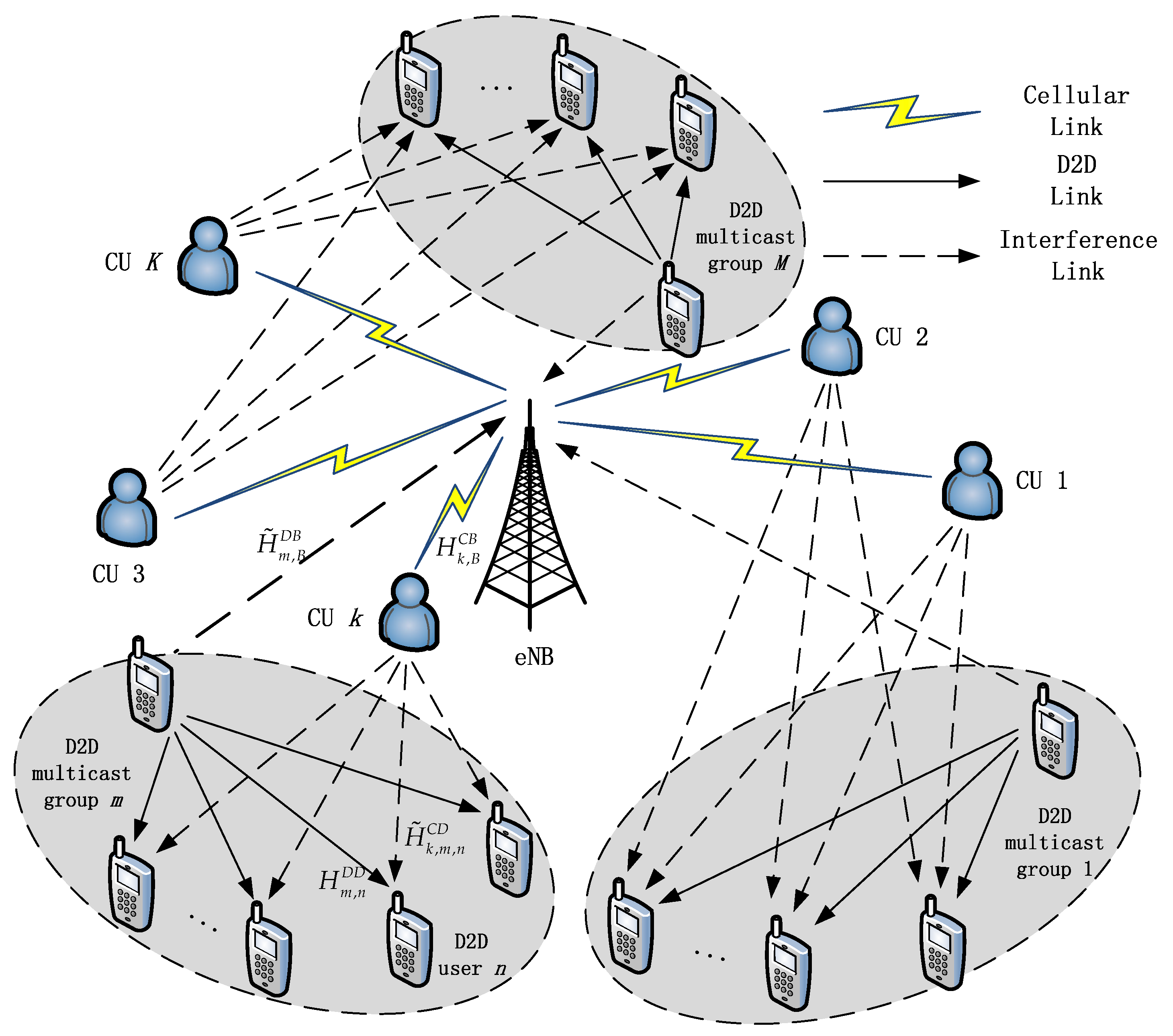

#### 2.1. System Model

#### 2.2. Problem Formulation

## 3. The Proposed Resource Allocation for D2D Communication

#### 3.1. Problem Equivalence

**Proposition 1.**

**Proof.**

#### 3.2. SINR Assignment for One D2D Multicast Group

**Lemma 1.**

**Proof.**

#### 3.3. Sub-Channel Allocation for Multiple D2D Multicast Groups

#### 3.4. Overall Mechanism

Algorithm 1. Resource Allocation For D2D Multicast. |

* Initialization:The eNB collects the location information of all D2D multicast groups. The initial valid sub-channel set ${\mathcal{S}}_{m}=\varnothing ,\forall m$, the initial feasible sub-channel set ${\mathcal{F}}_{m}=\mathcal{K},\forall m$, the initial available sub-channel set $\mathcal{A}=\mathcal{K}$, and the initial binary variable ${\omega}_{m,k}=0,\forall m,k$ are set up. The multi-objective optimization value brought by any D2D multicast group reusing any sub-channel is $\mathsf{\Phi}\left({\mathsf{\gamma}}_{k,m}^{C\text{}*},{\widehat{\mathsf{\gamma}}}_{n,m,k}^{D}\right)$, which is given (31). |

* Phase 1. Sub-channel Allocation:1. If $\exists m\in \mathcal{M},{\mathcal{F}}_{m}\ne \varnothing $, find the optimal matching $\left({m}^{\ast},{k}^{\ast}\right)$ which satisfies $\left({m}^{\ast},{k}^{\ast}\right)=\mathrm{arg}{\mathrm{min}}_{\left(m,k\right):m\in \mathcal{M},k\in \mathcal{C}}\mathsf{\Phi}\left({\mathsf{\gamma}}_{k,m}^{C\text{}*},{\widehat{\mathsf{\gamma}}}_{n,m,k}^{D}\right)$; Otherwise, go to step 4. 2. If the number of sub-channels allocated to m ^{*} satisfies $\left|{\mathcal{S}}_{m*}\right|\le \frac{K}{M}-1$, set ${\omega}_{m*,k*}=1$, ${\mathcal{S}}_{m}={\mathcal{S}}_{m}\cup \left\{{k}^{*}\right\}$, ${\mathcal{F}}_{m}={\mathcal{F}}_{m}\backslash \left\{{k}^{*}\right\}$, $\mathcal{A}=\mathcal{A}\backslash \left\{{k}^{*}\right\}$. Return to step 1.3. Otherwise, ${\mathcal{F}}_{m*}={\mathcal{F}}_{m*}\backslash \left\{{k}^{*}\right\}$, return to step 1. 4. If the available sub-channel set $\mathcal{A}=\varnothing ,$ go to step 5. Otherwise, for every ${k}^{\prime}\in \mathcal{A}$, find optimal ${m}^{opt}\in \mathcal{M}$ which satisfies $\left({m}^{opt},{k}^{\prime}\right)=\mathrm{arg}{\mathrm{min}}_{\left(m,k\right):m\in \mathcal{M},{k}^{\prime}\in \mathcal{A}}\mathsf{\Phi}\left({\mathsf{\gamma}}_{{k}^{\prime},m}^{C\text{}*},{\widehat{\mathsf{\gamma}}}_{n,m,{k}^{\prime}}^{D}\right)$, then set ${\mathsf{\omega}}_{{m}^{opt},{k}^{\prime}}=1$, ${\mathcal{S}}_{{m}^{opt}}={\mathcal{S}}_{{m}^{opt}}\cup \left\{{k}^{\prime}\right\}$, $\mathcal{A}=\mathcal{A}\backslash \left\{{k}^{\prime}\right\}$. 5. The sub-channel allocation can be determined by repeating the above steps. Phase 1 continues until all available sub-channels are allocated to the D2D groups. |

* Phase 2. SINR Assignment:1. For the D2D group $m\in \mathcal{M}$, obtain all SINR ${{\mathsf{\gamma}}_{n,m,k}^{D}}^{*}$ on the sub-channels by solving the problem (16). 2. According Equations (3), (4) and (9), calculate all ${p}_{m,k}^{D}({{\mathsf{\gamma}}_{k,m}^{C\text{}}}^{*},{{\mathsf{\gamma}}_{n,m,k}^{D}}^{*})$ and ${A}_{n,m,k}$. 3. The power consumption and system capacity of D2D group m are respectively given by ${p}_{m}^{D}={\displaystyle {\sum}_{k\in {\mathcal{S}}_{m}}{p}_{m,k}^{D}({{\gamma}_{k,m}^{C\text{}}}^{*},{{\gamma}_{n,m,k}^{D}}^{*})}$, ${X}_{n,m}=\left|{\displaystyle {\cup}_{k\in {\mathcal{S}}_{m}}{A}_{n,m,k}}\right|$. Repeat the above steps until the power consumptions and system capacities of all D2D groups are calculated ultimately. |

## 4. Numerical Results

_{i}is the resource allocated to D2D groups i, and M is the number of D2D groups. In Figure 7, fairness index of two schemes decreases with the increasing number of D2D groups in the network. Nevertheless, the fairness index of the proposed scheme always has higher fairness than referenced scheme since it considers a constrained multi-objective optimization problem.

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A

## Appendix B

## References

- 3rd Generation Partnership Project (3GPP). Feasibility Study on Proximity-Based Services (ProSe, 3GPP TR 22.803 V12.2.0). Available online: http://www.3gpp.org/ftp/Specs/archive/22_series/22.803/ (accessed on 16 July 2016).
- Asadi, A.; Wang, Q.; Mancuso, V. A Survey on Device-to-Device Communication in Cellular Networks. IEEE Commun. Surv. Tutor.
**2014**, 16, 1801–1819. [Google Scholar] [CrossRef] - Fodor, G.; Dahlman, E.; Mildh, G.; Parkvall, S.; Reider, N.; Miklýs, G.; Turýnyi, Z. Design aspects of network assisted Device-to-Device communications. IEEE Commun. Mag.
**2012**, 50, 170–177. [Google Scholar] [CrossRef] - Datsika, E.; Antonopoulos, A.; Zorba, N.; Verikoukis, C. Green Cooperative Device-to-Device Communication: A Social-Aware Perspective. IEEE Access
**2016**, 4, 3697–3707. [Google Scholar] [CrossRef] - Xu, S.; Wang, H.; Chen, T.; Huang, Q.; Peng, T. Effective Interference Cancellation Scheme for Device-to-Device Communication Underlaying Cellular Networks. In Proceedings of the IEEE 72nd Vehicular Technology Conference Fall (VTC 2010-Fall), Ottawa, ON, Canada, 6–9 September 2010; pp. 1–5.
- Pei, Y.; Liang, Y.C. Resource Allocation for Device-to-Device Communications Overlaying Two-way Cellular Networks. IEEE Trans. Wirel. Commun.
**2013**, 12, 3611–3621. [Google Scholar] [CrossRef] - Zhu, F.; Gao, F.; Yao, M.; Zou, H. Joint Information- and Jamming-Beamforming for Physical Layer Security With Full Duplex Base Station. IEEE Trans. Signal. Process.
**2014**, 62, 6391–6401. [Google Scholar] [CrossRef] - Li, J.C.F.; Lei, M.; Gao, F. Device-to-device (D2D) communication in MU-MIMO cellular networks. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), Anaheim, CA, USA, 3–7 December 2012; pp. 3583–3587.
- Golrezaei, N.; Dimakis, A.G.; Molisch, A.F. Device-to-device collaboration through distributed storage. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), Anaheim, CA, USA, 3–7 December 2012; pp. 2397–2402.
- Zulhasnine, M.; Huang, C.; Srinivasan, A. Efficient Resource Allocation for Device-to-Device Communication Underlaying LTE Network. Mater. Chem. Phys.
**2010**, 117, 359–364. [Google Scholar] - Lee, J.; Gu, J.; Bae, S.J.; Chung, M.Y. A resource allocation scheme for improving user fairness in device-to-device communication based on cellular networks. In Proceedings of the 7th International Conference on Ubiquitous Information Management and Communication, Kota Kinabalu, Malaysia, 17–19 January 2013; p. 112.
- Zhao, W.; Wang, S. Low complexity power allocation for device-to-device communication underlaying cellular networks. In Proceedings of the IEEE International Conference on Communications (ICC), Sydney, Australia, 10–14 June 2014; pp. 5532–5537.
- Hoang, T.D.; Long, B.L.; Le-Ngoc, T. Resource allocation for D2D communications under proportional fairness. In Proceedings of the IEEE Global Communications Conference (GLOBECOM), San Diego, CA, USA, 6–10 December 2015; pp. 595–596.
- Wu, D.; Wang, J.; Hu, R.Q.; Cai, Y.; Zhou, L. Energy-Efficient Resource Sharing for Mobile Device-to-Device Multimedia Communications. IEEE Trans. Veh. Technol.
**2014**, 63, 2093–2103. [Google Scholar] [CrossRef] - Antonopoulos, A.; Kartsakli, E.; Verikoukis, C. Game theoretic D2D content dissemination in 4g cellular networks. IEEE Commun. Mag.
**2014**, 52, 125–132. [Google Scholar] [CrossRef] - Antonopoulos, A.; Verikoukis, C. Multi-player game theoretic mac strategies for energy efficient data dissemination. IEEE Trans. Wirel. Commun.
**2013**, 13, 592–603. [Google Scholar] [CrossRef] - Wang, D.; Wang, X.; Zhao, Y. An Interference Coordination Scheme for Device-to-Device Multicast in Cellular Networks. In Proceedings of the IEEE Vehicular Technology Conference (VTC Fall), Québec City, QC, Canada, 3–6 September 2012; pp. 1–5.
- Yaacoub, E.; Kubbar, O. Energy-efficient Device-to-Device communications in LTE public safety networks. In Proceedings of the IEEE Globecom Workshops (GC Wkshps), Anaheim, CA, USA, 3–7 December 2012; pp. 391–395.
- Peng, B.; Peng, T.; Liu, Z.; Yang, Y.; Hu, C. Cluster-Based Multicast Transmission for Device-to-Device (D2D) Communication. In Proceedings of the IEEE Vehicular Technology Conference (VTC Fall), Las Vegas, NV, USA, 2–5 September 2013; pp. 1–5.
- Meshgi, H.; Zhao, D.; Zheng, R. Joint channel and power allocation in underlay multicast device-to-device communications. In Proceedings of the IEEE International Conference on Communications (ICC), London, UK, 8–12 June 2015; pp. 2937–2942.
- Ng, D.W.K.; Lo, E.S.; Schober, R. Multiobjective resource allocation for secure communication in cognitive radio networks with wireless information and power transfer. IEEE Trans. Veh. Technol.
**2014**, 65, 3166–3184. [Google Scholar] [CrossRef] - Bousia, A.; Kartsakli, E.; Antonopoulos, A.; Alonso, L. Multiobjective auction-based switching off scheme in heterogeneous networks to bid or not to bid? IEEE Trans. Veh. Technol.
**2016**. [Google Scholar] [CrossRef] - Doppler, K.; Rinne, M.P.; Janis, P.; Ribeiro, C.; Hugl, K. Device-to-Device Communications; Functional Prospects for LTE-Advanced Networks. In Proceedings of the IEEE International Conference on Communications Workshops, Dresden, Germany, 14–18 June 2009; pp. 1–6.
- Boyd, S.; Vandenberghe, L. Convex Optimization; Cambridge University Press: New York, NY, USA, 2004. [Google Scholar]
- Kaufman, B.; Aazhang, B. Cellular Networks with an Overlaid Device to Device Network. In Proceedings of the 42nd Asilomar Conference on Signals, Systems and Computers, Pacific Grove, CA, USA; 2008; pp. 1537–1541. [Google Scholar]
- Jung, M.; Hwang, K.; Choi, S. Joint Mode Selection and Power Allocation Scheme for Power-Efficient Device-to-Device (D2D) Communication. In Proceedings of the IEEE 75th Vehicular Technology Conference (VTC Spring), Yokohama, Japan, 6–9 May 2012; Volume 329, pp. 1–5.
- Jain, R.; Chiu, D.; Hawe, W. A Quantitative Measure of Fairness and Discrimination for Resource Allocation in Shared Computer Systems. Available online: https://www.researchgate.net/profile/Raj_Jain3/publication/220486705_A_Quantitative_Measure_Of_Fairness_And_Discrimination_For_Resource_Allocation_In_Shared_Computer_Systems/links/09e4150c0274cec7b2000000.pdf (accessed on 7 August 2016).

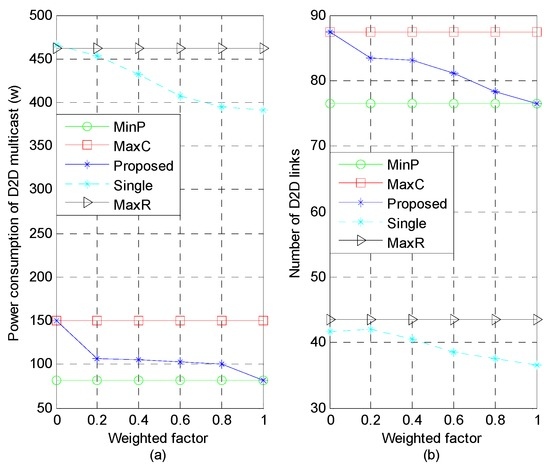

**Figure 2.**Power consumption and number of D2D links versus weighted factor: (

**a**) Impact of weighted factor on power consumption; (

**b**) Impact of weighted factor on system capacity.

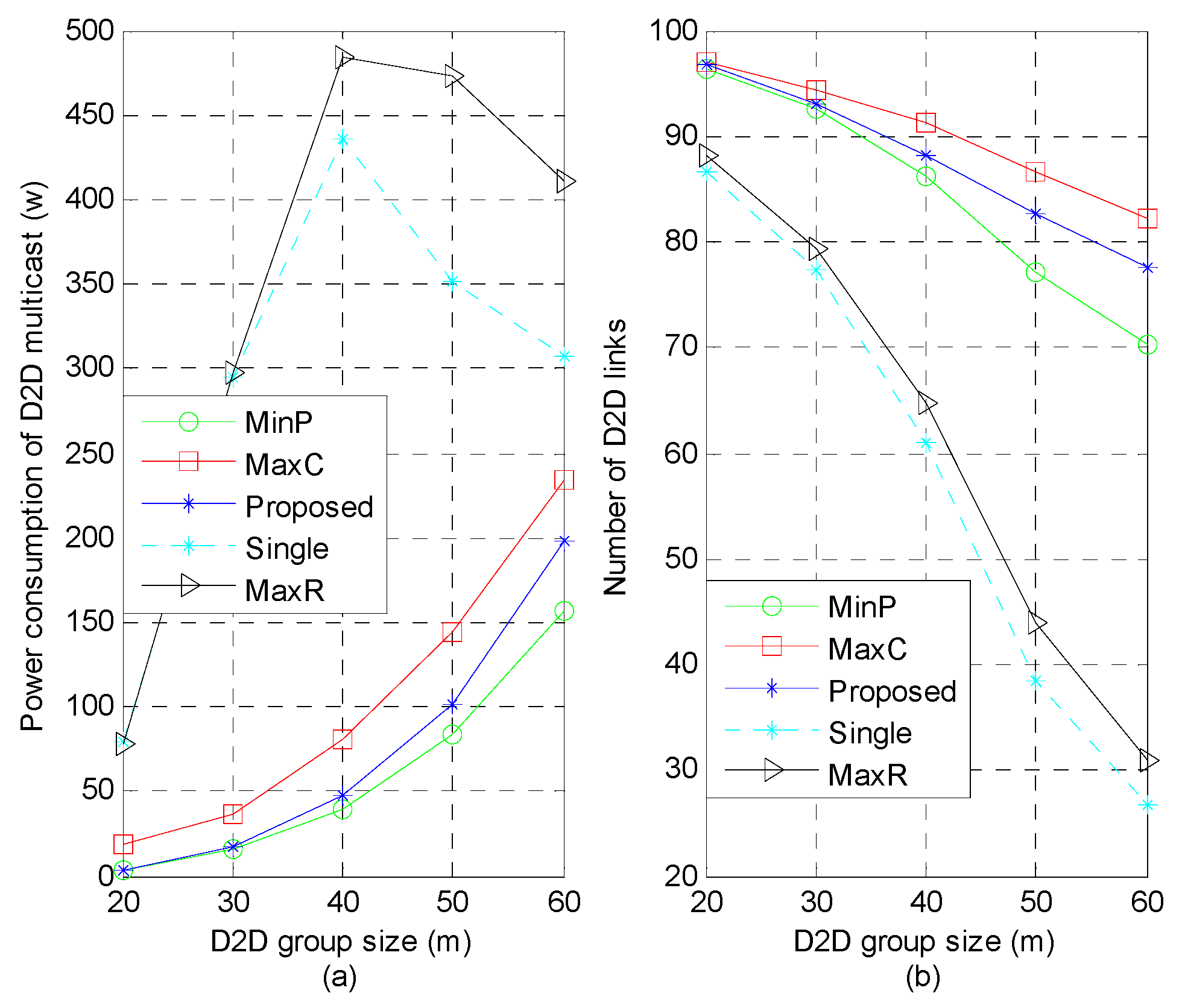

**Figure 3.**Power consumption and number of D2D links versus D2D group size: (

**a**) Impact of D2D group size on power consumption; (

**b**) Impact of D2D group size on system capacity.

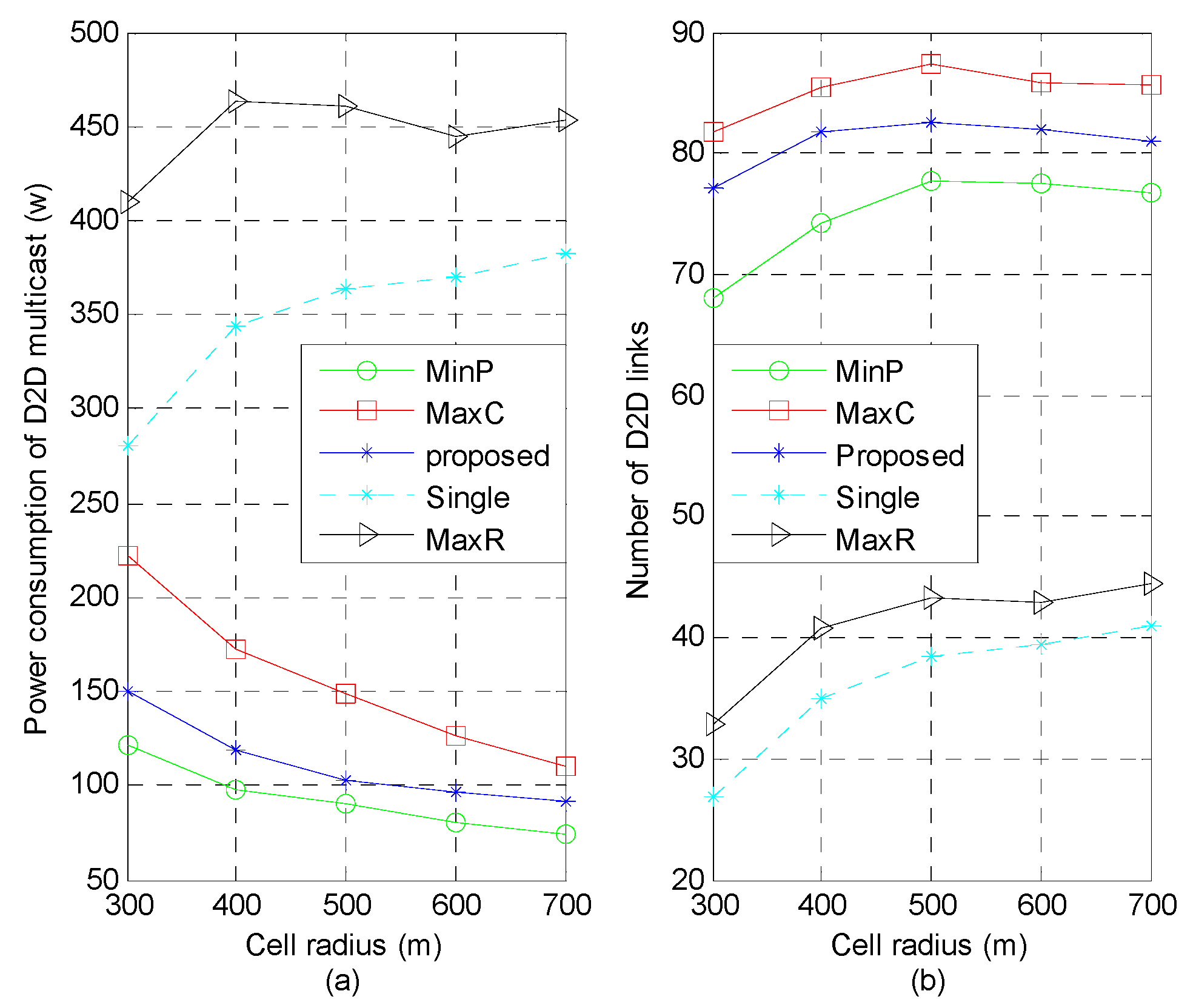

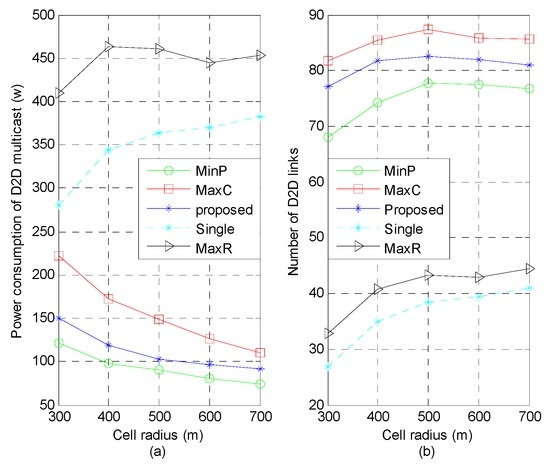

**Figure 4.**Power consumption and number of D2D links versus cell radius: (

**a**) Impact of cell radius on power consumption; (

**b**) Impact of cell radius on system capacity.

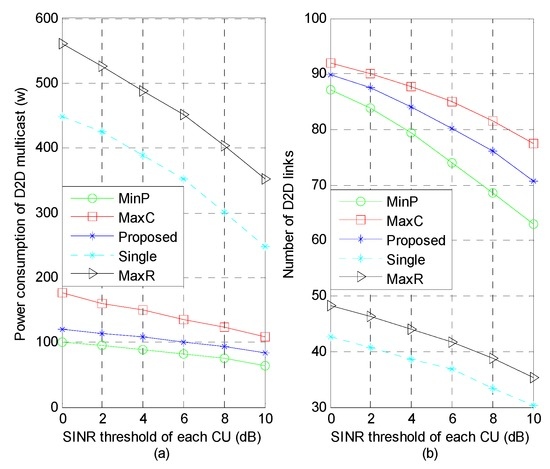

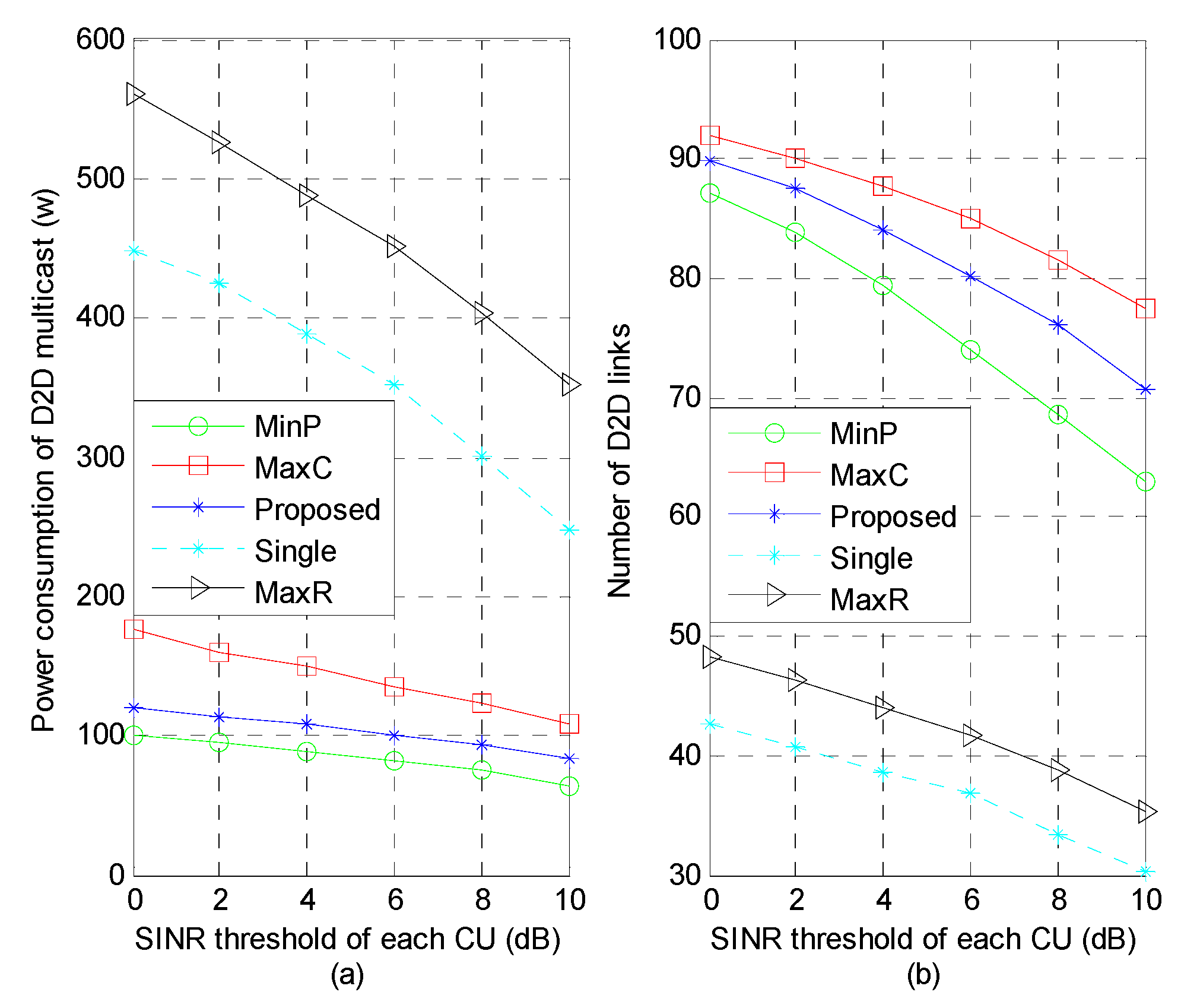

**Figure 5.**Power consumption and number of D2D links versus signal-to-interference- plus-noise ratio (SINR) threshold of each CU: (

**a**) Impact of SINR requirement of CUs on power consumption; (

**b**) Impact of SINR requirement of CUs on system capacity.

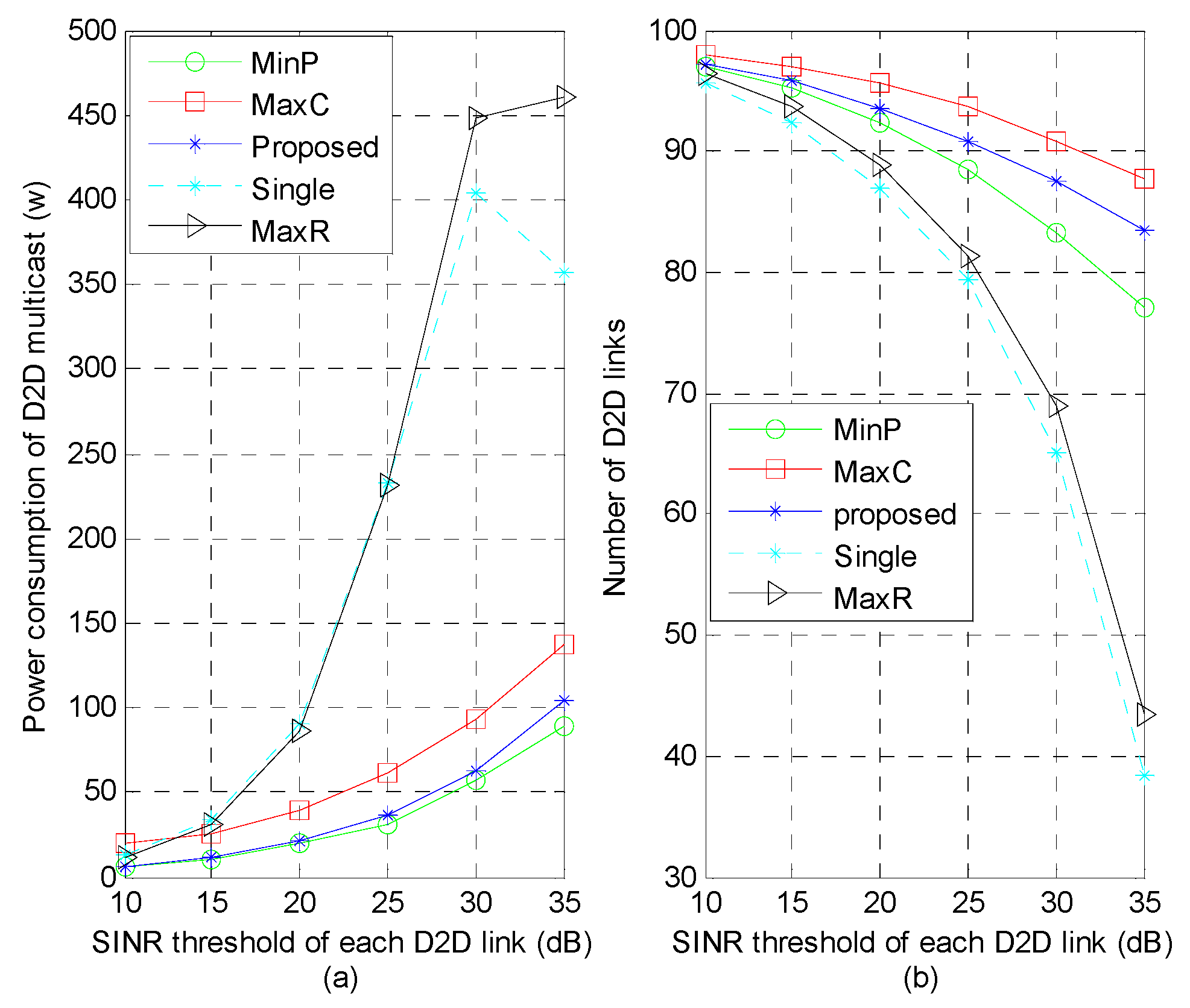

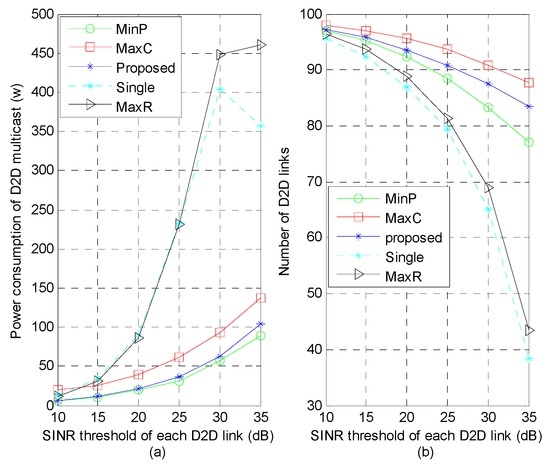

**Figure 6.**Power consumption and number of D2D links versus SINR threshold of each D2D link: (

**a**) Impact of SINR requirement of D2D links on power consumption; (

**b**) Impact of SINR requirement of D2D links on system capacity.

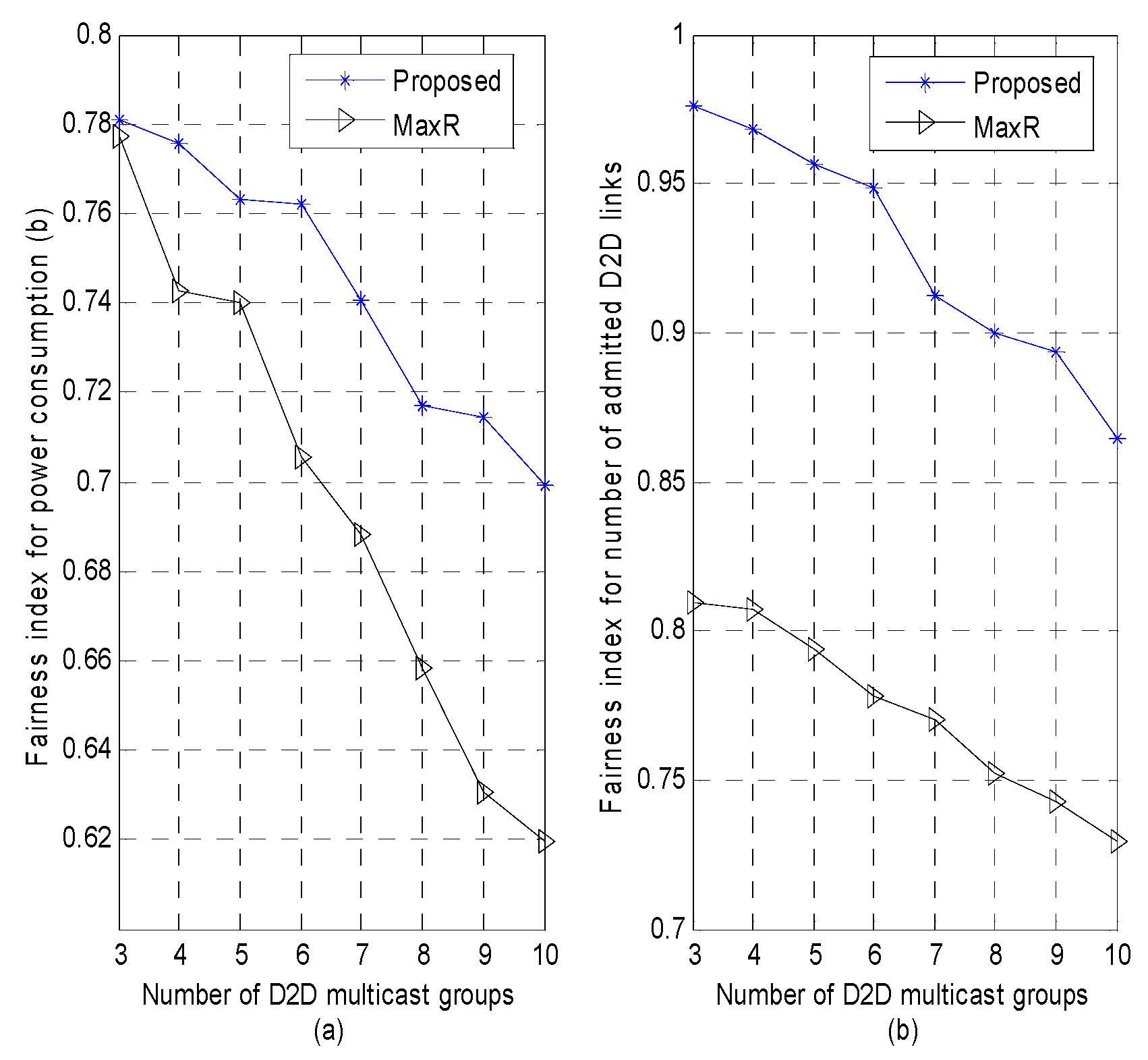

**Figure 7.**Fairness index versus number of D2D multicast groups: (

**a**) Impact of the number of D2D multicast groups on fairness index for power consumption; (

**b**) Impact of the number of D2D multicast groups on fairness index for system capacity.

Parameter | Value |
---|---|

Cellular layout | one isolated cellular cell |

Cell radius, R | 300 m~700 m |

Uplink bandwidth | 180 kHz |

Noise spectral density | −174 dBm/Hz |

Path loss for cellular links | 128.1 + 37.6log10 (d (km)) |

Path loss for D2D links | 148 + 40log10 (d (km)) |

Shadowing standard deviation | 10 dB for cellular links |

12 dB for D2D links | |

Noise spectral density | −174 dBm/Hz |

Maximum transmission power of CU | 20 dBm |

Maximum transmission power of D2D | 20 dBm |

SINR threshold of CU | 0 dB~10 dB |

SINR threshold of CU link | 10 dB~35 dB |

Number of CUs, K | 20 |

Number of D2D groups, M | 3~10 |

Number of D2D receivers in each group | 10 |

D2D group size, r | 20 m~60 m |
