# Passive Guaranteed Simulation of Analog Audio Circuits: A Port-Hamiltonian Approach

^{*}

## Abstract

**:**

## 1. Introduction

- Analog circuits combine energy-storing components, dissipative components, and sources.
- Storage components do not produce energy, and dissipative components decrease it.

## 2. Port-Hamiltonian Systems

#### 2.1. Formalism and Property

#### 2.1.1. Components

- ${n}_{S}$
- internal components that store energy $\mathtt{E}\ge 0$ (capacitors or inductors),
- ${n}_{D}$
- internal components that dissipate power $\mathtt{D}\ge 0$ (resistors, diodes, transistors, etc.),
- ${n}_{P}$
- external ports that convey power $\mathtt{S}\phantom{\rule{0.277778em}{0ex}}(\in \mathbb{R})$ from sources (voltage or current generators) or any external system (active, dissipative, or mixed).

#### 2.1.2. Conservative Interconnection

**Theorem**

**1 (Tellegen).**

- ${\mathbf{J}}_{\mathbf{x}}\in {\mathbb{R}}^{{n}_{S}\times {n}_{S}}$
- expresses the conservative power exchanges between storage components (this corresponds to the so-called $\mathbf{J}$ matrix in classical Hamiltonian systems);
- ${\mathbf{J}}_{\mathbf{w}}\in {\mathbb{R}}^{{n}_{D}\times {n}_{D}}$
- expresses the conservative power exchanges between dissipative components;
- ${\mathbf{J}}_{\mathbf{y}}\in {\mathbb{R}}^{{n}_{P}\times {n}_{P}}$
- expresses the conservative power exchanges between ports (direct connections of inputs to outputs);
- $\mathbf{K}\in {\mathbb{R}}^{{n}_{S}\times {n}_{D}}$
- expresses the conservative power exchanges between the storage components and the dissipative components;
- ${\mathbf{G}}_{\mathbf{x}}\in {\mathbb{R}}^{{n}_{S}\times {n}_{P}}$
- expresses the conservative power exchanges between ports and storage components (input gain matrix);
- ${\mathbf{G}}_{\mathbf{w}}\in {\mathbb{R}}^{{n}_{D}\times {n}_{P}}$
- expresses the conservative power exchanges between ports and dissipative components (input gain matrix).

**Property**

**1 (Power Balance).**

**Proof.**

**Remark**

**1 (Power variables).**

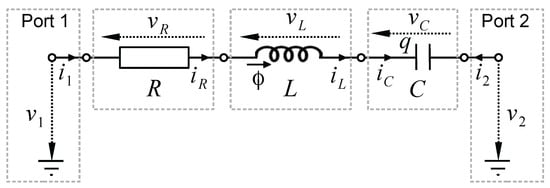

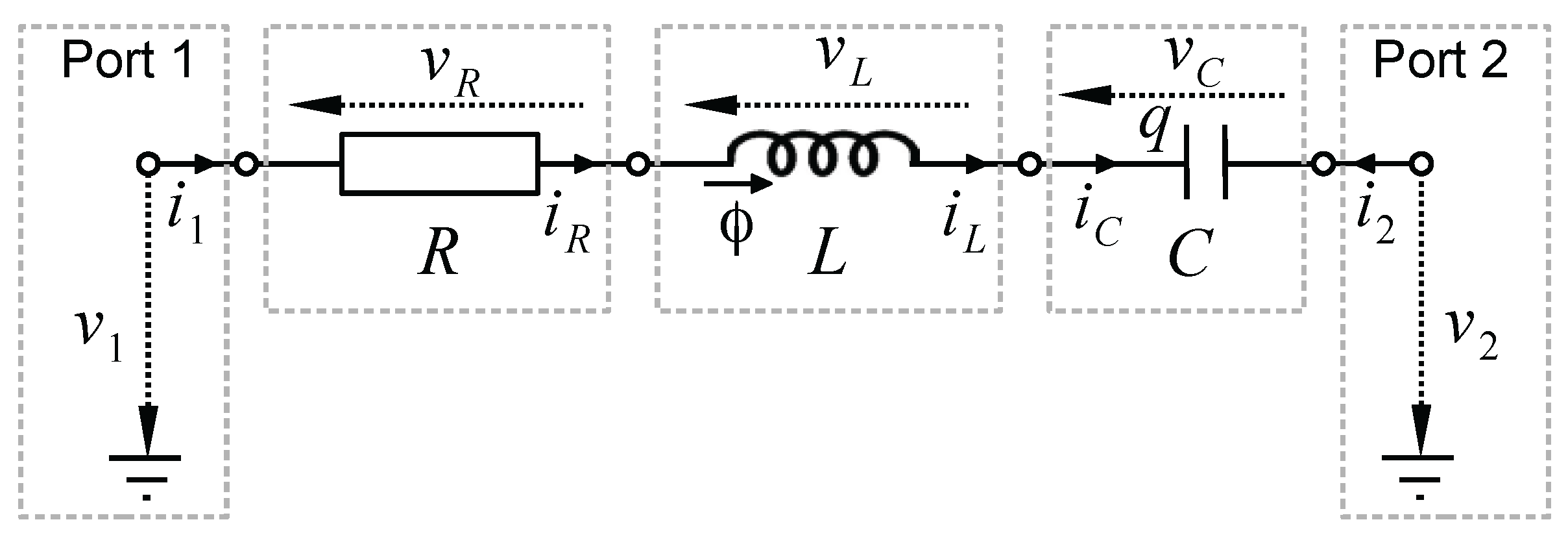

#### 2.2. Example

**Remark**

**2 (Reduction).**

## 3. Generation of Equations

**Step 1**:- from a netlist ($\mathcal{L}$) to a graph ($\mathcal{G}$) that represents the Kirchhoff’s laws for a chosen orientation (convention);
**Step 2**:

#### 3.1. Graph Encoding

#### 3.1.1. Netlists

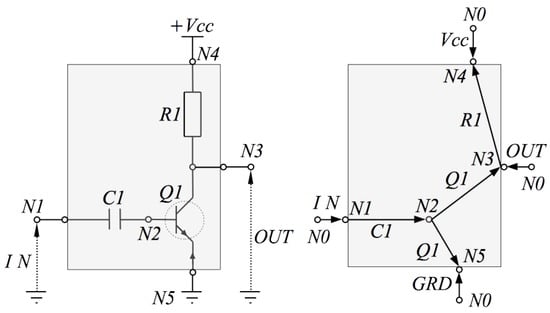

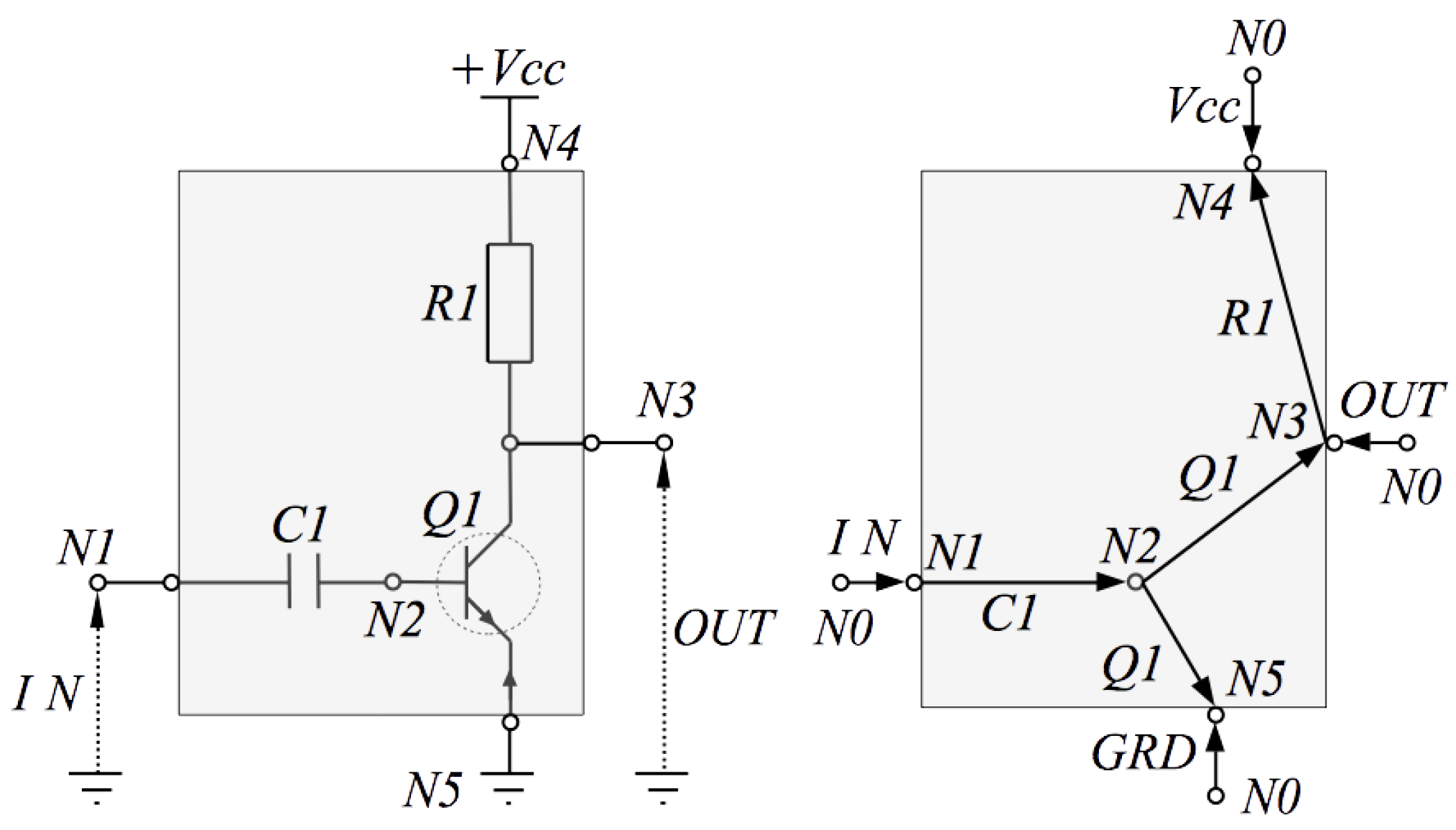

#### 3.1.2. Graph

- Dipoles are made of two nodes and a single branch, defining a single couple of state x and storage function $h\left(x\right)$ (storage component), or dissipative variable w and scalar relation $z\left(w\right)$ (dissipative components).
- More generally, n-ports multipole are made of n nodes and at least $n-1$ branches, defining $n-1$ couples of variables and functions. Typically, the graph for the bipolar junction is made of two branches (base-emitter and base-collector).

- build the internal graph by connecting the elementary graph of the components from the first block of the netlist,
- introduce a reference node ${N}_{0}$ (or datum, see [27] §10) to define the external branches from the second block.

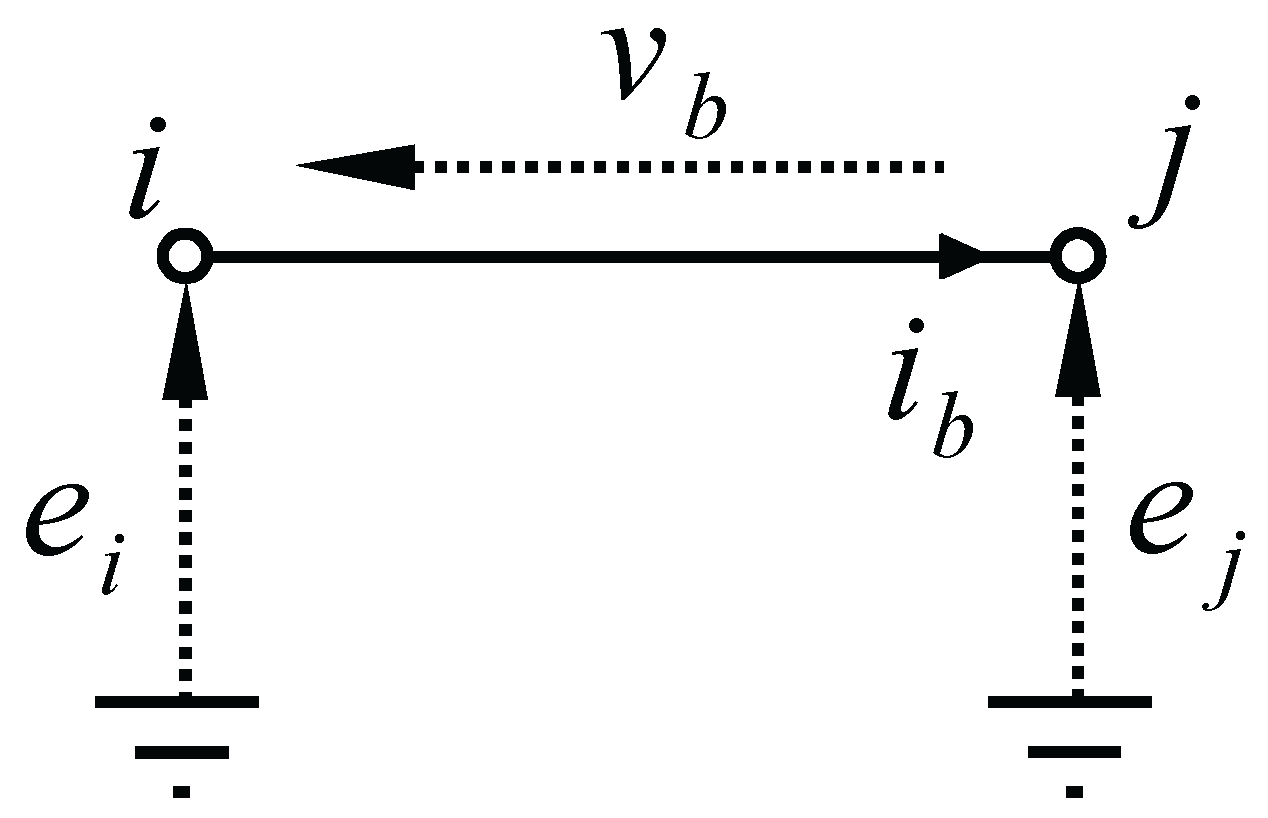

#### 3.1.3. Kirchhoff’s Laws on Graphs

#### 3.2. Realizability Analysis

**i**,

**v**). For storage and sources components, step (i) is straightforward with the constraints given in Table 2. For dissipative components, this step is achieved by selecting each component as voltage-controlled or current-controlled in order to satisfy a criterion on the matrix description of the interconnection scheme. This realizability criterion is given in Section 3.2.1, assuming the control type of every edge is known. A method of choosing the control type of dissipative edges so as to satisfy the realizability criterion is addressed in Section 3.2.2. This leads to Algorithm 1, which solves (i) and (ii).

#### 3.2.1. A Criterion for Realizability

**Proposition**

**1 (Realizability).**

**Proof.**

_{2}in Proposition 1, we state the following remark, which is used in the sequel to derive the realizability analysis algorithm.

**Remark**

**3 (Necessary condition for realizability).**

#### 3.2.2. Algorithm

**(C1)**- The potential on each node $n\in [1,\cdots ,{n}_{N}]$ is uniquely defined so that ${\sum}_{b=1}^{{n}_{B}}{[\Lambda ]}_{n,b}=1$.
**(C2)**- Each Current-controlled edge $b\in [{n}_{1}+1,\cdots ,{n}_{N}]$ propagates the knowledge of the potential on one node to the other, so that ${\sum}_{n=1}^{{n}_{N}}{[\Lambda ]}_{n,b}=1$.
**(C3)**- No edge imposes the reference potential ${e}_{0}$ so that ${\lambda}_{0}={\mathbb{0}}_{1\times {n}_{B}}$.
**(C4)**- No voltage-controlled edge $b\in [1,\cdots ,{n}_{1}]$ imposes any potential so that ${\lambda}_{1}={\mathbb{0}}_{{n}_{N}\times {n}_{2}}$.

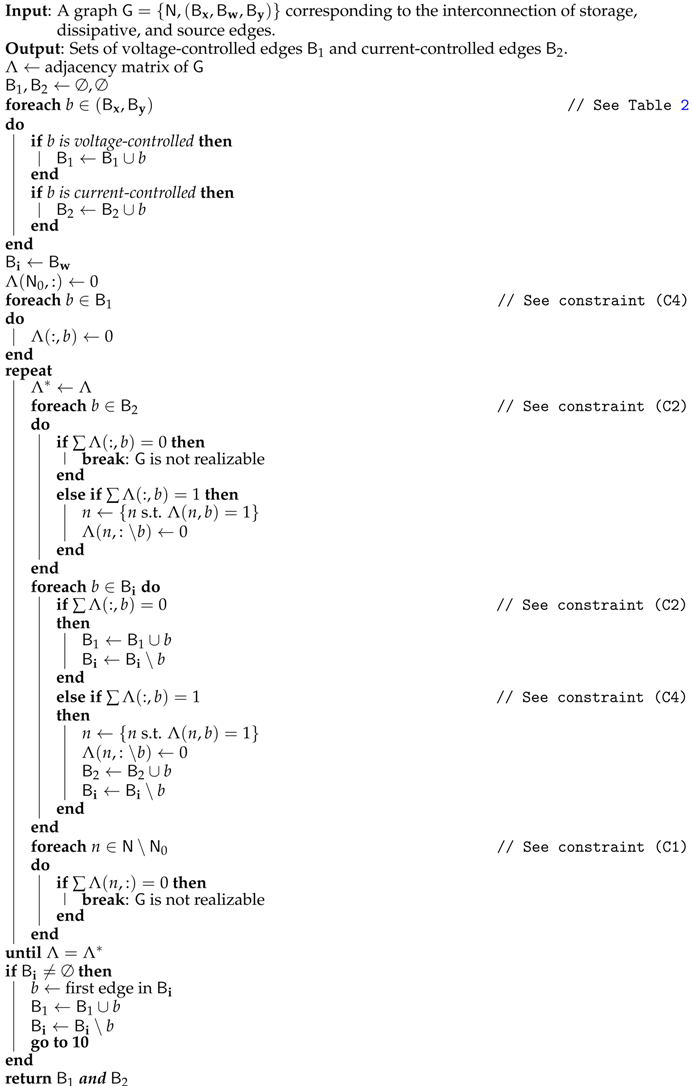

Algorithm 1: Analysis of realizability. If successfully complete, the resulting PHS structure is given by the procedure in the proof of Proposition 1 |

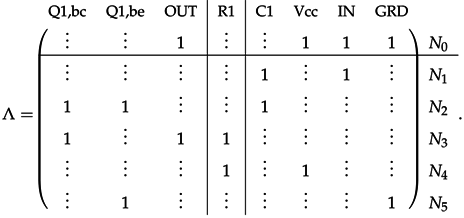

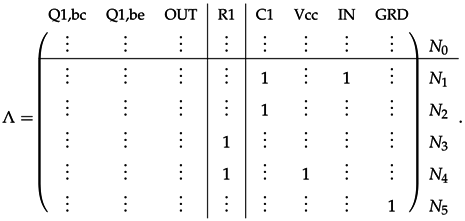

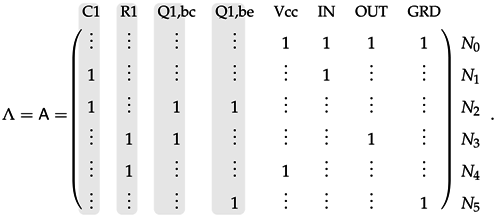

#### 3.2.3. Example

## 4. Guaranteed-Passive Simulation

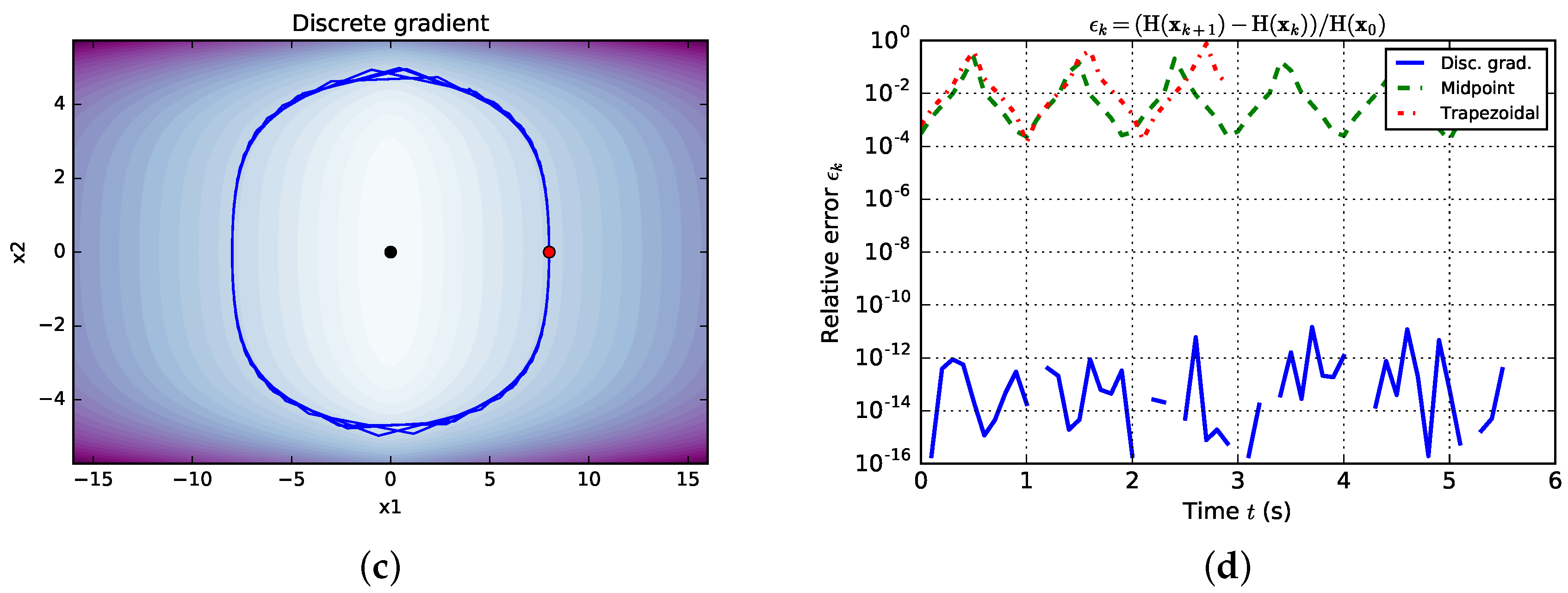

#### 4.1. Numerical Scheme

**Remark**

**4 (Multi-variate components).**

#### 4.2. Solving the Implicit Equations

**Remark**

**5 (Explicit mapping).**

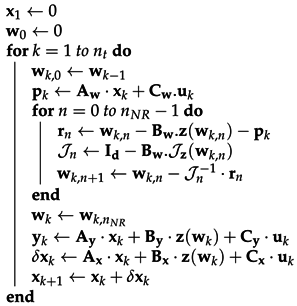

Algorithm 2: Simulation, with ${n}_{t}$ the number of time-steps and ${n}_{NR}$ the (fixed) number of Newton–Raphson iterations. |

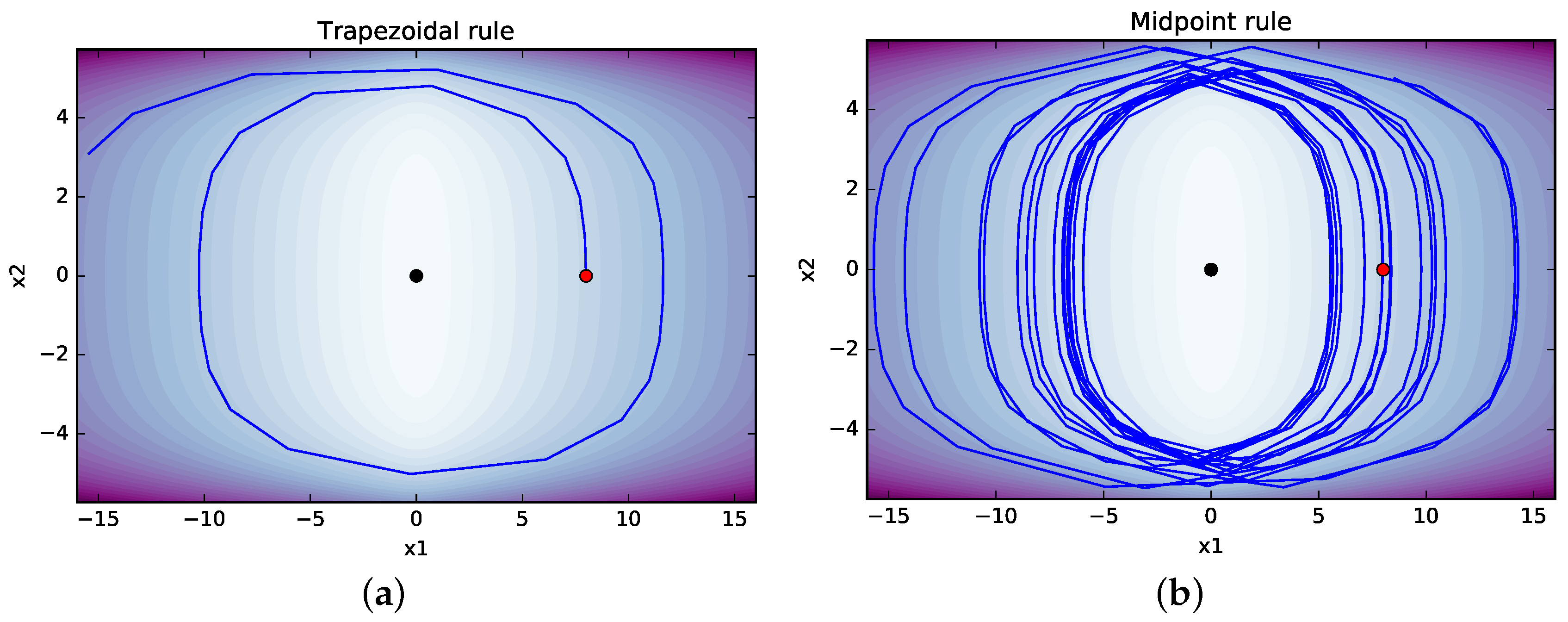

#### 4.3. Comparison with Standard Methods

## 5. Applications

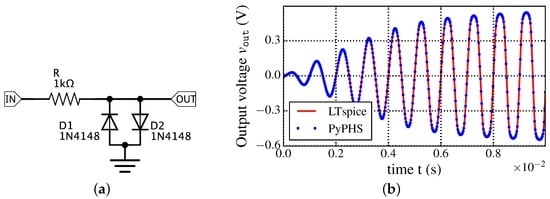

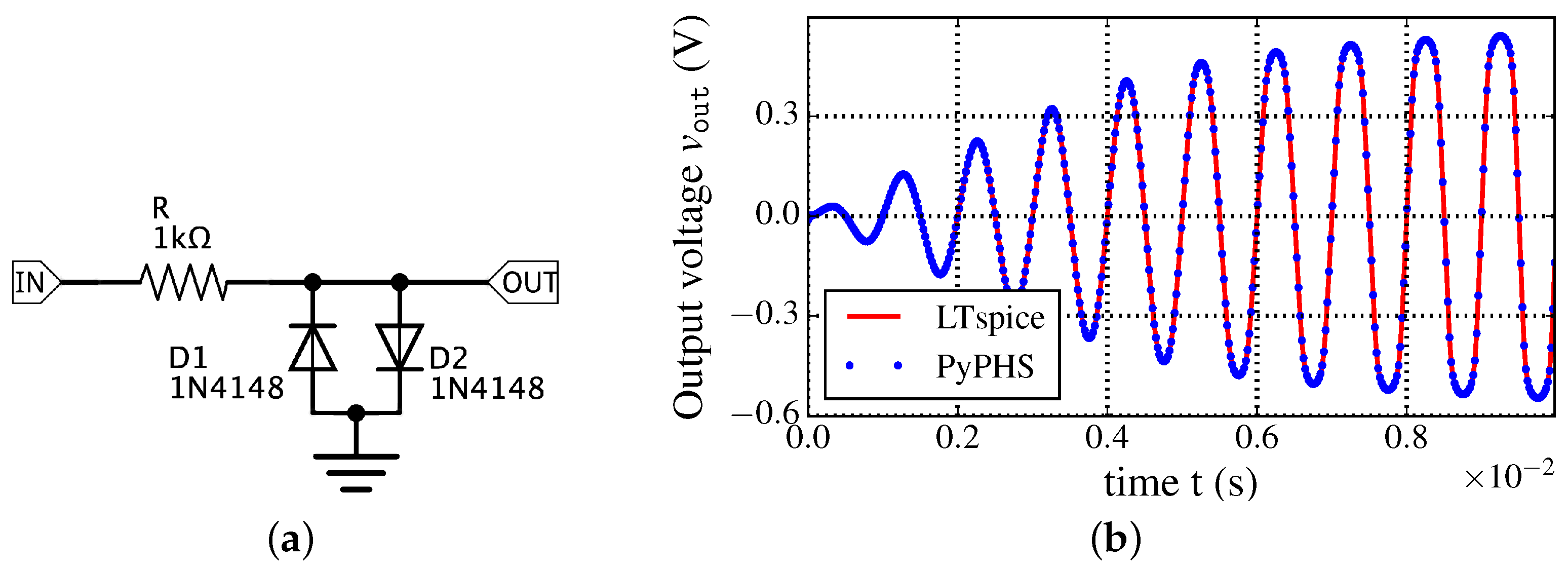

#### 5.1. Diode Clipper

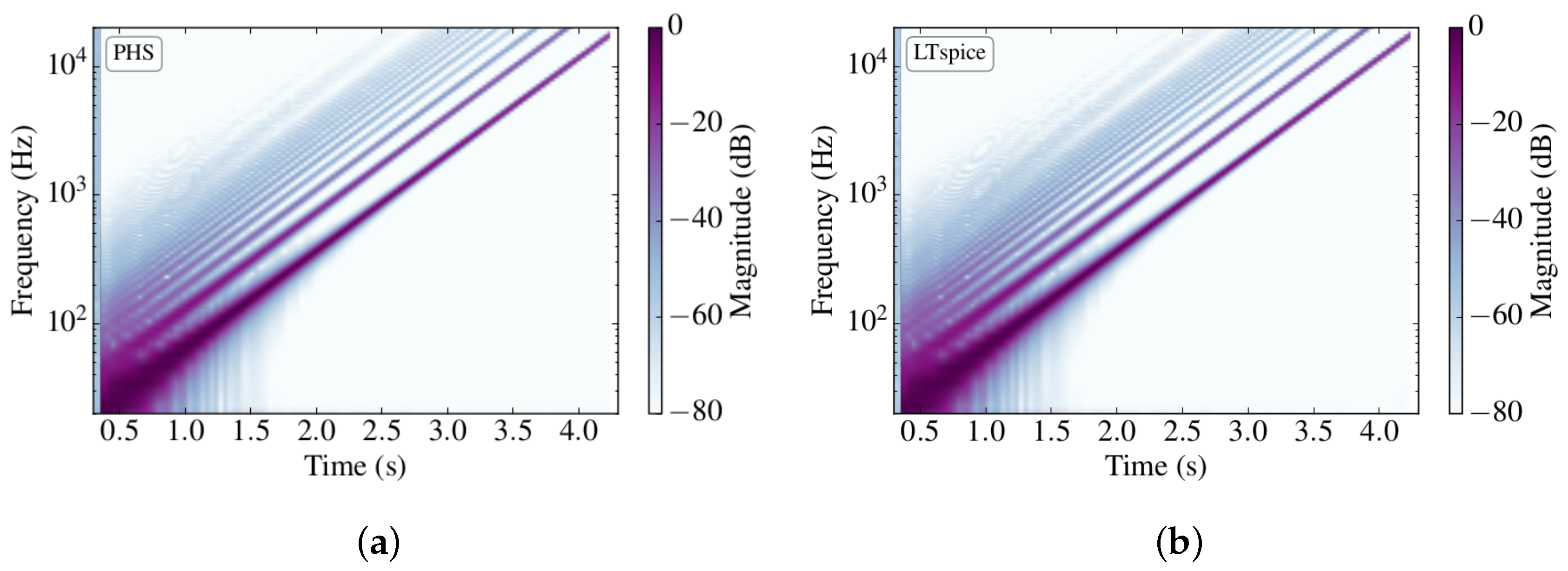

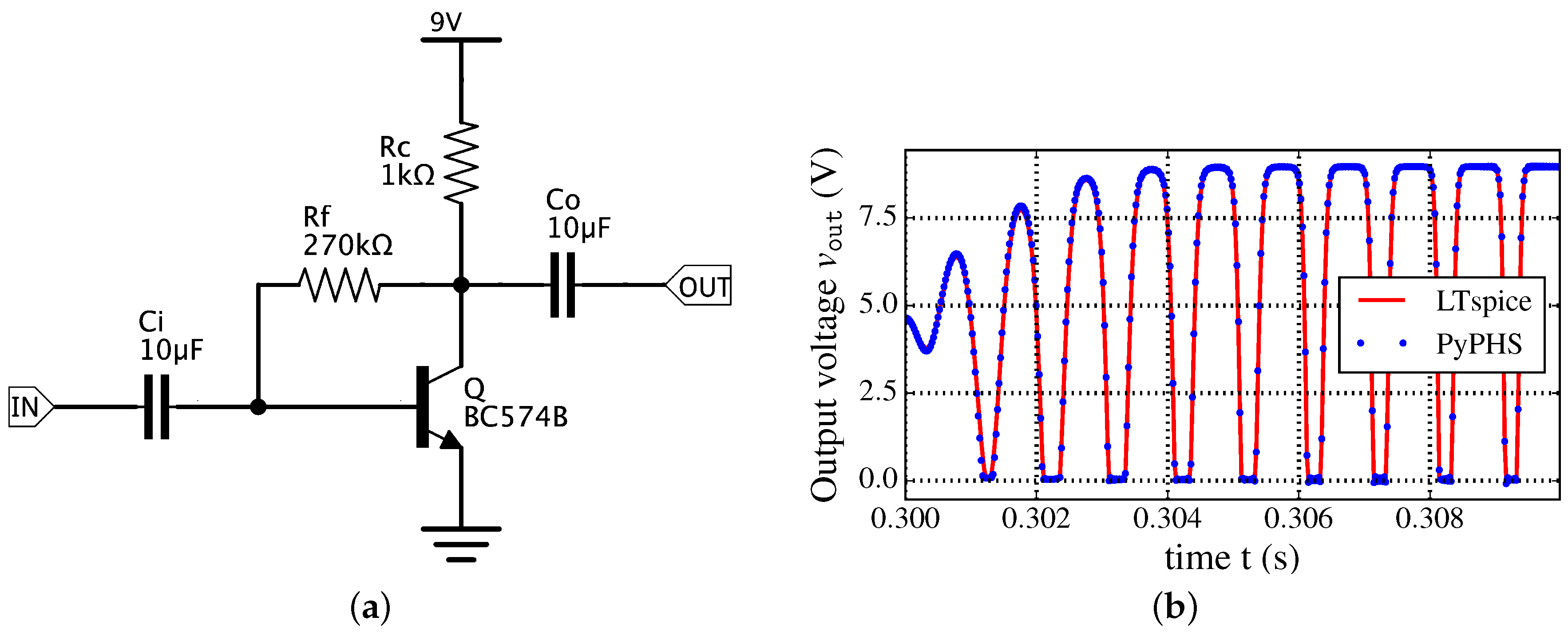

#### 5.2. Common-Emitter BJT Audio Amplifier

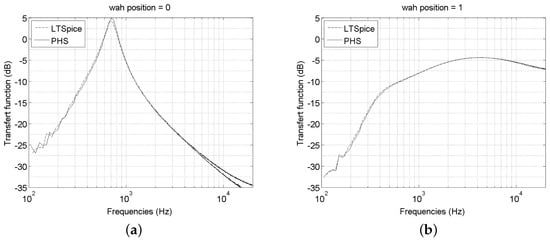

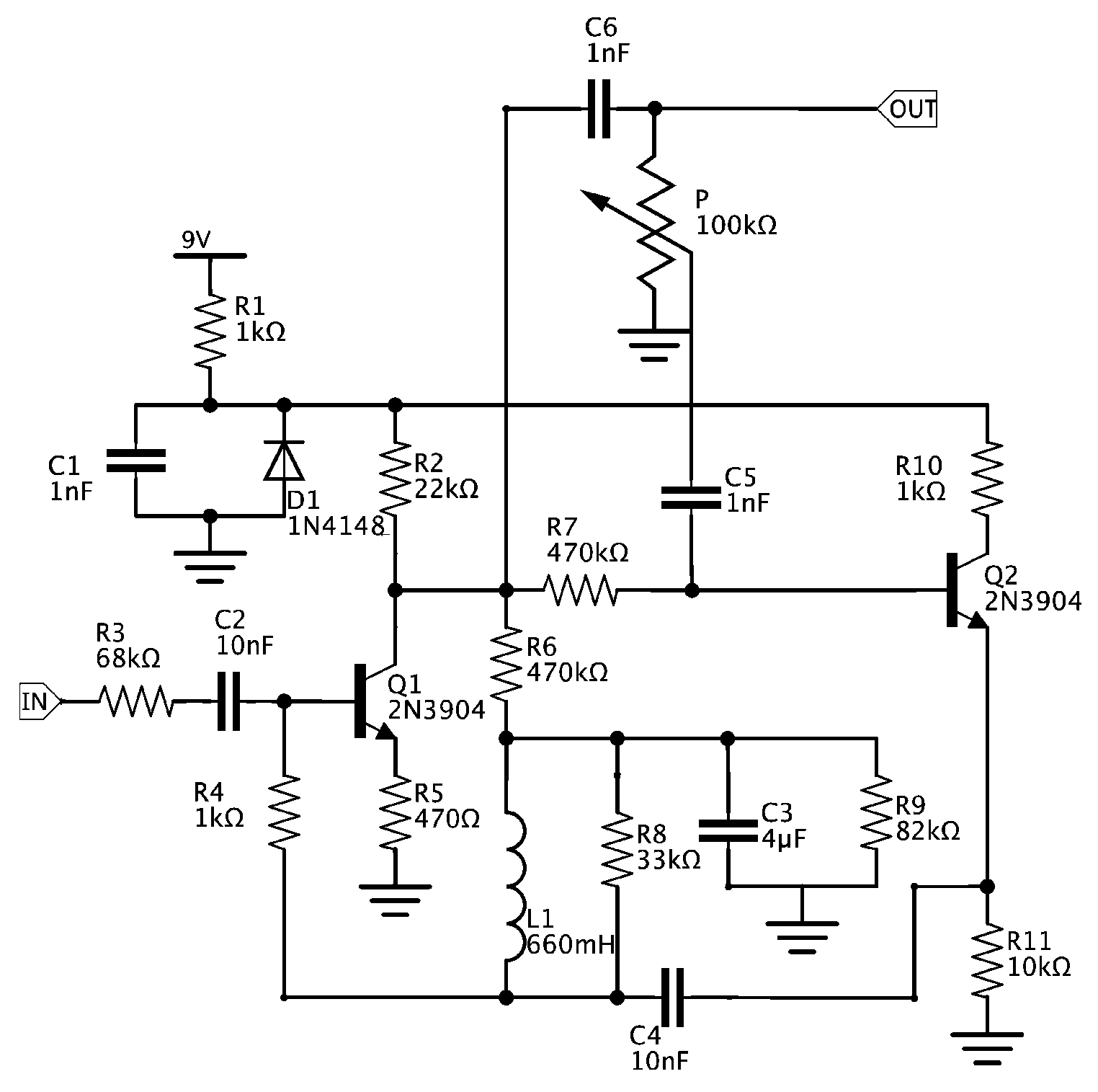

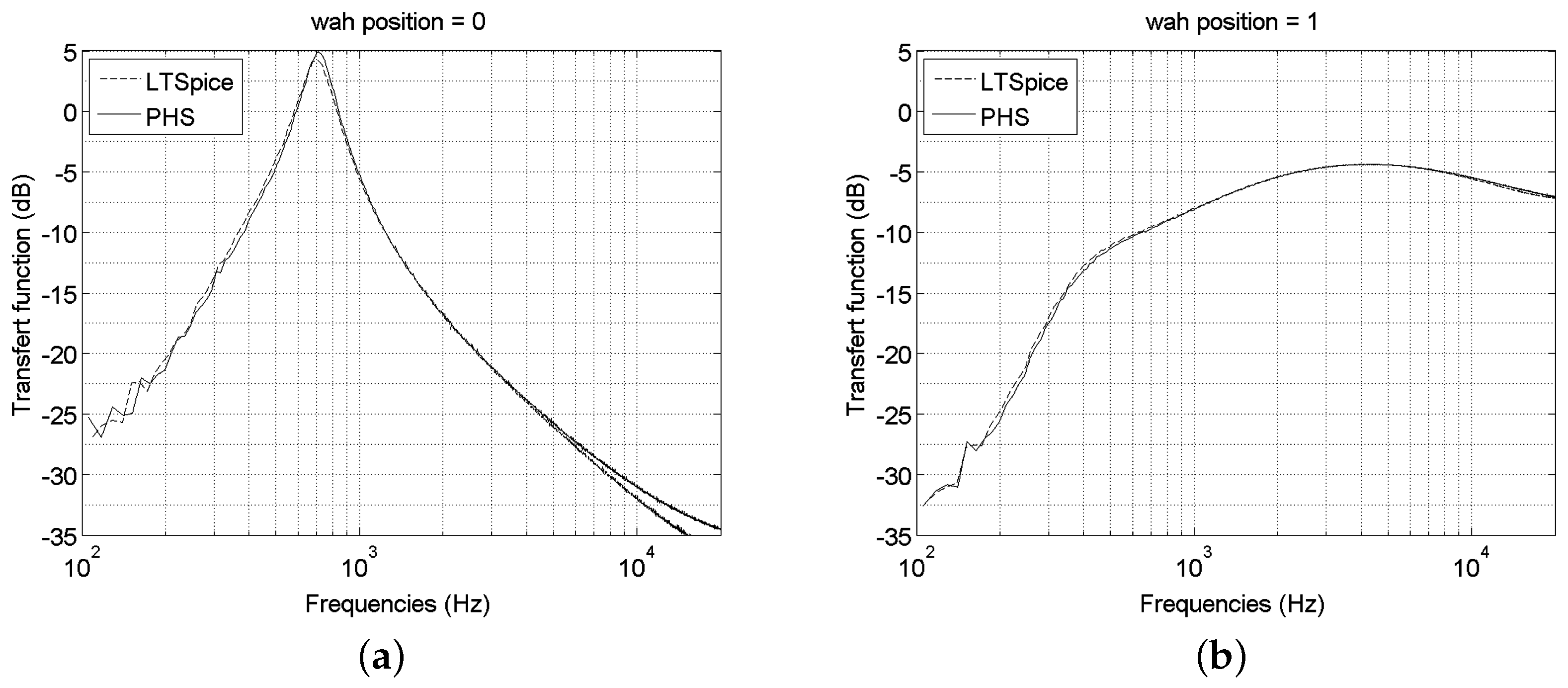

#### 5.3. Wah Pedal

`C++`code is automatically generated; Second, this code is encapsulated in a Juce template to compile the audio plugin (see [44]). The sample rate ${f}_{s}$ is imposed by the host digital audio workstation (here Ableton Live!), and we force five Newton–Raphson iterations. The simulation performed well (audio examples are available at the url [45]). The CPU load on a laptop (Macbook 2.9 GHz Intel Core i7 with 8Go RAM) is 37% for ${f}_{s}=96$ kHz, and 20% for ${f}_{s}=48$ kHz.

**Remark**

**6 (Time-varying stability).**

## 6. Conclusions

- the graph theory to describe the interconnection network of a given circuit’s schematic,
- a dictionary of elementary components which are conformable with PHS formalism.

`C++`simulation code to be used in the core of a real-time VST audio plug-in simulating the Dunlop Cry-Baby wah pedal.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Appendix A. Reduction

**Remark**

**A1 (Reduced explicit mapping).**

## Appendix B. Dictionary of Elementary Components

2-Ports | |||||

Storage | Diagram | $\mathit{x}$ | Stored Energy ${E}=\mathit{h}(\mathit{x})$ | Voltage $\mathit{v}$ | Current $\mathit{i}$ |

Inductance | ϕ | $\frac{{\varphi}^{2}}{2L}$ | $\frac{d\varphi}{dt}$ | $\frac{dh}{d\varphi}$ | |

Capacitance | q | $\frac{{q}^{2}}{2C}$ | $\frac{dh}{dq}$ | $\frac{dq}{dt}$ | |

Dissipative | Diagram | $\mathit{w}$ | Dissipated Power ${D}(\mathit{w})=\mathit{w}.\mathit{z}(\mathit{w})$ | Voltage $\mathit{v}$ | Current $\mathit{i}$ |

Resistance | i | $R.{i}^{2}$ | $z\left(w\right)$ | w | |

Conductance | v | ${v}^{2}/R$ | w | $z\left(w\right)$ | |

PN Diode | v | $v.{I}_{S}\left(exp\left(\frac{v}{\mu {v}_{0}}\right)-1\right)+{v}^{2}.{G}_{min}$ | w | $z\left(w\right)$ | |

3-Ports | |||||

Dissipative | Diagram | $\mathbf{w}$ | $\mathbf{z}(\mathbf{w})$ | ||

NPN Transistor | $\left(\begin{array}{c}{v}_{BC}\\ {v}_{BE}\end{array}\right)$ | $\left(\begin{array}{c}{i}_{BC}\\ {i}_{BE}\end{array}\right)=\left(\begin{array}{cc}{\alpha}_{R}& -1\\ -1& {\alpha}_{F}\end{array}\right).\left(\begin{array}{c}{I}_{S}\left({e}^{{v}_{BC}/{v}_{t}}-1\right)+{v}_{BC}.{G}_{min}\\ {I}_{S}\left({e}^{{v}_{BE}/{v}_{t}}-1\right)+{v}_{BE}.{G}_{min}\end{array}\right)$ | |||

Potentiometer | $\left(\begin{array}{c}{v}_{p1}\\ {i}_{p2}\end{array}\right)$ | $\left(\begin{array}{c}{i}_{p1}\\ {v}_{p2}\end{array}\right)=\left(\begin{array}{c}{v}_{p1}/(1+\alpha .{R}_{p})\\ {i}_{p2}.(1+(1-\alpha ).{R}_{p})\end{array}\right)$ |

#### Appendix B.1. Storage Components

#### Appendix B.2. Linear Dissipative Components

#### Appendix B.3. Nonlinear Dissipative Components

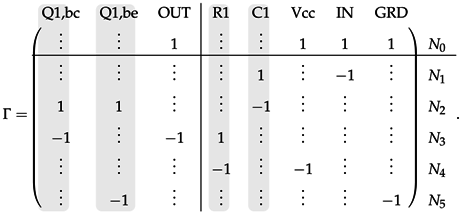

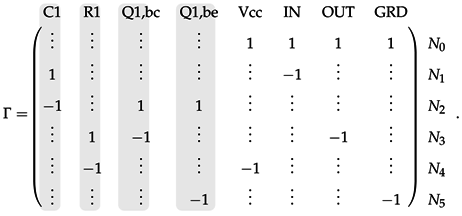

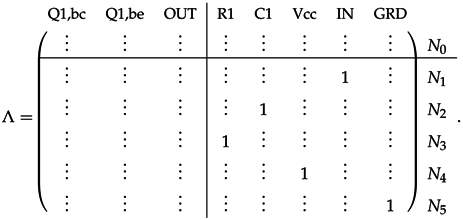

#### Appendix B.4. Incidence Matrices Γ

## Appendix C. Discrete Gradient for Multi-Variate Hamiltonian
