Prediction Model for Cutterhead Rotation Speed Based on Dimensional Analysis and Elastic Net Regression
Abstract
:1. Introduction
2. Dimensional Analysis of Cutterhead Rotation Speed
- (1)
- Parameter Identification. Key parameters significantly influencing cutterhead rotation speed, derived from operational and structural factors, are identified through analysis.
- (2)

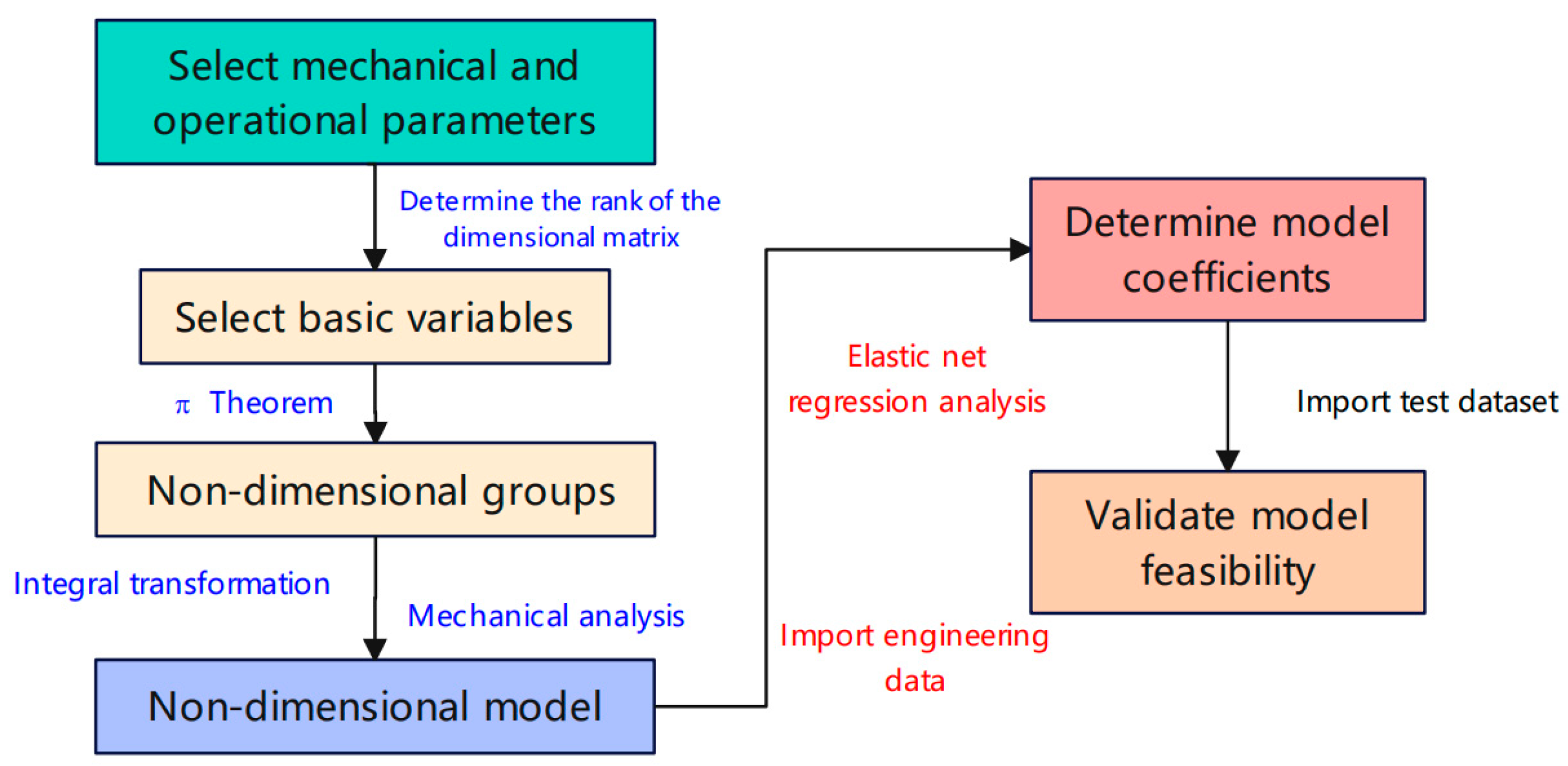

- Model Framework Construction. Based on the principles of the Π-theorem of dimensional analysis and physical constraints, a rational framework for the cutterhead rotation speed prediction model is established.
- (3)
- Model Training and Prediction. Using specific project data, the constructed framework is employed as input for training the elastic net regression algorithm, which is well-suited for analyzing the statistical characteristics of tunneling data. The algorithm identifies individual working condition features and enables quantitative predictions of cutterhead rotation speed.
2.1. Variable Selection
2.2. π-Theorem Modeling
3. TBM (Tunnel Boring Machine) Data Processing
3.1. Study Area
3.2. Data Preprocessing

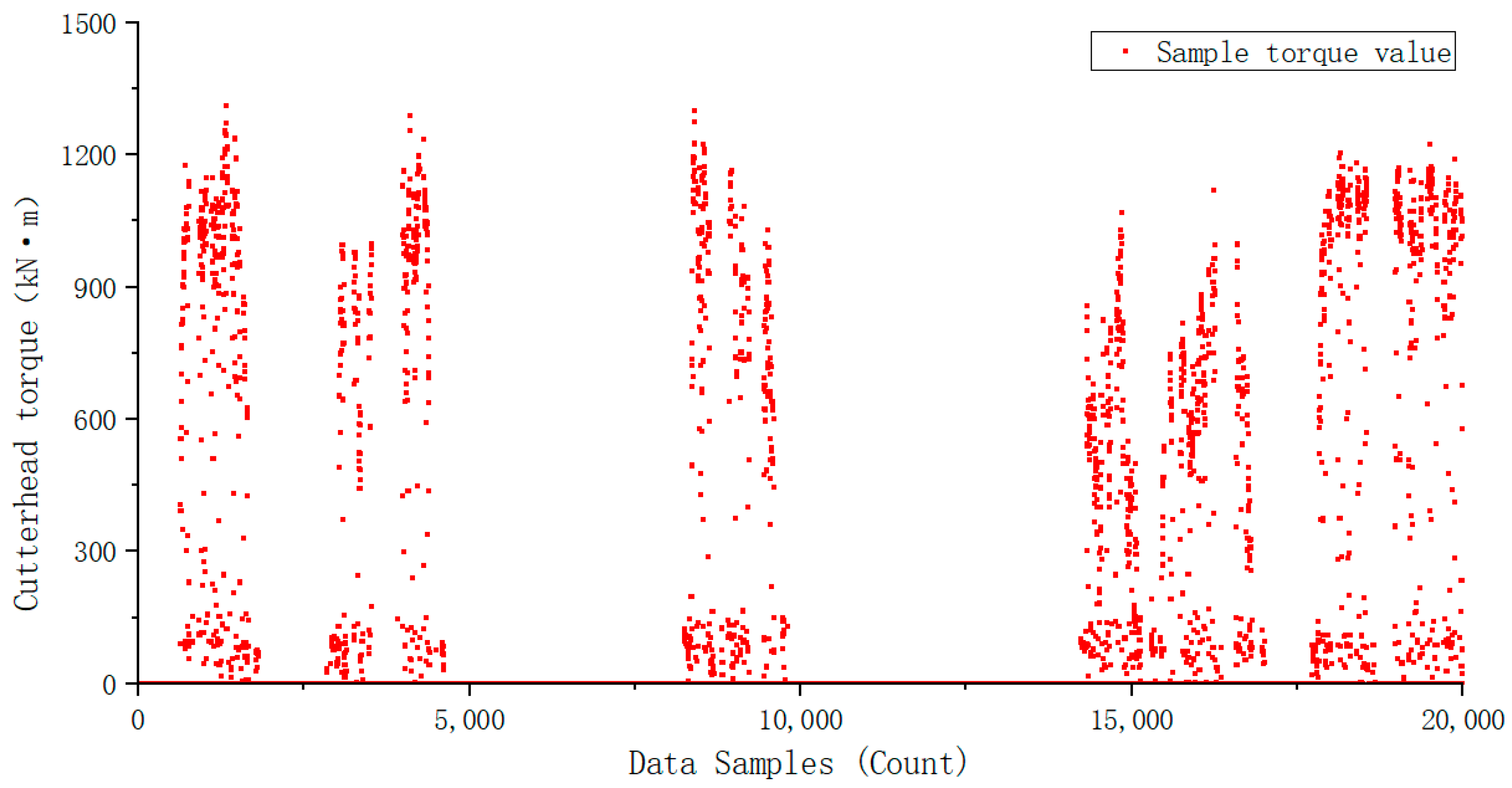

3.2.1. Removal of Invalid Data

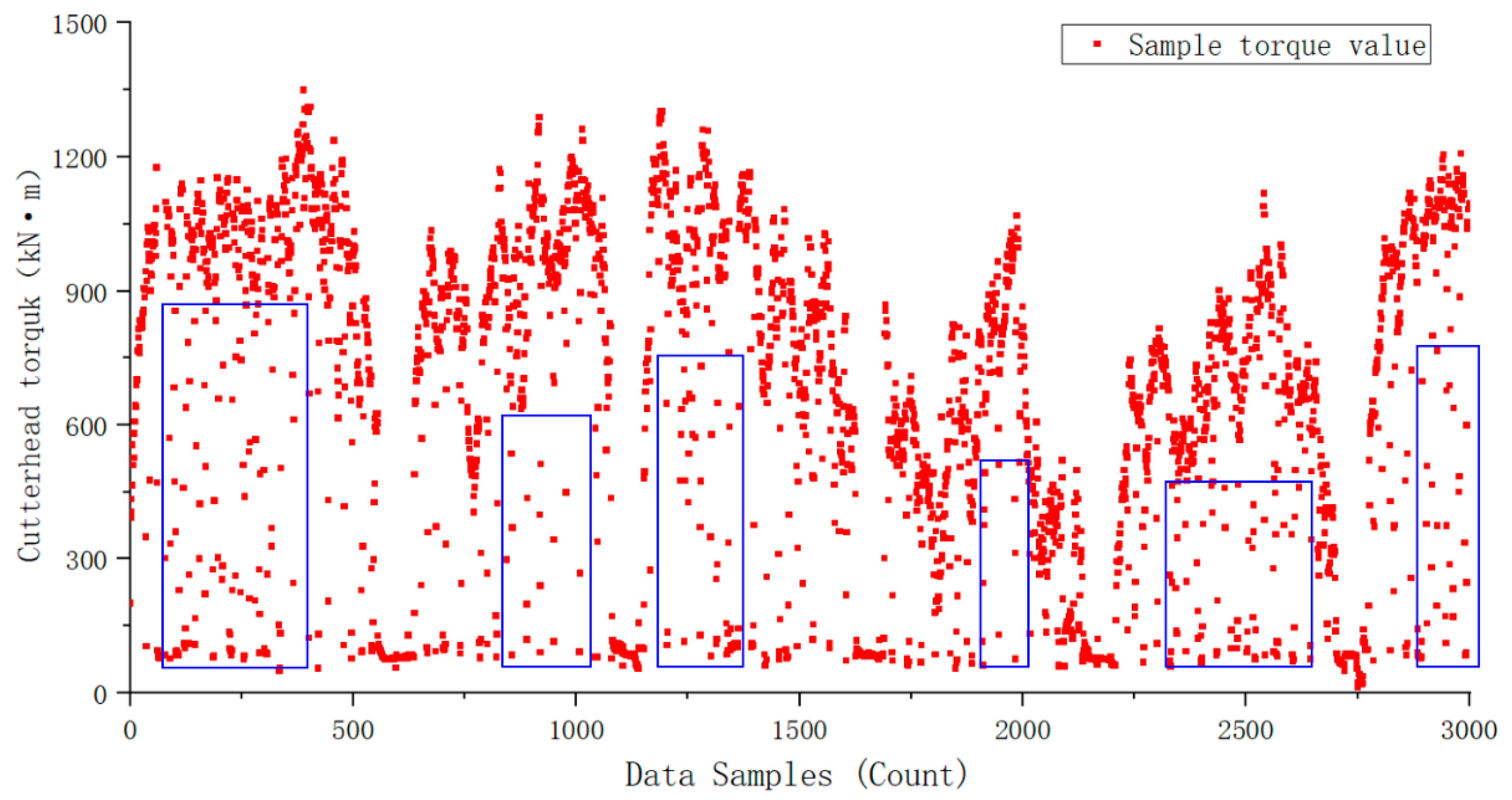

3.2.2. Outlier Processing

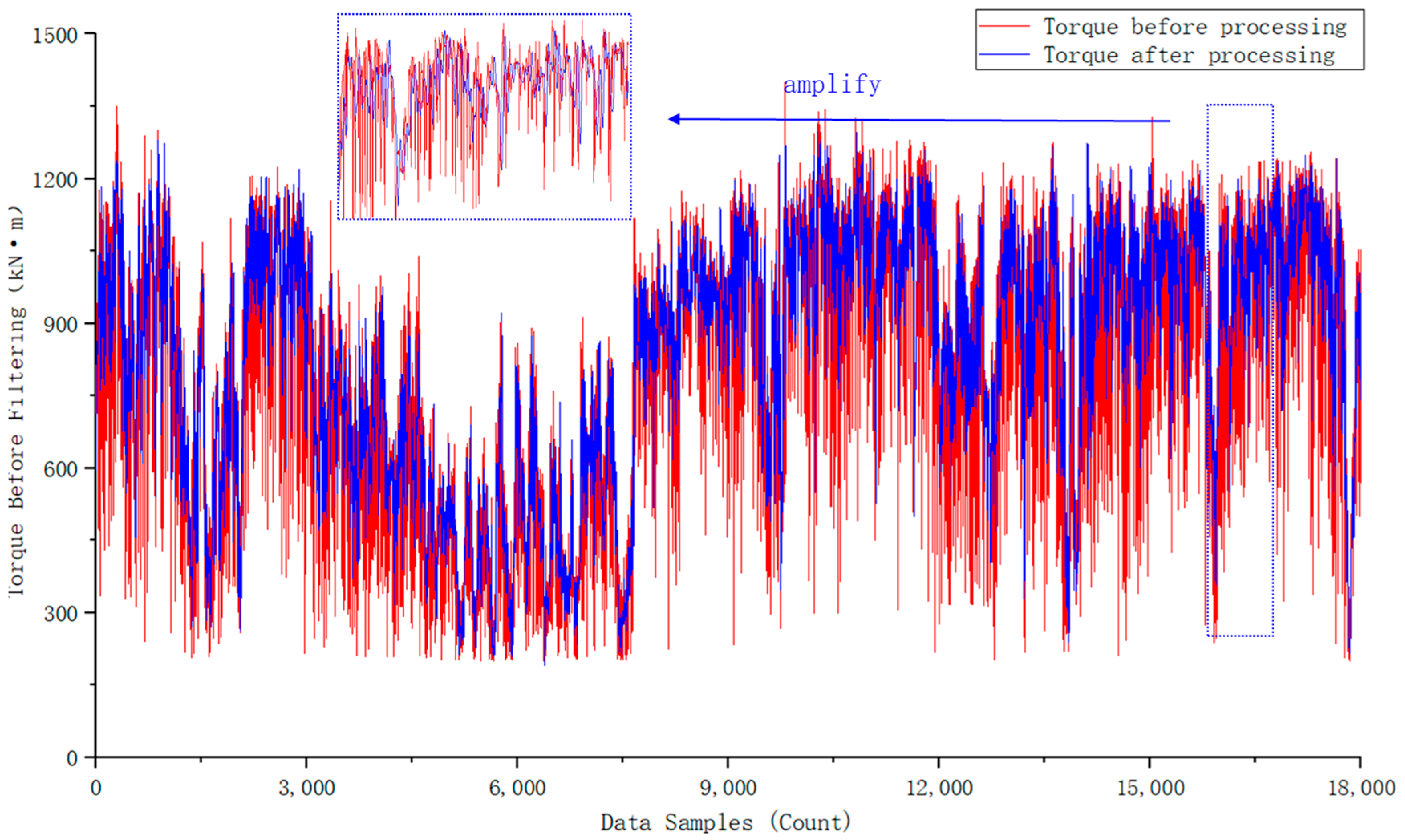

3.2.3. Data Denoising
4. Elastic Net Regression Analysis
4.1. Elastic Net Regression Setup

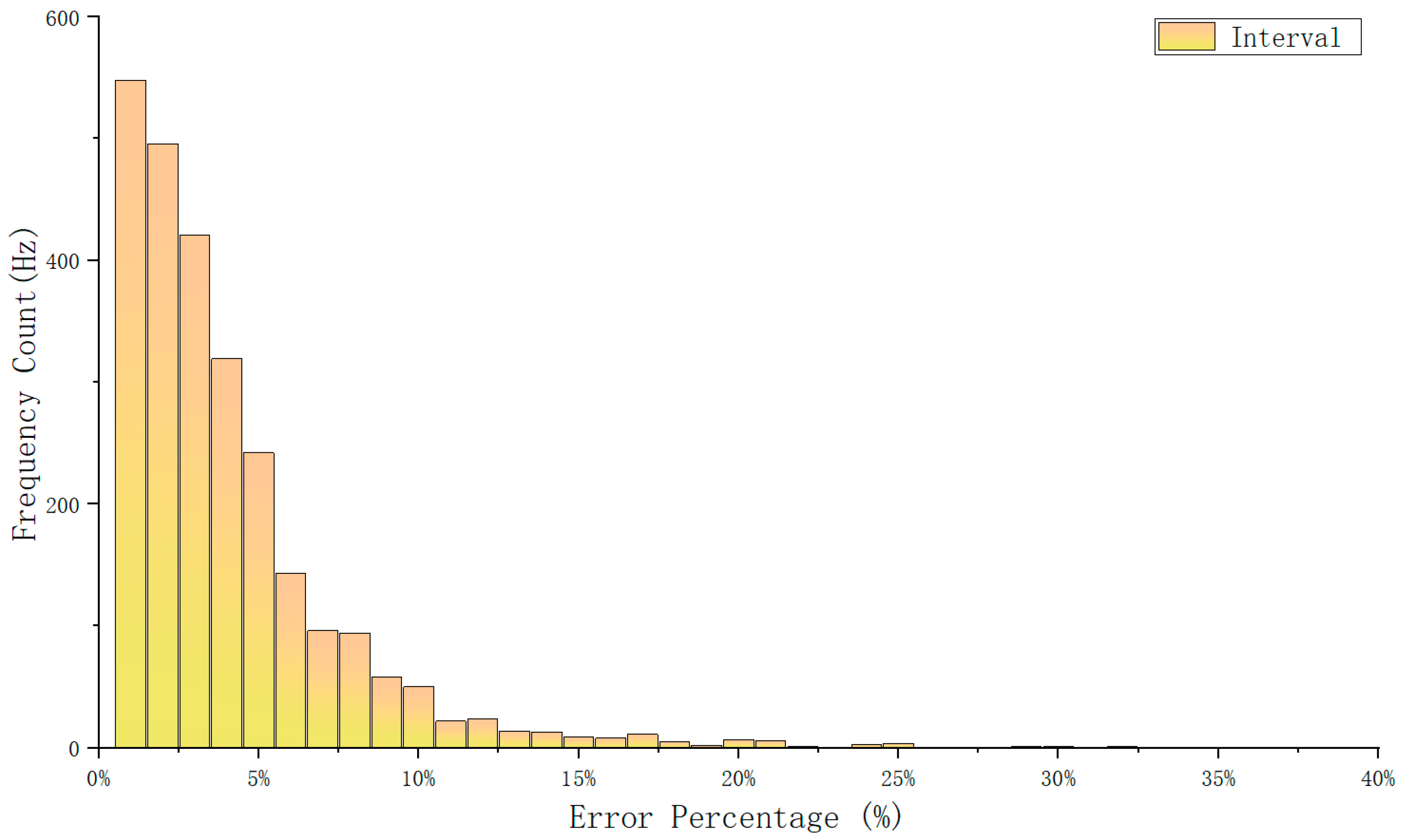

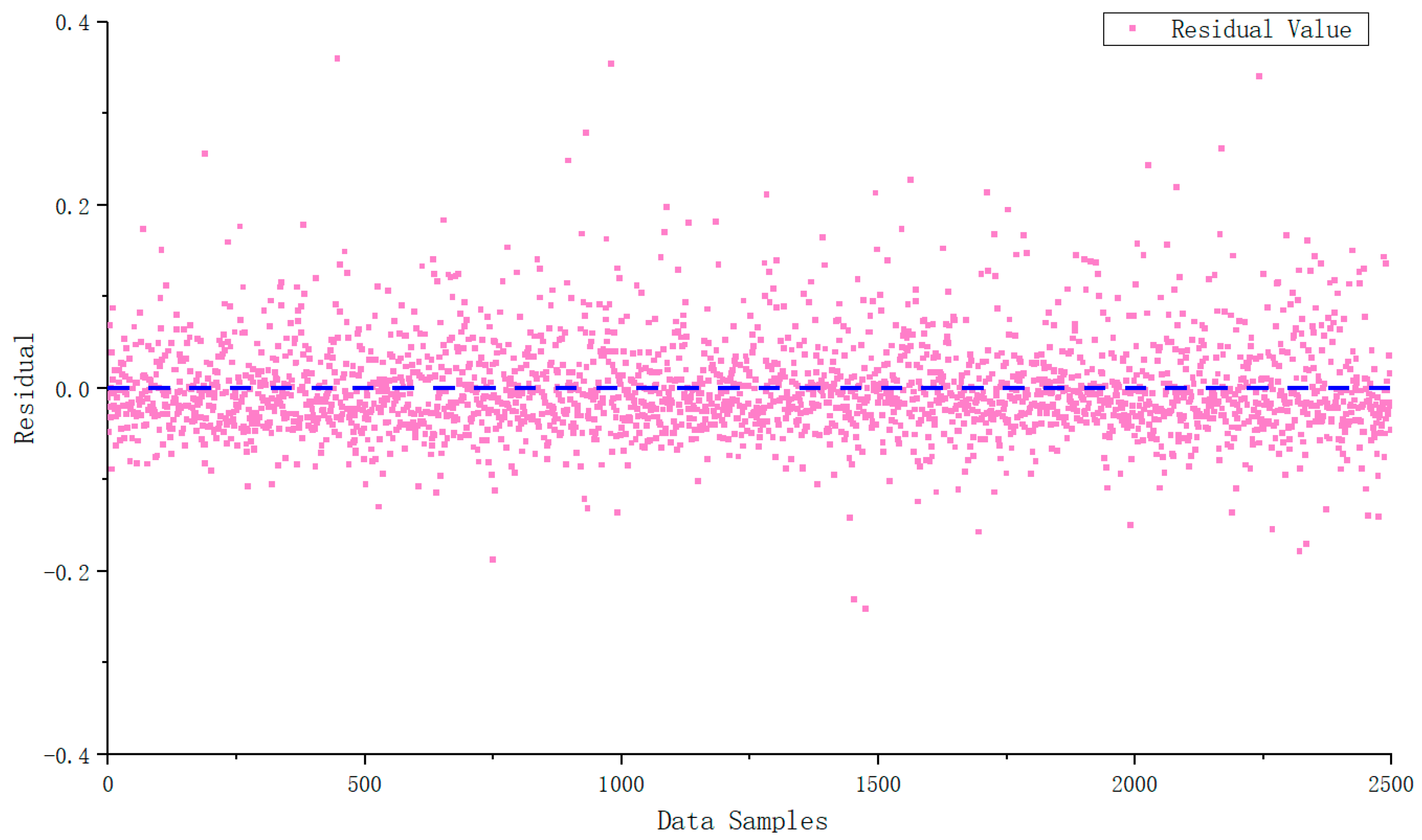

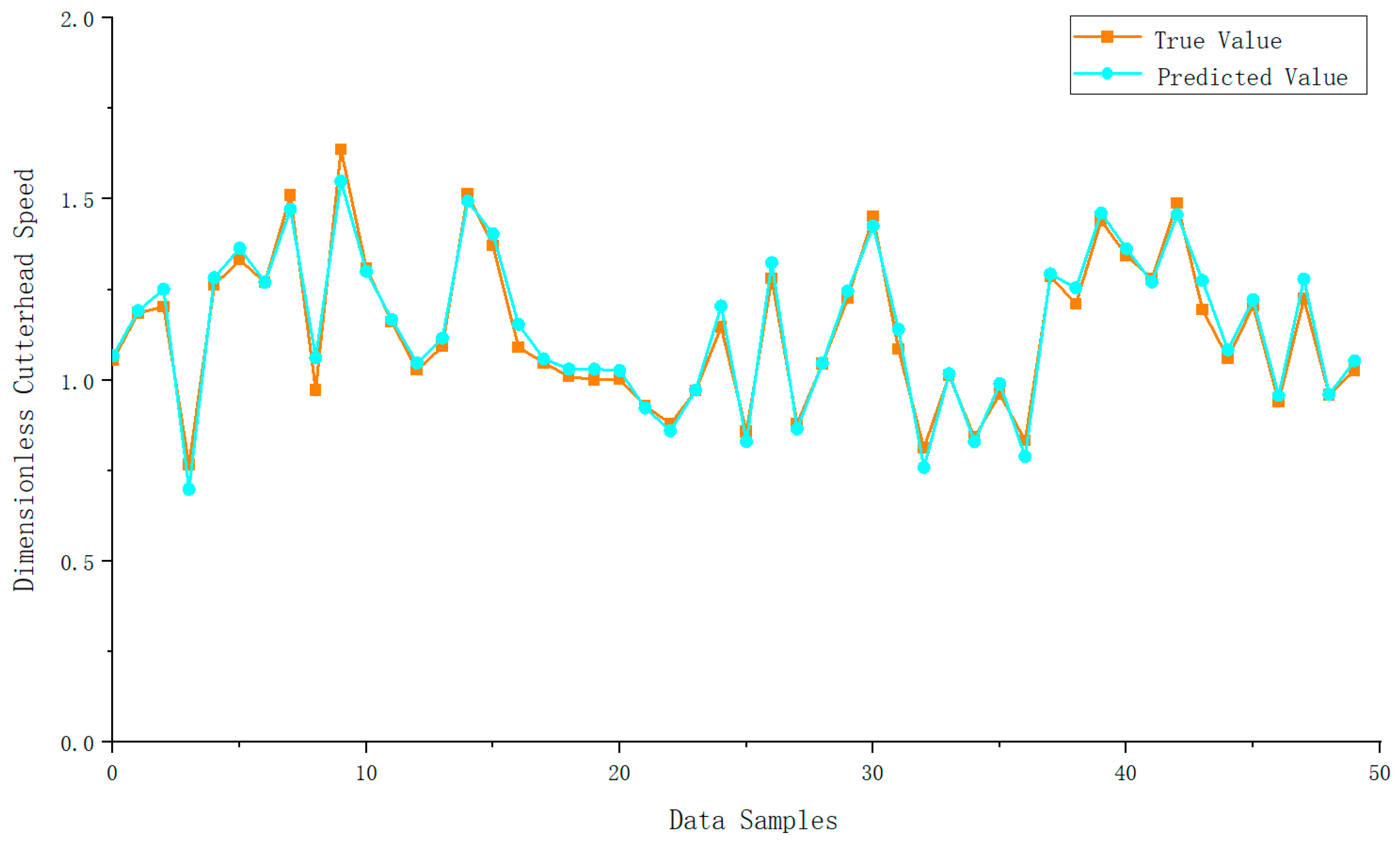

4.2. Regression Analysis and Validation
5. Discussion
- In this study, we explored the factors influencing the cutterhead rotation speed of tunnel boring machines (TBMs). By identifying the key parameters affecting cutterhead speed, operators are empowered to quickly diagnose issues and adjust parameters accordingly when problems arise. This ability to quickly pinpoint and address the factors impacting cutterhead performance not only enhances operational safety but also improves overall construction efficiency. For example, when encountering unexpected ground conditions or equipment malfunctions, operators can refer to the model’s predictions to identify whether the issue stems from inappropriate rotation speed or other operational parameters. By adjusting the cutterhead speed based on real-time feedback, operators can prevent potential cutter fatigue, minimize rock disturbances, and avoid machine downtime, ultimately optimizing the tunneling process and ensuring timely project completion.
- High-quality data are essential for accurate predictions. This study utilized numerical filtering, boxplot analysis, and low-pass filtering to effectively reduce noise and outliers, improving data reliability. Future work could further enhance data quality by improving sensor precision and integrating anomaly detection and data imputation techniques.
- Despite the promising results, the study has the following limitations: (1) The dataset was sourced from a single project, requiring validation under diverse geological conditions. (2) The model’s ability to dynamically adjust parameters in real time has not been tested.
- Despite the encouraging results of this study, future research should focus on the following aspects: (1) Dynamic real-time prediction: Develop a model that can dynamically adjust the cutterhead speed in real time according to tunnel conditions, combined with a real-time monitoring system to cope with unforeseen operational challenges. (2) Predictive maintenance: Integrate machine learning models to predict TBM downtime and maintenance needs, proactively schedule maintenance and reduce downtime by identifying abnormal patterns in the data. (3) Cross-project and geological validation: Apply the model to different projects and geological conditions for validation to enhance the versatility and accuracy of the model.
6. Conclusions
- (1)
- The TBM cutterhead rotation speed prediction model, established using dimensional analysis and elastic net regression, achieved accurate predictions after comprehensive data preprocessing. Validation on an independent test set demonstrated the proposed model’s strong predictive ability and broad applicability.
- (2)
- By employing numerical filtering, boxplot analysis, and low-pass filtering techniques, the noise and interference from outliers in the excavation data were significantly reduced. This improved the model’s stability and prediction accuracy, providing crucial theoretical support for advancing intelligent tunneling with shield TBMs.
- (1)
- This study successfully developed a tunnel boring machine (TBM) cutterhead rotational speed prediction model based on dimensional analysis and elastic net regression. The validation results demonstrated a high degree of consistency between the predicted and actual values, with the majority of prediction errors within 15%, and 90% of the errors below 10%. These results indicate that the model can effectively and accurately predict the cutterhead rotational speed.
- (2)
- Through data preprocessing techniques such as numerical filtering, boxplot analysis, and low-pass filtering, significant reductions in noise and outliers in the excavation data were achieved. This further enhanced the model’s stability and prediction accuracy, providing reliable support for data-driven modeling in complex operating conditions.
- (3)
- By integrating dimensional analysis with elastic net regression optimization, the study effectively balanced the L1 and L2 regularization terms, ensuring both the physical interpretability of the model and its adaptability. This provides a theoretical foundation for capturing the complex relationships between the TBM cutterhead rotational speed and input parameters.
- (4)
- This research offers theoretical support for the intelligent tunneling of TBMs. Future work could focus on improving data quality, expanding the range of model parameters, and combining machine learning techniques for predictive maintenance, further enhancing the operational efficiency and stability of TBM operations.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Zhang, Y.; Zhou, J.; Qiu, Y.; Armaghani, D.J.; Xie, Q.; Yang, P.; Xu, C. A visual survey of tunnel boring machine (TBM) performance in tunneling excavation: Mainstream direction, brief review and future prospects. Appl. Sci. 2024, 14, 4512. [Google Scholar] [CrossRef]
- Li, J.B.; Chen, Z.Y.; Li, X.; Jing, L.J.; Zhang, Y.P.; Xiao, H.H.; Wang, S.J.; Yang, W.K.; Wu, L.J.; Li, P.Y.; et al. Feedback on a shared big dataset for intelligent TBM Part I: Feature extraction and machine learning methods. Undergr. Sp. 2023, 11, 1–25. [Google Scholar] [CrossRef]
- Li, J.B.; Chen, Z.Y.; Li, X.; Jing, L.J.; Zhang, Y.P.; Xiao, H.H.; Wang, S.J.; Yang, W.K.; Wu, L.J.; Li, P.Y.; et al. Feedback on a shared big dataset for intelligent TBM Part II: Application and forward look. Undergr. Sp. 2023, 11, 26–45. [Google Scholar] [CrossRef]
- Zhang, Q.; Liu, Z.; Tan, J. Prediction of geological conditions for a tunnel boring machine using big operational data. Automa. Constr. 2019, 100, 73–83. [Google Scholar] [CrossRef]
- Zhao, J.; Shi, M.; Hu, G.; Song, X.; Zhang, C.; Tao, D.; Wu, W. A data-driven framework for tunnel geological-type prediction based on TBM operating data. IEEE Access 2019, 7, 66703–66713. [Google Scholar] [CrossRef]
- Rispoli, A.; Ferrero, A.M.; Cardu, M. TBM data processing for performance assessment and prediction in hard rock. In Tunnels and Underground Cities: Engineering and Innovation meet Archaeology, Architecture and Art; CRC Press: Boca Raton, FL, USA, 2020; pp. 2940–2949. [Google Scholar]
- Erharter, G.H.; Marcher, T. MSAC: Towards data driven system behavior classification for TBM tunneling. Tunn. Undergr. Sp. Technol. 2020, 103, 103466. [Google Scholar] [CrossRef]
- Li, J.; Li, P.; Guo, D.; Li, X.; Chen, Z. Advanced prediction of tunnel boring machine performance based on big data. Geosci. Front. 2021, 12, 331–338. [Google Scholar] [CrossRef]
- Wang, R.; Li, D.; Chen, E.J.; Liu, Y. Dynamic prediction of mechanized shield tunneling performance. Automa. Constr. 2021, 132, 103958. [Google Scholar] [CrossRef]
- Xu, C.; Liu, X.; Wang, E.; Wang, S. Prediction of tunnel boring machine operating parameters using various machine learning algorithms. Tunn. Undergr. Sp. Technol. 2021, 109, 103699. [Google Scholar] [CrossRef]
- Xiao, H.H.; Yang, W.K.; Hu, J.; Zhang, Y.P.; Jing, L.J.; Chen, Z.Y. Significance and methodology: Preprocessing the big data for machine learning on TBM performance. Undergr. Sp. 2022, 7, 680–701. [Google Scholar] [CrossRef]
- Shan, F.; He, X.; Armaghani, D.J.; Sheng, D. Effects of data smoothing and recurrent neural network (RNN) algorithms for real-time forecasting of tunnel boring machine (TBM) performance. J. Rock Mech. Geotech. Eng. 2024, 16, 1538–1551. [Google Scholar] [CrossRef]
- Zhang, X.; Zhang, X.; Liu, Q.; Xie, W.; Tang, S.; Wang, Z. TBM big data preprocessing method in machine learning and its application to tunneling. J. Rock Mech. Geotech. Eng. 2024. [Google Scholar] [CrossRef]
- Ayawah, P.E.; Sebbeh-Newton, S.; Azure, J.W.; Kaba, A.G.; Anani, A.; Bansah, S.; Zabidi, H. A review and case study of Artificial intelligence and Machine learning methods used for ground condition prediction ahead of tunnel boring Machines. Tunn. Undergr. Sp. Technol. 2022, 125, 104497. [Google Scholar] [CrossRef]
- Samantaray, S.; Sahoo, A.; Baliarsingh, F. Groundwater level prediction using an improved SVR model integrated with hybrid particle swarm optimization and firefly algorithm. Clean. Water 2024, 1, 100003. [Google Scholar] [CrossRef]
- Mostafa, S.; Sousa, R.L.; Einstein, H.H. Toward the automation of mechanized tunneling “exploring the use of big data analytics for ground forecast in TBM tunnels”. Tunn. Undergr. Sp. Technol. 2024, 146, 105643. [Google Scholar] [CrossRef]
- Xu, H.; Zhou, J.; Asteris, P.G.; Jahed Armaghani, D.; Tahir, M.M. Supervised machine learning techniques to the prediction of tunnel boring machine penetration rate. Appl. Sci. 2019, 9, 3715. [Google Scholar] [CrossRef]
- Feng, S.; Chen, Z.; Luo, H.; Wang, S.; Zhao, Y.; Liu, L.; Ling, D.; Jing, L. Tunnel boring machines (TBM) performance prediction: A case study using big data and deep learning. Tunn. Undergr. Sp. Technol. 2021, 110, 103636. [Google Scholar] [CrossRef]
- Mahmoodzadeh, A.; Mohammadi, M.; Ibrahim, H.H.; Abdulhamid, S.N.; Ali, H.F.H.; Hasan, A.M.; Khishe, M.; Mahmud, H. Machine learning forecasting models of disc cutters life of tunnel boring machine. Automa. Constr. 2021, 128, 103779. [Google Scholar] [CrossRef]
- Yang, J.; Yagiz, S.; Liu, Y.J.; Laouafa, F. Comprehensive evaluation of machine learning algorithms applied to TBM performance prediction. Undergr. Sp. 2022, 7, 37–49. [Google Scholar] [CrossRef]
- Yang, W.; Zhao, J.; Li, J.; Chen, Z. Probabilistic machine learning approach to predict incompetent rock masses in TBM construction. Acta Geotech. 2023, 18, 4973–4991. [Google Scholar] [CrossRef]
- Kwon, K.; Choi, H.; Jung, J.; Kim, D.; Shin, Y.J. Prediction of abnormal TBM disc cutter wear in mixed ground condition using interpretable machine learning with data augmentation. J. Rock Mech. Geotech. Eng. 2024. [Google Scholar] [CrossRef]
- Shin, Y.J.; Kwon, K.; Bae, A.; Choi, H.; Kim, D. Machine learning-based prediction model for disc cutter life in TBM excavation through hard rock formations. Tunn. Undergr. Sp. Technol. 2024, 150, 105826. [Google Scholar] [CrossRef]
- Kim, H.E.; Nam, K.M.; Rehman, H.; Kyeon, T.S.; Yoo, H.K. Comparison Study on Coarseness Index and Maximum Diameter of Rock Fragments by Linear Cutting Tests. Appl. Sci. 2022, 12, 8793. [Google Scholar] [CrossRef]
- Wu, X.Q.; Wang, X.; Wei, Y.P.; Song, H.W.; Huang, C.G. Parametric study on single shot peening by dimensional analysis method incorporated with finite element method. Acta Mech. Sin. 2012, 28, 825–837. [Google Scholar] [CrossRef]
- Jalali, S.M.E.; Naghadehi, M.Z. Development of a new laboratory apparatus for the examination of the rotary-percussive penetration in tunnel boring machines. Tunn. Undergr. Space Technol. 2013, 33, 88–97. [Google Scholar] [CrossRef]
- Liu, B.; Zhang, F.; Li, S.; Li, Y.; Xu, S.; Nie, L.; Zhang, C.; Zhang, Q. Forward modelling and imaging of ground-penetrating radar in tunnel ahead geological prospecting. Geophys. Prospect. 2018, 66, 784–797. [Google Scholar] [CrossRef]
- Mousapour, H.; Chakeri, H.; Darbor, M.; Hekmatnejad, A. Evaluating the wear of cutting tools using a tunnel boring machine laboratory simulator. Min. Miner. Depos. 2023, 17, 28–34. [Google Scholar] [CrossRef]
- Kaceнoв, A.; Maздyбaй, A.; Aбишeв, K.; Myкaнoв, P.; Tacкapинa, A. Calculation of prismatic forming cutters. Eng. J. Satbayev Univ. 2021, 143, 149–156. [Google Scholar] [CrossRef]
- Zhou, S.; Kang, Y.; Xie, H.; Wang, L.; Zhang, Q. An approach integrating dimensional analysis and field data for predicting the load on tunneling machine. KSCE J. Civ. Eng. 2019, 23, 3180–3187. [Google Scholar] [CrossRef]
- Ciulla, G.; D’Amico, A.; Brano, V.L. Evaluation of building heating loads with dimensional analysis: Application of the Buckingham π theorem. Energy Build. 2017, 154, 479–490. [Google Scholar] [CrossRef]
Parameter | ω | D | Vc | T | v | F | Fs | P |
Dimension | [T−1] | [L] | [LT−1] | [ML2T−2] | [LT−1] | [MLT−2] | [MT−2] | [L] |
Cutterhead Speed Range | Sample Size | Sample Cutterhead Speed | Sample Cutterhead Torque | ||||
---|---|---|---|---|---|---|---|
Max | Mean | Std | Max | Mean | Std | ||
0–1 | 118 | 0.995 | 0.506 | 0.248 | 452.739 | 95.290 | 53.241 |
1–2 | 131 | 1.998 | 1.563 | 0.279 | 268.378 | 124.274 | 37.192 |
2–3 | 185 | 2.995 | 2.511 | 0.289 | 329.793 | 136.090 | 40.722 |
3–4 | 443 | 3.999 | 3.614 | 0.282 | 861.905 | 174.697 | 97.073 |
4–5 | 2524 | 4.999 | 4.481 | 0.25 | 849.932 | 309.051 | 172.227 |
5–6 | 3738 | 5.999 | 5.517 | 0.29 | 1018.987 | 447.003 | 249.512 |
6–7 | 7776 | 6.999 | 6.592 | 0.277 | 1344.626 | 736.204 | 320.109 |
7–8 | 8019 | 7.79 | 7.29 | 0.198 | 1400.759 | 932.366 | 295.201 |
