Therapeutic Strategy for Knee Osteoarthritis with Subchondral Bone Lesions: Combination Therapy of Extracorporeal Shockwave Therapy and Regenerative Medicine

Abstract

Knee osteoarthritis (OA) is a whole-joint disease involving subchondral bone lesion (BML) that predict treatment outcomes. This retrospective, non-randomized study compared extracorporeal shockwave therapy alone (ESWT), autologous protein solution and ESWT (APS), intra-articular mesenchymal stromal cell and ESWT (MSC-A), and combined intra-articular and intra-osseous MSC and ESWT (MSC-B) for knee OA with BML. We hypothesized that combination therapies would provide superior and earlier outcomes for advanced cases. The primary outcome was the change in the Knee Injury and Osteoarthritis Outcome Score (KOOS) at 3 and 6 months. The results showed ESWT was effective, but only in the absence of articular surface collapse (KOOS IV (pre–6M) = 18.6 ± 13.9) vs. presence of collapse (4.4 ± 6.5). APS led to earlier improvement in cases without subchondral bone plate (SBP) tear (KOOS IV (pre–3M) = 18.4 ± 12.7) vs. ESWT 12.0 ± 14.0). MSC-A with SBP tear achieved significant early gain (KOOS IV (pre–3M) = 13.9 ± 10.1) but plateaued by 6 months. MSC-B without collapse showed significant 6-month improvement (KOOS IV (pre–6M) = 15.8 ± 8.6), but failed in collapse cases (KOOS IV (pre–6M) = −4.4 ± 7.7). ESWT is effective, APS provides early benefits, and MSC-B is promising for advanced SBP tear cases, but articular surface collapse limits efficacy across all therapies.

1. Introduction

Knee osteoarthritis (knee OA) was once primarily regarded as a simple cartilage disorder caused by cartilage wear or deterioration. Recent research, however, shows that it is a comprehensive joint disorder affecting multiple structures, including the subchondral bone, synovium, ligaments, and muscles, with an intricate interplay of biomechanical forces, inflammatory processes, and immune responses rather than cartilage alone [1,2]. Aso et al. [3] conducted a magnetic resonance imaging (MRI) study, and identified that subchondral bone marrow lesions (BMLs), effusion-synovitis, cartilage defects, osteophytes, and meniscus extrusion were associated with knee OA pain. Specifically, BML and synovitis were independently associated with pain.

Bone marrow lesions (BMLs) stand out as a significant contributor to knee OA progression and pain. Once thought to represent bone marrow edema or necrosis, BMLs are now understood to indicate localized microfractures, disrupted bone trabecular remodeling, and heightened bone metabolic activity [4]. Zanetti et al.’s histological work [5] describes BMLs as a mix of tissue alterations, including marrow necrosis, fatty marrow, remodeled trabeculae, edema, and vascular leakage. Moreover, Aso et al. reported that increased nerve growth factor expression and osteoclast density are associated with subchondral BMLs [6]. Additionally, Li et al. [7] highlighted that BMLs are linked to pathological triggers from matrix fragments, irregular stress transfer through cartilage defects, subchondral cyst development from synovial fluid seepage, and the collapse of subchondral bone support.

BMLs are deeply involved in pain and in the structural progression of knee OA. Koushesh et al. [8] proposed the osteoarthritis bone score (OABS), revealing that BML tissue characteristics, such as cyst formation, fibrosis, angiogenesis, trabecular thickening, tidemark disruption, and inflammatory cell infiltration, are mediators of OA pain. These findings underscore BMLs as a critical therapeutic target for pain and structural changes in knee OA.

Treatments for BMLs are diverse. Pharmacological approaches include bisphosphonates [9], whereas regenerative therapies involve biologics like platelet-rich plasma (PRP), autologous protein solution (APS), mesenchymal stromal cells (MSCs), and bone marrow aspirate concentrate (BMAC). Localized administration of growth factors, such as FGF-2 or BMP-7, has also been explored. Among physical therapies, extracorporeal shockwave therapy (ESWT) has potentially improved BMLs, contributing to subchondral bone remodeling and pain reduction [10]. Surgically, procedures like high tibial osteotomy and BML decompression are under consideration [11].

Since its establishment in 2009, our clinic (N Clinic) has primarily employed conservative treatments such as intra-articular hyaluronic acid injections and physical therapy. However, for cases with persistent pain that do not warrant surgery but are resistant to improvement, effective treatment options have been limited. In 2018, we implemented ESWT after its reported efficacy in treating osteochondral defects (OCDs) or stress fractures in athletes, observing its benefits in a 40-year-old male patient with knee OA accompanied by osteonecrosis and BMLs. Since then, ESWT has been recommended for BMLs unresponsive to hyaluronic acid injections, although it has not been universally effective. In particular, for BMLs associated with synovitis, combining ESWT with APS therapy was attempted; nonetheless, satisfactory outcomes were not achieved in all cases. Seeking greater efficacy, we introduced intra-articular MSC administration combined with ESWT in 2023. However, comparisons with APS+ESWT showed no significant benefit to justify the approximately threefold higher cost, leading to the discontinuation of this approach in the same year. Recent reports suggest that combined intra-articular and intra-osseous administration of PRP or MSCs may enhance therapeutic effects [12,13], and pairing with ESWT could promote BML repair [14]. Accordingly, in 2024, our clinic adopted a combined intra-articular and intra-osseous MSC administration combined with ESWT.

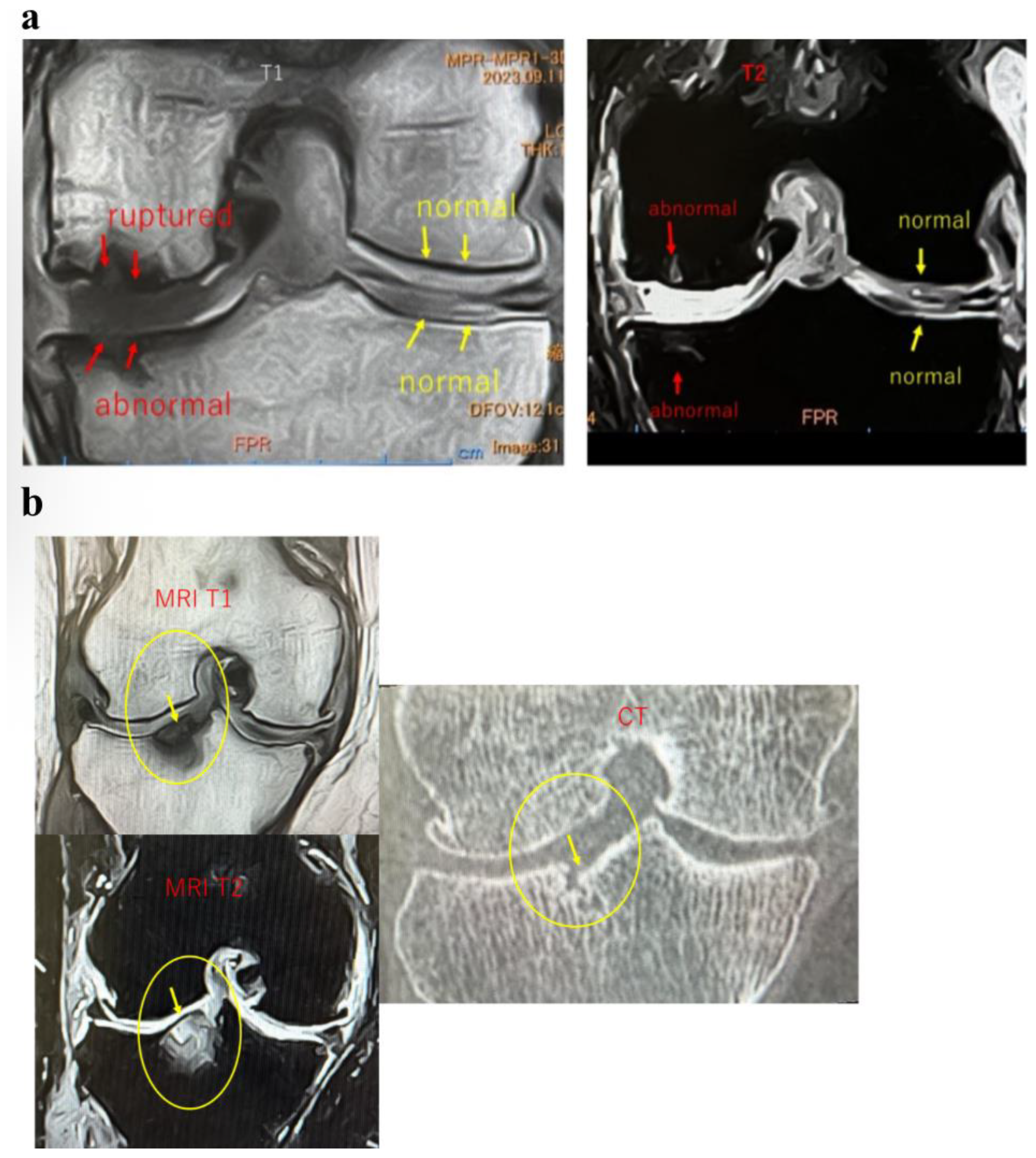

BMLs are a critical pathology reflecting early structural changes in the progression of knee OA. They are not merely bone marrow edema signals but are closely tied to subchondral bone structural failure and irreversible joint surface deformity, as demonstrated by pathological and imaging studies [15,16]. Subchondral bone plate (SBP) tear is considered a severe lesion indicating loss of subchondral bone support, directly contributing to cartilage damage and worsening pain. Additionally, joint surface collapse is associated with progressive changes, such as loss of load distribution capacity, trabecular remodeling, and bone sclerosis, serving as a key indicator of treatment response and long-term prognosis [1,17]. Comprehensive evaluation of these structural features allows for a more accurate understanding of BML severity and pathological diversity, contributing to the development of individualized treatment strategies. Aso et al. [3] reported that BMLs with SBP tear exhibit significantly increased inflammatory cell infiltration, fibroblast proliferation, angiogenesis, osteoclast activity, and abnormal cartilage formation, leading to elevated OABSs (Figure 1a,b).

These findings indicate that SBP tear plays a decisive role in BML severity and pain mechanisms, suggesting its importance as a pathological marker in designing knee OA treatment strategies based on BMLs. Consequently, in our conservative treatment strategies targeting subchondral bone, we have prioritized the presence or absence of SBP tear and joint surface collapse (Figure 2a,b and Figure 3a,b).

These insights stem from our clinic’s experience with conservative treatments such as ESWT. We have recognized that ESWT is not universally effective for all BML cases, particularly showing limited efficacy in severe BMLs with SBP tear. However, we have observed numerous cases where long-term, repeated ESWT applications led to pain relief and structural improvements, such as BML reduction. Upon re-evaluating MRI scans of cases with poor outcomes, it became evident that many exhibited joint surface collapse at initial diagnosis or during treatment, leading us to conclude that the presence or absence of joint surface collapse is a critical structural marker for treatment selection and prognosis evaluation.

2. Subjects and Methods

2.1. Subjects

We evaluated patients who received one of three treatments, with Knee injury and Osteoarthritis Outcome Score (KOOS) assessments conducted before treatment and at 3 and 6 months post-treatment: extracorporeal shockwave therapy alone (ESWT), autologous protein solution combined with ESWT (APS), and intra-articular mesenchymal stromal cell administration paired with ESWT (MSC-A)

The ESWT group included patients who completed treatment within 3 months. For the APS and MSC-A groups, only patients with 6-month follow-up data were included. Using pre- and post-treatment KOOSs, we analyzed changes within each treatment group, compared outcomes across groups, and examined treatment effects based on BML severity, specifically the presence or absence of SBP tear and joint surface collapse.

To ensure a consistent comparison across the three treatments, the analysis focused solely on cases with SBP tear but no joint surface collapse.

2.2. ESWT Alone

2.2.1. Patients and Indications

Patients diagnosed with knee OA who showed no improvement following intra-articular hyaluronic acid injections and had confirmed BMLs on MRI were deemed eligible for ESWT. The study included 40 patients (41 knees; 15 men, 25 women; mean age of 65.4 ± 9.2 years) who underwent three or more ESWT sessions (number of knees initially treated: 72) between September 2020 and March 2022, with KOOS evaluations at baseline, 3 months, or 6 months. Kellgren–Lawrence (KL) grades were distributed as follows: KL2: eight knees; KL3: 20 knees; KL4: 13 knees. SBP tear was present in 13 knees and absent in 28 knees; joint surface collapse was present in six knees and absent in 35 knees. Among these, 21 knees (KL2: two; KL3: 12; KL4: seven—SBP tear: present, eight; absent, 13—joint surface collapse: present, three; absent, 18) had KOOS evaluations at all three time points (baseline, 3 months, and 6 months).

2.2.2. ESWT Treatment Procedure

The treatment targeted pain sites corresponding to BML locations identified in the femoral condyle or tibial plateau. The DUOLITH SD1 (STORZ MEDICAL, Tägerwilen, Switzerland) was used. After identifying BML sites via MRI, the patient’s knee was maximally flexed, and an ultrasound probe was used to locate areas of cartilage thinning to determine the irradiation target. The handpiece was held perpendicularly, with output increased up to 0.25 mJ/mm² within the patient’s pain tolerance, and the entire lesion was irradiated three-dimensionally. The standard protocol involved 2500 shots at 4 Hz, administered at 2-week intervals for a minimum of three sessions. Additional sessions were added every 2–4 weeks if improvement was insufficient. The average number of sessions was 4.4 (±1.3) for cases followed up for 3 months and 6.0 (±2.4) for those followed up for 6 months.

2.3. APS + ESWT

2.3.1. Patients and Indication

Patients showing no improvement after five intra-articular hyaluronic acid injections, with synovitis and BML confirmed on MRI, were included. From 2020 to 2023, 47 patients (54 knees; 12 men, 35 women; mean age: 69.8 ± 10.2 years) who received APS + ESWT and had KOOS evaluations at baseline, 3 months, and 6 months were studied. The distribution was KL2: nine knees; KL3: 15 knees; and KL4: 30 knees; SBP tear was present in 30 knees and was absent in 24 knees, whereas joint surface collapse was present in eight knees and was absent in 46 knees.

2.3.2. APS Preparation and Administration Procedure

APS (Autologous Protein Solution) was prepared using the nSTRIDE APS kit (Zimmer Biomet, Warsaw, IN, USA) as follows.

• Blood collection: 55 mL of blood was mixed with 4 mL of anticoagulant (citrate dextrose solution A, Citra Labs, Braintree, MA, USA).
• Centrifugation: The nSTRIDE cell separator was used at 3200 rpm for 15 min to isolate approximately 6 mL of PRP.
• Concentration: The PRP was transferred to the nSTRIDE concentrator(Zimmer Biomet, Warsaw, IN, USA), processed with polyacrylamide beads, and centrifuged at 2000 rpm for 2 min to yield 2–3 mL of APS.

During APS preparation, ESWT was administered with 3500 shots. After preparation, APS was injected intra-articularly under ultrasound guidance. If joint effusion was present, aspiration was performed beforehand. ESWT was administered by standard protocol at least three times at 2-week intervals. The average number of ESWT sessions following APS administration was 7.0 (±3.2).

2.4. MSC-A + ESWT

2.4.1. Patients and Indication

Seeking enhanced therapeutic outcomes beyond APS + ESWT, MSC-A + ESWT was conducted from April to December 2023. Of 22 knees, 12 (16 knees; five men, seven women; mean age 72.2 ± 10.6 years) with 6-month follow-up data were analyzed. The distribution was KL2: one knee; KL3: four knees; and KL4: 11 knees; SBP tear was present in 14 knees and was absent in two knees, whereas joint surface collapse was present in four knees and was absent in 12 knees.

2.4.2. MSC Preparation and Administration Procedure

Adipose tissue was collected and transported refrigerated to a cell processing center, where it underwent enzymatic treatment to isolate stem cells, followed by subculturing for proliferation. Cells passing sterility tests were collected, cryopreserved, thawed, washed, and dispensed into syringes for use. In this study, 100 million cells were prepared and injected intra-articularly under ultrasound guidance. ESWT was administered by standard protocol immediately before and three times at 2-week intervals after MSC administration, followed by additional sessions every 4 weeks. The average number of ESWT sessions post-MSC administration was 7.5 (±3.5).

2.5. Combined Intra-Articular and Intraosseous MSC Administration with ESWT (MSC-B + ESWT)

Drawing from the results of studies I–III, we initiated a novel treatment in 2024 combining MSC delivery into the joint and bone with ESWT, referred to as MSC-B + ESWT (Figure 4). This approach was developed owing to: (1) certain BML cases showing no response to ESWT alone; (2) the separate progression of joint-related issues (like synovitis) and BML, requiring distinct interventions; (3) the limited impact of intra-articular MSC on bone lesions; and (4) the potential for MSC to penetrate bone via SBP tear sites, enhancing the repair of SBP damage and bone lesions when paired with ESWT [18,19]. Philippe Hernigou et al. found that intraosseous MSC or BMAC delivery supports long-term subchondral bone repair and pain reduction [20], whereas Diego Delgado et al. highlighted the benefits of combined intra-articular and intraosseous administration [21]. Based on these insights, our facility introduced MSC-B + ESWT.

Procedure for MSC-B + ESWT

Preoperative MRI was used to map BML, bone cysts, and SBP tear sites, guiding the selection of insertion points, angles, and depths for intraosseous MSC delivery. The procedure started with ESWT (3500 shots) aimed at the BML zone for preconditioning, followed by a blend of nerve block, local, and intravenous anesthesia. In medial knee OA, Doppler ultrasound locates arteries near the medial superior and inferior genicular nerves for anesthesia, supplemented by local numbing. Once anesthesia was confirmed, a needle (Arthrex, Naples, FL, USA, featuring a tip and side holes) was inserted under X-ray fluoroscopy per the planned trajectory. With the needle’s side holes facing the joint surface, its position was verified, and the inner core was removed to relieve intraosseous pressure for about 5 min. During this time, MSC was administered into the joint under ultrasound guidance, followed by gradual intraosseous MSC injection. To ensure MSC retention in the bone, a whole blood-thrombin mix from Arthrex’s thrombin kit was injected. For cases with BML in the femoral condyle and medial tibia, the process was applied to both areas. After injection, the site was compressed to prevent leakage, and patients rested for roughly 1 h before leaving.

The following day, the wound was checked, and an additional ESWT session (3500 shots) was performed. ESWT was administered by standard protocol for every 2–4 weeks sessions post-intraosseous MSC administration.

2.6. Statistical Analysis

All statistical analyses were conducted using SPSS version 28.0 (IBM Corp., Armonk, NY, USA). Continuous variables are presented as mean ± standard deviation (SD). The normality of continuous variables was examined. Based on this assessment, we proceeded with parametric t-tests. Normality of the KOOS data was assessed using the Shapiro–Wilk test, and homogeneity of variance was confirmed using Levene’s test. For two-group comparisons (unpaired t-tests) in this manuscript, Student’s t-test was used, assuming equal variances.

To evaluate the degree of improvement between specific time intervals (e.g., pre to 3 months, 3 to 6 months), we employed paired t-tests to assess changes in KOOSs. Within-group differences (Pre–3M, 3M–6M, Pre–6M) were analyzed using paired t-tests.

Between-group differences in KOOS changes IV(Pre–3M), IV(Pre–6M) were evaluated using one-way analysis of variance (ANOVA) with Bonferroni post hoc correction, which was applied for comparisons of KOOS Improvement Values across the multiple treatment groups to address the risk of false positives from multiple comparisons. When normality assumptions were violated, nonparametric alternatives (Wilcoxon signed-rank or Kruskal–Wallis tests) were applied.

Effect sizes were calculated as Cohen’s dz for paired tests. A p-value < 0.05 was considered statistically significant. Subgroup analyses were performed for patients with subchondral bone plate (SBP) tear positive (Y) and articular surface collapse negative (N) to minimize selection bias. 3.

As this study is a retrospective observational study based on treatment protocols conducted at our institution, no prior formal sample size calculation was performed, which is typically conducted in prospective studies.

3. Results

3.1. Baseline Characteristics of All Patients (

Table 1. Baseline characteristics of all patients.

Parameter	ESWT Alone	APS + ESWT	MSC-A + ESWT
Number of patients (knees)	40 (41)	47 (54)	12 (16)
Age (mean ± SD)	65.4 ± 9.2	69.8 ± 10.2	72.2 ± 10.6
Sex (M: F)	15:25	12:35	5:7
KL grade (2:3:4)	8:20:13	9:15:30	1:4:11
SBP tear (present: absent)	13:28	30:24	14:2
Joint surface collapse (present: absent)	6:35	8:46	4:12
ESWT sessions (mean ± SD)	4.4 ± 1.3 (3-month) 6.0 ± 2.4 (6-month)	7.0 ± 3.2 (6-month)	7.5 ± 3.5 (6-month)
Treatment duration	2–4-week intervals	2–4-week intervals	2–4-week intervals

Age, sex, KL grade, SBP tear, joint surface collapse, and treatment sessions are shown across groups. All therapies were performed at 2–4-week intervals. ESWT, Extracorporeal shockwave therapy; APS, Autologous protein solution; MSC, Mesenchymal stromal cells; SBP, Subchondral bone plate; SD, standard deviation.

)

Table 1 presents data for all patients included in the study. The ESWT alone group comprised 40 patients (41 knees), the APS + ESWT group included 47 patients (54 knees), and the MSC-A + ESWT group consisted of 12 patients (16 knees). The mean ages were 65.4 ± 9.2, 69.8 ± 10.2, and 72.2 ± 10.6 years, respectively. Sex distribution (M: F) was 15:25 in the ESWT alone group, 12:35 in the APS + ESWT group, and 5:7 in the MSC-A + ESWT group. KL grade distribution (2:3:4) was 8:20:13 in the ESWT alone group, 9:15:30 in the APS + ESWT group, and 1:4:11 in the MSC-A + ESWT group. SBP tear (present:absent) was observed as 13:28 in the ESWT alone group, 30:24 in the APS + ESWT group, and 14:2 in the MSC-A + ESWT group. Joint surface collapse (present: absent) was documented as 6:35 in the ESWT alone group, 8:46 in the APS + ESWT group, and 4:12 in the MSC-A + ESWT group. The number of ESWT sessions was 4.4 ± 1.3 over 3 months in the ESWT alone group, 6.0 ± 2.4 over 6 months in the APS + ESWT group, and 7.5 ± 3.5 over 6 months in the MSC-A + ESWT group. All treatment groups received therapy at 2–4 week intervals.

3.2. ESWT Alone

3.2.1. Assessment at 3 Months (n = 41)

The overall KOOS (AVG) improved from 51.0 ± 17.3 pretreatment to 69.0 ± 19.5 at 3 months, with an improvement (IV, pre-3M) of 18.1 ± 16.6: SBP tear-present group (n = 13): KOOS significantly improved from 52.4 ± 19.8 at pretreatment to 64.0 ± 18.7 at 3 months (IV, pre-3M = 11.6 ± 16.4) (p = 0.024 < 0.05).

In the SBP tear-absent group (n =28), the KOOS improved from 50.3 ± 16.3 at pretreatment to 71.3 ± 19.7 (IV, pre-3M = 21.0 ± 16.1) at 3 months, which was highly significant (p = 0.00000002 < 0.001).

No significant difference in IV (pre-3M) was found between the SBP-tear present and absent groups (p = 0.09 > 0.05) (Figure 5a).

In the joint surface collapse present group (n = 6), the KOOS improved from 58.2 ± 11.6 at pretreatment to 59.4 ± 15.7 (IV, pre-3M = 1.3 ± 7.2) at 3 months, with no significant difference observed.

In the joint surface collapse absent group (n = 35), the KOOS improved from 49.7 ± 17.9 at pretreatment to 70.7 ± 19.8 (IV, pre-3M = 20.9 ± 16.1) at 3 months with a significant improvement (p < 0.05).

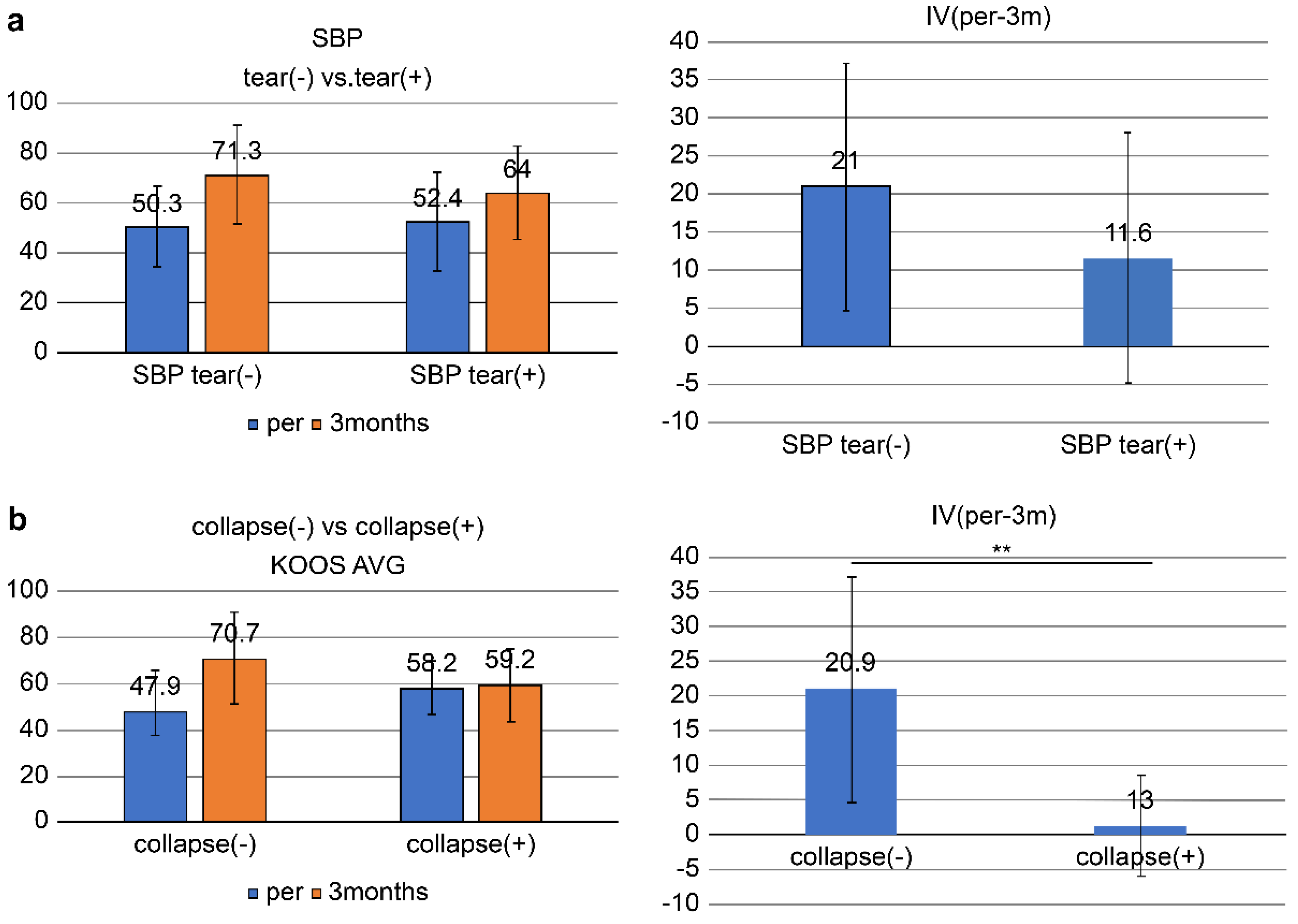

A significant difference in IV (pre-3M) was found between groups of patients having and not having joint surface collapse (p = 0.0058 < 0.01) (Figure 5b).

3.2.2. Assessment at 6 Months (n = 21)

The overall KOOS improved from 54.1 ± 20.4 pretreatment to 64.9 ± 20.6 at 3 months and 70.7 ± 16.2 at 6 months.

Improvements were IV (pre-3 months) = 10.9 ± 12.0, IV (3–6 months) = 5.7 ± 13.1, and IV (pre-6 months) = 16.6 ± 14.0.

• SBP tear-present group (n = 10): Pretreatment: 54.2 ± 21.4: 3 months: 63.8 ± 10.3; 6 months: 70.6 ± 16.5.
• Improvements were IV (pre-3 months) = 9.6 ± 12.2, IV (3–6 months) = 6.8 ± 9.7; IV (pre-6 months) = 16.4 ± 14.2.
• SBP tear-absent group (n = 11): Pretreatment: 54.0 ± 20.5; 3 months: 66.0 ± 22.6; 6 months: 70.7 ± 16.8.
• Improvements were IV (pre-3 months) = 12.0 ± 14.0, IV (3–6 months) = 4.7 ± 16.0, IV (pre-6 months) = 16.7 ± 14.5.
• No significant differences were observed between the SBP tear present and absent groups at 3 months (p = 0.686 > 0.05) or 6 months (p = 0.961 > 0.05).
• Joint surface collapse present group (n = 3): Pretreatment: 55.5 ± 10.6; 3 months: 56.0 ± 10.2; 6 months: 59.9 ± 12.0.
• Improvements were IV (pre-3 months) = 0.5 ± 6.1, IV (3–6 months) = 3.9 ± 1.8, IV (pre-6 months = 4.4 ± 6.5.
• Joint surface collapse absent group (n = 18): Pretreatment: 53.8 ± 21.8; 3 months: 66.4 ± 21.7; 6 months: 72.5 ± 16.4.
• Improvements were IV (pre-3 months) = 12.6 ± 13.0, IV (3–6 months) = 6.0 ± 14.2, IV (pre-6 months) = 18.6 ± 13.9.

Patients in the joint surface collapse absent group showed significant improvement at 6 months (p < 0.05).

Figure 6a (case 1) shows sagittal MRI images of the knee before and 1 year after treatment with ESWT. A large BML was evident before treatment. After 13 ESWT sessions over 1 year, the BML area was markedly reduced. In addition, the previously torn SBP appeared repaired, and the thickness of the articular cartilage layer increased. These findings suggest that ESWT may exert structural improvements in the subchondral bone and the articular cartilage.

The knee in Figure 6b (case 2) underwent a total of 50 ESWT sessions (once per month) from 2019. The left image shows the coronal MRI before treatment, and the right image shows the MRI after 5 years of therapy. Although bone sclerosis was evident before treatment, the long-term images demonstrated improvement of sclerosis and a clear thickening of the articular cartilage layer, as indicated by the yellow arrows. These findings suggest that long-term ESWT may contribute to cartilage protection and regeneration.

3.3. APS + ESWT (n = 54)

The overall KOOS improved from 45.4 ± 16.5 pretreatment to 59.4 ± 20.3 at 3 months and 62.0 ± 20.7 at 6 months.

Improvements were IV (pre-3 months) = 13.9 ± 13.5, IV (3–6 months) = 2.7 ± 9.5, IV (pre-6 months) = 16.6 ± 15.6.

• SBP tear-present group (n = 30): Pretreatment: 42.0 ± 14.7; 3 months: 52.4 ± 19.1; 6 months: 55.0 ± 19.8.
• Improvements were IV (pre-3 months) = 10.4 ± 13.3, IV (3–6 months) = 2.6 ± 9.7, IV (pre-6 months) = 13.0 ± 15.2.
• SBP tear-absent group (n = 24): Pretreatment: 49.7 ± 17.9; 3 months: 68.1 ± 18.6; 6 months: 70.8 ± 18.6.
• Improvements were IV (pre-3 months) = 18.4 ± 12.7, IV (3–6 months) = 2.7 ± 9.4, IV (pre-6 months) = 21.1 ± 15.3.
• At 3 months, the SBP tear-absent group showed significantly greater improvement (p = 0.029 < 0.05). No significant difference was observed at 6 months.
• Joint surface collapse present group (n = 8): Pretreatment: 34.8 ± 8.8; 3 months: 47.0 ± 12.1; 6 months: 47.8 ± 13.1.
• Improvements were IV (pre-3 months) = 12.2 ± 13.5, IV (3–6 months) = 0.8 ± 14.3, IV (pre-6 months) = 13.0 ± 17.4.
• Joint surface collapse absent group (n = 46): Pretreatment: 47.3 ± 16.9; 3 months: 61.5 ± 20.7; 6 months: 64.5 ± 20.8.

Improvements were IV (pre-3 months) = 14.2 ± 13.6, IV (3–6 months) = 3.0 ± 8.6, IV (pre-6 months) = 17.2 ± 15.4.

No significant differences were observed between patients having and not having joint surface collapse at 3 or 6 months.

3.4. MSC-A + ESWT (n = 16)

The overall KOOS improved from 52.0 ± 18.3 pretreatment to 63.6 ± 19.5 at 3 months and 61.3 ± 18.9 at 6 months.

Improvements were IV (pre-3 months) = 11.6 ± 11.8, IV (3–6 months) = −2.3 ± 9.0, IV (pre-6 months) = 9.3 ± 12.5.

• SBP tear-present group (n = 14): Pretreatment: 47.0 ± 12.5; 3 months: 60.9 ± 18.1; 6 months: 58.1 ± 17.9.
• Improvements were IV (pre-3 months) = 13.9 ± 10.1, IV (3–6 months) = -2.8 ± 7.8, IV (pre-6 months) = 11.1 ± 12.2.
• SBP tear-absent group (n = 2): Pretreatment: 87.4 ± 11.6; 3 months: 82.7 ± 24.5; 6 months: 84.1 ± 4.7.
• Improvements were IV (pre-3 months) = −4.7 ± 12.9, IV (3–6 months) = 1.4 ± 19.8, IV (pre-6 months) = −3.3 ± 6.9.
• At 3 months, the SBP tear present group showed significantly greater improvement (p = 0.032 < 0.05). At 6 months, no significant difference was observed.
• Joint surface collapse present group (n = 4): Pretreatment: 42.6 ± 12.8; 3 months: 47.5 ± 12.8; 6 months: 39.3 ± 9.8.
• Improvements were IV (pre-3 months) = 4.9 ± 7.4, IV (3–6 months) = −8.2 ± 3.8, IV (pre-6 months) = −3.3 ± 5.2.
• Joint surface collapse absent group (n = 12): Pretreatment: 55.2 ± 19.2; 3 months: 69.0 ± 18.7; 6 months: 68.7 ± 15.0.

Improvements were IV (pre-3 months) = 13.8 ± 12.4, IV (3–6 months) = −0.3 ± 9.5, IV (pre-6 months) = 13.5 ± 11.4.

At 6 months, improvement was significantly greater in the group without joint surface collapse (p = 0.014 < 0.05).

3.5. Comparison of Three Groups (ESWT Alone, APS + ESWT, MSC-A + ESWT) Under Consistent Conditions (SBP Tear Present, No Joint Surface Collapse)

To facilitate a more rigorous comparison, we acknowledged that the backgrounds of the patients in groups I, II, and III were not uniform. Therefore, the analysis was limited to cases that, on MRI, met the specific criteria of having an SBP tear but no evidence of joint surface collapse. This stratification allowed for a more precise evaluation of the therapeutic effects of each treatment on a specific pathological condition.

Table 2. Baseline characteristics of subgroup: SBP tear(+) and joint surface collapse(−).

Parameter	ESWT Alone	APS + ESWT	MSC-A + ESWT
Number of patients (knees)	8 (8)	20 (22)	7 (10)
Age (mean ± SD)	64.1 ± 8.7	69.9 ± 8.1	71.1 ± 13.0
Sex (M:F)	4:4	4:16	4:3
KL grade (3:4)	4:4	4:18	4:7
SBP tear (present: absent)	8:0	22:0	10:0
Joint surface collapse (present: absent)	0:8	0:22	0:10
ESWT sessions (mean ± SD)	6.5 ± 2.6 times (6-month)	4.8 ± 3.8 times (6-month)	8.1 ± 3.8 times (6-month)
ESWT treatment duration (post therapy)	2–4 weeks intervals	2–4 weeks intervals	2–4 weeks intervals

APS, autologous protein solution; ESWT, extracorporeal shockwave therapy; M, male; MSC-A,F, female; KL, Kellgren–Lawrence; mesenchymal stromal cell–intra-articular injection; SBP, subchondral bone plate; SD, standard deviation.

presents a subgroup analysis of patients with SBP tear but without joint surface collapse. This subgroup included eight patients (eight knees) in the ESWT alone group, 20 patients (22 knees) in the APS + ESWT group, and seven patients (10 knees) in the MSC-A + ESWT group. The mean ages were 64.1 ± 8.7, 69.9 ± 8.1, and 71.1 ± 13.0 years, respectively. Sex distribution (M: F) was 4:4 in the ESWT alone group, 4:16 in the APS + ESWT group, and 4:3 in the MSC-A + ESWT group. KL grade distribution (3:4) was 4:4 in the ESWT alone group, 4:18 in the APS + ESWT group, and 4:7 in the MSC-A + ESWT group. All patients in this subgroup had SBP tear, and none had joint surface collapse. The number of ESWT sessions in 6 months was 6.5 ± 2.6 in the ESWT alone group, 4.8 ± 3.8 in the APS + ESWT group, and 8.1 ± 3.8 in the MSC-A + ESWT group. All treatment groups received therapy at 2–4-week intervals.

• ESWT alone: baseline: 50.0 ± 22.2; 3 months: 59.0 ± 18.6; 6 months: 65.8 ± 14.7.
• Improvement values (IVs) were IV (pre-3 months) = 9.0 ± 13.8, IV (3–6 month) = 6.8 ± 11.0, IV (pre-6 months) = 15.8 ± 16.0.
• Improvement at 3 months was not significant (p = 0.107 > 0.05), but a significant difference was observed at 6 months (p = 0.027 < 0.05).
• APS + ESWT: baseline 44.6 ± 15.7; 3 months; 54.4 ± 21.0; 6 months: 57.6 ± 21.4.
• IVs were IV (pre-3 months) = 9.7 ± 13.4, IV (3–6 months) = 3.3 ± 7.7, IV (pre-6 months) = 13.0 ± 14.7.
• Significant differences were observed between pretreatment and 3 months (p = 0.0027 < 0.01) and between pretreatment and 6 months (p = 0.00047 < 0.001).
• MSC-A + ESWT: baseline: 48.8 ± 12.6; 3 months: 66.2 ± 17.6; 6 months: 65.6 ± 14.5.

IVs were IV (pre-3 months) = 17.5 ± 8.9, IV (3–6 months) = −0.6 ± 8.1, IV (pre-6 months) = 16.8 ± 8.9.

Significant improvements were observed between pretreatment and 3 months (p = 0.00016 < 0.001) and between pretreatment and 6 months (p = 0.00021 < 0.001).

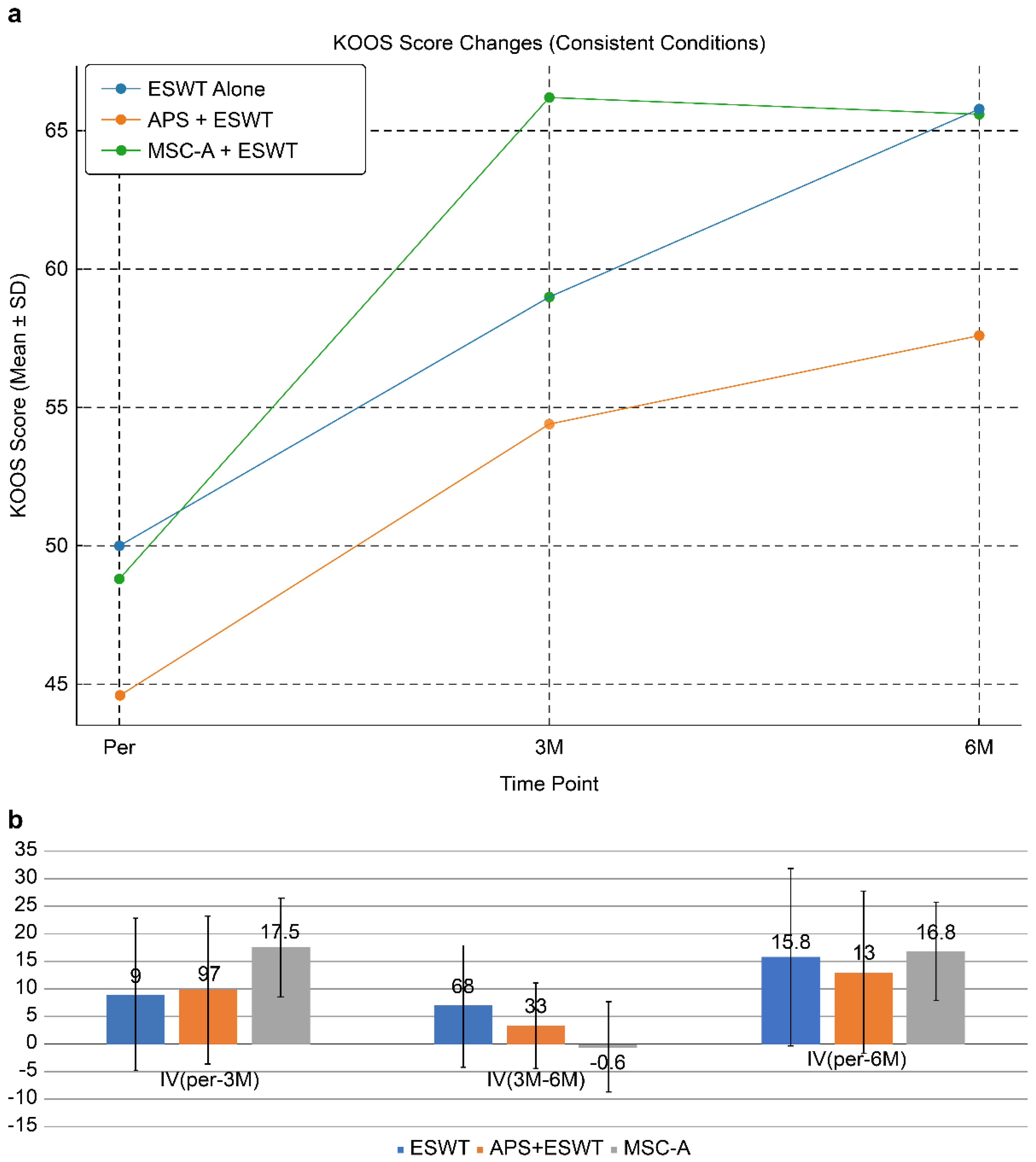

KOOS changes in cases with SBP rupture without joint surface collapse are shown in Figure 7a.

This figure demonstrates longitudinal changes in KOOSs in patients with SBP tear but without joint surface collapse. All groups showed improvement after treatment. The MSC-A + ESWT group exhibited the most significant improvement at 3 months; however, further gain by 6 months was limited. In contrast, the ESWT alone and APS + ESWT groups showed more gradual improvement, narrowing the gap with the MSC-A group at 6 months. These findings suggest that although MSC-A administration contributes to rapid short-term improvement, differences compared with other groups diminish in the mid-term.

Figure 7b compares IVs among treatment groups in patients with SBP tear but without joint surface collapse. The MSC-A+ESWT group showed the greatest improvement at 3 months (17.5 points); however, additional improvement between 3 and 6 months was limited, resulting in a plateau. In contrast, the ESWT alone and APS+ESWT groups showed gradual improvement, with total 6-month IVs of 15.8, 13.0, and 16.8, respectively, with no significant differences among the three groups. These findings suggest that MSC-A administration provides a marked short-term benefit but converges to a comparable level of improvement with ESWT alone and APS+ESWT in the mid-term.

For the SBP tear positive and collapse negative subgroup, one-way ANOVA was performed on the KOOS Improvement Values (IVs) at 3 and 6 months, followed by Bonferroni post hoc tests. At 3 months (Pre–3M), the APS group (IV = 18.4 ± 12.7) showed significantly greater improvement compared to the ESWT-alone group (IV = 12.0 ± 14.0) after Bonferroni correction (p < 0.05). At 6 months (Pre–6M), no significant differences were observed between the ESWT-alone, APS + ESWT, and MSC-A + ESWT groups after Bonferroni correction, indicating similar long-term efficacy.

3.6. Short-Term Clinical Outcomes MSC-B + ESWT

MSC-B was applied to KL4 knee OA cases. Using KOOSs, 19 knees from 18 patients (4 males and 14 females, with an average age of 72.1 ± 8.7 years) were followed for 6 months, and 9 knees from 9 patients (2 males and 7 females, with an average age of 71.1 ± 8.5 years) were followed for 12 months. SBP tear was present in all cases. Additionally, joint surface collapse was observed in 6 of 19 knees in the first group and in 4 of 9 knees in the other group. In the entire MSC-B cohort (n = 9), KOOSs increased from 45.7 ± 16.7 before treatment to 57.3 ± 16.3 at 3 months, 56.9 ± 18.6 at 6 months and 59.8 ± 17.3 at 12 months post-treatment, with IV (pre-3M) = 11.6 ± 15.4, IV (3M–6M) = −0.4 ± 8.6, IV (pre-6M) = 11.2 ± 16.8, IV (6M–12M) =2.9 ± 7.9 and IV (pre-12M) = 14.0 ± 12.2.

In the joint surface collapse group (n = 4/9), KOOSs shifted from 43.8 ± 11.3 pretreatment to 51.7 ± 10.4 at 3 months, 48.5 ± 12.9 at 6 months and 48.5 ± 12.9 at 12 months post-treatment, with IVs of IV (pre-3M) = 7.9 ± 15.6, IV (3M–6M) = −3.2 ± 7.6, IV (pre-6M) = 4.7 ± 13.0, IV (6M–12M) = 0.5 ± 5.6 and IV (pre-12M) = 5.2 ± 8.4. In the group without joint surface collapse (n = 5/9), KOOSs shifted from 47.2 ± 21.4 pretreatment to 61.8 ± 19.9 at 3 months, 63.6 ± 21.0 at 6 months and 68.4 ± 18.4 at 12 months post-treatment, with IVs of IV (pre-3M) = 14.6 ± 16.4, IV (3M–6M) =1.8 ± 9.5, IV (pre-6M) = 16.4 ± 19.0, IV (6M–12M) =4.8 ± 9.6.and IV (pre-12M) = 21.1 ± 10.2. The small sample size limited the ability to detect statistically significant differences; however, the group without collapse demonstrated a more pronounced trend toward improvement. Some patients also regained the ability to engage in previously restricted activities such as golf, tennis, basketball, and aerobics.

In the joint surface collapse group (n = 6/19), KOOSs shifted from 49.8 ± 14.1 pretreatment to 47.0 ± 10.4 at 3 months and 45.3 ± 13.3 at 6 months post-treatment, with IVs of IV (pre-3M) = −2.8 ± 5.6, IV (3M–6M) = −1.6 ± 5.9, and IV (pre-6M) = −4.4 ± 7.7. In the group without joint surface collapse (n = 13/19), KOOSs shifted from 49.1 ± 18.1 pretreatment to 62.1 ± 18.8 at 3 months and 64.9 ± 18.9 at 6 months post-treatment, with IVs of IV (pre-3M) = 13.0 ± 11.2, IV (3M–6M) =2.8 ± 8.5, and IV (pre-6M) = 15.8 ± 8.6.

Case Reports

In Case 3 (Figure 8), a 70-year-old male, at baseline, MRI revealed the disappearance of the cartilage layer and SBP tear associated with a BML in the medial femoral condyle and tibial plateau. At 1-month post-treatment, mosaic-like high-signal areas extended throughout the region surrounding the BML. At 4 months, the mosaic-like areas and a reduction in BML were observed. At 7 months, although no improvement in the cartilage layer was detected, areas of bone sclerosis had expanded to cover the joint surface, indicating progression of bone repair. It was considered that the repair process was still in progress.

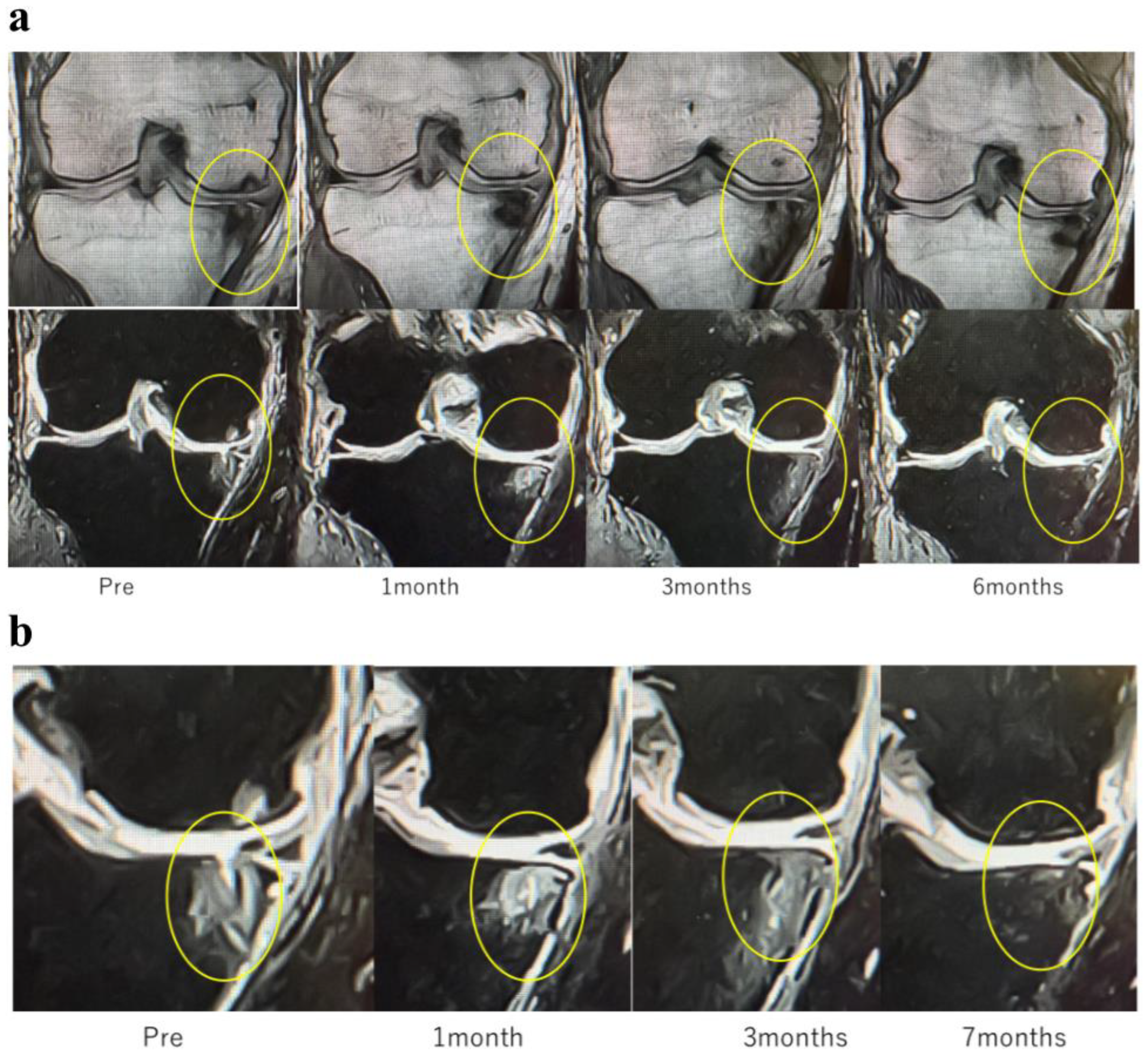

In Case 4 (Figure 9), a 63-year-old male, sequential MRI changes following combined treatment with intra-articular and intraosseous MSC administration and ESWT were evaluated. At baseline, irregularities of the articular surface and a tear of the SBP were observed. At 1 month, early signs of repair became evident, and at 3 months, further progression of structural restoration was noted. At 6 months, near-complete reconstruction of the articular surface and SBP was achieved. These findings suggest that the synergistic effect of MSC administration combined with ESWT may contribute to the regeneration of cartilage and subchondral bone (Figure 9a).

These images (Figure 9b) represent magnified views of the joint surface from the T2-weighted images shown in Figure 9a. Pretreatment findings revealed a BML and disruption of the articular surface. Progressive repair was observed at 1 month and 3 months after treatment. At 6 months, near-complete restoration of the articular surface and SBP was evident.

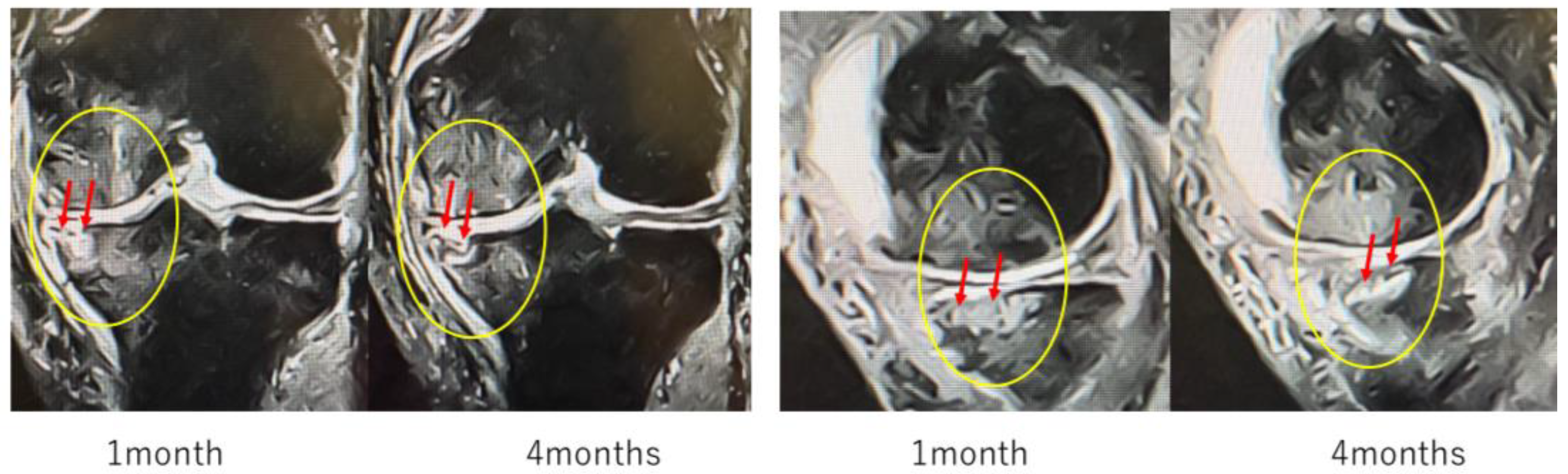

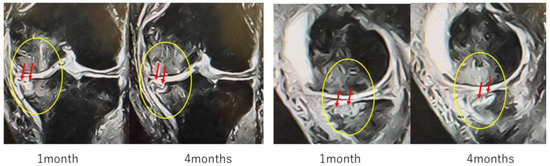

Figure 10 (Case 5) shows T2-weighted MRI findings at 1 and 4 months after intraosseous MSC administration. In sagittal and coronal views, progressive subchondral bone collapse and depression of the articular surface were observed, which became more pronounced between 1 and 4 months. These morphological changes were accompanied by alterations in joint congruity, suggesting ongoing structural compromise that may predispose to secondary osteoarthritic changes.

Particularly in cases with extensive BML located adjacent to the articular surface, MSC administration may increase bone fragility, indicating the need for careful rehabilitation and load management.

3.7. Comparison Between MSC-B and Other Therapies

Table 3. SBP tear(+) collapse(−) number of patients by KL classification and change in mean KOOS for each therapeutic modality.

KOOS AVG	KL3-n	KL4-n	Baseline	3M	6M
ESWT (n = 8)	4	4	50.0	59.0	65.8
APS (n = 22)	4	18	44.6	54.4	57.6
MSC-A (n = 11)	4	7	48.8	66.2	65.6
MSC-B (n = 19)	0	19	49.1	62.1	64.9

shows the number of KL3 and KL4 knees in each group with SBP tear (+) and without joint surface collapse. MSC-B group included more severe and refractory cases.

Figure 11 shows the comparison of KOOSs at baseline (pre), 3 months (3M), and 6 months (6M) post-treatment. At baseline, the scores were 50.0 in the ESWT-alone group, 44.6 in the APS + ESWT group, 48.8 in the MSC-A + ESWT group, and 49.1 in the MSC-B + ESWT group. At 3 months, significant improvements were observed in all groups, with MSC-A + ESWT (66.2) and MSC-B + ESWT (62.1) showing the greatest gains.

At 6 months, the MSC-A + ESWT group showed a plateau (66.2 to 65.6) in improvement, whereas the MSC-B + ESWT group exhibited continued gains (62.1 to 64.9). This difference may be attributed to greater MSC penetration into the bone, facilitating macrophage-driven bone formation [7,22]. These findings suggest that combined intra-articular and intraosseous administration of MSCs, when used in conjunction with ESWT, may provide more sustained and superior clinical improvement.

In the MSC-B + ESWT group without articular surface collapse, the mean KOOS IV (Pre–6M) was 15.8 ± 8.6, representing a significant improvement compared to baseline (p < 0.05). Conversely, in the cases with articular surface collapse, improvement was not observed (KOOS IV (Pre–6M) = −4.4 ± 7.7), which aligns with findings from other treatment groups.

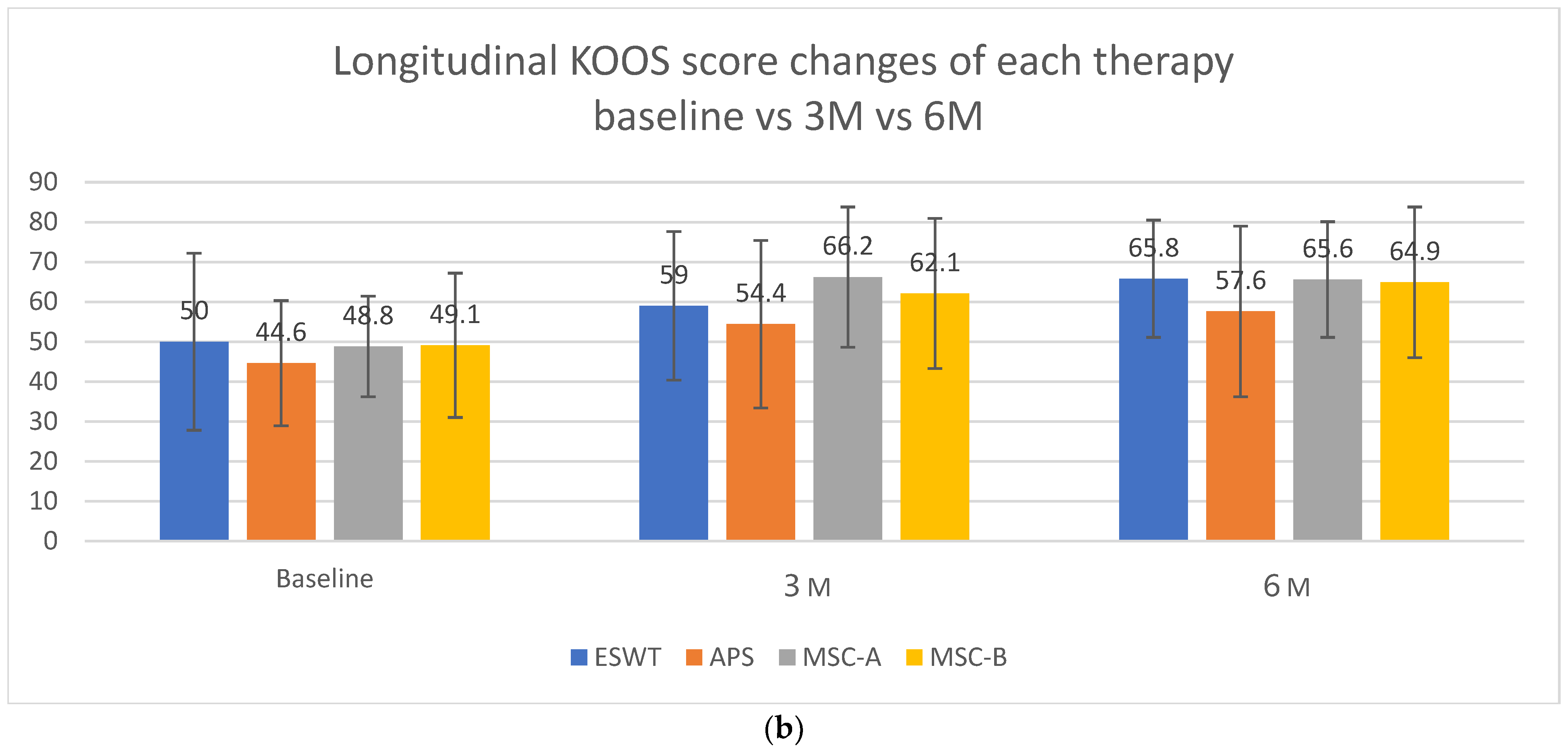

Figure 11b illustrates the changes in mean KOOSs (KOOS AVG) at baseline (pre), 3 months (3M), and 6 months (6M) across the therapy groups. All groups demonstrated significant improvement by 3 months. Notably, the MSC-B group showed a tendency for continued improvement from 3 to 6 months, suggesting sustained therapeutic benefits depending on the mode of MSC administration.

Table 3 summarizes the mean KOOS changes at baseline, 3 months, and 6 months after each therapeutic modality in patients with subchondral bone plate (SBP) tear without collapse. Although the MSC-B group included cases refractory to ESWT monotherapy and consisted exclusively of KL grade 4 patients, this group demonstrated a marked improvement in KOOS from 49.1 at baseline to 64.9 at 6 months. The magnitude of improvement in MSC-B was greater than that observed with ESWT or APS, and comparable to MSC-A despite the higher baseline severity. These findings suggest that combined intra-osseous and intra-articular MSC therapy following ESWT provides superior clinical benefit even in advanced and treatment-resistant knee osteoarthritis.

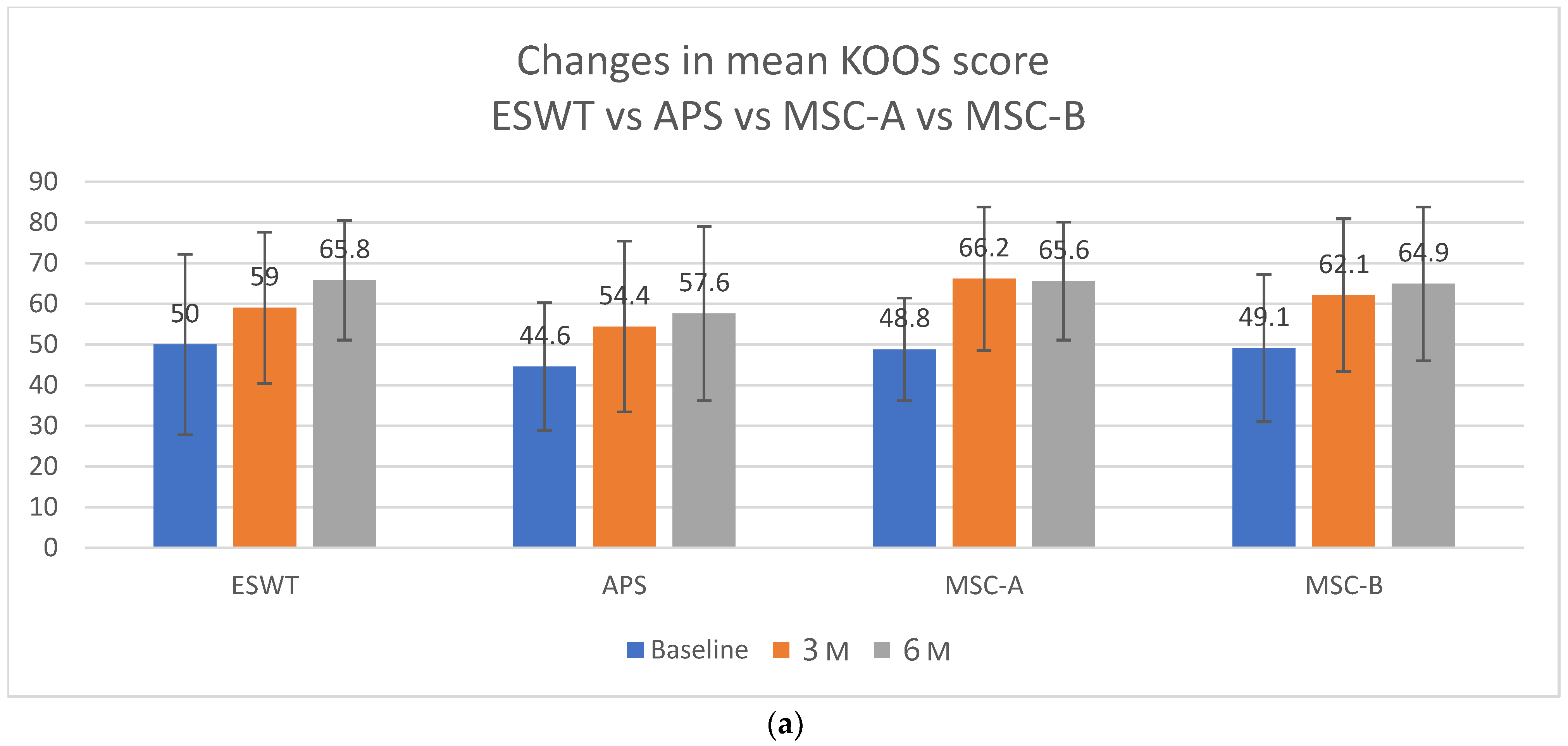

Figure 11a shows the mean KOOSs for each therapeutic approach at baseline, 3 months, and 6 months in patients with SBP tear without collapse. Despite including only advanced (KL 4) and ESWT-refractory cases, the MSC-B group achieved the greatest improvement among all therapies, indicating the additive and synergistic benefit of MSC therapy after ESWT.

Figure 11b demonstrates the longitudinal course of KOOSs across time points for each therapy. Although ESWT and APS provided moderate improvements, MSC-A and MSC-B groups exhibited sustained and greater KOOS gains up to 6 months. In particular, MSC-B maintained continuous improvement despite including more severe and refractory cases, supporting the superiority of combination therapy of MSC-B and ESWT in advanced SBP tear-related knee osteoarthritis.

3.8. MSC-B 1 Year Outcome of MSC-B (n = 9)

Patients without collapse (Collapse −) showed continuous improvement up to 12 months, whereas those with collapse (Collapse +) also maintained clinical improvement despite more severe baseline conditions (Figure 12). Monthly ESWT and rehabilitation were continued in all cases after 6 months.

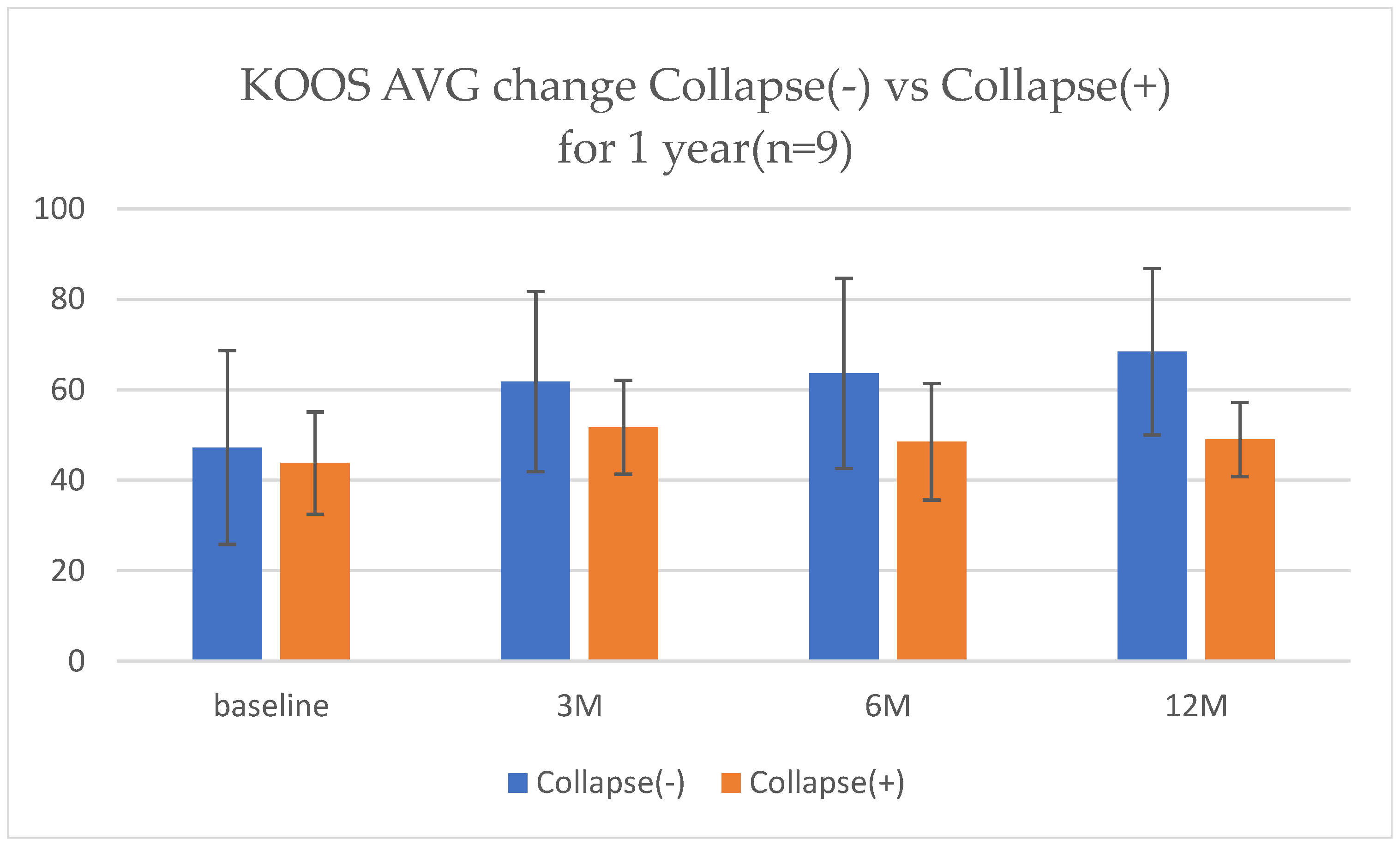

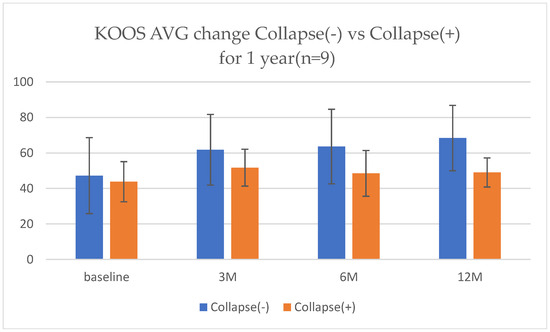

At the 12-month follow-up of the initial nine cases (Figure 12) treated with MSC-B + ESWT, continuous improvements in KOOSs were observed compared with scores at baseline and at 6 months. Patients without subchondral bone collapse demonstrated a steady increase in KOOS from baseline to 12 months, indicating progressive recovery of pain and function. Even in patients with subchondral bone collapse, the clinical benefits obtained at 6 months were maintained at 12 months, suggesting a sustained effect of the combined therapy. All patients continued monthly ESWT sessions and rehabilitation after 6 months, which may have contributed to the long-term maintenance of outcomes.

4. Discussion

We compared ESWT, APS + ESWT, and MSC-A + ESWT and demonstrated that treatment outcomes significantly depend on the presence or absence of joint surface collapse and SBP tear. ESWT as a standalone treatment resulted in notable KOOS enhancements from baseline to 3 months, with continued progress observed at 6 months. However, in cases with joint surface collapse, the treatment showed little benefit, with significant improvements limited to patients without collapse. The histological discontinuity of the SBP observed in pathology often manifests as a tear on MRI, which is thought to reflect not just a simple structural break, but a more severe pathological condition involving local microfractures, increased bone metabolic activity, and inflammatory reactions. This is likely because ESWT’s mechanism relies on repairing microfractures within BMLs, stimulating blood vessel formation, and normalizing bone turnover, which may not be effective when the joint surface is already structurally compromised.

Kang et al. [23] found that ESWT reduces bone marrow edema (BME) in patients with knee OA, with MRI evidence of significant BME reduction or resolution at 6 months. In contrast, Zang et al.’s [24] meta-analysis suggests that although ESWT improves pain and function, these clinical benefits do not always align with BML reduction or imaging changes, a finding that corresponds with this study’s findings.

APS contains elevated levels of anti-inflammatory cytokines (such as interleukin-1 receptor antagonists) compared with PRP, making it particularly effective at reducing synovitis and inflammation-related pain [25]. In this study, the APS + ESWT group exhibited significant pain and functional improvements by 3 months, with benefits persisting at 6 months. Notably, patients without SBP tear showed a markedly higher improvement rate at 3 months, indicating that APS’s early control of inflammation likely amplifies ESWT’s ability to repair bone tissue.

Although the impact of joint surface collapse was not distinctly different between groups, some improvement was observed even in the collapse group. This suggests that APS may alleviate pain even in cases with advanced structural bone damage by targeting synovitis.

The group treated with intra-articular MSC administration combined with ESWT achieved the most substantial KOOS improvement at 3 months (IV pre-3 months = 17.5 ± 8.9); however, this progress leveled off by 6 months. MSCs may have migrated into the subchondral bone at SBP tear sites, facilitating early tissue repair. However, since MSCs are cleared from the joint cavity relatively quickly, their long-term benefits were limited.

In patients with joint surface collapse, KOOSs showed a tendency to decline, potentially due to temporary weakening of the subchondral bone during MSC-induced bone formation, which could exacerbate collapse under mechanical stress. This observation is consistent with animal studies [26] indicating that MSC-mediated bone regeneration is influenced by the surrounding tissue environment.

In the three-group comparison (SBP tear present, joint surface collapse absent), APS + ESWT and MSC-A + ESWT demonstrated earlier improvements at 3 months compared to standalone ESWT. However, by 6 months, no significant difference was observed between APS + ESWT and MSC-A + ESWT, suggesting that the high cost of MSC offers limited advantages from a cost-effectiveness perspective.

Huang et al. [27] indicate in their review that conservative treatments (such as braces, electromagnetic therapy, and bisphosphonates) show some efficacy in improving BML. However, combining ESWT-based physical therapy with biologics appears to yield faster and more sustained clinical improvements.

This study underscores the importance of “joint surface structural assessment” as a critical indicator for treatment selection in knee OA with BML. For BML-positive cases without joint surface collapse, ESWT alone or in combination with APS is effective, whereas MSC may be a valuable strategy for carefully selected cases targeting short-term improvement.

Moving forward, developing a treatment prediction model through MRI-based quantification of BML size and location, measurement of pain biomarkers, and correlation analysis with inflammation and neurogenesis markers represents a key future challenge [3].

Recently, ESWT has gained recognition as an effective treatment, especially for knee OA accompanied by BML. Systematic reviews have shown that ESWT can significantly improve pain and functional outcomes, measured by Western Ontario and McMaster Universities Osteoarthritis Index, visual analog scale, and range of motion scores, while causing minimal side effects [28]. Since 2018, we have applied ESWT to patients who did not respond to intra-synovial injections, but only after confirming the presence of BML via MRI. In these cases, ESWT reduced pain, decreased BML size on MRI, and improved the condition of the subchondral bone unit, consistent with previous reports [29,30].

Aso et al. (2013) reported that pain in knee OA can originate independently from BML and from synovitis, and therefore each requires a distinct treatment approach [31]. Based on this finding, for patients presenting with BML and synovitis, we combined ESWT with second-generation platelet-rich plasma (APS), which has been shown to suppress synovitis more effectively than earlier formulations. This combined therapy produced pain and functional improvements comparable to ESWT alone at three months, but significantly greater benefits at six months [32].

However, when we introduced a combined MSC and ESWT protocol (MSC-A + ESWT), the results showed that, despite being roughly three times more expensive than APS, the clinical benefits were not markedly superior. This may be because intra-articular MSCs are readily absorbed by the synovium, limiting their retention and delivery to bone tissue [20,33].

To overcome this limitation, in 2024, we began using a refined protocol that combines simultaneous intra-articular and intra-osseous MSC administration with ESWT (MSC-B + ESWT). Hernigou et al. (2021) demonstrated that intra-osseous BMAC can sustain long-term clinical benefits, whereas Delgado et al. (2022) reported that delivering PRP intra-osseously and intra-articularly enhances MSC proliferation and clinical outcomes [20,34]. In our study, the MSC-B approach improved KOOSs and MRI findings, suggesting a reparative effect on lesions, likely due to the more direct delivery of MSCs to bone.

Early OA progression is marked by increased bone metabolic activity, angiogenesis, and neurogenesis preceding cartilage changes, with BML serving as an early indicator [32]. Consequently, we examined whether the presence of SBP tear might influence disease severity and treatment responsiveness. In our study, ESWT alone was effective even in SBP tear cases, but prior reports indicate that when joint surface collapse is present, therapeutic efficacy is markedly reduced. The International Society for Medical Shockwave Treatment (ISMST) guidelines recommend ESWT for OCD and osteonecrosis only in the absence of articular derangement, excluding such cases from treatment. By extension, ESWT for knee OA with BML may also be best indicated only when no articular derangement is present [35,36].

In MSC-B cases with SBP tear, we observed KOOS improvement and MRI-documented lesion repair in patients where MSC effects could be expected from the articular and intraosseous sides. These findings suggest that a higher concentration of MSC in bone with MSC-B, compared to MSC-A, may have accelerated repair. Furthermore, intra-osseous and intra-articular PRP co-administration has been reported to enhance MSC proliferation and stress resistance, supporting our observations [37,38].

However, immediately after MSC administration, the bone may become transiently fragile, creating a risk of joint surface collapse; therefore, a period of weight-bearing restriction is necessary. Although MSC-B tended to sustain improvements from 3 months to 12 months, the small number of cases, particularly at 12 months, limited statistical analysis. Future studies should address booster dosing, MSC quality enhancement, and long-term follow-up. However, the 12-month outcomes of MSC-B + ESWT therapy indicate that this combined biological and mechanical approach provides durable benefits in patients with knee OA associated with subchondral bone lesions. Continuous improvement in patients without joint surface collapse suggests that MSC-B may promote sustained bone remodeling, improved perfusion, and prolonged anti-nociceptive effects within the subchondral environment. Furthermore, maintenance of clinical improvement in collapse-positive cases implies that even structurally compromised subchondral bone can achieve symptom stabilization when regenerative cellular therapy and shockwave-induced mechanotransduction are synergistically applied. The ongoing monthly ESWT after the initial treatment phase likely contributed to maintaining bone metabolism and local microcirculation, supporting tissue homeostasis. These findings collectively demonstrate that the MSC-B + ESWT protocol may represent a viable therapeutic strategy for advanced and treatment-resistant knee OA with subchondral collapse or SBP tears, achieving sustained symptom relief and functional recovery over one year. In addition, the continued improvement observed beyond six months in the MSC-B group suggests that this therapy may exert a long-lasting regenerative effect, providing the potential for stable long-term outcomes extending beyond one year.

As Zhen et al. have noted, future treatment strategies for knee OA may benefit from appropriately delivering orthobiologics and growth factors into bone and joint spaces, combined with physical modalities such as ESWT, to repair and modulate the subchondral bone microenvironment [39].

This study has some limitations that should be considered when interpreting the results. First, its retrospective and observational design is a major constraint. As a case series based on existing clinical data, a formal sample size calculation was not performed, potentially limiting the statistical power for detecting subtle differences between treatment groups. Furthermore, the non-randomized allocation and attrition (loss to follow-up), particularly in the ESWT-alone group, introduced a risk of selection bias. Additionally, the reasons for attrition, such as voluntary discontinuation, could not always be ascertained, which may introduce further bias. Second, the study protocol was not blinded to treatment allocation. Although the KOOS questionnaires were analyzed by a clinical assistant unrelated to the treatment procedures, the outcome assessors were not blinded to the treatment allocation. For subjective, patient-reported outcomes like the KOOS, this lack of blinding poses a potential risk of detection bias and could lead to an overestimation of the estimated treatment effect due to patient or assessor expectations. Third, the sample size of the MSC-B + ESWT group was 19 knees at 6-month follow-up; however, only 9 knees were available at the 1-year follow-up. Furthermore, the number of cases in the defined subgroups (e.g., group with articular surface collapse) is relatively small. This limits the robustness of statistical analysis, particularly when using parametric tests or performing multiple comparisons; therefore, careful interpretation is required. Finally, although efforts were made to include crucial baseline characteristics such as Kellgren–Lawrence grade, SBP tear, and joint surface collapse, data on other known confounders for knee OA, such as Body Mass Index and disease duration, were not uniformly available for all subjects. This missing information makes a complete assessment of comparability across groups challenging, representing an additional limitation inherent to retrospective analysis.

5. Conclusions

In BML cases without SBP tear, ESWT alone can be expected to provide sufficient therapeutic benefit. In cases with synovitis, APS + ESWT is effective for early improvement. In cases with SBP tear, MSC-B + ESWT may be a promising option. This study contributes toward developing pathology-specific, individualized treatment strategies for BML in knee OA. MSC-B suggests the potential for better long-term improvement compared to intra-articular administration in cases of BML with SBP tear; however, its applicability is limited in cases with joint surface collapse. To establish clear criteria for its optimal use, further studies with larger sample sizes and long-term clinical and imaging analyses are necessary.
