Hysteretic Performance and Bond–Slip Model of Ordinary Rebar with Unbonded Segments

Abstract

Reinforced concrete structures are widely used, and the contact type between steel and concrete directly affects the mechanical properties of the structure. Setting unbonded segments on ordinary rebars can effectively improve the ductility and energy dissipation capacity of the structure. So, in order to study the hysteretic performance of ordinary rebar with unbonded segments (OR-US) in detail, this study considered the influence of the unbonded length, rebar diameter, rebar strength, and concrete strength and performed hysteretic tests on five specimens, aiming to analyze the damage phenomenon, hysteretic characteristics, ductility and energy dissipation capacity. The results indicated that all the specimens exhibited earlier yielding of bonded rebar at the loading end than the unbonded rebar; a decrease in the unbonded length or an increase in the rebar diameter or the rebar strength resulted in the delayed yielding of bonded rebar at the loading end; compared to the rebar strength, an increase in rebar diameter led to the later yielding of the OR-US specimen; increasing the unbonded length could improve the ductility and energy dissipation capacity of the specimen; the concrete strength, however, had less impact on the ductility and energy dissipation capacity of the specimen. A bond–slip model for the OR-US was put forward, and the errors between theoretical results and test results were within 10%, indicating the theoretical results were in good agreement with the test results, which provides reference for engineering application of the OR-US.

1. Introduction

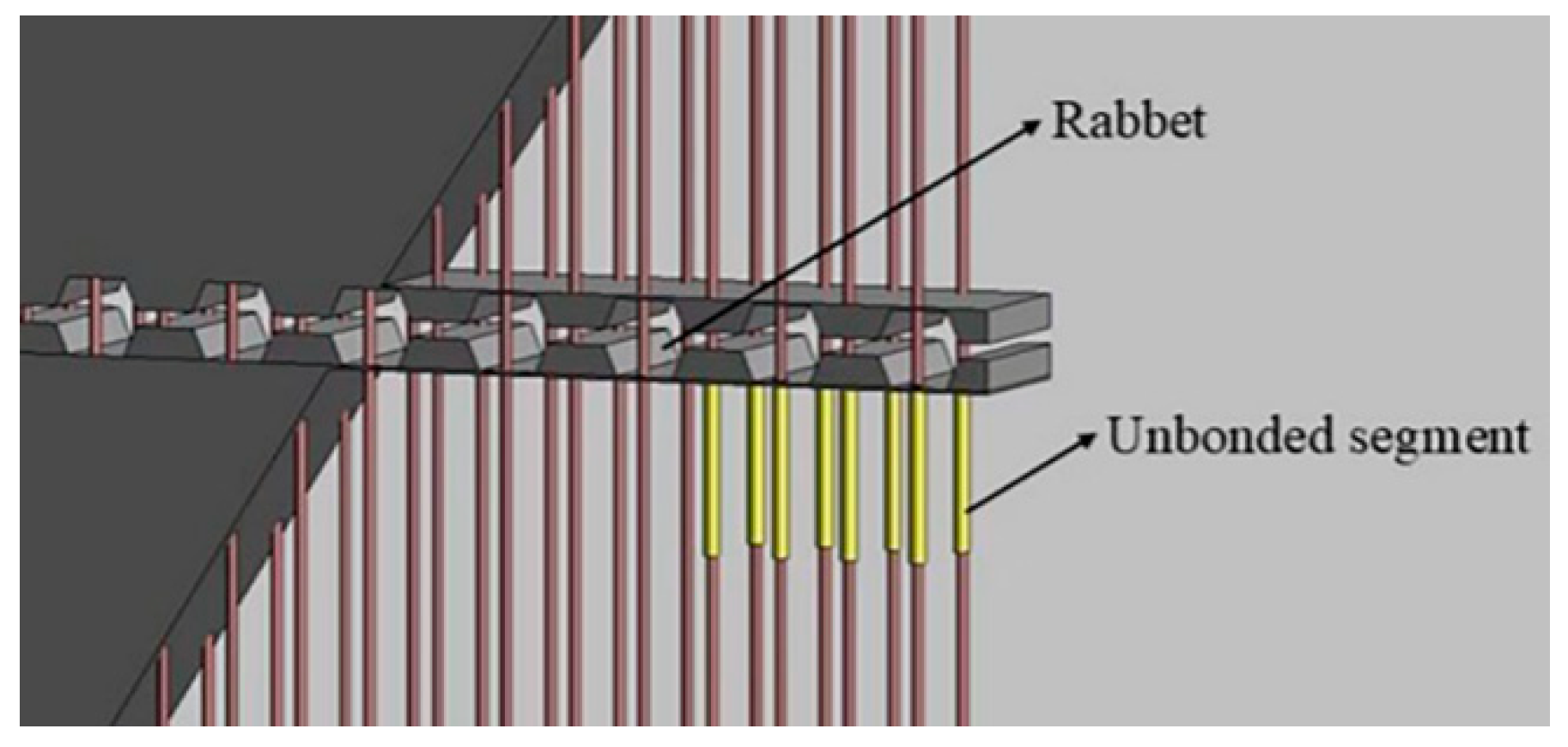

Reinforced concrete structure is one of the most widely used structural forms in the world, and the bonding properties between rebar and concrete can directly affect the mechanical behavior of the structure [1]. The primary factors influencing the bonding properties between rebar and concrete include the concrete strength, casting of concrete, rebar diameter, surface shape of rebar, constraints around the rebar, and so on [2]. In this paper, the mechanical behavior of ordinary rebar with unbonded segments (OR-US) was studied. Our research group set the unbonded segments on the vertical rebars of the lower wall panel at the horizontal joint of the precast shear wall (Figure 1), and the research results of quasi-static tests indicated that the unbonded segments of rebars significantly enhanced the ductility and energy dissipation capability of shear walls [3]. Consequently, it is necessary to perform the hysteretic test on a single OR-US in order to better investigate its hysteretic characteristics, which provides a scientific foundation for its design and application.

Regarding the hysteretic performance of rebar, scholars mostly focus on studying ordinary rebar, high-strength rebar, and composite rebar. For ordinary rebar, Qiu et al. [4] introduced an adjustment formula of post-yield stiffness ratio on the Bouc–Wen model and developed a hysteretic constitutive model of rebar considering the influence of buckling. Liu [5] derived the theoretical calculation formulas for the slip and average slip strain of anchored rebar considering the relative slip between rebar and concrete. Xiong et al. [6] put forward the calculation method of slip angle of yield point and failure point on the basis of the existing bond slip moment–angle skeleton curve of two-fold linear rebar. Tripathi et al. [7] proposed a cyclic stress–strain model of rebar considering the influence of rebar buckling, low-cycle fatigue damage, and loading history. Hu et al. [8,9] studied the effects of freezing environment and concrete strength on the bonding properties of rebar in early frozen aged concrete. Albero et al. [10] studied the bonding properties between concrete and unprotected, cold-galvanized, hot-dip-galvanized, and stainless-steel bars after exposure to temperatures reaching up to 600 degrees C. In addition, relevant scholars also studied the bonding properties between rebar and various types of concrete, such as common recycled concrete [11,12], steel–steel fiber recycled aggregate concrete [13], ultra-high-performance concrete [14], rubber concrete [15], hybrid basalt–polypropylene fiber concrete [16], high-performance steel fiber-reinforced expanded-shale lightweight concrete [17], self-prestressed hybrid steel fiber-reinforced concrete [18], and 3D-printed concrete [19]. Further, the bonding properties between corroded rebar and common concrete [20,21], corroded rebar and recycled concrete [22], and stainless rebar and ultra-high-performance concrete [23] have also been studied.

For high-strength rebar, relevant scholars mainly studied the bonding properties between 630 MPa super-high-strength rebar and concrete, analyzed the fatigue life, cyclic response characteristics, and stress–strain hysteretic curve of rebar through the low-cycle fatigue test under constant strain amplitude loading, and established its fatigue life prediction formula [24]. The influence of different test methods and transverse rib spacing on the bonding properties of super-high-strength rebar were studied by a pull-out test and beam test [25,26]. In addition, relevant scholars also studied the bonding properties between high-strength rebar with ultra-high-performance concrete [27] and steel fiber concrete [28].

For composite rebar, relevant scholars mainly studied composite rebar with 304 stainless steel cladding and HRB400 core steel, analyzed the influence of buckling on the shape of the hysteretic curve, stress–strain performance, and energy dissipation capacity of composite rebar [29], and proposed the skeleton curve of composite rebar with different aspect ratios. A formula for calculating the low-cycle fatigue life of composite rebar considering the influence of length–diameter ratio was proposed [30], and hysteretic and fatigue properties of composite rebar after high temperature were also studied [31].

Compared with fully bonded rebar, the hysteretic properties of OR-US are different due to the presence of unbonded segments. Therefore, in order to study hysteretic properties of OR-US, hysteretic tests were conducted with the variable parameters of the unbonded length, rebar diameter, rebar strength, and concrete strength, and finally the bond–slip model of OR-US was established.

2. Test Program

2.1. Design of the Specimens

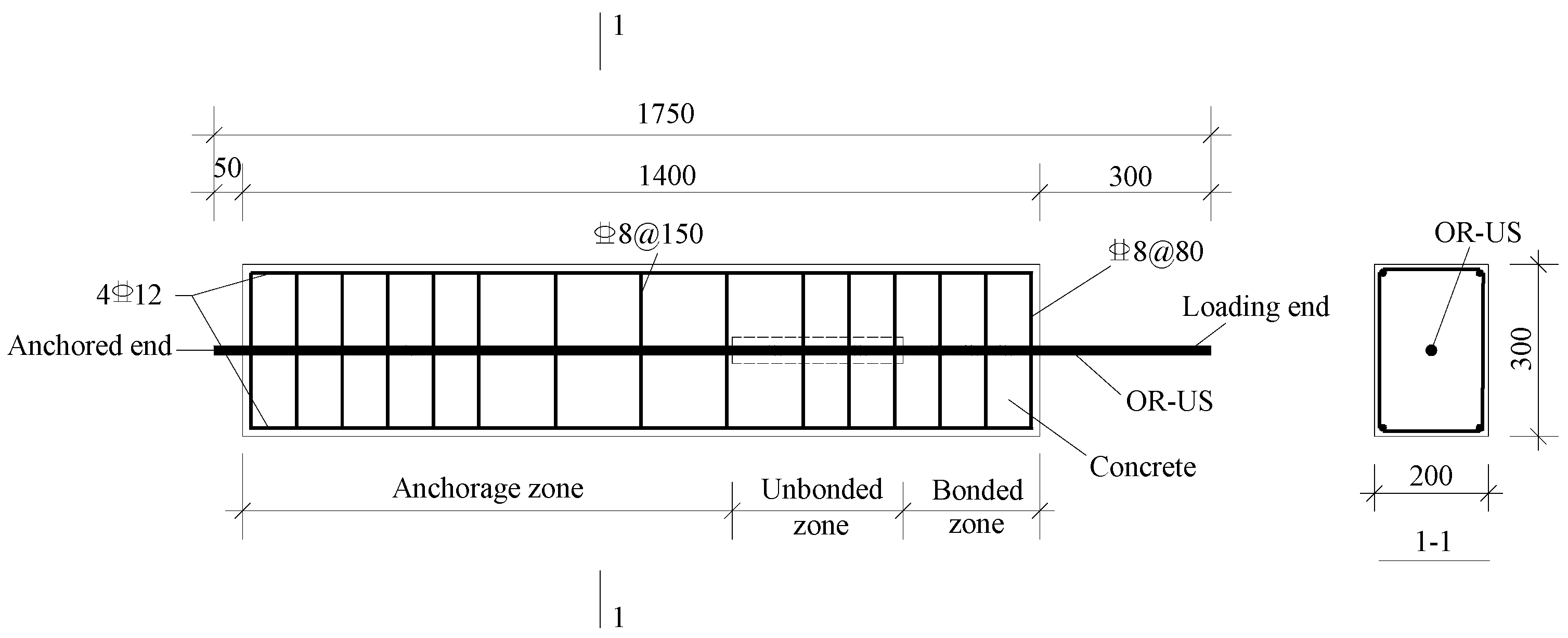

In this paper, the unbonded length, rebar diameter, rebar strength, and concrete strength were taken as the research variables, and the hysteresis tests of five OR-US specimens were conducted. The test parameters are shown in

Table 1. Test specimen parameters.

Specimen Number	Unbonded Length (mm)	Rebar Diameter (mm)	Rebar Strength	Concrete Strength
JD	300	16	HRB400	C35
WC	200	16	HRB400	C35
GZ	300	20	HRB400	C35
GQ	300	16	HRB500	C35
HQ	300	16	HRB400	C30

, among which JD is the reference specimen; WC, GZ, GQ, and HQ were compared with JD for unbonded length, rebar diameter, rebar strength, and concrete strength respectively. The specific dimensions of the specimen are shown in Figure 2. The rebar with outer concrete was divided into the anchorage zone, unbonded zone, and bonded zone at the loading end. In order to facilitate the installation of the specimen, the length of the protruding outward rebar at the loading end was set as 300 mm, and the length of rebar with outer concrete was set as 1400 mm. In order to accurately measure the horizontal displacement of the OR-US, the 50 mm overhang length of rebar at the anchor end was reserved for measuring the displacement of the rebar at the anchor end, and the difference between the displacement of the rebar at the loading end and the displacement of the rebar at the anchor end was the exact horizontal displacement of the OR-US.

2.2. Material Properties

The rebar and concrete were tested before the hysteretic test, and the measured results of the material properties are shown in

Table 2. Mechanical properties of concrete.

Specimen Number	Concrete Grade	Failure Load (kN)	Compressive Strength (MPa)	Average Compressive Strength (MPa)
1	C30	785.4	33.2	33.7
2		798.2	34.1
3		787.5	33.8
4	C35	1006.9	42.5	40.9
5		996.7	40.4
6		989.9	39.7

and

Table 3. Mechanical properties of rebar.

Specimen Number	Rebar Grade	Rebar Diameter (mm)	Yield Strength (MPa)	Ultimate Strength (MPa)	Ratio of Yield Strength to Tension Strength	Percentage Elongation After Fracture
1	HRB400	16	469.6	678.0	0.69	26%
2			456.2	670.7	0.68	26%
3			465.4	676.7	0.69	26%
4	HRB500	16	540.6	709.7	0.76	28%
5			539.6	691.3	0.78	28%
6			537.8	689.2	0.78	28%
7	HRB400	20	455.8	610.1	0.75	23%
8			457.1	601.9	0.76	23%
9			455.3	608.7	0.75	23%

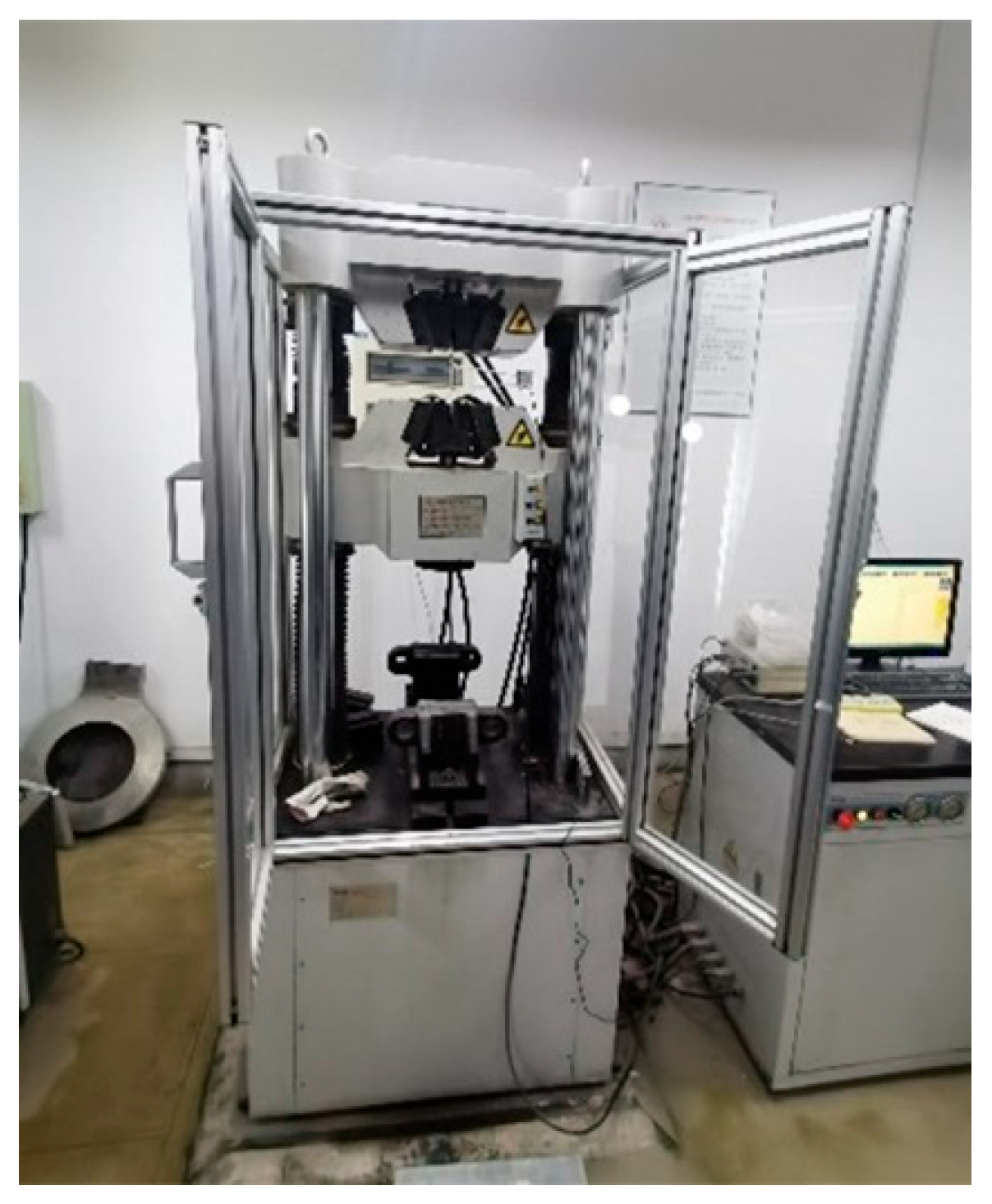

. The tensile test graph of rebar is shown in Figure 3.

2.3. Test Device and Measurement Scheme

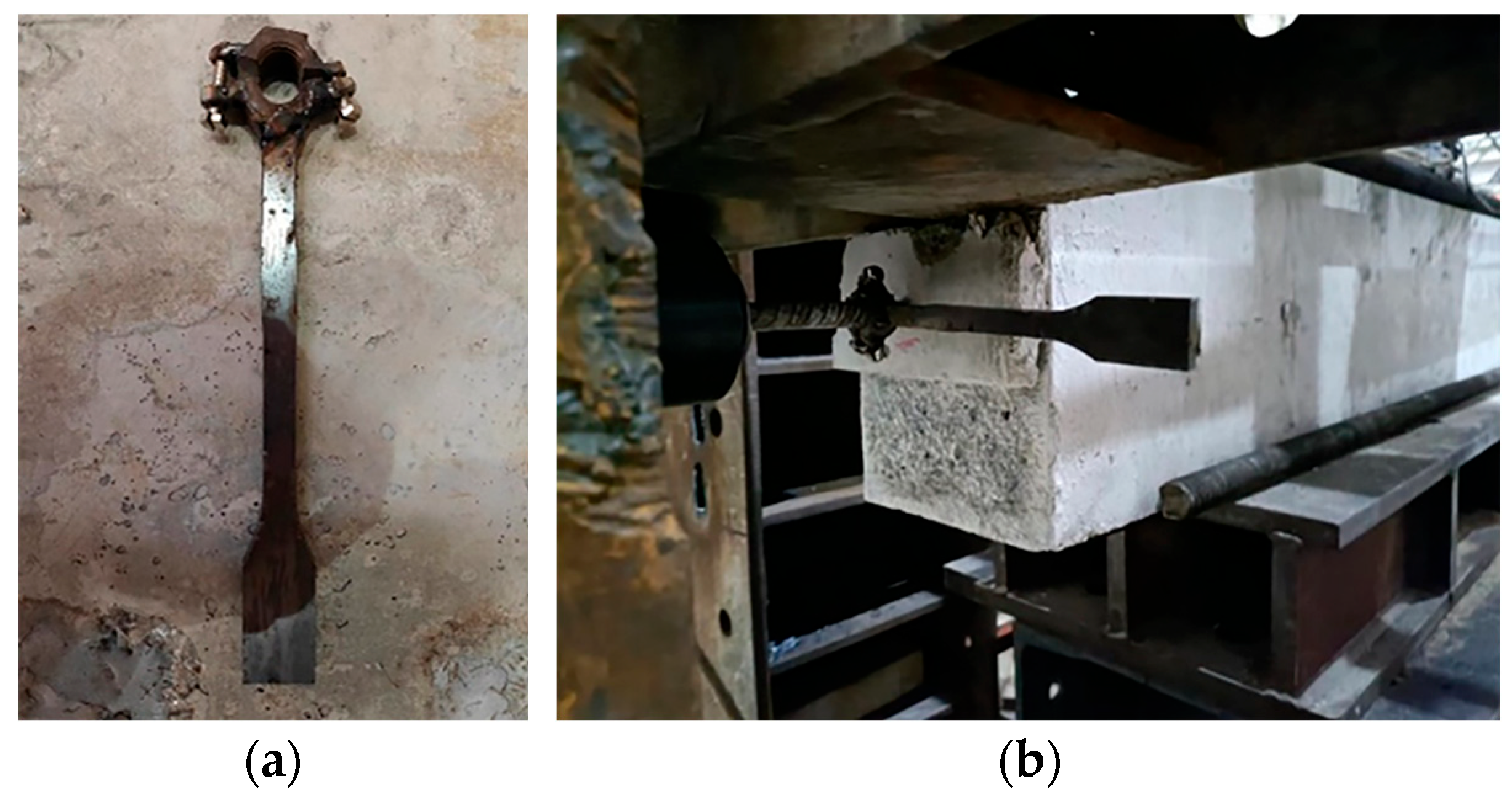

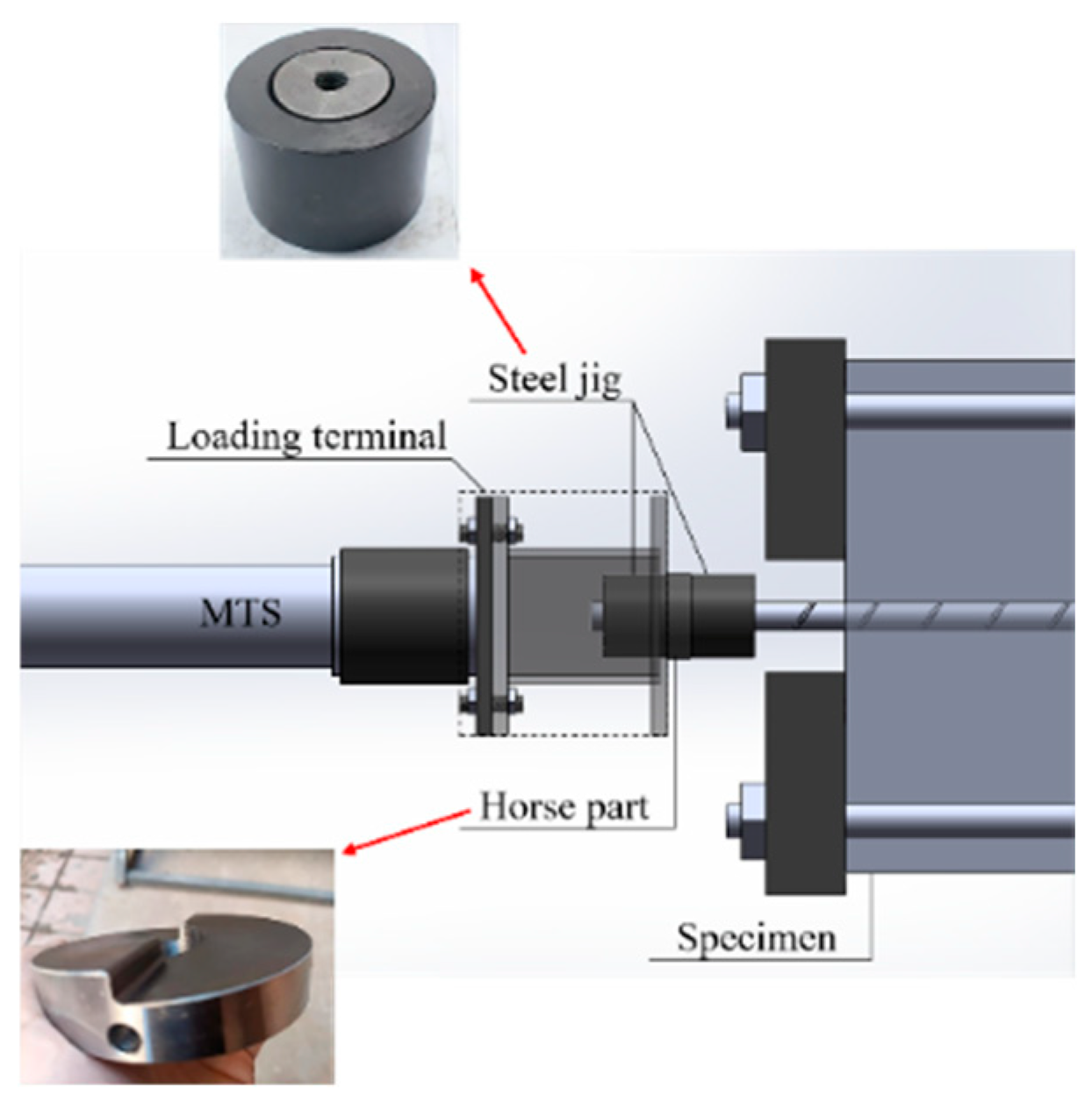

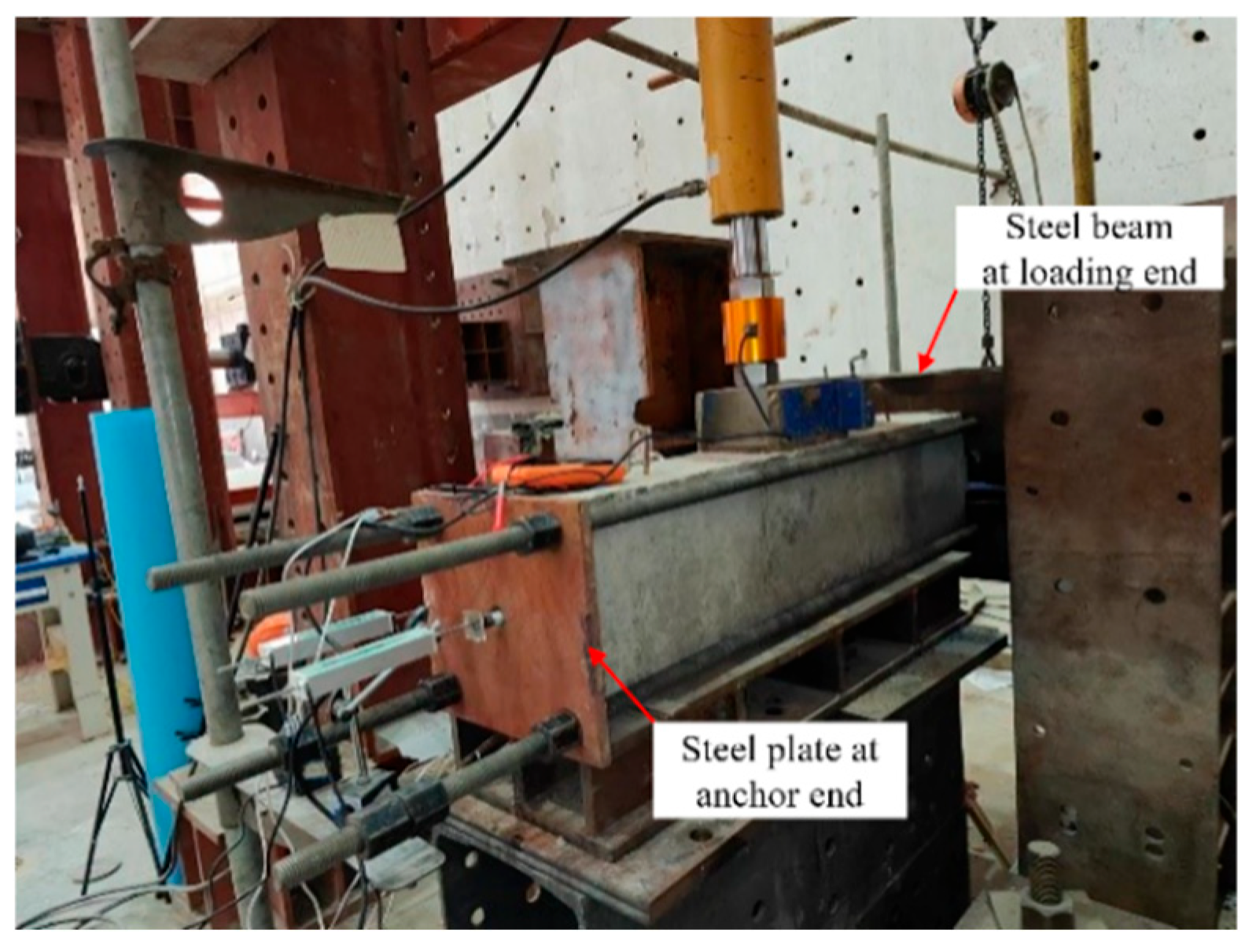

The test device included a loading device and a fixing device. The loading device (Figure 4) was mainly arranged at the loading end, including a loading terminal composed of steel plates, the steel jig, and the horse part; the role of the horse part was not only to facilitate the disassembly of the rebar but also the recycling of the steel jigs, and two steel jigs and horse parts made the rebar closely connected with the loading terminal, so that the rebar could effectively transfer force. The fixing device is shown in Figure 5; the specimen was fixed vertically by applying 40 kN pressure through 20 t jacks and horizontally by the steel beam at the loading end and the steel plate at the anchoring end through four long screws. The steel beam was fixed on the reaction frame at the loading end; furthermore, the 25 t MTS actuator was adopted to apply the horizontal load.

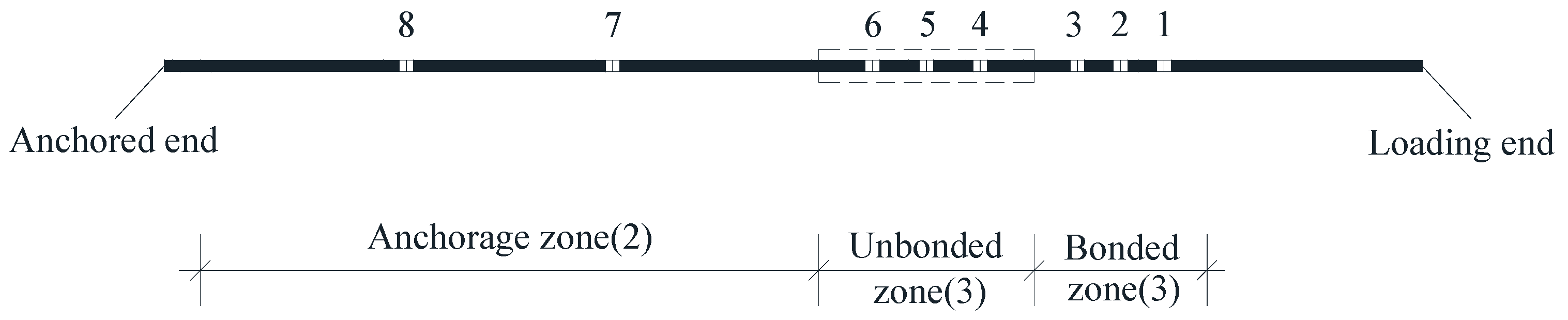

The displacement meters were set at the rebar at the loading end, the protruding outward rebar and the concrete at the anchorage end, respectively. In order to facilitate the measurement of the displacement of the rebar at the loading end, a handle-shaped member was set on the rebar at a distance of 3 cm from the concrete interface, as shown in Figure 6. The handle-shaped member and the rebar were fixed through bolts, and the measuring end of the displacement meter was close to the handle-shaped member. In order to obtain the yield order of rebar in the bonded zone and unbonded zone, three strain gauges with equal spacing were placed in the bonded zone and unbonded zone, respectively, and two strain gauges with equal spacing were placed in anchored zone, as shown in Figure 7.

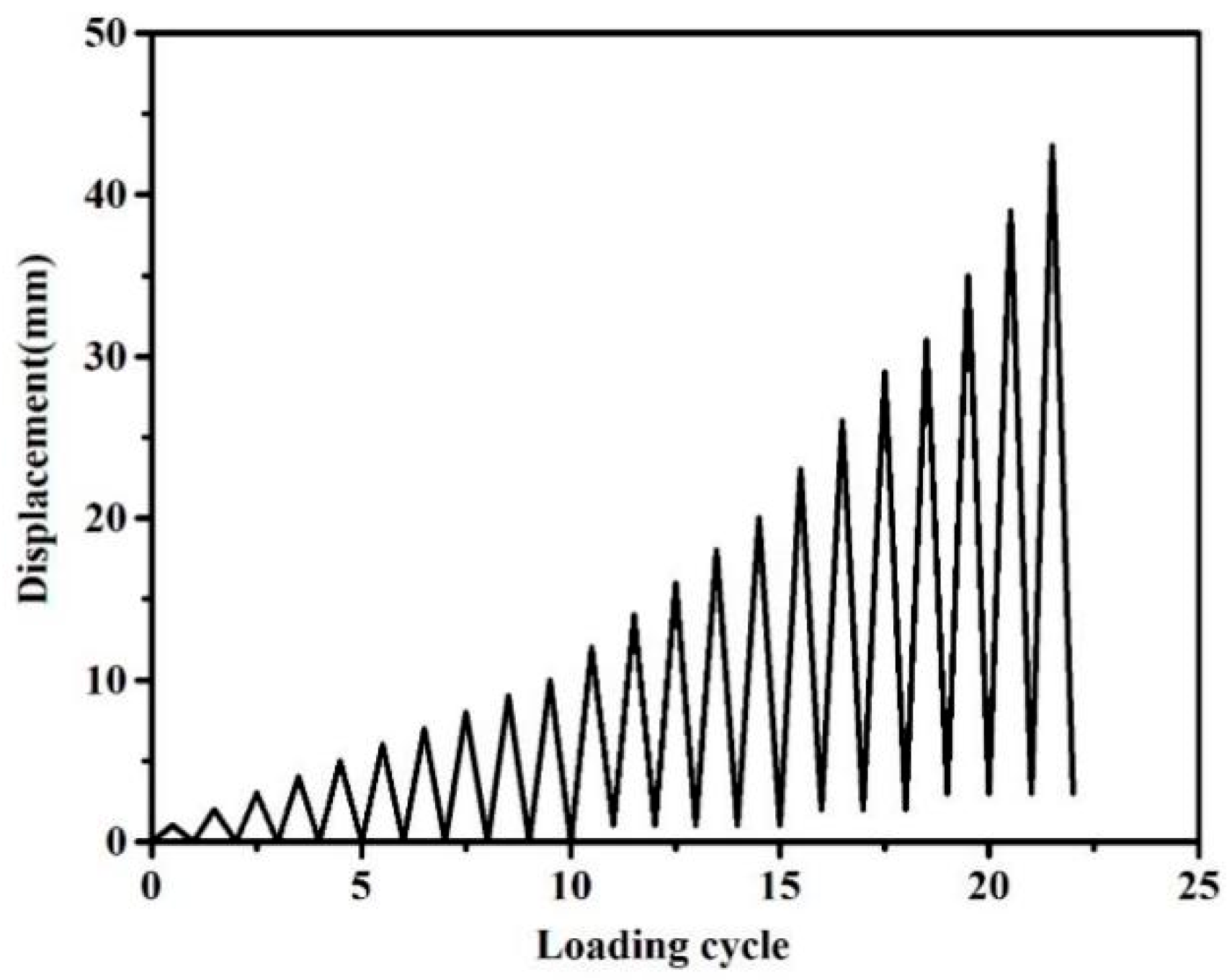

2.4. Loading Regime

Displacement loading was adopted in this test. With the increase in loading displacement, the elongation of the rebar increased. Since the rebar was mainly in tension in the actual structure, and because it may have bent when under pressure, the loading method of positive hysteresis was adopted in this paper, and the tensile direction of the rebar was set to the positive direction. According to the Standard for test methods of concrete structures (GB/T 50152-2012) [32] and the results of previous numerical simulation, it was stipulated that when the positive tensile displacement was less than 10 mm, the tensile displacement of each stage was 1 mm, and the positive compression returned to zero; when the positive tensile displacement was 10–20 mm, the tensile displacement of each stage was 2 mm, and the positive compression returned to 1 mm; when the positive tensile displacement was 20–30 mm, the tensile displacement of each stage was 3 mm, and the positive compression returned to 2 mm, and so on. Each stage was cycled once, and the loading regime is shown in Figure 8. Due to the impact force on the MTS actuator caused by the rebar break, the normal operation of the MTS actuator was affected. Therefore, in order to protect the test equipment and combine with the previous numerical simulation results, the tests were terminated when the specimens were loaded to about 40 mm or when both the bonded rebar at the loading end and the unbonded rebar yielded.

3. Test Results and Analysis

3.1. Damage Phenomenon

In order to facilitate comparative analysis, the test phenomena of each specimen are summarized, as shown in

Table 4. Test phenomena of specimens.

Specimen Number	The Time and Location of the Crack	The Yield Time of the Bonded Rebar at the Loading End	The Yield Time of Unbonded Rebar	The Final Failure Pattern and Time	Others
JD	When stretched positively to 14 mm, cracks appeared in the concrete at the loading end.	When stretched positively to 14 mm, the rebars at strain gauges No. 1 and No. 2 yielded; when stretched positively to 18 mm, the rebar at strain gauge No. 3 yielded.	When stretched positively to 32 mm, the rebar at strain gauge No. 4 yielded; when stretched positively to 40 mm, the rebar at strain gauge No. 5 yielded.	When stretched positively to 40 mm, a large number of concrete blocks at the loading end fell off.	During the loading process, the tensile and compression sounds of the rebar kept appearing, and the cracks kept developing. Finally, the rebar at the loading end appeared to shrink. The cracks of the specimen GQ developed in a ring along the junction of the concrete and the rebar.
WC	When stretched positively to 12 mm, cracks appeared in the concrete at the loading end.	When stretched positively to 16 mm, the rebars at strain gauges No. 1 and No. 2 yielded; when stretched positively to 18 mm, the rebar at strain gauge No. 3 yielded.	When stretched positively to 32 mm, the rebar at strain gauge No. 4 yielded.	When stretched positively to 36 mm, a large number of concrete blocks at the loading end fell off.
GZ	When stretched positively to 16 mm, cracks appeared in the concrete at the loading end.	When stretched positively to 26 mm, the rebars at strain gauges No. 1, No. 2 and No. 3 yielded.	When stretched positively to 40 mm, the rebar at strain gauge No. 4 yielded.	When stretched positively to 40 mm, the crack broke through.
GQ	When stretched positively to 14 mm, cracks appeared in the concrete at the loading end.	When stretched positively to 16 mm, the rebars at strain gauges No. 1 and No. 2 yielded; when stretched positively to 18 mm, the rebar at strain gauge No. 3 yielded.	When stretched positively to 29 mm, the rebar at strain gauge No. 4 yielded.	When stretched positively to 32 mm, the crack broke through.
HQ	When stretched positively to 12 mm, cracks appeared in the concrete at the loading end.	When stretched positively to 12 mm, the rebars at strain gauges No. 1 and No. 2 yielded; when stretched positively to 16 mm, the rebar at strain gauge No. 3 yielded.	When stretched positively to 32 mm, the rebar at strain gauge No. 4 yielded.	When stretched positively to 36 mm, a large number of concrete blocks at the loading end fell off.

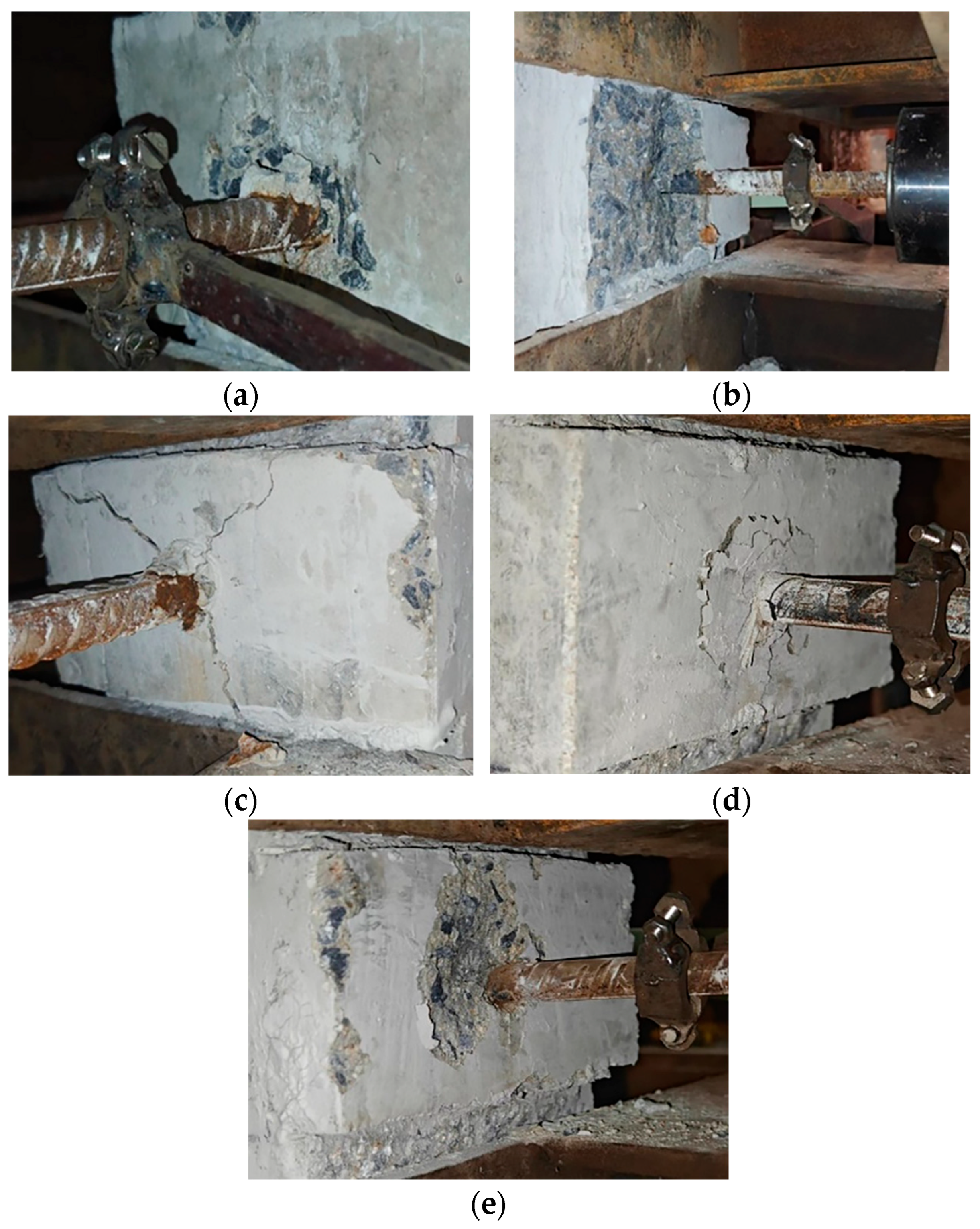

, and the final failure pattern of each specimen is shown in Figure 8.

As can be seen from Table 4 and Figure 9, for all specimens, rebar protruding outward at the loading end yielded first; then the bonded rebar at the loading end yielded, and finally the unbonded rebar yielded. Moreover, the reduction in the unbonded length and the increase in the rebar diameter or the rebar strength led to the later yielding of the bonded rebar at the loading end, and the decrease in the concrete strength led to the earlier yielding of the bonded rebar at the loading end.

3.2. Hysteresis Characteristics

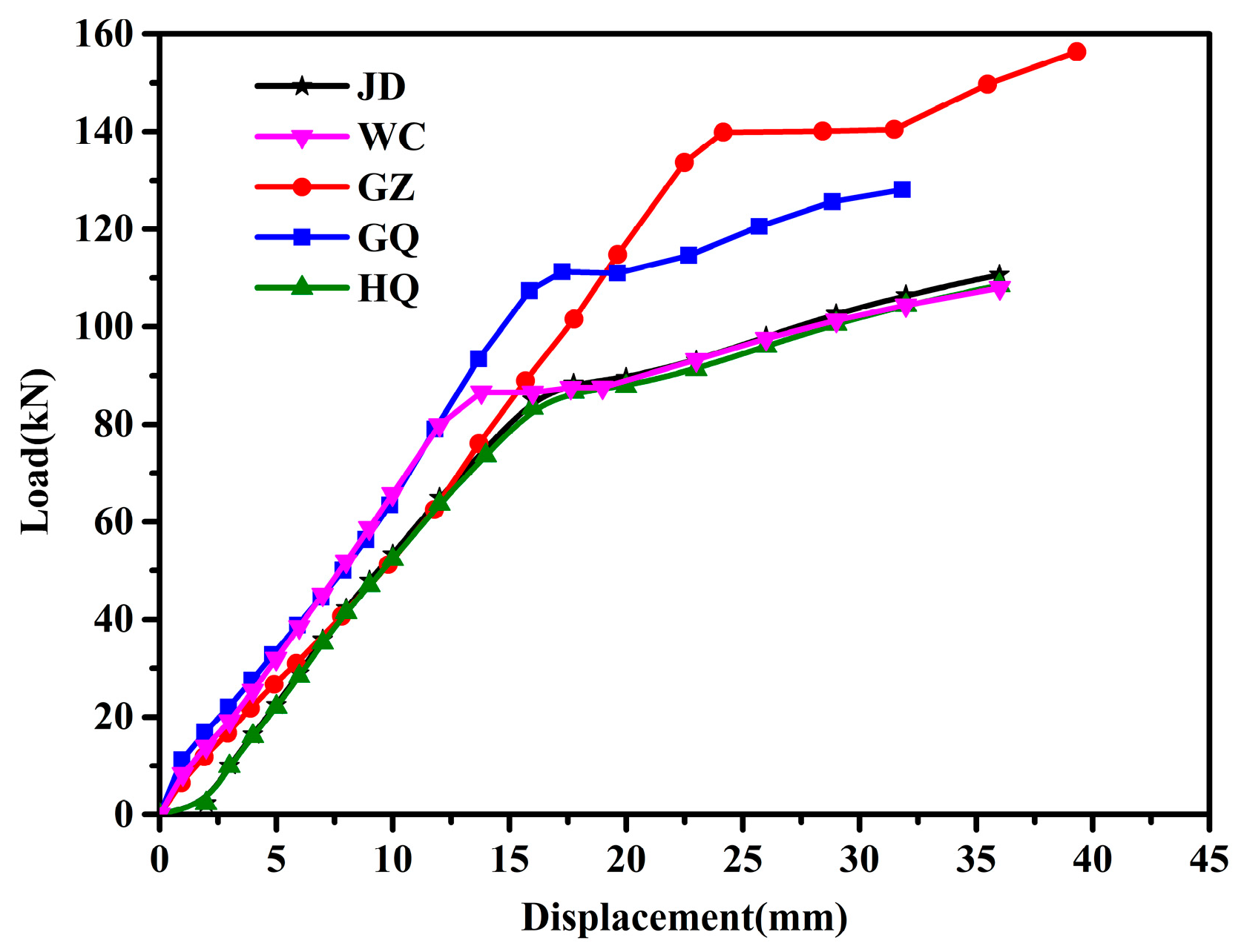

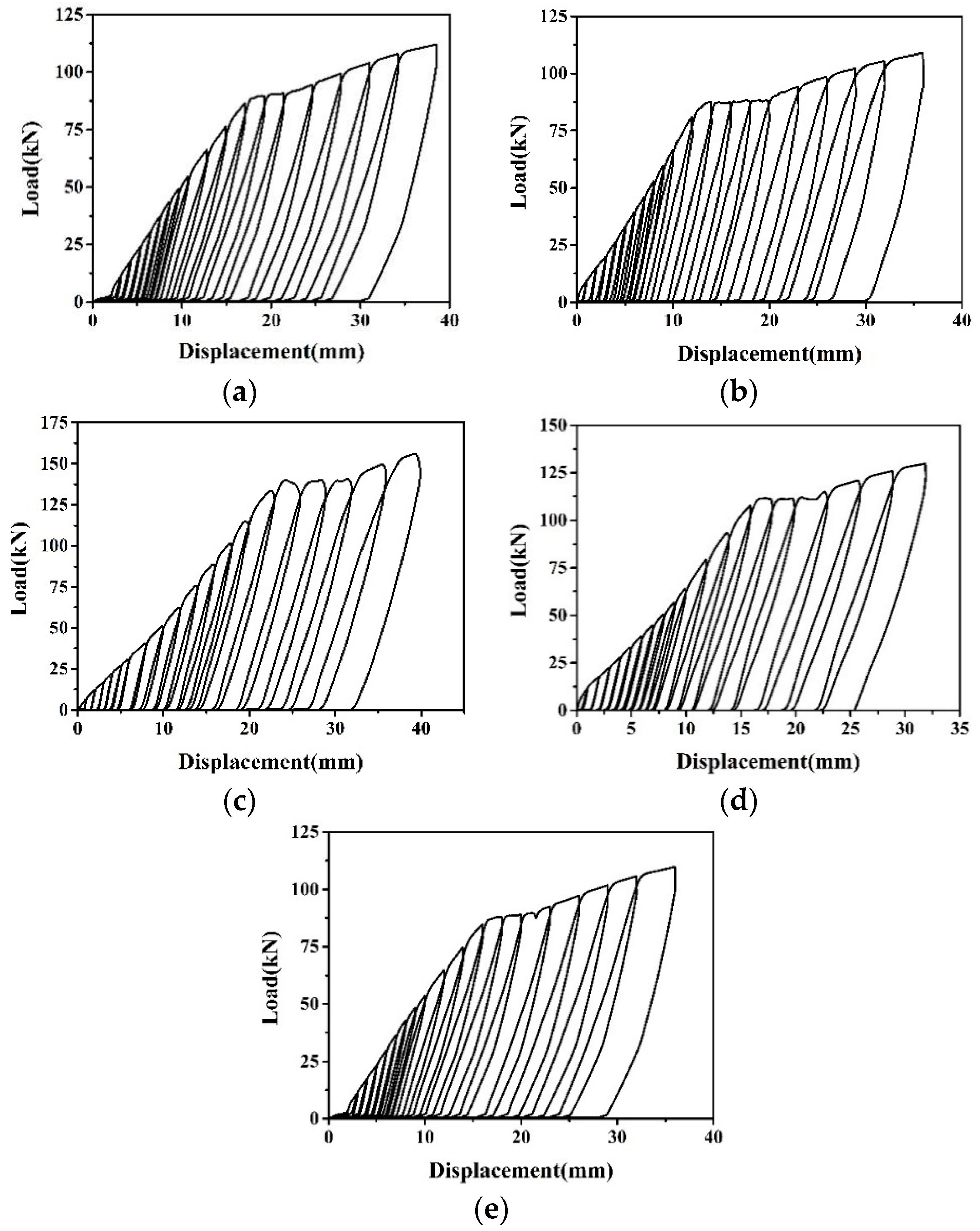

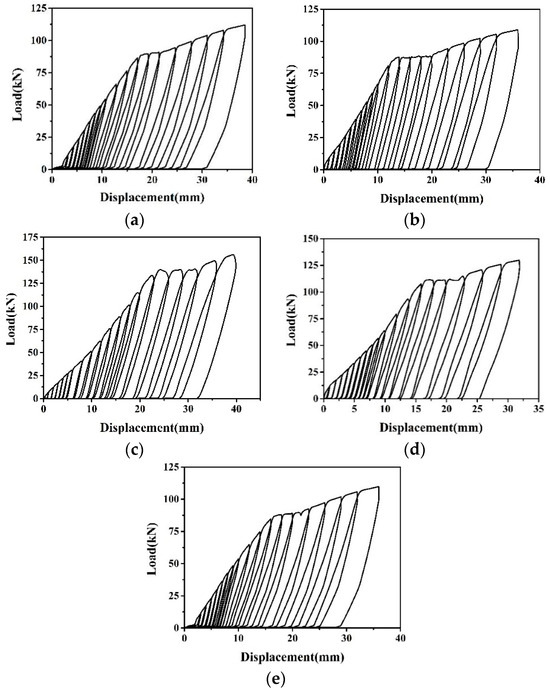

According to the test results, hysteretic curves and skeleton curves of each specimen were obtained, as shown in Figure 10 and Figure 11.

It should be noted in particular that the yield platform in the hysteretic curve and skeleton curve represented the yield of the rebar protruding outward at the loading end. As can be seen from Figure 10 and Figure 11, by calculation, the cumulative energy consumption of JD, WC, GZ, GQ, and HQ was 2891.3, 2687.1, 3904.0, 3589.5, 3043.5 Nm, respectively, and the detailed comparative analysis is shown in Section 3.4. The skeleton curves of each specimen included elastic stage, yield stage and strengthening stage. The increase in rebar strength or the decrease in unbonded length led to the increase in elastic stiffness of the specimen. Compared with the effect of rebar strength, increasing the rebar diameter could lead to a later yield of the specimen. Reducing the unbonded length could lead to an earlier yield of the specimen. Concrete strength had little influence on the skeleton curve.

3.3. Ductility

Ductility refers to the ability of a structure or component to resist plastic deformation without a significant reduction in bearing capacity. For ordinary rebar, if the yield platform of the rebar was ignored, that is, the rebar entered the strengthening stage immediately after yielding, the deformation capacity of the rebar would be underestimated, which could not provide an accurate basis for seismic design. Therefore, the yield platform elongation [33] α was adopted in this paper as the ductility index of the rebar, and its calculation formula is as follows:

$$\alpha ={\displaystyle \frac{{\delta }_{yc}}{l}}$$

(1)

where δ_yc is the elongation of the rebar when the bonded rebar at the loading end yielded, and l is the sum of the length of rebar protruding outward and the length of bonded rebar at the loading end.

After calculation, the yield platform elongations of each specimen are shown in

Table 5. Ductility comparison of specimens.

Specimen Number	JD	WC	GZ	GQ	HQ
α	5.4	4.3	4.8	3.3	5.5

.

As can be seen from Table 5, the ductility of specimen WC was smaller than that of specimen JD because the unbonded length of specimen WC was smaller than that of specimen JD, which led to a smaller displacement; the ductility of specimen GZ was also smaller than that of specimen JD because the rebar diameter of specimen GZ was larger than that of specimen JD, which led to a smaller deformation ability; the ductility of specimen GQ was also smaller than that of specimen JD because the rebar strength of specimen GQ was greater than that of specimen JD, which also led to a smaller deformation ability. However, the ductility of specimen HQ was slightly larger than that of specimen JD because the concrete strength of specimen HQ was smaller than that of specimen JD, as the concrete strength affected the bond performance between rebar and concrete: when the concrete strength decreased, the bond performance between rebar and concrete also decreased, leading to a slightly larger deformation ability, but the difference could be ignored.

In conclusion, the decrease in unbonded length or the increase in rebar diameter or the rebar strength led to the ductility reduction of the specimen, and the concrete strength had little influence on the ductility of the specimen.

3.4. Energy Dissipation Capacity

The area of the hysteresis loop in the hysteresis curve reflects the energy dissipation capacity of the structure. The larger the area of the hysteresis loop, the stronger the energy dissipation capacity of the specimen, and the sum of each hysteresis loop area is the cumulative energy dissipation of the specimen [34]. The cumulative energy dissipation of each specimen is shown in Figure 12.

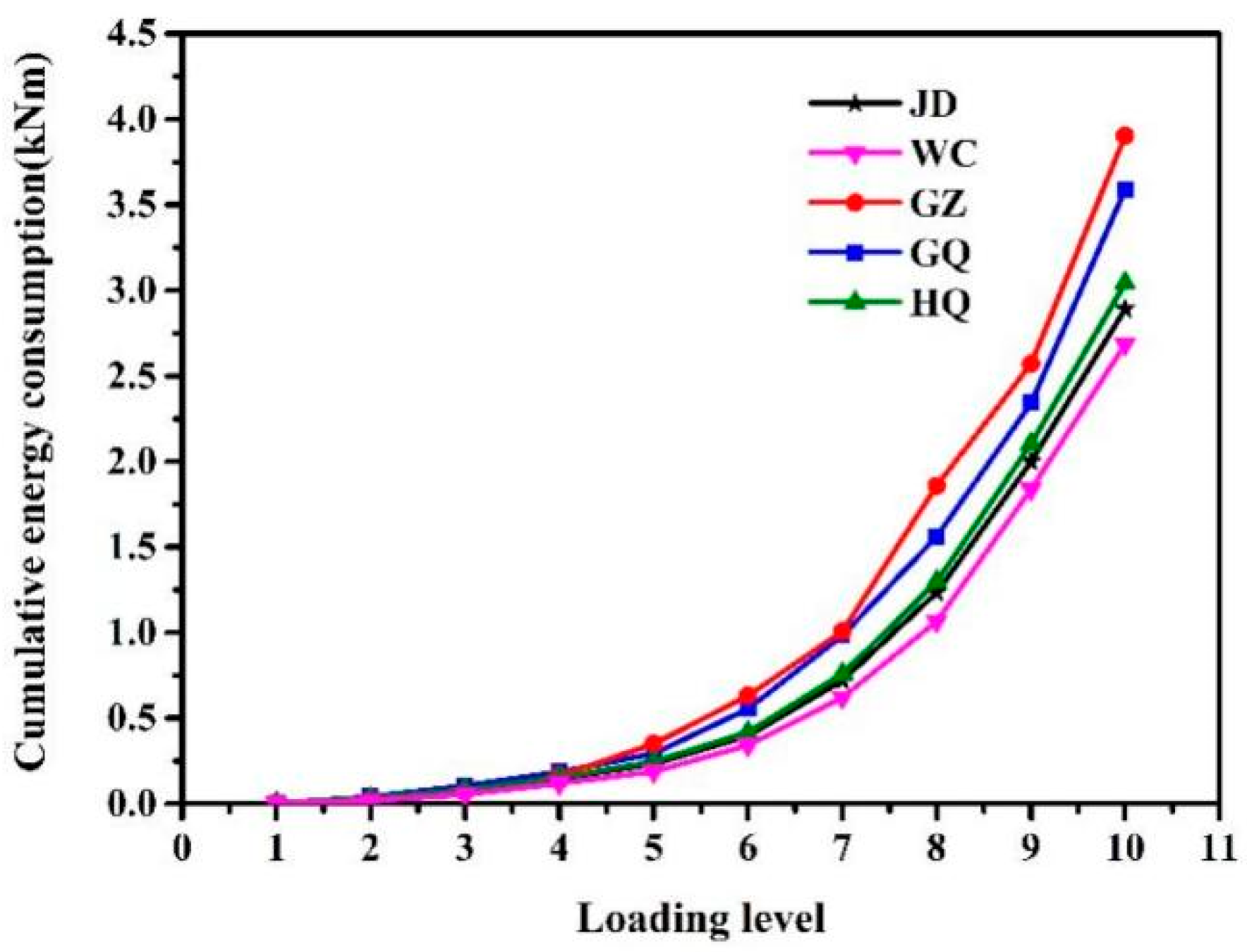

As can be seen from Figure 12, if we take the cumulative energy consumption of the last level for example, the energy dissipation capacity of specimen GZ was 8.8% larger than that of specimen GQ because, compared with GQ, GZ had a higher deformation ability, which led to a higher energy dissipation capacity. The energy dissipation capacity of specimen WC was 7.6% smaller than that of specimen JD because the unbonded length of specimen WC was smaller than that of specimen JD, which led to a smaller displacement. The energy dissipation capacity of JD and HQ was 5% different, which indicated that the concrete strength had little influence on the energy dissipation capacity of the specimen because the concrete strength affected the bond performance between rebar and concrete; when the concrete strength decreased, the bond performance between rebar and concrete also decreased, leading to the increase in rebar displacement and the decrease in bearing capacity, so the area of the hysteresis ring might change a little.

4. Bond–Slip Model of OR-US

Due to the presence of the unbonded segment in OR-US, the bond–slip model of ordinary rebar could not be directly adopted. Based on the test results, this paper established the bond–slip model of OR-US by considering the influence of unbonded length, rebar strength, rebar diameter, and concrete strength.

4.1. Proposal of the Bond–Slip Model of OR-US

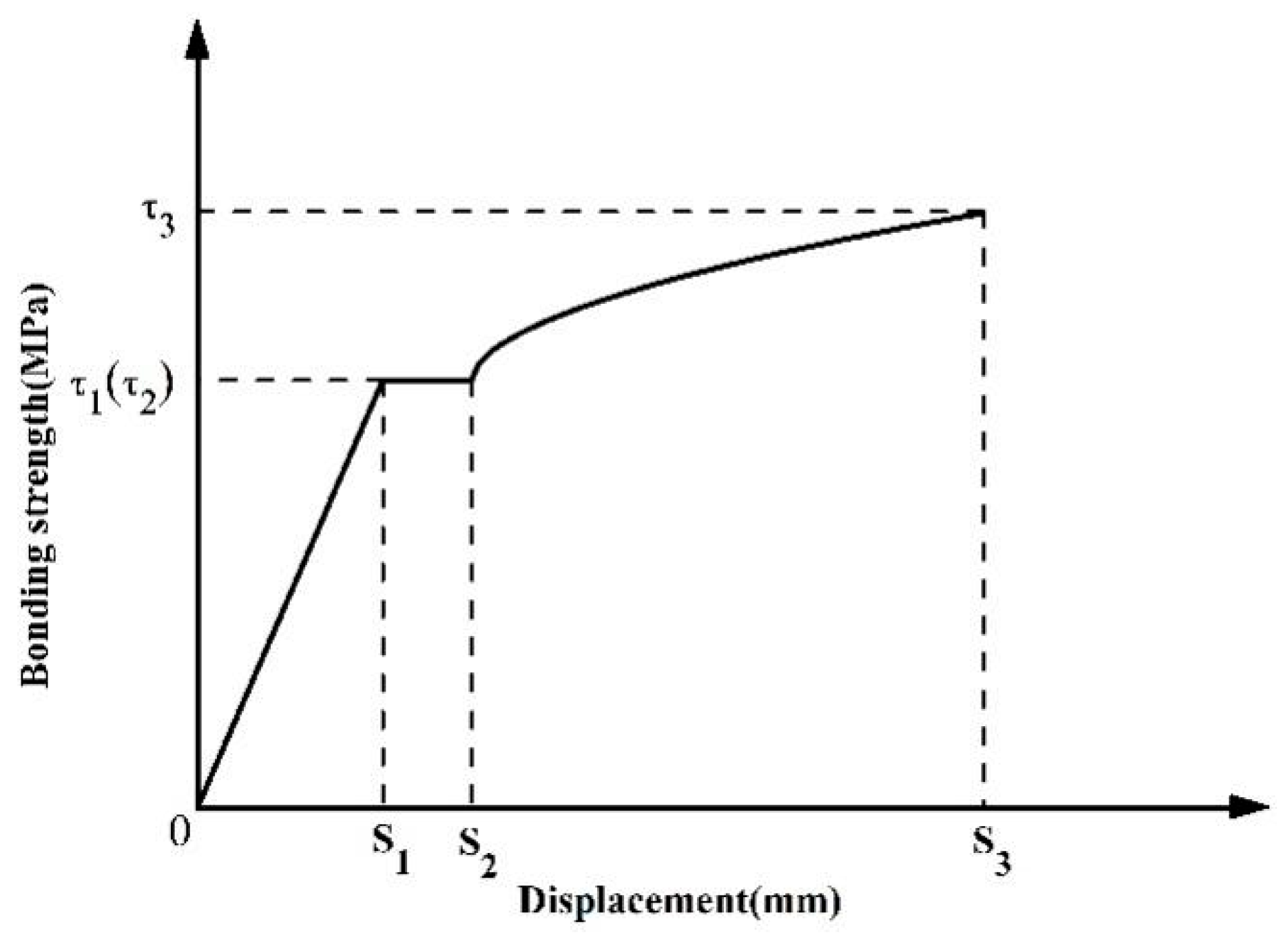

The bond–slip curve of OR-US could be obtained after transforming the load–displacement curve obtained by the OR-US hysteresis test, as shown in Figure 13, where s is the displacement at the loading end and τ is the bonding strength, and its calculation formula is as follows.

$$\tau ={\displaystyle \frac{F}{\pi d{l}_1}}$$

(2)

where F is the load applied at the loading end, d is the rebar diameter, and l₁ is the length of the rebar in the concrete.

As can be seen from Figure 13, the bond–slip curve of OR-US could be divided into three stages—elastic stage, yield stage and strengthening stage—and its bond–slip model was as follows.

(1)

Elastic stage:

This stage could be regarded as a straight line, and the formula is as follows.

$$\tau =\beta s, 0<s\le s_1$$

(3)

$$\beta ={\displaystyle \frac{{\tau }_1}{s_1}}$$

(4)

where β represents the slope at the elastic stage, τ₁ is the bonding strength corresponding to the initial yield of the rebar, and s₁ is the displacement at the loading end corresponding to the initial yield of the rebar.

(2)

Yield stage:

This stage could be approximated as a horizontal line, and the calculation formula is as follows.

$$\tau ={\tau }_1, s_1<s\le s_2$$

(5)

where s₂ is the displacement at the loading end corresponding to the starting point of the strengthening stage.

(3)

Strengthening stage:

This stage is a curve, and the calculation formula is as follows.

$$\tau ={\left({\displaystyle \frac{s-s_2}{s_3-s_2}}\right)}^{\gamma }\left({\tau }_3-{\tau }_2\right)+{\tau }_2, s_2<s\le s_3$$

(6)

$$\gamma =\left({\displaystyle \frac{\mu l_{wc}+\rho d}{l_{wc}+l}}\right) \phi$$

(7)

where s₃ is the displacement at the loading end corresponding to the end point of the strengthening stage, τ₂ and τ₃ are the bonding strength corresponding to the starting and end point of the strengthening stage, respectively, γ is the shape parameter, which considered comprehensively the influences of the unbonded length, rebar diameter, rebar strength, and concrete strength, μ is the influence coefficient of the unbonded length, l_wc is the unbonded length, ρ is the influence coefficient of rebar diameter, and φ is the comprehensive influence coefficient, reflecting the influence of rebar strength and concrete strength. β, γ, μ, ρ, φ were obtained by fitting according to the test results.

Therefore, the bond–slip model of OR-US was as follows.

$$\tau =\left\{\begin{array}{c}\beta s, 0<s\le s_1\\ {\tau }_1, s_1<s\le s_2\\ {\left({\displaystyle \frac{s-s_2}{s_3-s_2}}\right)}^{\gamma }\left({\tau }_3-{\tau }_2\right)+{\tau }_2, s_2<s\le s_3\end{array}\right.$$

(8)

The model reflected the influence of unbonded length, rebar strength, rebar diameter and concrete strength on the bond–slip of OR-US, and was capable of capturing the entire stress–strain process of OR-US.

4.2. Verification of the Bond–Slip Model of OR-US

According to the hysteretic test results, the test data of each key point were obtained, as shown in

Table 6. Test data of key points of the bond–slip model.

Specimen Number	Test Data
	τ1 (MPa)	s1 (mm)	τ2 (MPa)	s2 (mm)	τ3 (MPa)	s3 (mm)
JD	7.3	16.8	7.4	20.8	9.4	40.0
WC	7.2	13.9	7.2	19.0	9.0	36.0
GZ	11.6	24.4	11.6	31.4	13.0	40.0
GQ	9.2	16.7	9.2	19.6	10.7	32.0
HQ	7.2	16.5	7.2	19.9	9.2	36.0

. The test data were substituted into the formulas of each stage, and the parameters were evaluated reversely and fit, as shown in

Table 7. Fitted parameters of bond–slip model.

Specimen Number	Parameters
	β	γ	μ	ρ	φ
JD	0.42	0.95	0.61	0.32	1.44
WC	0.52	0.83	0.54	0.33	1.55
GZ	0.48	0.84	0.42	0.58	1.43
GQ	0.55	0.96	0.44	0.55	1.83
HQ	0.44	0.98	0.64	0.29	1.48

.

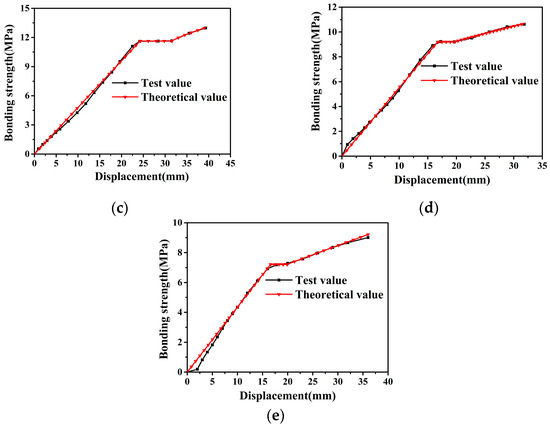

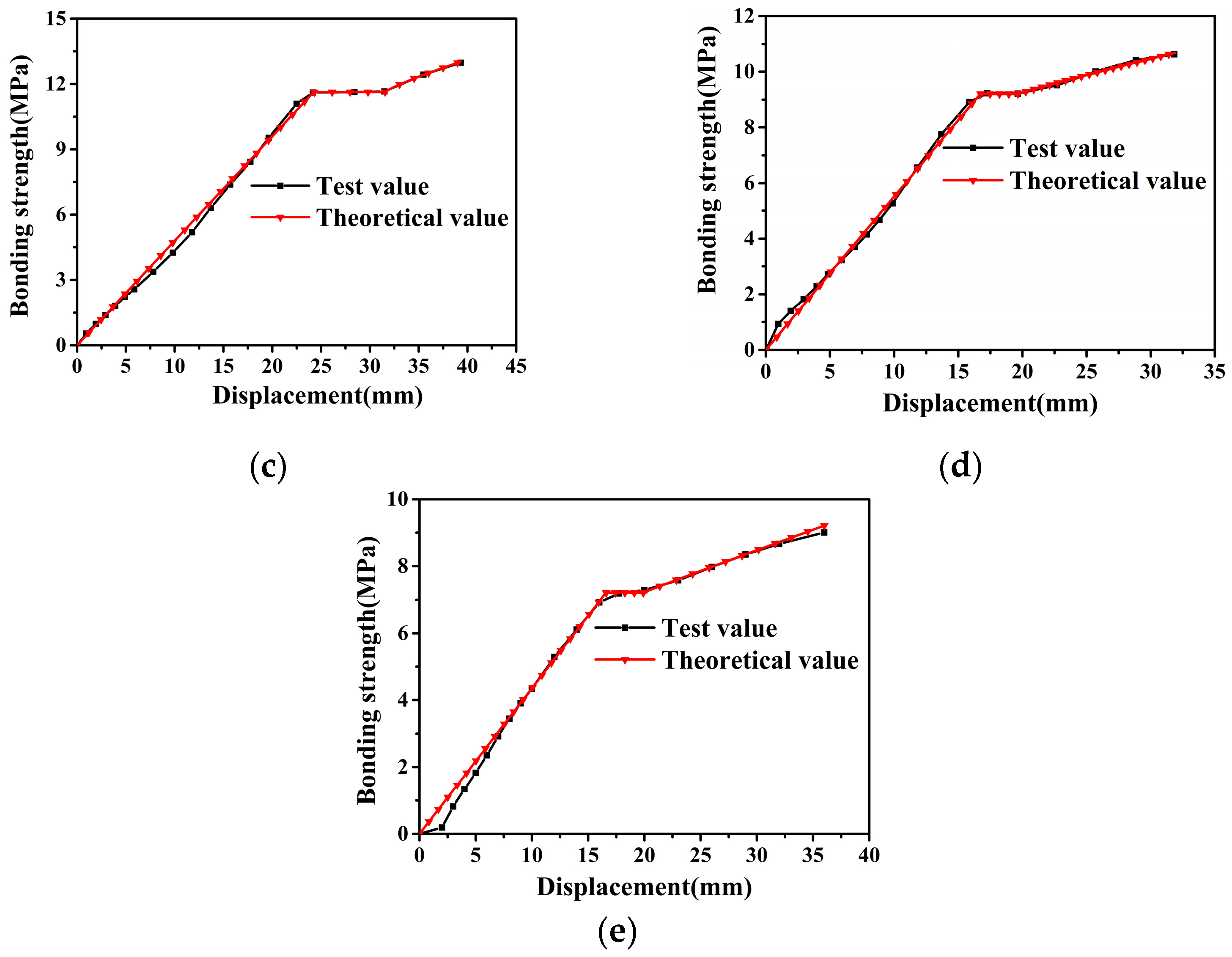

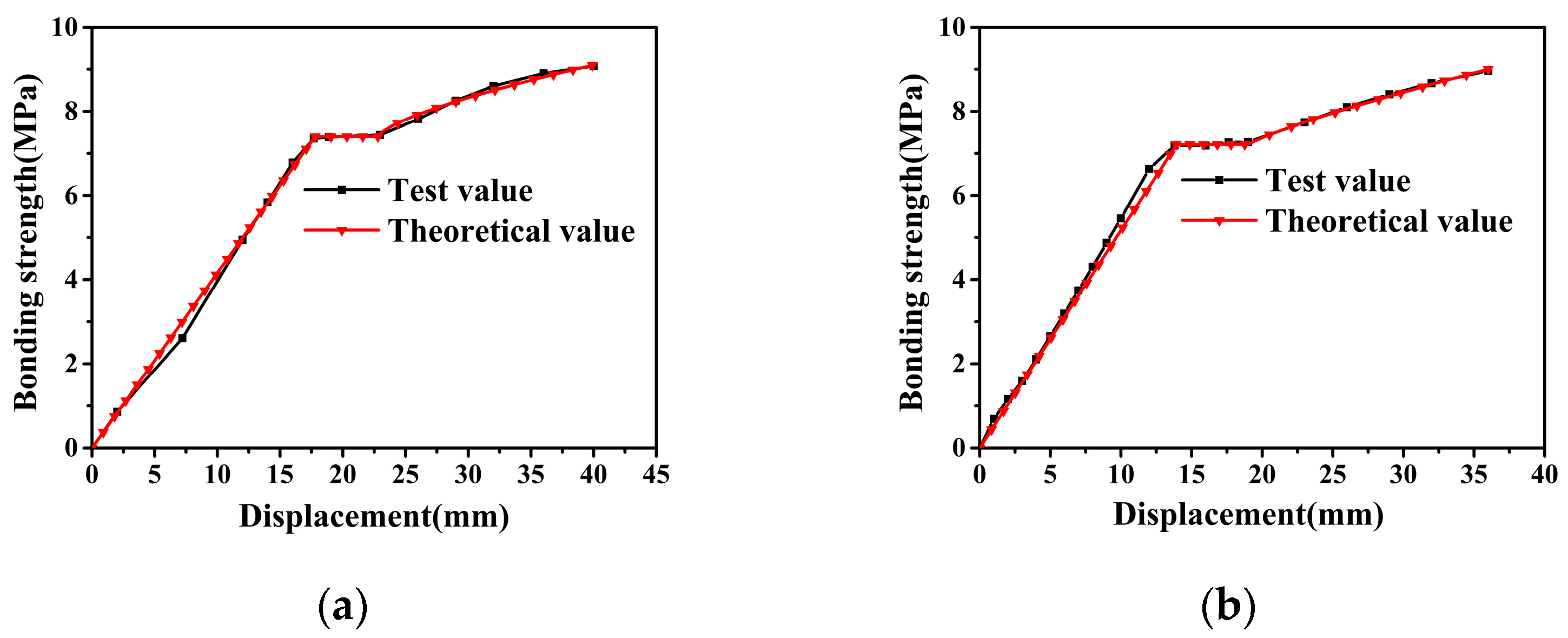

If we put the data in Table 6 and Table 7 into formula (3) to (7), the bond–slip theoretical curves of all specimens could be obtained, which were compared with the test curve, and the results are shown in Figure 14.

It could be seen from Figure 14 that the test value of the second point of HQ differed significantly from the theoretical value, which might be caused by the testing equipment. Except for the second point of HQ, the errors of other bond–slip models were within 10%, which indicated that the theoretical values were in good agreement with the test values; therefore, the bond–slip model proposed in this paper could better reflect the bond–slip characteristics of OR-US.

However, in this model, only the influence of unbonded length, rebar strength, rebar diameter and concrete strength were considered; the location of unbonded segment was not considered. Moreover, the number of test specimens was small, so it was necessary to conduct a lot of tests to verify the accuracy of the model considering all the influencing factors.

5. Conclusions

In this paper, the hysteretic properties of OR-US were studied by considering the effects of unbonded length, rebar diameter, rebar strength, and concrete strength, and the damage phenomenon, hysteretic characteristics, ductility and energy dissipation capacity were analyzed, and finally the bond–slip model of OR-US was proposed. Specific conclusions are as follows.

(1) All the specimens showed that rebar protruding outward at the loading end yielded first; then the bonded rebar at the loading end yielded, and finally the unbonded rebar yielded. The reduction in the unbonded length, the increase in the rebar diameter and the rebar strength all resulted in the delayed yielding of bonded rebar at the loading end. The reduction in concrete strength led to the earlier yield of bonded steel.

(2) The increase in rebar strength and the decrease in unbonded length all led to the increase in elastic stiffness of the specimen. Compared with the effect of rebar strength, the increase in the rebar diameter led to the later yield of the specimen. The reduction in unbonded length led to the earlier yield of the specimen. Concrete strength had little influence on the hysteretic curve and skeleton curve.

(3) The yield platform elongation was adopted as the ductility index. The decrease in unbonded length or the increase in rebar diameter or strength reduced the ductility of the specimen, and the increase in unbonded length improved the energy dissipation capacity of the specimen. The influence of rebar diameter on energy dissipation capacity is larger than that of rebar strength. The concrete strength had little influence on the ductility and energy dissipation capacity of the specimen.

(4) The three-stage bond–slip model was proposed in this paper considering the influence of unbonded length, rebar strength, rebar diameter, and concrete strength, which could better reflect the bond–slip characteristics of OR-US.
