Intraoral Scanning Versus Conventional Methods for Obtaining Full-Arch Implant-Supported Prostheses: A Systematic Review with Meta-Analysis
Abstract
:1. Introduction

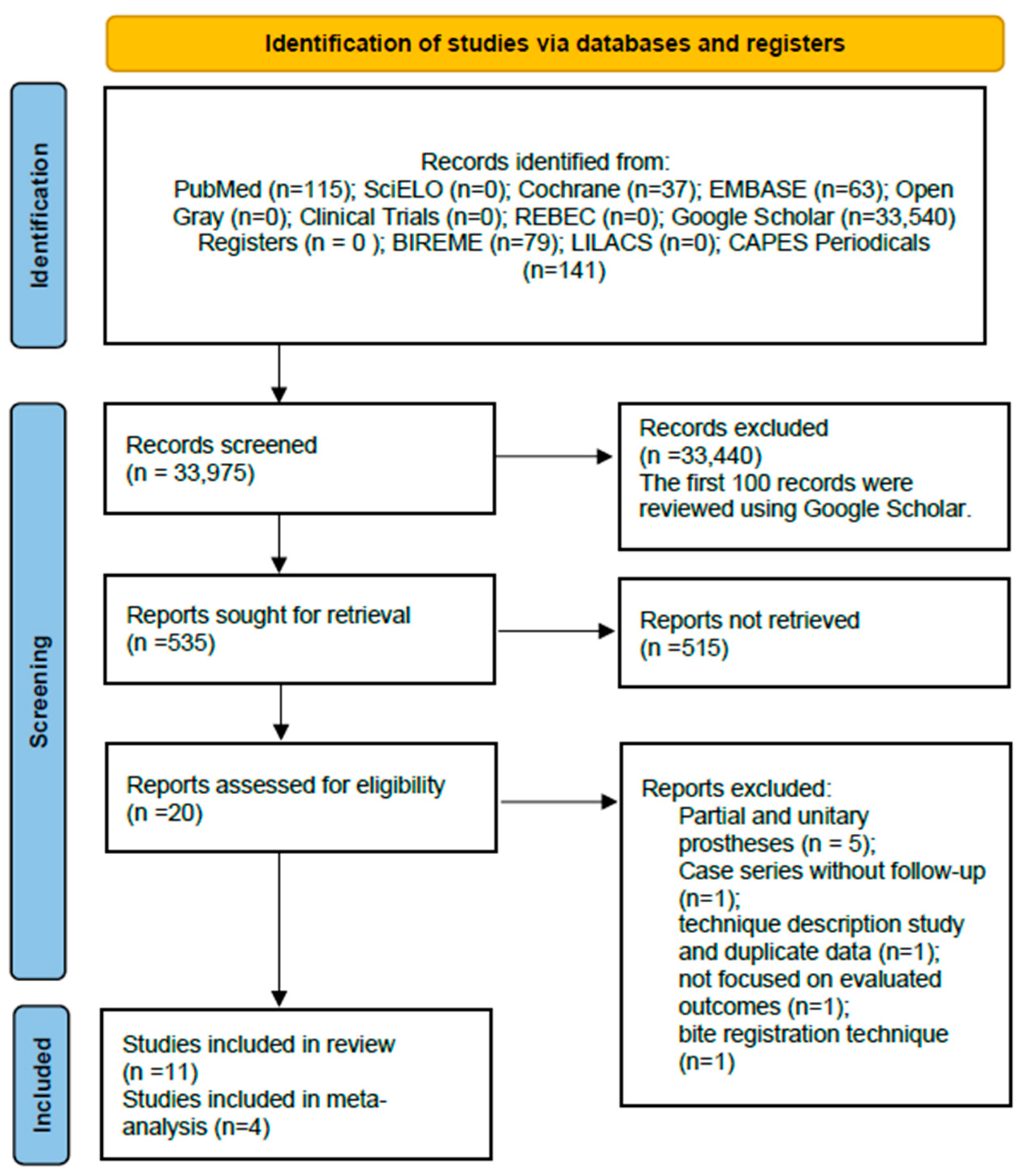

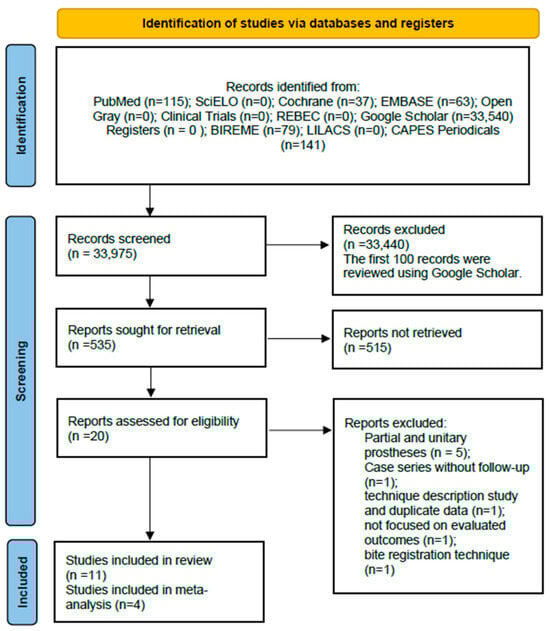

2. Materials and Methods
Author and Year of Publication | Design | Bias Scale | Country | Randomization | Average Age (Min–Max) | Groups | Region | Scanner | Type of Prosthesis (N° of Implants) | Infrastructure | Trademark | Length × Diameter of Implants | Follow-Up (M) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cappare et al., 2019 [6] | RCT | II | Italy | Yes | 64.4 (48–72) | CG and DG | Mx | Carestream CS 3600 | Full-arch (6) | Metallic | CSR Implant | 13; 15–3.8; 4.2 | 24 |
Cattoni et al., 2021 [20] | RCT | II | Italy | Yes | 46–85 | GC and GD | Mx and Md | MyRay 3Di TS, Cefla, Imola, BO, Italy | Full-arch (6) | Zirconia | Winsix TTX | 13–15; 3.3; 3.8 | 48 |
Chochlidakis et al., 2020 [21] | Prospective | III-2 | USA | No | NR | CG and GD | Mx | True Definition 3M | Full-arch (6) | Titanium | NR | NR | NR |
Elawady et al., 2024 [8] | RCT | II | Egypt | Yes | 56 | CG andGD | Mx | ios-i-500 Medit | Full-arch (6) | CoCr | Nobel | NR | 6, 12, 24 M |
Eldint et al., 2024 [22] | RCT | II | Egypt | Yes | 67.1 | CG and DG | Md | Omnicam (Dentsply Sirona, Charlotte, NC, USA) | Overdenture (2) | Titanium | Neobiotech | NR | NR |
Gherlone et al., 2015 [3] | Prospective | III-3 | Italy | Yes | 56.3 | DG | Mx and Md | Lava COS (3M) | Full-arch (4) | Metallic (NR) | Winsix BioSAFin | 13; 15–3.8; 4.5 | 12 |
Gherlone et al., 2016 [4] | Prospective | III-1 | Italy | Yes | 57.2 (43–70) | CG and GD | Mx and Md | Trios (3 shape) | Full-arch (4) | CoCr | NR | 12; 15.5–3.75; 4.3 | 12 |
Klein et al., 2023 [23] | Retrospective | III-3 | USA | No | 70.6 | DG | Mx and Md | NEXUS IOS | Full-arch | Titanium | ** | NR | 12 M |
Mangano et al., 2019 [9] | Prospective | III-3 | Russian | No | 68.8 (58–76) | DG | Mx | Carestream CS 3600 | Overdenture (4) | Zirconia | BTSafe | NR | 12 |
Papaspyridakos et al., 2023 [24] | Retrospective | III-3 | USA | No | NR | DG | Mx and Md | Trios 3; bench scanner (Dental Wings 7) | Full-arch (4, 5, or 6) | PEEK | Straumman and Nobel | 8; 10; 12; 14–3.3; 3.75; 4.1; 4.8 | NR |
Papaspyridakos et al., 2023 [25] | Retrospective | III-3 | USA | No | NR | DG | Md | Trios 3 | Full-arch (4, 5, or 6) | Zirconia | Straumman and Nobel | NR | NR |
Author and Year of Publication | Patients | Impl. (CG) | Impl. (DG) | Prosthesis | Survival Impl./Prosthesis | Adaptation | Marginal Bone Loss (mm) | Scanning/Impression Time | Technical/Biological Complications |
---|---|---|---|---|---|---|---|---|---|
Cappare et al., 2019 [6] | 50 | 150 | 150 | 50 | 100% | 100% | DG (1.11 ± 0.54); CG (1.07 ± 0.66), p > 0.05 | DG (08.59 ± 2.46) < CG (16.45 ± 4.49) (p < 0.05) | CG (0/25); DG (0/25) |
Cattoni et al., 2021 [20] | 50 | 100 | 100 | 50 | CG (2/100 implantes: 98%) | 100% | DG (0.83 ± 0.11); CG (1.12 ± 0.26), p < 0.0001 | NR | Biol.: CG: 3, DG = 0; Techn.: CG = 8, DG = 4 |
Chochlidakis et al., 2020 [21] | 16 | 83 | 83 | NR | NR | 100% | NR | NR | NR |
Elawady et al., 2024 [8] | 28 | 84 | 84 | 28 | 100% (implant); Prosth: CG—8/14; DG—4/14. | NR | CG (1.28 ± 0.016); DG (1.14 ± 0.02) −24 M | NR | CG (19); DG (12) |
Eldin et al., 2024 [22] | 36 | 36 | 36 | 36 | NR | CG = DG ** | NR | NR | NR |
Gherlone et al., 2015 [3] | 14 | NR | 56 | 14 | 100% | 100% | Mx (1.07 ± 0.99 A); Md (1.02 ± 0.72 A); Mx (1.07 ± 0.81 T); Md (1.1 ± 0.89 T) | NR | 0 |
Gherlone et al., 2016 [4] | 25 | 60 | 60 | 30 | 100% | 100% | DG (1.13 ± 0.66 A); (1.06 ± 0.91 T); CG: (1.08 ± 0.77 Axial); (1.09 ± 0.32 Tilted) | DG (07.57 ± 3.08) < CG (18.23 ± 5.38) (p < 0.05) | CG (1/15); DG(0/15) |
Klein et al., 2023 [23] | 29 | NR | 203 | 37 | 100% | 100 | <3.00 mm | NR | Peri-implant mucositis (n = 1) after six months; zirconia decementation (n = 1), zirconia fracture (n = 1) |
Mangano et al., 2019 [9] | 15 | NR | 60 | 15 | 100% | 80% | NR | NR | Adaptation (3/15); periimpl: (1/15); fractured tooth (2/15) |
Papaspyridakos et al., 2023 [24] | 27 | 121 Max. | 83 Max. | 36 | NR | Mx = Md *** | NR | NR | NR |
Papaspyridakos et al., 2023 [25] | 35 | NR | 245 | 45 | NR | 86.70% | NR | NR | Adap. scan body poligonal 70% (14/20) Adap. scan body cylindrical 100% (25/25) |
3. Results
3.1. Meta-Analysis

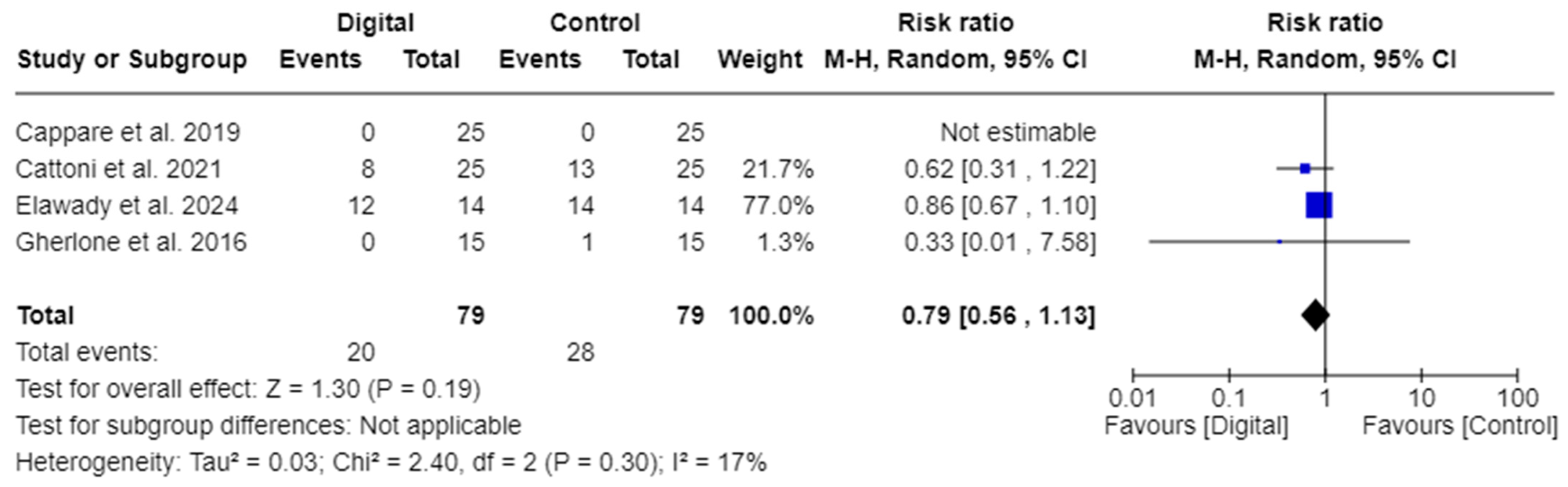

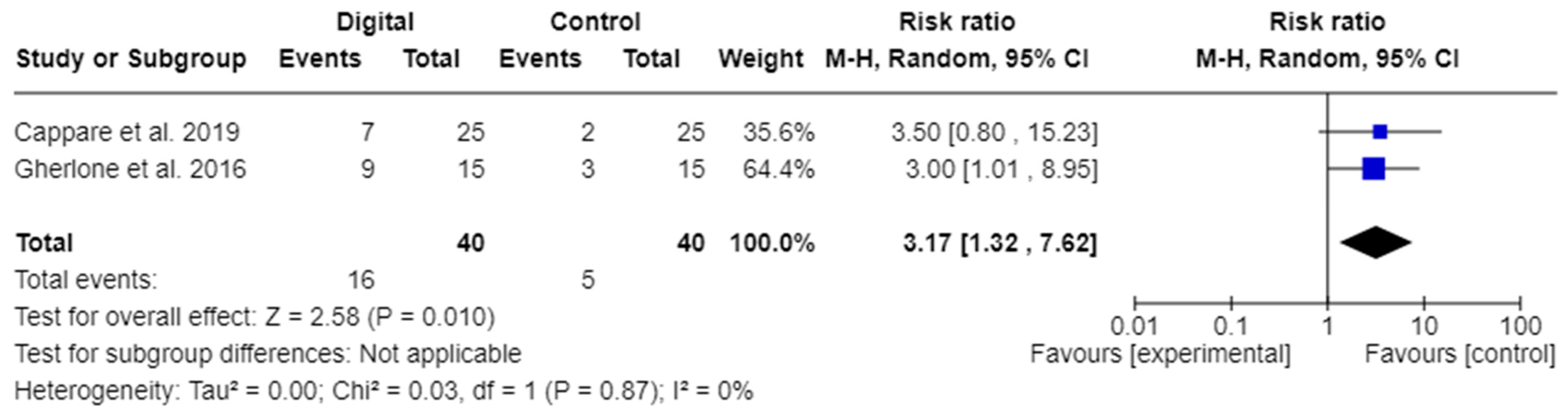

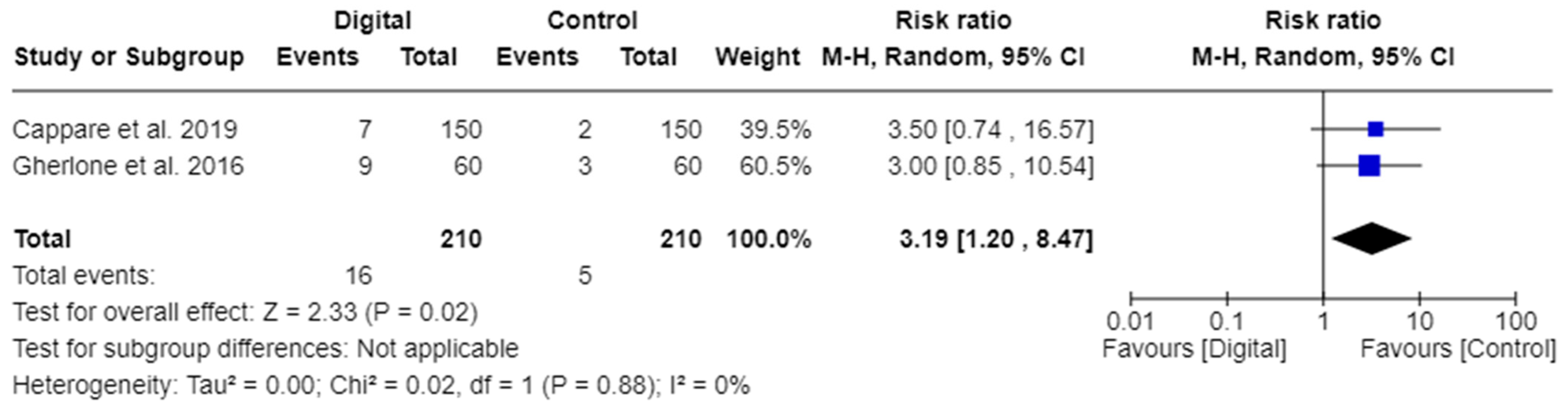

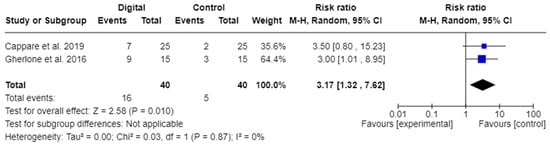

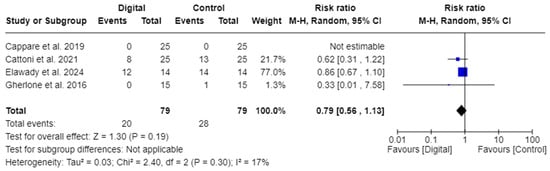

3.1.1. Technical and Biological Complications

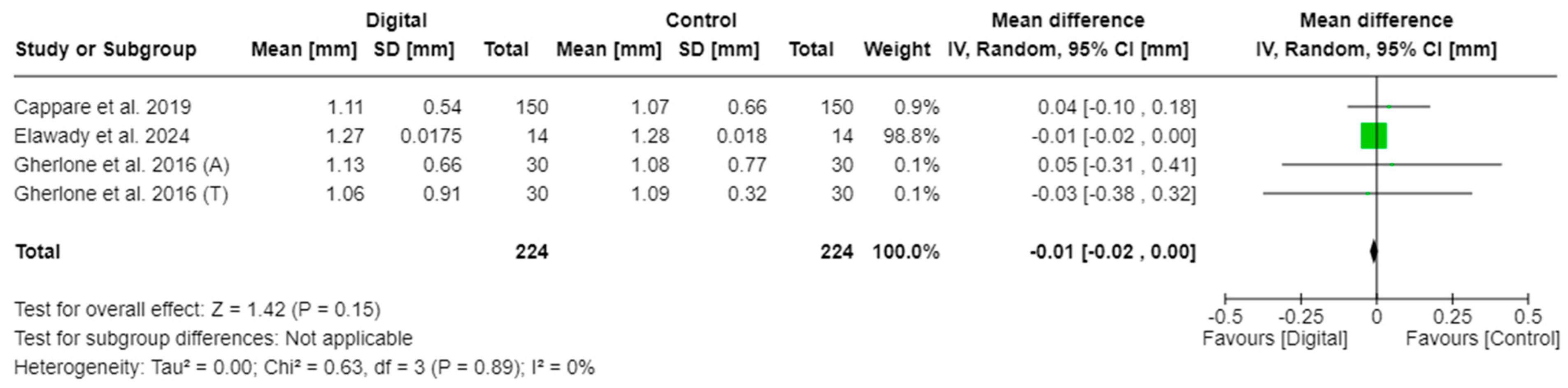

3.1.2. Marginal Bone Loss

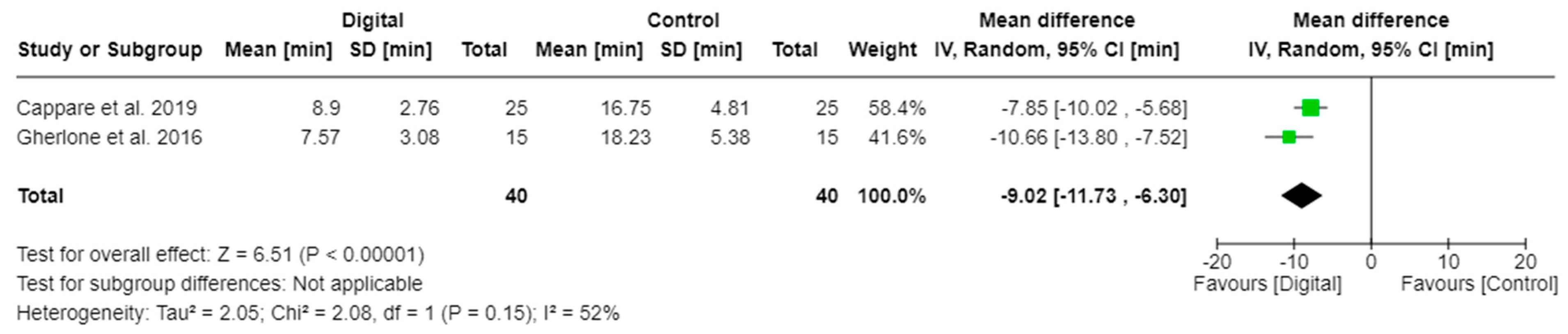

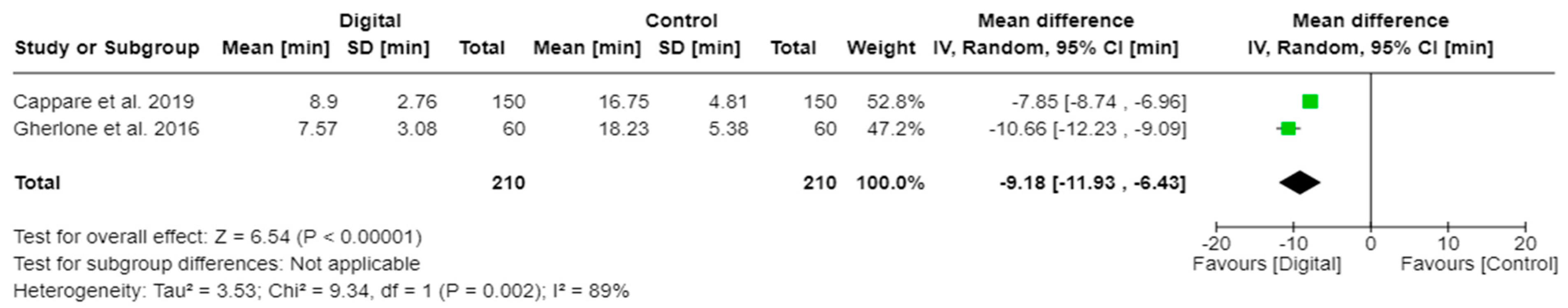

3.1.3. Time Required for Scanning and Clinical Impression

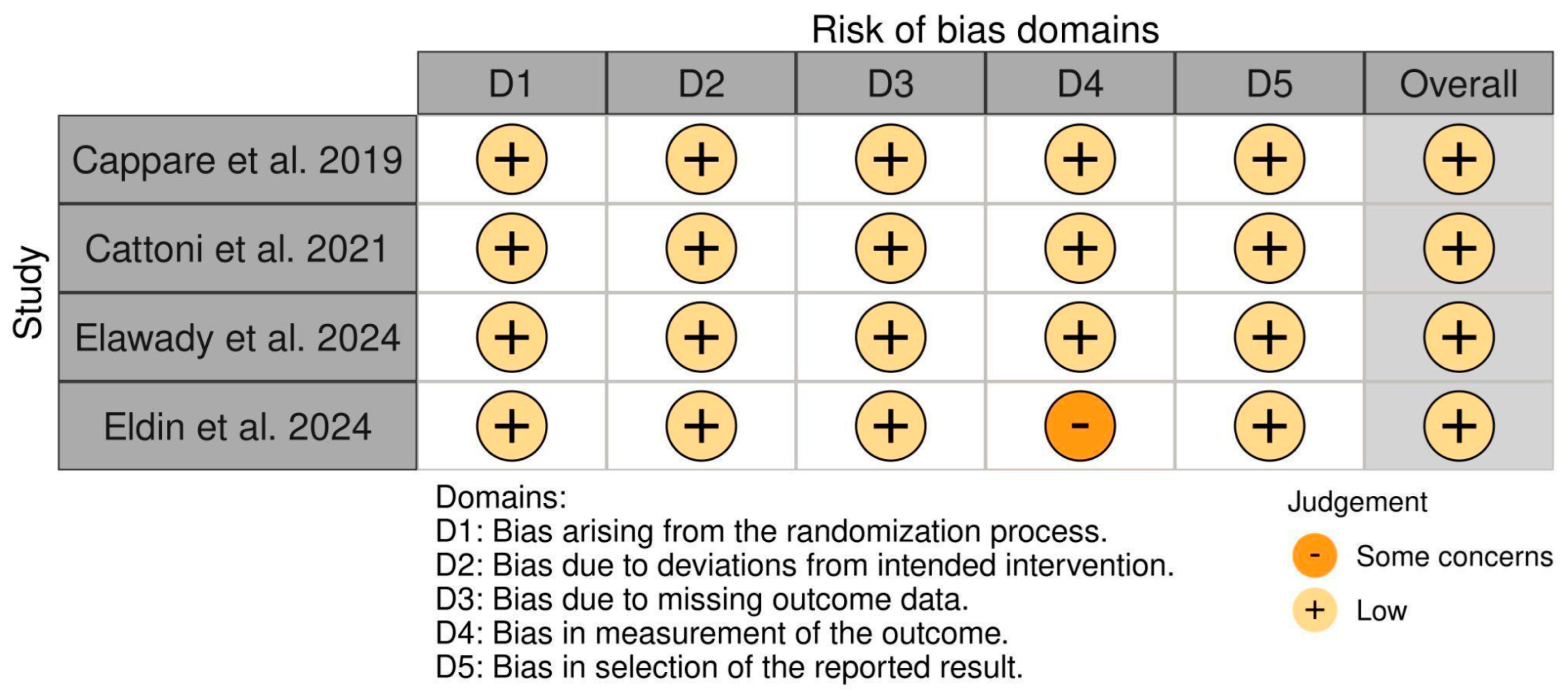

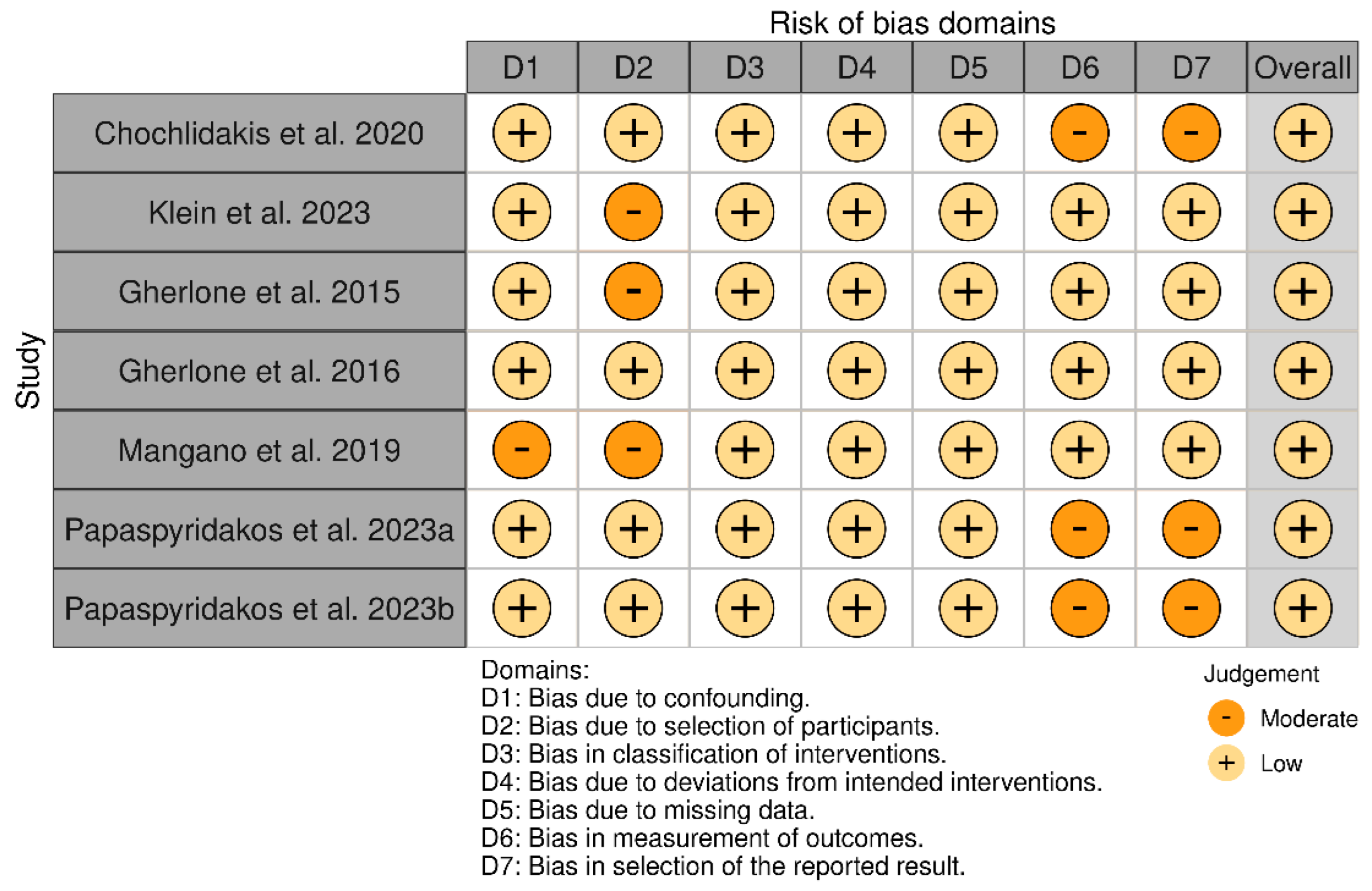

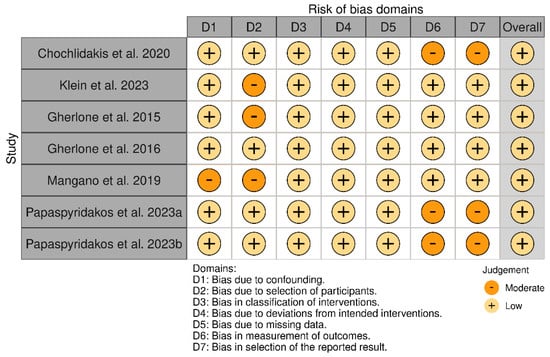

3.2. Risk of Bias in Studies
3.3. Evaluating the Certainty of Evidence
4. Discussion
5. Conclusions
- The survival rates and predictability of full-arch fixed prostheses created using the intraoral scanning method are comparable to those achieved with conventional impression techniques.
- The rates of technical and biological complications, as well as marginal bone loss, have shown similar outcomes for both the intraoral scanning method and conventional impressions.
- The clinical time required to perform procedures was significantly shorter when using the intraoral scanning method compared to the conventional technique, both at the implant and patient levels. However, the number of repeated procedures was lower with the traditional impression method. It is important to note that only a limited number of studies were included in this analysis.
- More prospective and controlled clinical studies are needed to strengthen clinical practices and recommendations.
